LINKSYS SVR200 Wireless-G ADSL/Ethernet Services Router User Manual AlexanderQIG
LINKSYS LLC Wireless-G ADSL/Ethernet Services Router AlexanderQIG
LINKSYS >
Manual
QUICK INSTALLATION GUIDE
Linksys One Wireless-G ADSL/Ethernet Services Router
Model SVR200
Linksys One Wireless-G ADSL/Ethernet Services Router
Linksys One Wireless-G ADSL/Ethernet Services Router

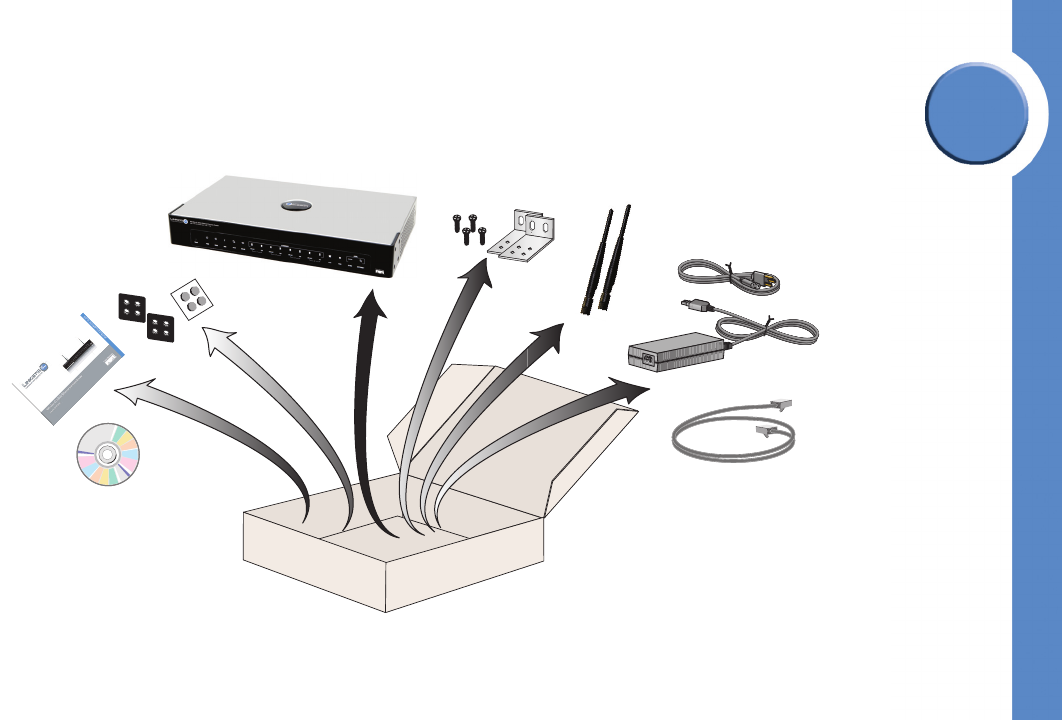

1
Linksys One Wireless-G ADSL Services Router
#ABLESX
s7AN
s%THERNET
s!$3,3PLITTER
s&83
s&8/
Linksys One Wireless-G ADSL/Ethernet Services Router

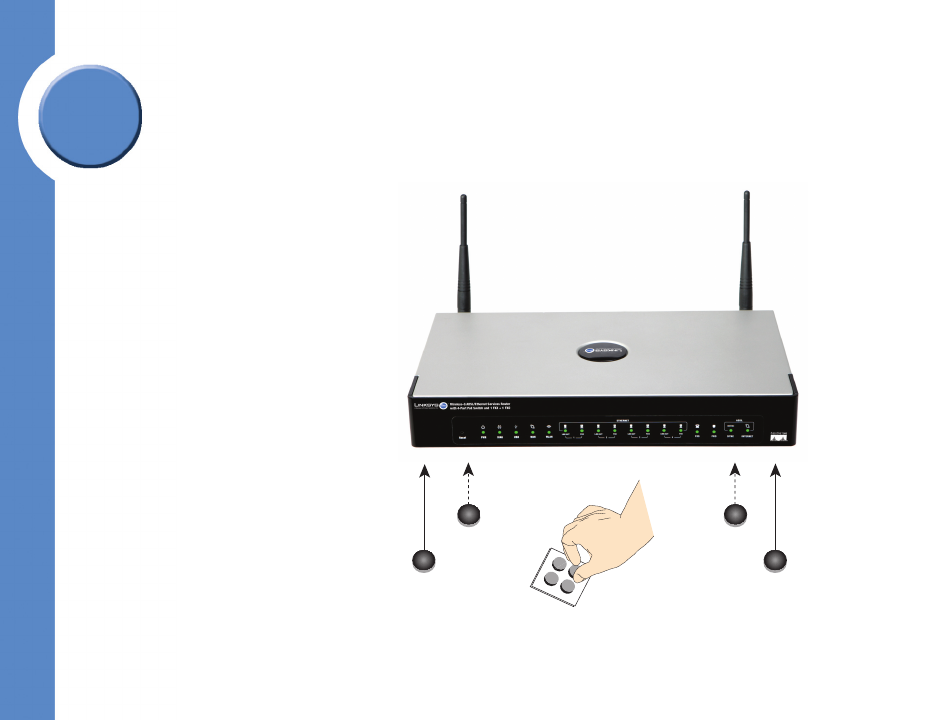

2Install: Desktop
Linksys One Wireless-G ADSL/Ethernet Services Router
3
Install: Wall
TM
181383
87
mm
43
mm
Linksys One Wireless-G ADSL/Ethernet Services Router

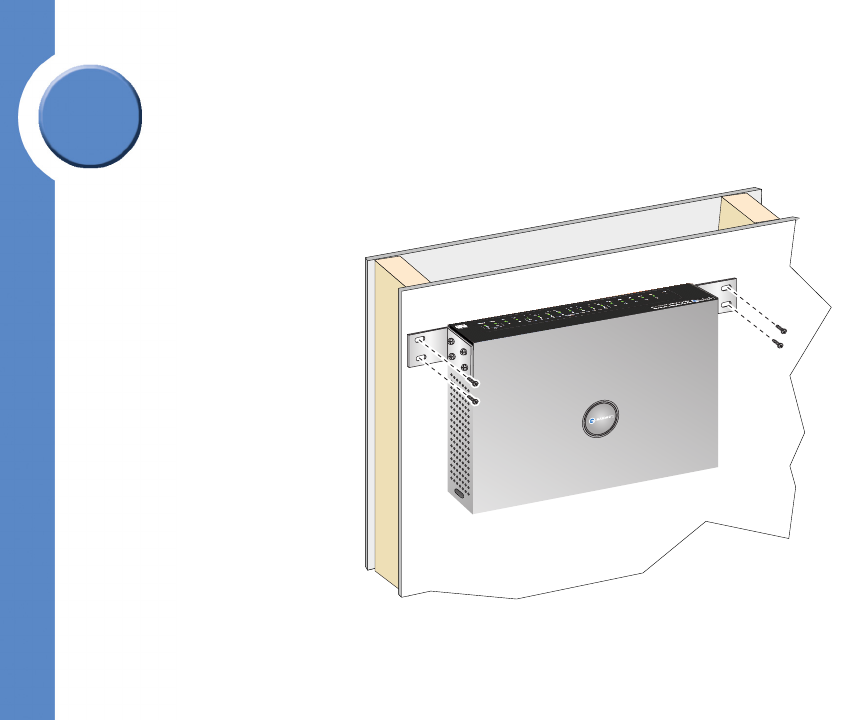

4Install: Wall
181384
TM
Linksys One Wireless-G ADSL/Ethernet Services Router
5

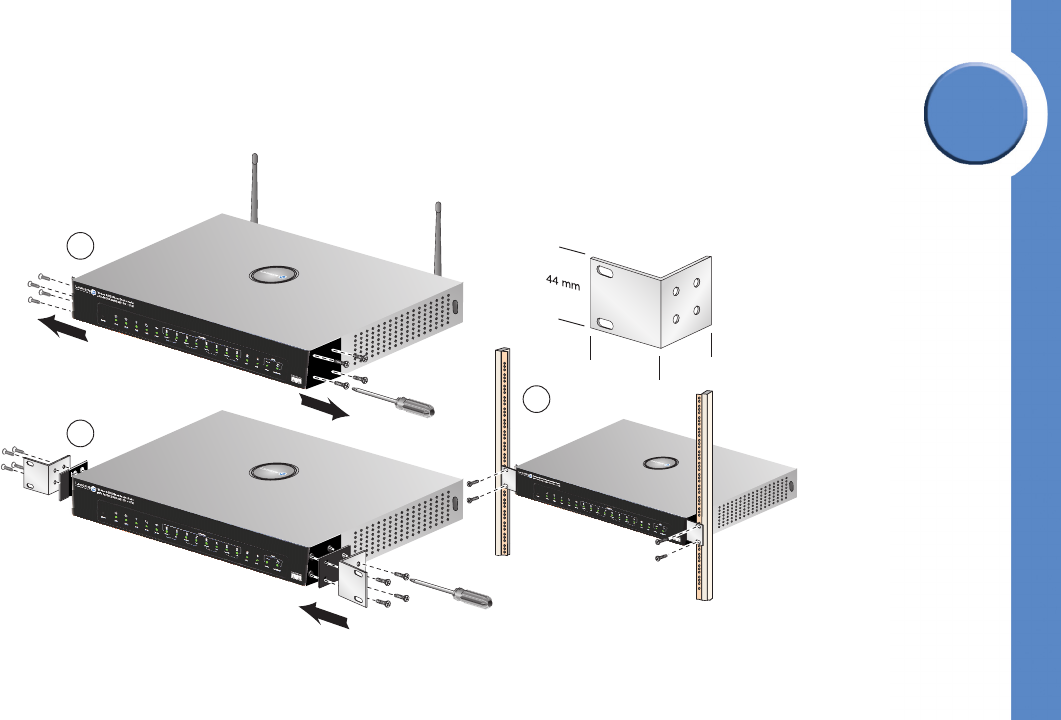

Install: Rack
TM
TM
TM
1
81385
3
2
1
87
mm
43
mm
Linksys One Wireless-G ADSL/Ethernet Services Router

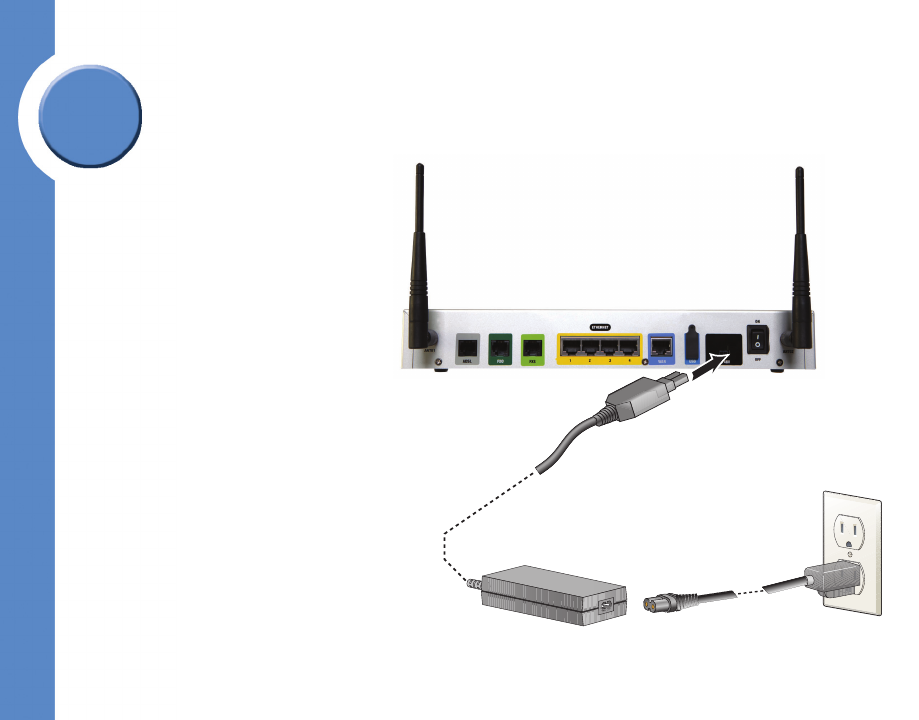

6Connect to Power
Linksys One Wireless-G ADSL/Ethernet Services Router
7

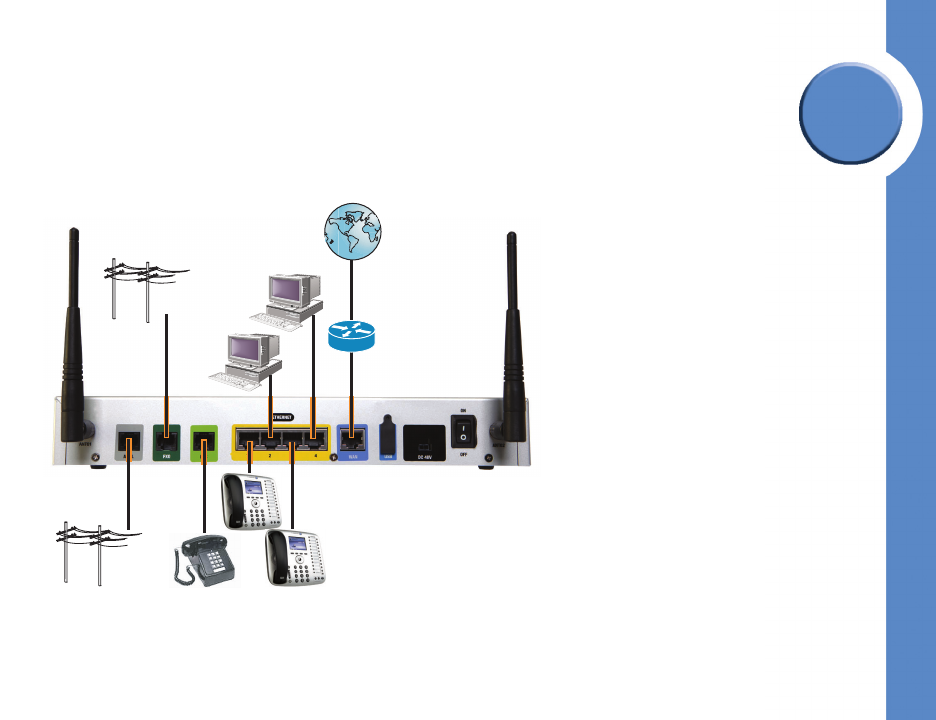

Connect Devices
!$3,
&8/
Linksys One Wireless-G ADSL/Ethernet Services Router
Regulatory Compliance and Safety Information
The Linksys One SVR200 Services Router meets the following regulatory compliance and safety standards:
Specification Description
Regulatory Compliance Products with the CE Marking indicate compliance with the 89/336/EEC and 73/23/EEC
directives, which include the safety and EMC standards listed below.
Safety
UL 60950-1
IEC 60950-1 CB / PSB
CSA-C22.2 No. 60950
EN 60950
EMC
FCC Part 15 (CFR 47) Class B
ICES-003 Class 3
EN 55022 Class B
CISPR22 Class B
EN 55024
EN 50082-1
EN 61000-3-2
EN 61000-3-3
EN 61000-6-1
Linksys One Wireless-G ADSL/Ethernet Services Router
FCC REQUIREMENTS
This equipment complies with Part 68 of FCC Rules. On the bass unit of this equipment is a label that
contains, among other information, the FCC Registration Number and Ringer Equivalence Number
(REN) for this equipment. IF REQUESTED, THIS INFORMATION MUST BE GIVEN TO THE TELEPHONE
COMPANY.
The REN is useful to determine the quantity of devices you may connect to your telephone line and still
have those entire devices ring when your telephone number is called. In most, but not all areas, the sum
of the REN of all devices connected to one line should not exceed five (5.0). To be certain of the number
of devices you may connect to you line, as determined by the REN, you should contact your local
telephone company to determine the maximum REN for your calling area.
If your equipment causes harm to the telephone network, the telephone company may discontinue your
service temporarily. If possible, they will notify you in advance. But if advance notice is not practical,
you will be notified as soon as possible. You will be informed of your right to file a complaint with the
FCC. Your telephone company may make changes in its facilities, equipment, operations or procedures
that could affect the proper functioning of your equipment. If they do, you will be notified in advance to
give you an opportunity to maintain uninterrupted telephone service.
If you experience trouble with this telephone equipment, please contact the following address and
phone number for information on obtaining service or repairs.
Linksys One Wireless-G ADSL/Ethernet Services Router
The telephone company may ask that you disconnect this equipment from the network until the problem
has been corrected or until you are sure that the equipment is not malfunctioning.
This equipment may not be used on coin service provided by the telephone company. Connection to
party lines is subject to state tariffs.
Company: Cisco-Linksys LLC
Address: 121 Theory Drive, Irvine, CA 92612, U.S.A.
Tel no.: 949-823-3188
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
Linksys One Wireless-G ADSL/Ethernet Services Router
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution
Any changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Information to User
Any changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate this equipment. Shielded interface cable, if any, must be used in
order to comply with emission limits.
Linksys One Wireless-G ADSL/Ethernet Services Router
IMPORTANT NOTE
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator &
your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
The availability of some specific channels and/or operational frequency bands are country dependent
and are firmware programmed at the factory to match the intended destination. The firmware setting is
not accessible by the end user.
Industry Canada statement
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Linksys One Wireless-G ADSL/Ethernet Services Router
The Class [B] digital apparatus meets all requirements of the Canadian Interference-Causing
Equipment Regulation.
Cet appareil numerique de la class [B] respecte toutes les exigences du Reglement sur le materiel
brouilleur du Canada.
IMPORTANT NOTE
Radiation Exposure Statement
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20cm between the radiator & your
body.
This device has been designed to operate with an antenna having a maximum gain of 4 dB. Antenna
having a higher gain is strictly prohibited per regulations of Industry Canada. The required antenna
impedance is 50 ohms.
Linksys One Wireless-G ADSL/Ethernet Services Router
REN (Ringer Equivalent Numbers) Statement
''NOTICE: The Ringer Equivalence Number (REN) assigned to each terminal device provides an
indication of the maximum number of terminals allowed to be connected to a telephone interface. The
termination on an interface may consist of any combination of devices subject only to the requirement
that the sum of the Ringer Equivalence Numbers of all the devices does not exceed 5.''
Attachment Limitations Statement
''Notice: This equipment meets telecommunications network protective, operational and safety
requirements as prescribed in the appropriate Terminal Equipment Technical Requirements document(s).
This is confirmed by marking the equipment with the Industry Canada certification number. The
Department does not guarantee the equipment will operate to the user's satisfaction.
Before installing this equipment, users should ensure that it is permissible to be connected to the facilities
of the local telecommunications company. The equipment must also be installed using an acceptable
method of connection. The customer should be aware that compliance with the above conditions may
not prevent degradation of service in some situations.
Repairs to certified equipment should be coordinated by a representative designated by the supplier.
Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the
telecommunications company cause to request the user to disconnect the equipment.
Linksys One Wireless-G ADSL/Ethernet Services Router
Users should ensure for their own protection that the electrical ground connections of the power utility,
telephone lines and internal metallic water pipe system, if present, are connected together. This
precaution may be particularly important in rural areas.
Caution: Users should not attempt to make such connections themselves, but should contact the
appropriate electric inspection authority, or electrician, as appropriate.''
Linksys One Wireless-G ADSL/Ethernet Services Router
Environmental Specifications
Dimensions 12.1” x 7.08” x 1.73” (308 mm x 180 mm x 44 mm)
Unit Weight 3.03 lbs. (1.376kg)
Power 48 VDC
Certification
FCC/IC (USA/Canada) EMI: Part 15B/ICES-003
FCC (USA) Telecom, Part 68; Wireless, Part 15C
IC (Canada) Telecom, CS-03; Wireless, RSS-210
UL/cUL (USA/Canada) Safety: UL 60950-1
CE (Europe) EMI EN 55022, EN 55024, EN 60950-1
CE (Europe) Telecom, TBR21; Wireless, EN 301 489-17, EN300 328-2
Frequency Authority for 28 Country
C-tick (Australia and New Zealand) AS/NZS CISPR22
CB (worldwide) IEC6090-1
Operating Temp 0°C to 40°C (32°F to 104°F)
Storage Temp -20°C to 70°C (-4°F to 158°F)
Operating Humidity 10 to 90 % relative humidity, Non-Condensing
Storage Humidity 5 to 95% relative humidity, Non-Condensing
Linksys One Wireless-G ADSL/Ethernet Services Router
Safety Information
The following statements are warnings or safety guidelines. A warning means danger. You are in a
situation that could cause bodily injury. Before working on equipment, be aware of the hazards
involved with electrical circuitry and standard safety practices to prevent accidents.
Warning
IMPORTANT SAFETY INSTRUCTIONS
This warning means danger. You are in a situation that could cause bodily injury. Before working
on equipment, be aware of the hazards involved with electrical circuitry and standard safety
practices to prevent accidents. Use the statement number provided at the end of each warning to
locate its translation in the translated safety warnings that accompanied this device.
SAVE THESE INSTRUCTIONS
Warning
Work During Lightning Activity
Do not work on the system or connect or disconnect cables during periods of lightning activity.
Warning
Installation Instructions
Read the installation instructions before connecting the system to the power source.
Linksys One Wireless-G ADSL/Ethernet Services Router
Warning
SELV Circuit
To avoid electric shock, do not connect safety extra-low voltage (SELV) circuits to telephone-network
voltage (TNV) circuits. LAN ports contain SELV circuits, and WAN ports contain TNV circuits. Some
LAN and WAN ports both use RJ-45 connectors. Use caution when connecting cables.
Warning
Equipment Installation
Only trained and qualified personnel should be allowed to install, replace, or service this
equipment.
Warning
Comply with Local National Electrical Codes
Installation of the equipment must comply with local and national electrical codes.
Warning
Product Disposal
Ultimate disposal of this product should be handled according to all national laws and regulations.
Caution
Inline power circuits provide current through the communication cable. Use the Linksys provided
cable or a minimum 24 AWG communications cable.
Linksys One Wireless-G ADSL/Ethernet Services Router
Power Safety Warnings
Warning
TN Power
The device is designed to work with TN power systems.
Warning
Ground Conductor Warning
Never defeat the ground conductor or operate the equipment in the absence of a suitably installed
ground conductor. Contact the appropriate electrical inspection authority or an electrician if you are
uncertain that suitable grounding is available.
Warning
Power Supply Installation Warning
The power supply must be placed indoors.
Warning
Circuit Breaker
This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that
the protective device is rated not greater than: 120 VAC, 15A U.S. (240 VAC, 10A international)
Linksys One Wireless-G ADSL/Ethernet Services Router
Warning
Main Disconnecting Device
The plug-socket combination must be accessible at all times, because it serves as the main
disconnecting device.
Caution
Only use the Linksys-specified power supply. Refer to the installation manual provided with this
product.
Linksys One Wireless-G ADSL/Ethernet Services Router
Linksys Software License Agreement v.2.14.05
This license agreement is between you and Cisco-Linksys LLC ("Linksys"). By downloading or installing the software, or using the product
containing the software, you are consenting to be bound by this agreement. If you do not agree to all of these terms, then you many not
download, install or use the software. You may return unused software (or, if the software is supplied as part of another product, the
unused product) for a full refund up to 30 days after original purchase, subject to the return process and policies of the party from which
you purchased such product or software.
License. Subject to the terms and conditions of this Agreement, Linksys grants the original end user purchaser of the Linksys product
containing the Software ("You") a nonexclusive license to use the Software solely as embedded in or (where authorized in the applicable
documentation) for communication with such product. This license may not be sublicensed, and is not transferable except to a person or
entity to whom you transfer ownership of the complete Linksys product containing the Software, provided you permanently transfer all
rights under this Agreement and do not retain any full or partial copies of the Software, and the recipient agrees to the terms of this
Agreement.
"Software" includes, and this Agreement will apply to (a) the Linksys software provided in or with the applicable Linksys product, and (b)
any upgrades, updates, bug fixes or modified versions ("Upgrades") or backup copies of the Software supplied to You by Linksys or an
authorized reseller, provided you already hold a valid license to the original software and have paid any applicable fee for the Upgrade.
Protection of Information. The Software and documentation contain trade secrets and/or copyrighted materials of Linksys or its suppliers.
You will not decompile, decrypt, reverse engineer, or disassemble the Software (except to the extent expressly permitted by law
notwithstanding this provision), and will not disclose or make available such trade secrets or copyrighted material in any form to any third
party. Title to Software and documentation will remain solely with Linksys.
Open Source Software. The GPL source code incorporated into the Software is available for free download at http://www.linksys.com/
gpl. If You would like a copy of the GPL source code in this Software on a CD, Linksys will mail to You a CD with such code for $9.99 plus
the cost of shipping upon request.
Term and Termination. You may terminate this License at any time by destroying all copies of the Software and documentation. Your rights
under this license will terminate immediately without notice from Linksys if you fail to comply with any provision of this Agreement.
Linksys One Wireless-G ADSL/Ethernet Services Router
Limited Warranty
Linksys warrants to the original end user purchaser of the Linksys Product (“You”) that for a period of five (5) years for the Linksys Product’s Hardware and for
a period of one (1) year for the Linksys Product’s fan and power supply (the “Warranty Period”), your Linksys Product will be substantially free of defects in
materials and workmanship under normal use. Your exclusive remedy and Linksys' entire liability under this warranty will be for Linksys at its option to repair
or replace the Product or refund Your purchase price less any rebates. This limited warranty extends only to the original purchaser.
If the Product proves defective during the Warranty Period call Linksys Technical Support in order to obtain a Return Authorization Number, if applicable. BE
SURE TO HAVE YOUR PROOF OF PURCHASE ON HAND WHEN CALLING. If You are requested to return the Product, mark the Return Authorization
Number clearly on the outside of the package and include a copy of your original proof of purchase.
RETURN REQUESTS CANNOT BE PROCESSED WITHOUT PROOF OF PURCHASE. You are responsible for shipping defective Products to Linksys. Linksys pays
for UPS Ground shipping from Linksys back to You only. Customers located outside of the United States of America and Canada are responsible for all
shipping and handling charges.
ALL IMPLIED WARRANTIES AND CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED TO THE DURATION OF THE
WARRANTY PERIOD. ALL OTHER EXPRESS OR IMPLIED CONDITIONS, REPRESENTATIONS AND WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF
NON-INFRINGEMENT, ARE DISCLAIMED. Some jurisdictions do not allow limitations on how long an implied warranty lasts, so the above limitation may not
apply to You. This warranty gives You specific legal rights, and You may also have other rights which vary by jurisdiction. This warranty does not apply if the
Product (a) has been altered, except by Linksys, (b) has not been installed, operated, repaired, or maintained in accordance with instructions supplied by
Linksys, or (c) has been subjected to abnormal physical or electrical stress, misuse, negligence, or accident. In addition, due to the continual development of
new techniques for intruding upon and attacking networks, Linksys does not warrant that the Product will be free of vulnerability to intrusion or attack.
THE EXTENT NOT PROHIBITED BY LAW, IN NO EVENT WILL LINKSYS BE LIABLE FOR ANY LOST DATA, REVENUE OR PROFIT, OR FOR SPECIAL, INDIRECT,
CONSEQUENTIAL, INCIDENTAL OR PUNITIVE DAMAGES, REGARDLESS OF THE THEORY OF LIABILITY (INCLUDING NEGLIGENCE), ARISING OUT OF OR
RELATED TO THE USE OF OR INABILITY TO USE THE PRODUCT (INCLUDING ANY SOFTWARE), LINKSYS ONE SVR200 SERVICES ROUTER EVEN IF
LINKSYS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO EVENT WILL LINKSYS’ LIABILITY EXCEED THE AMOUNT PAID BY YOU
FOR THE PRODUCT.
The foregoing limitations will apply even if any warranty or remedy provided under this Agreement fails of its essential purpose. Some jurisdictions do not
allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to You.
Please direct all inquiries to: Linksys, P.O. Box 18558, Irvine, CA 92623.
Linksys One Wireless-G ADSL/Ethernet Services Router
Linksys One Wireless-G ADSL/Ethernet Services Router
Linksys One Wireless-G ADSL/Ethernet Services Router
©2007 Cisco Systems, Inc. All rights reserved. Linksys is a registered trademark and the Linksys One logo is a trademark of Cisco Systems, Inc.
