LINKSYS USBBT100V2 Bluetooth USB Adapter User Manual User s manual new
LINKSYS LLC Bluetooth USB Adapter User s manual new
LINKSYS >
Users Manual
USB Adapter
Manual and
Application note
3.0
Index
INTRODUCTION 1
CHAPTER 1
Package 2
Features 2
Bluetooth profile support 2
Drivers support 3
CHAPTER 2
Setup for Windows 98SE/ME/2000/XP 4
CHAPTER 3
Application note for Windows
98SE/ME/2000/XP 11
Icons used for Bluetooth devices and
services 11
Network sharing setting for Windows 13
File transfer setting for Windows 24
Dial-up networking setting for Windows 27
FAX setting 30
PIM Item Transfer setting 31
PIM Synchronization setting 33

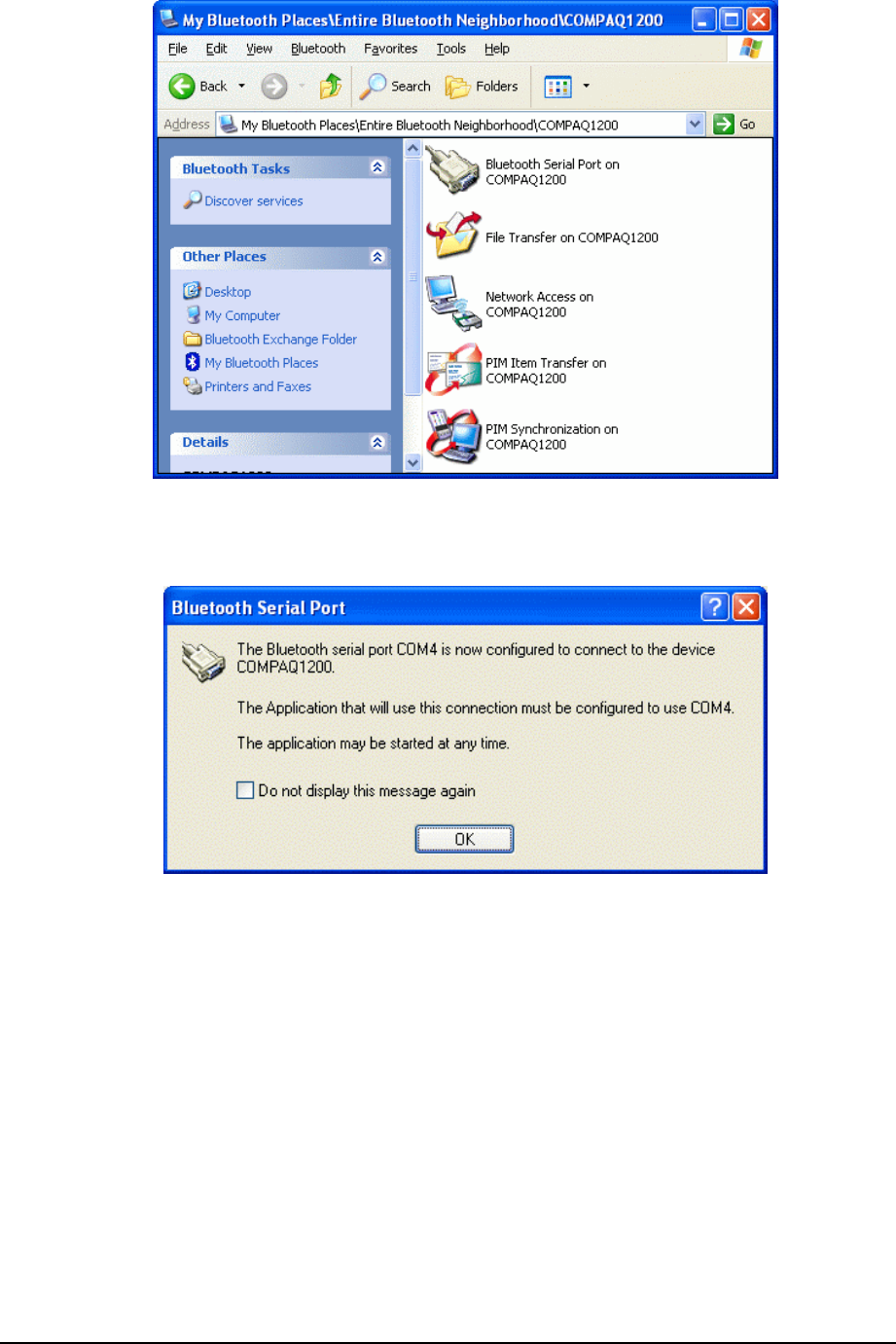

Serial Port setting 35
ActiveSync setting 36
Audio Gateway setting for windows 39
Personal area network setting for
Windows 41
CHAPTER 4
Advanced features 46
How to setup Hyper Terminal for
Bluetooth transfer 46
How to HotSync with Palm Bluetooth SDIO
and Tungsten T 52
How to dial-up from Palm Tungsten T to
my PC’s modem to surf the internet 55

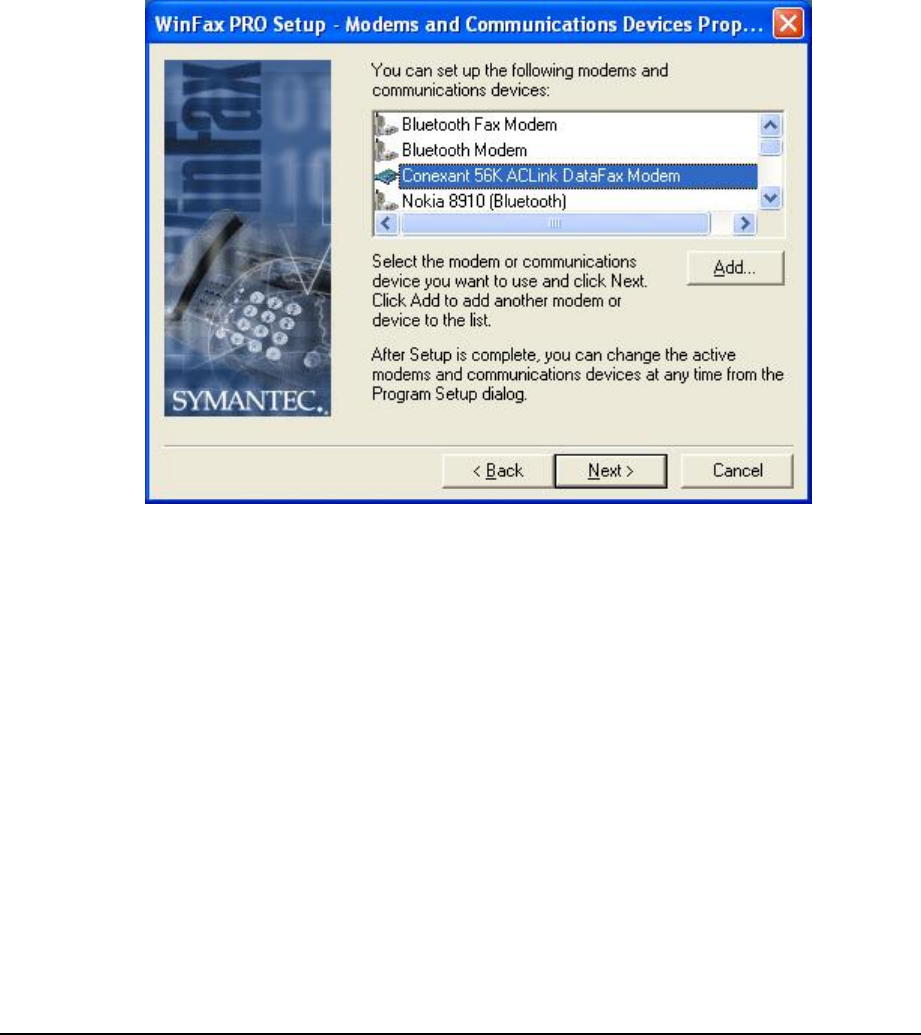

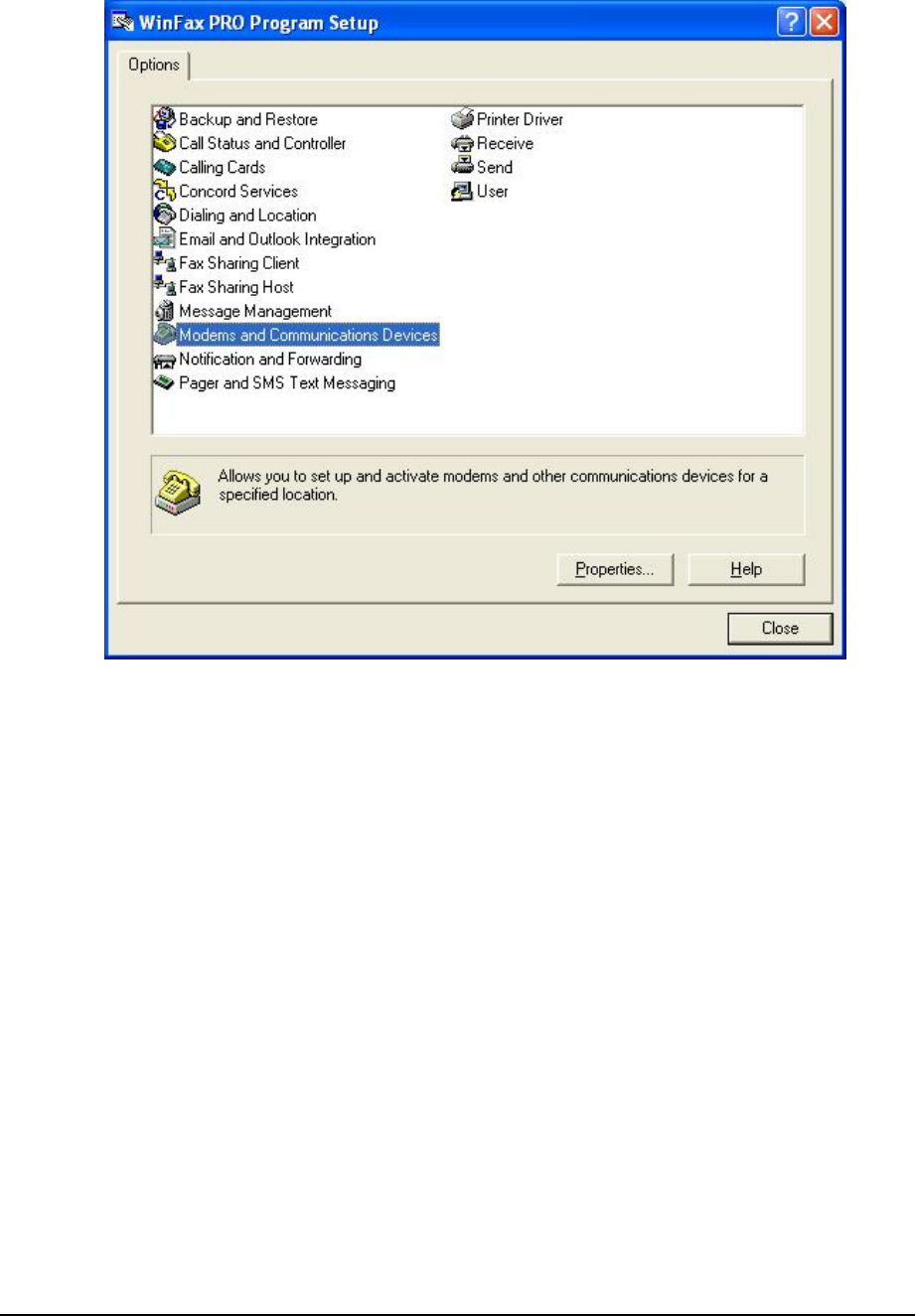

Sending FAX via mobile phone with
WinFAXPro 56
TROUBLESHOOTING
Troubleshooting 61
1
Introduction
Bluetooth is an open specification for a cutting-edge technology that enables short-range
wireless connections between desktop and laptop computers, personal digital assistants,
cellular phones, printers, scanners, digital cameras and even home appliances — on a
globally available band (2.4GHz) for worldwide compatibility. In a nutshell, Bluetooth
unplugs your digital peripherals and makes cable clutter a thing of the past. Now you can
connect your PDA or PC to Bluetooth™ enabled mobile phone with this Bluetooth™
adapter.
You can access e-mail & Internet no matter where you are with just a little help from your
Bluetooth™ mobile phone.
Plus, when you are back in the office, you can hook yourself up to your office network as
well as communicate with other Bluetooth™-enabled devices.
i
2
Chapter1
Package
One Bluetooth adapter
One driver and software disk
This user manual
Features
Bluetooth v1.2 compliant
USB Bluetooth adapter support full speed USB v1.1 Interface.
Wireless communication within a radius of 32 Feet (10 Meters) for Class 2 Bluetooth
devices.
Wireless communication within a radius of 328 Feet (100 Meters) for Class 1
Bluetooth devices.
Connect up to 7 different Bluetooth enabled devices
Encryption and authentication to ensure safe, secure communications
Low power consumption
Bluetooth profile support
Generic Access Profile (GAP)
Serial Port Profile (SPP)
Service Discovery Application Profile (SDAP)
Generic Object Exchange Profile (GOEP)
Object Push Profile (OPP)
File Transfer Profile (FTP)
Dial-up Network Profile (DUN)
LAN Access Profile (LAP)
1
3
Fax Profile (FAX)
Synchronization Profile
Headset Profile
Personal Area Network (PAN)
Human Interface Device (HID)
BIP Basic Image Profile (BBIP)
Drivers support
Windows 98SE, ME, 2000, XP
4
Chapter 2
Setup for Windows 98SE/ME/2000/XP
Installing Bluetooth software for Windows

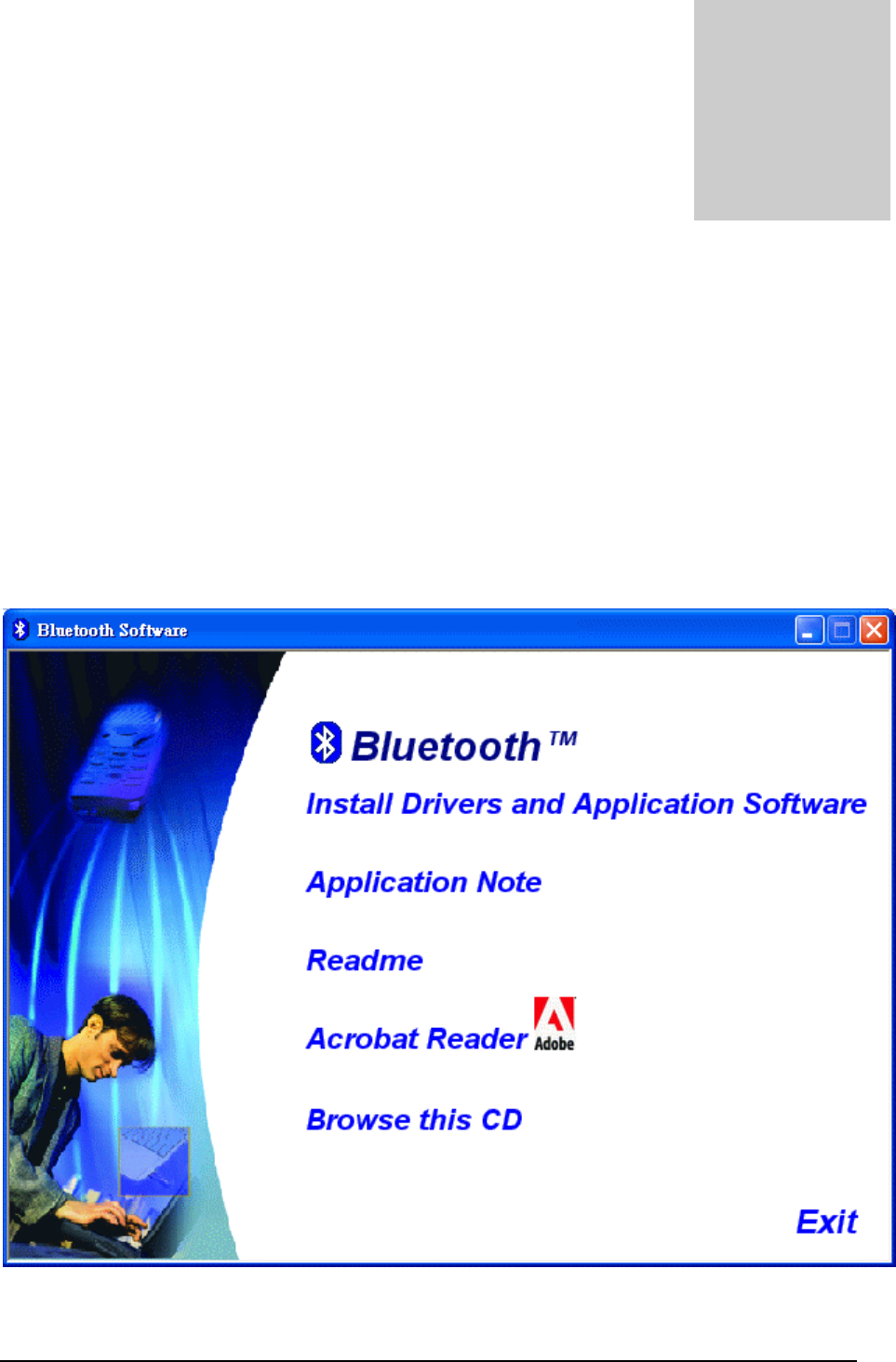

(1) Place installation CD into PC and the setup menu should launch automatically.
If the setup menu does not launch automatically, use Windows Explorer to navigate to the
appropriate CD-ROM drive and run "bsetup".

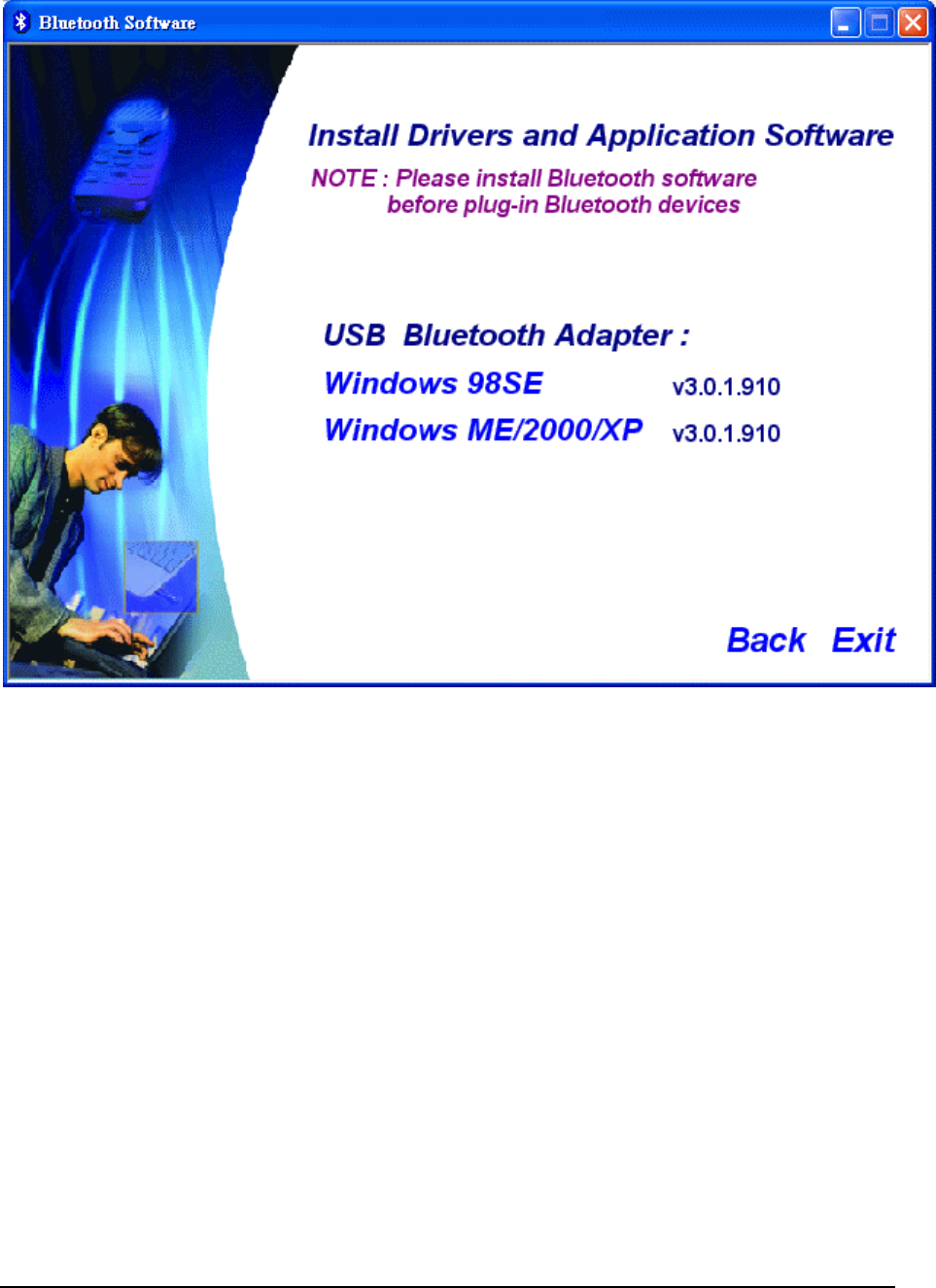

(2) Select “Install Drivers and Application Software”.
2
5
(3) Please select your device from the menu.
6
(4) Complete the following steps to install Bluetooth software:
(a) Exit all applications.
(b) InstallShield Wizard setup dialog box will automatically be displayed.
(c) Follow the instructions on screen:

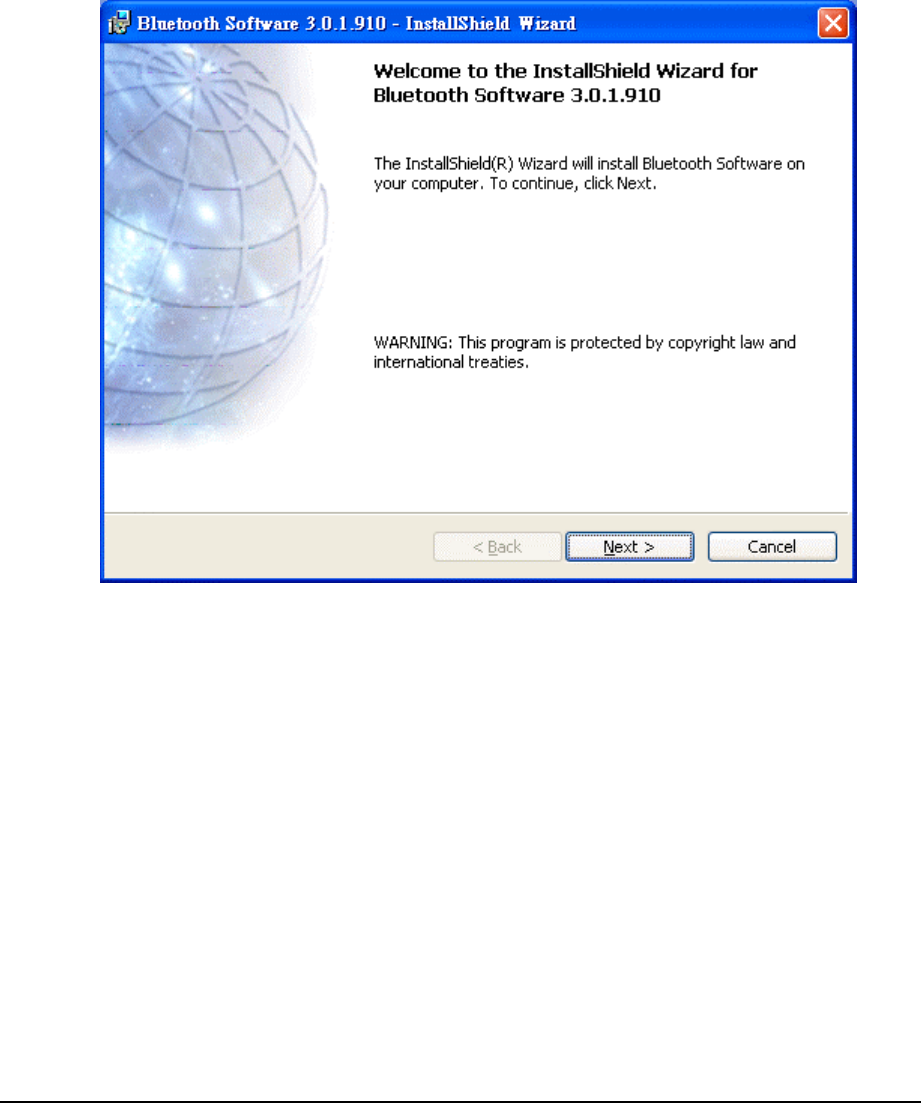

(d) On the Welcome screen, click the “Next“ button.
7

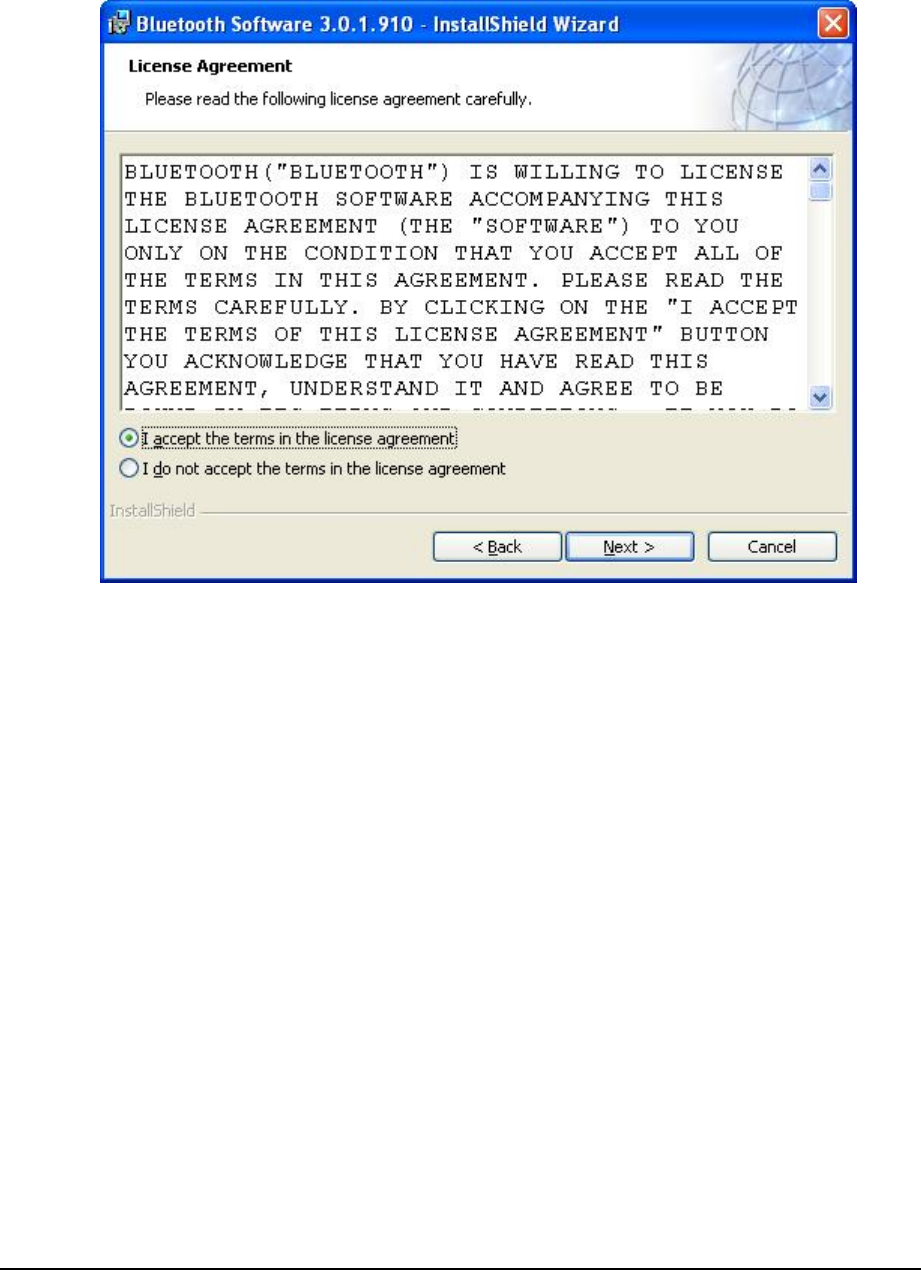

(e) When the License Agreement screen is displayed, read the License Agreement, then
click the radio button to the left of "I accept the terms in the license agreement" and
click the “Next“ button.
8

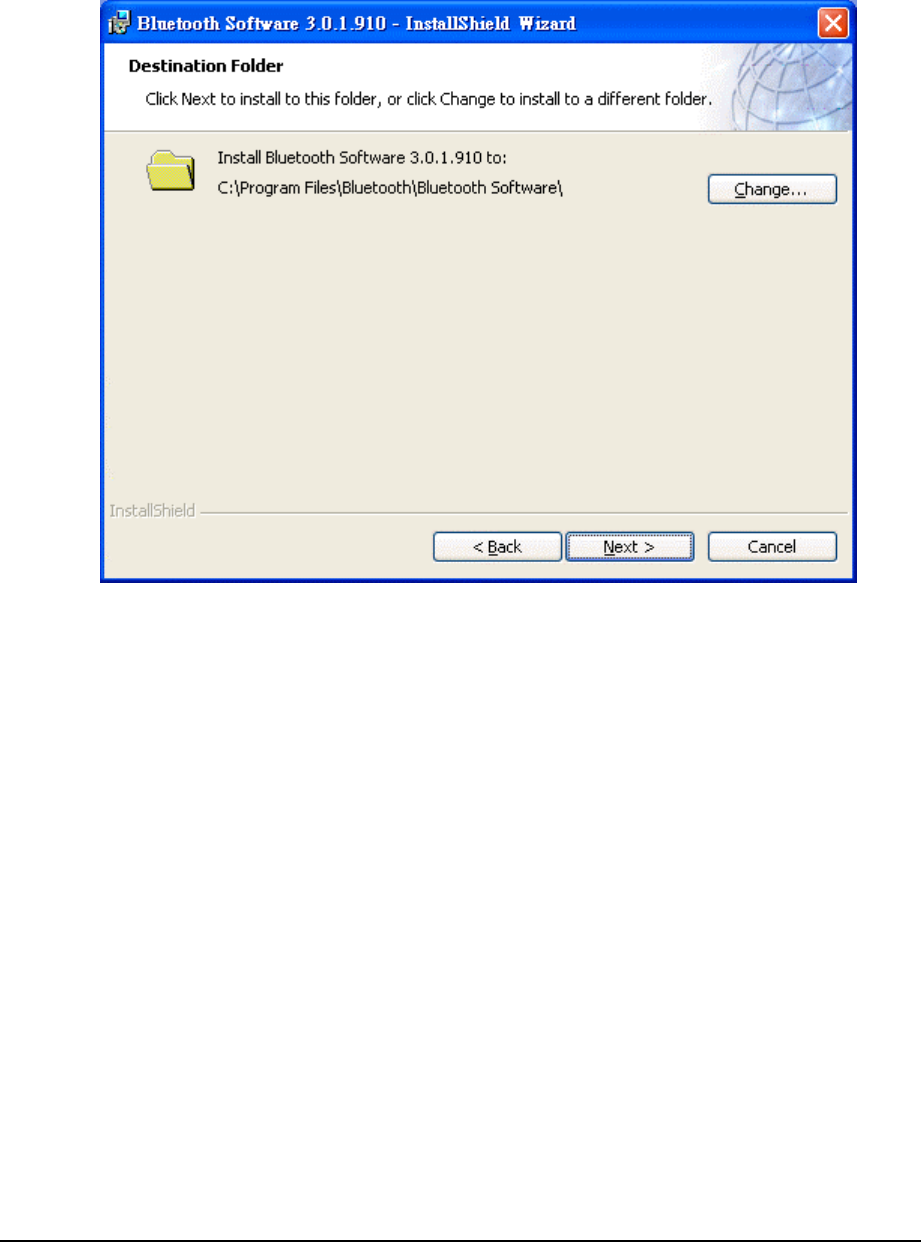

(f) You can choose the destination folder in your system, if you do not want to change the
destination folder please click “Next“. On the Destination Folder screen, click the Change
button to browse to a new destination folder for the Bluetooth software. Otherwise, click
the “Next“ button to accept the default folder.
9

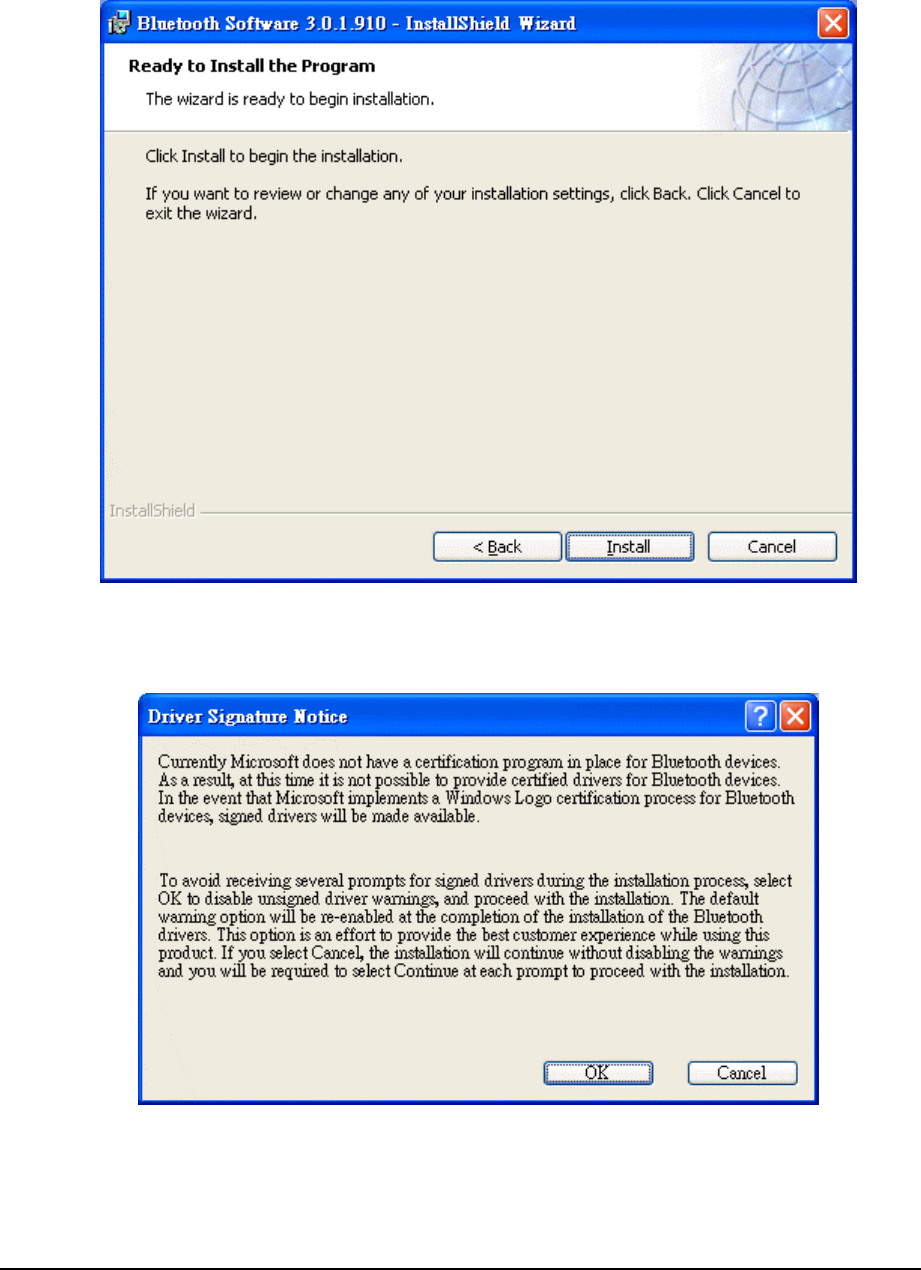

(g) The system is ready to install the Bluetooth software. If you need to review or change
any settings, click the "Back" button. Click the "Cancel" button to exit the Wizard.
Otherwise, click the "Install" button.
(h) For Windows 2000/XP users, system will popup a "Driver Signature Notice", please
click the "OK" button.
10

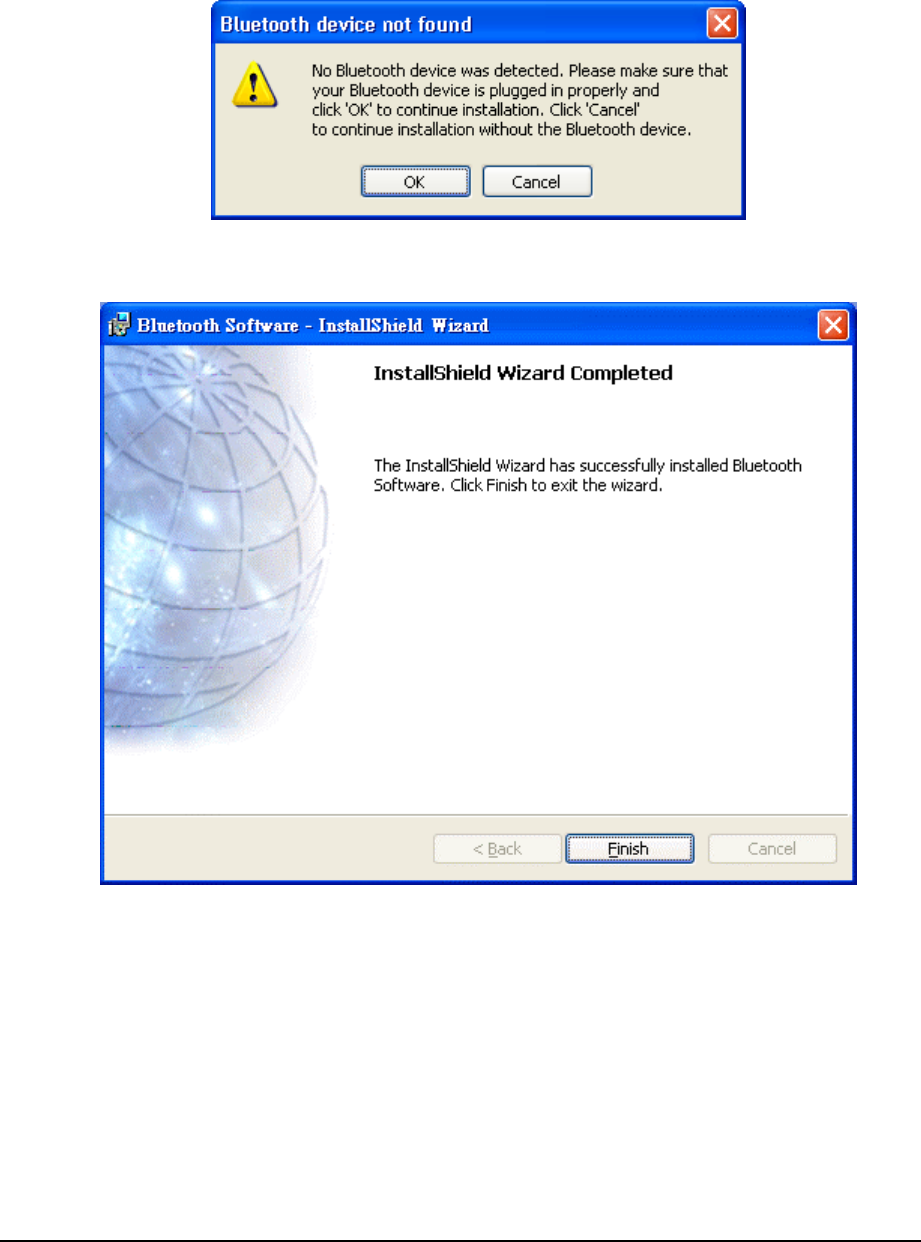

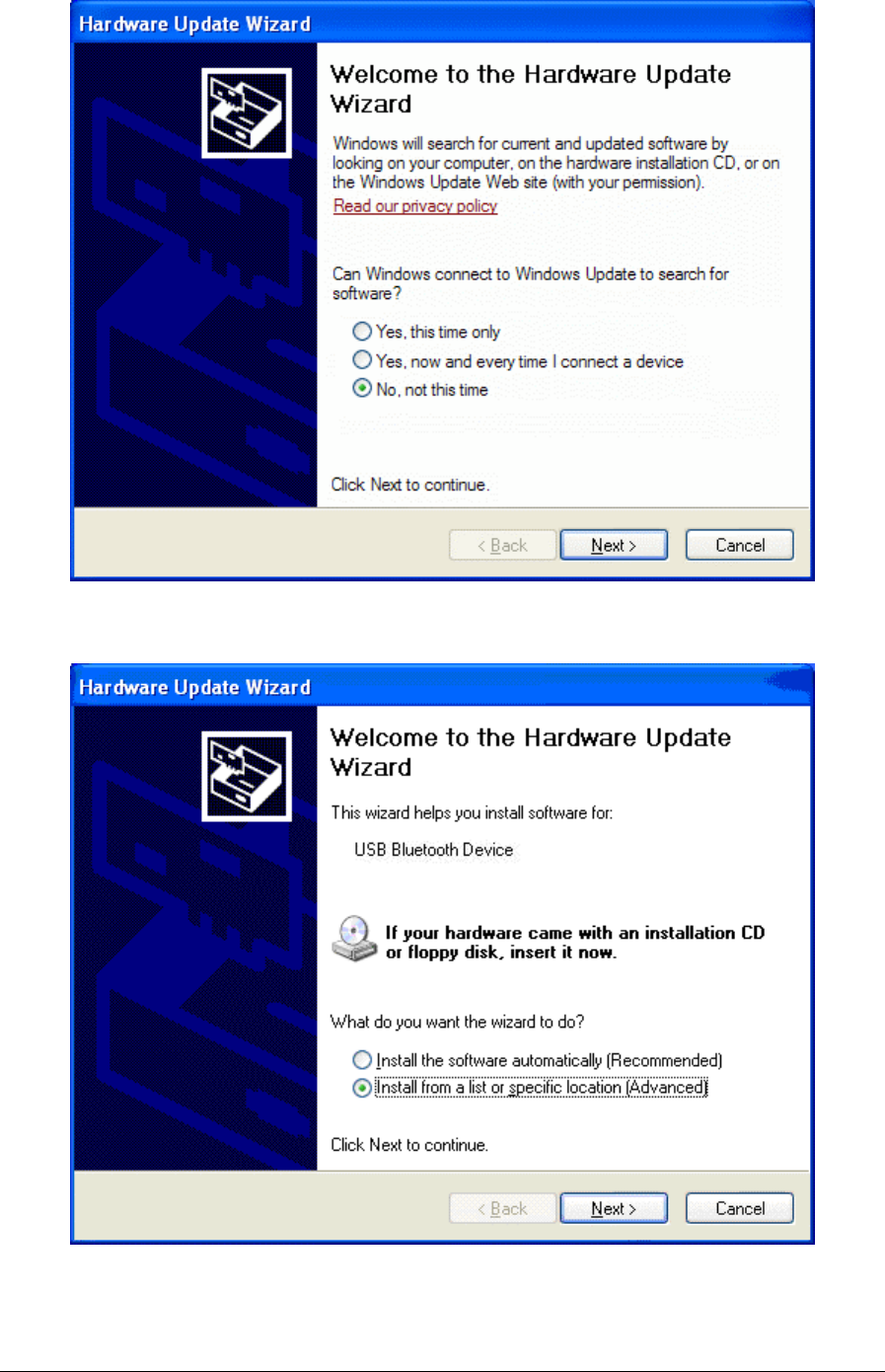

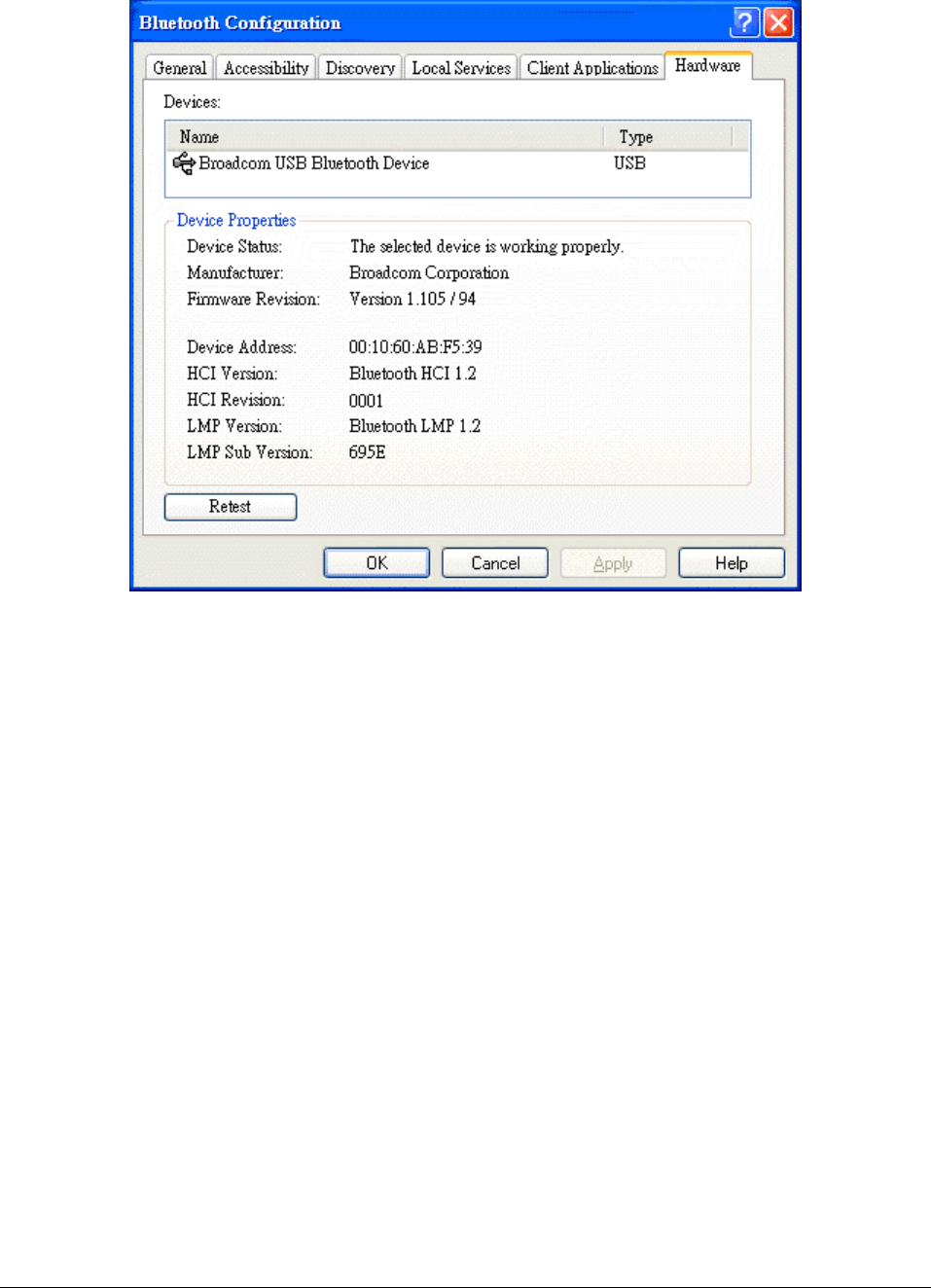

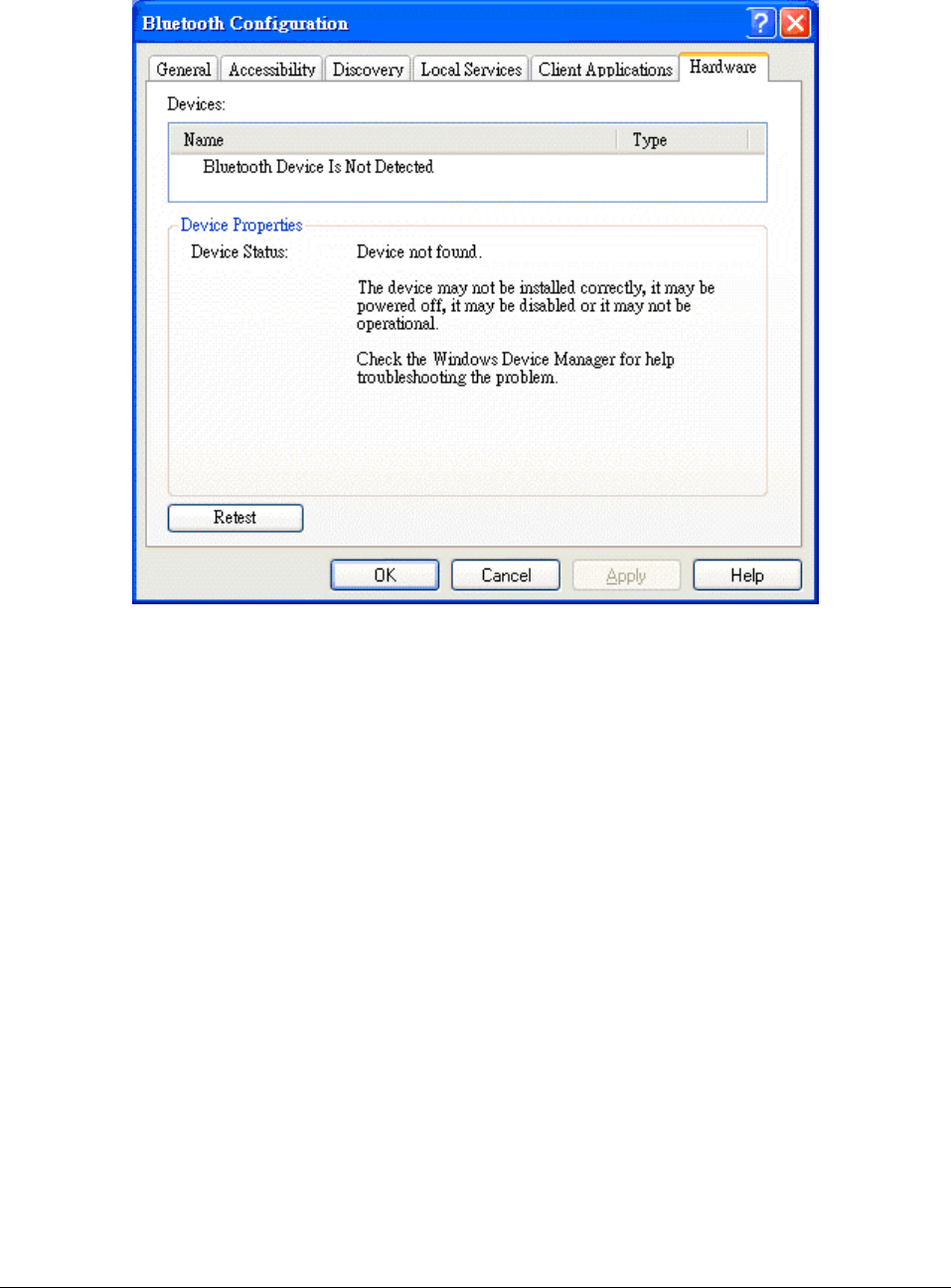

(i) During the installation, system will try to detect your Bluetooth device, please plug in
your Bluetooth device when the following message is displayed. Then click "OK" to
continue, or you can click "Cancel" to continue the installation without the Bluetooth
device.

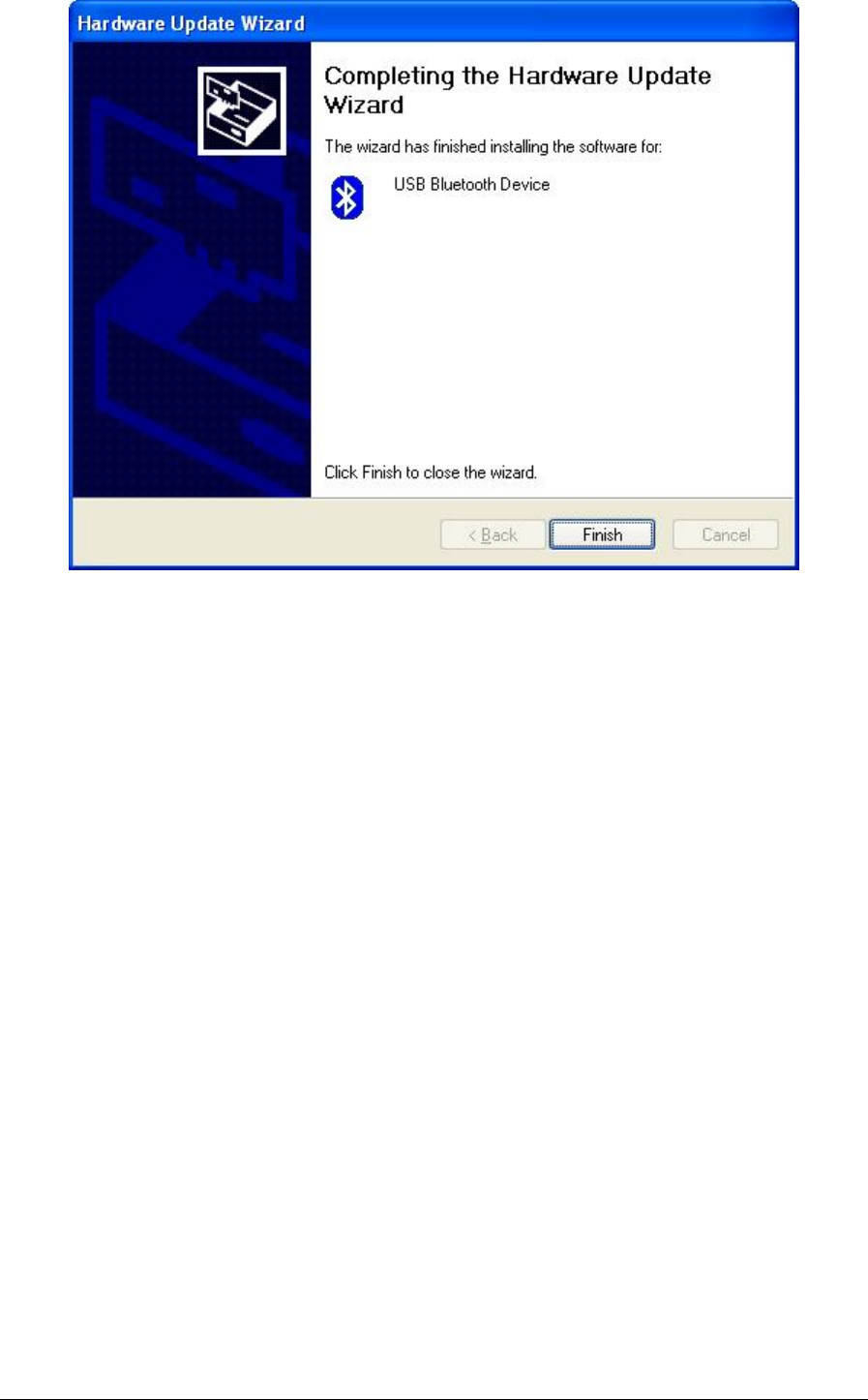

(j) When the installation is completed, please click the "Finish" button.
For more information of Bluetooth software Configuration & User’s Guide,
please refer to Chapter 3 of this application note.
11
Chapter 3
Application note for Windows 98SE/ME/2000/XP
3.1 Icons used for Bluetooth devices and services
Bluetooth icons provide at-a-glance feedback about a device or service's status by
changing appearance.
The Bluetooth icon in the Windows system tray provides feedback about Bluetooth status.

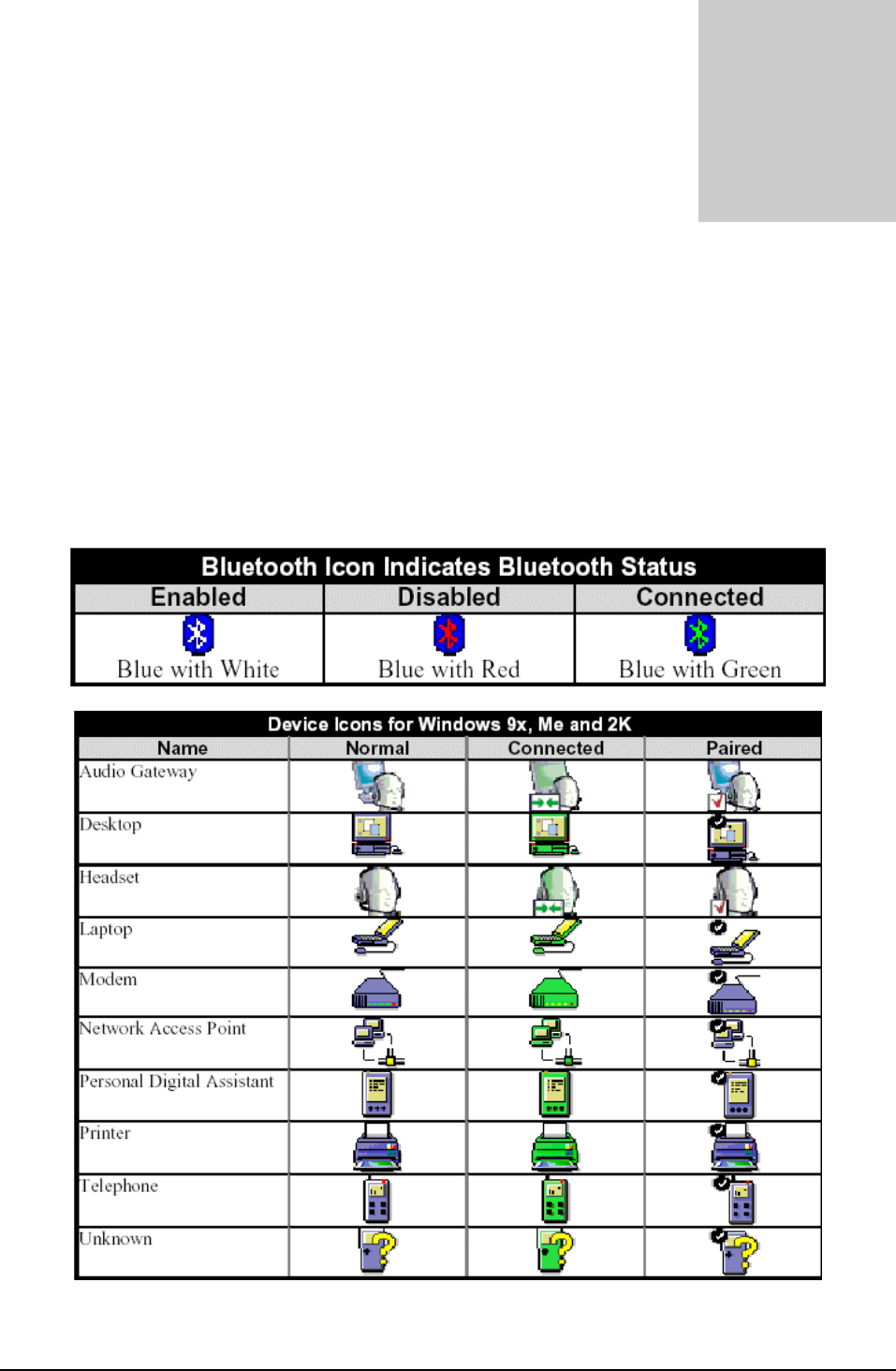

Basic Bluetooth Icon
Device Icons for Windows 98SE, Me and 2K

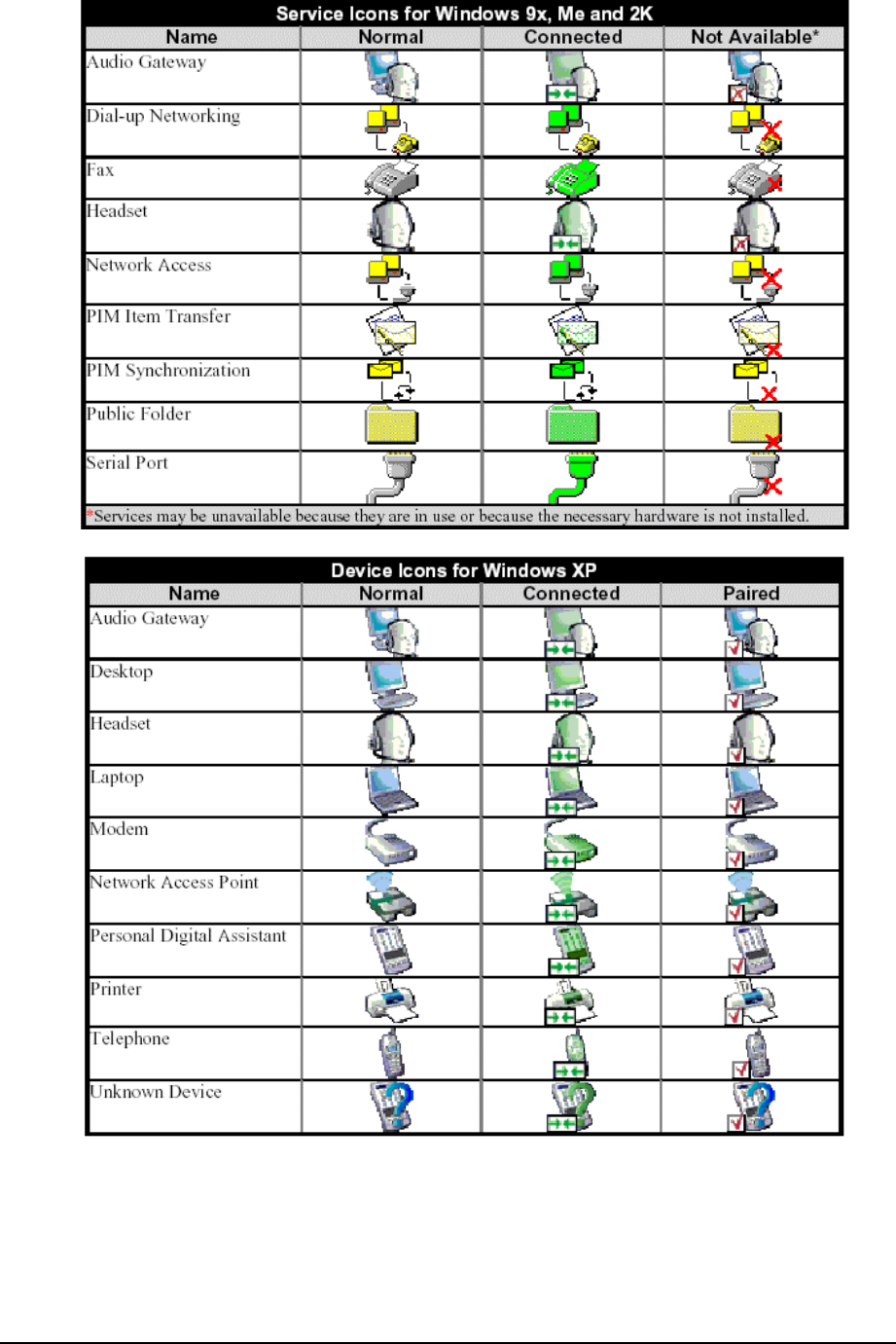

Service Icons for Windows 98SE, Me and 2K
3
12
Device Icons for Windows XP

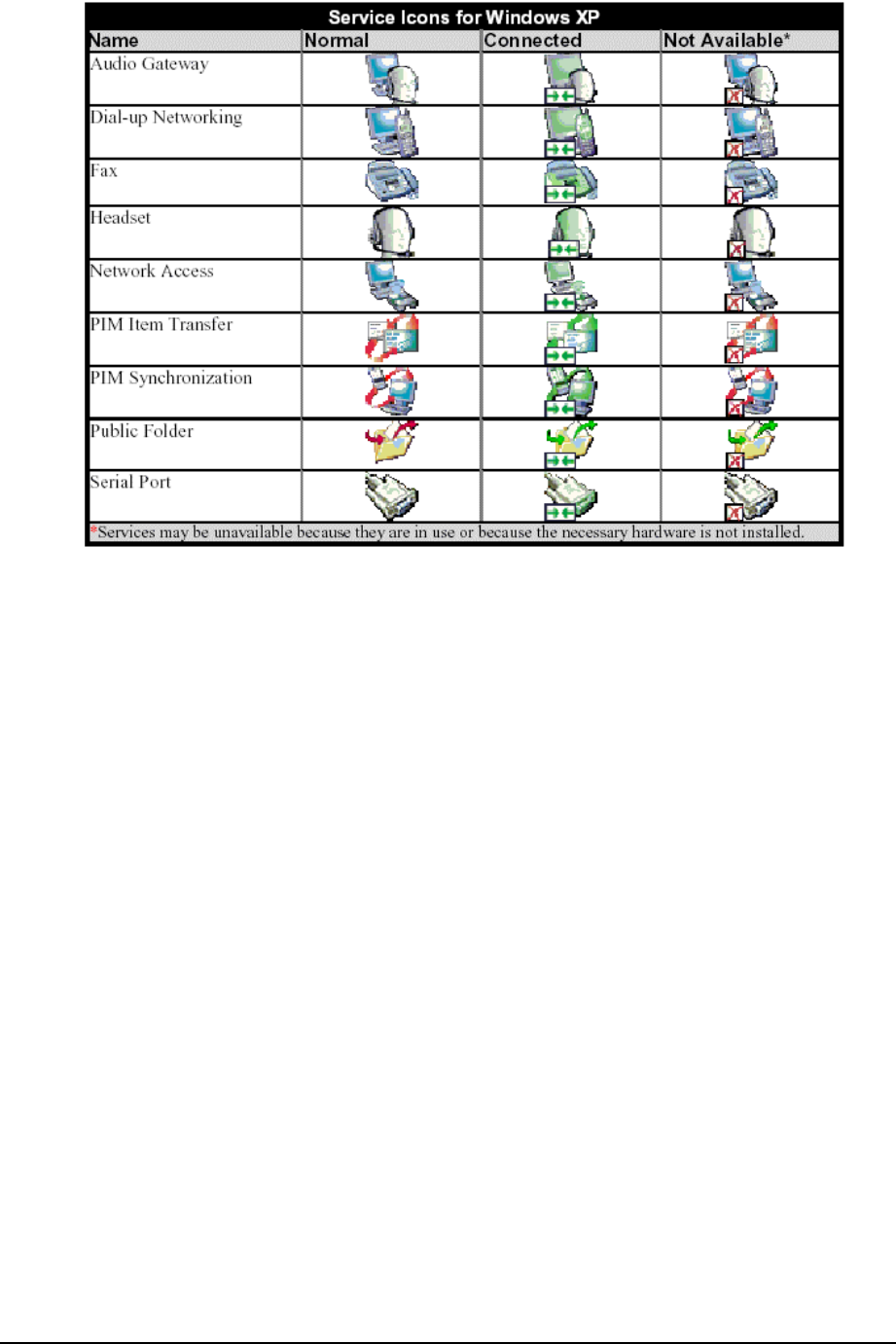

Service Icons for Windows XP
13
NOTE: Only available services are displayed in the menus
14
3.2. Network sharing setting for Windows
The Network Access service permits a Bluetooth enabled PC (client) to access the
Internet via another Bluetooth enabled PC (Server) that already has an Ethernet
connection.
Windows network sharing setting
PC to PC (Windows 2000 or Windows XP)
1. To enable Internet Connection Sharing on the server PC.
2. Click on Start menu → Network Connections and find your Local Area Connection
(LAN) that is connected to the Internet.
3. Right click the active LAN connection to open the "Properties" dialog box.
15
4. Click on "Advanced" tab and select the "Internet Connection Sharing" checkbox to
enable Internet sharing.
16

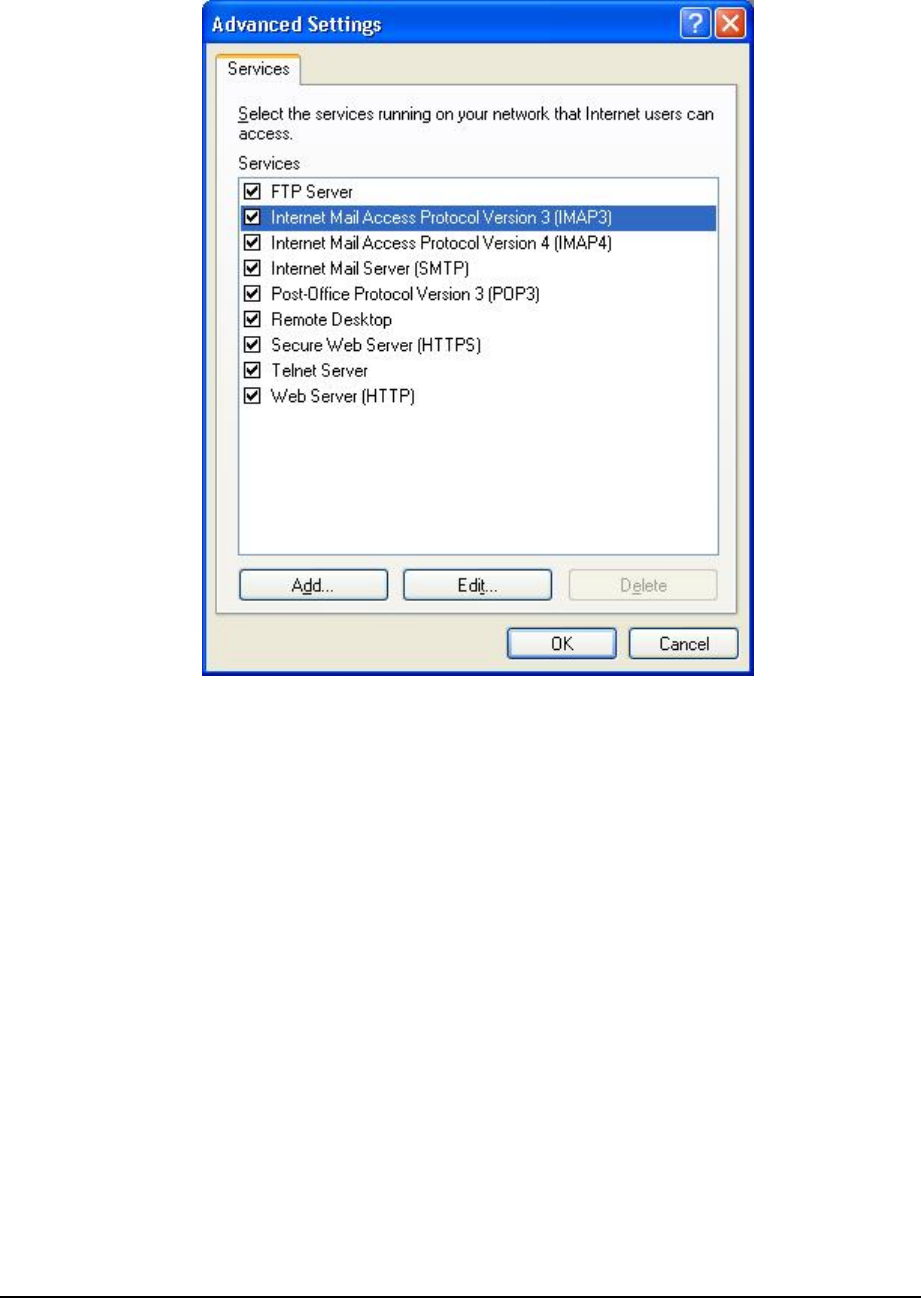

5. Click on "Settings..." button and select the services you wish to provide other
Bluetooth devices. Click "OK" to save the changes.
6. Go back to the “Network Connections" window, right click the "Bluetooth LAN
Access Server Driver" and select "Properties".
17

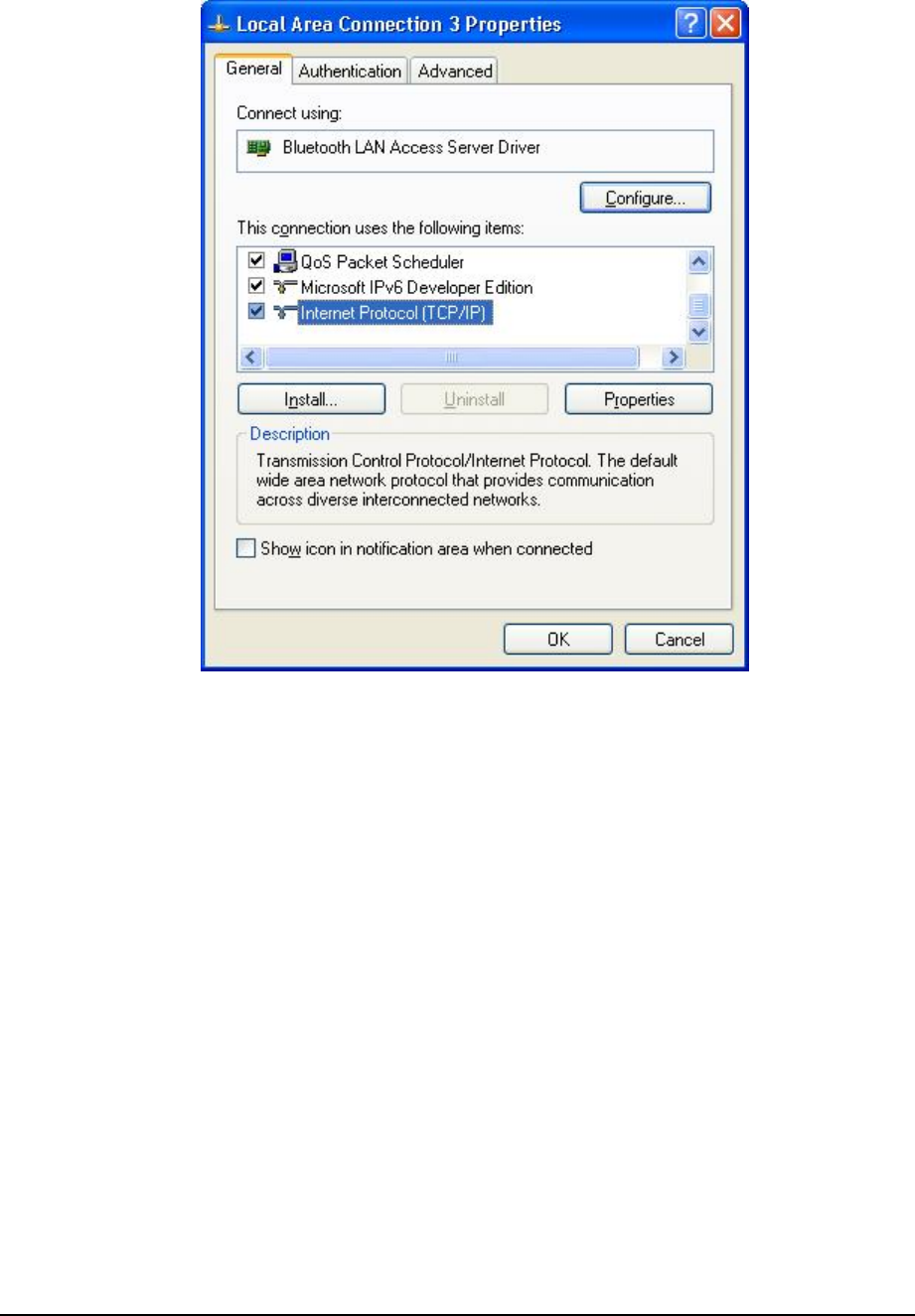

7. Under "General" tab, click on "Internet Protocol (TCP/IP)" and "Properties".
18
8. Under "General" tab, assign a virtual IP as shown in the picture below. Then click
"OK" to save the changes.
9. This allows the server PC to act as a DHCP server towards the client PCs.
NOTE: For Win98SE and WinMe, please download and install WinRoute (or
similar program) on the Server PC to allow DHCP service.
10. On the client PC, launch the Bluetooth software stack by clicking the "My Bluetooth
Places" icon located on the desktop.

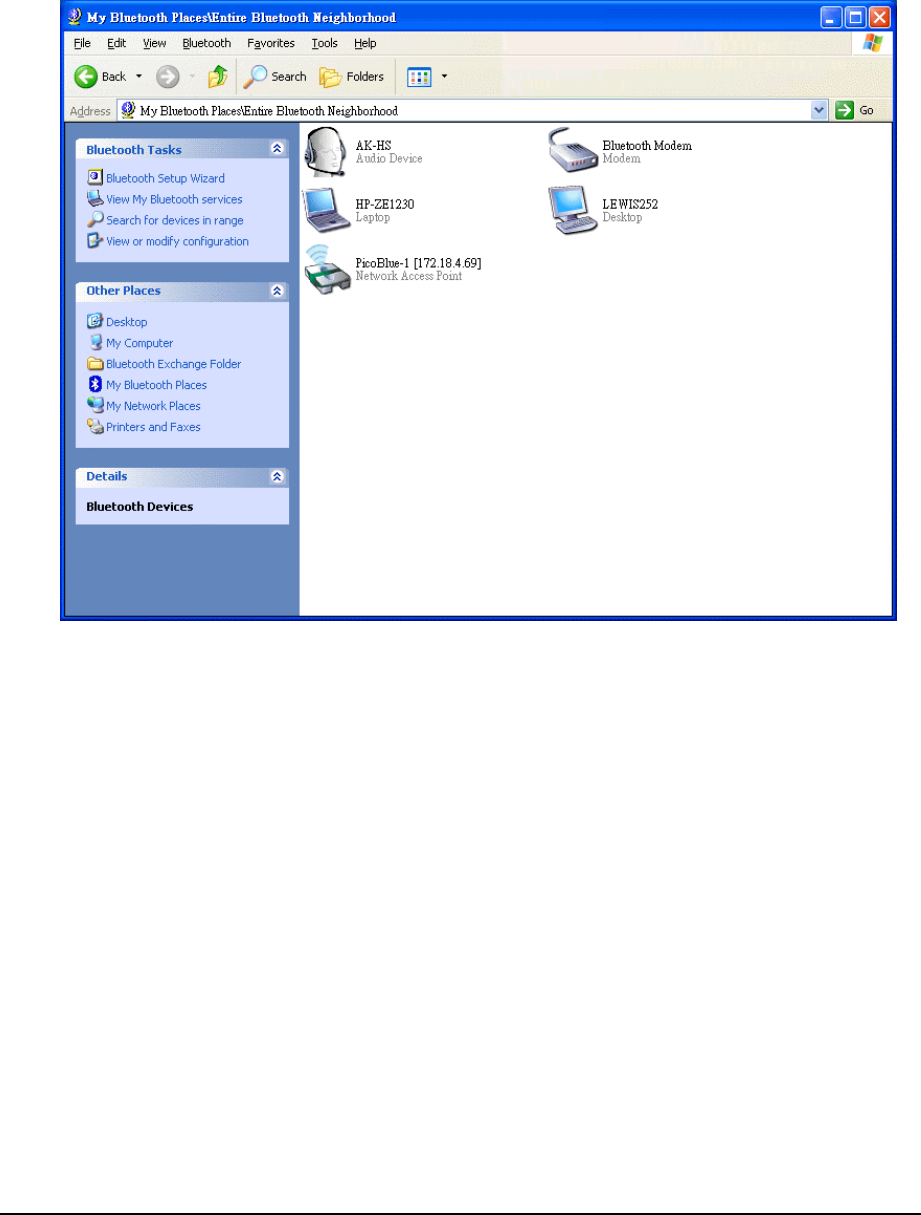

11. Click the "Search for devices in range" icon to search for other Bluetooth devices
nearby.
19

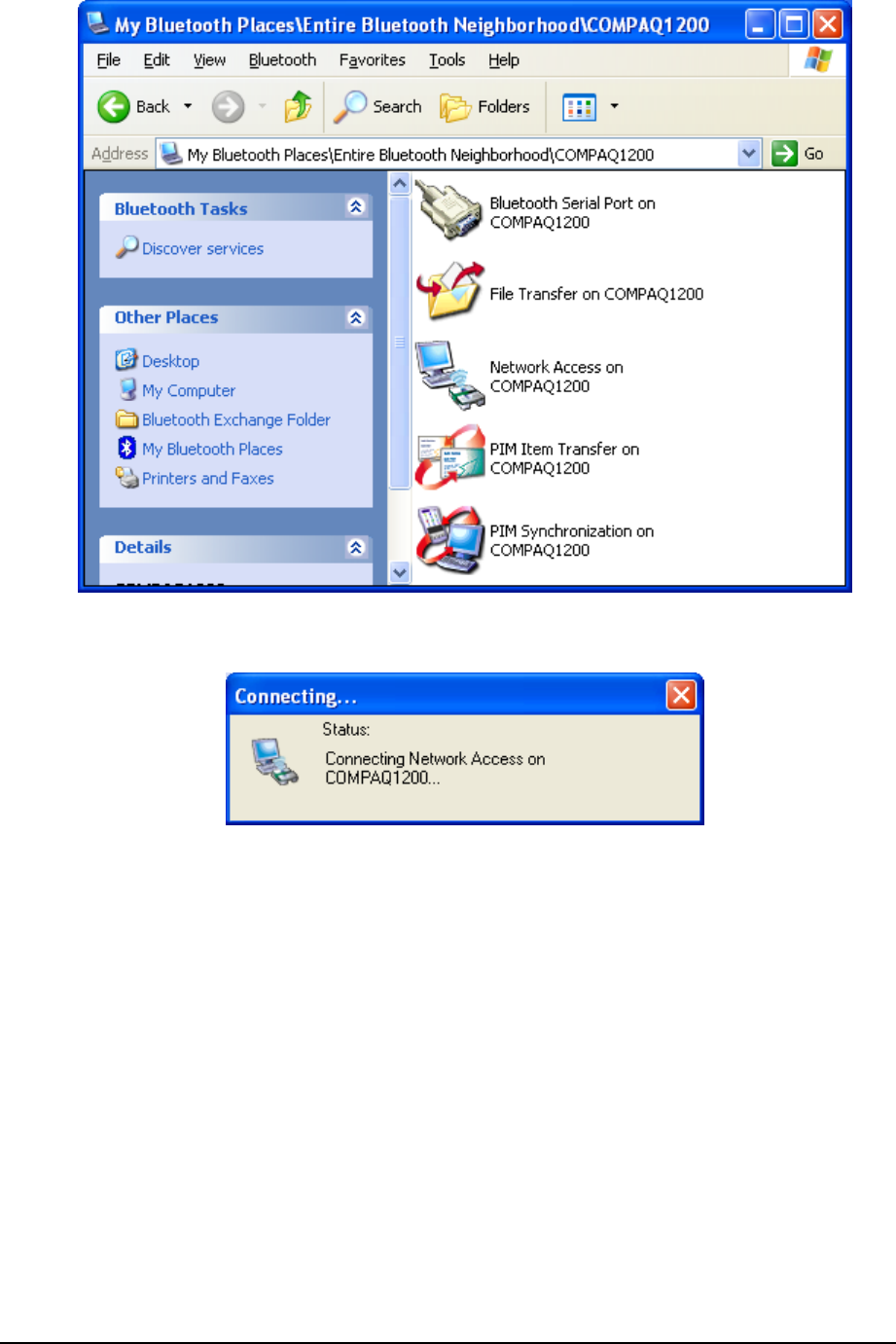

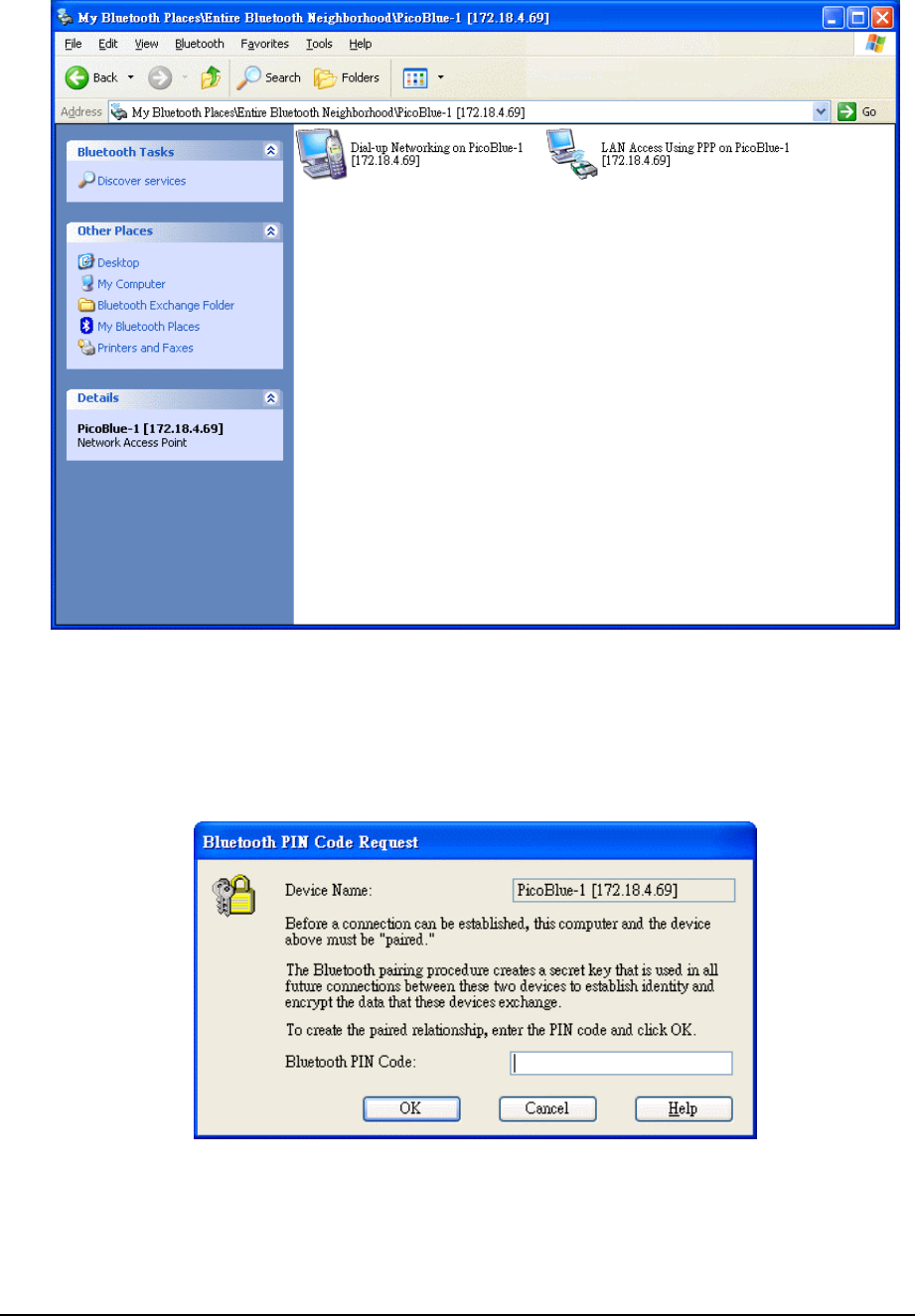

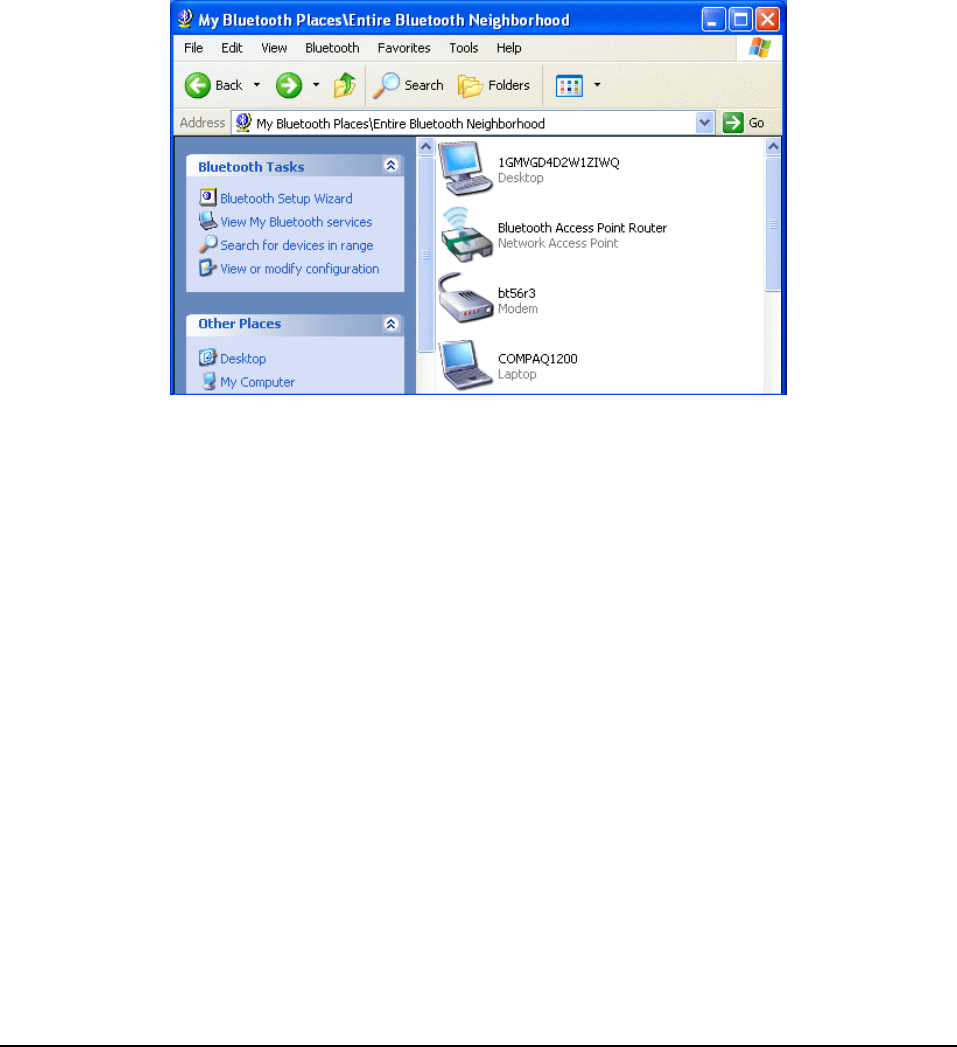

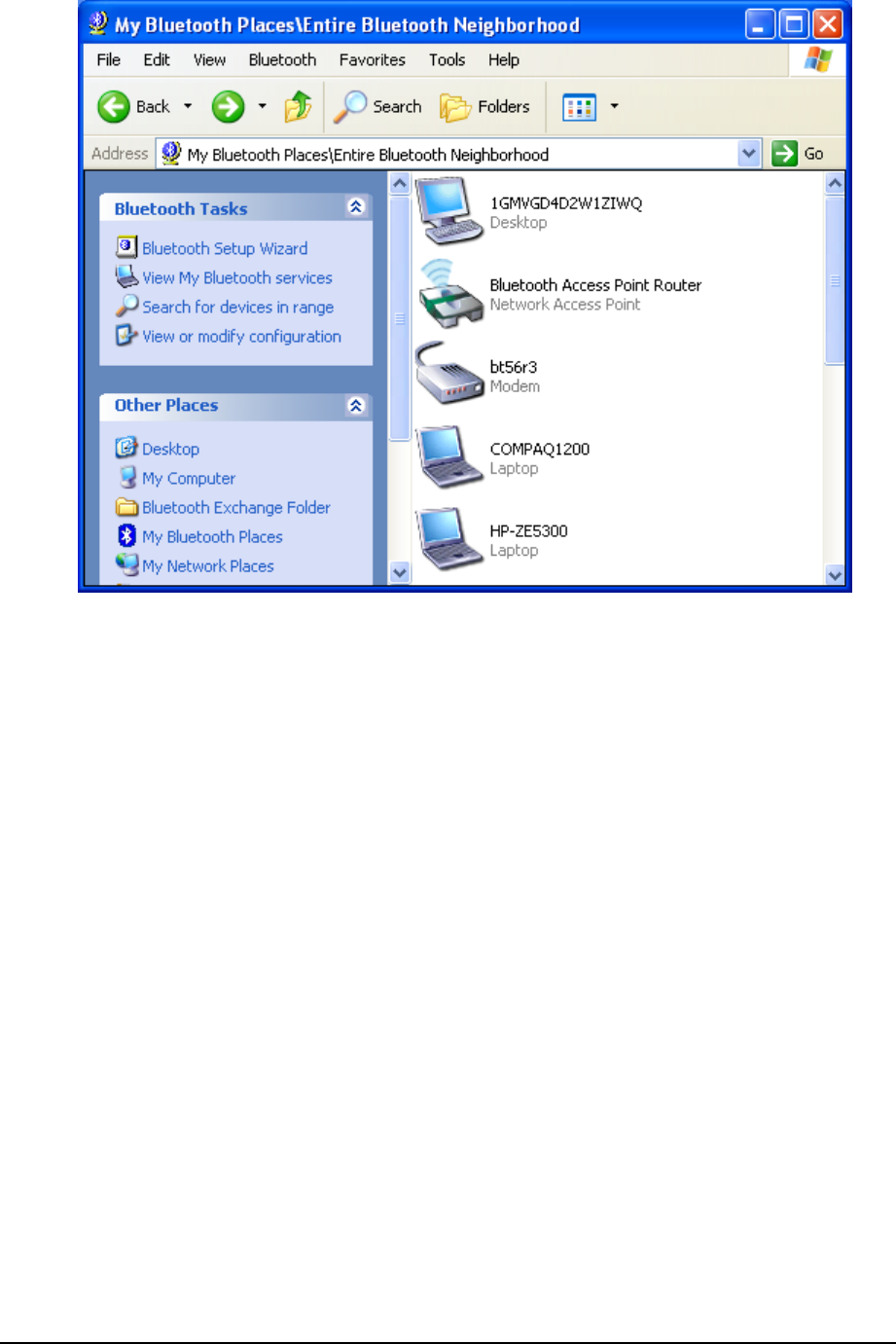

12. After searching is completed, locate the computer name of the Server PC and double
click it to discover the Bluetooth services it has to offer. (i.e. Bluetooth Serial Port,
Desktop, Personal Digital Assistant, Network Access Point, etc.).
20

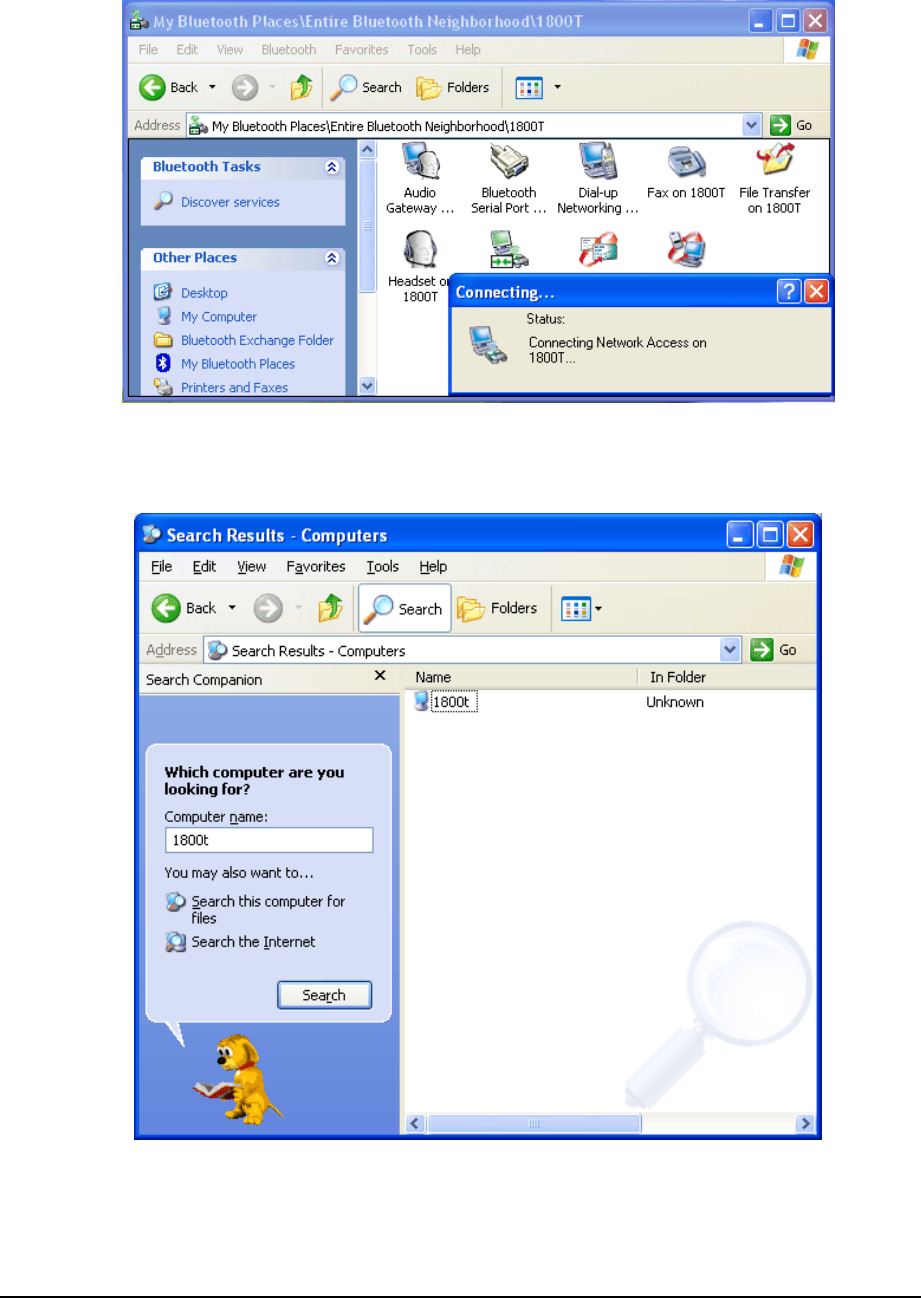

13. Click on the “Server PC " icon to connect to the shared Internet server PC.
14. Click OK without entering any username or password. If one is already present, click
OK anyway and it will still connect.
21
15. Now you can access the Internet via Bluetooth.
Note: If your PC accesses the Internet via a proxy server, remember to configure the
proxy setting of you browser program in the client PC. Consult your MIS personnel if
you're not sure what to set.
22
Proxy setup

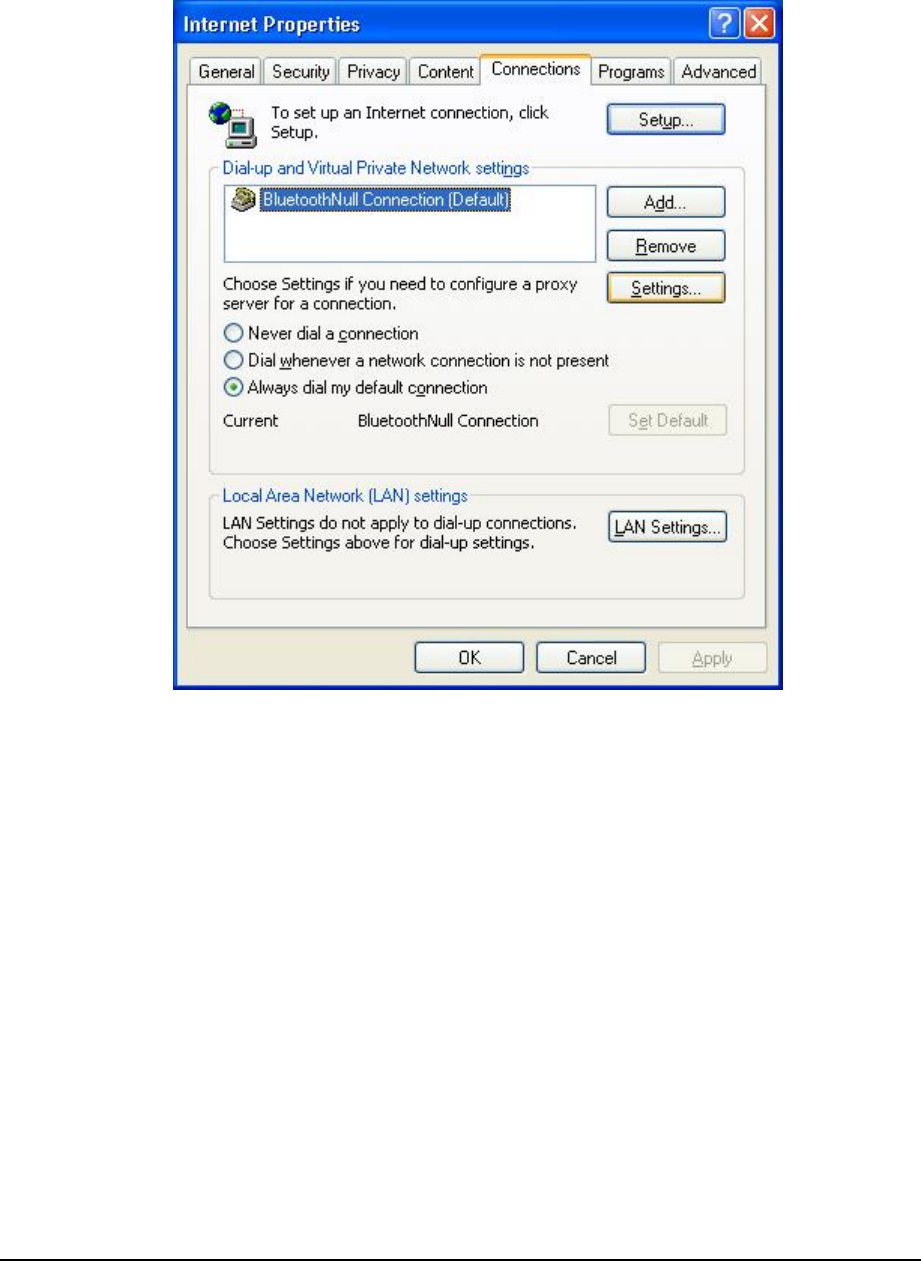

1. To set up proxy, right click "Internet Explorer", select "Properties", select
"Connections" tab. Select "BluetoothNull Connection" and click on "Settings...".
23

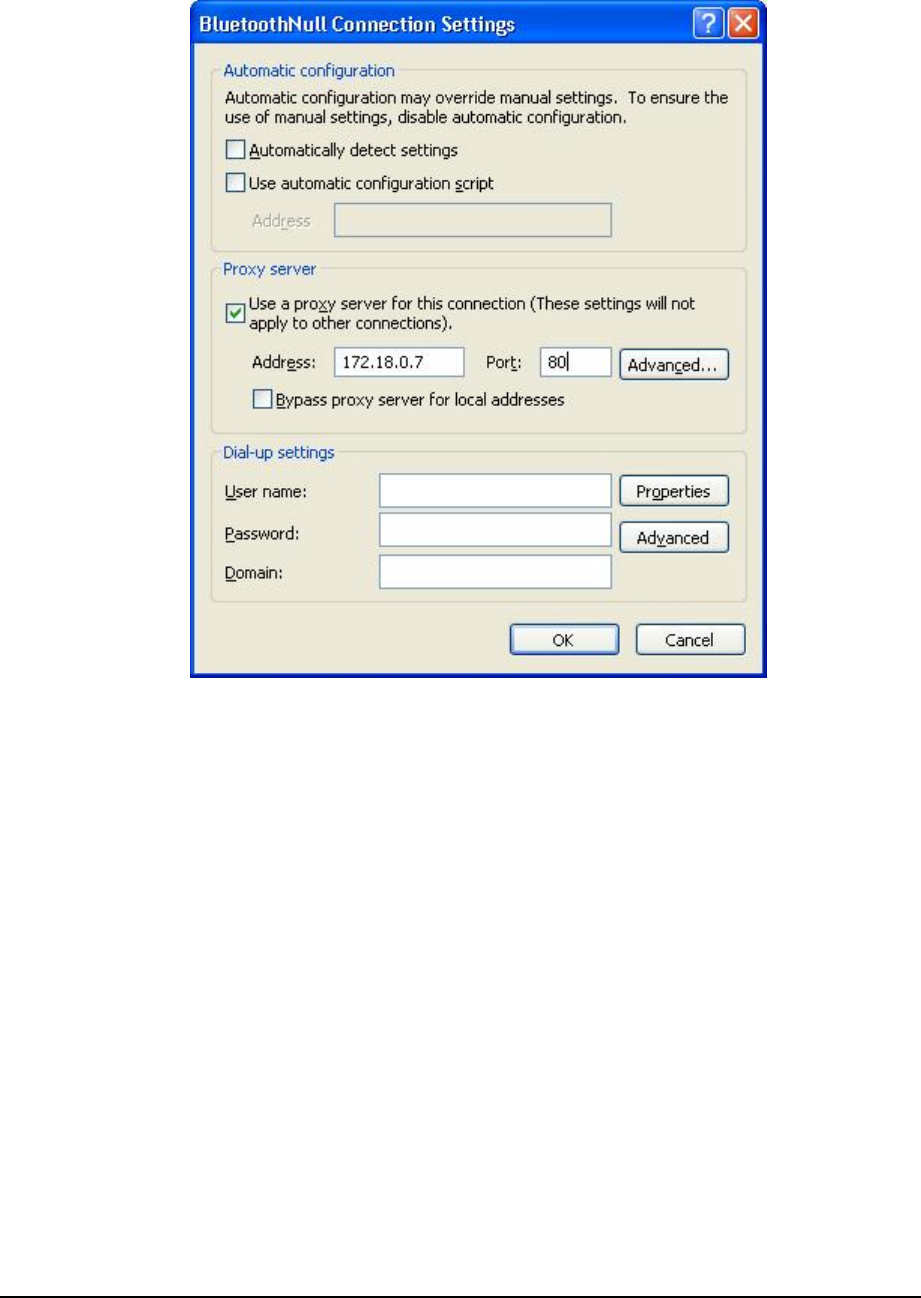

2. Select the "Proxy server" checkbox and enter the proxy address of you company and
Port number. Then click “OK” to save the changes.
24
3.3. File transfer setting for Windows
The File Transfer service allows one Bluetooth device to perform file operations on the
default File Transfer directory (and the folders and files it contains) of another Bluetooth
device.
File transfer setting for Windows
PC to PC
1. After successful USB adapter setup on two PCs, launch the Bluetooth software stack
on both PCs by clicking the "My Bluetooth Places" icon located on the desktop.

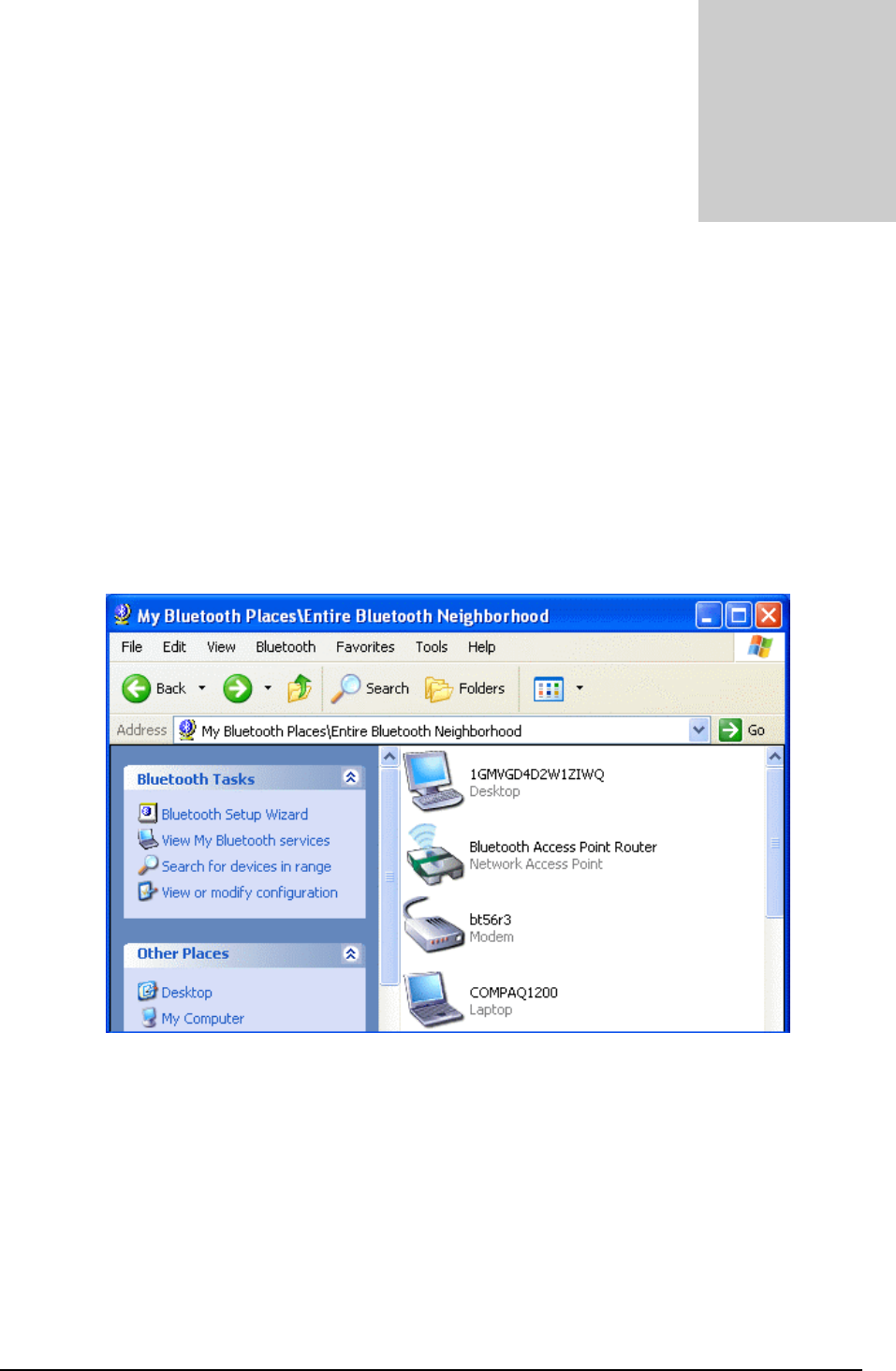

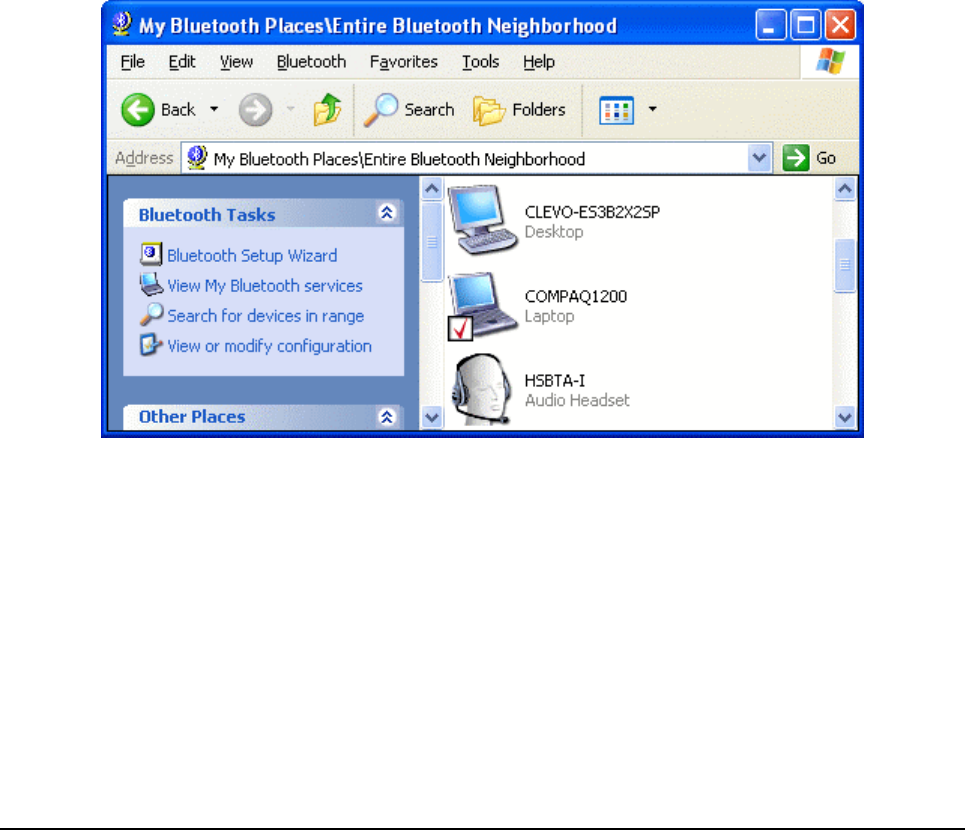

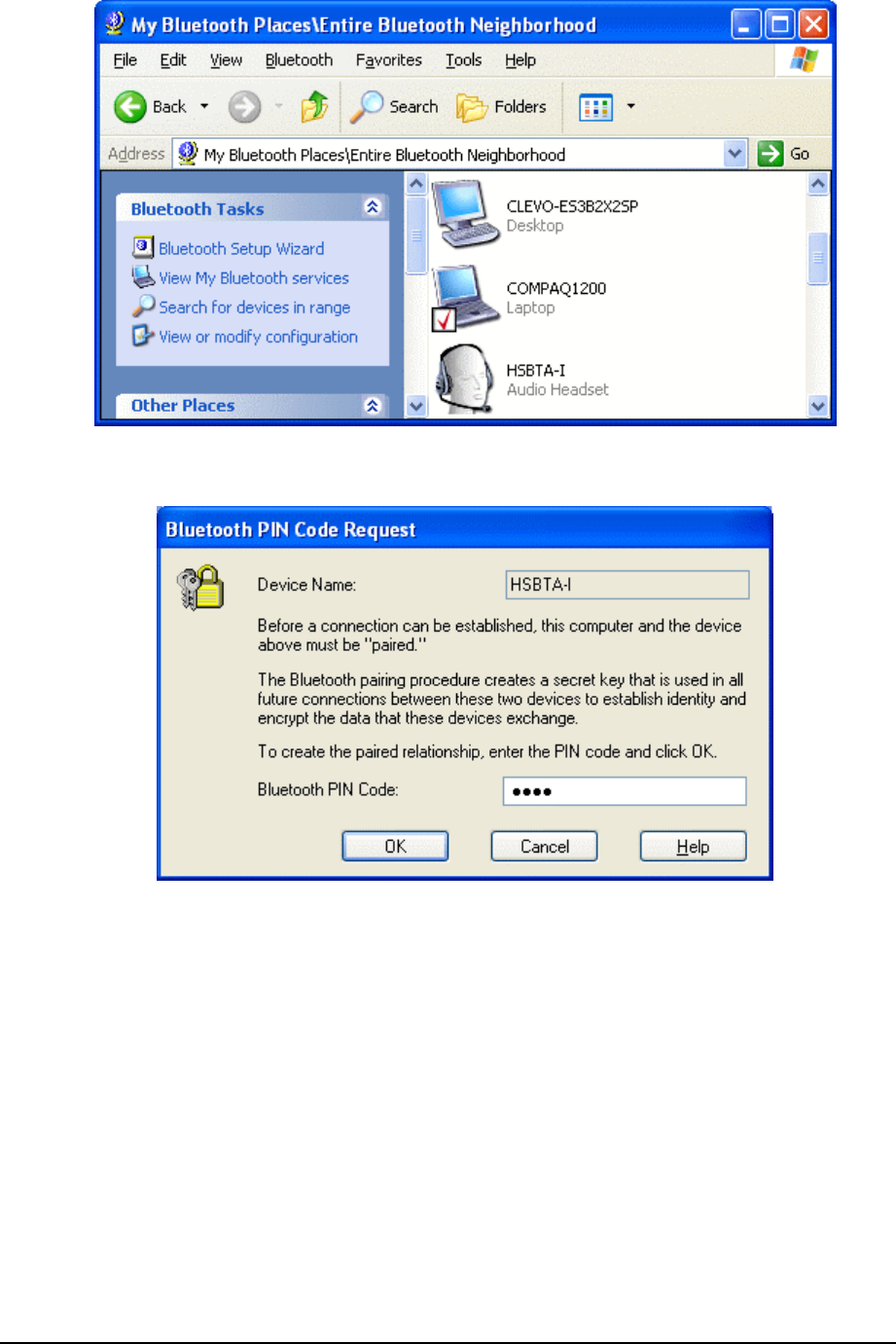

2. On one PC only, double click on "Entire Bluetooth Neighborhood" icon to search for
other Bluetooth devices nearby.
3. After searching is completed, locate the name of PC that you wish to transfer the file to
and double click it to discover the Bluetooth services it has to offer (i.e. Bluetooth Serial
Port, Dial-up Networking, File Transfer, Network Access, etc.).
25

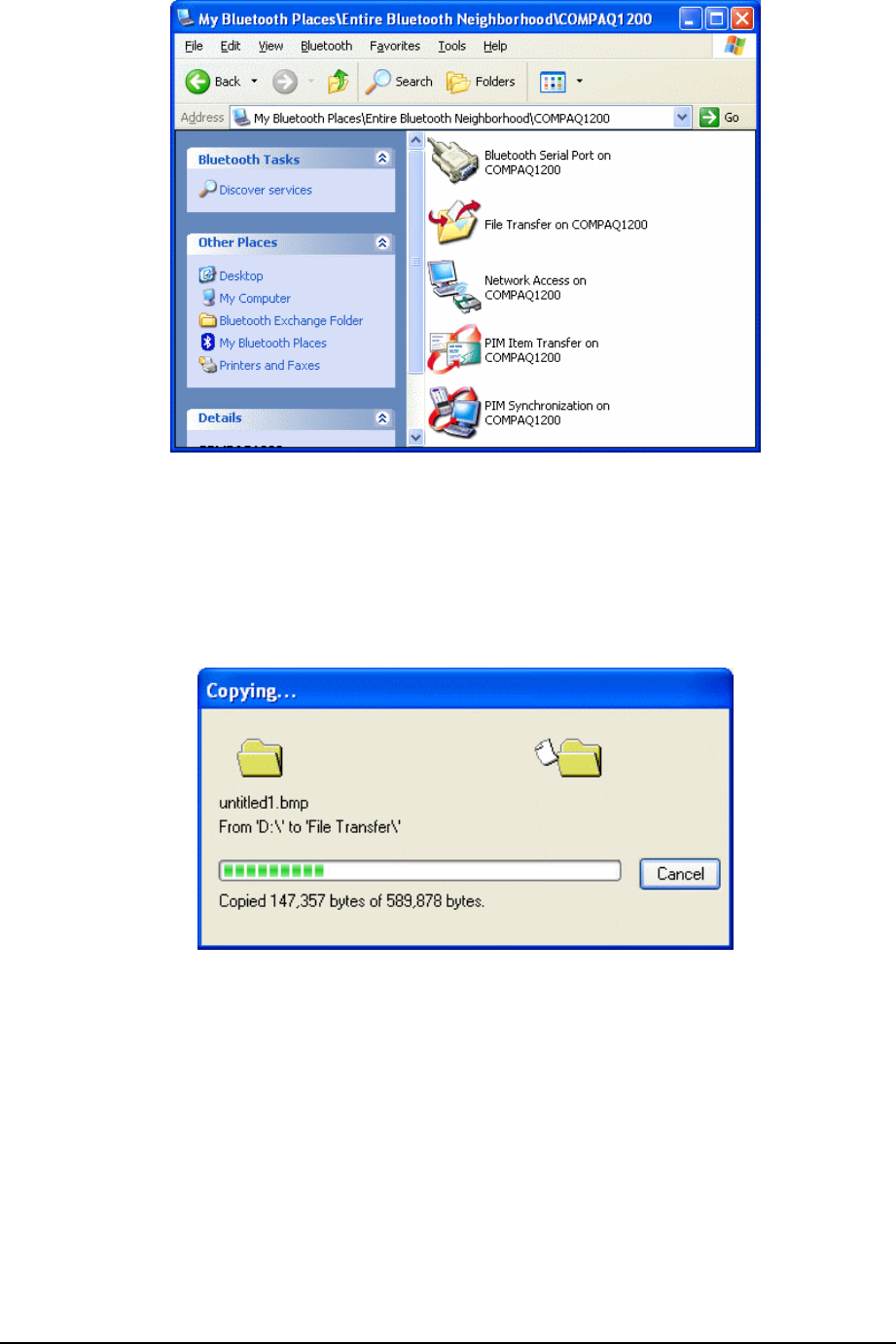

4. Double click the "Public Folder" icon to open the Bluetooth shared folder on the other
PC.
5. Locate the file you want to transfer to that PC and drag it into the "Public Folder"
window.
6. At this time, a window will pop up to indicate that a file transfer connection is being
established, and then file transfer will begin.
7. The file will be opened once the transfer is completed, if the "Start Automatically"
checkbox is selected.
26
27
3.4. Dial-up networking setting for Windows
The Dial-up Networking service permits a Bluetooth client to use a modem that is
physically connected to a different Bluetooth device (the server). After the Bluetooth
wireless connection is established the client can use the server's modem as if it were a
local device on the client.
To establish a Dial-up Networking session:
Dial-up networking setting for Windows
Connections are initiated from the client:
1. On the client, in the Folders pane of "My Bluetooth Places", select "Entire Bluetooth
Neighborhood".
2. In the right pane of "Entire Bluetooth Neighborhood", right-click anywhere except on
a device name and select “Refresh” from the pop-up menu.
3. In the Folders pane of "My Bluetooth Places", right-click the server that will provide
the Dial-up Networking Service and select Discover Available Services from the pop-up
menu to update the available services list. The available services will be displayed in
the right pane of "My Bluetooth Places".
28

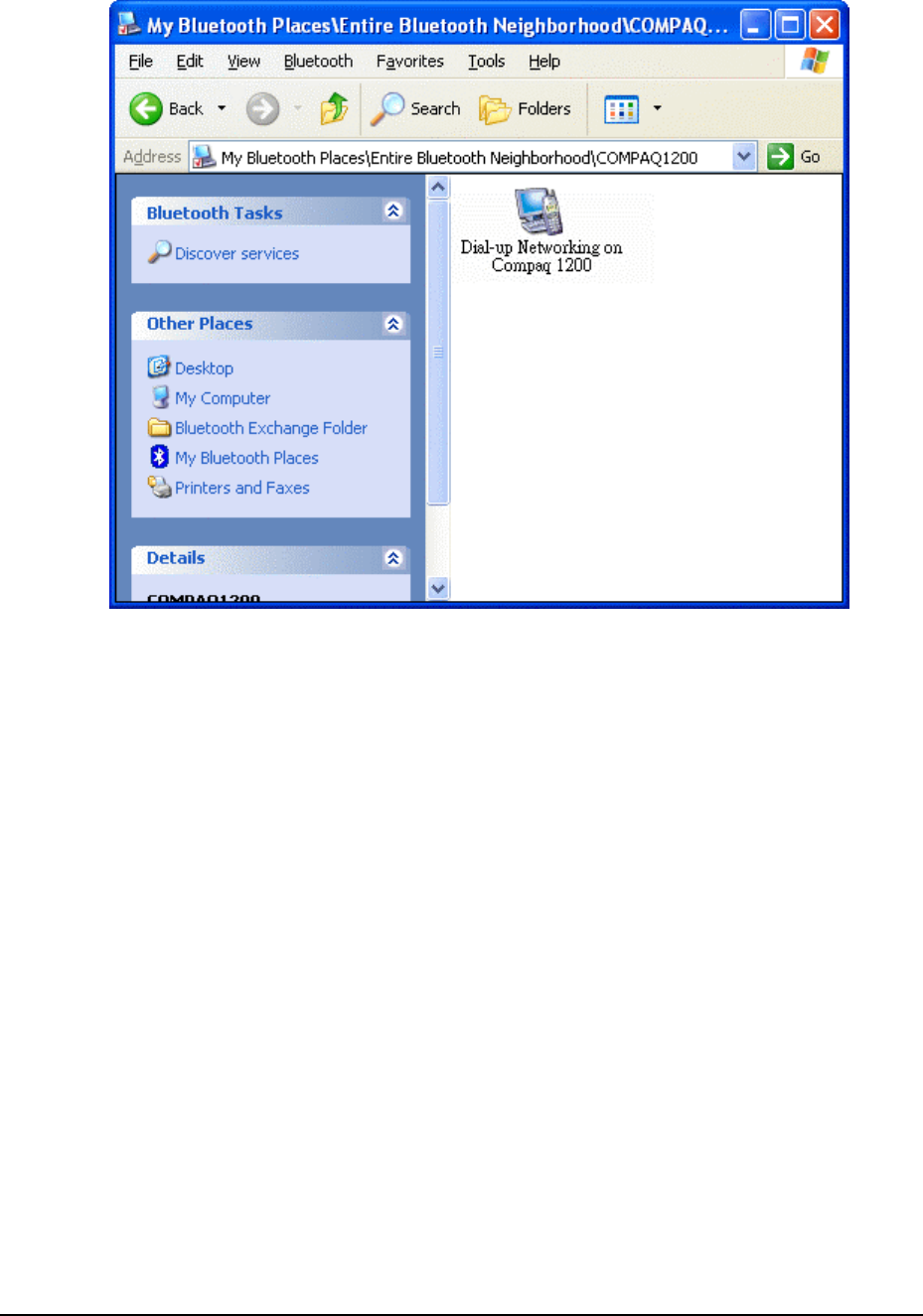

4. In the right pane of "My Bluetooth Places", double-click "Dial-up Networking".

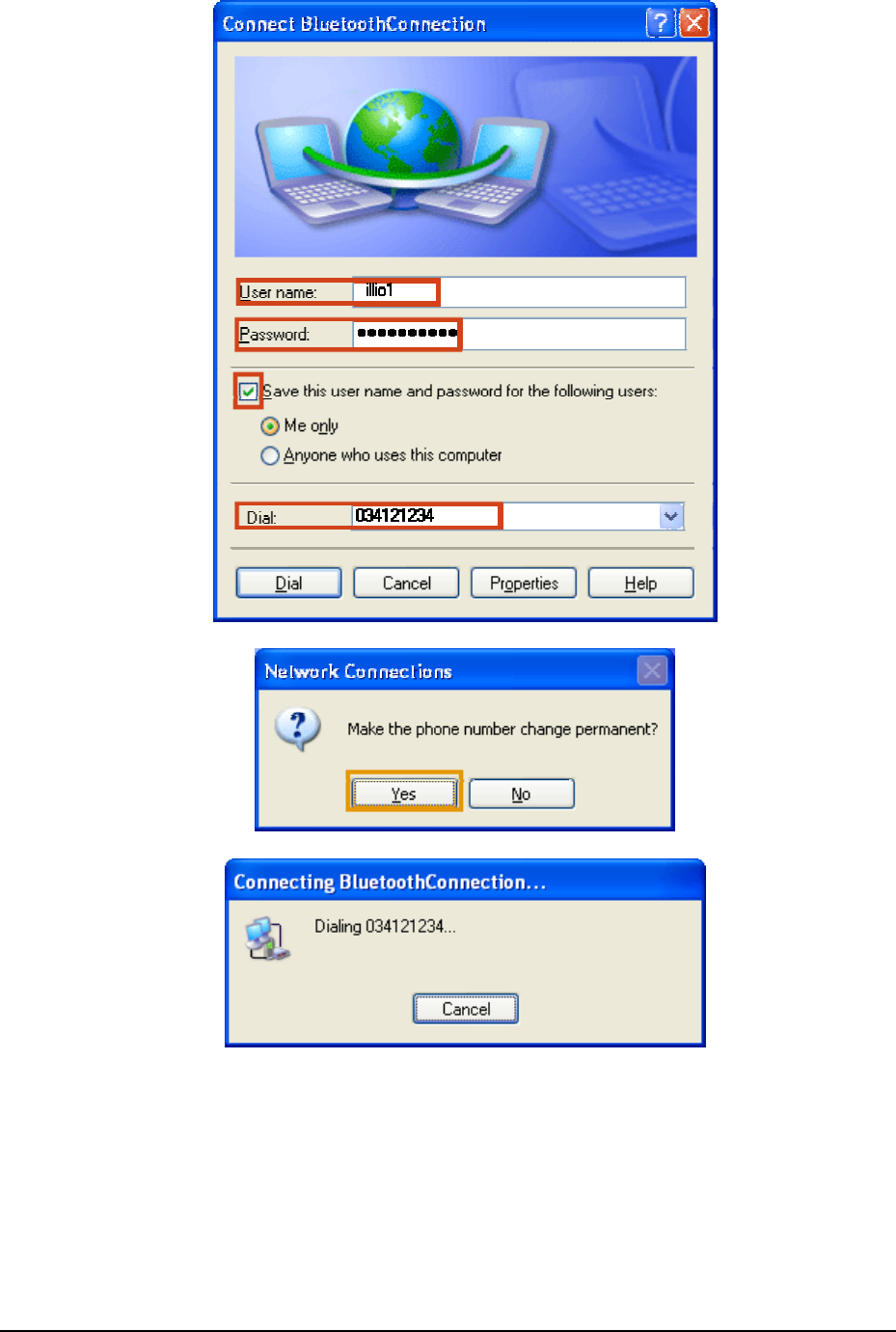

5. In the “Connect To” dialog box, type in your user name, password, and the phone
number to be dialed, and then click the "Dial" button.
6. Select the "Save password" checkbox and the dialog box will not appear for subsequent
connections to the same phone number. You can now open a web browser and
connect to the Internet.
Note: When using the GPRS Dial up function, you do not have to type in the user name or
password.
29
To close a Dial-up Networking connection
1. On the client, in the Folders pane of "My Bluetooth Places", select (highlight) the
device that is providing the Dial-up Networking service.
2. In the right pane of "My Bluetooth Places", right-click "Dial-up Networking" and then
select "Disconnect Dial-up Networking" from the pop-up menu.
30
3.5. FAX setting
The Fax service allows a Bluetooth client to wirelessly send a fax using a device that is
physically attached to a Bluetooth server.
FAX setting for Windows
To send a Fax
Connections are initiated from the client:
1. On the client, in the Folders pane of "My Bluetooth Places", select "Entire Bluetooth
Neighborhood".
2. In the right pane of "Entire Bluetooth Neighborhood", right-click anywhere except on
a device name and select Refresh from the pop-up menu.
3. In the Folders pane of "My Bluetooth Places", right-click the server that will provide
the Fax service and select "Discover Available Services" from the pop-up menu to
update the available services list. The available services will be displayed in the right
pane of "My Bluetooth Places".
4. In the right pane of "My Bluetooth Places", double-click Fax. After the Fax connection
is established, open or create the document to be faxed and use the "Print" or "Send
to Fax Recipient" option available in most applications. The Fax connection closes
automatically when the transmission is completed.
31
3.6. PIM Item Transfer setting
Overview
The Bluetooth PIM Item Transfer application allows this computer to send and receive
Personal Information Manager items to-and-from a remote Bluetooth device. Item transfer
can be accomplished several ways:
To send, receive or exchange business cards:
1. From Windows Explorer, My Bluetooth Places, right-click the PIM Item Transfer
service on a remote device and select the appropriate option.
or In the Windows system tray, right-click the Bluetooth icon, select Quick Connect
Business Card Exchange, select a device from the list, select the appropriate option
from the shortcut menu, and then click OK.
2. From Windows Explorer, My Bluetooth Places, highlight the PIM Item Transfer service
on a remote device, and then, from the Bluetooth menu on the Windows menu bar,
select the appropriate action.
In addition to the business card options listed above, you can also send Notes (*.vnt),
Email (*.vmg) and Calendar (*.vcs) items from this menu.
3. From within a supported Personal Information Manager, select one or more items and
then, from the PIM's File menu, select Send to Bluetooth.
Whether sent items are accepted by the remote device is determined by how the
remote device's PIM Item Transfer service is configured.
Close a PIM Item Transfer Connection
This application closes the open connection automatically when its task is complete.
Configure PIM Item Transfer
The Bluetooth Configuration Panel > Client Applications > PIM Item Transfer > General
tab provides options to configure:
• Click the application name to change it, highlight the existing name and enter the
new name.
• Enable or disable secure connection. To enable secure connection, place a
checkmark in the box.
• How your business card is handled when it is requested by a remote device. The
Send My Business Card options are:
Choose a business card as needed-each time a remote device requests your business
card you must select a card from your PIM. If you ignore the request the remote device will
receive a timeout notice.
32
Always send the same business card-when this option is selected a dialog appears that
allows you to set a default business card, which will be sent automatically when requests
are received.
Where to store received business cards. The Received Business Cards options are:
Microsoft Outlook
Outlook Express
Lotus Notes
NOTE: The selected Received Business Cards option does not influence the
settings on other PIM-related property pages.
For example, even if the PIM Item Transfer service business card option on this
computer is configured to "Do Not Accept", the PIM Item Transfer application will
still accept business cards that the application has specifically requested via its
"Receive" or "Exchange" functions.
Email attachments. The only option is include or do not include attachments with email
that is sent or received on this computer using this service.
33
3.7. PIM Synchronization setting
Overview
The PIM Synchronization Application is used to synchronize the Personal Information
Manager (PIM) database of this computer with the PIM database of a remote Bluetooth
device.
The supported PIMs are:
• Microsoft Outlook
• Microsoft Outlook Express
• Lotus Notes
The supported data types are:
• Business cards
• Calendar items
• Email (with or without attachments)
• Notes
Configure PIM Synchronization
The Bluetooth Configuration Panel > Client Applications > PIM Synchronization > General
tab provides options to configure:
• The application name- to change it, highlight the existing name and enter the new
name.
• Enable or disable secure connection. To enable secure connection, place a
checkmark in the box.
• The PIM items to be synchronized and the PIM on this computer with which those
items should be synced.
NOTE: If synchronization is enabled for a specific item type, but is not enabled for that item
type on the remote device, synchronization WILL NOT take place for that item.
The data item types which can be synchronized are:
• Business cards
• Calendar items
• Email (with or without attachments-see below)
• Notes
Possible synchronization options for each of these data item types include:
Do Not Synchronize-this item type will not be synchronized
34
Synchronize Microsoft Outlook-this item type will be synced with its matching entry in
Microsoft Outlook, regardless of the PIM that contains this entry on the remote device. If a
matching Outlook entry does not exist, it will be created
Synchronize Outlook-Express-this item type will be synced with its matching entry in
Express, regardless of the PIM that contains this entry on the remote device. If a matching
Express entry does not exist, it will be created
Synchronize Lotus Notes-this item type will be synced with its matching entry in Lotus
Notes, regardless of the PIM that contains this entry on the remote device. If a matching
Notes entry does not exist, it will be created.
NOTE: All choices are not available for all items. For example, Notes items can only
be synchronized in Microsoft Outlook, therefore Lotus Notes and Outlook Express
do not appear as options in the "Notes" item shortcut menu.
Personal Information Managers that are not installed on this computer do not
appear as options in the shortcut menus.
Email attachments. The only option is include or do not include attachments with email that
is sent or received on this computer using this service.
35
3.8. Serial port setting
The Bluetooth Serial Port service allows two Bluetooth devices to establish a wireless
connection through virtual communications ports and then use that connection as if it were
a hardwired serial cable between the devices.
To establish a Bluetooth serial port connection:
Connections are initiated from the client:
1. On the client, in the Folders pane of "My Bluetooth Places", select "Entire Bluetooth
Neighborhood".
2. In the right pane of "Entire Bluetooth Neighborhood", right-click anywhere except on
a device name and select "Refresh" from the pop-up menu.
3. In the Folders pane of "My Bluetooth Places", right-click the server you want to
establish a connection with and select "Discover Available Services" from the popup
menu to update the available services list. The available services will be displayed in
the right pane of "My Bluetooth Places".

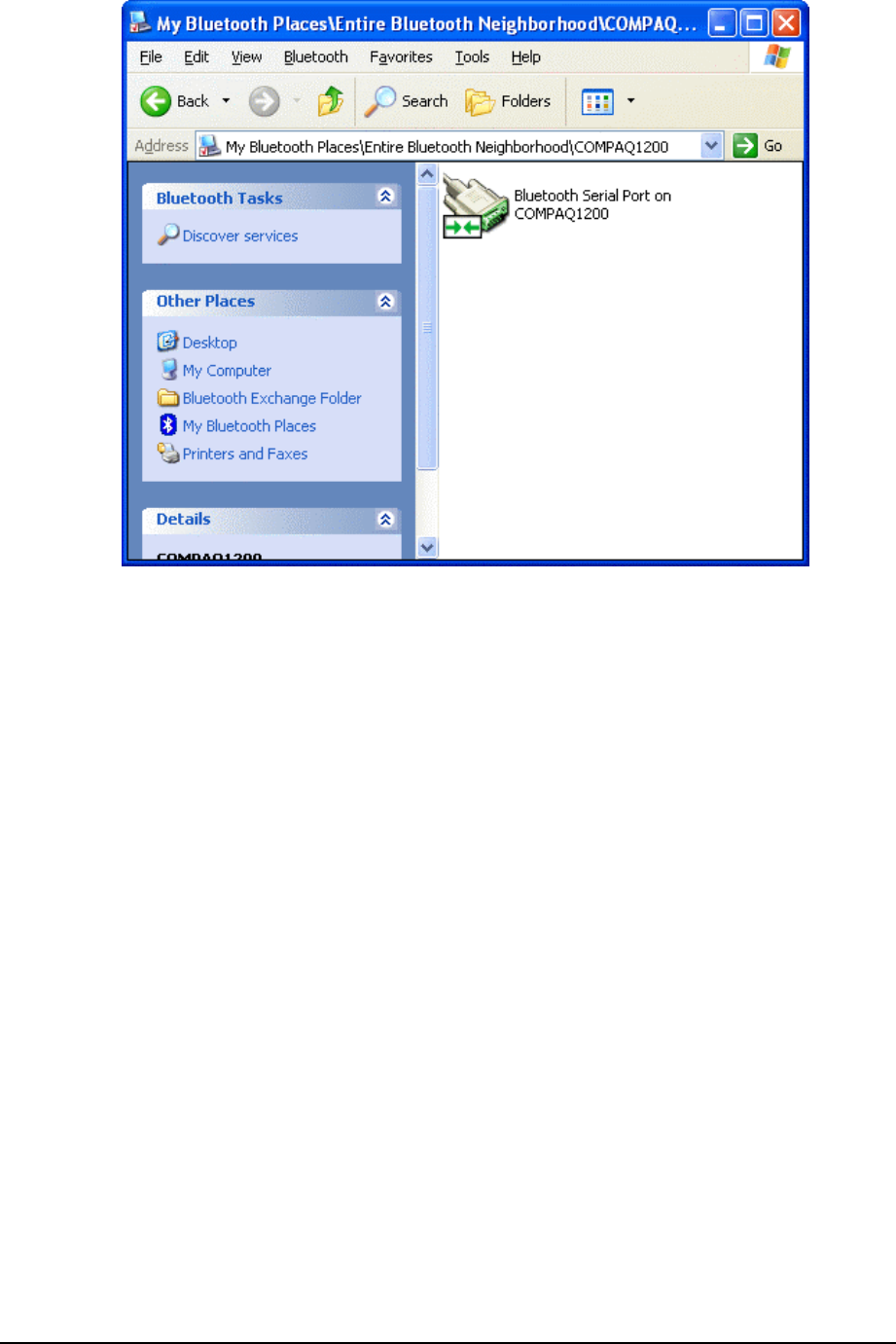

4. In the right pane of "My Bluetooth Places", double-click "Bluetooth Serial Port". A
dialog box appears that contains the communications port number assigned to this
connection by the client. The application that will use this connection must be
configured to send data to this port.
Depending on the security configuration, the dialog box that provides communications port
information may not appear until after Authentication and Authorization have been
accomplished.
The application on the server must be configured to use the correct communications port.
To determine the communications port being used by the service:
* On the server, in the Folders pane of "My Bluetooth Places", right-click "My Device"
and select "Properties" from the pop-up menu
* In the "Bluetooth Configuration Panel", select the "Local Services" tab.
* Double-click the "Bluetooth Serial Port" service to display its "Service Properties"
dialog box. The "Service Properties" dialog box shows the communications port the
connection is using.
To close a Bluetooth serial port connection
Connections are normally closed from the client:
* On the client, in the Folders pane of "My Bluetooth Places", select (highlight) the device
that is providing the "Bluetooth Serial Port" service.
* In the right pane of "My Bluetooth Places", right-click "Bluetooth Serial Port" and then
select "Disconnect Bluetooth Serial Port" from the pop-up menu. Though not
recommended, connections can also be closed from the server:
* On the server, in the Folders pane of "My Bluetooth Places", select (highlight) "My
Device".
* In the right pane of "My Bluetooth Places", right-click "Bluetooth Serial Port" and then
select Stop to close the service. The service must be re-started before it will be available to
remote devices (right-click Bluetooth Serial Port and select Start from the pop-up menu).
36
3.9. ActiveSync setting
ActiveSync setting for Windows
1. Right-click on Bluetooth Configuration icon from the toolbar in the desktop window.
Select Setup and then open Configuration window.

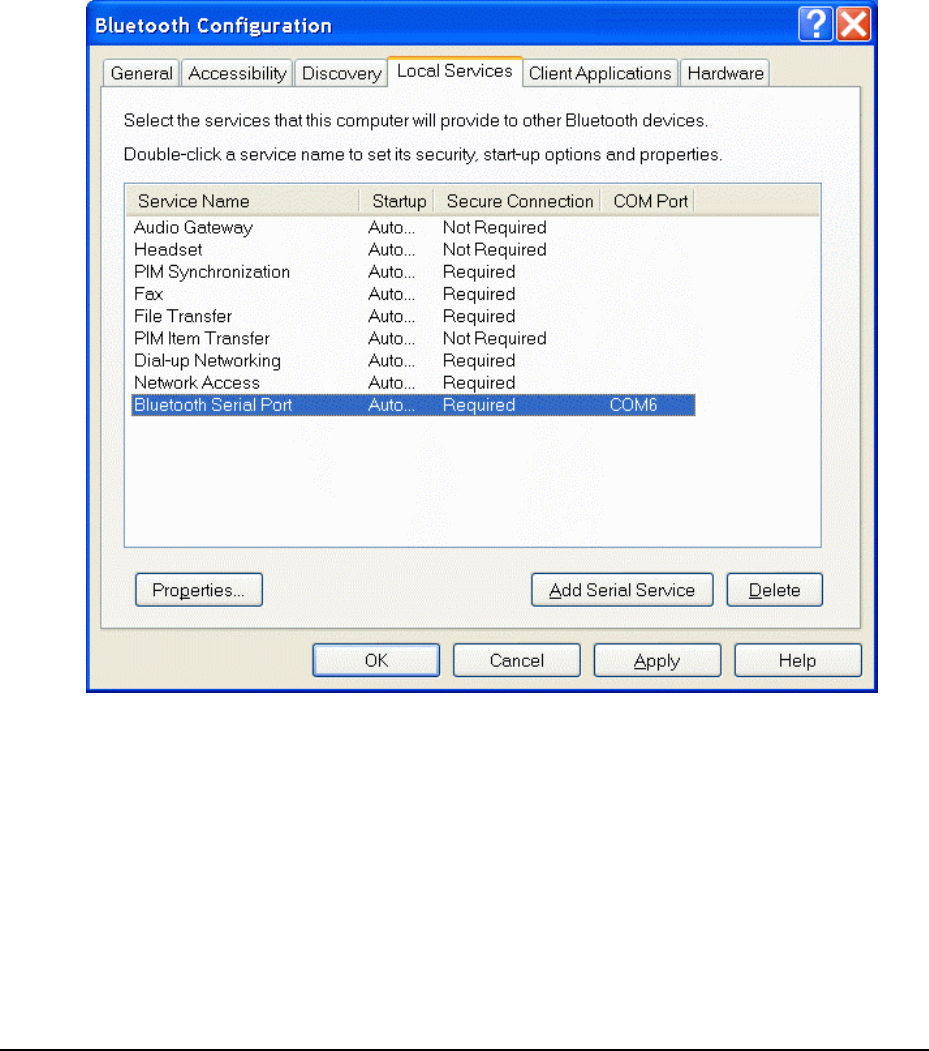

2. Select Local Service tab from the Bluetooth Configuration window. In the Service
Properties window, please learn by heart the current COM port this computer uses, for
example: COM 6, in order to identify this value with the configuration of Microsoft
ActiveSync later.
37
3. In the Microsoft ActiveSync window, select Connection Settings... from drop-down list
of File menu.
4. Choose the same COM port. (in this case, it is COM 6 that Bluetooth Serial port uses
shown in the Step 2.)
38
5. Please refer to the PDA ActiveSync Setting to complete the Bluetooth ActiveSync
Configuration Process
39
3.10. Audio Gateway setting for windows
The Audio Gateway Application allows a remote Bluetooth device to use this computer's
microphone and speakers as the remote device's audio input and output devices.

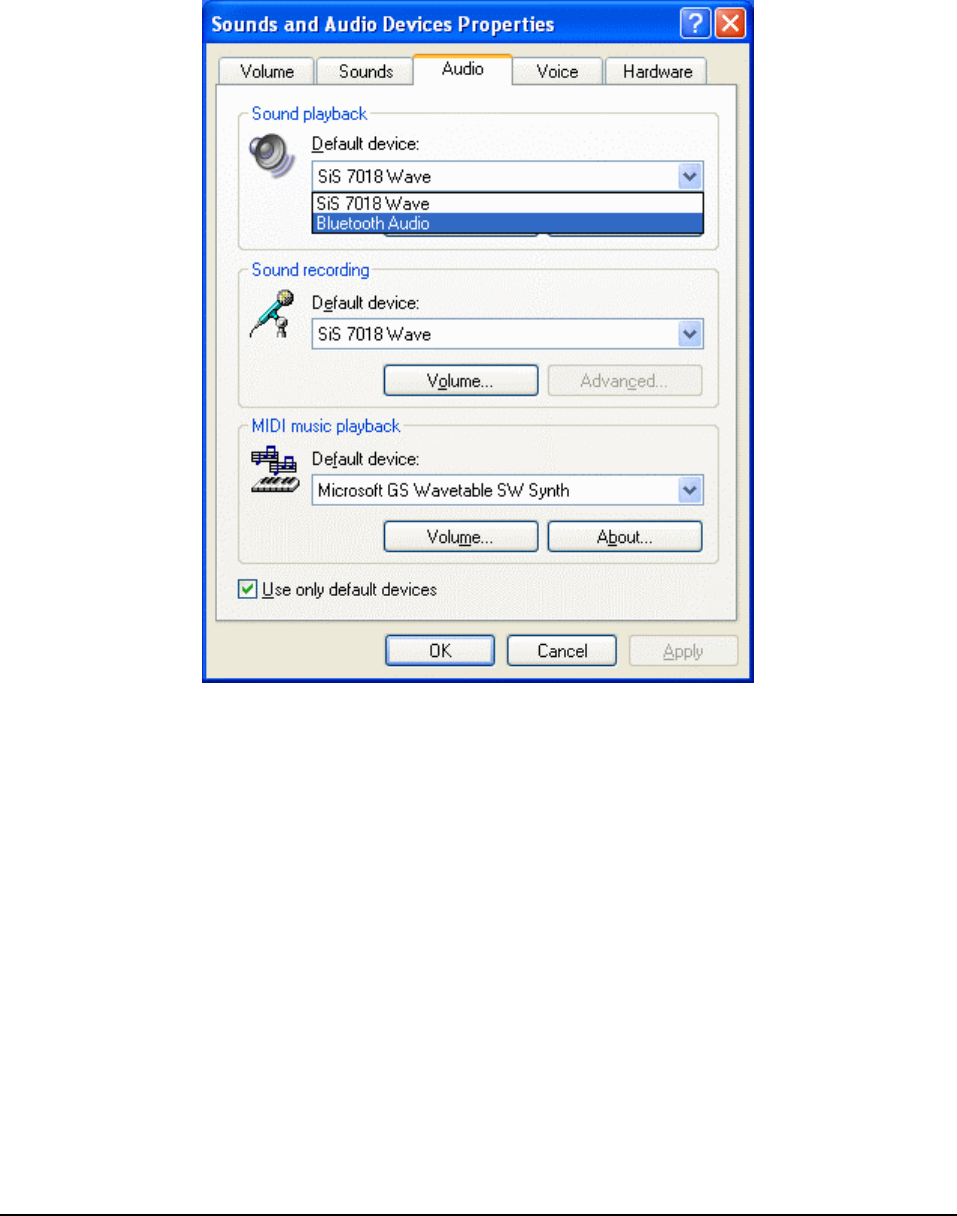

*Remember please switch your Audio device to "Bluetooth Audio" from control panel.
Open a connection to the Audio Gateway service that is provided by another Bluetooth
device using one of these techniques:
• Windows system tray, Bluetooth icon
• From Bluetooth Explorer
• Using the Bluetooth Setup Wizard
40
From Bluetooth Explorer to connection your headset device.
Key in headset pair key or PIN code. (Refer to the Headset's user's manual for reference)
Close an audio gateway connection:
If the connection was established via the Bluetooth icon in the Windows system tray; click
the Bluetooth icon, select Quick Connect, Audio Gateway and then select the device that
is providing the service (active connections have a checkmark in front of them). Or No
matter how the connection was created, In My Bluetooth Places, right-click the service
name and select Disconnect.Configure The Bluetooth Configuration Panel > Client
Applications > Audio Gateway > General tab provides options to configure:
• The application name-- to change it, highlight the existing name and enter the new
name.
• Enable or disable secure connection. To enable secure connection, place a
checkmark in the box.
41
3.11. Personal area network setting for windows

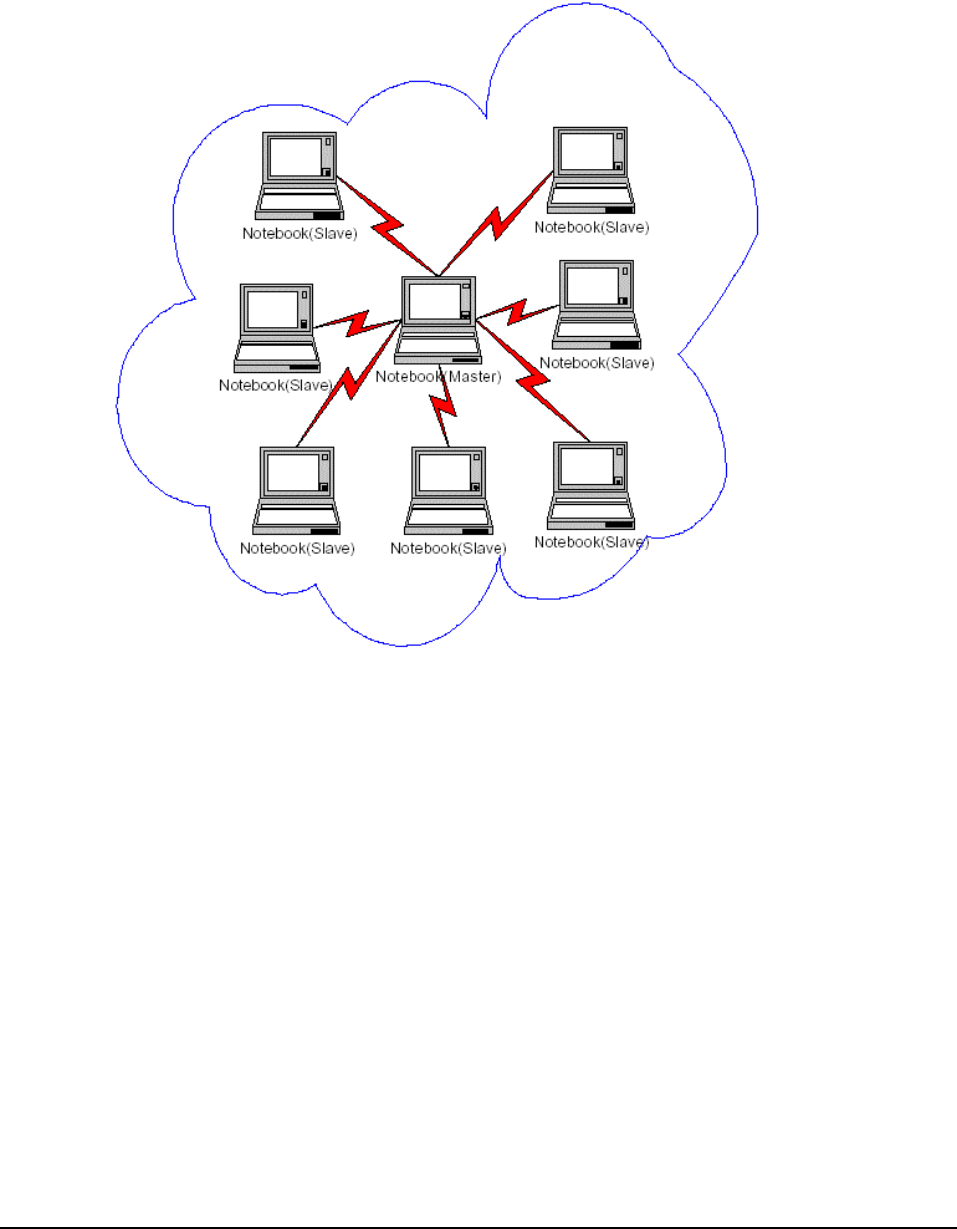

The Personal Area Networking (PAN) chapter will show you how two or more Bluetooth
enabled devices can form an ad-hoc network and how the same mechanism can be used
to access a remote network through a network access point.
42
How to setup an Ad-hoc Network
1. On the client, in the Folders pane of "My Bluetooth Places", select "Entire Bluetooth
Neighborhood".
2. In the right pane of "Entire Bluetooth Neighborhood", right-click anywhere except on
a device name and select Refresh from the pop-up menu.
3. In the right pane of "My Bluetooth Places", right-click the server that will provide the
Networking Access Service and select Discover Available Services from the pop-up
menu to update the available services list. The available services will be displayed in
the right pane of "My Bluetooth Places".
Double click Network Access to establish a PAN network.
43

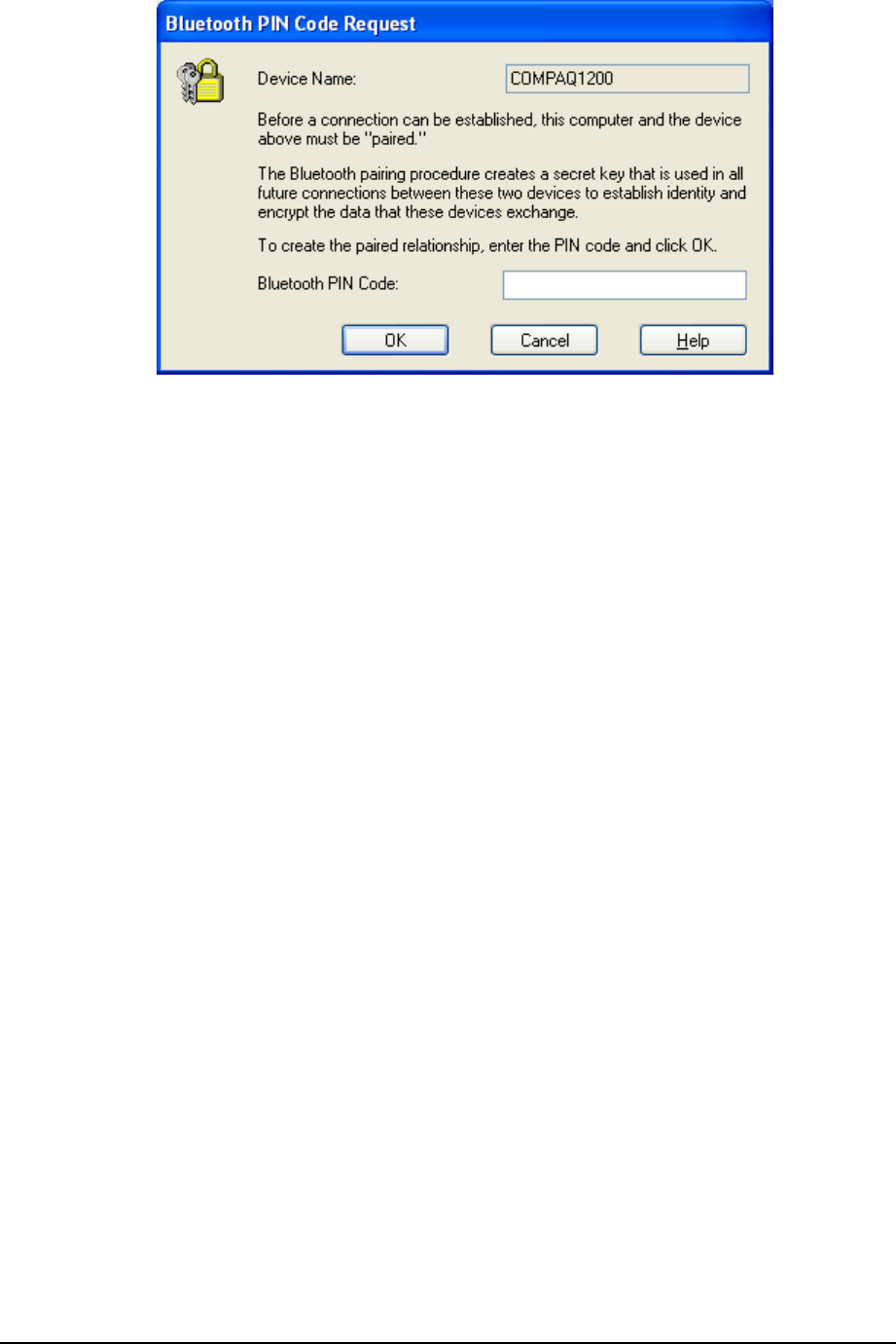

If the system pops up a "Bluetooth PIN Code Request" window please key in the same
passkey or PIN code between the two devices.
Once connected, you can check your Bluetooth PAN network neighborhood from the file
explorer or by the "Search Computers" function.
44
How to setup with Bluetooth Network Access Point
The Bluetooth Software makes it easy to join an existing personal network, hosted by
another Bluetooth device (PocketPC, desktop, etc.) From the My Bluetooth Places,
choose Entire Bluetooth Neighborhood, and select the Bluetooth device that you want
to establish a PAN connection and double click the device icon.
45
It will list out all the available services of this device, please select the LAN Access.
Right click the LAN Acess and select "Connect to Network Access Point", your PC will
initially connect to the Network Access Point.
After enter the Buletooth PIN Code, a connection will then be established between your
PC and the host over the personal network.
46
Chapter 4
Advanced features
4.1. How to set up HyperTerminal for Bluetooth transfer
1. Install Bluetooth Software on two separate notebooks or desktop PCs (referred to as
server and client in the following document).
2. With Bluetooth adapter inserted, do a "Search for devices" on client to find near by
Bluetooth devices.
3. Double click on the Bluetooth device you wish to connect to (e.g. COMPAQ1200, the
server).
4
4
47

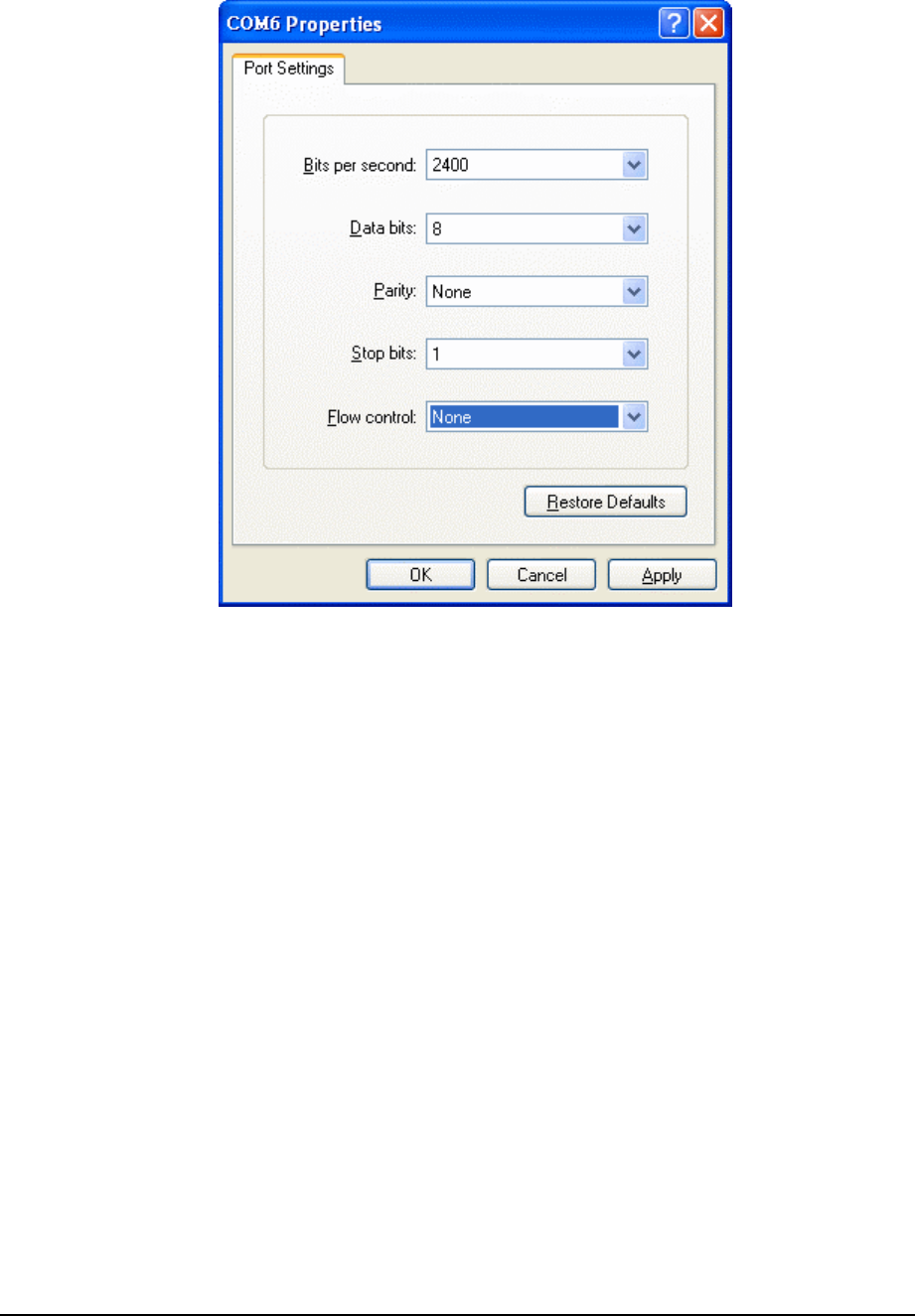

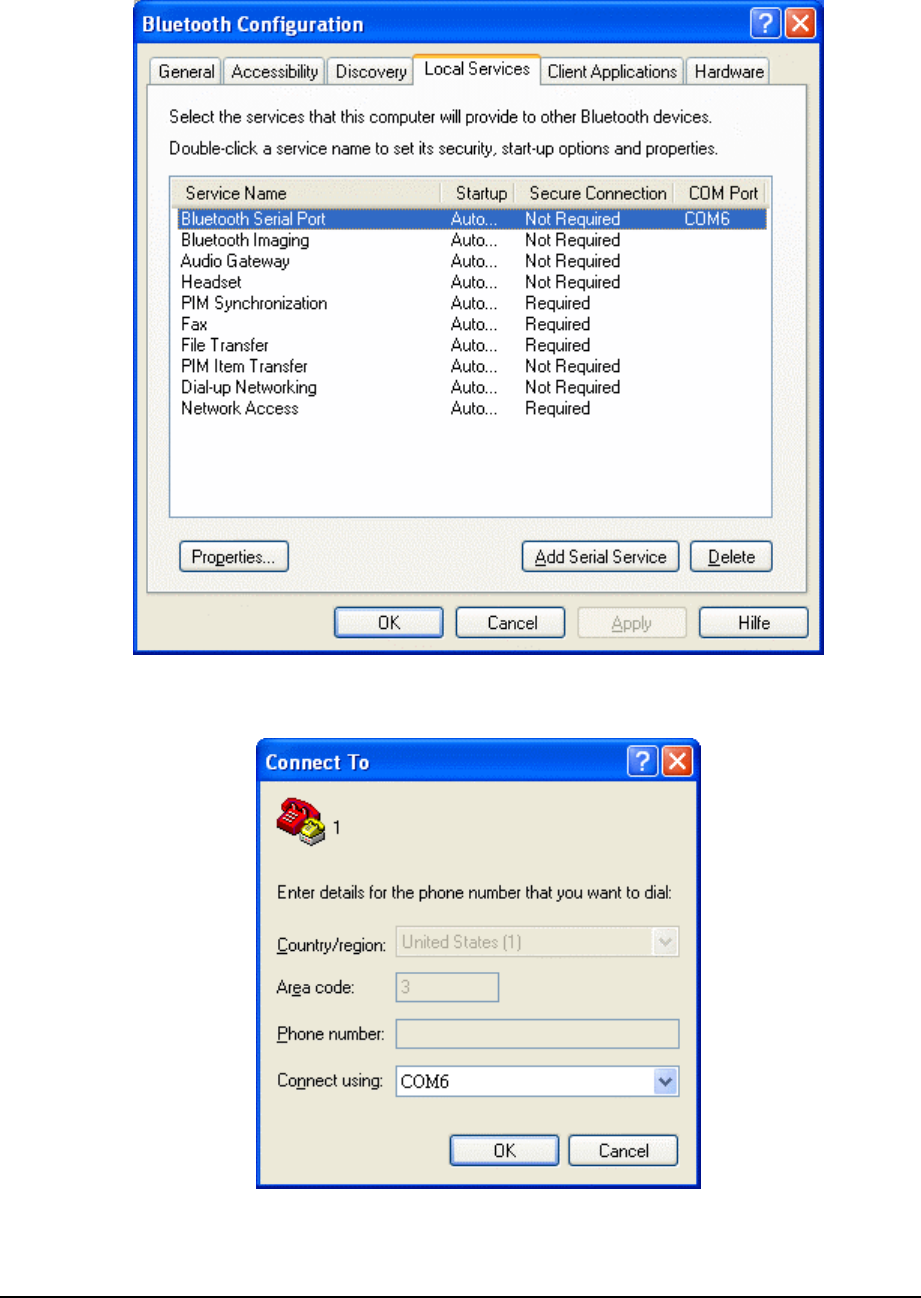

4. Double click on "Bluetooth Serial Port"; take a note of the COM port used by this
connection (e.g. COM4).
5. The Bluetooth Serial connection should now be established.
48
49
6. On the client side, open HyperTerminal. Choose the COM port used by the Serial
connection in step 4.
7. Set the baud rate and other settings as required.
50
8. On the server side, check the local COM port used by the system in the Bluetooth
Configuration window (e.g. COM6).
9. Open HyperTerminal, choose the COM port used by the system in step 8.
51
10. Set the baud rate and other settings as required.
11. The HyperTerminal connection should now be established. Type something on the
client side and the same thing will appear on the server.
12. To transfer files, select "Send File" from the menu bar of the client system, and select
the file you wish to transfer.
13. The received file should be placed on the C: drive of the server system (default
location).
52
4.2. How to HotSync with Palm Bluetooth SDIO and Tungsten T
Please make sure you have installed Bluetooth software and Palm Desktop on your
notebook or desktop PC before proceeding to the setup instructions below.
1. From the Palm main panel, tap the HotSync icon.
2. Tap HotSync and select "Connection Setup" from the menu bar.
3. Tap "New".
4. Give the new connection a name, e.g. BTConnection.
5. Change "Connect to:" to "PC".
6. Change "Via:" to "Bluetooth".
7. The "Device:" option will pop up, tap to find the Bluetooth system you wish to HotSync
with.
8. Select the Bluetooth system you wish to HotSync with and tap OK.
9. Tap "Yes" when prompted with "Do you want to add *** to your trusted device list?".
10. Key in the same passkey on Palm and your notebook or desktop PC to complete the
pairing process.
11. Tap "OK" and "Done" to return to the HotSync panel.
12. Tap the dropdown menu to select the Bluetooth connection you have just created. E.g.
BTConnection.
53
13. From the notebook, find out the local COM port used by "Bluetooth Serial Port", e.g.
COM4. (My Bluetooth Places->My Device, right click My Bluetooth Serial Port and
select Properties)
54
14. Change the COM port setting in Palm HotSync to match the COM port found in step 11,
e.g. COM4.
15. Change the connection type to "Local Serial" in the HotSync Manager.
16. Tap the HotSync silk button on Palm, and the HotSync process should begin in a few
seconds.
55
4.3. How to dial-up from Palm Tungsten T to my PC's modem to
surf the Internet
1. Enable Bluetooth on your PC and make sure you can dial up to the ISP with your
modem.
2. On your Palm, in the main panel, tap "Prefs", select "Communication", and select
"Network".
3. Tap "New" button.
4. Key in a new name for "Service:", e.g. pcmodem.
5. Key in the "User Name:".
6. Key in the "Password:".
7. Tap on "Connection" and select "Edit Connections..." to create a new connection
setup.
8. Tap "New" button.
9. Key in a new name for "Name:", e.g. btmodem.
10. Tap on "Connect to:" and select "Modem".
11. Tap on "Via:" and select "Bluetooth".
12. Tap on "Device:", wait for your PC to be found.
13. Select your PC and tap "OK".
14. Palm will ask you to add your PC to the trusted device list, tap "Yes".
15. Key in a numeric passkey, e.g. 1, and tap "OK".
16. Type in the same passkey on your PC, now the pairing process is complete.
17. Make sure "Dialing:" is set at "Touch Tone".
18. Tap the "OK" button and "Done" to return to the Network page.
19. Tap on "Connection:" and select the connection setup you've just created.
20. Tap on "Phone:" and enter the phone number of your ISP.
21. Tap the "Connect" button and the modem on your PC should start dialing.
22. Once connected, launch a web browser and you should be surfing the Internet.
56
4.4. Sending FAX via mobile phone with WinFax Pro
NOTE: Please make sure you have subscribed to the FAX sending/receiving feature with
your mobile service provider.
1. Please install WinFax Pro according to WinFax Pro's installation instructions.
2. Before installing WinFax Pro, Please make sure that your computer is connected with
a physical Fax Modem.
3. After installing WinFax Pro, the following window will pop up, choose your physical
modem at this stage. Do NOT choose "Bluetooth Fax Modem".
57
4. WinFax Pro will start testing the Fax Modem, once it's completed, click Next to
continue.
5. After installation, launch WinFax Pro. Click on Tools→Program Setup.
58
6. Double click "Modems and Communications Devices".
59
7. Tick the checkbox next to Bluetooth Fax Modem. Uncheck the checkbox next to your
physical modem.
60

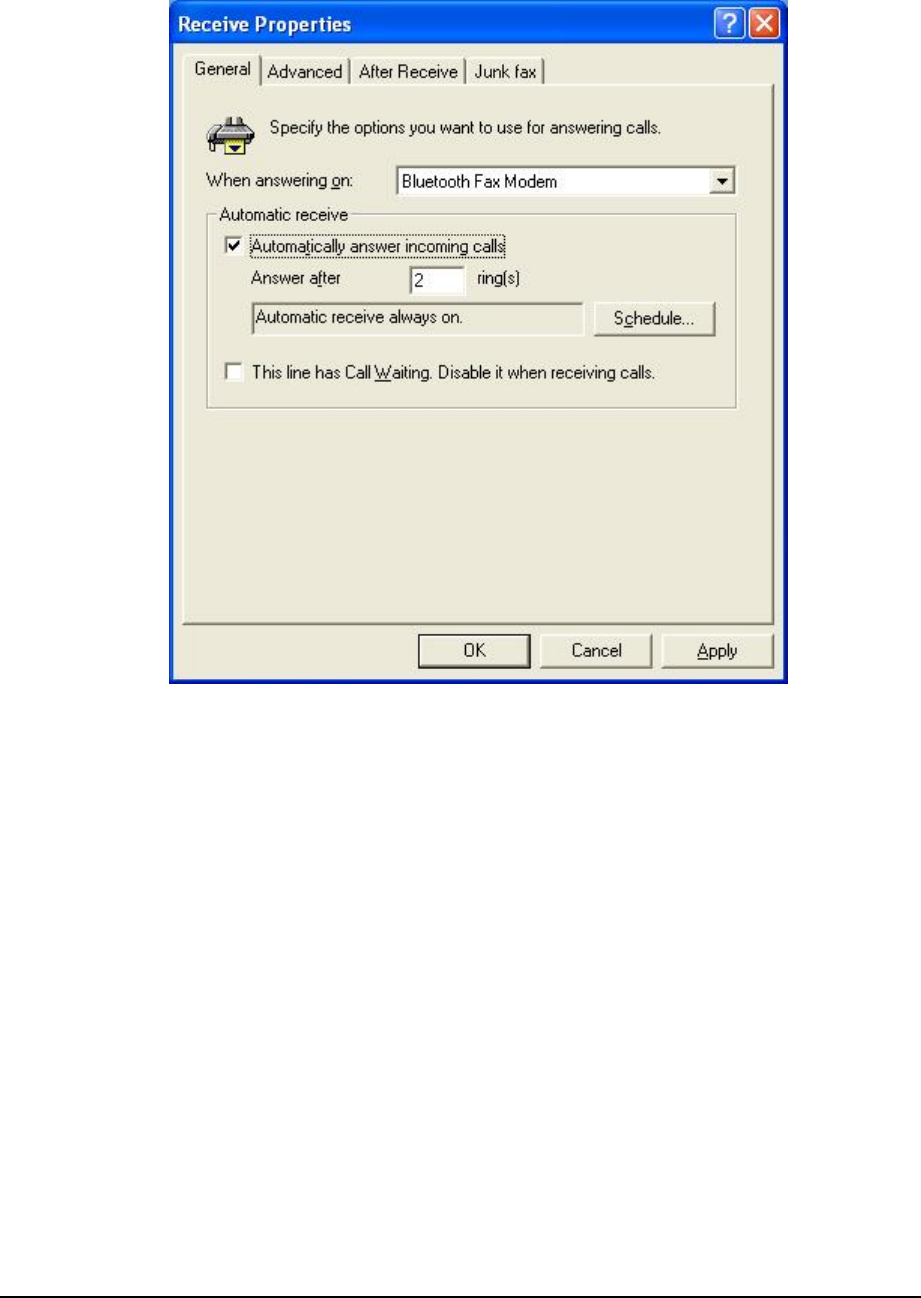

8. Click the "Receive Setup" button, tick the "Automatically answer incoming calls"
checkbox. Click "OK" to complete the process.
9. Now create a new fax and click the "Send" button when done. Your can now send
faxes via your mobile phone.
61
Troubleshooting
Q1: Why couldn't my Bluetooth device find any nearby Bluetooth devices?

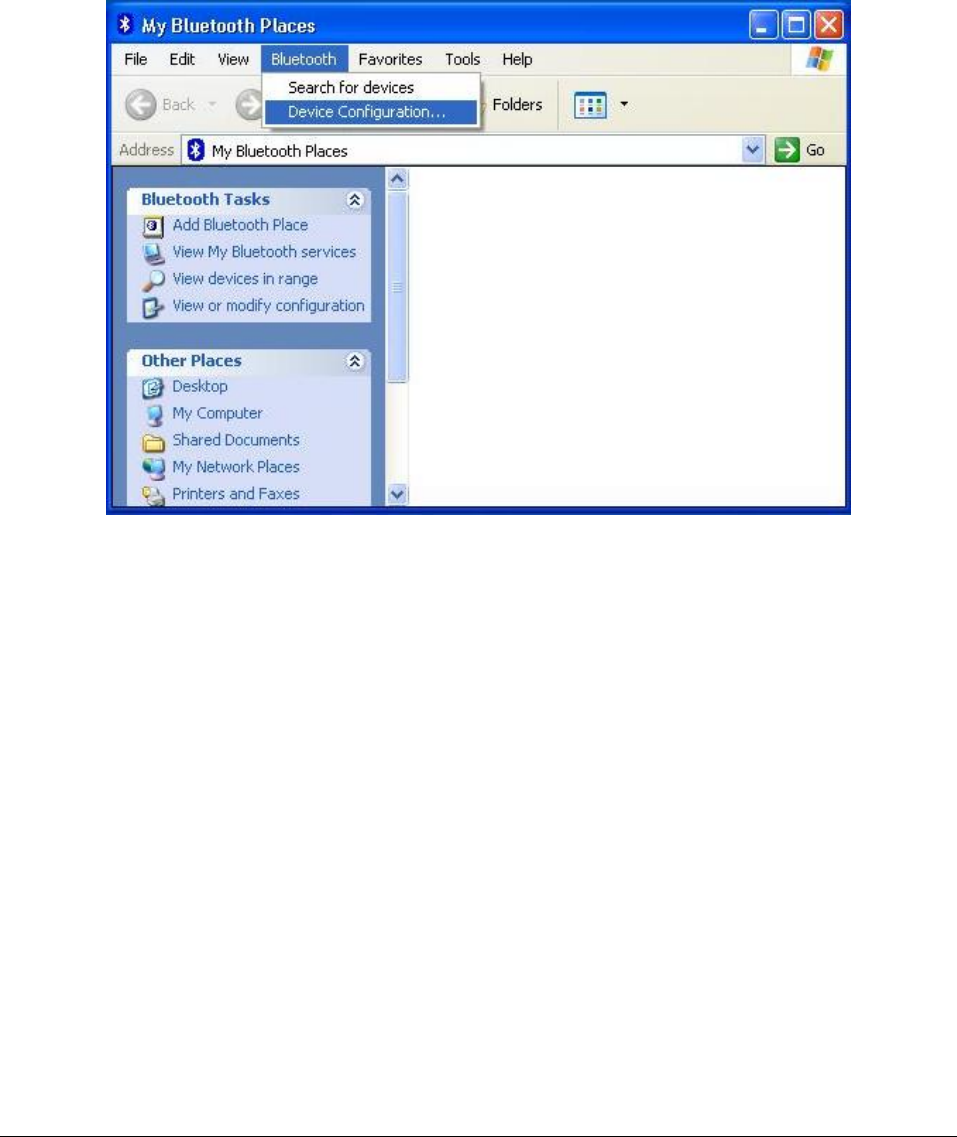

A1: (1) Please check that your Bluetooth device is enabled by opening the Bluetooth
Configuration window.
62
(2) If the Bluetooth device is enabled, you will see something of the following nature.
63
(3) Otherwise, for USB Bluetooth adapter, please unplug then plug in the USB
Bluetooth adapter to enable the device.
Q2: Why can't I transfer files from Nokia 7650 to my PC?
A2: If you are having trouble sending files from Nokia 7650 to your notebook or PC, follow
the steps below:
(1) Execute "regedit" from the Run command (Start->Run)
(2) Locate the key:
HKEY_CURRENT_USER\Software\Widcomm\BTConfig\Services\0004, and locate
the entry "Accept other".
(3) Set this key to 0x0000001.
If the "Accept other" key does not exist, simply create it with type DWORD and fill in
the value.
Save and exit Regedit. Reboot if necessary, now you should be able to send files
from Nokia 7650 to your notebook or PC.
64
Q3: How come some devices within the connection range may not show up in the list of
devices found?
A3: Your device is configured to report only specific types or classes of devices (Bluetooth
Configuration Panel > Discovery tab, on your device). The unlisted device is
configured to be non-discoverable (Bluetooth Configuration Panel > Accessibility tab,
on the un-listed device).
Q4: Cannot connect to a paired device.
A4: Paired devices are always displayed in My Bluetooth Places, even if the remote
device is out of range or not powered up.
Verify that the remote member of the pair is within radio range, and powered up, and
then attempt the connection again.
Q5: Cannot discover services on an un-paired remote device
A5: The remote device may not be powered up or may be out of range.
Verify that the remote device is powered up.
Verify that the remote device is in Connectable mode (Bluetooth Configuration
Panel > Accessibility tab).
Perform a Search for Devices to verify that the device is within range.
Q6: Dial-up networking service does not start.
A6: The Dial-up Networking service will not start unless a properly configured modem is
attached to the server.
Verify that the modem is usable as a local device on the computer to which it is
attached. In the Bluetooth Configuration PanelLocal Services tab double-click
the Dial-up Networking serviceClick the down arrow in the Modem field and
select the modem that will be used to dial out, click the OK button to close the
Bluetooth Configuration Panel.
Q7: Determine the Bluetooth device address (BDA) of my hardware device.
A7: In the Bluetooth Configuration Panel, on the Hardware tab, in the Devices section,
select the device you want to determine the address of. In the Device Properties
section of the dialog box, the fourth entry, Device Address, is the BDA of the selected
Bluetooth device.
Q8: Determine the version of the host controller interface (HCI)
A8: In the Bluetooth configuration panel, on the hardware tab, in the device properties
Section, the fifth entry provides Bluetooth specification compliance information for the
host controller interface.
The sixth entry contains the specification revision information for the host controller
Interface, if appropriate.
Q9: Determine the version of the link manager protocol (IMP)
A9: In the Bluetooth configuration panel, on the hardware tab, in the device properties
section, the seventh entry provides link manager protocol version number
information.
The eighth entry contains the link manager protocol sub-version number information,
if appropriate.
Q10: How to find information about the Bluetooth hardware attached to my computer?
A10: In the Bluetooth configuration panel, select the hardware tab.
Q11: Internet connection sharing does not work
65
A11: This occurs because Internet connection sharing was enabled when Bluetooth was
installed (this is a Microsoft windows behavior and is considered proper operation).
To resolve the “problem”:
1. Disable sharing for the Ethernet adapter:
(a) Windows control panel > network and dial-up connections
(b) Right-click “local area connection,” select properties, and then select the
Sharing tab.
(c) Clear (uncheck) the box for “enable internet connection sharing for this
“Connection” and click ok.
2. Re-enable sharing for the Ethernet adapter; repeat step 1.c.), and select (check)
the sharing box.
If offered an option to select an adapter, select “Bluetooth network adapter” (this
option will not appear unless more than one adapter is available.) If asked to reboot
the computer, do so.
Q12: Test a network access connection.
A12: If the client is hardwired to the LAN, unplug the hardwired connection to ensure that
the Test checks the wireless connection rather than the hardwired connection.
If the server has access to the Internet, open a browser on the client and connect to
the World Wide Web.
You may also ping the server from the dos prompt.
Q13: Unknown port message when using a Bluetooth serial port.
A13: The “unknown port” error message usually means an attempt was made to connect
a port that was in use. Additional Bluetooth serial ports can be added if they are
required.
Q14: Bluetooth headset doesn’t always function under Win98.
A14: Windows 98 cannot convert audio files with the extension m3u (e.g., myfile.m3u) into
the pulse code modulation (pcm) audio format used by Bluetooth headsets; this is a
limitation of windows 98.
Other versions of windows (2000, me and XP) can translate m3u audio files into the
pcm format.
Possible solutions are:
Upgrade to a newer version of Windows
Use an m3u-to-mp3 conversion utility to convert the file(s) into a format that is
supported by Windows 98. (Conversion utilities are available as freeware or
shareware on the Internet.)
Q15: How to shift the Buletooth driver to the original one in Windows XP sp2. Please
follow below instrcutions:
A15: (1)Click on Start Control Panel Performance and Maintenance System,
choose Hardware and then Device Manager on System Properties. After open
the Device Manager, right click your Buletooth Device, select “Properties”.
66
(2) Select “Driver” on Broadcom USB Bluetooth Device Properties, then click
“Update Driver”.
67
(3) Choose “No, not this time”
(4) Choose “install from a list or specific location”.
68

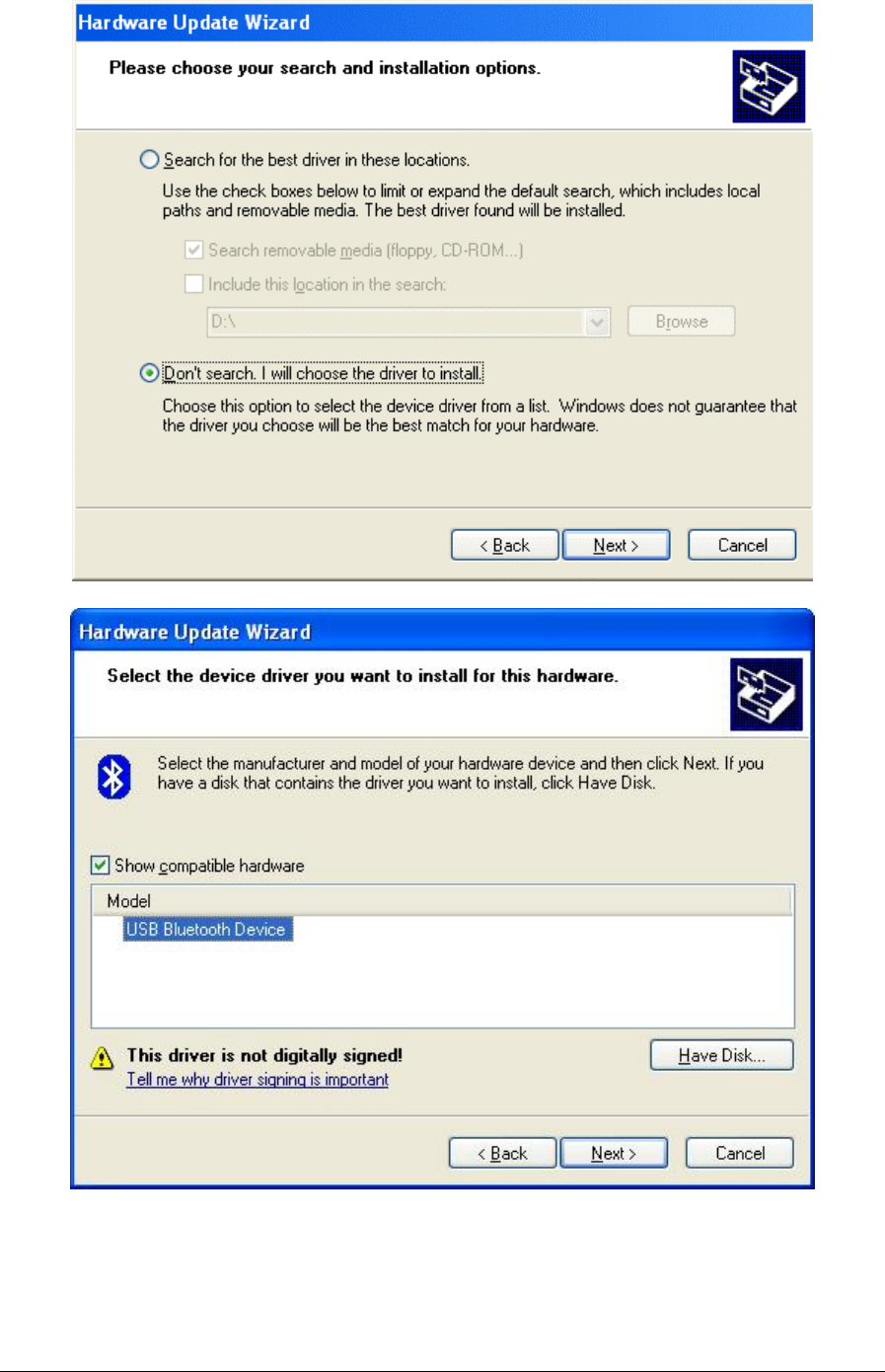

(5) Choose “Don’t search. I will choose the driver to install”
(6) Click “Finish button to accomplish driver shift.
69
Notice: This product is recommended for indoor use only.
70
Federal Communication Commission
Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. End users must follow the specific operating instructions
for satisfying RF exposure compliance.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. To maintain compliance with FCC RF exposure compliance requirements,
please avoid direct contact to the transmitting antenna during transmitting.
71
Industry Canada Statement
Operation is subject to the following two conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may cause
undesired operation of the device
To prevent radio interference to the licensed service, this device is intended to be
operated indoors and away from windows to provide maximum shielding.
Equipment (or its transmit antenna) that is installed outdoors is subject to licensing.
