Icon Descriptions
While reading through the User Guide you may see
various icons that call attention to specific items. Below is
a description of these icons:
NOTE: This check mark indicates that there is
a note of interest and is something that you
should pay special attention to while using the
product.
WARNING: This exclamation point indicates
that there is a caution or warning of potential
risk of bodily injury and/or it is something that
could damage your property or product.
WEB: This globe icon indicates a noteworthy
website address or e-mail address.
Online Resources
Website addresses in this document are listed without
http:// in front of the address because most current web
browsers do not require it. If you use an older web browser,
you may have to add http:// in front of the web address.
Resource Website
Linksys www.linksysbycisco.com
Linksys
International www.linksysbycisco.com/international
Glossary www.linksysbycisco.com/glossary
Network
Security www.linksysbycisco.com/security
Web Technical
Support
www.linksysbycisco.com/support
Copyright and Trademarks
Linksys, Cisco and the Cisco Logo
are registered trademarks or
trademarks of Cisco Systems, Inc.
and/or its affiliates in the U.S. and certain
other countries. Other brands and product
names are trademarks or registered
trademarks of their respective holders.
Copyright © 2009 Cisco Systems, Inc. All
rights reserved.
Table of Contents
ii
Chapter 1:
Product Overview 1
Front Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Back Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Placement Positions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Chapter 2:
Wireless Security Checklist 3
General Network Security Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Additional Security Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Chapter 3:
Advanced Conguration 4
How to Access the Utility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Using the Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
List of Screens in the Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Setup Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Wireless Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Storage Tab (WAG320N Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Security Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Access Restrictions Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Applications & Gaming Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Administration Tab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Status Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Appendix A:
Troubleshooting 8
Appendix B:
Specications 9
WAG120N . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
WAG160N v2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
WAG320N . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Appendix C:
Regulatory Information 11
European Union . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Australia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
New Zealand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
United States of America. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Canada . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Chapter 1 Product Overview
1
Chapter 1:
Product Overview
Thank you for choosing the Wireless ADSL2+ Modem
Router. This device lets you access the Internet via a
wireless connection or through one of its four switched
ports. You can also use it to share resources such as
computers, printers and files. A variety of security features,
such as WPA2 security, a Stateful Packet Inspection (SPI)
firewall and NAT technology, help to protect your data
and your privacy while online. Configuration is easy using
the provided browser-based utility.

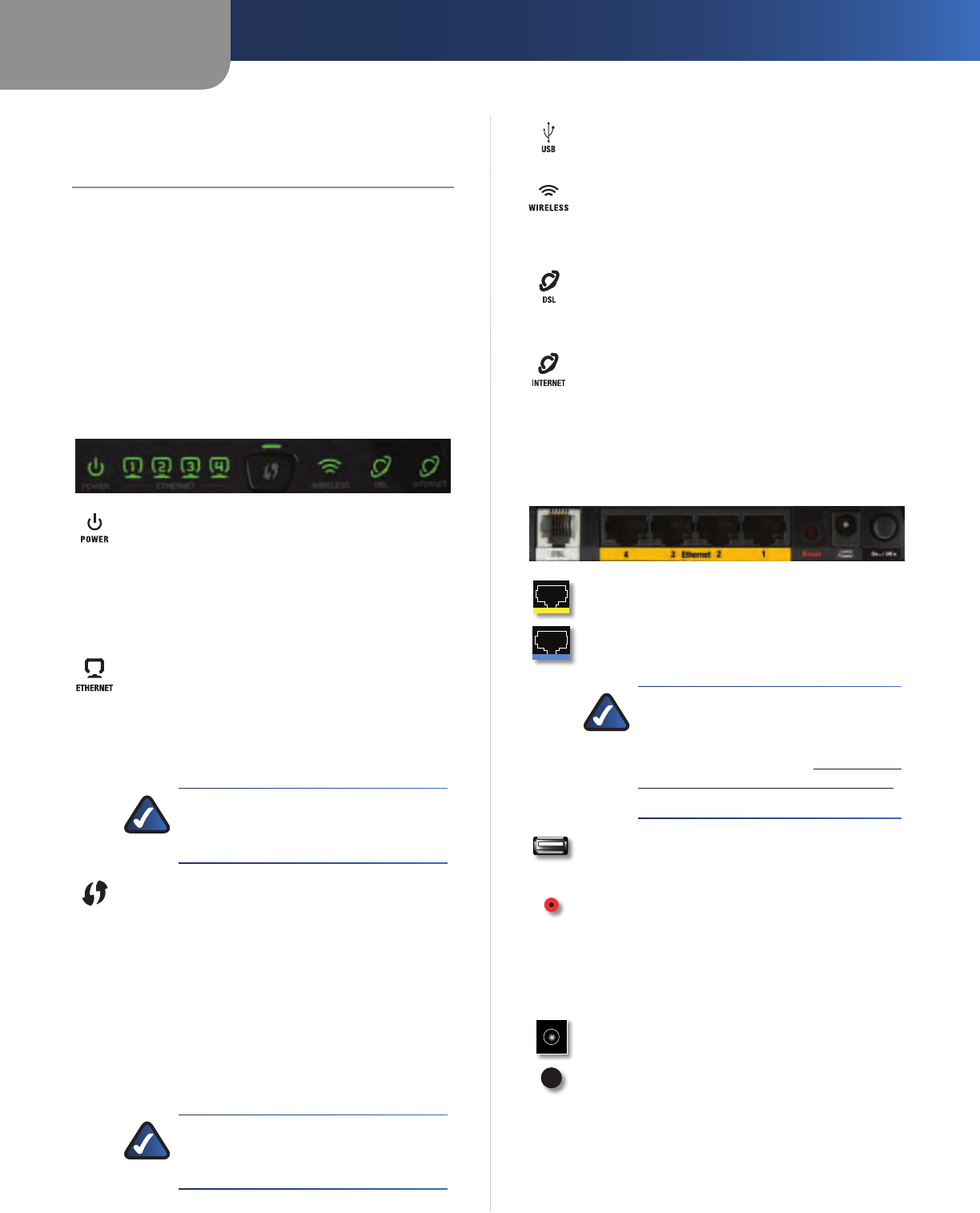

Front Panel
Power (WAG120N: Green/Amber; WAG160N v2
and WAG320N: Green/Red) The Power LED
is continuously lit green while the device is
powered on. The LED is lit amber (WAG120N)
or red (WAG160N v2 and WAG320N) if a POST
(Power On Self Test) failure or device malfunction
occurs.
Ethernet 1-4 (Green) These numbered LEDs,
one for each of the numbered ports on the
Modem Router’s back panel, serve two purposes.
If the LED is continuously lit, the Modem Router is
successfully connected to a device through that
port. It flashes to indicate network activity over
that port.
NOTE: The Ethernet 1 LED is lit amber
when the WAN link is established on that
port.
Wi-Fi Protected Setup™ Button (WAG120N:
Green/Amber; WAG160N v2 and WAG320N:
Green) Press this button to have Wi-Fi Protected
Setup search for your Wi-Fi Protected
Setup™-supported wireless device. The LED is
continuously lit green when a Wi-Fi Protected
Setup™ connection is successfully established.
The LED blinks slowly while Wi-Fi Protected
Setup™ is setting up a connection, and is lit amber
(WAG120N) or blinks rapidly (WAG160Nv2 and
WAG320N) if an error occurs. The LED is off when
Wi-Fi Protected Setup™ is idle.
NOTE:
Wi-Fi Protected Setup™ is a feature
that makes it easy to configure your
wireless network and its security settings.
USB (WAG320N only) (Green) The USB LED
lights up when a USB device is connected to the
Modem Router through the USB port.
Wireless (Green) The Wireless LED lights up
when the wireless feature is enabled. It flashes
when the Modem Router is actively sending or
receiving data over the network.
DSL (Green) The DSL LED lights up whenever
there is a successful DSL connection. The LED
flashes green while the Modem Router is
establishing the ADSL connection.
Internet (Green/Red) The Internet LED lights up
green and stays on when a connection is made
through the Internet port. It flashes to indicate
network activity over the Internet port. The LED
is lit red when an authentication error occurs.
Back Panel
DSL The DSL port connects to the ADSL line.
Ethernet 4, 3, 2, 1 The Ethernet ports (4, 3, 2, 1)
connect the Modem Router to wired computers
and other Ethernet network devices.
NOTE: The Ethernet 1 port can
also be configured as the WAN
port. To do this, access the Web-
based utility (refer to “Chapter 3:
Advanced Configuration on page 4),
then select the Setup > Ethernet tab.
USB (WAG320N only) The USB port connects
the Modem Router to a hard drive or flash-
based USB storage device.
Reset There are two ways to reset the Modem
Routers factory defaults. Either press and
hold the Reset button for approximately five
seconds, or restore the defaults from the
Administration > Factory Defaults screen of the
Modem Routers web-based utility.
Power The Power port is where you will connect
the power adapter.
On/Off Button Press the On/Off button to turn
power to the device on or off.
Chapter 1 Product Overview
2
Follow these instructions:
1. Determine where you want to mount the device. Make
sure that the wall you use is smooth, flat, dry, and
sturdy. Also make sure the location is within reach of
an electrical outlet.
2. Drill two holes into the wall. Make sure the holes are
152 mm (6 inches) apart.
3. Insert a screw into each hole and leave 3 mm
(0,12 inches) of its head exposed.
4. Maneuver the device so the wall-mount slots line up
with the two screws.
5. Place the wall-mount slots over the screws and slide
the device down until the screws fit snugly into the
wall-mount slots.
Placement Positions
There are two ways to physically install the device. The
first way is to place the device horizontally on a surface.
The second way is to mount the device on a wall.
The best place for the device is usually at the center of
your wireless network, within range of all of your wireless
devices.
Horizontal Placement
The device has four rubber feet on its bottom panel. Place
the device on a level surface near an electrical outlet.
Wall-Mounting Placement
The device has two wall-mount slots on its bottom
panel. The distance between the slots is 152 mm
(6 inches).
Two screws are needed to mount the device.
Suggested Mounting Hardware
2,5-3,0 mm
4-5 mm 1-1,5 mm
Note: Mounting hardware illustrations are not
true to scale.
NOTE: Cisco is not responsible for damages
incurred by insecure wall-mounting hardware.
152 mm

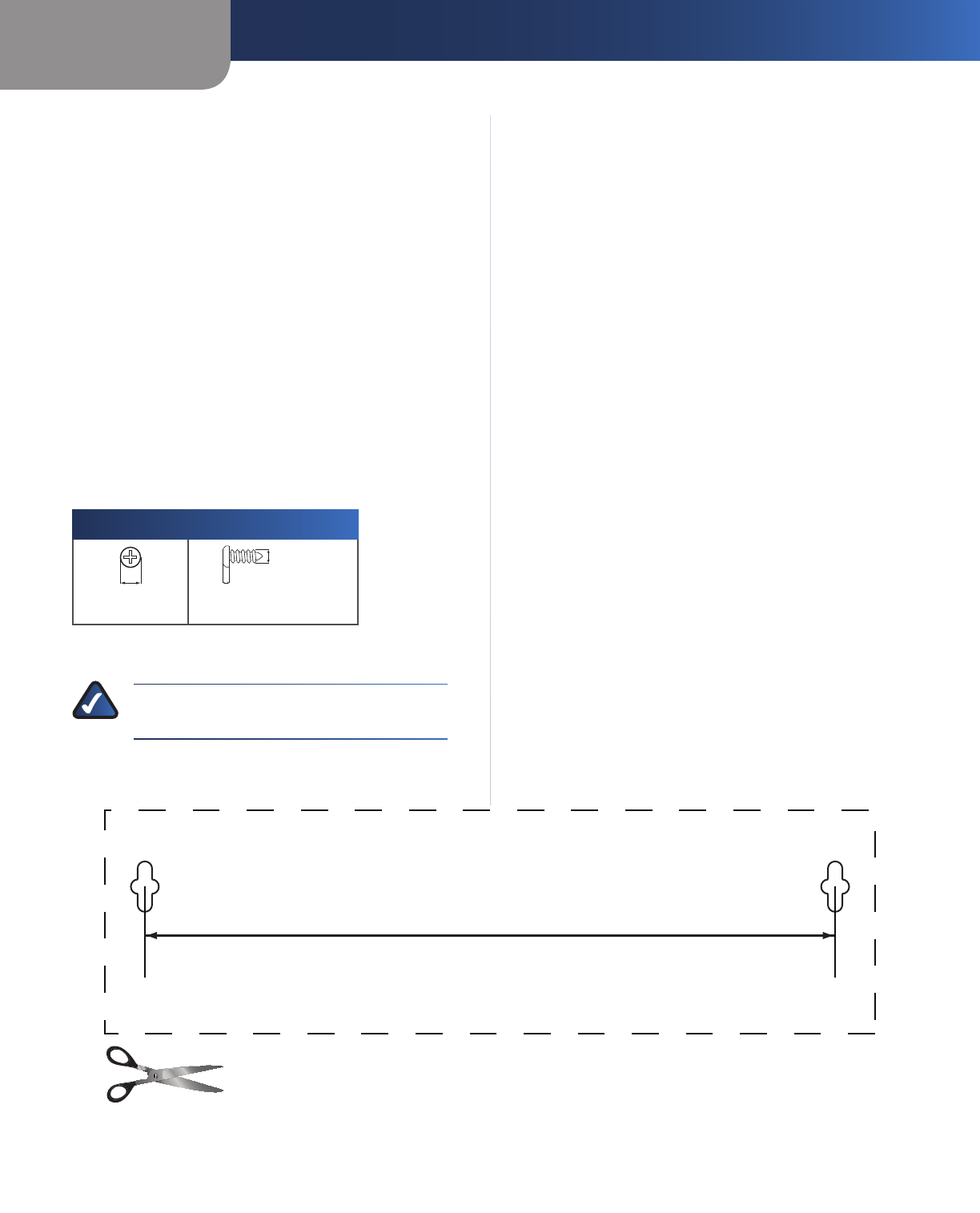

Wall Mounting Template
Chapter 2 Wireless Security Checklist
3
Chapter 2:
Wireless Security Checklist
Wireless networks are convenient and easy to install, so
homes with high-speed Internet access are adopting them
at a rapid pace. Because wireless networking operates by
sending information over radio waves, it can be more
vulnerable to intruders than a traditional wired network.
Like signals from your cellular or cordless phones, signals
from your wireless network can also be intercepted. Since
you cannot physically prevent someone from connecting
to your wireless network, you need to take some additional
steps to keep your network secure.
1. Change the default wireless
network name or SSID
Wireless devices have a default wireless network name
or Service Set Identifier (SSID) set by the factory. This is
the name of your wireless network, and can be up to 32
characters in length. Linksys by Cisco wireless products
use linksys as the default wireless network name. You
should change the wireless network name to something
unique to distinguish your wireless network from other
wireless networks that may exist around you, but do not
use personal information (such as your Social Security
number) because this information may be available for
anyone to see when browsing for wireless networks.
2. Change the default password
For wireless products such as access points, routers, and
modem routers, you will be asked for a password when
you want to change their settings. These devices have a
default password set by the factory. The default password
is admin. Hackers know these defaults and may try to
use them to access your wireless device and change your
network settings. To thwart any unauthorized changes,
customize the device’s password so it will be hard to
guess.
3. Enable MAC address filtering
Linksys by Cisco routers and modem routers give you
the ability to enable Media Access Control (MAC) address
filtering. The MAC address is a unique series of numbers
and letters assigned to every networking device. With
MAC address filtering enabled, wireless network access
is provided solely for wireless devices with specific MAC
addresses. For example, you can specify the MAC address
of each computer in your home so that only those
computers can access your wireless network.
4. Enable encryption
Encryption protects data transmitted over a wireless
network. Wi-Fi Protected Access (WPA/WPA2) and
Wired Equivalency Privacy (WEP) offer different levels of
security for wireless communication.
A network encrypted with WPA/WPA2 is more
secure than a network encrypted with WEP, because
WPA/WPA2 uses dynamic key encryption. To protect
the information as it passes over the airwaves, you should
enable the highest level of encryption supported by your
network equipment.
WEP is an older encryption standard and may be the
only option available on some older devices that do not
support WPA.
General Network Security Guidelines
Wireless network security is useless if the underlying
network is not secure.
Password protect all computers on the network and
individually password protect sensitive files.
Change passwords on a regular basis.
Install anti-virus software and personal firewall
software.
Disable file sharing (peer-to-peer). Some applications
may open file sharing without your consent and/or
knowledge.
Additional Security Tips
Keep wireless routers, access points, or modem routers
away from exterior walls and windows.
Turn wireless routers, access points, or modem routers
off when they are not being used (at night, during
vacations).
Use strong passphrases that are at least eight characters
in length. Combine letters and numbers to avoid using
standard words that can be found in the dictionary.
WEB: For more information on wireless security,
visit www.linksysbycisco.com/security
Chapter 3 Advanced Configuration
4
Chapter 3:
Advanced Configuration
After you finish running the Setup Wizard on the Setup
CD-ROM, the device is ready for use. To change the device’s
advanced settings, access the Configuration Utility via a
web browser on a computer connected to the device.
NOTE FOR USERS IN NEW ZEALAND: Refer to
the Note in Setup > Basic Setup, page 5 for
setup instructions specific to your country.
How to Access the Utility
Launch the web browser on your computer, and enter the
devices default IP address, 192.168.1.1, in the Address
field. Then, press Enter.

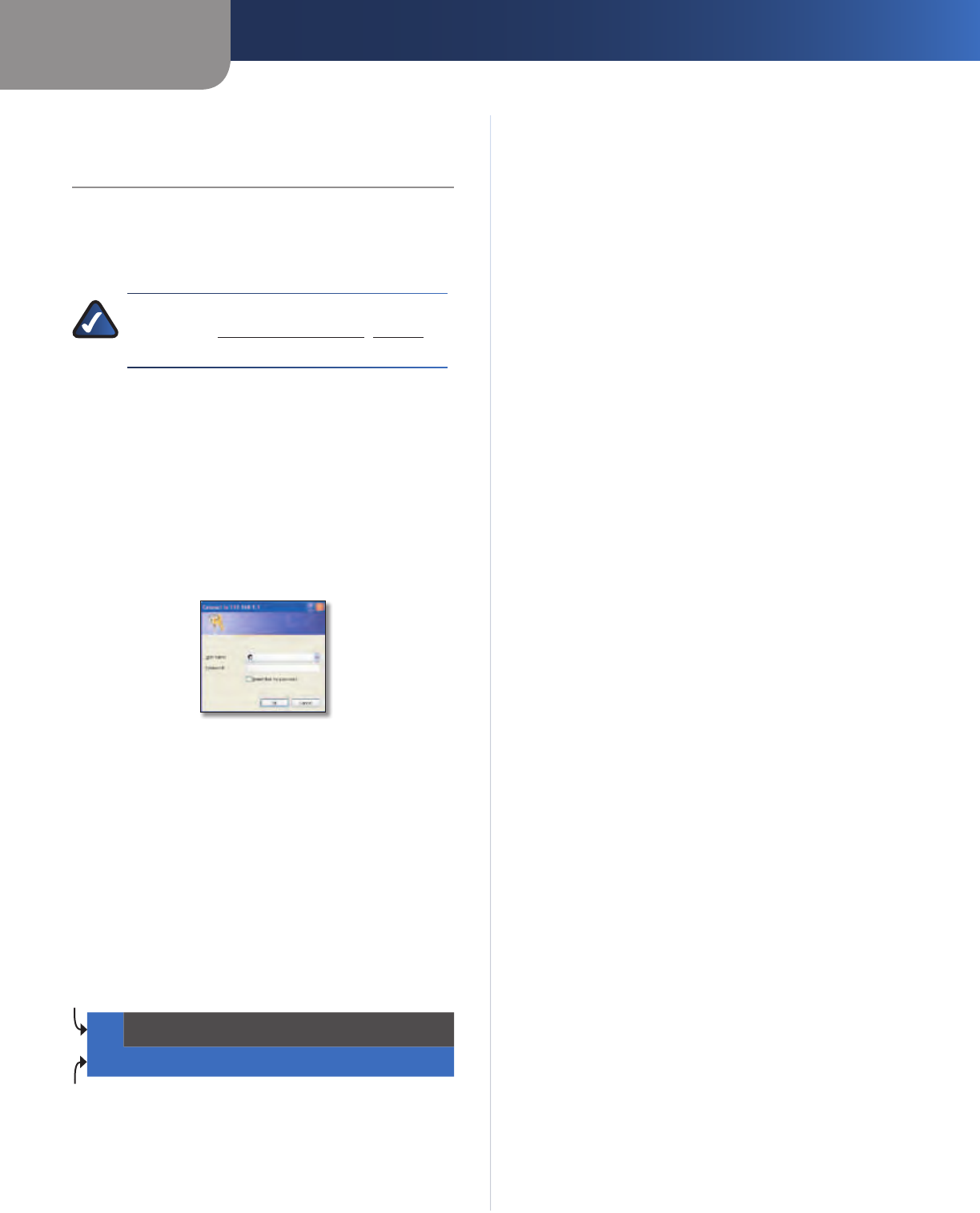

A login screen appears. Use the default user name and
password, admin, unless you changed them when you
ran the Setup Wizard. (You can set a new user name and
password from the Administration tab’s Management
screen.) Click OK to continue.
Login
If you are unable to log in, press the Reset button on the
back panel for at least 5 seconds, then wait for the device
to reset and try again.
Using the Utility
Immediately after login, the Basic Setup screen appears.
Near the top of the screen is a bar with selectable tabs.
Use these tabs to navigate within the Utility. The primary
tabs indicate the Utilitys main configuration categories.
Each primary tab has one or more secondary tabs that
provide access to the primary tab’s configuration screens.
Setup Wireless Storage Security Access
Restrictions
Applications &
Gaming Administration Status
Basic Setup Ethernet DDNS MAC Address Clone Advanced Routing
Navigation Tabs
To access a screen, click the appropriate primary tab,
then click the appropriate secondary tab. The screen will
appear, with its primary and secondary tabs highlighted.
List of Screens in the Utility
The screens are organized hierarchically as listed below.
(Some screens may not apply to all models.)
Setup Tab
Setup > Basic Setup
Setup > Ethernet
Setup > DDNS
Setup > MAC Address Clone
Setup > Advanced Routing
Wireless Tab
Wireless > Basic Wireless Settings
Wireless > Wireless Security
Wireless > Wireless MAC Filter
Wireless > Advanced Wireless Settings
Storage Tab (WAG320N Only)
Storage > Disk Management
Storage > Shared Folder
Storage > Administration
Storage > Media Server
Security Tab
Security > Firewall
Security > VPN Passthrough
Access Restrictions Tab
Access Restrictions > Internet Access Policy
Applications & Gaming Tab
Applications & Gaming > Single Port Forwarding
Applications & Gaming > Port Range Forwarding
Applications & Gaming > Port Range Triggering
Applications & Gaming > DMZ
Applications & Gaming > QoS
Administration Tab
Administration > Management
Administration > Reporting
Administration > Diagnostics
Administration > Back Up & Restore
Administration > Factory Defaults
Administration > Firmware Upgrade
Administration > Language
Status Tab
Status > Modem Router
Status > Local Network
Status > Wireless Network
Status > DSL Connection
Primary Tabs
Secondary Tabs
Appendix A Troubleshooting
8
Appendix A:
Troubleshooting
Your computer cannot connect to the Internet.
Follow the instructions until your computer can connect
to the Internet:
Make sure that the Modem Router is powered on. The
Power LED should be green and not flashing.
If the Power LED is flashing, then power off all of
your network devices, including the Modem Router
and computers. Then power on each device in the
following order:
1. Modem Router
2. Computer
Check the LEDs on the device’s front panel. Make sure
the Power, DSL, and at least one of the numbered
Ethernet LEDs are lit. If they are not, then check
the cable connections. The computer should be
connected to one of the Ethernet ports numbered
1-4 on the device, and the device’s DSL port must be
connected to the ADSL line.
When you double-click the web browser, you are
prompted for a user name and password. If you want to
get rid of the prompt, follow these instructions.
Launch the web browser and perform the following steps
(these steps are specific to Internet Explorer but are similar
for other browsers):
1. Select Tools > Internet Options.
2. Click the Connections tab.
3. Select Never dial a connection.
4. Click OK.
You are using a static IP address and cannot connect.
Refer to Windows Help and change your Internet Protocol
(TCP/IP) Properties to Obtain an IP address automatically.
The computer cannot connect wirelessly to the network.
Make sure the wireless network name or SSID is the same
on both the computer and the device. If you have enabled
wireless security, then make sure the same security
method and key are used by both the computer and the
device.
You need to modify the basic settings on the
deviceRouter.
Run the Setup Wizard on the Setup CD-ROM.
You need to modify the advanced settings on the
device.
Open the web browser (for example, Internet Explorer or
Firefox), and enter the device’s IP address in the address
field (the default IP address is 192.168.1.1). When
prompted, complete the User name and Password fields
(the default user name and password is admin). Click the
appropriate tab to change the settings
WEB: If your questions are not
addressed here, refer to the website,
www.linksysbycisco.com/support
Chapter 3 Advanced Configuration
5
Setup Tab
The Setup tab provides the devices basic setup functions.
For detailed information on the Setup tab, refer to the
Utilitys online help pages.
Setup > Basic Setup
The Basic Setup screen allows you to change the device’s
general settings. The following connection types
(encapsulations) are available:
RFC2364PPPoA
RFC2516PPPoE
RFC2684Routed
IPoA
RFC2684 Bridged-Dynamic IP Address
RFC2684 Bridged-Static IP Address
Bridge Mode Only
NOTE FOR USERS IN NEW ZEALAND: To set up
the device, follow these instructions:
1. Access the Setup > Basic Setup screen.
2. Select RFC 2364 PPPoA from the
Encapsulation drop-down menu.
3. For the Virtual Circuit ID, enter 0 for the VPI
and 100 for the VCI.
4. Select VC for Multiplexing.
5. Select Multimode from the DSL Modulation
drop-down menu.
6. Enter your User Name and Password details
from your ISP.
7. Click Save Settings.
Setup > Ethernet
The Ethernet screen allows you to configure the device’s
Ethernet settings. It also allows you to set up the first
Ethernet port as a WAN port.
Setup > DDNS
The DDNS screen allows you to assign a fixed host and
domain name to a network computer that has been
assigned a dynamic Internet IP address. This is useful
when you are hosting your own website, FTP server, or
other server behind the device.
Setup > MAC Address Clone
Some service providers require you to register a MAC
address in order to access the Internet. The MAC Address
Clone screen lets you use the MAC address of a device that
has already been registered with your service provider, by
copying that MAC address to the device.
Setup > Advanced Routing
The Advanced Routing screen allows you to configure the
devices advanced routing functions, such as operating
mode, dynamic mode, and static routing.
Wireless Tab
The Wireless tab allows you to configure the device’s
wireless functions.
For detailed information on the Wireless tab, refer to the
Utilitys online help pages.
Wireless > Basic Wireless Settings
The Basic Wireless Settings screen allows you to set up a
network with Wi-Fi Protected Setup™, change the radio
band, select the network mode, change the wireless
network name (SSID), change the wireless channel and
disable the SSID broadcast.
Wireless > Wireless Security
The Wireless Security screen allows you to configure the
security of your wireless network(s). It allows you to select
from a number of security modes, such as WPA2.
Wireless > Wireless MAC Filter
The Wireless MAC Filter screen allows you to control (block
or allow) Internet access by individual devices on your
wireless network by specifying their MAC addresses.
Wireless > Advanced Wireless Settings
The Advanced Wireless Settings screen allows you to
configure the devices advanced wireless functions.
Storage Tab (WAG320N Only)
The Storage tab allows you to configure the settings for an
optional external USB storage device, such as a flash drive
or hard disk drive.
For detailed information on the Storage tab, refer to the
Utilitys online help pages.
Storage > Disk Management
The Disk Management screen displays information on an
attached USB storage device, and allows you to perform
basic management functions on the device. It also
provides information on the attached USB disk, allows for
a blank disk to be formatted, and enables safe removal of
the attached disk.
Storage > Shared Folder
The Shared Folder screen allows you to manage the shared
folders on an external USB storage device. A shared folder
Chapter 3 Advanced Configuration
6
is a directory on the device that a user can access through
the network.
Storage > Administration
The Administration screen allows you to configure basic
storage settings and manage the devices users.
Storage > Media Server
The Media Server screen allows you to configure the
devices built-in media server, and to select the folders to
scan for content.
Security Tab
The Security tab allows you to enhance the security of
your network.
For detailed information on the Security tab, refer to the
Utilitys online help pages.
Security > Firewall
The Firewall screen allows you to configure a firewall that
can filter out various types of unwanted traffic on the
devices local network.
Security > VPN Passthrough
The VPN Passthrough screen allows you to configure the
devices VPN passthrough feature. This feature lets VPN
tunnels using the IPSec, L2TP, or PPTP protocols to pass
through the devices firewall.
Access Restrictions Tab
The Access Restrictions tab allows you to configure
the Internet access restrictions for each device in your
network.
For detailed information on the Access Restrictions tab,
refer to the Utilitys online help pages.
Access Restrictions > Internet Access Policy
The Internet Access Policy screen allows you to define
policies that are used to block or allow specific kinds
of Internet usage and traffic, such as Internet access,
designated applications, websites, and inbound traffic
during specific days and times, and for a specified list of
devices in your network.
Applications & Gaming Tab
The Applications & Gaming tab allows you to configure
functions such as port forwarding and quality of service
that may be necessary for special applications such as
hosting web servers, ftp servers, and e-mail servers on on
your network, or other specialized internet applications
such as videoconferencing or online gaming.
For detailed information on the Applications & Gaming
tab, refer to the Utilitys online help pages.
Applications & Gaming > Single Port Forwarding
The Single Port Forwarding screen allows you to set up
port forwarding for a single port. You should assign static
IP addresses to the destination computers before you use
this feature.
Applications & Gaming > Port Range Forwarding
The Port Range Forwarding screen allows you to set up
port forwarding for a range of ports. You should assign
static IP addresses to the destination computers before
you use this feature.
Applications & Gaming > Port Range Triggering
The Port Range Triggering screen allows you to set up port
triggering. When port triggering is configured, the device
watches for specified port numbers in outgoing data.
When a match is found, the device records the sending
computer’s IP address so that when the requested data
returns, it can be sent to the proper computer.
Applications & Gaming > DMZ
The DMZ screen allows you to expose one network user
to the Internet for use of a special-purpose service such
as Internet gaming or video conferencing. DMZ hosting
forwards all the ports at the same time to one computer.
You should assign static IP addresses to the destination
computers before you use this feature.
Applications & Gaming > QoS
The QoS screen allows you to specify priorities for different
types of traffic. Lower priority traffic will be slowed down
to allow greater throughput or less delay for high priority
traffic.
Administration Tab
The Administration tab allows you to configure the devices
administrative functions.
For detailed information on the Administration tab, refer
to the Utilitys online help pages.
Administration > Management
The Management screen allows you to manage specific
functions for access and security.
Chapter 3 Advanced Configuration
7
NOTE ON CISCO WEB ASSISTANT OPTION
(not on all models): If you see an error code
404” message (indicating that you entered an
invalid web address), the Cisco Web Assistant
will appear and automatically run a search
based on the keywords in the web address. This
feature can be enabled or disabled from this
screen.
NOTE ON TREND MICRO OPTION (not on all
models): Trend Micro ProtectLink Gateway
is a hosted security service that stops spam
and filters URLS to prevent unwanted content
from passing through your router. The Email
Protection is the hosted messaging security
solution provided by Trend Micro InterScan
Messaging Hosted Security (IMHS). This feature
can be enabled or disabled from this screen.
Administration > Reporting
The Reporting screen allows you to configure system event
logging and to configure sending of e-mail alerts when a
Denial of Service attack is detected.
Administration > Diagnostics
The Diagnostics screen allows you to perform a ping test
to check the status of your Internet connection.
Administration > Back Up & Restore
The Back Up & Restore screen allows you to back up and
restore the configuration settings of your device.
Administration > Factory Defaults
The Factory Defaults screen allows you to restore the
factory defaults of the device. All savings you have saved
will be lost
NOTE: Restoring the factory defaults causes all
settings you have previously saved to be lost.
Administration > Firmware Upgrade
The Firmware Upgrade screen allows you to upgrade the
devices firmware.
Administration > Language
The Language screen allows you to select an available
language for the utility.
Status Tab
The Status tab allows you to display status information.
For detailed information on the Status tab, refer to the
Utilitys online help pages.
Status > Modem Router
The Modem Router screen displays information about the
device and its current settings. The on-screen information
will vary depending on the Internet Connection Type you
use.
Status > Local Network
The Local Network screen displays the status of your Local
Area Network.
Status > Wireless Network
The Wireless Network screen displays some basic
information about the wireless network of the device.
Status > DSL Connection
The DSL Connection screen displays the status of your DSL
connection.
Appendix B Specifications
9
Appendix B:
Specifications
WAG120N
Standards WLAN: 802.11n draft 2.0, 802.11g,
802.11b
Ethernet: 802.3, 802.3u
ADSL: T1.413i2, G.992.1 (G.DMT),
G.992.2 (G.Lite), G.992.3 (ADSL2),
G.992.5 (ADSL2+) for Annex A, B, M, L,
U-R2 for Annex B
Ports DSL, Ethernet (1-4), Power
Buttons On/O, Reset, Wi-Fi Protected Setup™
LEDs Power, Ethernet (1-4), Security,
Wireless, DSL, Internet
Cabling Type CAT5, RJ-11 (for Annex A),
RJ-45 (for Annex B)
Antennas 2 Internal
Modulations 802.11b: CCK/QPSK, BPSK
802.11g: OFDM/BPSK, QPSK, 16-QAM,
64-QAM
802.11n: OFDM/BPSK, QPSK, 16-QAM,
64-QAM
Transmit Power 802.11b: 17,0 ± 1,0 dBm
802.11g: 15,0 ± 1,0 dBm
802.11n: 13,0 ± 1,5 dBm
Receive Sensitivity -80 dBm (typical) @ 11 Mbps
-70 dBm (typical) @ 54 Mbps
-61 dBm (typical) @ 130 Mbps
-61 dBm (typical) @ 270 Mbps
Antenna Gain 1,8 dBi
Security Features
WPA2/WPA Personal and Enterprise;
128, 64 bits WEP;
MAC Address Filtering;
SPI Firewall
OS Requirements Windows XP, Vista, or Vista 64-bit
(to run the edition with latest updates (for
Setup CD) Network Magic and Setup Wizard);
Mac OS X 10.4 or higher (for Setup
Wizard)
Environmental
Dimensions 202 x 34 x 160 mm (8,0” x 1,3” x 6,3”)
Weight 362 g (12,8 oz)
Power 12VDC, 1A
Certication FCC, CE, Telepermit, K.21, UL, CB,
Wi-Fi (802.11b/g), WPA, WPA2,
WMM, Wi-Fi Protected Setup
Operating Temp. 0 to 40°C (32 to 104°F)
Storage Temp. -20 to 70°C (-4 to 158°F)
Operating
Humidity 10 to 85% Noncondensing
Storage Humidity 5 to 90% Noncondensing
WAG160N v2
Standards WLAN: 802.11n draft 2.0, 802.11g,
802.11b
Ethernet: 802.3, 802.3u
ADSL: T1.413i2, G.992.1 (G.DMT),
G.992.2 (G.Lite), G.992.3 (ADSL2),
G.992.5 (ADSL2+) for Annex A, B, M, L,
U-R2 for Annex B
Ports Power, DSL, Ethernet (1-4)
Buttons On/O, Reset, Wi-Fi Protected Setup™
LEDs Power, Ethernet (1-4), Ethernet WAN,
Security, Wireless, DSL, Internet
Cabling Type CAT5, RJ-11 (for Annex A),
RJ-45 (for Annex B)
Antennas 2 Internal
Modulations 802.11b: CCK/QPSK, BPSK
802.11g: OFDM/BPSK, QPSK, 16-QAM,
64-QAM
802.11n: OFDM/BPSK, QPSK, 16-QAM,
64-QAM
Transmit Power 802.11b: 17,0 ± 1,0 dBm
802.11g: 15,0 ± 1,0 dBm
802.11n: 13,0 ± 1,5 dBm
Receive Sensitivity -80 dBm (typical) @ 11 Mbps
-72 dBm (typical) @ 54 Mbps
-66 dBm (typical) @ 130 Mbps
-63 dBm (typical) @ 270 Mbps
Antenna Gain 2 dBi
Security Features
WPA2/WPA Personal and Enterprise
;
128, 64 bits WEP;
MAC Address Filtering;
SPI Firewall
OS Requirements Windows XP, Vista, or Vista 64-bit
(to run the edition with latest updates (for
Setup CD) Network Magic and Setup Wizard);
Mac OS X 10.4 or higher (for Setup
Wizard)
Environmental
Dimensions 202 x 34 x 160 mm (8,0" x 1,3" x 6,3")
Weight 362 g (12,8 oz)
Power 12VDC, 1A
Certication FCC, CE, Wi-Fi®, A-Tick,Telepermit,
WPA, WPA2

Navigation menu
