Table of Contents
Chapter 1: Introduction 1
The Wireless-G Ethernet Bridge 1
Features 1
Chapter 2: Getting to Know the Wireless-G
Ethernet Bridge 2
The Wireless-G Ethernet Bridge’s Back Panel 2
The Wireless-G Ethernet Bridge’s Front Panel LEDs 3
Chapter 3: Planning Your Wireless Network 4
Network Topology 4
Ad-Hoc versus Infrastructure Mode 4
Chapter 4: Connecting the Wireless-G Ethernet
Bridge for Setup 7
Chapter 5: Setting Up the Wireless-G Ethernet
Bridge 8
Chapter 6: Connecting the Wireless-G Ethernet
Bridge for Network Use 16
Connection to a Network Device 16
Placement Options 17
Chapter 7: Using the Wireless-G Ethernet Bridge
Web-based Utility 18
Overview 18
Starting the Web-based Utility 18
Setup 20
Password 25
Advanced 26
Status 29
Help 31
Appendix A: Troubleshooting 32
Common Problems and Solutions 32
Frequently Asked Questions 33
Wireless-G Ethernet Bridge
1
Instant Wireless®Series
Chapter 1: Introduction
r
The versatile Wireless-G Ethernet Bridge can make any wired Ethernet-
equipped device a part of your wireless network. At home, use the Bridge to
connect game consoles, set-top boxes, or computers to your Wireless-G net-
work and its shared high-speed Internet connection. In the office, convert your
Ethernet-wired printer, scanner, camera, notebook or desktop into a wireless
networked device.
It’s completely driver-free, so it works on any platform and under any operat-
ing system! Since there are no drivers to load, setup is a snap—configure the
network settings through your PC’s web browser, then plug it into your device
and go. And physical installation is simplified by support for Power over
Ethernet. With an optional PoE Adapter, you can mount the Bridge wherever
you want—power and data are both supplied through the Category 5 Ethernet
cable.
You can also use the Wireless-G Ethernet Bridge as a kind of “cable-less cable”
to connect remote areas together. Maybe Shipping is all the way across the
warehouse from Receiving. Or maybe you want to set up a home office in your
detached garage. With a Wireless-G Ethernet Bridge in the garage, and anoth-
er one (or a Wireless-G Access Point) in the house, you’re connected—no dig-
ging trenches, and no overhead wires.
Let the Wireless-G Ethernet Bridge from Linksys open up exciting new possi-
bilities for your wireless network.
• Converts wired-Ethernet devices to Wireless-G (draft 802.11g) network
connectivity
• Operates in the 2.4GHz frequency spectrum with throughput of up to
54Mbps
• Complies with IEEE draft 802.11g standard, and backwards compatible
with IEEE 802.11b products
• Installs in minutes with easy-to-use Setup Wizard
• Built-in web user interface for easy configuration from any web browser
• Security of up to 128-bit WEP encryption
• Supports Power over Ethernet for easy deployment
• Equipped with one standard 10/100Base-TX interface
The Wireless-G Ethernet Bridge
Features
Appendix B: Glossary 37
Appendix C: Specifications 43
Environmental 44
Appendix D: Warranty Information 45
Appendix E: Contact Information 46
Wireless-G Ethernet Bridge
3
Instant Wireless®Series
2
Power Green. The Power LED will light up
when the Bridge is powered on.
Ethernet Green. The Ethernet LED will be lit
steadily when the Bridge is connected to
the wired network. The LED will blink
when there is wired network traffic.
Wireless-G Green. The Wireless-G LED will be lit
steadily when the Bridge is connected to
the wireless network. The LED will
blink when there is wireless network
traffic.
Figure 2-2
Chapter 2: Getting to Know the
Wireless-G Ethernet Bridge
Reset The Reset button resets the Bridge to its
factory default settings.
X-II The X-II (MDI/MDI-X) slide switch
offers a choice between two settings.
Use the Xsetting if you are connecting
the Bridge to a network adapter. Use the
II setting if you are connecting the
Bridge to a hub or switch.
LAN The LAN port is where you will con-
nect the Ethernet network cable.
Power The Power port is where you will con-
nect the power adapter.
The Wireless-G Ethernet Bridge’s Back Panel
Figure 2-1
The Wireless-G Ethernet Bridge’s Front Panel LEDs
Note: If you use a Power over Ethernet (PoE)
device to supply data and power through the
Ethernet network cable, then you do not need
to connect the power adapter to the Power
port.
Wireless-G Ethernet Bridge
Instant Wireless®Series
54
If the wireless network is relatively small and needs to share resources only
with the other computers on the wireless network, then the Ad-Hoc mode can
be used. Ad-Hoc mode allows computers equipped with wireless transmitters
and receivers to communicate directly with each other, eliminating the need for
an access point. The drawback of this mode is that in Ad-Hoc mode, wireless-
equipped computers are not able to communicate with computers on a wired
network. And, of course, communication between the wireless-equipped comput-
ers is limited by the distance and interference directly between them.
Chapter 3: Planning Your Wireless
Network
Network Topology
A wireless local area network (WLAN) is exactly like a regular local area net-
work (LAN), except that each computer in the WLAN uses a wireless device to
connect to the network. Computers in a WLAN share the same frequency chan-
nel and SSID, which is an identification name for wireless devices.
Unlike wired networks, wireless networks have two different modes in which
they may be set up: infrastructure and ad-hoc. An infrastructure configuration
is a WLAN and wired LAN communicating to each other through an access
point. An ad-hoc configuration is wireless-equipped computers communicating
directly with each other. Choosing between these two modes depends on
whether or not the wireless network needs to share data or peripherals with a
wired network or not.
If the computers on the wireless network need to be accessible by a wired net-
work or need to share a peripheral, such as a printer, with the wired network
computers, the wireless network should be set up in Infrastructure mode. The
basis of Infrastructure mode centers around an access point, which serves as the
main point of communications in a wireless network (see Figure 3-1). Access
points transmit data to PCs equipped with wireless network cards, which can
roam within a certain radial range of the access point. Multiple access points
can be arranged to work in succession to extend the roaming range, and can be
set up to communicate with your Ethernet hardware as well.
Network Topology
Ad-Hoc versus Infrastructure Mode

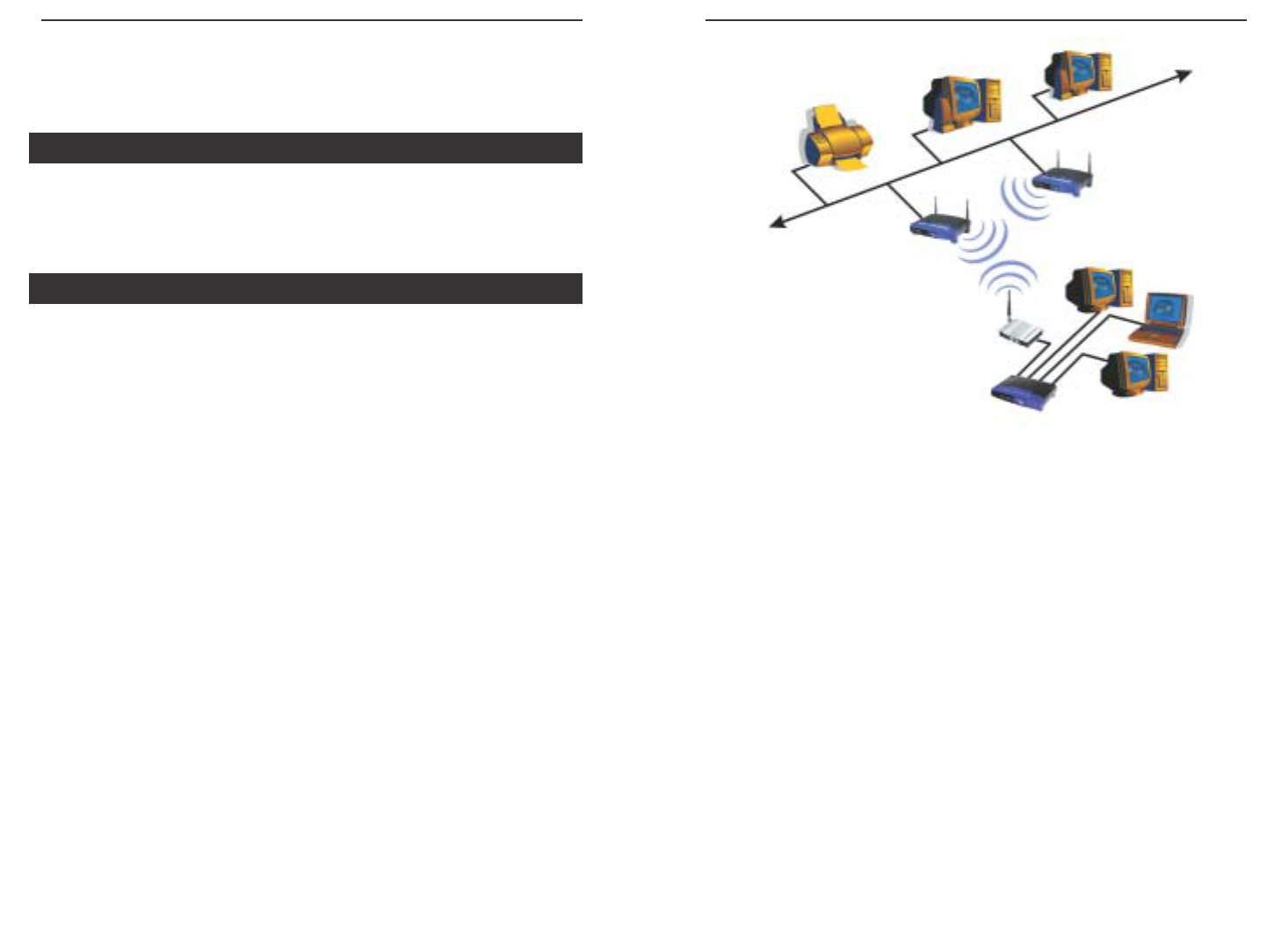

Figure 3-1
Wireless-G Ethernet Bridge
7
Instant Wireless®Series

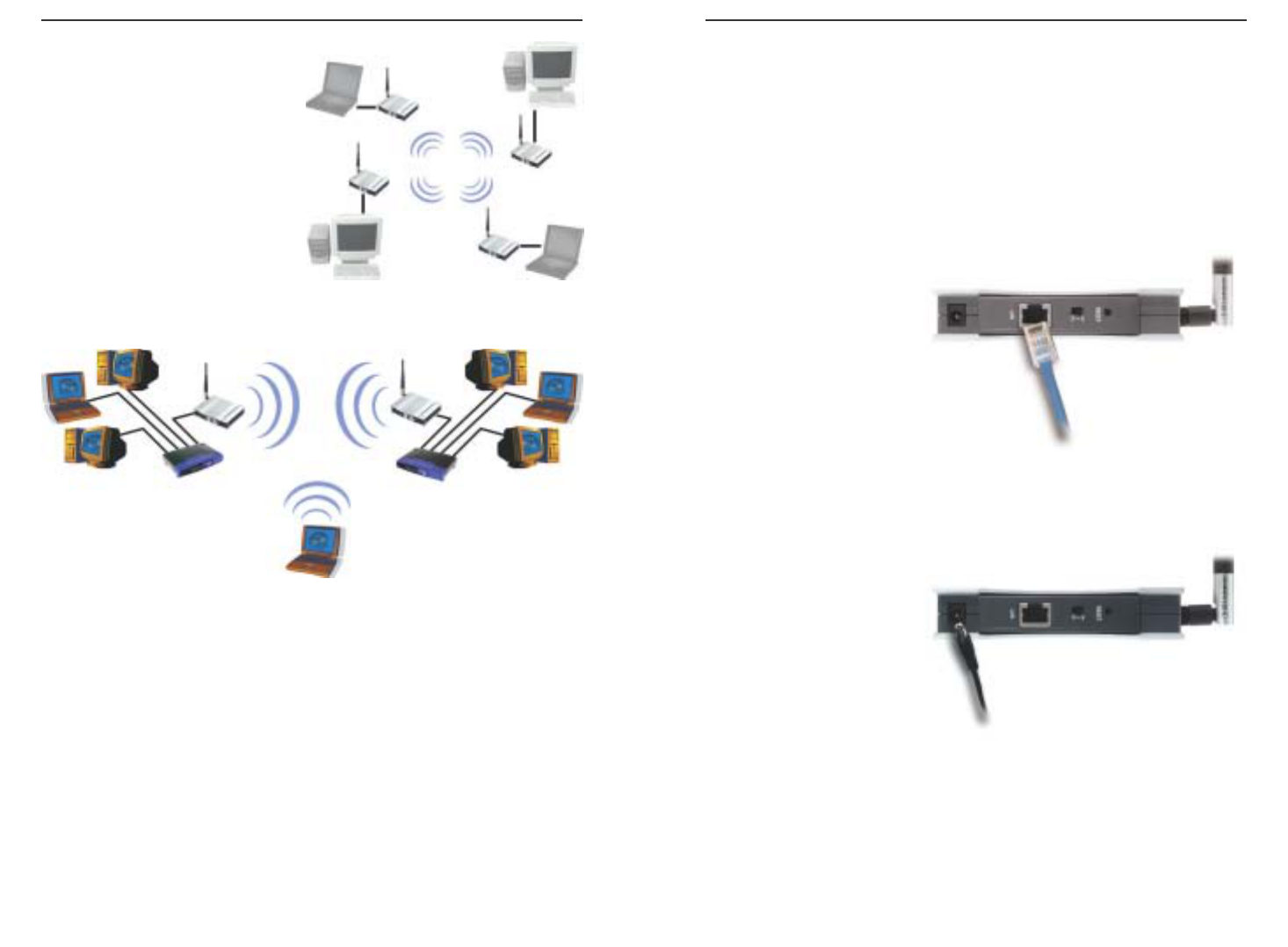

Figure 3-2 shows a typical scenario
of four Wireless-G Ethernet Bridges
in ad-hoc mode. Figure 3-3 shows a
typical wireless bridging scenario
using two Wireless-G Ethernet
Bridges. Each wireless network is
connected to a Wireless-G Ethernet
Bridge through a switch. A separate
notebook computer is equipped with
a wireless PC card and can commu-
nicate with both wireless networks as
long as it has the same SSID and
channel as both wireless networks.
6
Chapter 4: Connecting the
Wireless-G Ethernet Bridge for
Setup
1. Attach the external antenna.
2. Plug the included Ethernet
network cable into the
LAN port on the back
panel of the Bridge.
3. The X-II (MDI/MDI-X)
slide switch offers a choice
between two settings. Slide
the X-II switch to the X
position if you are con-
necting the Bridge to a
PC’s network adapter.
Slide the X-II selection switch to the II position if you are connecting the
Bridge to a hub or switch.
4. Plug the other end of the
Ethernet network cable
into the RJ-45 port of the
hub, switch, or PC you
wish to use to configure
the Bridge.
5. Plug the supplied power
cable into the Power port
on the back panel of the
Bridge. Then plug the
other end into an electrical outlet.
Proceed to the next section, “Chapter 5: Setting Up the Wireless-G
Ethernet Bridge.”
Figure 4-1
Figure 3-3
Figure 4-2
Figure 3-2
Wireless-G Ethernet Bridge

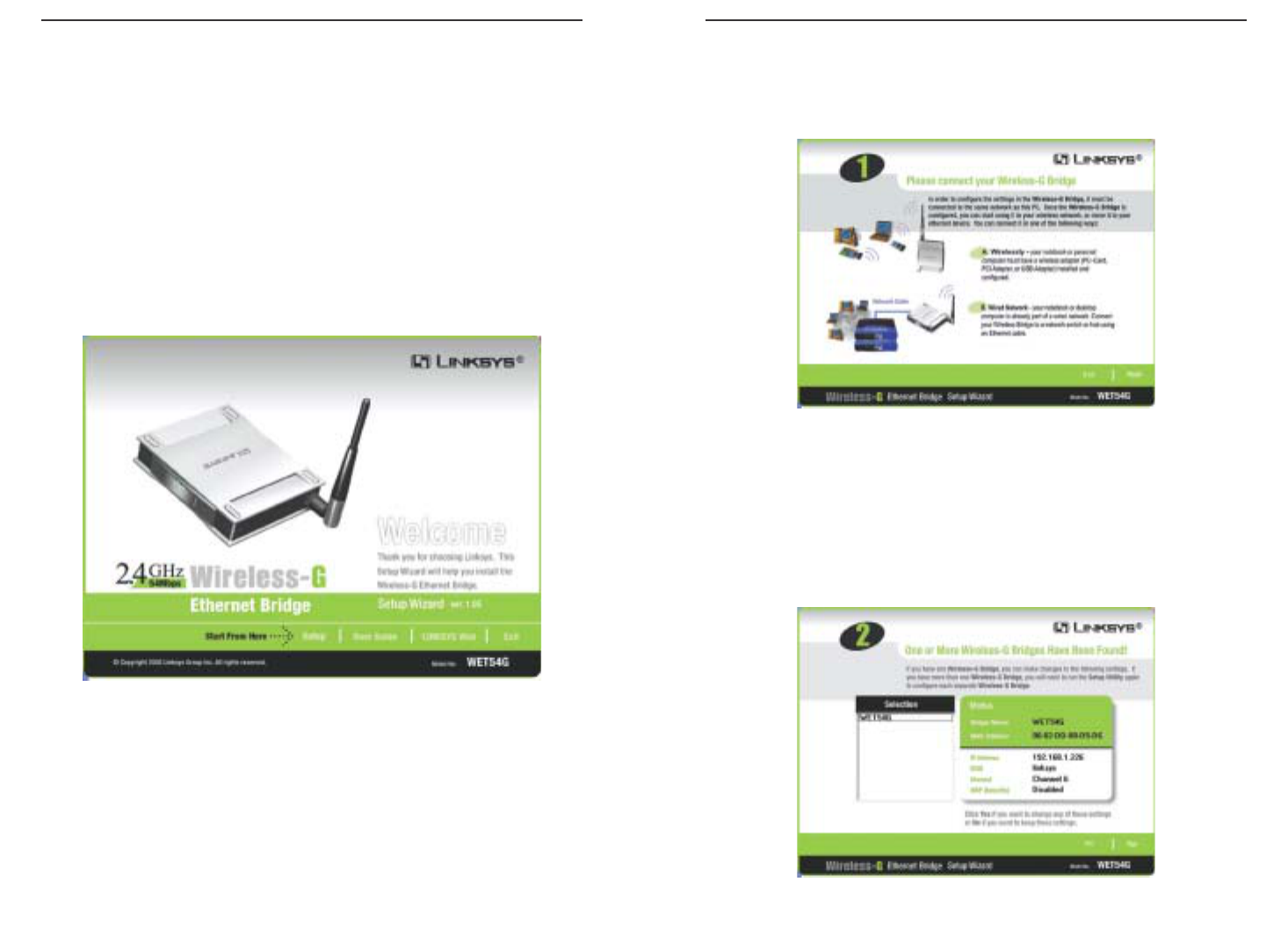

3. The screen shown in Figure 5-2 shows the two ways to configure the Bridge
using this Setup Wizard. Optimally, you should perform this setup through
a PC on your wired network. You can also set up the Bridge through one of
the PCs on your wireless network. Click the Next button.
4. The screen shown in Figure 5-3 displays a list of Wireless-G Ethernet
Bridges on your network, along with the status information for each Bridge.
(If you have only one Bridge on your network, it will be the only one dis-
played.) Select the Bridge you are currently installing by clicking its name
in the Selection box. Write down the IP address of the Wireless-G Ethernet
Bridge, so you can use it to access the Web-based Utility later. Click the Ye s
button.
9
Instant Wireless®Series
8
Figure 5-2
Figure 5-3
Chapter 5: Setting Up the
Wireless-G Ethernet Bridge
Now that you’ve connected the Wireless-G Ethernet Bridge to your wired net-
work, you are ready to set it up. The Setup Wizard will guide you through all
the steps necessary.
1. Insert the Setup CD-ROM into your PC’s CD-ROM drive. The Setup
Utility should run automatically, and the screen in Figure 5-1 should appear.
If it does not, click the Start button and choose Run. In the field that
appears, enter D:\setup.exe (if “D” is the letter of your CD-ROM drive).
•Setup - Click the Setup button to proceed with the Setup Wizard.
•User Guide - Click the User Guide button to open the PDF file of this User
Guide.
•LINKSYS Web - Click the LINKSYS Web button to access the Linksys
website using an active Internet connection.
•Exit - Click the Exit button to exit the Setup Wizard.
2. Click the Setup button to begin the setup process.
Figure 5-1
Wireless-G Ethernet Bridge
7. The Wireless Settings screen will now appear. Enter your wireless network’s
SSID. If you chose Ad-Hoc mode, select the channel at which the network
broadcasts its wireless signal.
If you have Wireless-G (draft 802.11g) and Wireless-B (802.11b) devices in
your network, then keep the default Network Mode setting, Mixed. If you
have only Wireless-G devices, select G-Only. Then click the Next button to
continue or the Back button to return to the previous screen.
•SSID - The SSID is the unique name shared among all devices in a wire-
less network. The SSID must be identical for all devices in the wireless net-
work. It is case-sensitive and must not exceed 32 alphanumeric characters,
which can be any keyboard character.
•Channel - From the drop-down menu, select the appropriate channel to
match your network settings (available for Ad-Hoc mode only). All devices
in your wireless network must use the same channel in order to function
correctly.
•Network Mode - Keep the default setting, Mixed, if you have Wireless-G
and Wireless-B devices in your network. Select G-Only if you have only
Wireless-G devices in your network.
11
Instant Wireless®Series

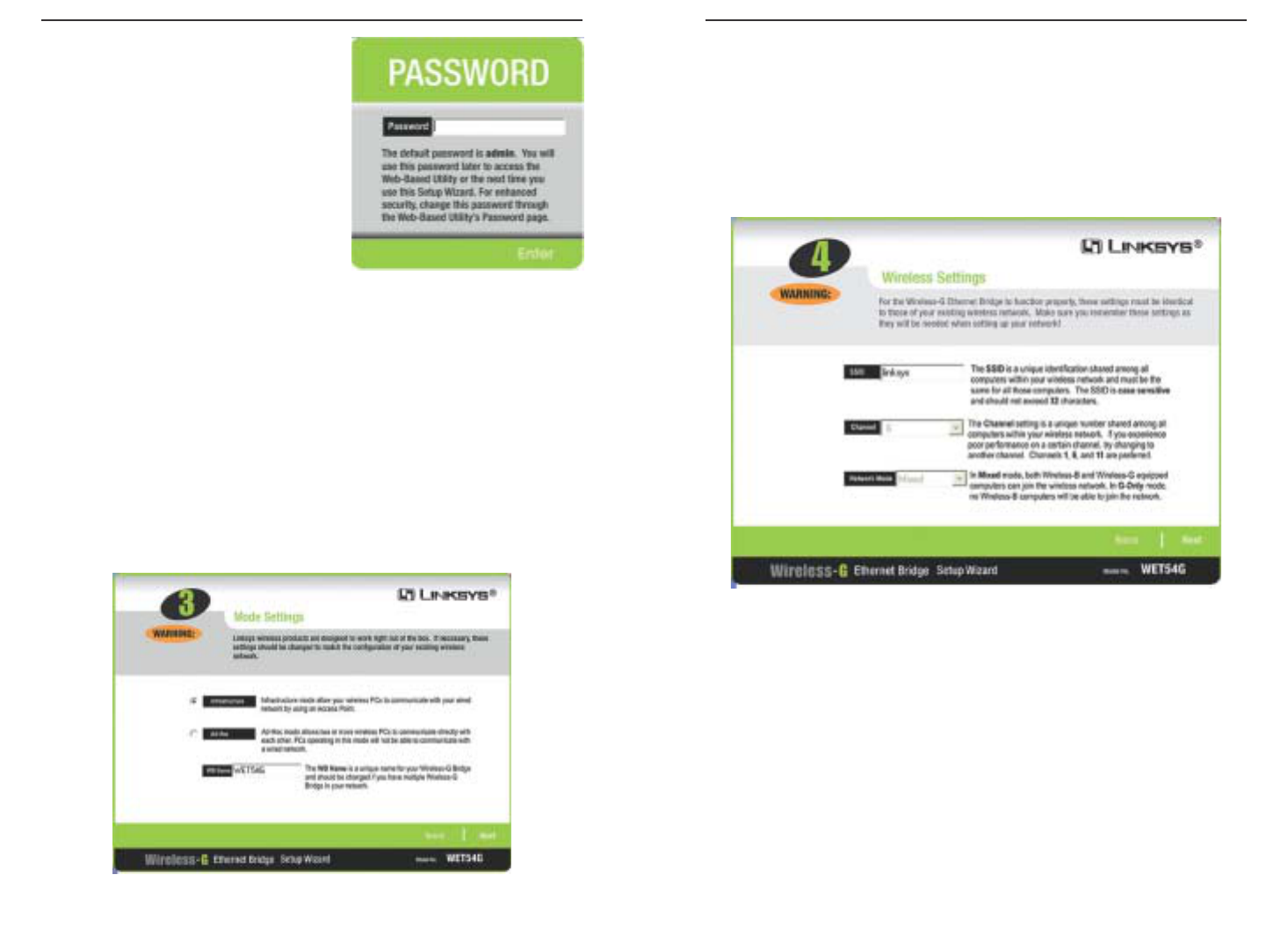

5. For security purposes, you will be asked
for your password in order to access the
Bridge. In lowercase letters, enter
admin in the Password field (later you
can change the password through the
Web-based Utility). Then click the
Enter button.
6. The screen shown in Figure 5-5 shows a choice of two wireless modes.
Click the Infrastructure radio button if you want your wireless computers
to network with computers on your wired network using a wireless access
point. Click the Ad-Hoc radio button if you want multiple wireless com-
puters to network directly with each other. Do not use the Ad-Hoc mode if
you want to network your wireless computers with computers on your wired
network.
In the WB Name field, enter a unique name for the Bridge. Memorable
names are helpful, especially if you are using multiple bridges on the same
network. Click the Next button to continue or the Back button to return to
the previous screen.
10
Figure 5-6
Figure 5-4
Figure 5-5
Wireless-G Ethernet Bridge

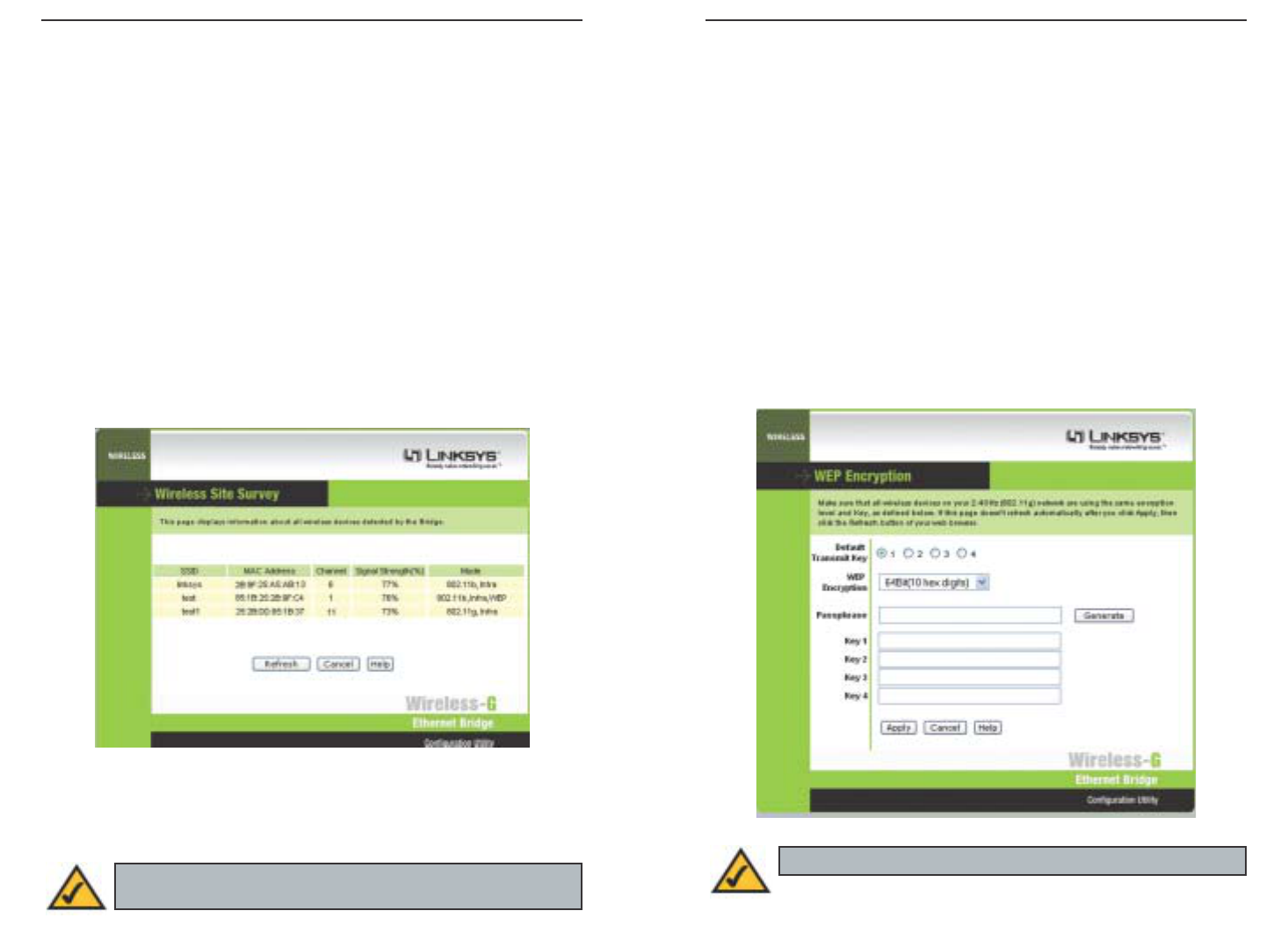

9. The Security Settings screen, shown in Figure 5-8, appears next. Enable or
disable Wired Equivalent Privacy (WEP) encryption for your wireless net-
work. If you enable WEP, select the level of WEP encryption, and then enter
a Passphrase. (If you want to enter a WEP key manually, then click the Next
button.) If you want to disable WEP encryption, keep the default, Disabled.
Click the Next button to continue.
•WEP (Disabled/64-bit WEP/128-bit WEP) - In order to utilize WEP
encryption, select 64-bit or 128-bit WEP from the drop-down menu. Then
enter a Passphrase. (If you want to enter a WEP key manually, then click the
Next button.) If you do not want to use WEP encryption, keep the default
setting, Disabled.
•Passphrase - Instead of manually entering a WEP key, you can enter a
Passphrase, so a WEP key will be automatically generated after you click
the Next button. The Passphrase is case-sensitive and should have 16 or
fewer alphanumeric characters. It must match the passphrase of your wire-
less network and is compatible with Linksys wireless products only. (You
will have to enter the WEP key(s) manually on any non-Linksys wireless
products.)
13
Instant Wireless®Series
8. The IP Settings screen will appear next, shown in Figure 5-7. If your net-
work has a DHCP server, click the radio button next to Automatically
obtain an IP address (DHCP). Click the Next button to continue or the
Back button to return to the previous screen. Then proceed to step 9.
If your network does not have a DHCP server, click the radio button next to
Set IP configuration manually to select this option. Enter an IP Address,
IP Mask, and Gateway appropriate to your network. You must specify an IP
address on this screen. If you are unsure about the IP Mask and Gateway, it
is better to leave these two fields blank. Click the Next button to continue or
the Back button to return to the previous screen. Then proceed to step 9.
•IP Address - This IP address must be unique to your network.
•IP Mask - The Bridge’s IP Mask (also known as Subnet Mask) must be the
same as your wired network’s Subnet Mask.
•Gateway - Enter the IP address of your network’s Gateway.
12
Figure 5-8
Figure 5-7
Wireless-G Ethernet Bridge
12. The configuration using the Setup Wizard is complete. To configure any
other Wireless-G Ethernet Bridges on your network, run this Setup Wizard
again. To register the Bridge, click the Online Registration button. To exit
the Setup Wizard, click the Exit button.
The Wireless-G Ethernet Bridge is now successfully configured for
your network.
For more advanced configuration, proceed to “Chapter 7: Using the
Wireless-G Ethernet Bridge Web-based Utility.” Otherwise, go to
“Chapter 6: Connecting the Wireless-G Ethernet Bridge for
Network Use.”
15
Instant Wireless®Series
10. If you entered a Passphrase, then you will see the automatically generated
WEP key in the Key 1 field. Click the Next button, and proceed to step 11.
If you did not enter a Passphrase, then enter a WEP key in the Key 1 field.
If you are using 64-bit WEP encryption, then the key must consist of exact-
ly 10 hexadecimal characters. If you are using 128-bit WEP encryption,
then the key must consist of exactly 26 hexadecimal characters. Valid hexa-
decimal characters are “0”-“9” and “A”-“F”. Then click the Next button,
and proceed to step 11.
11. Review your settings on the Confirmation screen. Write down the Bridge’s
IP Address if you want to configure advanced settings through the Bridge’s
Web-based Utility. Click the Ye s button to save these settings. Click the No
button to exit the Setup Wizard.
14

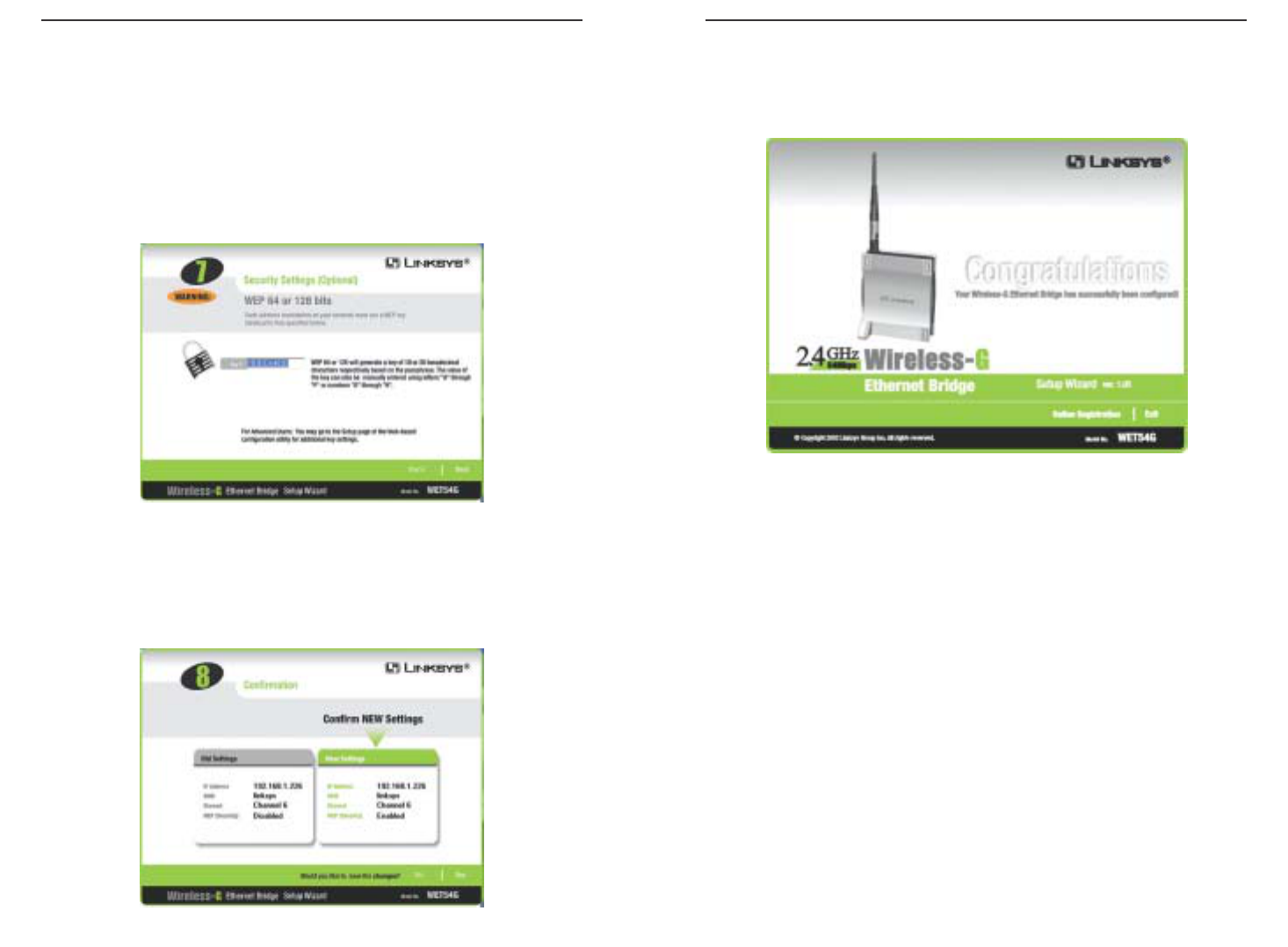

Figure 5-11
Figure 5-9
Figure 5-10
Instant Wireless®Series
16
Chapter 6: Connecting the
Wireless-G Ethernet Bridge for
Network Use
1. After configuration, unplug the power cable from the electrical outlet, and
unplug the Ethernet network cable from the PC.
2. Plug the Ethernet network cable into the RJ-45 port on the Ethernet-ready
network device you wish to add to the wireless network.
3. Plug the power cable into a local electrical outlet.
The installation of the Wireless-G Ethernet Bridge is complete. Proceed
to the next section, “Placement Options,” if you want to mount the
Bridge on a wall or have the Bridge stand on a surface.
Note: If you do not have an active connection to the Ethernet-ready
network device, then change the position of the X-II switch.
Note: The Bridge features Power Over Ethernet (PoE) support. PoE
technology allows a PoE adapter (also known as a power injector,
power hub, or inline power device) to supply data and power to an
Ethernet device using a single Ethernet network cable. To use the
Bridge’s PoE feature, follow the instructions for your specific PoE
device.
Wireless-G Ethernet Bridge
17
There are three ways to place the Bridge. The
first way is to place the Bridge horizontally on
a surface (see Figure 6-1). The second way is
to hang the Bridge on a wall, with the Bridge
in a vertical position. The third way is to stand
the Bridge vertically on a surface (see Figure
6-2). The second and third options are
explained in further detail below.
Wall Mount Option
1. The Bridge has eight rubber inserts, four
on each side. Depending on how you want
to mount the Bridge, remove two of the rubber inserts.
2. Attach two screws to the wall in the location where you want to mount the
Bridge.
3. Hang the Bridge off of the two screws.
Stand Option
1. The Bridge has eight rubber inserts, four
on each side. Remove the two rubber
inserts that are adjacent to the power port.
2. The Bridge includes two triangular stands.
Insert a stand into an opening. Push the
stand up to snap it into place.
3. Do the same with the second stand.
4. Place the Bridge.
The installation of the Wireless-G
Ethernet Bridge is complete.
Placement Options
Figure 6-1
Figure 6-2
Connection to a Network Device
Wireless-G Ethernet Bridge
19
Instant Wireless®Series
Chapter 7: Using the Wireless-G
Ethernet Bridge Web-based Utility
The Bridge is designed to function properly after configuration using the Setup
Wizard. However, if you would like to change these settings or make more
advanced configuration changes, use your web browser and the Wireless-G
Ethernet Bridge Web-based Utility. This chapter explains how to use the Utility.

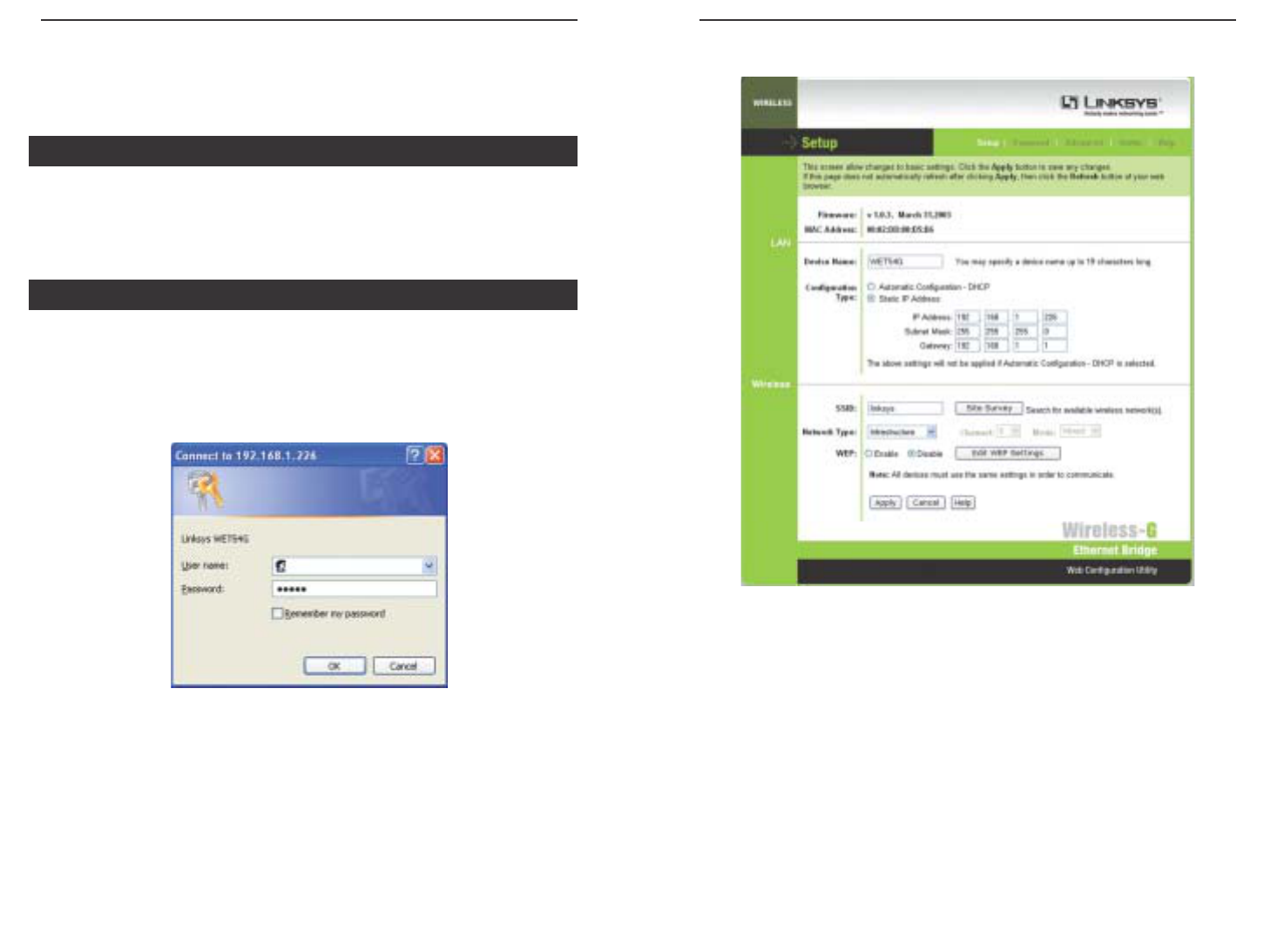

1. Open your web browser, and enter the IP address of the Wireless-G
Ethernet Bridge (the default is 192.168.1.226). Press the Enter key, and the
screen shown in Figure 7-1 will appear. In lowercase letters, enter the
default password, admin, in the Password field. Click the OK button. You
can set a new password on the Password screen later.
18
2. The Setup screen of the Bridge’s Utility will appear.
The Utility provides a convenient, web-browser-based way to alter the
Bridge’s settings. It offers five main tabs:
•Setup - Enables you to configure the IP address and wireless settings.
•Password - Allows you to change the password or reset all settings to fac-
tory defaults.
•Advanced - Lets you change the advanced wireless settings and clone a
MAC address onto the Bridge.
•Status - Displays the Bridge’s current settings.
•Help - Provides explanations of various configuration settings and links to
online technical support resources.
Figure 7-2
Starting the Web-based Utility
Overview
Figure 7-1
Wireless-G Ethernet Bridge
21
Instant Wireless®Series
20
LAN
• Device Name - You may assign any name to the Bridge. Unique, memo-
rable names are helpful, especially if you are using multiple bridges on the
same wireless network.
• Configuration Type - If the Bridge will obtain an IP address automatical-
ly from a DHCP server, such as a router, then select Automatic
Configuration-DHCP. If you are assigning the Bridge a static IP address,
then select Static IP Address, and enter an IP Address, Subnet Mask, and
Gateway address in the IP Address,Subnet Mask, and Gateway fields.
Wireless
• SSID - The SSID is the network name shared among all devices in a wire-
less network. The SSID must be identical for all devices in the wireless net-
work. It is case-sensitive and must not exceed 32 alphanumeric characters,
which may be any keyboard character (do not use any spaces). Make sure
this setting is the same for all devices in your wireless network. For added
security, Linksys recommends that you change the default SSID (linksys)
to a name of your choice.
To search for available wireless networks, click the Site Survey button.
• Network Type - Choose a wireless operating mode for the Bridge. Keep the
default setting, Infrastructure, if you want your wireless-equipped device
to communicate with computers and other devices on your wired network
using a wireless access point. Select Ad-Hoc button if you want multiple
wireless-equipped devices to communicate directly with each other.
If you chose Ad-Hoc mode, then select the correct operating channel for
your network in the Channel drop-down menu. The channel you choose
should match the channel set on the other devices in your wireless network.
Then select the appropriate network mode. Keep the default, Mixed, if you
have Wireless-G (draft 802.11g) and Wireless-B (802.11b) devices in your
network. Select G-Only if you have only Wireless-G devices in your net-
work.
• WEP - To enable WEP encryption, click the Enable radio button. To
increase wireless network security, using WEP encryption is strongly rec-
ommended. Then click the Edit WEP Settings button to configure the
WEP settings. To disable WEP encryption, keep the default, Disable.

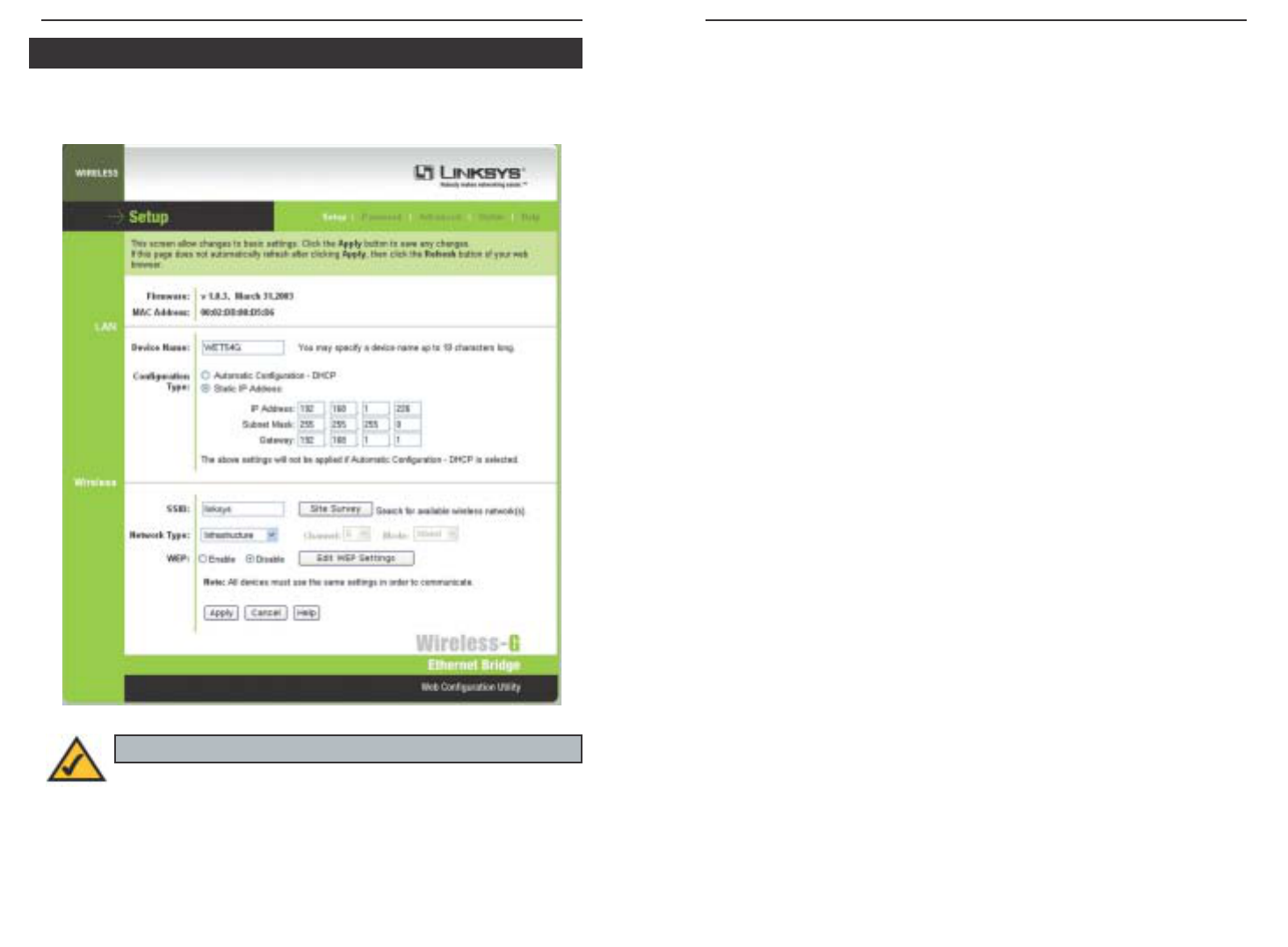

The Setup screen lets you configure the wired and wireless network settings
for the Bridge.
• Firmware - The version number of the Bridge’s firmware is displayed here.
Firmware should be upgraded ONLY if you experience problems with the
Bridge. Firmware updates are posted at www.linksys.com.
• MAC Address - The MAC Address of the Bridge is displayed here.
Note: You may have to refresh this page to see any new settings.
Setup
Figure 7-3
Wireless-G Ethernet Bridge
•MAC Address - The MAC address of the network’s access point.
•Channel - The channel setting.
•Signal Strength (%) - The percentage of wireless signal strength.
•Mode - The type of wireless standard, network mode, and status of WEP
encryption.
Click the Refresh button to obtain the most up-to-date data. Click the Cancel
button to close this screen. Click the Help button for additional on-screen
information.
WEP Encryption
Use the WEP Encryption screen to configure the WEP encryption level and
WEP keys for the Bridge.
23
Instant Wireless®Series
22
Figure 7-5
Note: You may have to refresh this page to see any new settings.
An acronym for Wired Equivalent Privacy, WEP is an encryption method
used to protect your wireless data communications. WEP uses 64-bit or
128-bit keys to provide access control to your network and encryption secu-
rity for every data transmission. To decode a data transmission, each device
in a network must use an identical WEP key. Higher encryption levels offer
higher levels of security, but due to the complexity of the encryption, they
may decrease network performance.
Click the Apply button to save your changes. If your page doesn’t automati-
cally refresh itself, then click the Refresh button of your web browser. Click
the Cancel button to cancel your changes. Click the Help button for addition-
al on-screen information.
Wireless Site Survey
The Wireless Site Survey screen shows all the wireless networks detected by the
Bridge and their general information. You can use this screen to connect to one
of these networks.
For each wireless network detected, the following information is displayed:
•SSID - The network name. To join a wireless network, click its SSID.
Figure 7-4
Note: Make sure your WEP key matches the WEP key of the wire-
less network you want to join. Otherwise, the connection will fail.
Wireless-G Ethernet Bridge
The Password screen lets you change the Bridge’s Password and restore the fac-
tory default settings.
• Administrative Password - It is strongly recommended that you change
the factory default password of the Bridge, which is admin. All users who
try to access the Bridge’s Web-based Utility will be prompted for the
Bridge’s Password. The new Password must not exceed 12 characters in
length and must not include any spaces. Enter the new Password a second
time to confirm it.
• Restore Factory Defaults - Click the Ye s radio button to reset all configu-
ration settings to their default values. If you do not want to restore the fac-
tory defaults, then keep the default setting, No.
To save your changes, click the Apply button. Click the Cancel button to can-
cel your changes. Click the Help button for additional on-screen information.
25
Instant Wireless®Series
24
Figure 7-6
Note: Any settings you have saved will be lost when the default set-
tings are restored.
Password
•Default Key - Select which WEP key (1-4) will be used when the Bridge
sends data. Make sure the other wireless-equipped devices are using the
same key.
•WEP Encryption - In order to use WEP encryption, select 64-Bit (10 hex
digits) or 128-Bit (26 hex digits) from the drop-down menu.
•Passphrase - Instead of manually entering WEP keys, you can enter a
Passphrase. This Passphrase is used to generate one or more WEP keys. It
is case-sensitive and should not be longer than 16 alphanumeric characters.
(The Passphrase function is compatible with Linksys wireless products
only. If you want to communicate with non-Linksys wireless products, you
will need to enter your WEP key(s) manually on the non-Linksys wireless
products.) After you enter the Passphrase, click the Generate button to cre-
ate WEP key(s).
•Keys 1-4 - If you are not using a Passphrase, then you can enter one or more
WEP keys manually.
In each key field, manually enter a set of values. (Do not leave a key field
blank, and do not enter all zeroes. These are not valid key values.) If you are
using 64-bit WEP encryption, then each key must consist of exactly 10
hexadecimal characters in length. If you are using 128-bit WEP encryption,
then each key must consist of exactly 26 hexadecimal characters in length.
Valid hexadecimal characters are “0”-“9” and “A”-“F”.
Click the Apply button to save your changes. If your page doesn’t automati-
cally refresh itself, then click the Refresh button of your web browser. Click
the Cancel button to cancel your changes. Click the Help button for addition-
al on-screen information.
Wireless-G Ethernet Bridge
Wireless
• Transmission Rate - The default setting is Auto. The range is from 1 to
54Mbps.
The rate of data transmission should be set depending on the speed of your
wireless network. You can select from a range of transmission speeds, or
you can keep the default setting, Auto, to have the Bridge automatically use
the fastest possible data rate and enable the Auto-Fallback feature. Auto-
Fallback will negotiate the best possible connection speed between the
Bridge and another wireless-equipped device.
• Authentication Type - The default setting is Auto. The choices are Auto,
Open, and Shared.
This setting allows the Bridge to authenticate communication with the wire-
less devices in your network. With the Shared Key setting, all wireless
devices must have the same WEP keys so that the Bridge and the client can
authenticate each other and start transmitting data. With the Open System
setting, any device can join a network without performing any security
check. Using the Auto setting, the Bridge will automatically detect whether
a wireless device is set to Shared Key or Open System, and then transmit
data using the appropriate authentication type.
• RTS Threshold - This value should remain at its default setting of 2347.
The range is 0-2347 bytes. Should you encounter inconsistent data flow,
only minor modifications are recommended. If a network packet is smaller
than the preset RTS threshold size, the RTS/CTS mechanism will not be
enabled. The Router sends Request to Send (RTS) frames to a particular
receiving station and negotiates the sending of a data frame. After receiving
an RTS, the wireless station responds with a Clear to Send (CTS) frame to
acknowledge the right to begin transmission.
• Fragmentation Threshold - This value should remain at its default setting
of 2346. The range is 256-2346 bytes. It specifies the maximum size for a
packet before data is fragmented into multiple packets. If you experience a
high packet error rate, you may slightly increase the Fragmentation
Threshold. Setting the Fragmentation Threshold too low may result in poor
network performance. Only minor modifications of this value are recom-
mended.
27
Instant Wireless®Series
Use the Advanced Settings screen to customize advanced wireless settings and
clone a MAC address onto the Bridge.
26
Figure 7-7
Advanced
Note: You may have to refresh this page to see any new settings.
Wireless-G Ethernet Bridge
29
Instant Wireless®Series
MAC Address
• Cloning Mode - You can clone the MAC address of any network device
onto the Bridge. To disable MAC address cloning, keep the default setting,
Disable. To use the MAC cloning feature, select Enable.
If you have enabled MAC cloning, then select Auto if you want to clone the
MAC address of the device currently connected to the Bridge’s LAN port.
The Bridge will actively scan for a new MAC address to be cloned when-
ever you disconnect and re-connect the Bridge through its LAN port. Select
Manual if you want to specify a MAC address in the Enter MAC Address
field. This is useful when the Bridge is connected to multiple devices
through a switch or a hub.
Click the Apply button to save your changes. If your page doesn’t automati-
cally refresh itself, then click the Refresh button of your web browser. Click
the Cancel button to cancel your changes. Click the Help button for addition-
al on-screen information.
28
The Status screen displayed the Bridge’s current status and settings. All infor-
mation is read-only.
• Device Name - The name you have assigned to the Bridge is displayed here.
• Firmware Version - The version number of the Bridge’s firmware is dis-
played here. Firmware should be upgraded ONLY if you experience prob-
lems with the Bridge. Firmware updates are posted at www.linksys.com.
• MAC Address - The MAC Address of the Bridge is displayed here.
Figure 7-8
Status
Wireless-G Ethernet Bridge

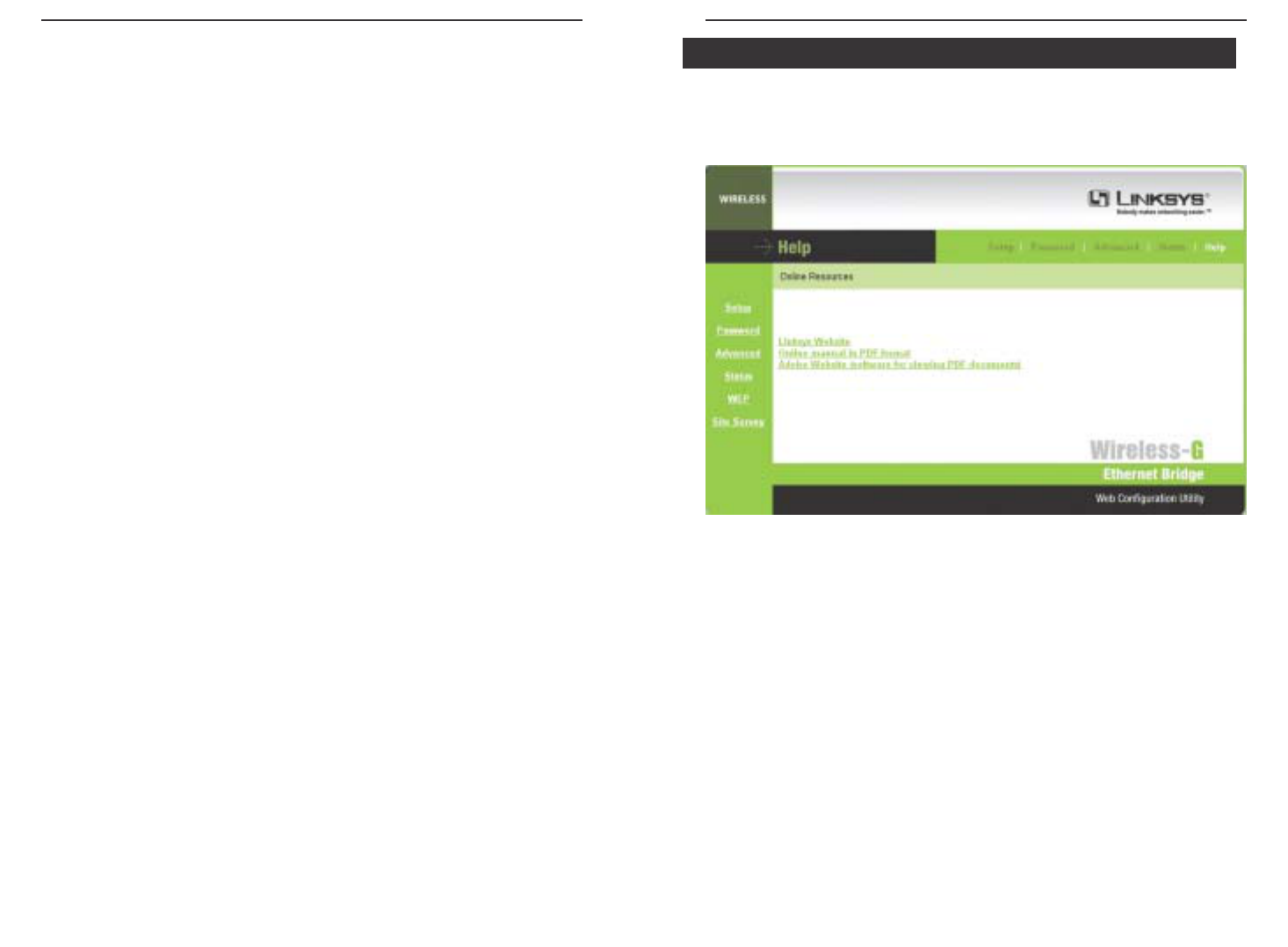

The Help screen offers links to all of the help information for the Web-based
Utility’s screens and the Bridge’s online technical support resources. All infor-
mation is read-only.
• Linksys Website - Click the Linksys Website link to visit Linksys’s web-
site, www.linksys.com.
• Online manual in PDF format - Click the Online manual in PDF format
to view this User Guide on-screen. It is in Adobe Acrobat Portable
Document File (.pdf) format, so you will need the free Adobe Acrobat
Reader to view the pdf. If you do not have the Reader, click the Adobe
Website link to download it.
• Adobe Website (software for viewing PDF documents) - If you need to
download the Adobe Acrobat Reader to view the User Guide pdf, then click
the Adobe Website link.
31
Instant Wireless®Series
LAN Settings
• IP Address - The Bridge’s IP Address is displayed here.
• Subnet Mask - The Bridge’s Subnet Mask is displayed here.
• Gateway - The Gateway address for the Bridge is displayed here.
LAN Statistics
• Ethernet TX - The number of packets transmitted to the Ethernet network
is displayed here.
• Ethernet RX - The number of packets received from the Ethernet network
is displayed here.
• Wireless TX - The number of packets transmitted to the wireless network
is displayed here.
• Wireless RX - The number of packets received from the wireless network
is displayed here.
Wireless Settings
• SSID - The Bridge’s SSID is displayed here.
• Network Type - The Bridge’s mode is displayed here.
• Channel - The Bridge’s channel setting is displayed here.
• WEP - The status of the Bridge’s WEP encryption is displayed here.
• TX Rate - The Bridge’s transmission rate is displayed here.
• Link Quality - The quality of the Bridge’s connection is displayed here.
Click the Refresh button to obtain the most up-to-date settings and statistics.
Click the Help button for additional on-screen information.
30
Figure 7-9
Help
Wireless-G Ethernet Bridge
5. The Web-based Utility won’t open.
Make sure that you have a network adapter installed on the PC so you can
use the Web-based Utility.
6. The Web-based Utility does not recognize my password.
The password is case-sensitive. Make sure you are using the correct case(s)
when entering the password.
If you forget your password, you can push the Bridge’s Reset button. This
will reset the password to the default setting; however, all other Bridge set-
tings will be reset to the factory defaults as well. To use the default setting,
enter admin in the Password field.
7. After I make changes through the Web-based Utility, the new settings aren’t dis-
played on-screen.
Click the Refresh button of your web browser. If the new settings aren’t dis-
played, then unplug the power adapter from the Bridge. Plug the power
adapter back in, and then click the Refresh button again.
What is the IEEE 802.11b standard?
It is one of the IEEE standards for wireless networks. The 802.11b standard
allows wireless networking hardware from different manufacturers to commu-
nicate, provided that the hardware complies with the 802.11b standard. The
802.11b standard states a maximum data transfer rate of 11Mbps and an oper-
ating frequency of 2.4GHz.
What IEEE 802.11b features are supported?
The product supports the following IEEE 802.11 functions:
• CSMA/CA plus Acknowledge protocol
• Multi-Channel Roaming
• Automatic Rate Selection
• RTS/CTS feature
• Fragmentation
• Power Management
Can I run an application from a remote computer over the wireless network?
This will depend on whether or not the application is designed to be used over
a network. Consult the application’s user guide to determine if it supports oper-
ation over a network.
33
Instant Wireless®Series
32
Frequently Asked Questions
Appendix A: Troubleshooting
This section provides solutions to potential problems regarding the installation and
operation of the Wireless-G Ethernet Bridge. If you can’t find an answer here,
check the Linksys website at www.linksys.com.
1. I can’t connect to the access point.
Open the Web-based Utility. On the Setup tab, perform the following steps:
• Verify that the operating mode is set to Infrastructure mode.
• Make sure that the SSID is the same as the SSID of the access point.
• On the WEP Encryption screen, make sure that all of the WEP settings are
the same as the WEP settings of the access point.
2. I don’t know how to change the Bridge’s IP address.
You have two ways to change the Bridge’s IP address.
• Open the Web-based Utility. On the Setup screen, click the Static IP
Address radio button, and change the IP address there.
• If you encounter problems, power the Bridge off and on again, or push the
Reset button. Then try to change the IP address again.
3. The Bridge-enabled PC won’t communicate with a wireless-enabled PC or
printer.
Perform the following steps:
• Check that the wireless-enabled PC or printer is on the same wireless net-
work as the PC using the Bridge.
• Make sure that the SSID and network mode are the same for all devices
connected to the same wireless network.
• If the wireless LAN settings are okay, make sure that all the devices are
on the same IP network.
4. The Web-based Utility doesn’t detect the Bridge.
Make sure that the Ethernet cable is properly connected and that the
Ethernet LED is lit. If the LED is not lit, change the position of the X-II slide
switch on the Bridge’s rear panel. Use the Xsetting if you are connecting the
Bridge to a network adapter. Use the II setting if you are connecting the
Bridge to a hub or switch. If you still do not have an active connection, then
change the position of the X-II switch again.
Common Problems and Solutions
Wireless-G Ethernet Bridge
35
Instant Wireless®Series
34
What is ISM band?
The FCC and their counterparts outside of the U.S. have set aside bandwidth
for unlicensed use in the ISM (Industrial, Scientific and Medical) band.
Spectrum in the vicinity of 2.4 GHz, in particular, is being made available
worldwide. This presents a truly revolutionary opportunity to place convenient
high speed wireless capabilities in the hands of users around the globe.
What is Spread Spectrum?
Spread Spectrum technology is a wideband radio frequency technique devel-
oped by the military for use in reliable, secure, mission-critical communica-
tions systems. It is designed to trade off bandwidth efficiency for reliability,
integrity, and security. In other words, more bandwidth is consumed than in the
case of narrowband transmission, but the trade-off produces a signal that is, in
effect, louder and thus easier to detect, provided that the receiver knows the
parameters of the spread-spectrum signal being broadcast. If a receiver is not
tuned to the right frequency, a spread-spectrum signal looks like background
noise. There are two main alternatives, Direct Sequence Spread Spectrum
(DSSS) and Frequency Hopping Spread Spectrum (FHSS).
What is DSSS? What is FHSS? And what are their differences?
Frequency Hopping Spread Spectrum (FHSS) uses a narrowband carrier that
changes frequency in a pattern that is known to both transmitter and receiver.
Properly synchronized, the net effect is to maintain a single logical channel. To
an unintended receiver, FHSS appears to be short-duration impulse noise.
Direct Sequence Spread Spectrum (DSSS) generates a redundant bit pattern for
each bit to be transmitted. This bit pattern is called a chip (or chipping code).
The longer the chip, the greater the probability that the original data can be
recovered. Even if one or more bits in the chip are damaged during transmis-
sion, statistical techniques embedded in the radio can recover the original data
without the need for retransmission. To an unintended receiver, DSSS appears
as low power wideband noise and is rejected (ignored) by most narrowband
receivers.
Would the information be intercepted while transmitting on air?
Instant Wireless products feature two-fold protection in security. On the hard-
ware side, as with Direct Sequence Spread Spectrum technology, it has the
inherent security feature of scrambling. On the software side, Instant Wireless
products offer the encryption function (WEP) to enhance security and access
control. Users can set it up depending upon their needs.
Can I play multiplayer games with other users of the wireless network?
Yes, as long as the game supports multiple players over a LAN. Refer to the
game’s user guide for more information.
What is ad-hoc mode?
When a wireless network is set to ad-hoc mode, the wireless-equipped com-
puters are configured to communicate directly with each other. The ad-hoc
wireless network will not communicate with any wired network.
What is infrastructure mode?
When a wireless network is set to infrastructure mode, the wireless network is
configured to communicate with a wired network through a wireless access
point.
What is roaming?
Roaming is the ability of a portable computer user to communicate continu-
ously while moving freely throughout an area greater than that covered by a sin-
gle wireless network access point. Before using the roaming function, the
workstation must make sure that it is the same channel number as the wireless
network access point of the dedicated coverage area.
To achieve true seamless connectivity, the wireless LAN must incorporate a
number of different functions. Each node and wireless network access point,
for example, must always acknowledge receipt of each message. Each node
must maintain contact with the wireless network even when not actually trans-
mitting data. Achieving these functions simultaneously requires a dynamic RF
networking technology that links wireless network access points and nodes. In
such a system, the user’s end node undertakes a search for the best possible
access to the system. First, it evaluates such factors as signal strength and qual-
ity, as well as the message load currently being carried by each wireless net-
work access point and the distance of each wireless network access point to the
wired backbone. Based on that information, the node next selects the right
wireless network access point and registers its address. Communications
between end node and host computer can then be transmitted up and down the
backbone.
As the user moves on, the end node’s RF transmitter regularly checks the sys-
tem to determine whether it is in touch with the original wireless network
access point or whether it should seek a new one. When a node no longer
receives acknowledgment from its original wireless network access point, it
undertakes a new search. Upon finding a new wireless network access point, it
then re-registers, and the communication process continues.
Wireless-G Ethernet Bridge
37
Instant Wireless®Series
36
Appendix B: Glossary
802.11b - One of the IEEE standards for wireless networking hardware.
Products that adhere to a specific IEEE standard will work with each other,
even if they are manufactured by different companies. The 802.11b standard
specifies a maximum data transfer rate of 11Mbps, an operating frequency of
2.4GHz, and WEP encryption for security. 802.11b networks are also referred
to as Wi-Fi networks.
802.11g - A proposed, but as yet unratified extension of the IEEE 802.11 stan-
dard for wireless networking hardware. The draft 802.11g specifications used
by Linksys specify a maximum data transfer rate of 54Mbps using OFDM
modulation, an operating frequency of 2.4GHz, backward compatibility with
IEEE 802.11b devices, and WEP encryption for security.
Ad-hoc Network - An ad-hoc network is a group of computers, each with a
wireless adapter, connected as an independent 802.11 wireless LAN. Ad-hoc
wireless computers operate on a peer-to-peer basis, communicating directly
with each other without the use of an access point. Ad-hoc mode is also
referred to as an Independent Basic Service Set (IBSS) or as peer-to-peer
mode, and is useful at a departmental scale or SOHO operation.
Default Gateway - The router used to forward all traffic that is not addressed
to a station within the local subnet.
DHCP (Dynamic Host Configuration Protocol) - A protocol that lets network
administrators centrally manage and automate the assignment of Internet
Protocol (IP) addresses in an organization's network. Using the Internet's set of
protocol (TCP/IP), each machine that can connect to the Internet needs a
unique IP address. When an organization sets up its computer users with a con-
nection to the Internet, an IP address must be assigned to each machine.
Without DHCP, the IP address must be entered manually at each computer and,
if computers move to another location in another part of the network, a new IP
address must be entered. DHCP lets a network administrator supervise and dis-
tribute IP addresses from a central point and automatically sends a new IP
address when a computer is plugged into a different place in the network.
DHCP uses the concept of a “lease” or amount of time that a given IP address
will be valid for a computer. The lease time can vary depending on how long a
user is likely to require the Internet connection at a particular location. It’s espe-
What is WEP?
WEP is Wired Equivalent Privacy, a data privacy mechanism based on a 40/64
bit shared key algorithm, as described in the IEEE 802.11 standard.
Can Instant Wireless products support file and printer sharing?
Instant Wireless products perform the same function as LAN products.
Therefore, Instant Wireless products can work with NetWare, Windows
NT/2000, or other LAN operating systems to support printer or file sharing.
Wireless-G Ethernet Bridge
The IEEE fosters the development of standards that often become national and
international standards. The organization publishes a number of journals, has
many local chapters, and has several large societies in special areas, such as the
IEEE Computer Society.
Infrastructure Network - An infrastructure network is a group of computers
or other devices, each with a wireless adapter, connected as an 802.11 wireless
LAN. In infrastructure mode, the wireless devices communicate with each
other and to a wired network by first going through an access point. An infra-
structure wireless network connected to a wired network is referred to as a
Basic Service Set (BSS). A set of two or more BSS in a single network is
referred to as an Extended Service Set (ESS). Infrastructure mode is useful at
a corporation scale, or when it is necessary to connect the wired and wireless
networks.
IP Address - In the most widely installed level of the Internet Protocol (IP)
today, an IP address is a 32-binary digit number that identifies each sender or
receiver of information that is sent in packets across the Internet. When you
request an HTML page or send e-mail, the Internet Protocol part of TCP/IP
includes your IP address in the message (actually, in each of the packets if more
than one is required) and sends it to the IP address that is obtained by looking
up the domain name in the Uniform Resource Locator you requested or in the
e-mail address you're sending a note to. At the other end, the recipient can see
the IP address of the Web page requester or the e-mail sender and can respond
by sending another message using the IP address it received.
IPCONFIG - A utility that provides for querying, defining and managing IP
addresses within a network. A commonly used utility, under Windows NT and
2000, for configuring networks with static IP addresses.
ISP - An ISP (Internet service provider) is a company that provides individuals
and companies access to the Internet and other related services such as website
building and virtual hosting.
LAN - A local area network (LAN) is a group of computers and associated
devices that share a common communications line and typically share the
resources of a single processor or server within a small geographic area (for
example, within an office building).
MAC Address - The MAC (Media Access Control) address is a unique num-
ber assigned by the manufacturer to any Ethernet networking device, such as a
network adapter, that allows the network to identify it at the hardware level.
39
Instant Wireless®Series
38
cially useful in education and other environments where users change fre-
quently. Using very short leases, DHCP can dynamically reconfigure networks
in which there are more computers than there are available IP addresses.
DHCP supports static addresses for computers containing Web servers that
need a permanent IP address.
DNS - The Domain Name System (DNS) is the way that Internet domain
names are located and translated into Internet Protocol (IP) addresses. A
domain name is a meaningful and easy-to-remember “handle” for an Internet
address.
DSSS (Direct-Sequence Spread Spectrum) - DSSS generates a redundant bit
pattern for all transmitted data. This bit pattern is called a chip (or chipping
code). Even if one or more bits in the chip are damaged during transmission,
statistical techniques embedded in the receiver can recover the original data
without the need for retransmission. To an unintended receiver, DSSS appears
as low power wideband noise and is rejected (ignored) by most narrowband
receivers. However, to an intended receiver (i.e. another wireless LAN end-
point), the DSSS signal is recognized as the only valid signal, and interference
is inherently rejected (ignored).
Dynamic IP Address - An IP address that is automatically assigned to a client
station in a TCP/IP network, typically by a DHCP server. Network devices that
serve multiple users, such as servers and printers, are usually assigned static IP
addresses.
FHSS (Frequency Hopping Spread Spectrum) - FHSS continuously changes
(hops) the carrier frequency of a conventional carrier several times per second
according to a pseudo-random set of channels. Because a fixed frequency is not
used, and only the transmitter and receiver know the hop patterns, interception
of FHSS is extremely difficult.
Firmware - Code that is written onto read-only memory (ROM) or program-
mable read-only memory (PROM). Once firmware has been written onto the
ROM or PROM, it is retained even when the device is turned off.
IEEE - The Institute of Electrical and Electronics Engineers. The IEEE
describes itself as “the world's largest technical professional society—promot-
ing the development and application of electrotechnology and allied sciences
for the benefit of humanity, the advancement of the profession, and the well-
being of our members.”
Wireless-G Ethernet Bridge
41
Instant Wireless®Series
mIRC - mIRC runs under Windows and provides a graphical interface for log-
ging onto IRC servers and listing, joining, and leaving channels.
Network Mask - Also known as the “Subnet Mask.”
OFDM - Developed for wireless applications, Orthogonal Frequency Division
Multiplexing (OFDM) technology offers superior performance—increased
data rates and more reliable transmissions—than previous technologies, such as
DSSS. OFDM is a scheme in which numerous signals of different frequencies
are combined to form a single signal for transmission on the medium.
OFDM works by breaking one high-speed data stream into a number of lower-
speed data streams, which are then transmitted in parallel. Each lower-speed
stream is used to modulate a subcarrier. Essentially, this creates a multi-carrier
transmission by dividing a wide frequency band or channel into a number of
narrower frequency bands or sub-channels. OFDM is also used for other appli-
cations, including powerline networking.
Passphrase - Used much like a password, a passphrase simplifies the WEP
encryption process by automatically generating the WEP encryption keys for
Linksys products.
PCMCIA - The PCMCIA (Personal Computer Memory Card International
Association) is an industry group organized in 1989 to promote standards for a
credit card-size memory or I/O device that would fit into a personal computer,
usually a notebook or laptop computer.
Ping (Packet INternet Groper) - An Internet utility used to determine whether
a particular IP address is online. It is used to test and debug a network by send-
ing out a packet and waiting for a response.
Power over Ethernet (PoE) - A technology that allows a device, such as a
power injector, power hub, or inline power device, to supply data and power to
an Ethernet device using a single Ethernet network cable.
RJ-45 - A connector similar to a telephone connector that holds up to eight
wires, used for connecting Ethernet devices.
Roaming - In an infrastructure mode wireless network, this refers to the abili-
ty to move out of one access point's range and into another and transparently
reassociate and reauthenticate to the new access point. This reassociation and
reauthentication should occur without user intervention and ideally without
40
interruption to network connectivity. A typical scenario would be a location
with multiple access points, where users can physically relocate from one area
to another and easily maintain connectivity.
SOHO (Small Office/Home Office) - Refers to any small office or home
office environment.
SSID (Service Set IDentifier) - A unique name shared among all points in a
wireless network. The SSID must be identical for each point in the wireless net-
work and is case-sensitive.
Static IP Address - A permanent IP address that is assigned to a node in a
TCP/IP network.
Subnet Mask - The method used for splitting IP networks into a series of sub-
groups, or subnets. The mask is a binary pattern that is matched up with the IP
address to turn part of the host ID address field into a field for subnets.
TCP (Transmission Control Protocol) - A method (protocol) used along with
the IP (Internet Protocol) to send data in the form of message units (datagram)
between network devices over a LAN or WAN. While IP takes care of handling
the actual delivery of the data (routing), TCP takes care of keeping track of the
individual units of data (called packets) that a message is divided into for effi-
cient delivery over the network. TCP is known as a “connection oriented” pro-
tocol due to requiring the receiver of a packet to return an acknowledgment of
receipt to the sender of the packet resulting in transmission control.
TCP/IP (Transmission Control Protocol/Internet Protocol) - The basic com-
munication language or set of protocols for communications over a network
(developed specifically for the Internet). TCP/IP defines a suite or group of
protocols and not only TCP and IP.
UDP (User Datagram Protocol) - A method (protocol) used along with the IP
(Internet Protocol) to send data in the form of message units (datagram)
between network devices over a LAN or WAN. While IP takes care of handling
the actual delivery of the data (routing), UDP takes care of keeping track of the
individual units of data (called packets) that a message is divided into for effi-
cient delivery over the network. UDP is known as a “connection-less” protocol
due to NOT requiring the receiver of a packet to return an acknowledgment of
receipt to the sender of the packet (as opposed to TCP).
Wireless-G Ethernet Bridge
Appendix C: Specifications
Standards Draft 802.11g, IEEE 802.11b,
IEEE 802.3, IEEE 802.3u
Ports One 10/100Base-TX RJ-45 Port
Buttons MDI/MDI-X slide switch, Reset button
Cabling Type Category 5 or better
LEDs Power, Ethernet, Wireless
Transmit Power 18 dBm (typical) @ 11Mbps CCK
15 dBm (typical) @ 54Mbps OFDM
Security Feature WEP Encryption
WEP Key Bits 64/128-bit
Modulation 802.11b: CCK (11Mbps, 5.5Mbps),
DQPSK (2Mbps), DBPSK (1Mbps)
802.11g: OFDM (54Mbps)
43
Instant Wireless®Series
WEP (Wired Equivalent Privacy) - A data privacy mechanism based on a 64-
bit shared key algorithm, as described in the IEEE 802.11 standard.
WINIPCFG - Configuration utility based on the Win32 API for querying,
defining, and managing IP addresses within a network. A commonly used util-
ity, under Windows 95, 98, and Millennium, for configuring networks with
static IP addresses.
WLAN (Wireless Local Area Network) - A group of computers and associat-
ed devices that communicate with each other wirelessly.
42
Wireless-G Ethernet Bridge
45
Instant Wireless®Series
Dimensions 4.96" x 1.06" x 4.21"
(126 mm x 27 mm x 107 mm)
Unit Weight 8.50 oz. (0.2409 kg)
Power 5V DC
Certifications FCC Class B
Operating Temp. 32°F to 104°F (0°C to 40°C)
Storage Temp. -13°F to 158°F (-25°C to 70°C)
Operating Humidity 10% to 90%, Non-Condensing
Storage Humidity 5% to 90%, Non-Condensing
44
Appendix D: Warranty Information
BE SURE TO HAVE YOUR PROOF OF PURCHASE AND A BARCODE
FROM THE PRODUCT’S PACKAGING ON HAND WHEN CALLING.
RETURN REQUESTS CANNOT BE PROCESSED WITHOUT PROOF OF
PURCHASE.
IN NO EVENT SHALL LINKSYS’S LIABILITY EXCEED THE PRICE
PAID FOR THE PRODUCT FROM DIRECT, INDIRECT, SPECIAL, INCI-
DENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM THE
USE OF THE PRODUCT, ITS ACCOMPANYING SOFTWARE, OR ITS
DOCUMENTATION. LINKSYS DOES NOT OFFER REFUNDS FOR ANY
PRODUCT.
LINKSYS OFFERS CROSS SHIPMENTS, A FASTER PROCESS FOR PRO-
CESSING AND RECEIVING YOUR REPLACEMENT. LINKSYS PAYS
FOR UPS GROUND ONLY. ALL CUSTOMERS LOCATED OUTSIDE OF
THE UNITED STATES OF AMERICA AND CANADA SHALL BE HELD
RESPONSIBLE FOR SHIPPING AND HANDLING CHARGES. PLEASE
CALL LINKSYS FOR MORE DETAILS.
Environmental
Instant Wireless®Series
Appendix E: Contact Information
For help with the installation or operation of the Wireless-G Ethernet Bridge,
contact Linksys Technical Support at one of the phone numbers or Internet
addresses below.
Sales Information 800-546-5797 (LINKSYS)
Technical Support 800-326-7114
RMA (Return Merchandise
Authorization) Issues www.linksys.com (or call 949-271-5461)
Fax 949-265-6655
E-mail support@linksys.com
Web http://www.linksys.com
FTP Site ftp.linksys.com
46
© Copyright 2003 Linksys, All Rights Reserved.
http://www.linksys.com
