USER GUIDE

RangePlus Wireless

PCI Adapter

Model No: WMP110

About This Guide

RangePlus Wireless PCI Adapter

About This Guide

Icon Descriptions

While reading through the User Guide you may see

various icons that call attention to specific items. Below is

a description of these icons:

NOTE: This check mark indicates that there is

a note of interest and is something that you

should pay special attention to while using the

product.

WARNING: This exclamation point indicates

that there is a caution or warning and it is

something that could damage your property or

product.

WEB: This globe icon indicates a noteworthy

website address or e-mail address.

Online Resources

Website addresses in this document are listed without

http:// in front of the address because most current web

browsers do not require it. If you use an older web browser,

you may have to add http:// in front of the web address.

Resource Website

Linksys www.linksys.com

Linksys International www.linksys.com/international

Glossary www.linksys.com/glossary

Network Security www.linksys.com/security

Linksys is a registered trademark or

trademark of Cisco Systems, Inc. and/

or its affiliates in the U.S. and certain

Other brands and product names are

trademarks or registered trademarks

of their respective holders.

Table of Contents

RangePlus Wireless PCI Adapter

Chapter 1: Product Overview 1

LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Chapter 2: Wireless Security Checklist 2

General Network Security Guidelines .................................2

Additional Security Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Chapter 3: Advanced Conguration 3

How to Access the Wireless Network Monitor............................ 3

How to Use the Wireless Network Monitor..............................3

Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Connect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Proﬁles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Appendix A: Troubleshooting 24

Appendix B: Windows Vista Conguration 25

Windows Vista Conﬁguration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

New Wireless Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Appendix C: Windows XP Wireless Zero Conguration 28

Windows XP Wireless Zero Conﬁguration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Appendix D: Specications 30

Appendix E: Warranty Information 31

Limited Warranty..............................................31

Exclusions and Limitations........................................31

Obtaining Warranty Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Appendix E: Regulatory Information 33

FCC Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Safety Notices................................................33

Industry Canada Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Avis d’Industrie Canada..........................................34

Wireless Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Avis de non-responsabilité concernant les appareils sans ﬁl . . . . . . . . . . . . . . . . . .34

User Information for Consumer Products Covered by EU Directive 2002/96/EC on Waste

Electric and Electronic Equipment (WEEE) ..............................35

Chapter 1 Product Overview

RangePlus Wireless PCI Adapter

Chapter 1:

Product Overview

Thank you for choosing the Linksys RangePlus Wireless PCI

Adapter. Using the latest wireless networking technology,

the Adapter adds or upgrades wireless connectivity on

your desktop computer. To help protect your data and

privacy, you can use industrial-strength WPA2 encryption

to protect your wireless connection. The included Setup

Wizard will walk you through configuring the Adapter to

your network’s settings, step by step.

LED

Link (Green) The LED flashes when there is

wireless network activity.

Chapter 2 Wireless Security Checklist

RangePlus Wireless PCI Adapter

Chapter 2:

Wireless Security Checklist

Wireless networks are convenient and easy to install, so

homes with high-speed Internet access are adopting them

at a rapid pace. Because wireless networking operates by

sending information over radio waves, it can be more

vulnerable to intruders than a traditional wired network.

Like signals from your cellular or cordless phones, signals

from your wireless network can also be intercepted. Since

you cannot physically prevent someone from connecting

to your wireless network, you need to take some additional

steps to keep your network secure.

1. Change the default wireless

network name or SSID

Wireless devices have a default wireless network name

or Service Set Identifier (SSID) set by the factory. This

is the name of your wireless network, and can be up

to 32 characters in length. Linksys wireless products

use linksys as the default wireless network name. You

should change the wireless network name to something

unique to distinguish your wireless network from other

wireless networks that may exist around you, but do not

use personal information (such as your Social Security

number) because this information may be available for

anyone to see when browsing for wireless networks.

2. Change the default password

For wireless products such as access points and routers,

you will be asked for a password when you want to change

their settings. These devices have a default password set

by the factory. The Linksys default password is admin.

Hackers know these defaults and may try to use them

to access your wireless device and change your network

settings. To thwart any unauthorized changes, customize

the device’s password so it will be hard to guess.

3. Enable MAC address filtering

Linksys routers give you the ability to enable Media Access

Control (MAC) address filtering. The MAC address is a

unique series of numbers and letters assigned to every

networking device. With MAC address filtering enabled,

wireless network access is provided solely for wireless

devices with specific MAC addresses. For example, you can

specify the MAC address of each computer in your home

so that only those computers can access your wireless

network.

4. Enable encryption

Encryption protects data transmitted over a wireless

network. Wi-Fi Protected Access (WPA/WPA2) and Wired

Equivalency Privacy (WEP) offer different levels of security

for wireless communication.

A network encrypted with WPA/WPA2 is more secure

than a network encrypted with WEP, because WPA/WPA2

uses dynamic key encryption. To protect the information

as it passes over the airwaves, you should enable the

highest level of encryption supported by your network

equipment.

WEP is an older encryption standard and may be the

only option available on some older devices that do not

support WPA.

General Network Security Guidelines

Wireless network security is useless if the underlying

network is not secure.

Password protect all computers on the network and

individually password protect sensitive files.

Change passwords on a regular basis.

Install anti-virus software and personal firewall

software.

Disable file sharing (peer-to-peer). Some applications

may open file sharing without your consent and/or

knowledge.

Additional Security Tips

Keep wireless routers, access points, or gateways away

from exterior walls and windows.

Turn wireless routers, access points, or gateways

off when they are not being used (at night, during

vacations).

Use strong passphrases that are at least eight characters

in length. Combine letters and numbers to avoid using

standard words that can be found in the dictionary.

WEB: For more information on wireless

security, visit www.linksys.com/security

•

Chapter 3 Advanced Configuration

RangePlus Wireless PCI Adapter

Chapter 3:

Advanced Configuration

Advanced configuration is performed through the Wireless

Network Monitor (the Monitor). Use it to check the status

information, search for available wireless networks, or

create profiles that hold different configuration settings.

Diagnostics is performed through the Diagnostic utility.

Use it to detect the Adapter, test the driver and Monitor,

and troubleshoot if needed.

How to Access the Wireless Network

Monitor

After installing the Adapter, the Monitor icon appears in

the system tray of your computer. If the Monitor is enabled,

the icon is green. If the Monitor is disabled or the Adapter

is not inserted, the icon is gray.

Wireless Network Monitor Icon

Double-click the icon to open the Monitor.

How to Use the Wireless Network Monitor

The opening screen of the Monitor is the Status screen.

From this screen, you can find out how strong the current

wireless signal is and how good the connection’s quality

is. You can also click the Wi-Fi Protected Setup button to

connect to a router that supports Wi-Fi Protected Setup.

NOTE: The Adapter supports Wi-Fi Protected

Setup, which is a feature that makes it easy to

set up your wireless network.

Click More Information to view additional status

information about the current connection. To search for

available wireless networks, click the Connect tab. To

perform configuration changes or create connection

profiles, click the Profiles tab.

Status

The Status screen displays network mode, signal strength,

and link quality information about the current connection.

It also displays the Wi-Fi Protected Setup button. Click

More Information for additional status information.

Wi-Fi Protected Setup Button

Status

Signal Strength The Signal Strength bar indicates signal

strength.

Link Quality The Link Quality bar indicates the quality of

the wireless network connection.

More Information Click More Information to view

additional information about the wireless network

connection on the Wireless Network Status screen.

Wi-Fi Protected Setup Click the Wi-Fi Protected Setup

button to connect to a router that supports Wi-Fi

Protected Setup. Proceed to the “Wi-Fi Protected Setup”

section.

Wi-Fi Protected Setup

NOTE: Make sure the router supports Wi-Fi

Protected Setup.

Before you begin, make sure the router and the computer

with the Adapter are in the same room. Then select the

method that is most convenient for you.

Select a Method

Chapter 3 Advanced Configuration

RangePlus Wireless PCI Adapter

Push Button (Recommended) Select this option to use

the push button method.

Use Adapter’s PIN number Select this option to enter

the Adapter’s PIN number on the router.

Click Next to continue, or click Back to return to the

previous screen.

Proceed to the instructions for the method you selected.

Use the Push Button

Press the Wi-Fi Protected Setup button on the

router.

Within two minutes, click the Wi-Fi Protected Setup

button on this screen.

The Adapter connects to the network.

Connecting to the Network

Click Print to print out your wireless network settings.

Then click Finish to return to the Status screen, or click

Exit to exit the Monitor.

Congratulations

Congratulations! The Adapter is connected to

the network.

Enter the Adapter’s PIN Number

Enter the PIN Number

Access the web-based utility of the router. (Refer to the

router’s documentation for instructions.)

On the router’s Wi-Fi Protected Setup screen, enter

the Adapter’s PIN number in the PIN field. Then click

Chapter 3 Advanced Configuration

RangePlus Wireless PCI Adapter

On the Adapter’s PIN number screen, click Next.

Enter the PIN Number

The Adapter connects to the network.

Connecting to the Network

Click Print to print out your wireless network settings.

Then click Finish to return to the Status screen, or click

Exit to exit the Monitor.

Congratulations

Congratulations! The Adapter is connected to

the network.

Wireless Network Status

The Wireless Network Status screen provides information

on your current network settings.

Wireless Network Status

Radio Band This is the radio band used on the network.

Wireless Network Name This is the unique name (SSID)

of the wireless network.

Wireless Mode This is the mode of the wireless network

currently in use.

Wide Channel This is the Wireless-N primary channel

used with a 40 MHz radio band network.

Standard Channel This is the channel used by your

wireless network.

Security This is the status of the wireless security

feature.

Authentication This is your wireless network’s

authentication method.

Network Type This is the wireless network type.

IP Address This is the IP Address of the Adapter.

Subnet Mask This is the Adapter’s Subnet Mask.

Default Gateway This is the Default Gateway address.

DNS1 This is the DNS address of the Adapter.

MAC Address This is the MAC address of the wireless

network’s wireless router or access point.

Signal Strength The Signal Strength bar indicates the

signal strength.

Link Quality The Link Quality bar indicates the quality of

the wireless network connection.

Statistics Click Statistics to go to the Wireless Network

Statistics screen.

Chapter 3 Advanced Configuration

RangePlus Wireless PCI Adapter

Back Click Back to return to the initial Status screen.

Save to Profile Click Save to Profile to save the currently

active connection settings to a profile.

Wireless Network Statistics

The Wireless Networks Statistics screen provides statistics

on your current network settings.

Wireless Network Statistics

Transmit Rate This is the data transmission rate of

the current connection. (In Auto mode, the Adapter

dynamically shifts to the fastest data transmission rate at

any given time.)

Receive Rate This is the rate that the Adapter receives

data.

Packets Received This shows the packets that the

Adapter receives, in real time, after connecting to the

wireless network or after clicking Refresh.

Packets Transmitted This shows the packets that the

Adapter transmits, in real time, after connecting to the

wireless network or after clicking Refresh.

Bytes Received This shows the bytes that the Adapter

receives, in real time, after connecting to the wireless

network or after clicking Refresh.

Bytes Transmitted This shows the bytes that the Adapter

transmits, in real time, after connecting to the wireless

network or after clicking Refresh.

Driver Version This shows the Adapter’s driver version.

Noise Level This shows the level of background noise

that affects the wireless signal. A lower reading translates

into a higher quality signal.

Signal Strength This is the intensity of the wireless signal

that the Adapter receives.

Transmit Power This is the power output at which the

Adapter transmits.

Up Time This indicates the length of the most recent

connection to a wireless network.

Total Up Time This indicates the cumulative total of the

Adapter’s connection time.

Signal Strength The Signal Strength bar indicates the

signal strength.

Link Quality The Link Quality bar indicates the quality of

the wireless network connection.

Back Click Back to return to the initial Status screen.

Status Click Status to go to the Wireless Network Status

screen.

Save to Profile Click Save to Profile to save the currently

active connection settings to a profile.

Refresh Click Refresh to reset the statistics.

Connect

The Connect screen displays a list of available networks

in the table. The table shows each network’s wireless

network name, radio band, signal strength, and security

method. You may click the column heading (Wireless

Network Name, GHz, Signal strength, or Security method)

to sort by that field.

NOTE: The icon indicates that the router

supports Wi-Fi Protected Setup.

Connect

Wireless Network Name This is the SSID or unique name

of the wireless network.

GHz This is the radio band used on the network. The

number 2.4 indicates Wireless-B, -G, or -N (2.4 GHz). The

number 5 indicates Wireless-A or -N (5 GHz).

Signal This is the percentage of signal strength, from 0

to 100%.

Chapter 3 Advanced Configuration

RangePlus Wireless PCI Adapter

Security This is the security method used by the

network.

Wi-Fi Protected Setup Click the Wi-Fi Protected Setup

button to connect to a router that supports Wi-Fi

Protected Setup. Refer to the “Wi-Fi Protected Setup”

instructions in the “Status” section at the beginning of

this chapter.

Refresh Click Refresh to perform a new search for

wireless devices.

Connect To connect to one of the networks on the list,

select the wireless network, and click Connect.

If the router does not support Wi-Fi Protected Setup,

proceed to the section, “No Wi-Fi Protected Setup”. If the

router supports Wi-Fi Protected Setup , proceed to the

section, “Wi-Fi Protected Setup”.

No Wi-Fi Protected Setup

If the router does not use Wi-Fi Protected Setup, proceed

to the appropriate section, “Wireless Security Disabled” or

“Wireless Security Enabled”.

Wireless Security Disabled

If you connect to a network whose wireless security is

disabled, then you will view this screen:

Click Connect Anyway

Click Connect Anyway.

Click Finish.

Congratulations

Congratulations! The Adapter is connected to

the network.

Wireless Security Enabled

If you connect to a network whose wireless security is

enabled, then you will view one of three screens.

Proceed to the appropriate instructions.

WPA2 (Wi-Fi Protected Access 2)

If the network uses WPA2 Personal security, then

the WPA2-Personal Key Needed for Connection screen

appears.

WPA2-Personal Security

Passphrase Enter the network’s Passphrase (also

called a pre-shared key) of 8-63 characters.

To connect to the network, click Connect. To cancel

the connection, click Cancel.

WPA (Wi-Fi Protected Access)

If the network uses WPA Personal security, then

the WPA-Personal Key Needed for Connection screen

appears.

WPA-Personal Security

Chapter 3 Advanced Configuration

RangePlus Wireless PCI Adapter

Passphrase Enter the network’s Passphrase (also

called a pre-shared key) of 8-63 characters.

To connect to the network, click Connect. To cancel

the connection, click Cancel.

WEP (Wired Equivalent Privacy)

If the network uses WEP encryption, then the WEP Key

or Passphrase Needed for Connection screen appears.

WEP Security

Passphrase Enter the Passphrase or WEP key.

The passphrase is case-sensitive and must be 16 or

fewer alphanumeric characters. It must match the

passphrase of your other wireless network devices

and is compatible with Linksys wireless products only.

(For non-Linksys wireless products, enter the WEP key

manually.)

If you enter the network’s WEP key, enter the

appropriate number of hexadecimal characters (“0” to

“9” and “A” to “F”). For 64-bit encryption, enter exactly

10 hexadecimal characters. For 128-bit encryption,

enter exactly 26 hexadecimal characters.

To connect to the network, click Connect. To cancel

the connection, click Cancel.

Click Finish.

Congratulations

Congratulations! The Adapter is connected to

the network.

Wi-Fi Protected Setup

If you connect to a router that supports Wi-Fi Protected

Setup, then you will view this screen:

Select a Method

Before you begin, make sure the router and the computer

with the Adapter are in the same room. Then select the

method that is most convenient for you.

Push Button (Recommended) Select this option to use

the push button method.

Use Adapter’s PIN number Select this option to enter

the Adapter’s PIN number on the router.

Enter Key Manually Select this option to manually enter

the security key.

Click Next to continue, or click Back to return to the

previous screen.

Proceed to the instructions for the method you selected.

Chapter 3 Advanced Configuration

RangePlus Wireless PCI Adapter

Use the Push Button

Press the Wi-Fi Protected Setup button on the

router.

Within two minutes, click the Wi-Fi Protected Setup

button on this screen.

The Adapter connects to the network.

Connecting to the Network

Click Print to print out your wireless network settings.

Then click Finish to return to the Status screen, or click

Exit to exit the Monitor.

Congratulations

Congratulations! The Adapter is connected to

the network.

Enter the Adapter’s PIN Number

Enter the PIN Number

Access the web-based utility of the router. (Refer to the

router’s documentation for instructions.)

On the router’s Wi-Fi Protected Setup screen, enter

the Adapter’s PIN number in the PIN field. Then click

Chapter 3 Advanced Configuration

RangePlus Wireless PCI Adapter

On the Adapter’s PIN number screen, click Next.

Enter the PIN Number

The Adapter connects to the network.

Connecting to the Network

Click Print to print out your wireless network settings.

Then click Finish to return to the Status screen, or click

Exit to exit the Monitor.

Congratulations

Congratulations! The Adapter is connected to

the network.

Enter Key Manually

Proceed to the appropriate section, “Wireless Security

Disabled” or “Wireless Security Enabled”.

Wireless Security Disabled

If you connect to a network whose wireless security is

disabled, then you will view this screen:

Click Connect Anyway

Click Connect Anyway.

Click Finish.

Congratulations

Congratulations! The Adapter is connected to

the network.

Wireless Security Enabled

If you connect to a network whose wireless security is

enabled, then you will view one of three screens.

Chapter 3 Advanced Configuration

RangePlus Wireless PCI Adapter

Proceed to the appropriate instructions.

WPA2 (Wi-Fi Protected Access 2)

If the network uses WPA2 Personal security, then

the WPA2-Personal Key Needed for Connection screen

appears.

WPA2-Personal Security

Passphrase Enter the network’s Passphrase (also

called a pre-shared key) of 8-63 characters.

To connect to the network, click Connect. To cancel

the connection, click Cancel.

WPA (Wi-Fi Protected Access)

If the network uses WPA Personal security, then the

WPA-Personal Key Needed for Connection screen.

WPA-Personal Security

Passphrase Enter the network’s Passphrase (also

called a pre-shared key) of 8-63 characters.

To connect to the network, click Connect. To cancel

the connection, click Cancel.

WEP (Wired Equivalent Privacy)

If the network uses WEP encryption, then the WEP Key

or Passphrase Needed for Connection screen appears.

WEP Security

Passphrase Enter the Passphrase or WEP key.

The passphrase is case-sensitive and must be 16 or

fewer alphanumeric characters. It must match the

passphrase of your other wireless network devices

and is compatible with Linksys wireless products only.

(For non-Linksys wireless products, enter the WEP key

manually.)

If you enter the network’s WEP key, enter the

appropriate number of hexadecimal characters (“0” to

“9” and “A” to “F”). For 64-bit encryption, enter exactly

10 hexadecimal characters. For 128-bit encryption,

enter exactly 26 hexadecimal characters.

To connect to the network, click Connect. To cancel

the connection, click Cancel.

Click Finish.

Congratulations

Congratulations! The Adapter is connected to

the network.

Chapter 3 Advanced Configuration

RangePlus Wireless PCI Adapter

Profiles

The Profiles screen lets you save different configuration

profiles for different network setups. The table on the left

displays a list of available profiles with their profile names

and wireless network names.

Profiles

Profile This is the name of the profile.

Wireless Network Name This is the SSID or unique name

of the wireless network.

Profile Information

For each profile selected, the following are listed:

Wireless Mode This is the mode of the wireless network

currently in use.

Standard Channel This is the channel used by your

wireless network.

Security This is the status of the wireless security.

Authentication This is the authentication setting for the

network.

IP Address This is the method used by the network to

assign IP addresses.

Connect To connect to a wireless network using a specific

profile, select the profile, and click Connect.

Wi-Fi Protected Setup Click the Wi-Fi Protected Setup

button to connect to a router that supports Wi-Fi

Protected Setup. Refer to the “Wi-Fi Protected Setup”

instructions in the “Status” section at the beginning of this

chapter.

New Click New to create a new profile. See the next

section, “Create a New Profile,” for instructions.

Edit Select the profile you want to change and click Edit.

Import Click Import to import a profile that is saved in

another location. Select the appropriate file, and click

Open.

Export Select the profile you want to save in a different

location, and click Export. Direct Windows to the

appropriate folder, and click Save.

Delete Select the profile you want to delete and click

Delete.

NOTE: If you want to export more than one

profile, you must export them one at a time.

Create a New Profile

The next screen is the Available Wireless Networks screen.

Available Wireless Networks

This screen provides two options for setting up the

Adapter.

Available Wireless Networks (For most users) Use this

option if you already have a network set up. The networks

available to this Adapter are listed on this screen. You

can choose one of these networks and click Connect

to connect to it. Click Refresh to update the Available

Wireless Networks list.

Advanced Setup If your network is not listed on this

screen, select Advanced Setup to set up the Adapter

manually. This method is for advanced users only.

The setup for each option is described, step by step, under

the appropriate heading on the following pages.

Available Wireless Networks

The available networks are listed in the table on the center

of the screen by Wireless Network Name. Select the wireless

network you wish to connect to and click Connect. (If you

do not see your network listed, click Refresh to bring the

list up again.)

If the router does not support Wi-Fi Protected Setup,

proceed to the section, “No Wi-Fi Protected Setup”. If the

router supports Wi-Fi Protected Setup , proceed to the

section, “Wi-Fi Protected Setup”.

Chapter 3 Advanced Configuration

RangePlus Wireless PCI Adapter

No Wi-Fi Protected Setup

If the router does not use Wi-Fi Protected Setup, proceed

to the appropriate section, “Wireless Security Disabled” or

“Wireless Security Enabled”.

Wireless Security Disabled

If you connect to a network whose wireless security is

disabled, then you will view this screen:

Click Connect Anyway

Click Connect Anyway.

Click Finish.

Congratulations

Congratulations! The Adapter is connected to

the network.

Wireless Security Enabled

If you connect to a network whose wireless security is

enabled, then you will view one of three screens.

Proceed to the appropriate instructions.

WPA2 (Wi-Fi Protected Access 2)

If the network uses WPA2 Personal security, then

the WPA2-Personal Key Needed for Connection screen

appears.

WPA2-Personal Security

Passphrase Enter the network’s Passphrase (also

called a pre-shared key) of 8-63 characters.

To connect to the network, click Connect. To cancel

the connection, click Cancel.

WPA (Wi-Fi Protected Access)

If the network uses WPA Personal security, then

the WPA-Personal Key Needed for Connection screen

appears.

WPA-Personal Security

Passphrase Enter the network’s Passphrase (also

called a pre-shared key) of 8-63 characters.

To connect to the network, click Connect. To cancel

the connection, click Cancel.

WEP (Wired Equivalent Privacy)

If the network uses WEP encryption, then the WEP Key

or Passphrase Needed for Connection screen appears.

Chapter 3 Advanced Configuration

RangePlus Wireless PCI Adapter

WEP Security

Passphrase Enter the Passphrase or WEP key.

The passphrase is case-sensitive and must be 16 or

fewer alphanumeric characters. It must match the

passphrase of your other wireless network devices

and is compatible with Linksys wireless products only.

(For non-Linksys wireless products, enter the WEP key

manually.)

If you enter the network’s WEP key, enter the

appropriate number of hexadecimal characters (“0” to

“9” and “A” to “F”). For 64-bit encryption, enter exactly

10 hexadecimal characters. For 128-bit encryption,

enter exactly 26 hexadecimal characters.

To connect to the network, click Connect. To cancel

the connection, click Cancel.

Click Finish.

Congratulations

Congratulations! The Adapter is connected to

the network.

Wi-Fi Protected Setup

If you connect to a router that supports Wi-Fi Protected

Setup, then you will view this screen:

Select a Method

Before you begin, make sure the router and the computer

with the Adapter are in the same room. Then select the

method that is most convenient for you.

Push Button (Recommended) Select this option to use

the push button method.

Use Adapter’s PIN number Select this option to enter

the Adapter’s PIN number on the router.

Enter Key Manually Select this option to manually enter

the security key.

Click Next to continue, or click Back to return to the

previous screen.

Proceed to the instructions for the method you selected.

Use the Push Button

Chapter 3 Advanced Configuration

RangePlus Wireless PCI Adapter

Press the Wi-Fi Protected Setup button on the

router.

Within two minutes, click the Wi-Fi Protected Setup

button on this screen.

The Adapter connects to the network.

Connecting to the Network

Click Print to print out your wireless network settings.

Then click Finish to return to the Status screen, or click

Exit to exit the Monitor.

Congratulations

Congratulations! The Adapter is connected to

the network.

Enter the Adapter’s PIN Number

Enter the PIN Number

Access the web-based utility of the router. (Refer to the

router’s documentation for instructions.)

On the router’s Wi-Fi Protected Setup screen, enter

the Adapter’s PIN number in the PIN field. Then click

On the Adapter’s PIN number screen, click Next.

Enter the PIN Number

Chapter 3 Advanced Configuration

RangePlus Wireless PCI Adapter

The Adapter connects to the network.

Connecting to the Network

Click Print to print out your wireless network settings.

Then click Finish to return to the Status screen, or click

Exit to exit the Monitor.

Congratulations

Congratulations! The Adapter is connected to

the network.

Enter Key Manually

Proceed to the appropriate section, “Wireless Security

Disabled” or “Wireless Security Enabled”.

Wireless Security Disabled

If you connect to a network whose wireless security is

disabled, then you will view this screen:

Click Connect Anyway

Click Connect Anyway.

Click Finish.

Congratulations

Congratulations! The Adapter is connected to

the network.

Wireless Security Enabled

If you connect to a network whose wireless security is

enabled, then you will view one of three screens.

Chapter 3 Advanced Configuration

RangePlus Wireless PCI Adapter

Proceed to the appropriate instructions.

WPA2 (Wi-Fi Protected Access 2)

If the network uses WPA2 Personal security, then

the WPA2-Personal Key Needed for Connection screen

appears.

WPA2-Personal Security

Passphrase Enter the network’s Passphrase (also

called a pre-shared key) of 8-63 characters.

To connect to the network, click Connect. To cancel

the connection, click Cancel.

WPA (Wi-Fi Protected Access)

If the network uses WPA Personal security, then the

WPA-Personal Key Needed for Connection screen.

WPA-Personal Security

Passphrase Enter the network’s Passphrase (also

called a pre-shared key) of 8-63 characters.

To connect to the network, click Connect. To cancel

the connection, click Cancel.

WEP (Wired Equivalent Privacy)

If the network uses WEP encryption, then the WEP Key

or Passphrase Needed for Connection screen appears.

WEP Security

Passphrase Enter the Passphrase or WEP key.

The passphrase is case-sensitive and must be 16 or

fewer alphanumeric characters. It must match the

passphrase of your other wireless network devices

and is compatible with Linksys wireless products only.

(For non-Linksys wireless products, enter the WEP key

manually.)

If you enter the network’s WEP key, enter the

appropriate number of hexadecimal characters (“0” to

“9” and “A” to “F”). For 64-bit encryption, enter exactly

10 hexadecimal characters. For 128-bit encryption,

enter exactly 26 hexadecimal characters.

To connect to the network, click Connect. To cancel

the connection, click Cancel.

Click Finish.

Congratulations

Congratulations! The profile is

successfully configured.

Chapter 3 Advanced Configuration

RangePlus Wireless PCI Adapter

Advanced Setup

If your network is not listed with the available networks,

use Advanced Setup.

Available Wireless Networks

Click Advanced Setup on the Available Wireless

Networks screen to set up the Adapter manually.

The Network Settings screen appears.

Wireless Network

If your network has a router or other DHCP server, select

Obtain network settings automatically (DHCP).

If your network does not have a DHCP server or router,

select Specify network settings. Enter an IP Address,

Subnet Mask, Default Gateway, and DNS addresses

appropriate for your network. You must specify the

IP Address and Subnet Mask on this screen. If you are

unsure about the Default Gateway and DNS addresses,

leave these fields blank.

IP Address This IP Address must be unique to

your network.

Subnet Mask The Adapter’s Subnet Mask must be

the same as your wired network’s Subnet Mask.

–

Default Gateway Enter the IP address of your

network’s Gateway.

DNS 1 and DNS 2 Enter the DNS address of your

wired Ethernet network.

Click Next to continue, or click Back to return to the

previous screen.

The Wireless Mode screen shows a choice of two

wireless modes.

Wireless Mode

Infrastructure Mode Select this mode if you want

to connect to a wireless router or access point.

Ad-Hoc Mode Select this mode if you want to

connect to another wireless device directly without

using a wireless router or access point.

Wireless Network Name Enter a wireless network

name (SSID) that must be used for all devices in

your wireless network. It is case-sensitive and

should be a unique name to help prevent others

from entering your network.

Click Next to continue, or click Back to return to the

previous screen.

–

Chapter 3 Advanced Configuration

RangePlus Wireless PCI Adapter

If you chose Infrastructure Mode, go to step 5 now.

If you chose Ad-Hoc Mode, the Ad-Hoc Mode Settings

screen appears.

NOTE: The Adapter only supports Ad-Hoc Mode

for 2.4 GHz networks: Wireless-B, Wireless-G,

and Wireless-N (using 2.4 GHz).

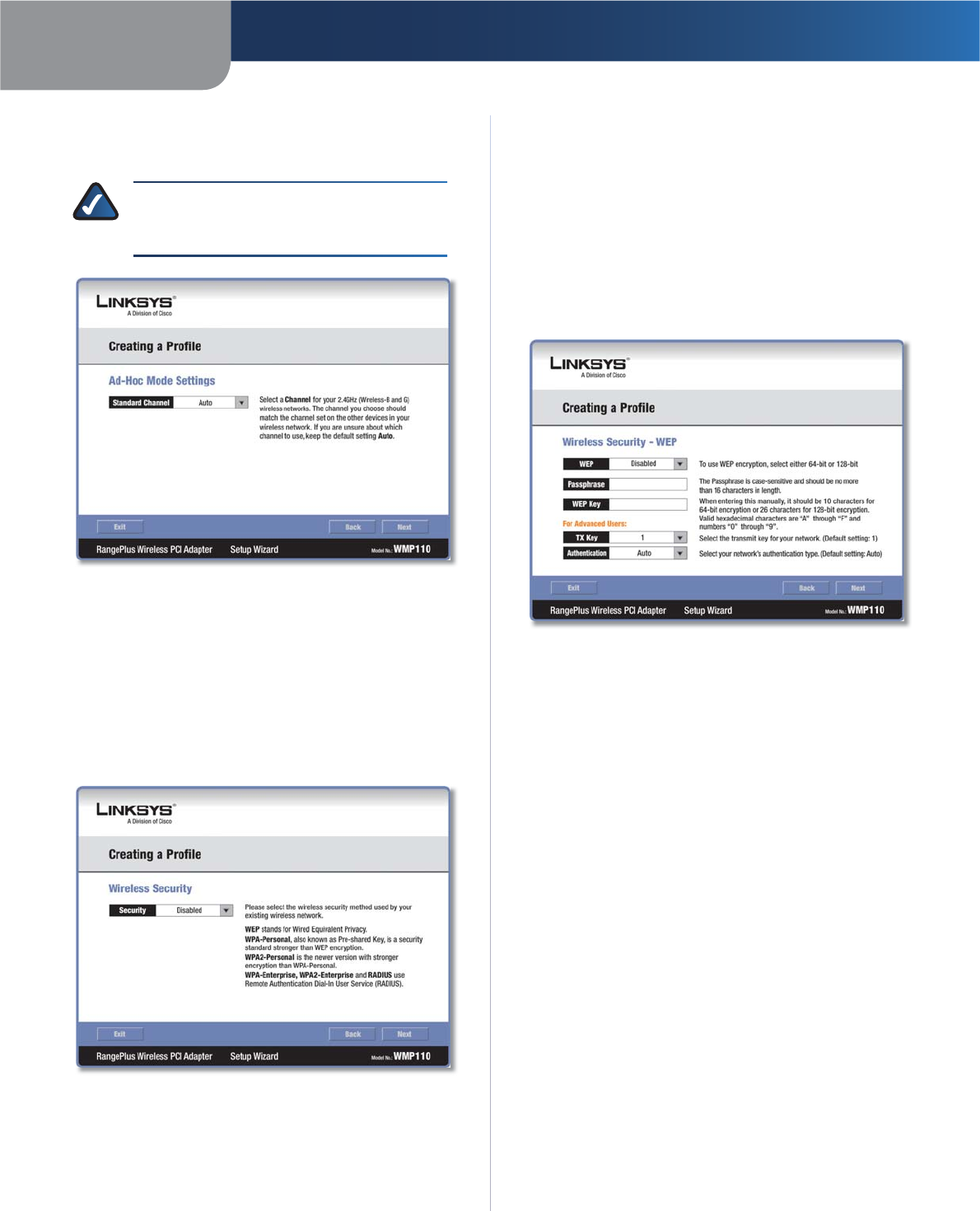

Ad-Hoc Mode Settings

Standard Channel Select the correct channel

for your wireless network. If you are unsure about

which channel to use, keep the default, Auto.

Click Next to continue, or click Back to return to the

previous screen.

If your wireless network does not have wireless security,

select Disabled and then click Next to continue.

Proceed to step 6.

Wireless Security

If your wireless network has wireless security, select

the method of security used: WEP, WPA Personal,

WPA2 Personal, WPA Enterprise, WPA2 Enterprise, or

RADIUS. WEP stands for Wired Equivalent Privacy, and

WPA stands for Wi-Fi Protected Access. WPA2 stands

–

for Wi-Fi Protected Access 2. WPA is a stronger security

method than WEP. WPA2 is a stronger security method

than WPA. RADIUS stands for Remote Authentication

Dial-In User Service. Click Next to continue, or click

Back to return to the previous screen.

Proceed to the section for your security method.

WEP

Make sure the settings you configure match the settings

of your wireless network.

WEP

WEP Select 64-bit or 128-bit encryption.

Passphrase Enter the network’s Passphrase, so a WEP

key is automatically generated. It is case-sensitive and

should not be longer than 16 alphanumeric characters.

This passphrase must match the passphrase of your other

wireless network devices and is compatible with Linksys

wireless products only. (If you have any non-Linksys

wireless products, enter the WEP key manually on those

products.)

WEP Key If you do not have the Passphrase, enter the

WEP key of your wireless network. For 64-bit encryption,

enter exactly 10 hexadecimal characters. For 128-bit

encryption, enter exactly 26 hexadecimal characters. Valid

hexadecimal characters are “0” to “9” and “A” to “F”.

Advanced Users

TX Key The default is 1. If your network’s wireless router

or access point uses transmit key number 2, 3, or 4, select

the appropriate number.

Authentication The default is Open System. For Open

System authentication, the sender and the recipient do

not share a WEP key for authentication. For Shared Key

authentication, both the sender and the recipient share a

WEP key for authentication.

Click Next to continue, or click Back to return to the

previous screen.

Chapter 3 Advanced Configuration

RangePlus Wireless PCI Adapter

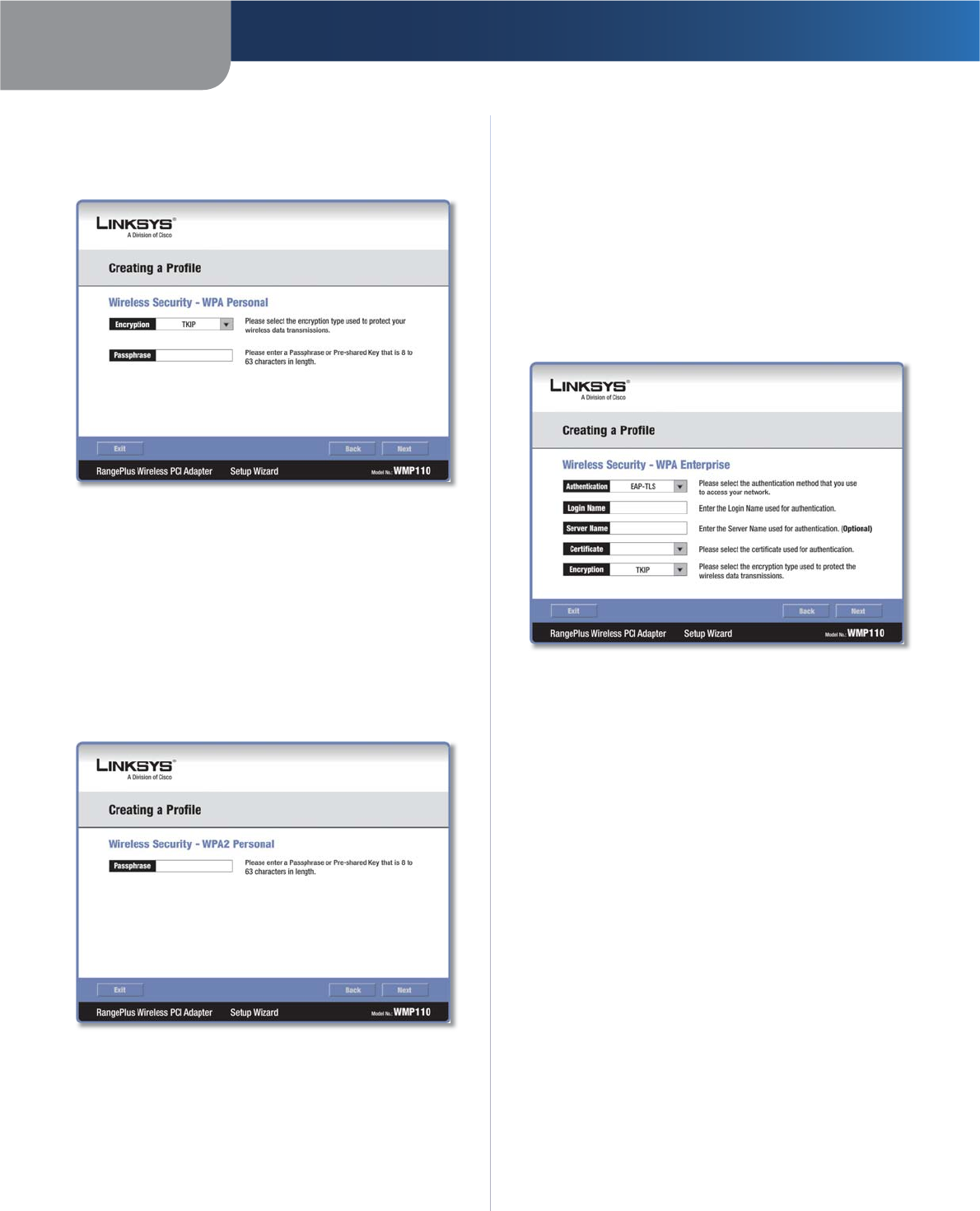

WPA Personal

WPA Personal offers two encryption methods, TKIP and

AES, with dynamic encryption keys.

WPA Personal

Encryption Select TKIP or AES.

Passphrase Enter the network’s Passphrase (also called a

pre-shared key) of 8-63 characters.

Click Next to continue, or click Back to return to the

previous screen.

WPA2 Personal

WPA2 Personal uses the encryption method, AES, with

dynamic encryption keys.

WPA2 Personal

Passphrase Enter the network’s Passphrase (also called a

pre-shared key) of 8-63 characters.

Click Next to continue, or click Back to return to the

previous screen.

WPA Enterprise

WPA Enterprise features WPA security used in coordination

with a RADIUS server. (This should only be used when a

RADIUS server is connected to the router.) WPA Enterprise

offers two authentication methods, EAP-TLS and PEAP,

as well as two encryption methods, TKIP and AES, with

dynamic encryption keys.

Authentication Select the authentication method your

network is using, EAP-TLS or PEAP.

EAP-TLS

WPA Enterprise - EAP-TLS

If you selected EAP-TLS, configure the following:

network.

Server Name Enter the name of the authentication server

(this is optional).

Certificate Select the certificate you installed to

authenticate you on your wireless network.

Encryption Select the type of encryption, TKIP or AES.

Click Next to continue, or click Back to return to the

previous screen.

Chapter 3 Advanced Configuration

RangePlus Wireless PCI Adapter

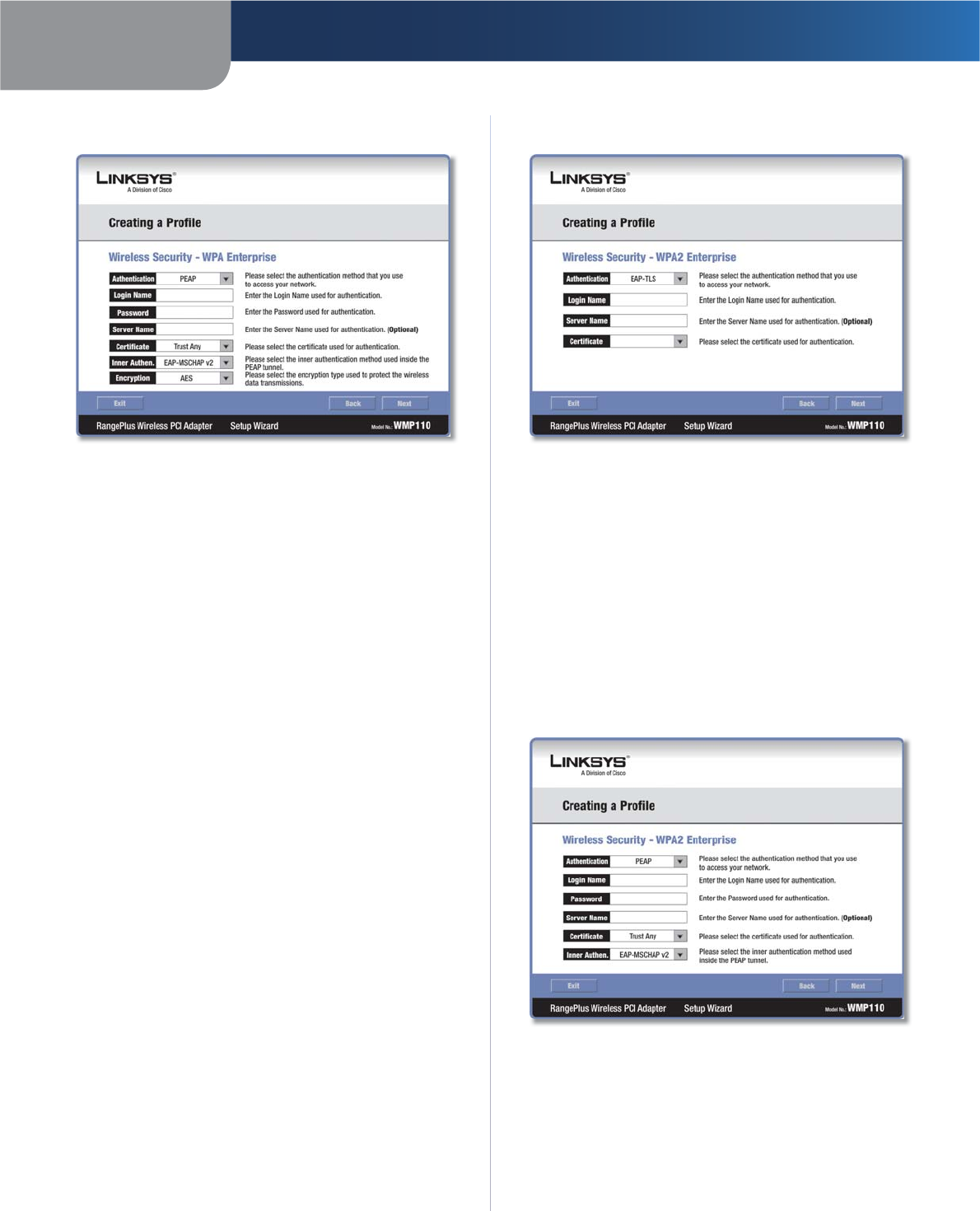

PEAP

WPA Enterprise - PEAP

If you selected PEAP, configure the following:

network.

Password Enter the password of your wireless network.

Server Name Enter the name of the authentication server

(this is optional).

Certificate Select the certificate you installed to

authenticate you on your wireless network. If you want to

use any certificate, keep the default, Trust Any.

Inner Authen. Select the authentication method used

inside the PEAP tunnel.

Encryption Select the type of encryption, TKIP or AES.

Click Next to continue, or click Back to return to the

previous screen.

WPA2 Enterprise

WPA2 Enterprise features WPA2 security used in

coordination with a RADIUS server. (This should only be

used when a RADIUS server is connected to the router.)

WPA2 Enterprise offers two authentication methods,

EAP-TLS and PEAP.

Authentication Select the authentication method your

network is using, EAP-TLS or PEAP.

EAP-TLS

WPA2 Enterprise - EAP-TLS

If you selected EAP-TLS, configure the following:

network.

Server Name Enter the name of the authentication server

(this is optional).

Certificate Select the certificate you installed to

authenticate you on your wireless network.

Click Next to continue, or click Back to return to the

previous screen.

PEAP

WPA2 Enterprise - PEAP

If you selected PEAP, configure the following:

network.

Password Enter the password of your wireless network.

Server Name Enter the name of the authentication server

(this is optional).

Chapter 3 Advanced Configuration

RangePlus Wireless PCI Adapter

Certificate Select the certificate you installed to

authenticate you on your wireless network. If you want to

use any certificate, keep the default, Trust Any.

Inner Authen. Select the authentication method used

inside the PEAP tunnel.

Click Next to continue, or click Back to return to the

previous screen.

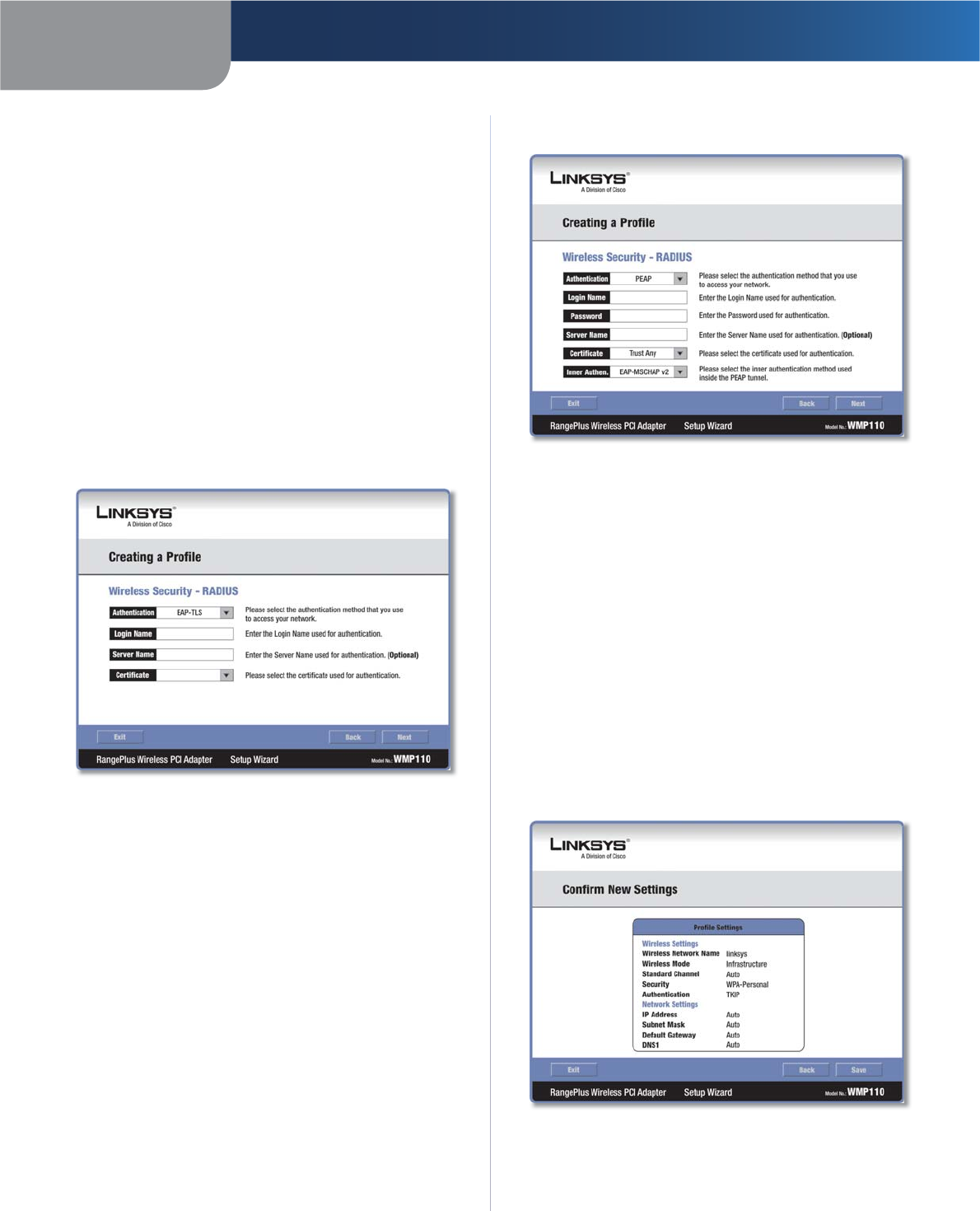

RADIUS

RADIUS features use of a RADIUS server. (This should only

be used when a RADIUS server is connected to the router.)

RADIUS offers two authentication types: EAP-TLS and

PEAP.

Authentication Select the authentication method your

network is using, EAP-TLS or PEAP.

EAP-TLS

RADIUS - EAP-TLS

If you selected EAP-TLS, configure the following:

network.

Server Name Enter the name of the authentication server

(this is optional).

Certificate Select the certificate you installed to

authenticate you on your wireless network.

Click Next to continue, or click Back to return to the

previous screen.

PEAP

RADIUS - PEAP

If you selected PEAP, configure the following:

network.

Password Enter the password of your wireless network.

Server Name Enter the name of the authentication server

(this is optional).

Certificate Select the certificate you installed to

authenticate you on your wireless network. If you want to

use any certificate, keep the default, Trust Any.

Inner Authen. Select the authentication method used

inside the PEAP tunnel.

Click Next to continue, or click Back to return to the

previous screen.

The Confirm New Settings screen appears.

Confirm New Settings

To save the new settings, click Save. To edit the new

settings, click Back. To exit Advanced Setup through

the Monitor, click Exit.

Chapter 3 Advanced Configuration

RangePlus Wireless PCI Adapter

The Congratulations screen appears. Click Connect to

Network to implement the new settings immediately

and return to the Status screen. Click Return to Profiles

screen to keep the current settings active and return

to the Profiles screen.

Congratulations

Congratulations! The profile is

successfully configured.

Appendix A Troubleshooting

RangePlus Wireless PCI Adapter

Appendix A:

Troubleshooting

Your computer does not recognize the Adapter.

Make sure that the Adapter is properly inserted into the

PCI slot.

The Adapter does not work properly.

Remove the Adapter, and then re-insert it into the

computer’s PCI slot.

Your computer cannot communicate with the other

computers linked via Ethernet in the Infrastructure

conﬁguration.

Make sure that the computers are powered on.

Make sure that the Adapter is configured with the

same Wireless Network Name (SSID) and wireless

security settings as the other wireless computers in

the Infrastructure configuration.

WEB: If your questions are not addressed here,

refer to the Linksys website, www.linksys.com

Appendix B Windows Vista Configuration

RangePlus Wireless PCI Adapter

Appendix B:

Windows Vista

Configuration

Windows Vista Configuration

After you have installed the Adapter, the Windows Vista

Wireless Network Configuration utility icon appears on

your computer’s system tray.

Wireless Network Configuration Utility Icon

When your mouse pointer hovers over the icon, the status

information of your wireless connection appears.

Wireless Connection Status

New Wireless Connection

To connect to a different wireless network:

Right-click the Wireless Network Configuration

utility icon.

Click Connect to a network.

Utility Menu

Select your network, and then click Connect.

Select Network

If your network has wireless security, go to step 5.

If your network has no wireless security, this screen

appears. To connect to your unsecured network, click

Connect Anyway and go to step 7.

Unsecured Network

Appendix B Windows Vista Configuration

RangePlus Wireless PCI Adapter

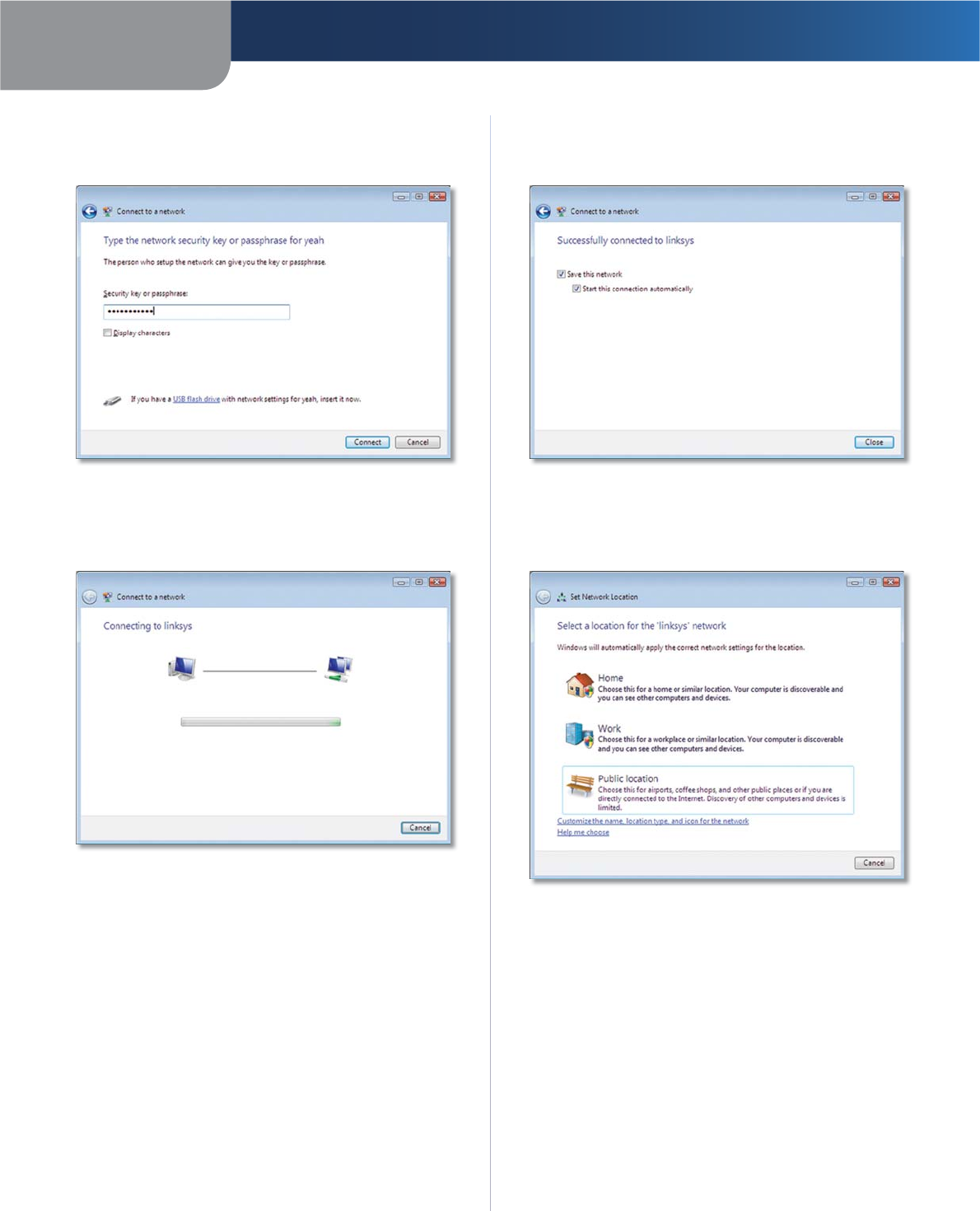

Enter the security key, WEP key, or passphrase (also

known as a pre-shared key), depending on your type

of security. Click Connect.

Secured Network

This screen appears while the Adapter connects to

your network. Do not cancel, unless you want to end

the installation.

Connecting to Network

This screen appears when you are connected to your

network. Select Save this network, if you want to save

your settings. Click Close.

Connected to Network

The Set Network Location screen may appear to help

apply the correct settings for your type of location.

Select Home,Work, or Public location.

Select Network Location

Appendix B Windows Vista Configuration

RangePlus Wireless PCI Adapter

This screen varies according to the selected location.

Click Close.

Network Settings Saved

NOTE: For help with the Windows Vista Wireless

Network Conﬁguration utility, refer to Windows

Vista Help and Support, by clicking Vista’s Start

button > Help and Support.

Your computer is now connected to your

wireless network.

Appendix C Windows XP Wireless Zero Configuration

RangePlus Wireless PCI Adapter

Appendix C:

Windows XP Wireless Zero

Configuration

Windows XP Wireless Zero Configuration

If your computer is running Windows XP, then this choice

will be available. If you want to use Windows XP Wireless

Zero Configuration to control the Adapter, instead of

using the Wireless Network Monitor, then right-click the

Wireless Network Monitor icon, and select Use Windows

XP Wireless Configuration.

NOTE: If you have WPA2 wireless security, refer

to Update for Windows XP (KB893357) on the

microsoft.com website to be able to connect

correctly.

Wireless Network Monitor Icon

Use Windows XP Wireless Configuration

If you want to switch back to the Wireless Network Monitor,

right-click the Wireless Network Monitor icon, and select

Use Linksys Wireless Network Monitor.

Use Linksys Wireless Network Monitor

NOTE: For more information on Windows XP

Wireless Zero Configuration, refer to Windows

Help.

After installing the Adapter, the Windows XP Wireless

Zero Configuration icon appears in your computer’s

system tray. Double-click the icon.

Windows XP Wireless Zero Configuration Icon

The screen that appears will show any available

wireless network. Select the network you want. Click

Connect.

If your network does not have wireless security

enabled, go to step 3.

If your network does have wireless security enabled,

go to step 4.

NOTE: Steps 2 and 3 are for Windows XP with

Service Pack 2 installed.

Available Wireless Network

If your network does not have wireless security enabled,

click Connect Anyway to connect the Adapter to your

network.

No Wireless Security

If your network uses WEP wireless security, enter the

WEP Key in the Network Key and Confirm network key

fields. If your network uses WPA Personal wireless

security, enter the Passphrase in the Network Key and

Confirm network key fields. Click Connect.

Appendix C Windows XP Wireless Zero Configuration

RangePlus Wireless PCI Adapter

Wireless Security

NOTE: Windows XP Wireless Zero Configuration

does not support the use of a passphrase. Enter

the exact WEP key used by your wireless router

or access point.

Your wireless network will appear as Connected when

your connection is active.

Wireless Network Connection

For more information about wireless networking on a

Windows XP computer, click Start >Help >Support.

Enter the keyword wireless in the field provided, and

press the Enter key.

Your computer is now connected to your

wireless network.

Appendix D Specifications

RangePlus Wireless PCI Adapter

Appendix D:

Specifications

Model WMP110 ver. 2

Standards IEEE 802.11b, IEEE 802.11g

LEDs Link/Act

Number of Antennas 2 External Dipole Antennas

Connector Type PCI

Detachable Antennas Yes

Modulations 802.11b: CCK, QPSK, BPSK

802.11g: BPSK, QPSK, 16-QAM, 64-QAM

802.11n: BPSK, QPSK, 16-QAM, 64-QAM

RF Power (EIRP) in dBm 802.11b: 17dBm

802.11g: 16dBm

802.11n: 20MHz: 16dBm

40MHz: 15dBm

Receive Sensitivity in dBm 802.11b: -84dBm

802.11g: -66dBm

802.11n: 20MHz: MCS=15: -64dBm

40MHz MCS=15, -60dBm

Power Consumption 802.11b

TX: 400mA, at 3.3V

RX: 340mA, at 3.3V

802.11g

TX: 360mA at 3.3V

RX: 340mA at 3.3V

802.11n 20MHz

TX: 360mA at 3.3V

RX: 340mA at 3.3V

802.11n 40MHz

TX: 380mA at 3.3V

RX: 340mA at 3.3V

Antenna Gain in dBi 1.8 dBi

Security Features WEP, Wi-Fi Protected Access™ 2 (WPA2)

Security Key Bits Up to 256-Bit Encryption

Environmental

Dimensions 4.96" x 0.87" x 4.76" (126 x 22 x 121 mm)

Weight 0.15 lbs, 2.47 oz (700 g)

Power 3.3V

Certiﬁcation FCC, IC, WiFi, WHQL, RoHS

Operating Temp. 32 to 131ºF (-0 to 55ºC)

Storage Temp. -4 to 176ºF (–20 to 80ºC)

Operating Humidity 85% Noncondensing

Storage Humidity 90% Noncondensing

Speciﬁcations are subject to change without notice.

Appendix E Warranty Information

RangePlus Wireless PCI Adapter

Appendix E:

Warranty Information

Limited Warranty

Linksys warrants this Linksys hardware product against

defects in materials and workmanship under normal

use for the Warranty Period, which begins on the date of

purchase by the original end-user purchaser and lasts for

the period specified below:

One (1) year for new product

Ninety (90) days for refurbished product

This limited warranty is non-transferable and extends only

to the original end-user purchaser. Your exclusive remedy

and Linksys’ entire liability under this limited warranty

will be for Linksys, at its option, to (a) repair the product

with new or refurbished parts, (b) replace the product

with a reasonably available equivalent new or refurbished

Linksys product, or (c) refund the purchase price of the

product less any rebates. Any repaired or replacement

products will be warranted for the remainder of the

original Warranty Period or thirty (30) days, whichever is

longer. All products and parts that are replaced become

the property of Linksys.

Exclusions and Limitations

This limited warranty does not apply if: (a) the product

assembly seal has been removed or damaged, (b) the

product has been altered or modified, except by Linksys, (c)

the product damage was caused by use with non-Linksys

products, (d) the product has not been installed, operated,

repaired, or maintained in accordance with instructions

supplied by Linksys, (e) the product has been subjected to

abnormal physical or electrical stress, misuse, negligence,

or accident, (f) the serial number on the Product has been

altered, defaced, or removed, or (g) the product is supplied

or licensed for beta, evaluation, testing or demonstration

purposes for which Linksys does not charge a purchase

price or license fee.

ALL SOFTWARE PROVIDED BY LINKSYS WITH THE

PRODUCT, WHETHER FACTORY LOADED ON THE

PRODUCT OR CONTAINED ON MEDIA ACCOMPANYING

THE PRODUCT, IS PROVIDED “AS IS” WITHOUT WARRANTY

OF ANY KIND. Without limiting the foregoing, Linksys does

not warrant that the operation of the product or software

will be uninterrupted or error free. Also, due to the

continual development of new techniques for intruding

upon and attacking networks, Linksys does not warrant

that the product, software or any equipment, system or

network on which the product or software is used will be

free of vulnerability to intrusion or attack. The product

may include or be bundled with third party software or

•

service offerings. This limited warranty shall not apply to

such third party software or service offerings. This limited

warranty does not guarantee any continued availability

of a third party’s service for which this product’s use or

operation may require.

TO THE EXTENT NOT PROHIBITED BY LAW, ALL IMPLIED

WARRANTIES AND CONDITIONS OF MERCHANTABILITY,

SATISFACTORY QUALITY OR FITNESS FOR A PARTICULAR

PURPOSE ARE LIMITED TO THE DURATION OF THE

WARRANTY PERIOD. ALL OTHER EXPRESS OR IMPLIED

CONDITIONS, REPRESENTATIONS AND WARRANTIES,

INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED

WARRANTY OF NON-INFRINGEMENT, ARE DISCLAIMED.

Some jurisdictions do not allow limitations on how long

an implied warranty lasts, so the above limitation may not

apply to you. This limited warranty gives you specific legal

rights, and you may also have other rights which vary by

jurisdiction.

TO THE EXTENT NOT PROHIBITED BY LAW, IN NO EVENT

WILL LINKSYS BE LIABLE FOR ANY LOST DATA, REVENUE

OR PROFIT, OR FOR SPECIAL, INDIRECT, CONSEQUENTIAL,

INCIDENTAL OR PUNITIVE DAMAGES, REGARDLESS OF THE

THEORY OF LIABILITY (INCLUDING NEGLIGENCE), ARISING

OUT OF OR RELATED TO THE USE OF OR INABILITY TO

USE THE PRODUCT (INCLUDING ANY SOFTWARE), EVEN

IF LINKSYS HAS BEEN ADVISED OF THE POSSIBILITY OF

SUCH DAMAGES. IN NO EVENT WILL LINKSYS’ LIABILITY

EXCEED THE AMOUNT PAID BY YOU FOR THE PRODUCT.

The foregoing limitations will apply even if any warranty

or remedy provided under this limited warranty fails of

its essential purpose. Some jurisdictions do not allow

the exclusion or limitation of incidental or consequential

damages, so the above limitation or exclusion may not

apply to you.

Obtaining Warranty Service

If you have a question about your product or experience a

problem with it, please go to www.linksys.com/support

where you will find a variety of online support tools and

information to assist you with your product. If the product

proves defective during the Warranty Period, contact

Linksys Technical Support for instructions on how to

obtain warranty service. The telephone number for Linksys

Technical Support in your area can be found in the product

User Guide and at www.linksys.com. Have your product

serial number and proof of purchase on hand when calling.

A DATED PROOF OF ORIGINAL PURCHASE IS REQUIRED

TO PROCESS WARRANTY CLAIMS. If you are requested to

return your product, you will be given a Return Materials

Authorization (RMA) number. You are responsible for

properly packaging and shipping your product to Linksys

at your cost and risk. You must include the RMA number

and a copy of your dated proof of original purchase when

returning your product. Products received without a RMA

number and dated proof of original purchase will be

Appendix E Warranty Information

RangePlus Wireless PCI Adapter

rejected. Do not include any other items with the product

you are returning to Linksys. Defective product covered

by this limited warranty will be repaired or replaced and

returned to you without charge. Customers outside of

the United States of America and Canada are responsible

for all shipping and handling charges, custom duties,

VAT and other associated taxes and charges. Repairs or

replacements not covered under this limited warranty will

be subject to charge at Linksys’ then-current rates.

Technical Support

This limited warranty is neither a service nor a support

contract. Information about Linksys’ current technical

support offerings and policies (including any fees for

support services) can be found at:

www.linksys.com/support.

This limited warranty is governed by the laws of the

jurisdiction in which the Product was purchased by you.

Please direct all inquiries to: Linksys, P.O. Box 18558, Irvine,

CA 92623.

Appendix E Regulatory Information

RangePlus Wireless PCI Adapter

Appendix E:

Regulatory Information

FCC Statement

This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to Part

15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation. This equipment generates, uses

and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause

harmful interference to radio communications. However,

there is no guarantee that interference will not occur in

a particular installation. If this equipment does cause

harmful interference to radio or television reception, which

can be determined by turning the equipment off and on,

the user is encouraged to try to correct the interference by

one of the following measures:

Reorient or relocate the receiving antenna

Increase the separation between the equipment or

devices

Connect the equipment to an outlet other than the

receiver’s

Consult a dealer or an experienced radio/TV technician

for assistance

FCC Caution: Any changes or modifications not expressly

approved by the party responsible for compliance could

void the user’s authority to operate this equipment.

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions: (1)

This device may not cause harmful interference, and (2) this

device must accept any interference received, including

interference that may cause undesired operation.

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure

limits set forth for an uncontrolled environment. This

equipment should be installed and operated with

minimum distance 20cm between the radiator and your

body.

This transmitter must not be co-located or operating in

conjunction with any other antenna or transmitter.

The availability of some specific channels and/or

operational frequency bands are country dependent

and are firmware programmed at the factory to match

the intended destination. The firmware setting is not

accessible by the end user.1.

•

Safety Notices

Caution: To reduce the risk of fire, use only No.26 AWG

or larger telecommunication line cord.

Do not use this product near water, for example, in a

wet basement or near a swimming pool.

Avoid using this product during an electrical storm.

There may be a remote risk of electric shock from

lightning.

WARNING: This product contains lead, known

to the State of California to cause cancer, and

birth defects or other reproductive harm. Wash

hands after handling.

Industry Canada Statement

This Class B digital apparatus complies with Canadian

ICES-003.

This device complies with RSS-210 of the Industry

Canada Rules. Operation is subject to the following two

conditions:

This device may not cause interference and

This device must accept any interference received,

including interference that may cause undesired

operation.

Industry Canada Radiation Exposure Statement:

This equipment complies with IC radiation exposure limits

set forth for an uncontrolled environment. This equipment

should be installed and operated with minimum distance

20cm between the radiator & your body.

This device has been designed to operate with an antenna

having a maximum gain of 1.8 dBi. Antenna having a

higher gain is strictly prohibited per regulations of Industry

Canada. The required antenna impedance is 50 ohms.

•

Appendix E Regulatory Information

RangePlus Wireless PCI Adapter

Avis d’Industrie Canada

Cet appareil numérique de la classe B est conforme à la

norme NMB-003 du Canada.

Les conditions de fonctionnement sont sujettes à deux

conditions:

Ce périphérique ne doit pas causer d’interférence et.

Ce périphérique doit accepter toute interférence, y

compris les interférences pouvant perturber le bon

fonctionnement de ce périphérique.

Avis d’Industrie Canada concernant l’exposition

aux radiofréquences :

Ce matériel est conforme aux limites établies par IC

en matière d’exposition aux radiofréquences dans un

environnement non contrôlé. Ce matériel doit être installé

et utilisé à une distance d’au moins 20 cm entre l’antenne

et le corps de l’utilisateur.

Ce dispositif a été conçu pour fonctionner avec une

antenne ayant un gain maximum du dBi 1.8. L'antenne

ayant un gain plus élevé est strictement interdite par

règlements d'industrie Canada. L'impédance exigée

d'antenne est de 50 ohms.

Wireless Disclaimer

The maximum performance for wireless is derived from

IEEE Standard 802.11 specifications. Actual performance

can vary, including lower wireless network capacity,

data throughput rate, range and coverage. Performance

depends on many factors, conditions and variables,

including distance from the access point, volume of

network traffic, building materials and construction,

operating system used, mix of wireless products used,

interference and other adverse conditions.

Avis de non-responsabilité concernant les

appareils sans fil

Les performances maximales pour les réseaux sans fil

sont tirées des spécifications de la norme IEEE 802.11.

Les performances réelles peuvent varier, notamment

en fonction de la capacité du réseau sans fil, du débit

de la transmission de données, de la portée et de la

couverture. Les performances dépendent de facteurs,

conditions et variables multiples, en particulier de la

distance par rapport au point d’accès, du volume du trafic

réseau, des matériaux utilisés dans le bâtiment et du

type de construction, du système d’exploitation et de la

combinaison de produits sans fil utilisés, des interférences

et de toute autre condition défavorable

Appendix E Regulatory Information

RangePlus Wireless PCI Adapter

User Information for Consumer Products

Covered by EU Directive 2002/96/EC on

Waste Electric and Electronic Equipment

(WEEE)

This document contains important information for users

with regards to the proper disposal and recycling of

Linksys products. Consumers are required to comply with

this notice for all electronic products bearing the following

symbol:

English - Environmental Information for Customers in

the European Union

European Directive 2002/96/EC requires that the equipment

bearing this symbol on the product and/or its packaging must

not be disposed of with unsorted municipal waste. The symbol

indicates that this product should be disposed of separately

from regular household waste streams. It is your responsibility to

dispose of this and other electric and electronic equipment via

designated collection facilities appointed by the government or

local authorities. Correct disposal and recycling will help prevent

potential negative consequences to the environment and

human health. For more detailed information about the disposal

of your old equipment, please contact your local authorities,

waste disposal service, or the shop where you purchased the

product.

Български (Bulgarian) - Информация относно

опазването на околната среда за потребители в

Европейския съюз

Европейска директива 2002/96/EC изисква уредите, носещи

този символ върху изделието и/или опаковката му, да не

се изхвърля т с несортирани битови отпадъци. Символът

обозначава, че изделието трябва да се изхвърля отделно от

сметосъбирането на обикновените битови отпадъци. Ваша

е отговорността този и другите електрически и електронни

уреди да се изхвърлят в предварително определени от

държавните или общински органи специализирани пунктове

за събиране. Правилното изхвърляне и рециклиране

ще спомогнат да се предотвратят евентуални вредни за

околната среда и здравето на населението последствия. За

по-подробна информация относно изхвърлянето на вашите

стари уреди се обърнете към местните власти, службите за

сметосъбиране или магазина, от който сте закупили уреда.

Ceština (Czech) - Informace o ochraně životního

prostředí pro zákazníky v zemích Evropské unie

Evropská směrnice 2002/96/ES zakazuje, aby zařízení označené

tímto symbolem na produktu anebo na obalu bylo likvidováno

s netříděným komunálním odpadem. Tento symbol udává,

že daný produkt musí být likvidován odděleně od běžného

komunálního odpadu. Odpovídáte za likvidaci tohoto produktu

a dalších elektrických a elektronických zařízení prostřednictvím

určených sběrných míst stanovených vládou nebo místními

úřady. Správná likvidace a recyklace pomáhá předcházet

potenciálním negativním dopadům na životní prostředí a lidské

zdraví. Podrobnější informace o likvidaci starého vybavení si

laskavě vyžádejte od místních úřadů, podniku zabývajícího se

likvidací komunálních odpadů nebo obchodu, kde jste produkt

zakoupili.

Dansk (Danish) - Miljøinformation for kunder i EU

EU-direktiv 2002/96/EF kræver, at udstyr der bærer dette symbol

på produktet og/eller emballagen ikke må bortskaffes som

usorteret kommunalt affald. Symbolet betyder, at dette produkt

skal bortskaffes adskilt fra det almindelige husholdningsaffald.

Det er dit ansvar at bortskaffe dette og andet elektrisk og

elektronisk udstyr via bestemte indsamlingssteder udpeget

af staten eller de lokale myndigheder. Korrekt bortskaffelse

og genvinding vil hjælpe med til at undgå mulige skader for

miljøet og menneskers sundhed. Kontakt venligst de lokale

myndigheder, renovationstjenesten eller den butik, hvor du

har købt produktet, angående mere detaljeret information om

bortskaffelse af dit gamle udstyr.

Deutsch (German) - Umweltinformation für Kunden

innerhalb der Europäischen Union

Die Europäische Richtlinie 2002/96/EC verlangt, dass technische

Ausrüstung, die direkt am Gerät und/oder an der Verpackung mit

diesem Symbol versehen ist , nicht zusammen mit unsortiertem

Gemeindeabfall entsorgt werden darf. Das Symbol weist darauf

hin, dass das Produkt von regulärem Haushaltmüll getrennt

entsorgt werden sollte. Es liegt in Ihrer Verantwortung, dieses

Gerät und andere elektrische und elektronische Geräte über

die dafür zuständigen und von der Regierung oder örtlichen

Behörden dazu bestimmten Sammelstellen zu entsorgen.

Ordnungsgemäßes Entsorgen und Recyceln trägt dazu bei,

potentielle negative Folgen für Umwelt und die menschliche

Gesundheit zu vermeiden. Wenn Sie weitere Informationen zur

Entsorgung Ihrer Altgeräte benötigen, wenden Sie sich bitte an

die örtlichen Behörden oder städtischen Entsorgungsdienste

oder an den Händler, bei dem Sie das Produkt erworben haben.

Appendix E Regulatory Information

RangePlus Wireless PCI Adapter

Eesti (Estonian) - Keskkonnaalane informatsioon

Euroopa Liidus asuvatele klientidele

Euroopa Liidu direktiivi 2002/96/EÜ nõuete kohaselt on

seadmeid, millel on tootel või pakendil käesolev sümbol ,

keelatud kõrvaldada koos sorteerimata olmejäätmetega. See

sümbol näitab, et toode tuleks kõrvaldada eraldi tavalistest

olmejäätmevoogudest. Olete kohustatud kõrvaldama käesoleva

ja ka muud elektri- ja elektroonikaseadmed riigi või kohalike

ametiasutuste poolt ette nähtud kogumispunktide kaudu.

Seadmete korrektne kõrvaldamine ja ringlussevõtt aitab vältida

võimalikke negatiivseid tagajärgi keskkonnale ning inimeste

tervisele. Vanade seadmete kõrvaldamise kohta täpsema

informatsiooni saamiseks võtke palun ühendust kohalike

ametiasutustega, jäätmekäitlusfirmaga või kauplusega, kust te

toote ostsite.

Español (Spanish) - Información medioambiental para

clientes de la Unión Europea

La Directiva 2002/96/CE de la UE exige que los equipos que

lleven este símbolo en el propio aparato y/o en su embalaje

no deben eliminarse junto con otros residuos urbanos no

seleccionados. El símbolo indica que el producto en cuestión

debe separarse de los residuos domésticos convencionales con

vistas a su eliminación. Es responsabilidad suya desechar este y

cualesquiera otros aparatos eléctricos y electrónicos a través de

los puntos de recogida que ponen a su disposición el gobierno y

las autoridades locales. Al desechar y reciclar correctamente estos

aparatos estará contribuyendo a evitar posibles consecuencias

negativas para el medio ambiente y la salud de las personas. Si

desea obtener información más detallada sobre la eliminación

segura de su aparato usado, consulte a las autoridades locales,

al servicio de recogida y eliminación de residuos de su zona o

pregunte en la tienda donde adquirió el producto.

ξλληνικά (Greek) - Στοιχεία περιβαλλοντικής

προστασίας για πελάτες εντός της Ευρωπαϊκής

Ένωσης

Η Κοινοτική Οδηγία 2002/96/EC απαιτεί ότι ο εξοπλισμός ο οποίος

φέρει αυτό το σύμβολο στο προϊόν και/ή στη συσκευασία

του δεν πρέπει να απορρίπτεται μαζί με τα μικτά κοινοτικά

απορρίμματα. Το σύμβολο υποδεικνύει ότι αυτό το προϊόν θα

πρέπει να απορρίπτεται ξεχωριστά από τα συνήθη οικιακά

απορρίμματα. Είστε υπεύθυνος για την απόρριψη του παρόντος

και άλλου ηλεκτρικού και ηλεκτρονικού εξοπλισμού μέσω των

καθορισμένων εγκαταστάσεων συγκέντρωσης απορριμμάτων οι

οποίες παρέχονται από το κράτος ή τις αρμόδιες τοπικές αρχές.

Η σωστή απόρριψη και ανακύκλωση συμβάλλει στην πρόληψη

πιθανών αρνητικών συνεπειών για το περιβάλλον και την υγεία.

Για περισσότερες πληροφορίες σχετικά με την απόρριψη του

παλιού σας εξοπλισμού, παρακαλώ επικοινωνήστε με τις τοπικές

αρχές, τις υπηρεσίες απόρριψης ή το κατάστημα από το οποίο

αγοράσατε το προϊόν.

Français (French) - Informations environnementales

pour les clients de l’Union européenne

La directive européenne 2002/96/CE exige que l’équipement

sur lequel est apposé ce symbole sur le produit et/ou son

emballage ne soit pas jeté avec les autres ordures ménagères. Ce

symbole indique que le produit doit être éliminé dans un circuit

distinct de celui pour les déchets des ménages. Il est de votre

responsabilité de jeter ce matériel ainsi que tout autre matériel

électrique ou électronique par les moyens de collecte indiqués

par le gouvernement et les pouvoirs publics des collectivités

territoriales. L’élimination et le recyclage en bonne et due forme

ont pour but de lutter contre l’impact néfaste potentiel de ce

type de produits sur l’environnement et la santé publique. Pour

plus d’informations sur le mode d’élimination de votre ancien

équipement, veuillez prendre contact avec les pouvoirs publics

locaux, le service de traitement des déchets, ou l’endroit où vous

avez acheté le produit.

Italiano (Italian) - Informazioni relative all’ambiente

per i clienti residenti nell’Unione Europea

La direttiva europea 2002/96/EC richiede che le apparecchiature

contrassegnate con questo simbolo sul prodotto e/o

sull’imballaggio non siano smaltite insieme ai rifiuti urbani

non differenziati. Il simbolo indica che questo prodotto non

deve essere smaltito insieme ai normali rifiuti domestici. È

responsabilità del proprietario smaltire sia questi prodotti sia

le altre apparecchiature elettriche ed elettroniche mediante

le specifiche strutture di raccolta indicate dal governo o dagli

enti pubblici locali. Il corretto smaltimento ed il riciclaggio

aiuteranno a prevenire conseguenze potenzialmente negative

per l’ambiente e per la salute dell’essere umano. Per ricevere

informazioni più dettagliate circa lo smaltimento delle vecchie

apparecchiature in Vostro possesso, Vi invitiamo a contattare gli

enti pubblici di competenza, il servizio di smaltimento rifiuti o il

negozio nel quale avete acquistato il prodotto.

Latviešu valoda (Latvian) - Ekoloģiska informācija

klientiem Eiropas Savienības jurisdikcijā

Direktīvā 2002/96/EK ir prasība, ka aprīkojumu, kam pievienota

zīme uz paša izstrādājuma vai uz tā iesaiņojuma, nedrīkst

izmest nešķirotā veidā kopā ar komunālajiem atkritumiem

(tiem, ko rada vietēji iedzīvotāji un uzņēmumi). Šī zīme nozīmē

to, ka šī ierīce ir jāizmet atkritumos tā, lai tā nenonāktu kopā ar

parastiem mājsaimniecības atkritumiem. Jūsu pienākums ir šo

un citas elektriskas un elektroniskas ierīces izmest atkritumos,

izmantojot īpašus atkritumu savākšanas veidus un līdzekļus, ko

nodrošina valsts un pašvaldību iestādes. Ja izmešana atkritumos

un pārstrāde tiek veikta pareizi, tad mazinās iespējamais

kaitējums dabai un cilvēku veselībai. Sīkākas ziņas par

novecojuša aprīkojuma izmešanu atkritumos jūs varat saņemt

vietējā pašvaldībā, atkritumu savākšanas dienestā, kā arī veikalā,

kur iegādājāties šo izstrādājumu.

Appendix E Regulatory Information

RangePlus Wireless PCI Adapter

Lietuvškai (Lithuanian) - Aplinkosaugos informacija,

skirta Europos Sąjungos vartotojams

Europos direktyva 2002/96/EC numato, kad įrangos, kuri ir

kurios pakuotė yra pažymėta šiuo simboliu (įveskite simbolį),

negalima šalinti kartu su nerūšiuotomis komunalinėmis

atliekomis. Šis simbolis rodo, kad gaminį reikia šalinti atskirai

nuo bendro buitinių atliekų srauto. Jūs privalote užtikrinti, kad

ši ir kita elektros ar elektroninė įranga būtų šalinama per tam

tikras nacionalinės ar vietinės valdžios nustatytas atliekų rinkimo

sistemas. Tinkamai šalinant ir perdirbant atliekas, bus išvengta

galimos žalos aplinkai ir žmonių sveikatai. Daugiau informacijos

apie jūsų senos įrangos šalinimą gali pateikti vietinės valdžios

institucijos, atliekų šalinimo tarnybos arba parduotuvės, kuriose

įsigijote tą gaminį.

Malti (Maltese) - Informazzjoni Ambjentali għal Klijenti

fl-Unjoni Ewropea

Id-Direttiva Ewropea 2002/96/KE titlob li t-tagħmir li jkun fih is-

simbolu fuq il-prodott u/jew fuq l-ippakkjar ma jistax jintrema

ma’ skart muniċipali li ma ġiex isseparat. Is-simbolu jindika

li dan il-prodott għandu jintrema separatament minn ma’ l-

iskart domestiku regolari. Hija responsabbiltà tiegħek li tarmi

dan it-tagħmir u kull tagħmir ieħor ta’ l-elettriku u elettroniku

permezz ta’ faċilitajiet ta’ ġbir appuntati apposta mill-gvern jew

mill-awtoritajiet lokali. Ir-rimi b’mod korrett u r-riċiklaġġ jgħin

jipprevjeni konsegwenzi negattivi potenzjali għall-ambjent u

għas-saħħa tal-bniedem. Għal aktar informazzjoni dettaljata

dwar ir-rimi tat-tagħmir antik tiegħek, jekk jogħġbok ikkuntattja

lill-awtoritajiet lokali tiegħek, is-servizzi għar-rimi ta’ l-iskart, jew

il-ħanut minn fejn xtrajt il-prodott.

Magyar (Hungarian) - Környezetvédelmi információ az

európai uniós vásárlók számára

A 2002/96/EC számú európai uniós irányelv megkívánja, hogy

azokat a termékeket, amelyeken, és/vagy amelyek csomagolásán

az alábbi címke megjelenik, tilos a többi szelektálatlan lakossági

hulladékkal együtt kidobni. A címke azt jelöli, hogy az adott

termék kidobásakor a szokványos háztartási hulladékelszállítási

rendszerektõl elkülönített eljárást kell alkalmazni. Az Ön

felelõssége, hogy ezt, és más elektromos és elektronikus

berendezéseit a kormányzati vagy a helyi hatóságok által

kijelölt gyűjtõredszereken keresztül számolja fel. A megfelelõ

hulladékfeldolgozás segít a környezetre és az emberi egészségre

potenciálisan ártalmas negatív hatások megelõzésében. Ha

elavult berendezéseinek felszámolásához további részletes

információra van szüksége, kérjük, lépjen kapcsolatba a helyi

hatóságokkal, a hulladékfeldolgozási szolgálattal, vagy azzal

üzlettel, ahol a terméket vásárolta.

Nederlands (Dutch) - Milieu-informatie voor klanten

in de Europese Unie

De Europese Richtlijn 2002/96/EC schrijft voor dat apparatuur die

is voorzien van dit symbool op het product of de verpakking,

niet mag worden ingezameld met niet-gescheiden huishoudelijk

afval. Dit symbool geeft aan dat het product apart moet worden

ingezameld. U bent zelf verantwoordelijk voor de vernietiging

van deze en andere elektrische en elektronische apparatuur via de

daarvoor door de landelijke of plaatselijke overheid aangewezen

inzamelingskanalen. De juiste vernietiging en recycling van

deze apparatuur voorkomt mogelijke negatieve gevolgen voor

het milieu en de gezondheid. Voor meer informatie over het

vernietigen van uw oude apparatuur neemt u contact op met

de plaatselijke autoriteiten of afvalverwerkingsdienst, of met de

winkel waar u het product hebt aangeschaft.

Norsk (Norwegian) - Miljøinformasjon for kunder i EU

EU-direktiv 2002/96/EF krever at utstyr med følgende symbol

avbildet på produktet og/eller pakningen, ikke må kastes

sammen med usortert avfall. Symbolet indikerer at dette

produktet skal håndteres atskilt fra ordinær avfallsinnsamling

for husholdningsavfall. Det er ditt ansvar å kvitte deg med

dette produktet og annet elektrisk og elektronisk avfall via egne

innsamlingsordninger slik myndighetene eller kommunene

bestemmer. Korrekt avfallshåndtering og gjenvinning vil

være med på å forhindre mulige negative konsekvenser for

miljø og helse. For nærmere informasjon om håndtering av

det kasserte utstyret ditt, kan du ta kontakt med kommunen,

en innsamlingsstasjon for avfall eller butikken der du kjøpte

produktet.

Polski (Polish) - Informacja dla klientów w Unii

Europejskiej o przepisach dotyczących ochrony

środowiska

Dyrektywa Europejska 2002/96/EC wymaga, aby sprzęt

oznaczony symbolem znajdującym się na produkcie i/lub jego

opakowaniu nie był wyrzucany razem z innymi niesortowanymi

odpadami komunalnymi. Symbol ten wskazuje, że produkt

nie powinien być usuwany razem ze zwykłymi odpadami z

gospodarstw domowych. Na Państwu spoczywa obowiązek

wyrzucania tego i innych urządzeń elektrycznych oraz

elektronicznych w punktach odbioru wyznaczonych przez władze

krajowe lub lokalne. Pozbywanie się sprzętu we właściwy sposób

i jego recykling pomogą zapobiec potencjalnie negatywnym

konsekwencjom dla środowiska i zdrowia ludzkiego. W celu

uzyskania szczegółowych informacji o usuwaniu starego sprzętu,

prosimy zwrócić się do lokalnych władz, służb oczyszczania

miasta lub sklepu, w którym produkt został nabyty.

Appendix E Regulatory Information

RangePlus Wireless PCI Adapter

Português (Portuguese) - Informação ambiental para

clientes da União Europeia

A Directiva Europeia 2002/96/CE exige que o equipamento

que exibe este símbolo no produto e/ou na sua embalagem

não seja eliminado junto com os resíduos municipais não

separados. O símbolo indica que este produto deve ser

eliminado separadamente dos resíduos domésticos regulares.

É da sua responsabilidade eliminar este e qualquer outro

equipamento eléctrico e electrónico através das instalações

de recolha designadas pelas autoridades governamentais ou

locais. A eliminação e reciclagem correctas ajudarão a prevenir

as consequências negativas para o ambiente e para a saúde

humana. Para obter informações mais detalhadas sobre a

forma de eliminar o seu equipamento antigo, contacte as

autoridades locais, os serviços de eliminação de resíduos ou o

estabelecimento comercial onde adquiriu o produto.

Română (Romanian) - Informaţii de mediu pentru

clienţii din Uniunea Europeană

Directiva europeană 2002/96/CE impune ca echipamentele care

prezintă acest simbol pe produs şi/sau pe ambalajul acestuia să

nu fie casate împreună cu gunoiul menajer municipal. Simbolul

indică faptul că acest produs trebuie să fie casat separat de

gunoiul menajer obişnuit. Este responsabilitatea dvs. să casaţi

acest produs şi alte echipamente electrice şi electronice prin

intermediul unităţilor de colectare special desemnate de guvern

sau de autorităţile locale. Casarea şi reciclarea corecte vor ajuta

la prevenirea potenţialelor consecinţe negative asupra sănătăţii

mediului şi a oamenilor. Pentru mai multe informaţii detaliate

cu privire la casarea acestui echipament vechi, contactaţi

autorităţile locale, serviciul de salubrizare sau magazinul de la

care aţi achiziţionat produsul.

Slovenčina (Slovak) - Informácie o ochrane životného

prostredia pre zákazníkov v Európskej únii

Podľa európskej smernice 2002/96/ES zariadenie s týmto

symbolom na produkte a/alebo jeho balení nesmie byť

likvidované spolu s netriedeným komunálnym odpadom.

Symbol znamená, že produkt by sa mal likvidovať oddelene

od bežného odpadu z domácností. Je vašou povinnosťou

likvidovať toto i ostatné elektrické a elektronické zariadenia

prostredníctvom špecializovaných zberných zariadení určených

vládou alebo miestnymi orgánmi. Správna likvidácia a recyklácia

pomôže zabrániť prípadným negatívnym dopadom na životné

prostredie a zdravie ľudí. Ak máte záujem o podrobnejšie

informácie o likvidácii starého zariadenia, obráťte sa, prosím, na

miestne orgány, organizácie zaoberajúce sa likvidáciou odpadov

alebo obchod, v ktorom ste si produkt zakúpili.

Slovenčina (Slovene) - Okoljske informacije za stranke

v Evropski uniji

Evropska direktiva 2002/96/EC prepoveduje odlaganje opreme,

označene s tem simbolom – na izdelku in/ali na embalaži – med

običajne, nerazvrščene odpadke. Ta simbol opozarja, da je treba

izdelek odvreči ločeno od preostalih gospodinjskih odpadkov.

Vaša odgovornost je, da to in preostalo električno in elektronsko

opremo odnesete na posebna zbirališča, ki jih določijo

državne ustanove ali lokalna uprava. S pravilnim odlaganjem

in recikliranjem boste preprečili morebitne škodljive vplive na

okolje in zdravje ljudi. Če želite izvedeti več o odlaganju stare

opreme, se obrnite na lokalno upravo, odpad ali trgovino, kjer

ste izdelek kupili.

Suomi (Finnish) - Ympäristöä koskevia tietoja EU-

alueen asiakkaille

EU-direktiivi 2002/96/EY edellyttää, että jos laitteistossa on tämä

symboli itse tuotteessa ja/tai sen pakkauksessa, laitteistoa

ei saa hävittää lajittelemattoman yhdyskuntajätteen mukana.

Symboli merkitsee sitä, että tämä tuote on hävitettävä erillään

tavallisesta kotitalousjätteestä. Sinun vastuullasi on hävittää

tämä elektroniikkatuote ja muut vastaavat elektroniikkatuotteet

viemällä tuote tai tuotteet viranomaisten määräämään

keräyspisteeseen. Laitteiston oikea hävittäminen estää

mahdolliset kielteiset vaikutukset ympäristöön ja ihmisten

terveyteen. Lisätietoja vanhan laitteiston oikeasta hävitystavasta

saa paikallisilta viranomaisilta, jätteenhävityspalvelusta tai siitä

myymälästä, josta ostit tuotteen.

Svenska (Swedish) - Miljöinformation för kunder i

Europeiska unionen

Det europeiska direktivet 2002/96/EC kräver att utrustning med

denna symbol på produkten och/eller förpackningen inte får

kastas med osorterat kommunalt avfall. Symbolen visar att denna

produkt bör kastas efter att den avskiljts från vanligt hushållsavfall.

Det faller på ditt ansvar att kasta denna och annan elektrisk och

elektronisk utrustning på fastställda insamlingsplatser utsedda

av regeringen eller lokala myndigheter. Korrekt kassering och

återvinning skyddar mot eventuella negativa konsekvenser

för miljön och personhälsa. För mer detaljerad information om

kassering av din gamla utrustning kontaktar du dina lokala

myndigheter, avfallshanteringen eller butiken där du köpte

produkten.

WEB: For additional information, please visit

www.linksys.com

8051620NC-DF

LINKSYS WMP110V2 RangePlus Wireless PCI adapter User Manual UserMan Q87 WMP110V2 rev

LINKSYS LLC RangePlus Wireless PCI adapter UserMan Q87 WMP110V2 rev

Manual

Navigation menu

Namespaces

Views

Navigation
