Manual Part 1
Model No.
Gigabit Router with
Wireless-N
WRT350N
User Guide
WIRELESS
GHz
2.4
Storage Link
Wireless-N Gigabit Router with Storage Link
Copyright and Trademarks
Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco
Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2006 Cisco Systems, Inc. All
rights reserved. Other brands and product names are trademarks or registered trademarks of their respective
holders.
How to Use This User Guide
This User Guide has been designed to make understanding networking with the Wireless-N Gigabit Router with
Storage Link easier than ever. Look for the following items when reading this User Guide:
In addition to these symbols, there are definitions for technical terms that are presented like this:
Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like
this:
Figure numbers and descriptions can also be found in the “List of Figures” section in the “Table of Contents”.
This exclamation point means there is a caution or warning
and is something that could damage yoGigabit Router with
Storage Linkur property or the Wireless-N Gigabit Router with
Storage LinkWireless-N Gigabit Router with Storage Link.
This checkmark means there is a note of interest and is
something you should pay special attention to while using
the Wireless-N Gigabit Router with Storage Link.
This question mark provides you with a reminder about
something you might need to do while using the Wireless-N
Gigabit Router with Storage Link.
word: definition.
Figure 0-1: Sample Figure Description
WRT350N-UG-60726NC SW
WARNING: This product contains chemicals, including lead, known
to the State of California to cause cancer, and birth defects or other
reproductive harm. Wash hands after handling.
Wireless-N Gigabit Router with Storage Link
Table of Contents
Chapter 1: Introduction 1
Welcome 1
What’s in this User Guide? 2
Chapter 2: Planning Your Wireless Network 4
Network Topology 4
Ad-Hoc versus Infrastructure Mode 4
Network Layout 5
Chapter 3: Getting to Know the Wireless-N Gigabit Router with Storage Link 6
The Back Panel 6
The Front Panel 7
The Top Panel 7
Chapter 4: Connecting the Wireless-N Gigabit Router with Storage Link 8
Hardware Installation 8
Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link 9
Overview 9
How to Access the Web-based Utility 11
The Setup Tab - Basic Setup 11
The Setup Tab - DDNS 17
The Setup Tab - MAC Address Clone 19
The Setup Tab - Advanced Routing 20
The Wireless Tab - Basic Wireless Settings 22
The Wireless Tab - Wireless Security 23
The Wireless Tab - Wireless MAC Filter 26
The Wireless Tab - Advanced Wireless Settings 27
The Security Tab - Firewall 29
The Security Tab - VPN Passthrough 30
The Storage Tab - Disk 31
The Storage Tab - Share 32
The Storage Tab - Administration 33
The Storage Tab - Media Server 35
The Access Restrictions Tab - Internet Access Policy 37
The Applications & Gaming Tab - Single Port Forwarding 39
Wireless-N Gigabit Router with Storage Link
The Applications & Gaming Tab - Port Range Forwarding 40
The Applications & Gaming Tab - Port Range Triggering 41
The Applications & Gaming Tab - DMZ 42
The Applications and Gaming Tab - QoS 43
The Administration Tab - Management 46
The Administration Tab - Log 48
The Administration Tab - Diagnostics 49
The Administration Tab - Factory Defaults 50
The Administration Tab - Firmware Upgrade 51
The Status Tab - Router 52
The Status Tab - Local Network 53
The Status Tab - Wireless 54
Appendix A: Troubleshooting 55
Common Problems and Solutions 55
Frequently Asked Questions 63
Appendix B: Wireless Security 69
Security Precautions 69
Security Threats Facing Wireless Networks 69
Appendix C: Upgrading Firmware 72
Appendix D: Windows Help 73
Appendix E: Finding the MAC Address and IP Address for your
Ethernet Adapter 74
Windows 98SE or Me Instructions 74
Windows 2000 or XP Instructions 75
For the Router’s Web-based Utility 75
Appendix F: Glossary 76
Appendix G: Specifications 81
Appendix H: Warranty Information 83
Appendix I: Regulatory Information 84
Appendix J: Contact Information 90
Wireless-N Gigabit Router with Storage Link
List of Figures

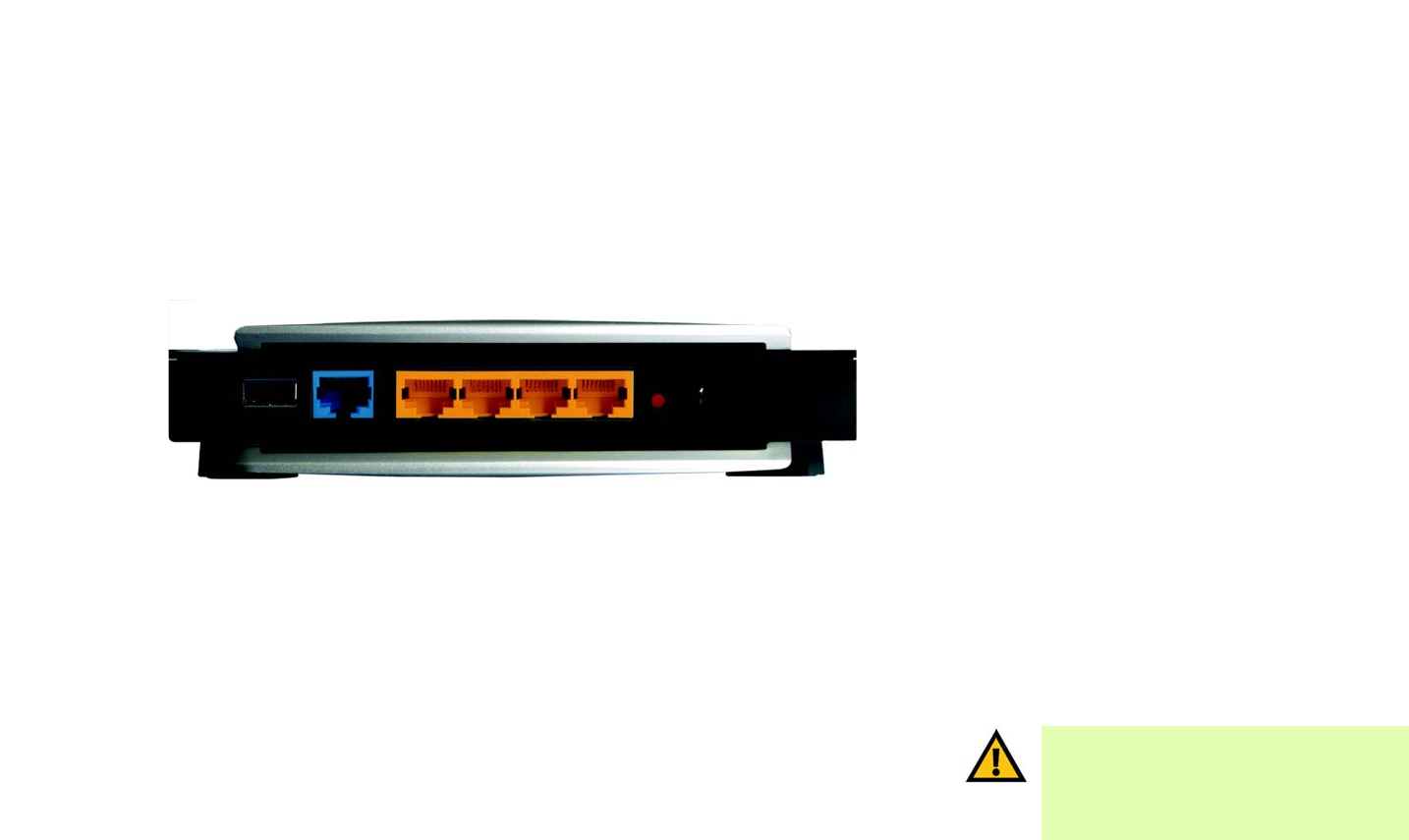

Figure 3-1: The Router’s Back Panel 6
Figure 3-2: The Router’s Front Panel 7
Figure 3-3: The Router’s Top Panel 7

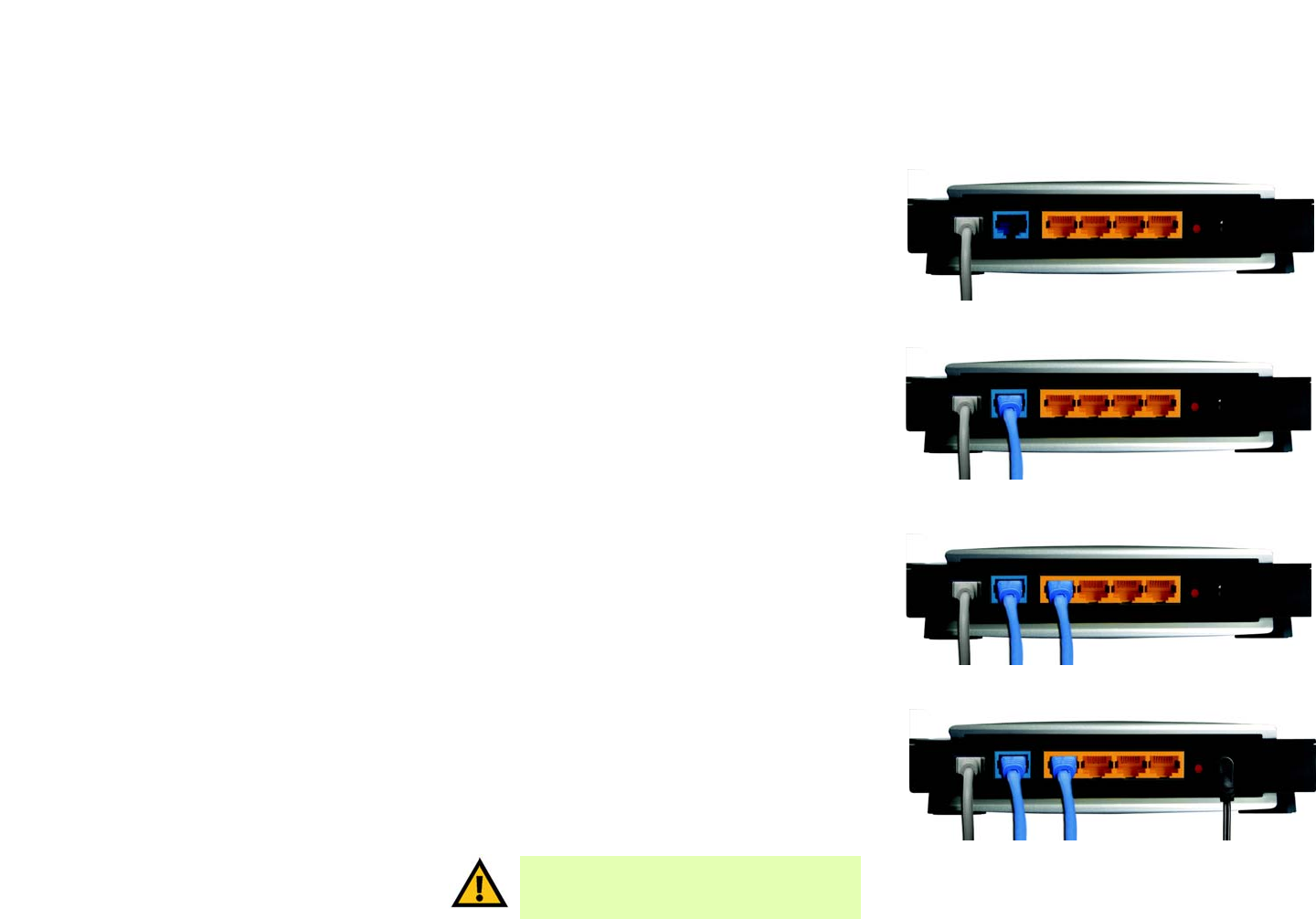

Figure 4-1: Connect the USB cable 8
Figure 4-2: Connect the internet 8
Figure 4-3: Connect the ethernet 8
Figure 4-4: Connect the power 8

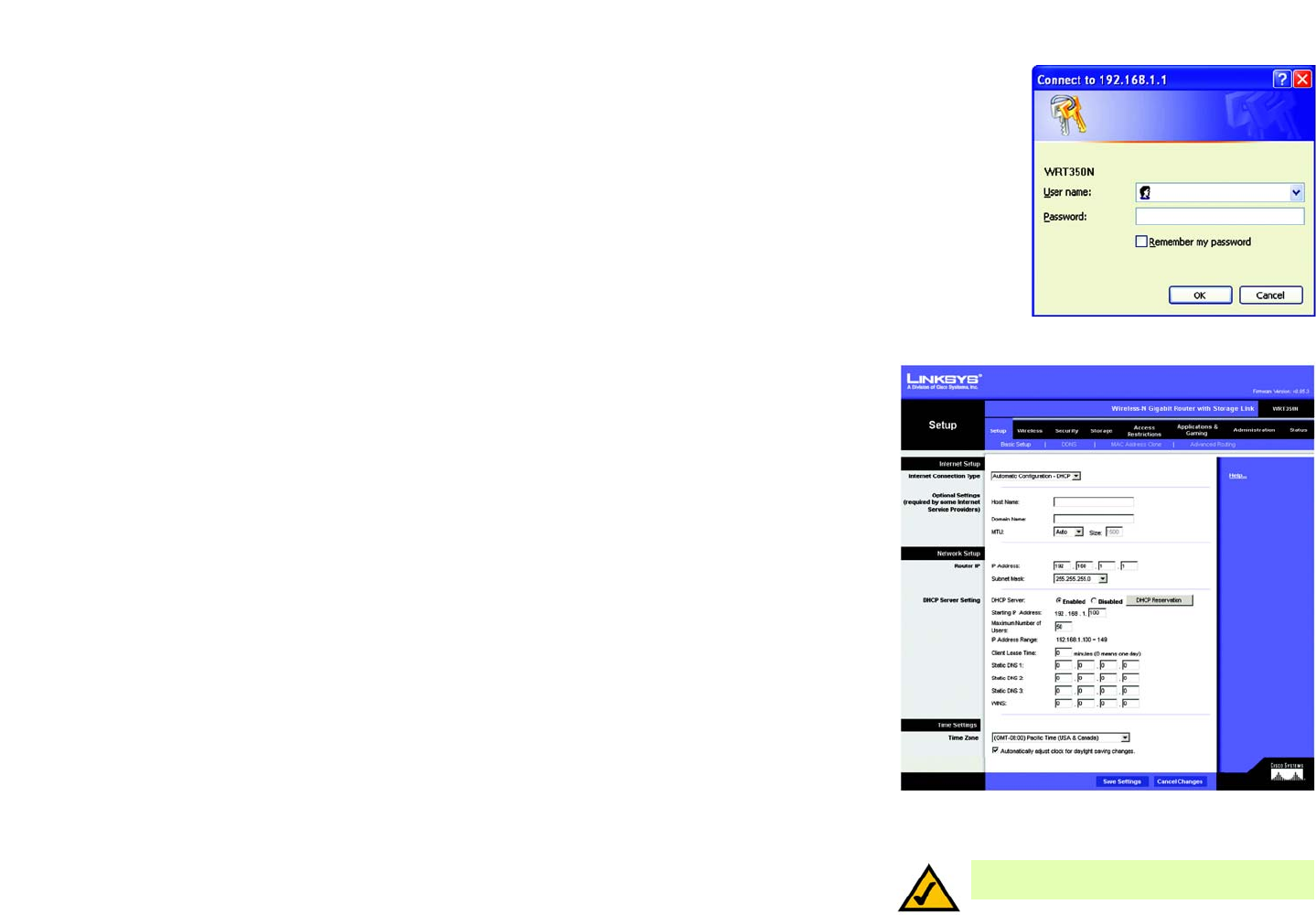

Figure 5-1: Router Login 11
Figure 5-2: Setup Tab - Basic Setup (Automatic Configuration - DHCP) 11

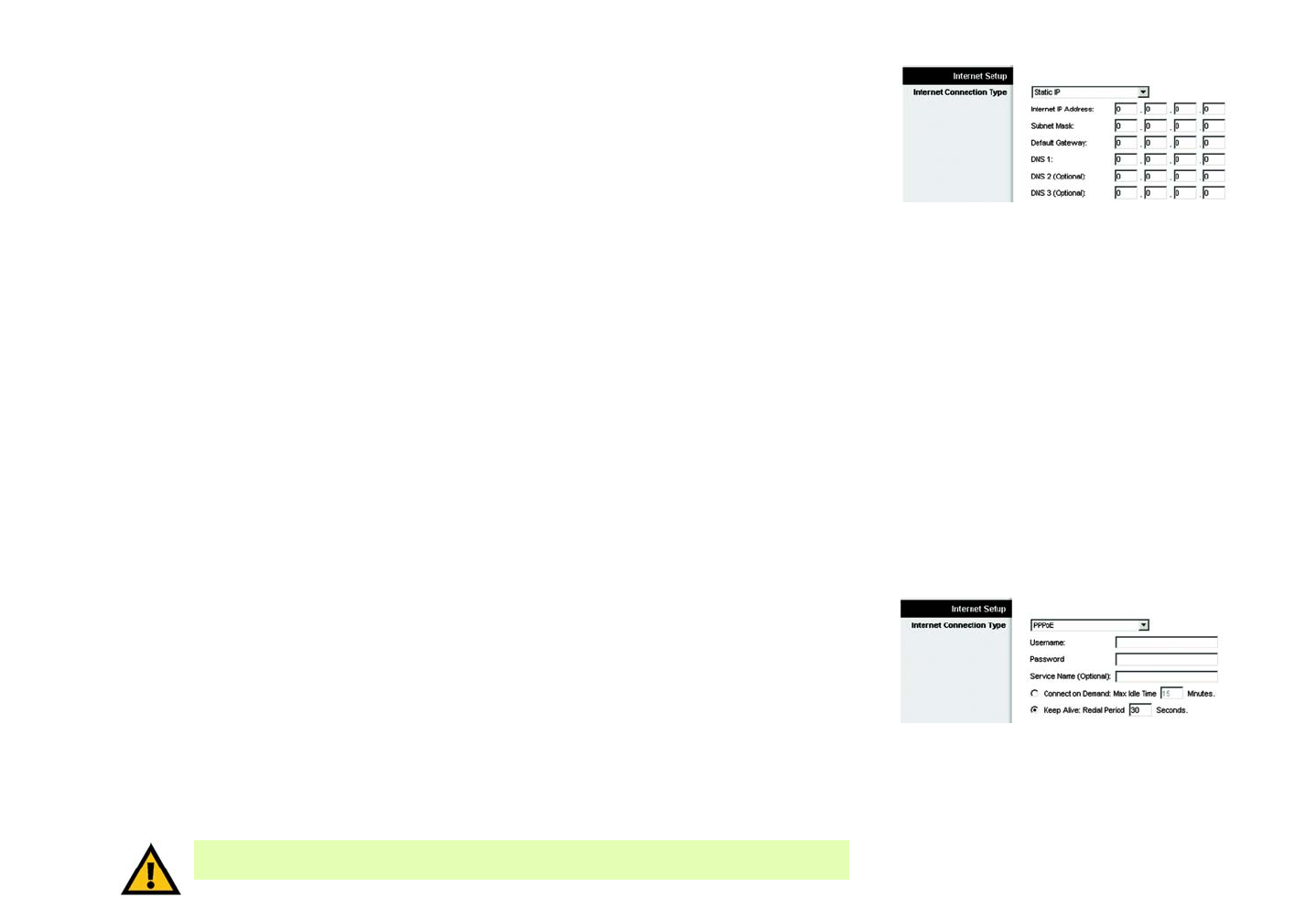

Figure 5-3: Static IP 12
Figure 5-4: PPPoE 12
Figure 5-5: PPTP 13
Figure 5-6: Telstra Cable 14
Figure 5-7: L2TP 14

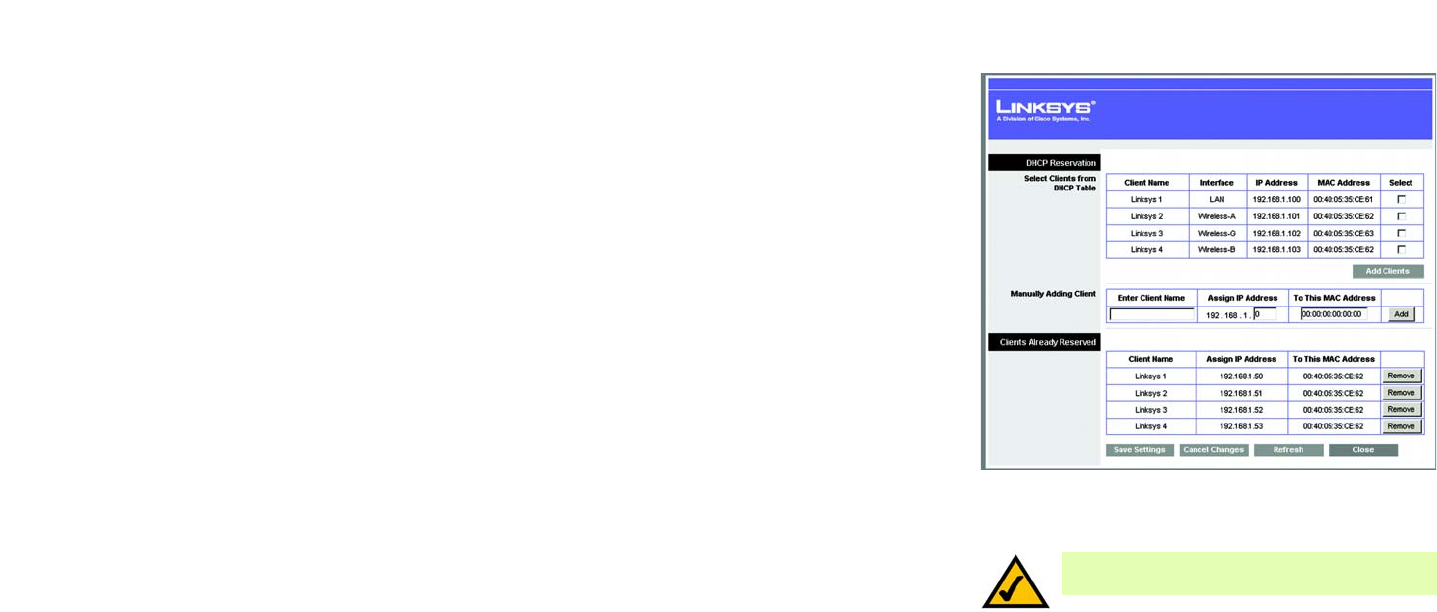

Figure 5-8: DHCP Reservation 16
Figure 5-9: Setup Tab - DynDDNS.org 17
Figure 5-10: Setup Tab - TZO.com 18

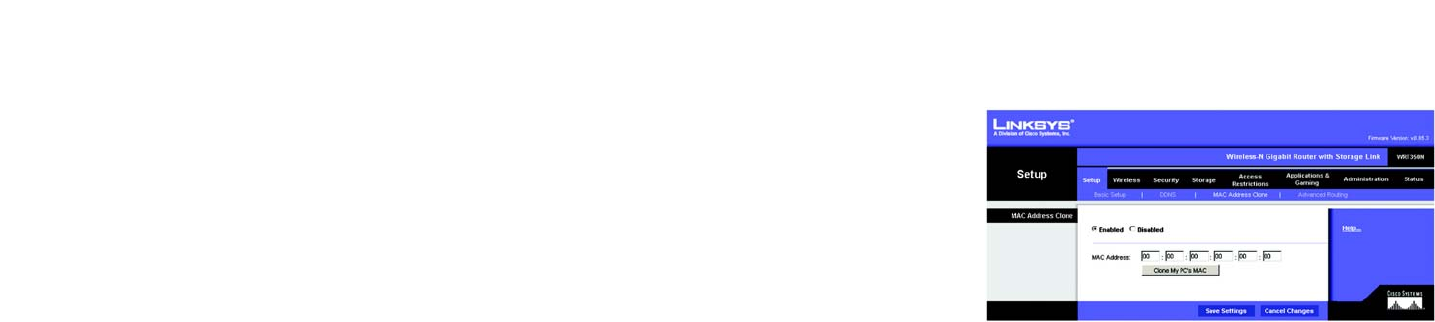

Figure 5-11: Setup Tab - MAC Clone 19
Figure 5-12: Setup Tab - Advanced Routing 20
Figure 5-13: Routing Table 21
Figure 5-14: Wireless Tab - Basic Wireless Settings 22
Figure 5-15: Wireless Tab - Wireless Security (PSK-Personal) 23
Figure 5-16: Wireless Security - PSK2-Personal 23
Figure 5-17: Wireless Security - PSK-Enterprise 24
Figure 5-18: Wireless Security - PSK2-Enterprise 24
Figure 5-19: Wireless Security - RADIUS 25
Figure 5-20: Wireless Security - WEP 25
Figure 5-21: Wireless Tab - Wireless MAC Filter 26
Figure 5-22: Wireless Client List 26

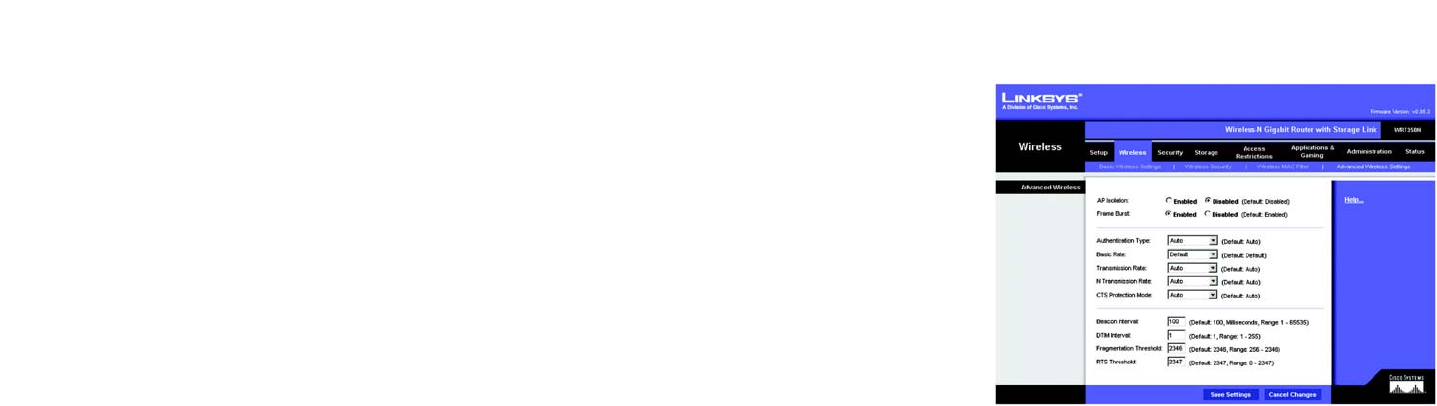

Figure 5-23: Wireless Tab - Advanced Wireless Settings 27

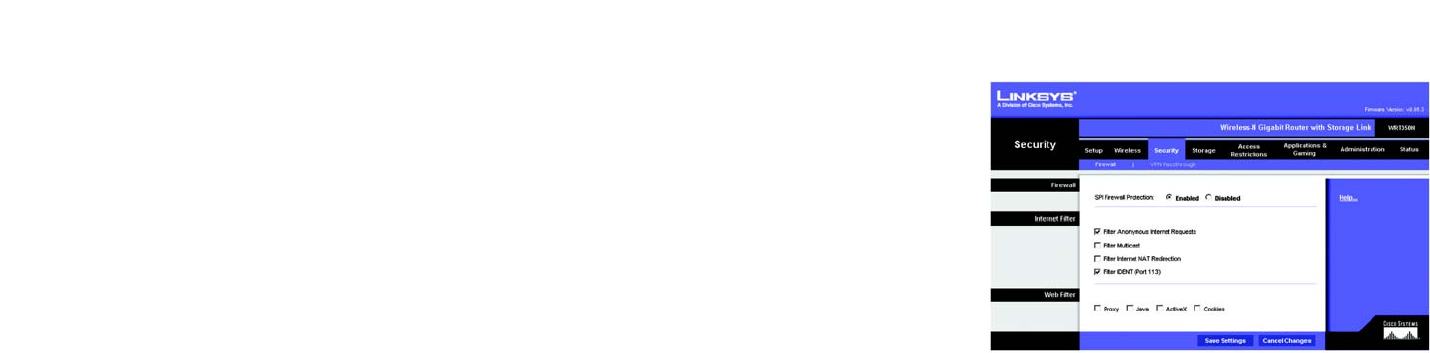

Figure 5-24: Security Tab - Firewall 29
Wireless-N Gigabit Router with Storage Link

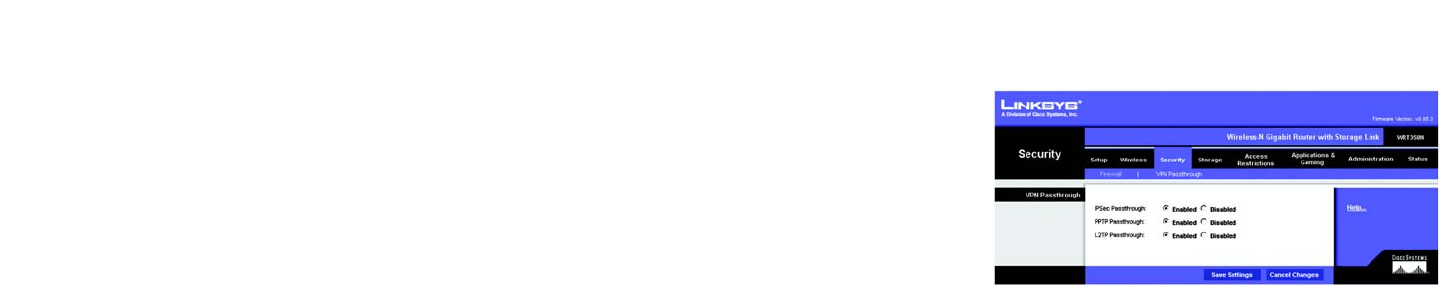

Figure 5-25: VPN Passthrough 30

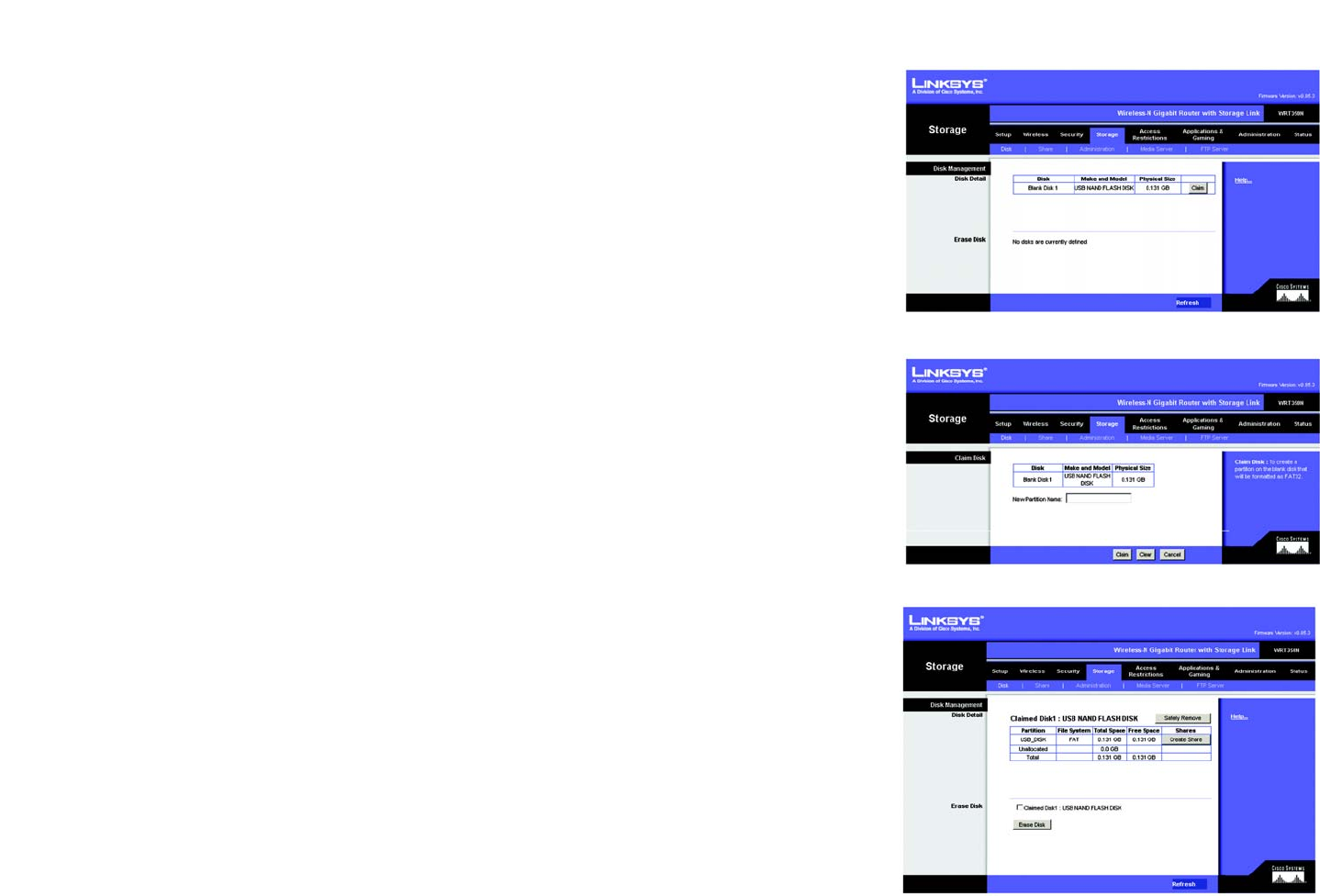

Figure 5-26: Storage Tab - Disk 31
Figure 5-27: Storage Tab - Claim Disk 31
Figure 5-28: Storage Tab - Claimed Disk 31

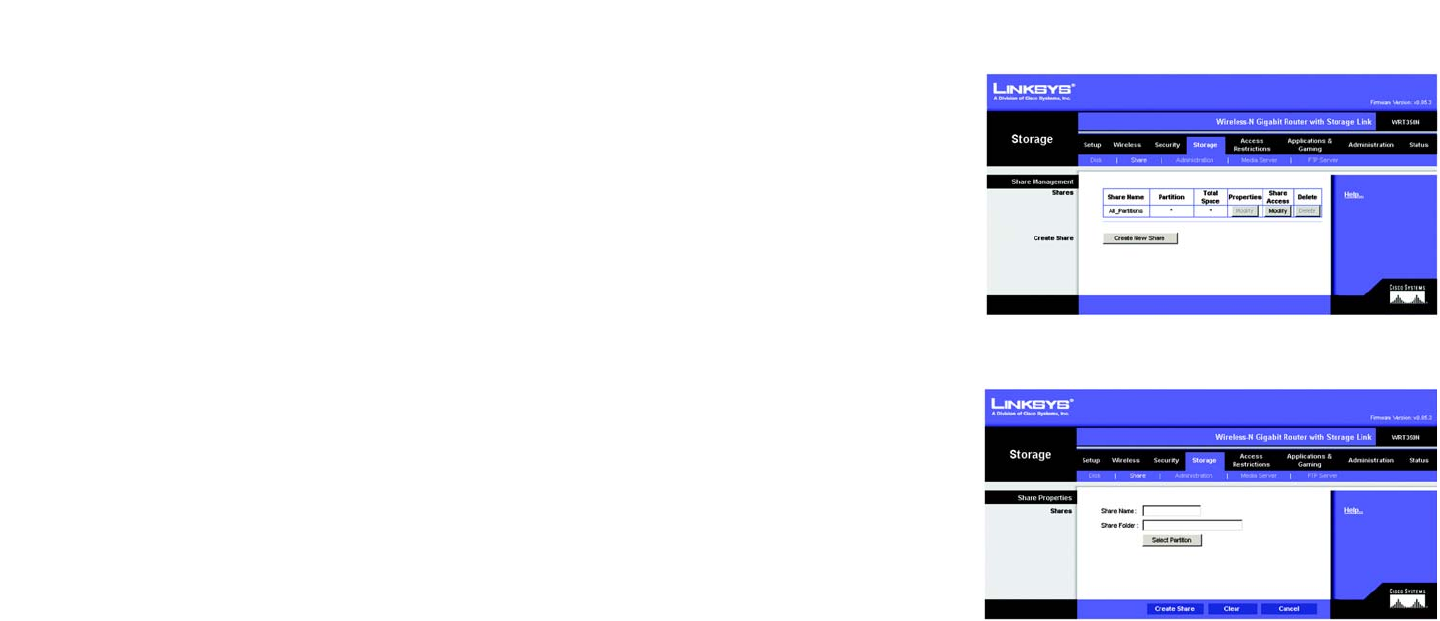

Figure 5-29: Storage Tab - Share Management 32
Figure 5-30: Share Properties 32
Figure 5-31: Storage Tab - Administration 33

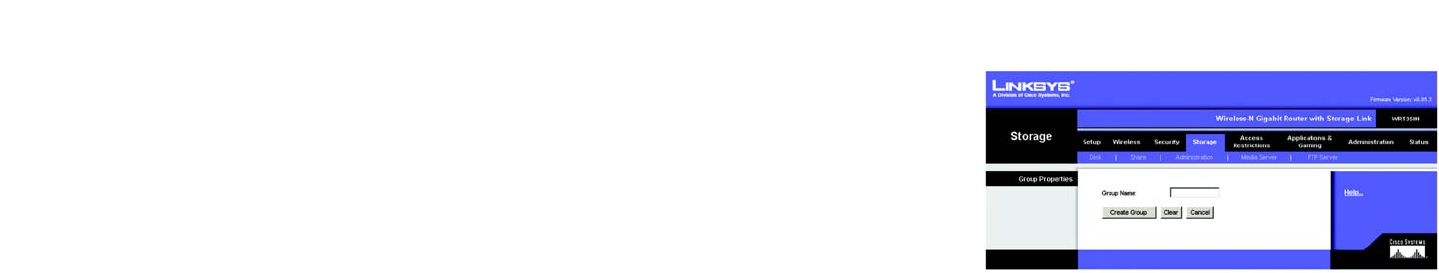

Figure 5-32: User Properties 33
Figure 5-33: User Properties 34

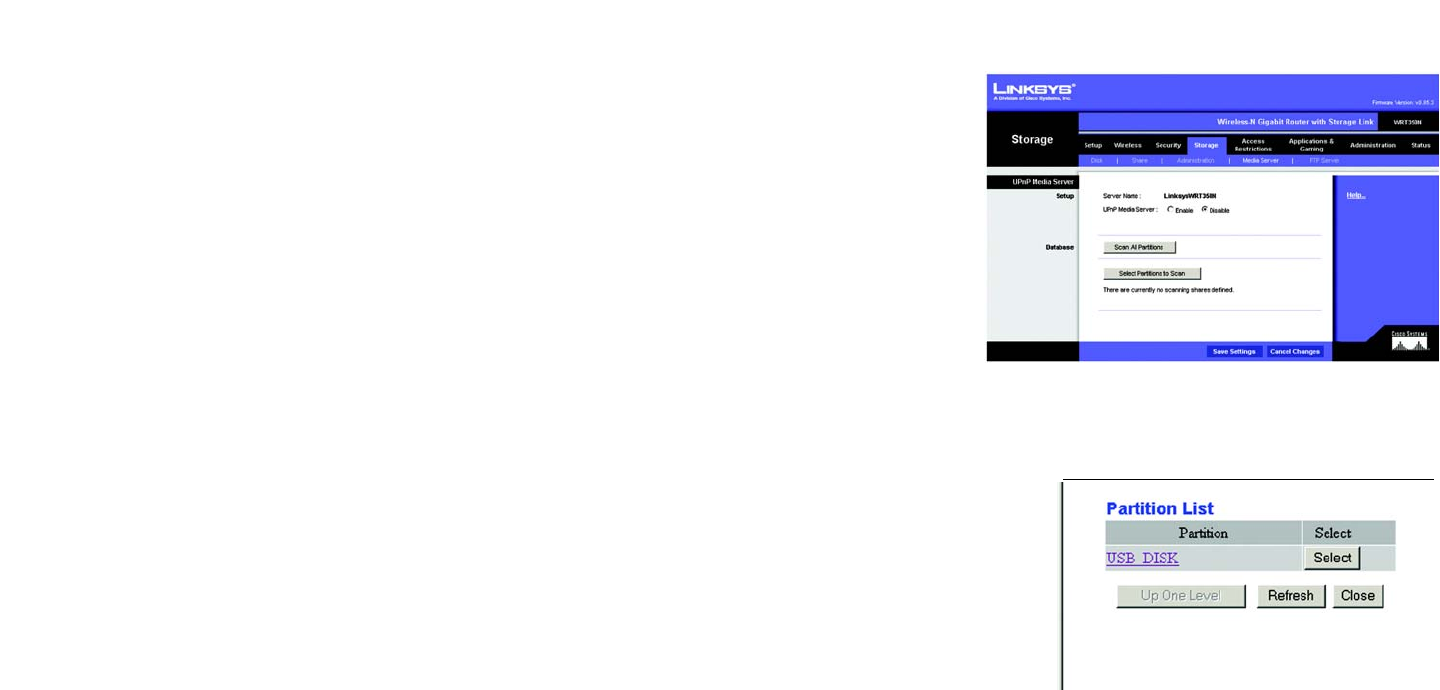

Figure 5-34: Storage Tab - UPnP Media Server 35
Figure 5-35: Partition List 35

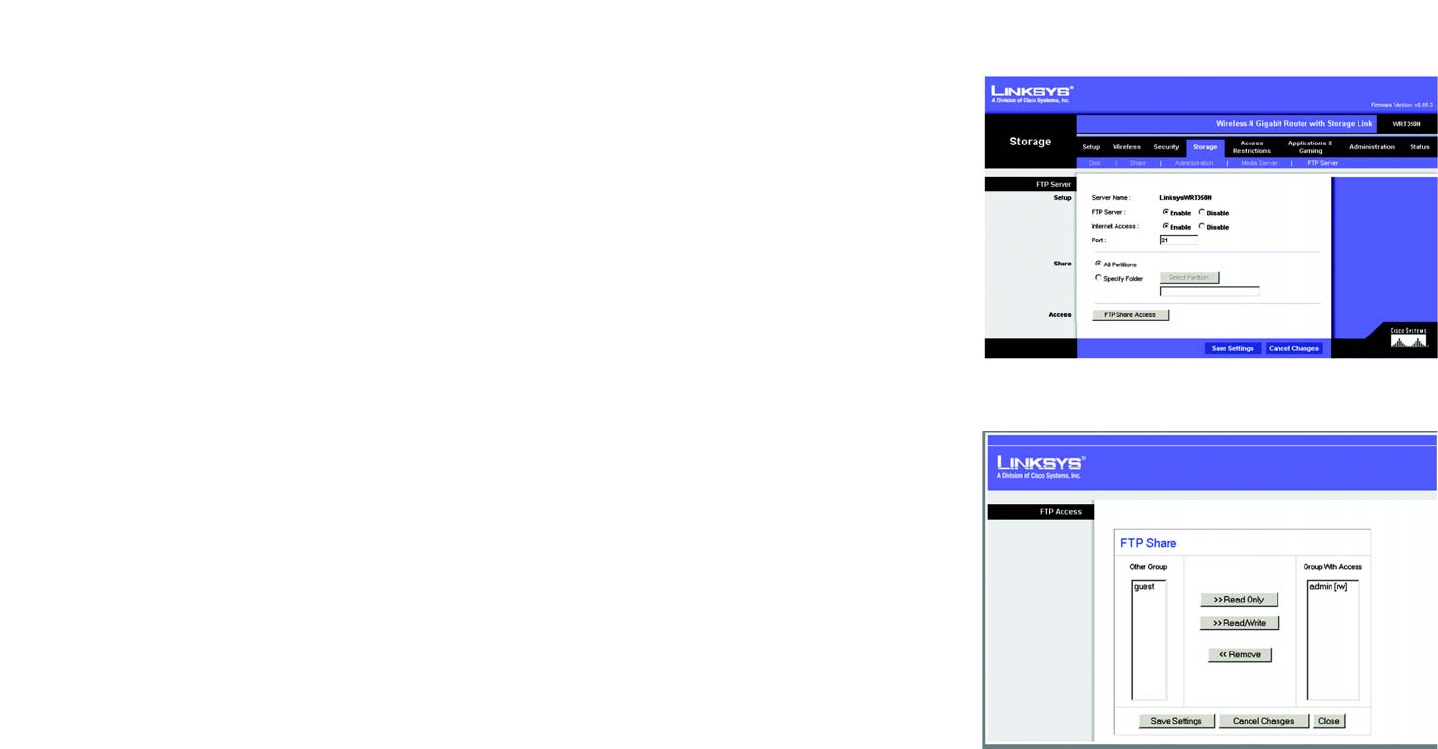

Figure 5-36: FTP Server 36
Figure 5-37: FTP Access 36
Figure 5-38: Access Restrictions Tab - Internet Access Policy 37
Figure 5-39: Summary 37

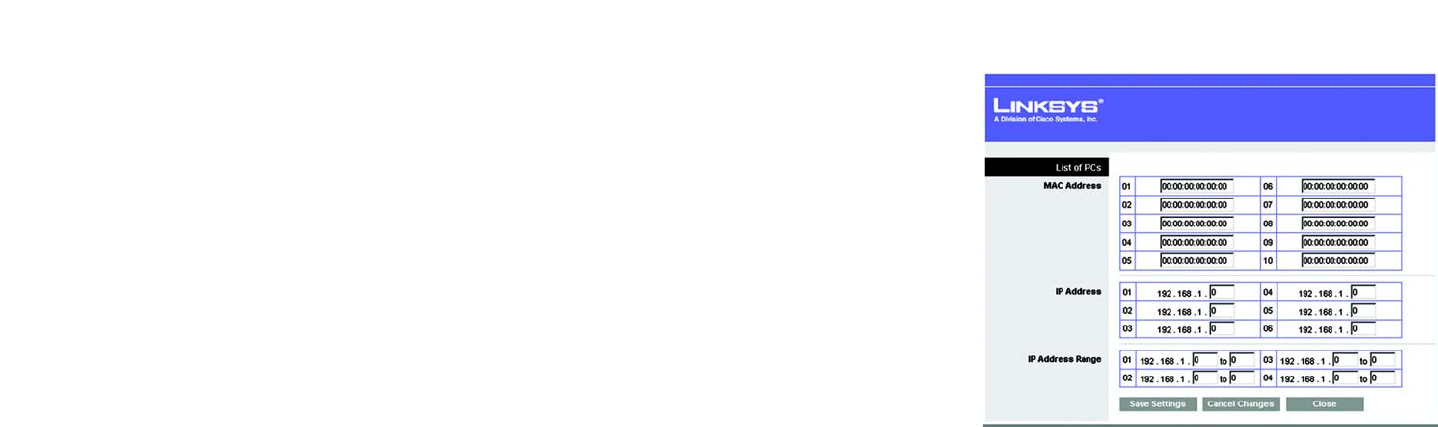

Figure 5-40: List of PCs 38
Figure 5-41: Applications & Gaming Tab - Single Port Forwarding 39
Figure 5-42: Applications & Gaming Tab - Port Range Forwarding 40

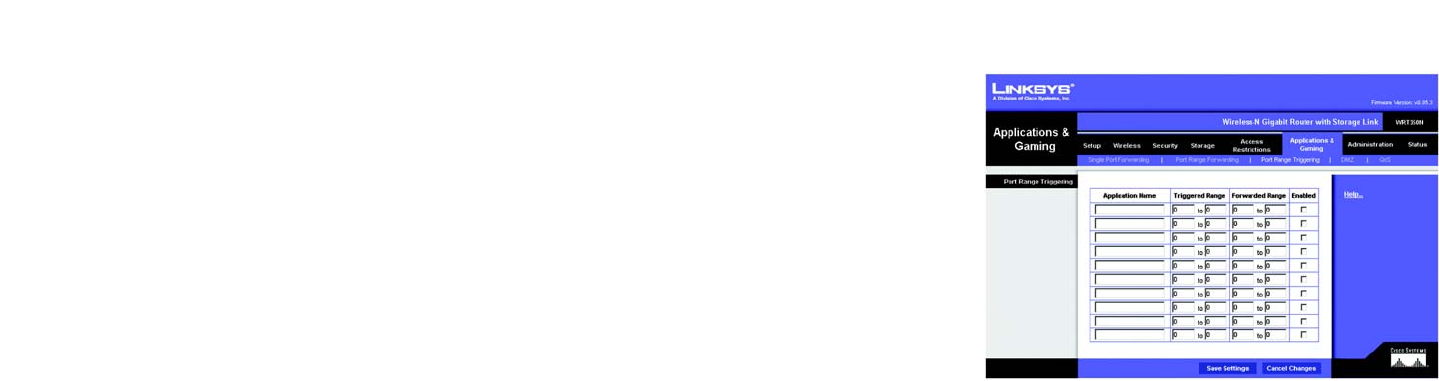

Figure 5-43: Applications & Gaming Tab - Port Range Triggering 41
Figure 5-44: Applications & Gaming Tab - DMZ 42
Figure 5-45: DHCP Client Table 42
Figure 5-46: Applications & Gaming Tab - QoS (Applications) 43
Figure 5-47: QoS - Applications (Add a New Application) 44
Figure 5-48: QoS - Online Games 44
Figure 5-49: QoS - MAC Address 44
Figure 5-50: QoS - MAC Address 44
Figure 5-51: QoS - Voice Device 45
Figure 5-52: Administration Tab - Management 46
Figure 5-53: Administration Tab - Log 48
Figure 5-54: View Log 48
Figure 5-55: Administration Tab - Diagnostics 49
Figure 5-56: Ping Test 49
Figure 5-57: Traceroute Test 49
Figure 5-58: Administration Tab - Factory Defaults 50
Wireless-N Gigabit Router with Storage Link
Figure 5-59: Administration Tab - Firmware Upgrade 51
Figure 5-60: Status Tab - Router 52
Figure 5-61: Status Tab - Local Network 53
Figure 5-62: DHCP Client Table 53
Figure 5-63: Status Tab - Wireless Network 54
Figure C-1: Firmware Upgrade 72
Figure E-1: IP Configuration Screen 74
Figure E-2: MAC Address/Adapter Address 74
Figure E-3: MAC Address/Physical Address 74
Figure E-4: Wireless MAC Filter 75
Figure E-5: MAC Address Cloning 75
1
Chapter 1: Introduction
Welcome
Wireless-N Gigabit Router with Storage Link
Chapter 1: Introduction
Welcome
The Wireless-N Gigabit Router with Storage Link is really four devices in one box. First, there's the Wireless
Access Point, which lets you connect to the network without wires. There's also a built-in 4-port full-duplex
10/100 Switch to connect your wired-Ethernet devices together. The Router function ties it all together and lets
your whole network share a high-speed cable or DSL Internet connection.
We've also included a Storage Link that lets you easily add gigabytes of storage space onto your network using
readily available USB 2.0 hard drives -- or plug in a USB flash disk for a convenient way to access your portable
data files. The built-in Media Server streams music, video, and photos from the attached storage device to any
UPnP compatible media adapter. And you can get to your files from anywhere in the world through the Internet.
The Access Point built into the Router uses the very latest wireless networking technology, Wireless-N (draft
802.11n). By overlaying the signals of multiple radios, Wireless-N's "Multiple In, Multiple Out" (MIMO) technology
multiplies the effective data rate. Unlike ordinary wireless networking technologies that are confused by signal
reflections, MIMO actually uses these reflections to increase the range and reduce "dead spots" in the wireless
coverage area. The robust signal travels farther, maintaining wireless connections up to 4 times farther than
standard Wireless-G.
With Wireless-N, the farther away you are, the more speed advantage you get. It works great with standard
Wireless-G and -B equipment, but when both ends of the wireless link are Wireless-N, the router can increase the
throughput even more by using twice as much radio band, yielding speeds up to 12 times as fast as standard
Wireless-G. But unlike other speed-enhanced technologies, Wireless-N can dynamically enable this
double-speed mode for Wireless-N devices, while still connecting to other wireless devices at their respective
fastest speeds. In congested areas, the "good neighbor" mode ensures that the Router checks for other wireless
devices in the area before gobbling up the radio band.
To help protect your data and privacy, the Router can encode all wireless transmissions with industrial-strength
256-bit encryption. It can serve as your network's DHCP Server, has a powerful SPI firewall to protect your PCs
against intruders and most known Internet attacks, and supports VPN pass-through. Configuration is a snap with
the web browser-based configuration utility.
The incredible speed of Wireless-N makes it ideal for media-centric applications like streaming video, gaming,
and Voice over IP telephony, and gives you plenty of headroom to run multiple media-intense data streams
through the network at the same time, with no degradation in performance. With the Linksys Wireless-N Gigabit
Router with Storage Link at the center of your home or office network, you can easily add storage, share a high-
speed Internet connection, files, printers and multi-player games, and run media-intensive applications at faster
than 10/100 wired network speeds, without the hassle of stringing wires!
lan (local area network): The computers and
networking products that make up the network in
your home or office.
nat (network address translation): NAT technology
translates IP addresses of a local area network to a
different IP address for the Internet.
spi (stateful packet inspection) firewall: a technology
that inspects incoming packets of information before
allowing them to enter the network.
firewall: Security measures that protect the
resources of a local network from intruders.
2
Chapter 1: Introduction
What’s in this User Guide?
Wireless-N Gigabit Router with Storage Link
What’s in this User Guide?
This user guide covers the steps for setting up and using the Wireless-N Gigabit Router with Storage Link.
• Chapter 1: Introduction
This chapter describes the Router’s applications and this User Guide.
• Chapter 2: Planning Your Wireless Network
This chapter describes the basics of wireless networking.
• Chapter 3: Getting to Know the Wireless-N Gigabit Router with Storage Link
This chapter describes the physical features of the Router.
• Chapter 4: Connecting the Wireless-N Gigabit Router with Storage Link
This chapter instructs you on how to connect the Router to your network.
• Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link
This chapter explains how to use the Web-based Utility to configure the settings on the Wireless-N Gigabit
Router with Storage Link.
• Appendix A: Troubleshooting
This appendix describes some problems and solutions, as well as frequently asked questions, regarding
installation and use of the Wireless-N Gigabit Router with Storage Link.
• Appendix B: Wireless Security
This appendix explains the risks of wireless networking and some solutions to reduce the risks.
• Appendix C: Upgrading Firmware
This appendix instructs you on how to upgrade the firmware on the Router should you need to do so.
• Appendix D: Windows Help
This appendix describes how you can use Windows Help for instructions about networking, such as installing
the TCP/IP protocol.
• Appendix E: Finding the MAC Address and IP Address for your Ethernet Adapter
This appendix describes how to find the MAC address for your computer’s Ethernet adapter so you can use
the MAC filtering and/or MAC address cloning feature of the Router.
• Appendix F: Glossary
This appendix gives a brief glossary of terms frequently used in networking.
3
Chapter 1: Introduction
What’s in this User Guide?
Wireless-N Gigabit Router with Storage Link
• Appendix G: Specifications
This appendix provides the technical specifications for the Router.
• Appendix H: Warranty Information
This appendix supplies the warranty information for the Router.
• Appendix I: Regulatory Information
This appendix supplies the regulatory information regarding the Router.
• Appendix J: Contact Information
This appendix provides contact information for a variety of Linksys resources, including Technical Support.
4
Chapter 2: Planning Your Wireless Network
Network Topology
Wireless-N Gigabit Router with Storage Link
Chapter 2: Planning Your Wireless Network
Network Topology
A wireless local area network (WLAN) is exactly like a regular local area network (LAN), except that each
computer in the WLAN uses a wireless device to connect to the network. Computers in a WLAN share the same
frequency channel and SSID, which is an identification name shared by the wireless devices belonging to the
same wireless network.
Ad-Hoc versus Infrastructure Mode
Unlike wired networks, wireless networks have two different modes in which they may be set up: infrastructure
and ad-hoc. An infrastructure configuration is a WLAN and wired LAN communicating to each other through an
access point. An ad-hoc configuration is wireless-equipped computers communicating directly with each other.
Choosing between these two modes depends on whether or not the wireless network needs to share data or
peripherals with a wired network or not.
If the computers on the wireless network need to be accessible by a wired network or need to share a peripheral,
such as a printer, with the wired network computers, the wireless network should be set up in Infrastructure
mode. The basis of Infrastructure mode centers around a wireless router or an access point, such as the
Wireless-N Gigabit Router with Storage Link, which serves as the main point of communications in a wireless
network. The Router transmits data to PCs equipped with wireless network adapters, which can roam within a
certain radial range of the Router. You can arrange the Router and multiple access points to work in succession to
extend the roaming range, and you can set up your wireless network to communicate with your Ethernet
hardware as well.
If the wireless network is relatively small and needs to share resources only with the other computers on the
wireless network, then the Ad-Hoc mode can be used. Ad-Hoc mode allows computers equipped with wireless
transmitters and receivers to communicate directly with each other, eliminating the need for a wireless router or
access point. The drawback of this mode is that in Ad-Hoc mode, wireless-equipped computers are not able to
communicate with computers on a wired network. And, of course, communication between the wireless-
equipped computers is limited by the distance and interference directly between them.
infrastructure: a wireless network that is bridged
to a wired network via an access point.
ssid (service set identifier): your wireless network’s name.
ad-hoc: a group of wireless devices
communicating directly to each other (peer-to-
peer) without the use of an access point.
5
Chapter 2: Planning Your Wireless Network
Network Layout
Wireless-N Gigabit Router with Storage Link
Network Layout
The Wireless-N Gigabit Router with Storage Link has been specifically designed for use with your Wireless-N,
Wireless-G, and Wireless-B products. It will work with notebook adapters for your laptop computers, PCI adapters
for your desktop computers, and USB adapters for your USB connectivity needs. The Router can also
communicate with other devices, such as wireless print servers and bridges.
When you wish to connect your wireless network to your wired network, you can use the Router’s four local
Ethernet ports. To add more ports, connect one of the Router's local ports to any Linksys switch.
With these, and many other, Linksys products, your networking options are limitless. Go to the Linksys website at
www.linksys.com for more information about products that work with the Wireless-N Gigabit Router with Storage
Link.
6
Chapter 3: Getting to Know the Wireless-N Gigabit Router with Storage Link
The Back Panel
Wireless-N Gigabit Router with Storage Link
Chapter 3: Getting to Know the Wireless-N Gigabit
Router with Storage Link
The Back Panel
The Router's ports, where the cables are connected, and Reset button are located on the back panel.
USB The USB port connects your Router to your wired PC or other USB network devices.
INTERNET The Internet port is where you will connect your broadband modem.
ETHERNET 1, 2, 3, 4 These ports (1, 2, 3, 4) connect the Router to your wired PCs and other Ethernet network
devices.
Reset Button There are two ways to reset the Router's factory defaults. Either press the Reset button,
for approximately five seconds, or restore the defaults from the Administration - Factory
Defaults tab of the Router's Web-based Utility.
Power The Power port is where you will connect the power adapter.
IMPORTANT: Resetting the Router will erase all of
your settings (Internet connection, wireless
security, and other settings) and replace them
with the factory defaults. Do not reset the Router
if you want to retain these settings.
Figure 3-1: The Router’s Back Panel
7
Chapter 3: Getting to Know the Wireless-N Gigabit Router with Storage Link
The Front Panel
Wireless-N Gigabit Router with Storage Link
The Front Panel
The Router’s LEDs are located on the front panel.
POWER Green. The POWER LED lights up and will stay on while the Router is powered on.
ETHERNET 1, 2, 3, 4 Green, Orange. These numbered LEDs, corresponding with the numbered ports on the
Router’s back panel, serve three purposes: (1) The green LED lights up when the Router is
connected to a device through the corresponding port at 10/100, (2) The orange LED lights
up when you are connected at 1,000 Mbps (1 Gigabit), and (3) If the LED is flashing, then
the Router is sending or receiving data over that port.
INTERNET Green. The INTERNET LED lights up when there is a connection through the Internet port.
WIRELESS Green. The WIRELESS LED lights up when there is a wireless connection. If the LED is
flashing, the Router is sending or receiving data over the wireless network.
USB Green. The USB LED lights up when a USB drive is connected through the USB port. If the
LED is flashing, the Router is actively sending or receiving data over the USB connection.
SECURITY Green. The SECURITY LED indicates when wireless security is enabled.
The Top Panel
The Router has a button reserved for a future function.

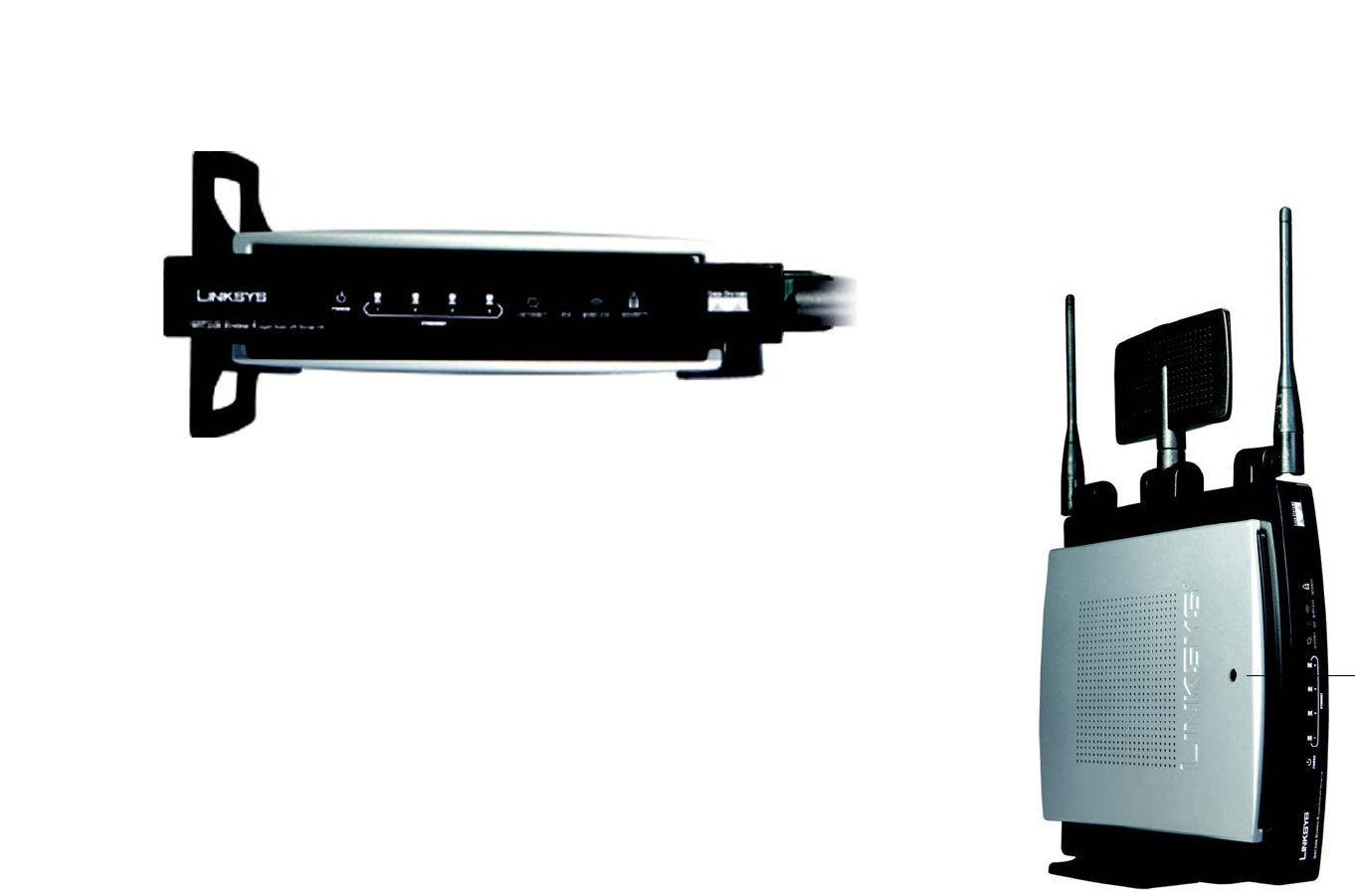

Figure 3-2: The Router’s Front Panel
Figure 3-3: The Router’s Top Panel
Button
8
Chapter 4: Connecting the Wireless-N Gigabit Router with Storage Link
Hardware Installation
Wireless-N Gigabit Router with Storage Link
Chapter 4: Connecting the Wireless-N Gigabit Router
with Storage Link
Hardware Installation
1. Make sure that all of your hardware is powered off, including the broadband modem and PCs.
2. Connect your USB cable tot he Router’s USB port.
3. Connect your broadband modem’s Ethernet cable to the Router’s Internet port.
4. Connect one end of an Ethernet network cable to one of the numbered ports on the back of the Router.
Connect the other end to an Ethernet port on a network device, e.g., a PC, print server, or switch.
Repeat this step to connect more PCs or other network devices to the Router.
5. Power on the broadband modem.
6. Connect the included power adapter to the Router’s Power port, and then plug the power adapter into an
electrical outlet. The Power LED on the front panel will light up when the adapter is connected properly.
7. Power on your PC(s).
8. Locate an optimum location for the Router. The best place for the Router is usually at the center of your
wireless network, with line of sight to all of your wireless devices.
Proceed to “Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link”.
Figure 4-1: Connect the USB cable
Figure 4-2: Connect the internet
Figure 4-4: Connect the power
IMPORTANT: Make sure you use the power
adapter that is supplied with the Router. Use of a
different power adapter could damage the Router.
Figure 4-3: Connect the ethernet
9
Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link
Overview
Wireless-N Gigabit Router with Storage Link
Chapter 5: Configuring the Wireless-N Gigabit Router
with Storage Link
Overview
Linksys recommends using the Setup CD-ROM for first-time installation of the Router. If you do not wish to run
the Setup Wizard on the Setup CD-ROM, then you can use the Web-based Utility to configure the Router. For
advanced users, you may configure the Router’s advanced settings through the Web-based Utility.
This chapter will describe each web page on the Utility and each page’s key functions. The Utility can be
accessed via your web browser through use of a computer connected to the Router. For a basic network setup,
most users only have to use the following screens of the Utility:
• Basic Setup. On the Basic Setup screen, enter the Internet connection settings provided by your Internet
Service Provider (ISP). If you do not have this information, you can call your ISP to request the settings. When
you have the setup information, then you can configure the Router.
• Management. Click the Administration tab and then the Management tab. The Router’s default password is
admin. To secure the Router, change the Password from its default.
• Wireless. On the Basic Wireless Settings screen, set the basic configuration for your wireless network.
There are eight main tabs: Setup, Wireless, Security, Storage, Access Restrictions, Applications & Gaming,
Administration, and Status. Additional tabs will be available after you click one of the main tabs.
Setup
• Basic Setup. Enter the Internet connection and network settings on this screen.
• DDNS. Enable the Router’s Dynamic Domain Name System (DDNS) feature on this screen.
• MAC Address Clone. If you need to clone a MAC address onto the Router, use this screen.
• Advanced Routing. Use this screen to alter dynamic and static routing configurations.
10
Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link
Overview
Wireless-N Gigabit Router with Storage Link
Wireless
• Basic Wireless Settings. Enter the basic settings for your wireless network on this screen.
• Wireless Security. Enable and configure the security settings for your wireless network.
• Wireless MAC Filter. Wireless access can be filtered by using the MAC addresses of the wireless devices
transmitting within your network’s radius.
• Advanced Wireless Settings. For advanced users, you can alter data transmission settings on this screen.
Security
• Firewall. You can enable or disable the Router’s firewall, as well as various filters.
• VPN Passthrough. To enable or disable IPSec, L2TP, and/or PPTP Passthrough, use this screen.
Storage
• Disk. Describes the disk currently attached to the Router.
• Share. Controls access to the partition of the disk attached to the Router.
• Administration. Manages the user and groups of users that can access the shares.
• Media Server. Scans for contents using a built-in media server.
• FTP Server. Creates an FTP server that can be accessed through the Internet.
Access Restrictions
Internet Access Policy. Create policies to control Internet access for your local network users.
Applications & Gaming
• Single Port Forwarding. This allows you to do port mapping and forwarding for a single service port.
• Port Range Forwarding. Set up public services or other specialized Internet applications on your network.
• Port Range Triggering. Configure the Router to watch outgoing data for specific port numbers.
11
Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link
How to Access the Web-based Utility
Wireless-N Gigabit Router with Storage Link
• DMZ. Click this tab to allow one local user to be exposed to the Internet for use of special-purpose services.
• QoS. Quality of Service (QoS) ensures better service to high-priority types of network traffic.
Administration
• Management. On this screen, alter the Router’s password, access privileges, and UPnP settings. You can also
use this screen to back up and restore the Router’s configuration file.
• Log. If you want to view or save activity logs, click this tab.
• Diagnostics. If you want to run a ping or traceroute test, then use this screen.
• Factory Defaults. If you want to restore the Router’s factory defaults, then use this screen.
• Firmware Upgrade. Click this tab if you want to upgrade the Router’s firmware.
Status
• Router. This screen provides status information about the Router.
• Local Network. This provides status information about the local network.
• Wireless Network. This provides status information about the wireless network.
How to Access the Web-based Utility
To access the Web-based Utility of the Router, launch Internet Explorer or Netscape Navigator, and enter the
Router’s default IP address, 192.168.1.1, in the Address field. Press the Enter key.
A screen will appear asking you for your User name and Password. Leave the User Name field blank. Enter admin
in the Password field. Then click the OK button.
Make the necessary changes through the Utility. When you have finished making changes to a screen, click the
Save Settings button to save the changes, or click the Cancel Changes button to undo your changes. For
information on a tab, click Help.
The Setup Tab - Basic Setup
The Basic Setup screen is the first screen you see when you access the Web-based Utility.
Figure 5-1: Router Login
Figure 5-2: Setup Tab - Basic Setup
(Automatic Configuration - DHCP)
NOTE: Some of these connection types may not
be available in your area.
12
Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link
The Setup Tab - Basic Setup
Wireless-N Gigabit Router with Storage Link
Internet Setup
The Internet Setup section configures the Router for your Internet connection type. This information can be
obtained from your ISP.
Internet Connection Type
The Router supports six connection types: Automatic Configuration - DHCP, Static IP, PPPoE, PPTP, Telstra Cable,
and L2TP. Each Basic Setup screen and available features will differ depending on what kind of connection type
you select.
Automatic Configuration - DHCP
By default, the Router’s Internet Connection Type is set to Automatic Configuration - DHCP, and it should be
used only if your ISP supports DHCP or you are connecting through a dynamic IP address.
Static IP
If you are required to use a permanent IP address, then select Static IP.
Internet IP Address. This is the IP address that the Router has, when seen from the Internet. Your ISP will
provide you with the IP address you need to specify here.
Subnet Mask. This is the Router’s Subnet Mask, as seen by external users on the Internet (including your
ISP). Your ISP will provide you with the Subnet Mask.
Default Gateway. Your ISP will provide you with the Default Gateway Address.
DNS 1-3. Your ISP will provide you with at least one DNS (Domain Name System) Server IP Address.
PPPoE
Some DSL-based ISPs use PPPoE (Point-to-Point Protocol over Ethernet) to establish Internet connections for
end-users. If you use a DSL line, check with your ISP to see if they use PPPoE. If they do, you will have to
enable it.
User Name and Password. Enter the User Name and Password provided by your ISP.
Figure 5-3: Static IP
Figure 5-4: PPPoE
IMPORTANT: For DSL users, if you need to enable PPPoE support, remember to remove any
PPPoE applications that are installed on your PCs.
static ip address: a fixed address
assigned to a computer or device
connected to a network.
pppoe: a type of broadband connection that
provides authentication (username and
password) in addition to data transport
subnet mask: an address code that
determines the size of the network
default gateway: a device that forwards
Internet traffic from your local area network
13
Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link
The Setup Tab - Basic Setup
Wireless-N Gigabit Router with Storage Link
Service Name. If provided by your ISP, enter the Service Name.
Connect on Demand and Max Idle Time. You can configure the Router to cut the Internet connection after it
has been inactive for a specific period of time (Max Idle Time). If your Internet connection has been
terminated due to inactivity, Connect on Demand enables the Router to automatically re-establish your
connection as soon as you attempt to access the Internet again. To use Connect on Demand, click the radio
button. If you want your Internet connection to remain on at all times, enter 0 in the Max Idle Time field.
Otherwise, enter the number of minutes you want to have elapsed before your Internet access disconnects.
Keep Alive and Redial Period. This option keeps your Internet access connected indefinitely, even when it
sits idle. If you select this option, the Router will periodically check your Internet connection. If the connection
is down, then the Router will automatically re-establish the connection. To use this option, click the radio
button next to Keep Alive. The default Redial Period is 30 seconds.
Click the Save Settings button. Then click the Status tab, and click the Connect button.
PPTP
Point-to-Point Tunneling Protocol (PPTP) is a service that applies to connections in Europe and Israel only.
Server IP Address. This is the IP address that the Router has, when seen from the Internet. Your ISP will
provide you with the IP address you need to specify here.
Subnet Mask. This is the Router’s Subnet Mask, as seen by external users on the Internet (including your
ISP). Your ISP will provide you with the Subnet Mask.
Default Gateway. Your ISP will provide you with the Default Gateway Address.
User Name and Password. Enter the User Name and Password provided by your ISP.
Connect on Demand and Max Idle Time. You can configure the Router to cut the Internet connection after it
has been inactive for a specific period of time (Max Idle Time). If your Internet connection has been
terminated due to inactivity, Connect on Demand enables the Router to automatically re-establish your
connection as soon as you attempt to access the Internet again. To use Connect on Demand, click the radio
button. If you want your Internet connection to remain on at all times, enter 0 in the Max Idle Time field.
Otherwise, enter the number of minutes you want to have elapsed before your Internet access disconnects.
Keep Alive and Redial Period. This option keeps your Internet access connected indefinitely, even when it
sits idle. If you select this option, the Router will periodically check your Internet connection. If the connection
is down, then the Router will automatically re-establish the connection. To use this option, click the radio
button next to Keep Alive. The default Redial Period is 30 seconds.
Figure 5-5: PPTP
14
Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link
The Setup Tab - Basic Setup
Wireless-N Gigabit Router with Storage Link
Click the Save Settings button. Then click the Status tab, and click the Connect button.
Telstra Cable
Telstra Cable is a service used in Australia only. Check with your ISP for the necessary setup information.
Server IP Address. This is the IP address that the Router has, when seen from the Internet. Your ISP will
provide you with the IP address you need to specify here.
User Name and Password. Enter the User Name and Password provided by your ISP.
Click the Save Settings button. Then click the Status tab, and click the Connect button.
L2TP
Layer 2 Tunneling Protocol (L2TP) is a service that tunnels Point-to-Point Protocol (PPP) across the Internet. It
is used mostly in European countries. Check with your ISP for the necessary setup information.
Server IP Address. This is the IP address that the Router has, when seen from the Internet. Your ISP will
provide you with the IP address you need to specify here.
User Name and Password. Enter the User Name and Password provided by your ISP.
Connect on Demand and Max Idle Time. You can configure the Router to cut the Internet connection after it
has been inactive for a specific period of time (Max Idle Time). If your Internet connection has been
terminated due to inactivity, Connect on Demand enables the Router to automatically re-establish your
connection as soon as you attempt to access the Internet again. To use Connect on Demand, click the radio
button. If you want your Internet connection to remain on at all times, enter 0 in the Max Idle Time field.
Otherwise, enter the number of minutes you want to have elapsed before your Internet access disconnects.
Keep Alive and Redial Period. This option keeps your Internet access connected indefinitely, even when it
sits idle. If you select this option, the Router will periodically check your Internet connection. If the connection
is down, then the Router will automatically re-establish the connection. To use this option, click the radio
button next to Keep Alive. The default Redial Period is 30 seconds.
Click the Save Settings button. Then click the Status tab, and click the Connect button.
Optional Settings
Some of these settings may be required by your ISP. Verify with your ISP before making any changes.
packet: a unit of data sent over a network.
Figure 5-7: L2TP

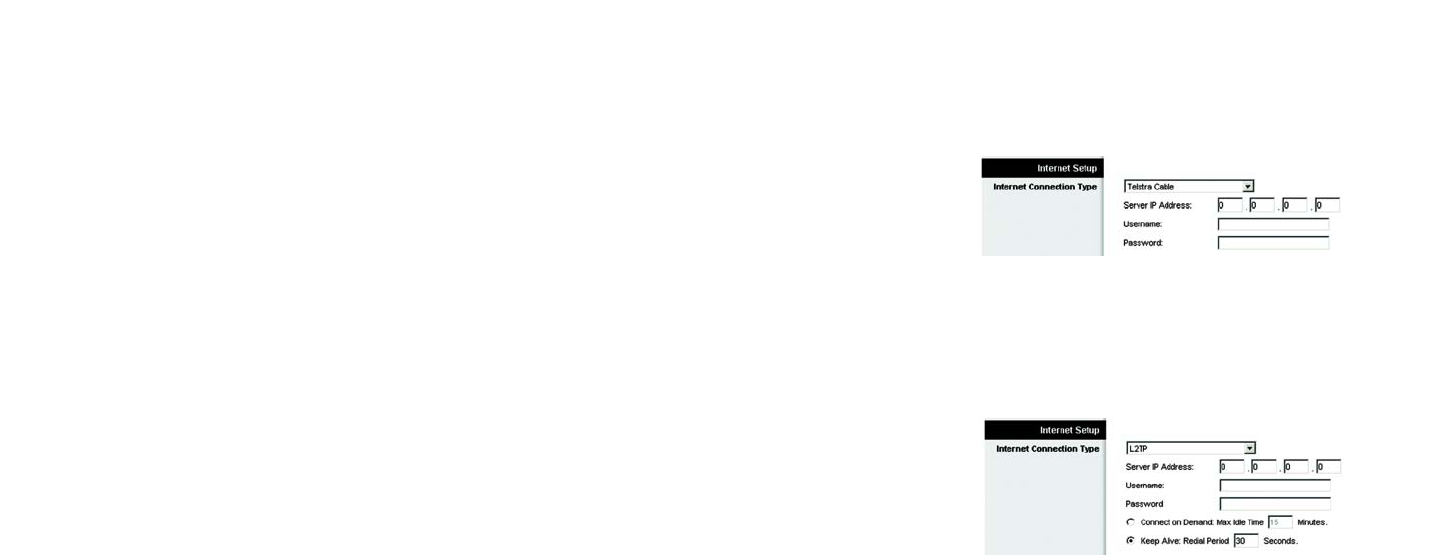

Figure 5-6: Telstra Cable
15
Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link
The Setup Tab - Basic Setup
Wireless-N Gigabit Router with Storage Link
Host Name and Domain Name. Some ISPs require these names as identification. You may have to check with
your ISP to see if your broadband Internet service has been configured with a host and domain name. In most
cases, leaving these fields blank will work.
MTU. The MTU (Maximum Transmission Unit) setting specifies the largest packet size permitted for network
transmission. To manually set a value, select Manual and enter the value desired in the Size field. You should
leave this value in the 1200 to 1500 range. Most DSL users should use the value 1492. The default is Auto, which
allows the Router to select the best MTU for your Internet connection.
Network Setup
The Network Setup section allows you to change the Router’s local network settings.
Router IP
The Router’s Local IP Address and Subnet Mask are shown here. In most cases, you should keep the defaults.
Local IP Address. The default value is 192.168.1.1.
Subnet Mask. The default value is 255.255.255.0.
DHCP Server Setting
The Router can be used as a Dynamic Host Configuration Protocol (DHCP) server for your network. A DHCP server
automatically assigns an IP address to each computer on your network. Unless you already have one, it is highly
recommended that you leave the Router enabled as a DHCP server.
DHCP Server. DHCP is enabled by factory default. If you already have a DHCP server on your network, set the
Router’s DHCP option to Disabled. If you disable DHCP, remember to assign a static IP address to the Router.
Start IP Address. Enter a value for the DHCP server to start with when issuing IP addresses. Because the default
IP address for the Router is 192.168.1.1, the Start IP Address must be 192.168.1. 2 or greater, but smaller than
192.168.1.254. The default Start IP Address is 192.168.1.100.
Maximum Number of Users (Optional). Enter the maximum number of PCs that you want the DHCP server to
assign IP addresses to. This number cannot be greater than 253. The default is 50.
Client Lease Time. The Client Lease Time is the amount of time a network user will be allowed connection to the
Router with their current dynamic IP address. Enter the amount of time, in minutes, that the user will be “leased”
this dynamic IP address. After the dynamic IP address has expired, the user will be automatically assigned a new
dynamic IP address. The default is 0 minutes, which means one day.
dynamic ip address: a temporary IP
address assigned by a DHCP server.
16
Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link
The Setup Tab - Basic Setup
Wireless-N Gigabit Router with Storage Link
Static DNS 1-3. The Domain Name System (DNS) is how the Internet translates domain or website names into
Internet addresses or URLs. Your ISP will provide you with at least one DNS Server IP Address. You can enter up to
three DNS Server IP Addresses here. The Router will use these for quicker access to functioning DNS servers.
WINS. The Windows Internet Naming Service (WINS) converts NetBIOS names to IP addresses. If you use a WINS
server, enter that server’s IP address here. Otherwise, leave this field blank.
DHCP Reservation. Click the DHCP Reservation button if you want to assign a fixed local IP address to a MAC
address. You will see a list of DHCP clients with the following information: Client Name, Interface, IP Address, and
MAC Address. Click the Select checkbox to reserve a client’s IP address. Then click the Add Clients button.
If you want to manually assign an IP address, enter the client’s name in the Enter Client Name field. Enter the IP
address you want it to have in the Assign IP Address field. Enter its MAC Address in the To This MAC Address field.
Click the Add button.
A list of DHCP clients and their fixed local IP addresses will be displayed at the bottom of the screen. If you want
to remove a client from this list, click the Remove button.
When you have finished your changes, click the Save Settings button to save your changes. Click the Cancel
Changes button to cancel your changes. To view the most up-to-date information, click the Refresh button. To
exit this screen, click the Close button.
Time Setting
Time Zone. Select the time zone in which your network functions. If you want the Router to automatically adjust
the clock for daylight savings, then select the checkbox.
When you have finished making changes to this screen, click the Save Settings button to save the changes, or
click the Cancel Changes button to undo your changes. For more information, click Help.
NOTE: To test your settings, connect to the
Internet now.
Figure 5-8: DHCP Reservation
17
Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link
The Setup Tab - DDNS
Wireless-N Gigabit Router with Storage Link
The Setup Tab - DDNS
The Router offers a Dynamic Domain Name System (DDNS) feature. DDNS lets you assign a fixed host and domain
name to a dynamic Internet IP address. It is useful when you are hosting your own website, FTP server, or other
server behind the Router.
Before you can use this feature, you need to sign up for DDNS service at one of two DDNS service providers,
DynDNS.org or TZO.com. If you do not want to use this feature, keep the default setting, Disable.
DDNS
DDNS Service
If your DDNS service is provided by DynDNS.org, then select DynDNS.org from the drop-down menu. If your
DDNS service is provided by TZO, then select TZO.com. The features available on the DDNS screen will vary,
depending on which DDNS service provider you use.
DynDNS.org
Username, Password, and Host Name. Enter the settings of the account you set up with DynDNS.org.
System. Select the DynDNS service you use: Dynamic,Static, or Custom.
Mail Exchange (Optional). Enter the address of your mail exchange server, so e-mails to your DynDNS
address go to your mail server.
Backup MX. This feature allows the mail exchange server to be a backup. To enable this feature, keep the
default, Enabled. To disable the feature, select Disabled. If you are not sure which setting to select, keep the
default, Enabled.
WildCard. This setting enables or disables wildcards for your host. For example, if your DDNS address is
myplace.dyndns.org and you enable wildcards, then x.myplace.dyndns.org will work as well (x is the
wildcard). To enable wildcards, keep the default, Enabled. To disable wildcards, select Disabled. If you are
not sure which setting to select, keep the default, Enabled.
Status. The status of the DDNS service connection is displayed here.
Update. To manually trigger an update, click this button.
Figure 5-9: Setup Tab - DynDDNS.org
18
Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link
The Setup Tab - DDNS
Wireless-N Gigabit Router with Storage Link
TZO.com
E-mail Address, TZO Password, and Domain Name. Enter the settings of the account you set up with TZO.
Internet IP Address. The Router’s Internet IP address is displayed here. Because it is dynamic, it will change.
Status. The status of the DDNS service connection is displayed here.
Update. To manually trigger an update, click this button.
When you have finished making changes to this screen, click the Save Settings button to save the changes, or
click the Cancel Changes button to undo your changes. For more information, click Help.
Figure 5-10: Setup Tab - TZO.com
19
Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link
The Setup Tab - MAC Address Clone
Wireless-N Gigabit Router with Storage Link
The Setup Tab - MAC Address Clone
A MAC address is a 12-digit code assigned to a unique piece of hardware for identification, like a social security
number. Some ISPs will require you to register a MAC address in order to access the Internet. If you do not wish
to re-register the MAC address with your ISP, you may assign the MAC address you have currently registered with
your ISP to the Router with the MAC Address Clone feature.
MAC Address Clone
To use MAC address cloning, select Enabled. Otherwise, keep the default, Disabled.
MAC Address. Enter the MAC Address registered with your ISP.
Clone My PC’s MAC. If you want to clone the MAC address of the PC you are currently using to configure the
Router, then click this button. The Router will automatically detect your PC’s MAC address, so you do NOT have to
call your ISP to change the registered MAC address to the Router’s MAC address. It is recommended that the PC
registered with the ISP is used to open the MAC Address Clone screen.
When you have finished making changes to this screen, click the Save Settings button to save the changes, or
click the Cancel Changes button to undo your changes. For more information, click Help.
Figure 5-11: Setup Tab - MAC Clone
mac address: the unique address that a
manufacturer assigns to each networking device.
20
Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link
The Setup Tab - Advanced Routing
Wireless-N Gigabit Router with Storage Link
The Setup Tab - Advanced Routing
The Advanced Routing screen allows you to configure the dynamic and static routing settings.
Advanced Routing
NAT
If this Router is hosting your network’s connection to the Internet, select
Enabled
. If another Router exists on your
network, select
Disabled
. When the NAT setting is disabled, dynamic routing will be enabled.
Dynamic Routing
This feature enables the Router to automatically adjust to physical changes in the network’s layout and exchange
routing tables with the other router(s). The Router determines the network packets’ route based on the fewest
number of hops between the source and the destination. To use dynamic routing, select
Enabled
. Otherwise, select
Disabled
. When the NAT setting is disabled, dynamic routing will be enabled.
Static Routing
A static route is a pre-determined pathway that network information must travel to reach a specific host or
network. Use this feature to set up a static route between the Router and another network (you can have up to 20
static routes). To create a static route, alter the following settings:
Route Entries. Select the number of the static route from the drop-down menu.
Enter Route Name. Enter a name for the static route, using a maximum of 25 alphanumeric characters.
Destination LAN IP. The Destination LAN IP Address is the address of the remote network or host to which
you want to assign a static route. Enter the IP address of the host for which you wish to create a static route.
Subnet Mask. The Subnet Mask determines which portion of a Destination IP address is the network portion,
and which portion is the host portion.
Default Gateway. This is the IP address of the gateway device that allows for contact between the Router and
the remote network or host.
Interface. Select LAN & Wireless or WAN (Internet), depending on the location of the final destination.
Delete This Entry. To delete a route, select its number from the drop-down menu, and click this button.

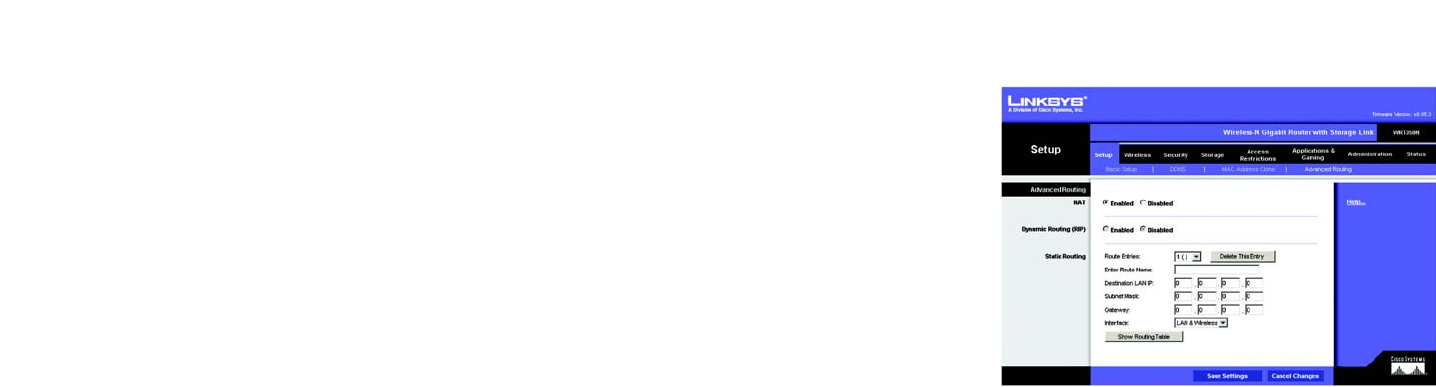

Figure 5-12: Setup Tab - Advanced Routing
21
Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link
The Setup Tab - Advanced Routing
Wireless-N Gigabit Router with Storage Link
Show Routing Table. Click the Show Routing Table button to open a screen displaying how data is routed
through your local network. For each route, the Destination LAN IP address, Subnet Mask, Gateway, and Interface
are displayed. Click the Refresh button to update the information. Click the Close button to exit this screen.
When you have finished making changes to this screen, click the Save Settings button to save the changes, or
click the Cancel Changes button to undo your changes. For more information, click Help.

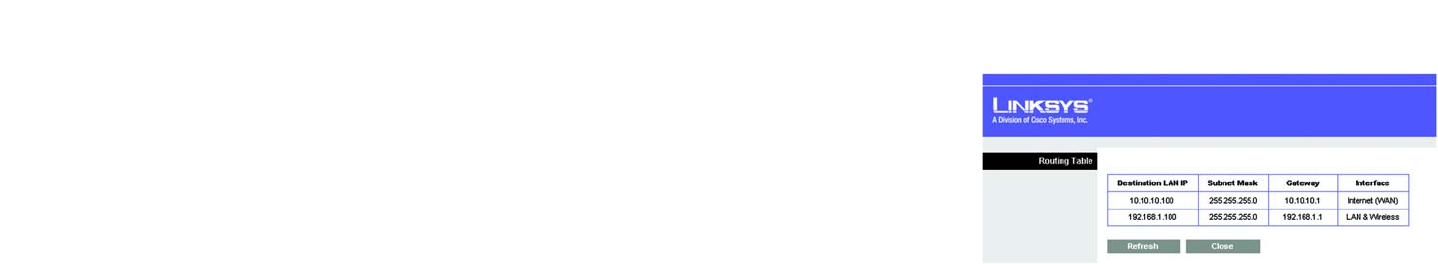

Figure 5-13: Routing Table
22
Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link
The Wireless Tab - Basic Wireless Settings
Wireless-N Gigabit Router with Storage Link
The Wireless Tab - Basic Wireless Settings
The basic settings for wireless networking are set on this screen.
Basic Wireless Settings
Network Mode. If you have wireless devices in your network, keep the default setting, Mixed. If you do not have
any wireless devices in your network, select Disable.
Network Name (SSID). The SSID is the network name shared among all points in a wireless network. The SSID
must be identical for all devices in the wireless network. It is case-sensitive and must not exceed 32 characters
(use any of the characters on the keyboard). Make sure this setting is the same for all points in your wireless
network. For added security, you should change the default SSID (linksys) to a unique name.
Radio Band. For best performance in a network using Wireless-N, Wireless-G and Wireless-B devices, keep the
default, Wide - 40MHz Channel. For Wireless-G and Wireless-B networking only, select Standard - 20MHz
Channel.
Wide Channel. If you selected Wide - 40MHz Channel for the Radio Band setting, then this setting will be
available for your primary Wireless-N channel. Select any channel from the drop-down menu.
Standard Channel. Select the channel for Wireless-N, Wireless-G, and Wireless-B networking. If you selected
Wide – 40MHz Channel for the Radio Band setting, then the Standard Channel will be a secondary channel for
Wireless-N. If you are not sure which channel to select, keep the default, Auto.
SSID Broadcast. When wireless clients survey the local area for wireless networks to associate with, they will
detect the SSID broadcast by the Router. To broadcast the Router's SSID, keep the default setting, Enabled. If you
do not want to broadcast the Router's SSID, then select Disabled.
When you have finished making changes to this screen, click the Save Settings button to save the changes, or
click the Cancel Changes button to undo your changes. For more information, click Help.
Figure 5-14: Wireless Tab - Basic Wireless Settings
NOTE: If you select Wide - 40MHz Channel for the
Radio Band setting, then Wireless-N can use two
channels: a primary one (Wide Channel) and a
secondary one (Standard Channel). This will
enhance Wireless-N performance.
23
Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link
The Wireless Tab - Wireless Security
Wireless-N Gigabit Router with Storage Link
The Wireless Tab - Wireless Security
These settings configure the security of your wireless network. There are six wireless security modes supported
by the Router: PSK-Personal, PSK2-Personal, PSK-Enterprise, PSK2-Enterprise, RADIUS, and WEP. (PSK stands for
Pre-Shared Key, which is stronger than WEP encryption. WEP stands for Wired Equivalent Privacy, while RADIUS
stands for Remote Authentication Dial-In User Service.) For details on configuring wireless security for the Router,
turn to “Appendix B: Wireless Security.” If you do not want to use wireless security, select Disabled.
Wireless Security
Security Mode. Select the mode you want to use: PSK-Personal,PSK2-Personal,PSK-Enterprise,PSK2-
Enterprise,RADIUS, or WEP. PSK2 is a more advanced, more secure version of PSK.
Follow the instructions for the security method you want to use.
PSK-Personal
Encryption. Select the algorithm you want to use, TKIP or AES. (AES is a stronger encryption method than TKIP.)
Pre-shared Key. Enter the key shared by the Router and your other network devices. It must have
8-63 characters.
Key Renewal. Enter the Key Renewal period, which tells the Router how often it should change encryption keys.
When you have finished making changes to this screen, click the Save Settings button to save the changes, or
click the Cancel Changes button to undo your changes. For more information, click Help.
PSK2-Personal
Encryption. Select the algorithm(s) you want to use, AES or TKIP or AES. (AES is a stronger encryption method
than TKIP.)
Pre-shared Key. Enter the key shared by the Router and your other network devices. It must have
8-63 characters.
Key Renewal. Enter the Key Renewal period, which tells the Router how often it should change encryption keys.
When you have finished making changes to this screen, click the Save Settings button to save the changes, or
click the Cancel Changes button to undo your changes. For more information, click Help.

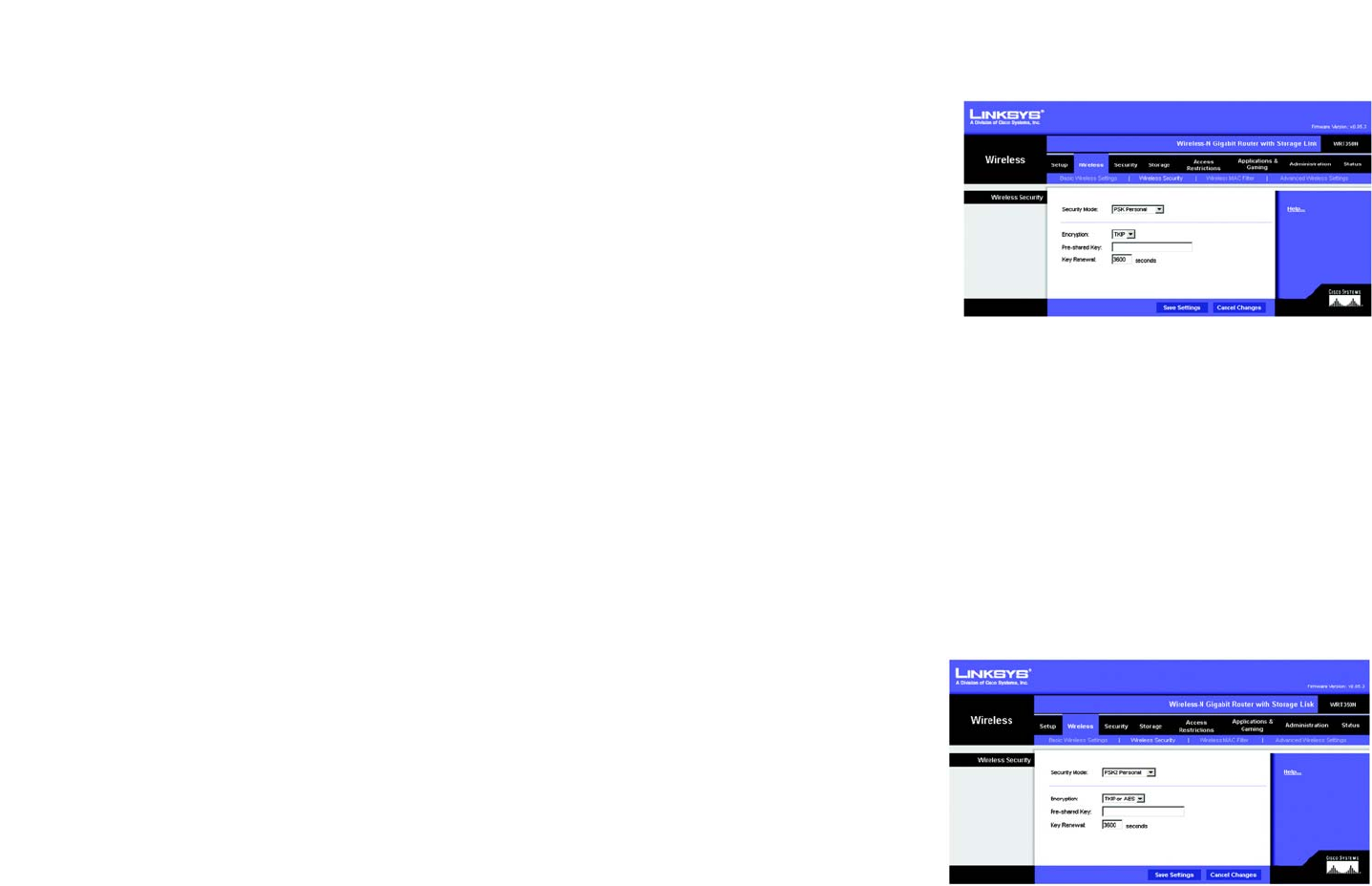

Figure 5-15: Wireless Tab - Wireless Security
(PSK-Personal)
Figure 5-16: Wireless Security - PSK2-Personal
24
Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link
The Wireless Tab - Wireless Security
Wireless-N Gigabit Router with Storage Link
PSK-Enterprise
This option features PSK used in coordination with a RADIUS server. (This should only be used when a RADIUS
server is connected to the Router.)
Encryption. Select the algorithm(s) you want to use, TKIP or AES. (AES is a stronger encryption method than
TKIP.)
RADIUS Server. Enter the IP address of your RADIUS server.
RADIUS Port. Enter the port number of your RADIUS server.
Shared Key. Enter the key shared by the Router and RADIUS server.
Key Renewal. Enter the Key Renewal period, which tells the Router how often it should change encryption keys.
When you have finished making changes to this screen, click the Save Settings button to save the changes, or
click the Cancel Changes button to undo your changes. For more information, click Help.
PSK2-Enterprise
This option features PSK2 used in coordination with a RADIUS server. (This should only be used when a RADIUS
server is connected to the Router.)
Encryption. Select the algorithm(s) you want to use, AES or TKIP or AES. (AES is a stronger encryption method
than TKIP.)
RADIUS Server. Enter the IP address of your RADIUS server.
RADIUS Port. Enter the port number of your RADIUS server.
Shared Key. Enter the key shared by the Router and RADIUS server.
Key Renewal. Enter the Key Renewal period, which tells the Router how often it should change encryption keys.
When you have finished making changes to this screen, click the Save Settings button to save the changes, or
click the Cancel Changes button to undo your changes. For more information, click Help.
Figure 5-17: Wireless Security - PSK-Enterprise
Figure 5-18: Wireless Security - PSK2-Enterprise
25
Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link
The Wireless Tab - Wireless Security
Wireless-N Gigabit Router with Storage Link
RADIUS
This option features WEP used in coordination with a RADIUS server. (This should only be used when a RADIUS
server is connected to the Router.)
RADIUS Server. Enter the IP address of your RADIUS server.
RADIUS Port. Enter the port number of your RADIUS server.
Shared Key. Enter the key shared by the Router and RADIUS server.
Encryption. Select the appropriate level of encryption, 40/64-bit (10 hex digits) or 128-bit (26 hex digits),
which is stronger encryption than 40/64 bit encryption.
Passphrase. To automatically generate keys, enter your passphrase. Then click the Generate button.
Key 1-4. If you want to manually enter the WEP keys, then enter them in the Key 1-4 fields.
TX Key. To indicate which WEP key to use, select a transmit key number.
When you have finished making changes to this screen, click the Save Settings button to save the changes, or
click the Cancel Changes button to undo your changes. For more information, click Help.
WEP
WEP is a basic encryption method offering two levels of encryption; 128-bit is stronger than 40/64-bit encryption.
Encryption. Select the appropriate level of encryption, 40/64-bit (10 hex digits) or 128-bit (26 hex digits).
Passphrase. To automatically generate keys, enter your passphrase. Then click the Generate button.
Key 1-4. If you want to manually enter the WEP keys, then enter them in the Key 1-4 fields.
TX Key. To indicate which WEP key to use, select a transmit key number.
When you have finished making changes to this screen, click the Save Settings button to save the changes, or
click the Cancel Changes button to undo your changes. For more information, click Help.
Figure 5-19: Wireless Security - RADIUS
Figure 5-20: Wireless Security - WEP
26
Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link
The Wireless Tab - Wireless MAC Filter
Wireless-N Gigabit Router with Storage Link
The Wireless Tab - Wireless MAC Filter
Wireless access can be filtered by using the MAC addresses of the wireless devices transmitting within your
network’s radius.
Wireless MAC Filter
To filter wireless users by MAC Address, either permitting or blocking access, click Enabled. If you do not wish to
filter users by MAC Address, select Disabled.
Access Restrictions
Prevent. Click this button to block wireless access from the devices listed on this screen.
Permit. Click this button to allow wireless access by the devices listed on this screen.
MAC Address Filter List
Click the Wireless Client List button to display the Wireless Client List. It shows computers and other devices on
the wireless network. The list can be sorted by Client Name, Interface, IP Address, MAC Address, and Status. Click
the Save to MAC Address Filter List checkbox for any device you want to add to the MAC Address Filter List.
Then click the Add button. To retrieve the most up-to-date information, click the Refresh button. To exit this
screen and return to the Wireless MAC Filter screen, click the Close button.
Then click the Enable MAC Filter checkbox for any device you want to add to the MAC Address Filter List. To
update the information on this list, click the Refresh button. When you have finished making changes to the
Wireless Client MAC List screen, click the Update Filter List button to save the changes. Click the Close button
to return to the Wireless MAC Filter screen.
When you have finished making changes to the MAC Address Filter List screen, click the Save Settings button to
save the changes, or click the Cancel Changes button to undo your changes.
MAC 01-50. Enter the MAC addresses of the devices whose wireless access you want to block or allow.
When you have finished making changes to the Wireless MAC Filter screen, click the Save Settings button to
save the changes, or click the Cancel Changes button to undo your changes. For more information, click Help.
Figure 5-21: Wireless Tab - Wireless MAC Filter
Figure 5-22: Wireless Client List
27
Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link
The Wireless Tab - Advanced Wireless Settings
Wireless-N Gigabit Router with Storage Link
The Wireless Tab - Advanced Wireless Settings
This tab is used to set up the Router’s advanced wireless functions. These settings should only be adjusted by an
expert administrator as incorrect settings can reduce wireless performance.
Advanced Wireless
AP Isolation. This isolates all wireless clients and wireless devices on your network from each other. Wireless
devices will be able to communicate with the Router but not with each other. To use this function, click Enabled.
AP Isolation is disabled by default.
Frame Burst. Enabling this option should provide your network with greater performance, depending on the
manufacturer of your wireless products. If you are not sure how to use this option, keep the default, Disable.
Authentication Type. The default is set to Auto, which allows either Open System or Shared Key authentication
to be used. Select Shared Key if you only want to use Shared Key authentication (the sender and recipient use a
WEP key for authentication).
Basic Rate. The Basic Rate setting is not actually one rate of transmission but a series of rates at which the
Router can transmit. The Router will advertise its Basic Rate to the other wireless devices in your network, so
they know which rates will be used. The Router will also advertise that it will automatically select the best rate
for transmission. The default setting is Default, when the Router can transmit at all standard wireless rates
(1-2Mbps, 5.5Mbps, 11Mbps, 18Mbps, and 24Mbps). Other options are 1-2Mbps, for use with older wireless
technology, and All, when the Router can transmit at all wireless rates.
Transmission Rate. The rate of data transmission should be set depending on the speed of your wireless
network. You can select from a range of transmission speeds, or you can select Auto to have the Router
automatically use the fastest possible data rate and enable the Auto-Fallback feature. Auto-Fallback will
negotiate the best possible connection speed between the Router and a wireless client. The default setting is
Auto.
N Transmission Rate. The rate of data transmission should be set depending on the speed of your Wireless-N
networking. You can select from a range of transmission speeds, or you can select Auto to have the Router
automatically use the fastest possible data rate and enable the Auto-Fallback feature. Auto-Fallback will
negotiate the best possible connection speed between the Router and a wireless client. The default setting is
Auto.
CTS Protection Mode. CTS (Clear-To-Send) Protection Mode’s default setting is Auto. The Router will
automatically use CTS Protection Mode when your Wireless-N and Wireless-G products are experiencing severe
problems and are not able to transmit to the Router in an environment with heavy 802.11b traffic. This function
Figure 5-23: Wireless Tab - Advanced Wireless Settings
28
Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link
The Wireless Tab - Advanced Wireless Settings
Wireless-N Gigabit Router with Storage Link
boosts the Router’s ability to catch all Wireless-N and Wireless-G transmissions but will severely decrease
performance.
Beacon Interval. Enter a value between 20-1000 milliseconds. The Beacon Interval value indicates the
frequency interval of the beacon. A beacon is a packet broadcast by the Router to synchronize the wireless
network. The default value is 100.
DTIM Interval. This value, between 1 and 255, indicates the interval of the Delivery Traffic Indication Message
(DTIM). A DTIM field is a countdown field informing clients of the next window for listening to broadcast and
multicast messages. When the Router has buffered broadcast or multicast messages for associated clients, it
sends the next DTIM with a DTIM Interval value. Its clients hear the beacons and awaken to receive the broadcast
and multicast messages. The default value is 1.
Fragmentation Threshold. This value specifies the maximum size for a packet before data is fragmented into
multiple packets. If you experience a high packet error rate, you may slightly increase the Fragmentation
Threshold. Setting the Fragmentation Threshold too low may result in poor network performance. Only minor
reduction of the default value is recommended. In most cases, it should remain at its default value of 2346.
RTS Threshold. Should you encounter inconsistent data flow, only minor reduction of the default value, 2346, is
recommended. If a network packet is smaller than the preset RTS threshold size, the RTS/CTS mechanism will
not be enabled. The Router sends Request to Send (RTS) frames to a particular receiving station and negotiates
the sending of a data frame. After receiving an RTS, the wireless station responds with a Clear to Send (CTS)
frame to acknowledge the right to begin transmission. In most cases, keep its default value of 2346.
When you have finished making changes to this screen, click the Save Settings button to save the changes, or
click the Cancel Changes button to undo your changes. For more information, click Help.
29
Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link
The Security Tab - Firewall
Wireless-N Gigabit Router with Storage Link
The Security Tab - Firewall
The Firewall screen offers a firewall and filters that block specific Internet data types.
Firewall
Firewall Protection. A firewall enhances network security and uses Stateful Packet Inspection (SPI) for more
detailed review of data packets entering your network. Select Enabled to use a firewall, or Disabled to disable it.
Internet Filter
Filter Anonymous Internet Requests. When enabled, this feature keeps your network from being “pinged,” or
detected, by other Internet users. It also hides your network ports. Both make it more difficult for outside users to
enter your network. This filter is enabled by default. Select Disabled to allow anonymous Internet requests.
Filter Multicast. Multicasting allows for multiple transmissions to specific recipients at the same time. If
multicasting is permitted, then the Router will allow IP multicast packets to be forwarded to the appropriate
computers. Select Enabled to filter multicasting, or Disabled to disable this feature.
Filter Internet NAT Redirection. This feature uses port forwarding to block access to local servers from local
networked computers. Select Enabled to filter Internet NAT redirection, or Disabled to disable this feature.
Filter IDENT (Port 113). This feature keeps port 113 from being scanned by devices outside of your local
network. Select Enabled to filter port 113, or Disabled to disable this feature.
Web Filter
Proxy. Use of WAN proxy servers may compromise the Gateway's security. Denying Filter Proxy will disable
access to any WAN proxy servers. To enable proxy filtering, click the checkbox.
Java. Java is a programming language for websites. If you deny Java, you run the risk of not having access to
Internet sites created using this programming language. To enable Java filtering, click the checkbox.
ActiveX. ActiveX is a programming language for websites. If you deny ActiveX, you run the risk of not having
access to Internet sites created using this programming language. To enable ActiveX filtering, click the checkbox.
Cookies. A cookie is data stored on your computer and used by Internet sites when you interact with them. To
enable cookie filtering, click the checkbox.
When you have finished making changes to this screen, click the Save Settings button to save the changes, or
click the Cancel Changes button to undo your changes. For more information, click Help.
Figure 5-24: Security Tab - Firewall
30
Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link
The Security Tab - VPN Passthrough
Wireless-N Gigabit Router with Storage Link
The Security Tab - VPN Passthrough
The VPN Passthrough screen allows you to allow VPN tunnels using IPSec, L2TP, or PPTP protocols to pass
through the Router.
VPN Passthrough
IPSec Passthrough. IPSec (Internet Protocol Security) is a suite of protocols used to implement secure exchange
of packets at the IP layer. To allow IPSec Passthrough, click the Enabled button. To disable IPSec Passthrough,
click the Disabled button.
L2TP Passthrough. Layer 2 Tunneling Protocol is the method used to enable Point-to-Point sessions via the
Internet on the Layer 2 level. To allow L2TP tunnels to pass through the Router, click the Enabled button. To
disable L2TP Passthrough, click the Disabled button.
PPTP Passthrough. PPTP (Point-to-Point Tunneling Protocol) Passthrough allows the Point-to-Point (PPP) to be
tunneled through an IP network. To allow PPTP Passthrough, click the Enabled button. To disable PPTP
Passthrough, click the Disabled button.
When you have finished making changes to this screen, click the Save Settings button to save the changes, or
click the Cancel Changes button to undo your changes. For more information, click Help.
Figure 5-25: VPN Passthrough
ipsec: a VPN protocol used to implement secure
exchange of packets at the IP layer.
pptp: a VPN protocol that allows the Point to Point
Protocol (PPP) to be tunneled through an IP network.
This protocol is also used as a type of broadband
connection in Europe.
vpn: a security measure to protect data as it leaves
one network and goes to another over the Internet.
31
Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link
The Storage Tab - Disk
Wireless-N Gigabit Router with Storage Link
The Storage Tab - Disk
You can attach a USB flash drive or hard disk to the Router. The Disk screen describes the disk currently attached
to the Router. Using this screen, you can format a blank disk, safely remove a disk, or erase a disk.
Disk Management
Disk Detail
If a blank disk is attached to the Router, the Disk, Make and Model, and Physical Size columns describe the disk.
Claim. For a blank disk, click the Claim button to create a partition that will be formatted as FAT32. On the Claim
Disk screen, enter a name for the partition. Click the Claim button to save the new name, or click the Clear
button to clear the New Partition Name field. Click the Cancel button to cancel the changes.
Safely Remove. Before physically disconnecting a disk from the Router, click the Safely Remove button first.
This ensures that the disk is not removed while data is being transferred to or from the disk; otherwise, data may
be lost.
If a formatted disk is attached to the Router, the Partition, File System, Total Space, and Free Space columns
describe the partition(s) of the disk.
Create Share. Shares control access to the partition(s) of the disk. To create shares, click the Create Share
button. Proceed to the next page for descriptions of the Share screen.
Erase Disk
To erase a disk, click the checkbox next to the name of the disk.
Quick Erase. To quickly free up space on the disk, click the Quick Erase button to remove the table of contents
from the disk. (This is less secure than the Full Erase option.)
Full Erase. Click the Full Erase button to initiate complete removal of data from the disk. Once the removal is
complete, the data cannot be recovered. The Full Erase option is recommended if the disk holds sensitive data.
Click the Refresh button to update the on-screen information.
Figure 5-26: Storage Tab - Disk
Figure 5-27: Storage Tab - Claim Disk
Figure 5-28: Storage Tab - Claimed Disk
32
Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link
The Storage Tab - Share
Wireless-N Gigabit Router with Storage Link
The Storage Tab - Share
Shares control access to the partition(s) of the disk attached to the Router. The Share screen describes the
current shares. Using this screen, you can create new shares, modify share properties, or delete shares.
Share Management
Shares
The Share Name, Partition, and Total Space columns describe the shares.
Properties - Modify. Click the Modify button to change the properties of a share. On the Share Properties
screen, enter a different name for the share, and/or select a different partition from the Resides in Partition drop-
down menu. Click the Create Share button to save the new properties, or click the Clear button to clear the
changes. Click the Cancel button to cancel the changes.
Share Access - Modify. Click the Modify button to change the access privileges of a share. On the Share Access
screen, groups with no access are listed in the Other Group column, and groups with access are listed in the
Group with Access column. To give a group read-only access, select the group, and click the >> Read Only
button. To give a group read/write access, select the group, and click the >> Read/Write button. To strip a group
of its current access privileges, select the group, and click the << Remove button. Click the Save Settings
button to save the changes, or click the Cancel Changes button to cancel the changes. Click the Close button to
exit the Share Access screen.
Delete. Click the Delete button to remove a share.
Create Share
Create New Share. Click the Create New Share button to create a new share. On the Share Properties screen,
enter a name for the share, and select a partition from the Resides in Partition drop-down menu. Click the Create
Share button to save the new properties, or click the Clear button to clear the changes. Click the Cancel button
to cancel the changes.
Figure 5-29: Storage Tab - Share Management
Figure 5-30: Share Properties
33
Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link
The Storage Tab - Administration
Wireless-N Gigabit Router with Storage Link
The Storage Tab - Administration
The Administration screen allows you to manage the users and groups of users that can access the shares.
Basic
Machine Name. Enter a name for the Router. Punctuation and other special characters (e.g., * / | \) cannot be
used in the name.
Workgroup Name. Enter the Workgroup Name of your networked computers.
After you have made your changes, click the Save Settings button to apply your changes, or click the Cancel
Changes button to cancel your changes.
User Management
The users are listed in the User Management table. There are two default users, admin (read/write access) and
guest (read-only access); these cannot be deleted.
Properties - Modify. Click the Modify button to change the properties of a user. On the User Properties screen,
enter a different name for the user, change the password, and/or select a different group from the Group drop-
down menu. Click the Create User button to save the new properties, or click the Clear button to clear the
changes. Click the Cancel button to cancel the changes.
Delete. Click the Delete button to remove a user.
Create New User. Click the Create New User button to create a new user. On the User Properties screen, enter a
name for the user. Then enter a password and enter it again in the Re-enter to confirm field. Select a group from
the Group drop-down menu. Click the Create User button to save the new properties, or click the Clear button to
clear the changes. Click the Cancel button to cancel the changes.
Group Management
The groups are listed in the Group Management table. There are two default groups, admin and guest; these
cannot be deleted.
Properties - Modify. Click the Modify button to change the user membership of a group. On the Group
Properties screen, users who are not members are listed in the Other Users column, and users who are members
are listed in the Users in Group column. To add a user to the group, select the user, and click the >> Join Group
button. To remove a user from the group, select the user, and click the << Remove button. Click the Save
Figure 5-31: Storage Tab - Administration
Figure 5-32: User Properties
34
Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link
The Storage Tab - Administration
Wireless-N Gigabit Router with Storage Link
Settings button to save the changes, or click the Cancel Changes button to cancel the changes. Click the Close
button to exit the Group Properties screen.
Delete. Click the Delete button to remove a user.
Create New Group. Click the Create New Group button to create a new group. On the Group Properties screen,
enter a name for the group. Click the Create Group button to save the new name, or click the Clear button to
clear the change. Click the Cancel button to cancel the change.
Figure 5-33: User Properties
35
Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link
The Storage Tab - Media Server
Wireless-N Gigabit Router with Storage Link
The Storage Tab - Media Server
The Router has a built-in media server, so it can stream music, pictures, or video from the USB hard disk to a
UPnP-compatible media adapter. The Media Server screen lets you select shares to scan for content.
UPnP Media Server
Setup
Server Name. The name of the Router is displayed here.
UPnP Media Server. To use the Router’s media server function, select Enable. Otherwise, select Disable.
Database
Select content to add to the database of the Router’s media server.
Scan All Partitions. Click this button to scan all partitions of the USB hard disk for content.
Select Partitions to Scan. Click this button to select specific partitions to scan for content.
The Partition and Folder columns describe the partitions of the USB hard disk.
Scan. Click the Scan button to scan a specific partition for content. The Partition List screen will appear. Click the
Select button to select a partition for scanning. Click the Up List button to move up one level in the file structure.
Click the Refresh button to update the on-screen information. Click the Close button to exit the Partition List
screen.
Delete. Click the Delete button to delete a specific partition from the Router’s database.
After you have made your changes, click the Save Settings button to apply your changes, or click the Cancel
Changes button to cancel your changes.
Figure 5-34: Storage Tab - UPnP Media Server
Figure 5-35: Partition List
36
Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link
The Storage Tab - Media Server
Wireless-N Gigabit Router with Storage Link
FTP Server
The FTP Server tab creates an FTP Server that can be accessed from the Internet or your local network.
Setup
Server Name. The name of the Router is displayed here.
FTP Server. Select Enable to set this Router as an FTP Server. Otherwise, select Disable to turn the service off.
(Note: A USB drive or USB disk must be connected to the USB Port to use this service.)
Internet Access. Select Enable to allow access of the FTP Server from the Internet. Otherwise select Disable to
only allow local network access.
Port. Select the Port service to use. The default port is 21.
Share
Select the partition or folder to share in the FTP Server.
All Partitions. Selects all partitions on the USB disk.
Specify Folder. If you want to share a specific folder, click Select Partition and locate the folder.
Access
Click FTP Share Access to grant specific rights to groups. You can grant Read Only or Read/Write permissions.
FTP Access. Select the group from the Other Group list and click either the Read Only or Read/Write button to
move the group to the Group With Access column.
After you have made your changes, click the Save Settings button to apply your changes, or click the Cancel
Changes button to cancel your changes. Click Close to exit this window.
Figure 5-36: FTP Server
Figure 5-37: FTP Access
37
Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link
The Access Restrictions Tab - Internet Access Policy
Wireless-N Gigabit Router with Storage Link
The Access Restrictions Tab - Internet Access Policy
The Internet Access Policy screen allows you to block or allow specific kinds of Internet usage and traffic, such as
Internet access, designated services, websites, and inbound traffic during specific days and times.
Internet Access Policy
Access Policy. Access can be managed by a policy. Use the settings on this screen to establish an access policy
(after the Save Settings button is clicked). Selecting a policy from the drop-down menu will display that policy’s
settings. To delete a policy, select that policy’s number and click the Delete This Policy button. To view all the
policies, click the Summary button.
On the Summary screen, the policies are listed with the following information: No., Policy Name, Access, Days,
Time, and status (Enabled). To enable a policy, click the Enabled checkbox. To delete a policy, click its Delete
button. Click the Save Settings button to save your changes, or click the Cancel Changes button to cancel your
changes. To return to the Internet Access Policy screen, click the Close button.
Status. Policies are disabled by default. To enable a policy, select the policy number from the drop-down menu,
and click the radio button beside Enabled.
To create a policy:
1. Select a number from the Access Policy drop-down menu.
2. Enter a Policy Name in the field provided.
3. To enable this policy, click the radio button beside Enabled.
4. Click the Edit List button to select which PCs will be affected by the policy. The List of PCs screen will appear.
You can select a PC by MAC address or IP address. You can also enter a range of IP addresses if you want this
policy to affect a group of PCs. After making your changes, click the Save Settings button to apply your
changes or Cancel Changes to cancel your changes.
5. Click the appropriate option, Deny or Allow, depending on whether you want to block or allow Internet access
for the PCs you listed on the List of PCs screen.
6. Decide which days and what times you want this policy to be enforced. Select the individual days during
which the policy will be in effect, or select Everyday. Then enter a range of hours and minutes during which
the policy will be in effect, or select 24 Hours.
Figure 5-38: Access Restrictions Tab - Internet Access
Policy
Figure 5-39: Summary
38
Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link
The Access Restrictions Tab - Internet Access Policy
Wireless-N Gigabit Router with Storage Link
7. You can block websites with specific URL addresses. Enter each URL in a separate field next to Website
Blocking by URL Address.
8. You can also block websites using specific keywords. Enter each keyword in a separate field next to Website
Blocking by Keyword.
9. You can filter access to various services accessed over the Internet, such as FTP or telnet. (You can block up
to three applications per policy.)
From the Applications list, select the application you want to block. Then click the >> button to move it to the
Blocked List. To remove an application from the Blocked List, select it and click the << button.
10. If the application you want to block is not listed or you want to edit a service’s settings, enter the application’s
name in the Application Name field. Enter its range in the Port Range fields. Select its protocol from the
Protocol drop-down menu. Then click the Add button.
To modify a service, select it from the Application list. Change its name, port range, and/or protocol setting.
Then click the Modify button.
To delete a service, select it from the Application list. Then click the Delete button.
11. Click the Save Settings button to save the policy’s settings. To cancel the policy’s settings, click the Cancel
Changes button.
For more information, click Help.
Figure 5-40: List of PCs
39
Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link
The Applications & Gaming Tab - Single Port Forwarding
Wireless-N Gigabit Router with Storage Link
The Applications & Gaming Tab - Single Port Forwarding
When you click the Applications & Gaming tab, you will see the Single Port Forwarding screen. You can customize
port services for common applications on this screen.
When users send these types of requests to your network via the Internet, the Router will forward those requests
to the appropriate servers (computers). Before using forwarding, you should assign static IP addresses to the
designated servers (use the DHCP Reservation feature on the Basic Setup screen).
Single Port Forwarding
Common applications are available for the first five entries. Select the appropriate application. Then enter the IP
address of the server that should receive these requests. Click the Enabled checkbox to activate this entry.
For additional applications, complete the following fields:
Application Name. Enter the name of the application.
External Port. Enter the external port number used by the server or Internet application. Check with the Internet
application documentation for more information.
Internal Port. Enter the internal port number used by the server or Internet application. Check with the Internet
application documentation for more information.
Protocol. Select the protocol TCP or UDP, or select Both.
To IP Address. Enter the IP address of the server that should receive the requests. To find the IP address, go to
“Appendix E: Finding the MAC Address and IP Address for Your Ethernet Adapter.” If you assigned a static IP
address to the server, then you can click the DHCP Reservation button on the Basic Setup screen to look up its
static IP address.
Enabled. Click the Enabled checkbox to enable the applications you have defined. This is disabled (unchecked)
by default.
When you have finished making changes to this screen, click the Save Settings button to save the changes, or
click the Cancel Changes button to undo your changes. For more information, click Help.

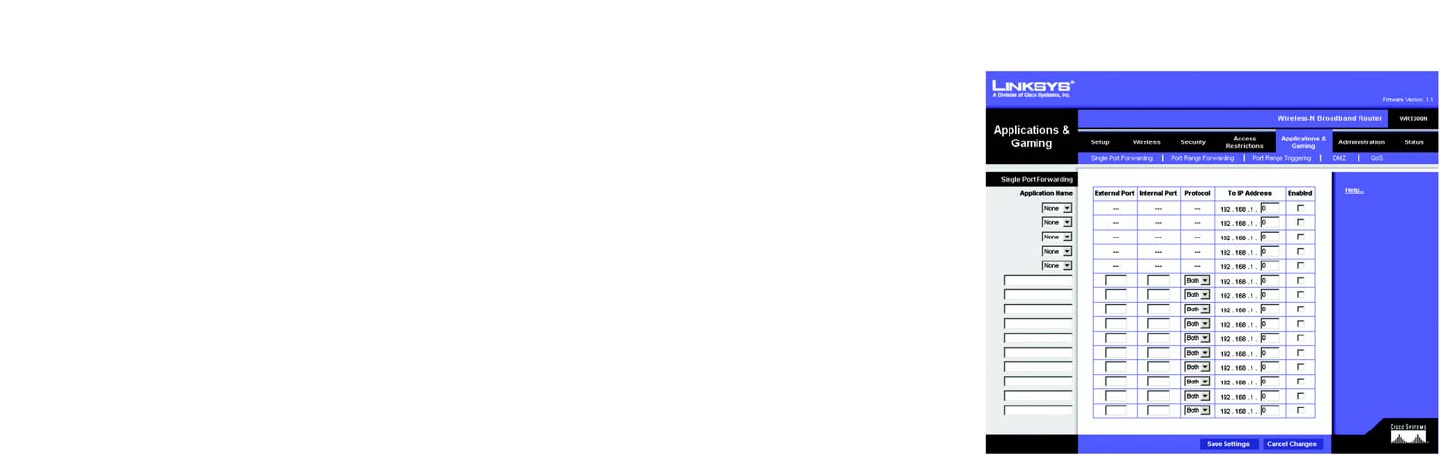

Figure 5-41: Applications & Gaming Tab -
Single Port Forwarding
tcp: a network protocol for transmitting data that
requires acknowledgement from the recipient of
data sent.
udp: a network protocol for transmitting data
that does not require acknowledgement from
the recipient of the data that is sent.
40
Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link
The Applications & Gaming Tab - Port Range Forwarding
Wireless-N Gigabit Router with Storage Link

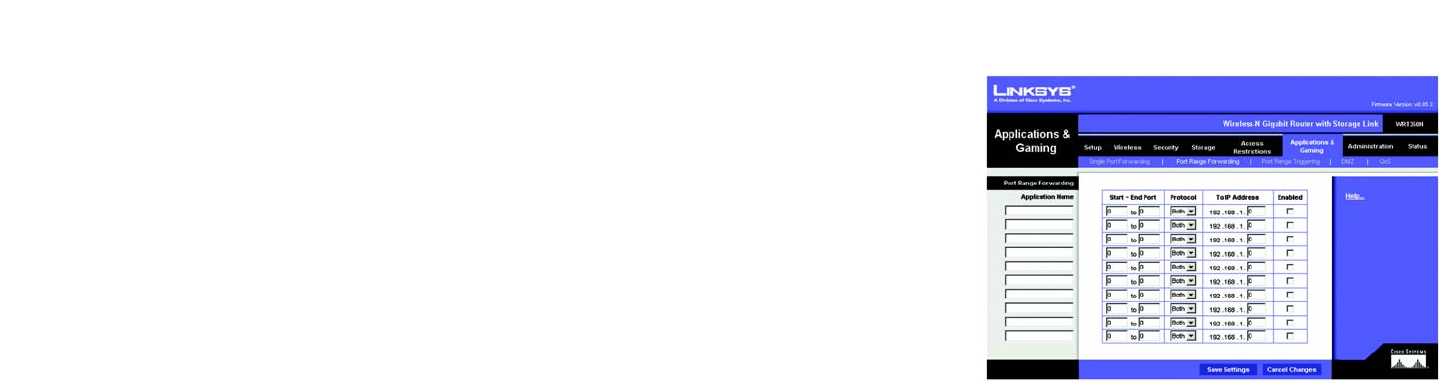

The Applications & Gaming Tab - Port Range Forwarding
Port range forwarding sets up public services on your network, such as web servers, ftp servers, e-mail servers,
or other specialized Internet applications. (Specialized Internet applications are any applications that use Internet
access to perform functions such as videoconferencing or online gaming. Some Internet applications may not
require any forwarding.)
When users send these types of requests to your network via the Internet, the Router will forward those requests
to the appropriate servers (computers). Before using forwarding, you should assign static IP addresses to the
designated servers (use the DHCP Reservation feature on the Basic Setup screen).
If you need to forward all ports to one PC, click the DMZ tab.
Port Range Forwarding
To add an application, complete the following fields:
Application Name. Enter the name of the application.
Start ~ End Port. Enter the number or range of port(s) used by the server or Internet application. Check with the
Internet application documentation for more information.
Protocol. Select the protocol TCP or UDP, or select Both.
To IP Address. Enter the IP address of the server that you want the Internet users to be able to access. To find
the IP address, go to “Appendix E: Finding the MAC Address and IP Address for Your Ethernet Adapter.” If you
assigned a static IP address to the server, then you can click the DHCP Reservation button on the Basic Setup
screen to look up its static IP address.
Enabled. Click the Enabled checkbox to enable the applications you have defined. This is disabled (unchecked)
by default.
When you have finished making changes to this screen, click the Save Settings button to save the changes, or
click the Cancel Changes button to undo your changes. For more information, click Help.
Figure 5-42: Applications & Gaming Tab -
Port Range Forwarding
41
Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link
The Applications & Gaming Tab - Port Range Triggering
Wireless-N Gigabit Router with Storage Link
The Applications & Gaming Tab - Port Range Triggering
This screen instructs the Router to watch outgoing data for specific port numbers. The IP address of the computer
that sends the matching data is remembered by the Router, so that when the requested data returns through the
Router, the data is sent to the proper computer by way of IP address and port mapping rules.
Port Range Triggering
To add an application, complete the following fields:
Application Name. Enter the name of the application.
Triggered Range. Enter the starting and ending port numbers of the triggered port range. Check with the Internet
application documentation for the port number(s) needed.
Forwarded Range. Enter the starting and ending port numbers of the forwarded port range. Check with the
Internet application documentation for the port number(s) needed.
Enabled. Click the Enabled checkbox to enable the applications you have defined. This is disabled (unchecked)
by default.
When you have finished making changes to this screen, click the Save Settings button to save the changes, or
click the Cancel Changes button to undo your changes. For more information, click Help.
Figure 5-43: Applications & Gaming Tab -
Port Range Triggering
42
Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link
The Applications & Gaming Tab - DMZ
Wireless-N Gigabit Router with Storage Link
The Applications & Gaming Tab - DMZ
The DMZ screen allows one local user to be exposed to the Internet for use of a special-purpose service such as
Internet gaming and videoconferencing. DMZ hosting forwards all the ports at the same time to one PC. The Port
Range Forwarding is more secure because it only opens the ports you want to have opened, while DMZ hosting
opens all the ports of one computer, exposing the computer to the Internet.
Any PC whose port is being forwarded must have its DHCP client function disabled and should have a new static
IP address assigned to it because its IP address may change when using the DHCP function.
DMZ
To use this feature, select Enabled. To disable DMZ hosting, select Disabled.
Source IP Address. If you want any IP address to be the source, select Any IP Address. If you want to specify an
IP address or range of IP addresses as the designated source, click the second radio button, and enter the IP
address(es) in the fields provided.
Destination. If you want to specify the DMZ host by IP address, select IP Address and complete the IP address in
the field provided. If you want to specify the DMZ host by MAC address, select MAC Address and enter the MAC
address in the field provided. To retrieve this information, click the DHCP Client Table button.
The DHCP Client Table lists computers and other devices that have been assigned IP addresses by the Router. The
list can be sorted by Client Name, Interface, IP Address, MAC Address, and Expired Time (how much time is left
for the current IP address). To select a DHCP client, click the Select button. To retrieve the most up-to-date
information, click the Refresh button. To exit this screen and return to the DMZ screen, click the Close button.
When you have finished making changes to this screen, click the Save Settings button to save the changes, or
click the Cancel Changes button to undo your changes. For more information, click Help.

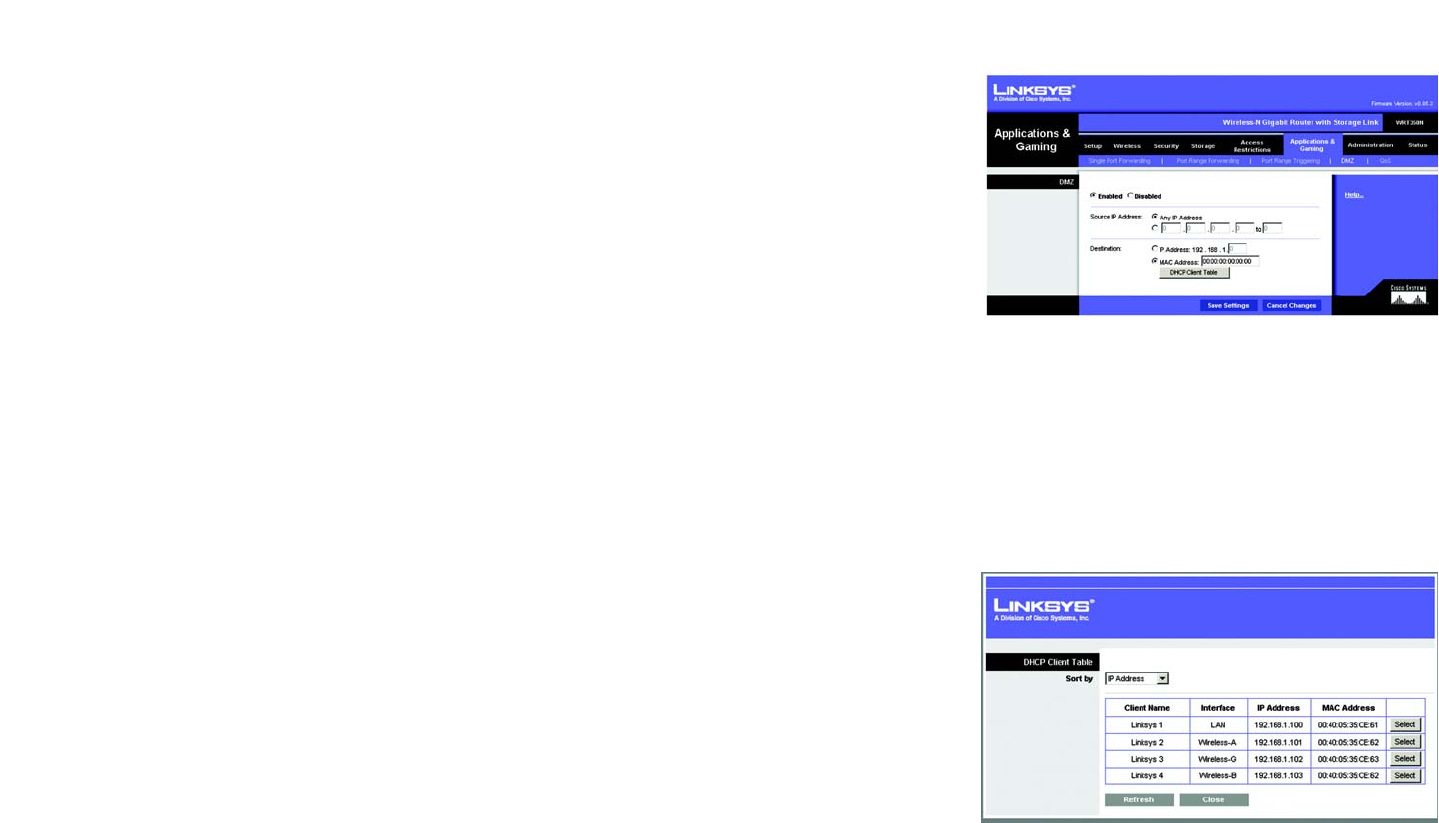

Figure 5-44: Applications & Gaming Tab - DMZ
Figure 5-45: DHCP Client Table
43
Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link
The Applications and Gaming Tab - QoS
Wireless-N Gigabit Router with Storage Link
The Applications and Gaming Tab - QoS
Quality of Service (QoS) ensures better service to high-priority types of network traffic, which may involve
demanding, real-time applications, such as videoconferencing.
QoS (Quality of Service)
Wireless
The Router features Wireless QoS. The No Acknowledgement feature is available only when the Wireless QoS
Support feature is enabled.
Wireless QoS. If you have other devices on your network that support Wireless QoS, select Enabled. Otherwise,
keep the default, Disabled.
No Acknowledgement. If you want to disable the Router’s Acknowledgement feature, so the Router will not re-
send data if an error occurs, then keep the default, Enabled. Otherwise, select Disabled.
Internet Access Priority
In this section, you can set the bandwidth priority for a variety of applications and devices. There are four levels
priority: High, Medium, Normal, or Low. When you set priority, do not set all applications to High, because this will
defeat the purpose of allocating the available bandwidth. If you want to select below normal bandwidth, select
Low. Depending on the application, a few attempts may be needed to set the appropriate bandwidth priority.
Enabled/Disabled. To use the QoS policies you have set, select Enabled. Otherwise, select Disabled.
Category
There are four categories available. Select one of the following: Applications,Online Games,MAC Address,
Ethernet Port, or Voice Device. Proceed to the instructions for your selection.
Applications
Applications. Select the appropriate application. If you select Add a New Application, follow the Add a New
Application instructions.
Priority. Select the appropriate priority: High,Medium,Normal, or Low.
Click the Add button to save your changes. Your new entry will appear in the Summary list.
Figure 5-46: Applications & Gaming Tab - QoS
(Applications)
