Chapter 3 Advanced Configuration

Simultaneous Dual-N Band Wireless Router

Applications and Gaming > DMZ

The DMZ feature allows one network computer to be

exposed to the Internet for use of a special-purpose

service such as Internet gaming or videoconferencing.

DMZ hosting forwards all the ports at the same time to

one PC. The Port Forward feature is more secure because it

only opens the ports you want to have opened, while DMZ

hosting opens all the ports of one computer, exposing the

computer to the Internet.

Applications and Gaming > DMZ

DMZ

Any PC whose port is being forwarded should have its

DHCP client function disabled and have a new static IP

address assigned to it because its IP address may change

when using the DHCP function.

To allow PCs on the Internet to access a local PC, select

Enabled. Then, select Any IP Address or manually enter

a specific source IP address of the computer you want to

allow access from the Internet. Then, enter your local PC’s

IP address or MAC address that you want to allow access

to. This feature is disabled by default.

Click Save Settings to apply your changes, or click Cancel

Changes to cancel your changes.

Applications and Gaming > QoS

Quality of Service (QoS) ensures better service to

high-priority types of network traffic, which may

involve demanding, real-time applications, such as

videoconferencing.

Applications and Gaming > QoS

QoS (Quality of Service)

Wireless

Wireless WMM (Wi-Fi Multimedia) WMM is a wireless

Quality of Service feature that improves quality for audio,

video, and voice applications by prioritizing wireless

traffic. To use this feature, your wireless client devices in

your network must support Wireless WMM. If you would

like to disable this feature, select Disabled. Otherwise,

keep the default, Enabled.

No Acknowledgement If you want to disable the Router’s

Acknowledgement feature, so the Router will not re-send

data if an error occurs, select Enabled. Otherwise, keep

the default, Disabled.

Internet Access Priority

In this section, you can set the bandwidth priority for a

variety of applications and devices. There are four levels

of priority; High, Medium, Normal, or Low. When you set

priority, do not set all applications to High, because this will

defeat the purpose of allocating the available bandwidth.

If you want to select below normal bandwidth, select Low.

Depending on the application, a few attempts may be

needed to set the appropriate bandwidth priority.

Enabled/Disabled To use the QoS policies you set, select

Enabled. Otherwise, select Disabled.

Chapter 3 Advanced Configuration

Simultaneous Dual-N Band Wireless Router

Category

There are four categories available. Select one of the

following: Applications, Online Games, MAC Address,

Ethernet Port, or Voice Device. Proceed to the instructions

for your selection.

Applications

Applications Select the appropriate application. If you

select Add a New Application, follow the instructions in the

“Add a New Application “section.

Priority Select the appropriate priority: High, Medium,

Normal, or Low.

Click Add to save your changes. Your new entry will appear

in the Summary list.

Add a New Application

Enter a Name Enter a name for this application.

Port Range Enter the port range that the application

will be using. For example, if you want to allocate

bandwidth for FTP, you can enter 21-21. If you need

services for an application that uses from 1000 to 1250,

you enter 1000-1250 as your settings. You can have up

to three ranges to define for this bandwidth allocation.

Port numbers can range from 1 to 65535. Check your

application’s documentation for details on the service

ports used.

Select the protocol TCP or UDP, or select Both.

Priority Select the appropriate priority: High, Medium,

Normal, or Low.

Click Add to save your changes. Your new entry will appear

in the Summary list.

Online Games

Games

Games Select the appropriate game. If you select Add

a New Game, follow the instructions in the “Add a New

Game section”.

Priority Select the appropriate priority: High, Medium,

Normal, or Low.

Click Add to save your changes. Your new entry will appear

in the Summary list.

Add a New Game

Enter a Name Enter any name to indicate the name of

the entry.

Port Range Enter the port range that the application will

be using. For example, if you want to allocate bandwidth

for FTP, you can enter 21-21. If you need services for an

application that uses from 1000 to 1250, you enter 1000-

1250 as your settings. You can have up to three ranges

to define for this bandwidth allocation. Port numbers

can range from 1 to 65535. Check your application’s

documentation for details on the service ports used.

Select the protocol TCP or UDP, or select Both.

Priority Select the appropriate priority: High, Medium,

Normal, or Low.

Click Add to save your changes. Your new entry will appear

in the Summary list.

Chapter 3 Advanced Configuration

Simultaneous Dual-N Band Wireless Router

MAC Address

Enter a Name Enter a name for your device.

MAC Address Enter the MAC address of your device.

Priority Select the appropriate priority: High, Medium,

Normal, or Low.

Click Add to save your changes. Your new entry will appear

in the Summary list.

Ethernet Port

Ethernet Select the Ethernet port that you want to use.

Priority Select the appropriate priority: High, Medium,

Normal, or Low.

Click Add to save your changes. Your new entry will appear

in the Summary list.

Voice Device

Enter a Name Enter a name for your voice device.

MAC Address. Enter the MAC address of your voice

device.

Priority Select the appropriate priority: High, Medium,

Normal, or Low.

Click Add to save your changes. Your new entry will appear

in the Summary list.

Summary

This lists the QoS entries you have created for your

applications and devices.

Priority This displays the bandwidth priority of High,

Medium, Normal, or Low.

Name This displays the application, device, or port

name.

Information This displays the port range or MAC address

entered for your entry. If a pre-configured application or

game was selected, there will be no valid entry shown in

this section.

Remove Click this button to remove an entry.

Edit Click this button to make changes.

When you finish making changes to this screen, click Save

Settings to save the changes, or click Cancel Changes to

undo your changes. For more information, click Help.

Chapter 3 Advanced Configuration

Simultaneous Dual-N Band Wireless Router

Administration > Management

The Administration > Management screen allows the

network’s administrator to manage specific Router

functions for access and security.

Administration > Management

Router Password

Router Access

Router Password Enter a new Password for the Router.

Re-enter to confirm Enter the Password again to confirm.

Local Management Access

Access via HTTP (HyperText Transport Protocol) is the

communications protocol used to connect to servers on

the World Wide Web. HTTPS uses SSL (Secured Socket

Layer) to encrypt data transmitted for higher security.

Select the HTTP or HTTPS check box. The default selection

is HTTP.

Access via Wireless If you are using the Router in a public

domain where you are giving wireless access to your guests,

you can disable wireless access to the Router’s web-based

utility. You will only be able to access the web-based utility

via a wired connection if you disable the setting. Keep the

default, Enabled, to enable wireless access to the Router’s

web-based utility, or select Disabled to disable wireless

access to the utility.

Remote Management Access

Remote Management To access the Router remotely

from the Internet, select Enabled.

Access via Select HTTP or HTTPS communications

protocols for remote access from the Internet.

Remote Upgrade Select Enabled to be able to upgrade

the firmware remotely from the Internet.

Allowed Remote IP Address Select Any IP Address or

manually enter an Internet IP address to allow remote

access to the web-based utility from the Internet.

Remote Management Port Enter the port number that

will provide outside access to the Router’s web-based

utility. You will need to enter the Router’s password when

accessing the Router this way, as usual.

UPnP

UPnP Keep the default, Enabled, to enable the UPnP

feature; otherwise, select Disabled.

Allow Users to Configure To use the Allow Users to

Configure UPnP options from the Windows operating

system, select Enabled.

Allow Users to Disabled Internet Access To use the

Allow Users to Disabled Internet Access options from the

Windows operating system, click Disabled.

Backup and Restore

Backup Configurations To back up the Router’s

configuration file, click this button. Then, follow the on-

screen instructions.

Restore Configurations To restore the Router’s

configuration file, click this button. Then, follow the on-

screen instructions.

Click Save Settings to apply your changes, or click Cancel

Changes to cancel your changes.

Administration > Log

The Router can keep logs of all traffic for your Internet

connection.

Administration > Log

Log

Log To disable the Log function, keep the default setting,

Disabled. To monitor traffic between the network and the

Internet, select Enabled.

Logviewer IP Address If your computer uses Logviewer

software you can enter enter the fixed IP address of the PC

running the software in the Logviewer IP Address field.s

The Router will now send updated logs to that PC.

Chapter 3 Advanced Configuration

Simultaneous Dual-N Band Wireless Router

When you wish to view the logs, click View Log.

Click Save the Log to save your log, click Refresh to

refresh the screen, or click Clear to clear the screen.

Click Save Settings to apply your changes, or click Cancel

Changes to cancel your changes.

Administration > Diagnostics

The diagnostic tests (Ping and Traceroute) allow you to

check the connections of your Internet network.

Administration > Diagnostics

Ping Test

Ping The Ping test checks the status of a connection.

Enter the address of the PC whose connection you wish

to test and how many times you wish to test it. Then, click

Start to Ping. The Ping Test screen will show if the test was

successful. Click Close to return to the Diagnostics screen.

Ping Test

Traceroute Test

Traceroute To test the performance of a connection,

click Traceroute to open the Traceroute Test screen. Enter

the address of the PC whose connection you wish to test

and click Traceroute. The Traceroute Test screen will show

if the test was successful. Click Close to return to the

Diagnostics screen.

Traceroute Test

Administration > Factory Defaults

The Administration > Factory Defaults screen allows you

to restore the Router’s configuration to its factory default

settings.

Factory Defaults

Restore Factory Defaults To reset the Router’s settings

to the default values, select Restore Factory Defaults.

Any settings you have saved will be lost when the default

settings are restored.

Administration > Factory Defaults

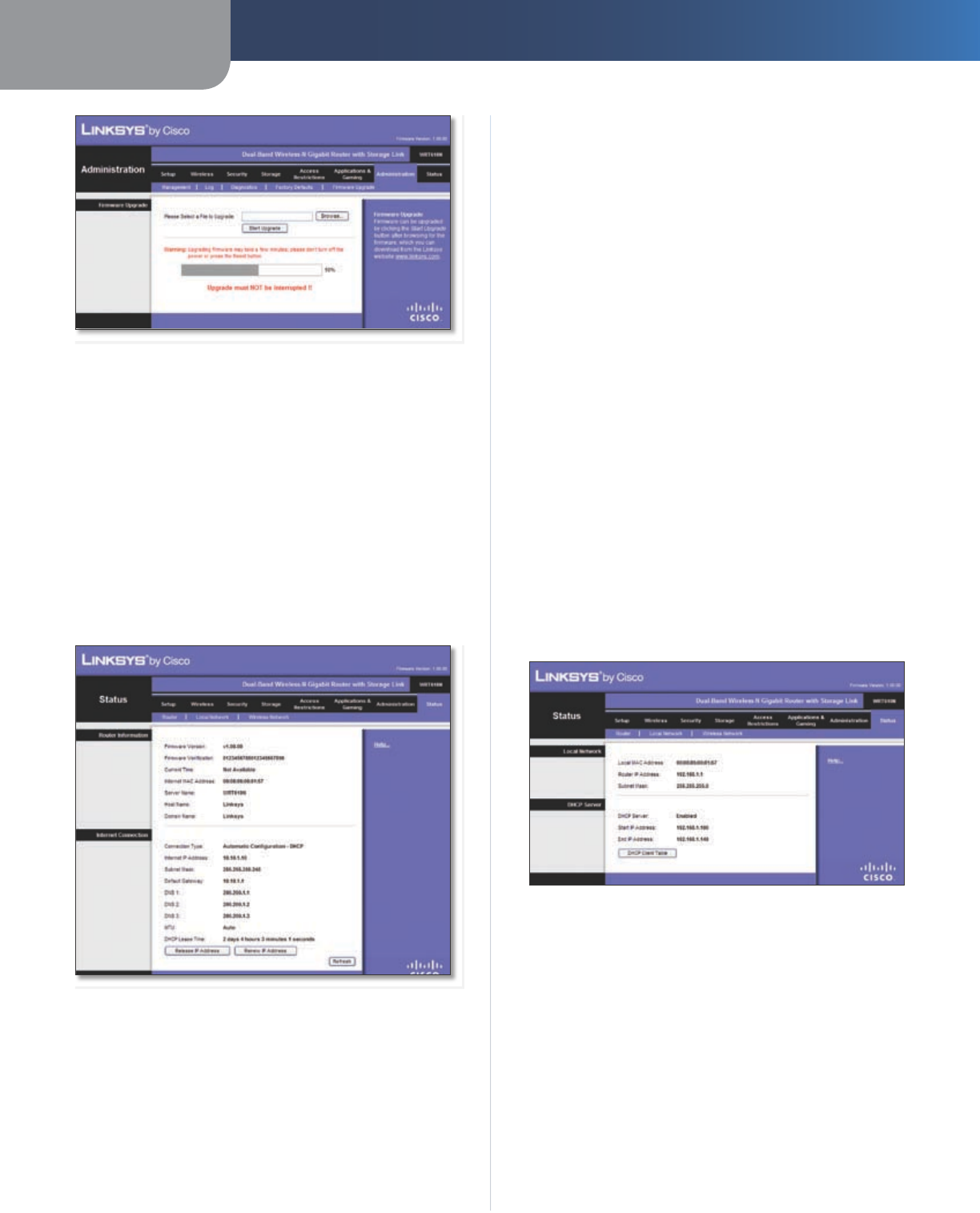

Administration > Firmware Upgrade

The Administration > Firmware Upgrade screen allows you

to upgrade the Router’s firmware. Do not upgrade the

firmware unless you are experiencing problems with the

Router or the new firmware has a feature you want to use.

Chapter 3 Advanced Configuration

Simultaneous Dual-N Band Wireless Router

Administration > Firmware Upgrade

Before upgrading the firmware, download the Router’s

firmware upgrade file from the Linksys website,

www.linksys.com. Then extract the file.

Upgrade Firmware

Please select a file to upgrade Click Browse and select

the extracted firmware upgrade file. Then c

lick Upgrade

and follow the on-screen instructions.

Status > Router

The Status > Router screen displays the Router’s current

status.

Status > Router

Router Information

Firmware Version This is the Router’s current firmware.

Firmware Verification This is a unique identifer that

verifies that you have valid firmware.

Current Time This shows the time, as you set on the

Setup tab.

Internet MAC Address This is the Router’s MAC Address,

as seen by your ISP.

Server Name This is the specific name that will be used

for the network storage FTP and Media Server. You entered

this name on the Storage > Administration tab.

Host Name If required by your ISP, this would have been

entered on the Setup tab.

Domain Name If required by your ISP, this would have

been entered on the Setup tab.

Internet Connection

Connection Type

This section shows the current network information

stored in the Router. The information varies depending on

the Internet connection type selected on the Setup > Basic

Setup screen.

Select Release IP Address or Renew IP Address as

appropriate to release or renew a DHCP lease.

Click Refresh to update the on-screen information.

Status > Local Network

The Status > Local Network screen displays information

about the local network.

Status > Local Network

Local Network

Local MAC Address The MAC Address of the Router’s

local interface is displayed here.

Router IP Address This shows the Router’s IP address, as

it appears on your local network.

Subnet Mask The Router’s Subnet Mask is shown here.

DHCP Server The status of the Router’s DHCP server

function is displayed here.

Start IP Address For the range of IP addresses used by

devices on your local network, the beginning IP address

is shown here.

Chapter 3 Advanced Configuration

Simultaneous Dual-N Band Wireless Router

End IP Address For the range of IP addresses used by

devices on your local network, the ending IP address is

shown here.

DHCP Client Table Click DHCP Client Table to view the

DHCP Client Table. It lists computers and other devices

that have been assigned IP addresses by the Router.

For more information, click Help.

Status > Wireless Network

The Status > Wireless Network screen displays the status

information of your 5 GHz and/or 2.4 GHz wireless

networks.

Status > Wireless Network

5GHz/2.4GHz Wireless Network

MAC Address The MAC Address of the Router’s wireless

interface is displayed here.

Mode The wireless mode (Mixed, Wireless-N Only,

Wireless-G Only, Wireless-B Only, Wireless-A Only or

Disabled) used by the network is displayed here.

Net work Name (SSID) The name of the wireless network

or SSID is displayed here.

Radio Band The Radio Band setting selected on the Basic

Wireless Settings screen is displayed here.

Wide Channel The Wide Channel setting selected on the

Basic Wireless Settings screen is displayed here.

Standard Channel The Standard Channel setting

selected on the Basic Wireless Settings screen is displayed

here.

Security The wireless security method used by the Router

is displayed here.

SSID Broadcast The status of the SSID Broadcast feature

is displayed here.

For more information, click Help.

Appendix A Troubleshooting

Simultaneous Dual-N Band Wireless Router

Appendix A:

Troubleshooting

Your computer cannot connect to the Internet.

Follow these instructions until your computer can connect

to the Internet:

Make sure that the Router is powered on. The Power •

LED should be green and not flashing.

If the Power LED is flashing, then power off all of •

your network devices, including the modem, Router,

and computers. Then power on each device in the

following order:

Cable or DSL modem1.

Router2.

Computer3.

Check the cable connections. The computer should •

be connected to one of the ports numbered 1-4 on

the Router, and the modem must be connected to the

Internet port on the Router.

The modem does not have an Ethernet port.

The modem is a dial-up modem for traditional dial-up

service. To use the Router, you need a cable/DSL modem

and high-speed Internet connection.

You cannot use the DSL service to connect manually to

the Internet.

After you have installed the Router, it will automatically

connect to your Internet Service Provider (ISP), so you no

longer need to connect manually.

The DSL telephone line does not t into the Router’s

Internet port.

The Router does not replace your modem. You still need

your DSL modem in order to use the Router. Connect the

telephone line to the DSL modem, and then insert the

setup CD into your computer. Click Setup and follow the

on-screen instructions.

When you double-click the web browser, you are

prompted for a username and password. If you want to

get rid of the prompt, follow these instructions.

Launch the web browser and perform the following steps

(these steps are specific to Internet Explorer but are similar

for other browsers):

Select 1. Tools > Internet Options.

Click the 2. Connections tab.

Select 3. Never dial a connection.

Click 4. OK.

The Router does not have a coaxial port for the cable

connection.

The Router does not replace your modem. You still need

your cable modem in order to use the Router. Connect

your cable connection to the cable modem, and then

insert the setup CD into your computer. Click Setup and

follow the on-screen instructions.

The computer cannot connect wirelessly to the network.

Make sure the wireless network name or SSID is the same

on both the computer and the Router. If you have enabled

wireless security, then make sure the same security

method and key are used by both the computer and the

Router.

You need to modify the settings on the Router.

Open the web browser (for example, Internet Explorer or

Firefox), and enter the Router’s IP address in the address

field (the default IP address is 192.168.1.1). When

prompted, enter the password to the Router (the default is

admin). Click the appropriate tab to change the settings.

WEB: If your questions are not addressed here,

refer to the Linksys website, www.linksys.com

Appendix B How to Install and Access USB Storage

Simultaneous Dual-N Band Wireless Router

Appendix B: How to Install

and Access USB Storage

Overview

This appendix explains how to connect and access an

external USB storage device.

How to Install the USB Storage

Make sure your computer has a wired or wireless 1.

connection to the Router.

Connect an external USB hard drive or USB flash disk 2.

to the USB port of the Router.

Proceed to the next section, “How to Access the USB 3.

Storage”.

How to Access the USB Storage

Follow the instructions for your Windows operating

system, XP or Vista.

Instructions for Windows XP

Click 1. Start.

Click 2. Search.

Click Search

Click 3. Computers or people.

Click Computers or People

Click 4. A computer on the network.

Click A Computer on the Network

In the 5. Computer name field, enter the server name

that you created on the Storage > Administration

screen. The default server name is WRT610N. See the

Advanced Configuration section later in this Appendix

for information on how to change the server name.

Then click Search.

Enter Server Name

Appendix B How to Install and Access USB Storage

Simultaneous Dual-N Band Wireless Router

In the Name column, double-click 6. Wrt610n.

Double-Click WRT610N

In the 7. User name and Password fields enter the default

User name and password, admin. If you want to

change the password, see the Advanced Configuration

section later in this Appendix. Click OK.

The Default shared folder of your USB storage appears. 8.

To access your USB storage, double-click Default.

Double-click Default

To map the Default shared folder to your computer, 9.

right-click Default. Click Map Network Drive.

Click Map Network Drive

Keep the default Drive letter, or select the letter 10.

you want to use from the Drive drop-down menu.

Click Finish.

Map Network Drive

Appendix B How to Install and Access USB Storage

Simultaneous Dual-N Band Wireless Router

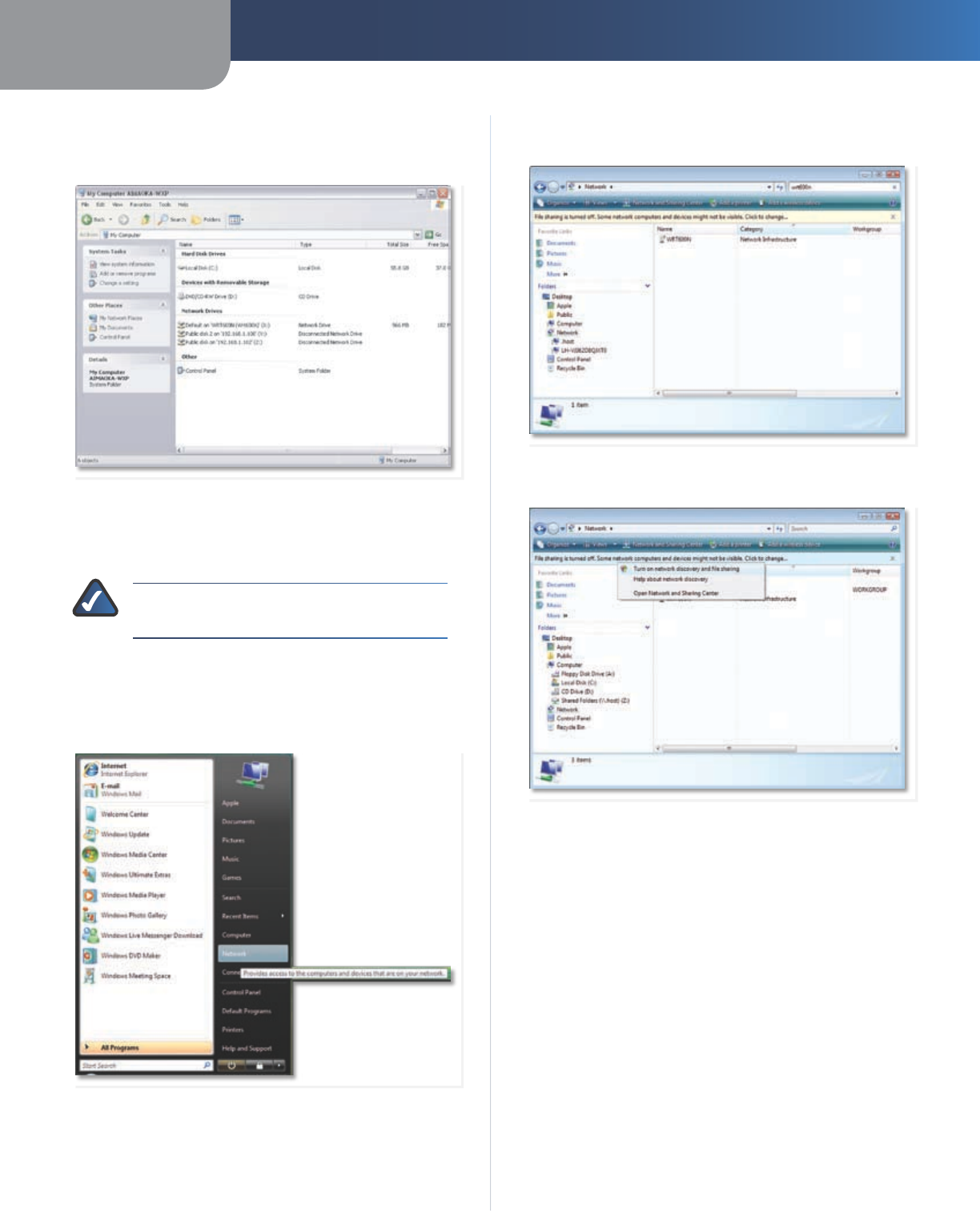

On your desktop, double-click 11. My Computer. The

Default shared folder of your USB storage is listed

under Network Drives.

Network Drive

To access your USB storage, double-click the Default

shared folder. You can use the Default shared folder as

another drive on your network.

NOTE: Repeat steps 1-11 to map the USB

storage to each XP computer on your network.

Instructions for Windows Vista

Click 1. Start.

Click 2. Network.

Click Network

You will be notified if file sharing is turned off. Click the 3.

message.

Click the Message

Click 4. Turn on network discovery and file sharing.

Click Turn on Network Discovery and File Sharing

Appendix B How to Install and Access USB Storage

Simultaneous Dual-N Band Wireless Router

Double-click WRT610N listed in the Computer

category (do not double-click WRT610N

listed in the Network Infrastructure category).

If you do not see the WRT610N listed in the Computer

category, then enter the default server name,

WRT610N in the Search field, and press the Enter key.

See the Advanced Configuration section later in this

Appendix for information on how to change the server

name.

Double-Click WRT610N (Computer Category)

In the 6. User name and Password fields, enter the default

User name and password, admin. If you want to

change the password, see the Advanced Configuration

section later in this Appendix. Click OK.

The Default shared folder of your USB storage appears. 7.

To access your USB storage, double-click Default.

Double-Click Default

To map the Default shared folder to your computer, 8.

right-click Default. Click Map Network Drive.

Click Map Network Drive

Keep the default Drive letter, or select the letter 9.

you want to use from the Drive drop-down menu.

Click Finish.

Map Network Drive

Appendix B How to Install and Access USB Storage

Simultaneous Dual-N Band Wireless Router

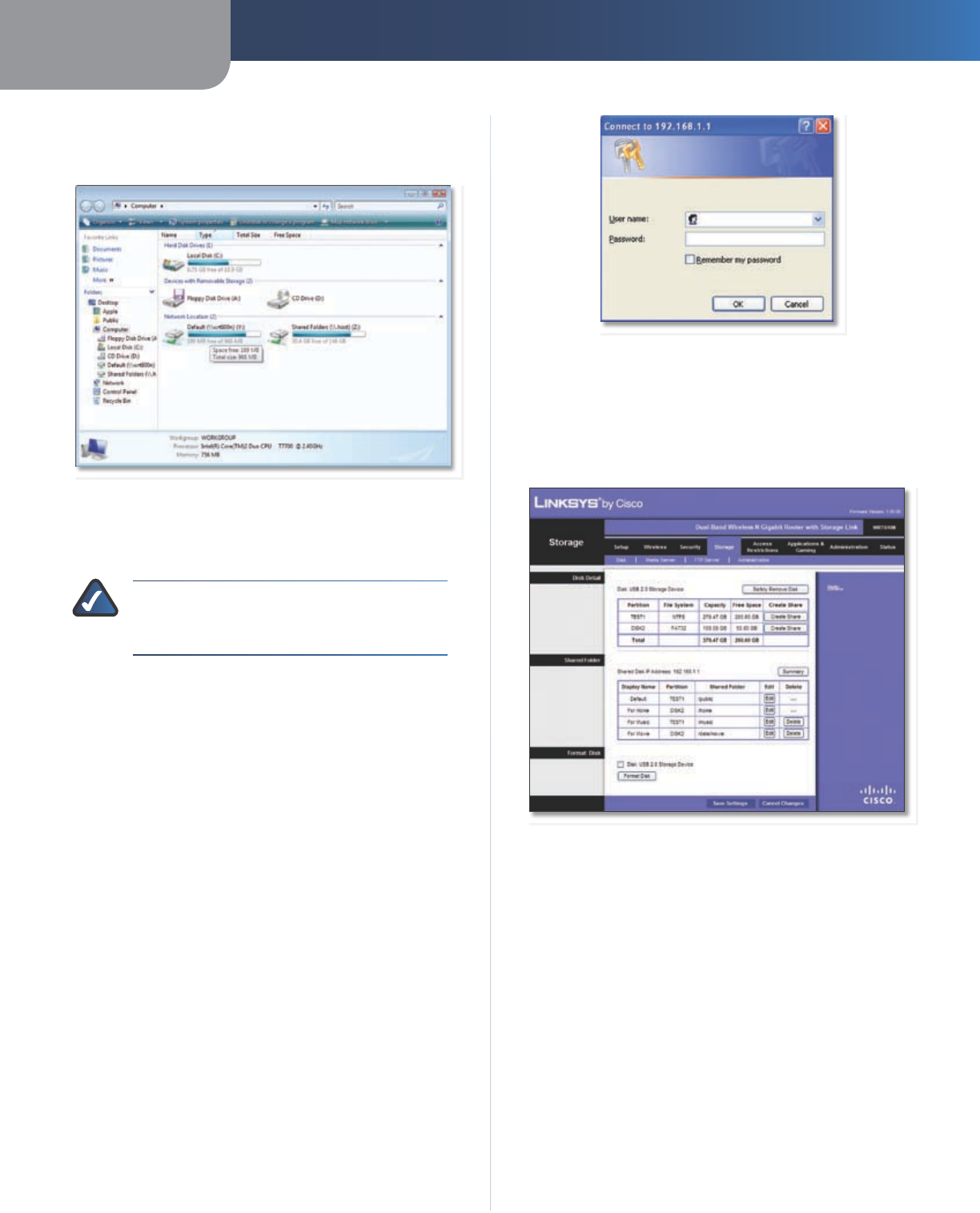

On your desktop, double-click 10. My Computer. The

Default shared folder of your USB storage is listed

under Network Location.

Network Drive

To access your USB storage, double-click the Default

shared folder. You can use the Default shared folder as

another drive on your network.

NOTE: Repeat steps 1-10 to map the USB

storage to each Vista computer on your

network,

Advanced Configuration (Advanced

Users Only)

To manage access to the USB storage device, you can

create shared folders, user groups, and user accounts.

Follow the instructions in this section.

How to Access the Web-Based Utility

To access the web-based utility, launch the web browser on

your computer, and enter the Router’s default IP address,

192.168.1.1 or http://wrt610n.com, in the Address field.

Then, press Enter.

A password request screen will appear. (Non-Windows XP

users will see a similar screen.) Leave the User name field

blank. The first time you open the web-based utility, use

the default password admin. (You can set a new password

from the Administration tab’s Management screen.) Click

OK to continue.

Password Screen

How to Create a Shared Folder

Click the 1. Storage tab.

Click the 2. Disk tab.

To create a shared folder, click 3. Create Share.

Storage > Disk

Appendix B How to Install and Access USB Storage

Simultaneous Dual-N Band Wireless Router

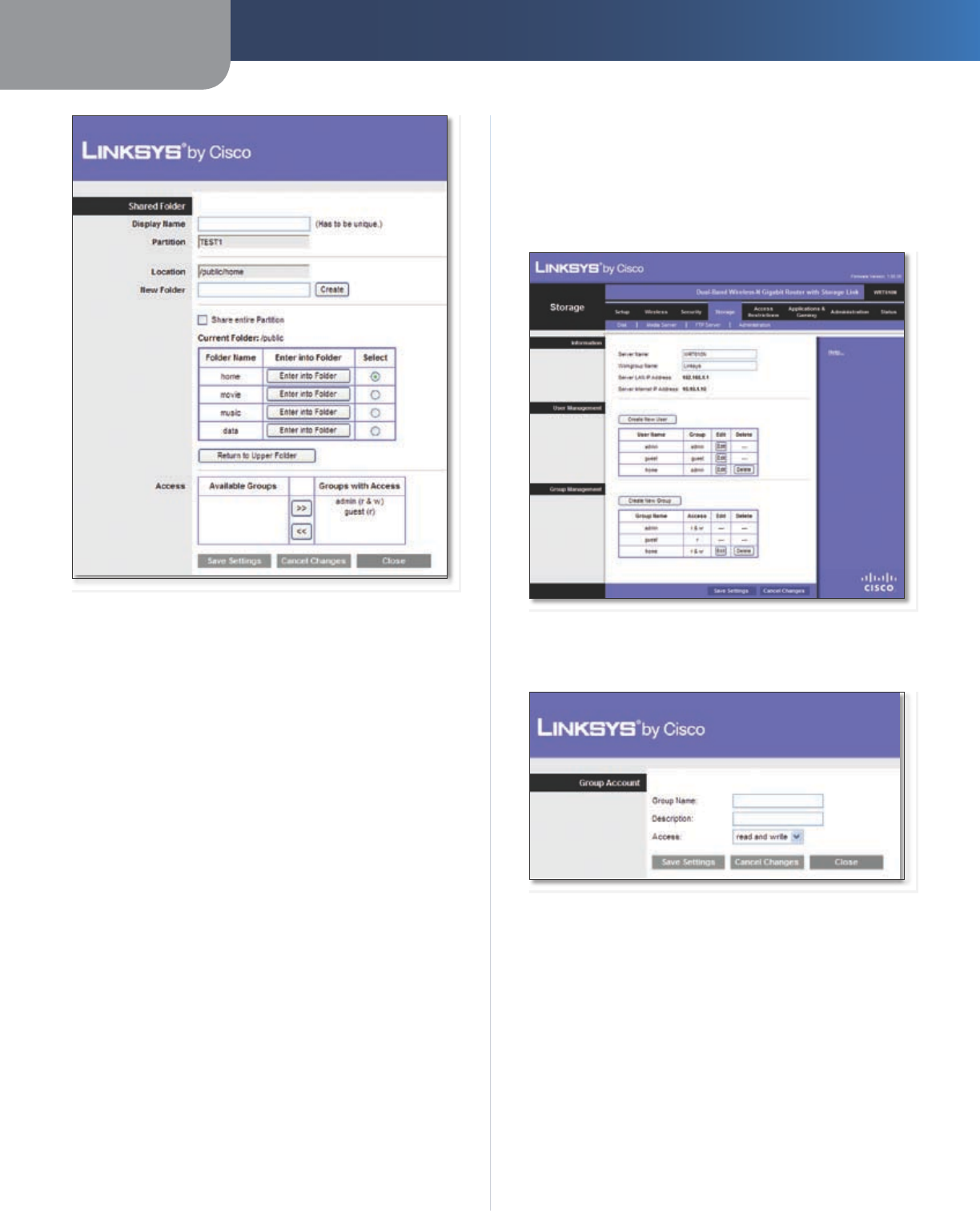

Shared Folder Screen

Display Name Enter a display name that will appear in

the Shared Folder table of the Disk screen.

Partion The name of the Partion to share, that you

selected in the Shared Folder will appear here.

Location The location of the shared folder is displayed.

New Folder To create a new folder, enter a name for the

folder and click Create.

Share entire Partion To share the entire partition, click

the check box for Share entire Partion.

If you don’t want to share the entire partition, you can

specify the folder you do want to share. Select a folder

name to share. To see a sub-folder, click Enter into Folder.

To return to the previous folder, click Return to Upper

Folder. To create a new folder, enter a name in the New

Folder field, then click Create.

Access Select the right Access arrows to allow access to

a group or the left arrows to remove access to a group.

You can allow Read and Write or Read Only access. To add

more groups, go to the Storage > Administration s

Click Save Settings to apply your changes, or click Cancel

Changes to cancel your changes. Click Close to exit the

screen.

How to Create a User Group

Click the 1. Storage tab.

Click the 2. Administration tab.

In the Group Management section, click 3. Create New

Group.

Storage > Administration

The 4. Group Account screen appears. In the Group Name

field, enter a name for the new group.

Group Account

In the5. Description field, enter a description for the new

group.

From the 6. Access drop-down menu, select read and

write or read only access.

On the 7. Group Account screen, click Save Settings to

save the new changes, or click Cancel Changes to

cancel the changes. Click Close to close the screen.

On the8. Administration screen, click Save Settings to

apply your changes, or click Cancel Changes to cancel

your changes.

How to Change the Server Name

Click the 1. Storage tab.

Appendix B How to Install and Access USB Storage

Simultaneous Dual-N Band Wireless Router

Click the 2. Administration tab.

In the 3. Information, Server Name field enter a new Server

name.

Click Save Settings to apply your changes, or click Cancel

Changes to cancel your changes. Click Close to exit the

screen.

How to Create a User Account

Click the 1. Storage tab.

Click the 2. Administration tab.

In the User Management section, click 3. Create New

User.

The4. User Account screen appears. In the User Name

field, enter a name for the new user.

User Account

In the 5. Full Name field, enter the full name of the new

user.

In the6. Description field, enter a description for the new

user.

In the7. Password and Confirm Password fields, enter a

password.

From the 8. Group Member drop-down menu, select the

appropriate group.

If you want to disable the user account, select 9. Account

Disabled.

On the 10. User Account screen, click Save Settings to save

the new changes, or click Cancel Changes to cancel

the changes. Click Close to close the screen.

On the11. Administration screen, click Save Settings to

apply your changes, or click Cancel Changes to cancel

your changes.

Appendix C Specications

Simultaneous Dual-N Band Wireless Router

Appendix C:

Specications

Model WRT610N

Standards Draft 802.11n, 802.11a, 802.11g,

802.11b, 802.3, 802.3u, 802.3ab

Ports Power, Ethernet, Internet, USB

Button Reset, Wi-Fi Protected Setup (WPS)

LEDs Power, USB, Internet, Wireless, Wi-

Fi Protected Setup (WPS) Ethernet

(1-4)

No. of Antennas 3 Antennas for 2.4 GHz Wireless-N

3 Antennas for 5 GHz Wireless-N

Modulations 802.11b: CCK, QPSK, BPSK

802.11g: OFDM

802.11a: OFDM

Wireless-N: BPSK, QPSK, 16-QAM,

64-QAM

RF Peak Pwr 2.4GHz Wireless-N @ 22.5 ± 1.5dbm

(EIRP) in dBm (Typical)

5GHz Wireless-N @ 23.5 ± 1.5dbm

(Typical)

Antenna Gain in dBi 2.4GHz Wireless-N @ 270Mbps

@-66 @ 10 PER

5GHz Wireless-N @ 270Mbps

@ -61 @ 10 PER

UPnP Supported

Security Features WEP, WPA, WPA2

WEP Key Bits Up to 128-Bit Encryption

Environmental

Dimensions 8.86" x 1.38" x 7.09"

(225 x 35 x 180 mm)

Unit Weight oz ( g)

Power 12V/1.5A

FCC, IC, CE, Wi-Fi a/b/g/draft-n,

Vista Premium logo

Operating Temp. 0 to 40°C (32 to 104°F)

Storage Temp. -20 to 60°C (-4 to 140°F)

Operating Humidity 10 to 80%, Noncondensing

Storage Humidity 5 to 90% Noncondensing

Appendix D Warranty Information

Simultaneous Dual-N Band Wireless Router

Appendix D:

Warranty Information

Limited Warranty

Linksys warrants this Linksys hardware product against

defects in materials and workmanship under normal

use for the Warranty Period, which begins on the date of

purchase by the original end-user purchaser and lasts for

the period specified below:

One (1) year for new product •

Ninety (90) days for refurbished product •

This limited warranty is non-transferable and extends only

to the original end-user purchaser. Your exclusive remedy

and Linksys’ entire liability under this limited warranty

will be for Linksys, at its option, to (a) repair the product

with new or refurbished parts, (b) replace the product

with a reasonably available equivalent new or refurbished

Linksys product, or (c) refund the purchase price of the

product less any rebates. Any repaired or replacement

products will be warranted for the remainder of the

original Warranty Period or thirty (30) days, whichever is

longer. All products and parts that are replaced become

the property of Linksys.

Exclusions and Limitations

This limited warranty does not apply if: (a) the product

assembly seal has been removed or damaged, (b) the

product has been altered or modified, except by Linksys, (c)

the product damage was caused by use with non-Linksys

products, (d) the product has not been installed, operated,

repaired, or maintained in accordance with instructions

supplied by Linksys, (e) the product has been subjected to

abnormal physical or electrical stress, misuse, negligence,

or accident, (f) the serial number on the Product has been

altered, defaced, or removed, or (g) the product is supplied

or licensed for beta, evaluation, testing or demonstration

purposes for which Linksys does not charge a purchase

price or license fee.

ALL SOFTWARE PROVIDED BY LINKSYS WITH THE

PRODUCT, WHETHER FACTORY LOADED ON THE

PRODUCT OR CONTAINED ON MEDIA ACCOMPANYING

THE PRODUCT, IS PROVIDED “AS IS” WITHOUT WARRANTY

OF ANY KIND. Without limiting the foregoing, Linksys does

not warrant that the operation of the product or software

will be uninterrupted or error free. Also, due to the

continual development of new techniques for intruding

upon and attacking networks, Linksys does not warrant

that the product, software or any equipment, system or

network on which the product or software is used will be

free of vulnerability to intrusion or attack. The product

may include or be bundled with third party software or

service offerings. This limited warranty shall not apply to

such third party software or service offerings. This limited

warranty does not guarantee any continued availability

of a third party’s service for which this product’s use or

operation may require.

TO THE EXTENT NOT PROHIBITED BY LAW, ALL IMPLIED

WARRANTIES AND CONDITIONS OF MERCHANTABILITY,

SATISFACTORY QUALITY OR FITNESS FOR A PARTICULAR

PURPOSE ARE LIMITED TO THE DURATION OF THE

WARRANTY PERIOD. ALL OTHER EXPRESS OR IMPLIED

CONDITIONS, REPRESENTATIONS AND WARRANTIES,

INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED

WARRANTY OF NON-INFRINGEMENT, ARE DISCLAIMED.

Some jurisdictions do not allow limitations on how long

an implied warranty lasts, so the above limitation may not

apply to you. This limited warranty gives you specific legal

rights, and you may also have other rights which vary by

jurisdiction.

TO THE EXTENT NOT PROHIBITED BY LAW, IN NO EVENT

WILL LINKSYS BE LIABLE FOR ANY LOST DATA, REVENUE

OR PROFIT, OR FOR SPECIAL, INDIRECT, CONSEQUENTIAL,

INCIDENTAL OR PUNITIVE DAMAGES, REGARDLESS OF THE

THEORY OF LIABILITY (INCLUDING NEGLIGENCE), ARISING

OUT OF OR RELATED TO THE USE OF OR INABILITY TO

USE THE PRODUCT (INCLUDING ANY SOFTWARE), EVEN

IF LINKSYS HAS BEEN ADVISED OF THE POSSIBILITY OF

SUCH DAMAGES. IN NO EVENT WILL LINKSYS’ LIABILITY

EXCEED THE AMOUNT PAID BY YOU FOR THE PRODUCT.

The foregoing limitations will apply even if any warranty

or remedy provided under this limited warranty fails of

its essential purpose. Some jurisdictions do not allow

the exclusion or limitation of incidental or consequential

damages, so the above limitation or exclusion may not

apply to you.

Obtaining Warranty Service

If you have a question about your product or experience a

problem with it, please go to www.linksys.com/support

where you will find a variety of online support tools and

information to assist you with your product. If the product

proves defective during the Warranty Period, contact

Linksys Technical Support for instructions on how to

obtain warranty service. The telephone number for Linksys

Technical Support in your area can be found in the product

User Guide and at www.linksys.com. Have your product

serial number and proof of purchase on hand when calling.

A DATED PROOF OF ORIGINAL PURCHASE IS REQUIRED

TO PROCESS WARRANTY CLAIMS. If you are requested to

return your product, you will be given a Return Materials

Authorization (RMA) number. You are responsible for

properly packaging and shipping your product to Linksys

at your cost and risk. You must include the RMA number

and a copy of your dated proof of original purchase when

returning your product. Products received without a RMA

number and dated proof of original purchase will be

Appendix D Warranty Information

Simultaneous Dual-N Band Wireless Router

rejected. Do not include any other items with the product

you are returning to Linksys. Defective product covered

by this limited warranty will be repaired or replaced and

returned to you without charge. Customers outside of

the United States of America and Canada are responsible

for all shipping and handling charges, custom duties,

VAT and other associated taxes and charges. Repairs or

replacements not covered under this limited warranty will

be subject to charge at Linksys’ then-current rates.

Technical Support

This limited warranty is neither a service nor a support

contract. Information about Linksys’ current technical

support offerings and policies (including any fees for

support services) can be found at:

www.linksys.com/support.

This limited warranty is governed by the laws of the

jurisdiction in which the Product was purchased by you.

Please direct all inquiries to: Linksys, P.O. Box 18558, Irvine,

CA 92623.

Appendix E

Simultaneous Dual-N Band Wireless Router

Appendix E:

Regulatory Information

FCC Statement

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions: (1)

This device may not cause harmful interference, and (2) this

device must accept any interference received, including

interference that may cause undesired operation.

This product has been tested and complies with the

specications for a Class B digital device, pursuant to Part

15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in

a residential installation. This equipment generates,

uses, and can radiate radio frequency energy and, if not

installed and used according to the instructions, may

cause harmful interference to radio communications.

However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception,

which is found by turning the equipment o and on, the

user is encouraged to try to correct the interference by

one or more of the following measures:

Reorient or relocate the receiving antenna•

Increase the separation between the equipment or •

devices

Connect the equipment to an outlet other than the •

receiver’s

Consult a dealer or an experienced radio/TV technician •

for assistance

FCC Caution: Any changes or modications not expressly

approved by the party responsible for compliance could

void the user’s authority to operate this equipment.

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure

limits set forth for an uncontrolled environment. This

equipment should be installed and operated with

minimum distance 20cm between the radiator and your

body.

This transmitter must not be co-located or operating in

conjunction with any other antenna or transmitter. IEEE

802.11b or 802.11g operation of this product in the USA is

rmware-limited to channels 1 through 11.

The device for the band 5150-5250 MHz is only for indoor

usage to reduce the potential for harmful interference

to co-channel mobile satellite systems; the maximum

antenna gain of 3 dBi permitted (for devices in the band

5725-5825 MHz) to comply with the e.i.r.p. limits specied

for point-to-point and non point-to-point operation as

appropriate, as stated in section A9.2(3).

Safety Notices

Caution: To reduce the risk of re, use only No.26 AWG •

or larger telecommunication line cord.

Do not use this product near water, for example, in a •

wet basement or near a swimming pool.

Avoid using this product during an electrical storm. •

There may be a remote risk of electric shock from

lightning.

WARNING: This product contains lead, known

to the State of California to cause cancer, and

birth defects or other reproductive harm. Wash

hands after handling.

Wireless Disclaimer

The maximum performance for wireless is derived from

IEEE Standard 802.11 specications. Actual performance

can vary, including lower wireless network capacity,

data throughput rate, range and coverage. Performance

depends on many factors, conditions and variables,

including distance from the access point, volume of

network trac, building materials and construction,

operating system used, mix of wireless products used,

interference and other adverse conditions.

Industry Canada Statement

This Class B digital apparatus complies with Canadian

ICES-003 and RSS210.

Operation is subject to the following two conditions:

This device may not cause interference and1.

This device must accept any interference, including 2.

interference that may cause undesired operation of

the device.

To reduce potential radio interference to other users, the

antenna type and its gain should be so chosen that the EIRP

is not more than required for successful communication.

Industry Canada Radiation Exposure Statement

This equipment complies with IC radiation exposure limits

set forth for an uncontrolled environment. This equipment

should be installed and operated with minimum distance

20cm between the radiator & your body.

This transmitter must not be co-located or operating in

conjunction with any other antenna or transmitter.

Regulatory Information

Appendix E

Simultaneous Dual-N Band Wireless Router

Restrictions in the 5 GHz Band

The device for the band 5150-5250 MHz is only

for indoor usage to reduce potential for harmful

interference to co-channel mobile satellite systems.

Transmitter

Circuit

Antenna

Type

For 2.4

GHz

Gain

(dBi)

For 5

GHz

Gain

(dBi)

Antenna

Connector

chain(0)

chain(1)

chain(2)

PIFA 0.75 3 NA TX & RX function

TX & RX function

Only RX function

PIFA 1.5 2.23 NA

PIFA 3.5 2.5 NA

Avis d’Industrie Canada

Cet appareil numérique de la classe B est conforme aux

normes NMB-003 et RSS210 du Canada.

L’utilisation de ce dispositif est autorisée seulement aux

conditions suivantes :

il ne doit pas produire de brouillage et 1.

il doit accepter tout brouillage radioélectrique reçu, 2.

même si ce brouillage est susceptible de compromettre

le fonctionnement du dispositif. Le dispositif a été

conçu pour fonctionner avec une antenne ayant un gain

maximum de 2 dBi. Les règlements d’Industrie Canada

interdisent strictement l’utilisation d’antennes dont le

gain est supérieur à cette limite. L’impédance requise

de l’antenne est de 50 ohms.

An de réduire le risque d’interférence aux autres

utilisateurs, le type d’antenne et son gain doivent

être choisis de façon à ce que la puissance isotrope

rayonnée équivalente (p.i.r.e.) ne soit pas supérieure

au niveau requis pour obtenir une communication

satisfaisante.

Avis d’Industrie Canada concernant l’exposition

aux radiofréquences

Ce matériel est conforme aux limites établies par IC

en matière d’exposition aux radiofréquences dans un

environnement non contrôlé. Ce matériel doit être installé

et utilisé à une distance d’au moins 20 cm entre l’antenne

et le corps de l’utilisateur.

L’émetteur ne doit pas être placé près d’une autre antenne

ou d’un autre émetteur, ou fonctionner avec une autre

antenne ou un autre émetteur.

Avis de non-responsabilité concernant les

appareils sans l

Les performances maximales pour les réseaux sans l

sont tirées des spécications de la norme IEEE 802.11.

Les performances réelles peuvent varier, notamment

en fonction de la capacité du réseau sans l, du débit

de la transmission de données, de la portée et de la

couverture. Les performances dépendent de facteurs,

conditions et variables multiples, en particulier de la

distance par rapport au point d’accès, du volume du trac

réseau, des matériaux utilisés dans le bâtiment et du

type de construction, du système d’exploitation et de la

combinaison de produits sans l utilisés, des interférences

et de toute autre condition défavorable.

Regulatory Information

Note

Appendix E Regulatory Information

Simultaneous Dual-N Band Wireless Router

User Information for Consumer Products

Covered by EU Directive 2002/96/EC on

Waste Electric and Electronic Equipment

(WEEE)

This document contains important information for users

with regards to the proper disposal and recycling of

Linksys products. Consumers are required to comply with

this notice for all electronic products bearing the following

symbol:

English - Environmental Information for Customers in

the European Union

European Directive 2002/96/EC requires that the equipment

bearing this symbol on the product and/or its packaging must

not be disposed of with unsorted municipal waste. The symbol

indicates that this product should be disposed of separately

from regular household waste streams. It is your responsibility to

dispose of this and other electric and electronic equipment via

designated collection facilities appointed by the government or

local authorities. Correct disposal and recycling will help prevent

potential negative consequences to the environment and

human health. For more detailed information about the disposal

of your old equipment, please contact your local authorities,

waste disposal service, or the shop where you purchased the

product.

Български (Bulgarian) - Информация относно

опазването на околната среда за потребители в

Европейския съюз

Европейска директива 2002/96/EC изисква уредите, носещи

този символ върху изделието и/или опаковката му, да не

се изхвърля т с несортирани битови отпадъци. Символът

обозначава, че изделието трябва да се изхвърля отделно от

сметосъбирането на обикновените битови отпадъци. Ваша

е отговорността този и другите електрически и електронни

уреди да се изхвърлят в предварително определени от

държавните или общински органи специализирани пунктове

за събиране. Правилното изхвърляне и рециклиране

ще спомогнат да се предотвратят евентуални вредни за

околната среда и здравето на населението последствия. За

по-подробна информация относно изхвърлянето на вашите

стари уреди се обърнете към местните власти, службите за

сметосъбиране или магазина, от който сте закупили уреда.

Ceština (Czech) - Informace o ochraně životního

prostředí pro zákazníky v zemích Evropské unie

Evropská směrnice 2002/96/ES zakazuje, aby zařízení označené

tímto symbolem na produktu anebo na obalu bylo likvidováno

s netříděným komunálním odpadem. Tento symbol udává,

že daný produkt musí být likvidován odděleně od běžného

komunálního odpadu. Odpovídáte za likvidaci tohoto produktu

a dalších elektrických a elektronických zařízení prostřednictvím

určených sběrných míst stanovených vládou nebo místními

úřady. Správná likvidace a recyklace pomáhá předcházet

potenciálním negativním dopadům na životní prostředí a lidské

zdraví. Podrobnější informace o likvidaci starého vybavení si

laskavě vyžádejte od místních úřadů, podniku zabývajícího se

likvidací komunálních odpadů nebo obchodu, kde jste produkt

zakoupili.

Dansk (Danish) - Miljøinformation for kunder i EU

EU-direktiv 2002/96/EF kræver, at udstyr der bærer dette symbol

på produktet og/eller emballagen ikke må bortskaffes som

usorteret kommunalt affald. Symbolet betyder, at dette produkt

skal bortskaffes adskilt fra det almindelige husholdningsaffald.

Det er dit ansvar at bortskaffe dette og andet elektrisk og

elektronisk udstyr via bestemte indsamlingssteder udpeget

af staten eller de lokale myndigheder. Korrekt bortskaffelse

og genvinding vil hjælpe med til at undgå mulige skader for

miljøet og menneskers sundhed. Kontakt venligst de lokale

myndigheder, renovationstjenesten eller den butik, hvor du

har købt produktet, angående mere detaljeret information om

bortskaffelse af dit gamle udstyr.

Deutsch (German) - Umweltinformation für Kunden

innerhalb der Europäischen Union

Die Europäische Richtlinie 2002/96/EC verlangt, dass technische

Ausrüstung, die direkt am Gerät und/oder an der Verpackung mit

diesem Symbol versehen ist , nicht zusammen mit unsortiertem

Gemeindeabfall entsorgt werden darf. Das Symbol weist darauf

hin, dass das Produkt von regulärem Haushaltmüll getrennt

entsorgt werden sollte. Es liegt in Ihrer Verantwortung, dieses

Gerät und andere elektrische und elektronische Geräte über

die dafür zuständigen und von der Regierung oder örtlichen

Behörden dazu bestimmten Sammelstellen zu entsorgen.

Ordnungsgemäßes Entsorgen und Recyceln trägt dazu bei,

potentielle negative Folgen für Umwelt und die menschliche

Gesundheit zu vermeiden. Wenn Sie weitere Informationen zur

Entsorgung Ihrer Altgeräte benötigen, wenden Sie sich bitte an

die örtlichen Behörden oder städtischen Entsorgungsdienste

oder an den Händler, bei dem Sie das Produkt erworben haben.

Appendix E Regulatory Information

Simultaneous Dual-N Band Wireless Router

Eesti (Estonian) - Keskkonnaalane informatsioon

Euroopa Liidus asuvatele klientidele

Euroopa Liidu direktiivi 2002/96/EÜ nõuete kohaselt on

seadmeid, millel on tootel või pakendil käesolev sümbol ,

keelatud kõrvaldada koos sorteerimata olmejäätmetega. See

sümbol näitab, et toode tuleks kõrvaldada eraldi tavalistest

olmejäätmevoogudest. Olete kohustatud kõrvaldama käesoleva

ja ka muud elektri- ja elektroonikaseadmed riigi või kohalike

ametiasutuste poolt ette nähtud kogumispunktide kaudu.

Seadmete korrektne kõrvaldamine ja ringlussevõtt aitab vältida

võimalikke negatiivseid tagajärgi keskkonnale ning inimeste

tervisele. Vanade seadmete kõrvaldamise kohta täpsema

informatsiooni saamiseks võtke palun ühendust kohalike

ametiasutustega, jäätmekäitlusfirmaga või kauplusega, kust te

toote ostsite.

Español (Spanish) - Información medioambiental para

clientes de la Unión Europea

La Directiva 2002/96/CE de la UE exige que los equipos que

lleven este símbolo en el propio aparato y/o en su embalaje

no deben eliminarse junto con otros residuos urbanos no

seleccionados. El símbolo indica que el producto en cuestión

debe separarse de los residuos domésticos convencionales con

vistas a su eliminación. Es responsabilidad suya desechar este y

cualesquiera otros aparatos eléctricos y electrónicos a través de

los puntos de recogida que ponen a su disposición el gobierno y

las autoridades locales. Al desechar y reciclar correctamente estos

aparatos estará contribuyendo a evitar posibles consecuencias

negativas para el medio ambiente y la salud de las personas. Si

desea obtener información más detallada sobre la eliminación

segura de su aparato usado, consulte a las autoridades locales,

al servicio de recogida y eliminación de residuos de su zona o

pregunte en la tienda donde adquirió el producto.

ξλληνικά (Greek) - Στοιχεία περιβαλλοντικής

προστασίας για πελάτες εντός της Ευρωπαϊκής

Ένωσης

Η Κοινοτική Οδηγία 2002/96/EC απαιτεί ότι ο εξοπλισμός ο οποίος

φέρει αυτό το σύμβολο στο προϊόν και/ή στη συσκευασία

του δεν πρέπει να απορρίπτεται μαζί με τα μικτά κοινοτικά

απορρίμματα. Το σύμβολο υποδεικνύει ότι αυτό το προϊόν θα

πρέπει να απορρίπτεται ξεχωριστά από τα συνήθη οικιακά

απορρίμματα. Είστε υπεύθυνος για την απόρριψη του παρόντος

και άλλου ηλεκτρικού και ηλεκτρονικού εξοπλισμού μέσω των

καθορισμένων εγκαταστάσεων συγκέντρωσης απορριμμάτων οι

οποίες παρέχονται από το κράτος ή τις αρμόδιες τοπικές αρχές.

Η σωστή απόρριψη και ανακύκλωση συμβάλλει στην πρόληψη

πιθανών αρνητικών συνεπειών για το περιβάλλον και την υγεία.

Για περισσότερες πληροφορίες σχετικά με την απόρριψη του

παλιού σας εξοπλισμού, παρακαλώ επικοινωνήστε με τις τοπικές

αρχές, τις υπηρεσίες απόρριψης ή το κατάστημα από το οποίο

αγοράσατε το προϊόν.

Français (French) - Informations environnementales

pour les clients de l’Union européenne

La directive européenne 2002/96/CE exige que l’équipement

sur lequel est apposé ce symbole sur le produit et/ou son

emballage ne soit pas jeté avec les autres ordures ménagères. Ce

symbole indique que le produit doit être éliminé dans un circuit

distinct de celui pour les déchets des ménages. Il est de votre

responsabilité de jeter ce matériel ainsi que tout autre matériel

électrique ou électronique par les moyens de collecte indiqués

par le gouvernement et les pouvoirs publics des collectivités

territoriales. L’élimination et le recyclage en bonne et due forme

ont pour but de lutter contre l’impact néfaste potentiel de ce

type de produits sur l’environnement et la santé publique. Pour

plus d’informations sur le mode d’élimination de votre ancien

équipement, veuillez prendre contact avec les pouvoirs publics

locaux, le service de traitement des déchets, ou l’endroit où vous

avez acheté le produit.

Italiano (Italian) - Informazioni relative all’ambiente

per i clienti residenti nell’Unione Europea

La direttiva europea 2002/96/EC richiede che le apparecchiature

contrassegnate con questo simbolo sul prodotto e/o

sull’imballaggio non siano smaltite insieme ai rifiuti urbani

non differenziati. Il simbolo indica che questo prodotto non

deve essere smaltito insieme ai normali rifiuti domestici. È

responsabilità del proprietario smaltire sia questi prodotti sia

le altre apparecchiature elettriche ed elettroniche mediante

le specifiche strutture di raccolta indicate dal governo o dagli

enti pubblici locali. Il corretto smaltimento ed il riciclaggio

aiuteranno a prevenire conseguenze potenzialmente negative

per l’ambiente e per la salute dell’essere umano. Per ricevere

informazioni più dettagliate circa lo smaltimento delle vecchie

apparecchiature in Vostro possesso, Vi invitiamo a contattare gli

enti pubblici di competenza, il servizio di smaltimento rifiuti o il

negozio nel quale avete acquistato il prodotto.

Latviešu valoda (Latvian) - Ekoloģiska informācija

klientiem Eiropas Savienības jurisdikcijā

Direktīvā 2002/96/EK ir prasība, ka aprīkojumu, kam pievienota

zīme uz paša izstrādājuma vai uz tā iesaiņojuma, nedrīkst

izmest nešķirotā veidā kopā ar komunālajiem atkritumiem

(tiem, ko rada vietēji iedzīvotāji un uzņēmumi). Šī zīme nozīmē

to, ka šī ierīce ir jāizmet atkritumos tā, lai tā nenonāktu kopā ar

parastiem mājsaimniecības atkritumiem. Jūsu pienākums ir šo

un citas elektriskas un elektroniskas ierīces izmest atkritumos,

izmantojot īpašus atkritumu savākšanas veidus un līdzekļus, ko

nodrošina valsts un pašvaldību iestādes. Ja izmešana atkritumos

un pārstrāde tiek veikta pareizi, tad mazinās iespējamais

kaitējums dabai un cilvēku veselībai. Sīkākas ziņas par

novecojuša aprīkojuma izmešanu atkritumos jūs varat saņemt

vietējā pašvaldībā, atkritumu savākšanas dienestā, kā arī veikalā,

kur iegādājāties šo izstrādājumu.

Appendix E Regulatory Information

Simultaneous Dual-N Band Wireless Router

Lietuvškai (Lithuanian) - Aplinkosaugos informacija,

skirta Europos Sąjungos vartotojams

Europos direktyva 2002/96/EC numato, kad įrangos, kuri ir

kurios pakuotė yra pažymėta šiuo simboliu (įveskite simbolį),

negalima šalinti kartu su nerūšiuotomis komunalinėmis

atliekomis. Šis simbolis rodo, kad gaminį reikia šalinti atskirai

nuo bendro buitinių atliekų srauto. Jūs privalote užtikrinti, kad

ši ir kita elektros ar elektroninė įranga būtų šalinama per tam

tikras nacionalinės ar vietinės valdžios nustatytas atliekų rinkimo

sistemas. Tinkamai šalinant ir perdirbant atliekas, bus išvengta

galimos žalos aplinkai ir žmonių sveikatai. Daugiau informacijos

apie jūsų senos įrangos šalinimą gali pateikti vietinės valdžios

institucijos, atliekų šalinimo tarnybos arba parduotuvės, kuriose

įsigijote tą gaminį.

Malti (Maltese) - Informazzjoni Ambjentali għal Klijenti

fl-Unjoni Ewropea

Id-Direttiva Ewropea 2002/96/KE titlob li t-tagħmir li jkun fih is-

simbolu fuq il-prodott u/jew fuq l-ippakkjar ma jistax jintrema

ma’ skart muniċipali li ma ġiex isseparat. Is-simbolu jindika

li dan il-prodott għandu jintrema separatament minn ma’ l-

iskart domestiku regolari. Hija responsabbiltà tiegħek li tarmi

dan it-tagħmir u kull tagħmir ieħor ta’ l-elettriku u elettroniku

permezz ta’ faċilitajiet ta’ ġbir appuntati apposta mill-gvern jew

mill-awtoritajiet lokali. Ir-rimi b’mod korrett u r-riċiklaġġ jgħin

jipprevjeni konsegwenzi negattivi potenzjali għall-ambjent u

għas-saħħa tal-bniedem. Għal aktar informazzjoni dettaljata

dwar ir-rimi tat-tagħmir antik tiegħek, jekk jogħġbok ikkuntattja

lill-awtoritajiet lokali tiegħek, is-servizzi għar-rimi ta’ l-iskart, jew

il-ħanut minn fejn xtrajt il-prodott.

Magyar (Hungarian) - Környezetvédelmi információ az

európai uniós vásárlók számára

A 2002/96/EC számú európai uniós irányelv megkívánja, hogy

azokat a termékeket, amelyeken, és/vagy amelyek csomagolásán

az alábbi címke megjelenik, tilos a többi szelektálatlan lakossági

hulladékkal együtt kidobni. A címke azt jelöli, hogy az adott

termék kidobásakor a szokványos háztartási hulladékelszállítási

rendszerektõl elkülönített eljárást kell alkalmazni. Az Ön

felelõssége, hogy ezt, és más elektromos és elektronikus

berendezéseit a kormányzati vagy a helyi hatóságok által

kijelölt gyűjtõredszereken keresztül számolja fel. A megfelelõ

hulladékfeldolgozás segít a környezetre és az emberi egészségre

potenciálisan ártalmas negatív hatások megelõzésében. Ha

elavult berendezéseinek felszámolásához további részletes

információra van szüksége, kérjük, lépjen kapcsolatba a helyi

hatóságokkal, a hulladékfeldolgozási szolgálattal, vagy azzal

üzlettel, ahol a terméket vásárolta.

Nederlands (Dutch) - Milieu-informatie voor klanten

in de Europese Unie

De Europese Richtlijn 2002/96/EC schrijft voor dat apparatuur die

is voorzien van dit symbool op het product of de verpakking,

niet mag worden ingezameld met niet-gescheiden huishoudelijk

afval. Dit symbool geeft aan dat het product apart moet worden

ingezameld. U bent zelf verantwoordelijk voor de vernietiging

van deze en andere elektrische en elektronische apparatuur via de

daarvoor door de landelijke of plaatselijke overheid aangewezen

inzamelingskanalen. De juiste vernietiging en recycling van

deze apparatuur voorkomt mogelijke negatieve gevolgen voor

het milieu en de gezondheid. Voor meer informatie over het

vernietigen van uw oude apparatuur neemt u contact op met

de plaatselijke autoriteiten of afvalverwerkingsdienst, of met de

winkel waar u het product hebt aangeschaft.

Norsk (Norwegian) - Miljøinformasjon for kunder i EU

EU-direktiv 2002/96/EF krever at utstyr med følgende symbol

avbildet på produktet og/eller pakningen, ikke må kastes

sammen med usortert avfall. Symbolet indikerer at dette

produktet skal håndteres atskilt fra ordinær avfallsinnsamling

for husholdningsavfall. Det er ditt ansvar å kvitte deg med

dette produktet og annet elektrisk og elektronisk avfall via egne

innsamlingsordninger slik myndighetene eller kommunene

bestemmer. Korrekt avfallshåndtering og gjenvinning vil

være med på å forhindre mulige negative konsekvenser for

miljø og helse. For nærmere informasjon om håndtering av

det kasserte utstyret ditt, kan du ta kontakt med kommunen,

en innsamlingsstasjon for avfall eller butikken der du kjøpte

produktet.

Polski (Polish) - Informacja dla klientów w Unii

Europejskiej o przepisach dotyczących ochrony

środowiska

Dyrektywa Europejska 2002/96/EC wymaga, aby sprzęt

oznaczony symbolem znajdującym się na produkcie i/lub jego

opakowaniu nie był wyrzucany razem z innymi niesortowanymi

odpadami komunalnymi. Symbol ten wskazuje, że produkt

nie powinien być usuwany razem ze zwykłymi odpadami z

gospodarstw domowych. Na Państwu spoczywa obowiązek

wyrzucania tego i innych urządzeń elektrycznych oraz

elektronicznych w punktach odbioru wyznaczonych przez władze

krajowe lub lokalne. Pozbywanie się sprzętu we właściwy sposób

i jego recykling pomogą zapobiec potencjalnie negatywnym

konsekwencjom dla środowiska i zdrowia ludzkiego. W celu

uzyskania szczegółowych informacji o usuwaniu starego sprzętu,

prosimy zwrócić się do lokalnych władz, służb oczyszczania

miasta lub sklepu, w którym produkt został nabyty.

Appendix E Regulatory Information

Simultaneous Dual-N Band Wireless Router

Português (Portuguese) - Informação ambiental para

clientes da União Europeia

A Directiva Europeia 2002/96/CE exige que o equipamento

que exibe este símbolo no produto e/ou na sua embalagem

não seja eliminado junto com os resíduos municipais não

separados. O símbolo indica que este produto deve ser

eliminado separadamente dos resíduos domésticos regulares.

É da sua responsabilidade eliminar este e qualquer outro

equipamento eléctrico e electrónico através das instalações

de recolha designadas pelas autoridades governamentais ou

locais. A eliminação e reciclagem correctas ajudarão a prevenir

as consequências negativas para o ambiente e para a saúde

humana. Para obter informações mais detalhadas sobre a

forma de eliminar o seu equipamento antigo, contacte as

autoridades locais, os serviços de eliminação de resíduos ou o

estabelecimento comercial onde adquiriu o produto.

Română (Romanian) - Informaţii de mediu pentru

clienţii din Uniunea Europeană

Directiva europeană 2002/96/CE impune ca echipamentele care

prezintă acest simbol pe produs şi/sau pe ambalajul acestuia să

nu fie casate împreună cu gunoiul menajer municipal. Simbolul

indică faptul că acest produs trebuie să fie casat separat de

gunoiul menajer obişnuit. Este responsabilitatea dvs. să casaţi

acest produs şi alte echipamente electrice şi electronice prin

intermediul unităţilor de colectare special desemnate de guvern

sau de autorităţile locale. Casarea şi reciclarea corecte vor ajuta

la prevenirea potenţialelor consecinţe negative asupra sănătăţii

mediului şi a oamenilor. Pentru mai multe informaţii detaliate

cu privire la casarea acestui echipament vechi, contactaţi

autorităţile locale, serviciul de salubrizare sau magazinul de la

care aţi achiziţionat produsul.

Slovenčina (Slovak) - Informácie o ochrane životného

prostredia pre zákazníkov v Európskej únii

Podľa európskej smernice 2002/96/ES zariadenie s týmto

symbolom na produkte a/alebo jeho balení nesmie byť

likvidované spolu s netriedeným komunálnym odpadom.

Symbol znamená, že produkt by sa mal likvidovať oddelene

od bežného odpadu z domácností. Je vašou povinnosťou

likvidovať toto i ostatné elektrické a elektronické zariadenia

prostredníctvom špecializovaných zberných zariadení určených

vládou alebo miestnymi orgánmi. Správna likvidácia a recyklácia

pomôže zabrániť prípadným negatívnym dopadom na životné

prostredie a zdravie ľudí. Ak máte záujem o podrobnejšie

informácie o likvidácii starého zariadenia, obráťte sa, prosím, na

miestne orgány, organizácie zaoberajúce sa likvidáciou odpadov

alebo obchod, v ktorom ste si produkt zakúpili.

Slovenčina (Slovene) - Okoljske informacije za stranke

v Evropski uniji

Evropska direktiva 2002/96/EC prepoveduje odlaganje opreme,

označene s tem simbolom – na izdelku in/ali na embalaži – med

običajne, nerazvrščene odpadke. Ta simbol opozarja, da je treba

izdelek odvreči ločeno od preostalih gospodinjskih odpadkov.

Vaša odgovornost je, da to in preostalo električno in elektronsko

opremo odnesete na posebna zbirališča, ki jih določijo

državne ustanove ali lokalna uprava. S pravilnim odlaganjem

in recikliranjem boste preprečili morebitne škodljive vplive na

okolje in zdravje ljudi. Če želite izvedeti več o odlaganju stare

opreme, se obrnite na lokalno upravo, odpad ali trgovino, kjer

ste izdelek kupili.

Suomi (Finnish) - Ympäristöä koskevia tietoja EU-

alueen asiakkaille

EU-direktiivi 2002/96/EY edellyttää, että jos laitteistossa on tämä

symboli itse tuotteessa ja/tai sen pakkauksessa, laitteistoa

ei saa hävittää lajittelemattoman yhdyskuntajätteen mukana.

Symboli merkitsee sitä, että tämä tuote on hävitettävä erillään

tavallisesta kotitalousjätteestä. Sinun vastuullasi on hävittää

tämä elektroniikkatuote ja muut vastaavat elektroniikkatuotteet

viemällä tuote tai tuotteet viranomaisten määräämään

keräyspisteeseen. Laitteiston oikea hävittäminen estää

mahdolliset kielteiset vaikutukset ympäristöön ja ihmisten

terveyteen. Lisätietoja vanhan laitteiston oikeasta hävitystavasta

saa paikallisilta viranomaisilta, jätteenhävityspalvelusta tai siitä

myymälästä, josta ostit tuotteen.

Svenska (Swedish) - Miljöinformation för kunder i

Europeiska unionen

Det europeiska direktivet 2002/96/EC kräver att utrustning med

denna symbol på produkten och/eller förpackningen inte får

kastas med osorterat kommunalt avfall. Symbolen visar att denna

produkt bör kastas efter att den avskiljts från vanligt hushållsavfall.

Det faller på ditt ansvar att kasta denna och annan elektrisk och

elektronisk utrustning på fastställda insamlingsplatser utsedda

av regeringen eller lokala myndigheter. Korrekt kassering och

återvinning skyddar mot eventuella negativa konsekvenser

för miljön och personhälsa. För mer detaljerad information om

kassering av din gamla utrustning kontaktar du dina lokala

myndigheter, avfallshanteringen eller butiken där du köpte

produkten.

WEB: For additional information, please visit

www.linksys.com

Chapter Number Software License Agreement

Simultaneous Dual-N Band Wireless Router

Appendix F: Software

License Agreement

Software in Linksys Products

This product from Cisco-Linksys LLC or from one of its

affiliates Cisco Systems-Linksys (Asia) Pte Ltd. or Cisco-

Linksys K.K. (“Linksys”) contains software (including

firmware) originating from Linksys and its suppliers

and may also contain software from the open source

community. Any software originating from Linksys and its

suppliers is licensed under the Linksys Software License

Agreement contained at Schedule 1 below. You may also

be prompted to review and accept that Linksys Software

License Agreement upon installation of the software.

Any software from the open source community is licensed

under the specific license terms applicable to that software

made available by Linksys at www.linksys.com/gpl or as

provided for in Schedules 2 and 3 below.

Where such specific license terms entitle you to the source

code of such software, that source code is upon request

available at cost from Linksys for at least three years

from the purchase date of this product and may also be

available for download from www.linksys.com/gpl. For

detailed license terms and additional information on

open source software in Linksys products please look at

the Linksys public web site at: www.linksys.com/gpl/ or

Schedule 2 below as applicable.

BY DOWNLOADING OR INSTALLING THE SOFTWARE,

OR USING THE PRODUCT CONTAINING THE SOFTWARE,

YOU ARE CONSENTING TO BE BOUND BY THE SOFTWARE

LICENSE AGREEMENTS BELOW. IF YOU DO NOT AGREE TO

ALL OF THESE TERMS, THEN YOU MAY NOT DOWNLOAD,

INSTALL OR USE THE SOFTWARE. YOU MAY RETURN

UNUSED SOFTWARE (OR, IF THE SOFTWARE IS SUPPLIED

AS PART OF ANOTHER PRODUCT, THE UNUSED PRODUCT)

FOR A FULL REFUND UP TO 30 DAYS AFTER ORIGINAL

PURCHASE, SUBJECT TO THE RETURN PROCESS AND

POLICIES OF THE PARTY FROM WHICH YOU PURCHASED

SUCH PRODUCT OR SOFTWARE.

Software Licenses

The software Licenses applicable to software from Linksys

are made available at the Linksys public web site at:

www.linksys.com and www.linksys.com/gpl/

respectively. For your convenience of reference, a copy

of the Linksys Software License Agreement and the main

open source code licenses used by Linksys in its products

are contained in the Schedules below.

Schedule 1 - Linksys Software License Agreement

THIS LICENSE AGREEMENT IS BETWEEN YOU AND

CISCO-LINKSYS LLC OR ONE OF ITS AFFILIATES CISCO

SYSTEMS-LINKSYS (ASIA) PTE LTD. OR CISCO-LINKSYS

K.K. (“LINKSYS”) LICENSING THE SOFTWARE INSTEAD OF

CISCO-LINKSYS LLC. BY DOWNLOADING OR INSTALLING

THE SOFTWARE, OR USING THE PRODUCT CONTAINING

THE SOFTWARE, YOU ARE CONSENTING TO BE BOUND BY

THIS AGREEMENT. IF YOU DO NOT AGREE TO ALL OF THESE

TERMS, THEN YOU MAY NOT DOWNLOAD, INSTALL OR USE

THE SOFTWARE. YOU MAY RETURN UNUSED SOFTWARE

(OR, IF THE SOFTWARE IS SUPPLIED AS PART OF ANOTHER

PRODUCT, THE UNUSED PRODUCT) FOR A FULL REFUND

UP TO 30 DAYS AFTER ORIGINAL PURCHASE, SUBJECT TO

THE RETURN PROCESS AND POLICIES OF THE PARTY FROM

WHICH YOU PURCHASED SUCH PRODUCT OR SOFTWARE.

License. Subject to the terms and conditions of this

Agreement, Linksys grants the original end user purchaser

of the Linksys product containing the Software (“You”)

a nonexclusive license to use the Software solely as

embedded in or (where authorized in the applicable

documentation) for communication with such product.

This license may not be sublicensed, and is not transferable

except to a person or entity to which you transfer

ownership of the complete Linksys product containing

the Software, provided you permanently transfer all rights

under this Agreement and do not retain any full or partial

copies of the Software, and the recipient agrees to the

terms of this Agreement.

“Software” includes, and this Agreement will apply to (a)

the software of Linksys or its suppliers provided in or with

the applicable Linksys product, and (b) any upgrades,

updates, bug fixes or modified versions (“Upgrades”) or

backup copies of the Software supplied to You by Linksys

or an authorized reseller, provided you already hold a

valid license to the original software and have paid any

applicable fee for the Upgrade.

Protection of Information. The Software and

documentation contain trade secrets and/or copyrighted

materials of Linksys or its suppliers. You will not copy

or modify the Software or decompile, decrypt, reverse

engineer or disassemble the Software (except to the

extent expressly permitted by law notwithstanding this

provision), and You will not disclose or make available

such trade secrets or copyrighted material in any form

to any third party. Title to and ownership of the Software

and documentation and any portion thereof, will remain

solely with Linksys or its suppliers.

Collection and Processing of Information. You agree that

Linksys and/or its affiliates may, from time to time, collect

and process information about your Linksys product

and/or the Software and/or your use of either in order

(i) to enable Linksys to offer you Upgrades; (ii) to ensure

that your Linksys product and/or the Software is being

Chapter Number Software License Agreement

Simultaneous Dual-N Band Wireless Router

used in accordance with the terms of this Agreement;

(iii) to provide improvements to the way Linksys delivers

technology to you and to other Linksys customers; (iv) to

enable Linksys to comply with the terms of any agreements

it has with any third parties regarding your Linksys

product and/or Software and/or (v) to enable Linksys to

comply with all applicable laws and/or regulations, or the

requirements of any regulatory authority or government

agency. Linksys and/ or its affiliates may collect and

process this information provided that it does not identify

you personally. Your use of your Linksys product and/or

the Software constitutes this consent by you to Linksys

and/or its affiliates’ collection and use of such information

and, for EEA customers, to the transfer of such information

to a location outside the EEA.

Software Upgrades etc. If the Software enables you to

receive Upgrades, you may elect at any time to receive

these Upgrades either automatically or manually. If you

elect to receive Upgrades manually or you otherwise

elect not to receive or be notified of any Upgrades, you

may expose your Linksys product and/or the Software

to serious security threats and/or some features within

your Linksys product and/or Software may become

inaccessible. There may be circumstances where we

apply an Upgrade automatically in order to comply with

changes in legislation, legal or regulatory requirements

or as a result of requirements to comply with the terms

of any agreements Linksys has with any third parties

regarding your Linksys product and/or the Software. You

will always be notified of any Upgrades being delivered

to you. The terms of this license will apply to any such

Upgrade unless the Upgrade in question is accompanied

by a separate license, in which event the terms of that

license will apply.

Open Source Software. The GPL or other open source

code incorporated into the Software and the open source

license for such source code are available for free download

at http://www.linksys.com/gpl. If You would like a copy

of the GPL or other open source code in this Software on a

CD, Linksys will mail to You a CD with such code for $9.99

plus the cost of shipping, upon request.

Term and Termination. You may terminate this License

at any time by destroying all copies of the Software

and documentation. Your rights under this License will

terminate immediately without notice from Linksys if You

fail to comply with any provision of this Agreement.

Limited Warranty. The warranty terms and period

specified in the applicable Linksys Product User Guide

shall also apply to the Software.

Disclaimer of Liabilities. IN NO EVENT WILL LINKSYS OR

ITS SUPPLIERS BE LIABLE FOR ANY LOST DATA, REVENUE

OR PROFIT, OR FOR SPECIAL, INDIRECT, CONSEQUENTIAL,

INCIDENTAL OR PUNITIVE DAMAGES, REGARDLESS OF

CAUSE (INCLUDING NEGLIGENCE), ARISING OUT OF

OR RELATED TO THE USE OF OR INABILITY TO USE THE

SOFTWARE, EVEN IF LINKSYS HAS BEEN ADVISED OF

THE POSSIBILITY OF SUCH DAMAGES. IN NO EVENT WILL

LINKSYS’ LIABILITY EXCEED THE AMOUNT PAID BY YOU

FOR THE PRODUCT. The foregoing limitations will apply

even if any warranty or remedy under this Agreement fails

of its essential purpose. Some jurisdictions do not allow

the exclusion or limitation of incidental or consequential

damages, so the above limitation or exclusion may not

apply to You.

Export. Software, including technical data, may be subject

to U.S. export control laws and regulations and/or export

or import regulations in other countries. You agree to

comply strictly with all such laws and regulations.

U.S. Government Users. The Software and documentation

qualify as “commercial items” as defined at 48 C.F.R. 2.101

and 48 C.F.R. 12.212. All Government users acquire the

Software and documentation with only those rights

herein that apply to non-governmental customers.

General Terms. This Agreement will be governed by and

construed in accordance with the laws of the State of

California, without reference to conflict of laws principles.

The United Nations Convention on Contracts for the

International Sale of Goods will not apply. If any portion

of this Agreement is found to be void or unenforceable,

the remaining provisions will remain in full force and

effect. This Agreement constitutes the entire agreement

between the parties with respect to the Software and

supersedes any conflicting or additional terms contained

in any purchase order or elsewhere.

END OF SCHEDULE 1

Schedule 2

If this Linksys product contains open source software

licensed under Version 2 of the “GNU General Public

License” then the license terms below in this Schedule 2

will apply to that open source software. The license terms

below in this Schedule 2 are from the public web site at

http://www.gnu.org/copyleft/gpl.html

GNU GENERAL PUBLIC LICENSE

Version 2, June 1991

51 Franklin Street, Fifth Floor, Boston, MA 02110-1301,

USA

Everyone is permitted to copy and distribute verbatim

copies of this license document, but changing it is not

allowed.

Preamble

The licenses for most software are designed to take away

your freedom to share and change it. By contrast, the

GNU General Public License is intended to guarantee your

Chapter Number Software License Agreement

Simultaneous Dual-N Band Wireless Router

freedom to share and change free software–to make sure

the software is free for all its users. This General Public

License applies to most of the Free Software Foundation’s

software and to any other program whose authors

commit to using it. (Some other Free Software Foundation

software is covered by the GNU Lesser General Public

License instead.) You can apply it to your programs, too.

When we speak of free software, we are referring to

freedom, not price. Our General Public Licenses are

designed to make sure that you have the freedom to

distribute copies of free software (and charge for this

service if you wish), that you receive source code or can

get it if you want it, that you can change the software or

use pieces of it in new free programs; and that you know

you can do these things.

To protect your rights, we need to make restrictions that

forbid anyone to deny you these rights or to ask you to

surrender the rights. These restrictions translate to certain

responsibilities for you if you distribute copies of the

software, or if you modify it.

For example, if you distribute copies of such a program,

whether gratis or for a fee, you must give the recipients

all the rights that you have. You must make sure that they,

too, receive or can get the source code. And you must

show them these terms so they know their rights.

We protect your rights with two steps: (1) copyright the

software, and (2) offer you this license which gives you

legal permission to copy, distribute and/or modify the

software.

Also, for each author’s protection and ours, we want to

make certain that everyone understands that there is no

warranty for this free software. If the software is modified

by someone else and passed on, we want its recipients

to know that what they have is not the original, so that

any problems introduced by others will not reflect on the

original authors’ reputations.

Finally, any free program is threatened constantly by

software patents. We wish to avoid the danger that

redistributors of a free program will individually obtain

patent licenses, in effect making the program proprietary.

To prevent this, we have made it clear that any patent must

be licensed for everyone’s free use or not licensed at all.

The precise terms and conditions for copying, distribution

and modification follow.

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND

MODIFICATION

This License applies to any program or other work 0.

which contains a notice placed by the copyright

holder saying it may be distributed under the terms

of this General Public License. The “Program”, below,

refers to any such program or work, and a “work

based on the Program” means either the Program

or any derivative work under copyright law: that is

to say, a work containing the Program or a portion

of it, either verbatim or with modifications and/

or translated into another language. (Hereinafter,

translation is included without limitation in the term

“modification”.) Each licensee is addressed as “you”.

Activities other than copying, distribution and

modification are not covered by this License; they

are outside its scope. The act of running the Program

is not restricted, and the output from the Program is

covered only if its contents constitute a work based on

the Program (independent of having been made by

running the Program). Whether that is true depends

on what the Program does.

You may copy and distribute verbatim copies of the 1.

Program’s source code as you receive it, in any medium,

provided that you conspicuously and appropriately

publish on each copy an appropriate copyright

notice and disclaimer of warranty; keep intact all the

notices that refer to this License and to the absence

of any warranty; and give any other recipients of the

Program a copy of this License along with the Program.

You may charge a fee for the physical act of transferring

a copy, and you may at your option offer warranty

protection in exchange for a fee.

You may modify your copy or copies of the Program 2.

or any portion of it, thus forming a work based on the

Program, and copy and distribute such modifications

or work under the terms of Section 1 above, provided

that you also meet all of these conditions:

You must cause the modified files to carry a.

prominent notices stating that you changed the

files and the date of any change.

You must cause any work that you distribute or b.

publish, that in whole or in part contains or is

derived from the Program or any part thereof, to be

licensed as a whole at no charge to all third parties

under the terms of this License.

Chapter Number Software License Agreement

Simultaneous Dual-N Band Wireless Router

If the modified program normally reads commands c.

interactively when run, you must cause it, when

started running for such interactive use in the most

ordinary way, to print or display an announcement

including an appropriate copyright notice and

a notice that there is no warranty (or else, saying

that you provide a warranty) and that users may

redistribute the program under these conditions,

and telling the user how to view a copy of

this License. (Exception: if the Program itself is

interactive but does not normally print such an

announcement, your work based on the Program

is not required to print an announcement.)

These requirements apply to the modified work as

a whole. If identifiable sections of that work are not

derived from the Program, and can be reasonably

considered independent and separate works in

themselves, then this License, and its terms, do not

apply to those sections when you distribute them as

separate works. But when you distribute the same

sections as part of a whole which is a work based on

the Program, the distribution of the whole must be on

the terms of this License, whose permissions for other

licensees extend to the entire whole, and thus to each

and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights

or contest your rights to work written entirely by you;

rather, the intent is to exercise the right to control the

distribution of derivative or collective works based on

the Program.

In addition, mere aggregation of another work not

based on the Program with the Program (or with a

work based on the Program) on a volume of a storage

or distribution medium does not bring the other work

under the scope of this License.

You may copy and distribute the Program (or a 3.

work based on it, under Section 2) in object code or

executable form under the terms of Sections 1 and 2

above provided that you also do one of the following:

Accompany it with the complete corresponding a.

machine-readable source code, which must be

distributed under the terms of Sections 1 and 2

above on a medium customarily used for software

interchange; or,

Accompany it with a written offer, valid for at least b.

three years, to give any third party, for a charge

no more than your cost of physically performing

source distribution, a complete machine-readable

copy of the corresponding source code, to be

distributed under the terms of Sections 1 and 2

above on a medium customarily used for software

interchange; or,

Accompany it with the information you received as c.

to the offer to distribute corresponding source code.

(This alternative is allowed only for noncommercial

distribution and only if you received the program

in object code or executable form with such an

offer, in accord with Subsection b above.)

The source code for a work means the preferred form

of the work for making modifications to it. For an

executable work, complete source code means all

the source code for all modules it contains, plus any

associated interface definition files, plus the scripts

used to control compilation and installation of the

executable. However, as a special exception, the source

code distributed need not include anything that is

normally distributed (in either source or binary form)

with the major components (compiler, kernel, and so

on) of the operating system on which the executable

runs, unless that component itself accompanies the

executable.

If distribution of executable or object code is made

by offering access to copy from a designated place,

then offering equivalent access to copy the source

code from the same place counts as distribution of

the source code, even though third parties are not

compelled to copy the source along with the object

code.

You may not copy, modify, sublicense, or distribute 4.

the Program except as expressly provided under

this License. Any attempt otherwise to copy, modify,

sublicense or distribute the Program is void, and will

automatically terminate your rights under this License.

However, parties who have received copies, or rights,

from you under this License will not have their licenses

terminated so long as such parties remain in full

compliance.

You are not required to accept this License, since you 5.

have not signed it. However, nothing else grants you

permission to modify or distribute the Program or its

derivative works. These actions are prohibited by law if

you do not accept this License. Therefore, by modifying

or distributing the Program (or any work based on the

Program), you indicate your acceptance of this License

to do so, and all its terms and conditions for copying,

distributing or modifying the Program or works based

on it.

Each time you redistribute the Program (or any work 6.

based on the Program), the recipient automatically

receives a license from the original licensor to copy,

distribute or modify the Program subject to these

terms and conditions. You may not impose any further

restrictions on the recipients’ exercise of the rights

granted herein. You are not responsible for enforcing

compliance by third parties to this License.

Chapter Number Software License Agreement

Simultaneous Dual-N Band Wireless Router

If, as a consequence of a court judgment or allegation 7.

of patent infringement or for any other reason (not

limited to patent issues), conditions are imposed on

you (whether by court order, agreement or otherwise)

that contradict the conditions of this License, they do

not excuse you from the conditions of this License. If

you cannot distribute so as to satisfy simultaneously

your obligations under this License and any other

pertinent obligations, then as a consequence you

may not distribute the Program at all. For example,

if a patent license would not permit royalty-free

redistribution of the Program by all those who receive

copies directly or indirectly through you, then the only

way you could satisfy both it and this License would be

to refrain entirely from distribution of the Program.

If any portion of this section is held invalid or

unenforceable under any particular circumstance,

the balance of the section is intended to apply and

the section as a whole is intended to apply in other

circumstances.

It is not the purpose of this section to induce you to

infringe any patents or other property right claims or

to contest validity of any such claims; this section has

the sole purpose of protecting the integrity of the free

software distribution system, which is implemented

by public license practices. Many people have

made generous contributions to the wide range of

software distributed through that system in reliance

on consistent application of that system; it is up to

the author/donor to decide if he or she is willing to

distribute software through any other system and a

licensee cannot impose that choice.

This section is intended to make thoroughly clear

what is believed to be a consequence of the rest of this

License.

If the distribution and/or use of the Program is 8.

restricted in certain countries either by patents or by

copyrighted interfaces, the original copyright holder

who places the Program under this License may add an

explicit geographical distribution limitation excluding

those countries, so that distribution is permitted only

in or among countries not thus excluded. In such case,

this License incorporates the limitation as if written in

the body of this License.

The Free Software Foundation may publish revised 9.

and/or new versions of the General Public License

from time to time. Such new versions will be similar in

spirit to the present version, but may differ in detail to

address new problems or concerns.

Each version is given a distinguishing version number.

If the Program specifies a version number of this

License which applies to it and “any later version”, you

have the option of following the terms and conditions

either of that version or of any later version published

by the Free Software Foundation. If the Program does

not specify a version number of this License, you

may choose any version ever published by the Free

Software Foundation.

If you wish to incorporate parts of the Program into 10.

other free programs whose distribution conditions are

different, write to the author to ask for permission. For

software which is copyrighted by the Free Software

Foundation, write to the Free Software Foundation; we

sometimes make exceptions for this. Our decision will

be guided by the two goals of preserving the free status

of all derivatives of our free software and of promoting

the sharing and reuse of software generally.

NO WARRANTY

BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, 11.

THERE IS NO WARRANTY FOR THE PROGRAM, TO THE

EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT

WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT

HOLDERS AND/OR OTHER PARTIES PROVIDE THE

PROGRAM “AS IS” WITHOUT WARRANTY OF ANY

KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING,

BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND

PERFORMANCE OF THE PROGRAM IS WITH YOU.

SHOULD THE PROGRAM PROVE DEFECTIVE, YOU

ASSUME THE COST OF ALL NECESSARY SERVICING,

REPAIR OR CORRECTION.

IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR 12.

AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER,

OR ANY OTHER PARTY WHO MAY MODIFY AND/OR

REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE,

BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY

GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL

DAMAGES ARISING OUT OF THE USE OR INABILITY TO

USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO

LOSS OF DATA OR DATA BEING RENDERED INACCURATE

OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR

A FAILURE OF THE PROGRAM TO OPERATE WITH ANY

OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER

PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF

SUCH DAMAGES.

END OF TERMS AND CONDITIONS

END OF SCHEDULE 2

Schedule 3

If this Linksys product contains open source software

licensed under the OpenSSL license:

This product includes software developed by the

OpenSSL Project for use in the OpenSSL Toolkit.

(http://www.openssl.org/).

This product includes cryptographic software written by

Eric Young (eay@cryptsoft.com).

Chapter Number Software License Agreement

Simultaneous Dual-N Band Wireless Router

This product includes software written by Tim Hudson

(tjh@cryptsoft.com).

In addition, if this Linksys product contains open

source software licensed under the OpenSSL license

then the license terms below in this Schedule 3 will

apply to that open source software. The license terms

below in this Schedule 3 are from the public web site at

http://www.openssl.org/source/license.html.

The OpenSSL toolkit stays under a dual license, i.e. both

the conditions of the OpenSSL License and the original

SSLeay license apply to the toolkit. See below for the

actual license texts. Actually both licenses are BSD-style

Open Source licenses. In case of any license issues related

to OpenSSL please contact openssl-core@openssl.org.

OpenSSL License

reserved.

Redistribution and use in source and binary forms, with

or without modification, are permitted provided that the

following conditions are met:

Redistributions of source code must retain the above 1.

following disclaimer.

Redistributions in binary form must reproduce the 2.

above copyright notice, this list of conditions and the

following disclaimer in the documentation and/or

other materials provided with the distribution.

All advertising materials mentioning features or 3.

use of this software must display the following

acknowledgment: “This product includes software

developed by the OpenSSL Project for use in the

OpenSSL Toolkit. (http://www.openssl.org/)”

The names “OpenSSL Toolkit” and “OpenSSL Project” 4.

must not be used to endorse or promote products

derived from this software without prior written

permission. For written permission, please contact

openssl-core@openssl.org.

Products derived from this software may not be called 5.

“OpenSSL” nor may “OpenSSL” appear in their names

without prior written permission of the OpenSSL

Project.

Redistributions of any form whatsoever must retain 6.

the following acknowledgment: “This product includes

software developed by the OpenSSL Project for use in

the OpenSSL Toolkit (http://www.openssl.org/)”

THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT

``AS IS’’ AND ANY EXPRESSED OR IMPLIED WARRANTIES,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED

WARRANTIES OF MERCHANTABILITY AND FITNESS FOR

A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT

SHALL THE OpenSSL PROJECT OR ITS CONTRIBUTORS BE

LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,

EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING,

BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE

GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS;

OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND

ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT,

STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR

OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF

THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF

SUCH DAMAGE.

This product includes cryptographic software written by

Eric Young (eay@cryptsoft.com). This product includes

software written by Tim Hudson (tjh@cryptsoft.com).

Original SSLeay License

rights reserved.

This package is an SSL implementation written by Eric

Young (eay@cryptsoft.com).

The implementation was written so as to conform with

Netscape’s SSL.

This library is free for commercial and non-commercial

use as long as the following conditions are adhered to.

The following conditions apply to all code found in this

distribution, be it the RC4, RSA, lhash, DES, etc., code; not

just the SSL code. The SSL documentation included with

this distribution is covered by the same copyright terms

except that the holder is Tim Hudson (tjh@cryptsoft.

com).

notices in the code are not to be removed.

If this package is used in a product, Eric Young should be

given attribution as the author of the parts of the library

used. This can be in the form of a textual message at

program startup or in documentation (online or textual)

provided with the package.

Redistribution and use in source and binary forms, with

or without modification, are permitted provided that the

following conditions are met:

Redistributions of source code must retain the 1.

following disclaimer.

Redistributions in binary form must reproduce the 2.

above copyright notice, this list of conditions and the

following disclaimer in the documentation and/or

other materials provided with the distribution.

All advertising materials mentioning features or 3.

use of this software must display the following

acknowledgement:

“This product includes cryptographic software written

by Eric Young (eay@cryptsoft.com)”

Chapter Number Software License Agreement

Simultaneous Dual-N Band Wireless Router

The word ‘cryptographic’ can be left out if the routines

from the library being used are not cryptographic

related.

If you include any Windows specific code (or a derivative 4.

thereof) from the apps directory (application code)

you must include an acknowledgement: “This product

includes software written by Tim Hudson (tjh@

cryptsoft.com)”

THIS SOFTWARE IS PROVIDED BY ERIC YOUNG ``AS IS’’

AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING,

BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE

AUTHOR OR CONTRIBUTORS BE LIABLE FOR ANY

DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY,

OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT

LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR

SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS

INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY

OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY,

OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)

ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE,

EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

The license and distribution terms for any publicly available

version or derivative of this code cannot be changed. i.e.

this code cannot simply be copied and put under another

distribution license [including the GNU Public License.]

END OF SCHEDULE 3

8042910NC-DF

LINKSYS WRT610NV1 Simultaneous Dual-N Band Wireless Router User Manual Manual Part 2

LINKSYS LLC Simultaneous Dual-N Band Wireless Router Manual Part 2

Contents

Manual Part 2

Navigation menu

Namespaces

Views

Navigation
