Chapter 1 Product Overview
1
RangePlus Wireless USB Adapter
Chapter 1:
Product Overview
Thank you for choosing the Linksys RangePlus Wireless USB
Adapter. Using the latest wireless networking technology,
the Adapter adds or upgrades wireless connectivity on
your notebook computer. To help protect your data and
privacy, you can use industrial-strength WPA2 encryption
to protect your wireless connection. The included Setup
Wizard will walk you through configuring the Adapter to
your network’s settings, step by step.
LED
Link (Green) The LED flashes when there is
wireless network activity.
Chapter 2 Wireless Security Checklist
2
RangePlus Wireless USB Adapter
Chapter 2:
Wireless Security Checklist
Wireless networks are convenient and easy to install, so
homes with high-speed Internet access are adopting them
at a rapid pace. Because wireless networking operates by
sending information over radio waves, it can be more
vulnerable to intruders than a traditional wired network.
Like signals from your cellular or cordless phones, signals
from your wireless network can also be intercepted. Since
you cannot physically prevent someone from connecting
to your wireless network, you need to take some additional
steps to keep your network secure.
1. Change the default wireless
network name or SSID
Wireless devices have a default wireless network name
or Service Set Identifier (SSID) set by the factory. This
is the name of your wireless network, and can be up
to 32 characters in length. Linksys wireless products
use linksys as the default wireless network name. You
should change the wireless network name to something
unique to distinguish your wireless network from other
wireless networks that may exist around you, but do not
use personal information (such as your Social Security
number) because this information may be available for
anyone to see when browsing for wireless networks.
2. Change the default password
For wireless products such as access points and routers,
you will be asked for a password when you want to change
their settings. These devices have a default password set
by the factory. The Linksys default password is admin.
Hackers know these defaults and may try to use them
to access your wireless device and change your network
settings. To thwart any unauthorized changes, customize
the device’s password so it will be hard to guess.
3. Enable MAC address filtering
Linksys routers give you the ability to enable Media Access
Control (MAC) address filtering. The MAC address is a
unique series of numbers and letters assigned to every
networking device. With MAC address filtering enabled,
wireless network access is provided solely for wireless
devices with specific MAC addresses. For example, you can
specify the MAC address of each computer in your home
so that only those computers can access your wireless
network.
4. Enable encryption
Encryption protects data transmitted over a wireless
network. Wi-Fi Protected Access (WPA/WPA2) and Wired
Equivalency Privacy (WEP) offer different levels of security
for wireless communication.
A network encrypted with WPA/WPA2 is more secure
than a network encrypted with WEP, because WPA/WPA2
uses dynamic key encryption. To protect the information
as it passes over the airwaves, you should enable the
highest level of encryption supported by your network
equipment.
WEP is an older encryption standard and may be the
only option available on some older devices that do not
support WPA.
General Network Security Guidelines
Wireless network security is useless if the underlying
network is not secure.
Password protect all computers on the network and
individually password protect sensitive files.
Change passwords on a regular basis.
Install anti-virus software and personal firewall
software.
Disable file sharing (peer-to-peer). Some applications
may open file sharing without your consent and/or
knowledge.
Additional Security Tips
Keep wireless routers, access points, or gateways away
from exterior walls and windows.
Turn wireless routers, access points, or gateways
off when they are not being used (at night, during
vacations).
Use strong passphrases that are at least eight characters
in length. Combine letters and numbers to avoid using
standard words that can be found in the dictionary.
WEB: For more information on wireless
security, visit www.linksys.com/security
•
•
•
•
•
•
•
Chapter 3 Configuration
3
RangePlus Wireless USB Adapter
Chapter 3:
Advanced Configuration
Advanced configuration is performed through the Wireless
Network Monitor (the Monitor). Use it to check the link
information, search for available wireless networks, or
create profiles that hold different configuration settings.
Diagnostics is performed through the Diagnostic utility.
Use it to detect the Adapter, test the driver and Monitor,
and troubleshoot if needed.
How to Access the Wireless Network
Monitor
After installing the Adapter, the Monitor icon appears in
the system tray of your computer. If the Monitor is enabled,
the icon is green. If the Monitor is disabled or the Adapter
is not inserted, the icon is gray.
Wireless Network Monitor Icon
Double-click the icon to open the Monitor.
How to Use the Wireless Network Monitor

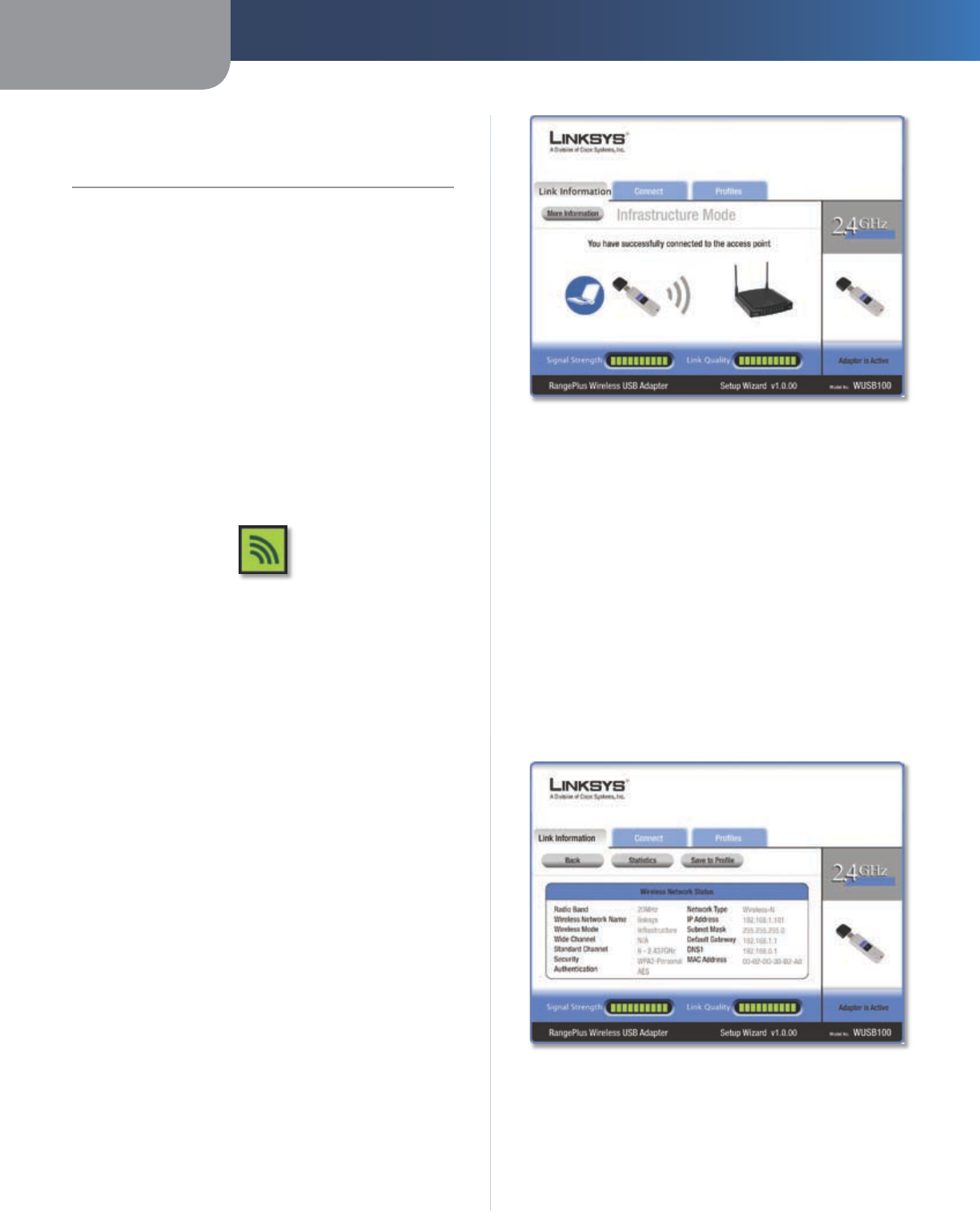

The opening screen of the Monitor is the Link Information
screen. From this screen, you can find out how strong the
current wireless signal is and how good the connection’s
quality is. Click More Information to view additional
status information about the current connection. To search
for available wireless networks, click the Connect tab.
To perform configuration changes or create connection
profiles, click the Profiles tab.
Link Information
The Link Information screen displays network mode, signal
strength, and link quality information about the current
connection. Click More Information for additional status
information.
Link Information
Ad-Hoc Mode or Infrastructure Mode The screen
indicates whether the Adapter is currently working in ad-
hoc or infrastructure mode.
Signal Strength The Signal Strength bar indicates signal
strength.
Link Quality The Link Quality bar indicates the quality of
the wireless network connection.
Click More Information to view additional information
about the wireless network connection on the Wireless
Network Status screen.
Wireless Network Status
The Wireless Network Status screen provides information
on your current network settings.
Wireless Network Status
Radio Band This is the radio band used on the network.
Wireless Network Name This is the unique name (SSID)
of the wireless network.
Wireless Mode This is the mode of the wireless network
currently in use.
Chapter 3 Configuration
4
RangePlus Wireless USB Adapter
Wide Channel This is the Wireless-N primary channel
used with a 40 MHz radio band network.
Standard Channel This is the channel used by your
wireless network.
Security This is the status of the wireless security
feature.
Authentication This is your wireless network’s
authentication method.
Network Type This is the wireless network type.
IP Address This is the IP Address of the Adapter.
Subnet Mask This is the Adapter’s Subnet Mask.
Default Gateway This is the Default Gateway address.
DNS1 This is the DNS address of the Adapter.
MAC Address This is the MAC address of the wireless
network’s wireless router or access point.
Signal Strength The Signal Strength bar indicates the
signal strength.
Link Quality The Link Quality bar indicates the quality of
the wireless network connection.
Click Statistics to go to the Wireless Network Statistics
screen. Click Back to return to the initial Link Information
screen. Click Save to Profile to save the currently active
connection settings to a profile.

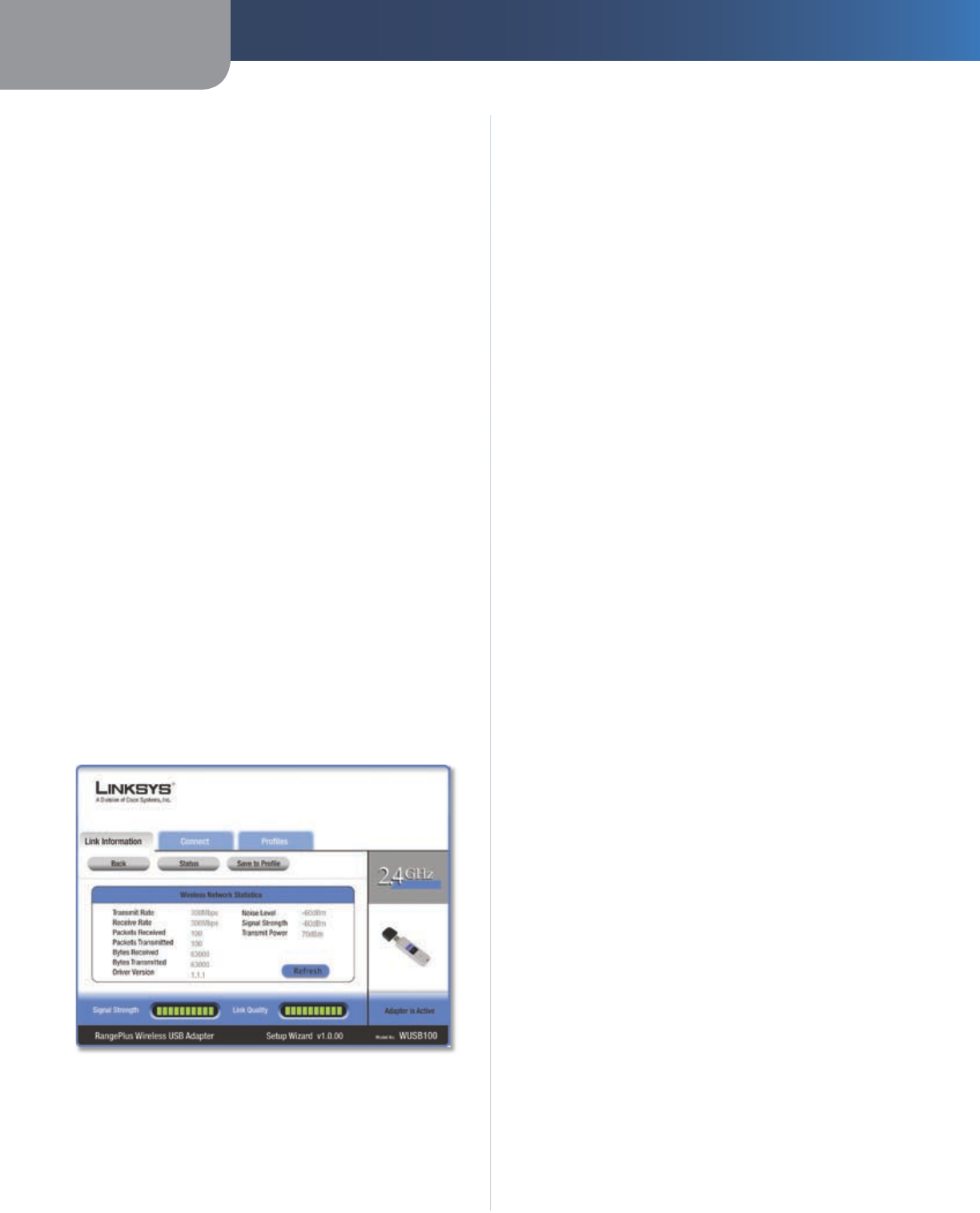

Wireless Network Statistics
The Wireless Networks Statistics screen provides statistics
on your current network settings.
Wireless Network Statistics
Transmit Rate This is the data transmission rate of
the current connection. (In Auto mode, the Adapter
dynamically shifts to the fastest data transmission rate at
any given time.)
Receive Rate This is the rate that the Adapter receives
data.
Packets Received This shows the packets that the
Adapter receives, in real time, after connecting to the
wireless network or after clicking Refresh.
Packets Transmitted This shows the packets that the
Adapter transmits, in real time, after connecting to the
wireless network or after clicking Refresh.
Bytes Received This shows the bytes that the Adapter
receives, in real time, after connecting to the wireless
network or after clicking Refresh.
Bytes Transmitted This shows the bytes that the Adapter
transmits, in real time, after connecting to the wireless
network or after clicking Refresh.
Driver Version This shows the Adapter’s driver version.
Noise Level This shows the level of background noise
that affects the wireless signal. A lower reading translates
into a higher quality signal.
Signal Strength This is the intensity of the wireless signal
that the Adapter receives.
Transmit Power This is the power output at which the
Adapter transmits.
Signal Strength The Signal Strength bar indicates the
signal strength.
Link Quality The Link Quality bar indicates the quality of
the wireless network connection.
Click Back to return to the initial Link Information
screen. Click Status to go to the Wireless Network Status
screen. Click Save to Profile to save the currently active
connection settings to a profile. Click Refresh to reset the
statistics.

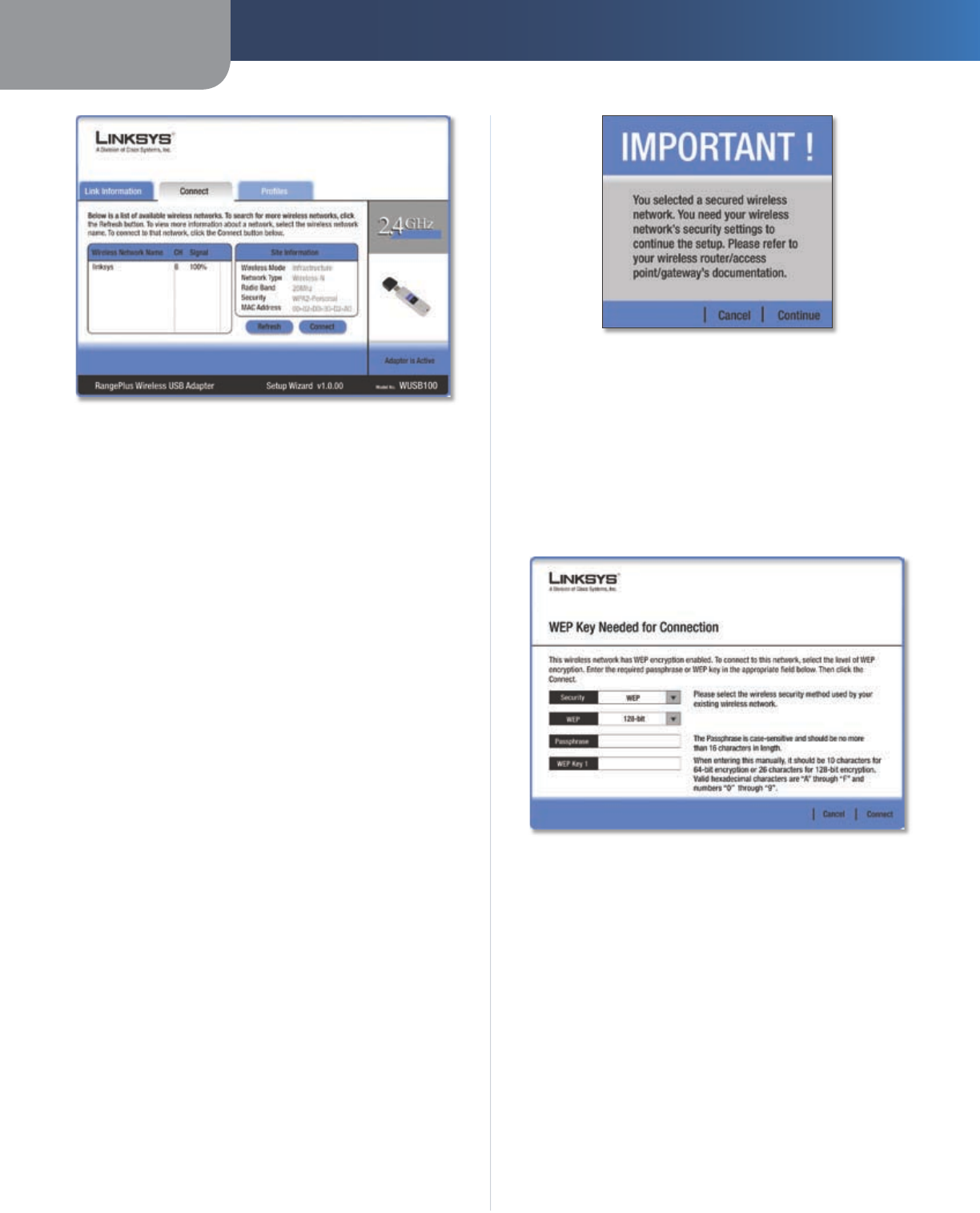

Connect
The Connect screen displays a list of available networks
in the table on the left. The table shows each network’s
wireless network name, radio band, channel, and the
quality of the wireless signal the Adapter receives. You
may click Network Name, CH (Channel), or Signal, to sort
by that field.
Chapter 3 Configuration
5
RangePlus Wireless USB Adapter
Connect
Wireless Network Name This is the SSID or unique name
of the wireless network.
CH This is the channel that the network uses.
Signal This is the percentage of signal strength, from 0
to 100%.
Site Information
For each network selected, the following settings are
listed:
Wireless Mode This is the mode of the wireless network
currently in use.
Network Type This is the network type used by your
wireless network.
Radio Band This is the radio band used by your wireless
network.
Security This is the status of the wireless security
feature.
MAC Address This is the MAC address of the wireless
network’s wireless router or access point.
Refresh Click Refresh to perform a new search for
wireless devices.
Connect To connect to one of the networks on the list,
select the wireless network, and click Connect. If the
network’s wireless security is enabled, then you will view
this screen:
Click Continue
Make sure you have the security settings of your wireless
network, and then click Continue.
Proceed to the instructions for the wireless security screen
you see:
WEP (Wired Equivalent Privacy)
If the network has WEP encryption enabled, then you see
the WEP Key Needed for Connection screen.
WEP Security
WEP Select 64-bit or 128-bit encryption.
Passphrase Enter the network’s Passphrase, so a
WEP key is automatically generated. The passphrase is
case-sensitive and must be 16 or fewer alphanumeric
characters. It must match the passphrase of your other
wireless network devices and is compatible with Linksys
wireless products only. (For non-Linksys wireless products,
enter the WEP key manually.)
WEP Key 1 If you do not have the Passphrase, enter
the WEP key, which must match the WEP key of your
wireless network. For 64-bit encryption, enter exactly 10
hexadecimal characters (“0” to “9” and “A” to “F”.) For 128-bit
encryption, enter exactly 26 hexadecimal characters.
To connect to the network, click Connect. To cancel the
connection, click Cancel.
Chapter 3 Configuration
6
RangePlus Wireless USB Adapter
WPA (Wi-Fi Protected Access)
If the network has WPA Personal security enabled, then
you see the WPA Personal Needed for Connection screen.
WPA-Personal Security
Encryption Select the type of algorithm you want to use,
TKIP or AES.
Pre-shared Key Enter the network’s Pre-shared Key of 8-
63 characters.
To connect to the network, click Connect. To cancel the
connection, click Cancel.
WPA2 (Wi-Fi Protected Access 2)
If the network has WPA2 Personal security enabled, then
you see the WPA2 Personal Needed for Connection screen.
WPA2-Personal Security
Pre-shared Key Enter the network’s Pre-shared Key of 8-
63 characters.
To connect to the network, click Connect. To cancel the
connection, click Cancel.
Profiles
The Profiles screen lets you save different configuration
profiles for different network setups. The table on the left
displays a list of available profiles with their profile names
and wireless network names.
Profiles
Profile This is the name of the profile.
Wireless Network Name This is the SSID or unique name
of the wireless network.
Profile Information
For each profile selected, the following are listed:
Wireless Network This is the type of wireless network
currently in use.
Wireless Mode This is the mode of the wireless network
currently in use.
Wide Channel This is the Wireless-N primary channel
used with a 40 MHz radio band network.
Standard Channel This is the channel used by your
wireless network.
Security This is the status of the wireless security.
Authentication This is the authentication setting for the
network.
Connect To connect to a wireless network using a specific
profile, select the profile, and click Connect.
New Click New to create a new profile. See the next
section, “Create a New Profile,” for instructions.
Edit Select the profile you want to change and click Edit.
Import Click Import to import a profile that is saved in
another location. Select the appropriate file, and click
Open.
Chapter 3 Configuration
7
RangePlus Wireless USB Adapter
Export Select the profile you want to save in a different
location, and click Export. Direct Windows to the
appropriate folder, and click Save.
Delete Select the profile you want to delete and click
Delete.
NOTE: If you want to export more than one
profile, you must export them one at a time.
Create a New Profile

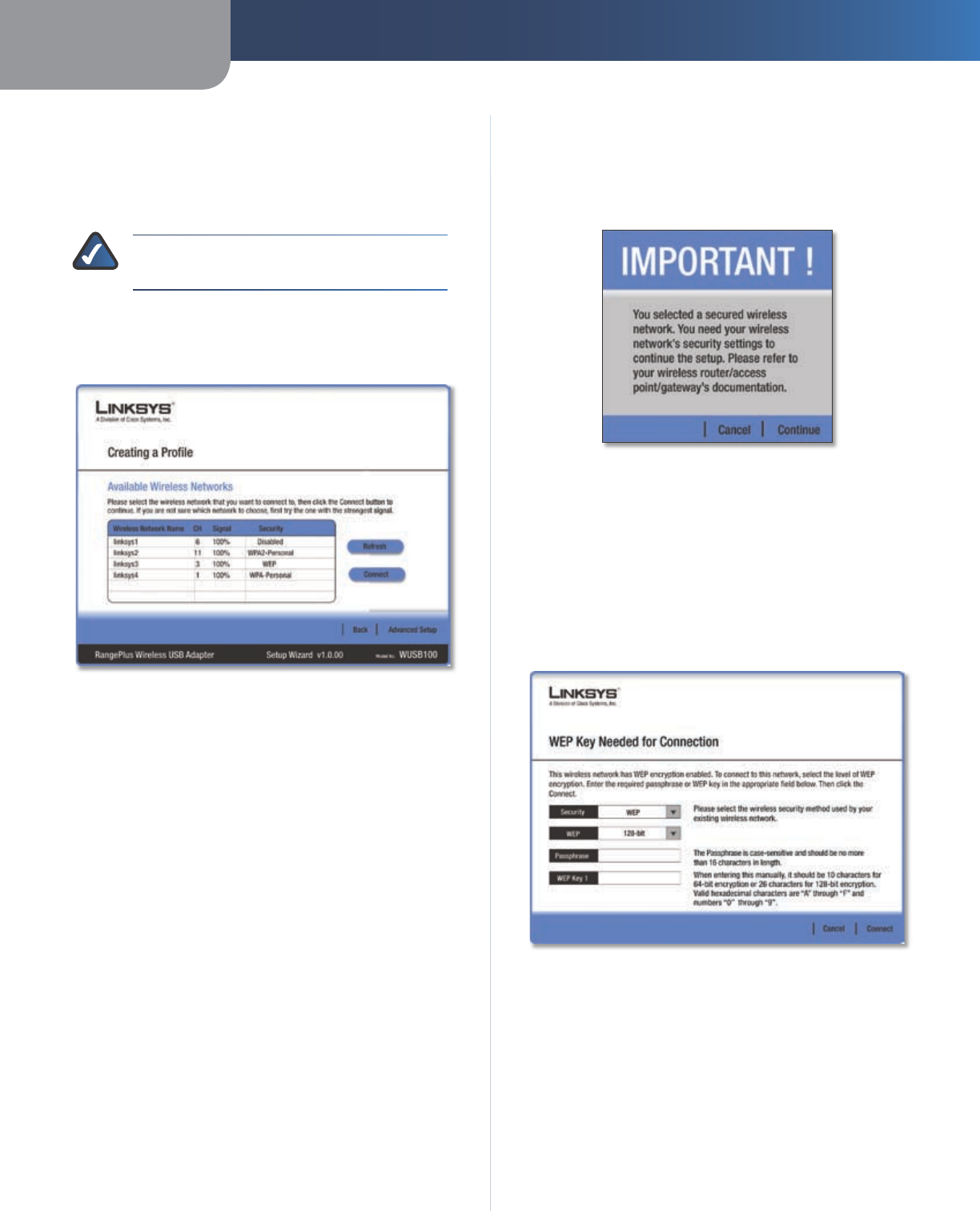

The next screen is the Available Wireless Networks screen.
Available Wireless Networks
This screen provides two options for setting up the
Adapter.
Available Wireless Networks (For most users) Use this
option if you already have a network set up. The networks
available to this Adapter are listed on this screen. You
can choose one of these networks and click Connect
to connect to it. Click Refresh to update the Available
Wireless Networks list.
Advanced Setup If your network is not listed on this
screen, select Advanced Setup to set up the Adapter
manually. This method of setting up the Adapter is
intended for advanced users only.
The setup for each option is described, step by step, under
the appropriate heading on the following pages.
Available Wireless Networks
The available networks are listed in the table on the center
of the screen by Wireless Network Name. Select the wireless
network you wish to connect to and click Connect. (If you
do not see your network listed, click Refresh to bring the
list up again.) If the network uses wireless security, you will
need to configure security on the Adapter. If not, you will
be taken directly to the Congratulations screen.
If you have wireless security enabled on your network,
continue to step 2. If you do not have wireless security
enabled, continue to step 3.
If the network’s wireless security is enabled, then you
will view this screen:
Click Continue
Make sure you have the security settings of your wireless
network, and then click Continue.
Proceed to the instructions for the wireless security screen
you see:
WEP
If the network has WEP encryption enabled, then you see
the WEP Key Needed for Connection screen.
WEP Security
WEP Select 64-bit or 128-bit encryption.
Passphrase Enter the network’s Passphrase, so a
WEP key is automatically generated. The passphrase is
case-sensitive and must be 16 or fewer alphanumeric
characters. It must match the passphrase of your other
wireless network devices and is compatible with Linksys
wireless products only. (For non-Linksys wireless products,
enter the WEP key manually.)
1.
2.
Chapter 3 Configuration
8
RangePlus Wireless USB Adapter
WEP Key If you do not have the Passphrase, enter
the WEP key, which must match the WEP key of your
wireless network. For 64-bit encryption, enter exactly 10
hexadecimal characters (“0” to “9” and “A” to “F”.) For 128-bit
encryption, enter exactly 26 hexadecimal characters.
Click Connect and proceed to step 3.
WPA Personal
If the network has WPA Personal security enabled, then
you see the WPA Personal Needed for Connection screen.
WPA-Personal Security
Encryption Select the type of algorithm you want to use,
TKIP or AES.
Pre-shared Key Enter the network’s Pre-shared Key of 8-
63 characters.
Click Connect and proceed to step 3.
WPA2 Personal
If the network has WPA2 Personal security enabled, then
you see the WPA2 Personal Needed for Connection screen.
WPA2-Personal Security
Pre-shared Key Enter the network’s Pre-shared Key of 8-
63 characters.
Click Connect and proceed to step 3.
After the profile installs, the Congratulations screen
appears. Click Finish.
Congratulations
Congratulations! The profile is
successfully configured.
Advanced Setup
If your network is not listed with the available networks,
use Advanced Setup.
Available Wireless Networks
Click Advanced Setup on the Available Wireless
Networks screen to set up the Adapter manually.
3.
1.
Chapter 3 Configuration
9
RangePlus Wireless USB Adapter

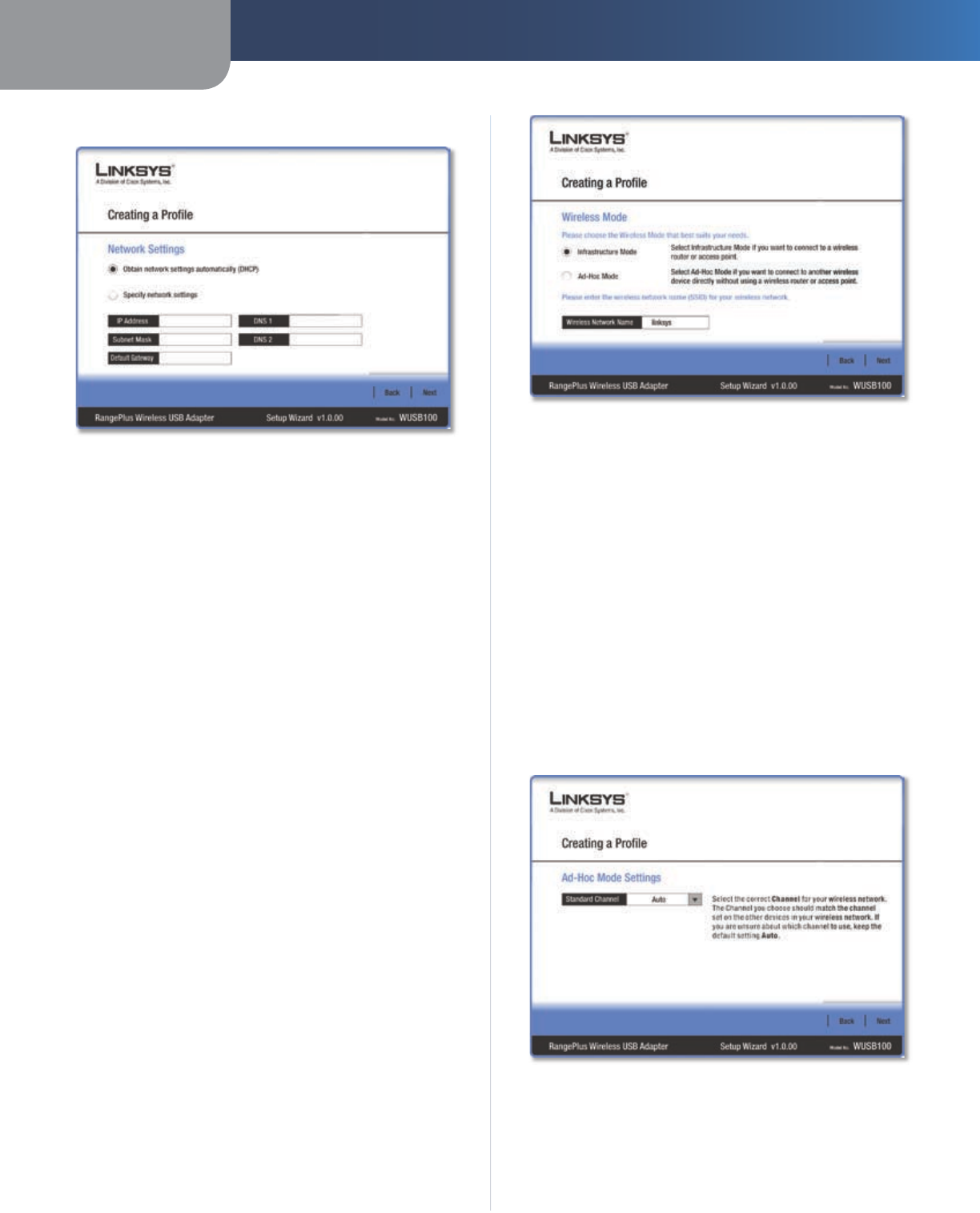

The Network Settings screen appears.
Wireless Network
If your network has a router or other DHCP server, select
Obtain network settings automatically (DHCP).
If your network does not have a DHCP server or router,
select Specify network settings. Enter an IP Address,
Subnet Mask, Default Gateway, and DNS addresses
appropriate for your network. You must specify the
IP Address and Subnet Mask on this screen. If you are
unsure about the Default Gateway and DNS addresses,
leave these fields blank.
IP Address This IP Address must be unique to
your network.
Subnet Mask The Adapter’s Subnet Mask must be
the same as your wired network’s Subnet Mask.
Default Gateway Enter the IP address of your
network’s Gateway.
DNS 1 and DNS 2 Enter the DNS address of your
wired Ethernet network.
Click Next to continue, or click Back to return to the
previous screen.
The Wireless Mode screen shows a choice of two
wireless modes.
2.
–
–
–
–
3.
Wireless Mode
Infrastructure Mode Select this mode if you want
to connect to a wireless router or access point.
Ad-Hoc Mode Select this mode if you want to
connect to another wireless device directly without
using a wireless router or access point.
Wireless Network Name Enter a wireless network
name (SSID) that must be used for all devices in
your wireless network. It is case-sensitive and
should be a unique name to help prevent others
from entering your network.
Click Next to continue, or click Back to return to the
previous screen.
If you chose Infrastructure Mode, go to step 5 now.
If you chose Ad-Hoc Mode, the Ad-Hoc Mode Settings
screen appears.
Ad-Hoc Mode Settings
Standard Channel Select the correct channel
for your wireless network. If you are unsure about
which channel to use, keep the default, Auto.
Click Next to continue, or click Back to return to the
previous screen.
–
–
–
4.
–
Chapter 3 Configuration
10
RangePlus Wireless USB Adapter
If your wireless network does not have wireless security,
select Disabled and then click Next to continue.
Proceed to step 6.

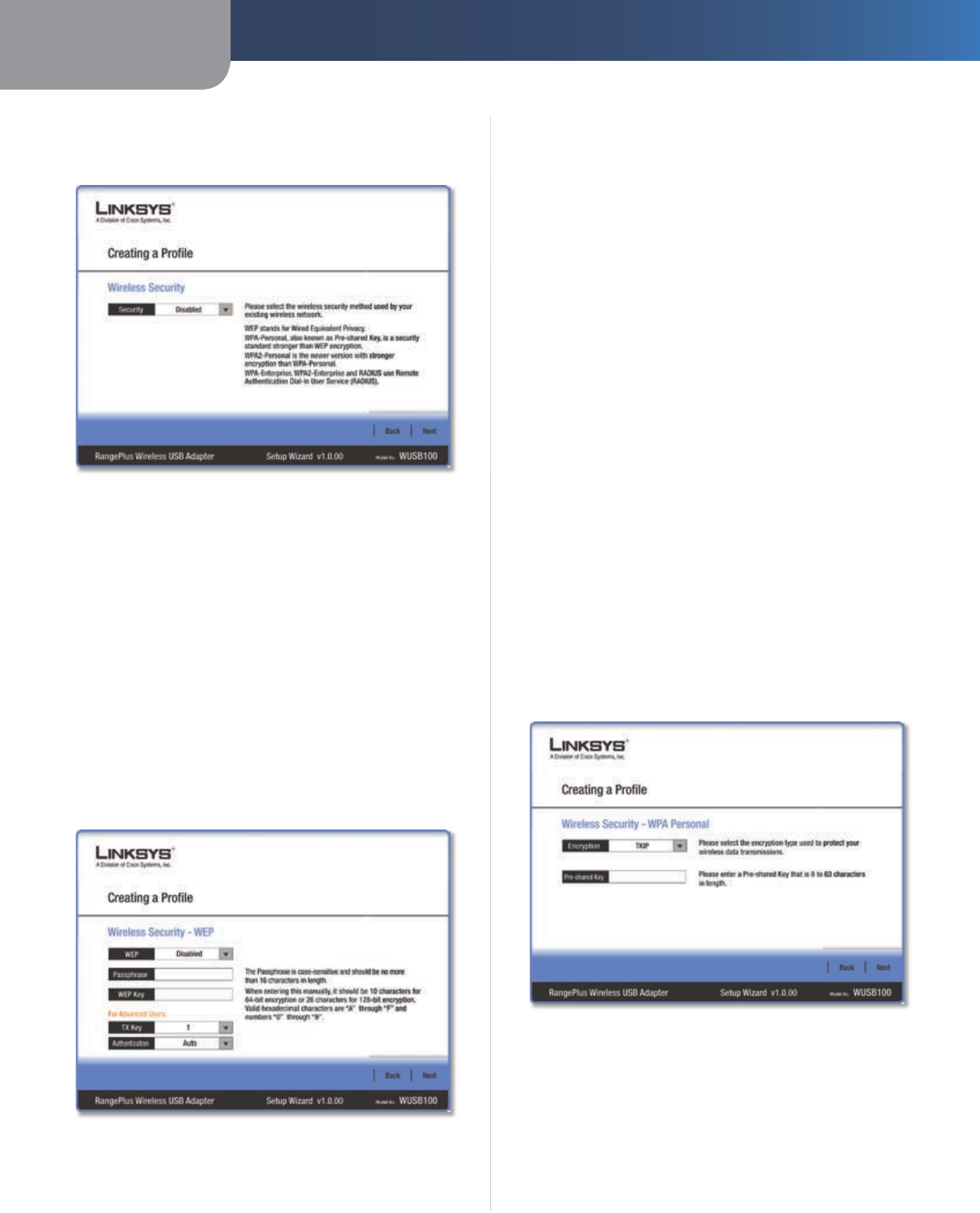

Wireless Security
If your wireless network has wireless security, select
the method of security used: WEP, WPA Personal,
WPA2 Personal, WPA Enterprise, WPA2 Enterprise, or
RADIUS. WEP stands for Wired Equivalent Privacy, and
WPA stands for Wi-Fi Protected Access. WPA2 stands
for Wi-Fi Protected Access 2. WPA is a stronger security
method than WEP. WPA2 is a stronger security method
than WPA. RADIUS stands for Remote Authentication
Dial-In User Service. Click Next to continue, or click
Back to return to the previous screen.
Proceed to the section for your security method.
WEP
Make sure the settings you configure match the settings
of your wireless network.
WEP
WEP Select 64-bit or 128-bit encryption.
5. Passphrase Enter the network’s Passphrase, so a WEP
key is automatically generated. It is case-sensitive and
should not be longer than 16 alphanumeric characters.
This passphrase must match the passphrase of your other
wireless network devices and is compatible with Linksys
wireless products only. (If you have any non-Linksys
wireless products, enter the WEP key manually on those
products.)
WEP Key If you do not have the Passphrase, enter the
WEP key of your wireless network. For 64-bit encryption,
enter exactly 10 hexadecimal characters. For 128-bit
encryption, enter exactly 26 hexadecimal characters. Valid
hexadecimal characters are “0” to “9” and “A” to “F”.
Advanced Users
TX Key The default is 1. If your network’s wireless router
or access point uses transmit key number 2, 3, or 4, select
the appropriate number.
Authentication The default is Open System. For Open
System authentication, the sender and the recipient do
not share a WEP key for authentication. For Shared Key
authentication, both the sender and the recipient share a
WEP key for authentication.
Click Next to continue, or click Back to return to the
previous screen.
WPA Personal
WPA Personal offers two encryption methods, TKIP and
AES, with dynamic encryption keys.
WPA Personal
Encryption Select TKIP or AES.
Pre-shared Key Enter the network’s Pre-shared Key of
8-63 characters.
Click Next to continue, or click Back to return to the
previous screen.
Chapter 3 Configuration
11
RangePlus Wireless USB Adapter

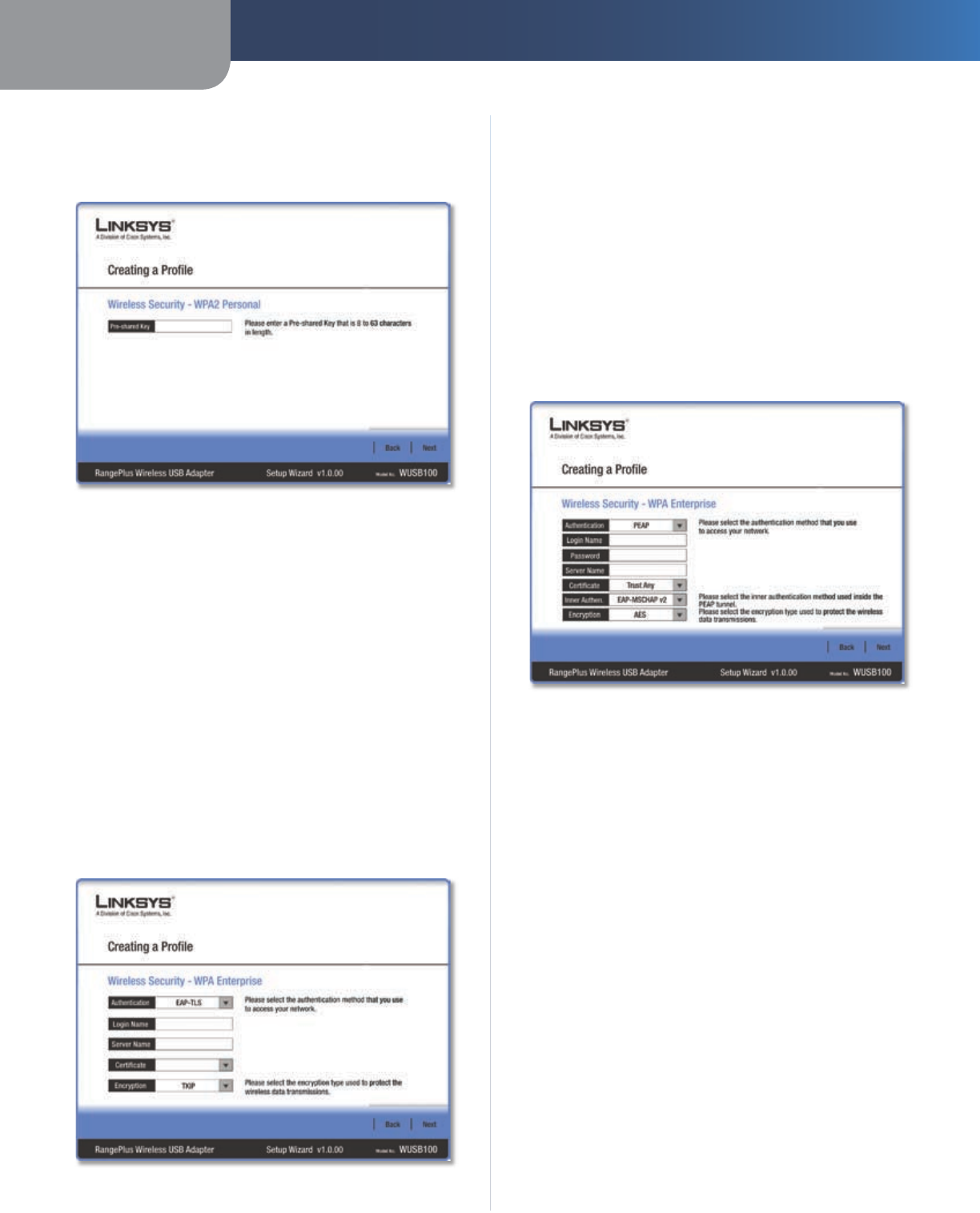

WPA2 Personal
WPA2 Personal uses the encryption method, AES, with
dynamic encryption keys.
WPA2 Personal
Pre-shared Key Enter the network’s Pre-shared Key of
8-63 characters.
Click Next to continue, or click Back to return to the
previous screen.
WPA Enterprise
WPA Enterprise features WPA security used in coordination
with a RADIUS server. (This should only be used when a
RADIUS server is connected to the Router.) WPA Enterprise
offers two authentication methods, EAP-TLS and PEAP,
as well as two encryption methods, TKIP and AES, with
dynamic encryption keys.
Authentication Select the authentication method your
network is using, EAP-TLS or PEAP.
EAP-TLS
WPA Enterprise - EAP-TLS
If you selected EAP-TLS, configure the following:
Login Name Enter the login name of your wireless
network.
Server Name Enter the name of the authentication server
(this is optional).
Certificate Select the certificate you installed to
authenticate you on your wireless network.
Encryption Select the type of encryption, TKIP or AES.
Click Next to continue, or click Back to return to the
previous screen.
PEAP
WPA Enterprise - PEAP
If you selected PEAP, configure the following:
Login Name Enter the login name of your wireless
network.
Password Enter the password of your wireless network.
Server Name Enter the name of the authentication server
(this is optional).
Certificate Select the certificate you installed to
authenticate you on your wireless network. If you want to
use any certificate, keep the default, Trust Any.
Inner Authen. Select the authentication method used
inside the PEAP tunnel.
Encryption Select the type of encryption, TKIP or AES.
Click Next to continue, or click Back to return to the
previous screen.

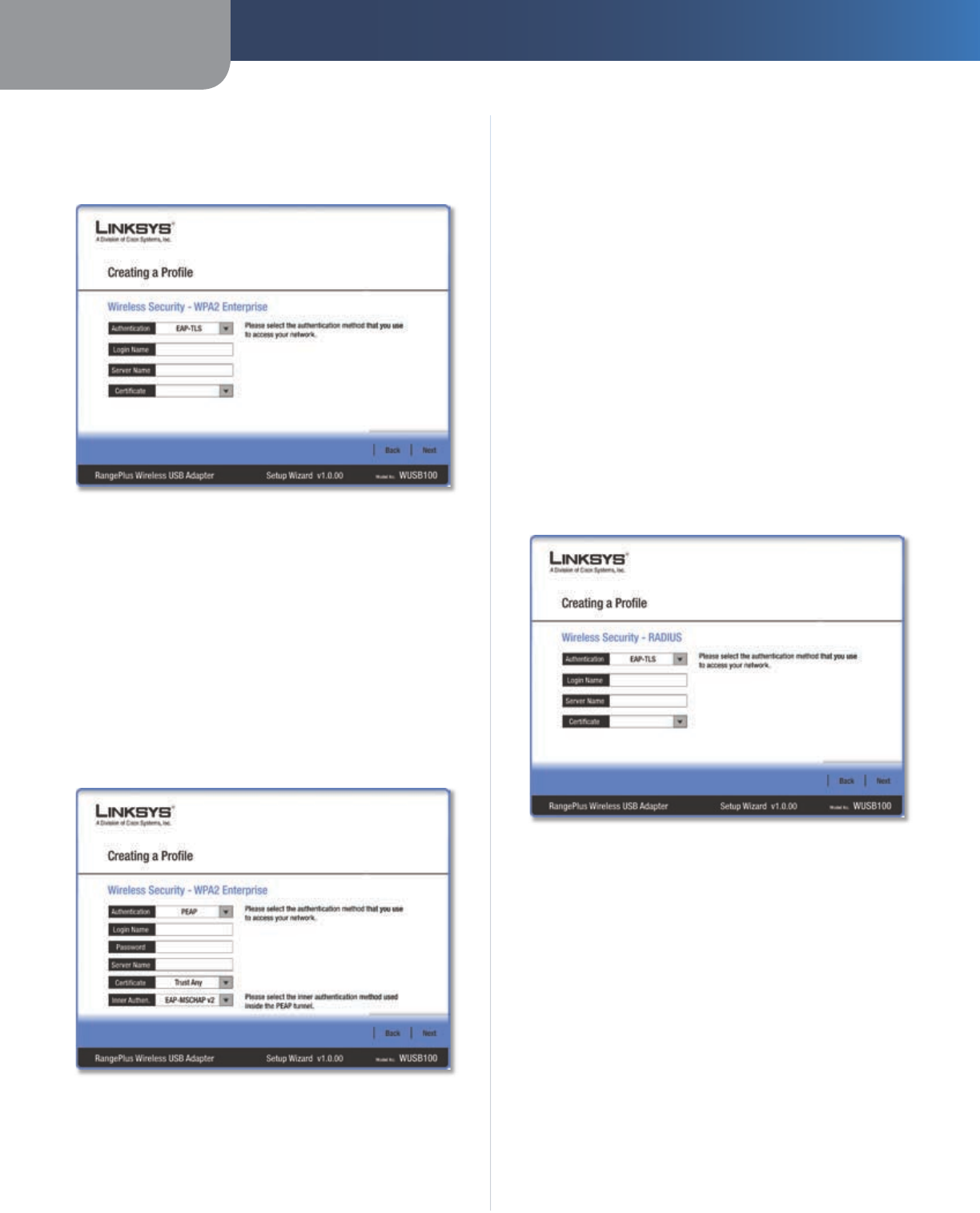

WPA2 Enterprise
WPA2 Enterprise features WPA2 security used in
coordination with a RADIUS server. (This should only be
used when a RADIUS server is connected to the Router.)
WPA2 Enterprise offers two authentication methods, EAP-
TLS and PEAP.
Chapter 3 Configuration
12
RangePlus Wireless USB Adapter
Authentication Select the authentication method your
network is using, EAP-TLS or PEAP.
EAP-TLS
WPA2 Enterprise - EAP-TLS
If you selected EAP-TLS, configure the following:
Login Name Enter the login name of your wireless
network.
Server Name Enter the name of the authentication server
(this is optional).
Certificate Select the certificate you installed to
authenticate you on your wireless network.
Click Next to continue, or click Back to return to the
previous screen.
PEAP
WPA2 Enterprise - PEAP
If you selected PEAP, configure the following:
Login Name Enter the login name of your wireless
network.
Password Enter the password of your wireless network.
Server Name Enter the name of the authentication server
(this is optional).
Certificate Select the certificate you installed to
authenticate you on your wireless network. If you want to
use any certificate, keep the default, Trust Any.
Inner Authen. Select the authentication method used
inside the PEAP tunnel.
Click Next to continue, or click Back to return to the
previous screen.
RADIUS
RADIUS features use of a RADIUS server. (This should
only be used when a RADIUS server is connected to the
Router.) RADIUS offers two authentication types: EAP-TLS
and PEAP.
Authentication Select the authentication method your
network is using, EAP-TLS or PEAP.
EAP-TLS
RADIUS - EAP-TLS
If you selected EAP-TLS, configure the following:
Login Name Enter the login name of your wireless
network.
Server Name Enter the name of the authentication server
(this is optional).
Certificate Select the certificate you installed to
authenticate you on your wireless network.
Click Next to continue, or click Back to return to the
previous screen.
Chapter 3 Configuration
13
RangePlus Wireless USB Adapter
PEAP
RADIUS - PEAP
If you selected PEAP, configure the following:
Login Name Enter the login name of your wireless
network.
Password Enter the password of your wireless network.
Server Name Enter the name of the authentication server
(this is optional).
Certificate Select the certificate you installed to
authenticate you on your wireless network. If you want to
use any certificate, keep the default, Trust Any.
Inner Authen. Select the authentication method used
inside the PEAP tunnel.
Click Next to continue, or click Back to return to the
previous screen.
The Confirm New Settings screen appears.
Confirm New Settings
To save the new settings, click Save. To edit the new
settings, click Back. To exit Advanced Setup through
the Monitor, click Exit.
6.
The Congratulations screen appears. Click Connect to
Network to implement the new settings immediately
and return to the Link Information screen. Click Return
to Profiles screen to keep the current settings active
and return to the Profiles screen.
Congratulations
Congratulations! The profile is
successfully configured.
How to Access the Diagnostics Utility
After installing the Adapter, the Diagnostic utility is
installed on your computer. Follow these instructions to
run the Diagnostics utility:
Click Start.
Select Programs.
Select Linksys RangePlus Wireless USB Adapter.
Click Diagnostic.
Run Diagnostics Utility
7.
1.
2.
3.
4.
Chapter 3 Configuration
14
RangePlus Wireless USB Adapter
To uninstall the Diagnostics utility, click Uninstall. To open
the Monitor, click Wireless Network Monitor.
How to Use the Diagnostics Utility
After you run the Diagnostics utility, the results are
displayed.

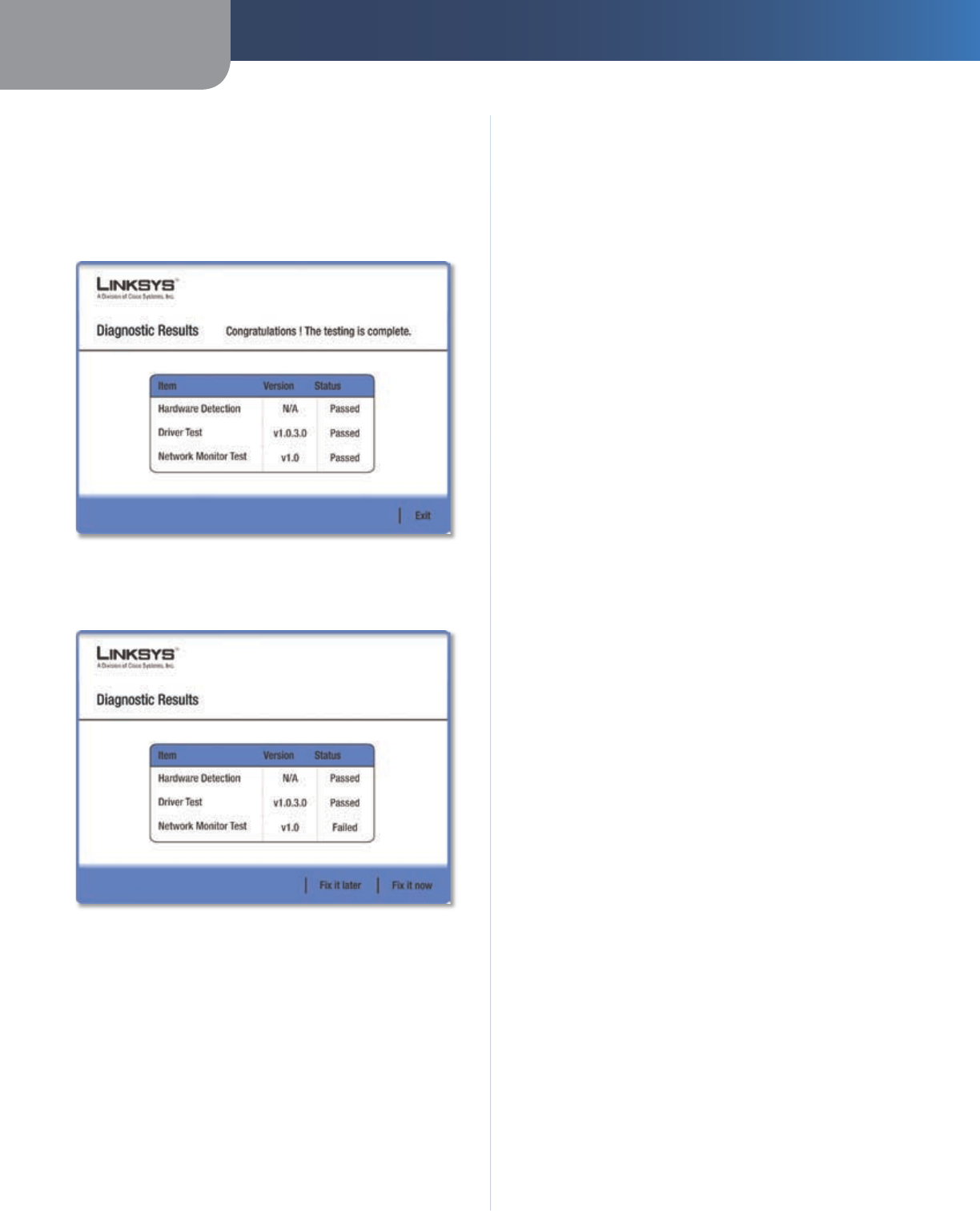

Diagnostic Results - Passed
If the Adapter has passed all tests, then click Exit to close
the Diagnostics utility.
Diagnostic Results - Troubleshooting
If the Adapter fails a test, you have two choices.
To troubleshoot at a later time, click Fix it later. To
troubleshoot now, click Fix it now.
Appendix A Troubleshooting
15
RangePlus Wireless USB Adapter
Appendix A:
Troubleshooting
Your computer does not recognize the Adapter.
Make sure that the Adapter is properly inserted into the
USB slot.
The Adapter does not work properly.
Remove the Adapter, and then reinsert it into the
computer’s USB slot.
Your computer cannot communicate with the other
computers linked via Ethernet in the Infrastructure
conguration.
Make sure that the computers are powered on.
Make sure that the Adapter is configured with the
same Wireless Network Name (SSID) and wireless
security settings as the other wireless computers in
the Infrastructure configuration.
WEB: If your questions are not addressed here,
refer to the Linksys website, www.linksys.com
1.
2.
Appendix B Windows XP Wireless Zero Configuration
16
RangePlus Wireless USB Adapter
Appendix B:
Windows XP Wireless Zero
Configuration

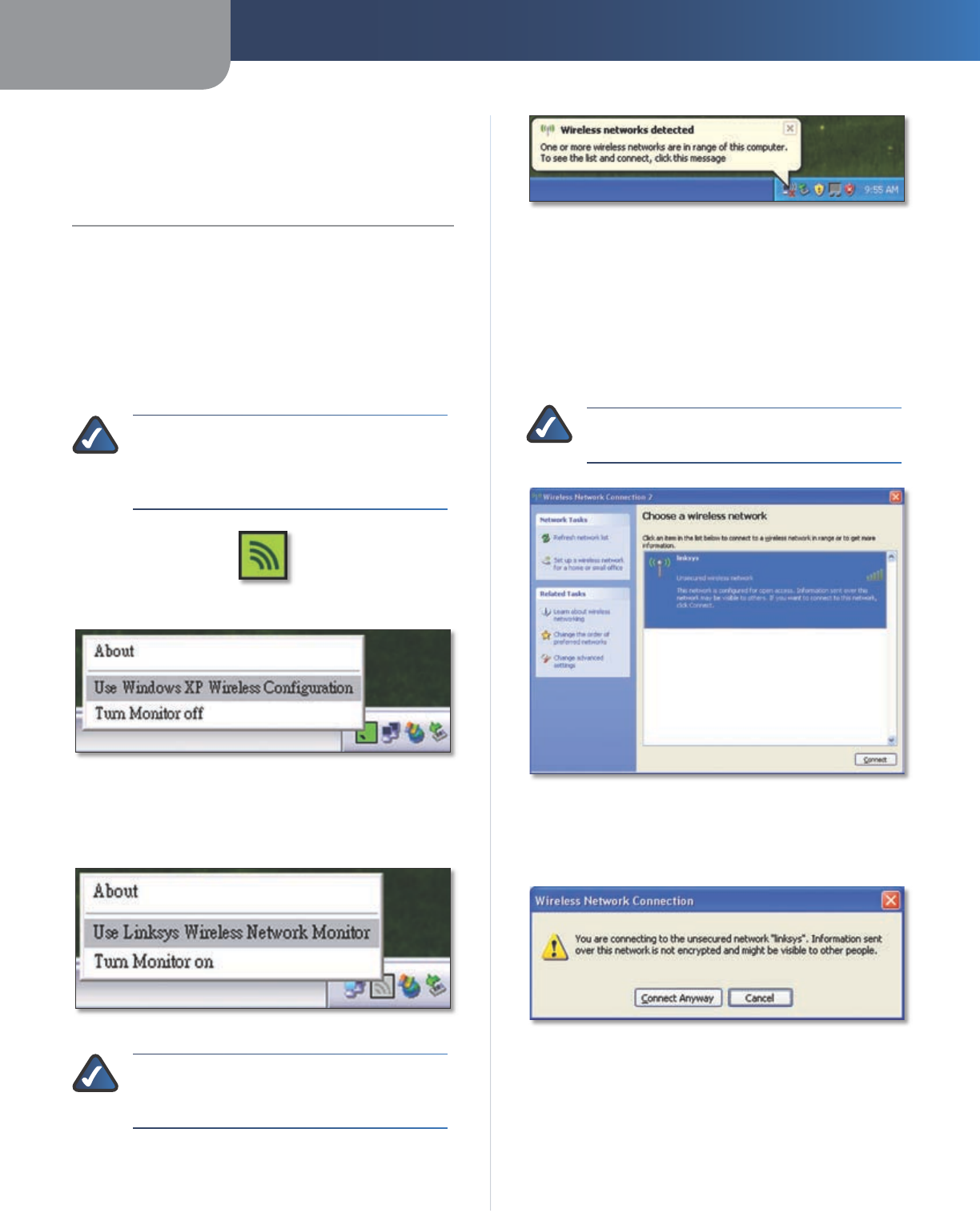

Windows XP Wireless Zero Configuration
If your computer is running Windows XP, then this choice
will be available. If you want to use Windows XP Wireless
Zero Configuration to control the Adapter, instead of
using the Wireless Network Monitor, then right-click the
Wireless Network Monitor icon, and select Use Windows
XP Wireless Configuration.
NOTE: If you have WPA2 wireless security, refer
to Update for Windows XP (KB893357) on the
microsoft.com website to be able to connect
correctly.
Wireless Network Monitor Icon
Use Windows XP Wireless Configuration
If you want to switch back to the Wireless Network Monitor,
right-click the Wireless Network Monitor icon, and select
Use Linksys Wireless Network Monitor.
Use Linksys Wireless Network Monitor
NOTE: For more information on Windows XP
Wireless Zero Configuration, refer to Windows
Help.
After installing the Adapter, the Windows XP Wireless
Zero Configuration icon appears in your computer’s
system tray. Double-click the icon.
1.
Windows XP Wireless Zero Configuration Icon

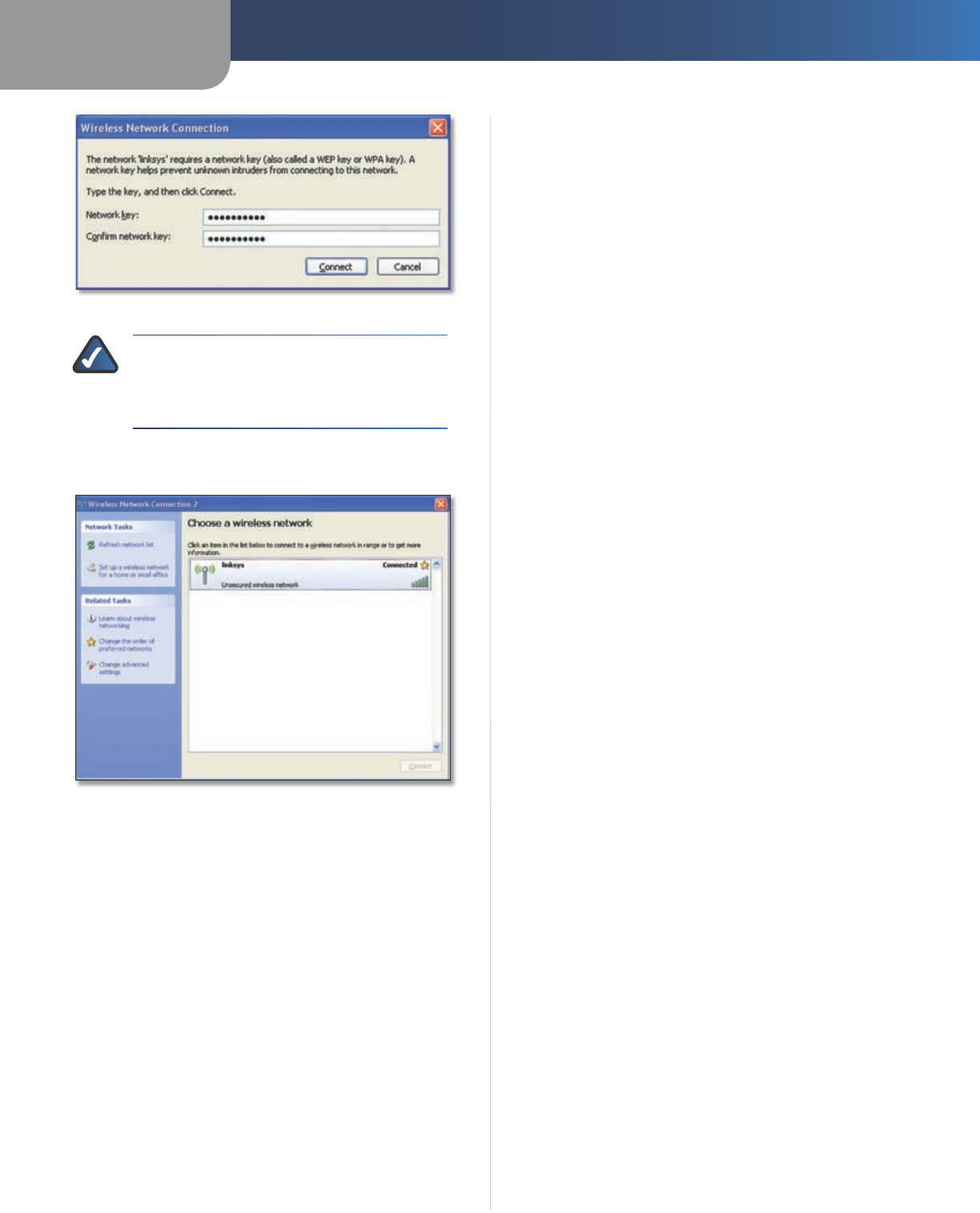

The screen that appears will show any available
wireless network. Select the network you want. Click
Connect.
If your network does not have wireless security
enabled, go to step 3.
If your network does have wireless security enabled,
go to step 4.
NOTE: Steps 2 and 3 are for Windows XP with
Service Pack 2 installed.
Available Wireless Network
If your network does not have wireless security enabled,
click Connect Anyway to connect the Adapter to your
network.
No Wireless Security
If your network uses WEP wireless security, enter the
WEP Key in the Network Key and Confirm network key
fields. If your network uses WPA Personal wireless
security, enter the Passphrase in the Network Key and
Confirm network key fields. Click Connect.
2.
3.
4.
Appendix B Windows XP Wireless Zero Configuration
17
RangePlus Wireless USB Adapter
Wireless Security
NOTE: Windows XP Wireless Zero Configuration
does not support the use of a passphrase. Enter
the exact WEP key used by your wireless router
or access point.
Your wireless network will appear as Connected when
your connection is active.
Wireless Network Connection
For more information about wireless networking on a
Windows XP computer, click Start > Help > Support.
Enter the keyword wireless in the field provided, and
press the Enter key.
Your computer is now connected to your
wireless network.
5.
Appendix C Specifications
18
RangePlus Wireless USB Adapter
Appendix C:
Specifications
Model WUSB100
Standards IEEE 802.11b, IEEE 802.11g
LEDs 1
Number of Antennas 2 Internal Antennas
Connector Type USB
Modulations 802.11b: CCK, QPSK, BPSK
802.11g: 64-QAM, 16-QAM
802.11n draft: BPSK, QPSK, 16-QAM,
64-QAM
RF Power (EIRP)
in dBm 802.11b: 17.6 dBm
802.11g: 17.2 dBm
802.11n: 17.1 dBm
Antenna Gain in dBi 2 dBi
Power Consumption TX: 590mA, HT20, MCS7; 610mA,
HT40, MCS7 at 3.3V
RX: 480mA, HT20, MCS15; 570mA
HT40, MCS15 at 3.3V
Security Features WEP, Wi-Fi Protected Access™ 2
(WPA2)
Security Key Bits Up to 256-Bit Encryption
Environmental
Dimensions 3.86" x 0.39" x 1.10"
(98 x 10 x 28 mm)
Weight 0.60 oz (17 g)
Power 3.3V
Certication FCC, UL, CB, CE, C-Tick, IDA
Operating Temp. 32 to 104ºF (0 to 40ºC)
Storage Temp. 14 to 158ºF (–10 to 70ºC)
Operating Humidity 10 to 85% Noncondensing
Storage Humidity 5 to 90% Noncondensing
Specications are subject to change without notice.
Appendix D Warranty Information
19
RangePlus Wireless USB Adapter
Limited Warranty
Linksys warrants to You that, for a period of one year
(the "Warranty Period"), your Linksys Product will be
substantially free of defects in materials and workmanship
under normal use. Your exclusive remedy and Linksys’
entire liability under this warranty will be for Linksys at
its option to repair or replace the Product or refund Your
purchase price less any rebates. This limited warranty
extends only to the original purchaser.
If the Product proves defective during the Warranty
Period call Linksys Technical Support in order to obtain
a Return Authorization Number, if applicable. BE SURE
TO HAVE YOUR PROOF OF PURCHASE ON HAND WHEN
CALLING. If You are requested to return the Product, mark
the Return Authorization Number clearly on the outside
of the package and include a copy of your original proof
of purchase. RETURN REQUESTS CANNOT BE PROCESSED
WITHOUT PROOF OF PURCHASE. You are responsible
for shipping defective Products to Linksys. Linksys pays
for UPS Ground shipping from Linksys back to You only.
Customers located outside of the United States of America
and Canada are responsible for all shipping and handling
charges.
ALL IMPLIED WARRANTIES AND CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE ARE LIMITED TO THE DURATION OF
THE WARRANTY PERIOD. ALL OTHER EXPRESS OR
IMPLIED CONDITIONS, REPRESENTATIONS AND
WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF
NON-INFRINGEMENT, ARE DISCLAIMED. Some jurisdictions
do not allow limitations on how long an implied warranty
lasts, so the above limitation may not apply to You. This
warranty gives You specific legal rights, and You may also
have other rights which vary by jurisdiction.
This warranty does not apply if the Product (a) has been
altered, except by Linksys, (b) has not been installed,
operated, repaired, or maintained in accordance with
instructions supplied by Linksys, or (c) has been subjected
to abnormal physical or electrical stress, misuse,
negligence, or accident. In addition, due to the continual
development of new techniques for intruding upon and
attacking networks, Linksys does not warrant that the
Product will be free of vulnerability to intrusion or attack.
TO THE EXTENT NOT PROHIBITED BY LAW, IN NO EVENT
WILL LINKSYS BE LIABLE FOR ANY LOST DATA, REVENUE
OR PROFIT, OR FOR SPECIAL, INDIRECT, CONSEQUENTIAL,
INCIDENTAL OR PUNITIVE DAMAGES, REGARDLESS OF THE
THEORY OF LIABILITY (INCLUDING NEGLIGENCE), ARISING
OUT OF OR RELATED TO THE USE OF OR INABILITY TO
USE THE PRODUCT (INCLUDING ANY SOFTWARE), EVEN
IF LINKSYS HAS BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES. IN NO EVENT WILL LINKSYS’ LIABILITY
EXCEED THE AMOUNT PAID BY YOU FOR THE PRODUCT.
The foregoing limitations will apply even if any warranty or
remedy provided under this Agreement fails of its essential
purpose. Some jurisdictions do not allow the exclusion or
limitation of incidental or consequential damages, so the
above limitation or exclusion may not apply to You.
Please direct all inquiries to: Linksys, P.O. Box 18558, Irvine,
CA 92623.
Appendix D:
Warranty Information
Appendix E Regulatory Information
20
RangePlus Wireless USB Adapter
Appendix E:
Regulatory Information
FCC Statement
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
This product has been tested and complies with the
specifications for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in
a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not
installed and used according to the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception,
which is found by turning the equipment off and on, the
user is encouraged to try to correct the interference by
one or more of the following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment or
devices
Connect the equipment to an outlet other than the
receiver’s
Consult a dealer or an experienced radio/TV technician
for assistance
FCC Caution: Any changes or modifications not expressly
approved by the party responsible for compliance could
void the user’s authority to operate this equipment.
SAR compliance has been established in typical laptop
computer(s) with USB slot, and product could be used in
typical laptop computer with USB slot. Other application
like handheld PC or similar device has not been verified
and may not compliance with related RF exposure rule
and such use shall be prohibited.
IMPORTANT NOTE:
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure
limits set forth for an uncontrolled environment. End
users must follow the specific operating instructions for
satisfying RF exposure compliance.
•
•
•
•
This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter. IEEE
802.11b or 802.11g operation of this product in the USA is
firmware-limited to channels 1 through 11.
This EUT is compliance with SAR for general
population/uncontrolled exposure limits in ANSI/IEEE
C95.1-1999 and had been tested in accordance with the
measurement methods and procedures specified in OET
Bulletin 65 Supplement C.
Safety Notices
Caution: To reduce the risk of fire, use only No.26 AWG
or larger telecommunication line cord.
Do not use this product near water, for example, in a
wet basement or near a swimming pool.
Avoid using this product during an electrical storm.
There may be a remote risk of electric shock from
lightning.
WARNING: This product contains lead, known
to the State of California to cause cancer, and
birth defects or other reproductive harm. Wash
hands after handling.
Wireless Disclaimer
The maximum performance for wireless is derived from
IEEE Standard 802.11 specifications. Actual performance
can vary, including lower wireless network capacity,
data throughput rate, range and coverage. Performance
depends on many factors, conditions and variables,
including distance from the access point, volume of
network traffic, building materials and construction,
operating system used, mix of wireless products used,
interference and other adverse conditions.
Avis de non-responsabilité concernant les
appareils sans fil
Les performances maximales pour les réseaux sans fil
sont tirées des spécifications de la norme IEEE 802.11.
Les performances réelles peuvent varier, notamment
en fonction de la capacité du réseau sans fil, du débit
de la transmission de données, de la portée et de la
couverture. Les performances dépendent de facteurs,
conditions et variables multiples, en particulier de la
distance par rapport au point d’accès, du volume du trafic
réseau, des matériaux utilisés dans le bâtiment et du
type de construction, du système d’exploitation et de la
combinaison de produits sans fil utilisés, des interférences
et de toute autre condition défavorable.
•
•
•
Appendix E Regulatory Information
21
RangePlus Wireless USB Adapter
User Information for Consumer Products
Covered by EU Directive 2002/96/EC on
Waste Electric and Electronic Equipment
(WEEE)
This document contains important information for users
with regards to the proper disposal and recycling of
Linksys products. Consumers are required to comply with
this notice for all electronic products bearing the following
symbol:
English - Environmental Information for Customers in
the European Union
European Directive 2002/96/EC requires that the equipment
bearing this symbol on the product and/or its packaging must
not be disposed of with unsorted municipal waste. The symbol
indicates that this product should be disposed of separately
from regular household waste streams. It is your responsibility to
dispose of this and other electric and electronic equipment via
designated collection facilities appointed by the government or
local authorities. Correct disposal and recycling will help prevent
potential negative consequences to the environment and
human health. For more detailed information about the disposal
of your old equipment, please contact your local authorities,
waste disposal service, or the shop where you purchased the
product.
Български (Bulgarian) - Информация относно
опазването на околната среда за потребители в
Европейския съюз
Европейска директива 2002/96/EC изисква уредите, носещи
този символ върху изделието и/или опаковката му, да не
се изхвърля т с несортирани битови отпадъци. Символът
обозначава, че изделието трябва да се изхвърля отделно от
сметосъбирането на обикновените битови отпадъци. Ваша
е отговорността този и другите електрически и електронни
уреди да се изхвърлят в предварително определени от
държавните или общински органи специализирани пунктове
за събиране. Правилното изхвърляне и рециклиране
ще спомогнат да се предотвратят евентуални вредни за
околната среда и здравето на населението последствия. За
по-подробна информация относно изхвърлянето на вашите
стари уреди се обърнете към местните власти, службите за
сметосъбиране или магазина, от който сте закупили уреда.
Ceština (Czech) - Informace o ochraně životního
prostředí pro zákazníky v zemích Evropské unie
Evropská směrnice 2002/96/ES zakazuje, aby zařízení označené
tímto symbolem na produktu anebo na obalu bylo likvidováno
s netříděným komunálním odpadem. Tento symbol udává,
že daný produkt musí být likvidován odděleně od běžného
komunálního odpadu. Odpovídáte za likvidaci tohoto produktu
a dalších elektrických a elektronických zařízení prostřednictvím
určených sběrných míst stanovených vládou nebo místními
úřady. Správná likvidace a recyklace pomáhá předcházet
potenciálním negativním dopadům na životní prostředí a lidské
zdraví. Podrobnější informace o likvidaci starého vybavení si
laskavě vyžádejte od místních úřadů, podniku zabývajícího se
likvidací komunálních odpadů nebo obchodu, kde jste produkt
zakoupili.
Dansk (Danish) - Miljøinformation for kunder i EU
EU-direktiv 2002/96/EF kræver, at udstyr der bærer dette symbol
på produktet og/eller emballagen ikke må bortskaffes som
usorteret kommunalt affald. Symbolet betyder, at dette produkt
skal bortskaffes adskilt fra det almindelige husholdningsaffald.
Det er dit ansvar at bortskaffe dette og andet elektrisk og
elektronisk udstyr via bestemte indsamlingssteder udpeget
af staten eller de lokale myndigheder. Korrekt bortskaffelse
og genvinding vil hjælpe med til at undgå mulige skader for
miljøet og menneskers sundhed. Kontakt venligst de lokale
myndigheder, renovationstjenesten eller den butik, hvor du
har købt produktet, angående mere detaljeret information om
bortskaffelse af dit gamle udstyr.
Deutsch (German) - Umweltinformation für Kunden
innerhalb der Europäischen Union
Die Europäische Richtlinie 2002/96/EC verlangt, dass technische
Ausrüstung, die direkt am Gerät und/oder an der Verpackung mit
diesem Symbol versehen ist , nicht zusammen mit unsortiertem
Gemeindeabfall entsorgt werden darf. Das Symbol weist darauf
hin, dass das Produkt von regulärem Haushaltmüll getrennt
entsorgt werden sollte. Es liegt in Ihrer Verantwortung, dieses
Gerät und andere elektrische und elektronische Geräte über
die dafür zuständigen und von der Regierung oder örtlichen
Behörden dazu bestimmten Sammelstellen zu entsorgen.
Ordnungsgemäßes Entsorgen und Recyceln trägt dazu bei,
potentielle negative Folgen für Umwelt und die menschliche
Gesundheit zu vermeiden. Wenn Sie weitere Informationen zur
Entsorgung Ihrer Altgeräte benötigen, wenden Sie sich bitte an
die örtlichen Behörden oder städtischen Entsorgungsdienste
oder an den Händler, bei dem Sie das Produkt erworben haben.
Appendix E Regulatory Information
22
RangePlus Wireless USB Adapter
Eesti (Estonian) - Keskkonnaalane informatsioon
Euroopa Liidus asuvatele klientidele
Euroopa Liidu direktiivi 2002/96/EÜ nõuete kohaselt on
seadmeid, millel on tootel või pakendil käesolev sümbol ,
keelatud kõrvaldada koos sorteerimata olmejäätmetega. See
sümbol näitab, et toode tuleks kõrvaldada eraldi tavalistest
olmejäätmevoogudest. Olete kohustatud kõrvaldama käesoleva
ja ka muud elektri- ja elektroonikaseadmed riigi või kohalike
ametiasutuste poolt ette nähtud kogumispunktide kaudu.
Seadmete korrektne kõrvaldamine ja ringlussevõtt aitab vältida
võimalikke negatiivseid tagajärgi keskkonnale ning inimeste
tervisele. Vanade seadmete kõrvaldamise kohta täpsema
informatsiooni saamiseks võtke palun ühendust kohalike
ametiasutustega, jäätmekäitlusfirmaga või kauplusega, kust te
toote ostsite.
Español (Spanish) - Información medioambiental para
clientes de la Unión Europea
La Directiva 2002/96/CE de la UE exige que los equipos que
lleven este símbolo en el propio aparato y/o en su embalaje
no deben eliminarse junto con otros residuos urbanos no
seleccionados. El símbolo indica que el producto en cuestión
debe separarse de los residuos domésticos convencionales con
vistas a su eliminación. Es responsabilidad suya desechar este y
cualesquiera otros aparatos eléctricos y electrónicos a través de
los puntos de recogida que ponen a su disposición el gobierno y
las autoridades locales. Al desechar y reciclar correctamente estos
aparatos estará contribuyendo a evitar posibles consecuencias
negativas para el medio ambiente y la salud de las personas. Si
desea obtener información más detallada sobre la eliminación
segura de su aparato usado, consulte a las autoridades locales,
al servicio de recogida y eliminación de residuos de su zona o
pregunte en la tienda donde adquirió el producto.
ξλληνικά (Greek) - Στοιχεία περιβαλλοντικής
προστασίας για πελάτες εντός της Ευρωπαϊκής
Ένωσης
Η Κοινοτική Οδηγία 2002/96/EC απαιτεί ότι ο εξοπλισμός ο οποίος
φέρει αυτό το σύμβολο στο προϊόν και/ή στη συσκευασία
του δεν πρέπει να απορρίπτεται μαζί με τα μικτά κοινοτικά
απορρίμματα. Το σύμβολο υποδεικνύει ότι αυτό το προϊόν θα
πρέπει να απορρίπτεται ξεχωριστά από τα συνήθη οικιακά
απορρίμματα. Είστε υπεύθυνος για την απόρριψη του παρόντος
και άλλου ηλεκτρικού και ηλεκτρονικού εξοπλισμού μέσω των
καθορισμένων εγκαταστάσεων συγκέντρωσης απορριμμάτων οι
οποίες παρέχονται από το κράτος ή τις αρμόδιες τοπικές αρχές.
Η σωστή απόρριψη και ανακύκλωση συμβάλλει στην πρόληψη
πιθανών αρνητικών συνεπειών για το περιβάλλον και την υγεία.
Για περισσότερες πληροφορίες σχετικά με την απόρριψη του
παλιού σας εξοπλισμού, παρακαλώ επικοινωνήστε με τις τοπικές
αρχές, τις υπηρεσίες απόρριψης ή το κατάστημα από το οποίο
αγοράσατε το προϊόν.
Français (French) - Informations environnementales
pour les clients de l’Union européenne
La directive européenne 2002/96/CE exige que l’équipement
sur lequel est apposé ce symbole sur le produit et/ou son
emballage ne soit pas jeté avec les autres ordures ménagères. Ce
symbole indique que le produit doit être éliminé dans un circuit
distinct de celui pour les déchets des ménages. Il est de votre
responsabilité de jeter ce matériel ainsi que tout autre matériel
électrique ou électronique par les moyens de collecte indiqués
par le gouvernement et les pouvoirs publics des collectivités
territoriales. L’élimination et le recyclage en bonne et due forme
ont pour but de lutter contre l’impact néfaste potentiel de ce
type de produits sur l’environnement et la santé publique. Pour
plus d’informations sur le mode d’élimination de votre ancien
équipement, veuillez prendre contact avec les pouvoirs publics
locaux, le service de traitement des déchets, ou l’endroit où vous
avez acheté le produit.
Italiano (Italian) - Informazioni relative all’ambiente
per i clienti residenti nell’Unione Europea
La direttiva europea 2002/96/EC richiede che le apparecchiature
contrassegnate con questo simbolo sul prodotto e/o
sull’imballaggio non siano smaltite insieme ai rifiuti urbani
non differenziati. Il simbolo indica che questo prodotto non
deve essere smaltito insieme ai normali rifiuti domestici. È
responsabilità del proprietario smaltire sia questi prodotti sia
le altre apparecchiature elettriche ed elettroniche mediante
le specifiche strutture di raccolta indicate dal governo o dagli
enti pubblici locali. Il corretto smaltimento ed il riciclaggio
aiuteranno a prevenire conseguenze potenzialmente negative
per l’ambiente e per la salute dell’essere umano. Per ricevere
informazioni più dettagliate circa lo smaltimento delle vecchie
apparecchiature in Vostro possesso, Vi invitiamo a contattare gli
enti pubblici di competenza, il servizio di smaltimento rifiuti o il
negozio nel quale avete acquistato il prodotto.
Latviešu valoda (Latvian) - Ekoloģiska informācija
klientiem Eiropas Savienības jurisdikcijā
Direktīvā 2002/96/EK ir prasība, ka aprīkojumu, kam pievienota
zīme uz paša izstrādājuma vai uz tā iesaiņojuma, nedrīkst
izmest nešķirotā veidā kopā ar komunālajiem atkritumiem
(tiem, ko rada vietēji iedzīvotāji un uzņēmumi). Šī zīme nozīmē
to, ka šī ierīce ir jāizmet atkritumos tā, lai tā nenonāktu kopā ar
parastiem mājsaimniecības atkritumiem. Jūsu pienākums ir šo
un citas elektriskas un elektroniskas ierīces izmest atkritumos,
izmantojot īpašus atkritumu savākšanas veidus un līdzekļus, ko
nodrošina valsts un pašvaldību iestādes. Ja izmešana atkritumos
un pārstrāde tiek veikta pareizi, tad mazinās iespējamais
kaitējums dabai un cilvēku veselībai. Sīkākas ziņas par
novecojuša aprīkojuma izmešanu atkritumos jūs varat saņemt
vietējā pašvaldībā, atkritumu savākšanas dienestā, kā arī veikalā,
kur iegādājāties šo izstrādājumu.
Appendix E Regulatory Information
23
RangePlus Wireless USB Adapter
Lietuvškai (Lithuanian) - Aplinkosaugos informacija,
skirta Europos Sąjungos vartotojams
Europos direktyva 2002/96/EC numato, kad įrangos, kuri ir
kurios pakuotė yra pažymėta šiuo simboliu (įveskite simbolį),
negalima šalinti kartu su nerūšiuotomis komunalinėmis
atliekomis. Šis simbolis rodo, kad gaminį reikia šalinti atskirai
nuo bendro buitinių atliekų srauto. Jūs privalote užtikrinti, kad
ši ir kita elektros ar elektroninė įranga būtų šalinama per tam
tikras nacionalinės ar vietinės valdžios nustatytas atliekų rinkimo
sistemas. Tinkamai šalinant ir perdirbant atliekas, bus išvengta
galimos žalos aplinkai ir žmonių sveikatai. Daugiau informacijos
apie jūsų senos įrangos šalinimą gali pateikti vietinės valdžios
institucijos, atliekų šalinimo tarnybos arba parduotuvės, kuriose
įsigijote tą gaminį.
Malti (Maltese) - Informazzjoni Ambjentali għal Klijenti
fl-Unjoni Ewropea
Id-Direttiva Ewropea 2002/96/KE titlob li t-tagħmir li jkun fih is-
simbolu fuq il-prodott u/jew fuq l-ippakkjar ma jistax jintrema
ma’ skart muniċipali li ma ġiex isseparat. Is-simbolu jindika
li dan il-prodott għandu jintrema separatament minn ma’ l-
iskart domestiku regolari. Hija responsabbiltà tiegħek li tarmi
dan it-tagħmir u kull tagħmir ieħor ta’ l-elettriku u elettroniku
permezz ta’ faċilitajiet ta’ ġbir appuntati apposta mill-gvern jew
mill-awtoritajiet lokali. Ir-rimi b’mod korrett u r-riċiklaġġ jgħin
jipprevjeni konsegwenzi negattivi potenzjali għall-ambjent u
għas-saħħa tal-bniedem. Għal aktar informazzjoni dettaljata
dwar ir-rimi tat-tagħmir antik tiegħek, jekk jogħġbok ikkuntattja
lill-awtoritajiet lokali tiegħek, is-servizzi għar-rimi ta’ l-iskart, jew
il-ħanut minn fejn xtrajt il-prodott.
Magyar (Hungarian) - Környezetvédelmi információ az
európai uniós vásárlók számára
A 2002/96/EC számú európai uniós irányelv megkívánja, hogy
azokat a termékeket, amelyeken, és/vagy amelyek csomagolásán
az alábbi címke megjelenik, tilos a többi szelektálatlan lakossági
hulladékkal együtt kidobni. A címke azt jelöli, hogy az adott
termék kidobásakor a szokványos háztartási hulladékelszállítási
rendszerektõl elkülönített eljárást kell alkalmazni. Az Ön
felelõssége, hogy ezt, és más elektromos és elektronikus
berendezéseit a kormányzati vagy a helyi hatóságok által
kijelölt gyűjtõredszereken keresztül számolja fel. A megfelelõ
hulladékfeldolgozás segít a környezetre és az emberi egészségre
potenciálisan ártalmas negatív hatások megelõzésében. Ha
elavult berendezéseinek felszámolásához további részletes
információra van szüksége, kérjük, lépjen kapcsolatba a helyi
hatóságokkal, a hulladékfeldolgozási szolgálattal, vagy azzal
üzlettel, ahol a terméket vásárolta.
Nederlands (Dutch) - Milieu-informatie voor klanten
in de Europese Unie
De Europese Richtlijn 2002/96/EC schrijft voor dat apparatuur die
is voorzien van dit symbool op het product of de verpakking,
niet mag worden ingezameld met niet-gescheiden huishoudelijk
afval. Dit symbool geeft aan dat het product apart moet worden
ingezameld. U bent zelf verantwoordelijk voor de vernietiging
van deze en andere elektrische en elektronische apparatuur via de
daarvoor door de landelijke of plaatselijke overheid aangewezen
inzamelingskanalen. De juiste vernietiging en recycling van
deze apparatuur voorkomt mogelijke negatieve gevolgen voor
het milieu en de gezondheid. Voor meer informatie over het
vernietigen van uw oude apparatuur neemt u contact op met
de plaatselijke autoriteiten of afvalverwerkingsdienst, of met de
winkel waar u het product hebt aangeschaft.
Norsk (Norwegian) - Miljøinformasjon for kunder i EU
EU-direktiv 2002/96/EF krever at utstyr med følgende symbol
avbildet på produktet og/eller pakningen, ikke må kastes
sammen med usortert avfall. Symbolet indikerer at dette
produktet skal håndteres atskilt fra ordinær avfallsinnsamling
for husholdningsavfall. Det er ditt ansvar å kvitte deg med
dette produktet og annet elektrisk og elektronisk avfall via egne
innsamlingsordninger slik myndighetene eller kommunene
bestemmer. Korrekt avfallshåndtering og gjenvinning vil
være med på å forhindre mulige negative konsekvenser for
miljø og helse. For nærmere informasjon om håndtering av
det kasserte utstyret ditt, kan du ta kontakt med kommunen,
en innsamlingsstasjon for avfall eller butikken der du kjøpte
produktet.
Polski (Polish) - Informacja dla klientów w Unii
Europejskiej o przepisach dotyczących ochrony
środowiska
Dyrektywa Europejska 2002/96/EC wymaga, aby sprzęt
oznaczony symbolem znajdującym się na produkcie i/lub jego
opakowaniu nie był wyrzucany razem z innymi niesortowanymi
odpadami komunalnymi. Symbol ten wskazuje, że produkt
nie powinien być usuwany razem ze zwykłymi odpadami z
gospodarstw domowych. Na Państwu spoczywa obowiązek
wyrzucania tego i innych urządzeń elektrycznych oraz
elektronicznych w punktach odbioru wyznaczonych przez władze
krajowe lub lokalne. Pozbywanie się sprzętu we właściwy sposób
i jego recykling pomogą zapobiec potencjalnie negatywnym
konsekwencjom dla środowiska i zdrowia ludzkiego. W celu
uzyskania szczegółowych informacji o usuwaniu starego sprzętu,
prosimy zwrócić się do lokalnych władz, służb oczyszczania
miasta lub sklepu, w którym produkt został nabyty.
Appendix E Regulatory Information
24
RangePlus Wireless USB Adapter
Português (Portuguese) - Informação ambiental para
clientes da União Europeia
A Directiva Europeia 2002/96/CE exige que o equipamento
que exibe este símbolo no produto e/ou na sua embalagem
não seja eliminado junto com os resíduos municipais não
separados. O símbolo indica que este produto deve ser
eliminado separadamente dos resíduos domésticos regulares.
É da sua responsabilidade eliminar este e qualquer outro
equipamento eléctrico e electrónico através das instalações
de recolha designadas pelas autoridades governamentais ou
locais. A eliminação e reciclagem correctas ajudarão a prevenir
as consequências negativas para o ambiente e para a saúde
humana. Para obter informações mais detalhadas sobre a
forma de eliminar o seu equipamento antigo, contacte as
autoridades locais, os serviços de eliminação de resíduos ou o
estabelecimento comercial onde adquiriu o produto.
Română (Romanian) - Informaţii de mediu pentru
clienţii din Uniunea Europeană
Directiva europeană 2002/96/CE impune ca echipamentele care
prezintă acest simbol pe produs şi/sau pe ambalajul acestuia să
nu fie casate împreună cu gunoiul menajer municipal. Simbolul
indică faptul că acest produs trebuie să fie casat separat de
gunoiul menajer obişnuit. Este responsabilitatea dvs. să casaţi
acest produs şi alte echipamente electrice şi electronice prin
intermediul unităţilor de colectare special desemnate de guvern
sau de autorităţile locale. Casarea şi reciclarea corecte vor ajuta
la prevenirea potenţialelor consecinţe negative asupra sănătăţii
mediului şi a oamenilor. Pentru mai multe informaţii detaliate
cu privire la casarea acestui echipament vechi, contactaţi
autorităţile locale, serviciul de salubrizare sau magazinul de la
care aţi achiziţionat produsul.
Slovenčina (Slovak) - Informácie o ochrane životného
prostredia pre zákazníkov v Európskej únii
Podľa európskej smernice 2002/96/ES zariadenie s týmto
symbolom na produkte a/alebo jeho balení nesmie byť
likvidované spolu s netriedeným komunálnym odpadom.
Symbol znamená, že produkt by sa mal likvidovať oddelene
od bežného odpadu z domácností. Je vašou povinnosťou
likvidovať toto i ostatné elektrické a elektronické zariadenia
prostredníctvom špecializovaných zberných zariadení určených
vládou alebo miestnymi orgánmi. Správna likvidácia a recyklácia
pomôže zabrániť prípadným negatívnym dopadom na životné
prostredie a zdravie ľudí. Ak máte záujem o podrobnejšie
informácie o likvidácii starého zariadenia, obráťte sa, prosím, na
miestne orgány, organizácie zaoberajúce sa likvidáciou odpadov
alebo obchod, v ktorom ste si produkt zakúpili.
Slovenčina (Slovene) - Okoljske informacije za stranke
v Evropski uniji
Evropska direktiva 2002/96/EC prepoveduje odlaganje opreme,
označene s tem simbolom – na izdelku in/ali na embalaži – med
običajne, nerazvrščene odpadke. Ta simbol opozarja, da je treba
izdelek odvreči ločeno od preostalih gospodinjskih odpadkov.
Vaša odgovornost je, da to in preostalo električno in elektronsko
opremo odnesete na posebna zbirališča, ki jih določijo
državne ustanove ali lokalna uprava. S pravilnim odlaganjem
in recikliranjem boste preprečili morebitne škodljive vplive na
okolje in zdravje ljudi. Če želite izvedeti več o odlaganju stare
opreme, se obrnite na lokalno upravo, odpad ali trgovino, kjer
ste izdelek kupili.
Suomi (Finnish) - Ympäristöä koskevia tietoja EU-
alueen asiakkaille
EU-direktiivi 2002/96/EY edellyttää, että jos laitteistossa on tämä
symboli itse tuotteessa ja/tai sen pakkauksessa, laitteistoa
ei saa hävittää lajittelemattoman yhdyskuntajätteen mukana.
Symboli merkitsee sitä, että tämä tuote on hävitettävä erillään
tavallisesta kotitalousjätteestä. Sinun vastuullasi on hävittää
tämä elektroniikkatuote ja muut vastaavat elektroniikkatuotteet
viemällä tuote tai tuotteet viranomaisten määräämään
keräyspisteeseen. Laitteiston oikea hävittäminen estää
mahdolliset kielteiset vaikutukset ympäristöön ja ihmisten
terveyteen. Lisätietoja vanhan laitteiston oikeasta hävitystavasta
saa paikallisilta viranomaisilta, jätteenhävityspalvelusta tai siitä
myymälästä, josta ostit tuotteen.
Svenska (Swedish) - Miljöinformation för kunder i
Europeiska unionen
Det europeiska direktivet 2002/96/EC kräver att utrustning med
denna symbol på produkten och/eller förpackningen inte får
kastas med osorterat kommunalt avfall. Symbolen visar att denna
produkt bör kastas efter att den avskiljts från vanligt hushållsavfall.
Det faller på ditt ansvar att kasta denna och annan elektrisk och
elektronisk utrustning på fastställda insamlingsplatser utsedda
av regeringen eller lokala myndigheter. Korrekt kassering och
återvinning skyddar mot eventuella negativa konsekvenser
för miljön och personhälsa. För mer detaljerad information om
kassering av din gamla utrustning kontaktar du dina lokala
myndigheter, avfallshanteringen eller butiken där du köpte
produkten.
WEB: For additional information, please visit
www.linksys.com
7101510NC-JL

Navigation menu
