Manual Part2

44
Chapter 5: Using the Wireless Network Monitor
Administration
Wireless-G Business USB Network Adapter with RangeBooster
Security Monitor Account
The Security Monitor Account screen provides you with the function to create and modify your Security Monitor
account. The Security Monitor account gives access to the administrative functions of the Wireless Network
Monitor.
Enter the administrator’s username and password and retype the password in the confirm field. Click Next to
proceed with more administrative options.
You can select an account from the drop-down menu to create or modify the username and password. There are
a total of five accounts available. Click Save to save your existing changes.
The username and password for the Security Monitor administrator
account do not need to be the same as the Access Point's administrator
account.

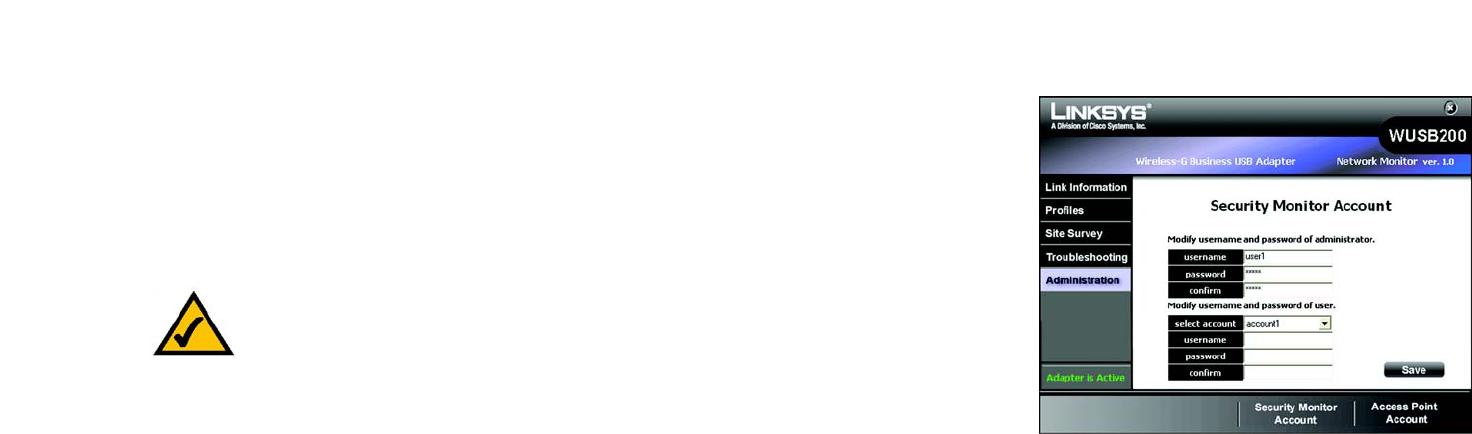

Figure 5-49: Administration - Security Monitor
Account
45
Chapter 6: The Administrative Functions in the Wireless Network Monitor
Accessing the Wireless Network Monitor
Wireless-G Business USB Network Adapter with RangeBooster
Chapter 6: The Administrative Functions in the Wireless
Network Monitor
When used with the WAP200 Access Point, you can use the administration functions in the Wireless Network
Monitor to classify your wireless networks into different groups and monitor the activities and resources within
your networks. The following functions under Classification and Security Monitor screens are only enabled
after an administrator or privileged user enters a valid username and password.
Accessing the Wireless Network Monitor
After installing the Adapter, the Wireless Network Monitor icon will appear in the system tray of your computer. If
the Wireless Network Monitor is enabled, then the icon will be green. If the Wireless Network Monitor is disabled
or the Adapter is not connected, then the icon will be gray.
Using the Administrative Functions in the Wireless Network Monitor
The Administration tab will give you access to the administrative tasks of the account information and other
functions, such as classification and monitoring of your wireless networks. The Classification and Security
Monitor functions will be provided after logging in to the Security Monitor account on the Administration screen.
To configure trusted and untrusted wireless networks, click the Classification tab. To view the summarized
report of the monitored wireless activities and alert messages, click the Security Monitor.
NOTE: You must associate with a WAP200 Access Point to be able to log in to the Security
Monitor.
NOTE: You will need to log in with a valid Security Monitor account to view the screens in this
chapter.

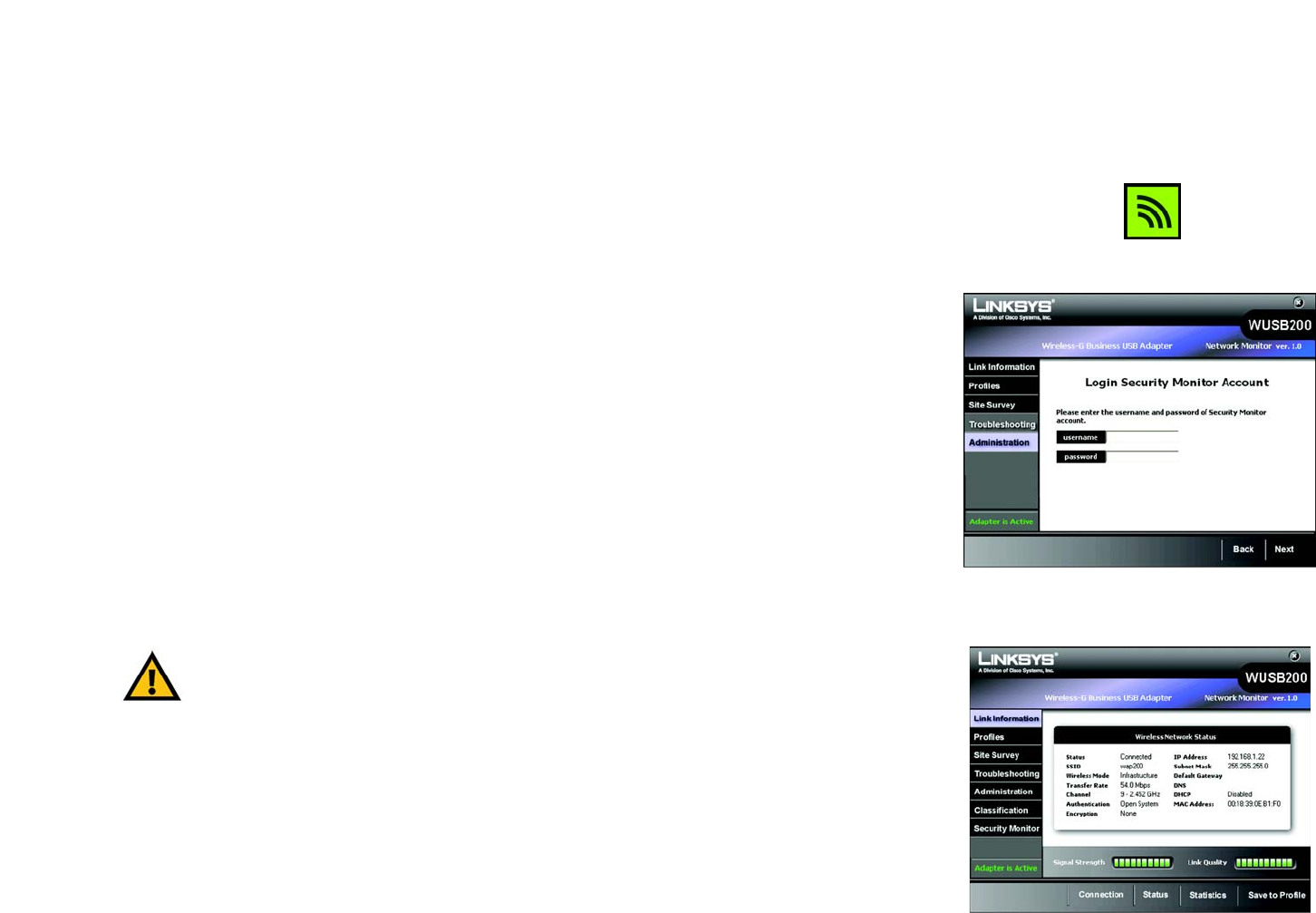

Figure 6-1: Wireless Network Monitor Icon
Figure 6-2: Administration - Login Security Monitor
Administration - Login Security Monitor Account

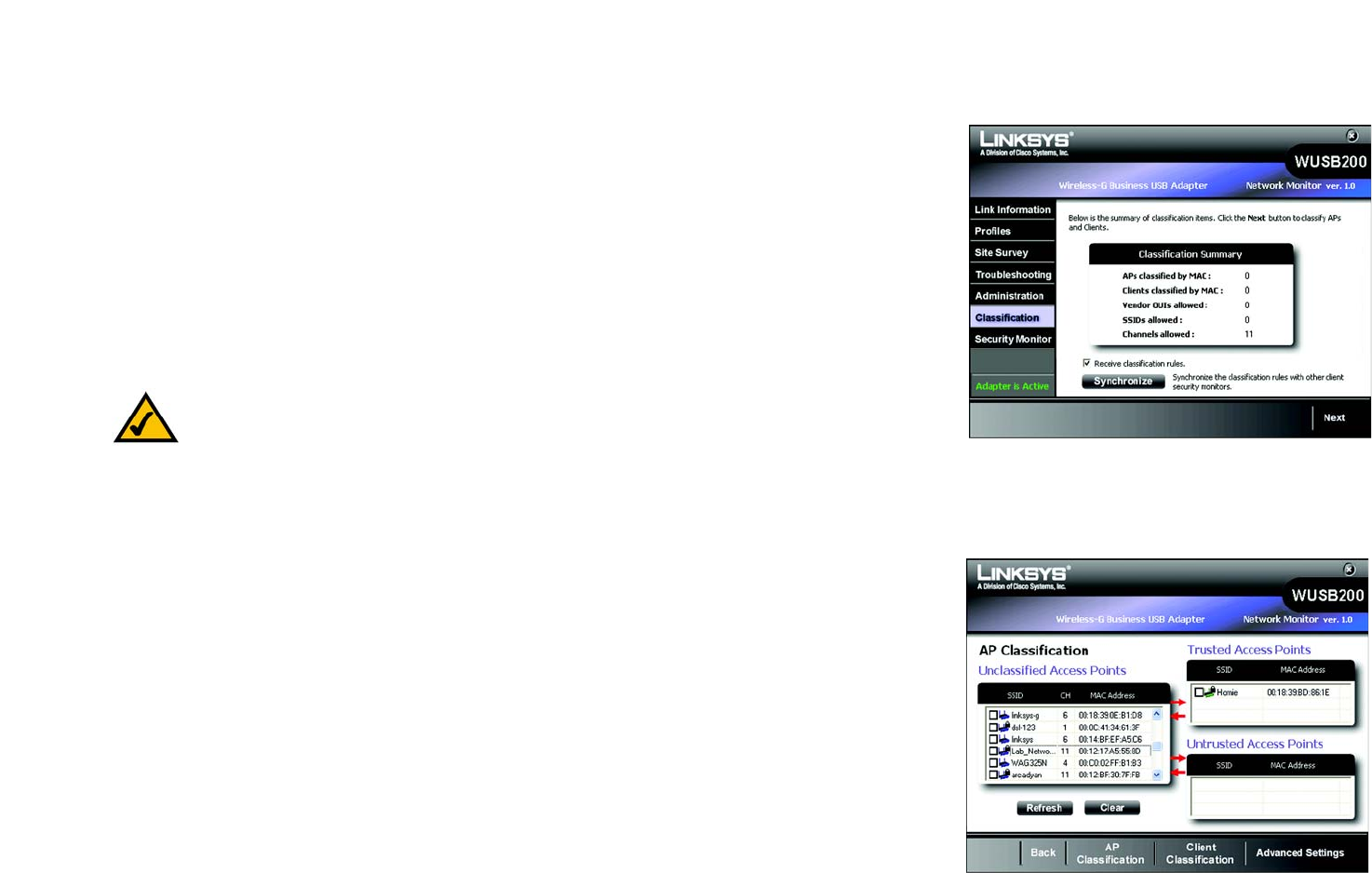

Figure 6-3: Classification
46
Chapter 6: The Administrative Functions in the Wireless Network Monitor
Classification
Wireless-G Business USB Network Adapter with RangeBooster
Classification
The Classification tab displays a summary of classified devices. The Classification Summary table shows the
number of access points and clients classified as trusted and untrusted by MAC addresses in your networks. It
also shows the number of allowed vendors, SSIDs, and channels.
You may uncheck the Receive classification rules to disable a client from receiving the network's current
classification rules. The default condition is checked, so each client always receives classification rules in
synchronization with other clients in the network. You may also click the Synchronize button to send out the
classification rules to other users within your monitored wireless networks.
Click Next to configure your trusted networks.
AP Classification
The AP Classification Screen lets you classify the existing access points as trusted or untrusted. A Trusted device
is one that has been identified by the system administrator to be known and legitimate. An untrusted device is
one that is known and not legitimate. This device could be a malicious device or simply a neighborhood device
not part of the network. Remaining devices that have not been classified are considered unclassified or unknown.
The Unclassified Access Points table lists the available unclassified wireless access points with their SSIDs,
channels and MAC Addresses. The top right table lists the Trusted Access Points. The lower right table lists the
Untrusted Access Points.
You may select any items from the Unclassified Access Points table and click the arrow to classify your selections
into Trusted Access Points or Untrusted Access Points. You may also select any items from the Trusted Access
Points or Untrusted Access Points and click the arrow to de-classify your selections into theUnclassified Access
Points table.
Click Refresh to refresh the list, Clear to clear selected items on the list, or click Back to go to the previous
screen.
Click AP Classification, Client Classification, or Advanced Settings to go to that screen.
NOTE: Classification rules: access points and clients can be classified as trusted or untrusted,
and access points can be additionally classified by MAC address, SSID, vendor, or channel.
Figure 6-4: AP Classification

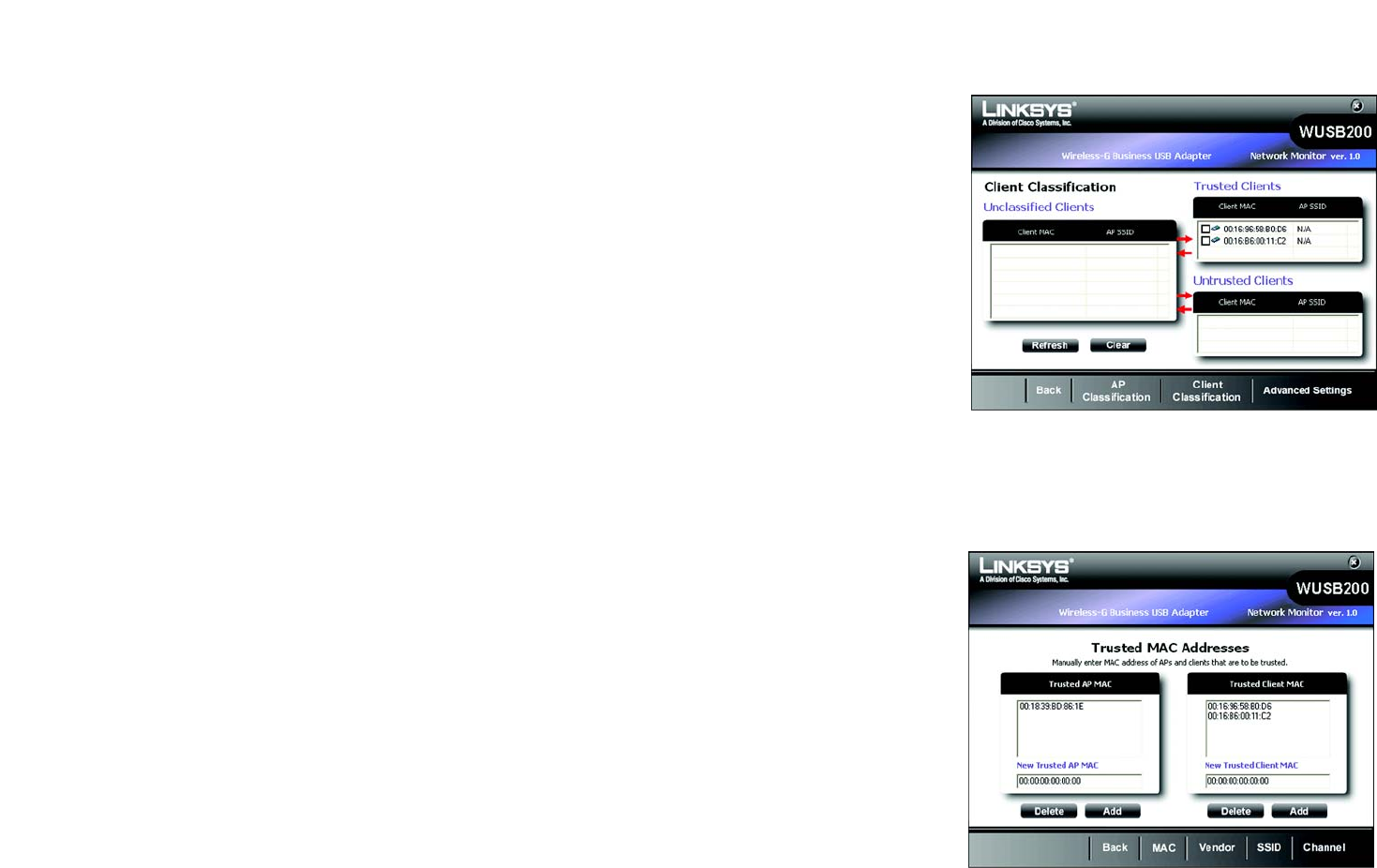

Figure 6-5: Client Classification
47
Chapter 6: The Administrative Functions in the Wireless Network Monitor
Classification
Wireless-G Business USB Network Adapter with RangeBooster
Client Classification
The Client Classification Screen lets you classify the existing wireless clients into trusted networks and untrusted
networks. New client information is received from Linksys Business Series access points. New clients start off as
Unclassified until the System Administrator classifies them. A Trusted Client is one that has been identified by the
System Administrator to be known and legitimate. An Untrusted Client is one that is known and not legitimate;
this client could be a malicious client or simply a neighborhood client not part of the network. Remaining clients
that have not been classified can be considered as unclassified or unknown.
The left table lists the available unclassified clients with their associated Access Point's SSID. The top right table
lists the clients that have been classified as Trusted. The lower right table lists the clients that have been
classified as Untrusted.
You may select any items from the Unclassified Clients table and click the arrow to classify your selections into
Trusted Clients or Untrusted Clients. You may also select any items from the Trusted Clients or Untrusted
Clients and click the arrow to de-classify your selections into theUnclassified Clients table.
You may click Refresh to refresh the list, Clear to clear selected items on the list, or Back to go to the previous
screen.
You may click AP Classification, Client Classification, or Advanced Settings to go to that screen.
Advanced Settings
Click Advanced Settings for classifying your wireless networks by Mac (Address), Vendor, SSID and Channel.
Click the MAC tab to configure the trusted MAC addresses, Vendor to configure the trusted AP vendor list, SSID
to configure the trusted SSID list, Channel to configure the trusted channel, or Back to go to the previous screen.
Trusted MAC Addresses
Clicking the MAC button displays the Trusted MAC Addresses screen, which provides information and function for
configuring the existing wireless networks as trusted networks with MAC Access control of the access points and
the clients. The Trusted AP’s MAC Addresess that you enter on this screen will also appear on the AP
Classification screen as a trusted access point.
The tables list the entry of MAC addresses of your trusted and allowed wireless access points and clients.
Enter the 12-digit hexadecimal numbers in the field and click Add to add the entry. To delete an entry, select it,
then click Delete.
Figure 6-6: Trusted Mac Address
Figure 6-7: Allowed SSID Configuration
48
Chapter 6: The Administrative Functions in the Wireless Network Monitor
Classification
Wireless-G Business USB Network Adapter with RangeBooster
Allowed Vendor List Configuration
The Allowed Vendor List Configuration table lists the OUI (Organization Unique Identification) and vendor name of
your trusted and allowed AP Vendor OUIs. A OUI is the three-octet (first 6 digits) used to generate LAN MAC
Addresses for hardware manufacturers. To delete an item, select it, and click delete. The latest vendor OUI lists
are available at http://standards.ieee.org/regauth/oui/index.shtml.
Vendor Name - This is the name of your desired vendor. Select a vendor’s name from the drop-down list and
click Add to add the vendor.
Vendor OUI - If the vendor OUI is not listed, you may enter the company’s OUI and click Add to enter your
vendor’s OUI in the list.
APs from vendors not on the allowed vendor list will be automatically classified as untrusted. A blank list
indicates that all vendor OUIs are allowed for AP classification.
Allowed SSID Configuration
The Allowed SSID Configuration table shows the SSIDs of the allowed APs on your network. APs from SSIDs not
on this list will be automatically classified as untrusted. A blank list indicates that all SSIDs are allowed for
classification.
SSID - This is the unique name of the wireless network. It is a 32-character unique identifier attached to the
header of packets sent over a WLAN.
You may enter the SSID of a trusted and allowed wireless network in the field and click Add to add it into your
list. You may select an item and click Delete to delete it from the list.

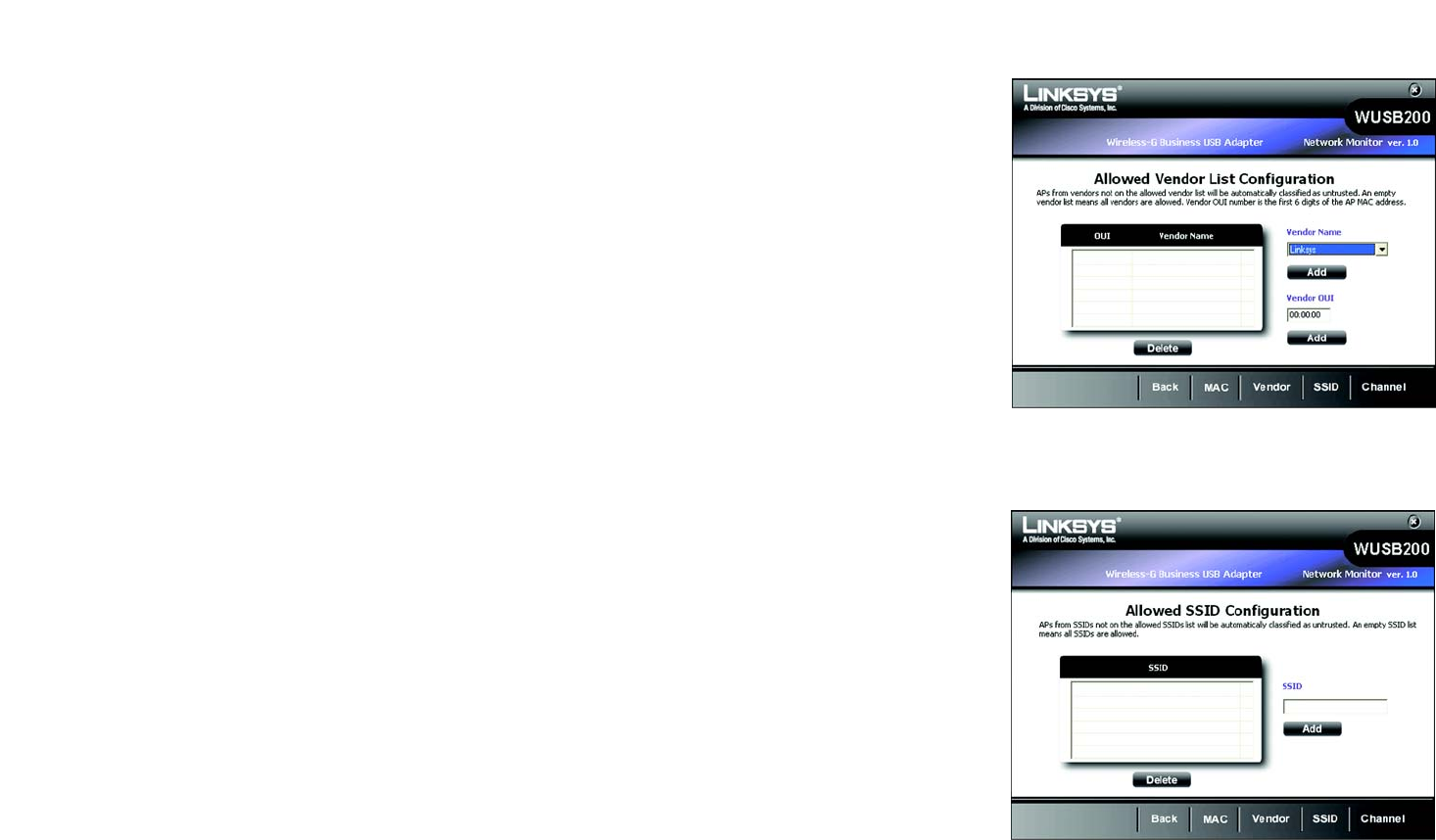

Figure 6-8: Allowed Vendor List Configuration
Figure 6-9: Allowed SSID Configuration
49
Chapter 6: The Administrative Functions in the Wireless Network Monitor
Security Monitor
Wireless-G Business USB Network Adapter with RangeBooster

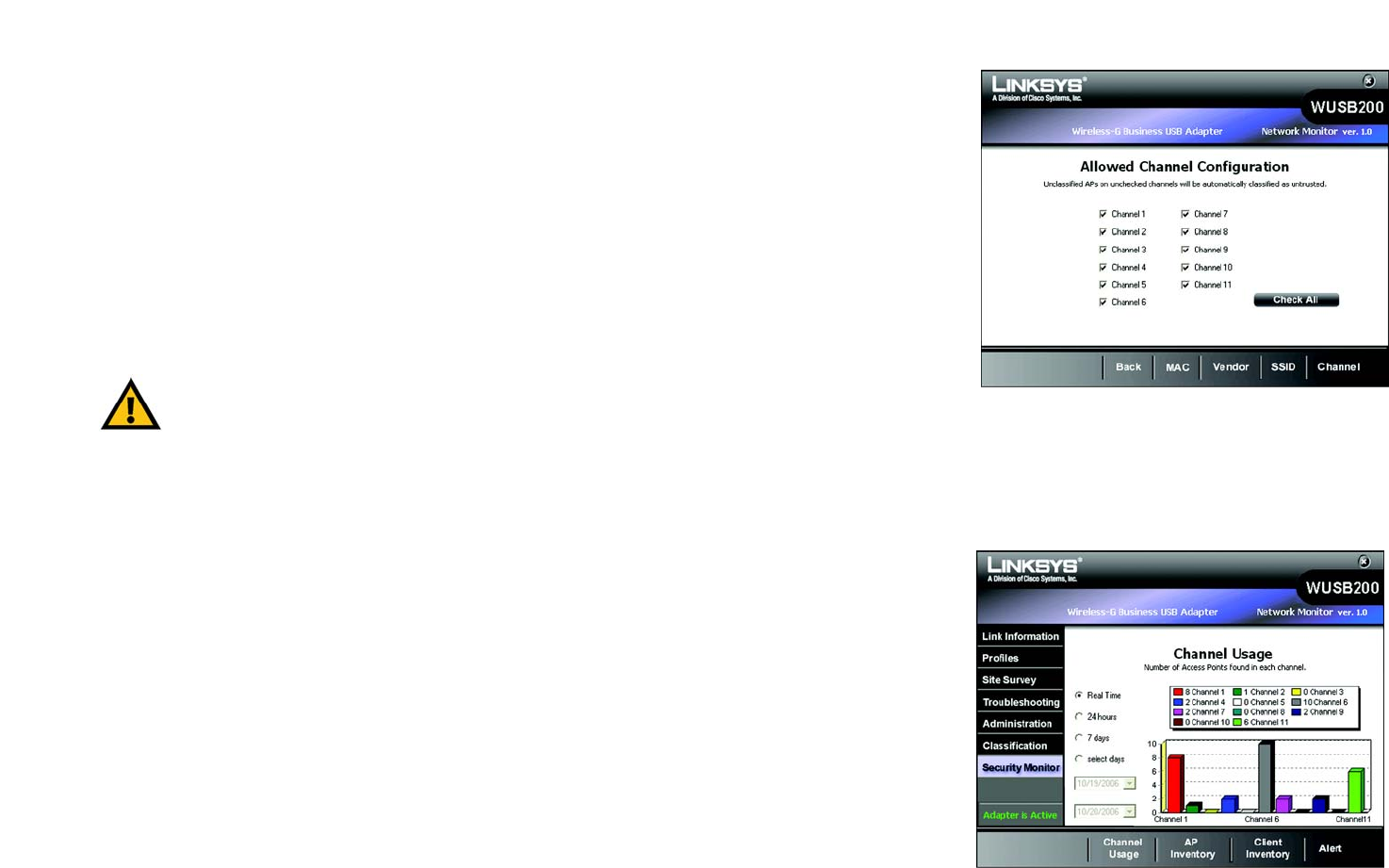

Figure 6-10: Allowed Channel Configuration
Figure 6-11: Security Monitor - Channel Usage
Allowed Channel Configuration
The Allowed Channel Configuration screen shows the channels that are allowed to be used in your wireless
networks. You may select individual channels or click Check All to check all of the channels. Unclassified access
points on unchecked channels will be automatically classified as untrusted.
Security Monitor
The Security Monitor helps to make your network more secure. It monitors the airspace through the WAP200
Access Point and USB Network Adapter for security related issues like vulnerabilities in the network
configuration, which allows you to act quickly to solve issues and secure your network. The Monitor runs on the
client PC, which allows the administrator to perform initial setup on security profiles and classification on the
wireless network devices and later view assorted security alerts.
The Security Monitor tab displays the statistics of your wireless network and alerts you of network activity by
Channel Usage, AP Inventory, Client Inventory, or Alerts.
Click Channel Usage, AP Inventory to view the statistics of the distribution on your AP’s classifications, Client
Inventory to view the distribution of the client’s classifications on your wireless networks, or Alert to monitor
that function.
Channel Usage
The Channel Usage screen provides statistics of the distribution on your channel’s usages. The histogram shows
the number of access points in each channel, so unclassified access points can be detected. Select the specified
period of time you want for the data calculations. You may select Real Time for current data, 24 hours for data
within the last 24 hours, 7 days for data within the last 7 days or select days for a range of days.
IMPORTANT: You must use a WAP200 Access Point with your USB Network Adapter to use the Security
Monitor.
50
Chapter 6: The Administrative Functions in the Wireless Network Monitor
Security Monitor
Wireless-G Business USB Network Adapter with RangeBooster

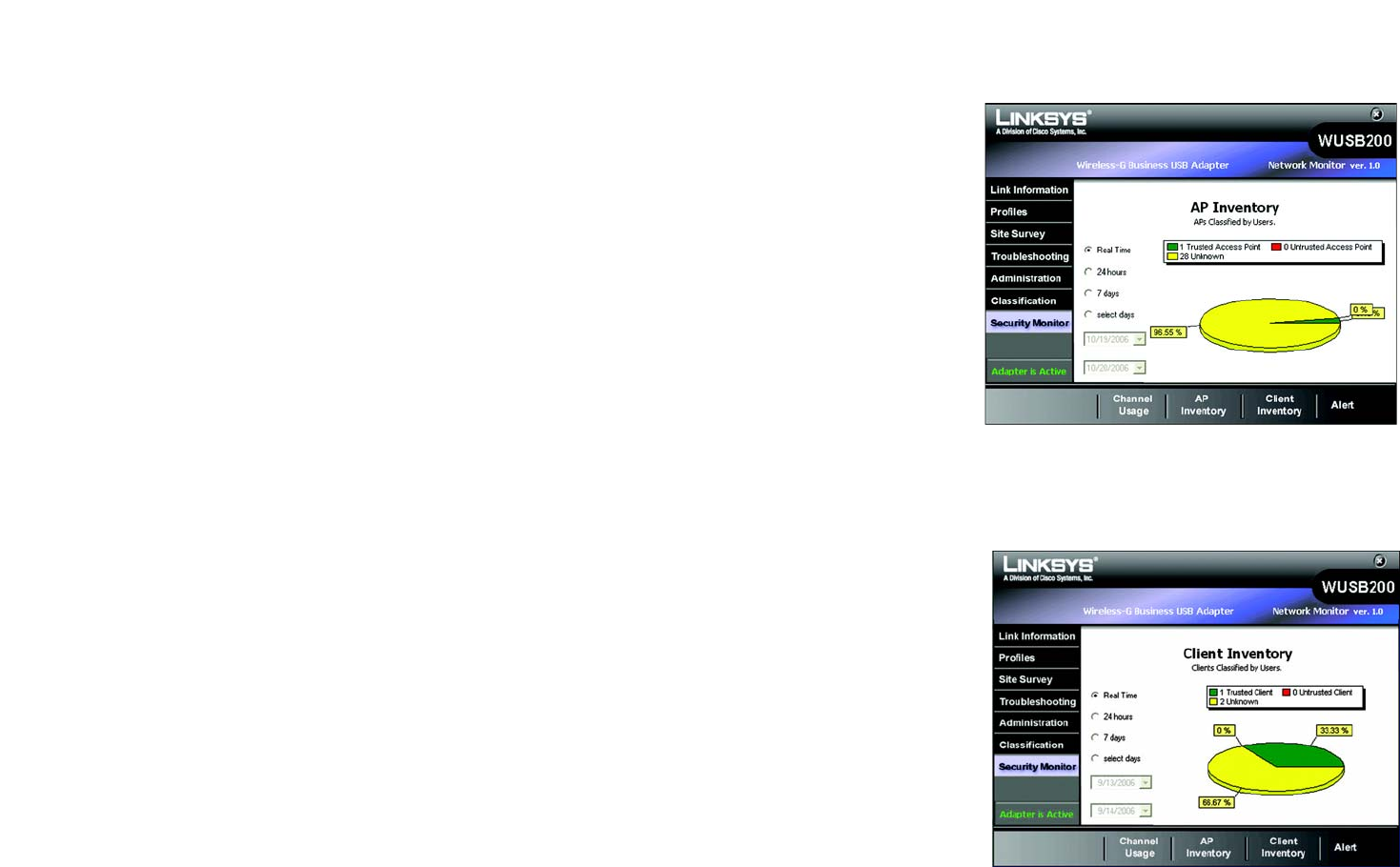

Figure 6-12: Security Monitor - AP Inventory
Figure 6-13: Security Monitor - Client Inventory
AP Inventory
The AP Inventory screen provides statistics of the distribution grouped by your AP’s classification of your wireless
networks. The pie chart shows the percentage of each classification type, so you can easily view the number of
trusted, untrusted, and unknown APs in the airspace. Select the specified period of time you want for the data
calculations. You may select Real Time for current data, 24 hours for data within the last 24 hours, 7 days for
data within the last 7 days or select days for a range of days.
Client Inventory
The Client Inventory screen provides statistics of trusted, untrusted, and unknown clients. The pie chart shows
the percentage of each wireless client’s classification, so you can easily view the number of trusted, untrusted,
and unknown clients in the airspace. Select the specified period of time you want for the data calculations. You
may select Real Time for current data, 24 hours for data within the last 24 hours, 7 days for data within the last
7 days or select days for a range of days.
51
Chapter 6: The Administrative Functions in the Wireless Network Monitor
Security Monitor
Wireless-G Business USB Network Adapter with RangeBooster
Alert
Overview
Both the WAP200 Access Point and client USB Network Adapter monitor the state of your wireless network and
report on security related issues, ranging from on-going attacks down to vulnerabilities in the network
configuration.
The Access Point does most of the security monitoring work while the client USB Network Adapter can detect
new and rogue access points. The management software runs on the client PC, which allows the system
administrator to perform initial setup on security profiles and classification on the wireless network devices.
When a client USB Network Adapter detects an unknown access point, it will notify its associated Access Point.
The Access Points synchronize security alerts with each other and send the alert to the administrator.
Once the administrator is alerted with the security alarm, he or one of his five authorized users can log in to the
Security Monitor to retrieve the Alert Log from the Access Point.
There are four categories of policy violation rules listed under Alert Type: Intrusion Alarms: unauthorized
connection or hacking attack taking place on the network, Denial of Service Alarms: denial of service attack
detected on the network, Vulnerability Alarms: potential threat to the security of the network, and Others. Each
represents a different kind of threat to the wireless network, ranging from poor performance to unauthorized
users connected to the network. A violation will be listed under Amount. You can click Retrieve Alert log to view

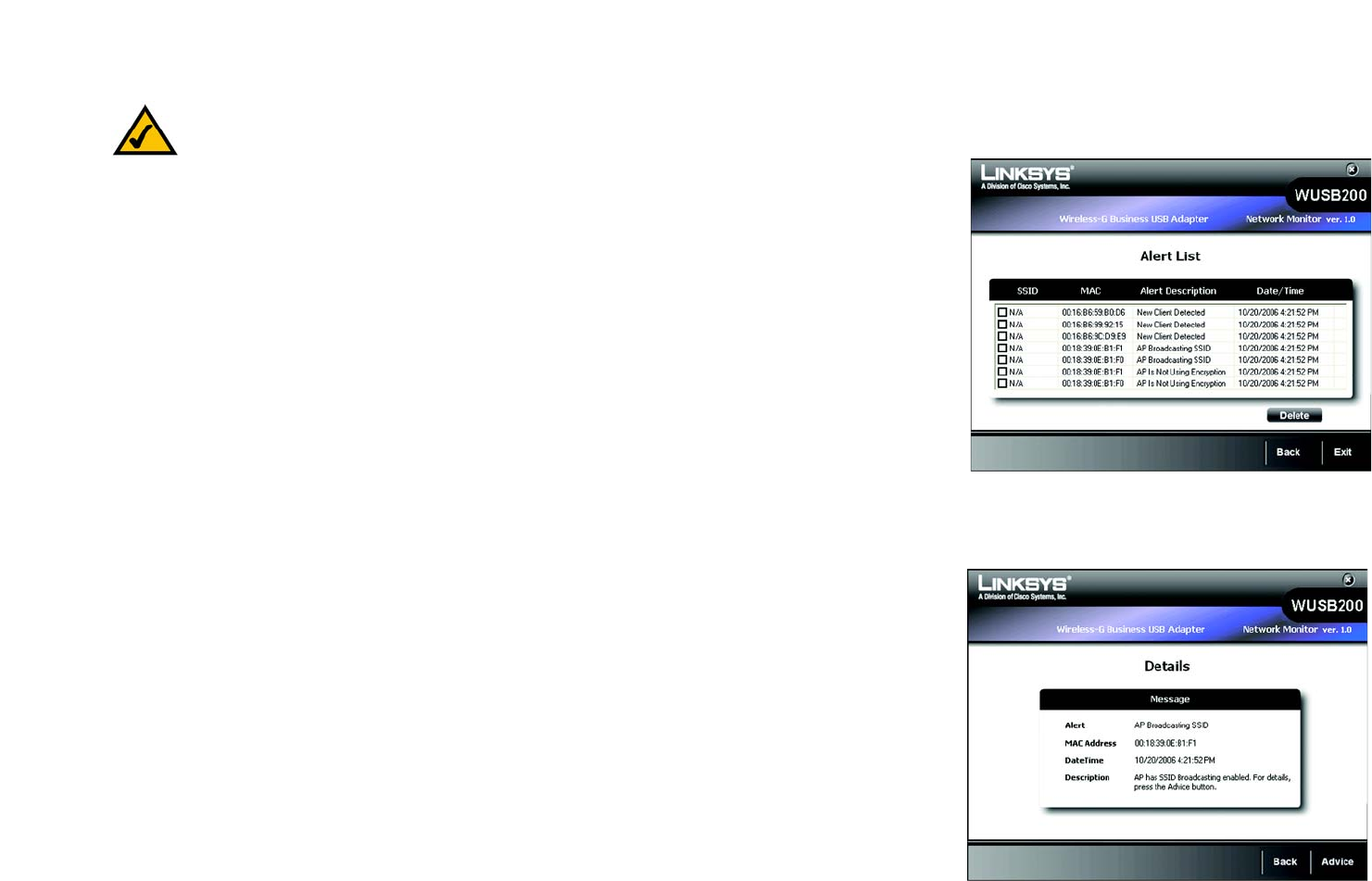

the Alert List. When Detail is clicked, the Details screen appears with more detailed information of the event, then

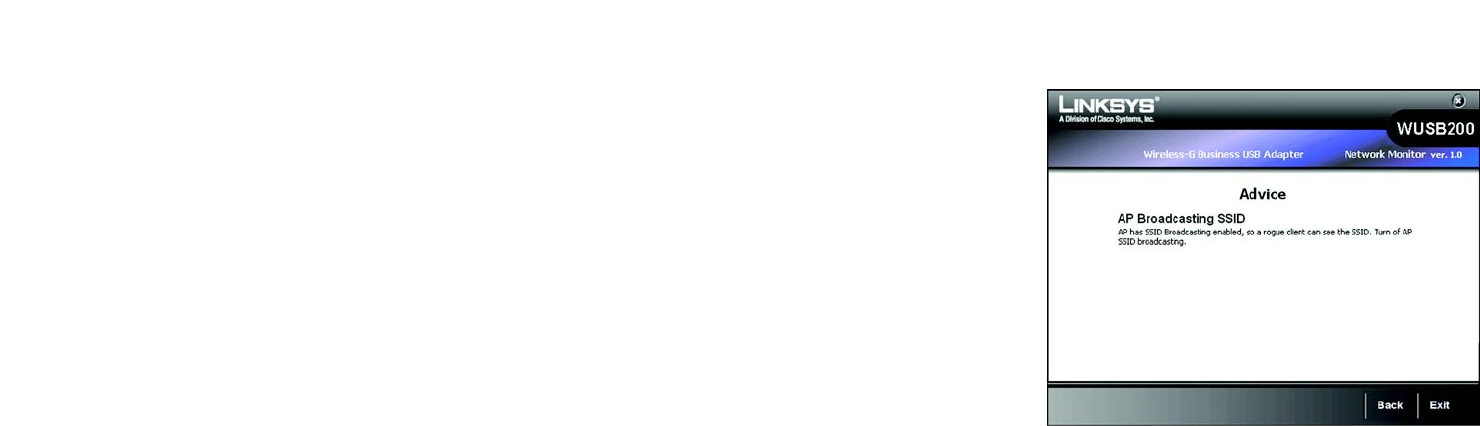

you can click Advice to view the suggested advice for the event.

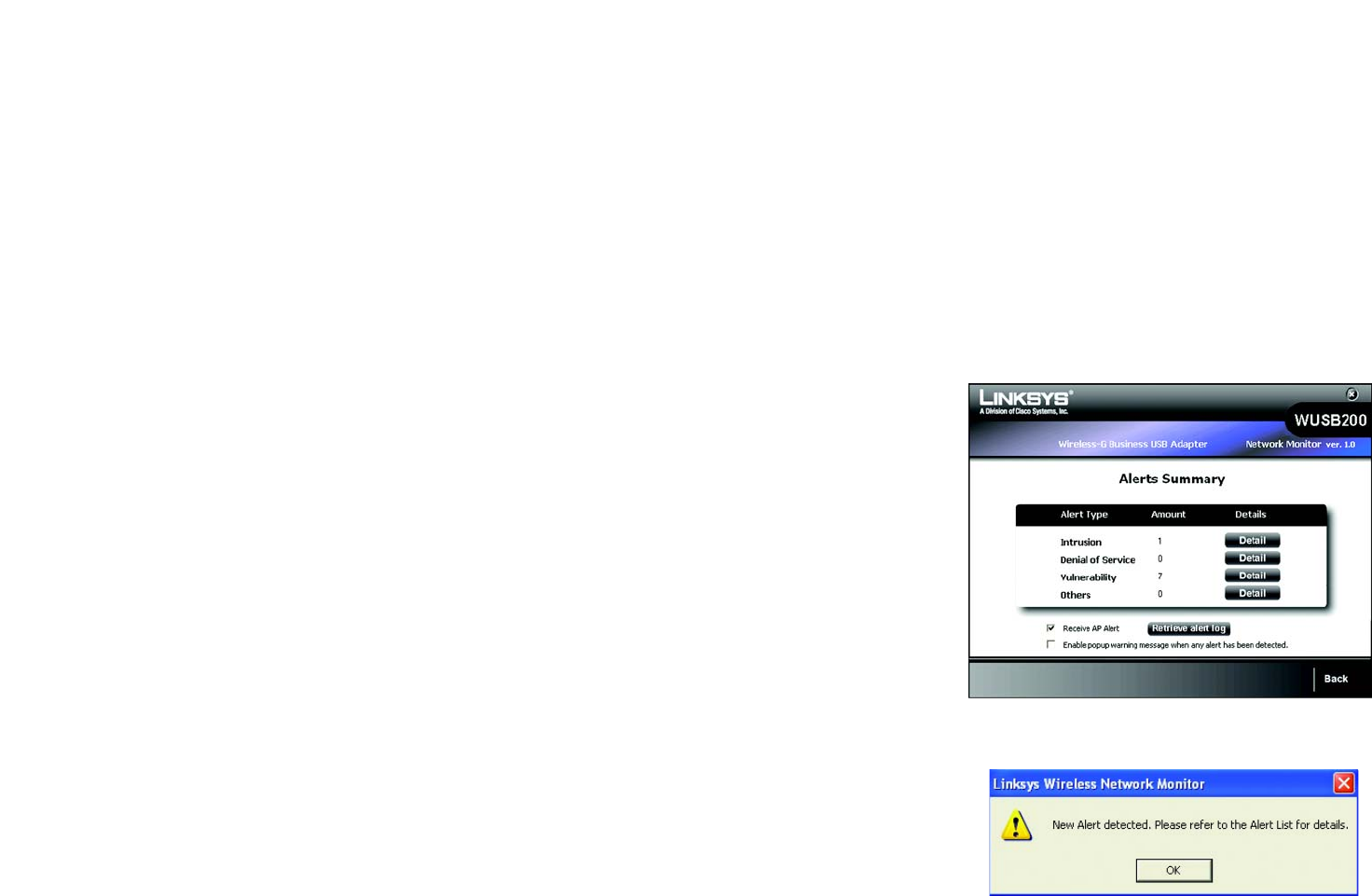

Alerts Summary
The Alerts Summary screen lists the alert types, amount of alerts, and available details.
Detail - Click the Detail button to view more detailed information for each event.
Receive Alert logs - Select this to receive alert logs from access points.
Retrieve Alert log - Click this button to view an alert log.
Enable Pop-up - Select this to allow this client to receive a pop-up warning message when a new access point
or client is detected.
Click Back to go to the previous screen.
Figure 6-14: Security Monitor - Alerts Summary
Figure 6-15: Security Monitor - POP-UP Alert
52
Chapter 6: The Administrative Functions in the Wireless Network Monitor
Security Monitor
Wireless-G Business USB Network Adapter with RangeBooster
Alert List
The Alert List screen shows the list of the alert activities within your monitored wireless networks.
SSID - This shows the SSID (network name) of your wireless network.
MAC - This shows the MAC Address of the wireless client or access point that was detected.
Alert Description - This shows brief descriptions of the alert activities. The alert system will alert you when new
access points or wireless clients are detected, or if other policy violations or attacks are detected.
Date/Time - This indicates the date/time that an alert activity happened.
Delete - Select an item, then click this button to delete the item.
Click Back to go to the previous screen or Exit to go to the main menu.
Alert Details
The Details screen shows the detailed message of each alert event.
Message - This indicates the description of the event.
MAC Address - This shows the MAC Address of the wireless client or Access Point that performed the action.
Severity - This shows the level of the security severity of the action.
Type - This show the type of the networking activity that was performed.
Date/Time - This shows the Date/Time of the alert.
Description - This shows the detailed description of the event.
You may click the Advice button to view the advice message, Back to go back to the previous screen, or Exit to
go back to the main menu.
NOTE: You will be alerted when an Access Point is detected, if you enable popup.
Figure 6-17: Alert Details
Figure 6-16: Security Monitor - Alert List
53
Chapter 6: The Administrative Functions in the Wireless Network Monitor
Security Monitor
Wireless-G Business USB Network Adapter with RangeBooster
Advice
The Advice screen gives advice, when applicable, on what can be done for each alert event. You may need to
adjust your wireless network settings according to the advice to better protect your networks.
Figure 6-18: Security Monitor - Alert Advice
54
Chapter 6: The Administrative Functions in the Wireless Network Monitor
Security Monitor
Wireless-G Business USB Network Adapter with RangeBooster
The following table is a summary of the various alert descriptions and advice.
Table 1: Alerts
Item Alert Description Advice
1 Rogue Client Detected
A Rogue Client is detected.
For details, press the Advice button.
Description:
Rogue Client is detected doing one or more illegal actions, e.g., causing Message
Integrity Check (MIC) errors, sending disassociation frames, sending
deauthentication frames, and sending association frames with incorrect
encryption.
Rogue Client computer information:
MAC:__-__-__-__-__-__
MIC error generation: The MIC function prevents attacks on encrypted packets.
During an attack, an intruder intercepts an encrypted (WPA - Personal) message,
alters it slightly, and retransmits it, and the receiver accepts the retransmitted
message as legitimate. This action will cause a MIC error. If an attacker causes
two MIC errors within 60 seconds, it will be considered a Rogue Client.
Disassociation attacking:
Occurs when a wireless station transmits a disassociation request to an AP which
it is not associated with.
De-authentication attacking:
Occurs when a wireless station transmits a de-authentication request to an AP
which it is not associated with.
Authentication failure:
Occurs when the AP receives an association request with different encryption from
a wireless client.
Action:
1. Contact the network administrator and send the administrator the Rogue Client
computer information.
2. Change MAC access control list on the AP and further block the Rogue Client's
activities.
55
Chapter 6: The Administrative Functions in the Wireless Network Monitor
Security Monitor
Wireless-G Business USB Network Adapter with RangeBooster
2 AP SSID Changed SSID on the AP has changed. For
details, press the Advice button.
Description:
AP's SSID was changed by an unknown source. This may be caused by a possible
intruder if the AP's SSID was not changed by the administrator.
Original SSID:
Modified SSID:
Action:
1. Contact the network administrator.
2. If an intruder is suspected, change administrator's password on the AP.
3 AP Channel Changed AP's Channel has Changed. For details,
press the Advice button.
Description:
AP's Channel was changed by an unknown source. It could possibly be done by an
intruder if it was not changed by the administrator or via auto channel selection.
Original Channel:
Modified Channel:
Action:
1. Contact the network administrator and send the administrator the Login
Information/history.
2. If an intruder is suspected, change the administrator's password on the AP.
4 Spoofed MAC Address
The AP's MAC Address has been
spoofed by a wireless client. For
details, press the Advice button.
Description:
AP's MAC address has been spoofed by a wireless client. Client sends a frame with
a MAC address which is the same as the AP's MAC address. By processing these
packets, the AP may be subjected to heavy loading.
Action:
1. No actions required. The AP will automatically drop these frames.
Table 1: Alerts
Item Alert Description Advice
56
Chapter 6: The Administrative Functions in the Wireless Network Monitor
Security Monitor
Wireless-G Business USB Network Adapter with RangeBooster
5Client is Sending Spurious
Traffic
Client not associated with AP is sending
traffic. For details, press the Advice
button.
Description:
Client not associated with AP is sending traffic. Probable rogue client. The Client
might be trying to make the network busy and causing heavy loading to the AP.
MAC:__-__-__-__-__-__
Action:
1. Contact network administrator.
2. Add the Client MAC address to MAC Access Control List on AP Web Page.
6Adhoc SSID is the same as
the AP's
A wireless client using Adhoc structure
has the same SSID as the AP's SSID. For
details, press the Advice button.
Description:
A wireless client using Adhoc structure has the same SSID as the AP's SSID.
Illegitimate AP could use the same SSID to fool other wireless clients that it is a
legitimate AP.
Action:
1. Contact network administrator.
2. Try to physically locate the wireless client computers.
7 Duration Attack
Abnormally large duration for packets
sent by client. For details, press the
Advice button.
Description:
Packets with abnormally large duration sent by a client may prevent other clients
from sending packets to the AP.
Client computer information:
MAC:__-__-__-__-__-__
Action:
1. Try to physically locate the wireless client computer.
2. Add the Client's MAC address to MAC Access Control List on the AP.
Table 1: Alerts
Item Alert Description Advice
57
Chapter 6: The Administrative Functions in the Wireless Network Monitor
Security Monitor
Wireless-G Business USB Network Adapter with RangeBooster
8 Association Table Full Possibly a Denial of Service Attack. For
details, press the Advice button.
Description:
A New client association request is refused due to a lack of memory. It could be an
overloaded AP from being associated with too many legitimate clients or it could be
a possible Denial of Service attack that will prevent legitimate clients from
associating with the AP.
Action:
1. AP will stop allowing more client association with the AP.
2. Check the AP's client's list to see if any wireless client is illegitimate.
9 AP Is Not Using Encryption
AP does not have any encryption
method enabled. For details, press the
Advice button.
Description:
AP does not have any authentication method enabled, so it is vulnerable to network
attacks or sniffing.
Action:
1. Contact the network administrator.
2. In order to make the wireless network more secure, set up the AP with a
stronger authentication method, e.g., WPA or WPA2.
10 AP Broadcasting SSID AP has SSID Broadcasting enabled. For
details, press the Advice button.
Description:
AP has SSID Broadcasting enabled, so any wireless station can obtain its SSID.
Action:
1. In order to avoid being attacked by rogue clients, turn off SSID broadcasting on
the AP.
11 Default SSID in Use AP is using the default SSID.For details,
press the Advice button.
Description:
AP is using the default SSID. Default SSIDs are easy to identify, so a hacker can
effortlessly connect to the AP.
Action:
1. In order to keep the connection secure, change the AP SSID to a non-default
SSID.
Table 1: Alerts
Item Alert Description Advice
58
Chapter 6: The Administrative Functions in the Wireless Network Monitor
Security Monitor
Wireless-G Business USB Network Adapter with RangeBooster
12 Duplicate SSID in Use
Unclassified AP has the same SSID as a
trusted AP. For details, press the Advice
button.
Description:
An unclassified AP has same SSID as the trusted AP.
Action:
1. Contact the network administrator and inform the administrator about the
untrusted AP's SSID and MAC address.
2. Check if the untrusted AP is legitimate.
3. Unclassified AP needs to be classified and the classification table needs to be
updated.
13 New Access Point Detected New AP is detected. For details, press
the Advice button.
Description:
New AP is detected. The new Access Point needs to be classified and the
classification table needs to be updated.
Action:
1. Contact the network administrator and inform the administrator about the new
Access Point's SSID and MAC address.
2. Unclassified AP needs to be classified and the classification table needs to be
updated.
14 Adhoc Network Operating Clients are operating in Adhoc mode.
For details, press the Advice button.
Description:
Clients are operating in Adhoc mode, so network security could be compromised.
Action:
1. Contact the network administrator and inform the administrator of the client's
SSID and MAC address.
2. Try to physically locate the wireless client's computers.
Table 1: Alerts
Item Alert Description Advice
59
Chapter 6: The Administrative Functions in the Wireless Network Monitor
Security Monitor
Wireless-G Business USB Network Adapter with RangeBooster
15 New Client Detected New client is detected. For details,
press the Advice button.
Description:
New wireless client computer is detected.
Action:
1. Contact the network administrator and inform the administrator about the new
client computer's SSID and MAC address.
2. The new Client needs to be classified and the classification table needs to be
updated.
16 Low Speed Connection Connection is at low speed. For details,
press the Advice button.
Description:
Data packets are being transferred at a very slow rate. Possible cause may be a
poor signal reception due to some interference or the client is too far away from
the AP.
Action:
1. Check the environment and find possible causes for wireless signal interference,
e.g., a microwave oven or a cordless telephone.
2. Check the MAC association table on the AP for any illegitimate wireless clients.
17 Rogue AP Detected Rogue AP is detected. For details, press
the Advice button.
Description:
A Rogue AP is detected doing an illegal action. The AP is using the same SSID and
encryption as the Trusted AP and is trying to crack the client computer's encryption
key. During the decryption process, the AP has a 4-way handshake and if
compromised, the client computer will detect a MIC error, indicating a Rogue AP.
Action:
1. Contact network administrator.
2. Try to physically locate the Access Point.
Table 1: Alerts
Item Alert Description Advice
60
Chapter 6: The Administrative Functions in the Wireless Network Monitor
Security Monitor
Wireless-G Business USB Network Adapter with RangeBooster
Windows Firewall
Windows XP users may see a Windows Firewall screen when using the security monitor.
Select On (recommended) to use the firewall. Do not select the Don't allow exceptions or the Adapter’s security monitor will
not work properly. Then, click OK.
18 Illegal Channel Usage
An Illegal Channel Usage is detected.
For details, please press the Advice
button.
Description:
The client is using an illegal channel outside the range of channels permitted for
use in the country.
Action:
1. Contact the network administrator.
2. Change channel selection to a legal channel that is permitted for use in the
country.
Table 1: Alerts
Item Alert Description Advice
IMPORTANT: DO NOT select Don’t allow exceptions or the security
monitor will not work correctly.
Figure 6-19: Security Monitor - Windows Firewall
Screen
61
Appendix A: Troubleshooting
Common Problems and Solutions
Wireless-G Business USB Network Adapter with RangeBooster
Appendix A: Troubleshooting
This appendix consists of two parts: “Common Problems and Solutions” and “Frequently Asked Questions.” This
appendix provides solutions to problems that may occur during the installation and operation of the Wireless-G
Business USB Network Adapter. Read the description below to solve your problems. If you can't find an answer
here, check the Linksys website at www.linksys.com.
Common Problems and Solutions
1. The Wireless-G Business USB Network Adapter does not work properly.
• Reinsert the USB cable connections.
• Right click on My Computer and select Properties. Select the device manager and click on the Network
Adapter. You will find the Wireless-G USB Network Adapter with RangeBooster if it is installed
successfully. If you see the yellow exclamation mark, the resources are conflicting. You will see the status
of the Wireless-G USB Network Adapter with RangeBooster. If there is a yellow question mark, please
check the following:
• Make sure that your PC has a free IRQ (Interrupt ReQuest, a hardware interrupt on a PC.)
• Make sure that you have inserted the right adapter and installed the proper driver.
If the Wireless-G Business USB Network Adapter does not function after attempting the above steps, remove
the adapter and do the following:
• Uninstall the driver software from your PC.
• Restart your PC and repeat the hardware and software installation as specified in this User Guide.
2. I cannot communicate with the other computers linked via Ethernet in the Infrastructure
configuration.
• Make sure that the PC to which the Wireless-G Business USB Network Adapter is associated and is
powered on.
• Make sure that your Wireless-G Business USB Network Adapter is configured on the same channel and
with the same security options as with the other computers in the Infrastructure configuration.
62
Appendix A: Troubleshooting
Frequently Asked Questions
Wireless-G Business USB Network Adapter with RangeBooster
Frequently Asked Questions
Can I run an application from a remote computer over the wireless network?
This will depend on whether or not the application is designed to be used over a network. Consult the
application’s user guide to determine if it supports operation over a network.
How will the Wireless networking technology help with my business?
Keeping your business connected in the internet and managing networking in your office without wires give you
the freedom to create a dynamic office environment that changes and grows as your business needs. The Linksys
Wirelees–N Business USB Network Adapter will not only let you communicate sensitive data in a wireless setting
but also give you the security and management options within your monitored networks. We designed our
wireless products to be simple to set up with the advances of the latest data encryption methods and Security
Monitor functions. It is aimed to benefit your business from its full wireless networking while stayed protected.
What is the 802.11b standard?
It is one of the standards for wireless networks. The 802.11b standard allows wireless networking hardware from
different manufacturers to communicate, provided that the hardware complies with the 802.11b standard. The
802.11b standard states a maximum data transfer rate of 11Mbps and an operating frequency of 2.4GHz.
What is the IEEE 802.11g standard?
It is one of the IEEE standards for wireless networks. The 802.11g standard allows wireless networking hardware
from different manufacturers to communicate, provided that the hardware complies with the 802.11g standard.
The 802.11g standard states a maximum data transfer rate of 54Mbps and an operating frequency of 2.4GHz.
What 802.11b features are supported?
The product supports the following 802.11b functions:
• CSMA/CA plus Acknowledge protocol
• Multi-Channel Roaming
• Automatic Rate Selection
• RTS/CTS feature
• Fragmentation
• Power Management
What IEEE 802.11g features are supported?
The product supports the following IEEE 802.11g functions:
• CSMA/CA plus Acknowledge protocol
63
Appendix A: Troubleshooting
Frequently Asked Questions
Wireless-G Business USB Network Adapter with RangeBooster
• OFDM protocol
• Multi-Channel Roaming
• Automatic Rate Selection
• RTS/CTS feature
• Fragmentation
• Power Management
What is ad-hoc mode?
When a wireless network is set to ad-hoc mode, the wireless-equipped computers are configured to
communicate directly with each other. This type of network will not communicate with any wired network.
What is infrastructure mode?
When a wireless network is set to infrastructure mode, the wireless network is configured to communicate with a
wired network through a wireless access point.
What is roaming?
Roaming is the ability of a portable computer user to communicate continuously while moving freely throughout
an area greater than that covered by a single access point. Before using the roaming function, the workstation
must make sure that it is the same channel number with the access point of dedicated coverage area.
To achieve true seamless connectivity, the wireless LAN must incorporate a number of different functions. Each
node and access point, for example, must always acknowledge receipt of each message. Each node must
maintain contact with the wireless network even when not actually transmitting data. Achieving these functions
simultaneously requires a dynamic RF networking technology that links access points and nodes. In such a
system, the user’s end node undertakes a search for the best possible access to the system. First, it evaluates
such factors as signal strength and quality, as well as the message load currently being carried by each access
point and the distance of each access point to the wired backbone. Based on that information, the node next
selects the right access point and registers its address. Communications between end node and host computer
can then be transmitted up and down the backbone.
As the user moves on, the end node’s RF transmitter regularly checks the system to determine whether it is in
touch with the original access point or whether it should seek a new one. When a node no longer receives
acknowledgment from its original access point, it undertakes a new search. Upon finding a new access point, it
then re-registers, and the communication process continues.
What is ISM band?
The FCC and their counterparts outside of the U.S. have set aside bandwidth for unlicensed use in the ISM
(Industrial, Scientific and Medical) band. Spectrum in the vicinity of 2.4 GHz, in particular, is being made available
64
Appendix A: Troubleshooting
Frequently Asked Questions
Wireless-G Business USB Network Adapter with RangeBooster
worldwide. This presents a truly revolutionary opportunity to place convenient high-speed wireless capabilities in
the hands of users around the globe.
What is Spread Spectrum?
Spread Spectrum technology is a wideband radio frequency technique developed by the military for use in
reliable, secure, mission-critical communications systems. It is designed to trade off bandwidth efficiency for
reliability, integrity, and security. In other words, more bandwidth is consumed than in the case of narrowband
transmission, but the trade-off produces a signal that is, in effect, louder and thus easier to detect, provided that
the receiver knows the parameters of the spread-spectrum signal being broadcast. If a receiver is not tuned to
the right frequency, a spread-spectrum signal looks like background noise. There are two main alternatives,
Direct Sequence Spread Spectrum (DSSS) and Frequency Hopping Spread Spectrum (FHSS).
What is DSSS? What is FHSS? And what are their differences?
Frequency-Hopping Spread-Spectrum (FHSS) uses a narrowband carrier that changes frequency in a pattern that
is known to both transmitter and receiver. Properly synchronized, the net effect is to maintain a single logical
channel. To an unintended receiver, FHSS appears to be short-duration impulse noise. Direct-Sequence Spread-
Spectrum (DSSS) generates a redundant bit pattern for each bit to be transmitted. This bit pattern is called a chip
(or chipping code). The longer the chip, the greater the probability that the original data can be recovered. Even if
one or more bits in the chip are damaged during transmission, statistical techniques embedded in the radio can
recover the original data without the need for retransmission. To an unintended receiver, DSSS appears as low
power wideband noise and is rejected (ignored) by most narrowband receivers.
What is WEP?
WEP is Wired Equivalent Privacy, a data privacy mechanism based on a shared key algorithm, as described in the
802.11 standard.
What is WPA?
WPA is Wi-Fi Protected Access, a wireless security protocol that can be used in conjunction with a RADIUS server.
What is RADIUS?
RADIUS is Remote Authentication Dial-In User Service, which uses an authentication server to control network
access.
65
Appendix B:
Windows XP Wireless Zero Configuration
Wireless-G Business USB Network Adapter with RangeBooster
Appendix B: Windows XP Wireless Zero Configuration
Windows XP Wireless Zero Configuration
If your computer is running Windows XP, then this choice will be available. If you want to use Windows XP
Wireless Zero Configuration to control the Adapter, instead of using the Wireless Network Monitor, then right-
click on the Wireless Network Monitor and select Use Windows XP Wireless Configuration.
If you want to switch back to the Wireless Network Monitor, right-click the Wireless Network Monitor icon, and
select Use Linksys Wireless Network Monitor.
1. After installing the Adapter, the Windows XP Wireless Zero Configuration icon will appear in your computer’s
system tray. Double-click the icon.
Figure B-1: Wireless Network Monitor Icon
Figure B-2: Windows XP - Use Windows XP
Wireless Configuration
NOTE: For more information about Wireless Zero Configuration, refer
to Windows Help.
Figure B-3: Windows XP Wireless Zero Configuration Icon
66
Appendix B:
Windows XP Wireless Zero Configuration
Wireless-G Business USB Network Adapter with RangeBooster
2. The screen that appears will show any available wireless network. Select the network you want. Click the
Connect button.
If your network does not have wireless security enabled, go to step 3.
If your network does have wireless security enabled, go to step 4.
3. If your network does not have wireless security enabled, click the Connect Anyway button to connect the
Adapter to your network.
NOTE: Steps 2 and 3 are the instructions and
screenshots for Windows XP with Service Pack 2
installed.

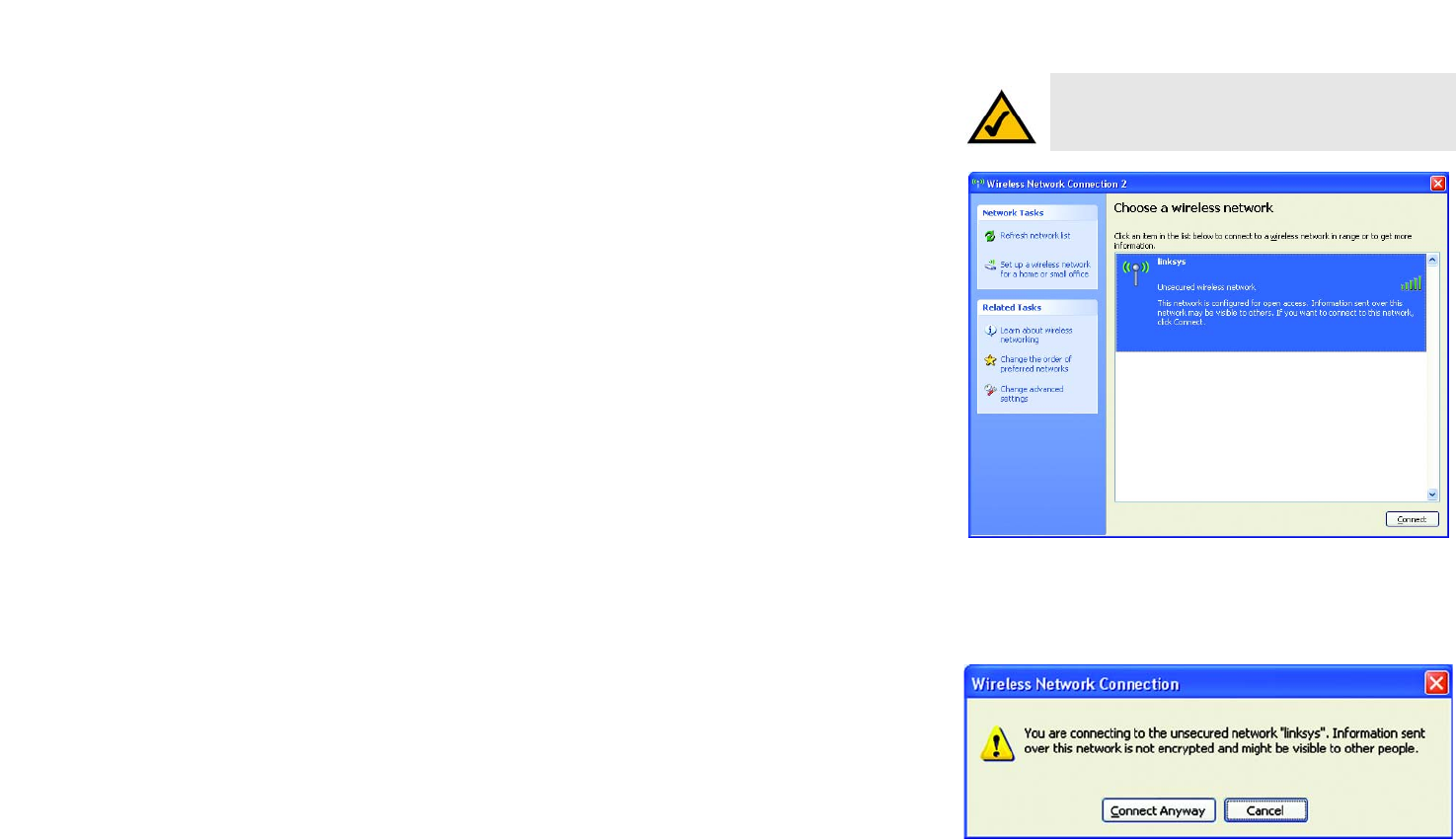

Figure B-4: Available Wireless Network
Figure B-5: No Wireless Security
67
Appendix B:
Windows XP Wireless Zero Configuration
Wireless-G Business USB Network Adapter with RangeBooster
4. If your network uses wireless security WEP, enter the WEP Key used into the Network Key and Confirm
network key fields. If your network uses wireless security WPA Personal, enter the Passphrase used into
the Network Key and Confirm network key fields. Click the Connect button.
5. Your wireless network will appear as Connected when your connection is active.
For more information about wireless networking on a Windows XP computer, click the Start button, select Help,
and choose Support. Enter the keyword wireless in the field provided, and press the Enter key.
The installation of the Windows XP Wireless Configuration is complete.
NOTE: Windows XP Wireless Zero Configuration does
not support the use of a passphrase. Enter the exact
WEP key used by your access point.

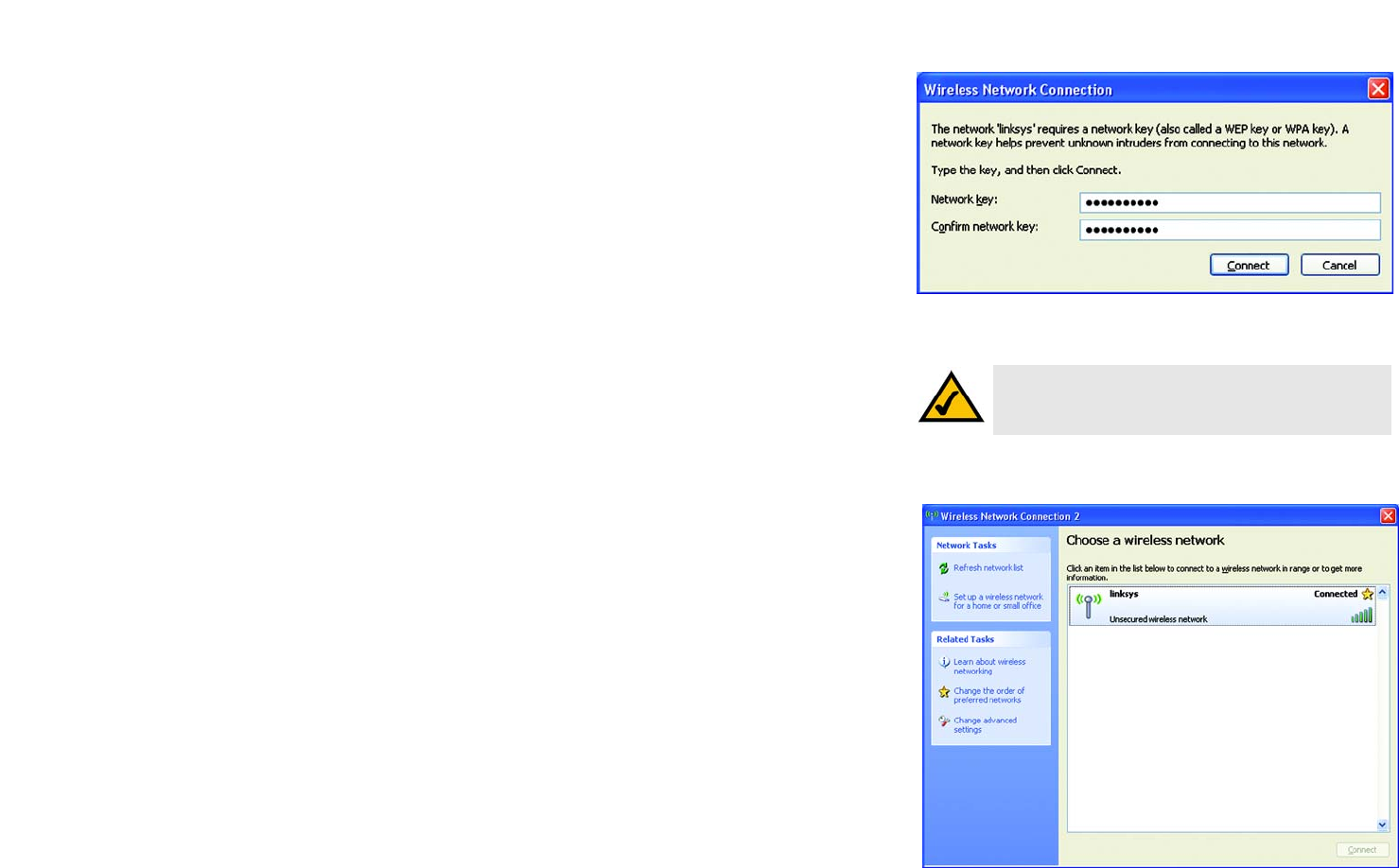

Figure B-6: Network Connection - Wireless Security
68
Appendix C: Wireless Security
Security Precautions
Wireless-G Business USB Network Adapter with RangeBooster
Appendix C: Wireless Security
Linksys wants to make wireless networking as safe and easy for you as possible. The current generation of
Linksys products provide several network security features, but they require specific action on your part for
implementation. So, keep the following in mind whenever you are setting up or using your wireless network.
Security Precautions
The following is a complete list of security precautions to take (at least steps 1 through 5 should be followed):
1. Change the default SSID.
2. Disable SSID Broadcast.
3. Change the default password for the Administrator account.
4. Enable MAC Address Filtering.
5. Change the SSID periodically.
6. Use the highest encryption algorithm possible. Use WPA/WPA2 if it is available. Please note that this may
reduce your network performance.
7. Change the WEP encryption keys periodically.
Security Threats Facing Wireless Networks
Wireless networks are easy to find. Hackers know that in order to join a wireless network, wireless networking
products first listen for “beacon messages”. These messages can be easily decrypted and contain much of the
network’s information, such as the network’s SSID (Service Set Identifier). Here are the steps you can take:
Change the administrator’s password regularly. With every wireless networking device you use, keep in mind
that network settings (SSID, WEP keys, etc.) are stored in its firmware. Your network administrator is the only
person who can change network settings. If a hacker gets a hold of the administrator’s password, he, too, can
change those settings. So, make it harder for a hacker to get that information. Change the administrator’s
password regularly.
SSID. There are several things to keep in mind about the SSID:
Note: Some of these security features are
available only through the network router or
access point. Refer to the router or access
point’s documentation for more information.
69
Appendix C: Wireless Security
Security Threats Facing Wireless Networks
Wireless-G Business USB Network Adapter with RangeBooster
1. Disable Broadcast
2. Make it unique
3. Change it often
Most wireless networking devices will give you the option of broadcasting the SSID. While this option may be
more convenient, it allows anyone to log into your wireless network. This includes hackers. So, don’t broadcast
the SSID.
Wireless networking products come with a default SSID set by the factory. (The Linksys default SSID is “linksys”.)
Hackers know these defaults and can check these against your network. Change your SSID to something unique
and not something related to your company or the networking products you use.
Change your SSID regularly so that any hackers who have gained access to your wireless network will have to
start from the beginning in trying to break in.
MAC Addresses. Enable MAC Address filtering. MAC Address filtering will allow you to provide access to only
those wireless nodes with certain MAC Addresses. This makes it harder for a hacker to access your network with
a random MAC Address.
WEP Encryption. Wired Equivalent Privacy (WEP) is often looked upon as a cure-all for wireless security
concerns. This is overstating WEP’s ability. Again, this can only provide enough security to make a hacker’s job
more difficult.
There are several ways that WEP can be maximized:
1. Use the highest level of encryption possible
2. Use “Shared Key” authentication
3. Change your WEP key regularly
WPA. Wi-Fi Protected Access (WPA) is the newest and best available standard in Wi-Fi security. Three modes are
available: WPA-Personal, WPA Enterprise, and Radius. WPA-Personal gives you a choice of two encryption
methods: TKIP (Temporal Key Integrity Protocol), which utilizes a stronger encryption method and incorporates
Message Integrity Code (MIC) to provide protection against hackers, and AES (Advanced Encryption System),
which utilizes a symmetric 128-Bit block data encryption. WPA Enterprise offers two encryption methods, TKIP
and AES, with dynamic encryption keys. RADIUS (Remote Authentication Dial-In User Service) utilizes a RADIUS
server for authentication.
Important: Always remember that each
device in your wireless network MUST use
the same encryption method and encryption
key or your wireless network will not function
properly.
70
Appendix C: Wireless Security
Security Threats Facing Wireless Networks
Wireless-G Business USB Network Adapter with RangeBooster
WPA-Personal. If you do not have a RADIUS server, Select the type of algorithm, TKIP or AES, and enter a
password in the Passphrase field of 8-63 characters.
WPA Enterprise. WPA used in coordination with a RADIUS server. (This should only be used when a RADIUS
server is connected to the Router or other device.) WPA Enterprise offers two encryption methods, TKIP and
AES, with dynamic encryption keys.
WPA2. WPA2 is a wireless security standard that defines stronger encryption, authentication and key
management than WPA.
RADIUS. WEP used in coordination with a RADIUS server. (This should only be used when a RADIUS server is
connected to the Router or other device.)
Implementing encryption may have a negative impact on your network’s performance, but if you are transmitting
sensitive data over your network, encryption should be used.
These security recommendations should help keep your mind at ease while you are enjoying the most flexible
and convenient technology Linksys has to offer.
71
Appendix D: Windows Help
Wireless-G Business USB Network Adapter with RangeBooster
Appendix D: Windows Help
All wireless products require Microsoft Windows. Windows is the most used operating system in the world and
comes with many features that help make networking easier. These features can be accessed through Windows
Help and are described in this appendix.
TCP/IP
Before a computer can communicate with an access point or wireless router, TCP/IP must be enabled. TCP/IP is a
set of instructions, or protocol, all PCs follow to communicate over a network. This is true for wireless networks
as well. Your PCs will not be able to utilize wireless networking without having TCP/IP enabled. Windows Help
provides complete instructions on enabling TCP/IP.
Shared Resources
If you wish to share printers, folder, or files over your network, Windows Help provides complete instructions on
utilizing shared resources.
Network Neighborhood/My Network Places
Other PCs on your network will appear under Network Neighborhood or My Network Places (depending upon the
version of Windows you're running). Windows Help provides complete instructions on adding PCs to your
network.
72
Appendix E: Glossary
Wireless-G Business USB Network Adapter with RangeBooster
Appendix E: Glossary
This glossary contains some basic networking terms you may come across when using this product. For more
advanced terms, see the complete Linksys glossary at http://www.linksys.com/glossary.
Access Point - A device that allows wireless-equipped computers and other devices to communicate with a
wired network. Also used to expand the range of a wireless network.
Ad-hoc - A group of wireless devices communicating directly with each other (peer-to-peer) without the use of
an access point.
AES (Advanced Encryption Standard) - A security method that uses symmetric 128-bit block data encryption.
Bandwidth - The transmission capacity of a given device or network.
Bit - A binary digit.
Boot - To start a device and cause it to start executing instructions.
Broadband - An always-on, fast Internet connection.
Browser - An application program that provides a way to look at and interact with all the information on the
World Wide Web.
Byte - A unit of data that is usually eight bits long
Cable Modem - A device that connects a computer to the cable television network, which in turn connects to the
Internet.
Daisy Chain - A method used to connect devices in a series, one after the other.
DDNS (Dynamic Domain Name System) - Allows the hosting of a website, FTP server, or e-mail server with a
fixed domain name (e.g., www.xyz.com) and a dynamic IP address.
Default Gateway - A device that forwards Internet traffic from your local area network.
DHCP (Dynamic Host Configuration Protocol) - A networking protocol that allows administrators to assign
temporary IP addresses to network computers by "leasing" an IP address to a user for a limited amount of time,
instead of assigning permanent IP addresses.
73
Appendix E: Glossary
Wireless-G Business USB Network Adapter with RangeBooster
DMZ (Demilitarized Zone) - Removes the Router's firewall protection from one PC, allowing it to be "seen" from
the Internet.
DNS (Domain Name Server) - The IP address of your ISP's server, which translates the names of websites into IP
addresses.
Domain - A specific name for a network of computers.
DOS (Denial of Service) - A network security term which defines a type of attack designed to prevent legitimate
users from using wireless service by flooding with useless/malicious traffic.
Download - To receive a file transmitted over a network.
DSL (Digital Subscriber Line) - An always-on broadband connection over traditional phone lines.
Dynamic IP Address - A temporary IP address assigned by a DHCP server.
EAP (Extensible Authentication Protocol) - A general authentication protocol used to control network access.
Many specific authentication methods work within this framework.
Encryption - Encoding data transmitted in a network.
Ethernet - IEEE standard network protocol that specifies how data is placed on and retrieved from a common
transmission medium.
Firewall - A set of related programs located at a network gateway server that protects the resources of a
network from users from other networks.
Firmware - The programming code that runs a networking device.
FTP (File Transfer Protocol) - A protocol used to transfer files over a TCP/IP network.
Full Duplex - The ability of a networking device to receive and transmit data simultaneously.
Gateway - A device that interconnects networks with different, incompatible communications protocols.
Half Duplex - Data transmission that can occur in two directions over a single line, but only one direction at a
time.
HTTP (HyperText Transport Protocol) - The communications protocol used to connect to servers on the World
Wide Web.
Infrastructure - A wireless network that is bridged to a wired network via an access point.
74
Appendix E: Glossary
Wireless-G Business USB Network Adapter with RangeBooster
Intrusion attack - A type of internet attacks in which an attacker tries to gain or access the information
transimitted through the networks.
IP (Internet Protocol) - A protocol used to send data over a network.
IP Address - The address used to identify a computer or device on a network.
IPCONFIG - A Windows 2000 and XP utility that displays the IP address for a particular networking device.
IPSec (Internet Protocol Security) - A VPN protocol used to implement secure exchange of packets at the IP layer.
ISP (Internet Service Provider) - A company that provides access to the Internet.
LAN - The computers and networking products that make up your local network.
MAC (Media Access Control) Address - The unique address that a manufacturer assigns to each networking
device.
Mbps (MegaBits Per Second) - One million bits per second; a unit of measurement for data transmission.
NAT (Network Address Translation) - NAT technology translates IP addresses of a local area network to a different
IP address for the Internet.
Network - A series of computers or devices connected for the purpose of data sharing, storage, and/or
transmission between users.
Packet - A unit of data sent over a network.
Passphrase - Used much like a password, a passphrase simplifies the WEP encryption process by automatically
generating the WEP encryption keys for Linksys products.
Ping (Packet INternet Groper) - An Internet utility used to determine whether a particular IP address is online.
POP3 (Post Office Protocol 3) - A standard mail server commonly used on the Internet.
Port - The connection point on a computer or networking device used for plugging in cables or adapters.
Power over Ethernet (PoE) - A technology enabling an Ethernet network cable to deliver both data and power.
PPPoE (Point to Point Protocol over Ethernet) - A type of broadband connection that provides authentication
(username and password) in addition to data transport.
75
Appendix E: Glossary
Wireless-G Business USB Network Adapter with RangeBooster
PPTP (Point-to-Point Tunneling Protocol) - A VPN protocol that allows the Point to Point Protocol (PPP) to be
tunneled through an IP network. This protocol is also used as a type of broadband connection in Europe.
QoS (Quality of Service) - A mechanism which gives priorities to certain types of traffic to ensure the throughput;
for example, the streaming multimedia.
RADIUS (Remote Authentication Dial-In User Service) - A protocol that uses an authentication server to control
network access.
RJ-45 (Registered Jack-45) - An Ethernet connector that holds up to eight wires.
Roaming - The ability to take a wireless device from one access point's range to another without losing the
connection.
Router - A networking device that connects multiple networks together.
Server - Any computer whose function in a network is to provide user access to files, printing, communications,
and other services.
SMTP (Simple Mail Transfer Protocol) - The standard e-mail protocol on the Internet.
SNMP (Simple Network Management Protocol) - A widely used network monitoring and control protocol.
SPI (Stateful Packet Inspection) Firewall - A technology that inspects incoming packets of information before
allowing them to enter the network.
SSID (Service Set IDentifier) -It consists of 32 alphanumeric characters to identify a group of wireless network
devices uniquely.
Static IP Address - A fixed address assigned to a computer or device that is connected to a network.
Static Routing - Forwarding data in a network via a fixed path.
Subnet Mask - An address code that determines the size of the network.
Switch - 1. A data switch that connects computing devices to host computers, allowing a large number of
devices to share a limited number of ports. 2. A device for making, breaking, or changing the connections in an
electrical circuit.
TCP (Transmission Control Protocol) - A network protocol for transmitting data that requires acknowledgement
from the recipient of data sent.
76
Appendix E: Glossary
Wireless-G Business USB Network Adapter with RangeBooster
TCP/IP (Transmission Control Protocol/Internet Protocol) - A set of instructions PCs use to communicate over a
network.
Telnet - A user command and TCP/IP protocol used for accessing remote PCs.
TFTP (Trivial File Transfer Protocol) - A version of the TCP/IP FTP protocol that has no directory or password
capability.
Throughput - The amount of data moved successfully from one node to another in a given time period.
TKIP (Temporal Key Integrity Protocol) - a wireless encryption protocol that provides dynamic encryption keys for
each packet transmitted.
Topology - The physical layout of a network.
TX Rate - Transmission Rate.
Upgrade - To replace existing software or firmware with a newer version.
Upload - To transmit a file over a network.
URL (Uniform Resource Locator) - The address of a file located on the Internet.
VPN (Virtual Private Network) - A security measure to protect data as it leaves one network and goes to another
over the Internet.
WAN (Wide Area Network)- The Internet.
WEP (Wired Equivalent Privacy) - A method of encrypting network data transmitted on a wireless network for
greater security.
WLAN (Wireless Local Area Network) - A group of computers and associated devices that communicate with
each other wirelessly.
WPA (Wi-Fi Protected Access) - a wireless security protocol using TKIP (Temporal Key Integrity Protocol)
encryption, which can be used in conjunction with a RADIUS server.
77
Appendix F: Specifications
Wireless-G Business USB Network Adapter with RangeBooster
Appendix F: Specifications
Standards IEEE802.11g, IEEE802.11b, 802.1x (Security
Authentication), (802.1i)
Channels 802.11b/802.11g
11 Channels (US, Canada)
13 Channels (Europe)
14 Channels (Japan)
LEDs Link/Act
Protocols 802.11b: CCK (11 Mbps), DQPSK (2 Mbps), DBPSK (1 Mbps); 802.11g:
OFDM
Peak Gain of the Antenna1.89dBi
Transmitted Power 802.11b:
802.11g:
Receive Sensitivity 11Mbps @ -84dBm (Typical)
54Mbps @ -70dBm (Typical)
Security Features WEP, WPA-Personal, WPA-Enterprise, WPA2-Personal, WPA2-
Enterprise with RADIUS
WEP key bit lengths 64 Bit and 128 Bit
Security Monitor Intrusion Alarms (e.g., Rogue Client Detected, Spoofed MAC address)
Vulnerability Alarms (e.g., AP is not using encryption, AP is
broadcasting SSID)
Dimensions 3.54" x 2.68" x 0.67" (90 mm x 68 mm x 17 mm)
18 ~19 dBm
18 ~19 dBm
78
Appendix F: Specifications
Wireless-G Business USB Network Adapter with RangeBooster
Unit Weight 2.15 oz (0.061 kg)
Certifications FCC, IC, CE, Wi-Fi (802.11b/g)
Operating Temp. 32ºF to 113ºF (0ºC to 45ºC)
Storage Temp. -4ºF to 140ºF (-20ºC to 60ºC)
Operating Humidity 10 to 85%, Non-Condensing
Storage Humidity 5 to 90%, Non-Condensing
79
Appendix G: Warranty Information
Wireless-G Business USB Network Adapter with RangeBooster
Appendix G: Warranty Information
LIMITED WARRANTY
Linksys warrants to You that, for a period of three years (the “Warranty Period”), your Linksys Product will be substantially
free of defects in materials and workmanship under normal use. Your exclusive remedy and Linksys' entire liability under
this warranty will be for Linksys at its option to repair or replace the Product or refund Your purchase price less any
rebates. This limited warranty extends only to the original purchaser.
If the Product proves defective during the Warranty Period call Linksys Technical Support in order to obtain a Return
Authorization Number, if applicable. BE SURE TO HAVE YOUR PROOF OF PURCHASE ON HAND WHEN CALLING. If You are
requested to return the Product, mark the Return Authorization Number clearly on the outside of the package and include a
copy of your original proof of purchase. RETURN REQUESTS CANNOT BE PROCESSED WITHOUT PROOF OF PURCHASE. You
are responsible for shipping defective Products to Linksys. Linksys pays for UPS Ground shipping from Linksys back to You
only. Customers located outside of the United States of America and Canada are responsible for all shipping and handling
charges.
ALL IMPLIED WARRANTIES AND CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED
TO THE DURATION OF THE WARRANTY PERIOD. ALL OTHER EXPRESS OR IMPLIED CONDITIONS, REPRESENTATIONS AND
WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF NON-INFRINGEMENT, ARE DISCLAIMED. Some jurisdictions do not
allow limitations on how long an implied warranty lasts, so the above limitation may not apply to You. This warranty gives
You specific legal rights, and You may also have other rights which vary by jurisdiction.
This warranty does not apply if the Product (a) has been altered, except by Linksys, (b) has not been installed, operated,
repaired, or maintained in accordance with instructions supplied by Linksys, or (c) has been subjected to abnormal
physical or electrical stress, misuse, negligence, or accident. In addition, due to the continual development of new
techniques for intruding upon and attacking networks, Linksys does not warrant that the Product will be free of
vulnerability to intrusion or attack.
TO THE EXTENT NOT PROHIBITED BY LAW, IN NO EVENT WILL LINKSYS BE LIABLE FOR ANY LOST DATA, REVENUE OR PROFIT,
OR FOR SPECIAL, INDIRECT, CONSEQUENTIAL, INCIDENTAL OR PUNITIVE DAMAGES, REGARDLESS OF THE THEORY OF
LIABILITY (INCLUDING NEGLIGENCE), ARISING OUT OF OR RELATED TO THE USE OF OR INABILITY TO USE THE PRODUCT
(INCLUDING ANY SOFTWARE), EVEN IF LINKSYS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO EVENT
WILL LINKSYS’ LIABILITY EXCEED THE AMOUNT PAID BY YOU FOR THE PRODUCT. The foregoing limitations will apply even
if any warranty or remedy provided under this Agreement fails of its essential purpose. Some jurisdictions do not allow the
exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to You.
Please direct all inquiries to: Linksys, P.O. Box 18558, Irvine, CA 92623.
2006/8/16 v1.0
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment
should be installed and operated with minimum distance 20cm between the radiator & your body.
Appendix H: Regulatory Information
2006/8/16 v1.0
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
The availability of some specific channels and/or operational frequency bands are country dependent and are firmware
programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user.
Industry Canada statement:
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Règlement d’Industry Canada
Les conditions de fonctionnement sont sujettes à deux conditions:
1) Ce périphérique ne doit pas causer d’interférence et.
2) Ce périphérique doit accepter toute interférence, y compris les interférences pouvant perturber le bon fonctionnement de ce
périphérique.
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should
be installed and operated with minimum distance 20cm between the radiator & your body.
81
Appendix H: Regulatory Information
Wireless-G Business USB Network Adapter with RangeBooster
User Information for Consumer Products Covered by EU Directive 2002/96/EC on Waste Electric and Electronic
Equipment (WEEE)
This document contains important information for users with regards to the proper disposal and recycling of Linksys
products. Consumers are required to comply with this notice for all electronic products bearing the following symbol:
82
Appendix H: Regulatory Information
Wireless-G Business USB Network Adapter with RangeBooster
83
Appendix H: Regulatory Information
Wireless-G Business USB Network Adapter with RangeBooster
84
Appendix H: Regulatory Information
Wireless-G Business USB Network Adapter with RangeBooster
85
Appendix H: Regulatory Information
Wireless-N Business Notebook Adapter
For more information, visit www.linksys.com.
86
Appendix I: Contact Information
Wireless-G Business USB Network Adapter with RangeBooster
Appendix I: Contact Information
Need to contact Linksys?
Visit us online for information on the latest products and updates
to your existing products at: http://www.linksys.com or
ftp.linksys.com
Can't find information about a product you want to buy
on the web? Do you want to know more about networking
with Linksys products? Give our advice line a call at: 800-546-5797 (LINKSYS)
Or fax your request in to: 949-823-3002
If you experience problems with any Linksys product,
you can call us at: 800-326-7114
Don't wish to call? You can e-mail us at: support@linksys.com
If any Linksys product proves defective during its warranty period,
you can call the Linksys Return Merchandise Authorization
department for obtaining a Return Authorization Number at: 949-823-3000
(Details on Warranty and RMA issues can be found in the Warranty
Information section in this Guide.)

Navigation menu
