LINKSYS WUSB54GSV2 Wireless-G USB Network Adapter with SpeedBooster User Manual rev
LINKSYS LLC Wireless-G USB Network Adapter with SpeedBooster rev
LINKSYS >
Users Manual
A Division of Cisco Systems, Inc.
®
Model No.
USB Network Adapter
Wireless-G
WUSB54GS ver. 2
User Guide
WIRELESS
GHz
2.4
802.11g
with SpeedBooster
Wireless-G USB Network Adapter with SpeedBooster
Copyright and Trademarks
Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco
Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2004 Cisco Systems, Inc. All
rights reserved. Other brands and product names are trademarks or registered trademarks of their respective
holders.
How to Use this User Guide
This User Guide has been designed to make understanding networking with the Wireless-G USB Network Adapter
easier than ever. Look for the following items when reading this User Guide:
In addition to these symbols, there are definitions for technical terms that are presented like this:
Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like
this:
Figure numbers and descriptions can also be found in the "List of Figures" section in the “Table of Contents”.
This exclamation point means there is a Caution or
warning and is something that could damage your
property or the Wireless-G USB Network Adapter.
This checkmark means there is a Note of interest and
is something you should pay special attention to
while using the Wireless-G USB Network Adapter.
This question mark provides you with a reminder
about something you might need to do while using
the Wireless-G USB Network Adapter.
word: definition.
Figure 0-1: Sample Figure Description
WUSB54GS-UG-40811A JL
WARNING: This product contains chemicals, including lead, known
to the State of California to cause cancer, and birth defects or other
reproductive harm. Wash hands after handling.
Wireless-G USB Network Adapter with SpeedBooster
Table of Contents
Chapter 1: Introduction 1
Welcome 1
What’s in this Guide? 2
Chapter 2: Planning your Wireless Network 4
Network Topology 4
Roaming 4
Network Layout 5
Chapter 3: Using the USB Network Adapter’s Setup Wizard 6
Chapter 4: Connecting the USB Network Adapter 13
The LED Indicators 14
Chapter 5: Using the Wireless Network Monitor 15
Using the Wireless Network Monitor Icon 15
Accessing the Wireless Network Monitor 16
Link Information 16
Site Survey 19
Profiles 20
Creating a New Profile 21
Appendix A: Troubleshooting 28
Common Problems and Solutions 28
Frequently Asked Questions 29
Appendix B: Wireless Security 32
Security Precautions 32
Security Threats Facing Wireless Networks 32
Appendix C: Windows Help 35
Appendix D: Glossary 36
Appendix E: Specifications 39
Appendix F: Warranty Information 41
Appendix G: Regulatory Information 42
Appendix H: Contact Information 43
Wireless-G USB Network Adapter with SpeedBooster
List of Figures
Figure 3-1: The Setup Wizard’s Welcome Screen 6

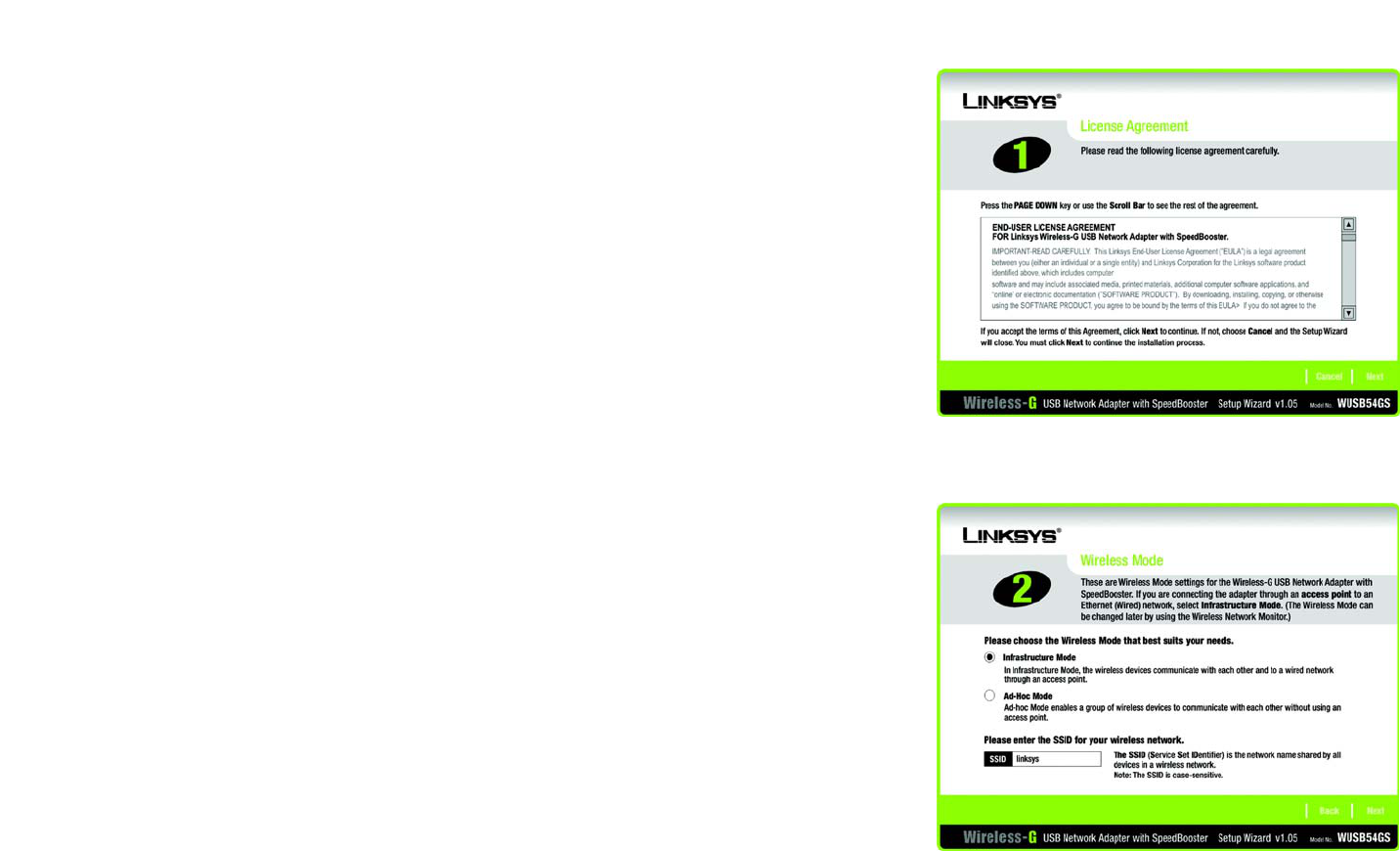

Figure 3-2: The License Agreement Screen 7
Figure 3-3: The Wireless Mode Screen 7

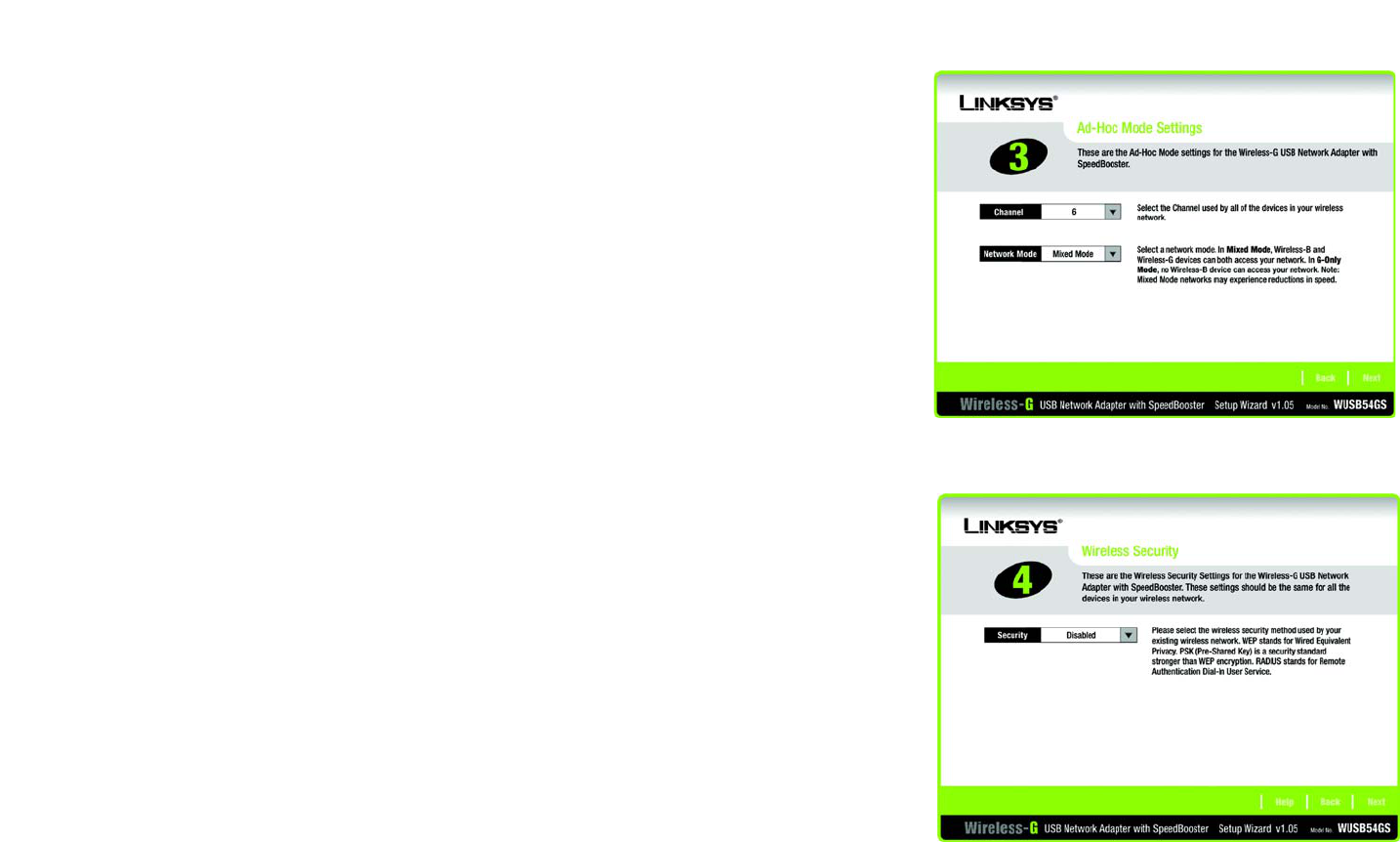

Figure 3-4: The Ad-Hoc Mode Settings Screen 8
Figure 3-5: The Wireless Security Screen 8

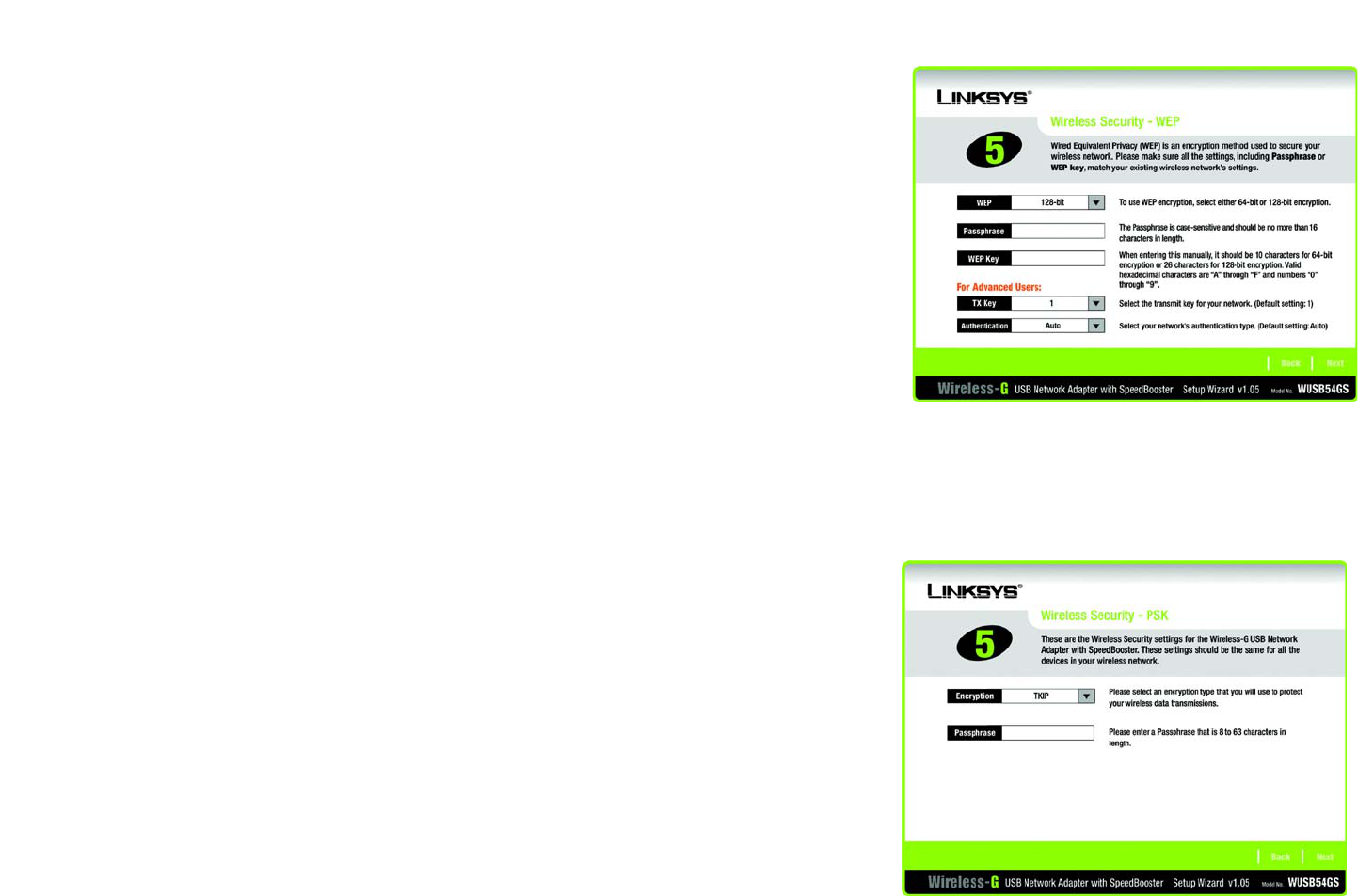

Figure 3-6: The WEP Security Settings Screen 9
Figure 3-7: The Wireless Security PSK Screen 9

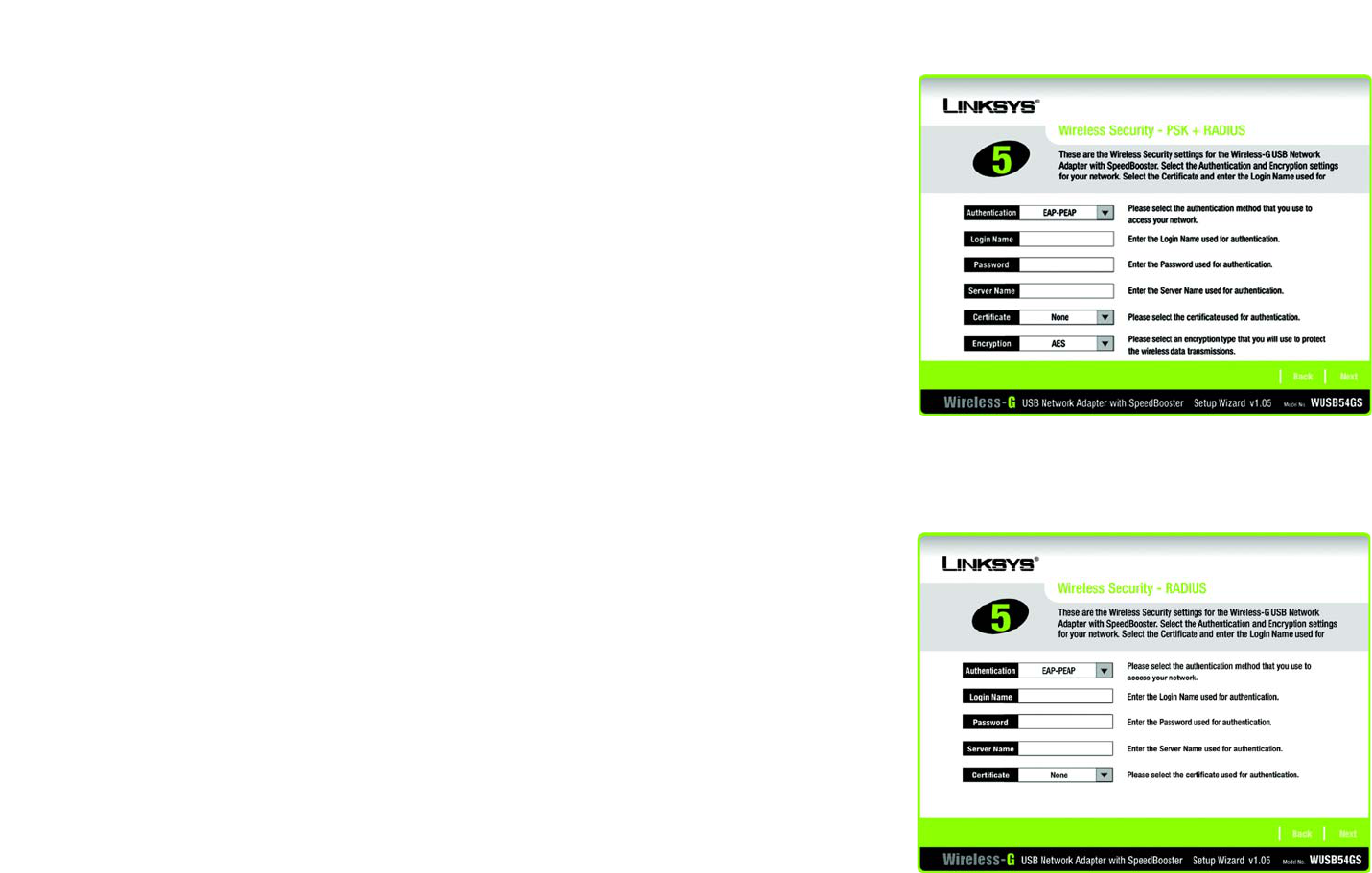

Figure 3-8: The Wireless Security PSK+RADIUS (EAP-TLS) Screen 10
Figure 3-9: The Wireless Security RADIUS (EAP-PEAP) Screen 10
Figure 3-10: The Check Settings Screen 11

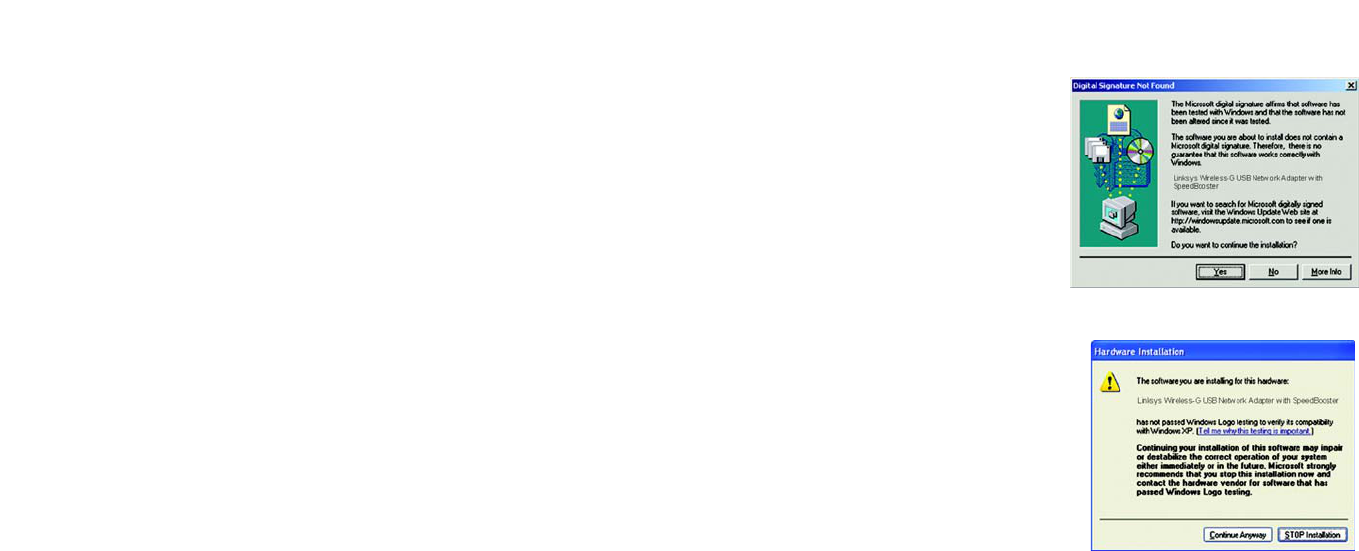

Figure 3-11: The Windows 2000 Digital Signature Screen 11
Figure 3-12: The Windows XP Digital Signature Screen 11

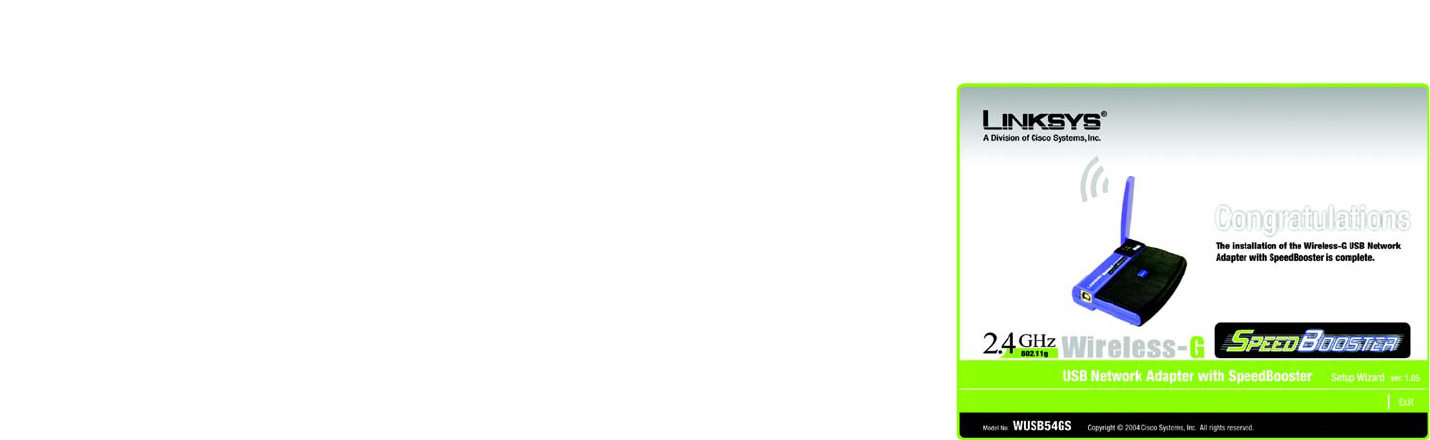

Figure 3-13: The Congratulations Screen 12

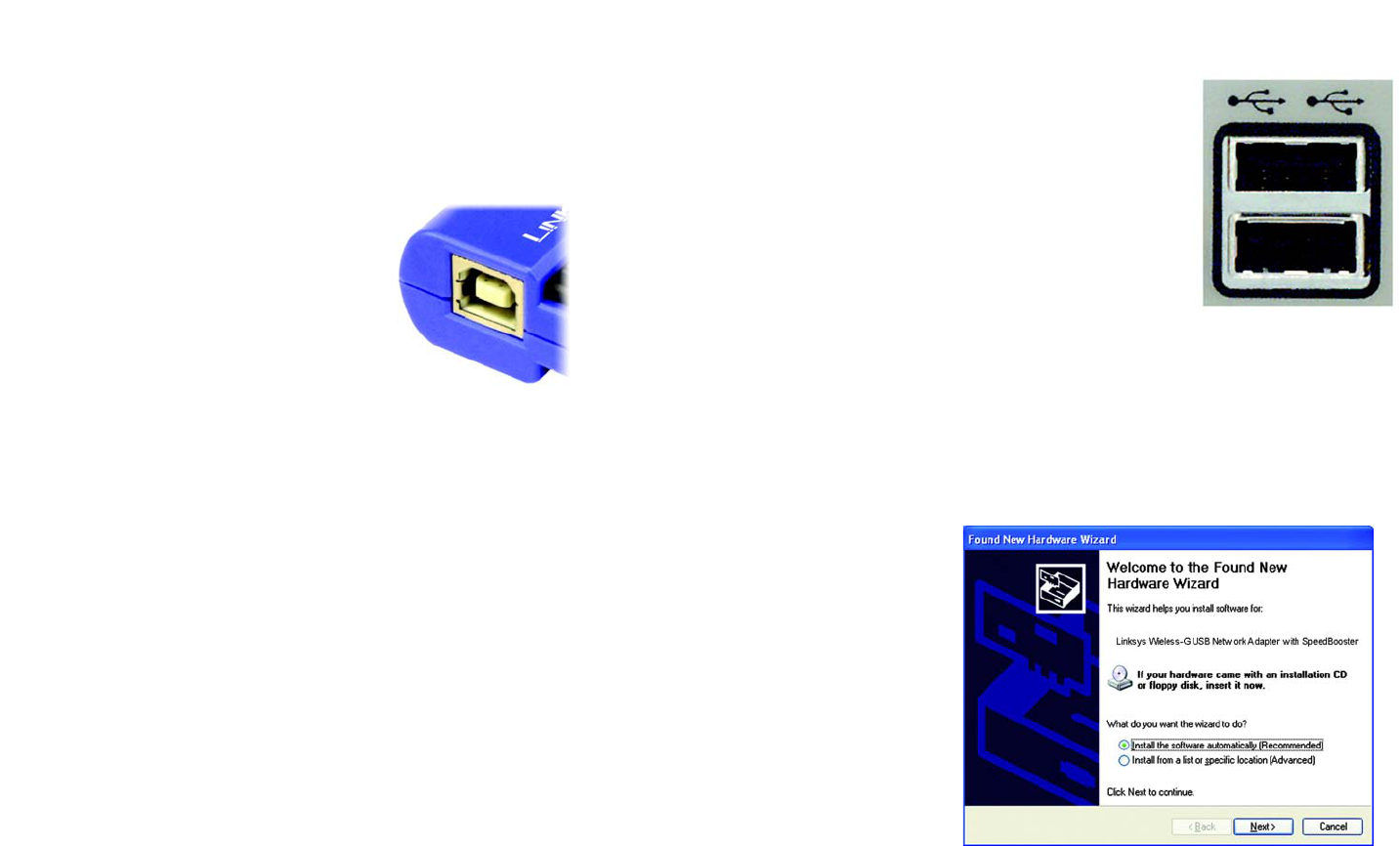

Figure 4-1: The Adapter’s USB Port 13
Figure 4-2: A USB Port 13
Figure 4-3: The New Hardware Wizard 13
Figure 4-4: The Windows 2000 Digital Signature Screen 14
Figure 4-5: The Windows XP Digital Signature Screen 14
Figure 5-1: Wireless Network Monitor Icon 15
Figure 5-2: Windows XP - Use Windows XP Wireless Configuration 15
Figure 5-3: Windows XP - Use Linksys Wireless Network Monitor 15

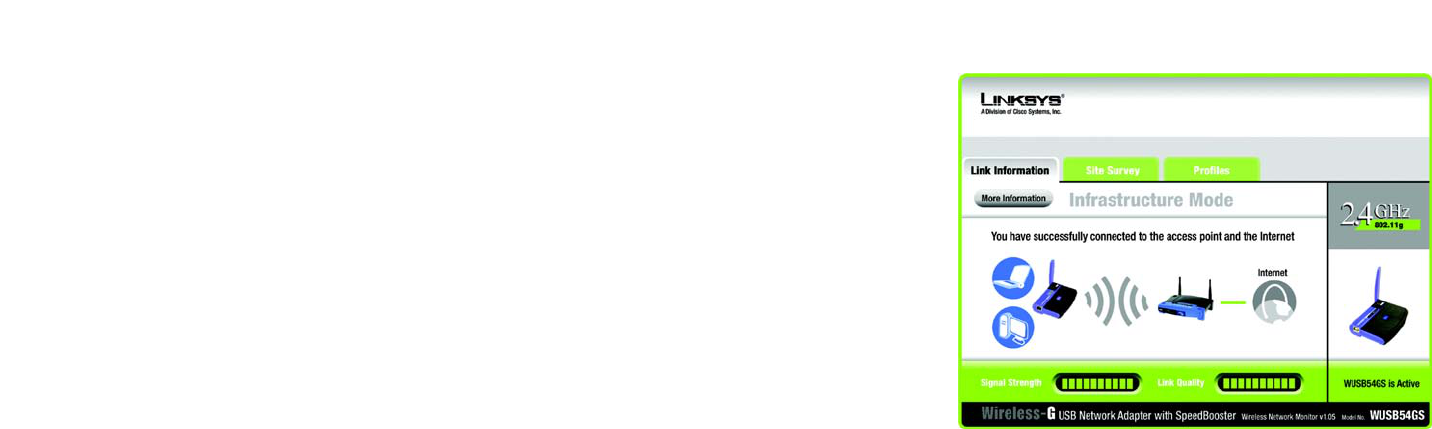

Figure 5-4: Link Information 16

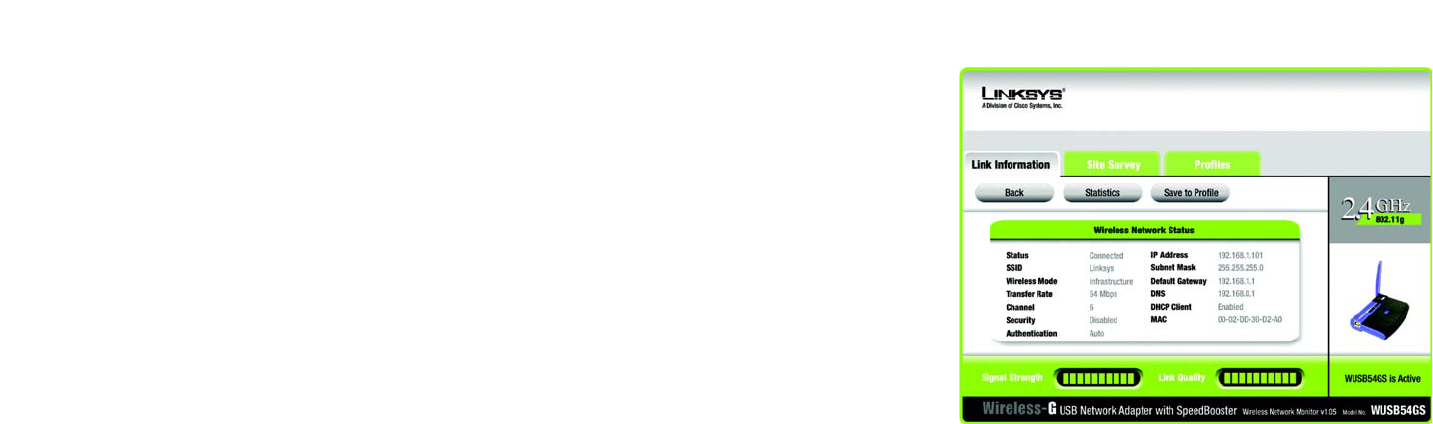

Figure 5-5: More Information - Wireless Network Status 17
Figure 5-6: More Information - Wireless Network Statistics 18

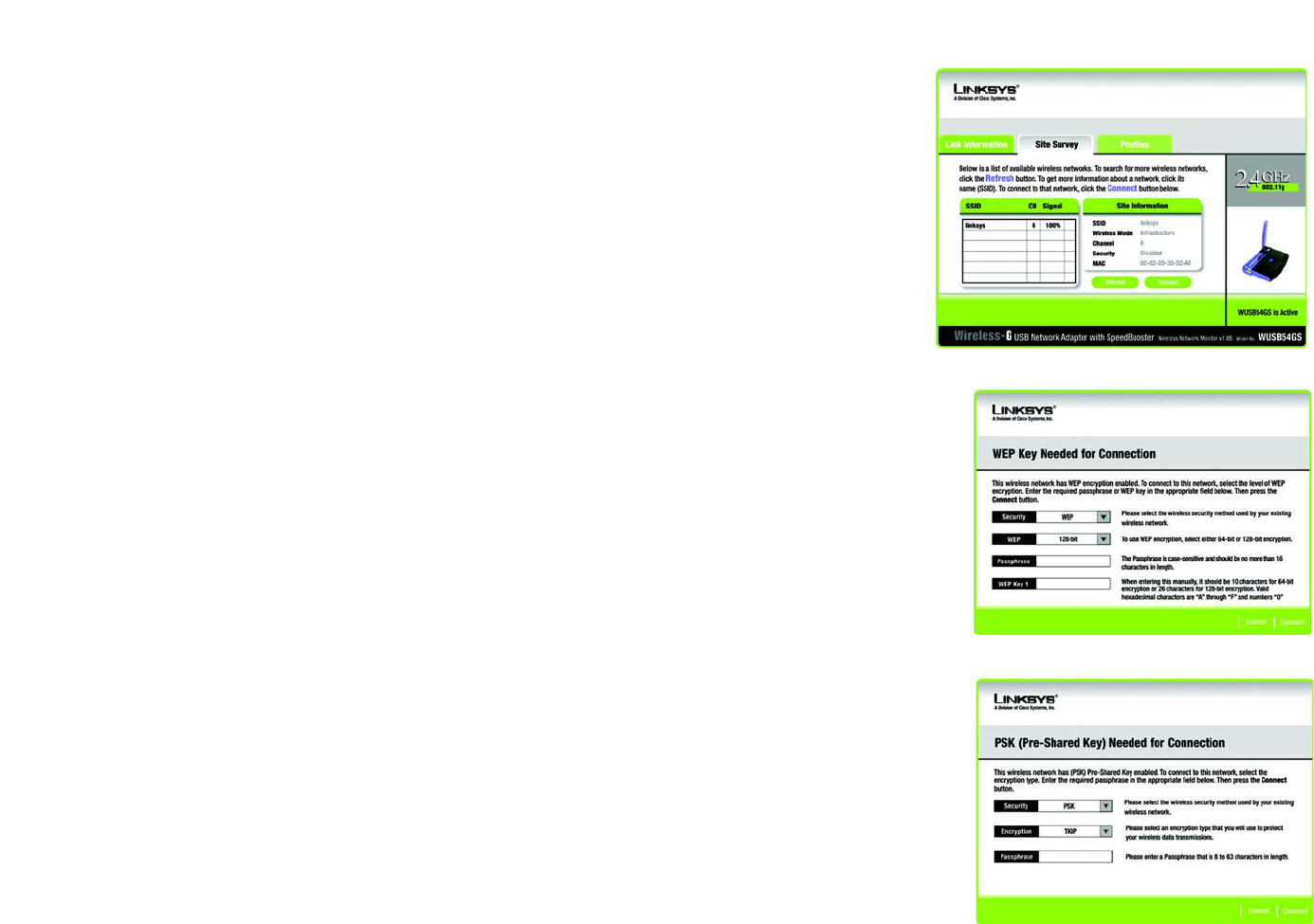

Figure 5-7: Site Survey 19
Figure 5-8: WEP Key Needed for Connection 19
Figure 5-9: PSK (Pre-Shared Key) Needed for Connection 19
Figure 5-10: Profiles 20
Figure 5-11: Import a Profile 20
Figure 5-12: Export a Profile 20
Wireless-G USB Network Adapter with SpeedBooster
Figure 5-13: Create a New Profile 21
Figure 5-14: Enter Profile Name 21
Figure 5-15: Network Settings for New Profile 21

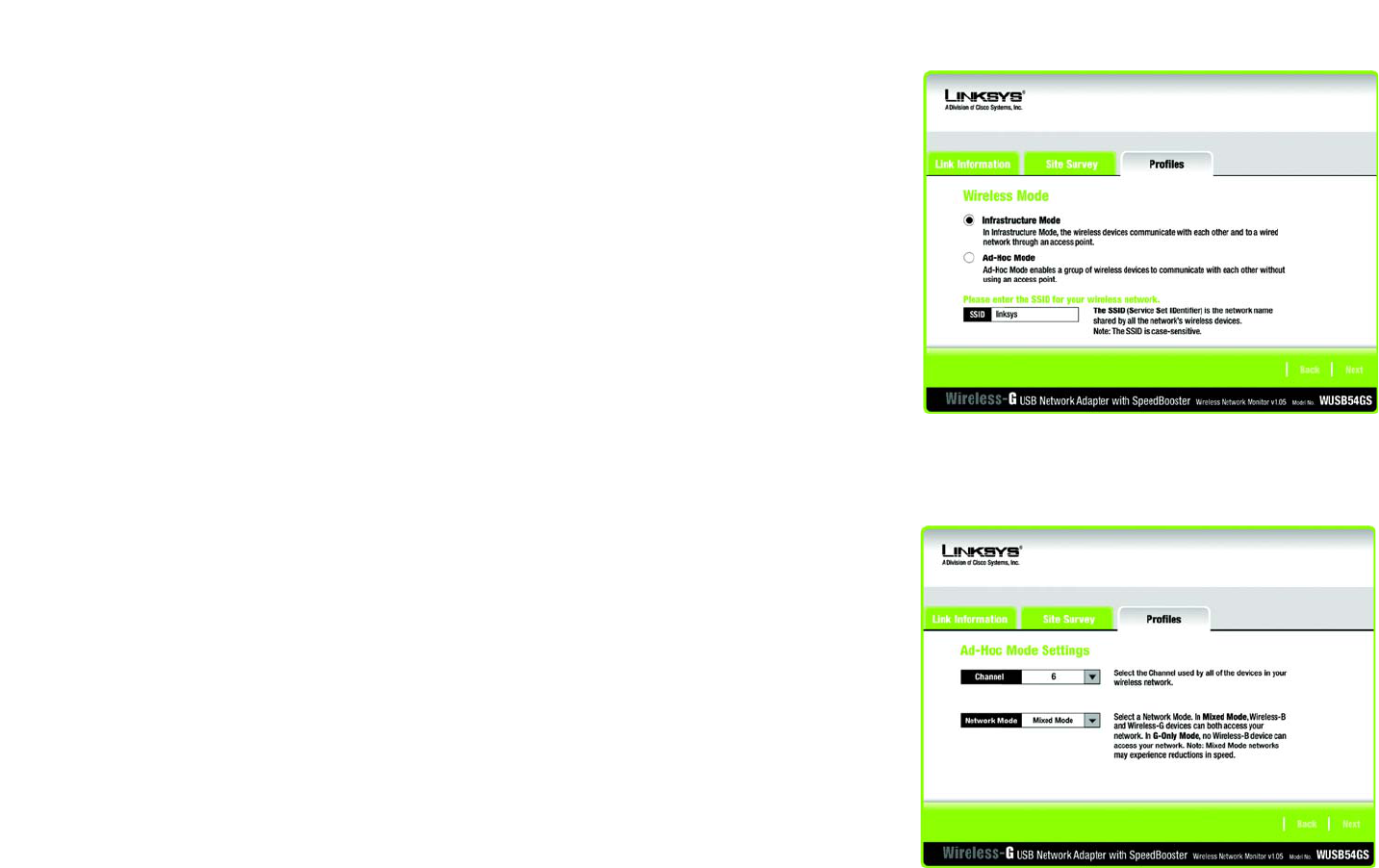

Figure 5-16: Wireless Mode for New Profile 22
Figure 5-17: Ad-Hoc Mode Settings for New Profile 22

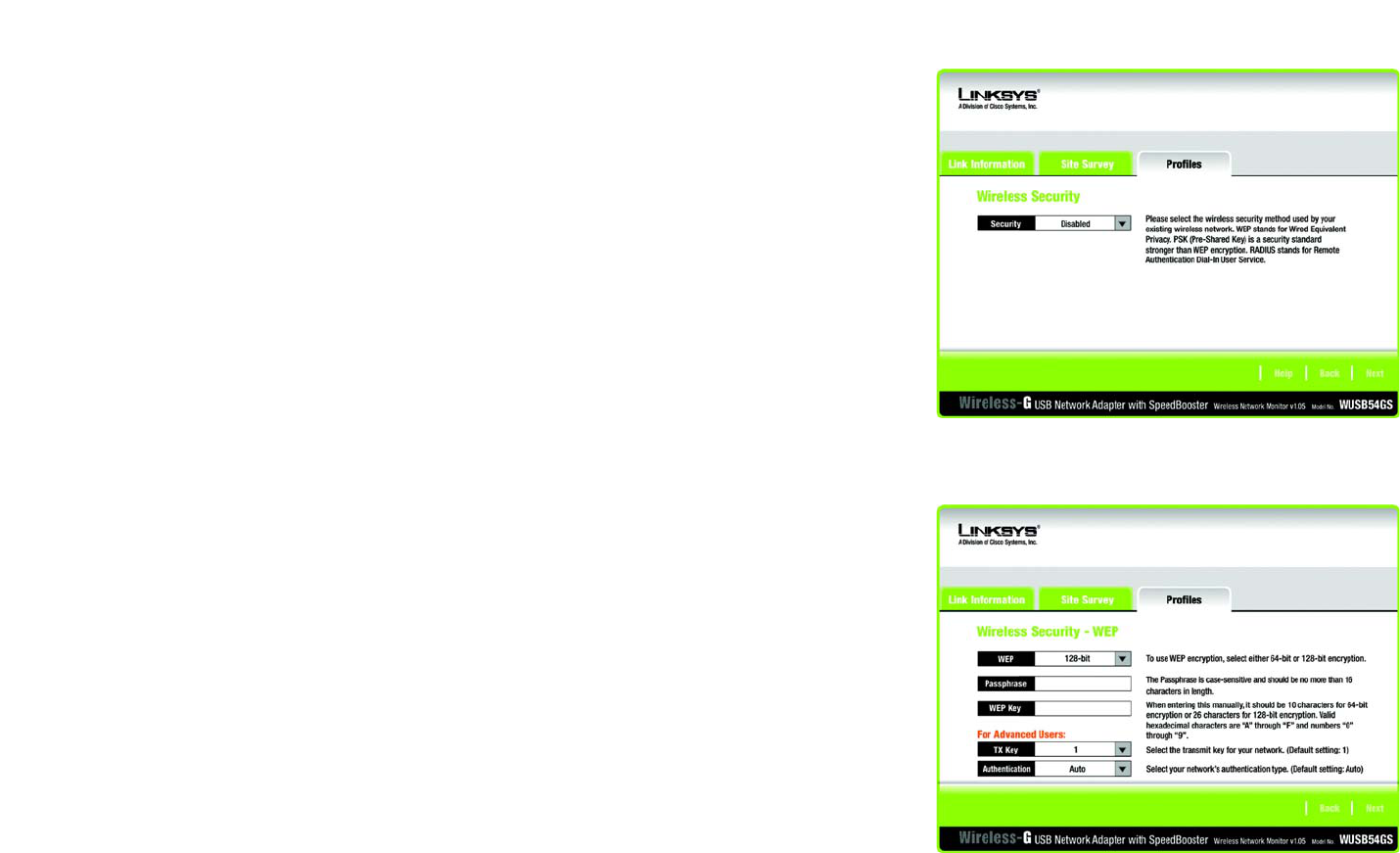

Figure 5-18: Wireless Security for New Profile 23
Figure 5-19: Wireless Security - WEP for New Profile 23

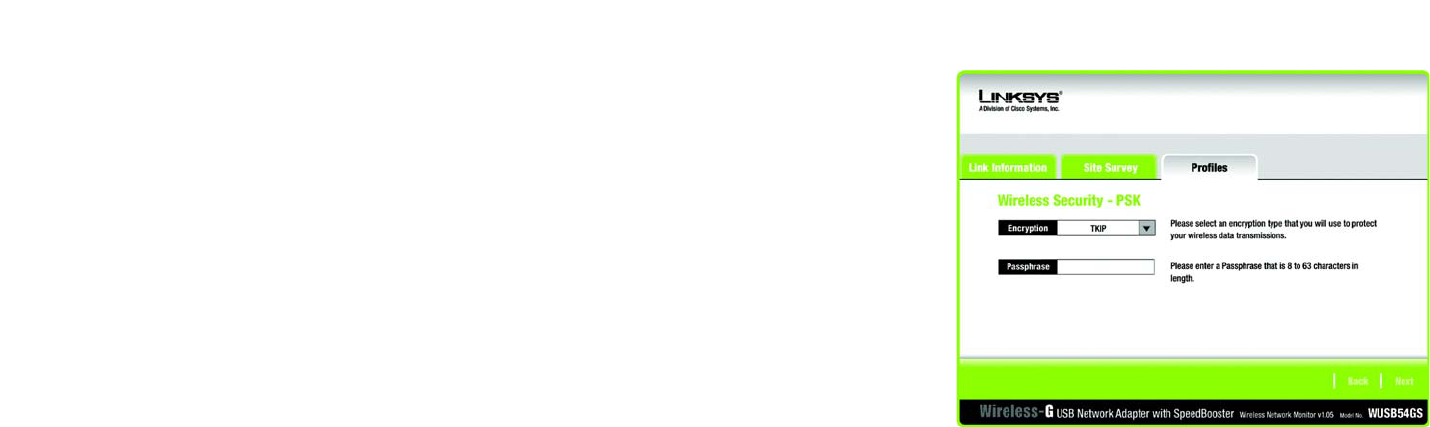

Figure 5-20: Wireless Security - PSK for New Profile 24

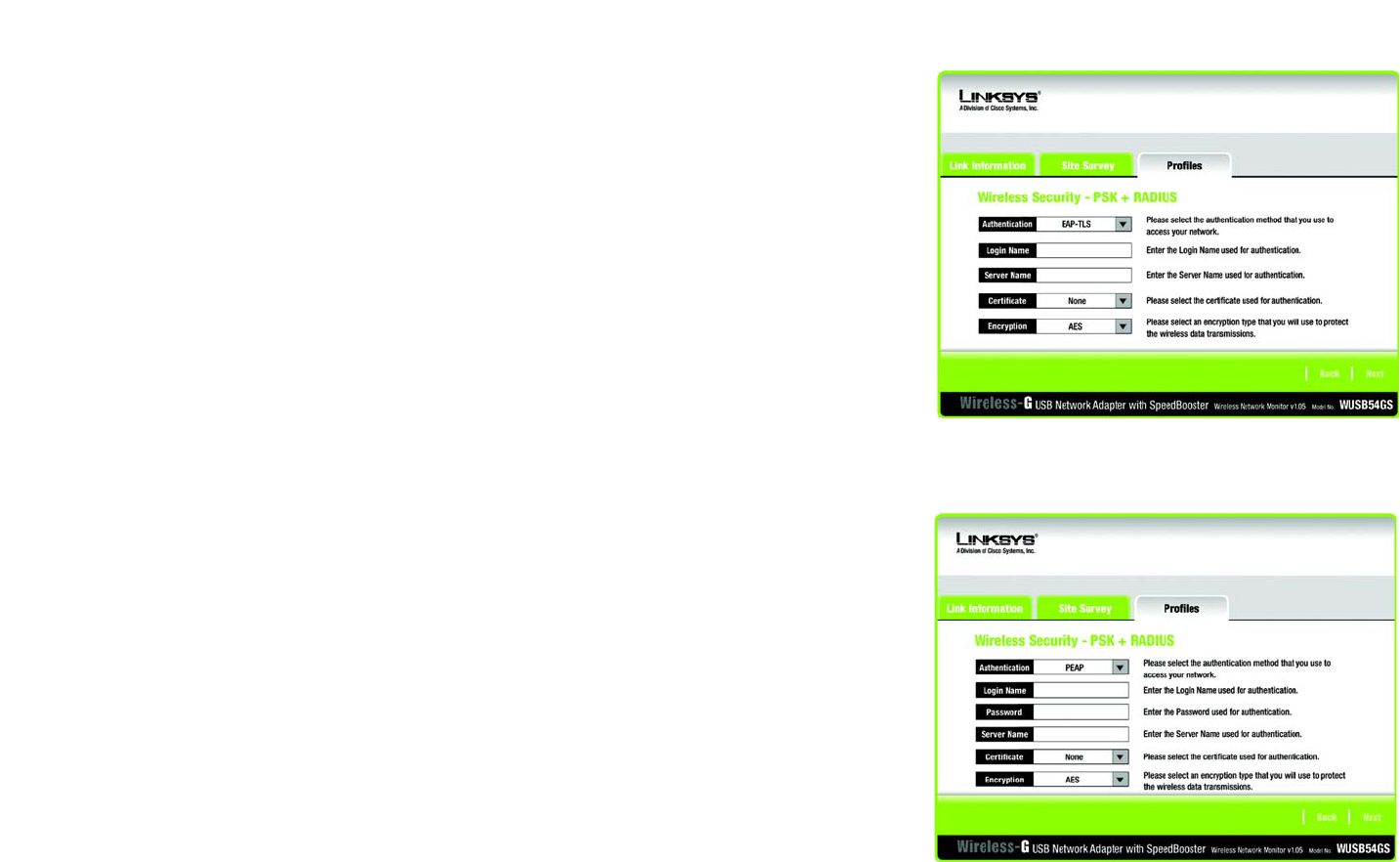

Figure 5-21: Wireless Security - PSK + RADIUS Using EAP-TLS for New Profile 25
Figure 5-22: Wireless Security - PSK + RADIUS Using EAP-PEAP for New Profile 25
Figure 5-23: Wireless Security - RADIUS Using EAP-TLS for New Profile 26
Figure 5-24: Wireless Security - RADIUS Using EAP-PEAP for New Profile 26
Figure 5-25: Confirm New Settings for New Profile 27
Figure 5-26: Congratulations for New Profile 27
1
Chapter 1: Introduction
Welcome
Wireless-G USB Network Adapter with SpeedBooster
Chapter 1: Introduction
Welcome
Thank you for choosing the Wireless-G USB Network Adapter. With this Adapter, your wireless networking
experience will be faster and easier than ever.
How does the Adapter do this? Like all wireless products, the Adapter allows for greater range and mobility
within your wireless network. Connecting to your PC via the USB port means that this Adapter leaves the PC’s
slots open for other purposes. This adapter communicates over the 802.11g wireless standard, one of the newest
wireless standards, to communicate with your network.
But what does all of this mean?
Networks are useful tools for sharing computer resources. You can access one printer from different computers
and access data located on another computer's hard drive. Networks are even used for playing multiplayer video
games. So, networks are not only useful in homes and offices, they can also be fun.
PCs equipped with wireless cards and adapters can communicate without cumbersome cables. By sharing the
same wireless settings, within their transmission radius, they form a wireless network.
Use the instructions in this Guide to help you connect the Adapter, set it up, and configure it for your network.
These instructions should be all you need to get the most out of the Adapter.
802.11g: an IEEE wireless networking standard that specifies a
maximum data transfer rate of 54Mbps, an operating frequency
of 2.4GHz, and backward compatibility with 802.11b devices.
adapter: a device that adds network functionality to your PC.
network: a series of computers or devices
connected for the purpose of data sharing, storage,
and/or transmission between users.
2
Chapter 1: Introduction
What’s in this Guide?
Wireless-G USB Network Adapter with SpeedBooster
What’s in this Guide?
This user guide covers the steps for setting up and using the Wireless-B USB Network Adapter.
• Chapter 1: Introduction
This chapter describes the Adapter’s applications and this User Guide.
• Chapter 2: Planning Your Wireless Network
This chapter discusses a few of the basics about wireless networking.
• Chapter 3: Using the USB Network Adapter’s Setup Wizard
This chapter instructs you on how to install the Adapter’s Setup Wizard.
• Chapter 4: Connecting the USB Network Adapter
This chapter shows you how to connect the Adapter to your PC’s USB port.
• Chapter 5: Using the Wireless Network Monitor
This chapter show you how to use the Adapter’s Wireless Network Monitor.
• Appendix A: Troubleshooting
This appendix describes some problems and solutions, as well as frequently asked questions, regarding
installation and use of the Adapter.
• Appendix B: Wireless Security
This appendix discusses security issues regarding wireless networking and measures you can take to help
protect your wireless network.
• Appendix C: Windows Help
This appendix describes how you can use Windows Help for instructions about networking, such as installing
the TCP/IP protocol.
• Appendix D: Glossary
This appendix gives a brief glossary of terms frequently used in networking.
• Appendix E: Specifications
This appendix provides the Adapter’s technical specifications.
• Appendix F: Warranty Information
This appendix supplies the Adapter’s warranty information.
• Appendix G: Regulatory Information
This appendix supplies the Adapter’s regulatory information.
3
Chapter 1: Introduction
What’s in this Guide?
Wireless-G USB Network Adapter with SpeedBooster
• Appendix H: Contact Information
This appendix provides contact information for a variety of Linksys resources, including Technical Support.
4
Chapter 2: Planning your Wireless Network
Network Topology
Wireless-G USB Network Adapter with SpeedBooster
Chapter 2: Planning your Wireless Network
Network Topology
A wireless network is a group of computers, each equipped with one wireless adapter. Computers in a wireless
network must be configured to share the same radio channel. Several PCs equipped with wireless cards or
adapters can communicate with one another to form an ad-hoc network.
Linksys wireless adapters also provide users access to a wired network when using an access point or wireless
router. An integrated wireless and wired network is called an infrastructure network. Each wireless PC in an
infrastructure network can talk to any computer in a wired network infrastructure via the access point or wireless
router.
An infrastructure configuration extends the accessibility of a wireless PC to a wired network, and can double the
effective wireless transmission range for two wireless adapter PCs. Since an access point is able to forward data
within a network, the effective transmission range in an infrastructure network can be doubled.
Roaming
Infrastructure mode also supports roaming capabilities for mobile users. Roaming means that you can move your
wireless PC within your network and the access points will pick up the wireless PC's signal, providing that they
both share the same channel and SSID.
Before enabling you consider roaming, choose a feasible radio channel and optimum access point position.
Proper access point positioning combined with a clear radio signal will greatly enhance performance.
access point: device that allows wireless-
equipped computers and other devices to
communicate with a wired network.
ad-hoc: a group of wireless devices
communicating directly with each other (peer-
to-peer) without the use of an access point
infrastructure: Configuration in which a
wireless network is bridged to a wired
network via an access point.
roaming: the ability to take a wireless
device from one access point's range to
another without losing the connection.
ssid: your wireless network’s name
5
Chapter 2: Planning your Wireless Network
Network Layout
Wireless-G USB Network Adapter with SpeedBooster
Network Layout
Linksys wireless access points and wireless routers have been designed for use with 802.11a, 802.11b, and
802.11g products. With 802.11g products communicating with the 802.11b standard and some products
incorporating both “a” and “g”, products using these standards can communicate with each other.
Access points and wireless routers are compatible with 802.11a, 802.11b and 802.11g adapters, such at the PC
Cards for your laptop computers, PCI Card for your desktop PC, and USB Adapters for when you want to enjoy USB
connectivity. Wireless products will also communicate with the wireless PrintServer.
When you wish to connect your wired network with your wireless network, network ports on access points and
wireless routers can be connected to any of Linksys's switches or routers.
With these, and many other, Linksys products, your networking options are limitless. Go to the Linksys website at
www.linksys.com for more information about wireless products.
802.11b: an IEEE wireless networking standard
that specifies a maximum data transfer rate of
11Mbps and an operating frequency of 2.4GHz.
switch: device that is the central point of connection for
computers and other devices in a network, so data can
be shared at full transmission speeds.
router: a networking device that connects multiple networks
together, such as a local network and the Internet.
6
Chapter 3: Using the USB Network Adapter’s Setup Wizard
Wireless-G USB Network Adapter with SpeedBooster
Chapter 3: Using the USB Network Adapter’s Setup Wizard
The Wireless-G USB Network Adapter Setup Wizard will guide you through the installation procedure. The Setup
Wizard will install the Wireless Network Monitor and driver, as well as configure the Adapter.
1. Insert the Setup Wizard CD-ROM into your CD-ROM drive. The Setup Wizard should run automatically, and the
Welcome screen should appear. If it does not, click the Start button and choose Run. In the field that
appears, enter D:\setup.exe (if “D” is the letter of your CD-ROM drive).
IMPORTANT: You must run the Setup
Wizard to install the software before
connecting the Adapter.

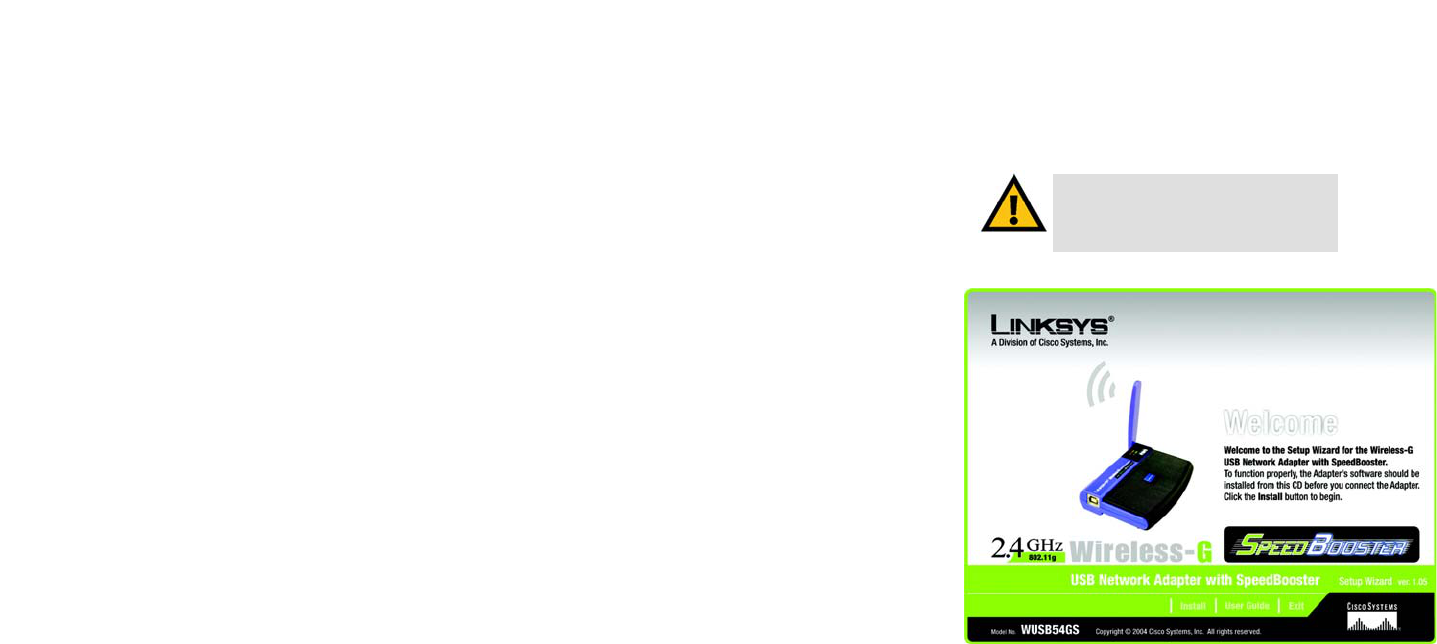

Figure 3-1: The Setup Wizard’s Welcome Screen
7
Chapter 3: Using the USB Network Adapter’s Setup Wizard
Wireless-G USB Network Adapter with SpeedBooster
2. Read the License Agreement displayed on the following screen and click the Next button to continue the
installation. If you click the Cancel button, you will end the installation.
3. The Wireless Mode screen will ask for some information about your wireless network. In the SSID field, enter
your network’s SSID (Service Set Identifier). The SSID is your network name and must be identical for all
devices in the network. The default setting is linksys (all lowercase).
Next, choose a wireless mode. Click the Infrastructure Mode radio button if you want your wireless
computers to network with computers on your wired network using an access point. Click the Ad-Hoc Mode
radio button if you want multiple wireless computers to network directly with each other.
Click the Next button to continue, or click the Back button to return to the previous page.
Figure 3-2: The License Agreement Screen
Figure 3-3: The Wireless Mode Screen
8
Chapter 3: Using the USB Network Adapter’s Setup Wizard
Wireless-G USB Network Adapter with SpeedBooster
4. If you chose Infrastructure Mode, go to Step 5 now. If you chose Ad-Hoc Mode, select the correct operating
channel for your network from the Channel drop-down menu. Then, select the Network Mode from the drop-
down menu. Click the Next button, and go to Step 5. Click the Back button to change any settings.
Channel - The channel you choose should match the channel set on the other devices in your wireless
network. If you are unsure about which channel to use, select the default channel (Channel 6).
Network Mode - Keep the default setting, Mixed, if you have Wireless-G and Wireless-B devices in your
network. Select G-Only if you have only Wireless-G devices in your network.
5. Select the type of security you want to use from the first Wireless Security screen. The choices are Disabled,
WEP, PSK, PSK+RADIUS, or RADIUS. All devices in a network must use the same security method. After
selecting the security method, click the Next button to continue.
Figure 3-4: The Ad-Hoc Mode Settings Screen
Figure 3-5: The Wireless Security Screen
9
Chapter 3: Using the USB Network Adapter’s Setup Wizard
Wireless-G USB Network Adapter with SpeedBooster
WEP
WEP - To use WEP encryption, select 64-bits or 128-bit characters from the drop-down menu, and enter a
passphrase or WEP key.
Passphrase - Instead of manually entering a WEP key, you can enter a passphrase in the Passphrase field, so
a WEP key is automatically generated. It is case-sensitive and should not be longer than 16 alphanumeric
characters. This passphrase must match the passphrase of your other wireless network devices and is
compatible with Linksys wireless products only. (If you have any non-Linksys wireless products, enter the
WEP key manually on those products.)
WEP Key - The WEP key you enter must match the WEP key of your wireless network. If you are using 64-bit
WEP encryption, then the key must consist of exactly 10 hexadecimal characters. If you are using 128-bit
WEP encryption, then the key must consist of exactly 26 hexadecimal characters. Valid hexadecimal
characters are “0” to “9” and “A” to “F”.
Transmit Key - The default transmit key number is 1. If your network’s access point or wireless router uses
transmit key number 2, 3, or 4, select the appropriate number from the Transmit Key drop-down box.
Authentication -The default is set to Auto, where it auto-detects for Shared Key or Open system. Shared
Key is when both the sender and the recipient share a WEP key for authentication. Open key is when the
sender and the recipient do not share a WEP key for authentication. All points on your network must use the
same authentication type.
Click the Next button to continue.s. Click the Back button to return to the previous screen. Click the Help
button for more information.
PSK
PSK offers two encryption methods, TKIP and AES, with dynamic encryption keys. Select the type of
algorithm, TKIP or AES, for the Encryption Type. Enter a Passphrase of 8-63 characters in the Passphrase
field.
Click the Next button to continue. Click the Back button to return to the previous screen.
Figure 3-6: The WEP Security Settings Screen
Figure 3-7: The Wireless Security PSK Screen
10
Chapter 3: Using the USB Network Adapter’s Setup Wizard
Wireless-G USB Network Adapter with SpeedBooster
PSK+RADIUS
PSK + RADIUS features a Pre-Shared Key used in coordination with a RADIUS server. (This should only be
used when a RADIUS server is connected to the Router.) PSK + RADIUS offers two encryption methods, TKIP
and AES, with dynamic encryption keys, as well as two authentication methods, EAP-TLS and EAP-PEAP.
If you select EAP-TLS, enter the login name of your wireless network in the Login Name field. Enter the name
of the authentication server in the Server Name field. From the Certificate drop-down menu, select the
certificate you have installed to authenticate you on your wireless network. Select the type of encryption,
TKIP or AES, from the Encryption drop-down menu.
If you select EAP-PEAP, enter the login name of your wireless network in the Login Name field. Enter the
password of your wireless network in the Password field. Enter the name of the authentication server in the
Server Name field. From the Certificate drop-down menu, select the certificate you have installed to
authenticate you on your wireless network. Select the type of encryption, TKIP or AES, from the Encryption
drop-down menu.
Click the Next button to continue. Click the Back button to return to the previous screen.
RADIUS
RADIUS features use of a RADIUS server. (This should only be used when a RADIUS server is connected to the
Router.) RADIUS offers two authentication types: EAP-TLS and EAP-PEAP.
If you selected EAP-TLS, enter the login name of your wireless network in the Login Name field. Enter the
name of the authentication server in the Server Name field. From the Certificate drop-down menu, select the
certificate you have installed to authenticate you on your wireless network.
If you selected EAP-PEAP, enter the login name of your wireless network in the Login Name field. Enter the
password of your wireless network in the Password field. Enter the name of the authentication server in the
Server Name field. From the Certificate drop-down menu, select the certificate you have installed to
authenticate you on your wireless network.
Click the Next button to continue. Click the Back button to return to the previous screen.
Figure 3-8: The Wireless Security
PSK+RADIUS (EAP-TLS) Screen
Figure 3-9: The Wireless Security
RADIUS (EAP-PEAP) Screen
11
Chapter 3: Using the USB Network Adapter’s Setup Wizard
Wireless-G USB Network Adapter with SpeedBooster
6. The Setup Wizard will ask you to check your settings before it starts to copy files. Click the Next button to
save these settings, or click the Back button to change any settings.
7. At this point, a screen stating that a digital signature was not found may appear. This software has been
tested and found to work properly with Windows 2000 and XP. Click the Yes or Continue Anyway button to
continue installation.

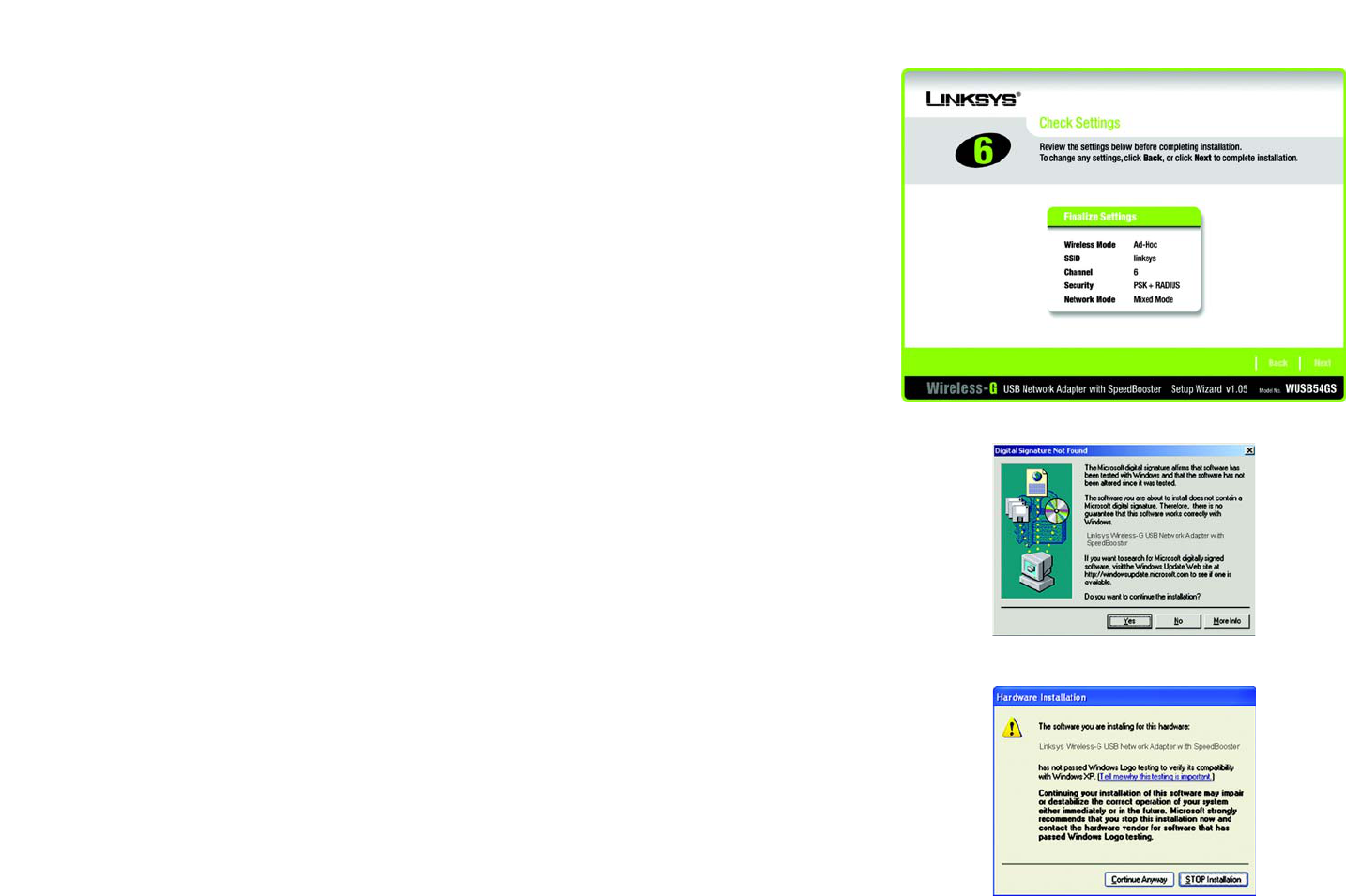

Figure 3-10: The Check Settings Screen
Figure 3-11: The Windows 2000 Digital Signature Screen
Figure 3-12: The Windows XP Digital Signature Screen
12
Chapter 3: Using the USB Network Adapter’s Setup Wizard
Wireless-G USB Network Adapter with SpeedBooster
8. After the files have been successfully copied, the Congratulations screen will appear. Click the Exit button.
Now that the software installation is complete, proceed to Chapter 4: Connecting the Wireless-G USB Network
Adapter.
Figure 3-13: The Congratulations Screen
software: instructions for the computer
13
Chapter 4: Connecting the USB Network Adapter
Wireless-G USB Network Adapter with SpeedBooster
Chapter 4: Connecting the USB Network Adapter
1. To connect the Adapter to your PC, simply plug the USB end into your PC’s available USB port.
2. Once you’ve connected the Adapter, Windows XP users may see a New Hardware Wizard appear for the
installation of drivers into your operating system. Make sure the Recommended radio button is selected, and
click the Next button.
Figure 4-1: The Adapter’s USB Port
Figure 4-2: A USB Port
port: the connection point on a computer or networking
device used for plugging in a cable or an adapter.
Figure 4-3: The New Hardware Wizard
14
Chapter 4: Connecting the USB Network Adapter
The LED Indicators
Wireless-G USB Network Adapter with SpeedBooster
3. When Windows 2000 or XP begin installing the Network Adapter’s driver file, a screen stating that a digital
signature was not found may appear. This software has been tested and found to work properly with Windows
2000 and XP. Click the Yes or Continue Anyway button to continue installation.
The installation of the Wireless-G USB Network Adapter is complete. If you want to check the link information,
search for available wireless networks, or make additional configuration changes, proceed to “Chapter 5: Using
the Wireless Network Monitor.”
The LED Indicators
The Adapter's LEDs indicate the status of the Adapter’s power and wireless connection.
Power Green. The Power LED lights up when the Adapter is adequately powered by the USB connection.
Link Green. The Link LED will light up and flash to indicate the Adapter’s an wireless connection.
Figure 4-4: The Windows 2000 Digital Signature Screen
Figure 4-5: The Windows XP Digital Signature Screen
15
Chapter 5: Using the Wireless Network Monitor
Using the Wireless Network Monitor Icon
Wireless-G USB Network Adapter with SpeedBooster
Chapter 5: Using the Wireless Network Monitor
Use the Wireless Network Monitor to check the link information, search for available wireless networks, or create
profiles that hold different configuration settings.
Using the Wireless Network Monitor Icon
After installing the Adapter, the Wireless-G USB Network Adapter Wireless Monitor icon will appear in your
system tray. If the Wireless Network Monitor is enabled, the icon will be green. If the Wireless Network Monitor is
disabled or the Adapter is not connected, the icon will be gray.
If you right-click the icon, you will see these choices:
• About - Click About to view the version information for the driver and Wireless Network Monitor.
• Use Windows XP Wireless Configuration (Windows XP only) - If your computer is running Windows XP, this
choice will be available. If you want to use Windows XP Wireless Zero Configuration to control the Adapter—
instead of using the Wireless Network Monitor— select Use Windows XP Wireless Configuration.
If you want to switch back to the Wireless Network Monitor, right-click the Wireless Network Monitor icon,
and select Use Linksys Wireless Network Monitor.
• Turn Monitor on - Select Turn Monitor on to enable the Wireless Network Monitor.
• Turn Monitor off - Select Turn Monitor off to disable the Wireless Network Monitor.
Figure 5-1: Wireless Network Monitor Icon
NOTE: For more information about Wireless Zero Configuration,
refer to Windows Help.
Figure 5-2: Windows XP - Use Windows XP
Wireless Configuration
Figure 5-3: Windows XP - Use Linksys
Wireless Network Monitor
16
Chapter 5: Using the Wireless Network Monitor
Accessing the Wireless Network Monitor
Wireless-G USB Network Adapter with SpeedBooster
Accessing the Wireless Network Monitor
Besides selecting Turn on when you right-click the icon, you can also double-click the Wireless Network
Monitor icon to activate the Wireless Network Monitor. Then the Link Information screen will appear. From this
screen, you can find out how strong the current wireless signal is and how good the connection’s quality is. You
can also click the More Information button to view additional status information about the current wireless
connection. To search for available wireless networks, click the Site Survey tab. To perform configuration
changes, click the Profiles tab.
Link Information
The Link Information screen displays network mode, signal strength, and link quality information about the
current connection. It also provides a button to click for additional status information.
Ad-Hoc Mode or Infrastructure Mode - The screen indicates whether the Adapter is currently working in ad-
hoc or infrastructure mode.
Signal Strength - The Signal Strength bar indicates signal strength.
Link Quality - The Link Quality bar indicates the quality of the wireless network connection.
Click the More Information button to view additional information about the wireless network connection.
Clicking the More Information button displays the Wireless Network Status screen, which displays more infor-
mation about the Adapter’s connection.
Figure 5-4: Link Information
17
Chapter 5: Using the Wireless Network Monitor
Link Information
Wireless-G USB Network Adapter with SpeedBooster
Wireless Network Status
The Wireless Network Status screen provides information on your current network settings.
Status - The status of the wireless network connection.
SSID - This is the unique name of the wireless network.
Wireless Mode - The mode of the wireless network currently in use is displayed here.
Transfer Rate - The data transfer rate of the current connection is shown here.
Channel - This is the channel to which the wireless network devices are set.
Security - The status of the wireless security feature is displayed here.
Authentication - This is your wireless network’s authentication method.
IP Address - The IP Address of the Adapter is displayed here.
Subnet Mask - The Subnet Mask of the Adapter is shown here.
Default Gateway - The Default Gateway address of the Adapter is displayed here.
DNS - This is the DNS address of the Adapter.
DHCP Client - This displays the Adapter’s status as a DHCP client.
MAC - The MAC address of the wireless network’s access point is shown here.
Signal Strength - The Signal Strength bar indicates the signal strength.
Link Quality - The Link Quality bar indicates the quality of the wireless network connection.
Click the Statistics button to go to the Wireless Network Statistics screen. Click the Back button to return to the
initial Link Information screen. Click the Save to Profile button to save the currently active connection settings to
a profile.
Figure 5-5: More Information - Wireless Network Status
18
Chapter 5: Using the Wireless Network Monitor
Link Information
Wireless-G USB Network Adapter with SpeedBooster
Wireless Network Statistics
The Wireless Networks Statistics screen provides statistics on your current network settings.
Transmit Rate - This is the data transfer rate of the current connection. (In Auto mode, the Adapter dynamically
shifts to the fastest data transfer rate possible at any given time.)
Receive Rate - This is the rate at which data is received.
Packets Received - This shows the packets received by the Adapter, in real time, since connecting to the
Wireless Network or since the Refresh Statistics button was last pressed.
Packets Transmitted - This shows the packets transmitted from the Adapter, in real time, since connecting to
the Wireless Network or since the Refresh Statistics button was last pressed.
Driver Version - This shows the version of the Adapter’s driver.
Noise Level - This shows the level of background noise affecting the wireless signal. A lower reading translates
into a higher quality signal.
Signal Strength - This is the intensity of the wireless signal received by the Adapter.
Up Time - This indicates the length of the most recent connection to a wireless network.
Total Up Time - This indicates the cumulative total of the Adapter’s connection time.
Firmware Version - This shows the version of the Adapter’s firmware.
Signal Strength - The Signal Strength bar indicates the signal strength.
Link Quality - The Link Quality bar indicates the quality of the wireless network connection.
Click the Back button to return to the initial Link Information screen. Click the Status button to go to the Wireless
Network Status screen. Click the Save to Profile button to save the currently active connection settings to a
profile. Click the Refresh Statistics button to update or reset the statistics. The Wireless Network Monitor will
update the Transmit Rate, Receive Rate, Noise Level, and Signal Strength statistics. At the same time, the Packets
Received and Transmitted counts, Bytes Received and Transmitted counts, and Up Time statistic will be reset to
zero. (The Total Up Time statistic will not be reset.)
Figure 5-6: More Information - Wireless Network Statistics
19
Chapter 5: Using the Wireless Network Monitor
Site Survey
Wireless-G USB Network Adapter with SpeedBooster
Site Survey
The Site Survey screen displays a list of infrastructure and ad-hoc networks available for connection in the table
on the left. This table shows the network’s SSID, Channel, and the quality of the wireless signal the Adapter is
receiving. You may click SSID,CH (Channel), or Signal, to sort by that field.
SSID - The SSID or unique name of the wireless network is displayed here.
CH - This is the channel setting that the network uses.
Signal - This is the percentage of signal strength, from 0 to 100%.
Site Information
For each network selected, the following settings are listed:
SSID - This the SSID or unique name of the wireless network.
Wireless Mode - This is the mode of the wireless network currently in use.
Channel - This is the channel to which the wireless network devices are set.
Security - The status of the wireless security feature is displayed here.
MAC - The MAC address of the wireless network’s access point is displayed here.
Refresh - Click the Refresh button to perform a new search for wireless devices.
Connect - To connect to one of the networks on the list, select the wireless network, and click the Connect
button. If the network has encryption enabled, then you will see a new screen appear.
From the Security drop-down menu, select the network’s encryption method, WEP or PSK.
If you selected WEP, then you will see the WEP Key Needed for Connection screen. Select the appropriate level of
WEP encryption, 64-bit or 128-bit. Then enter the network’s Passphrase or WEP Key. Click the Connect button.
To cancel the connection, click the Cancel button.
If you selected PSK, then you will see the PSK (Pre-Shared Key) Needed for Connection screen. Select the
appropriate encryption type, TKIP or AES. Then enter the network’s Passphrase or Pre-Shared Key in the
Passphrase field. Then click the Connect button. To cancel the connection, click the Cancel button.
Figure 5-8: WEP Key Needed for Connection
Figure 5-9: PSK (Pre-Shared Key) Needed for Connection
Figure 5-7: Site Survey
20
Chapter 5: Using the Wireless Network Monitor
Profiles
Wireless-G USB Network Adapter with SpeedBooster
Profiles
The Profiles screen lets you save different configuration profiles for different network setups. The table on the left
displays a list of infrastructure and ad-hoc networks available for connection. This table shows the network’s
profile name and the wireless network’s SSID, as set in the connection profile.
Profile Information
For each profile selected, the following are listed:
Wireless Mode - This is the mode of the wireless network currently in use.
Transfer Rate - The Adapter is set to Auto mode, so it will dynamically shift to the fastest data transfer rate
possible at any given time.
Channel - This is the channel to which the wireless network devices are set.
Security - The status of the wireless security feature is displayed here.
Authentication - The authentication setting for the network is shown here.
Connect - To connect to a wireless network using a specific profile, select the profile, and click the Connect
button.
New - Click the New button to create a new profile. See the next section, “Creating a New Profile,” for detailed
instructions.
Edit - Select a profile, and click the Edit button to change an existing profile.
Import - Click the Import button to import a profile that has been saved in another location. Select the
appropriate file, and click the Open button.
Export - Select the profile you want to save in a different location, and click the Export button. Direct Windows to
the appropriate folder, and click the OK button.
Delete - Click the Delete button to delete a profile.

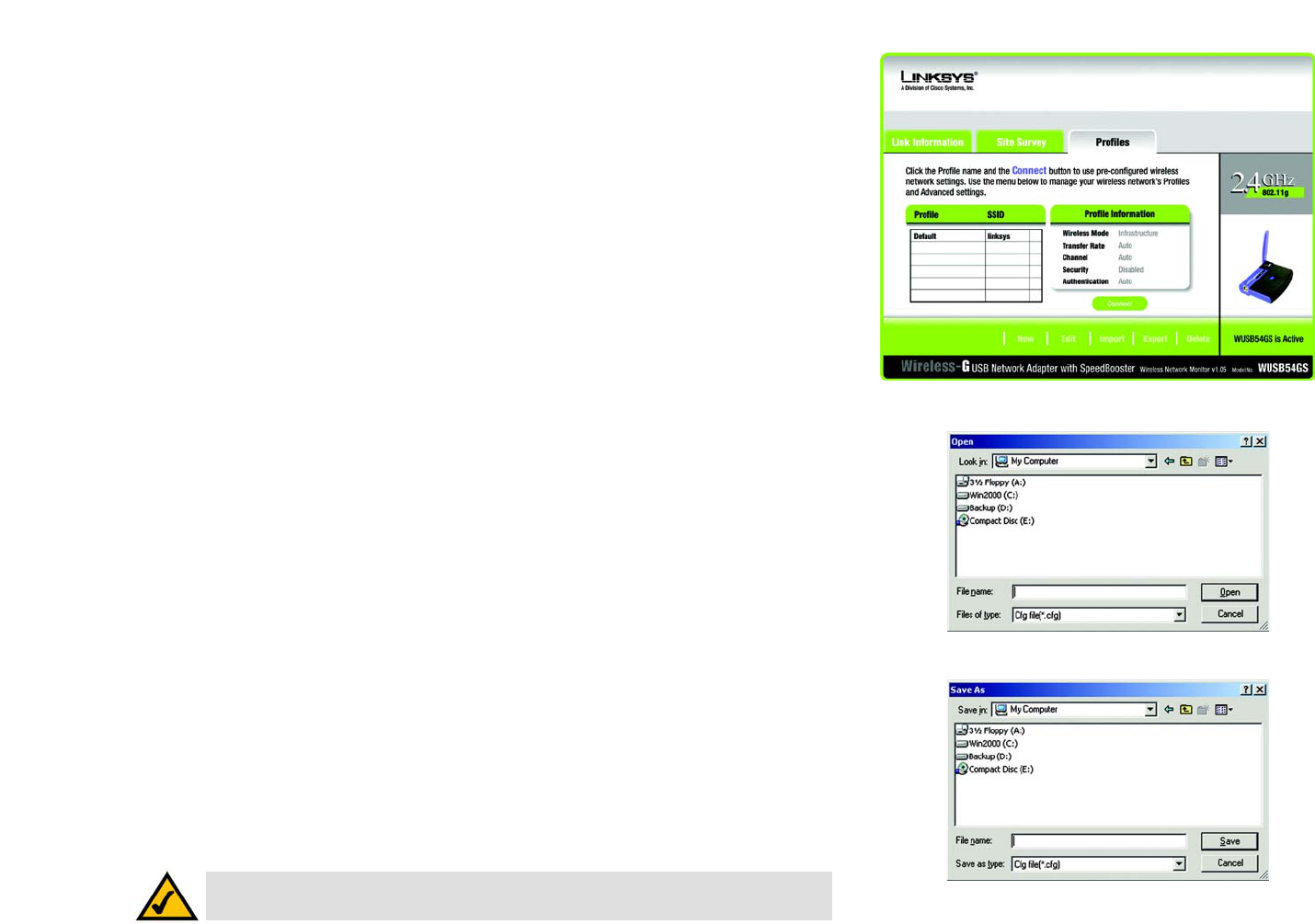

Figure 5-10: Profiles
Figure 5-11: Import a Profile
Figure 5-12: Export a Profile
NOTE: If you want to export more than one profile, you have to export them one at a time.
21
Chapter 5: Using the Wireless Network Monitor
Creating a New Profile
Wireless-G USB Network Adapter with SpeedBooster
Creating a New Profile
1. On the Profiles screen, click the New button to create a new profile.
2. Enter a name for the new profile, and click the OK button. Click the Cancel button to return to the Profiles
screen without entering a name.
3. The Network Settings screen will appear. If your network has a router or other DHCP server, click the radio
button next to Obtain network settings automatically (DHCP). Click the Next button to continue, or click
the Cancel button to return to the Profiles screen.
If your network does not have a DHCP server, click the radio button next to Specify network settings. Enter
an IP Address, Subnet Mask, Default Gateway, and DNS address appropriate for your network. You must
specify the IP Address and Subnet Mask on this screen. If you are unsure about the Default Gateway and DNS
address, leave these fields empty. Click the Next button to continue, or click the Cancel button to return to
the Profiles screen.
IP Address - This IP Address must be unique to your network.
Subnet Mask - The Adapter’s Subnet Mask must be the same as your wired network’s Subnet Mask.
Default Gateway - Enter the IP address of your network’s Gateway here.
DNS 1 and DNS 2 - Enter the DNS address of your wired Ethernet network here.
Figure 5-13: Create a New Profile
Figure 5-14: Enter Profile Name
Figure 5-15: Network Settings for New Profile
22
Chapter 5: Using the Wireless Network Monitor
Creating a New Profile
Wireless-G USB Network Adapter with SpeedBooster
4. The Wireless Mode screen shows a choice of two wireless modes. Click the Infrastructure Mode radio
button if you want your wireless computers to communicate with computers on your wired network via a
wireless access point. Click the Ad-Hoc Mode radio button if you want multiple wireless computers to
communicate directly with each other. Enter the SSID for your network.
Click the Next button to continue or the Back button to return to the previous screen.
Infrastructure Mode - This mode allows wireless and wired networks to communicate through an access
point.
Ad-Hoc Mode - This mode allows wireless-equipped computers to communicate directly with each other. No
access point is used.
SSID - This is the network name. It must be used for all the devices in your wireless network. It is case-
sensitive. It should be a unique name to help prevent others from entering your network.
5. The Ad-Hoc Mode Settings screen will appear. If you chose Infrastructure Mode, go to Step 6 now. If you
chose Ad-Hoc Mode, select the correct operating channel for your network from the Channel drop-down
menu. Then, select the Network Mode from the drop-down menu. Click the Next button, and go to Step 6.
Click the Back button to change any settings.
Channel - The channel you choose should match the channel set on the other devices in your wireless
network. If you are unsure about which channel to use, select the default channel (Channel 6).
Network Mode - Select Mixed Mode, and both Wireless-G and Wireless-B computers will be allowed on the
network, but the speed may be reduced. Select G-Only Mode for maximum speed, but no Wireless-B users
will be allowed on the network.
Figure 5-16: Wireless Mode for New Profile
Figure 5-17: Ad-Hoc Mode Settings for New Profile
23
Chapter 5: Using the Wireless Network Monitor
Creating a New Profile
Wireless-G USB Network Adapter with SpeedBooster
6. Select the method of security you want to use: WEP,PSK,PSK + RADIUS, or RADIUS. WEP stands for Wired
Equivalent Privacy, and PSK stands for Pre-Shared Key. RADIUS stands for Remote Authentication Dial-In User
Service.
If you don’t want to use encryption, select Disabled and then click the Next button to continue. Proceed to
Step 8.
Click the Next button to continue or the Back button to return to the previous screen.
7. Proceed to the appropriate section for your security method: WEP, PSK, PSK-RADIUS, or RADIUS.
WEP
WEP - Select 64-bit or 128-bit encryption from the drop-down menu, and enter a passphrase or WEP key.
Passphrase - Enter a passphrase in the Passphrase field, so a WEP key is automatically generated. It is
case-sensitive and should not be longer than 16 alphanumeric characters. This passphrase must match the
passphrase of your other wireless network devices and is compatible with Linksys wireless products only. (If
you have any non-Linksys wireless products, enter the WEP key manually on those products.)
WEP Key - The WEP key you enter must match the WEP key of your wireless network. For 64-bit encryption,
enter exactly 10 hexadecimal characters. For 128-bit encryption, enter exactly 26 hexadecimal characters.
Valid hexadecimal characters are “0” to “9” and “A” to “F”.
Advanced Users
TX Key - The default transmit key number is 1. If your network’s access point or wireless router uses
transmit key number 2, 3, or 4, select the appropriate number from the TX Key drop-down box.
Authentication -The default is set to Auto, so it will auto-detect for Shared Key or Open System
authentication. For Shared Key authentication, both the sender and the recipient share a WEP key for
authentication. For Open System authentication, the sender and the recipient do not share a WEP key for
authentication. If you are not sure which authentication method to select, keep the default, Auto.
Click the Next button to continue. Click the Back button to return to the previous screen.
Figure 5-18: Wireless Security for New Profile
Figure 5-19: Wireless Security - WEP for New Profile
24
Chapter 5: Using the Wireless Network Monitor
Creating a New Profile
Wireless-G USB Network Adapter with SpeedBooster
PSK
PSK offers two encryption methods, TKIP and AES, with dynamic encryption keys. Select the type of
algorithm, TKIP or AES, for the Encryption Type. Then enter a Passphrase that is 8-63 characters in length.
Encryption - Select the type of algorithm you want to use, TKIP or AES, for the Encryption Type.
Passphrase - Enter a Passphrase, also called a Pre-Shared Key, of 8-63 characters in the Passphrase field.
The longer and more complex your Passphrase is, the more secure your network will be.
Click the Next button to continue. Click the Back button to return to the previous screen.
Figure 5-20: Wireless Security - PSK for New Profile
25
Chapter 5: Using the Wireless Network Monitor
Creating a New Profile
Wireless-G USB Network Adapter with SpeedBooster
PSK + RADIUS
PSK + RADIUS features a Pre-Shared Key used in coordination with a RADIUS server. (This should only be
used when a RADIUS server is connected to the Router.) PSK + RADIUS offers two encryption methods, TKIP
and AES, with dynamic encryption keys, as well as two authentication methods, EAP-TLS and EAP-PEAP.
Authentication - Select the authentication method your network is using, EAP-TLS or EAP-PEAP.
EAP-TLS
If you selected EAP-TLS, enter the login name of your wireless network in the Login Name field. Enter the
name of the authentication server in the Server Name field. From the Certificate drop-down menu, select the
certificate you have installed to authenticate you on your wireless network. Select the type of encryption,
TKIP or AES, for the Encryption field.
Click the Next button to continue. Click the Back button to return to the previous screen.
EAP-PEAP
If you selected EAP-PEAP, enter the login name of your wireless network in the Login Name field. Enter the
password of your wireless network in the Password field. Enter the name of the authentication server in the
Server Name field. From the Certificate drop-down menu, select the certificate you have installed to
authenticate you on your wireless network. Select the type of encryption, TKIP or AES, for the Encryption
field.
Click the Next button to continue. Click the Back button to return to the previous screen.
Figure 5-21: Wireless Security - PSK + RADIUS Using
EAP-TLS for New Profile
Figure 5-22: Wireless Security - PSK + RADIUS Using
EAP-PEAP for New Profile
26
Chapter 5: Using the Wireless Network Monitor
Creating a New Profile
Wireless-G USB Network Adapter with SpeedBooster
RADIUS
RADIUS features use of a RADIUS server. (This should only be used when a RADIUS server is connected to the
Router.) RADIUS offers two authentication types: EAP-TLS and EAP-PEAP.
Authentication - Select the authentication method your network is using, EAP-TLS or EAP-PEAP.
EAP-TLS
If you selected EAP-TLS, enter the login name of your wireless network in the Login Name field. Enter the
name of the authentication server in the Server Name field. From the Certificate drop-down menu, select the
certificate you have installed to authenticate you on your wireless network.
Click the Next button to continue. Click the Back button to return to the previous screen.
EAP-PEAP
If you selected EAP-PEAP, enter the login name of your wireless network in the Login Name field. Enter the
password of your wireless network in the Password field. Enter the name of the authentication server in the
Server Name field. From the Certificate drop-down menu, select the certificate you have installed to
authenticate you on your wireless network.
Click the Next button to continue. Click the Back button to return to the previous screen.
Figure 5-23: Wireless Security - RADIUS Using
EAP-TLS for New Profile
Figure 5-24: Wireless Security - RADIUS Using
EAP-PEAP for New Profile
27
Chapter 5: Using the Wireless Network Monitor
Creating a New Profile
Wireless-G USB Network Adapter with SpeedBooster
8. The Confirm New Settings screen will appear next and show the new settings. To save the new settings, click
the Save button. To edit the new settings, click the Back button. To exit the Wireless Network Monitor, click
Exit.
9. The Congratulations screen will appear next. Click Connect to Network to implement the new settings
immediately and return to the Link Information screen. Click Return to Profiles Screen to keep the current
settings active and return to the Profiles screen.
You have successfully created a connection profile.
Figure 5-25: Confirm New Settings for New Profile
Figure 5-26: Congratulations for New Profile
28
Appendix A: Troubleshooting
Common Problems and Solutions
Wireless-G Internet Video Camera
Appendix A: Troubleshooting
This appendix provides solutions to problems usually encountered during the installation and operation of the
Adapter. Read the description below to solve your problems. If you can't find an answer here, check the Linksys
website at www.linksys.com.
Common Problems and Solutions
1.My computer does not recognize the USB Network Adapter.
• Make sure that the USB Network Adapter is properly inserted into the USB port.
• Also, make sure that the USB Controller is enabled in the BIOS. Check with your motherboard User Guide for
more information.
2. The USB Network Adapter does not work properly.
• Reinsert the USB Network Adapter into the notebook or desktop’s USB port.
• Right-click on My Computer, and select Properties. Select the Adapter, then chose the Device Manager tab,
and click on the Network Adapter. You will find the USB Network Adapter if it is installed successfully. If you
see a yellow exclamation mark, the resources may be conflicting and you must follow the steps below:
• Uninstall the driver software from your PC.
• Restart your PC and repeat the hardware and software installation as specified in this User Guide.
3. I cannot communicate with the other computers linked via Ethernet in the Infrastructure
configuration.
• Make sure that the notebook or desktop is powered on.
• Make sure that your USB Network Adapter is configured on the same channel, SSID, and WEP as the other
computers in the Infrastructure configuration.
29
Appendix A: Troubleshooting
Frequently Asked Questions
Wireless-G Internet Video Camera
Frequently Asked Questions
Can I run an application from a remote computer over the wireless network?
This will depend on whether or not the application is designed to be used over a network. Consult the
application’s user guide to determine if it supports operation over a network.
Can I play computer games with other members of the wireless network?
Yes, as long as the game supports multiple players over a LAN (local area network). Refer to the game’s user
guide for more information.
What is the IEEE 802.11b standard?
It is one of the IEEE standards for wireless networks. The 802.11b standard allows wireless networking hardware
from different manufacturers to communicate, provided that the hardware complies with the 802.11b standard.
The 802.11b standard states a maximum data transfer rate of 11Mbps and an operating frequency of 2.4GHz.
What is the IEEE 802.11g standard?
It is one of the IEEE standards for wireless networks. The 802.11g standard allows wireless networking hardware
from different manufacturers to communicate, provided that the hardware complies with the 802.11g standard.
The 802.11g standard states a maximum data transfer rate of 54Mbps and an operating frequency of 2.4GHz.
What IEEE 802.11b features are supported?
The product supports the following IEEE 802.11b functions:
• CSMA/CA plus Acknowledge protocol
• Multi-Channel Roaming
• Automatic Rate Selection
• RTS/CTS feature
• Fragmentation
• Power Management
What IEEE 802.11g features are supported?
The product supports the following IEEE 802.11g functions:
• CSMA/CA plus Acknowledge protocol
• OFDM protocol
• Multi-Channel Roaming
• Automatic Rate Selection
• RTS/CTS feature
• Fragmentation
• Power Management
30
Appendix A: Troubleshooting
Frequently Asked Questions
Wireless-G Internet Video Camera
What is ad-hoc mode?
When a wireless network is set to ad-hoc mode, the wireless-equipped computers are configured to
communicate directly with each other. The ad-hoc wireless network will not communicate with any wired
network.
What is infrastructure mode?
When a wireless network is set to infrastructure mode, the wireless network is configured to communicate with a
wired network through a wireless access point.
What is roaming?
Roaming is the ability of a PC to communicate continuously while moving freely throughout an area greater than
that covered by a single access point. Before using the roaming function, the workstation must make sure that it
is the same channel number with the access point of dedicated coverage area.
To achieve true seamless connectivity, the wireless LAN must incorporate a number of different functions. Each
node and access point, for example, must always acknowledge receipt of each message. Each node must
maintain contact with the wireless network even when not actually transmitting data. Achieving these functions
simultaneously requires a dynamic RF networking technology that links access points and nodes. In such a
system, the user’s end node undertakes a search for the best possible access to the system. First, it evaluates
such factors as signal strength and quality, as well as the message load currently being carried by each access
point and the distance of each access point to the wired backbone. Based on that information, the node next
selects the right access point and registers its address. Communications between end node and host computer
can then be transmitted up and down the backbone.
As the user moves on, the end node’s RF transmitter regularly checks the system to determine whether it is in
touch with the original access point or whether it should seek a new one. When a node no longer receives
acknowledgment from its original access point, it undertakes a new search. Upon finding a new access point, it
then re-registers, and the communication process continues.
What is ISM band?
The FCC and their counterparts outside of the U.S. have set aside bandwidth for unlicensed use in the ISM
(Industrial, Scientific and Medical) band. Spectrum in the vicinity of 2.4 GHz, in particular, is being made available
worldwide. This presents a truly revolutionary opportunity to place convenient high-speed wireless capabilities in
the hands of users around the globe.
What is Spread Spectrum?
Spread Spectrum technology is a wideband radio frequency technique developed by the military for use in
reliable, secure, mission-critical communications systems. It is designed to trade off bandwidth efficiency for
reliability, integrity, and security. In other words, more bandwidth is consumed than in the case of narrowband
transmission, but the trade-off produces a signal that is, in effect, louder and thus easier to detect, provided that
31
Appendix A: Troubleshooting
Frequently Asked Questions
Wireless-G Internet Video Camera
the receiver knows the parameters of the spread-spectrum signal being broadcast. If a receiver is not tuned to
the right frequency, a spread-spectrum signal looks like background noise. There are two main alternatives,
Direct Sequence Spread Spectrum (DSSS) and Frequency Hopping Spread Spectrum (FHSS).
What is DSSS? What is FHSS? And what are their differences?
Frequency-Hopping Spread-Spectrum (FHSS) uses a narrowband carrier that changes frequency in a pattern that
is known to both transmitter and receiver. Properly synchronized, the net effect is to maintain a single logical
channel. To an unintended receiver, FHSS appears to be short-duration impulse noise. Direct-Sequence Spread-
Spectrum (DSSS) generates a redundant bit pattern for each bit to be transmitted. This bit pattern is called a chip
(or chipping code). The longer the chip, the greater the probability that the original data can be recovered. Even if
one or more bits in the chip are damaged during transmission, statistical techniques embedded in the radio can
recover the original data without the need for retransmission. To an unintended receiver, DSSS appears as low
power wideband noise and is rejected (ignored) by most narrowband receivers.
Would the information be intercepted while transmitting on air?
The Adapter features two-fold protection in security. On the hardware side, as with Direct Sequence Spread
Spectrum technology, it has the inherent security feature of scrambling. On the software side, the Adapter offers
the encryption function (WEP) to enhance security and access control.
What is WEP?
WEP is Wired Equivalent Privacy, a data privacy mechanism based on a 64-bit or 128-bit shared key algorithm, as
described in the IEEE 802.11 standard.
32
Appendix B: Wireless Security
Security Precautions
Wireless-G USB Network Adapter with SpeedBooster
Appendix B: Wireless Security
Linksys wants to make wireless networking as safe and easy for you as possible. The current generation of
Linksys products provide several network security features, but they require specific action on your part for
implementation. So, keep the following in mind whenever you are setting up or using your wireless network.
Security Precautions
The following is a complete list of security precautions to take (at least steps 1 through 5 should be followed):
1. Change the default SSID.
2. Disable SSID Broadcast.
3. Change the default password for the Administrator account.
4. Enable MAC Address Filtering.
5. Change the SSID periodically.
6. Use the highest encryption algorithm possible. Use WPA if it is available. Please note that this may reduce
your network performance.
7. Change the WEP encryption keys periodically.
Security Threats Facing Wireless Networks
Wireless networks are easy to find. Hackers know that in order to join a wireless network, wireless networking
products first listen for “beacon messages”. These messages can be easily decrypted and contain much of the
network’s information, such as the network’s SSID (Service Set Identifier). Here are the steps you can take:
Change the administrator’s password regularly. With every wireless networking device you use, keep in mind
that network settings (SSID, WEP keys, etc.) are stored in its firmware. Your network administrator is the only
person who can change network settings. If a hacker gets a hold of the administrator’s password, he, too, can
change those settings. So, make it harder for a hacker to get that information. Change the administrator’s
password regularly.
SSID. There are several things to keep in mind about the SSID:
Note: Some of these security features are
available only through the network router or
access point. Refer to the router or access
point’s documentation for more information.
33
Appendix B: Wireless Security
Security Threats Facing Wireless Networks
Wireless-G USB Network Adapter with SpeedBooster
1. Disable Broadcast
2. Make it unique
3. Change it often
Most wireless networking devices will give you the option of broadcasting the SSID. While this option may be
more convenient, it allows anyone to log into your wireless network. This includes hackers. So, don’t broadcast
the SSID.
Wireless networking products come with a default SSID set by the factory. (The Linksys default SSID is “linksys”.)
Hackers know these defaults and can check these against your network. Change your SSID to something unique
and not something related to your company or the networking products you use.
Change your SSID regularly so that any hackers who have gained access to your wireless network will have to
start from the beginning in trying to break in.
MAC Addresses. Enable MAC Address filtering. MAC Address filtering will allow you to provide access to only
those wireless nodes with certain MAC Addresses. This makes it harder for a hacker to access your network with
a random MAC Address.
WEP Encryption. Wired Equivalent Privacy (WEP) is often looked upon as a cure-all for wireless security
concerns. This is overstating WEP’s ability. Again, this can only provide enough security to make a hacker’s job
more difficult.
There are several ways that WEP can be maximized:
1. Use the highest level of encryption possible
2. Use “Shared Key” authentication
3. Change your WEP key regularly
WPA. Wi-Fi Protected Access (WPA) is the newest and best available standard in Wi-Fi security. Two modes are
available: WPA-PSK and WPA-RADIUS. WPA-PSK gives you a choice of two encryption methods: TKIP (Temporal
Key Integrity Protocol), which utilizes a stronger encryption method and incorporates Message Integrity Code
(MIC) to provide protection against hackers, and AES (Advanced Encryption Standard), which utilizes a symmetric
128-Bit block data encryption. WPA-RADIUS offers two encryption methods, TKIP and AES, with dynamic
encryption keys, and it uses a RADIUS (Remote Authentication Dial-In User Service) server for authentication.
WPA-PSK. If you do not have a RADIUS server, select the type of algorithm you want to use, TKIP or AES, and
enter a password in the Passphrase field of 8-63 characters.
Important: Always remember that each
device in your wireless network MUST use
the same encryption method and encryption
key or your wireless network will not function
properly.
34
Appendix B: Wireless Security
Security Threats Facing Wireless Networks
Wireless-G USB Network Adapter with SpeedBooster
WPA-RADIUS. WPA used in coordination with a RADIUS server. (This should only be used when a RADIUS
server is connected to the Router or other device.) WPA-RADIUS offers two encryption methods, TKIP and AES,
with dynamic encryption keys.
Implementing encryption may have a negative impact on your network’s performance, but if you are transmitting
sensitive data over your network, encryption should be used.
These security recommendations should help keep your mind at ease while you are enjoying the most flexible
and convenient technology Linksys has to offer.
35
Appendix C: Windows Help
Wireless-G USB Network Adapter with SpeedBooster
Appendix C: Windows Help
All wireless products require Microsoft Windows. Windows is the most used operating system in the world and
comes with many features that help make networking easier. These features can be accessed through Windows
Help and are described in this appendix.
TCP/IP
Before a computer can communicate with the Access Point, TCP/IP must be enabled. TCP/IP is a set of
instructions, or protocol, all PCs follow to communicate over a network. This is true for wireless networks as well.
Your PCs will not be able to utilize wireless networking without having TCP/IP enabled. Windows Help provides
complete instructions on enabling TCP/IP.
Shared Resources
If you wish to share printers, folder, or files over your network, Windows Help provides complete instructions on
utilizing shared resources.
Network Neighborhood/My Network Places
Other PCs on your network will appear under Network Neighborhood or My Network Places (depending upon the
version of Windows you're running). Windows Help provides complete instructions on adding PCs to your
network.
36
Appendix D: Glossary
Wireless-G USB Network Adapter with SpeedBooster
Appendix D: Glossary
802.11b - An IEEE wireless networking standard that specifies a maximum data transfer rate of 11Mbps and an
operating frequency of 2.4GHz.
802.11g - An IEEE wireless networking standard that specifies a maximum data transfer rate of 54Mbps, an
operating frequency of 2.4GHz, and backward compatibility with 802.11b devices.
Access Point - Device that allows wireless-equipped computers and other devices to communicate with a wired
network. Also used to expand the range of a wireless network.
Adapter - A device that adds network functionality to your PC.
Ad-hoc - A group of wireless devices communicating directly with each other (peer-to-peer) without the use of
an access point.
Backbone - The part of a network that connects most of the systems and networks together, and handles the
most data.
Bandwidth - The transmission capacity of a given device or network.
Bit - A binary digit.
CSMA/CA (Carrier Sense Multiple Access/Collision Avoidance) - A method of data transfer that is used to prevent
data loss in a network.
CTS (Clear To Send) - A signal sent by a device to indicate that it is ready to receive data.
Default Gateway - A device that forwards Internet traffic from your local area network.
DHCP (Dynamic Host Configuration Protocol) - A protocol that lets one device on a local network, known as a
DHCP server, assign temporary IP addresses to the other network devices, typically computers.
DNS (Domain Name Server) - The IP address of your ISP's server, which translates the names of websites into IP
addresses.
DSSS (Direct-Sequence Spread-Spectrum) - A type of radio transmission technology that includes a redundant
bit pattern to lessen the probability of data lost during transmission. Used in 802.11b networking.
Encryption - Encoding data to prevent it from being read by unauthorized people.
37
Appendix D: Glossary
Wireless-G USB Network Adapter with SpeedBooster
Ethernet - An IEEE standard network protocol that specifies how data is placed on and retrieved from a common
transmission medium.
Firmware - 1. In network devices, the programming that runs the device. 2. Programming loaded into read-only
memory (ROM) or programmable read-only memory (PROM) that cannot be altered by end-users.
Fragmentation - Breaking a packet into smaller units when transmitting over a network medium that cannot
support the original size of the packet.
Gateway - A system that interconnects networks.
Hardware - The physical aspect of computers, telecommunications, and other information technology devices.
IEEE (The Institute of Electrical and Electronics Engineers) - An independent institute that develops networking
standards.
Infrastructure Mode - Configuration in which a wireless network is bridged to a wired network via an access
point.
IP (Internet Protocol) - A protocol used to send data over a network.
IP Address - The address used to identify a computer or device on a network.
ISM band - Radio band used in wireless networking transmissions.
ISP (Internet Service Provider) - A company that provides access to the Internet.
LAN (Local Area Network) - The computers and networking products that make up the network in your home or
office.
MAC (Media Access Control) Address - The unique address that a manufacturer assigns to each networking
device.
Mbps (Megabits Per Second) - One million bits per second; a unit of measurement for data transmission.
Network - A series of computers or devices connected for the purpose of data sharing, storage, and/or
transmission between users.
Node - A network junction or connection point, typically a computer or work station.
38
Appendix D: Glossary
Wireless-G USB Network Adapter with SpeedBooster
OFDM (Orthogonal Frequency Division Multiplexing) - A type of modulation technology that separates the data
stream into a number of lower-speed data streams, which are then transmitted in parallel. Used in 802.11a,
802.11g, and powerline networking.
Packet - A unit of data sent over a network.
Passphrase - Used much like a password, a passphrase simplifies the WEP encryption process by automatically
generating the WEP encryption keys for Linksys products.
Port - The connection point on a computer or networking device used for plugging in a cable or an adapter.
Roaming - The ability to take a wireless device from one access point's range to another without losing the
connection.
Router - A networking device that connects multiple networks together, such as a local network and the Internet.
RTS (Request To Send) - A packet sent when a computer has data to transmit. The computer will wait for a CTS
(Clear To Send) message before sending data.
Server - Any computer whose function in a network is to provide user access to files, printing, communications,
and other services.
Software - Instructions for the computer. A series of instructions that performs a particular task is called a
“program”.
Spread Spectrum - Wideband radio frequency technique used for more reliable and secure data transmission.
SSID (Service Set IDentifier) - Your wireless network's name.
Subnet Mask - An address code that determines the size of the network.
Switch - Device that is the central point of connection for computers and other devices in a network, so data can
be shared at full transmission speeds.
TCP/IP (Transmission Control Protocol/Internet Protocol) - A network protocol for transmitting data that requires
acknowledgement from the recipient of data sent.
WEP (Wired Equivalent Privacy) - A method of encrypting data transmitted on a wireless network for greater
security.
39
Appendix E: Specifications
Wireless-G USB Network Adapter with SpeedBooster
Appendix E: Specifications
Model WUSB54GS
Standards IEEE 802.11b, 802.11g, USB 1.1, USB 2.0
Ports USB Port
Channels 802.11b / 802.11g
11 Channels (US, Canada)
13 Channels (Europe)
14 Channels (Japan)
LEDs Power, Link
Transmitted Power 15-18dBm (Typical)@11Mbps CCK,
14-17dBm (Typical)@54Mbps OFDM
Receive Sensitivity -67dBm@54Mbps, -82dBm@11Mbps
Security features WEP Encryption
WEP key bits 64, 128-bit
Warranty 3 Year
40
Appendix E: Specifications
Wireless-G USB Network Adapter with SpeedBooster
Dimensions 3.58" x 0.91" x 2.80"
W x H x D 91 mm x 23 mm x 71 mm
Unit Weight 0.18 lbs. (0.08 kg)
Certifications FCC
Operating Temp. 0°C ~ 55°C (32°F ~ 131°F)
Storage Temp. -40°C ~ 85°C (-40°F~ 185°F)
Operating Humidity 10% ~ 85% Non-Condensing
Storage Humidity 5% ~ 90% Non-Condensing
41
Appendix F: Warranty Information
Wireless-G USB Network Adapter with SpeedBooster
Appendix F: Warranty Information
LIMITED WARRANTY
Linksys warrants to You that, for a period of three years (the “Warranty Period”), your Linksys Product will be
substantially free of defects in materials and workmanship under normal use. Your exclusive remedy and
Linksys' entire liability under this warranty will be for Linksys at its option to repair or replace the Product or
refund Your purchase price less any rebates. This limited warranty extends only to the original purchaser.
If the Product proves defective during the Warranty Period call Linksys Technical Support in order to obtain a
Return Authorization Number, if applicable. BE SURE TO HAVE YOUR PROOF OF PURCHASE ON HAND WHEN
CALLING. If You are requested to return the Product, mark the Return Authorization Number clearly on the outside
of the package and include a copy of your original proof of purchase. RETURN REQUESTS CANNOT BE
PROCESSED WITHOUT PROOF OF PURCHASE. You are responsible for shipping defective Products to Linksys.
Linksys pays for UPS Ground shipping from Linksys back to You only. Customers located outside of the United
States of America and Canada are responsible for all shipping and handling charges.
ALL IMPLIED WARRANTIES AND CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE
ARE LIMITED TO THE DURATION OF THE WARRANTY PERIOD. ALL OTHER EXPRESS OR IMPLIED CONDITIONS,
REPRESENTATIONS AND WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF NON-INFRINGEMENT, ARE
DISCLAIMED. Some jurisdictions do not allow limitations on how long an implied warranty lasts, so the above
limitation may not apply to You. This warranty gives You specific legal rights, and You may also have other rights
which vary by jurisdiction.
This warranty does not apply if the Product (a) has been altered, except by Linksys, (b) has not been installed,
operated, repaired, or maintained in accordance with instructions supplied by Linksys, or (c) has been subjected
to abnormal physical or electrical stress, misuse, negligence, or accident. In addition, due to the continual
development of new techniques for intruding upon and attacking networks, Linksys does not warrant that the
Product will be free of vulnerability to intrusion or attack.
TO THE EXTENT NOT PROHIBITED BY LAW, IN NO EVENT WILL LINKSYS BE LIABLE FOR ANY LOST DATA, REVENUE
OR PROFIT, OR FOR SPECIAL, INDIRECT, CONSEQUENTIAL, INCIDENTAL OR PUNITIVE DAMAGES, REGARDLESS OF
THE THEORY OF LIABILITY (INCLUDING NEGLIGENCE), ARISING OUT OF OR RELATED TO THE USE OF OR INABILITY
TO USE THE PRODUCT (INCLUDING ANY SOFTWARE), EVEN IF LINKSYS HAS BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES. IN NO EVENT WILL LINKSYS’ LIABILITY EXCEED THE AMOUNT PAID BY YOU FOR THE PRODUCT.
The foregoing limitations will apply even if any warranty or remedy provided under this Agreement fails of its
essential purpose. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitation or exclusion may not apply to You.
Please direct all inquiries to: Linksys, P.O. Box 18558, Irvine, CA 92623.
42
Appendix G: Regulatory Information
Wireless-G USB Network Adapter with SpeedBooster
Appendix G: Regulatory Information
FCC STATEMENT
This product has been tested and complies with the specifications for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used according to the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which is found by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment or devices
Connect the equipment to an outlet other than the receiver's
Consult a dealer or an experienced radio/TV technician for assistance
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20cm between the radiator and your body.
Linksys declares that WUSB54GS ver. 2, ( FCC ID: Q87-WUSB54GSV2 ) is limited in CH1~CH11 for 2.4 GHz by specified firmware controlled in U.S.A.".
INDUSTRY CANADA (CANADA)
This Class B digital apparatus complies with Canadian RSS210.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
The use of this device in a system operating either partially or completely outdoors may require the user to obtain
a license for the system according to the Canadian regulations.
Operation is subject to the following two conditions:
1) This device may not cause interference and
2) This device must accept any interference, including interference that may cause undesired operation of the device.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
43
Appendix H: Contact Information
Wireless-G USB Network Adapter with SpeedBooster
Appendix H: Contact Information
eed to contact Linksys?
Visit us online for information on the latest products and updates
to your existing products at: http://www.linksys.com or
ftp.linksys.com
Can't find information about a product you want to buy
on the web? Do you want to know more about networking
with Linksys products? Give our advice line a call at: 800-546-5797 (LINKSYS)
Or fax your request in to: 949-823-3002
If you experience problems with any Linksys product,
you can call us at: 800-326-7114
Don't wish to call? You can e-mail us at: support@linksys.com
If any Linksys product proves defective during its warranty period,
you can call the Linksys Return Merchandise Authorization
department for obtaining a Return Authorization Number at: 949-823-3000
(Details on Warranty and RMA issues can be found in the Warranty
Information section in this Guide.)
