LITE ON TECHNOLOGY BTG100 Bluetooth GPS Receiver User Manual
LITE-ON Technology Corp. Bluetooth GPS Receiver Users Manual
Users Manual
Bluetooth GPS Receiver
BTG-100/110
User Manual
Contents
1. Introduction..................................................................................................................... 3
1.1 Package .....................................................................................................................3
2. Features........................................................................................................................... 3
2.1 Diagrams................................................................................................................... 3
2.2 Power Switch ............................................................................................................ 4
2.3 Power Jack ................................................................................................................ 4
2.4 LED Indications........................................................................................................ 4
2.5 How to change the battery ........................................................................................ 4
2.6 Power-saving Function ............................................................................................. 4
3. Connecting to another Bluetooth device......................................................................... 5
4. Specifications.................................................................................................................. 5
FCC Notices........................................................................................................................ 6
1. Introduction
The BTG-100/110 is a GPS receiver with a Bluetooth interface and built-in active
antenna.It is designed to be used with other Bluetooth devices such as PDAs, Smart
phones, Tablet PCs or Laptop computers. The flexibility offered by the BTG-100/110
means that it can be used in many useful situations when GPS navigation may be
required.
1.1 Package
Before you start, make sure that your package includes the following items. If any item is
missing or damaged, please contact your dealer immediately.
1. BTG-100/110
2. Car charger
3. Li-ion battery
4. AC charger (optional)
2. Features

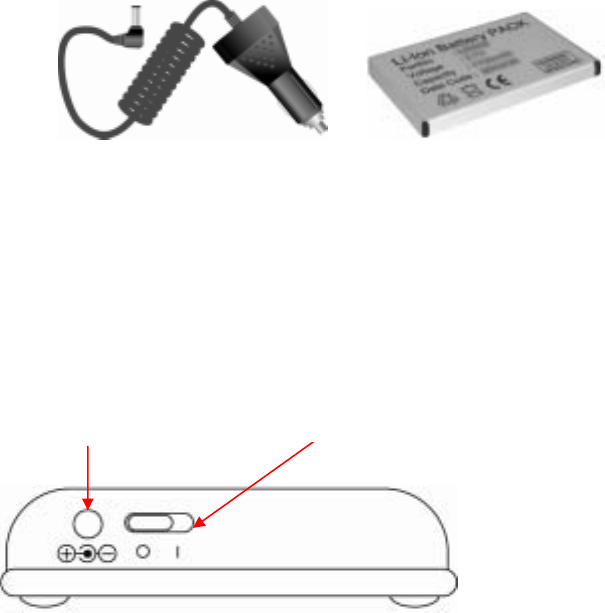

2.1 Diagrams
Car charger Li-ion battery
p
ower
j
ack
p
ower switch
2.2 Power Switch
Power on:
Slide the switch to the on position (marked “1”). The power LED will come on.
Power off:
Slide the switch to the off position (marked “0”). The power LED will switch off.
2.3 Power Jack
The power jack lets you to connect either a car charger (included) or AC charger
(optional) to power the BTG-100/110 and recharge the internal battery.
2.4 LED Indications
Battery Status LED (Green/Orange/Red):
Red Blinking
Orange
Green
Battery power is critically low. Charge immediately.
Battery is charging.
Battery is charged
Bluetooth Status LED (Blue):
Blinking once every 3 seconds
Blinking once every 5 seconds Pairing/discovery mode
Connected to other Bluetooth device.
GPS Status LED (Yellow):
Fast blinking
Slow blinking
Steady light
Searching
2D GPS position is fixed
3D GPS position is fixed
2.5 How to insert the battery
1. Open the battery compartment door
2. Put new battery into BTG-100/110
3. Close the battery compartment door
NOTE: Please initially charge the battery for 3 hours.
2.6 Power-saving Function
If the BTG-100/110 is not connected to any devices for 5 minutes, it will switch off
automatically, and all LEDs will also switch off simultaneously.

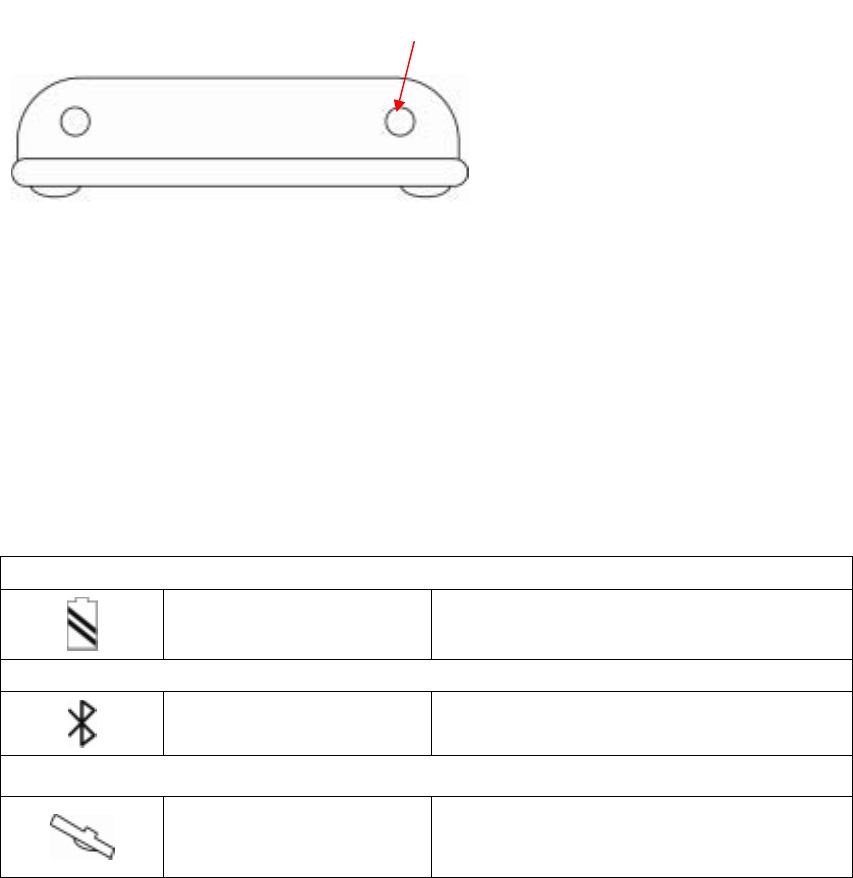

External antenna connector
3. Connecting to another Bluetooth device
1. Turn on the BTG-100/110 by moving the power switch to the on position (marked
“1”).
2. Using your Laptop/PDA/Smartphone’s Bluetooth software, search for the BTG-
100/110. If you are unsure how to do this, please see the documentation that
came with your Laptop/PDA/Smartphone. If you are asked to enter a Bluetooth
passkey, type 0000.
3. Choose the Serial Port service offered for the BTG-100/110, and note the COM
port number. (Example COM 6).
4. Run your GPS navigation software (not included), making sure to choose the
same COM port number as noted previously.
NOTE: Most Bluetooth applications will automatically select the correct baud rate.
However, should you need to specify the baud rate, choose 38,400.
4. Specifications
Product Specifications
GPS Chipset:
Fastrax iTRAX03
Channel:
12 channels (satellite) all-in-view tracking
Accuracy:
10m
Cold/Warm/Hot start:
35 / 8 / 3 sec
Protocol:
NMEA-0183 v3.0
GPS Antenna
embedded 25x25mm patch antenna
Bluetooth
Chipset:
CSR BC4-External
Bluetooth
V1.2 Compliant
Frequency Range
2.402~2.480 GHz
Profile:
Serial Port Profile (SPP) 38400 bps
Transmitting Power
Class 2
Transmitting Range
10m ( Depends on environment )
Power
Power Control:
ON/OFF switch
Self sleep mode control
Battery:
Lithium-Ion Rechargeable Battery 1100mAh
Removable
BL-6C for mobile phone
Battery Life:
10 hours max.
Charge time:
3 hours max.
Charging:
Car charger
AC charger
Battery Life:
10 hours max.
LED Indicator
Power (battery low, charging, full charged)
Bluetooth (searching, paired)
GPS (positioning, searched, fixed)
Switch/Connector
Power switch (slide switch)
RF connector for external GPS antenna (MMCX)
DC-IN jack for AC adapter
Temperature
Operation:
-20℃ ~ +60℃
Storage:
-30℃ ~ +80℃
Other
Rubber base/feet for skid-proof in car
Accessories
AC adapter (Input 100~240VAC; Output 5V)
Cigarette car charger (Input 12~24VDC; Output 5V)
Users Manual (Quick Guide)
Certification
CE
FCC
BQB
Dimensions ( L*W*H )
73*46*21 mm
FCC Notices
Federal Communication Commission Interference
Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one of the following measures:
z Reorient or relocate the receiving antenna.
z Increase the separation between the equipment and receiver.
z Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
z Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this
equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
This device and its antenna(s) must not be co-located or operating in conjunction
with any other antenna or transmitter.
