Data Sheet: CR Series
JukeBlox Networked Media Modules
dat_CR860_CR870_2_5_datasheet.doc CONFIDENTIAL Version 2.5 – February 10th 2010 - Page 1 of 13

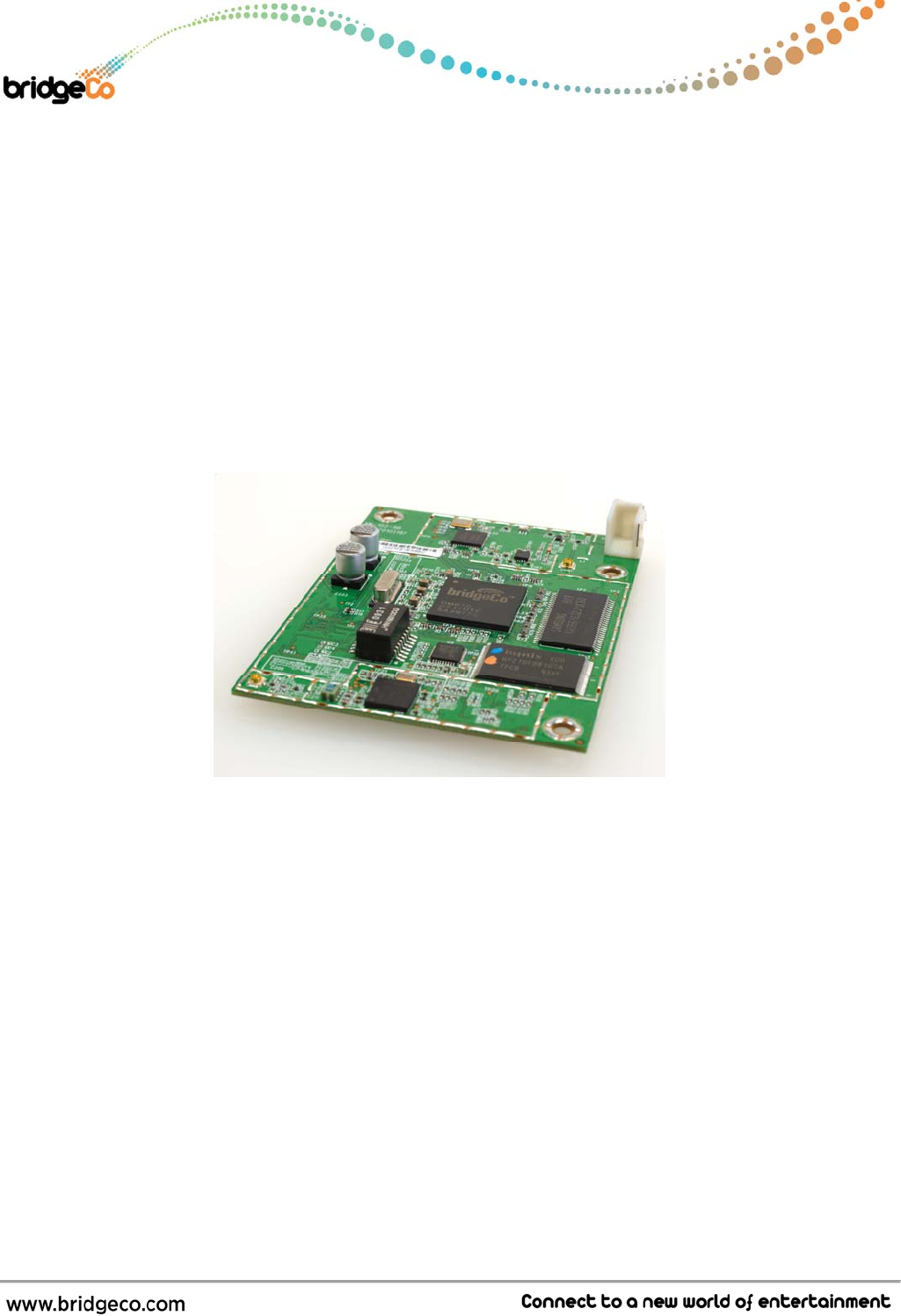

JukeBlox Networked Media Module
CR Series
Datasheet
Complete audio networking system on a small module
Integrated Ethernet + USB2.0
WiFi-certified 802.11b/g (optional)
Built-in PIFA antenna
DAB radio receiver (optional)
Glueless audio, video and control ports
FCC certified
CONFIDENTIAL
Data Sheet: CR Series
JukeBlox Networked Media Modules
dat_CR860_CR870_2_5_datasheet.doc CONFIDENTIAL Version 2.5 – February 10th 2010 - Page 2 of 13
Introduction
The CR-series module is a single-board networked media player module, based on BridgeCo’s DM860
and DM870 media processors, and enables fast product developments with Ethernet, USB and
optional WiFi and/or DAB radio connectivity. The module connects to standard legacy components in
various audio, video/LCD and control formats.

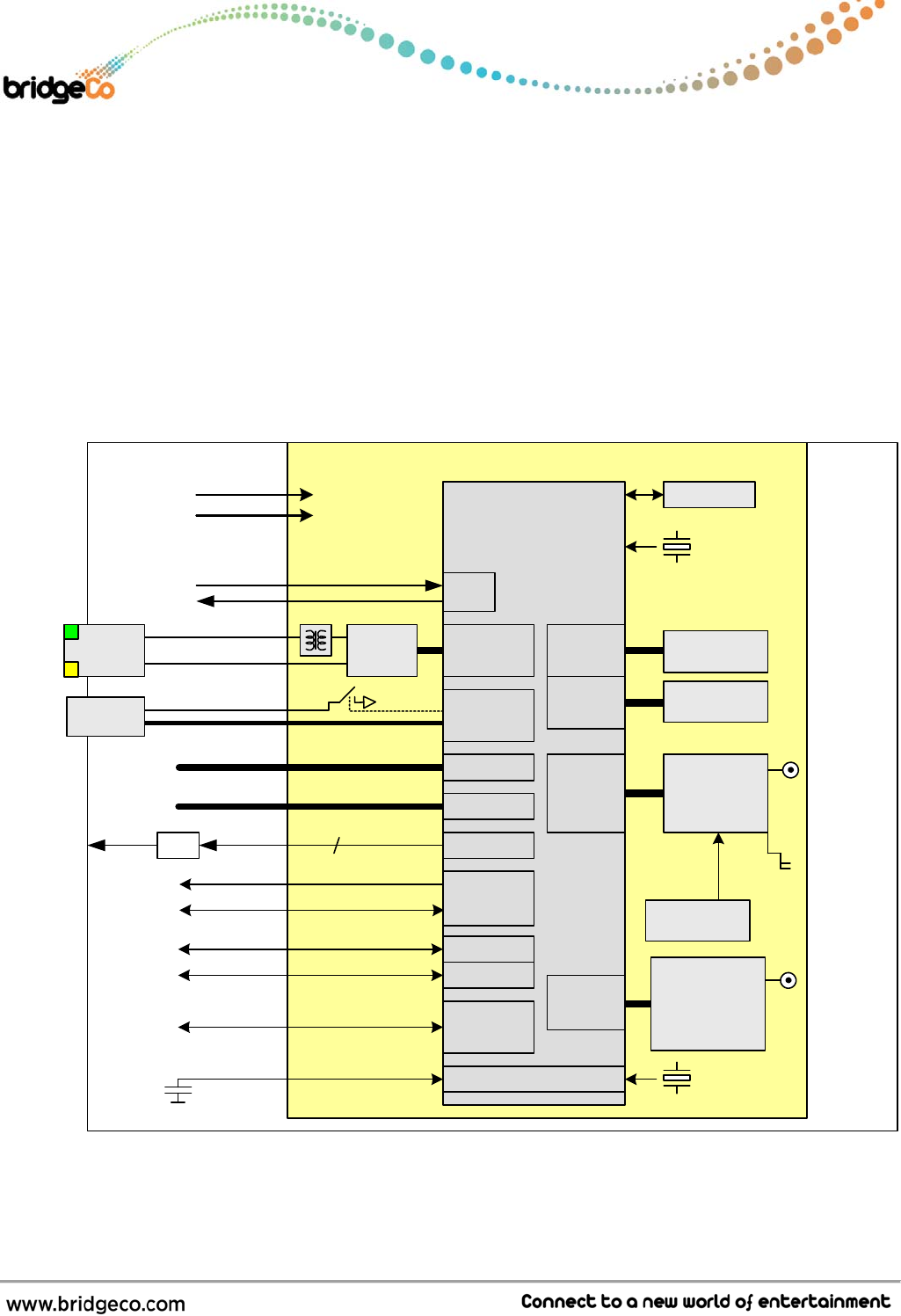

Block Diagram
Ethernet
PHY
DM860
or
DM870
256 Mbit
SDRAM
JTAG
RJ-45
100B-T
Mem
USB
GPIO
24.000 MHz
Reset In
NAND 1 GB
NAND flash
802.11
RF amp
(optional)
802.11
RMII
SPI
RTC 32.768 kHz
USB
(Host)
USB
RST
UART
5V
3.3V
JukeBlox Networked Media Module – CR Series
Reset Out
1.2V
Stereo Out
Video Out
Audio I/O
4/8bit MMC
3x6bit RGB
2 x UART
SPI Ctrl.
max. 20 GPIOs
3.3V (RTC)
SuperCap
IR sensor
reset signals
analog mute
I2C bus
shift register
IC control
serial control
A/D, D/A
S/PDIF
CCIR-656
LP 2
HP out
Display
SD-Card
AV
Ports
LCD
SSM
DAC
PIFA
Antenna
Switcher
1.9V
AV
Ports DAB
Data Sheet: CR Series
JukeBlox Networked Media Modules
dat_CR860_CR870_2_5_datasheet.doc CONFIDENTIAL Version 2.5 – February 10th 2010 - Page 3 of 13

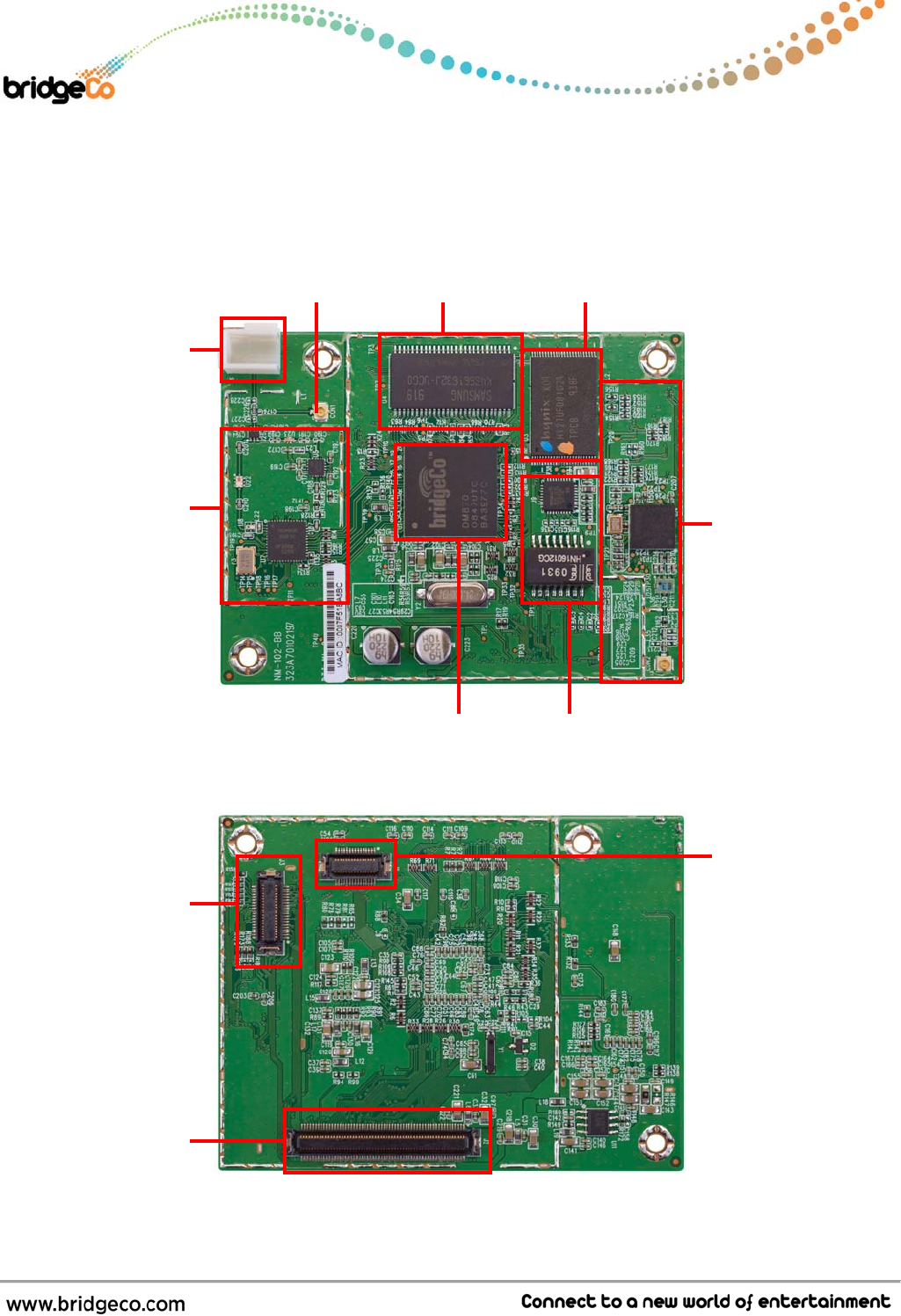

Overview
Top View
Bottom View
PIFA
antenna
802.11b/g
front-end
BridgeCo
p
rocessor
Ethernet
DAB
FLASH
(optional socket)
SDRAM
antenna
connector
Media
connector
DAB
connector
LCD
connector
Data Sheet: CR Series
JukeBlox Networked Media Modules
dat_CR860_CR870_2_5_datasheet.doc CONFIDENTIAL Version 2.5 – February 10th 2010 - Page 4 of 13
Ordering Guide
Part
Number BridgeCo ICs WiFi Ethernet USB Real-Time
Clock DAB / DAB+ /
DMB Audio LCD PIFA
Ant.
Contains
shield Incl. connector
Incl.
connector
CR870-2A DM870+T6201 X X X X X X X
CR870-2B DM870+T6201 X X X X X
CR870-2C DM870+T6201 X X X X
CR870-2D DM870+T6201 X X X X X
CR870-2F DM870+T6201 X X X X X X
CR860-2A DM860 n/a X X n/a
CR860-2B DM860 n/a X X X X n/a
Electrical Specifications
Parameter State Model Component Symbol min. typ. max. Units
Input Voltage Main VIN +2.97
+1.08 +3.3
+1.2 +3.63
+1.32 V
V
DAB VIN +1.62
+2.97
+1.35
+1.8
+3.3
+1.5
+1.98
+3.63
+1.65
V
V
V
Reset State CR870
CR860 PIN tbd
tbd tbd
tbd tbd
tbd W
W
Power
Consumption WLAN
Operating CR870
CR860 PIN tbd
tbd tbd
tbd tbd
tbd W
W
Operating Conditions
Parameter min. max. Units
Operating Temperature 0 +70 °C
Operating Humidity 10 90 (non condensing) %RH
Storage Temperature -10 +75 °C
Storage Humidity 10 95 (non condensing) %RH
Storage Temperature Cycle Test 24 hrs -10 +75 °C
Data Sheet: CR Series
JukeBlox Networked Media Modules
dat_CR860_CR870_2_5_datasheet.doc CONFIDENTIAL Version 2.5 – February 10th 2010 - Page 5 of 13
WiFi Specification (CR870 only)
Feature Description
WLAN Standards IEEE 802.11b
IEEE 802.11g
Frequency Band 2.412 – 2.497 GHz (2.4GHz ISM Band, 14 Channels)
Channel 1 - Channel 13, Channel 14
North America, Japan Telec, Europe ETSI
Modulation 802.11b mode (DS-SS: IEEE 802.11b)
802.11g mode (OFDM: IEEE 802.11g)
Transmission Speed 802.11b mode
11Mbps, 5.5Mbps, 1Mbps
802.11g mode
54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps, 6Mbps
Tx Power 802.11b mode (16.5dBm, +/-1dBm)
802.11g mode (21dBm, +/-1dBm)
Power-on Ramp < 2us
RF Carrier Suppression < 15dBc
TX EVM < -5dB
Rx Sensitivity
(incl. CE2 Mother board) 802.11b mode
=<-88dBm @ 1Mbps, =<-85dBm @ 5.5Mbps, =<-83dBm @ 11Mbps
802.11g mode
=<-86dBm @ 6Mbps, =<-75dBm @ 36Mbps, =<-69dBm @ 54Mbps
Throughput Rate
(measured for each
module)
See factory test specification
Regulatory compliance
Description Country Compliance
Electromagnetic Compatibility
(Prescan) USA
Europe FCC CFR47 Part15B
EN 55022
EN 55024
EN 61000-3-2
EN 61000-3-3
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
EN 61000-4-11
Radio Regulations (CM870
only) TBD TBD
Data Sheet: CR Series
JukeBlox Networked Media Modules
dat_CR860_CR870_2_5_datasheet.doc CONFIDENTIAL Version 2.5 – February 10th 2010 - Page 6 of 13
RoHS
Uses only RoHS compliant components
Environmental Test
Withstands 4 hours at 70°C, 90% RH
ESD and Transient Test (Applies to LAN and USB external
connections only)
ESD: +/- 2kV operation, +/- 4kV no destruction (part of CE test)
Fast electrical transients: +/- 500V operation, +/- 1000V no destruction (part of CE test)
Magnetic Field Test
Passes EN55022 and EN55024 (part of CE test)
MTBF
>10000 hours
Mechanical Specifications
Passes drop test according to I.E.C. 68-2-32, height 100 cm, 1 corner, 6 faces.
Passes vibration test with sine, vertical, 60 minutes, 600 to 18000 cpm, 1G
Module Quality
Defect Rate: 7 months <0.5% failures, 14 months <1% failures
AQL CR=0, MA=0.4, MI=0.4
Data Sheet: CR Series
JukeBlox Networked Media Modules
dat_CR860_CR870_2_5_datasheet.doc CONFIDENTIAL Version 2.5 – February 10th 2010 - Page 7 of 13
Board Dimensions
Top View and Side View
Bottom View (showing connector locations)
Note:
1. All dimensions are measured in millimetres (mm).
2. PCB’s thickness: 1.00 +/- 0.10mm
3. Tolerance: +/-0.10mm
4. Outline Tolerance: +/-0.10mm
5. NPTH Hole: +/-0.05mm
6. PTH Hole: +/-0.075mm
Data Sheet: CR Series
JukeBlox Networked Media Modules
dat_CR860_CR870_2_5_datasheet.doc CONFIDENTIAL Version 2.5 – February 10th 2010 - Page 8 of 13
Module weight
CR860-1: 25g
CR870-1: 25g
Connectors
WLAN Antenna Connectors (optional)
One coaxial antenna connector is provided as an alternative to the built-in PIFA antenna. The choice
between using the PIFA antenna or using the coaxial socket is a build option, determined by the
position of a surface mount capacitor on the module PCB. Please see ordering guide for build option
details.
The surface-mount receptible parts:
Hirose
U.FL-R-SMT (CL No. 331-0471-0)

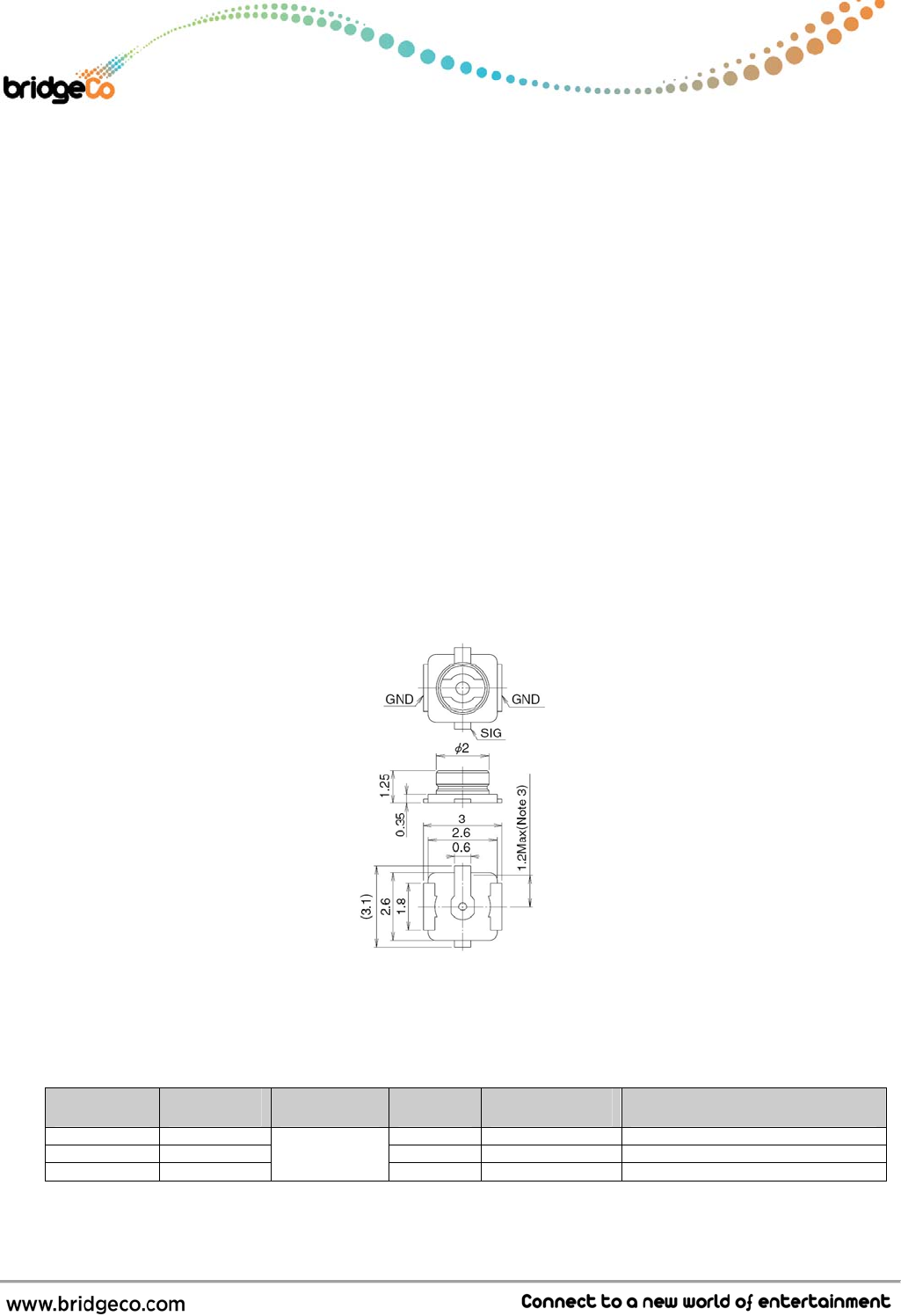

Coaxial antenna connector dimensions
Module Connectors
The CR860/CR870 module uses 3 male connectors as interfaces to the main board, described below.
Connector
Number Connector
Purpose Connector
Type Number
of Pins Pin
Configuration
Female Mating Connector
Part Numbers
J1 LCD 30 2 x 15 x 0.5mm 24-5046-030-100-829 (Kyocera)
J2 Media 120 2 x 60 x 0.5mm 24-5046-120-100-829 (Kyocera)
J3 DAB
B2B
Connector 40 2 x 20 x 0.5mm 24-5046-040-100-829 (Kyocera)
Data Sheet: CR Series
JukeBlox Networked Media Modules
dat_CR860_CR870_2_5_datasheet.doc CONFIDENTIAL Version 2.5 – February 10th 2010 - Page 9 of 13
The pinout and signal names are shown on the next page. The following table provides an overview
for the most important control and interface signals.
Key Connections
Signal(s) Connector ID Pin
Number(s) Description
J2 3, 4, 5, 6 Input voltage; +3.3V
J2 9, 10, 11, 12 Input voltage; +1.2V
J3 4, 6 Input voltage; +1.8V
J3 10 Input voltage; +3.3V
VIN
J3 12 Input voltage; +1.5V
SPI_DOUT
SPI_DIN
SPI_CLK
SPI_NCS0, 1
J2
J2
J2
J2
25
27
29
30, 32
SPI bus from DM870’s SPI controller.
RXD1, TXD1 J2 35, 37 3.3V logic level UART I/Os for the debug UART.
Provide external RS-232 transceiver to connect to a
PC’s COM port.
NRESET J2 34 Low-active input to reset the module;
internal 10K pull-up
NPD_RF J2 119 Low-active input to shut down the power for the
802.11 Rf part;
internal 10K pull-up
AOUTLP/AOUTLN J2 63, 65
AOUTRP/AOUTRN J2 60, 58 Differential stereo output from PWM-DAC.
BIST activate J2 48 Low-active input to invoke the production BIST;
DM870-internal pull-up
Factory Reset J2 68 High-active input to reset the configuration;
DM870-internal pull-down
IR input J2 70 Infrared sensor input. This is a Schmitt-Trigger input
and can handle interrupt inputs with slow slopes.
ETH_NRESET J2 72 Low-active reset for the on-board Ethernet phy. This
output is driven by the DM870 and is not suited for
other purpose.
SDA, SCL J2 73, 75 I2C bus created by GPIO-14 and GPIO-13.
No internal pull-ups; if I2C is to be used, please add
the proper external pull-up resistors.
ETH_LED_ACT
ETH_LED_SPEED J2
J2 100
102 3.3V push-pull outputs (max. ±12mA) to drive the
Ethernet LEDs.
A low-level indicates 100Mbps mode and activity
respectively.
Data Sheet: CR Series
JukeBlox Networked Media Modules
dat_CR860_CR870_2_5_datasheet.doc CONFIDENTIAL Version 2.5 – February 10th 2010 - Page 10 of
13
Detailed Connector PIN Descriptions
J2 – Media Connector
Function GPIO Signal IC PIN Power Power IC PIN Signal GPIO Function
GND 1 2 GND
VIN (+3.3V) 3 4 VIN (+3.3V)
VIN (+3.3V) 5 6 VIN (+3.3V)
GND 7 8 GND
VIN (+1.2V) 9 10 VIN (+1.2V)
VIN (+1.2V) 11 12 VIN (+1.2V)
GND 13 14 GND
VIN_OUTSIDE (+1.9V) 15 16 VIN_OUTSIDE (+1.9V)
GND 17 18 GND
F4 3V3RTC 19 20 GND
GND 21 22 B20 TMS
GND 23 24 A20 TCK
SPI_DOUT E17 25 26 B19 TDI
SPI_DIN F17 27 28 A19 TDO
SPI_CLK D17 29 30 D16 SPI_NCS0
TXD0 C17 31 32 D15 SPI_NCS1
RXD0 A18 33 34 NRESET_MOD
RXD1 B17 35 36 B16 SSMD6 GPIO-10 SPI_E_CLK
TXD1 A17 37 38 C15 SSMD4 GPIO-08 SPI_E_SDO
GND 39 40 A15 SSMD2
SPI_E_NCS GPIO-11 SSMD7 C16 41 42 C14 SSMD1
SPI_E_SDI GPIO-09 SSMD5 A16 43 44 A14 SSMCMD
SSMD3 B15 45 46 C11 SSMWP
SSMD0 B14 47 48 M18 NCS3 GPIO-17 BIST activate
SSMCLK C13 49 50 L18 NCS2 GPIO-19
SSMCP C12 51 52 GND
GND 53 54 USB_VBUS
USB_DN A1 55 56 GND
USB_DP B1 57 58 K2 AOUTRN
USBVBUSDRV 59 60 J2 AOUTRP
GND 61 62 GND
AOUTLP H3 63 64 L1 PDOUT1 GPIO-06
AOUTLN J3 65 66 L2 VCO1 GPIO-07
GND 67 68 M1 PDOUT0 GPIO-04 Factory reset
GPIO-16 A23 K20 69 70 M2
V
CO0 GPIO-05 IR input
IRQ input GPIO-18 A22 K19 71 72 U3 AV3CLK GPIO-12 ETH NRESET
I2C SDA GPIO-14 AV3CTRL1 V1 73 74 M3 AV0CTRL0
I2C SCL GPIO-13 AV3CTRL0 V2 75 76 P3 AV1DATA3
AV0CTRL2 K3 77 78 R1 AV1DATA2
AV0CTRL1 L3 79 80 R2 AV1DATA1
AV0CLK N1 81 82 R3 AV1DATA0
AV0DATA3 N2 83 84 GND
AV0DATA2 N3 85 86 T1 AV2CTRL1 MCLK
AV0DATA1 P1 87 88 GND
AV0DATA0 P2 89 90 R4 AV2CLK SCLK
GND 91 92 GND
LRCK AV2CTRL0 T2 93 94 W2 AV4DATA1 SPDIF output
A/D data 1 AV2DATA3 T3 95 96 Y1 AV4DATA0 SPDIF input
A/D data 0 AV2DATA2 T4 97 98 GND
D/A data 1 AV2DATA1 U1 99 100 ETH_LED_ACT
D/A data 0 AV2DATA0 U2 101 102 ETH_LED_SPEED
GND 103 104 Y14 MIICRS GPIO-00
ETH_RX- 105 106 W14 MIICOL GPIO-01
ETH_RX+ 107 108 V10 MIITXER GPIO-02
ETH_CT 109 110 V11 MIITXCLK GPIO-03
ETH_TX- 111 112 W10 MIITXD0
ETH_TX+ 113 114 Y10 MIITXD1
GND 115 116 W12 MIIRXD0
GPIO-15 NWAIT N18 117 118 Y12 MIIRXD1
NPD_RF 119 120 GND
PIN Number
SPI
Debug UART
JTAG
SPI
USB
Video Output
Ethernet
USB
Video Output
Ethernet
Data Sheet: CR Series
JukeBlox Networked Media Modules
dat_CR860_CR870_2_5_datasheet.doc CONFIDENTIAL Version 2.5 – February 10th 2010 - Page 11 of
13
J1 – LCD Connector
Function GPIO Signal IC PIN Power Power IC PIN Signal GPIO Function
GND 12
GND
LCDD0 Y7 34 W7 LCDD1
LCDD2 V7 56 Y6 LCDD3
LCDD4 W6 78 V6 LCDD5
LCDD6 U6 910 Y5 LCDD7
LCDD8 W5 11 12 V5 LCDD9
LCDD10 U5 13 14 Y4 LCDD11
LCDD12 W4 15 16 V4 LCDD13
LCDD14 U4 17 18 Y3 LCDD15
LCDD16 W3 19 20 Y2 LCDD17
GND 21 22 GND
LCDCLK Y9 23 24 W9 LCDCTRL0
LCDCTRL1 Y8 25 26 W8 LCDCTRL2
LCDCTRL3 V8 27 28 GND
GND 29 30 GND
PIN Number
LCD Interface
LCD Interface
LCD Interface
LCD Interface
J3 – DAB Connector
Function GPIO Signal PNM3030E PIN Power Power PNM3030E PIN Signal GPIO Function
GND 12
GND
RESETB 30 34VIN (+1.8V)
RF_I2C_CK 39 56VIN (+1.8V)
I2C_SDA_DAB 378 40 RF_I2C_DT
I2C_SCL_DAB 46 910VIN (+3.3V)
GND 11 12 VIN (+1.5V)
TEST_1 79 13 14 80 TEST_2
DAB_SPI_MOSI 19 15 16 78 TEST_0
DAB_SPI_CSB 17 17 18 18 DAB_SPI_CLK
GND 19 20 16 DAB_SPI_MISO
GND 21 22 GND
GND 23 24 14 INT_0
GND 25 26 15 INT_1
MPEG_ERR 427 28 47 MPEG_CLK
MPEG_SYNC 529 30 48 MPEG_VAL
MPEG_DAT7 631 32 7MPEG_DAT6
MPEG_DAT5 51 33 34 8MPEG_DAT4
MPEG_DAT3 52 35 36 9MPEG_DAT2
MPEG_DAT1 10 37 38 53 MPEG_DAT0
GND 39 40 GND
PIN Number
SPI SPI
Data Sheet: CR Series
JukeBlox Networked Media Modules
dat_CR860_CR870_2_5_datasheet.doc CONFIDENTIAL Version 2.5 – February 10th 2010 - Page 12 of
13
Revision Control
Revision Date / Author Remarks
V2.5 Feb. 10, 2010 / SHs Updated “Ordering Guide” table
Added new coaxial text in “WLAN Antenna Connectors” section
Added manufacturer name to “Module Connectors” table
V2.4 Feb. 08, 2010 / SHs Updated Rx Sensitivity description in “WiFi Specification” table
V2.3 Feb. 03, 2010 / SHs “Key Connectors” table title changed to “Key Connections”
Updated entries in “Key Connections” table
Updated pins 1, 2, 25, 27, 58 & 60 in “J2 – Media Connector”
table
V2.2 Feb. 02, 2010 / SHs Added new items to “WiFi Specification” table
Amended Block Diagram to show input of 1.2V instead of 1.8V
V2.1 Jan. 04, 2010 / SHs Updated header layout
Removed “CR860/CR870” from data sheet title
Left justified Key Features list on front page
New Ordering Guide table
Updated Module Weights
V2.0 Jan. 02, 2010 / JWs and
SHs New header and footer layout
Fit front and back Overview images onto one page
Bulletise Revision Control table
V1.1 Dec. 18, 2009 / SHs Changed Core Module name to “JukeBlox Networked Media
Module(CR Series)”
Front page revisions: removed front and back images of board;
inserted angled image of board; moved Key Features list to
front page
Moved Disclaimers page to end of document
Replaced previous board images (front and back) in Overview
section with better quality images
Added box and label to BridgeCo processor in Overview images
Revised Ordering Guide
Reduced Board Dimension drawings to fit on one page
Added mating connector part numbers to Module Connectors
section.
V1.0 Dec. 9, 2009 / SHs Initial version
© 2010 by BridgeCo Inc
All rights reserved. This document is the sole property of BridgeCo. It contains information
proprietary to BridgeCo. Reproduction or duplication by any means of any portion of this document
without the prior written consent of BridgeCo is expressly forbidden.
Trademarks
The names of products of BridgeCo or other vendors and suppliers appearing in this document may
be trademarks or service marks of their respective owners which may be registered in some
jurisdictions.
Data Sheet: CR Series
JukeBlox Networked Media Modules
dat_CR860_CR870_2_5_datasheet.doc CONFIDENTIAL Version 2.5 – February 10th 2010 - Page 13 of
13
Warranty Limitations
BridgeCo assumes no responsibility for inaccuracies, errors, or omissions in this document. BridgeCo
assumes no responsibility for the use of this information, and all use of such information shall be
entirely at the user’s own risk. Prices and specifications are subject to change without notice.
Module Revision History
To be determined.
CAUTION
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the
authority to operate equipment.
Information for the OEMs and Integrators
The following statement must be included with all versions of this document supplied to an
OEM or integrator, but should not be distributed to the end user.
  This device is intended for OEM integrators only.
  Please See the full Grant of Equipment document for other restrictions.
  This device must be operated and used with a locally approved access point.
Information To Be Supplied to the End User by the OEM or Integrator
The following regulatory and safety notices must be published in documentation supplied to
the end user of the product or system incorporating an adapter in compliance with local regulations. Host system
must be labeled with "Contains FCCID:PPQ-CR8702C“, FCC ID displayed on label.
Warning
"Industry Canada regulatory information Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device. ""The user is
cautioned that this device should be used only as specified within this manual to meet RF
exposure requirements. Use of this device in a manner inconsistent with this manual could
lead to excessive RF exposure conditions."
FEDERAL COMMUNICATIONS COMMISSION
INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

Navigation menu
