SM-2065 1 9
User’s Manual
Model: R-RB5;C-UR37
Customer: Logitech
Version : 0.1
Issue Date : SEP.06. 2004
Prepared By: Muchuan Lee
Silitek Coorperation Confidential
SM-2065 2 9
Table of Contents
1 General.......................................................................................................................... 3
2 Product Outline ......................................................................................................... 3
3.Electrical Specification................................................................................................... 3
4.Functions and Features................................................................................................. 8
4.1 Wireless Connection and Radio feature .............................................................. 8
4.2 Functionality of Presentation ............................................................................... 9
4.2.1 HID Function .................................................................................................... 9
4.2.2 LCD Display ................................................................................................... 10
4.2.3 Laser Point ..................................................................................................... 11
Silitek Coorperation Confidential
SM-2065 3 9
1.General
R-RB5;C-UR37 is a product of 2.4GHZ radio presenter,it’s a special designed for Logitech,which the
whole package including a wireless presenter and an USB nano-Dongle which as bridage with PC system,it
offers the function as a human input device especially it be used for making a presentation .
WirelessUSB 2.4GHZ radio solution of Cyptess are employed, it has the best in the radio performance
supporting two way and muti-channels communication in wireless interface via 2.4GHZ DSSS.It’s
designed for portable use such as a palm size of wirelss presenter, a thrumble size of nanodongle ,presenter
inside also reserve a space to storge the nano-dongle while not use .A low power consumption designed was
also implemented to the presenter ,so it is only required two AAA batteries installed inside for use.(refer to
user’s manual).
Besides providing the major function in PowerPoint control,the product also offer many extra function in
friendly use like displaying a timer of presentation, vibration alert ,laser point and low battery indication.
The USB Nano-dongle of the product meets the USB version 1.1 specification .

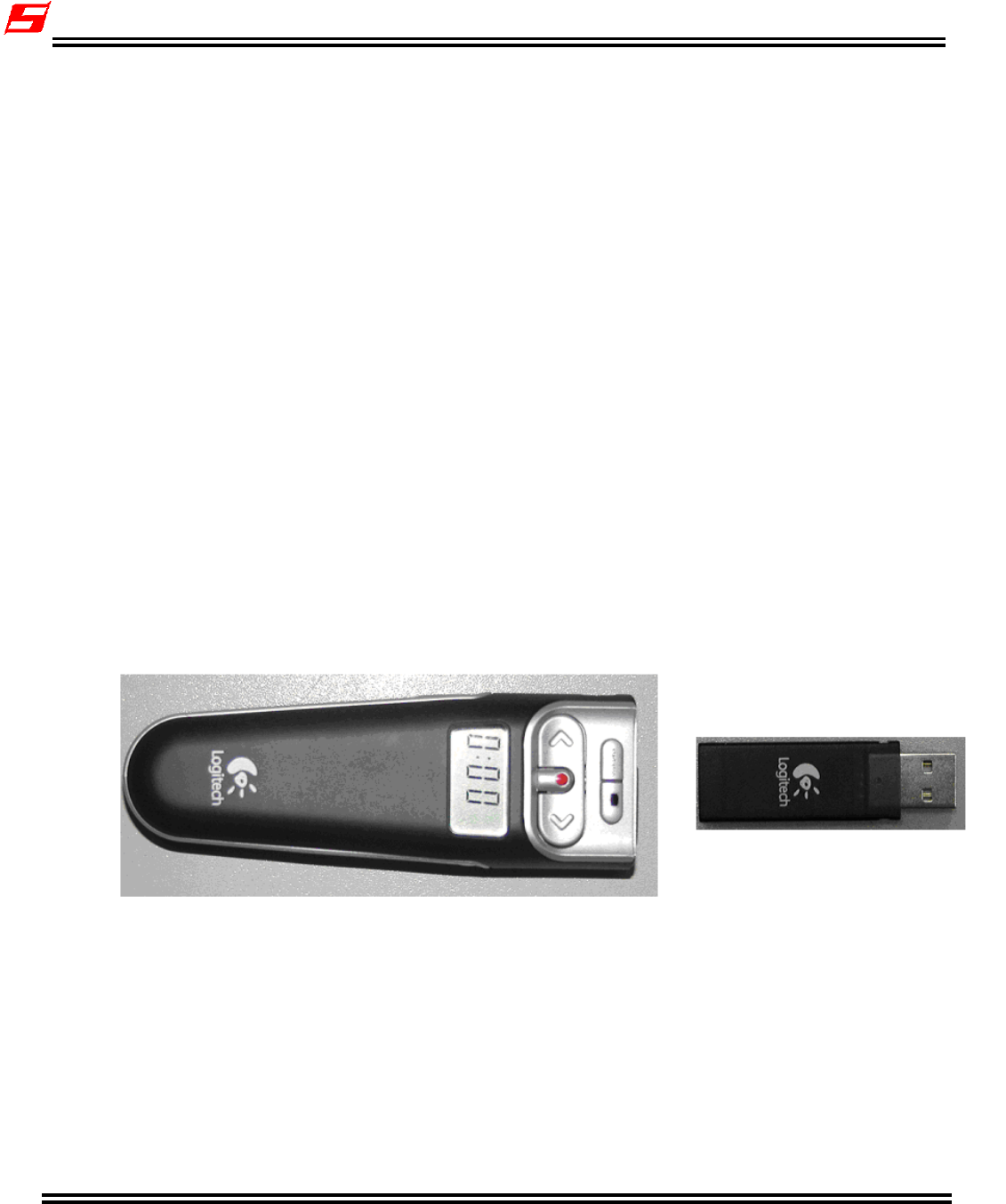

2 Product Outline
*Product Outline:
3 Electrical Specification
3.1 Power Consumption
Silitek Coorperation Confidential
SM-2065 4 9
Operation Voltage:
Voltage supplied to presenter : 3 VDC (AAA battery *2)
Voltage supplied to Dongle : 5 VDC
Operation Current:
USB Dongle : Under 5 VDC power supplied ,typical current is 18mA.
PC System Suspend current : 1mA
Maximum current of Pairing : 80 mA
Laser Point : 25~45 mA,
Output power of beam : under 1mW
Power consumption:
Typical power consumption of Presenter will be less than 40mW.
Typical power consumption of Dongle will be less than 100mW.
3.2 Circuitry Design
1. Presenter :Radio transceiver-- Cypress LS RADIO TRANSCEIVER CYWUSB6934,QFN-48 pin
Functionality IC -- CY8C27443 PROGRAMMABLE ,28 pin SSOP .
2. USB Dongle: Radio transceiver-- Cypress LS RADIO TRANSCEIVER CYWUSB6934,QFN-48 pin
Functionality IC -- Cypress USB controller , CY8C27643 QSOP.
3.3 USB connector of Dongle
USB 1.1 connector consists of four conductors, one power conductor, one GND conductor and
two signal conductors and an overall shield.
USB 1.1 connector is the Low-speed connector which is a Series ‘A’ plug
Silitek Coorperation Confidential
SM-2065 5 9
4.Functionality and Radio Feature

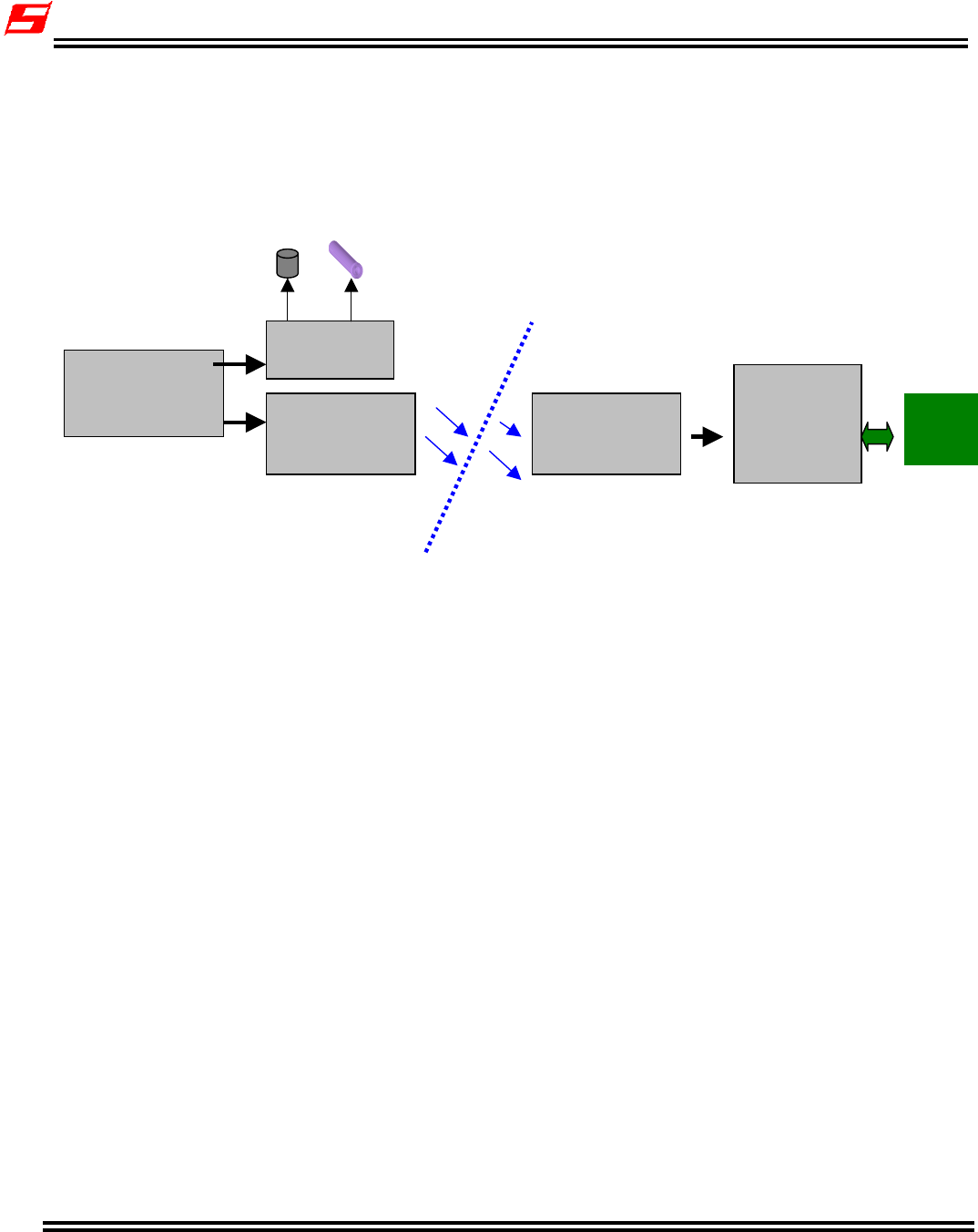

*Functional Block diagram
:
:
Main Feature.
* Intelligent Auto- channel switching function to have a best radio connection always.
* Two way radio communication .
* Maximum 64k transmission baud rate .
* Low power consumption design/Low battery indicated function.
4.1 Wireless Connection and Radio feature
---- Bind function (like Bluetooth paring ) and Connection
*Bind mode function:
The bind function is like the pairing function of bluetooth that allow many same radio products
to be used at same time and same place also avoid the interference between same product each other.
We shall complete the bind function before the wireless device to be first used. (End user needn’t
do that due to It had done at manufacturer site ).
*Procedure of performing Bind function (by following step by step) :
Plugging the nano-dongle attached to PC then turn on PC system, or attached the device by hot
R
adio Link: two way communication
Vibrato
r
Functionality&
Base-Band 2.4 GHZ Radio
module
LCD display
Laser point
2.4 GHZ Radio
module
Base-Band
& USB
controller
PC
Host
P
resenter Emitter
D
on
g
le Receiver
Silitek Coorperation Confidential
SM-2065 6 9
plugging.

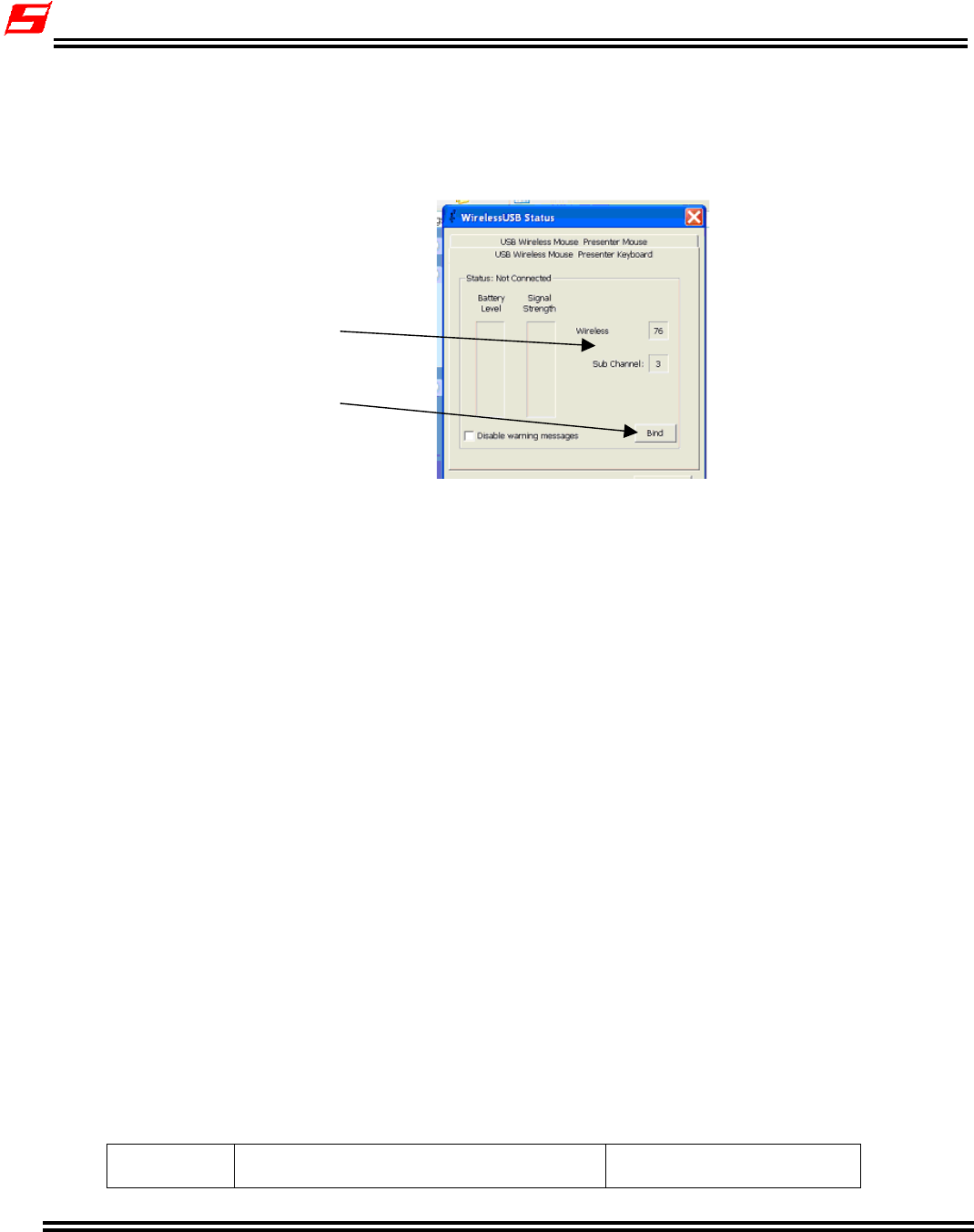

b. Run the bind AP on PC, it shall be under the WIN2000 or above, the screen will shown up the
“bind window” as following shown .in which will appear the “initial value” of the numbers of
wireless and sub channel. It means USB enumerated successfully and being ready for bind
c. Activate the bind button on the “bind window” above. At same time, press the bind button
on the back of presenter (Assume the batteries was installed). The numbers of “wireless” and
“Sub Channel” will be a various for scaning that is in binding.
d. It is completed the binding when the numbers scaning are fast to settle at some value.
Suppose the numbers scaning return to be “initial value” or over 10 sec,maybe it fail to bind and
we have to re-bind again.
*Auto-Connection:
The radio connection (wireless function on line) will be done automatically between presenter and
nano-dongle when we turn ON the product both presenter and dongle also enable the HID function
(Stoke any Key of presentation function).
4.2 Functionality of presentation
4.2.1 HID function
There are overall 9 buttons on the presenter that 6 buttons SW1~.SW6 for HID function,
one button SW7 for LCD control , one button SW8 for laser point and the other buttons SW9
on the back of presenter for bind function.
Key Code/Function Table:
No. Key name HID Usage ID / function
Bind button of AP
N
o. of wireless channel and
sub-channel
Silitek Coorperation Confidential
SM-2065 7 9
No.1 START/STOP 29/3E (toggle)
No.2 Black Screen 05
No.3 Backward 4E
No4. Forward 4B
No.5 Volume Up 0040
No.6 Volume down 0080
No.7 Stop/Watch Set the LCD timer (refer to
the description of LCD
function)
No.8 Laser point Enable laser point
No.9 Connect Bind
4.2.2 LCD display
LCD/Stopwatch/Battery level features, Stopwatch LCD functionality can be programmable
with Set button
*Turning the LCD on:
--From Off state, press Set button to turn LCD on. LCD flashes “0:00” for 5 seconds (If Set button
is not pressed again within 5 seconds, LCD turns off.).
*Setting stopwatch time on the LCD:
-- Each time Set button is pressed, 10 mins are added to the stopwatch time.
-- LCD number display continues to flash while time is added.
-- Once time of presentation is set, number stops flashing after 5 seconds and countdown begins
-- At any point during the countdown, the Set button can be pushed to add more time. First push
rounds up to the next increment of 10 mins (for example, if countdown is at 1:27, pressing Set
once increases time to 1:30). A second push of the Set button would add 5 more minutes (etc).
* Buzze remind:
--At 5:00 (0:05)min remaining mark, the counter flashes for 5 seconds during countdown and a vibrator
buzzes briefly in hand (approx 0.5 second vibration)
-- At 2:00 (0:02) min mark, number flashes and vibrator buzzes briefly (same as for 5 min mark)
-- At 0 (0:00)min, vibrator again buzzes briefly and 0:00 flashes for 5 seconds, then LCD goes blank.
*To turn off LCD during middle of countdown:
-- Holding the Set button for 2 seconds during countdown clears the display and resets to 0:00
(flashing). After 5 seconds, display turns off.
*Battery level indicator in LCD:
Silitek Coorperation Confidential
SM-2065 8 9
-- Battery status only needs to be shown on display when device is on (i.e. when receiver is removed
from the presenter). However it should remain on independent of whether or not the Stopwatch
feature is being used.
4.2.3 Laser point
Pressing the laser button ( which between Backward and Forward button, with red dot print),
presenter will generate a laser spot from the front edge of device.
*Once the StopWatch button stuck, improperly operated for 10 sec then enter sleep mode automatically.
*Once the button of laser point was turn on for last 30 sec then enter sleep node automatically.
Silitek Coorperation Confidential
SM-2065 9 9
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. End users must follow the specific operating
instructions for satisfying RF exposure compliance.
This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
"Lite-On Technology Corporation declare that R-RB5 (for Presenter) / C-UR37 (for Dongle) is
limited in CH1~CH11 by specified firmware controlled in USA."
The equipment has been SAR-evaluated for use in laptops (notebooks).
