Lite-on Technology Corp. Wireless USB Dongle
Users Manual
LiteON Technology
SK7235 Dongle Ver: 0.3 第 1 頁, 共 9 頁
Dongle Operation Manual
Model: SK-7235-R
Customer: LITEON
Version : 0.3
Issue Date : 07.27.2008
LiteON Technology
SK7235 Dongle Ver: 0.3 第 2 頁, 共 9 頁
Table of Contents
1. General.......................................................................................................................................... 2
2. Mechanical Specifications Product Outline..................................................................................3
2.1 Product Outline ...................................................................................................................3
3. Electrical Specification .................................................................................................................3
4. Radio Feature ................................................................................................................................5
4.1 Operation procedure............................................................................................................5
4.2 Radio Feature .....................................................................................................................5
4.3 HID function .......................................................................................................................6
1. General
This is product specification of SK-7235 series radio dongle. It is high quality
2.4GHz keyboard/mouse dongle, supports 78 channels and 65,536 channel ID numbers
Nordic chip nRF24L01+ is employ to the product and offers very low power
consumption for operation , high radio performance with minimum operation range of
10 meters.
The product supports HID input device to receive data from keyboard and mouse.
USB dongle receiver to be used as a communication interface device between PC
LiteON Technology
SK7235 Dongle Ver: 0.3 第 3 頁, 共 9 頁
computer and wireless device.This dongle is HSF product.
2. Mechanical Specifications Product Outline
2.1 Product Outline

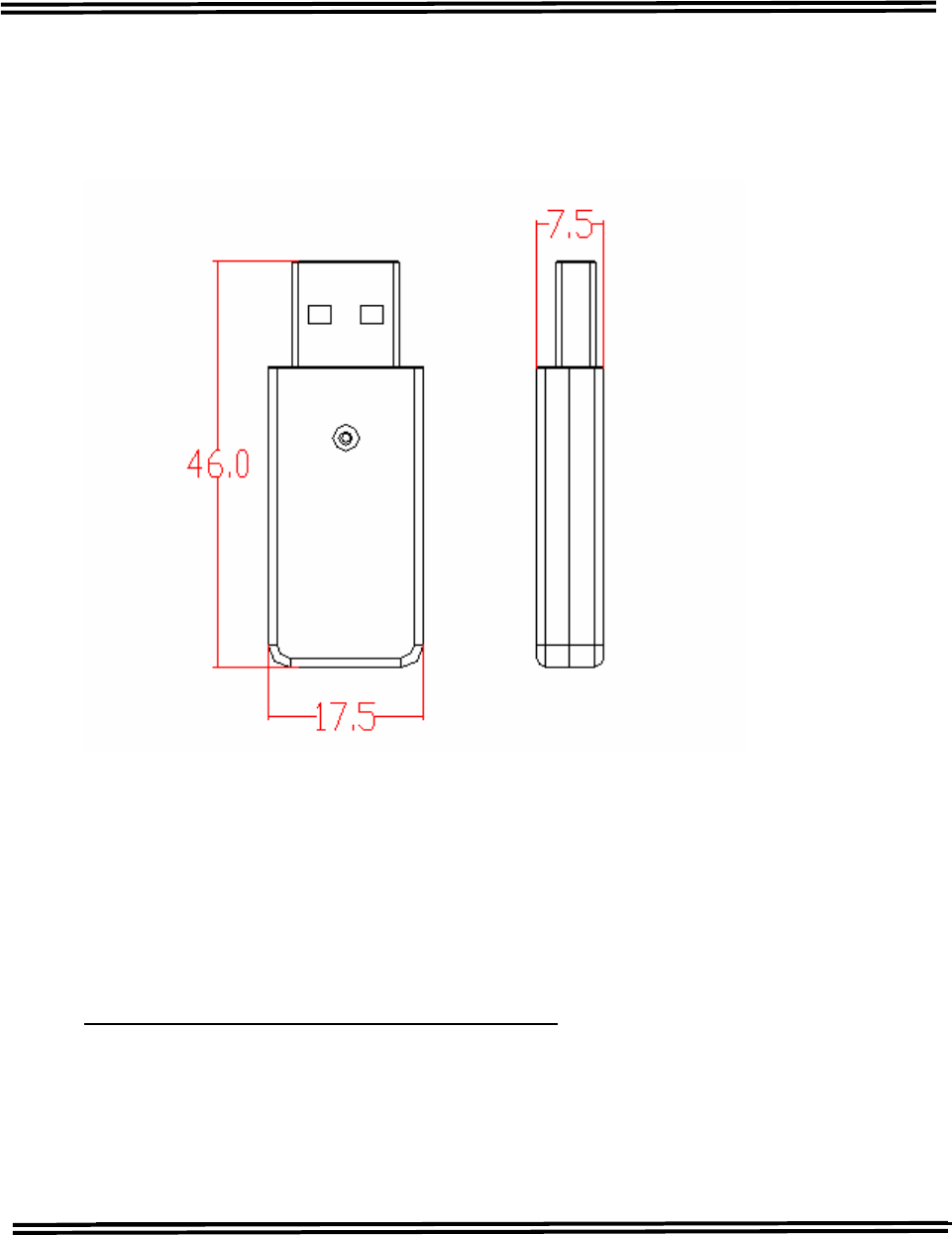

2.1.1 Dimensions and Weight
Dimensions:
Length:146.0 ± 0.2mm Width: 17.5 ± 0.2mm Height: 7.5±0.2mm
Weight:6.5± 1g
3. Electrical Specification

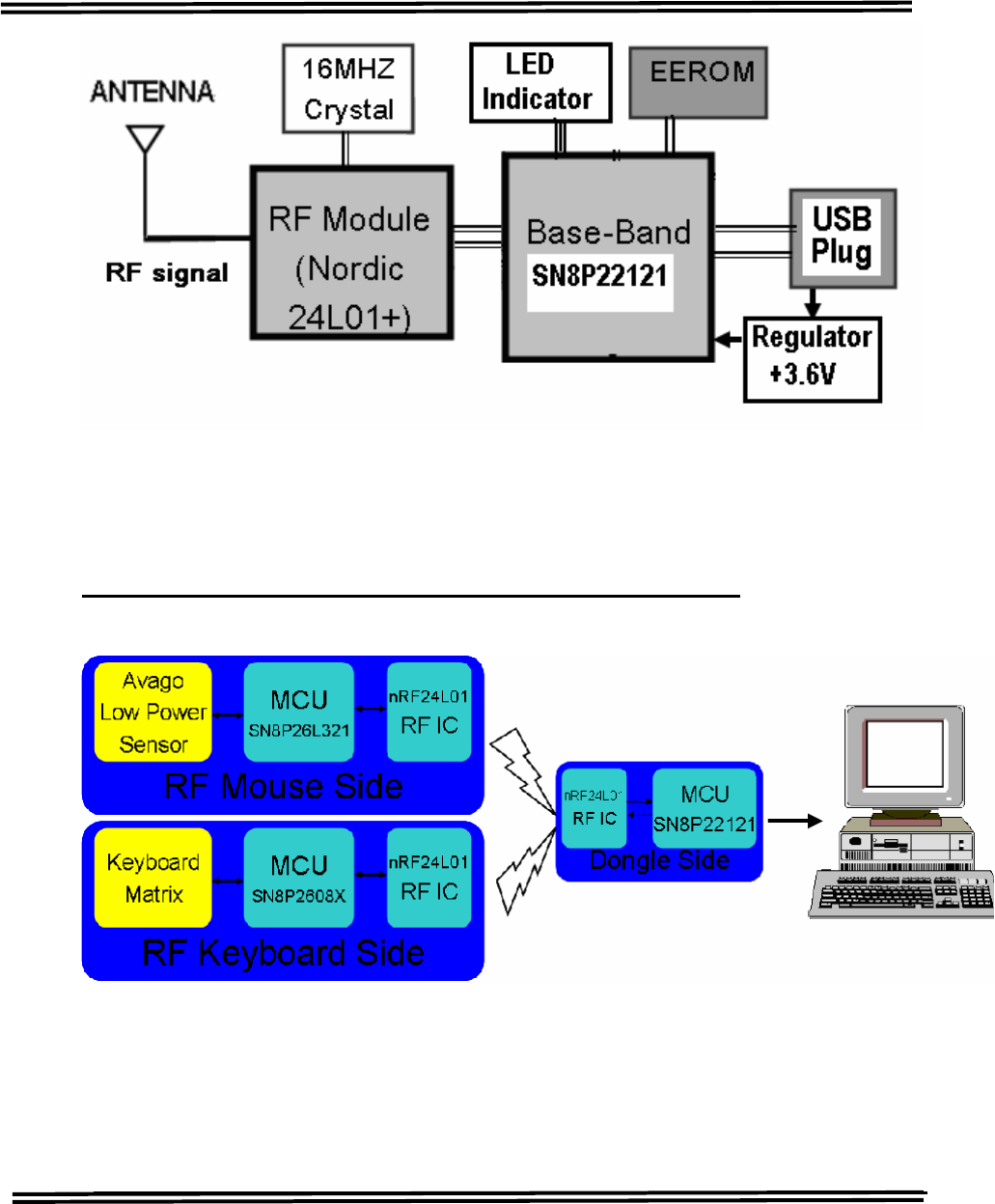

Functional Block diagram of RF Dongle
LiteON Technology
SK7235 Dongle Ver: 0.3 第 4 頁, 共 9 頁
Functional Block diagram of RF Communication system
Main Feature.
z Nordic 78 RF channels 2.4GHz two way.
z 65,536 ID for radio communication.
z Maximum 2M transmission baud rate.
ANTENNA
LiteON Technology
SK7235 Dongle Ver: 0.3 第 5 頁, 共 9 頁
Low Speed USB Specification Compliance., meets Universal Serial Bus Specification
Version 1.1
4. Radio Feature
4.1 Operation procedure
The product needs to make pairing with USB dongle before normal application.
In general we can use the product directly by the user because the pairing process has
been done at manufacturer site. However, the pairing process needs to be done if there is
no response from mouse(KB).
* How to make pairing (step by step as below process) by user:
1. Insert two AA batteries to the RF Mouse (KB), and close the battery door.
2. Plug in the Receiver to the USB port of P.C. and the Access LED will to light about 2 seconds.
3. Press the ID connect button of dongle and the Access LED will to light about 15 seconds..
4. Press the ID connect button of RF Mouse (KB) for pairing with the dongle within 15 seconds.
5. The Access LED will go off and RF Mouse (KB) is ready. If Access LED is still blinking, please
repeat the above procedure 1 to 4 again.
4.2 Radio Feature
*Table-1 Parameter of radio part
Items Keyboard
Specifications
Mouse
Specifications
Frequency Range 2.402~2.479GHz
78 channel frequency hopping
2.402~2.479GHz
78channel frequency hopping
Modulation GFSK GFSK
Channel 78channels 78channels
Channel I.D 16bits →65,536 16bits →65,536
Operation Voltage 4.4~5.5V 4.4~5.5V
Rx Sensitivity -85dBm -85dBm
Transmission rate 2Mbps 2Mbps
TX FM frequency deviation +/- 320 kHz +/- 320 kHz
Frequency tolerance +/- 30ppm +/- 30ppm
LiteON Technology
SK7235 Dongle Ver: 0.3 第 6 頁, 共 9 頁
4.3 HID function
This product offer receiving the data from keyboard and mouse. It in connection
with PC via USB interface.
The USB interface meets the USB version 1.1 specifications.
Note:
This equipment has been tested and found to comply with the limits for a class B digital device,
pursuant to part 15 of the FCC rules. These limits are designed to provide to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with the installation. ,
May cause harmful interference to radio communication. However, there is no guarantee that
interference
Will not occur in a particular installation. if this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna
-Increase the separation between the equipment and receiver
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
-Consult the dealer or an experienced radio / TV technician for help
You are cautioned that changes or modifications not expressly approved by the party responsible for
compliance could void your authority to operate the equipment.
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions
(1) This device may not cause harmful interference and
This device must accept any interference received, including interference that may cause undesired
operation
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
