LITE ON TECHNOLOGY FUSION70 WIRELESS ACCESS POINT User Manual fusion 70IG
LITE-ON Technology Corp. WIRELESS ACCESS POINT fusion 70IG
User Manual
Fusion 70 Access
Point
Installation Guide
Part Number: 001605, Rev. A
2001605, Rev. A
Introduction
001605, Rev. A 3
Introduction
The Fusion 70 Access Point is a reliable, high-speed wireless device that
offers secure communication access for both voice and data IEEE
802.11n transmissions for any SMB (Small- to Medium-sized Business).
With a frequency of 2.4 GHz (802.11 b/g/n), this innovative and cost-
effective AP provides clients a fast and reliable network connection.
You can provide power to the access point either by using a single,
standard IEEE 802.3af PoE connection or by using direct power
connection. In addition, the Fusion 70 Access Point supports all security
suites, including both WPA and WPA2 authentication and encryption
methods.
Packaging
Fusion 70 Access Point
Power adapter (5V) and cord
Mounting kit, including mounting bracket and screws
Adhesive rubber feet
Three external antennas (optional)
Warranty card
Safety Precautions
For safe and efficient use, read the following information before working
on or using the Fusion 70.
Do not expose the product to liquid or moisture.
Do not expose the product to extreme temperature.
Do keep the product in a clean and dust-free location. Use only a soft,
damp cloth to clean the product.
Table 1 Safety Precautions
WARNING
Before working on this equipment, be aware of good safety
practices and the hazards involved with electrical circuits.
WARNING
To reduce risk of fire hazard and electric shock, do not install the
unit near a damp location.
CAUTION
To reduce the risk of fire, use only number 26 AWG or larger UL
Listed or CSA Certified telecommunication line cord for all
network and telecommunication connections.
Introduction
4001605, Rev. A

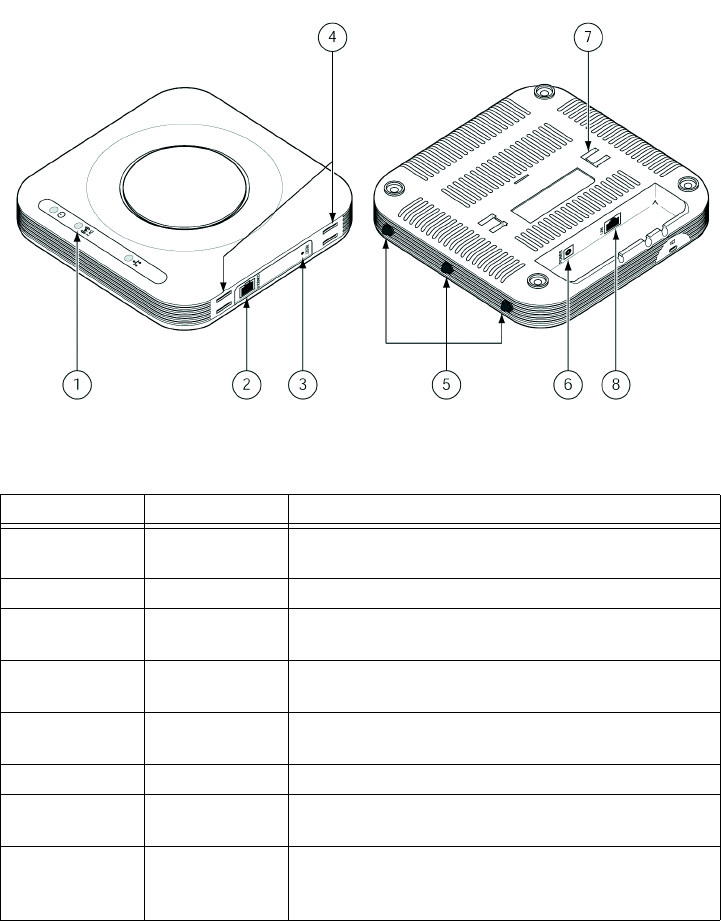

Product Description
Table 2 Features
Item Feature Description
1LEDs
These three indicators display power and/or link
activity.
2 Console Port This port provides a serial interface for the AP.
3 Reset Button This button provides a mechanism to allow you to
restore the AP back to its factory default settings.
4 Desktop Slots These slots allow you to mount the unit to a bracket
(included), so that you can stand it up on a desktop.
5Antenna
Connectors
These three RSMA antenna connectors allow you to
connect external antennas (optional).
6 Power This is a power connection point.
7Wall Mount &
Desktop Slots
These slots allow you to mount the unit to a bracket
(included), so that you can install it on a wall.
8 Ethernet Port
This is an RJ-45 10BASE-T/100BASETX/
1000BASE-T port with IEEE 802.3af PoE, auto-
negotiating.
Introduction
001605, Rev. A 5
Power and Environmental
LEDs
The Fusion 70 Access Point has the following three LEDs on to provide a
visual indication of the operation status of the AP.
PoE Compliant
The Fusion 70 Access Point is IEEE 802.3af compliant, so it can provide
power to the unit by using an Ethernet connection that utilizes power-
sourcing equipment (PSE). If you intend to use an Ethernet connection for
power, ensure that the connecting device is Power over Ethernet (PoE)
IEEE compliant.
Table 3 Power and Environmental
AC power Input voltage 90-264 V AC
Frequency 47-63 Hz
Operating Operating Temperature 32 to 104ºF (0-40C)
Relative Humidity 5% to 95% (non-condensing)
Table 4 LEDs
LED Description
Power
• Solid green: Power on
•Off: Power off
• Solid amber: CPU or system failed
• Blinking amber: System initializing or resetting (software self-
testing)
2.4G
• Solid green: Good link at 2.4GHz
• Blinking: Receiving/transmitting data
• Off: No data transfer
Link/Activity
• Solid yellow: Good Link on 100Mbps
• Blinking yellow: Receiving/transmitting data at 100M
• Solid green: Good link on 1000Mbps
• Blinking green: Receiving/transmitting data at 1000Mbps
• Off: No Link
Introduction
6001605, Rev. A

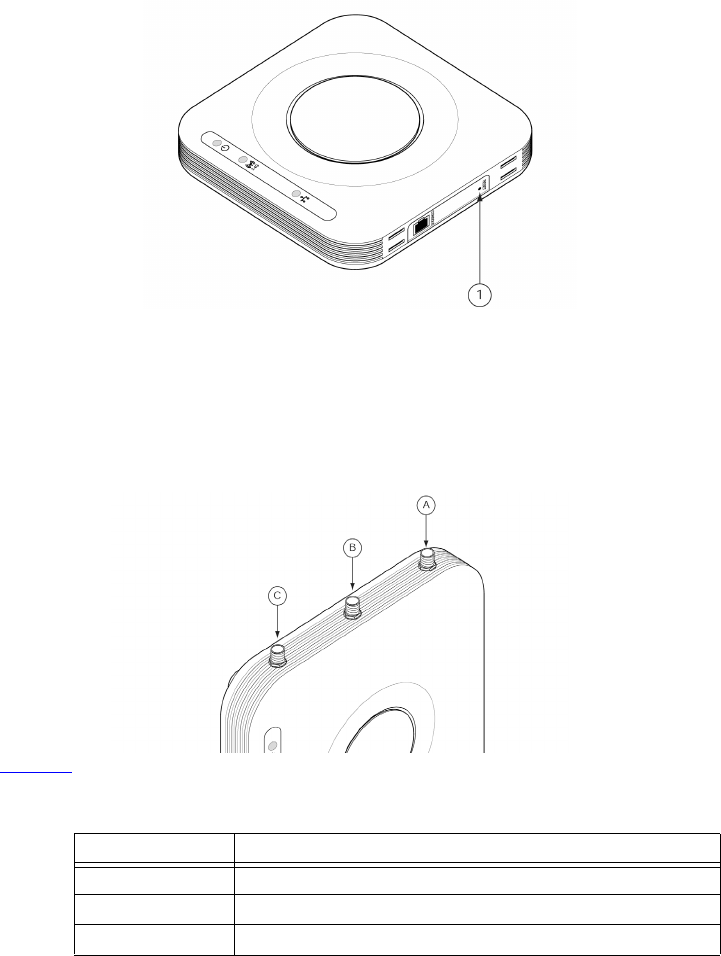

Reset Button
Use the reset button to clear an AP’s configuration and set it back to its
factory defaults. To restore the factory default, use a small pin to press
and hold the reset button for 10 seconds while the AP has power applied.
Antenna
The Fusion 70 Access Point comes standard with three internal antennas.
However, the AP also includes three external antenna connectors that
allow you to connect external antennas (optional) to them to increase the
range of each radio.
Table 5 describes which antennas to use for each mode.
Table 5 Antenna Options
Mode Antennas Used
2x3 A, B and C
2x2 A and C (not supported)
1x1 A (not supported)
Specifications
001605, Rev. A 7
Specifications
Table 6 General Specifications
Specification Description
Dimensions (L) 7.8" (19.7 cm) X (W) 7.8" (19.7cm) X (H) 1.8" (4.5cm)
Standards support
• IEEE 802.3ab
• IEEE 802.3af
• IEEE 802.11b
• IEEE 802.11g
• IEEE 802.11n
Data Rates
• 802.11g: 54, 48, 36, 24, 18, 12, 9 and 6 Mbps
• 802.11b: 11, 5.5, 2 and 1 Mbps
• 802.11n: MCS 0 to 15 for HT20MHz, 6.5-130 Mbps MCS 0
to 15 for HT40MHz,
Frequency Band • 802.11b/g/n: 2.4–2.484 GHz
Modulation
Technique
• 802.11b: DSSS (Direct Sequence Spread Spectrum)
• 802.11g/n: OFDM (Orthogonal Frequency Division
Multiplexing) and DSSS
Software/
Firmware
• DHCP Client
• Wireless STA (client) list
• MAC Address Filter
• Rogue AP detection
• Web-UI Support
• CLI Support
• Firmware upgrade via Web UI
Security
WEP settings: 802.1x, Open, Shared, and Open & Shared
• Keys input type: HEX / ASCII
• Keys length: (64-bit, 128-bit, 152-bit, and 256-bit)
• Default WEP Key to use (1-4)
WPA setting: Cipher type: TKIP
• Shared Key
• Group Key Update Interval: 300
WPA-PSK settings: Cipher type TKIP
• PassPhrase
• Group Key Update Interval: 300
WPA2 settings: Cipher Type AES/CCMP
• Shared Key
• Group Key Update Interval: 300
WPA2-PSK settings: Cipher type AES/CCMP
• PassPhrase
• Group Key Update Interval: 300
Installation
8001605, Rev. A
Installation
Prerequisites
The following are the prerequisites that you need to adhere to before
attempting to install the Fusion 70 Access Point:
For ease of cable connections, ensure that the access point is near a
hub or computer, as well as a reliable power source.
Ensure that the access point is away from any equipment that might
cause radio signal interference, such as transformers, radar, heavy-
duty motors, microwave ovens, refrigerators, or other.
Mounting the Fusion 70 Access Point
Do the following to mount an access point:
1. Find a solid mounting point on the wall, such as a stud or main
building member. You may need to use a stud finder to find a solid
wooden structure.

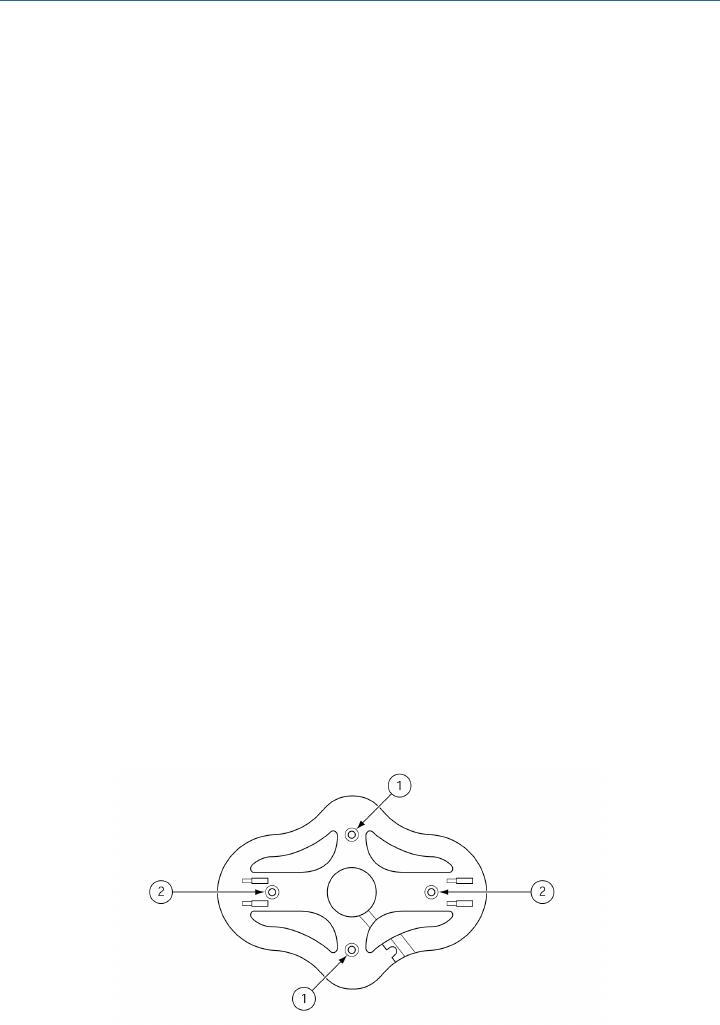

2. Place marks on the wall that correspond to the distance between the
mounting holes located on the mounting bracket. Use the following
guidelines:
Point the mounting bracket tabs upward.
If mounting to drywall, use the four screws and wall anchors.
If mounting to an EU electrical box (60.3mm), insert two screws
(included) into the holes marked “1” (shown below).
If mounting to a US electrical box (83.3mm), insert two screws
(included) into the holes marked “2” (shown below).
3. Connect the Ethernet cable (to use as either power and/or LAN
connection) to the Ethernet port on the bottom of the AP.
If this is a PoE connection, the Power and Link LED flashes green.
Installation
001605, Rev. A 9
4. Connect the power cable to the power connection located on the
bottom of the AP.
The Power LED turns green as soon as power is applied.
5. Mount the AP using the mounting slots located at the bottom of the
AP.
Note: You can also use the slots on the side of the AP if you cannot
mount the AP using the slots on the bottom of the AP.

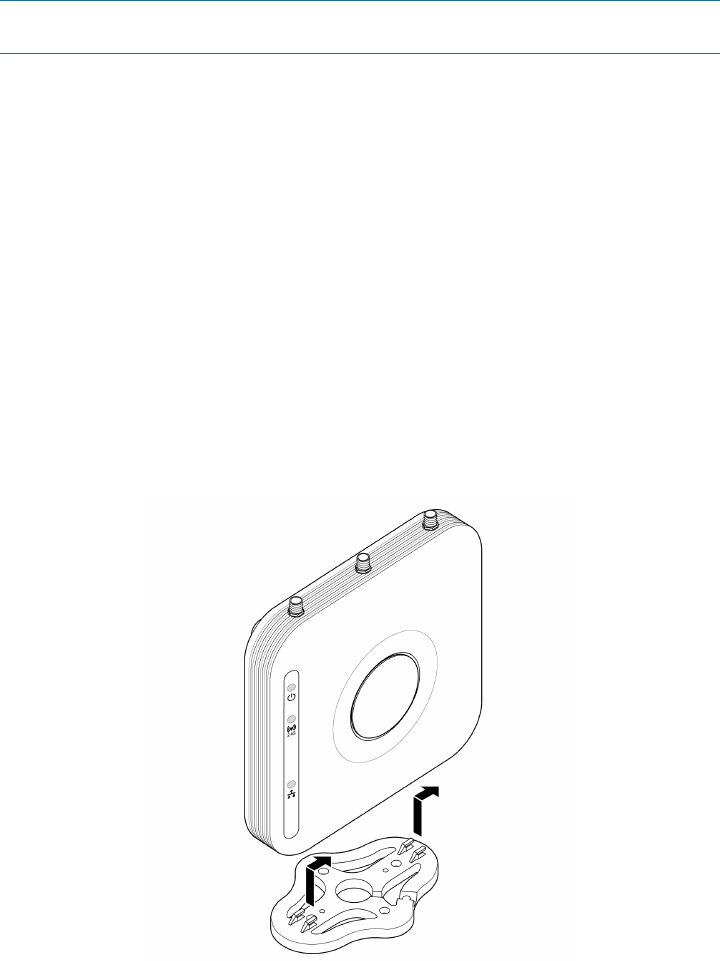

Desktop Mounting
Do the following to place the AP on a table or desktop:
1. Insert the tabs on the table stand into the slots on the side of the AP.
Align the cable routing cutout toward the upper part of the stand.
2. Lock the stand to the AP by sliding the stand back and forward.
3. Place the AP on the table or desktop.
4. Connect the Ethernet cable (for either power or LAN connection) to the
Ethernet port on the bottom of the AP.
The Link LED flashes green when a LAN connection establishes.
5. Connect the power cable to the power connection also located on the
bottom of the AP.
The Power LED turns green as soon as power is applied.
Finding Product Documentation
10 001605, Rev. A
Finding Product Documentation
The documentation CD with this unit includes the following documents:
CompleteMobility Express Web User Interface Reference Manual
CompleteMobility Express CLI Reference Guide
Fusion 70 Installation Guide (also printed)
Fusion 300 Controller Hardware Reference Guide
Fusion 300 and CompleteMobility Express Release Note
To view PDF files, use Adobe Acrobat® Reader® 5.0, or newer. Obtain
Acrobat Reader free from the Adobe website:
http://www.adobe.com/products.
You can find additional documentation at the U4EA support site:
www.u4eatech.com/support.
Downloading the Latest Documentation
Updated versions of product documentation can be downloaded from the
support Web site. To download any information from the support Web
site:
1. Go to URL https://support.u4eatechinc.com/U4EACustomerPortal/
LoginForCustomerPortal.asp
2. Login to your account using your login and password. If
authentication is denied, contact support at support@u4eatech.com.
3. Once logged in, browse through the items available under “My
Downloads” and double-click on the document name to start the
download.
4. Contact support at support@u4eatech.com for more information.
Regulatory Information
001605, Rev. A 11
Regulatory Information
The U4EA Wireless 11b/g/n PoE Access Point (Fusion 70) must be installed and used in strict
accordance with the manufacturer’s instructions as described in the user documentation that comes
with the product.
This product contains encryption. It is unlawful to export out of the U.S. without obtaining a U.S. Export
License.
This product does not contain any user serviceable components. Any unauthorized product changes or
modifications will invalidate U4EA’s warranty and all applicable regulatory certifications and approvals.
Only antennas specified for your region by U4EA can be used with this product. The use of external
amplifiers or non-U4EA antennas may invalidate regulatory certifications and approvals.
Declaration of ROHS Compliance
U4EA Technologies Inc. hereby declares that the product Fusion 70 access point has been designed
and manufactured in accordance with Directive 2002/95/EC of the European Commission on the
restriction of certain hazardous substances in electrical and electronic equipment. (ROHS)

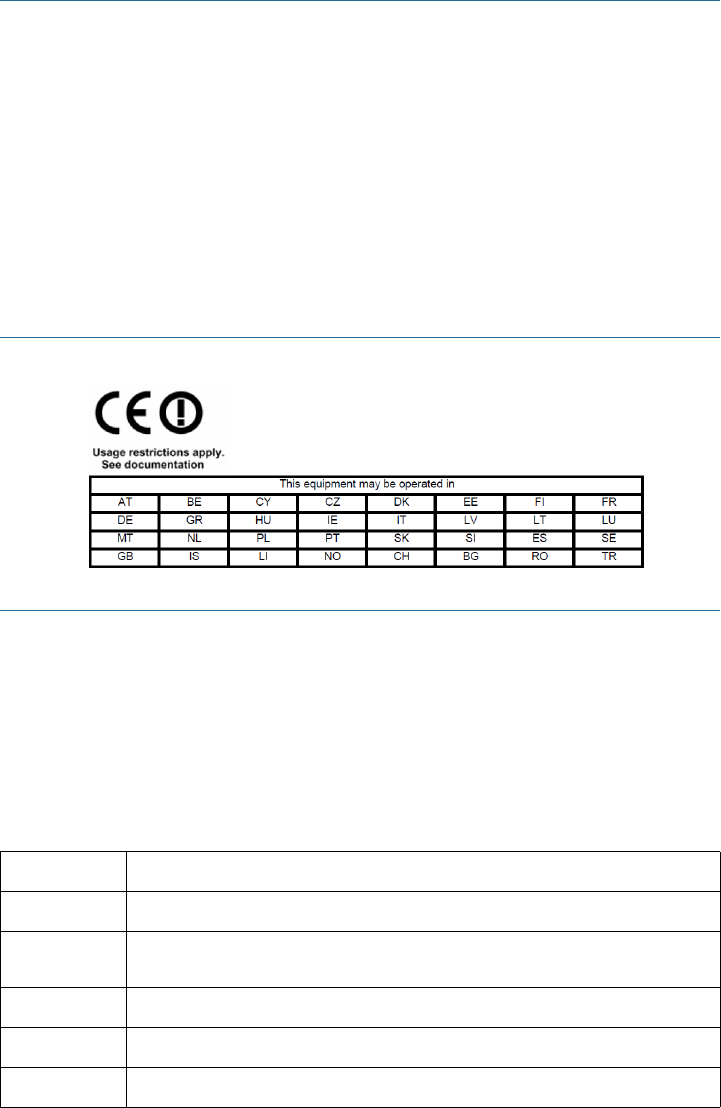

USA—Federal Communications Commission (FCC)
EMC Compliance
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment. This device and its antenna(s)
must not be co-located or operating in conjunction with any other antenna or transmitter.
IMPORTANT NOTE: FCC Radiation Exposure Statement:
This equipment complies with FCC / IC RSS-102 radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm between
the radiator & your body.
FCC NOTICE: To comply with FCC part 15 rules in the United States, the system must be professionally
installed to ensure compliance with the Part 15 certification. It is the responsibility of the operator and
professional installer to ensure that only certified systems are deployed in the United States. The use
of the system in any other combination (such as co-located antennas transmitting the same information)
is expressly forbidden.
This device has been designed to operate with an antenna having a maximum gain of 3 dBi. Antenna
having a higher gain is strictly prohibited per regulations of Industry Canada. The required antenna
impedance is 50 ohms
Only the antennas listed below are allowed to be used with the radio.
Manufacturer’s FCC Declaration of Conformity
Model Number: Fusion 70
U4EA Technologies, Inc
Fremont, CA
January 7, 2009
Equipment Type: WLAN Access Point
Complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Safety Compliance Notice
This device has been tested and certified according to the following safety standards and is intended
for use only in Information Technology Equipment which has been tested to these or other equivalent
standards:
• EN60950-1
• IEC 60950-1
• UL 60950-1
Ant Antenna Type Model Name Product
description
2.4 GHz Gain
(dBi)
Tx/Rx mode Remark
1 Monopole Ant. TWX-
145XRSXX-361
2dBi Dual-Band
Omni Antenna 22T3R
Main Ant. for
test
2 PCB Ant. TFF-
A015MPAX-361
Integrated PCB
Antenna 32T3R
Main Ant. for
test
INDUSTRY CANADA — RF COMPLIANCE
001605, Rev. A 13
INDUSTRY CANADA — RF COMPLIANCE
This device complies with RSS 210 of Industry Canada.
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2)
this device must accept any interference, including interference that may cause undesired operation of
this device.
L’utilisation de ce dispositif est autorisée seulement aux conditions suivantes: (1) il ne doit pas produire
de brouillage et (2) l’utilisateur du dispositif doit étre prêt à accepter tout brouillage radioélectrique reçu,
même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif.
The term “IC” before the equipment certification number only signifies that the Industry Canada
technical specifications were met.
To reduce potential radio interference to other users, the antenna type and its gain should be so chosen
that the equivalent isotropically radiated power (EIRP) is not more than that required for successful
communication. To prevent radio interference to the licensed service, this device is intended to be
operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit
antenna) that is installed outdoors is subject to licensing.
Pour empecher que cet appareil cause du brouillage au service faisant l'objet d'une licence, il doit etre
utilize a l'interieur et devrait etre place loin des fenetres afin de Fournier un ecram de blindage maximal.
Si le matriel (ou son antenne d'emission) est installe a l'exterieur, il doit faire l'objet d'une licence.
High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands.
These radar stations can cause interference with and/or damage this device.
This device must not be co-located or operated in conjunction with any other antenna or transmitter
Industry Canada - Emissions Compliance Statement
This Class B digital apparatus complies with Canadian ICES-003.
Avis de Conformité à la Réglementation d'Industrie Canada
Cet appareil numérique de la classe B est conform à la norme NMB-003 du Canada.
Canada C Request
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2)
this device must accept any interference, including interference that may cause undesired operation of
the device.
To reduce potential radio interference to other users, the antenna type and its gain should be so chosen
that the equivalent isotropically radiated power (EIRP) is not more than that required for successful
communication
This device has been designed to operate with an antenna having a maximum gain of 3 dBi. Antenna
having a higher gain is strictly prohibited per regulations of Industry Canada. The required antenna
impedance is 50 ohms.
The County Code Selection feature is disabled for products marketed in the US/Canada
This Class [B] digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.
Only the antennas listed below are allowed to be used with the radio.
EU Declaration of Conformity
14 001605, Rev. A
EU Declaration of Conformity
We, the undersigned, on behalf of U4EA Technologies, Inc., hereby declare that the products listed
below conform to the relevant provisions of the legislation, as well as pertinent clauses of the standards
and other normative documents mentioned herein.
Type of product:
Access Point
Product name/model:
Fusion 70
Intended use:
Provide effective provisioning of converged VOIP and data services. For public and private use.
Legislation
• 1999/5/EC
EU Compliance
Identity Description
EU
• EN 300 328 CE
• EN 301 489 CE
• EN 301 893 CE
• EN 60950-1 Safety
IEC 60950-1 Safety
Intended use: IEEE 802.11b/g radio LAN device
NOTE: To ensure product operation is in compliance with local regulations, select the country in which
the product is installed.
Cesky [Czech] U4EA Coporation timto prohla.uje, .e tento RLAN device je ve shod. se zakladnimipo.adavky a
dal.imi p.islu.nymi ustanovenimi sm.rnice 1999/5/ES.
Dansk [Danish] Undertegnede U4EA erklarer herved, at folgende udstyr RLAN device overholder de vasentlige
krav og ovrige relevante krav i direktiv 1999/5/ EF.
Deutsch [German]
Hiermit erklart U4EA , dass sich das Gerat RLAN device in Ubereinstimmung mit den
grundlegenden Anforderungen und den ubrigen einschlagigen Bestimmungen der Richtlinie
1999/5/EG befindet.
Eesti [Estonian] Kaesolevaga kinnitab U4EA seadme RLAN device vastavust direktiivi1999/5/EU pohinouetele
ja nimetatud direktiivist tulenevatele teistele asjakohastele satetele.
English Hereby, U4EA , declares that this RLAN device is in compliance with the essential requirements
and other relevant provisions of Directive 1999/5/EC.
Espanol [Spanish] Por medio de la presente U4EA declara que el RLAN device cumple con los requisitos
esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
EU Declaration of Conformity
001605, Rev. A 15
EU - Restrictions For Use In The 2.4GHZ Band
This device may be operated indoors or outdoors in all countries of the European Community using the
2.4 GHz band: Channels 1–13, except where noted below.
• In Italy the end-user must apply for a license from the national spectrum authority to operate this
device outdoors.
• In Belgium outdoor operation is only permitted using the 2.46–2.4835GHz band: Channel 13
• In France outdoor operation is only permitted using the 2.4–2.454GHz band: Channels 1 – 7.
BRAZIL RF COMPLIANCE
Este equipamento opera em caráter secundário, isto é, nao tem direito a proteçao contra interferencia
prejudicial, mesmo de estaçoes do mesmo tipo, e nao causar interferencia a sistema operando em
caráter primário.
KOREA RF COMPLIANCE
This device may cause radio interference during its operation. Therefore service in relation to human
life security is not available.
Ελληνική [Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ U4EA Corporation ΔΗΛΩΝΕΙ ΟΤΙ RLAN device
ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ
ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
Francais [French] Par la presente U4EA declare que l'appareil RLAN device est conforme aux exigences
essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.
Italiano [Italian] Con la presente U4EA dichiara che questo RLAN device e conforme ai requisiti essenziali ed
alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latviski [Latvian] Ar .o U4EA deklar., ka RLAN device atbilst Direkt.vas 1999/5/EK b.tiskaj.m pras.b.m un citiem
ar to saist.tajiem noteikumiem.
Lietuviu
[Lithuanian]
Šiuo U4EA Corporation deklaruoja, kad šis RLAN device atitinka esminius reikalavimus ir kitas
1999/5/EB Direktyvos nuostatas.
Nederlands [Dutch] Hierbij verklaart U4EA dat het toestel RLAN device in overeenstemming is met de essentiele
eisen en de andere relevante bepalingen van richtlijn1999/5/EG.
Malti [Maltese] Hawnhekk, U4EA Corporation, jiddikjara li dan RLAN device jikkonforma malhtigijiet essenzjali u
ma provvedimenti ohrajn relevanti li hemm fid-Dirrettiva 1999/5/EC.
Magyar
[Hungarian]
Alulírott, U4EA Corporation nyilatkozom, hogy a RLAN device megfelel a vonatkozó alapvetõ
követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.
Polski [Polish] Niniejszym U4EA o.wiadcza, .e RLAN device jest zgodny z zasadniczymi wymogami oraz
pozosta.ymi stosownymi postanowieniami Dyrektywy 1999/5/EC.
Portugues
[Portuguese]
U4EA declara que este RLAN device esta conforme com os requisitos essenciais e outras
disposicoes da Directiva 1999/5/CE.
Slovensko
[Slovenian]
U4EA Corporation izjavlja, da je ta RLAN device v skladu z bistvenimi zahtevami in ostalimi
relevantnimi določili direktive 1999/5/ES.
Slovensky [Slovak] U4EA Corporation týmto vyhlasuje, že RLAN device spĺňa základné požiadavkya všetky
príslušné ustanovenia Smernice 1999/5/ES.
Suomi [Finnish] U4EA vakuuttaa taten etta RLAN device tyyppinen laite on direktiivin 1999/5/EY oleellisten
vaatimusten ja sita koskevien direktiivin muiden ehtojen mukainen.
Svenska [Swedish] Harmed intygar U4EA att denna RLAN device star I overensstammelse med de vasentliga
egenskapskrav och ovriga relevanta bestammelser som framgar av direktiv 1999/5/EG.
Íslenska [Icelandic] Hér með lýsir U4EA Corporation yfir því að RLAN device er í samræmi við
grunnkröfur og aðrar kröfur, sem gerðar eru í tilskipun 1999/5/EC.
Norsk [Norwegian] U4EA erklarer herved at utstyret RLAN device er i samsvar med de grunnleggende krav og
ovrige relevante krav i direktiv 1999/5/EF.
454 Kato Terrace
Fremont, CA 94539
www.u4eatech.com
