LITE ON TECHNOLOGY KB24RF001 WIRELESS USB KEYBOARD User Manual
Lite-on Technology Corp. WIRELESS USB KEYBOARD
USERS MANUAL
The class B digital appartaus meets all requirement of Canadian Interference-Causing Equipment Regulation.

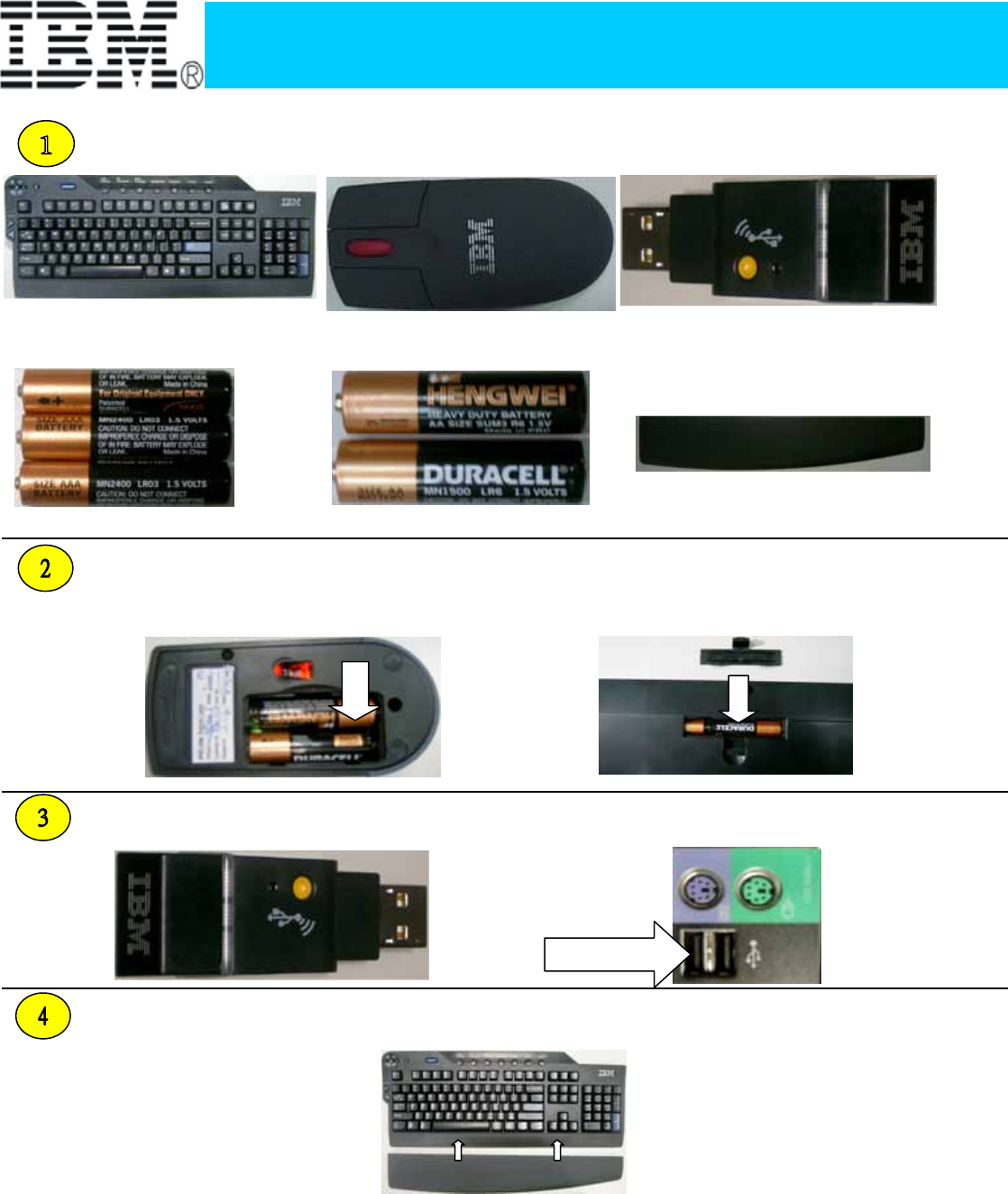

What you will need:
Keyboard Dongle
Palm Rest
AA Batteries
Insert batteries into Mouse and Keyboard.
Do not press the yellow connect buttons.
Mouse optical sensor will light if batteries are placed properly.
Mouse
Connect Dongle to any USB port on the computer.
Optional: Attach Keyboard palm rest.
Setting up your IBM Wireless USB Keyboard & Mouse
AAA Batteries
Turn on your computer to begin use. If you purchased your IBM Wireless
Keyboard & Mouse with a IBM computer system, Setup is complete! If you
purchased your Wireless Desktop separately, insert the software application CD
in CD-ROM drive and double click the Setup.exe file to install. Installation is
complete within 10 seconds.
Hot Key ( Customized)
Connect button: used for manual connect in step c below.
LED is on when bind success within ten seconds.
LED is on when data in & send to host.
Check USB connection. Make sure batteries are inserted proprly
Turn on computer.

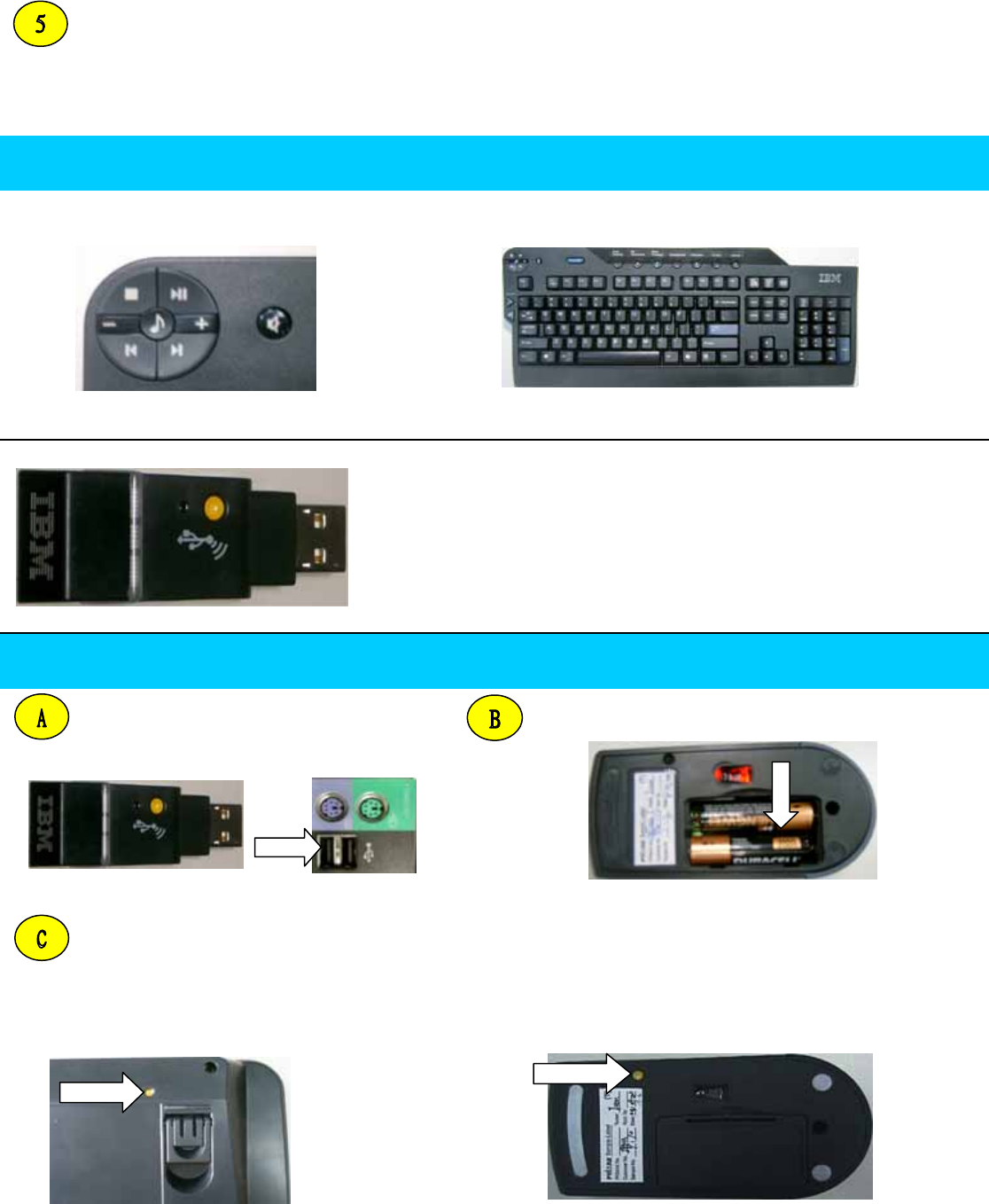

Establish connection manually.
1.First press and release the 2.First press and release the yellow connect button on the
yellow connect button on the mouse and then the dongle.
keyboard and then the dongle.
Keyboard and Mouse not Responding?
Getting to know the Keyboard and Dongle.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. End users must follow the specific operating instructions for satisfying RF exposure
compliance.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
