Locix
Locix Outdoor HD Camera
Model No.: L-WC-01-40-IP65, L-WC-01-110-IP65
User’s Manual
![](/img.php?id=4033552&img=bg2.png)
Confidential and Proprietary of LiteON
- 2 -
1. PRODUCT HISTORY
1.1. PURPOSE
This document contains the product specification of Dragonfly camera.
Date Release Author Description
2017/12/04 0.1 Tommy Lin • Primary Release
2017/12/11 0.2 Matt Davidson • Edits
2017/12/21 0.3 Tommy Lin • 4 pcs battery change to 2 pcs design
![](/img.php?id=4033552&img=bg3.png)
Confidential and Proprietary of LiteON
- 3 -
2. INTRODUCTION
THE LOCIX BATTERY POWERED SENSOR/CAMERA PROVIDES FULL HD 720P WIDE VIEW
ANGLE AND OVER 3 YEARS BATTERY LIFE (@ 1 IMAGE PER HOUR) AND SUPPORT 10
METERS MOTION DETECTION AND CLEAR NIGHT VISION. THIS CAMERA ALSO PROVIDES
EASY INSTALLATION INCLUDING WALL MOUNT AND HUB CONNECTTED AUTOMATICALLY.
The main feature as following:
1. Sub-1G : The camera has good wireless performance and reliable connection with hub.
2. Night Vision: The camera supports 10 meters visible distance in the 0 lux environment.
3. Battery Life: The camera powered by 2pcs AA non-rechargeable battery
4. Installation: The camera supports automatic connection with hub and wall mount.
5. Water/Dust Proof: The camera supports IP65.
![](/img.php?id=4033552&img=bg4.png)
Confidential and Proprietary of LiteON
- 4 -
3. SPECIFICATION
3.1. HARDWARE BLOCK DIAGRAM
(Localization module optional)
![](/img.php?id=4033552&img=bg5.png)
Confidential and Proprietary of LiteON
- 5 -
3.2. SYSTEM AND HARDWARE SPECIFICATION
System
H.1 Processor
• Ti CC1310
H.2 ROM • 128 M bit
H.3 Power supply • AA 2pcs
H.4 Power Consumption • Max. 3W
H.5 Environment • Operation: Temp: -20℃ ~ 60℃ Humidity: 0% ~ 85% non-condensing
• Storage: Temp: -25℃ ~ 70℃ Hum idity: 5% ~ 95% non-condensing
Optical
H.6 Image Sensor
• Onsemi MT9M131
H.7 Sensor Size • 1/3” 1.3M pixel CMOS Sensor
H.8 Image Max Resolution
• 1280 X 1024
H.9 F/No • F2.3
H.10 Focus Length • 2.3mm
H.11
Sensitivity
• 0.5 lux@IR_LED Off (minimum)
• 0 lux@IR_LED On
H.12 Focus Depth • 1.5m~Infinity
H.13 View Angle
(Image Raw Data)
Horizontal 113°
Vertical 87°
Diagonal 140°
SOC
H.14 Processor • Ti CC1310
H.15 CPU • ARM Cortex M3
H.16 Clock Speed • Up to 48Mhz
Image Processing
H.17 Codec Processor • Conexant CX93610
H.18 Compression • JPEG/MJPEG
H.19 Resolution Output • 1280 x 1024 Cropping to 1080 x 720
Wireless Interface
H.20 Chipset Model • Ti CC1310
H.21 Host Interface • Internal Built-in
H.22 RF • Sub 1GHz
H.23 Output Power • Up to +13dbm
H.24 Distance • 30 meters (Between Camera to Hub)
![](/img.php?id=4033552&img=bg6.png)
Confidential and Proprietary of LiteON
- 6 -
Antenna specification
H.25 Antenna • Sub-1GHz
- Type : Dipole
- Efficiency : 40% max
- Operating Frequency : 902~928 MHz
• Localization Module
- Type : PIFA
- Efficiency : 40% max
- Operating Frequency : 5150~5850 MHz
Sensor
H.26 Day/Night • Built-in ICR
H.27 Light Sensor • CG5151TA
H.28 PIR • PYD 1698
• Up to 10 Meters
H.29 Temperature /
Humidity
• SHT31-DIS
LED and Button
H.30 Indicator • No
H.31 IR • 6pcs
• 850nm
• Up to 10 Meters
H.32 Reset Button • Reboot Camera
Certification
H.33 Regulatory • FCC part 15 Class A , CE Class A , CB, TELEC, UL/ cUL
H.34 Waterproof Level • IP65
![](/img.php?id=4033552&img=bg7.png)
Confidential and Proprietary of LiteON
- 7 -

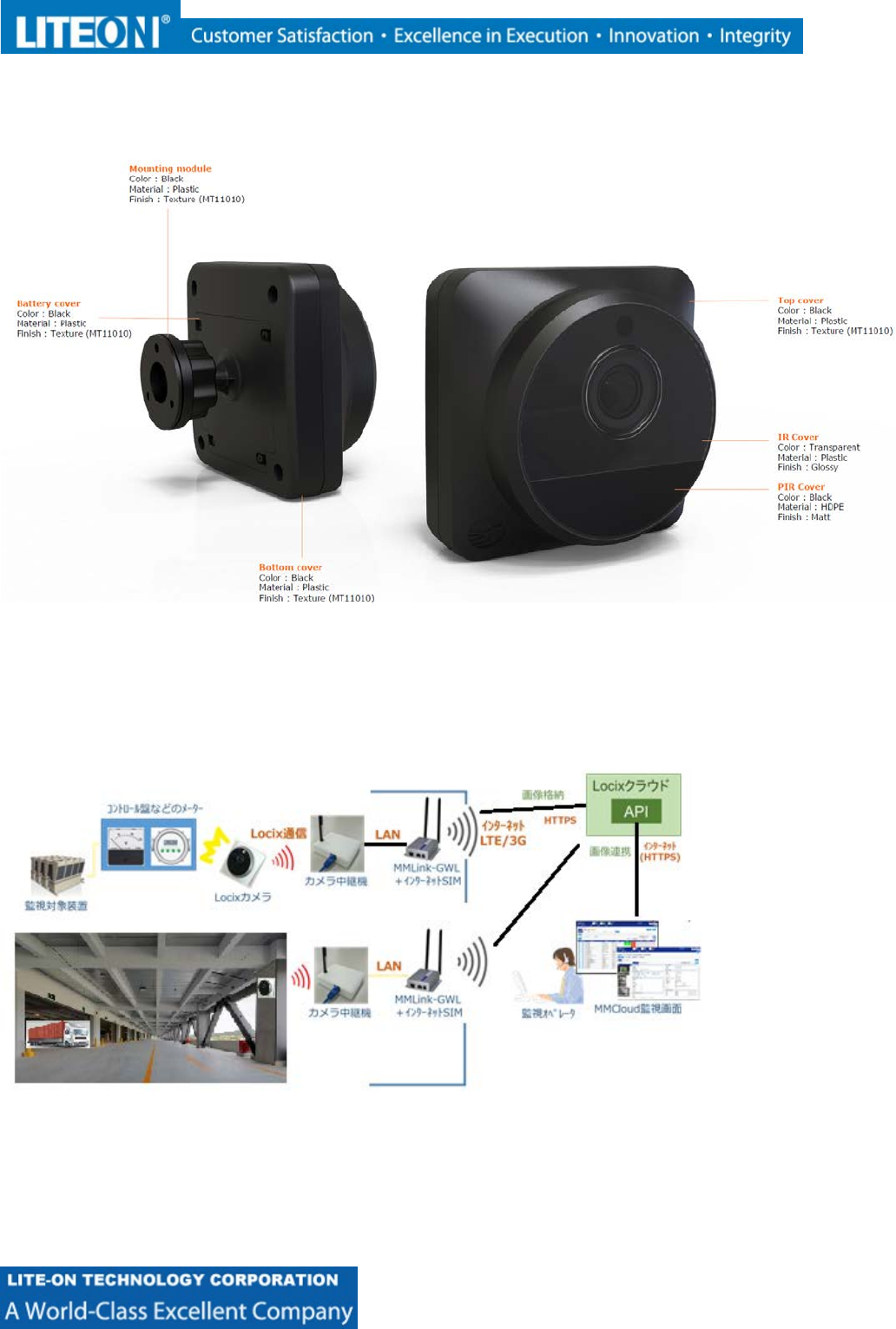

4. ID AND MECHANICAL DESIGN
4.1. OUTLOOK
5. USER SCENARIO
Dragonfly camera can install in the data center or air conditioning room or truck berth to monitor.
