LITE ON TECHNOLOGY MS4 MS4 Module User Manual
LITE-ON Technology Corp. MS4 Module
Users Manual_rev 2.pdf
MS4 Module
CAUTION
1. This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
(for EU market only)
2. The appliance is not to be used by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have
been given supervision or instruction.
Children being supervised not to play with the appliance.
(not for EU market)
3. This appliance must only be supplied at safety extra low voltage corresponding to the
marking on the appliance.
4. The battery must be removed from the appliance before it is scrap;
The appliance must be disconnected from the supply mains when removing the battery;
The battery is to be disposed of safely.
5. WARNING: Important safety instructions. It is important for the safety of persons to follow
these instructions. Save these instructions.
WARNING: the drive shall be disconnected from its power source during cleaning,
maintenance and when replacing parts
WARNING: Important safety instructions. Follow all instructions, since incorrect installation
can lead to severe injury
6. - do not allow children to play with fixed controls. Keep remote controls away from children
- Frequently examine the installation for imbalance and signs of wear or damage to cables
and springs. Do not use if repair or adjustment is necessary
- do not operate when maintenance, such as window cleaning, is being carried out in the
vicinity;
- Before installing the drive, remove any unnecessary cords or components and disable
any equipment not needed for powered operation;
- That the characteristics of the driven part must be compatible with the rated load and
rated operating time;
7. - the mass and the dimension of the driven part shall be compatible with the rated torque
and rated operating time;
- fixed controls have to be clearly visible after installation;
8. LpA ≤ 70 dB(A).
RF Information
1. Frequency band(s): 2.4GHz
2. Receiver category: Category 2
3. Transmitting power: 80dBm

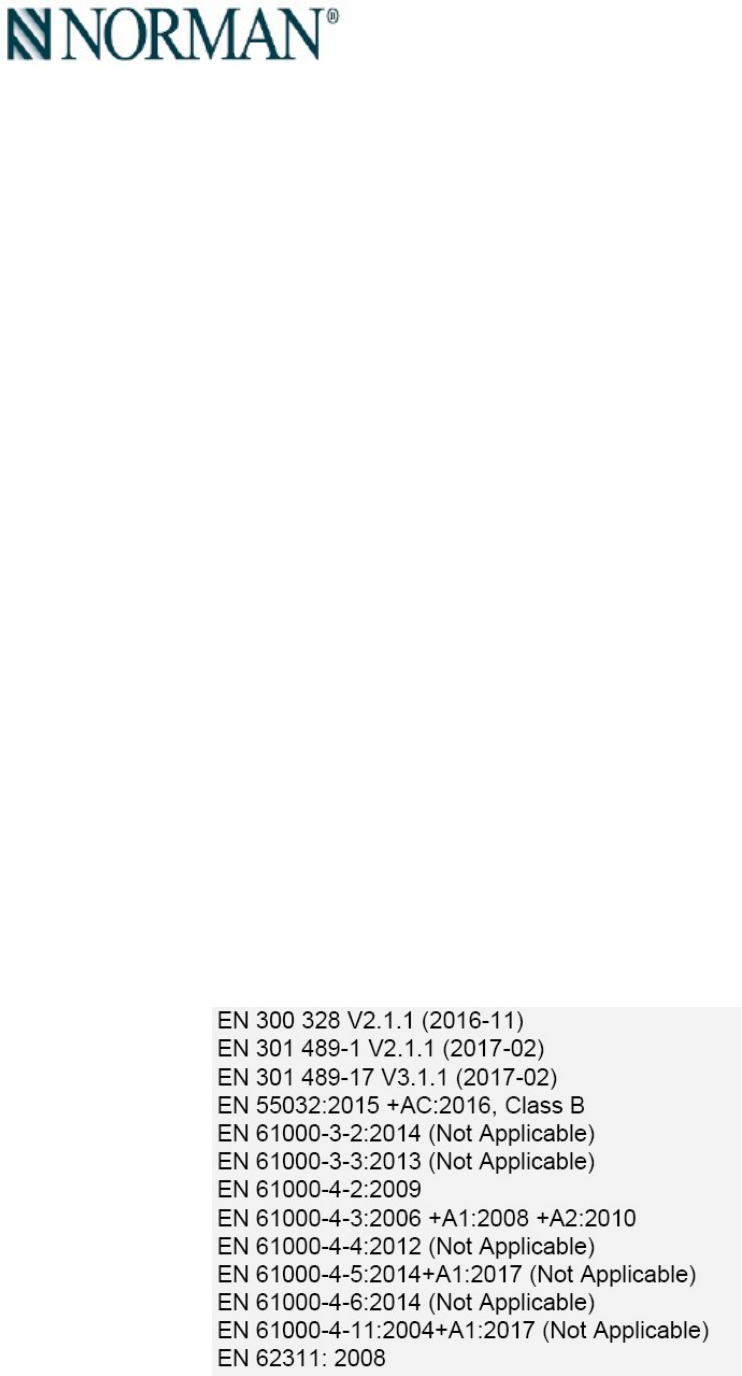

4. EU declaration;
1. MS4 Module Specification
NO Item Specification
1 Power source 3.7V,3000mAh,18650 Li-ion battery cell x2
parallel
2 Battery operating voltage range 4.2V~3.2V
3 Radio type proprietary 2.4G RF
4 Motor type Brush DC motor
6 Output torque 5.0 kgf-cm@7V, 1.8A
7 Solar panel Solar cell : 5V, 120mA@1000W/m2
a-Silicon, efficiency>19.2%
8 Interface USB micro B receptor (water proof)
9 Charge type USB, Solar
10 Charge
capability USB
11
Charge time
@ 3000mAh battery
cell x2
Solar 4W(5V, 0.8A)
USB 0.06W@37000lux (5V,12mA)
12
Power consumption
Solar 10hrs
Standby 300hr@37000lux
13
HW thermal
protection
Radio <0.2mW
Motor@
torque 5kgf-cm <30mW
Charge <5W @ 8 sec from bottom to top
14
FW thermal Discharge H: ≥65°C
L: ≤0°C
protection Charge H: ≥65°C
L: N/A
15
Water and dust proof
Discharge H: ≥60°C
L: ≤0°C
IP54 H: ≥60°C
L: ≤-10°C
16 Operation temperature -5°C~55°C
17 Storage temperature -30°C~75°C
18 Dimension (mm) L332.5*W38.5*H37.5
19 Weight 335.3g
2. MS4 Module Button Define
No Name Description
1 Button 1. On/Off: Turn On/off power of MS4 Module.
2. Pair: In to MS4 Module pair mode.
3. Hardware reboot: Reboot MS4 Module.
3. MS4 Module Functions
No
Function Description
1 Power on 1. Press the button for 3 seconds when MS4 Module powered
off.
2. Green LED blinking for 1 second.
3. MS4 Module powered on and start calibration.
2 Power off 1. Press the button for 3 seconds when MS4 Module powered
on.
2. Red LED on for 1 second.
3. MS4 Module powered off.
3 Hardware reboot
(while Firmware
crash)
1. Press the button for 10 seconds.
2. MS4 Module powered off.
3. Release the button and press another 3 seconds.
4. MS4 Module powered on and start calibration.
4 USB charging 1. User can charge MS4 Module by Micro USB interface with
5V.1A power bank or adaptor. Green LED will blinking while
charging, and green LED will on while full charged.
2. Red LED on indicated no battery or battery opposite installed,
which is abnormal situation, needs check immediately.
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this
equipment.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
