LITE ON TECHNOLOGY MS8863 Lenovo wireless zone touch mouse User Manual
Lite-on Technology Corp. Lenovo wireless zone touch mouse
User Manual
ZTM600 Wireless Touch Mouse /SD-9082 USB Dongle Product Guide
Getting Started
Thank you for choosing this 2.4G Wireless Mouse Kits. It operates with digital radio technology to ensure no hinder
communication among the mouse and your computer without connecting cable.
The transmission and receiving of mouse are free from angle restriction.

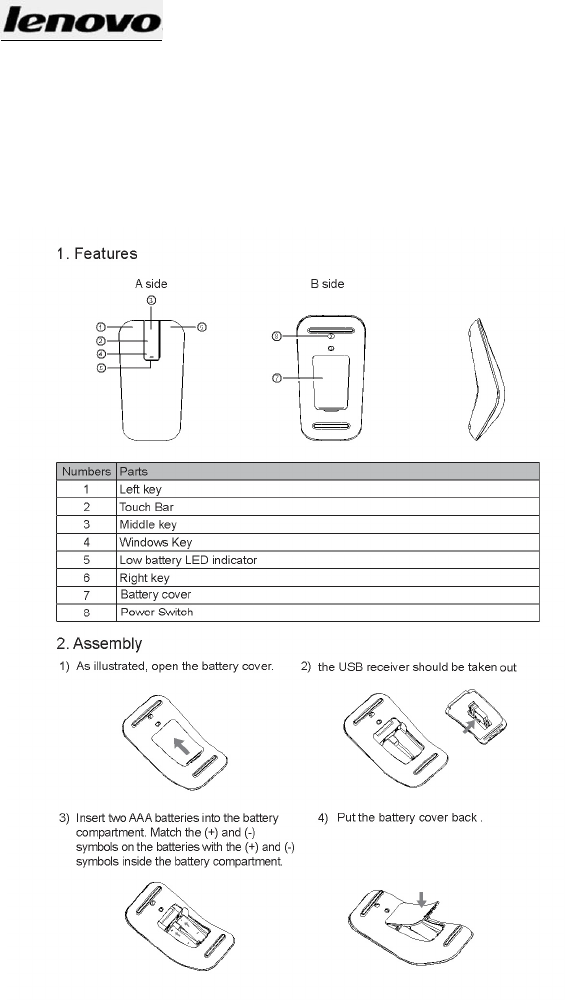

Preparing mouse and Dongle
Before working with your new mouse, please look at the "Hardware Installation", and take a few one-time preparations.
Designation Value
Modulation GFSK
Operating Frequency 2403MHz~2480MHz
channel 78 channel 2.4GHz ISM Band
Storage temperature –20 °C ... +60 °C
Operating temperature 0 °C ... +40 °C
Mouse Battery type One alkaline battery, type AAA
Mouse Supply voltage 1.5V(1.2~1.65V)
Mouse Current consumption max. 50 mA
Dongle Supply voltage DC 5.0 V ±5 %
Dongle Current consumption max..100 mA
-7-
FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, Pursuant to Part 15 the
FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
● Consult the dealer or an experienced radio/TV technician for help.
This Class B device complies with part 15 of the FCC rules, Canada ICES-003,RSS-210.Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any
interference received, including interference that may cause undesired operation.
Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux appareils radio exempts de licence.
Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage
préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un
fonctionnement indésirable.
