LITE ON TECHNOLOGY MZ0100S-0 Zigbee Module User Manual MZ0100S 0
LITE-ON Technology Corp. Zigbee Module MZ0100S 0
User Manual
MZ0100S-0 Product Specification Page 1/9
LTC Network Access Confidential
PRODUCT REQUIREMENT SPECIFICATION
MZ0100S-0
ZigBee Module
Version 1.0
Author: Javon Tseng Editor: Javon Tseng
Project Leader: Daniel KW Yang Approved by: Daniel KW Yang
Change History
Revision Date Author Change List
1 Aug.10, 2015 Rocky Chen Initial
* This document contains confidential proprietary information and is property of LTC. The contents of
this document should not be disclosed to unauthorized persons without the written consent of LTC.
MZ0100S-0 Product Specification Page 2/9
LTC Network Access Confidential
C
ONTENT
1.
PRODUCT OVERVIEW ..............................................................................................................3
1.1
DESCRIPTION ........................................................................................................................3
1.2
FEATURES............................................................................................................................... 3
1.3
GENERAL SPECIFICATIONS ..........................................................................................3
2.
PIN ASSIGNMENT AND DESCRIPTION.................................................................................5
3.
RECOMMENDED FOOTPRINT ................................................................................................ 6
MZ0100S-0 Product Specification Page 3/9
LTC Network Access Confidential
1. Product Overview
1.1 Description
The MZ0100S-0, ZigBee Module is using 32-bit ARM® Cortex®-M3 microprocessor and
an integrated ultra-low power 2.4GHz ISM band, compliance with IEEE 802.15.4
transceiver. These ZigBee Module is available in 33-pin stamp holes packages with up to
512KB Flash, and 64KB of SRAM. MZ0100S is based on
SILICON LABS EM3585
single chip
ZigBee solution the Wireless sensor networking, Industrial control, Machine-to-Machine
(M2M) and emerging Internet of Things (IoT) markets.
1.2 Features
32-bit ARM Cortex-M3 Processor
Frequency 2.4 GHz, IEEE 802.15.4 compliant RF transceiver
64KB of RAM
512KB Flash
Support on-chip OTA, over-the-air, upgrade
Excellent Receiver Sensitivity of -100dBm
Programmable Output Power up to +7dBm, configurable
Operating temp: -40~85
o
C
Total 33-pin Stamp Holes, SMT
Type A form factor: 24x17mm
RoHS Compliant
1.3 General
Specifications
RF Chipset SILICON LABS EM3585
Standard 2.4 GHz IEEE 802.15.4-2003 ZigBee
Bus Interface Data: SPI, UART and I2C (SW configurable)
RF Frequency Range 2.405~2.475 GHz (channel 11 -26)
Power Amplify N/A
Transmit Output Power
+7dBm
Receiver Sensitivity -100dBm
Operating Voltage 2.1V~3.6V
Operation temperature
-40~+85
o
C
Power Consumption
Transmit Mode: TBC
Receive Mode: TBC
Deep Sleep Mode: 7uA
Antenna Type 1. Print Antenna
2. Feed Point
MZ0100S-0 Product Specification Page 4/9
LTC Network Access Confidential
Certification &
Environmental
Requirements
FCC/IC/CE
ZigBee
RoHS
MZ0100S-0 Product Specification Page 5/9
LTC Network Access Confidential
2. Pin Assignment and Description
Pin
Number
Module Pin Name
Pin Description
I/O
1
GND
Ground
P
2
GND
Ground
P
3
NC
NC
--
4 nRST Reset Pin. Active Low I
5
PC6
Digital I/O
I/O
6
PC7
Digital I/O
I/O
7
P
A7
Digital I/O
I/O
8
PB3
Digital I/O
I/O
9
PB4
Digital I/O
I/O
10 PA0 Digital I/O I/O
11 PA1/I2C_SDA Digital I/O. I2C_Serial Data I/O
12
GND
Ground
P
13
VDD
Power Source for Module
P
14
P
A2/I2C_SCL
Digital I/O. I2C_Serial Clock
I/O
15 PA3 Digital I/O I/O
16
PA4
Digital I/O
I/O
17
PA5
Digital I/O
I/O
18
P
A6
Digital I/O
I/O
19
PB1/
UART_TX
Digital I/O
.
UART_Tx
I/O
20
PB2/
UART_RX
Digital I/O
.
UART_Rx
I/O
21 JTCLK JTAG Clock Pin. For Debug and
programming.
I
22
PC2
Digital I/O
I/O
23
PC3
Digital I/O
I/O
24 PC4 JTAG Data Pin. For Debug and
programming.
I/O
25
PB0
Digital I/O
I/O
26
PC1
Digital I/O
I/O
27
PC0
Digital I/O
I/O
28
PB7
Digital I/O
I/O
29
PB6
Digital I/O
I/O
30
PB5
Digital I/O
I/O
31
GND
Ground
P
32
RF
RF feed point. Connect to Antenna
O
33
GND
Ground
P
MZ0100S-0 Product Specification Page 6/9
LTC Network Access Confidential

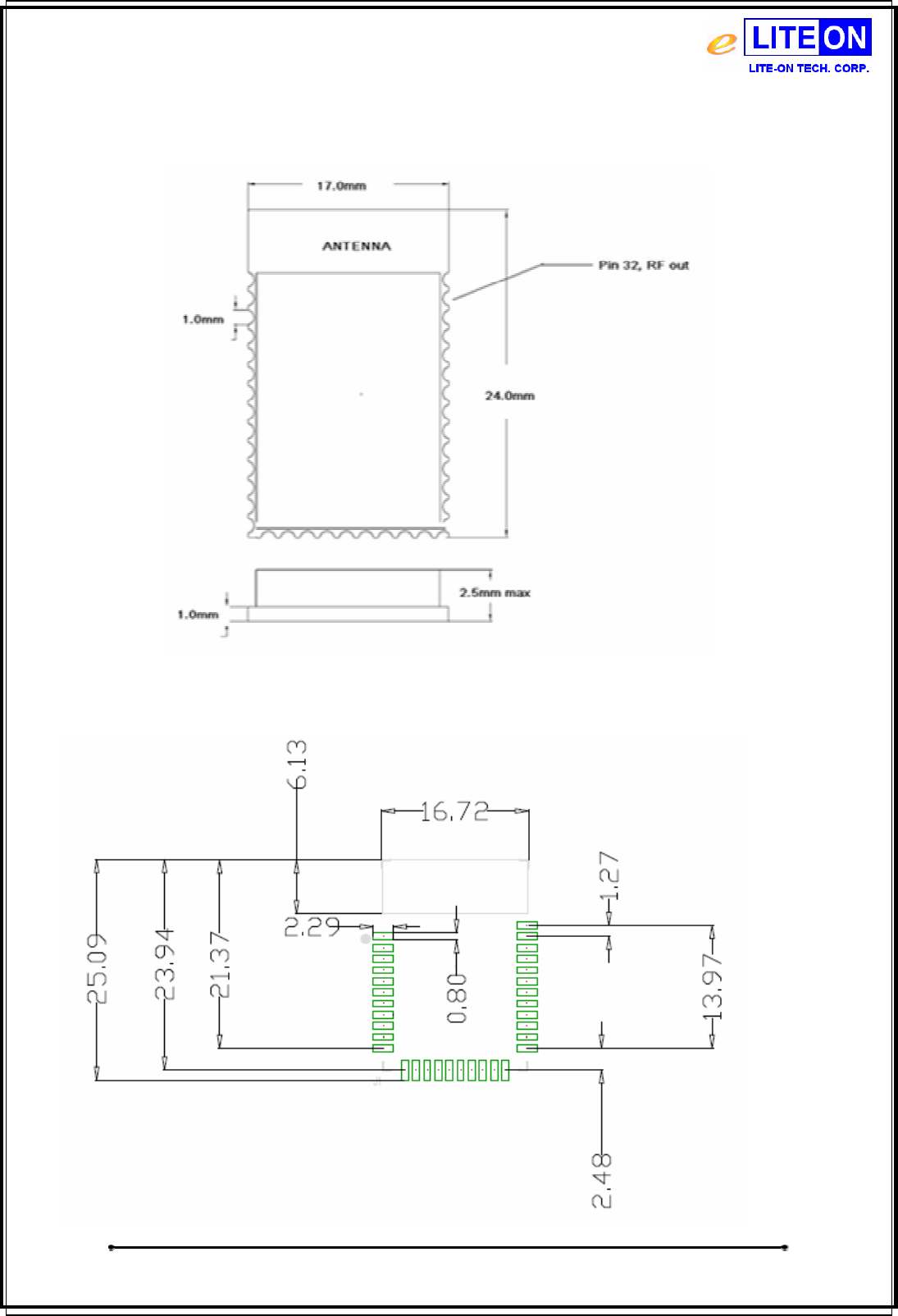

Liteon Type A module
Dimension : 24 x 17 x 2.5mm
3. Recommended FootPrint
MZ0100S-0 Product Specification Page 7/9
LTC Network Access Confidential
FCC WARING STATEMENT
This equipment has been tested and found to comply with the limit s for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment of f and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the p arty responsible for
compliance could void the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
FCC RF Radiation Exposure Statement:
1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with a minimum distance of 20 centimeters between
the radiator and your body.
Information to OEM integrator
The OEM integrator has to be aware not to provide information to the end user regarding how to install or re
move this RF module in the user manual of the end product. The user manual which is provided by OEM inte
grators for end users must include the following information in a prominent location.
1. To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be i
nstalled to provide a separation distance of at least 20 cm from all persons and must not be co-
located or operating in conjunction with any other
antenna or transmitter, except in accordance with FCC multi‐transmitter product
transmitter product procedures.
MZ0100S-0 Product Specification Page 8/9
LTC Network Access Confidential
2. Only those antennas with same type and lesser gain filed under this FCC ID number can be used with this
device.
3. The regulatory label on the final system must include the statement: “Contains FCC ID: PPQ-MZ0100S-
0 “.
4. The final system integrator must ensure there is no instruction provided in the user manual or cu
stomer documentation indicating how to install or remove the transmitter module except such devic
e has implemented two‐ways authentication between module and the host system.
MZ0100S-0 Product Specification Page 9/9
LTC Network Access Confidential
IC WARING STATEMENT
Canada, Industry Canada (IC) Notices
This Class B digital apparatus complies with Canadian ICES-003 and RSS-247.
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
Canada, avis d'Industry Canada (IC)
Cet appareil numerique de classe B est conforme aux normes canadiennes ICES-003 et
RSS-247.IC
Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit
pas causer d'interference et (2) cet appareil doit accepter toute interference, notamment
les interferences qui peuvent affecter son fonctionnement.
Radio Frequency (RF) Exposure Information
The radiated output power of the Wireless Device is below the Industry Canada (IC)
radio frequency exposure limits. The Wireless Device should be used in such a manner
such that the potential for human contact during normal operation is minimized.
This device has also been evaluated and shown compliant with the IC RF Exposure
limits under mobile exposure conditions. (antennas are greater than 20cm from a
person's body).
Informations concernant l'exposition aux frequences radio (RF)
La puissance de sortie emise par l’appareil de sans fil est inferieure a la limite
d'exposition aux frequences radio d'Industry Canada (IC). Utilisez l’appareil de sans fil
de facon a minimiser les contacts humains lors du fonctionnement normal.
Ce peripherique a egalement ete evalue et demontre conforme aux limites d'exposition
aux RF d'IC dans des conditions d'exposition a des appareils mobiles (les antennes se
situent a moins de 20 cm du corps d'une personne).
