LITE-ON Technology Corp. 802.11 b/g WLAN Printer Server Module Manual
Manual
1
Manual of WiSoC-based 802.11g/b WLAN Pocket-Sized Print Server Module
Rev. 1.0
Product Description
Pocket-sized 802.11g/b 1-USB 2.0 High-speed-port print server Module
Draft Specifications
A. Hardware
WiSoC ARM9-based highly-integrated WiSoC (Marvell 88W8510H), operating at
160MHz.
RF Companion RF transceiver of WiSoC (Marvell 88W8000G)
Flash (Default) 2Mbytes
SDRAM (Default) 8Mbytes (2Mbits x 32)
USB Host
Controller
USB 2.0 High-speed PCI-based host controller (NEC µPD720101)
1. Provides standard 5V, 500mA bus power
2. Supports 1.5Mbps (low speed), 12Mbps (full speed), and 480Mbps
(high-speed) data transmission rates. This port automatically detects
the make and model of the USB printer
Antenna (Default) Internal PIFA antenna x 2
(Reserved) 1 IPEX antenna connector to external SMA antenna
LAN Port (Optional) 10/100Mbps RJ-45 connector, with 2 LED lights, indicating 10
or 100Mbps network connectivity
Power (Input) 5V DC, 2A (mini power jack)
LED Lights Status, WLAN Active, USB Active, 10/100Mbps (on RJ-45 connector)
DIP Switch Yes (Normal & Diagnostic modes)
PCB board Type: Double-sided SMT 6-layered PCB
Dimensions: 53.5 x 85 mm
EMI / Radio
Frequency
CE/ETSI, FCC Class B, VCCI Class B, Telec
Others Reset button
* This product does not support use of USB hubs for daisy-chained connection,
USB-to-Parallel connectors, or USB cable extenders.
** The LAN port is not available due to the target size of the PCB board.
Model name: OkiLAN 410w
2
B. Hardware System Block Diagram
Wi
S
o
C
(
Marvell
ARM9-based
88W8510)
Flash
(2Mbytes)
SDRAM
(8Mbytes)
USB 2.0 HS Host
Controller
802.11g(b)
WLAN RF
Transceiver
(Marvell
88W8000G)
& Other RF
Components
USB
Internal PIFA
Antenna
10/100M
3

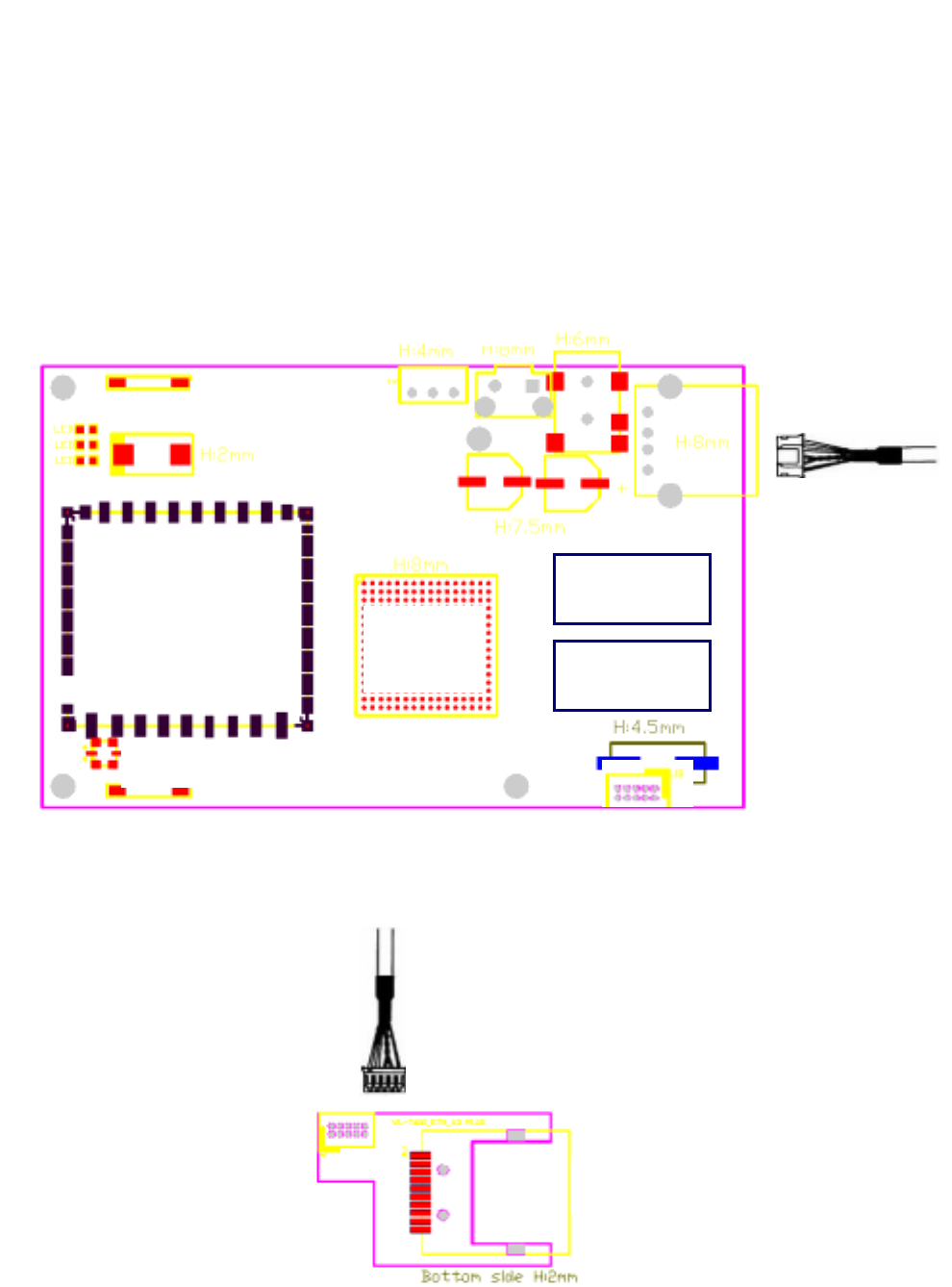

C. Connect 802.11 b/g Printer Server Module with Printer Mainboard
1) Connect 802.11 b/g printer server module with printer mainboard via USB
2.0 cable with Type A connectors on both sides.
11 b/g Printer Server Module
Printer Mainboard
USB Type
A
Connector
Marvell RF
Transceiver
& Other RF
parts
(Shielded) Marvell
88W8510
WiSoc
DIP Switch Reset
Power Jack
(Input: 5VDC,
2A
)
Flash (2Mbytes)
SDRAM
(8Mbytes)
PIFA Antenna - P
PIFA Antenna - S
LAN board Connector
Main board connector
10/100Mbps RJ-45
Connector
USB Type
A
Connector
4
802.11g(b) Wireless
Standard Complies with IEEE 802.11g and 802.11b standard
Radio Frequency 2.4GHz ISM Band
Radio Frequency Band 2400 - 2483.5 MHz (U. S., Canada ; Channel 1 ~ 11)
2400 – 2483.5 MHz (Europe ; Channel 1 ~ 13)
2400 – 2497 MHz (Japan; 802.11b: Channel 1 ~ 14; 802.11g: Channel
1 ~ 13)
Media Access Control Method Carrier Sense Multiple Access / Collision Avoidance (CSMA/CA), with ACK
Modulation Types 802.11g: OFDM (64QAM, 16QAM, QPSK, BPSK)
802.11b: CCK (11 & 5.5Mbps), DQPSK (2Mbps), DBPSK (1Mbps)
Operating Channels 11 Channels (U. S. & Canada); 13 Channels (Europe) ; 14 Channels
(Japan)
Output Power 802.11g: 13 +/- 1 dBm
802.11b: 13 +/- 1 dBm
Sensitivity 802.11g 54Mbps: -69 ~ -70dBm @PER<10%
802.11b 11Mbps: -85dBm @PER<8%
Modes 802.11b Ad-Hoc and 802.11g/b Infrastructure (User-definable via Web
management interface)
Supported Data
Transmission Rate
1Mbps, 2Mbps, 5.5Mbps, 6Mbps, 9Mbps, 11Mbps, 12Mbps, 18Mbps,
24Mbps, 36Mbps, 48Mbps, 54Mbps
D. Software
Real-time OS & Protocol Stack eCos-based RTOS/BSD-based Protocol Stack
WLAN Security 1. WEP Encryption: 40- and 104-bit (alphanumeric &
hexadecimal key format)
2. WPA (Wi-Fi Protected Access):
WPA-Preshared Key (PSK) and WPA2-Preshared Key,
including TKIP / AES - CCMP encryption (compliant
with IEEE 802.11i standard)
Advanced 802.11 Settings Authentication methods (Open System / Shared Key),
Beacon Interval, Preamble
Easy-to-Use Windows Setup Wizard Yes (Print Server Setup Wizard)
Network Operating System Support Windows 95/98/98SE/Me, Windows NT
4.0/2000/XP/2003, Mac OS 8.1 or higher, UNIX/Linux
LPR printing (RFC1179), NetWare (Bindery/NDS)
5
Network Protocol Support TCP/IP, IPX, NetBEUI, AppleTalk, LPR, RAW TCP Port
9100
Internet Printing Protocol (IPP) Support Yes
Windows Print Monitor Technology Yes
DHCP (client) Support Yes
Management Interfaces 1. Web Interface
2. Windows-based Setup Program
Software Upgradeable Yes (Web browser, Windows-based Setup Program,
and TFTP)
SNMP & HP Web JetAdmin Support Yes
6
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware-limited to
channels 1 through 11.
7
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20 cm is maintained between the antenna
and users, and
2) The transmitter module may not be co-located with any other transmitter or
antenna,
3) For all products market in US, OEM has to limit the operation channels in CH1 to
CH11 for 2.4G band by supplied firmware programming tool. OEM shall not supply
any tool or info to the end-user regarding to Regulatory Domain change.
As long as 3 conditions above are met, further transmitter test will not be required.
However, the OEM integrator is still responsible for testing their end-product for any
additional compliance requirements required with this module installed (for example,
Printer server, PC peripheral requirements, etc.).
IMPORTANT NOTE: In the event that these conditions can not be met (for example
certain laptop configurations or co-location with another transmitter), then the FCC
authorization is no longer considered valid and the FCC ID can not be used on the final
product. In these circumstances, the OEM integrator will be responsible for re-evaluating
the end product (including the transmitter) and obtaining a separate FCC authorization.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be
installed such that 20 cm may be maintained between the antenna and users. The final
end product must be labeled in a visible area with the following: “Contains FCC ID:
PPQ-OKILAN410W”.
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user regarding
how to install or remove this RF module in the user’s manual of the end product which
integrates this module.
The end user manual shall include all required regulatory information/warning as show in
this manual.
8
Canadian Regulatory Wireless Notice
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to
the following two conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may cause
undesired operation of the device
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
20cm between the radiator and your body.
