1.Feature
R-RB5;C-UR37 is a wireless product, It is very useful tool for presentation.R-RB5 is a
receiver. Basically R-RB5 is a remote controller and we called it “Presenter”. This product
operate at 2.4 GHz frequency.
End- user use this product can easy to control Microsoft PowerPoint software.
Receiver (C-UR37) is use USB(Universal Serial BUS) interface to connect with computer
.
R-RB5 is a remote controller to control Microsoft PowerPoint software.
It has 6 buttons to control Microsoft PowerPoint software.
These buttons are :
1. Start/Stop : Play and Stop
2. Black Screen: Disable the screen
3. Backward: Previous page
4. Forward: Next page
5. Volume UP: .To increase speaker volume.
6. Volume Down: To reduce speaker volume.
Below 6 buttons must operate at Microsoft Power point software.
Laser Button:
When we press this button , the presenter will launch laser light , this light will
help audience to understand presentation materials.
Stop/Watch Button:
When we press this button , the presenter will set up LCD display ‘s timer,
The timer will count sown automatically, if timer remain 5 & 3 &1 & 0
minutes , presenter’s vibrator will vibrate to remind user.
Reset Button: The user need press this button to pair receiver(R-RB5), because
presenter and Receiver must to pair successfully then they can work at
the same frequency.
LCD display: It will show the timer (number and indicate bar) and battery status icon.
2.Setup:
1. The user must put 2-AAA batteries into presenter.
2. Turn on On/Off switch.
Lite-On technology corp.
Confidential
SM-2065 第 3 頁，共 5 頁
3. Plug in Receiver into computer USB port.
4. Execute pairing software, it will attaché in product package.
5. Press Presenter’s reset button then software will show succeed message.
6. Execute Microsoft PowerPoint software.

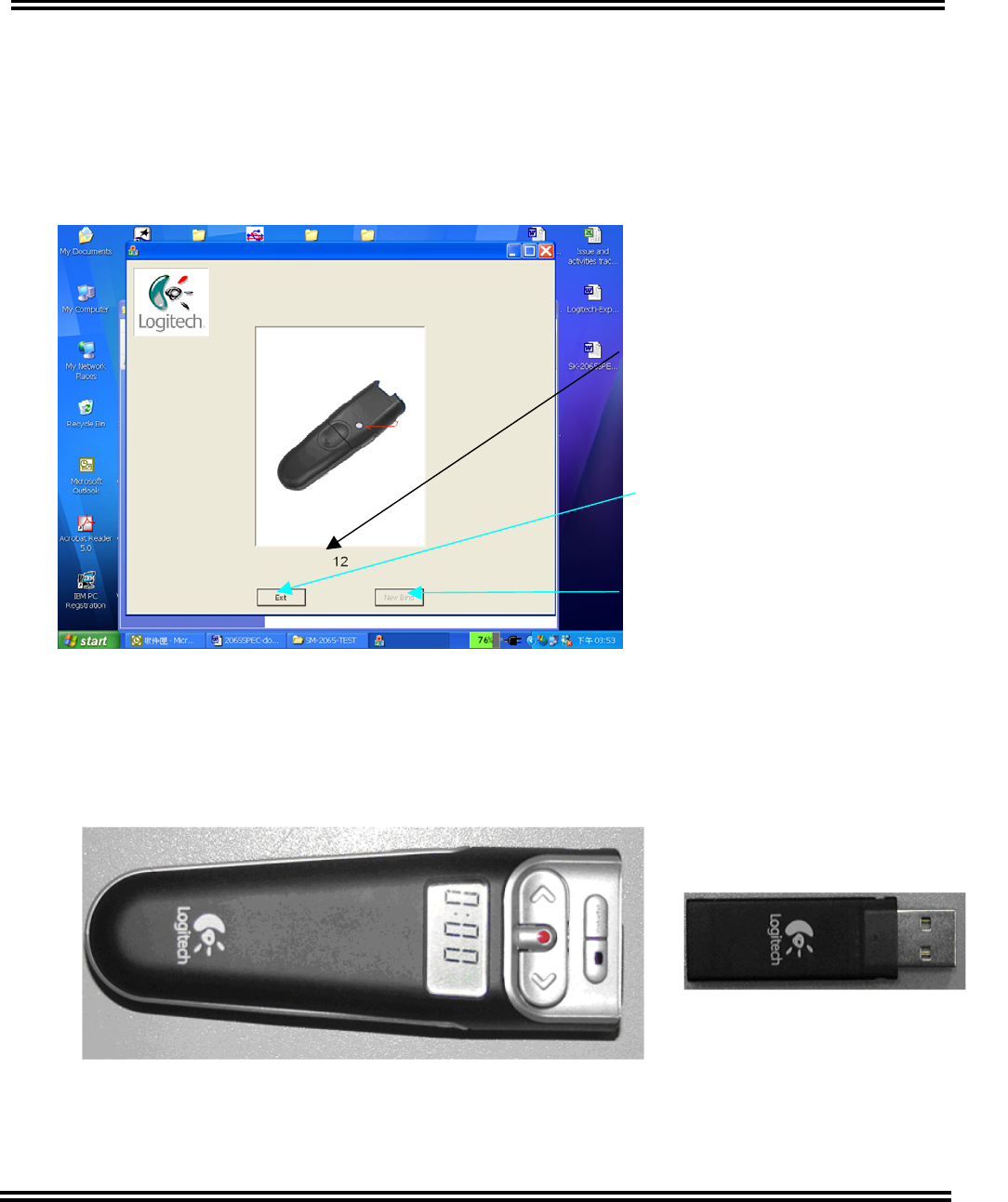

Pairing software’s windows
3.Product Outline
*Product Outline:
Binding timer(time out: 15
)
Exit bind AP
Trigger button of
bi d
Lite-On technology corp.
Confidential
SM-2065 第 4 頁，共 5 頁
4 Electrical Specification
4.1 Presenter Power Consumption
TX Operation Voltage:
Voltage supplied to presenter : 3 VDC (AAA battery *2)
TX Operation Current:
Presenter : Under 3 VDC power supplied ,typical current is 18mA.
Maximum current of Pairing : 150mA
Typical power consumption of Presenter will be less than 40mW.
Laser Point current : 25~45 mA,
Laser output power : under 1mW (Class II)
4.2 Dongle Operating voltage
Voltage supplied to Receiver: 5±0.25 VDC
Current consumption :Under nominal 5 VDC power supplied, typical current
Operating is 70 mA, 90 mA Maximum .
5 Dongle Cabel
The Dongle don’t need use shielding cable that just directly insert to PC host.
