LITE ON TECHNOLOGY WB115C Bluetooth Module User Manual LiteOn Technology Corp
LITE-ON Technology Corp. Bluetooth Module LiteOn Technology Corp
Users Manual
WB115C Specification Page 1/9 2013/7/31
LTC Network Access Confidential
PRODUCT SPECIFICATION
BT 4.0+LE Bluetooth Module
WB115C
CSR8311 A08
Version 1.0
Author: Kaysa Lee
Editor: Kaysa Lee
Change History
Revision
Date
Author
Change List
Version 1.0
2013 / 07 / 30
Kaysa Lee
Preliminary
* This document contains confidential proprietary information and is property of LTC. The contents of
this document should not be disclosed to unauthorized persons without the written consent of LTC.
WB115C Specification Page 2/9 2013/7/31
LTC Network Access Confidential
CONTENT
1 PRODUCT OVERVIEW ...................................................................................................................... 3
1.1 DESCRIPTION ............................................................................................................................. 3
1.2 FEATURES................................................................................................................................... 3
1.3 GENERAL SPECIFICATIONS......................................................................................................... 3
1.4 BLOCK DIAGRAM ....................................................................................................................... 4
1.5 PIN CONFIGURATION ................................................................................................................ 4
2 RF MEASUREMENT ENVIRONMENT SYSTEM.................................................................................. 5
3 EEPROM (PSKEY).............................................................................................................................. 5
4 INTERFACE SPECIFICATIONS............................................................................................................ 6
4.1 UART INTERFACE ....................................................................................................................... 6
4.2 DIGITAL AUDIO INTERFACE ....................................................................................................... 6
5 APPEARANCE, MARKING, PACKAGING ........................................................................................... 7
5.1 MARKING ................................................................................................................................... 7
WB115C Specification Page 3/9 2013/7/31
LTC Network Access Confidential
1 Product Overview
1.1 DESCRIPTION
WB115C/WB115C-I2S is a Bluetooth module which using CSR Chipset CSR8311-A08
(industrial version)
1.2 FEATURES
Fully qualified Bluetooth ® v4.0 system
Full-speed Bluetooth operation with full piconet and scatternet support
Class II (Max +4 dBm, 2.5mW)
High-sensitivity Bluetooth receiver
Wideband speech
SBC encoding
Full-speed USB 2.0 interface
High-speed UART port (up to 4Mbps)
RoHS compliance
Low Halogen compliance
1.3 GENERAL SPECIFICATIONS
Standard
Bluetooth V
4.0 LE
Bus Interface
Data: HS-UART / USB
Voice: PCM/I2S(WB115C-I2S)
Form Factor
32.25
mm x 18mm x 2.75mm
Data Rate
1 Mbps, 2Mbps and Up to 3Mbps
Frequency Range
2.402 ~ 2.480
GHz
Transmit Output Power
-3
~ +3 dBm Class 2 Device
Receive Sensitivity
< 0.1% BER at
-70 dBm
Operating Voltage
3.3V
±5% I/O supply voltage
OS supported
Windows/Linux
Antenna Type
Printed Antenna
WB115C Specification Page 4/9 2013/7/31
LTC Network Access Confidential

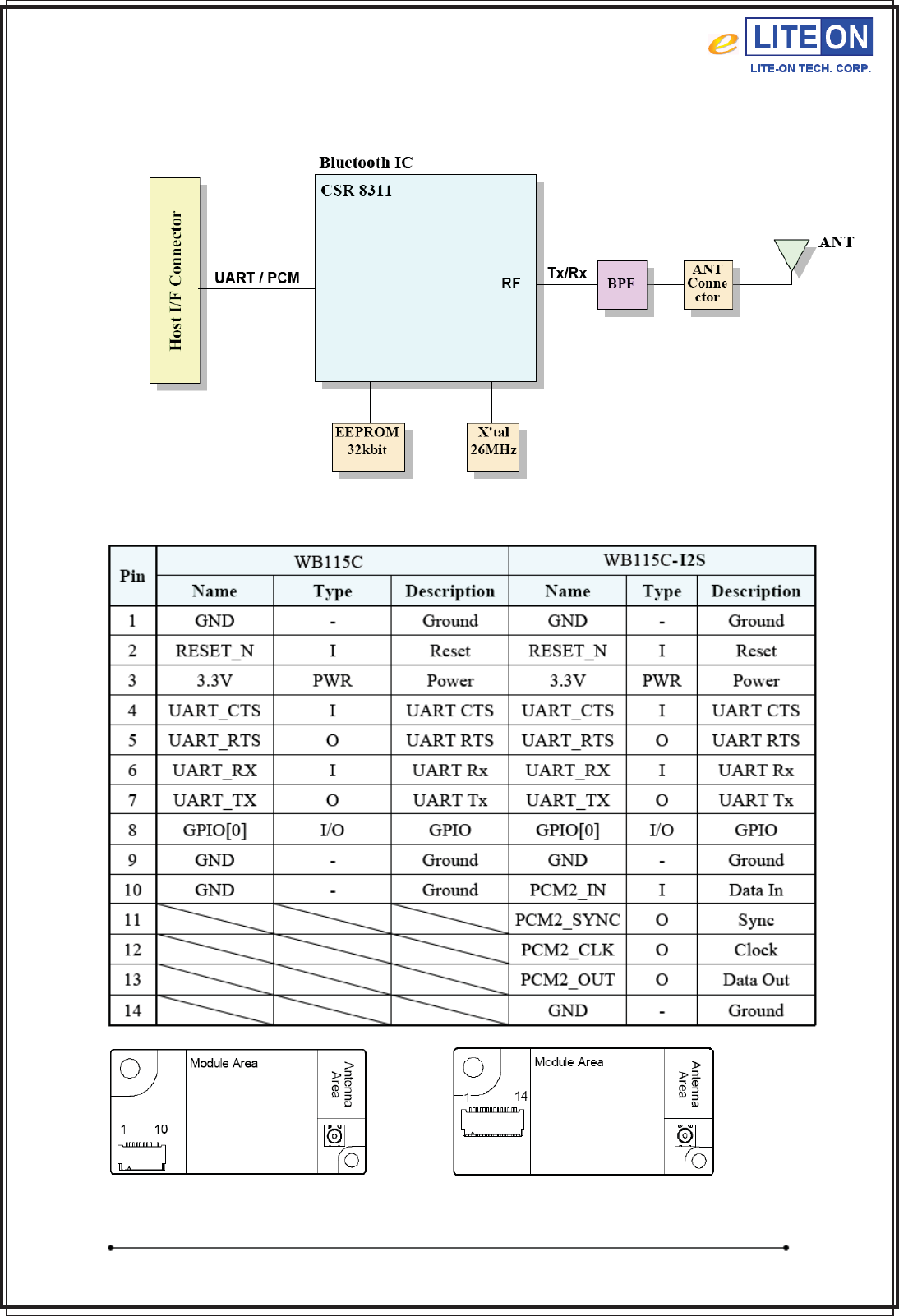

1.4 BLOCK DIAGRAM
1.5 PIN CONFIGURATION
WB115C Specification Page 5/9 2013/7/31
LTC Network Access Confidential

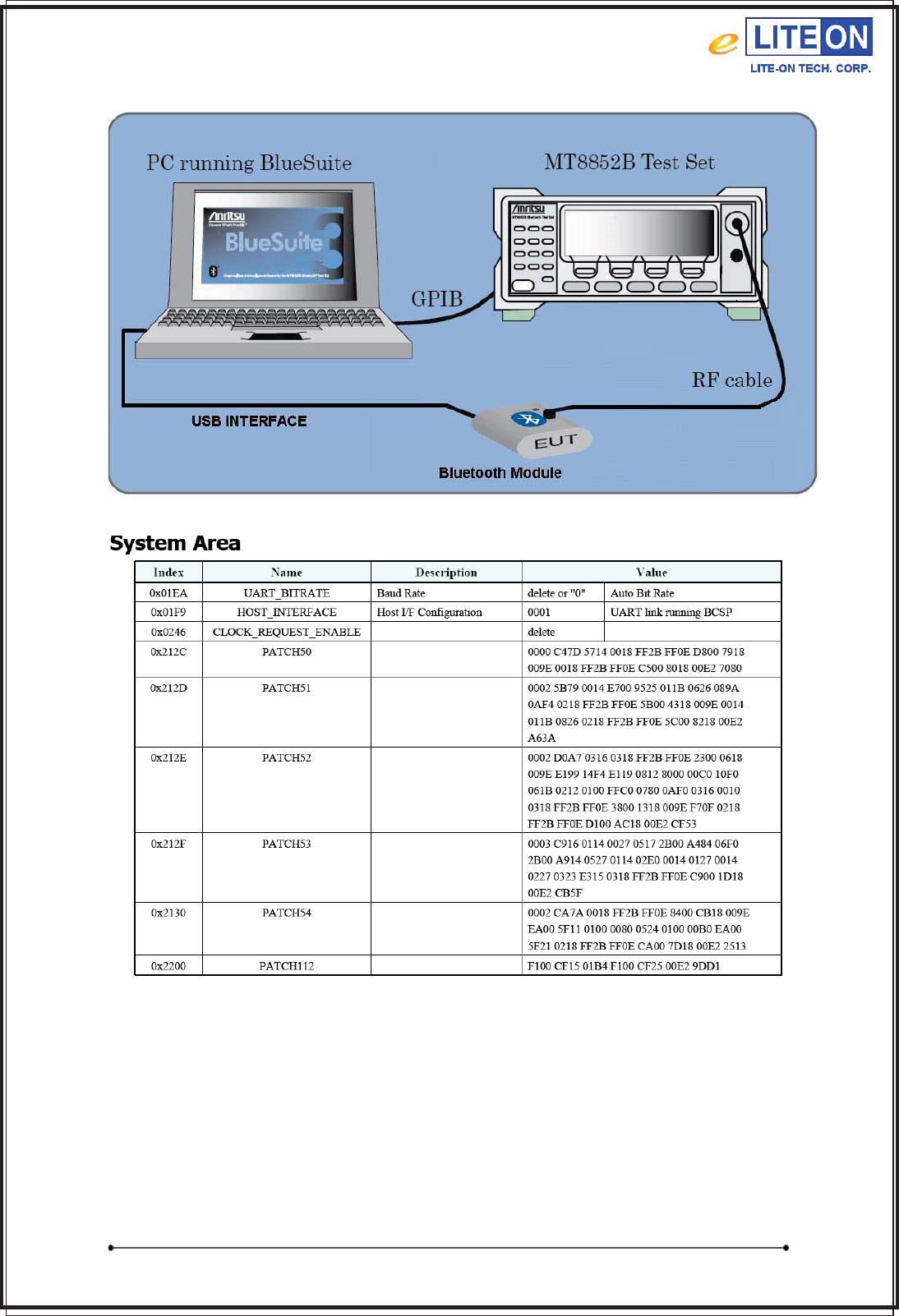

2 RF Measurement Environment System
3 EEPROM (PSKEY)
WB115C Specification Page 6/9 2013/7/31
LTC Network Access Confidential
4 Interface Specifications
4.1 UART INTERFACE
4.2 DIGITAL AUDIO INTERFACE
7KHDXGLR3&0LQWHUIDFHRQWKH:%&VXSSRUWV
z &RQWLQXRXVWUDQVPLVVLRQDQGUHFHSWLRQRI3&0HQFRGHGDXGLRGDWDRYHU%OXHWRRWK
z 3URFHVVRURYHUKHDGUHGXFWLRQWKURXJKKDUGZDUHVXSSRUWIRUFRQWLQXDOWUDQVPLVVLRQDQGUHFHSWLRQ
RI3&0GDWD
z $ELGLUHFWLRQDOGLJLWDODXGLRLQWHUIDFHWKDWURXWHVGLUHFWO\LQWRWKHEDVHEDQGOD\HURIWKHILUPZDUH
z 3&0LQWHUIDFHPDVWHUJHQHUDWLQJ3&0B6<1&DQG3&0B&/.
z 3&0LQWHUIDFHVODYHDFFHSWLQJH[WHUQDOO\JHQHUDWHG3&0B6<1&DQG3&0B&/.
z ELWRUELWOLQHDUELWμODZRU$ODZFRPSDQGHGVDPSOHIRUPDWV
z 5HFHLYHVDQGWUDQVPLWVRQDQ\VHOHFWLRQRIRIWKHILUVWVORWVIROORZLQJ3&0B6<1&
WB115C Specification Page 7/9 2013/7/31
LTC Network Access Confidential

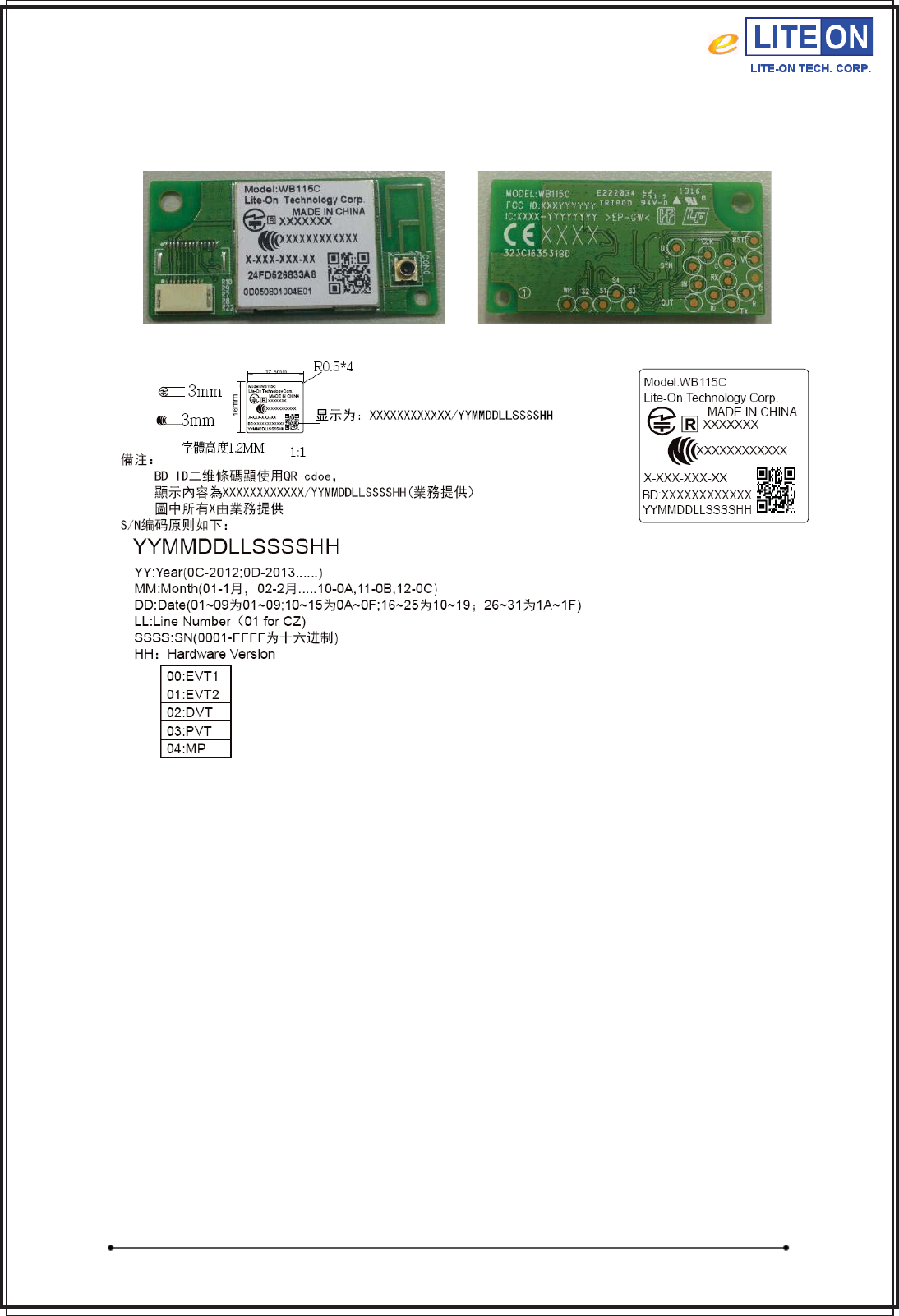

5 Appearance, Marking, Packaging
5.1 MARKING
7RS
%RWWRP
WB115C Specification Page 8/9 2013/7/31
LTC Network Access Confidential
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE
STATEMENT
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference
that may cause undesired operation.
RF exposure warning
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This equipment must be installed and operated in
accordance with provided instructions and must not be co-located or operating
in conjunction with any other antenna or transmitter. End-users and installers
must be provided with antenna installation instructions and transmitter operating
conditions for satisfying RF exposure compliance.
LTC Network Access Confidential
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE
STATEMENT
CAUTION:
RF exposure warning
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be
installed such that 20cm may be maintained between the antenna and users. The final
end product must be labeled in a visible area with the following: "Contains FCC ID: PPQ-
WB115C " and "Contains IC: 4491A-WB115C"
Information for the OEMs and Integrators
The following statement must be included with all versions of this document supplied to an
OEM or integrator, but should not be distributed to the end user.
1) This device is intended for OEM integrators only.
Please see the full Grant of Equipment document for other restrictions.
Radio Frequency (RF) Exposure Information
The radiated output power of the Wireless Device is below the Industry Canada (IC) radio
frequency exposure limits. The Wireless Device should be used in such a manner such that the
p
otential for human contact during normal operation is minimized.
This device has also been evaluated and shown compliant with the IC RF Exposure limits under
p
ortable exposure conditions. (antennas are less than 20 cm of a person's body).
This device has been certified for use in Canada. Status of the listing in the Industry
Canada's REL (Radio Equipment List) can be found at the following web address: http://
www.ic.gc.ca/app/sitt/reltel/srch/nwRdSrch.do?lang=eng
Additional Canadian information on RF exposure also can be found at the following web
address: http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html
Canada, avis d'Industry Canada (IC)
Cet appareil numérique de classe B est conforme aux normes canadiennes ICES-003 et
RSS-210.
Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas
causer d'interférence et (2) cet appareil doit accepter toute interférence, notamment les
interférences qui peuvent affecter son fonctionnement.
Informations concernant l'exposition aux fréquences radio (RF)
La puissance de sortie émise par l'appareil de sans fil Dell est inférieure à la limite d'exposition
aux fréquences radio d'Industry Canada (IC). Utilisez l'appareil de sans fil Dell de façon à
minimiser les contacts humains lors du fonctionnement normal.
Ce périphérique a également été évalué et démontré conforme aux limites d'exposition aux RF
d'IC dans des conditions d'exposition à des appareils portables. (les antennes sont moins de 20
cm du corps d'une personne).
Ce périphérique est homologué pour l'utilisation au Canada. Pour consulter l'entrée
correspondant à l'appareil dans la liste d'équipement radio (REL - Radio Equipment List)
d'Industry Canada rendez-vous sur:
http://www.ic.gc.ca/app/sitt/reltel/srch/nwRdSrch.do?lang=eng
Pour des informations supplémentaires concernant l'exposition aux RF au Canada rendez-vous
sur : http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html
