LITE ON TECHNOLOGY WCBN4502B Wi-Fi (11a/b/g/n/ac 2Tx2R)+BT (V4.1LE) USB Combo Module User Manual LiteOn Technology Corp
LITE-ON Technology Corp. Wi-Fi (11a/b/g/n/ac 2Tx2R)+BT (V4.1LE) USB Combo Module LiteOn Technology Corp
User Manual
Page 2/12
PRODUCT SPECIFICATION
Wi-Fi (11a/b/g/n/ac 2Tx2R)+BT (V4.1LE) USB Combo Module
WCBN4502B
BCM43569
Version 1.2
Networking B.U.
Lite-on Technology Corporation
4F, No. 90, Chien 1 Rd.,
Chung Ho, New Taipei City 235, Taiwan, R.O.C.
Customer Approval: (Signature)
(Title)
(Company)
(Date)
(Please Sign Back by FAX. For Confirming the Spec Only, not an Official Agreement for OEM/ODM Business)
Page 3/12
CONTENT
PRODUCT FEATURES .................................................................................................................... 4
BT FEATURE: ......................................................................................................................................... 4
WI-FI FEATURE: ..................................................................................................................................... 4
COMMON FEATURE: ............................................................................................................................... 4
PRODUCT SPECIFICATIONS ........................................................................................................ 5
MAIN CHIPSET ....................................................................................................................................... 5
FUNCTIONAL SPECIFICATIONS ............................................................................................................... 5
PIN ASSIGMENT ............................................................................................................................... 8
USB CONNECTOR SPEC ................................................................................................................. 8
MECHANICAL .................................................................................................................................. 9
BLOCK DIAGRAM ........................................................................................................................... 9
ANTENNA SPEC ............................................................................................................................. 10
EEPROM INFORMATION ............................................................................................................ 12
BT ........................................................................................................................................................ 12
WI-FI ................................................................................................................................................... 12
ENVIRONMENTAL ........................................................................................................................ 12
OPERATING .......................................................................................................................................... 12
STORAGE .............................................................................................................................................. 12
Page 4/12
PRODUCT FEATURES
BT FEATURE:
Bluetooth V4.1 LE system
Backwards compatible with BT version of 1.1, 1.2, 2.0, 2.1, 3.0+HS and V4.0LE
Bluetooth Class II transmission power
Support for Adaptive Frequency Hopping(AFH), Secure Simple Pairing (SSP)
and Extended Inquiry Response (EIR) function
Scatternet operation with up to four active piconets with background scan and
support for scatter mode
Includes on-chip support for SBC encoding, and SBC and MP3 decoding
Low power consumption for meeting worldwide energy standards
Voice command and voice search for DTV/STB
WI-FI FEATURE:
Operate at ISM frequency Band (2.4/5GHz)
IEEE Standards Support, 802.11a ,802.11b, 802.11g 802.11n and 802.11ac
Support for both 20 MHz/40 MHz channel width in 2.4GHz and 20 MHz/40
MHz/80MHz channel width in 5GHz
Enterprise level security supporting: WPS2.0,WAPI, WPA, WPA2
Dual-stream IEEE 802.11n support for 20MHz and 40MHz channels provides
PHY layer rates up to 300Mbps
Dual-stream IEEE 802.11ac support for 80MHz channels provides PHY layer
rates up to 867Mbps
Support for WI-Fi Direct
Support Wake On WLAN
COMMON FEATURE:
BCM43569 is a single chip integrated IEEE 802.11 a/b/g/n/ac and Bluetooth
4.1 LE with a single USB interface
Fully compliance with USB v2.0 specification
Support OS: Linux based
RoHS compliance
Low Halogen compliance
Page 5/12
PRODUCT SPECIFICATIONS
MAIN CHIPSET
Broadcom BCM43569
FUNCTIONAL SPECIFICATIONS
BT Function
Standard
Bluetooth V4.1LE
Bus Interface
USB2.0
Data Rate
1 Mbps, 2Mbps and Up to 3Mbps
Modulation Scheme
GFSK, π/4-DQPSK and 8-DPSK
Frequency Range
2.402~2.480 GHz
Transmit Output Power
+4 ≤ Output Power ≤ +10dBm; Class I Device
Receiver Sensitivity
< 0.1% BER at -80dBm
Wi-Fi Function
Standard
IEEE802.11a; IEEE802.11b; IEEE 802.11g; IEEE
802.11n; IEEE802.11ac
Bus Interface
USB2.0
Data Rate
802.11a:
54, 48, 36, 24, 18, 12, 9, 6 Mbps
802.11b:
11, 5.5, 2, 1 Mbps
802.11g:
54, 48, 36, 24, 18, 12, 9, 6 Mbps
802.11n:
MCS 0 to 15 for HT20MHz
MCS 0 to 15 for HT40MHz
802.11ac:
MCS 0 to 8 for HT20MHz
MCS 0 to 9 for HT40MHz
MCS 0 to 9 for HT80MHz
Media Access Control
CSMA/CA with ACK
Modulation Technique
802.11a:
64QAM, 16QAM, QPSK, BPSK
802.11b:
CCK, DQPSK, DBPSK
802.11g:
64QAM, 16QAM, QPSK, BPSK
802.11n:
64QAM, 16QAM, QPSK, BPSK
802.11ac:
256QAM, 64QAM, 16QAM, QPSK, BPSK
Page 6/12
Network Architecture
Ad-hoc mode (Peer-to-Peer)
Infrastructure mode
Operation Channel
2.4GHz
11: (Ch. 1-11) – United States
13: (Ch. 1-13) – Europe
14: (Ch. 1-14) – Japan
5GHz
21: USA
19: EU
8: Japan
Frequency Range
802.11bg
2.400 ~ 2.4835 GHz
802.11a
5.15 ~ 5.85 GHz
Transmit Output Power –
2x2 (Tolerance: ±2dBm)
802.11a:
14 dBm@6Mbps
14 dBm@54Mbps
802.11b:
15 dBm@1Mbps
15 dBm@11Mbps
802.11g:
14 dBm@6Mbps
14 dBm@54Mbps
802.11n(2.4GHz):
20MHz:
13 dBm@MCS0
13 dBm@MCS7
40MHz:
13 dBm@MCS0
13 dBm@MCS7
802.11n(5GHz):
20MHz:
12 dBm@MCS0
12 dBm@MCS7
40MHz:
12 dBm@MCS0
12 dBm@MCS7
802.11ac:
20MHz:
11 dBm@MCS0
11 dBm@MCS8
40MHz:
11 dBm@MCS0
11 dBm@MCS8
11 dBm@MCS9
80MHz:
11 dBm@MCS0
11 dBm@MCS8
11 dBm@MCS9
Receiver Sensitivity
802.11a:
-86 dBm@6Mbps
-70 dBm@54Mbps
802.11b:
-88 dBm@1Mbps
-82 dBm@11Mbps
802.11g:
-86 dBm@6Mbps
Page 7/12
-70 dBm@54Mbps
802.11n(2.4GHz):
20MHz
-86 dBm@MCS0
-69 dBm@MCS7
40MHz
-83 dBm@MCS0
-66 dBm@MCS7
802.11n(5GHz):
20MHz
-84 dBm@MCS0
-67 dBm@MCS7
40MHz
-81 dBm@MCS0
-64 dBm@MCS7
802.11ac:
20MHz
-64 dBm@MCS8
40MHz
-62 dBm@MCS8
-59 dBm@MCS9
80MHz
-59 dBm@MCS8
-56 dBm@MCS9
Security
WPS, WPA, WPA2, WEP 64bit & 128bit, IEEE 802.1X,
IEEE 802.11i
Common Function
Operating Voltage
5.0 V ±5% I/O supply voltage
Power Consumption
Mode
Average
Peak
2.4G
5G
2.4G
5G
TX
660mA
770mA
1A
1.2A
RX
640mA
755mA
Idle
30mA
Disable
7mA
Antenna Type
Dual Metal antennas for WiFi
Single U.FL Antenna for BT
Page 8/12
PIN ASSIGMENT
Pin.
Pin Define
Description
Status
1
+5V
5V source
YES
2
USB_D-
USB Data-
YES
3
USB_D+
USB Data+
YES
4
GND
Ground
YES
5
BT_REG_ON#
Active Low to Reset Bluetooth
YES
6
BT_HOST_WAKE#
Bluetooth wake up Host, Low Active
YES
7
BT_DEV_WAKE#
Host wake up Bluetooth, Low Active
YES
8
NC
NC
YES
9
WL_REG_ON#
Active Low to Reset WLAN
YES
10
WL_HOST_WAKE#
WLAN wake up Host, Low Active
YES
11
WL_DEV_WAKE#
Host wake up WLAN, Low Active
YES
12
GND
Ground
YES

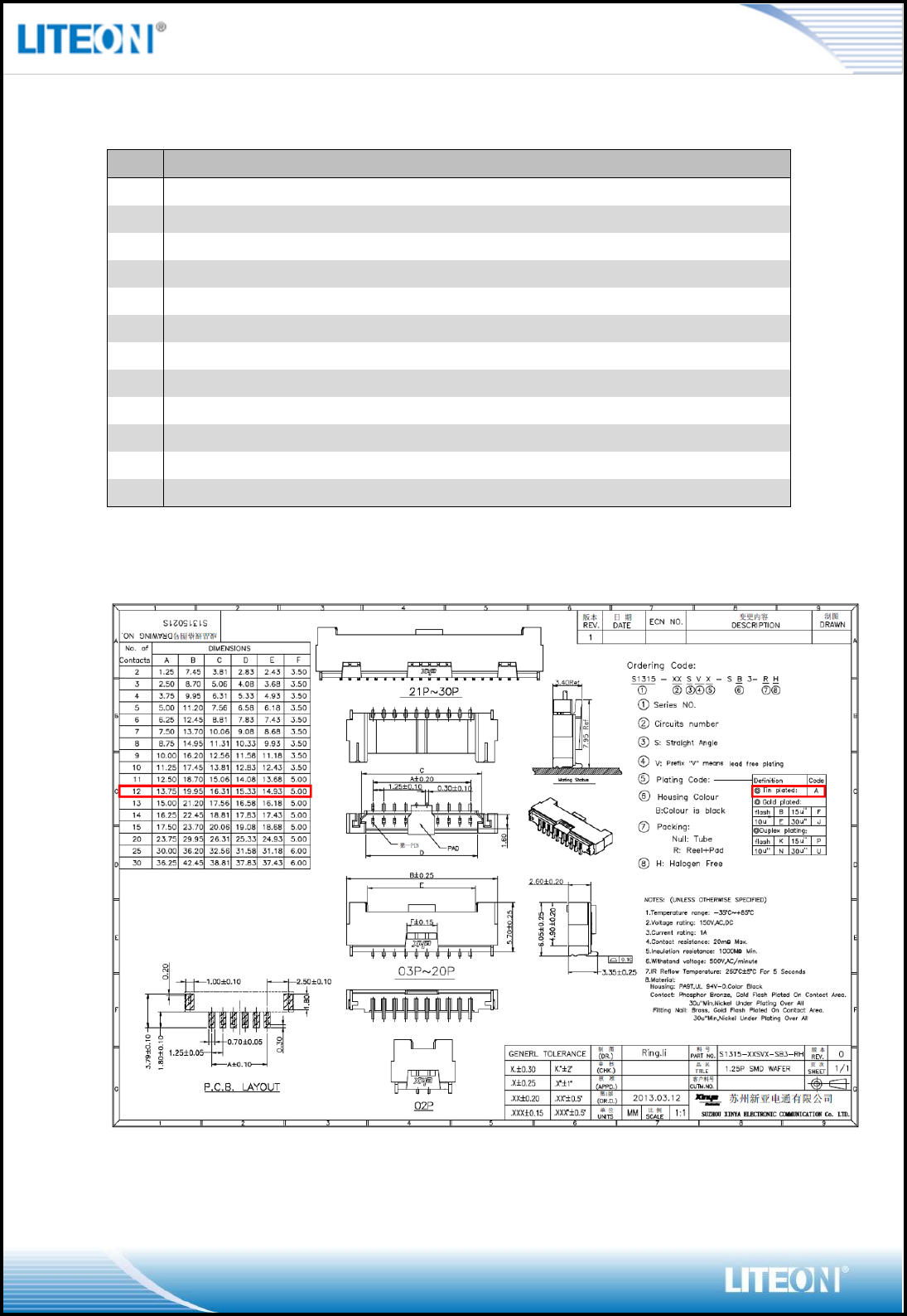

USB CONNECTOR SPEC
Page 9/12

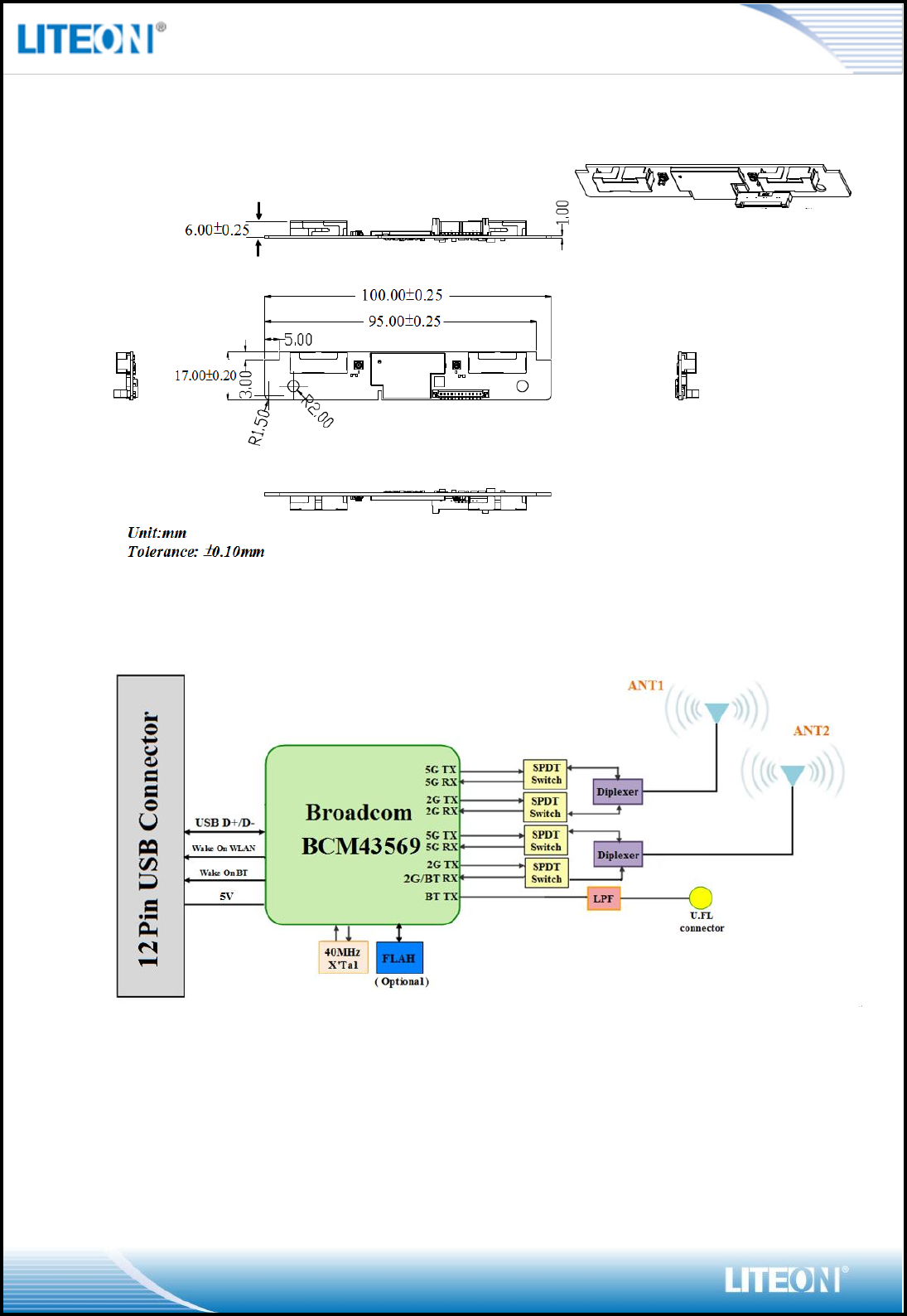

MECHANICAL
BLOCK DIAGRAM
Page 10/12
ANTENNA SPEC

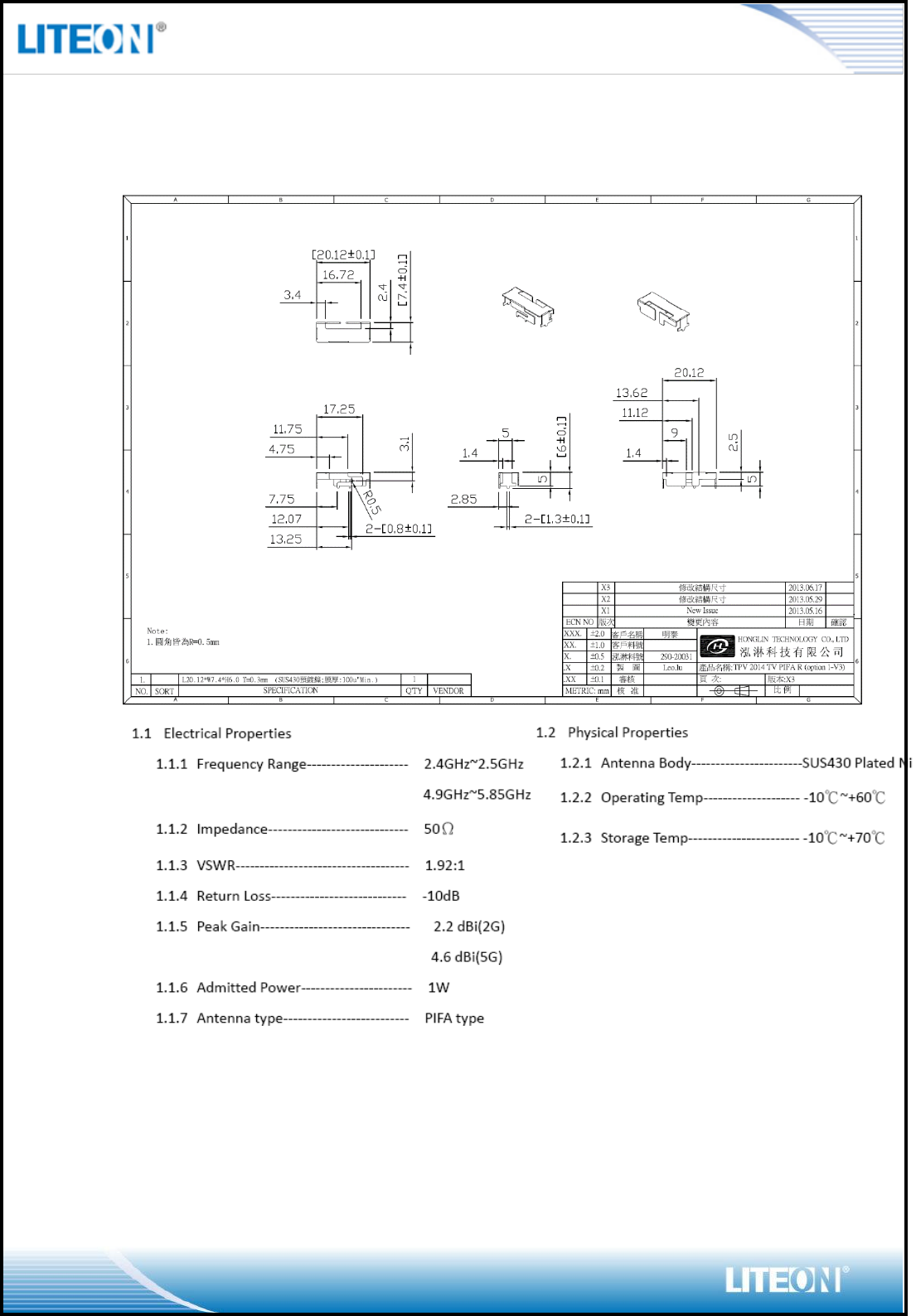

On Board Antenna for Wi-Fi
Page 11/12

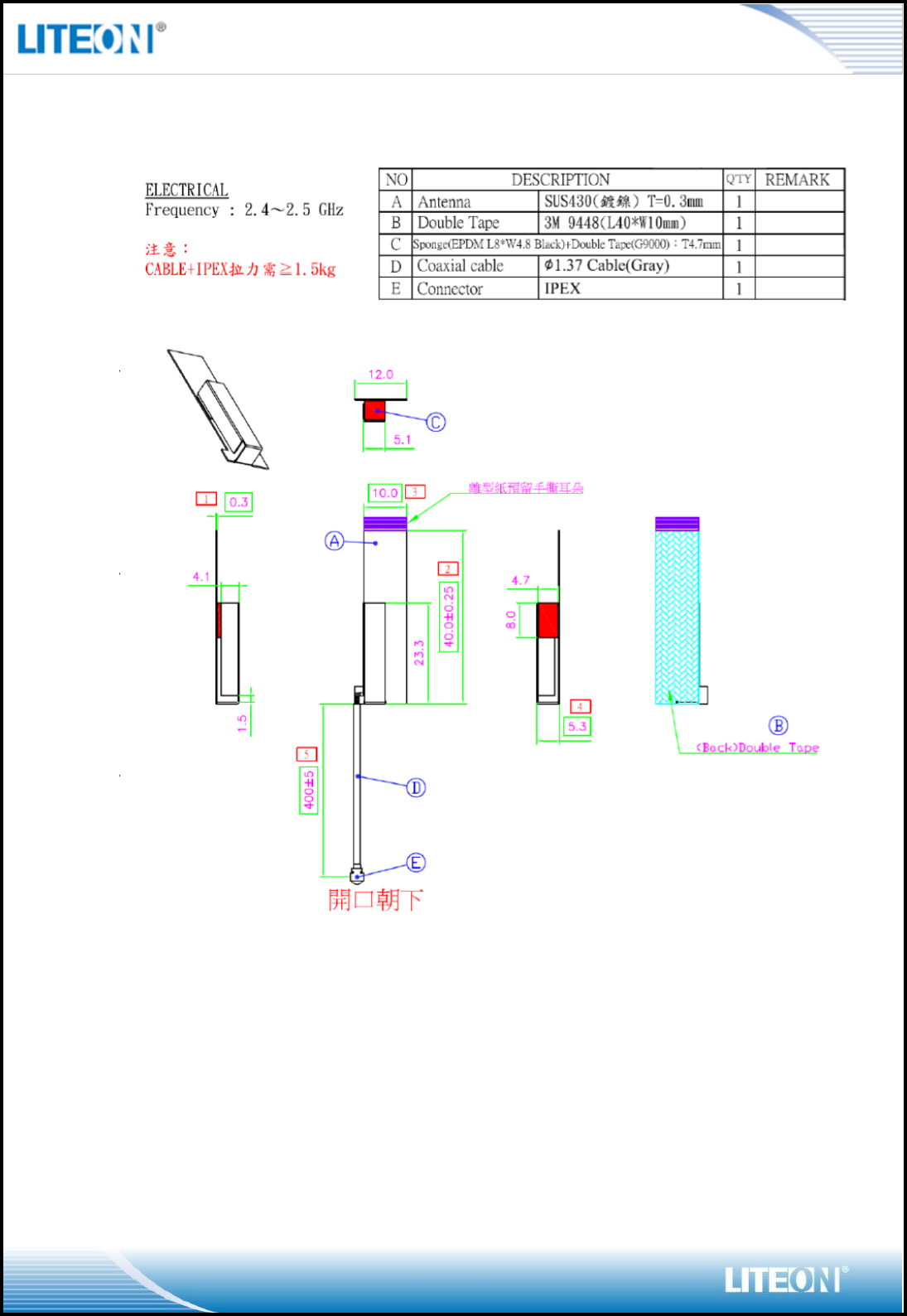

External Antenna for BT
Page 12/12
EEPROM INFORMATION
BT
Vendor ID
0x0A5C
Product ID
0xBD27
WI-FI
ccode
0xTBD
regrev
0xTBD
Vendor ID
0x0A5C
Device ID
0xBD27
ENVIRONMENTAL
OPERATING
Operating Temperature: 0 to 70 C (32 to 158 F)
Relative Humidity: 5-90% (non-condensing)
STORAGE
Temperature: -40 to 80 C (-40 to 176 F)
Relative Humidity: 5-95% (non-condensing)
FCC WARING STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
You are cautioned that changes or modifications not expressly approved by the party responsible
for compliance could void your authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference and (2) this device must accept
any interference received, including interference that may cause undesired operation.
FCC RF Radiation Exposure Statement:
1. This Transmitter must not be colocated or operating in conjunction with any other antenna
or transmitter.
2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20
centimeters between the radiator and your body.
According to FCC 15.407(e), the device is intended to operate in the frequency band of 5.15GHz
to 5.25GHz under all conditions of normal operation. Normal operation of this device is
restricted to indoor used only to reduce any potential for harmful interference to cochannel MSS
operations.
Information to OEM integrator
The OEM integrator has to be aware not to provide information to the end user regarding how to
install or remove this RF module in the user manual of the end product. The user manual which
is provided by OEM integrators for end users must include the following information in a
prominent location.
1. To comply with FCC RF exposure compliance requirements, the antenna used for this
transmitter must be installed to provide a separation distance of at least 20 cm from all persons
and must not be co- located or operating in conjunction with any other antenna or transmitter,
except in accordance with FCC multitransmitter product transmitter product procedures.
2. Only those antennas with same type and lesser gain filed under this FCC ID number can be
used with this device.
3. The regulatory label on the final system must include the statement: “Contains FCC ID: PPQ-
WCBN4502B “.
4. The final system integrator must ensure there is no instruction provided in the user manual or
customer documentation indicating how to install or remove the transmitter module except such
device has implemented twoways authentication between module and the host system.
5. If the end product integrating this module is going to be operated in 5.15 ~5.25GHz frequency
range, the warning statement in the user manual of the end product should include the restriction
of operating this device in indoor could void the user’s authority to operate the equipment.
IC WARING STATEMENT
Canada, Industry Canada (IC) Notices
This Class B digital apparatus complies with Canadian ICES-003 and RSS-247.
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
Canada, avis d'Industry Canada (IC)
Cet appareil numerique de classe B est conforme aux normes canadiennes ICES-003 et
RSS-247.IC
Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit
pas causer d'interference et (2) cet appareil doit accepter toute interference, notamment
les interferences qui peuvent affecter son fonctionnement.
Radio Frequency (RF) Exposure Information
The radiated output power of the Wireless Device is below the Industry Canada (IC)
radio frequency exposure limits. The Wireless Device should be used in such a manner
such that the potential for human contact during normal operation is minimized.
This device has also been evaluated and shown compliant with the IC RF Exposure
limits under mobile exposure conditions. (antennas are greater than 20cm from a
person's body).
Informations concernant l'exposition aux frequences radio (RF)
La puissance de sortie emise par l’appareil de sans fil est inferieure a la limite
d'exposition aux frequences radio d'Industry Canada (IC). Utilisez l’appareil de sans fil
de facon a minimiser les contacts humains lors du fonctionnement normal.
Ce peripherique a egalement ete evalue et demontre conforme aux limites d'exposition
aux RF d'IC dans des conditions d'exposition a des appareils mobiles (les antennes se
situent a moins de 20 cm du corps d'une personne).
