User Manual

isense Model

number 1187665

Revision 1.1

WIFI module\WCBN4521R18\ROH Page 1 of 9

■NEW

□UPDATE

PRODUCT SPECIFICATION

Brand Name： LITE-ON

Product name： WIFI module

Model name： WIFI module\WCBN4521R18\ROH

Model number: 1187665

DRAW. EDAM. APPD. Date

王海涛崔亚楠崔亚楠 2017-11-20

isense Model

number 1187665

Revision 1.1

WIFI module\WCBN4521R18\ROH Page 2 of 9

CONTENTS

Item Content Page

1 Change History 3

2 Dimension 4

3 The key structure and Components 5

4 Functions and Test 6~9

5 Packing Drawing 9

6 Environmental 9

7 Environmental requirements 9

isense Model

number 1187665

Revision 1.1

WIFI module\WCBN4521R18\ROH Page 3 of 9

Change History

Revision Change List Author Date

1.0 Preliminary Ken Chang 2017.10.17

1.1 Update model number and

photo Ken Chang 2017.11.20

isense Model

number 1187665

Revision 1.1

WIFI module\WCBN4521R18\ROH Page 4 of 9

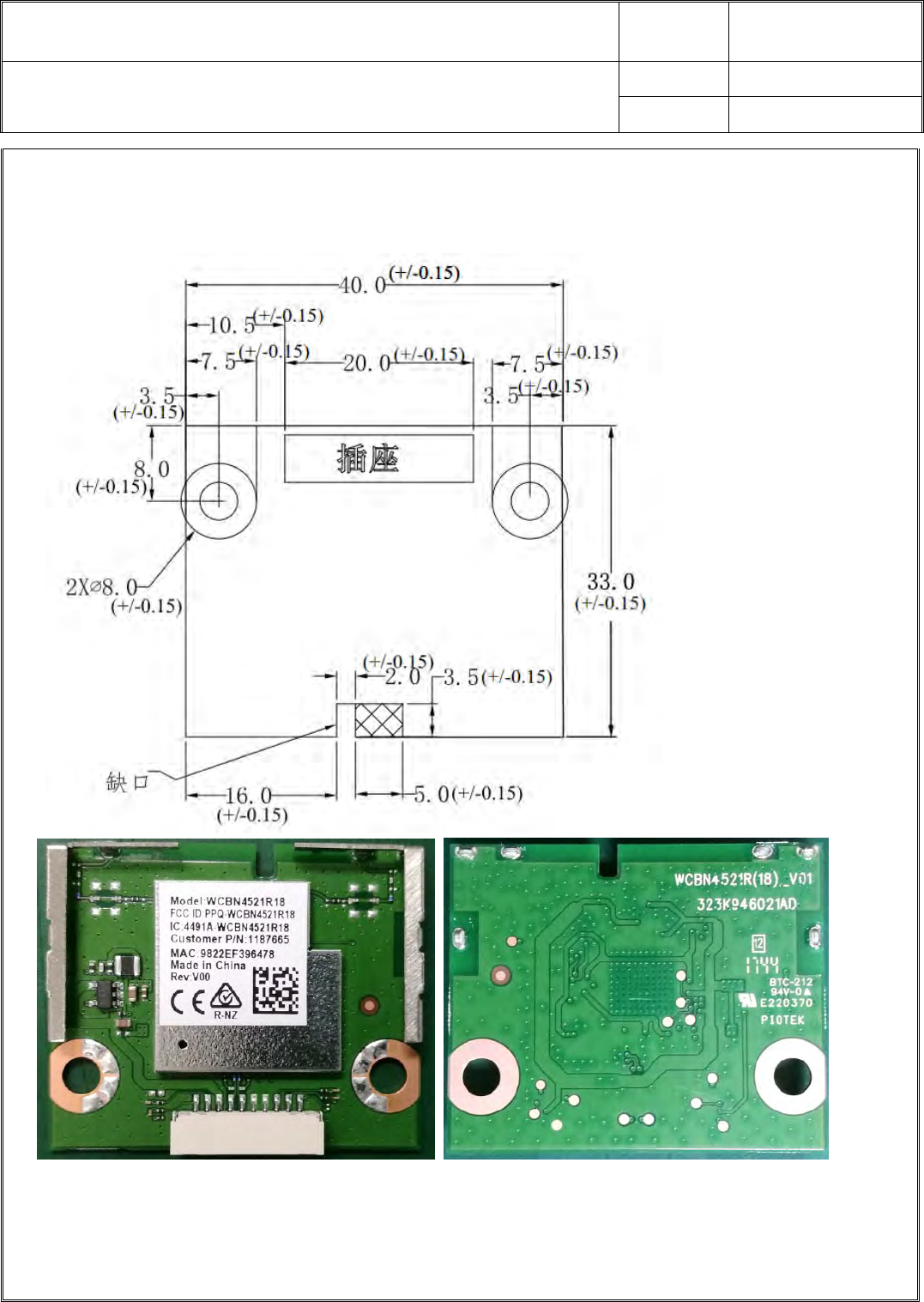

1. Dimension

isense Model

number 1187665

Revision 1.1

WIFI module\WCBN4521R18\ROH Page 5 of 9

2. The key structure and Components

2.1 Connector spec

isense Model

number 1187665

Revision 1.1

WIFI module\WCBN4521R18\ROH Page 6 of 9

3. Functions and Test

3.1 Functions

PRODUCT FEATURES

 Operateat2.4GHz/5GHzband

 866MbpsPHYRateSupport

 2T2RModes

 20/40/80MHzBandwidthSupport

 USB2.0supportfordateratesupto12Mbpsfullspeedand480Mbpshighspeed

 IEEEstandardssupport:IEEE802.11a/b/g/nand802.11acdraft

 802.11i‐WEP64/128,AES,TKIP,GCMP,WAPI

 RoHScompliance

 LowHalogencompliance

FUNCTIONAL SPECIFICATIONS

MainChipsetMT7618BUN

WIFIStandardIEEE802.11a/b/g/n/acdraft

BusInterfaceUSB2.0

FormFactor40x33x6mm

DataRate

802.11b:

CCK,DQPSK,DBPSK

802.11a/g:

64QAM,16QAM,QPSK,BPSK

802.11n:

64QAM,16QAM,QPSK,BPSK

802.11ac:

256QAM,64QAM,16QAM,QPSK,BPSK

FrequencyRange2.400~2.4835GHz

5.180~5.845GHz

TransmitOutputPower

11b:17+/‐1.5dBm(11Mbps)

11g:15+/‐1.5dBm(54Mbps)

11n:15+/‐1.5dBm(MCS7HT20)

11a:14+/‐1.5dBm(54Mbps)

11an:13.5+/‐1.5dBm(MCS7HT20/40)

isense Model

number 1187665

Revision 1.1

WIFI module\WCBN4521R18\ROH Page 7 of 9

11ac:11.5+/‐1.5dBm(HT80)

ReceiveSensitivity

11b@11Mbps:<‐82dBm

11g@54Mbps:<‐70dBm

11n@MCS7::<‐64dBm

11ac@MCS9:<‐56dBm

Temperature&Humidity

NormalTestCondition:25+/‐2deg.C,65+/‐2%RH

Operating:‐10to70deg.C

Storage:‐40to85deg.C

OperatingVoltage5V±10%I/Osupplyvoltage

AntennaTypeOnBoardMetallicAntennax2

PowerConsumption

Standbymode:40mA

TX:2.4G

HT‐20340mA

HT‐40340mA

5G

HT‐20500mA

HT‐40500mA

HT‐80500mA

3.2 Antenna spec

inputresistance50Ω

Operatingchannel2.4GHz~2.5GHz，5.15~5.85GHz

VSWR2.4GHz~2.5GHz：VSWR≤2，5.15~5.85GHz：VSWR≤3

GainFor2.4GHz，Antennamaxgain<5dBi，for5GHz，Antennamaxgain<8dBi

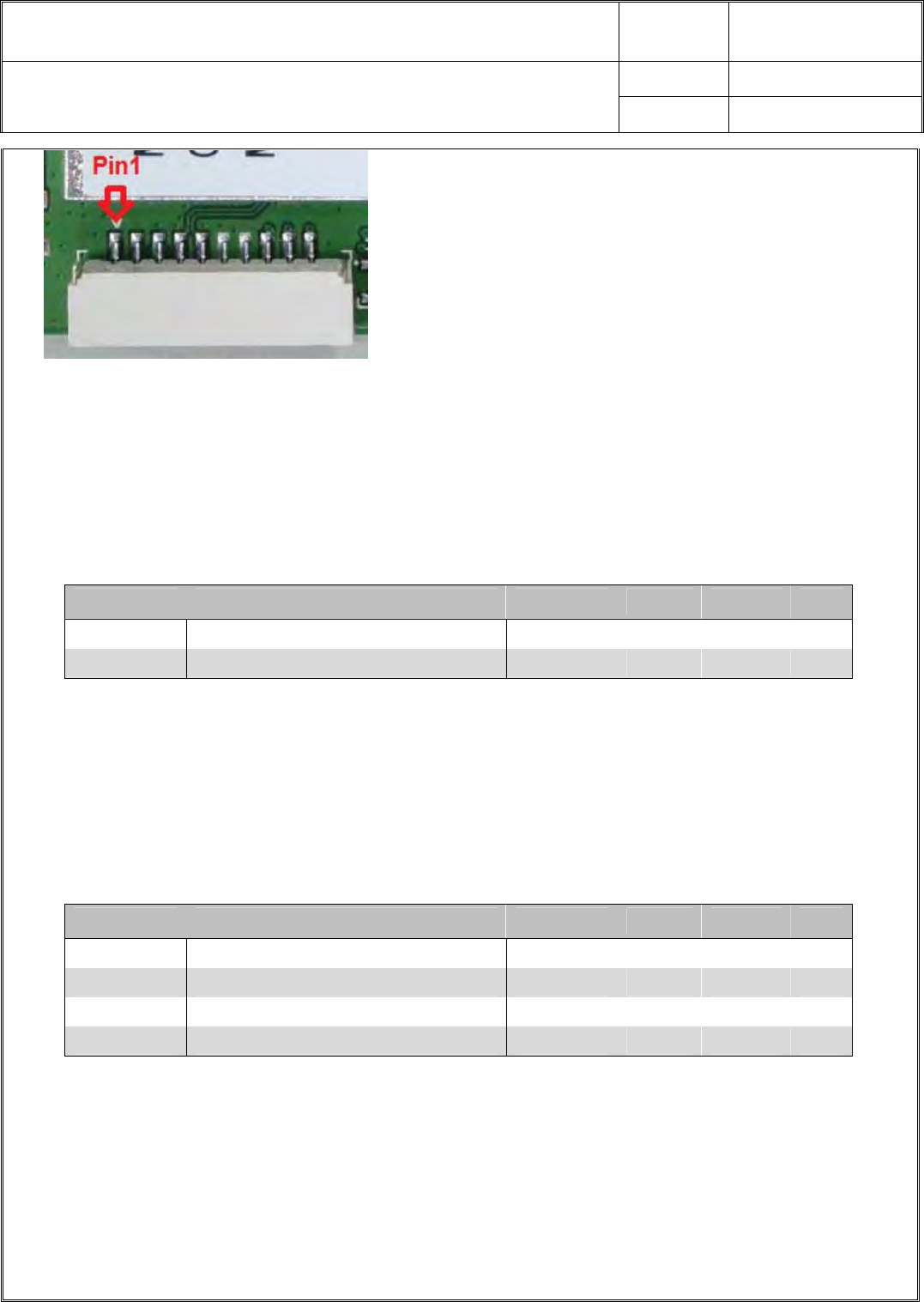

3.3Pindefine

PIN ASSIGMENT

PinName

1WiFi_Reg_On

2BT_HOST_WAKE

3+5V

4USB_D‐

5USB_D+

6GND

7GND

83D_SYNC

9RST_N

10WLAN_DEV_WAKE

isense Model

number 1187665

Revision 1.1

WIFI module\WCBN4521R18\ROH Page 8 of 9

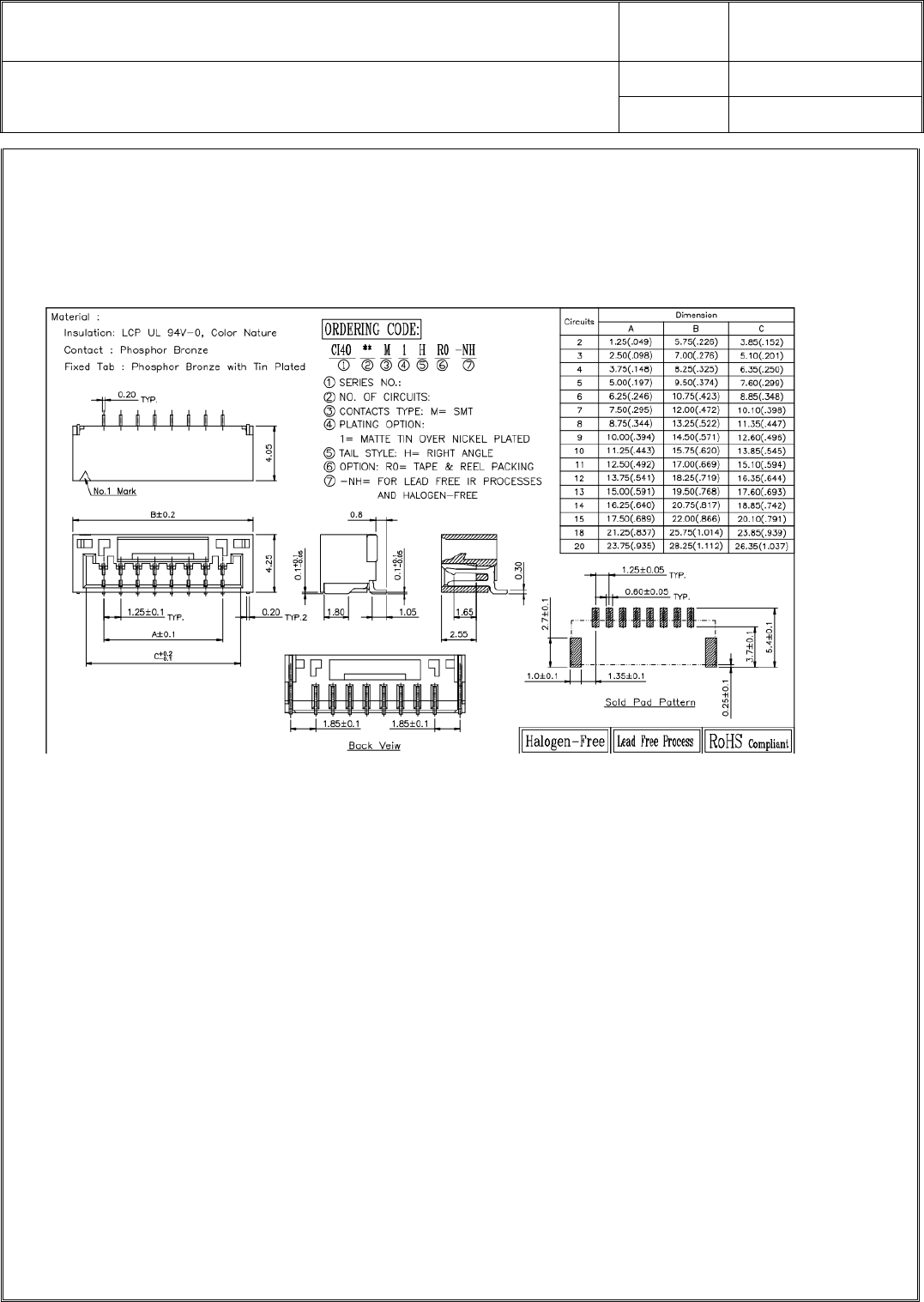

USB CONNECTOR SPEC

Plating: MATTE TIN over nickel Plated

RECOMMENDED OPERATION CONDITIONS

Symbol Rating Min Typ Max Units

VDD33 3.3V Supply Voltage 3.0 3.3 3.6 V

VDD12 1.2V Supply Voltage 1.10 1.2 1.23 V

DC CHARACTERISTICS

Symbol Parameter Min Typ Max Units

VIL Input Low Voltage - 0 0.9 V

VIH Input High Voltage 2.0 3.3 3.6 V

VOL Output Low Voltage 0 - 0.33

VOH Output High Voltage 2.97 - 3.3 V

isense Model

number 1187665

Revision 1.1

WIFI module\WCBN4521R18\ROH Page 9 of 9

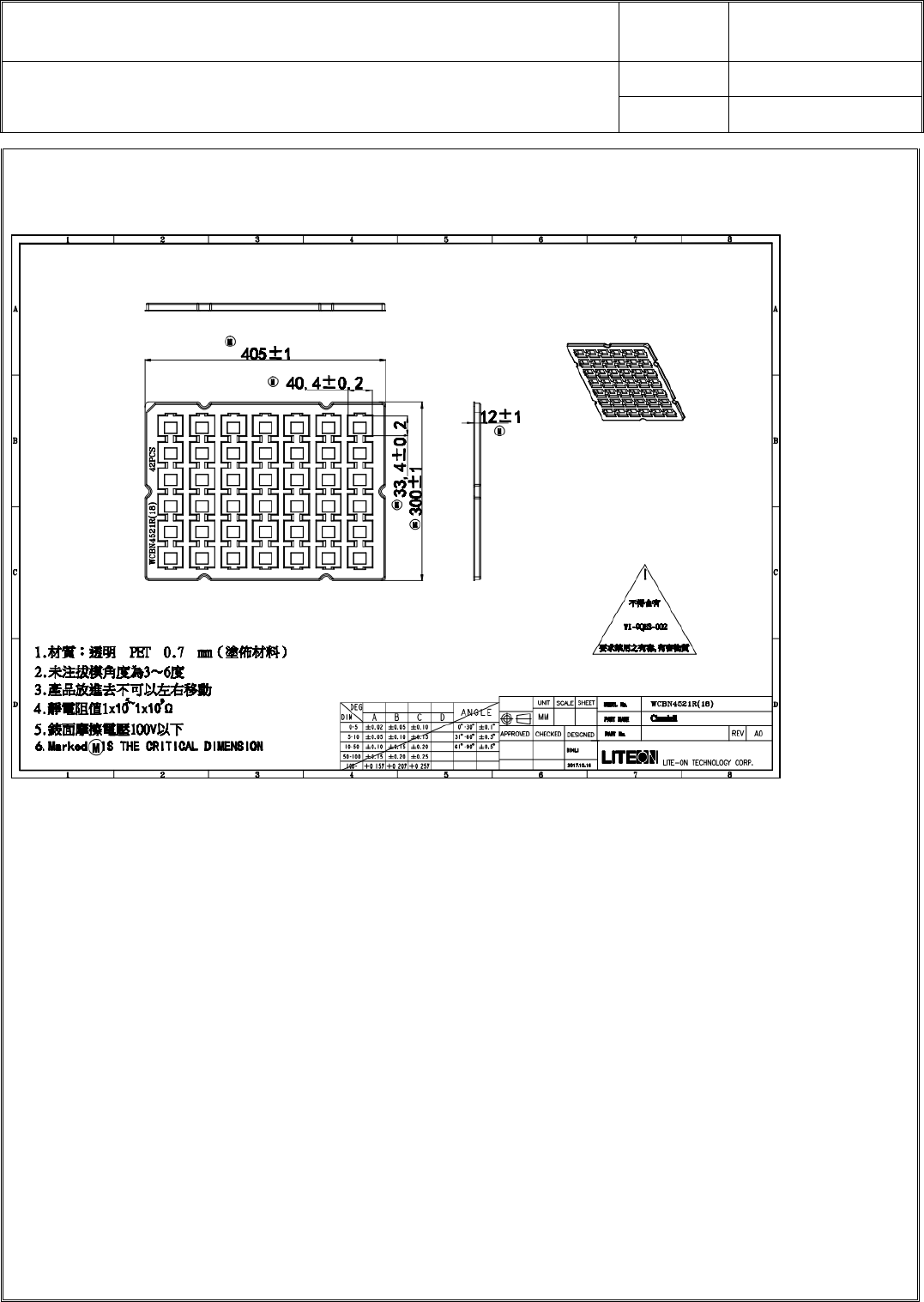

4. Packing drawing

5. ENVIRONMENTAL

OPERATING

Operating Temperature: -10 to 70 C (32 to 158 F)

Relative Humidity: 5-90% (non-condensing)

STORAGE

Temperature: -40 to 80 C (-40 to 176 F)

Relative Humidity: 5-95% (non-condensing)

6 . Environmental requirements

Components used in raw materials, packaging materials, etc., must comply with Hisense Q / RSAG

J15.002 chemical substances limit requirements.

isense Model

number 1187665

Revision 1.1

WIFI module\WCBN4521R18\ROH Page 10 of 9

FCC Statement

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one of the following measures:

● Reorient or relocate the receiving antenna.

● Increase the separation between the equipment and receiver.

● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

● Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could

void the user’s authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

Thisdeviceanditsantenna(s)mustnotbeco‐locatedwithanyothertransmittersexceptinaccordance

withFCCmulti‐transmitterproductprocedures.

Referringtothemulti‐transmitterpolicy,multiple‐transmitter(s)andmodule(s)canbeoperatedsimultaneouslywithout

C2PC.

This device is restricted for indoor use.

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This

equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

IMPORTANT NOTE:

This module is intended for OEM integrator. The OEM integrator is responsible for the compliance to all the rules

that apply to the product into which this certified RF module is integrated.

Additional testing and certification may be necessary when multiple modules are used.

20cm minimum distance has to be able to be maintained between the antenna and the users for the host this

module is integrated into. Under such configuration, the FCC radiation exposure limits set forth for an

population/uncontrolled environment can be satisfied.

USERS MANUAL OF THE END PRODUCT:

In the users manual of the end product, the end user has to be informed to keep at least 20cm separation with the

antenna while this end product is installed and operated. The end user has to be informed that the FCC

isense Model

number 1187665

Revision 1.1

WIFI module\WCBN4521R18\ROH Page 11 of 9

radio-frequency exposure guidelines for an uncontrolled environment can be satisfied.

The end user has to also be informed that any changes or modifications not expressly approved by the

manufacturer could void the user's authority to operate this equipment.

If the labelling area is small than the palm of the hand, then additional FCC part 15.19 statement is required to be

available in the users manual: This device complies with Part 15 of FCC rules. Operation is subject to the

following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any

interference received, including interference that may cause undesired operation.

LABEL OF THE END PRODUCT:

The final end product must be labeled in a visible area with the following " Contains TX FCC ID:

PPQ-WCBN4521R18 ".

If the labelling area is larger than the palm of the hand, then the following FCC part 15.19 statement has to also be

available on the label: This device complies with Part 15 of FCC rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference

received, including interference that may cause undesired operation.

Gain (dBi)

Ant. Brand Model Name Antenna Type

2.4GHz 5GHz

1 HUN PAI ENTERPRISE Co W4521R-A0001 PIFA Antenna 3.27 4.72

2 HUN PAI ENTERPRISE Co W4521R-A0002 PIFA Antenna 4.30 4.20

isense Model

number 1187665

Revision 1.1

WIFI module\WCBN4521R18\ROH Page 12 of 9

IC Statement

This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two

conditions:

(1) This device may not cause interference; and

(2) This device must accept any interference, including interference that may cause undesired operation of the

device.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.

L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2)

l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en

compromettre le fonctionnement.

This device and its antenna(s) must not be co-located with any other transmitters except in

accordance with IC multi-transmitter product procedures.

Referring to the multi-transmitter policy, multiple-transmitter(s) and module(s) can be operated

simultaneously without reassessment permissive change.

Cet appareil et son antenne (s) ne doit pas être co-localisés ou fonctionnement en association avec une autre antenne

ou transmetteur.

This radio transmitter (4491A-WCBN4521R18) has been approved by Industry Canada to operate with the

antenna types listed below with the maximum permissible gain indicated. Antenna types not included in this list,

having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.

Le présent émetteur radio (4491A-WCBN4521R18) a été approuvé par Industrie Canada pour fonctionner avec les

types d'antenne énumérés ci-dessous et ayant un gain admissible maximal d'antenne. Les types d'antenne non inclus

dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de

l'émetteur.

Dynamic Frequency Selection (DFS) for devices operating in the bands 5250- 5350 MHz, 5470-5600 MHz and

5650-5725 MHz.

Sélection dynamique de fréquences (DFS) pour les dispositifs fonctionnant dans les bandes 5250-5350 MHz,

5470-5600 MHz et 5650-5725 MHz.

The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for harmful

interference to co-channel mobile satellite systems.

les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une

utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles

utilisant les mêmes canaux.

The maximum antenna gain permitted for devices in the bands 5250-5350 MHz and 5470-5725 MHz shall be

such that the equipment still complies with the e.i.r.p. limit.

le gain maximal d’antenne permis pour les dispositifs utilisant les bandes 5250-5350 MHz et

5470-5725 MHz doit se conformer à la limite de p.i.r.e.

isense Model

number 1187665

Revision 1.1

WIFI module\WCBN4521R18\ROH Page 13 of 9

The maximum antenna gain permitted for devices in the band 5725-5850 MHz shall be such that the equipment

still complies with the e.i.r.p. limits specified for point-to-point and non-point-to-point operation as appropriate.

le gain maximal d’antenne permis (pour les dispositifs utilisant la bande 5725-5850 MHz)

doit se conformer à la limite de p.i.r.e. spécifiée pour l’exploitation point à point et non point à point, selon le cas.

For indoor use only.

Pour une utilisation en intérieur uniquement.

IMPORTANT NOTE:

IC Radiation Exposure Statement:

This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non

contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de

rayonnement et votre corps.

IMPORTANT NOTE:

This module is intended for OEM integrator. The OEM integrator is responsible for the compliance

to all the rules that apply to the product into which this certified RF module is integrated.

Additional testing and certification may be necessary when multiple modules are used.

20cm minimum distance has to be able to be maintained between the antenna and the users for the host this

module is integrated into. Under such configuration, the IC RSS-102 radiation exposure limits set forth for an

population/uncontrolled environment can be satisfied.

Any changes or modifications not expressly approved by the manufacturer could void the user's authority to

operate this equipment.

USERS MANUAL OF THE END PRODUCT:

In the users manual of the end product, the end user has to be informed to keep at least 20cm separation with the

antenna while this end product is installed and operated. The end user has to be informed that the IC

radio-frequency exposure guidelines for an uncontrolled environment can be satisfied.

The end user has to also be informed that any changes or modifications not expressly approved by the

manufacturer could void the user's authority to operate this equipment. Operation is subject to the following two

conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference

received, including interference that may cause undesired operation.

LABEL OF THE END PRODUCT:

The final end product must be labeled in a visible area with the following " Contains IC: 4491A-WCBN4521R18 ".

The Host Model Number (HMN) must be indicated at any location on the exterior of the end product or product packaging

or product literature which shall be available with the end product or online.

LITE ON TECHNOLOGY WCBN4521R18 802.11 a/b/g/n/ac 2x2 WiFi module User Manual

LITE-ON Technology Corp. 802.11 a/b/g/n/ac 2x2 WiFi module

User Manual

Navigation menu

Namespaces

Views

Navigation
