LITE ON TECHNOLOGY WN4516R 802.11n, Dual Band 2T2R Wireless LAN USB Module User Manual LiteOn Technology Corp
LITE-ON Technology Corp. 802.11n, Dual Band 2T2R Wireless LAN USB Module LiteOn Technology Corp
User Manual
Page 1/15
802.11n, Dual Band 2T2R Wireless LAN USB Module
WN4516R
User Manual
* This document contains confidential proprietary information and is property of LTC. The contents of
this document should not be disclosed to unauthorized persons without the written consent of LTC
Page 2/15
CONTENT

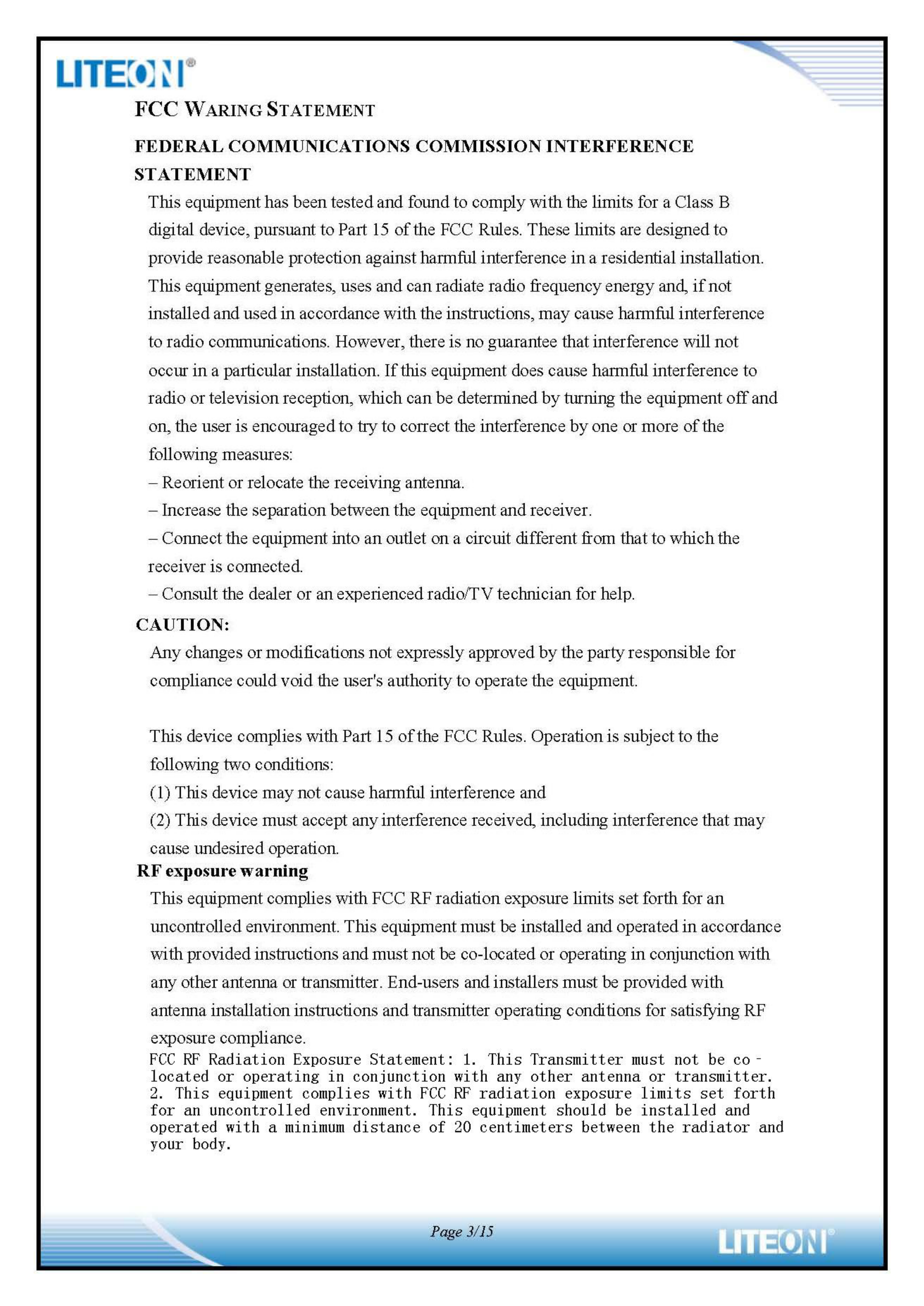

FCC WARING STATEMENT .......................................................................................................... 3
IC WARING STATEMENT .............................................................................................................. 4
PRODUCT FEATURES .................................................................................................................... 5
PRODUCT SPECIFICATIONS ........................................................................................................ 6
MAIN CHIPSET ....................................................................................................................................... 6
FUNCTIONAL SPECIFICATIONS ............................................................................................................... 6
PIN ASSIGMENT ............................................................................................................................... 8
USB CONNECTOR SPEC ................................................................................................................. 8
MECHANICAL .................................................................................................................................. 9
SHIELDING CASE SPEC ............................................................................................................... 10
ANTENNA SPEC ............................................................................................................................. 11
BLOCK DIAGRAM ......................................................................................................................... 12
MODULE PHOTO ........................................................................................................................... 12
EEPROM INFORMATION ............................................................................................................ 13
ENVIRONMENTAL ........................................................................................................................ 13
OPERATING .......................................................................................................................................... 13
STORAGE .............................................................................................................................................. 13
PACKING DRAWING .................................................................................................................... 14
Page 4/15
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be
installed such that 20cm may be maintained between the antenna and users. The final end
product must be labeled in a visible area with the following: "Contains FCC ID:
PPQ-WN4516R ” and “Contains transmitter module IC: 4491A - WN4516R”
Information for the OEMs and Integrators
The following statement must be included with all versions of this document supplied to an
OEM or integrator, but should not be distributed to the end user.
1) This device is intended for OEM integrators only.
2) Please see the full Grant of Equipment document for other restrictions.
IC WARING STATEMENT
Canada, Industry Canada (IC) Notices
This Class B digital apparatus complies with Canadian ICES-003 and RSS-210.
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
Canada, avis d'Industry Canada (IC)
Cet appareil numérique de classe B est conforme aux normes canadiennes ICES-003 et
RSS-210.
Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit
pas causer d'interférence et (2) cet appareil doit accepter toute interférence, notamment
les interférences qui peuvent affecter son fonctionnement.
Radio Frequency (RF) Exposure Information
The radiated output power of the Wireless Device is below the Industry Canada (IC)
radio frequency exposure limits. The Wireless Device should be used in such a manner
such that the potential for human contact during normal operation is minimized.
Page 5/15
This device has also been evaluated and shown compliant with the IC RF Exposure
limits under mobile exposure conditions. (antennas are greater than 20cm from a
person's body).
Informations concernant l'exposition aux fréquences radio (RF)
La puissance de sortie émise par l’appareil de sans fil est inférieure à la limite
d'exposition aux fréquences radio d'Industry Canada (IC). Utilisez l’appareil de sans fil
de façon à minimiser les contacts humains lors du fonctionnement normal.
Ce périphérique a également été évalué et démontré conforme aux limites d'exposition
aux RF d'IC dans des conditions d'exposition à des appareils mobiles (les antennes se
situent à moins de 20 cm du corps d'une personne).
PRODUCT FEATURES
Operate at ISM frequency Band (2.4 / 5GHz)
IEEE Standards Support, 802.11a , 802.11b, 802.11g and 802.11n
Support USB 2.0 host interface
Enterprise level security supporting: WPA, WPA2, WPS2.0, WAPI
Two-stream IEEE 802.11n support for 20MHz and 40MHz bandwidth channels
provides PHY layer rates up to 300Mbps
Integrated LNA, PA and T/R switch
Support Wi-Fi Direct
RoHS compliance
Low Halogen compliance
Page 6/15
PRODUCT SPECIFICATIONS
MAIN CHIPSET
MAC/ Baseband/ RF: MediaTek MT7600U
FUNCTIONAL SPECIFICATIONS
Wi-Fi Function
Standard
IEEE802.11a;IEEE802.11b; IEEE 802.11g; IEEE 802.11n
Bus Interface
USB2.0
Data Rate
802.11a:
54, 48, 36, 24, 18, 12, 9, 6 Mbps
802.11b:
11, 5.5, 2, 1 Mbps
802.11g:
54, 48, 36, 24, 18, 12, 9, 6 Mbps
802.11n:
MCS 0 to 15 for HT20MHz
MCS 0 to 15 for HT40MHz
Media Access Control
CSMA/CA with ACK
Modulation Techniques
802.11a:
64QAM, 16QAM, QPSK, BPSK
802.11b:
CCK, DQPSK, DBPSK
802.11g:
64QAM, 16QAM, QPSK, BPSK
802.11n:
64QAM, 16QAM, QPSK, BPSK
Network Architecture
Ad-hoc mode (Peer-to-Peer)
Infrastructure mode
Operation Channel
2.4GHz
11: (Ch. 1-11) – United States
13: (Ch. 1-13) – Europe
14: (Ch. 1-14) – Japan
5GHz
21: USA
19: EU
8: Japan
Frequency Range
802.11bg
2.400 ~ 2.4835 GHz
802.11a
5.15 ~ 5.85 GHz
Transmit Output Power –
2x2
MAX: 16.5dBm
(Tolerance: ±1.5dBm)
802.11a:
12 dBm@6Mbps
12 dBm@54Mbps
802.11b:
15 dBm@1Mbps
15 dBm@11Mbps
802.11g:
14 dBm@6Mbps
Page 7/15
14 dBm@54Mbps
802.11n:
2.4G
20MHz:
13 dBm@MCS0
13 dBm@MCS7
13 dBm@MCS15
40MHz:
13 dBm@MCS0
13 dBm@MCS7
13 dBm@MCS15
5G
20MHz:
11 dBm@MCS0
11 dBm@MCS7
11 dBm@MCS15
40MHz:
11 dBm@MCS0
11 dBm@MCS7
11 dBm@MCS15
Receiver Sensitivity
802.11a:
-86 dBm@6Mbps
-70 dBm@54Mbps
802.11b:
-88 dBm@1Mbps
-82 dBm@11Mbps
802.11g:
-86 dBm@6Mbps
-71 dBm@54Mbps
802.11n:
2.4G/5G
20MHz
-86 dBm@MCS0
-68 dBm@MCS7
-68 dBm@MCS15
40MHz
-83 dBm@MCS0
-65 dBm@MCS7
-65 dBm@MCS15
Security
WPA, WPA2, WPS, WEP 64b&128bit, IEEE 802.1X,
IEEE 802.11i
Operating Voltage
3.3V ± 5% I/O supply voltage
OS Supported
Linux based
Power Consumption
Average
Max
TX Mode:
TBD mA
RX Mode:
TBD mA
Standby Mode:
TBD mA
Radio Off:
TBD mA
1.2A
Strongly recommend TV
platform has to fulfill output
current at least 1A
Antenna Type
Metal antenna
Page 8/15
PIN ASSIGMENT
Pin.
Pin Define
Status
1
+3.3V
YES
2
USB_D-
YES
3
USB_D+
YES
4
GND
YES
5
RESET#
YES
6
GND
YES

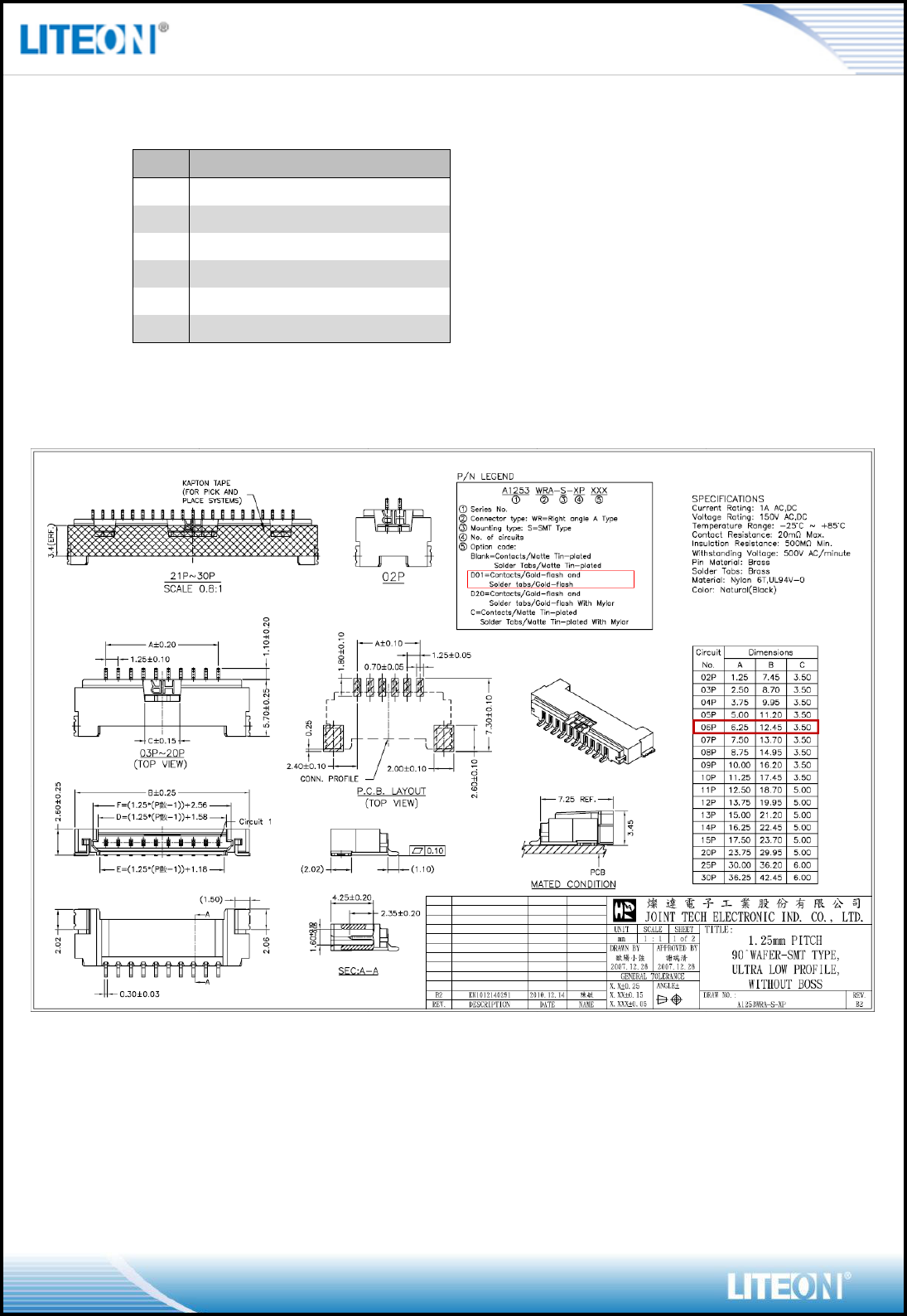

USB CONNECTOR SPEC
Page 9/15

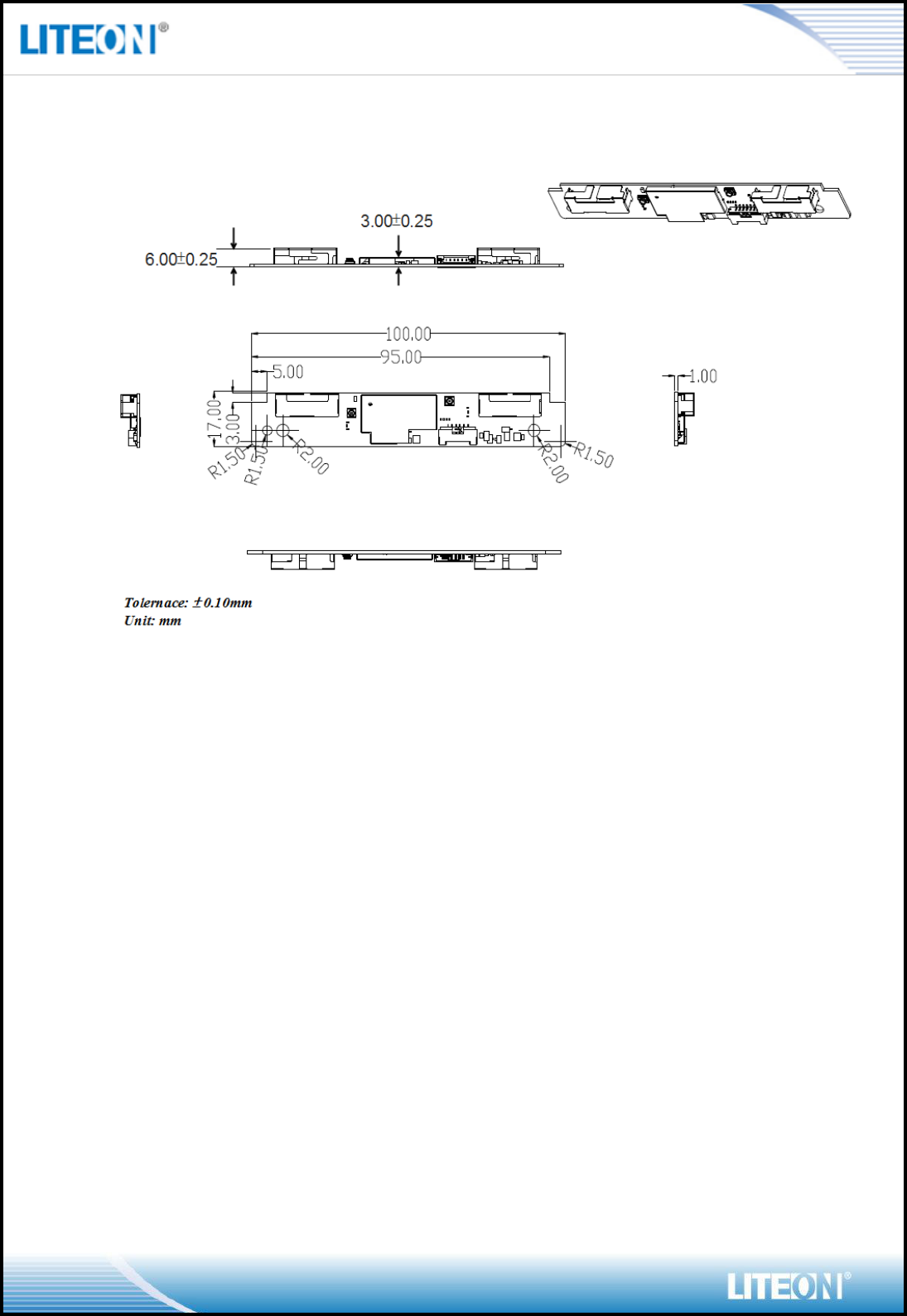

MECHANICAL
Page 10/15

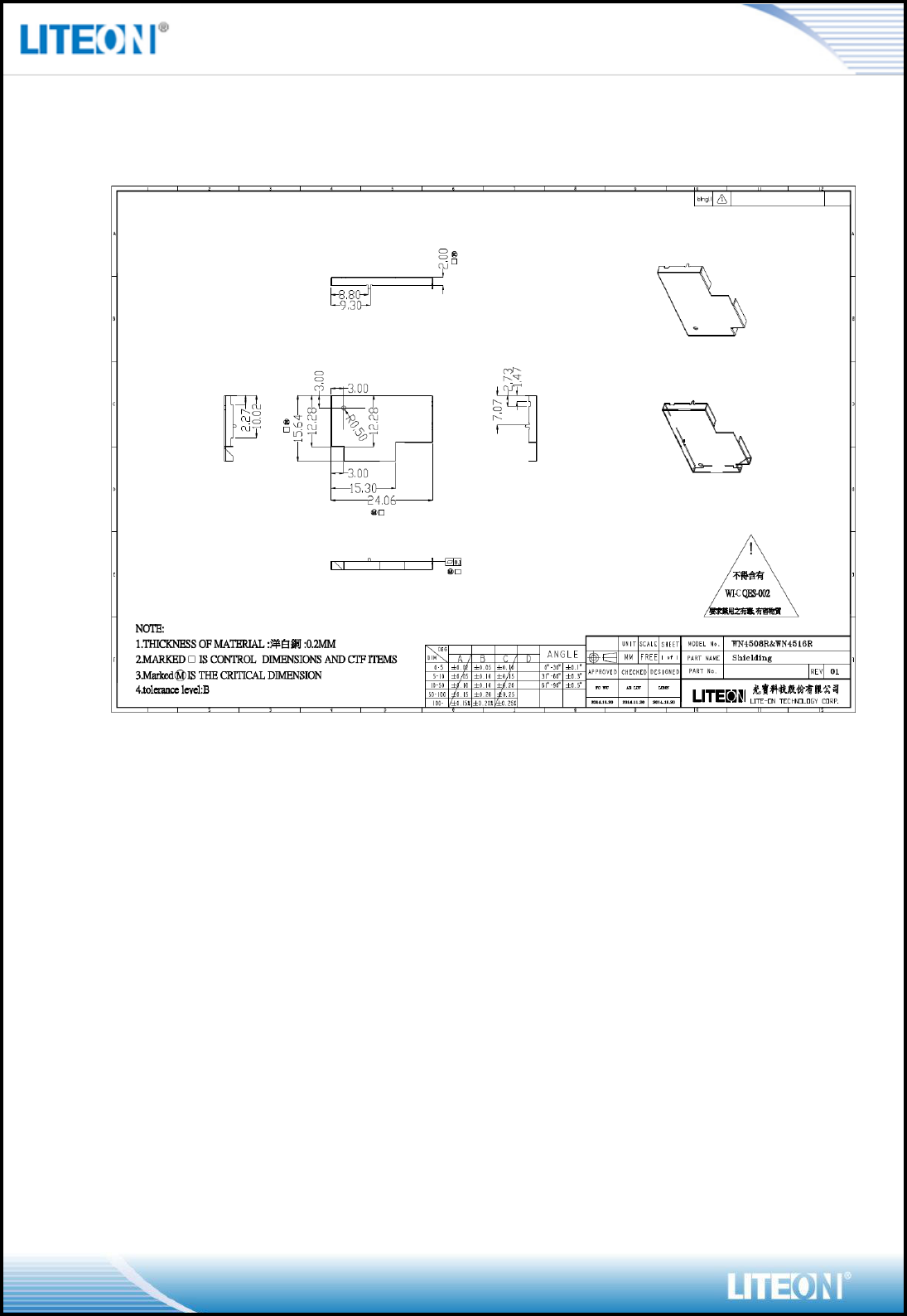

SHIELDING CASE SPEC
Manufacture: Hun Pai(
宏湃
)
Page 11/15

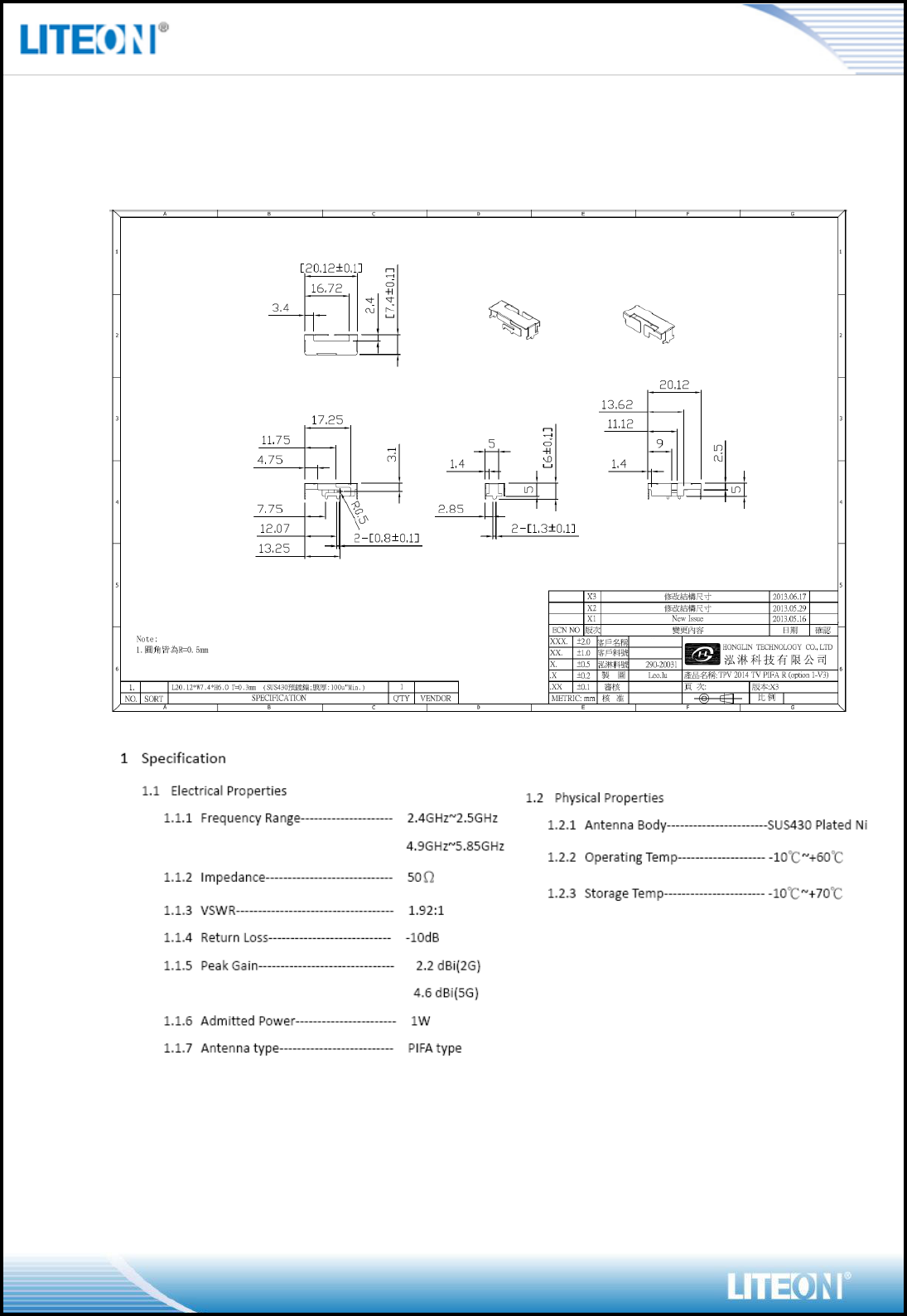

ANTENNA SPEC
Manufacture: Hong Lin
Page 12/15
BLOCK DIAGRAM
MODULE PHOTO
Page 13/15
EEPROM INFORMATION
Reg Domain
World Wide
2.4G/5G
Read from registry; Control by driver
Offset 0x38 for 5G: 0xFF
Offset 0x39 for 2.4G: 0xFF
Vendor ID
0x0471
Product ID
0x2126
ENVIRONMENTAL
Operating
Operating Temperature: 0 to 70 C (32 to 158 F)
Relative Humidity: 5-90% (non-condensing)
Storage
Temperature: -20 to 70 C (-4 to 158 F)
Relative Humidity: 5-95% (non-condensing)
Page 14/15

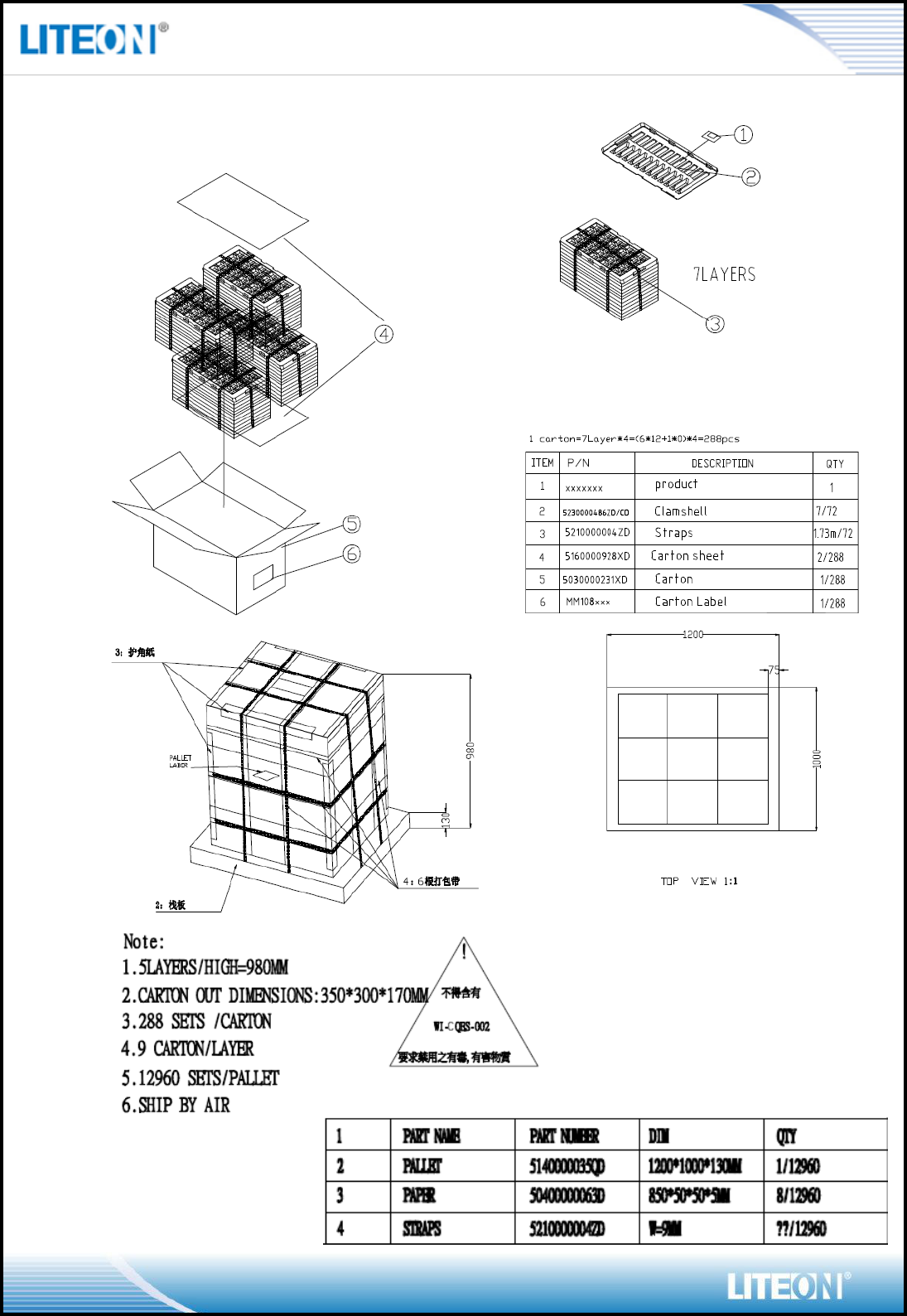

PACKING DRAWING

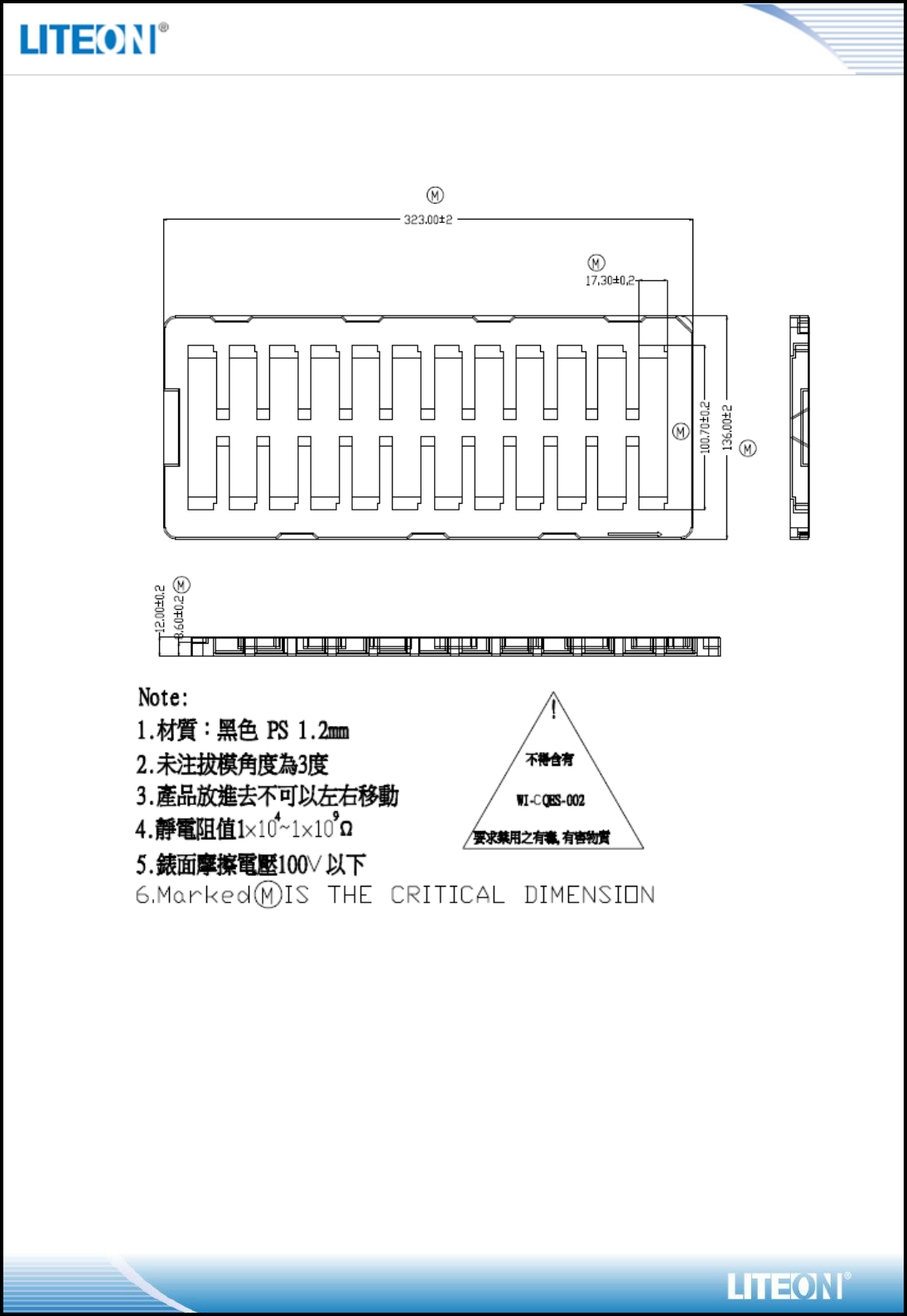

Tray
