User Manaul

WN4521L Specification Page 1/11 2018/7/30

LTC Network Access Confidential

802.11ac, 2T2R Wireless LAN USB Module

WN4521L

Version 1.2

User’s Manual

Change History:

Revision Date Author Change List

Version 1.0 2018/04/18 Bryant Chen Preliminary

Version 1.1 2018/06/20 Ken Chang Update MAC label and product picture

Update to V02(Offset 0x06 = 21, 0x104 = E3)

Version 1.2 2018/06/29 Ken Chang Modified Antenna type to Printed Antenna

WN4521L Specification Page 2/11 2018/7/30

LTC Network Access Confidential

PRODUCT DESCRIPTION

The Wireless LAN USB Module is a sleek miniature Wireless LAN device working

under 2.4/5 GHz frequency band. Compatible with IEEE standards, 802.11ac,

802.11a, 802.11b, 802.11g and support 802.11n. It provides full functional wireless

access within wireless environments anytime, anywhere at a data rate of up to

866.7Mbps. WN4521L comes with an USB 3.0 interface providing the maximum

transfer rate of 5Gb/s.

WN4521L embodies 2 transmitter 2 receiver (2T2R) architecture to ensure reliable

and cost-effective wireless connectivity at high throughput over an extended range.

Optimized RF architecture and base band algorithms provide outstanding

performance with low-power consumption.

PRODUCT FEATURES

 Operate at 2.4/5 GHz band

 866.7Mbps PHY Rate Support

 2T2R Modes

 20MHz/40MHz/80MHz Bandwidths Support

 USB 3.0 supports 5Gb/s high speed

 IEEE standards support: IEEE 802.11a/b/g and 802.11n, 802.11ac

 802.11i- WEP 64/128, AES, TKIP

 Low power with advanced Power Management

 RoHS compliance

WN4521L Specification Page 3/11 2018/7/30

LTC Network Access Confidential

Product specifications

Main chipset

Realtek RTL8812BU

Standard IEEE802.11ac;IEEE802.11a;IEEE802.11b; IEEE 802.11g;

IEEE802.11n

Bus Interface Universal Serial Bus (USB3.0)

Data Rate

802.11b:

11, 5.5, 2, 1 Mbps

802.11a / 802.11g:

54, 48, 36, 24, 18, 12, 9, 6 Mbps

802.11n:

MCS 0 to 15 for HT20MHz

MCS 0 to 15 for HT40MHz

802.11ac:

MCS 0 to 9 for HT80MHz

Media Access Control CSMA/CA with ACK

Radio Technology

802.11b:

CCK, DQPSK, DBPSK

802.11a / 802.11g:

BPSK, QPSK, 16 QAM, 64QAM

802.11n:

BPSK, QPSK, 16QAM, 64QAM

802.11ac:

BPSK, QPSK, 16QAM, 64QAM, 256QAM

Network architecture

Operating Channel

2.4GHz:

1-13

5GHz:

36 – 48, 52 -64

100 – 140, 149 - 165

Frequency Range

2.4GHz:

2.412 ~ 2.472 GHz

5GHz:

5180 ~ 5845 GHz

Transmit Output Power

WiFi:

11b: 17+/-1.5dBm(11Mbps)

11a/g: 13+/-1.5dBm(54Mbps)

2.4G:

11n: 13+/-1.5dBm(MCS7HT20)

11n: 12+/-1.5dBm(MCS7HT40)

5G:

11n: 12+/-2dBm(MCS7HT20)

11n: 11+/-2dBm(MCS7HT40)

11ac: 9+/-2dBm (HT80)

WN4521L Specification Page 4/11 2018/7/30

LTC Network Access Confidential

Receiver Sensitivity

802.11b:

Less than -76dBm

802.11g:

Less than -82dBm @ 6Mpbs

Less than -65dBm @ 54Mbps

802.11n:

Less than -82dBm @ MCS0

Less than -64dBm @ MCS7

802.11ac:

Less than -54dBm @ MCS9

Security 64-bit, 128-bit WEP, TKIP, AES, WPA, WPA2, WPS

IEEE 802.11i

Operating Voltage 5V ±5% I/O supply voltage

OS supported Windows, Linux(embedded system)

Antenna Type Printed Antenna

Power Consumption *TBD

*Environmental factors dependent

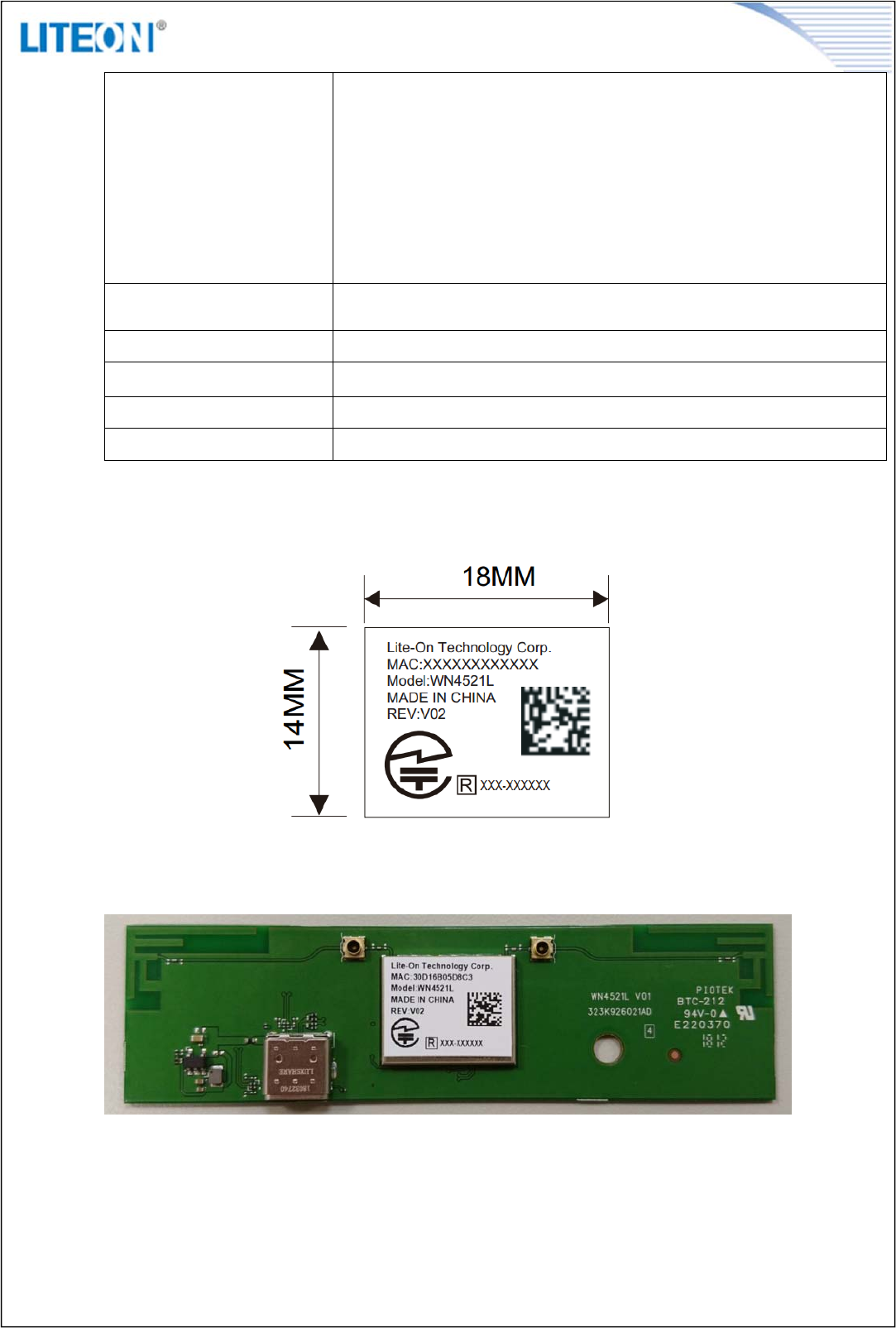

MAC Label

Product Picture

WN4521L Specification Page 5/11 2018/7/30

LTC Network Access Confidential

ENVIRONMENTAL

Operating

Operating Temperature: 0〫c to 70〫c

Relative Humidity: 5-90%

Storage

Temperature: -40〫c to 80〫c

Relevant Humidity: 5-95%

WN4521L Specification Page 6/11 2018/7/30

LTC Network Access Confidential

WARNINGS

FCCStatement:

FederalCommunicationCommissionInterferenceStatement

ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigital

device,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovide

reasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.This

equipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnotinstalled

andusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradio

communications.However,thereisnoguaranteethatinterferencewillnotoccurina

particularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioor

televisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,the

userisencouragedtotrytocorrecttheinterferencebyoneofthefollowingmeasures:

●Reorientorrelocatethereceivingantenna.

●Increasetheseparationbetweentheequipmentandreceiver.

●Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe

receiverisconnected.

●Consultthedealeroranexperiencedradio/TVtechnicianforhelp.



FCCCaution:Anychangesormodificationsnotexpresslyapprovedbytheparty

responsibleforcompliancecouldvoidtheuser’sauthoritytooperatethisequipment.



ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowing

twoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevice

mustacceptanyinterferencereceived,includinginterferencethatmaycauseundesired

operation.



ForproductavailableintheUSA/Canadamarket,onlychannel1~11canbeoperated.

Selectionofotherchannelsisnotpossible.



Thisdeviceisrestrictedforindooruse.



IMPORTANTNOTE:

FCCRadiationExposureStatement:

ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforan

uncontrolledenvironment.Thisequipmentshouldbeinstalledandoperatedwith

minimumdistance20cmbetweentheradiator&yourbody.



WN4521L Specification Page 7/11 2018/7/30

LTC Network Access Confidential

The module is limited to OEM installation ONLY.

This module is intended for OEM integrators under the following conditions:

1. This module is restricted to installation in products for use only in mobile and fixed

applications.

2. The antenna(s) used for this transmitter must be installed to provide a separation distance

of at least 20 cm from all persons.

3. The antenna(s) used for this transmitter must not transmit simultaneously with any other

antenna or transmitter.

4. OEM integrator has be limited the operation channels in channel 1-11 for 2.4GHz band.

5. Fixed outdoor applications for point to multipoint operations are subject to the conditions in

Part 15.407(a)(1)(i).

The OEM integrator is still responsible for

1. ensuring that the end-user has no manual instructions to remove or install module

2. the FCC compliance requirement of the end product, which integrates this module.

3. Appropriate measurements (e.g. 15 B compliance) and if applicable additional equipment

authorizations (e.g. SDoc) of the host device to be addressed by the

integrator/manufacturer.

4. The separate approval is required for all other operating configurations, including portable

configurations with respect to Part 2.1093 and different antenna configurations

We hereby acknowledge our responsibility to provide guidance to the host manufacturer in the

event that they require assistance for ensuring compliance with the Part 15 Subpart B

requirements.

The user manual of the end product should include

1. Any changes or modifications not expressly approved by the party responsible for

compliance could void the user's authority to operate this equipment.

2. the restriction of operating this device in indoor could void the user’s authority to operate

the equipment.

3. This device and its antenna(s) must not be co-located or operating in conjunction with any

other antenna or transmitter.

4. This equipment should be installed and operated with minimum distance 20cm between

the radiator & your body.

5. The FCC part 15.19 statement: This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions: (1) This device may not cause harmful

interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation.

Label of the end product:

The final end product must be labeled in a visible area with the following "Contains TX

FCC ID: PPQ-WN4521L".

The end product shall bear the following 15.19 statement: This device complies with part

WN4521L Specification Page 8/11 2018/7/30

LTC Network Access Confidential

15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device

may not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.





WN4521L Specification Page 9/11 2018/7/30

LTC Network Access Confidential

IC Statement:

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation,

Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject

to the following two conditions:

1. This device may not cause interference.

2. This device must accept any interference, including interference that may cause undesired

operation of the device.

L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux

CNR d’Innovation, Sciences et Développement économique Canada applicables aux

appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions

suivantes :

1. L’appareil ne doit pas produire de brouillage;

2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est

susceptible d’en compromettre le fonctionnement.

the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the

potential for harmful interference to co-channel mobile satellite systems;

les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une

utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de

satellites mobiles utilisant les mêmes canaux;

IMPORTANT NOTE:

IC Radiation Exposure Statement:

This equipment complies with IC RSS-102 radiation exposure limits set forth for an

uncontrolled environment. This equipment should be installed and operated with minimum

distance 20cm between the radiator & your body.

Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies

pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec

un minimum de 20cm de distance entre la source de rayonnement et votre corps

OEM integrator is still responsible for testing their end product for any additional compliance

requirements required with this module installed (for example, digital device emissions, PC

peripheral requirements, etc.).

IMPORTANT NOTE: In the event that these conditions cannot be met (for example certain

laptop configurations or co-location with another transmitter), then the IC authorization is no

longer considered valid and the IC No. cannot be used on the final product. In these

circumstances, the OEM integrator will be responsible for re-evaluating the end product

(including the transmitter) and obtaining a separate IC authorization.

WN4521L Specification Page 10/11 2018/7/30

LTC Network Access Confidential

End Product Labeling

This transmitter module is authorized only for use in device where the antenna may be

installed such that 20 cm may be maintained between the antenna and users. The final end

product must be labeled in a visible area with the following: “Contains transmitter module IC:

IC: 4491A-WN4521L”.

Contient le module d'émission IC: IC: 4491A-WN4521L

IMPORTANT NOTE for OEM integrator:

This module is intended for OEM integrator.

The OEM integrator is still responsible for

1. ensuring that the end-user has no manual instructions to remove or install module

2. the ISED compliance requirement of the end product, which integrates this module.

3. Appropriate measurements and if applicable additional equipment authorizations of the

host device to be addressed by the integrator/manufacturer.

4. The separate approval is required for all other operating configurations, including portable

configurations and different antenna configurations

The transmitter module may not be co-located with any other transmitter or antenna.

Le module émetteur peut ne pas être coïmplanté avec un autre émetteur ou antenne.

CAN ICES-3 (B)/NMB-3(B)





WN4521L Specification Page 11/11 2018/7/30

LTC Network Access Confidential



CEStatement:

ThisequipmentcomplieswithEUradiationexposurelimitssetforthforanuncontrolled

environment.Thisequipmentshouldbeinstalledandoperatedwithminimumdistance

20cmbetweentheradiator&yourbody.



NCC 警語:

經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變

更頻率、加大功率或變更原設計之特性及功能。

低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，

應立即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作

業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射

性電機設備之干擾。



LITE ON TECHNOLOGY WN4521L 802.11ac, 2T2R Wireless LAN USB Module User Manual User Manaul

LITE-ON Technology Corp. 802.11ac, 2T2R Wireless LAN USB Module User Manaul

User Manaul

Navigation menu

Namespaces

Views

Navigation
