LITE ON TECHNOLOGY WN4614L WLAN USB Module User Manual LiteOn Technology Corp
LITE-ON Technology Corp. WLAN USB Module LiteOn Technology Corp
user manual
Page 1/12
PRODUCT SPECIFICATION
802.11n, 2.4G 1T1R Wireless LAN USB Module
WN4614L
Realtek RTL8188ETV
Version 1.0
User Manual
* This document contains confidential proprietary information and is property of LTC. The contents of
this document should not be disclosed to unauthorized persons without the written consent of LTC.
Page 2/12
CONTENT
FCC WARING STATEMENT .......................................................................................................... 3
IC WARING STATEMENT .............................................................................................................. 4
PRODUCT FEATURES .................................................................................................................... 5
WI-FI FEATURE .................................................................................................................................... 5
INTRODUCTION .............................................................................................................................. 6
SOFTWARE INSTALLATION ........................................................................................................ 7
HARDWARE INSTALLATION ..................................................................................................... 10
NETWORK CONNECTION ........................................................................................................... 10
Page 3/12
FCC WARING STATEMENT
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE
STATEMENT
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
RF exposure warning
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This equipment must be installed and operated in accordance
with provided instructions and must not be co-located or operating in conjunction with
any other antenna or transmitter. End-users and installers must be provided with
antenna installation instructions and transmitter operating conditions for satisfying RF
exposure compliance.
Page 4/12
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be
installed such that 20cm may be maintained between the antenna and users. The final
end product must be labeled in a visible area with the following: "Contains FCC ID:
PPQ-WN41L ”
Information for the OEMs and Integrators
The following statement must be included with all versions of this document supplied
to an
OEM or integrator, but should not be distributed to the end user.
1) This device is intended for OEM integrators only.
2) Please see the full Grant of Equipment document for other restrictions.
This device is operation in 5.15 – 5.25GHz frequency range, then restricted in indoor
use only, Outdoor operations in the 5150~5250MHz is prohibit.
This device is slave equipment, the device is not radar detection and not ad-hoc
operation in the DFS band.
IC WARING STATEMENT
Canada, avis d'Industry Canada (IC)
Cet appareil numérique de classe B est conforme aux normes canadiennes ICES-003 et
RSS-210.
Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit
pas causer d'interférence et (2) cet appareil doit accepter toute interférence, notamment
les interférences qui peuvent affecter son fonctionnement.
Radio Frequency (RF) Exposure Information
The radiated output power of the Wireless Device is below the Industry Canada (IC)
radio frequency exposure limits. The Wireless Device should be used in such a manner
such that the potential for human contact during normal operation is minimized.
This device has also been evaluated and shown compliant with the IC RF Exposure
limits under mobile exposure conditions. (antennas are greater than 20cm from a
person's body).
IMPORTANT NOTE:
This module is intended for OEM integrator.
The OEM integrator is still responsible for the FCC compliance requirement of the end product,
which integrates this module.
Appropriate measurements (e.g. 15 B compliance) and if applicable additional equipment
authorizations (e.g. Verification , Doc) of the host device to be addressed by the integrator/
manufacturer.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to
the following two conditions: (1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause undesired operation of the device.
The final end product must be labeled in a visible area with the following: “Contains transmitter
module IC: 4491A-WN4614L”.
Contient le module d'émission IC: 4491A-WN4614L
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1)
l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter
tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre
le fonctionnement.
Page 5/12
Informations concernant l'exposition aux fréquences radio (RF)
La puissance de sortie émise par l’appareil de sans fil est inférieure à la limite
d'exposition aux fréquences radio d'Industry Canada (IC). Utilisez l’appareil de sans fil
de façon à minimiser les contacts humains lors du fonctionnement normal.
Ce périphérique a également été évalué et démontré conforme aux limites d'exposition
aux RF d'IC dans des conditions d'exposition à des appareils mobiles (les antennes se
situent à moins de 20 cm du corps d'une personne).
PRODUCT FEATURES
Wi-Fi Feature
Operate at ISM frequency Band (2.4GHz)
IEEE Standards Support, 802.11b, 802.11g and 802.11n
CMOS MAC, Baseband PHY, and RF in a single chip for IEEE 802.11b/g/n
compatible WLAN
Complies with USB Specification 2.0, support Full-speed(12Mbps) and
High-Speed(480Mbps)
Enterprise level security supporting: WPA, WPA2
Support 1 transmission and 1 receiving, transmission rate can up to 150Mbps
(Physical Rate) in downstream and upstream
RoHS compliance
Low Halogen compliance
This radio transmitter (IC: 4491A-WN4614L) has been approved by Industry Canada to operate
with the antenna types listed below with the maximum permissible gain and required antenna
impedance for each antenna type indicated. Antenna types not included in this list, having a gain
greater than the maximum gain indicated for that type, are strictly prohibited for use with this
device.
Page 6/12
INTRODUCTION
The 802.11b/g/n 1T1R USB WLAN Card is a device that allows you connect your
computer to a wireless local area network (LAN). A wireless LAN allows your
system to use wireless Radio Frequency (RF) technology to transmit and receive data
without physically attaching to the network. The Wireless protocols that come with
this product ensure data security and isolation from interference generated by other
radio frequencies.
This card also allows you to take full advantage of your computer’s mobility with
access to real-time information and online services anytime and anywhere. In addition,
this device eliminates the bother of pulling cable through walls and under furniture. It
even allows you to place your system in locations where cabling is impossible.
Modifying and augmenting networks has never been so easy.
Wireless Network Options
The Peer-to-Peer Network
This network installation lets you set a small wireless workgroup easily and
quickly. Equipped with wireless PC Cards or wireless PCI, you can share files
and printers between each PC and laptop.
You can also use one computer as an Internet Server to connect to a wired global
network and share files and information with other computers via a wireless LAN.
The Access Point Network
Page 7/12
The network installation allows you to share files, printers, and Internet access
much more conveniently. With Wireless LAN Cards, you can connect wireless
LAN to a wired global network via an Access Point.
SOFTWARE INSTALLATION
Install the device
1.Make sure the computer is turned off. Remove the expansion slot cover from the
computer.
2.Carefully slide the 802.11b/g/n 1T1R USB WLAN Card into the USB port. Push
evenly and slowly and ensure it is properly seated.
3.After the device has been connected to your computer, turn on your computer.
Windows will detect the new hardware and then automatically copy all of the files
needed for networking.
Page 8/12
Install the Driver & Utility
1.Exit all Windows programs. Insert the included CD-ROM into your computer. The
CD-ROM will run automatically.
2.When the License Agreement screen appears, please read the contents and select
“I accept the terms of the license agreement“ then click Next to continue.
Page 9/12

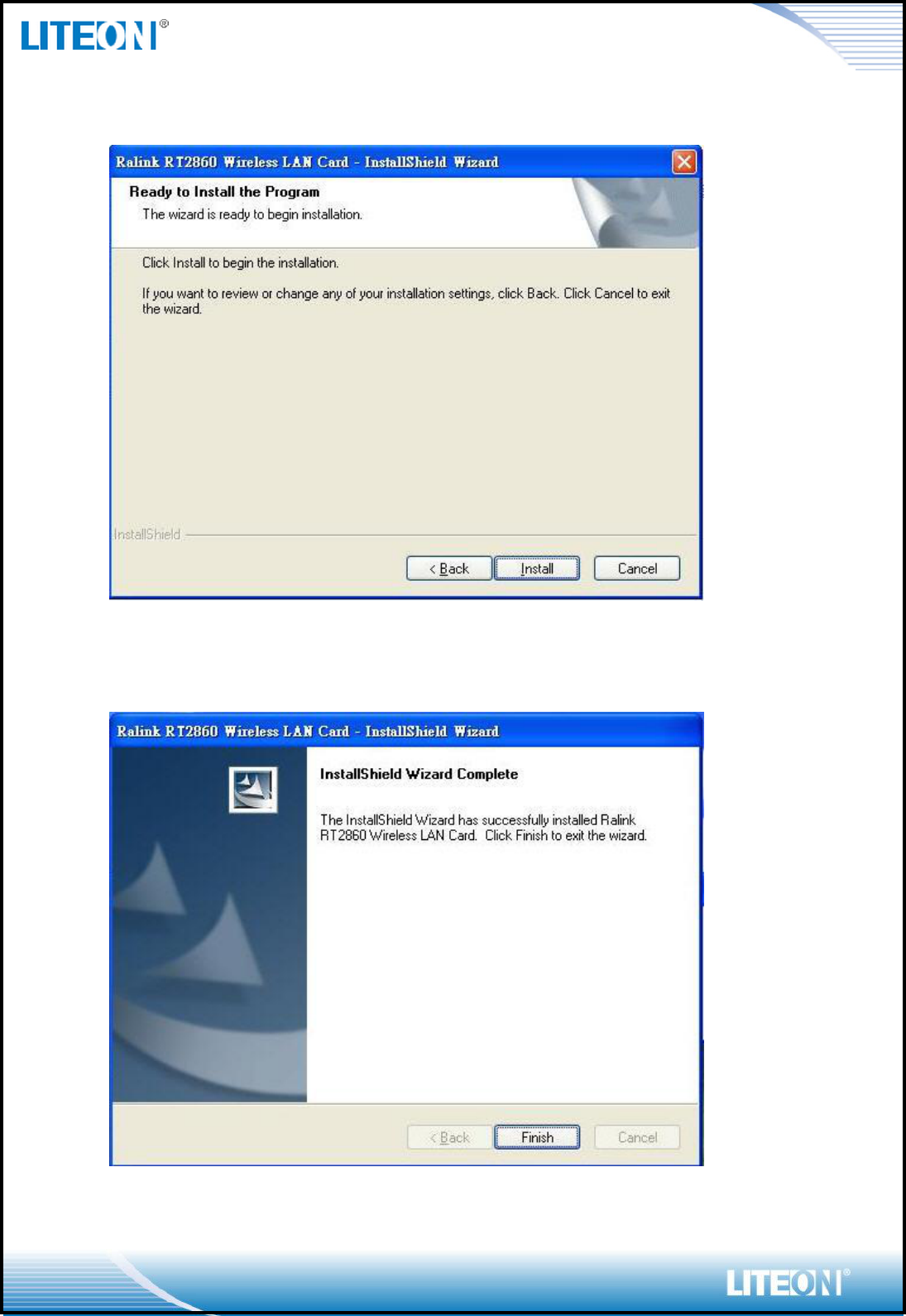

3.Click the Install to continue
4.When the following screen appears, click Finish to complete thesoftware
installation.
Page 10/12
HARDWARE INSTALLATION
Verification
To verify if the device exists in your computer and is enabled, go to Start >
Control Panel > System (> Hardware) > Device Manager. Expand the
Network Adapters category. If the 802.11n 1T2R Wireless LAN Card
is listed here, it means that your device is properly installed and enabled.
NETWORK CONNECTION
Once the device driver is well installed, a network setting described in the following
should be also established.
1.Click the Wireless icon to enable Windows Zero Configure.
2.Select the AP then click the Connect
Page 11/12
Page 12/12

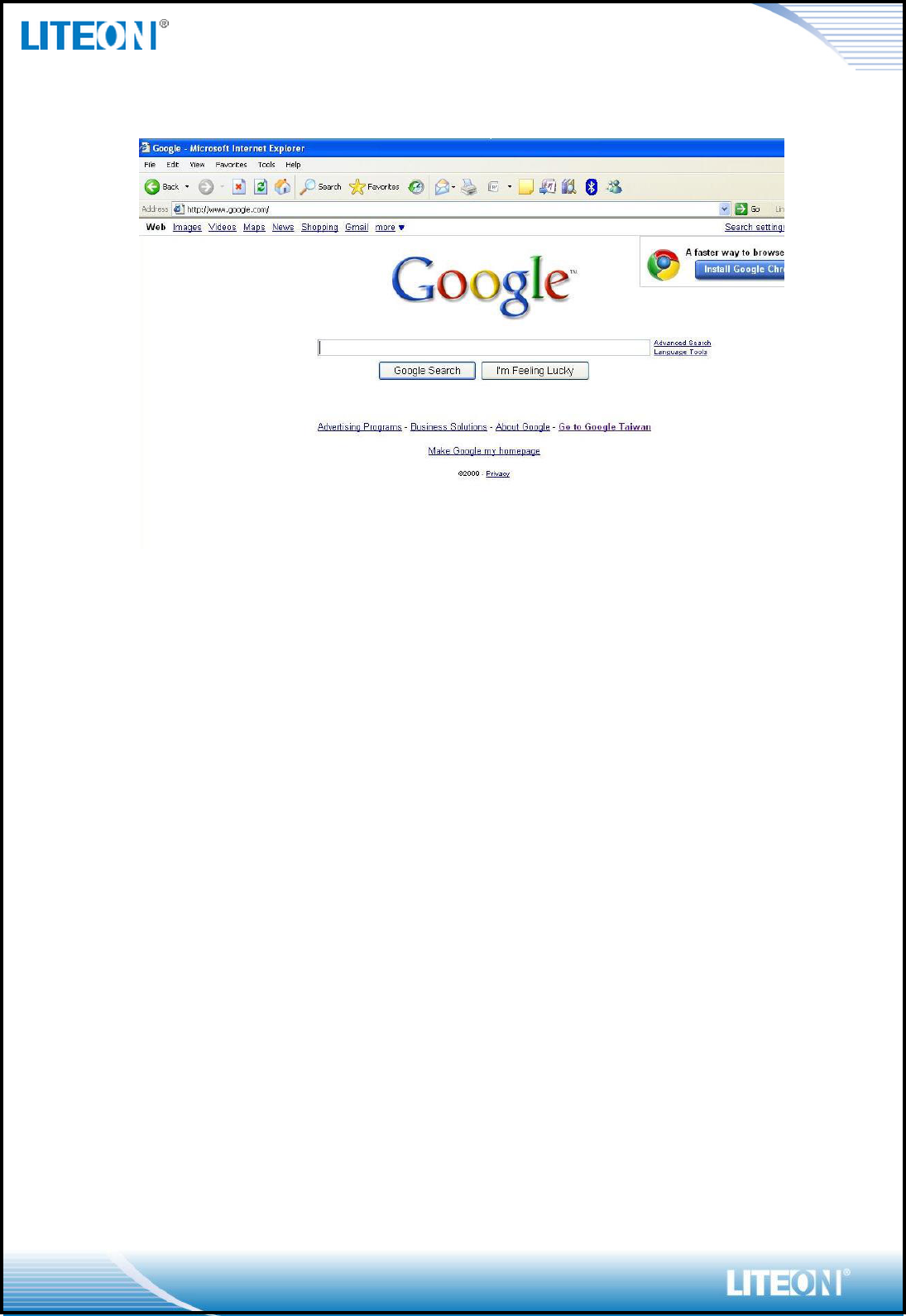

3.Surfing the Internet after completing connection.
