WN4611L Specification Page 1/9 2014/2/23
LTC Network Access Confidential
User manual
802.11n, 2T2R Single Band Wireless LAN USB Module
WN4611L
Version 1.0
This document contains confidential proprietary information and is property of LTC. The contents of this document should not
be disclosed to unauthorized persons without the written consent of LTC.
Change History:
Revision
Date
Author
Change List
Version 1.0
2013/12/03
Kaysa Lee
Preliminary
Author: Kaysa Lee
Approved by: Sunny Hsieh
Editor: Kaysa Lee
Project Leader: Sunny Hsieh
WN4611L Specification Page 2/9 2014/2/23
LTC Network Access Confidential
PRODUCT SPECIFICATION
802.11n, 2T2R Single Band Wireless LAN USB Module
WN4611L
Version 1.0
Networking B.U.
Lite-On Technology Corporation
4F, 90, Chien I Rd.
Chung-Ho, Taipei Hsien 235, Taiwan, R.O.C.
Phone: 886-2-2222-6181
Fax: 886-2-2221-5288
Contact: Product Marketing
Mr. ML Wu #8266
E-mail: ML.Wu@liteon.com
Customer Approval: (Signature)
(Title)
(Company)
(Date)
(Please Sign Back by FAX. For Confirming the Spec Only, not an Official Agreement for OEM/ODM Business)
WN4611L Specification Page 3/9 2014/2/23
LTC Network Access Confidential
CONTENT
PRODUCT DESCRIPTION .............................................................................................................. 4
PRODUCT FEATURES..................................................................................................................... 4
PRODUCT SPECIFICATIONS ........................................................................................................ 4
MAIN CHIPSET ........................................................................................................................................ 4
FUNCTIONAL SPECIFICATIONS................................................................................................................ 5
MECHANICAL ......................................................................................................................................... 6
PRODUCT PICTURE ................................................................................................................................. 6
CONNECTOR SPEC (CONNECTOR 1.25MM 1*6P 50271-0060N-001 SMD(宏致)) ............................ 7
PIN DEFINITION ...................................................................................................................................... 7
PACKING ................................................................................................................................................ 7
BLOCK DIAGRAM ................................................................................................................................... 9
EEPROM INFORMATION .............................................................................................................. 9
ENVIRONMENTAL .......................................................................................................................... 9
WN4611L Specification Page 4/9 2014/2/23
LTC Network Access Confidential
PRODUCT DESCRIPTION
The WN4611L Wireless LAN USB Module is a sleek miniature Wireless LAN device working
under 2.4GHz frequency band. The WN4611L is a compatible with IEEE standards, 802.11b,
802.11g and support 802.11n. It provides full functional wireless access within wireless
environments anytime, anywhere at a data rate of up to 300Mbps. The WN4611L comes with
an USB 2.0 interface providing the maximum transfer rate of 480Mbps, the form factor is an
embedded module.
WN4611L embody 2 transmitter 2 receiver (2T2R) architecture to ensure reliable and
cost-effective wireless connectivity at high throughput over an extended range. Optimized RF
architecture and base band algorithms provide super performance with low-power
consumption.
PRODUCT FEATURES
Operate at 2.4GHz band
300Mbps PHY Rate Support
2T2R Modes
20MHz/40MHz Bandwidth Support
USB 2.0 support for date rates up to 12Mbps full speed and 480Mbps high speed
IEEE standards support: IEEE 802.11b/g and 802.11n
802.11i- WEP 64/128, AES, TKIP
Low power with advanced Power Management
Embedded CPU with host off-load capability
Support WoW function
RoHS compliance
HF compliance
Product specifications
Main chipset
MAC/Baseband/RF: Realtek 8192EU
WN4611L Specification Page 5/9 2014/2/23
LTC Network Access Confidential
Functional Specifications
Standard
Bus Interface
Data Rate
Media Access Control
Radio Technology
Network architecture
Operating Channel
Frequency Range
Transmit Output Power
(Tolerance: +1.5dBm/-1.5dBm)
802.11b
16dBm
802.11g
14dBm@54Mbps
802.11n
13dBm@HT20 MCS0
13dBm@HT20 MCS7
12dBm@HT40 MCS0
12dBm@HT40 MCS7
Receiver Sensitivity
Security
Operating Voltage
OS supported
Power Consumption
Antenna Type
*Environmental factors dependent
WN4611L Specification Page 6/9 2014/2/23
LTC Network Access Confidential
Mechanical
Product Picture
Top
Bottom
WN4611L Specification Page 7/9 2014/2/23
LTC Network Access Confidential

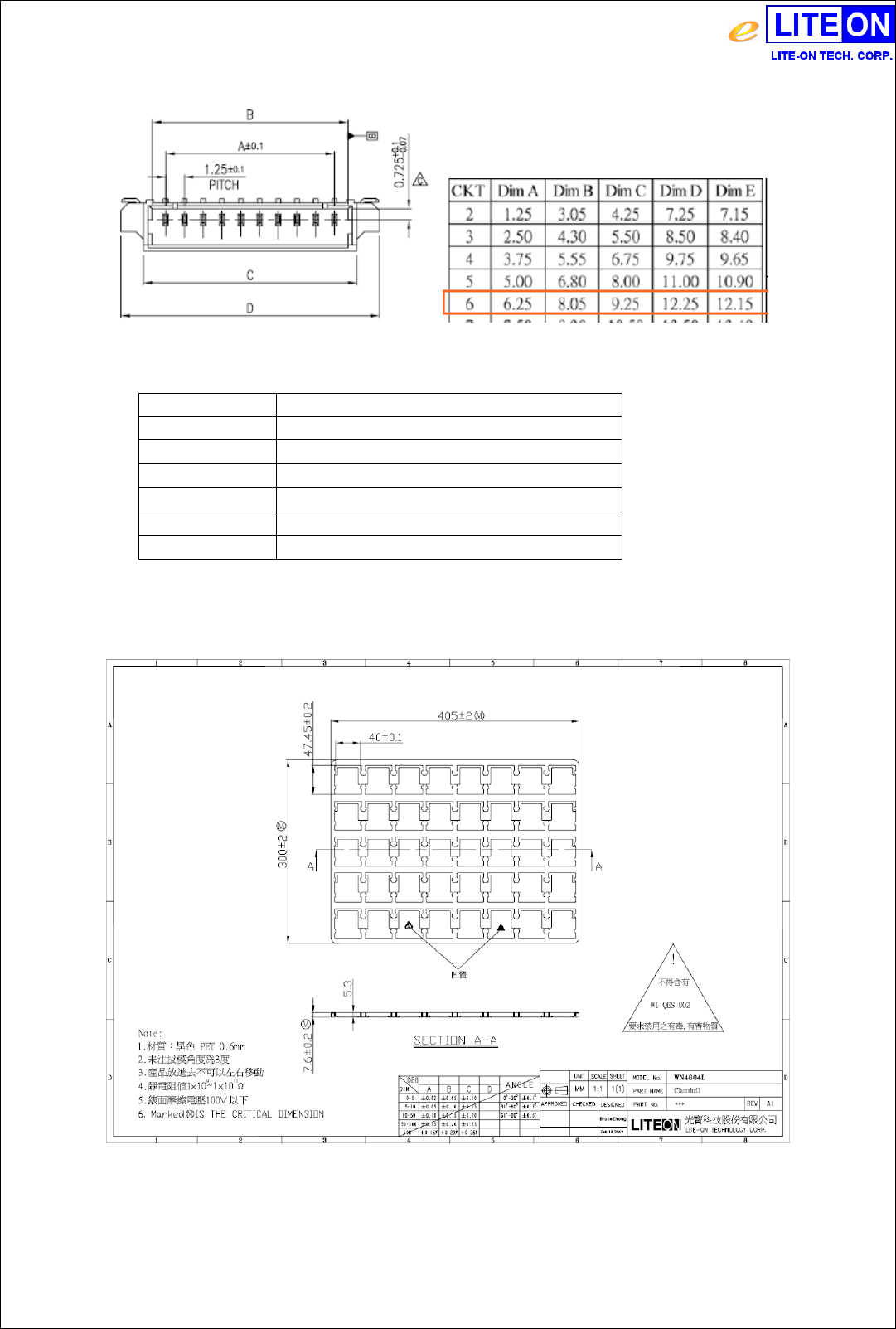

Connector SPEC (CONNECTOR 1.25mm 1*6P 50271-0060N-001 SMD(宏致))
Pin Definition
Pin Number
Pin Name
1
+5V
2
D-
3
D+
4
GND
5
WOW - Device wake Host function
6
Host inform Device function

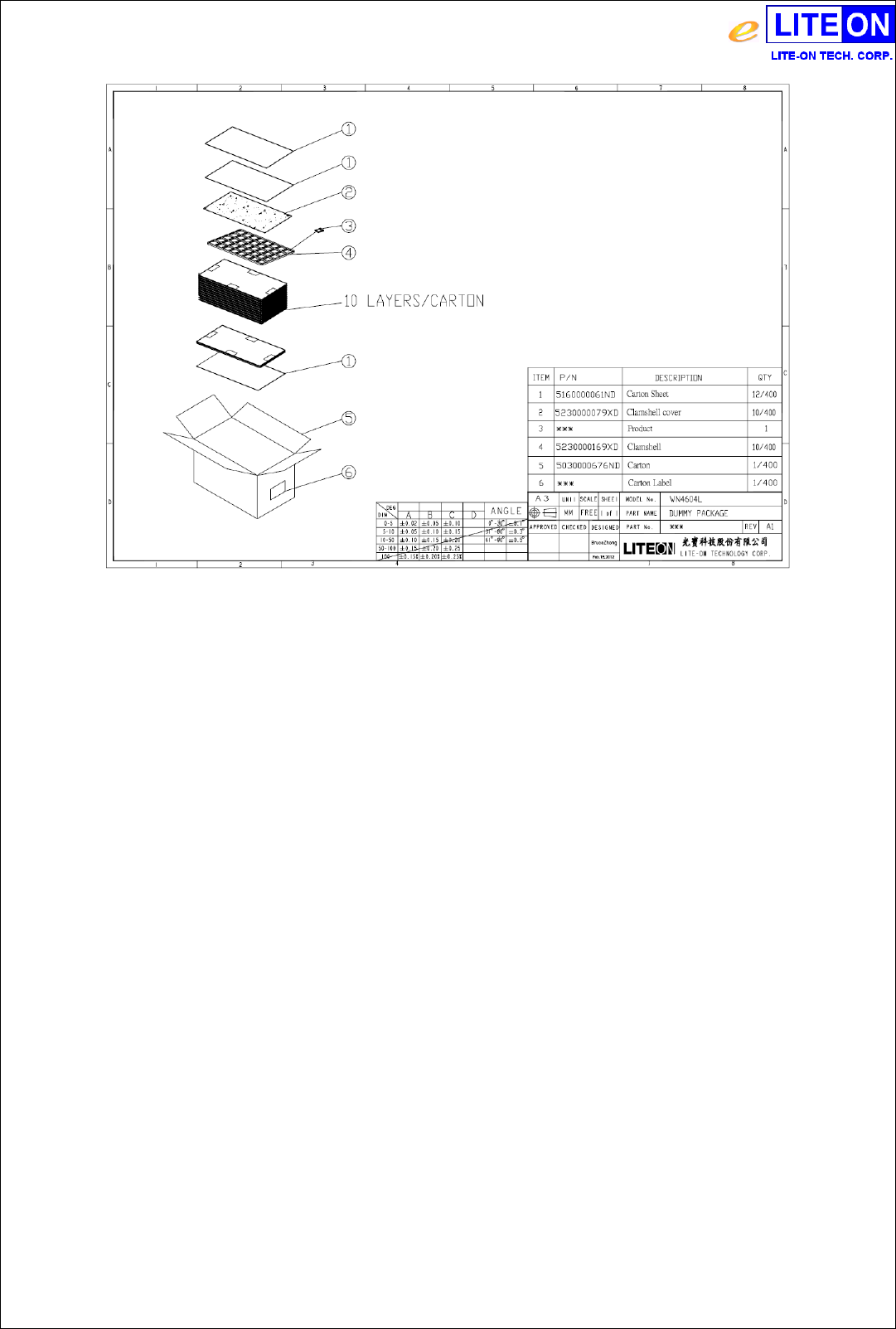

Packing
WN4611L Specification Page 8/9 2014/2/23
LTC Network Access Confidential
WN4611L Specification Page 9/9 2014/2/23
LTC Network Access Confidential

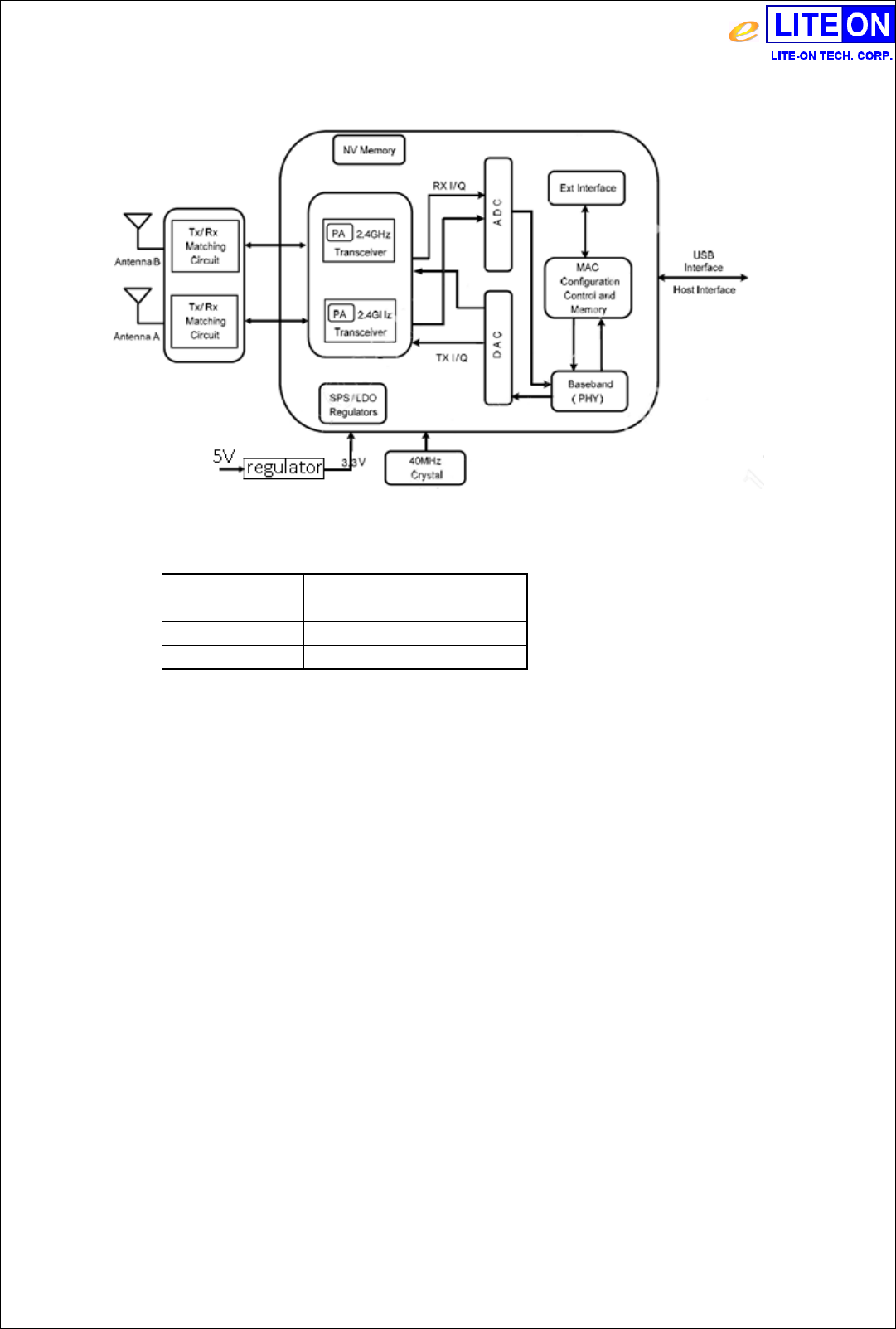

Block Diagram
EEPROM INFORMATION
Reg Domain
World Wide13
0x20
Vendor ID
0x0BDA
Product ID
0x818B
ENVIRONMENTAL
Operating
Operating Temperature: -10 to 75 C (14 to 167 F)
Relative Humidity: 5-90% (non-condensing)
Storage
Temperature: -40 to 85 C (-40 to 185 F)
Relevant Humidity: 5-95% (non-condensing)
