802.11n, 2.4G 1T1R Wireless LAN USB Module
WN4638R
MediaTek MT7601U
Version 1.0
User Manual
* This document contains confidential proprietary information and is property of LTC. The contents of
this document should not be disclosed to unauthorized persons without the written consent of LTC
Page 2/11
802.11n, 2.4G 1T1R Wireless LAN USB Module
WN4638R
MediaTek MT7601U
Version 1.0
Networking B.U.
Lite-on Technology Corporation
4F, No. 90, Chien 1 Rd.,
Chung Ho, New Taipei City 235, Taiwan, R.O.C.
Customer Approval: (Signature)
(Title)
(Company)
(Date)
(Please Sign Back by FAX. For Confirming the Spec Only, not an Official Agreement for OEM/ODM Business)
Page 3/11
CONTENT
FCC WARING STATEMENT .......................................................................................................... 4
IC WARING STATEMENT .............................................................................................................. 5
PRODUCT FEATURES .................................................................................................................... 6
PRODUCT SPECIFICATIONS ........................................................................................................ 7
MAIN CHIPSET ....................................................................................................................................... 7
FUNCTIONAL SPECIFICATIONS ............................................................................................................... 7
PIN ASSIGMENT ............................................................................................................................... 9
RESET TIMING SPEC ...................................................................................................................... 9
USB CONNECTOR SPEC ............................................................................................................... 10
MECHANICAL ................................................................................................................................ 11
EEPROM INFORMATION ............................................................................................................ 11
ENVIRONMENTAL ........................................................................................................................ 11
OPERATING .......................................................................................................................................... 11
STORAGE .............................................................................................................................................. 11
Page 4/11
FCC WARING STATEMENT
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE
STATEMENT
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
RF exposure warning
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This equipment must be installed and operated in accordance
with provided instructions and must not be co-located or operating in conjunction with
any other antenna or transmitter. End-users and installers must be provided with
antenna installation instructions and transmitter operating conditions for satisfying RF
exposure compliance.
Page 5/11
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be
installed such that 20cm may be maintained between the antenna and users. The final end
product must be labeled in a visible area with the following: "Contains FCC ID:
PPQ-WN4629R ” and “Contains transmitter module IC: 4491A - WN4638R”
Information for the OEMs and Integrators
The following statement must be included with all versions of this document supplied to an
OEM or integrator, but should not be distributed to the end user.
1) This device is intended for OEM integrators only.
2) Please see the full Grant of Equipment document for other restrictions.
IC WARING STATEMENT
Canada, Industry Canada (IC) Notices
This Class B digital apparatus complies with Canadian ICES-003 and RSS-210.
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
Canada, avis d'Industry Canada (IC)
Cet appareil numérique de classe B est conforme aux normes canadiennes ICES-003 et
RSS-210.
Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit
pas causer d'interférence et (2) cet appareil doit accepter toute interférence, notamment
les interférences qui peuvent affecter son fonctionnement.
Radio Frequency (RF) Exposure Information
The radiated output power of the Wireless Device is below the Industry Canada (IC)
radio frequency exposure limits. The Wireless Device should be used in such a manner
such that the potential for human contact during normal operation is minimized.
Page 6/11
This device has also been evaluated and shown compliant with the IC RF Exposure
limits under mobile exposure conditions. (antennas are greater than 20cm from a
person's body).
Informations concernant l'exposition aux fréquences radio (RF)
La puissance de sortie émise par l’appareil de sans fil est inférieure à la limite
d'exposition aux fréquences radio d'Industry Canada (IC). Utilisez l’appareil de sans fil
de façon à minimiser les contacts humains lors du fonctionnement normal.
Ce périphérique a également été évalué et démontré conforme aux limites d'exposition
aux RF d'IC dans des conditions d'exposition à des appareils mobiles (les antennes se
situent à moins de 20 cm du corps d'une personne).
PRODUCT FEATURES
Operate at ISM frequency Band (2.4GHz)
IEEE Standards Support, 802.11b, 802.11g and 802.11n
Fully comply with USB 2.0 high speed mode
Enterprise level security supporting: WPA, WPA2, WPS, WAPI
One-stream IEEE 802.11n support for 20MHz and 40MHz bandwidth channels
provides PHY layer rates up to 150Mbps
Support Wi-Fi Direct
RoHS compliance
Low Halogen compliance
Page 7/11
PRODUCT SPECIFICATIONS
MAIN CHIPSET
MAC/ Baseband/ RF: MediaTek MT701U
FUNCTIONAL SPECIFICATIONS
Wi-Fi Function
Standard
IEEE802.11b; IEEE 802.11g; IEEE 802.11n
Bus Interface
USB2.0
Data Rate
802.11b:
11, 5.5, 2, 1 Mbps
802.11g:
54, 48, 36, 24, 18, 12, 9, 6 Mbps
802.11n:
MCS 0 to 7 for HT20MHz
MCS 0 to 7 for HT40MHz
Media Access Control
CSMA/CA with ACK
Modulation Techniques
802.11b:
CCK, DQPSK, DBPSK
802.11g:
64QAM, 16QAM, QPSK, BPSK
802.11n:
BPSK, QPSK, 16QAM, 64QAM
Network Architecture
Ad-hoc mode (Peer-to-Peer)
Infrastructure mode
Operation Channel
2.4GHz
11: (Ch. 1-11) – United States
13: (Ch. 1-13) – Europe
14: (Ch. 1-14) – Japan
Frequency Range
802.11bg
2.412 ~ 2.462 GHz
Transmit Output Power –
1x1
(Tolerance: ±1.5dBm)
802.11b:
17 dBm@11Mbps
802.11g:
16 dBm@54Mbps
802.11n:
20MHz:
15 dBm@MCS7
40MHz:
14 dBm@MCS7
Receiver Sensitivity
802.11b:
-84 dBm@11Mbps
802.11g:
-71 dBm@54Mbps
802.11n:
20MHz
-70 dBm@MCS7
40MHz
-67 dBm@MCS7
Page 8/11
Security
WPA, WPA2, WPS, WEP 64b&128bit, IEEE 802.1X,
IEEE 802.11i
Operating Voltage
3.3V ± 10% I/O supply voltage
OS Supported
Microsoft Windows Win7/Win8; Linux based
Power Consumption
TX Mode:
TBD mA
RX Mode:
TBD mA
Idle Mode:
TBD mA
Sleep Mode:
TBD mA
Antenna Type
PIFA Antenna
Page 9/11
PIN ASSIGMENT
Pin.
Pin Define
Status
1
+3.3V
YES
2
USB_D-
YES
3
USB_D+
YES
4
GND
YES
5
Reset#
YES

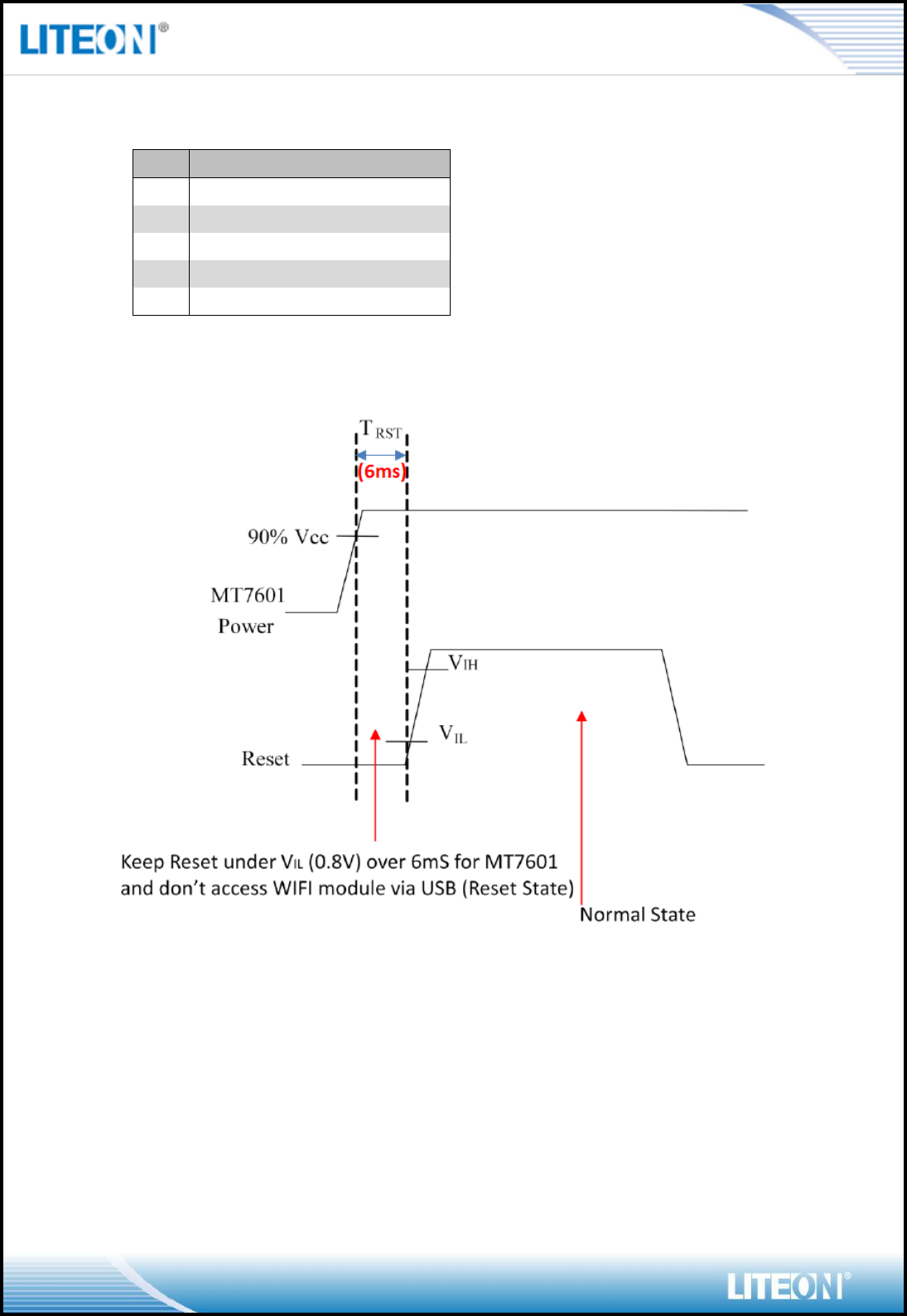

RESET TIMING SPEC
Page 10/11

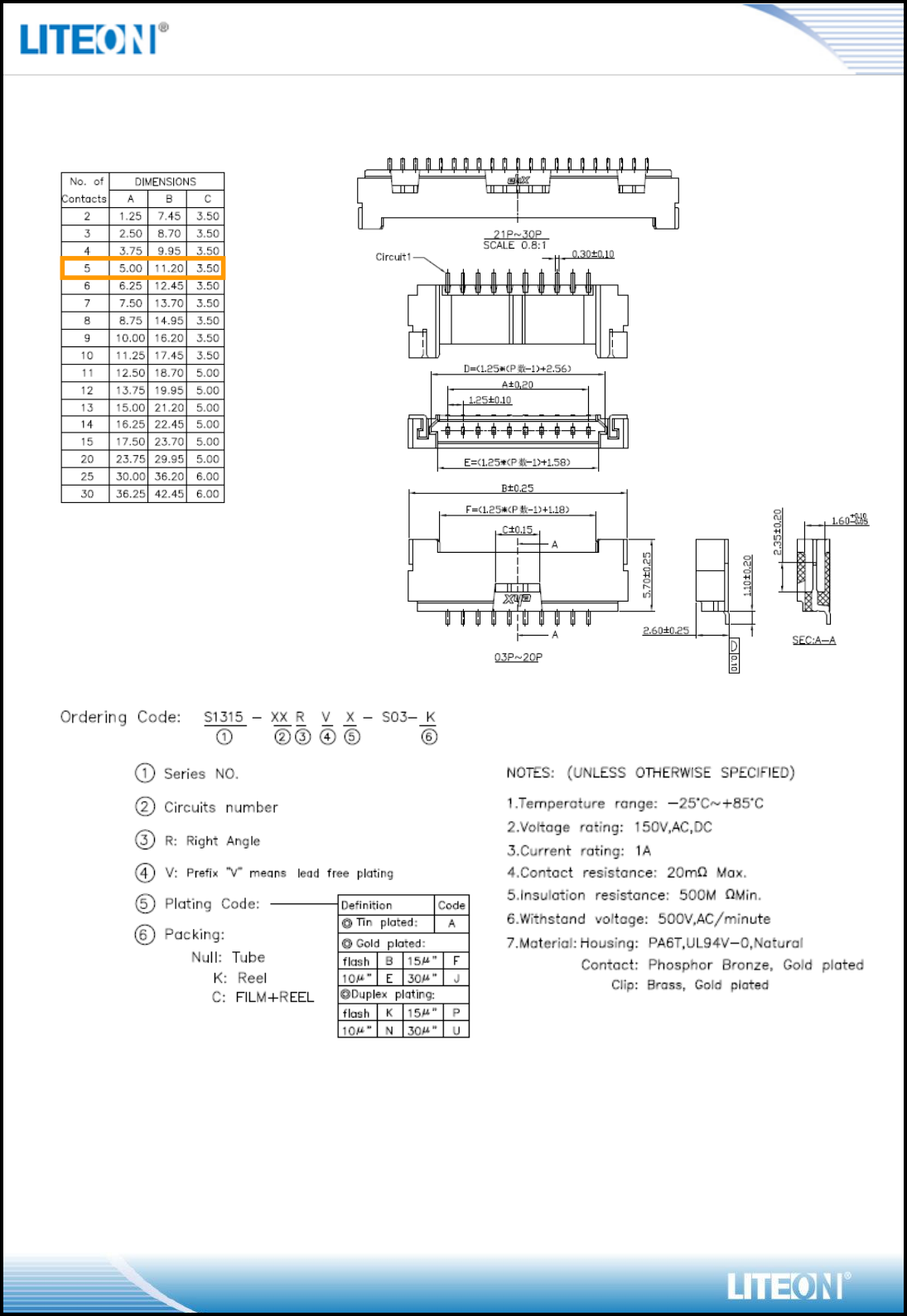

USB CONNECTOR SPEC
Page 11/11

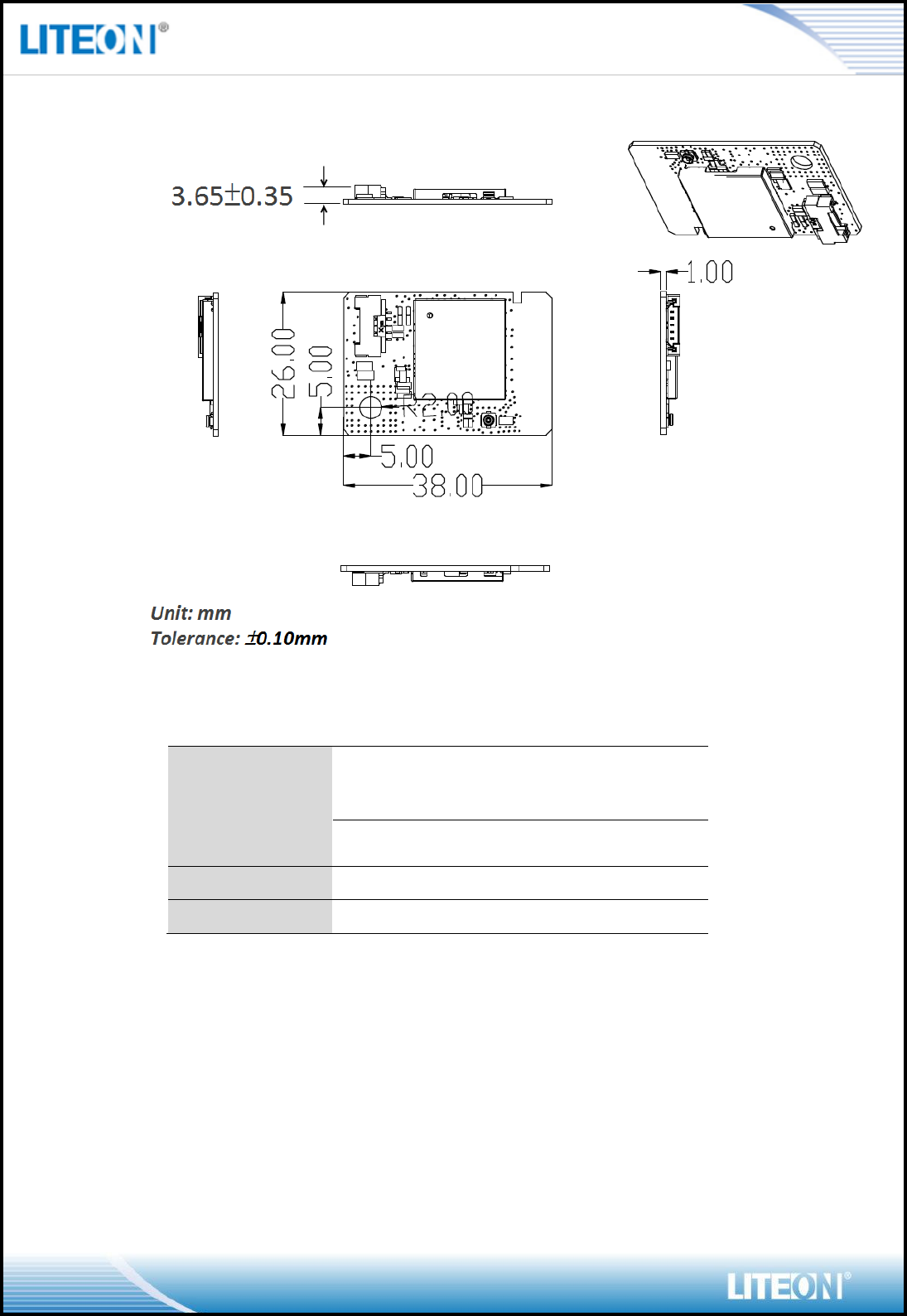

MECHANICAL
EEPROM INFORMATION
Reg Domain
Worldwide
Channel 1~11 Active Scan
Channel 12~14 Passive Scan
Offset 0x38 for 5G: 0xFF
Offset 0x39 for 2.4G: 0xFF
Vendor ID
0x148F
Product ID
0x7601
ENVIRONMENTAL
Operating
Operating Temperature: 0 to 60 C (32 to 140 F)
Relative Humidity: 5-90% (non-condensing)
Storage
Temperature: -20 to 70 C (-4 to 158 F)
Relative Humidity: 5-95% (non-condensing)
