LITE ON TECHNOLOGY WN7600R 802.11 n/b/g WLAN PCI-e Card User Manual WM5200 MNL English F 0 7

LITE-ON Technology Corp. 802.11 n/b/g WLAN PCI-e Card WM5200 MNL English F 0 7

user manual

802.11 n/b/g WLAN PCI-e Card
LITE-ON
WN7600R-A,WN7600R-MV,WN7600R-N
User’s Manual
REGULATORY STATEMENTS
FCC Certification
The United States Federal Communication Commission (FCC) and the
Canadian Department of Communications have established certain rules
governing the use of electronic equipment.
Part15, Class B
This device complies with Part 15 of FCC rules. Operation is subject to the
following two conditions:
1) This device may not cause harmful interference, and
2) This device must accept any interference received, including interference
that may cause undesired operation. This equipment has been tested and
found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy, and if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be
determined by turning off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications to this unit not expressly approved by
the party responsible for compliance could void the user authority to
operate the equipment.
CAUTION
1. This Transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
2. For product available in the USA market, only channel 1~11 can be
operated. Selection of other channels is not possible.
Agency in the United States of America:
Company Name: Xterasys Corporation
Tel: 909-590-0600 Fax: 909-590-0388
Address: 4711 CHINO AVE. CHINO, CA91710
IMPORTANT NOTE:
This module is intended for OEM integrator. The OEM integrator is still
responsible for the FCC compliance requirement of the end product, which
integrates this module.
20cm minimum distance has to be able to be maintained between the antenna
and the users for the host this module is integrated into. Under such
configuration, the FCC radiation exposure limits set forth for an
population/uncontrolled environment can be satisfied.
Any changes or modifications not expressly approved by the manufacturer
could void the user's authority to operate this equipment.
USERS MANUAL OF THE END PRODUCT:
In the users manual of the end product, the end user has to be informed to keep
at least 20cm separation with the antenna while this end product is installed and
operated. The end user has to be informed that the FCC radio-frequency
exposure guidelines for an uncontrolled environment can be satisfied. The end
user has to also be informed that any changes or modifications not expressly
approved by the manufacturer could void the user's authority to operate this
equipment. If the size of the end product is smaller than 8x10cm, then
additional FCC part 15.19 statement is required to be available in the users
manual: This device complies with Part 15 of FCC rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference and (2) this device must accept any interference received,
including interference that may cause undesired operation.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following "
Contains TX FCC ID: PPQ-WN7600R ". If the size of the end product is larger
than 8x10cm, then the following FCC part 15.19 statement has to also be
available on the label: This device complies with Part 15 of FCC rules.
Operation is subject to the following two conditions: (1) this device may not
cause harmful interference and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Hereby, Lite-On, declares that this device is in compliance with the essential requirement
and other relevant provisions of the R&TTE Driective 1999/5/EC.
“ 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自
變更頻率、加大功率或變更原設計之特性及功能。低功率射頻電機之使用不得影響
飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時
方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電
機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。”
本模組於取得認證後將依規定於模組本體標示審驗合格標籤, 並要求平台廠商
於平台上標示「本產品內含射頻模 CC XX xx YY yyy Z z W字樣，詳細資料請
參考使用說明書。 本公司已於說明書中提供所有必要資訊以指導使用者/安裝
者正確的安裝及操作。
Table of Contents
INTRODUCTION...................................................................................................1
WIRELESS NETWORK OPTIONS ...............................................................................1
The Peer-to-Peer Network .........................................................................1
The Access Point Network ........................................................................2
SOFTWARE INSTALLATION.............................................................................3
INSTALL THE DEVICE ..............................................................................................3
INSTALL THE DRIVER & UTILITY ............................................................................3
HARDWARE INSTALLATION............................................................................8
VERIFICATION ........................................................................................................8
NETWORK CONNECTION .................................................................................9
IN WINDOWS 2000/ XP ..........................................................................................9
IP ADDRESS .........................................................................................................11
CONFIGURATION UTILITY.............................................................................12
INTELLIGENT WIRELESS UTILITY ..........................................................................13
Profile......................................................................................................13
Network...................................................................................................22
Advanced.................................................................................................27
Statistics...................................................................................................29
WMM / QoS............................................................................................32
WPS.........................................................................................................33
Radio On/Off...........................................................................................36
About.......................................................................................................36
UNINSTALLATION.............................................................................................38
- 1 -
INTRODUCTION
The 802.11 n/b/g WLAN PCI-e Card is a device that allows you
connect your computer to a wireless local area network (LAN). A wireless LAN
allows your system to use wireless Radio Frequency (RF) technology to transmit
and receive data without physically attaching to the network. The Wireless
protocols that come with this product ensure data security and isolation from
interference generated by other radio frequencies.
This card also allows you to take full advantage of your computer’s mobility with
access to real-time information and online services anytime and anywhere. In
addition, this device eliminates the bother of pulling cable through walls and
under furniture. It even allows you to place your system in locations where
cabling is impossible. Modifying and augmenting networks has never been so
easy.

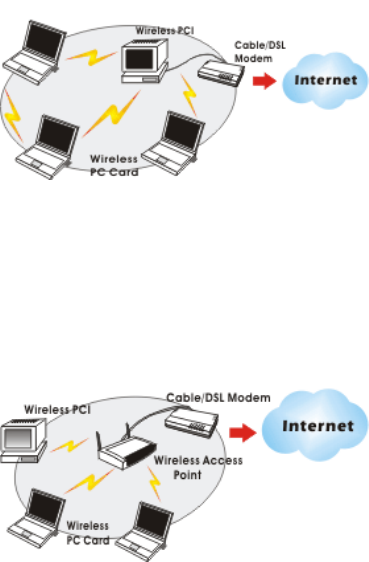

Wireless Network Options

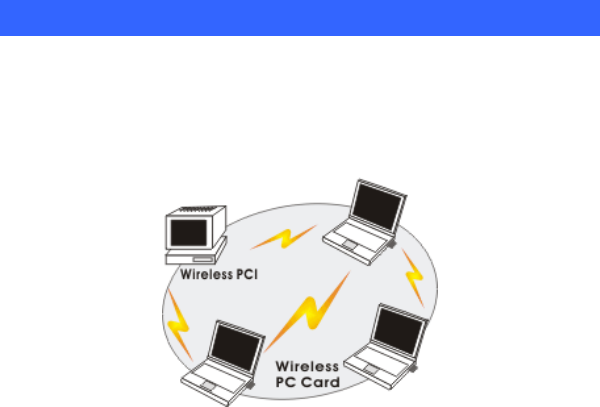

The Peer-to-Peer Network
This network installation lets you set a small wireless workgroup easily and
quickly. Equipped with wireless PC Cards or wireless PCI, you can share files
and printers between each PC and laptop.
- 2 -
You can also use one computer as an Internet Server to connect to a wired global
network and share files and information with other computers via a wireless LAN.
The Access Point Network
The network installation allows you to share files, printers, and Internet access
much more conveniently. With Wireless LAN Cards, you can connect wireless
LAN to a wired global network via an Access Point.
- 3 -
SOFTWARE INSTALLATION
Install the device
1. Make sure the computer is turned off. Remove the expansion slot
cover from the computer.
2. Carefully slide the 802.11 n/b/g WLAN PCI-e Card
into the mini PCI slot. Push evenly and slowly and ensure it is
properly seated.
3. After the device has been connected to your computer, turn on your
computer. Windows will detect the new hardware and then
automatically copy all of the files needed for networking.
Install the Driver & Utility
1. Exit all Windows programs. Insert the included CD-ROM into your
computer. The CD-ROM will run automatically.

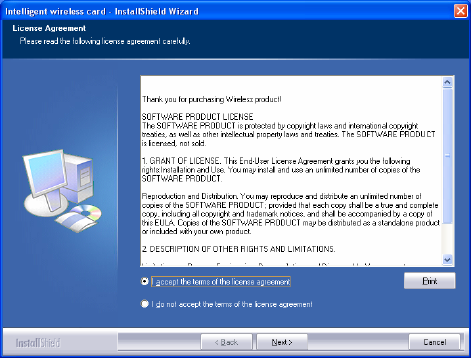

2. When the License Agreement screen appears, please read the
contents and select “I accept the terms of the license agreement
“ then click Next to continue.
- 4 -

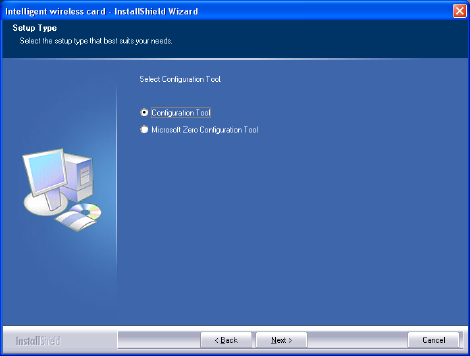

3. Select the check box to choose a Configuration Tool from the listed
two choices.
z Configuration Tool: Choose to use our configuration utility.
z Microsoft Zero Configuration Tool: Choose to use Windows XP’s
built-in Zero Configuration Utility (ZCU).
Click Next to continue.
- 5 -

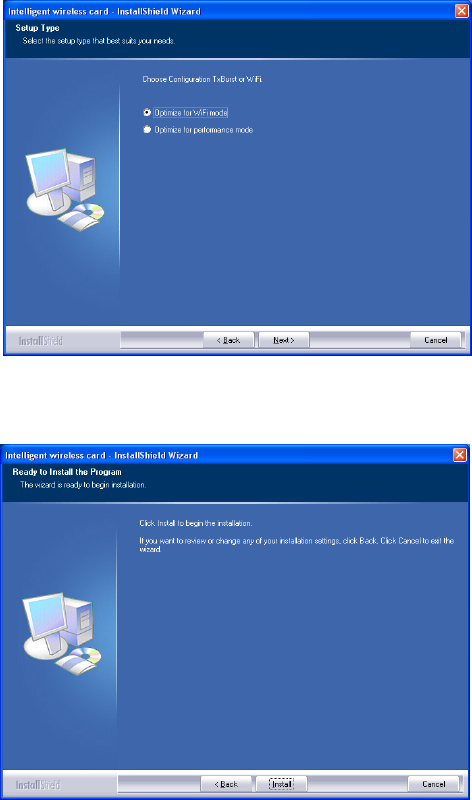

4. There are two modes for you to choose in this screen, either choose
WiFi mode or performance mode (TxBurst mode). This mode
selection screen is set for the default mode shown in the utility screen,
you can still change its mode later in the utility screen. Click Next to
continue.
- 6 -
5. When you are prompted the following message, please click Install
to begin the installation.
- 7 -

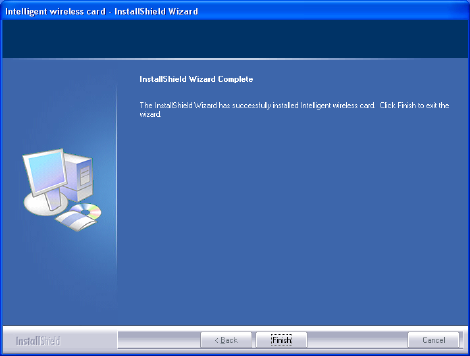

6. When the following screen appears, click Finish to complete the
software installation.
- 8 -
HARDWARE INSTALLATION
Verification

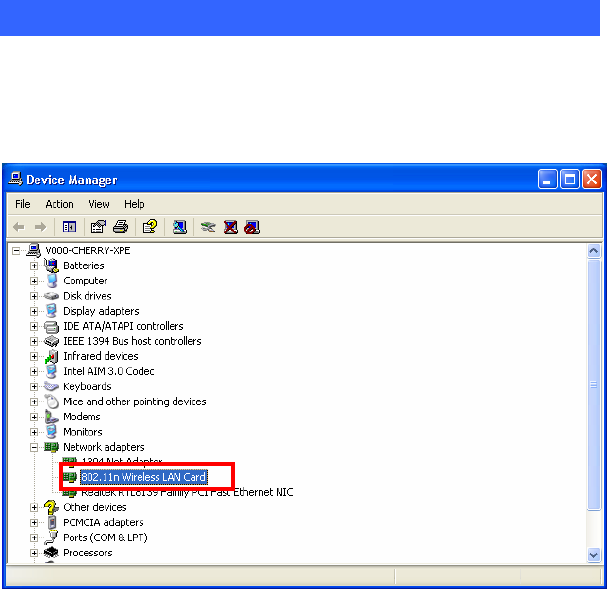

To verify if the device exists in your computer and is enabled, go to Start >
Control Panel > System (> Hardware) > Device Manager. Expand the
Network Adapters category. If the 11b/g/n 1T2R WLAN Mini Card
is listed here, it means that your device is properly installed and enabled.
- 9 -
NETWORK CONNECTION
Once the device driver is well installed, a network setting described in the
following should be also established.
In Windows 2000/ XP

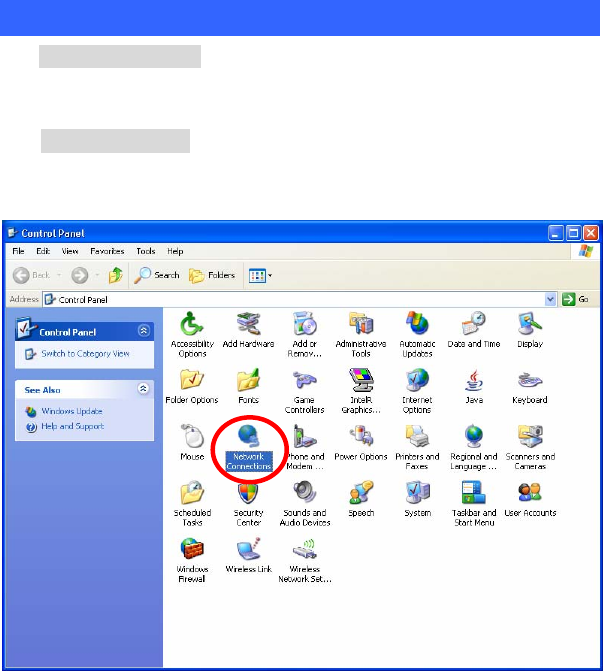

1. (In Windows 2000)
Go to Start Æ Settings Æ Control Panel Æ Network and Dial-up
Connections Æ Local Area Connection Æ Properties.
(In Windows XP)
Go to Start Æ Control Panel Æ Network and Internet Connections Æ
Network Connections Æ Wireless Network Connection Æ Properties.
- 10 -

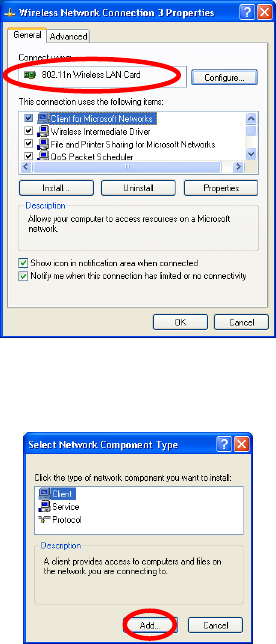

2. Make sure that all the required components are installed.
3. If any components are missing, click on the Install… button to
select the Client/Service/Protocol required. After selecting the
component you need, click Add… to add it in.
4. For making your computer visible on the network, make sure you
have installed File and Printer Sharing for Microsoft Networks.
11b/g/n 1T2R WLAN Mini Card
- 11 -
IP Address
Note: When assigning IP Addresses to the computers on the network, remember
to have the IP address for each computer set on the same subnet mask. If your
Broadband Router use DHCP technology, however, it won’t be necessary for you
to assign Static IP Address for your computer.

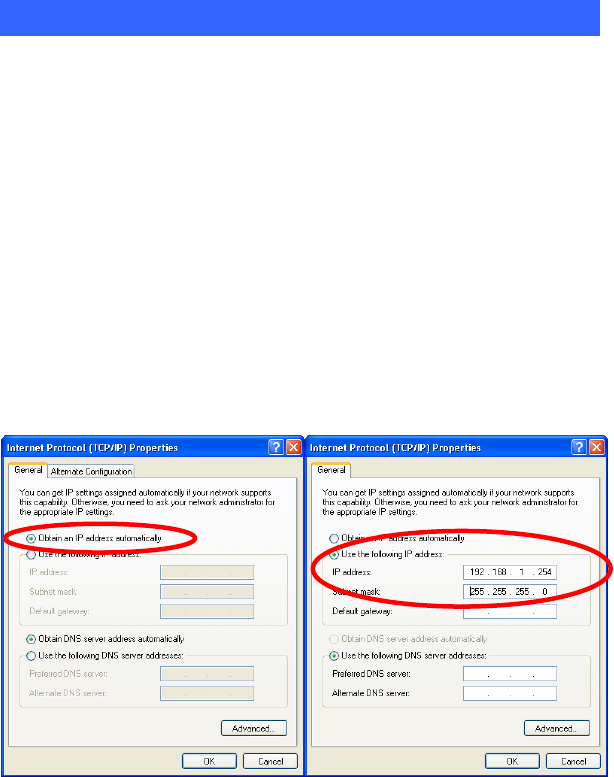

1. To configure a dynamic IP address (i.e. if your broadband Router has the DHCP
technology), check the Obtain an IP Address Automatically option.
2. To configure a fixed IP address (if you broadband Router is not DHCP
supported, or when you need to assign a static IP address), check the Use the
following IP address option. Then, enter an IP address into the empty field; for
example, enter 192.168.1.254 in the IP address field, and 255.255.255.0 for the
Subnet Mask.
- 12 -
CONFIGURATION UTILITY
After the Wireless adapter has been successfully installed, users can use the
included Configuration Utility to set their preference.
Go to StartJ (All) ProgramsJ Ralink WirelessJ Ralink Wireless Utility.
You can also open the Configuration Utility by double clicking the icon or right
clicking to select Launch Config Utilities.
- 13 -
Intelligent Wireless Utility

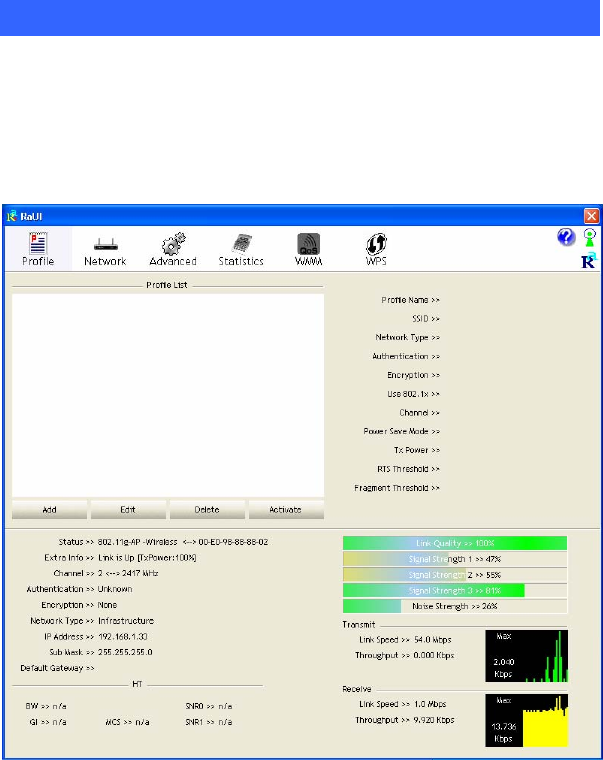

Profile
Profile can book keeping your favorite wireless setting among your home, office,
and other public hot-spot. You may save multiple profiles, and activate the correct
one at your preference. The Profile manager enables you to Add, Edit, Delete and
Activate profiles.
- 14 -
Profile Tab
Profile Name You may enter a distinctive name of profile in this
column. The default is PROF# (# 1, #2, #3....)
SSID The SSID is the unique name shared among all points in
your wireless network.
Network Type Shows the network type of the device, including
infrastructure.
Authentication Shows the authentication mode.
Encryption Shows the encryption type.
Use 802.1x Whether or not use 802.1x feature.
Channel Shows the selected channel that is currently in use. (There
are 13 channels available, depending on the country.)
Power Save
Mode Choose from CAM (Constantly Awake Mode) or Power
Saving Mode.
Tx Power Transmit power, the amount of power used by a radio
transceiver to send the signal out.
RTS Threshold Shows the RTS Threshold of the device.
Fragment
Threshold Shows the Fragment Threshold of the device.
Add Click to add a profile from the drop-down screen.

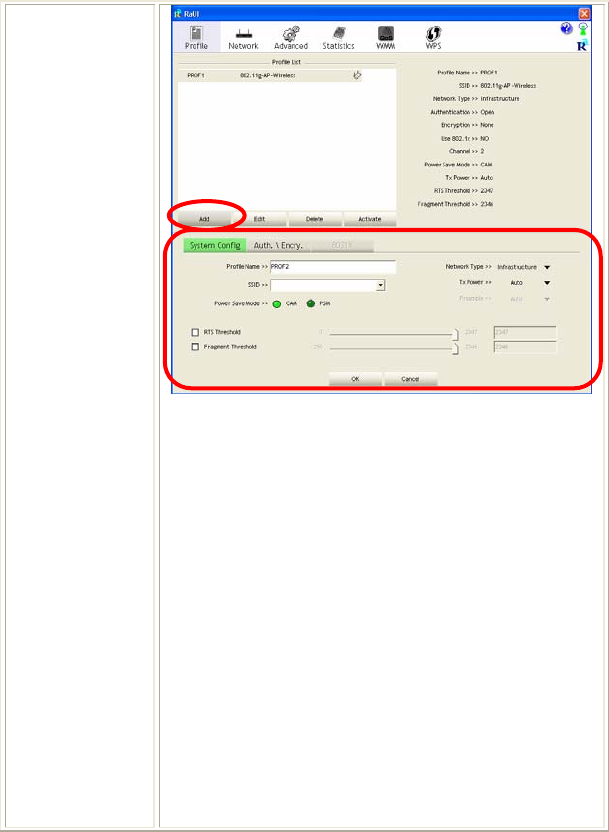

System Configuration tab:
- 15 -
Profile Name: User can enter profile name, or use default
name defined by system. The default is PROF# (# 1, #2,
#3....).
SSID: The SSID is the unique name shared among all
points in your wireless network. The name must be
identical for all devices and points attempting to connect
to the same network. User can use pull-down menu to
select from available APs.
Power Save Mode:
• CAM (Constantly Awake Mode): When this mode is
selected, the power supply will be normally provided
even when there is no throughput.
• PSM (Power Saving Mode): When this mode is
selected, this device will stay in power saving mode
even when there is high volume of throughput.
Network Type: There are two types, infrastructure
modes.
- 16 -
• The infrastructure is intended for the connection
between wireless network cards and an Access Point.
With the wireless adapter, you can connect wireless
LAN to a wired global network via an Access Point.
Tx Power: Select the Tx power percentage from the
pull-down list including Auto, 100%, 75%, 50%, 25%,
10% and Lowest.
Preamble: A preamble is a signal used in wireless
environment to synchronize the transmitting timing
including Synchronization and Start frame delimiter.
Select from the pull-down menu to change the Preamble
type into Auto or Long.
RTS Threshold: User can adjust the RTS threshold
number by sliding the bar or key in the value directly. The
default value is 2347. RTS/CTS Threshold is a
mechanism implemented to prevent the “Hidden Node”
problem. If the “Hidden Node” problem is an issue, users
have to specify the packet size. The RTS/CTS mechanism
will be activated if the data size exceeds the value you set.
This value should remain at its default setting of 2347.
Should you encounter inconsistent data flow, only minor
modifications of this value are recommended.
Fragment Threshold: User can adjust the Fragment
threshold number by sliding the bar or key in the value
directly. The default value is 2346. The mechanism of
Fragmentation Threshold is used to improve the
efficiency when high traffic flows along in the wireless
network. If your Wireless LAN Adapter often transmits
large files in wireless network, you can enter new
Fragment Threshold value to split the packet. The value
can be set from 256 to 2346.
- 17 -
Authentication and Encryption tab:
Authentication Type: There are seven type of
authentication modes including Open, Shared, Leap,
WPA, WPA-PSK, WPA2, WPA2-PSK, and WPA-None.
• Open: If your access point/wireless router is using
"Open” authentication, then the wireless adapter will
need to be set to the same authentication type.
• Shared: Shared Key is when both the sender and the
recipient share a secret key.
• LEAP: Light Extensible Authentication Protocol. It is
an EAP authentication type used primarily in Cisco
Aironet WLANs. It encrypts data transmissions using
dynamically generated WEP keys, and supports mutual
authentication (only with CCX mode enabled.)
• WPA-PSK: WPA-PSK offers two encryption
methods, TKIP and AES. Select the type of algorithm,
- 18 -
TKIP or AES and then enter a WPA Shared Key of
8-63 characters in the WPA Pre-shared Key field.
Encryption Type: For open and shared authentication
mode, the selection of encryption type are None and WEP.
For WPA, WPA2, WPA-PSK and WPA2-PSK
authentication mode, the encryption type supports both
TKIP and AES.
WPA Pre-shared Key: This is the shared secret between
AP and STA. For WPA-PSK and WPA2-PSK
authentication mode, this field must be filled with
character longer than 8 and less than 32 length.
WEP Key: Only valid when using WEP encryption
algorithm. The key must match with the AP’s key. There
are several formats to enter the keys.
• Hexadecimal (40bits): 10 Hex characters.
• Hexadecimal (128bits): 32Hex characters.
• ASCII (40bits): 5 ASCII characters.
• ASCII (128bits): 13 ASCII characters.
Show Password: Check this box to show the password
you entered.
802.1x Setting: When user use radius server to
authenticate client certificate for WPA authentication
mode.
802.1x tab:
- 19 -

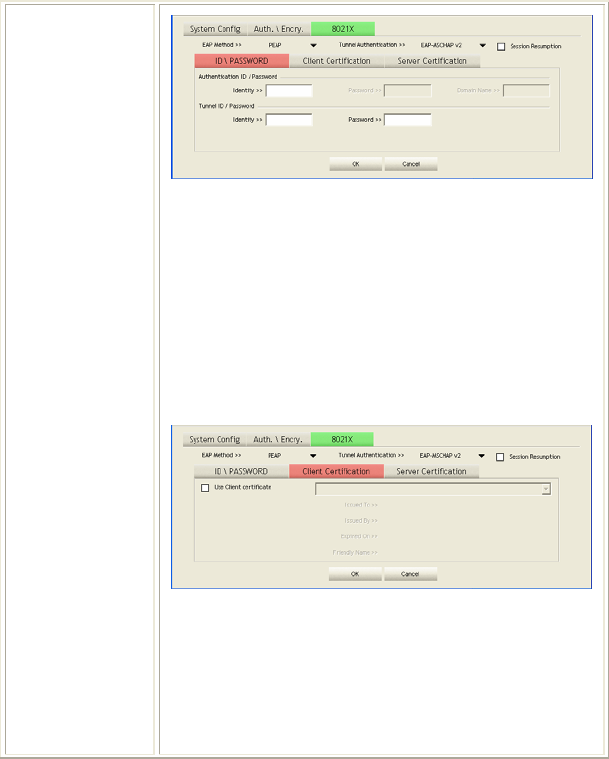

EAP Method:
• PEAP: Protect Extensible Authentication Protocol.
PEAP transport securely authentication data by using
tunneling between PEAP clients and an authentication
server. PEAP can authenticate wireless LAN clients
using only server-side certificates, thus simplifying
the implementation and administration of a secure
wireless LAN.
• TLS / Smart Card: Transport Layer Security.
Provides for certificate-based and mutual
authentication of the client and the network. It relies
on client-side and server-side certificates to perform
authentication and can be used to dynamically
generate user-based and session-based WEP keys to
secure subsequent communications between the
WLAN client and the access point.
• TTLS: Tunneled Transport Layer Security. This
security method provides for certificate-based, mutual
authentication of the client and network through an
- 20 -
encrypted channel. Unlike EAP-TLS, EAP-TTLS
requires only server-side certificates.
• EAP-FAST: Flexible Authentication via Secure
Tunneling. It was developed by Cisco. Instead of
using a certificate, mutual authentication is achieved
by means of a PAC (Protected Access Credential)
which can be managed dynamically by the
authentication server. The PAC can be provisioned
(distributed one time) to the client either manually or
automatically. Manual provisioning is delivery to the
client via disk or a secured network distribution
method. Automatic provisioning is an in-band, over
the air, distribution. For tunnel authentication, only
support "Generic Token Card" authentication now.
• MD5-Challenge: Message Digest Challenge.
Challenge is an EAP authentication type that provides
base-level EAP support. It provides for only one-way
authentication - there is no mutual authentication of
wireless client and the network.
Tunnel Authentication:
• Protocol: Tunnel protocol, List information including
EAP-MSCHAP v2, EAP-TLS/Smart card, and
Generic Token Card.
• Tunnel Identity: Identity for tunnel.
• Tunnel Password: Password for tunnel.
Session Resumption: User can click the box to enable or
disable this function.

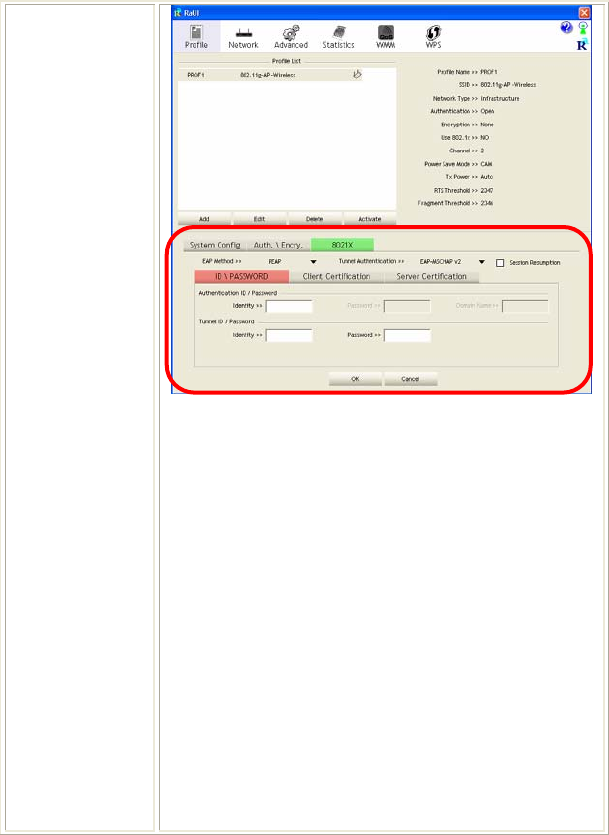

ID\PASSWORD tab:
- 21 -
ID/ PASSWORD: Identity and password for server.
• Authentication ID / Password: Identity, password
and domain name for server. Only "EAP-FAST" and
"LEAP" authentication can key in domain name.
Domain name can be keyed in blank space.
• Tunnel ID / Password: Identity and Password for
server.
OK: Click to save settings and exit this page.
Cancel: Click to call off the settings and exit.
Client Certification tab:
Client Certification: Client Certicate for server
authentication.
Use Client certification: Choose to enable server
authentication.
OK: Click to save settings and exit this page.
Cancel: Click call off the settings and exit.

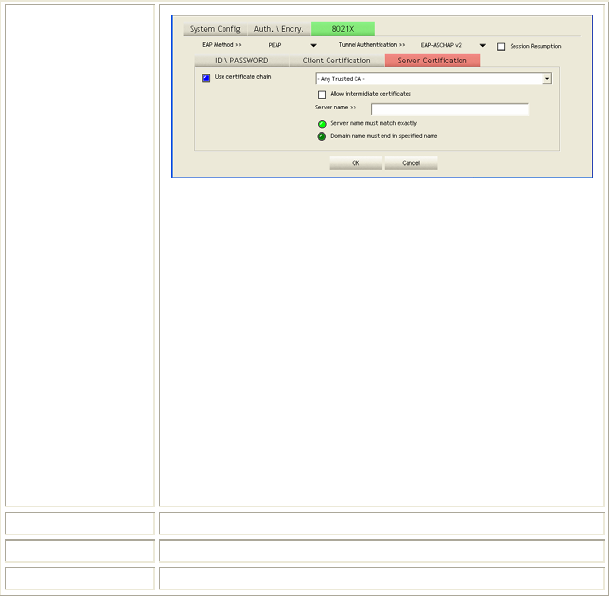

Server Certification tab:
- 22 -
Use Certificate chain: Choose use server that issuer of
certificates.
Allow intimidate certificates: It must be in the server
certificate chain between the server certificate and the
server specified in the certificate issuer must be field.
Server name: Enter an authentication sever root.
Server name must match exactly: Click to enable or
disable this function.
Domain name must end in specified name: Click to
enable or disable this function.
OK: Click to save settings and exit this page.
Cancel: Click call off the settings and exit.
Delete Click to delete an existing profile.
Edit Click to edit a profile.
Activate Click to make a connection between devices.
Network

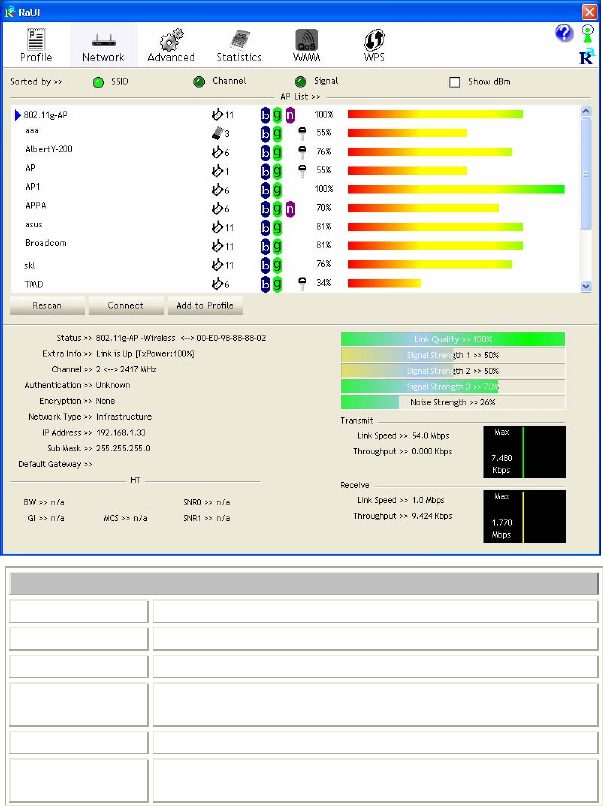

The Network page displays the information of surrounding APs from last scan
result. The tab lists the information including SSID, Network type, Channel,
Wireless mode, Security-Enabled and Signal.
- 23 -
Network Tab
Sorted by Indicate that AP list are sorted by SSID, Channel or Signal.
Show dBm Check the box to show the dBm of the AP list.
SSID Shows the name of BSS network.
Network Type Network type in use, Infrastructure for BSS.
Channel Shows the currently used channel.
Wireless mode AP support wireless mode. It may support 802.11a,
802.11b, 802.11g or 802.11n wireless mode.
- 24 -
Encryption Shows the encryption type currently in use. Valid value
includes WEP, TKIP, AES, and Not Use.
Signal Shows the receiving signal strength of specified network.
Rescan Click to refresh the AP list.
Connect Select an item on the list and then click to make a
connection.
Add to Profile Select an item on the list and then click to add it into the
profile list.

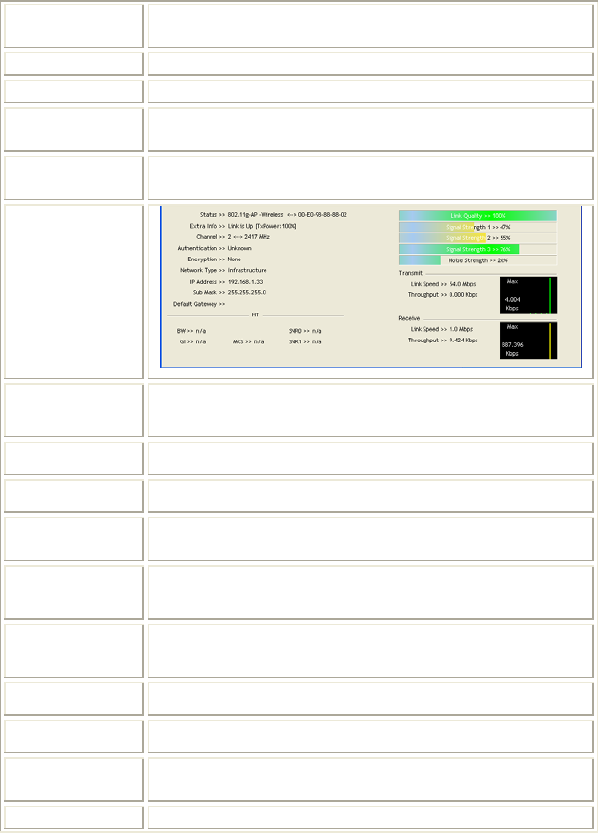

Link status
Status Shows the current connection status. If there is no
connection existing, it will show Disconnected.
Extra Info Shows the link status.
Channel Shows the current channel in use.
Authentication Authentication mode used within the network, including
Unknown, WPA-PSK, WPA2-PSK, WPA and WPA2.
Encryption Shows the encryption type currently in use. Valid value
includes WEP, TKIP, AES, and Not Use.
Network Type Network type in use, Infrastructure for BSS.
IP Address Shows the IP address information.
Sub Mask Shows the Sub Mask information.
Default
Gateway Shows the default gateway information.
Link Quality Shows the connection quality based on signal strength and
- 25 -
TX/RX packet error rate.
Signal
Strength
1, 2 and 3
Shows the Receiving signal strength, you can choose to
display as percentage or dBm format.
Noise Strength Shows the noise signal strength.
Transmit Shows the current Link Speed and Throughput of the
transmit rate.
Receive Shows the current Link Speed and Throughput of receive
rate.
Link Speed Shows the current transmitting rate and receiving rate.
Throughput Shows the transmitting and receiving throughput in the
unit of K bits/sec.
AP information
When you double click on the intended AP, you can see AP's detail information
that divides into three parts. They are General, WPS, CCX information. The
introduction is as following:
General
General information contain AP's SSID, MAC address,
Authentication Type, Encryption Type, Channel, Network Type,
Beacon Interval, Signal Strength and Supported Rates.
OK: Click this button to exit the information screen.
- 26 -
WPS

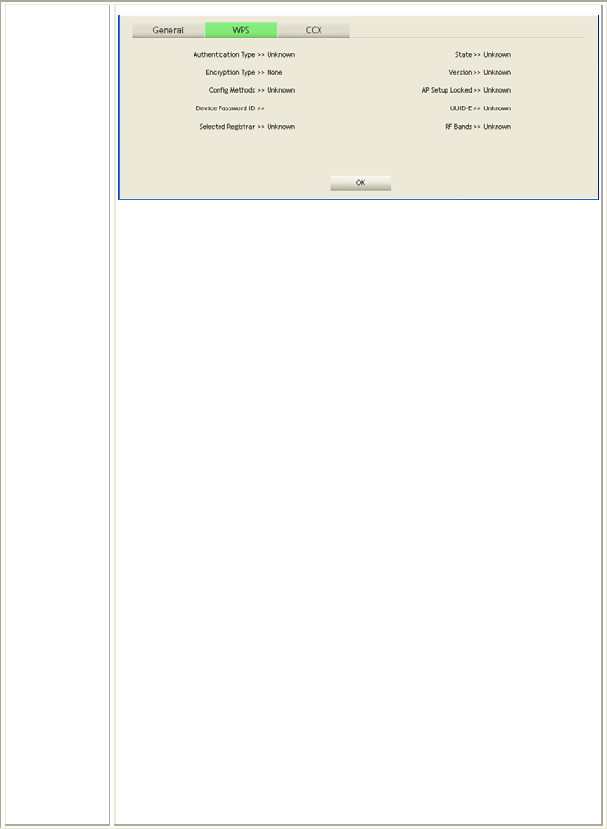

WPS information contains Authentication Type, Encryption Type,
Config Methods, Device Password ID, Selected Registrar, State,
Version, AP Setup Locked, UUID-E and RF Bands.
Authentication Type: There are four types of authentication
modes supported by RaConfig. They are open, Shared, WPA-PSK
and WPA system.
Encryption Type: For open and shared authentication mode, the
selection of encryption type are None and WEP. For WPA,
WPA2, WPA-PSK and WPA2-PSK authentication mode, the
encryption type supports both TKIP and AES.
Config Methods: Correspond to the methods the AP supports as
an Enrollee for adding external Registrars.
Device Password ID: Indicate the method or identifies the
specific password that the selected Registrar intends to use.
Selected Registrar: Indicate if the user has recently activated a
Registrar to add an Enrollee. The values are "TRUE" and
"FALSE".
State: The current configuration state on AP. The values are
"Unconfigured" and "Configured".
Version: WPS specified version.
AP Setup Locked: Indicate if AP has entered a setup locked state.
UUID-E: The universally unique identifier (UUID) element
generated by the Enrollee. There is a value. It is 16 bytes.
RF Bands: Indicate all RF bands available on the AP. A
dual-band AP must provide it. The values are "2.4GHz" and
"5GHz".
OK: Click this button to exit the information screen.
- 27 -
CXX
CCX information contains CCKM, Cmic and Ckip information.
OK: Click this button to exit the information screen.
Advanced
This Advanced page provides advanced and detailed settings for your wireless
network.
- 28 -

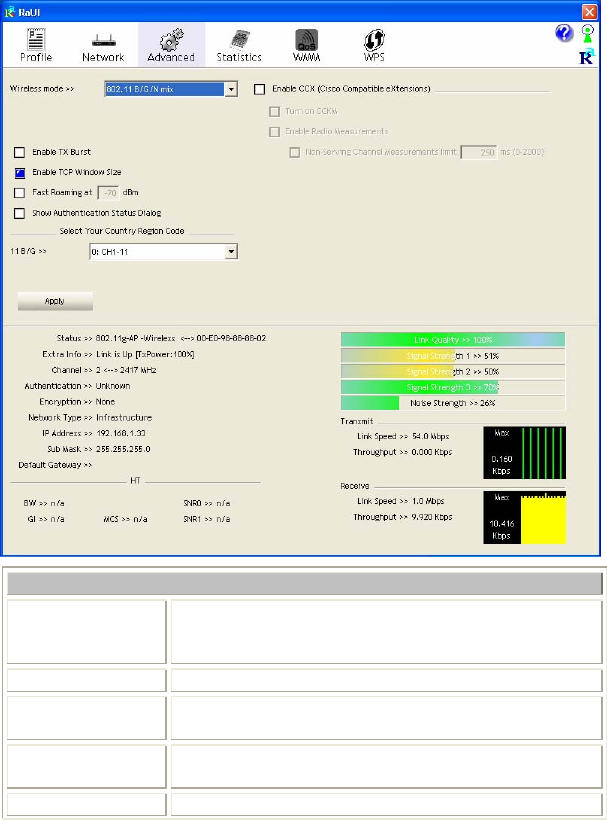

Advanced Tab
Wireless mode Select wireless mode. There are 802.11b/g/n mixed,
802.11b only and 802.11b/g mixed modes are supported.
Default mode is 802.11b/g/n mixed.
Enable Tx Burst Check to enable the burst mode.
Enable TCP
Window Size Check to increase the transmission quality.
Fast Roaming at Check to set the roaming interval, fast to roaming, setup
by transmits power.
Show When you connect AP with authentication, choose
- 29 -
Authentication
Status Dialog whether show "Authentication Status Dialog" or not.
Authentication Status Dialog displays the process about
802.1x authentications.
Select Your
Country Region
Code
Select your country region code from the pull-down
menu.
Enable CCX
(Cisco Compatible
extensions)
Check to enable the CCX function.
• Turn on CCKM
• Enable Radio Measurements: Check to enable the
Radio measurement function.
• Non-Serving Measurements limit: User can set channel
measurement every 0~2000 milliseconds. Default is set
to 250 milliseconds.
Apply Click to apply above settings.
Statistics
The Statistics screen displays the statistics on your current network settings.
- 30 -
Transmit
Frames Transmitted Successfully Shows information of frames successfully
sent.
Frames Retransmitted
Successfully Shows information of frames successfully
sent with one or more reties.
Frames Fail To Receive ACK
After All Retries Shows information of frames failed
transmit after hitting retry limit.
RTS Frames Successfully Receive
CTS Shows information of successfully receive
CTS after sending RTS frame
- 31 -
RTS Frames Fail To Receive
CTS Shows information of failed to receive CTS
after sending RTS.
Reset Counter Click this button to reset counters to zero.

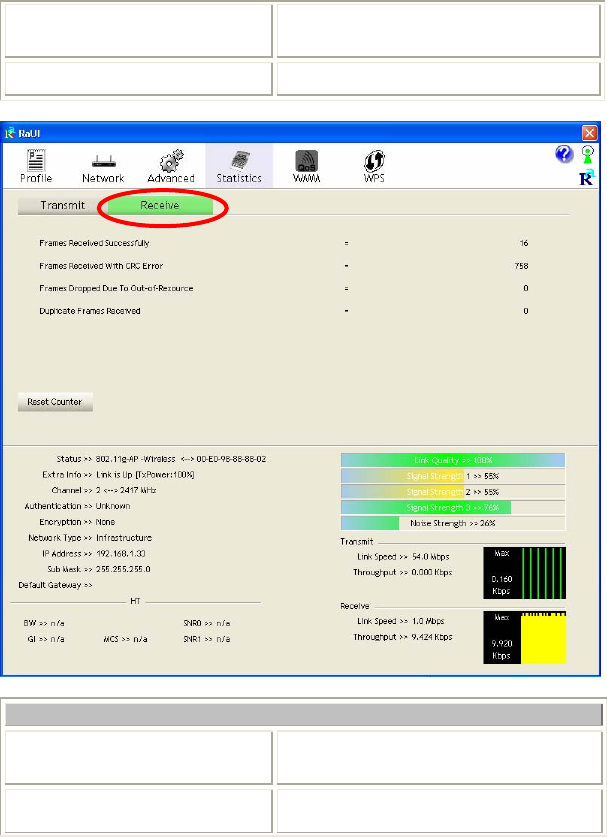

Receive Statistics
Frames Received Successfully Shows information of frames Received
Successfully.
Frames Received With CRC
Error Shows information of frames received with
- 32 -
CRC error.
Frames Dropped Due To
Out-of-Resource Shows information of frames dropped due
to resource issue.
Duplicate Frames Received Shows information of duplicate received
frames.
Reset Counter Click this button to reset counters to zero.
WMM / QoS
The WMM page shows the Wi-Fi Multi-Media power save function and Direct
Link Setup that ensure your wireless network quality.
- 33 -

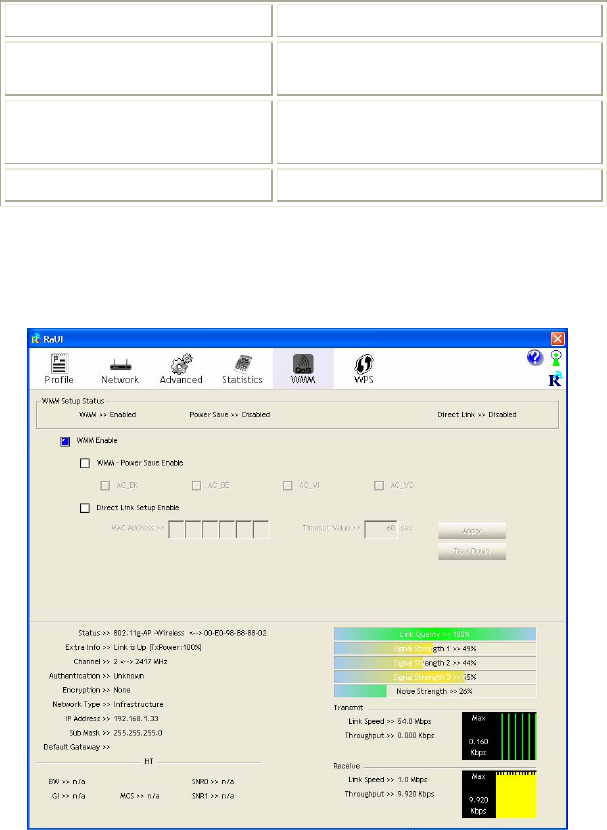

WMM Enable Check the box to enable Wi-Fi Multi-Media
function.
WMM- Power Save Enable Select which ACs you want to enable.
Direct Link Setup Enable Check the box to enable Direct Link Setup.
MAC Address The setting of DLS indicates as follow :
Fill in the blanks of Direct Link with MAC
Address of STA, and the STA must conform to
two conditions:
• Connecting with the same AP that supports
DLS feature.
• DSL enabled.
Timeout Value Timeout Value represents that it disconnect
automatically after few seconds. The value is
integer that must be between 0~65535. It
represents that it always connects if the value is
zero. Default value of Timeout Value is 60
seconds.
Apply Click this button to apply the settings.
Tear Down Select a direct link STA, then click "Tear Down"
button to disconnect the STA.
WPS
The primary goal of Wi-Fi Protected Setup (Wi-Fi Simple Configuration) is to
simplify the security setup and management of Wi-Fi networks. The STA as an
Enrollee or external Registrar supports the configuration setup using PIN
(Personal Identification Number) configuration method or PBC (Push Button
Configuration) method through an internal or external Registrar.
- 34 -

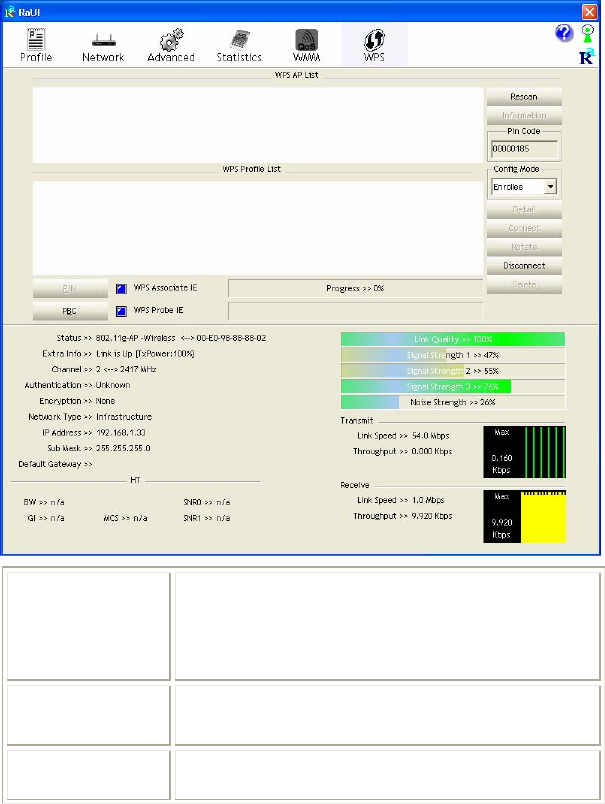

WPS AP List Display the information of surrounding APs with WPS IE
from last scan result. List information included SSID,
BSSID, Channel, ID (Device Password ID),
Security-Enabled.
Rescan Issue a rescan command to wireless NIC to update
information on surrounding wireless network.
Information Display the information about WPS IE on the selected
network. List information included Authentication Type,
- 35 -
Encryption Type, Config Methods, Device Password ID,
Selected Registrar, State, Version, AP Setup Locked,
UUID-E and RF Bands.
PIN Code 8-digit numbers. It is required to enter PIN Code into
Registrar using PIN method.
Config Mode Our station role-playing as an Enrollee or an external
Registrar.
Detail Information about Security and Key in the credential.
Connect Command to connect to the selected network inside
credentials. The active selected credential is as like as the
active selected Profile.
Rotate Command to rotate to connect to the next network inside
credentials.
Disconnect Stop WPS action and disconnect this active link. And
then select the last profile at the Profile Page. If there is
an empty profile page, the driver will select any
non-security AP.
PIN Start to add to Registrar using PIN (Personal
Identification Number) configuration method. If STA
Registrar, remember that enter PIN Code read from your
Enrollee before starting PIN.
PBC Start to add to AP using PBC (Push Button
Configuration) method.
WPS associate IE Send the association request with WPS IE during WPS
setup. It is optional for STA.
WPS probe IE Send the probe request with WPS IE during WPS setup.
- 36 -
It is optional for STA.
Progress Bar Display rate of progress from Start to Connected status.
Status Bar Display currently WPS Status.
Radio On/Off
Click this icon to turn on radio function.
Click this icon to turn off radio function.

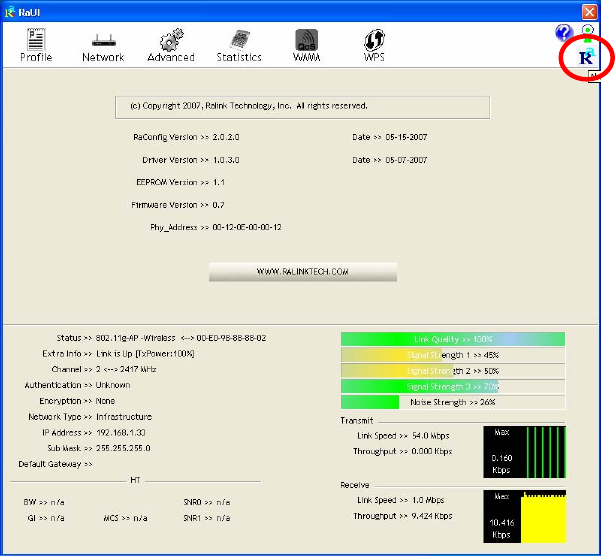

About
Click this button to show the information of the wireless card including,
RaConfig Version/ Date, Driver Version/ Date, EEPROM Version, Firmware
Version and Phy_Address.
- 37 -
- 38 -
UNINSTALLATION
In case you need to uninstall the utility and driver, please refer to below steps. (As
you uninstall the utility, the driver will be uninstalled as well.)

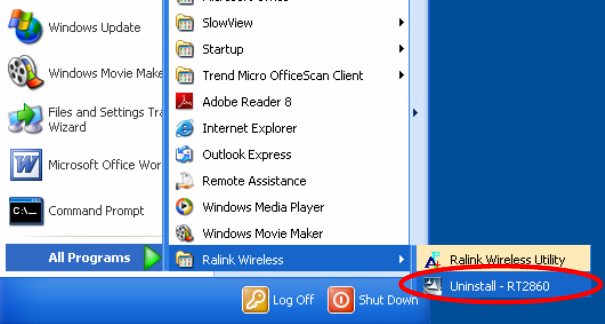

1. Go to Start Æ Programs ÆRalink Wireless Æ Uninstall.
- 39 -

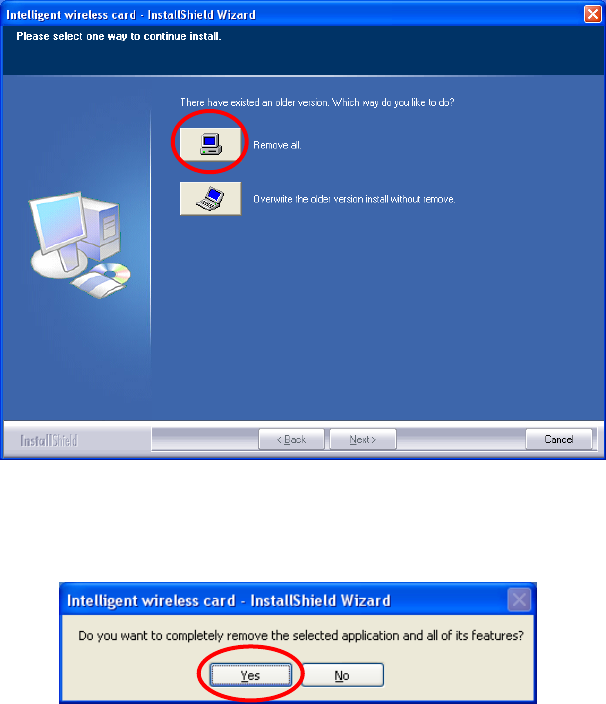

2. Select Remove all button and click Next to start uninstalling.
3. Click Yes to complete remove the selected application and all of its
features.
- 40 -

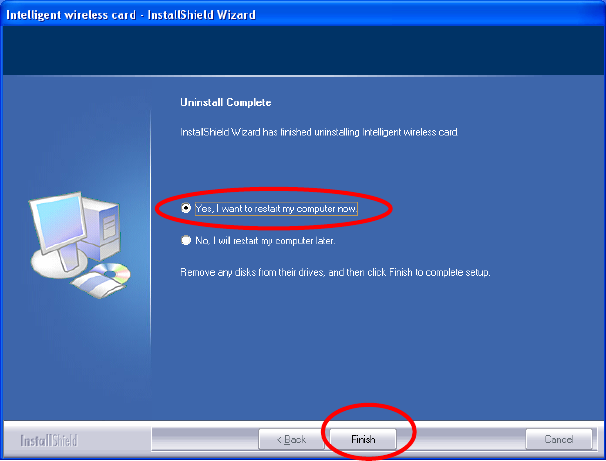

4. Select “Yes, I want to restart my computer now” and then click
Finish to complete the uninstallation.

Navigation menu
