WV300A Specification Page 1/11 2011/08/23
LTC Network Access Confidential
PRODUCT SPECIFICATION
WHDI Transmitter Board
WV300A
Amimon AMN2110 + Amimon AMN3110
Version 1.2
This document contains confidential proprietary information and is property of LTC. The contents of this document
should not be disclosed to unauthorized persons without the written consent of LTC.
Liteon semi-P/N: B853HZ000G
Change History:
Revision Date Author Change List
Draft 2010/07/12 Kenny Su Preliminary
Version 1.0 2011/05/26 Kenny Su 1.Add PCBA Mechanical
2.Update Power Consumption
Version 1.1 2011/07/20 Kenny Su Add “HID” feature
Version 1.2 2011/08/23 Kenny Su Revise product feature
Author: Kenny Su Approved by: Alfred But
Editor: Kenny Su Project Leader: Alfred But
WV300A Specification Page 2/11 2011/08/23
LTC Network Access Confidential
PRODUCT SPECIFICATION
WHDI Transmitter Board
WV300A
Amimon AMN2110 + Amimon AMN3110
Version 1.2
Networking B.U.
Lite-on Technology Corporation
4F, 90, Chien I Rd.
Chung Ho, Taipei Hsien 235, Taiwan, R.O.C.
Phone: 886-2-2222-6181
Fax: 886-2-2221-5288
Contact: Product Marketing
ML Wu #8266
E-mail: ML.Wu@LiteON.Com
Customer Approval: (Signature)
(Title)
(Company)
(Date)
(Please Sign Back by FAX. For Confirming the Spec Only, not an Official Agreement for OEM/ODM Business)
WV300A Specification Page 3/11 2011/08/23
LTC Network Access Confidential
CONTENT
PRODUCT FEATURES ....................................................................................................................4
MAIN CHIPSET.................................................................................................................................5
FUNCTIONAL SPECIFICATIONS.................................................................................................5
PCBA MECHANICAL ......................................................................................................................6
BLOCK DIAGRAM...........................................................................................................................7
ENVIRONMENTAL..........................................................................................................................7
OPERATING ............................................................................................................................................7
STORAGE................................................................................................................................................7
WV300A Specification Page 4/11 2011/08/23
LTC Network Access Confidential
PRODUCT FEATURES
World band frequency 5150~5250;5725~5850MHz operation
Coexists with 802.11a/n and 5.8GHz cordless devices
128/256-bit AES based encryption
Supports 20 and 40 MHz channels for supreme video quality and high rate
video/audio Signals
WHDI 1.0 compliance, including HDCP 2.0
Support HDMI 1.4a video format and HDCP 1.2 with video encryption.
Supports any uncompressed video resolutions with a pixel clock rate of up to 162
MHz, including:
HD: 480p, 576p, 720p, 1080i, 1080p
PC: VGA (640x480), SVGA (800x600), XGA (1024x768), UGA(1600x1200)
Panel: 854x800, 1280x768, 1366x768, 1920x1080
Uncompressed streaming of HD video and audio up to 30 meters(No walls)
Less than 1mSec latency between video source and video sink
Static Video Recognition
High Definition Interface:
36-bit RGB or YCrCb (4:4:4)
Enables the support of non-standard resolutions
Audio:
Up to 18 Mbps throughput of audio stream
I²S: Up to eight PCM channels
SPDIF: Including AC-3, DTS HD, Dolby 5.1, Digital
Support HID
Support IR blaster
RoHS
WV300A Specification Page 5/11 2011/08/23
LTC Network Access Confidential
MAIN CHIPSET
Amimon AMN2120 + AMN3110
FUNCTIONAL SPECIFICATIONS
WHDI Function
Standard WHDI 1.0
Bus Interface HDMI
Data Rate 20MHz DL (Tx to Rx): 31.5 Mbps
40MHz DL (Tx to Rx): 63 Mbps
Modulation Scheme Uses 18MHz or 40Mhz bandwidth and is carried over the
5GHz unlicensed band
Frequency Range 5150~5250; 5725~5850MHz
Operating Voltage 5 V ±5% supply voltage
Security 128/256-bit AES based encryption
Power Consumption 7.5Watt – 1080P
Antenna Type Five PCB antennas
WV300A Specification Page 6/11 2011/08/23
LTC Network Access Confidential

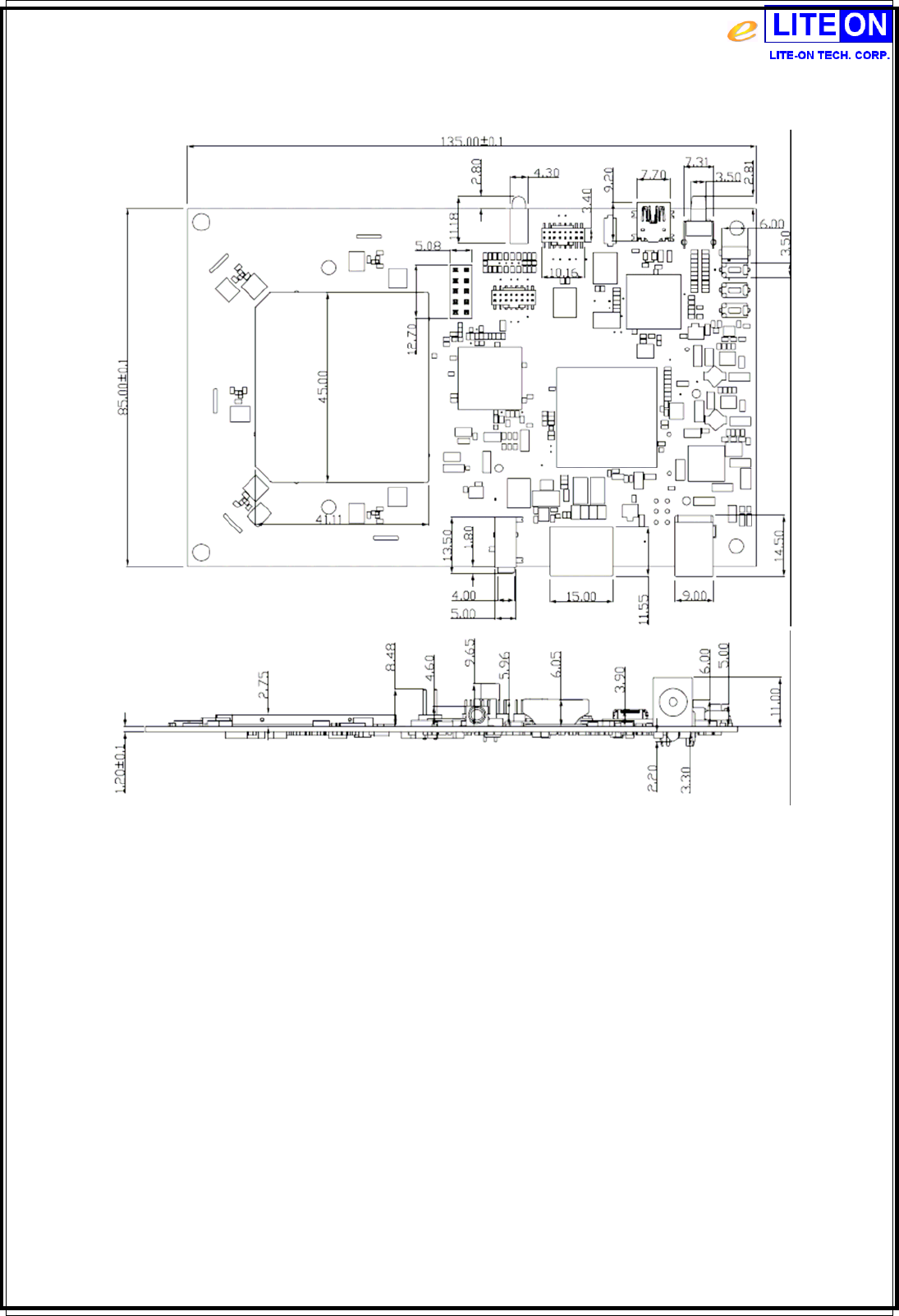

PCBA MECHANICAL
WV300A Specification Page 7/11 2011/08/23
LTC Network Access Confidential

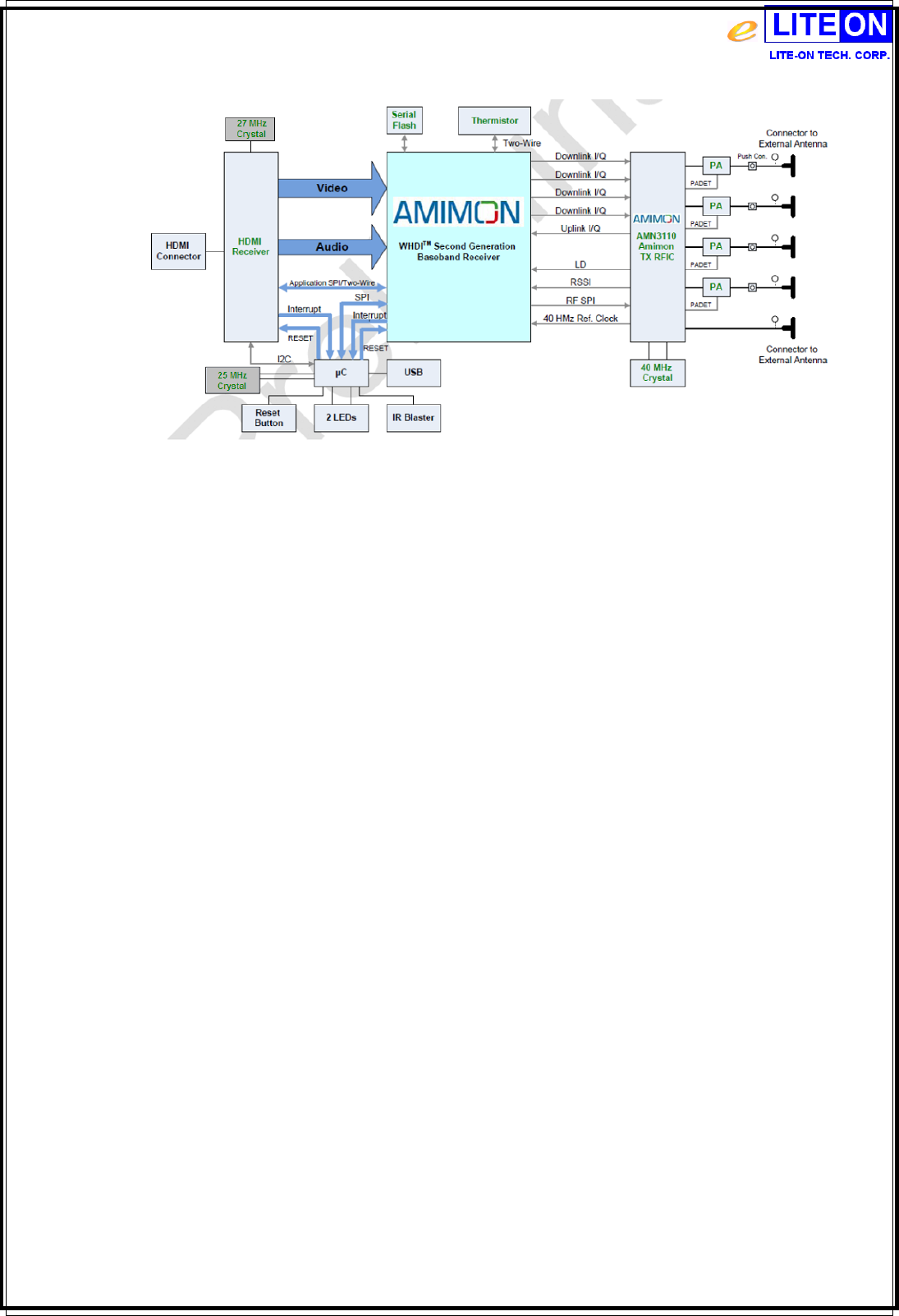

BLOCK DIAGRAM
ENVIRONMENTAL
Operating
Operating Temperature: 10-35ºC ambient in still air (outside of case)
Relative Humidity: 5-90% (non-condensing)
Storage
Temperature: -20 to 70 C
Relevant Humidity: 5-95% (non-condensing)
WV300A Specification Page 8/11 2011/08/23
LTC Network Access Confidential
