LITE ON TECHNOLOGY WV301A WHDI Rx board User Manual WV301A UserMan 20111102
LITE-ON Technology Corp. WHDI Rx board WV301A UserMan 20111102
(WV301A) UserMan_20111102
產品名稱: WHDI Rx board
廠牌: LITE-ON, 型號: WV301A
LITE-ON TECH. CORP.
PRODUCT SPEC
WV301A Specification Page 1/11 2011/08/26
LTC Network Access Confidential
PRODUCT SPECIFICATION
WHDI Receiver Board
WV301A
Amimon AMN2220 + AMN3210
Version 1.1
This document contains confidential proprietary information and is property of LTC. The contents of this document
should not be disclosed to unauthorized persons without the written consent of LTC.
Liteon semi-P/N: B853HZ100G
Change History:
Revision Date Author Change List
Draft 2010/07/12 Kenny Su Preliminary
Version 1.0 2011/05/18 Kenny Su Add PCBA Mechanical
Version 1.1 2011/08/26 Kenny Su Revise Product Feature
Author: Kenny Su Approved by: Alfred But
Editor: Kenny Su Project Leader: Alfred But
WV301A Specification Page 2/11 2011/08/26
LTC Network Access Confidential
PRODUCT SPECIFICATION
WHDI Receiver Board
WV301A
Amimon AMN2220 + AMN3210
Version 1.1
Networking B.U.
Lite-on Technology Corporation
4F, 90, Chien I Rd.
Chung Ho, Taipei Hsien 235, Taiwan, R.O.C.
Phone: 886-2-2222-6181
Fax: 886-2-2221-5288
Contact: Product Marketing
ML Wu #8266
E-mail: ML.Wu@LiteON.Com
Customer Approval: (Signature)
(Title)
(Company)
(Date)
(Please Sign Back by FAX. For Confirming the Spec Only, not an Official Agreement for OEM/ODM Business)
WV301A Specification Page 3/11 2011/08/26
LTC Network Access Confidential
CONTENT
PRODUCT FEATURES .................................................................................................................... 4
MAIN CHIPSET ................................................................................................................................. 5
FUNCTIONAL SPECIFICATIONS ................................................................................................. 5
PCBA MECHANICAL ...................................................................................................................... 6
BLOCK DIAGRAM ........................................................................................................................... 7
ENVIRONMENTAL .......................................................................................................................... 7
OPERATING ............................................................................................................................................ 7
STORAGE ................................................................................................................................................ 7
WV301A Specification Page 4/11 2011/08/26
LTC Network Access Confidential
PRODUCT FEATURES
World band frequency 5150~5250;5725~5850MHz operation
Coexists with 802.11a/n and 5.8GHz cordless devices
128/256-bit AES based encryption
Supports 20 and 40 MHz channels for supreme video quality and high rate
video/audio Signals
WHDI 1.0 compliance, including HDCP 2.0
Support HDMI 1.4a video format and HDCP 1.2 with video encryption.
Supports any uncompressed video resolutions with a pixel clock rate of up to 162
MHz, including:
HD: 480p, 576p, 720p, 1080i, 1080p
PC: VGA (640x480), SVGA (800x600), XGA (1024x768), UGA (1600x1200)
Panel: 854x800, 1280x768, 1366x768, 1920x1080
Less than 1mSec latency between video source and video sink
Static Video Recognition
High Definition Interface:
36-bit RGB or YCrCb (4:4:4)
Enables the support of non-standard resolutions
Audio:
Up to 18 Mbps throughput of audio stream
I²S: Up to eight PCM channels
SPDIF: Including AC-3, DTS HD, Dolby 5.1, Digital
RoHS
WV301A Specification Page 5/11 2011/08/26
LTC Network Access Confidential
MAIN CHIPSET
Amimon AMN2220 + AMN3210
FUNCTIONAL SPECIFICATIONS
WHDI Function
Standard WHDI 1.0
Bus Interface HDMI
Data Rate 20MHz UL (Rx to Tx): Up to 30.0 Kbps
40MHz UL (Rx to Tx): Up to 60.0 Kbps
Modulation Scheme Uses 18MHz or 40Mh z bandwidth and is ca rried over the
5GHz unlicensed band
Frequency Range 5150~5250;5725~5850MHz
Operating Voltage 5 V ±5% supply voltage
Security 128/256-bit AES based encryption
Power Consumption 7.5Watt – 1080P
Antenna Type Five PCB antennas
WV301A Specification Page 6/11 2011/08/26
LTC Network Access Confidential

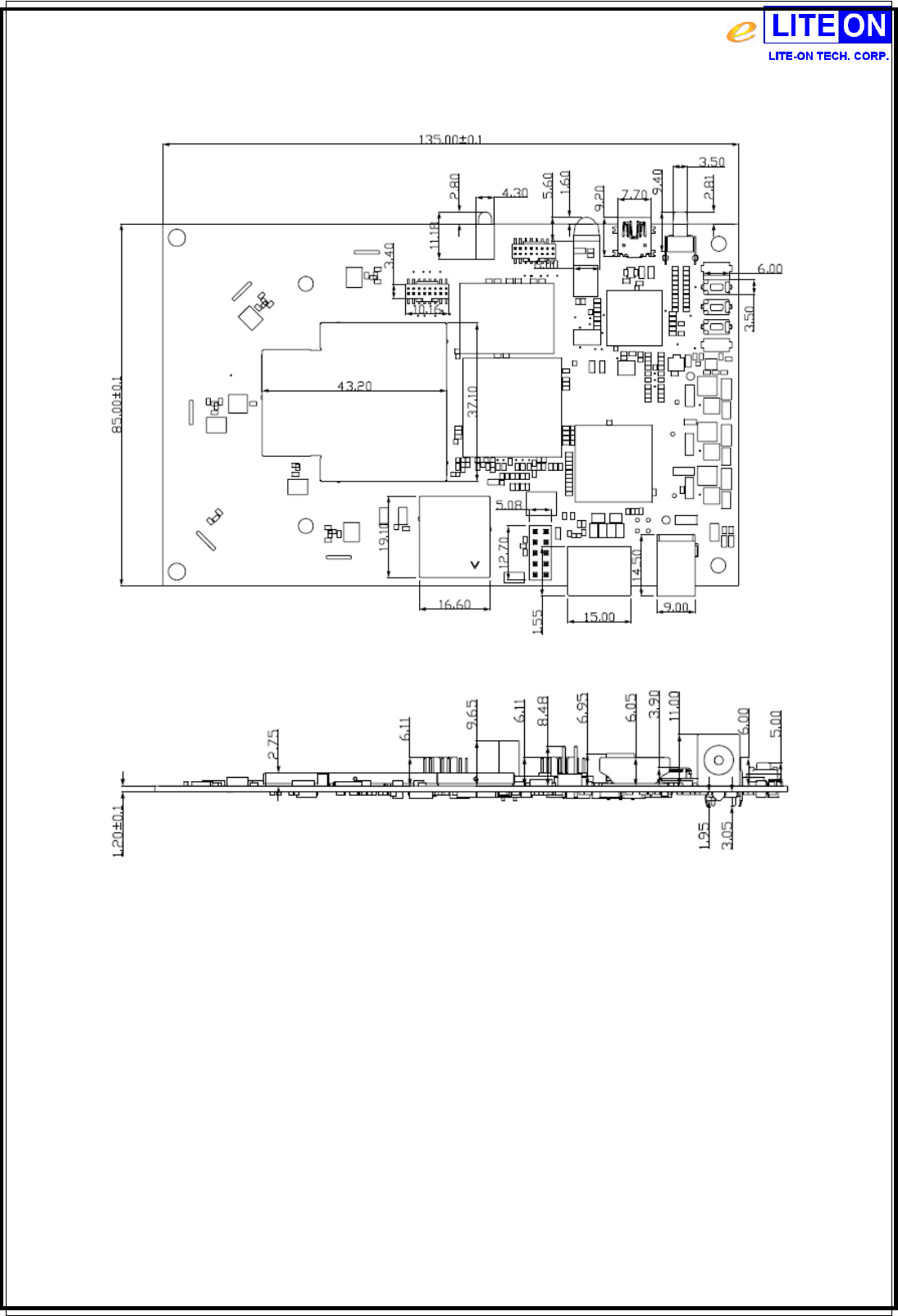

PCBA MECHANICAL
WV301A Specification Page 7/11 2011/08/26
LTC Network Access Confidential

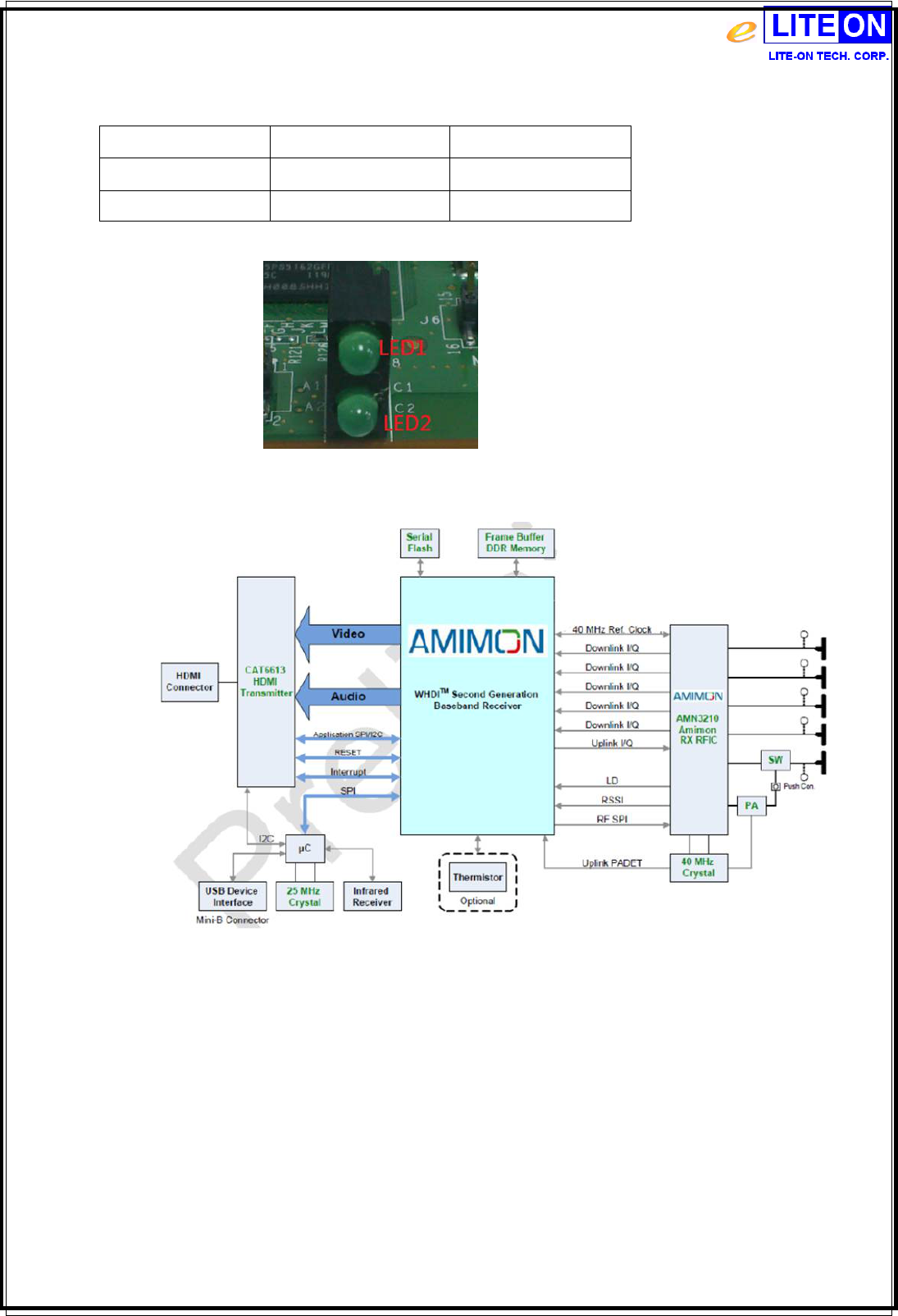

LED BEHAVIOR
Indication Function
LED1 Link On/Off
LED2 Power On/Off
BLOCK DIAGRAM
ENVIRONMENTAL
Operating
O perating Temperature: 10-35ºC ambient in still air (outside of case)
Relative Humidity: 5-90% (non-condensing)
Storage
Temperature: -20 to 70 C
Relevant Humidity: 5-95% (non-condensing)
WV301A Specification Page 8/11 2011/08/26
LTC Network Access Confidential
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
– Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
RF exposure warning ·
This equipment must be installed and operated in accordance with provided instructions and
the antenna(s) used for this transmitter must be installed to provide a separation distance of
at least 20 cm from all persons and must not be co-located or operating in conjunction with
any other antenna or transmitter. End-users and installers must be provided with antenna
installation instructions and transmitter operating conditions for satisfying RF exposure
compliance.
WV301A Specification Page 9/11 2011/08/26
LTC Network Access Confidential
Canada, Industry Canada (IC) Notices
This Class B digital apparatus complies with Canadian ICES-003 and RSS-210.
Operation is subject to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Radio Frequency (RF) Exposure Information
The radiated output power of the Wireless Device is below the Industry Canada (IC) radio
frequency exposure limits. The Wireless Device should be used in such a manner such that
the potential for human contact during normal operation is minimized.
This device has also been evaluated and shown compliant with the IC RF Exposure limits
under mobile exposure conditions. (antennas are greater than 20cm from a person's body).
This device has been certified for use in Canada. Status of the listing in the Industry
Canada’s REL (Radio Equipment List) can be found at the following web address:
http://www.ic.gc.ca/app/sitt/reltel/srch/nwRdSrch.do?lang=eng
Additional Canadian information on RF exposure also can be found at the following web
address: http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html
Canada, avis d'Industry Canada (IC)
Cet appareil numérique de classe B est conforme aux normes canadiennes ICES-003 et
RSS-210.
Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas
causer d'interférence et (2) cet appareil doit accepter toute interférence, notamment les
interférences qui peuvent affecter son fonctionnement.
Informations concernant l'exposition aux fréquences radio (RF)
La puissance de sortie émise par l’appareil de sans fil Dell est inférieure à la limite
d'exposition aux fréquences radio d'Industry Canada (IC). Utilisez l’appareil de sans fil de
façon à minimiser les contacts humains lors du fonctionnement normal.
Ce périphérique a également été évalué et démontré conforme aux limites d'exposition aux
RF d'IC dans des conditions d'exposition à des appareils mobiles (les antennes se situent à
moins de 20 cm du corps d'une personne).
Ce périphérique est homologué pour l'utilisation au Canada. Pour consulter l'entrée
correspondant à l’appareil dans la liste d'équipement radio (REL - Radio Equipment List)
d'Industry Canada rendez-vous sur:
http://www.ic.gc.ca/app/sitt/reltel/srch/nwRdSrch.do?lang=eng
Pour des informations supplémentaires concernant l'exposition aux RF au Canada
WV301A Specification Page 10/11 2011/08/26
LTC Network Access Confidential
rendez-vous sur : http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html
Information for the OEMs and Integrators
The following statement must be included with all versions of this document supplied to an
OEM or integrator, but should not be distributed to the end user.
This device is intended for OEM integrators only.
Please See the full Grant of Equipment document for other restrictions.
This device must be operated and used with a locally approved access point.
This device is operation in 5.15 – 5.25GHz frequency range, then restricted in indoor use
only.
Outdoor operations in the 5150~5250MHz is prohibit.
Information To Be Supplied to the End User by the OEM or Integrator
The following regulatory and safety notices must be published in documentation supplied to
the end user of the product or system incorporating an adapter in compliance with local
regulations. Host system must be labeled with "Contains FCC ID: PPQ-WV301A, IC:
4491A-WV301A” displayed on label.
依據國家通訊傳播委員會低功率電波輻射性電機管理辦法：
第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更
頻率、加大功率或變更原設計之特性及功能。
第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應
立即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。
低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
本模組於取得認證後將依規定於模組本體標示審合格籤，並要求平台上標示「本產品內含射頻模
組：XXXXXXXXXX」
