LITE ON TECHNOLOGY WV400A WHDI TX Stick User Manual
LITE-ON Technology Corp. WHDI TX Stick
(WV400A) UserMan
LITE-ON TECH. CORP.
WV400A Specification Page 2/11 2011/08/23
LTC Network Access Confidential
PRODUCT SPECIFICATION
WHDI Transmitter Stick
WV400A
Amimon AMN2120 + MAXIM MAX2850
Version 1.1
This document contains confidential proprietary information and is property of LTC. The contents of this document
should not be disclosed to unauthorized persons without the written consent of LTC.
Liteon semi-P/N: B853J3600G
Change History:
Revision Date Author Change List
Draft 2011/01/05 Kenny Su Preliminary
Version 1.0 2011/05/18 Kenny Su 1.Revise LED Behavior
2.Add PCBA Mechanical
Version 1.1 2011/08/23 Kenny Su Revise product feature
Author: Kenny Su Approved by: Alfred But
Editor: Kenny Su Project Leader: Alfred But
WV400A Specification Page 3/11 2011/08/23
LTC Network Access Confidential
PRODUCT SPECIFICATION
WHDI Transmitter Stick
WV400A
Amimon AMN2120 + MAXIM MAX2850
Version 1.1
Networking B.U.
Lite-on Technology Corporation
4F, 90, Chien I Rd.
Chung Ho, Taipei Hsien 235, Taiwan, R.O.C.
Phone: 886-2-2222-6181
Fax: 886-2-2221-5288
Contact: Product Marketing
ML Wu #8266
E-mail: ML.Wu@LiteON.Com
Customer Approval: (Signature)
(Title)
(Company)
(Date)
(Please Sign Back by FAX. For Confirming the Spec Only, not an Official Agreement for OEM/ODM Business)
WV400A Specification Page 4/11 2011/08/23
LTC Network Access Confidential
CONTENT
PRODUCT FEATURES ....................................................................................................................5
MAIN CHIPSET.................................................................................................................................6
FUNCTIONAL SPECIFICATIONS.................................................................................................6
PCBA MECHANICAL ......................................................................................................................7
LED BEHAVIOR ...............................................................................................................................7
USB CABLE...................................................................................................錯誤! 尚未定義書籤。
BLOCK DIAGRAM...........................................................................................................................8
ENVIRONMENTAL..........................................................................................................................8
OPERATING ............................................................................................................................................8
STORAGE................................................................................................................................................8
WV400A Specification Page 5/11 2011/08/23
LTC Network Access Confidential
PRODUCT FEATURES
World band frequency 5150~5250;5725~5850MHz operation
Coexists with 802.11a/n and 5.8GHz cordless devices
128/256-bit AES based encryption
Supports 20 and 40 MHz channels for supreme video quality and high rate video/audio
Signals
WHDI 1.0 compliance, including HDCP 2.0
Support HDMI 1.4a video format and HDCP 1.2 with video encryption.
Supports any uncompressed video resolutions with a pixel clock rate of up to 162 MHz,
including:
HD: 480p, 576p, 720p, 1080i, 1080p
PC: VGA (640x480), SVGA (800x600), XGA (1024x768), UGA(1600x1200)
Panel: 854x800, 1280x768, 1366x768, 1920x1080
Uncompressed streaming of HD video and audio up to 10 meters(No walls)
Less than 1mSec latency between video source and video sink
Static Video Recognition
High Definition Interface:
36-bit RGB or YCrCb (4:4:4)
Enables the support of non-standard resolutions
Audio:
Up to 18 Mbps throughput of audio stream
I²S: Up to eight PCM channels
SPDIF: Including AC-3, DTS HD, Dolby 5.1, Digital
RoHS
WV400A Specification Page 6/11 2011/08/23
LTC Network Access Confidential
MAIN CHIPSET
Amimon AMN2120 + Maxim MAX2850
FUNCTIONAL SPECIFICATIONS
WHDI Function
Standard WHDI 1.0
Bus Interface HDMI
Data Rate 20MHz DL (Tx to Rx): 31.5 Mbps
40MHz DL (Tx to Rx): 63 Mbps
Modulation Scheme Uses 18MHz or 40Mhz bandwidth and is carried over the
5GHz unlicensed band
Frequency Range 5150~5250; 5725~5850MHz
Operating Voltage 5 V ±5% supply voltage
Security 128/256-bit AES based encryption
Power Consumption 2.5Watt – 1080P
2.1Watt – 720P
Up to 2.7 Watt
Antenna Type
Two chip antennas
(One for downlink transmission only and one which is switched
between downlink transmission and uplink reception)
WV400A Specification Page 7/11 2011/08/23
LTC Network Access Confidential

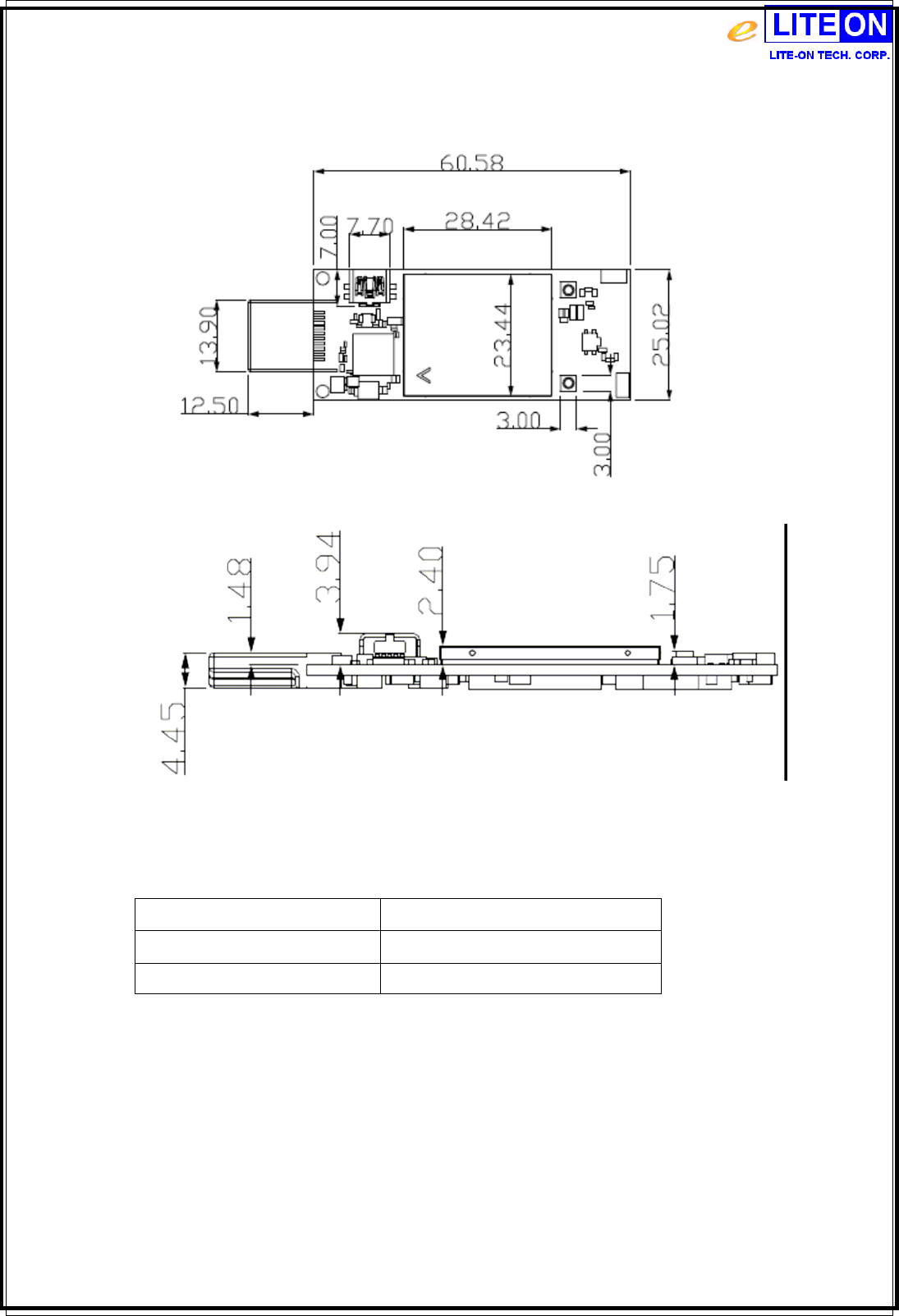

PCBA MECHANICAL
LED BEHAVIOR
Indication Function
Video connection established On
Power Off / No video input Off
WV400A Specification Page 8/11 2011/08/23
LTC Network Access Confidential

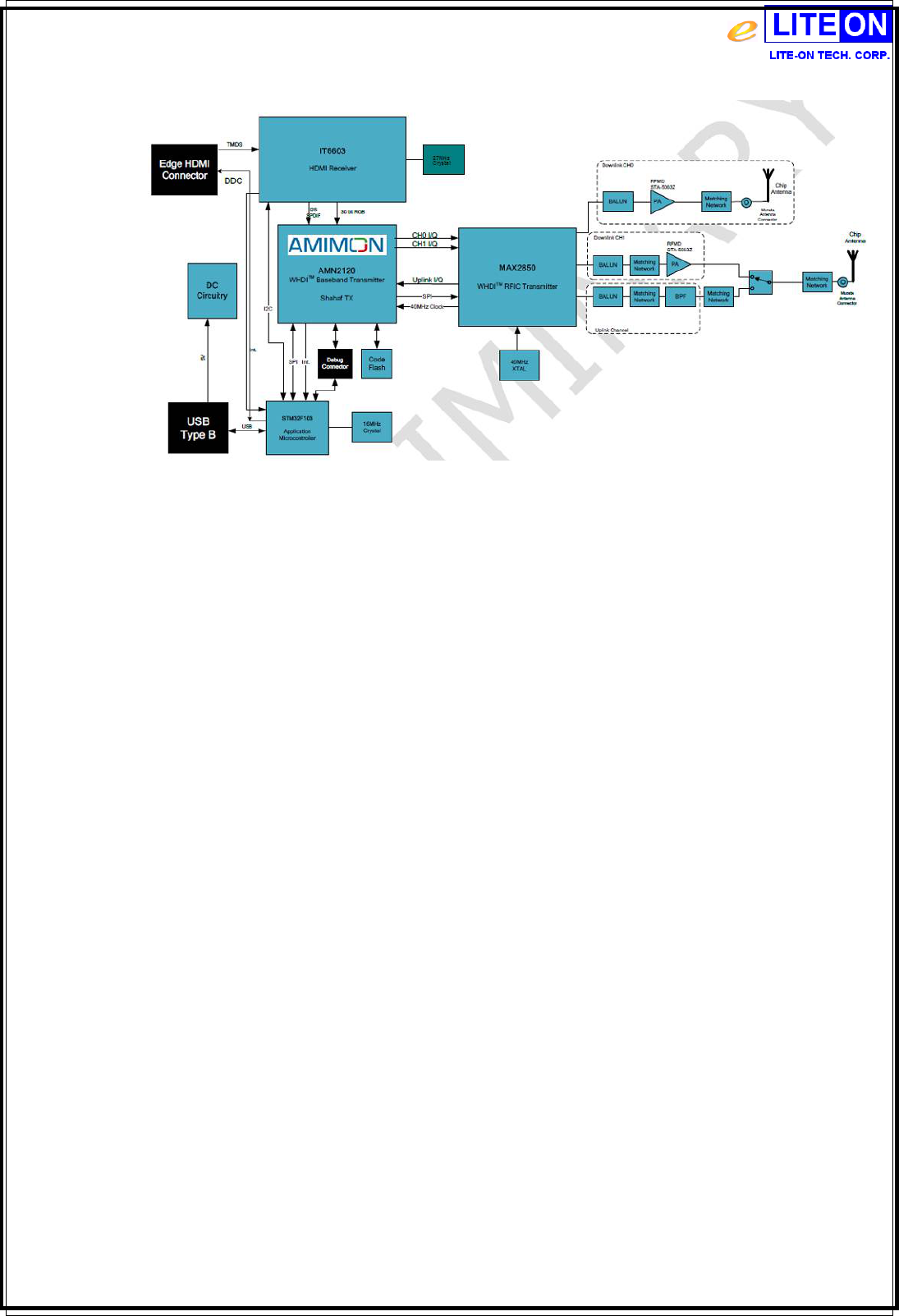

BLOCK DIAGRAM
ENVIRONMENTAL
Operating
Operating Temperature: 10-35ºC ambient in still air (outside of case)
Relative Humidity: 5-90% (non-condensing)
Storage
Temperature: -20 to 70 C
Relevant Humidity: 5-95% (non-condensing)
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE
STATEMENT
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the
WV400A Specification Page 9/11 2011/08/23
LTC Network Access Confidential
receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
RF exposure warning
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This equipment must be installed and operated in
accordance with provided instructions and must not be co-located or operating in
conjunction with any other antenna or transmitter. End-users and installers must be
provided with antenna installation instructions and transmitter operating conditions
for satisfying RF exposure compliance.
WV400A Specification Page 10/11 2011/08/23
LTC Network Access Confidential
Canada, Industry Canada (IC) Notices
This Class B digital apparatus complies with Canadian ICES-003 and RSS-210.
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
Radio Frequency (RF) Exposure Information
The radiated output power of the Wireless Device is below the Industry Canada (IC)
radio frequency exposure limits. The Wireless Device should be used in such a
manner such that the potential for human contact during normal operation is
minimized.
Canada’s REL (Radio Equipment List) can be found at the following web address:
http://www.ic.gc.ca/app/sitt/reltel/srch/nwRdSrch.do?lang=eng
Additional Canadian information on RF exposure also can be found at the following web
address: http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html
Canada, avis d'Industry Canada (IC)
Cet appareil numérique de classe B est conforme aux normes canadiennes
ICES-003 et RSS-210.
Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne
doit pas causer d'interférence et (2) cet appareil doit accepter toute interférence,
notamment les interférences qui peuvent affecter son fonctionnement.
Informations concernant l'exposition aux fréquences radio (RF)
La puissance de sortie émise par l’appareil de sans fil Dell est inférieure à la limite
d'exposition aux fréquences radio d'Industry Canada (IC). Utilisez l’appareil de sans
fil Dell de façon à minimiser les contacts humains lors du fonctionnement normal.
Ce périphérique est homologué pour l'utilisation au Canada. Pour consulter l'entrée
correspondant à l’appareil dans la liste d'équipement radio (REL - Radio Equipment
List) d'Industry Canada rendez-vous sur:
http://www.ic.gc.ca/app/sitt/reltel/srch/nwRdSrch.do?lang=eng
Pour des informations supplémentaires concernant l'exposition aux RF au Canada
rendez-vous sur : http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html
WV400A Specification Page 11/11 2011/08/23
LTC Network Access Confidential
Information for the OEMs and Integrators
The following statement must be included with all versions of this document
supplied to an OEM or integrator, but should not be distributed to the end user.
This device is intended for OEM integrators only.
Please See the full Grant of Equipment document for other restrictions.
This device must be operated and used with a locally approved access point.
This device is operation in 5.15 – 5.25GHz frequency range, then restricted in
indoor use only.
Outdoor operations in the 5150~5250MHz is prohibit.
End Product Labeling
Information to Be Supplied to the End User by the OEM or Integrator
The following regulatory and safety notices must be published in
documentation supplied to the end user of the product or system incorporating
an adapter in compliance with local regulations.
The final end product must be labeled in a visible area with the following:
"Contains FCC ID: PPQ-WV400A ”and “Contains IC:4491A-WV400A”
