LM Technologies LM540-1 LM540 CLASS 1 BLUETOOTH USB ADAPTER User Manual USERS MANUAL
LM Technologies Ltd. LM540 CLASS 1 BLUETOOTH USB ADAPTER USERS MANUAL
USERS MANUAL
LM540 Class 1 Bluetooth USB
Adapter
Quick Guide
1. System Requirements
At least 50MB of free disk space is required; Windows 7, Windows Vista or Windows XP
operating systems are supported.
2. BlueSoleil Installation
2.1 Before installing
•
Uninstall any previous versions of BlueSoleil installed on your computer before installing this
version.
•
Click Start -> Control Panel to open Control Panel
•
Choose Add or Remove Programs.
Please note it does not matter whether the bluetooth adapter is plugged in or not into the USB
port of your PC during installation.
Select BlueSoleil from the program list and uninstall it.
2.2 Installing BlueSoleil
• Insert the LM541 installation CD into your CD-ROM or DVD-ROM drive.
If you did not receive a CD with your product, you can still download the latest version from
LM Technologies website (LM540 Driver) and install it directly.
• Double click setup.exe to start installation
• Choose the setup language to use from the drop down box

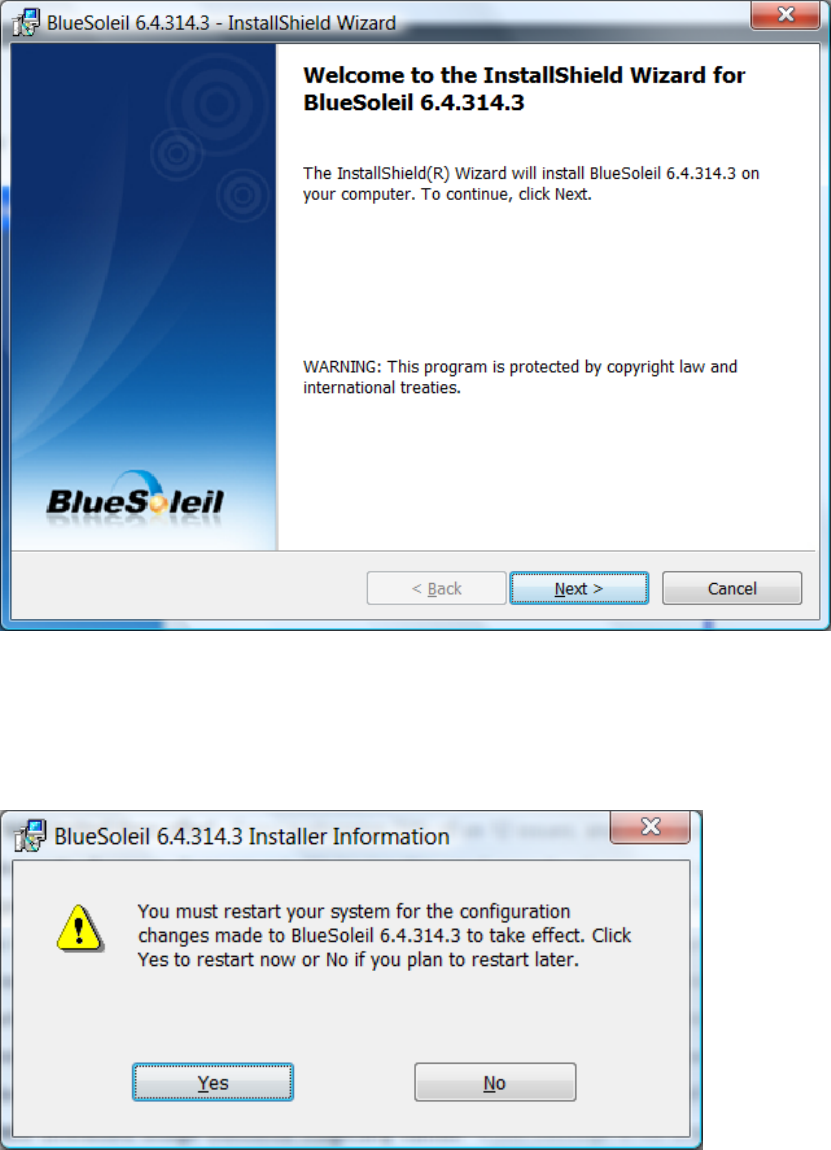

• Follow the instructions on the screen
• Restart your computer
Note: If you do not restart your computer after the installation is complete, some functions
of the software may not be available or may work abnormally.
3. Getting Started
3.1 Plug in LM540
Plug in LM540 to the USB port of the PC. The license key for BlueSoleil is programmed in the
LM540 hardware. So when you start the Bluesoleil software, the license key will be
automatically detected.
There is one license key corresponding to each Bluetooth Device Address.
3.2 Starting BlueSoleil
When BlueSoleil starts and the LM540 is plugged in the PC, a notification message will appear
in the system tray as shown below and the system tray Bluetooth icon will turn to BLUE
Double click “Bluetooth Places” icon on the desktop or right-click the Bluetooth icon in the
system tray and select “Explore Bluetooth Places”.
3.3 Search remote Bluetooth Devices
• Make sure the device(s) are set discoverable.
• Double-click Search Devices icon. This will initiate Bluetooth Device Search and then
Bluetooth devices will appear in the window.
3.4 Search Services
• Double-click the device icon to enter the device's subfolder.
• Services supported by the device will appear in the window automatically. If not, double-
click Search Services icon to refresh.
3.5 Establish a connection
• Double click a service icon to initiate a connection.
You might be prompted to enter a passkey for authenticate the remote device. Enter the
same passkey on both sides, or enter the specific one provided by the remote device
manufacturer on your computer side only. On BlueSoleil side, the dialog box as shown in
the following picture will pop up to enter a passkey.

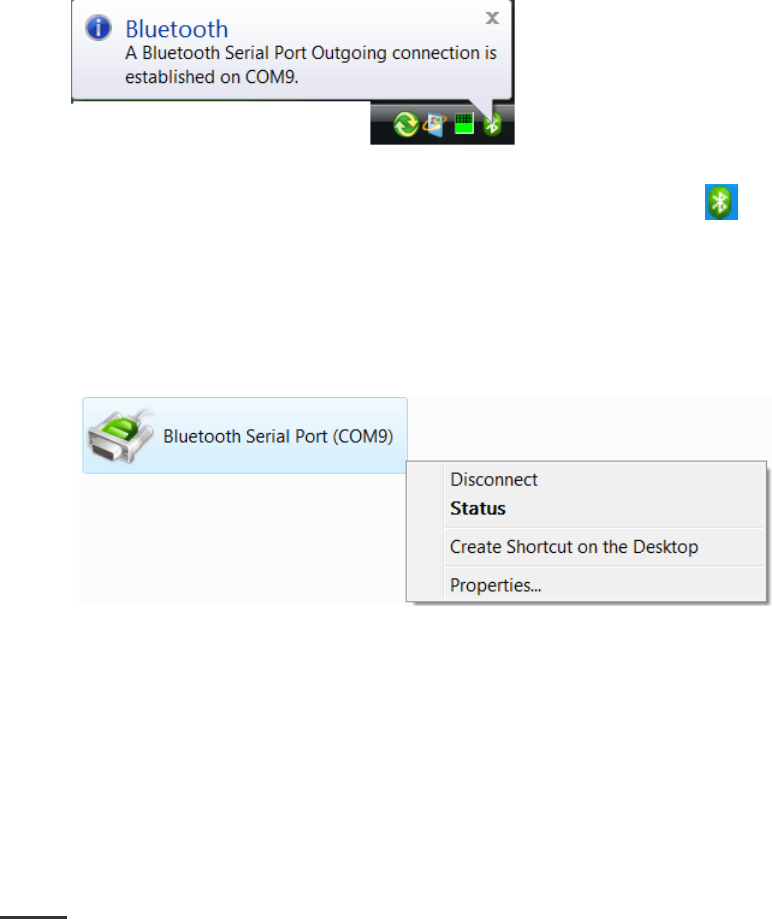

In this case, a connection to a Serial Device is initiated. Once the pairing and connection is
successful, the following message will appear in the system tray.
The Bluetooth Icon in the system tray will also turn GREEN
3.6 Terminate a connection
• Right-click the connected remote service icon and select Disconnect.
On disconnection, the bluetooth icon in system tray will again turn BLUE.
4. Uninstalling BlueSoleil
BlueSoleil can only be removed by using the Control Panel. For detailed instructions, please refer
to Step 2.1 Before installing in this guide.
NOTE
BlueSoleil 6 is licensed under LM Technologies for the sole purpose of adding functionality of the
LM540 Class 1 Bluetooth USB Adapter. It may not be used for any other purpose.If you have any
issues with this software, please check the FAQ section of the BlueSoleil website,
:
www.BlueSoleil.com .If you have any issues with LM540 operation, please check the
troubleshooting section of the LM Technologies support page,
http://www.lm-technologies.com/business/troubleshooting.php
Statement from IVT Corporation, owners of BlueSoleil
Users within MAC ID range from 00:15:83:45:B2:C2 to 00:15:83:45:BC:85 can upgrade to
BlueSoleil 8 from BlueSoleil 6, please download the version package from
http://www.bluesoleil.com/products/SoftwareDetail.aspx?ProductID=S0001201005190001
2010-9-8
IVT Corporation
All rights reserved LM Technologies Ltd 2010
LM540v2 Page 5 of 5 +44(0)207 428 2647 | www.lm-technologies.com | sales@lm-technologies.com
8 Revision History
6 FCC Warning Statement
This device complies with Part 15 and 15C of the FCC Rules. Operaon is subject to the following two condions:
1) This device may not cause harmful interference, and
2) This device must accept any interference received, including interference that may cause undesired operaon
This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 and 15C of
the FCC Rules. These limits are designed to provide reasonable protecon against harmful interference in a residenal installaon.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instrucons, may cause harmful interference to radio communicaons. However, there is no guarantee that interference will
not occur in a parcular installaon. If this equipment does cause harmful interference to radio or television recepon,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separaon between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Installaon and use of this device must be in strict accordance with the instrucons included in the user documentaon provided with
the product. Any changes or modificaons (including the antennas) made to this device that are not expressly approved by the
manufacturer may void the user’s authority to operate the equipment. The manufacturer is not responsible for any radio or television
interference caused by unauthorized modificaon of this device, or the substuon of the connecng cables and equipment other than
manufacturer specified. It is the responsibility of the user to correct any interference caused by such unauthorized modificaon,
substuon or aachment. Manufacturer and its authorized resellers or distributors will assume no liability for any damage or violaon
of government regulaons arising from failing to comply with these guidelines.
This equipment complies with FCC radiaon exposure limits set forth for an uncontrolled environment. This transmier must not be
co-located or operang in conjuncon with any other antenna or transmier.
Product: LM540
Part No: 540-0542
Datasheet Rev 1.2/07-11-13
Revision Date Comments
Rev1.0 15/11/2011 First Version
Rev1.1 15/10/2013 1. Updated product pictures
2. Added cerficaon informaon to specificaon
3. Added FCC Warning Statement
Rev1.2 07/11/2013
1. Add environment condions secon
7 Environment Conditions
Operang Temperature -20° C ~ +75° C
Working Humidity 65+/-20%RH
Environmently Friendly Disposal
You can help protect the environment!
Please remember to respect the local regulaons: hand in the
non-working electrical equipments to an appropriate waste disposal centre.
