LM Technologies LM910-XXXX Bluetooth USB Module 4.0 Low Energy Class 1 - LM910 User Manual LM910 DATASHEET
LM Technologies Ltd. Bluetooth USB Module 4.0 Low Energy Class 1 - LM910 LM910 DATASHEET
User Manual
LM910
Page 1 of 3 +44(0) 207 428 2647 www.lm-technologies.com | sales@lm-technologies.com

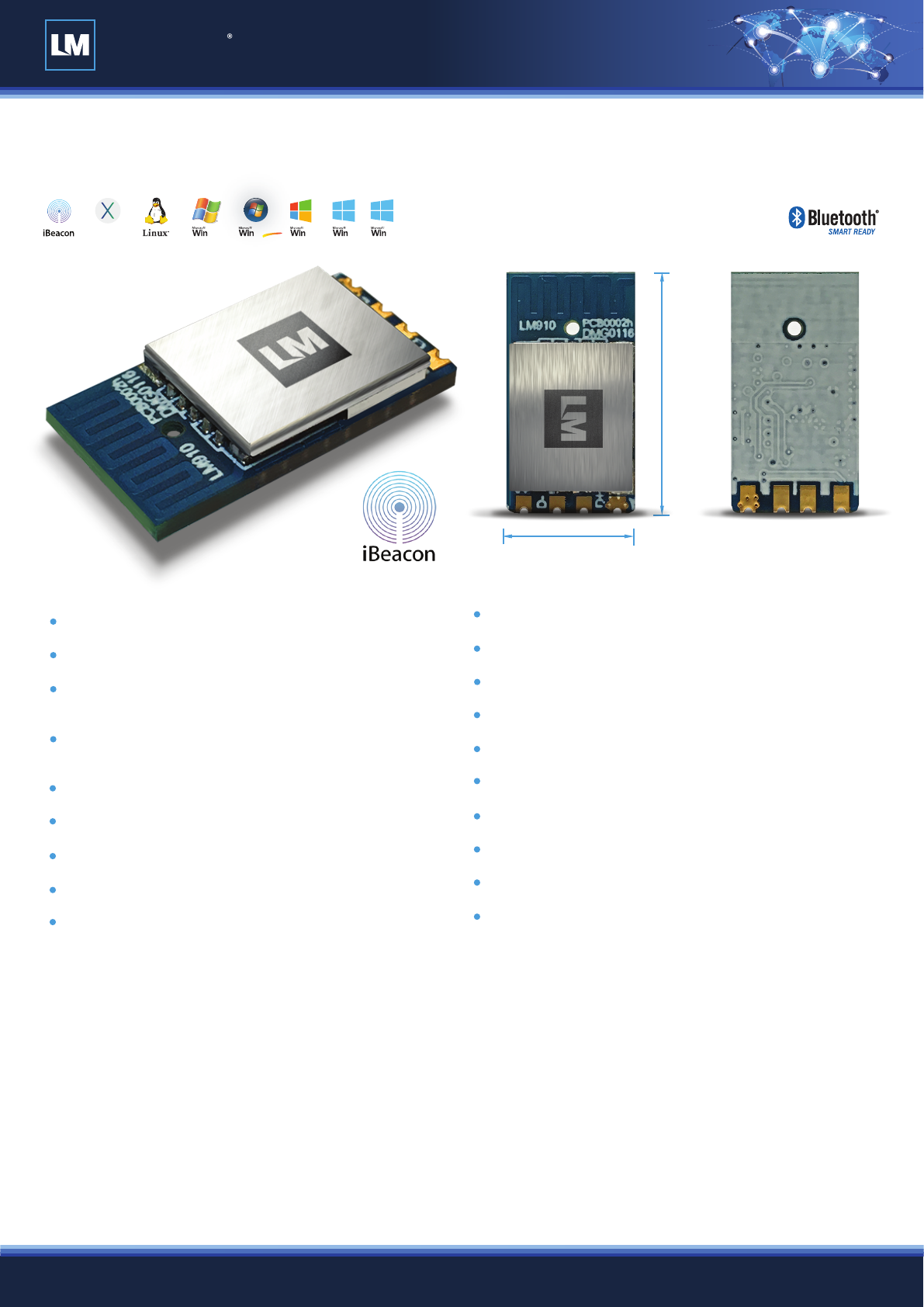

Overview
LM910 Bluetooth 4.0 (Classic + LE) HCI Compact USB SMT Module
Dual-Mode with 110m Estimated Max. Distance with Integrated Antenna
Part No
Revised
Product
04/APR/2016
910-0630
LM910
The LM910 has a wide range of uses thanks to the array of profiles available with the Widcomm Bluetooth stack, along with excellent
compatability with other OS stacks such as Linux’s BlueZ.
Its exceptional performance will allow users to connect up to 110 mtrs via Bluetooth 4.0, Classic, EDR and LE standards.
This is a very small form factor and high performance module which allows you to connect to up to 7 Bluetooth devices
simultaneously. The module is backward compatible with Bluetooth 2.0 and Bluetooth 2.1 + EDR devices and also supports
connection to Bluetooth 3.0 and Bluetooth Low Energy Devices (BLE).
The module integrates high performance Bluetooth Radio, Baseband, Link Manager, Host Controller Interface and is compatible with
all Bluetooth stacks. The LM910 is ideally suited for Bluetooth connectivity to serial adapters, laptops, PC's, Bluetooth Low Energy
Devices and Mono and stereo headsets.
Features
Bluetooth 4.0, Classic + EDR and LE.
Powered from USB only.
Broadcom 20702 IC
Compatible with 17 profiles.
Widcomm 7 Software downloadable for Windows 8/8.1
Windows 7, Windows Vista or Windows XP operating system.
Up to 3Mbps (2.1Mbps throughput)
Compact size: 18mm x 9.7mm x 2mm
9.8 dBm Output
Up to 110m distance in open space.
FCC, RTTE, RoHS and BQB certified with SIG and other
certifications ongoing.
Smart Ready
Dual-Mode with Integrated Antenna
USB Interface only
Low cost solution
PLC packet loss concealment
iBeacon compatible
Low power consumption
Excellent compatibility
Integrated Antenna
EOL (End of Life) expected to be 10 Years +
18mm
9.7mm
TECHNOLOGIES
XP Vista 7 8
OSX 10
iBeacon compatible
LM910 Bluetooth 4.0 (Classic + LE) HCI Compact USB SMT Module
Dual-Mode with 110m Estimated Max. Distance with Integrated Antenna
Part No
Revised
Product
04/APR/2016
910-0630
LM910
Tray
Part No 910-0630
50 Pieces per tray.
20 x Tray = 1000 pcs per carton.
3. Packaging Options
LM910
Page 2 of 3 +44(0) 207 428 2647 www.lm-technologies.com | sales@lm-technologies.com
Product User Guides, Manuals and Configuration Software is available to download via our website - http://www.lm-technologies.com/downloads
General Specification
Chipset
Class
Speed / Bandwidth
Range
Interface
Standard Bluetooth
Frequency
Hopping
Firmware
Rx Sensitivity
RF Output
Power Supply
Weight
Temperature Range
Dimensions
Profiles Supported
iBeacon
Compatibility
Broadcom 20702
Class 1
Up to 3Mbps (2.1Mbps throughput)
0 - 110m Estimated distance in open space
USB 2.0
Smart Ready, Bluetooth v 4.0, backward compatible to 3.0, 2.1, 2.0 + EDR devices.
2.400 to 2.483.5 GHz
1,600/sec, 1Mhz channel space
HCI Mode
-86 dBm typical (TBC)
Class 1 (9.8 dBm)
5V DC
2.2g approx
-20 °C to +75 °C (Ambient) -40 °C to +85 °C (Storage)
18mm (L) x 9.7mm (W) x 2mm (H)
AVRCP, GAP, PAN, LAN, DUN, HID, FAX, SYNC FTP, HRCP, BIP, GEOP, SDAP,
OPP, SPP, HSP/HFP, A2DP, GATT
Compatible
Excellent compatibility with OS stacks such as Linux Kernel 3.0.34 BlueZ,
W8/8.1, W7, Vista or XP operating systems.
TECHNOLOGIES
LM910 Bluetooth 4.0 (Classic + LE) HCI Compact USB SMT Module
Dual-Mode with 110m Estimated Max. Distance with Integrated Antenna Part No
Revised
Product
04/APR/2016
910-0630
LM910

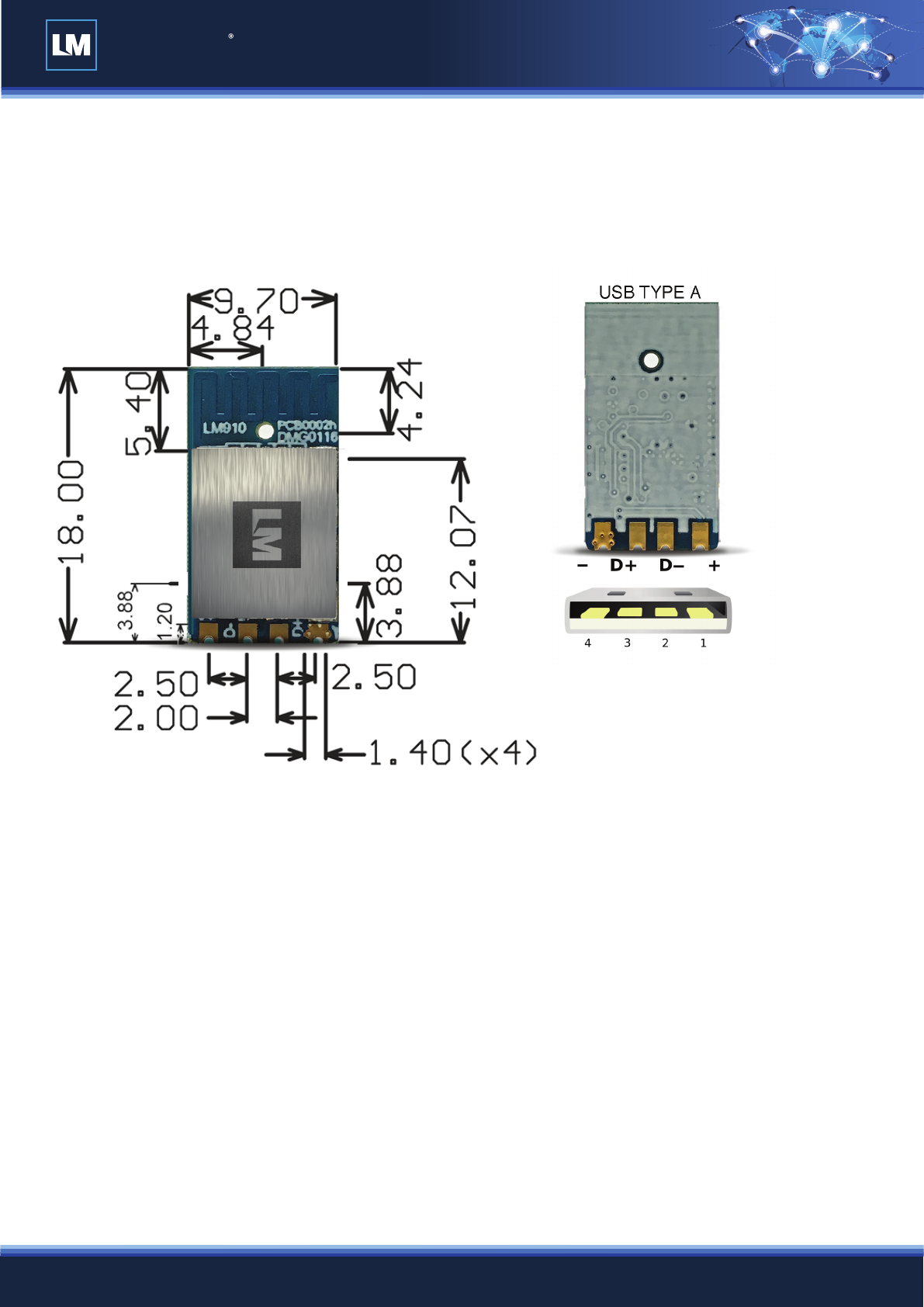

USB Pad Sizes
LM910
Page 3 of 3 +44(0) 207 428 2647 www.lm-technologies.com | sales@lm-technologies.com
TECHNOLOGIES
FCC Warning
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
NOTE: Any changes or modifications to this unit not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users
must follow the specific operating instructions for satisfying RF exposure compliance.
Note 1: Compliance of this device in all final host configurations is the responsibility of the Grantee.
OEM integrators are responsible to satisfy RF exposure requirements. SAR evaluation is valid for mobile only
applications (distance minimum 20cm to human bodies).
Note 2: Any modifications made to the module will void the Grant of Certification, this module is limited to OEM
installation only and must not be sold to end-users, end-user has no manual instructions to remove or install the
device, only software or operating procedure shall be placed in the end-user operating manual of final products.
Note 3: The device must not transmit simultaneously with any other antenna or transmitter.
Note 4: To ensure compliance with all non-transmitter functions the host manufacturer is responsible for ensuring
compliance with the module(s) installed and fully operational. For example, if a host was previously authorized as
an unintentional radiator under the Declaration of Conformity procedure without a transmitter certified module
and a module is added, the host manufacturer is responsible for ensuring that the after the module is installed and
operational the host continues to be compliant with the Part 15B unintentional radiator requirements. Since this
may depend on the details of how the module is integrated with the host, LM Technologies Ltd. shall provide
guidance to the host manufacturer for compliance with the Part 15B requirements.
Note 5: FCC ID label on the final system must be labeled with “Contains FCC ID: VVX-LM910-XXXX” or
“Contains transmitter module FCC ID: VVX-LM910-XXXX”.
The transmitter module must be installed and used in strict accordance with the manufacturer's instructions as
described in the user documentation that comes with the host product. LM Technologies Ltd. is responsible for the
compliance of the module in all final hosts.
IC WARNING
This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two
conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired operation of the
device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2)
l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible
d'en compromettre le fonctionnement.
IC Radiation Exposure Statement:
This device and its antenna(s) must not be co-located with any other transmitters except in accordance with IC
multi-transmitter product procedures. Referring to the multi-transmitter policy, multiple-transmitter(s) and
module(s) can be operated simultaneously without reassessment permissive change.
Cet appareil et son antenne (s) ne doit pas être co-localisés ou fonctionnement en association avec une autre
antenne ou transmetteur.
This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non
contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20cm de distance entre la source de
rayonnement et votre corps.
This module is limited to OEM installation only and must not be sold to end-users, end-user has no manual
instructions to remove or install the device, only software or operating procedure shall be placed in the end-user
operating manual of final products. Additional testing and certification may be necessary when multiple modules
are used.
Any changes or modifications not expressly approved by the manufacturer could void the user's authority to
operate this equipment.
The final end product must be labeled in a visible area with the following " Contains IC: 10531A-LM910XXXX".
