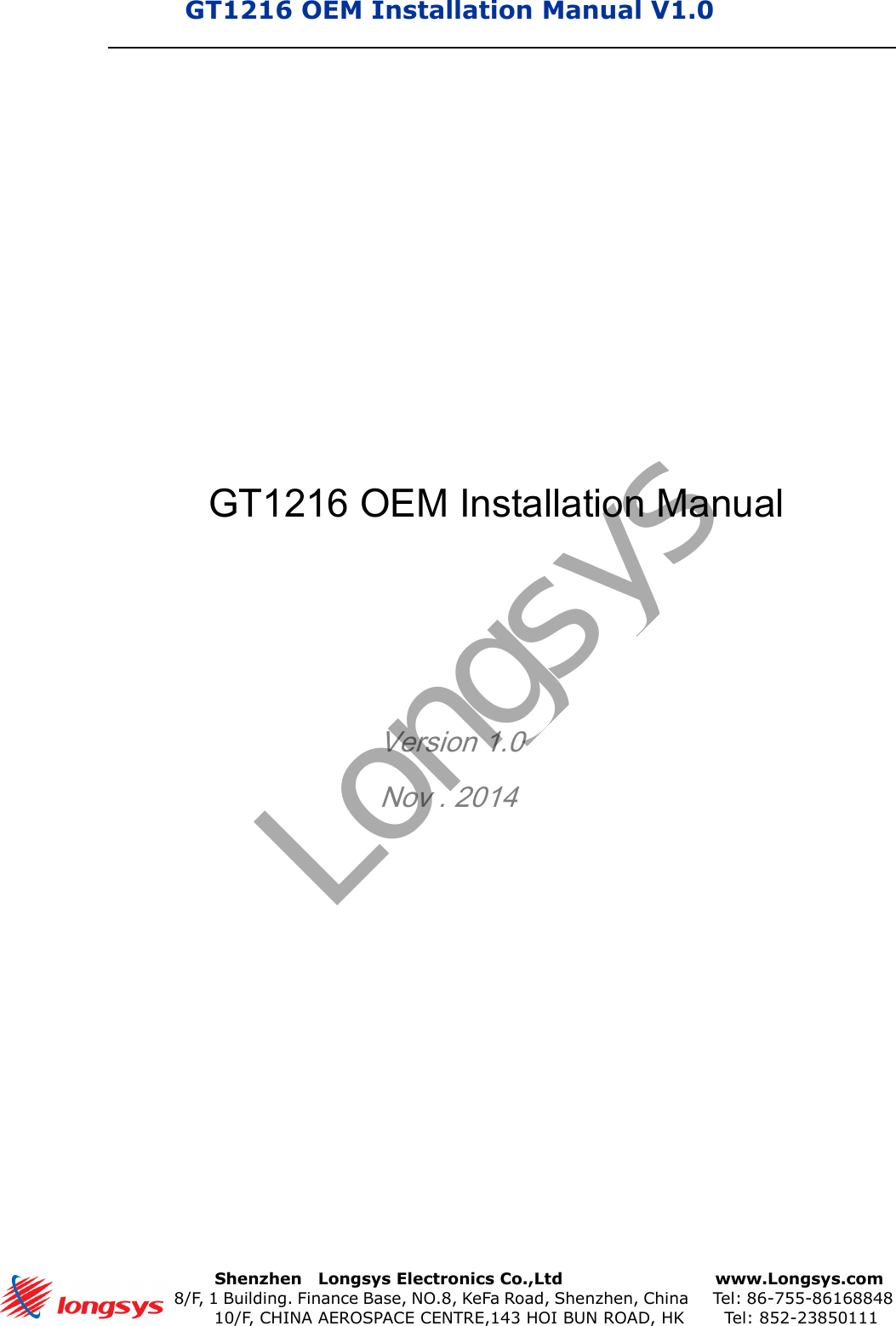

GT1216 OEM Installation Manual V1.0 Shenzhen Longsys Electronics Co.,Ltd www.Longsys.com 8/F, 1 Building. Finance Base, NO.8, KeFa Road, Shenzhen, China Tel: 86-755-86168848 10/F, CHINA AEROSPACE CENTRE,143 HOI BUN ROAD, HK Tel: 852-23850111GT1216 OEM Installation ManualVersion 1.0 Nov . 2014 Longsys

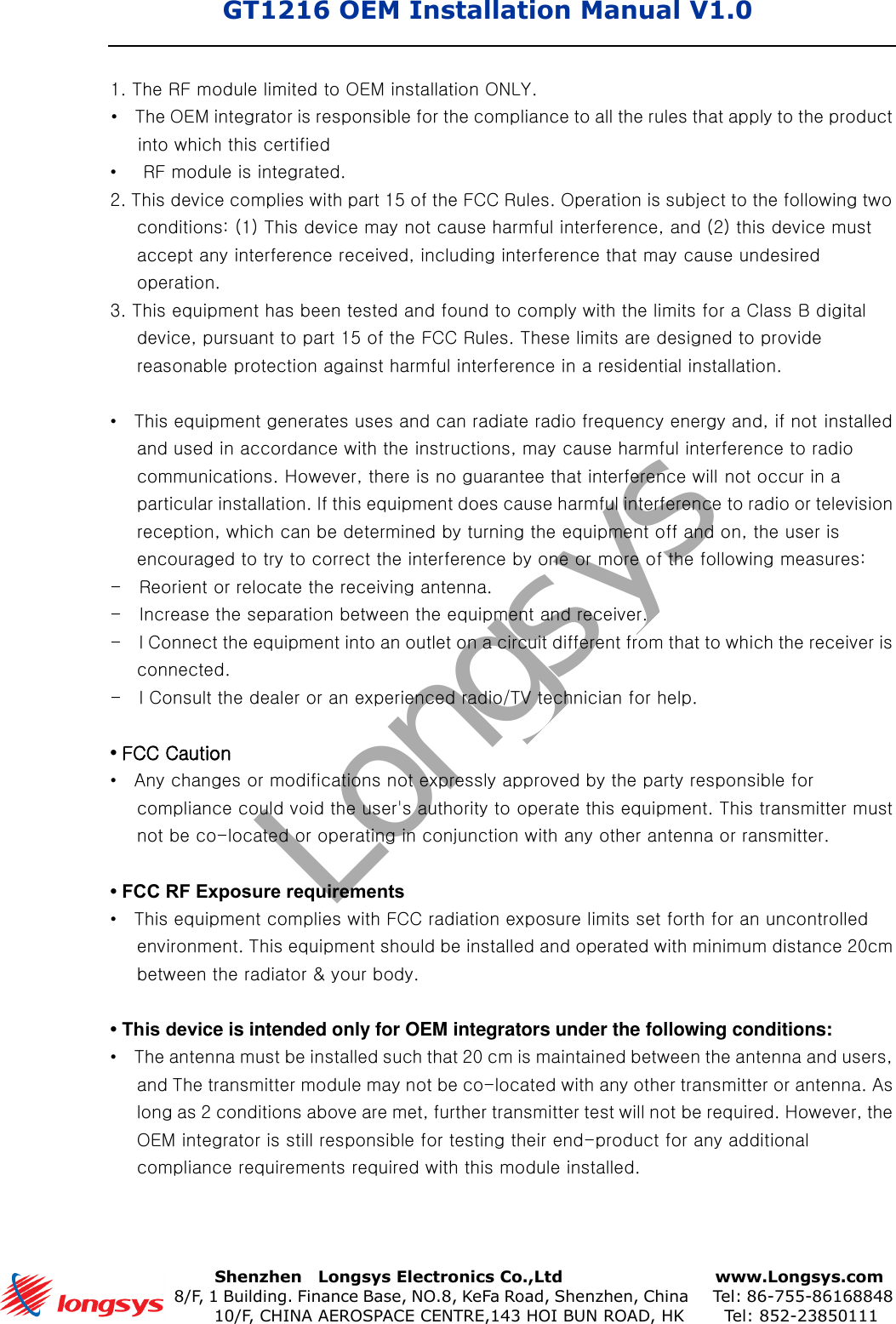

GT1216 OEM Installation Manual V1.0 Shenzhen Longsys Electronics Co.,Ltd www.Longsys.com 8/F, 1 Building. Finance Base, NO.8, KeFa Road, Shenzhen, China Tel: 86-755-86168848 10/F, CHINA AEROSPACE CENTRE,143 HOI BUN ROAD, HK Tel: 852-238501111. The RF module limited to OEM installation ONLY.•The OEM integrator is responsible for the compliance to all the rules that apply to the productinto which this certified•RF module is integrated.2. This device complies with part 15 of the FCC Rules. Operation is subject to the following twoconditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 3. This equipment has been tested and found to comply with the limits for a Class B digitaldevice, pursuant to part 15 of the FCC Rules. These limits are designed to providereasonable protection against harmful interference in a residential installation.•This equipment generates uses and can radiate radio frequency energy and, if not installedand used in accordance with the instructions, may cause harmful interference to radiocommunications. However, there is no guarantee that interference will not occur in aparticular installation. If this equipment does cause harmful interference to radio or televisionreception, which can be determined by turning the equipment off and on, the user isencouraged to try to correct the interference by one or more of the following measures:- Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - l Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - l Consult the dealer or an experienced radio/TV technician for help. •FCC Caution•Any changes or modifications not expressly approved by the party responsible forcompliance could void the user's authority to operate this equipment. This transmitter mustnot be co-located or operating in conjunction with any other antenna or ransmitter.•FCC RF Exposure requirements•This equipment complies with FCC radiation exposure limits set forth for an uncontrolledenvironment. This equipment should be installed and operated with minimum distance 20cmbetween the radiator & your body.• This device is intended only for OEM integrators under the following conditions:•The antenna must be installed such that 20 cm is maintained between the antenna and users,and The transmitter module may not be co-located with any other transmitter or antenna. Aslong as 2 conditions above are met, further transmitter test will not be required. However, theOEM integrator is still responsible for testing their end-product for any additionalcompliance requirements required with this module installed.Longsys

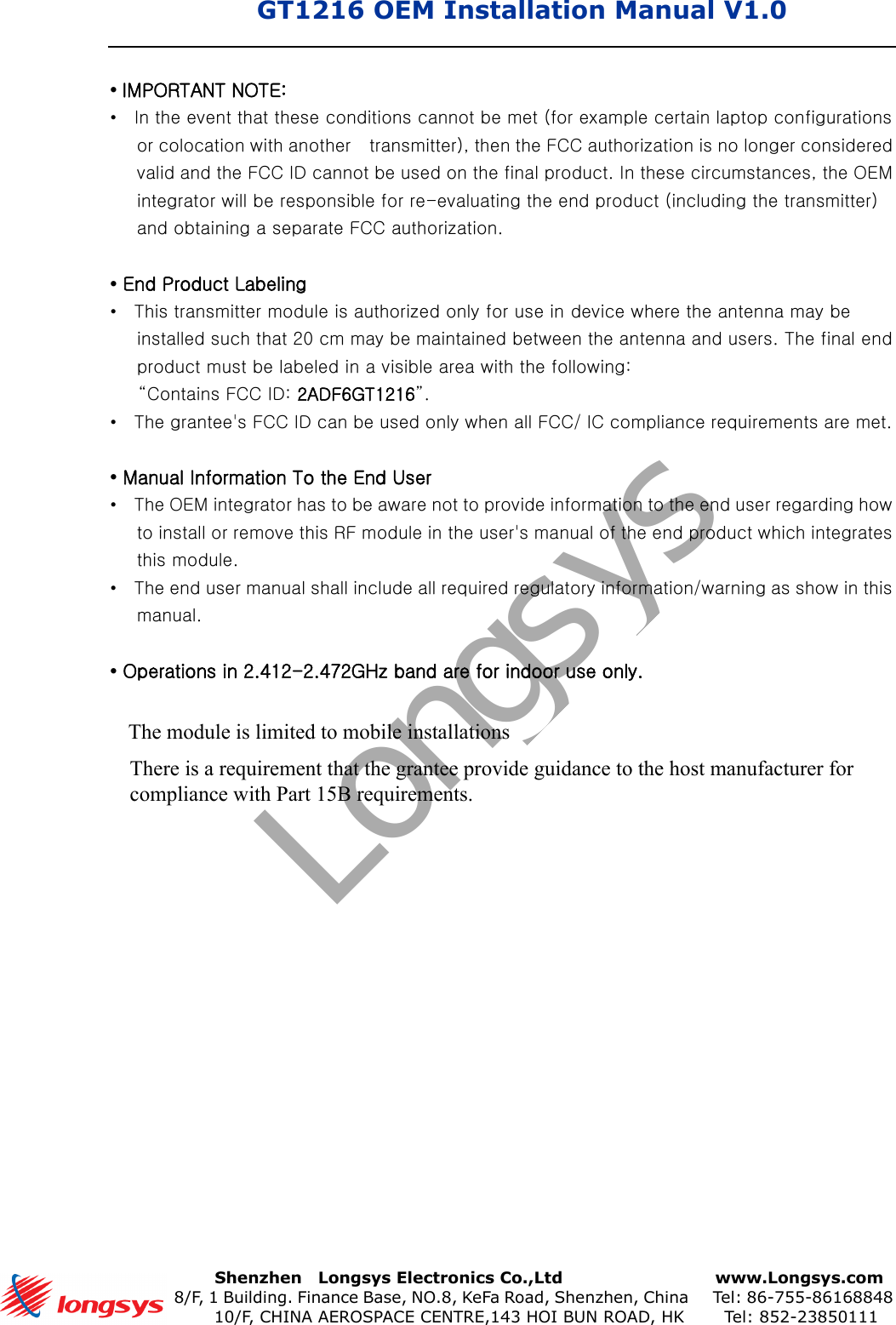

GT1216 OEM Installation Manual V1.0 Shenzhen Longsys Electronics Co.,Ltd www.Longsys.com 8/F, 1 Building. Finance Base, NO.8, KeFa Road, Shenzhen, China Tel: 86-755-86168848 10/F, CHINA AEROSPACE CENTRE,143 HOI BUN ROAD, HK Tel: 852-23850111•IMPORTANT NOTE:•In the event that these conditions cannot be met (for example certain laptop configurationsor colocation with another transmitter), then the FCC authorization is no longer consideredvalid and the FCC ID cannot be used on the final product. In these circumstances, the OEMintegrator will be responsible for re-evaluating the end product (including the transmitter)and obtaining a separate FCC authorization.•End Product Labeling•This transmitter module is authorized only for use in device where the antenna may beinstalled such that 20 cm may be maintained between the antenna and users. The final endproduct must be labeled in a visible area with the following:“Contains FCC ID: 2ADF6GT1216”.•The grantee's FCC ID can be used only when all FCC/ IC compliance requirements are met.•Manual Information To the End User•The OEM integrator has to be aware not to provide information to the end user regarding howto install or remove this RF module in the user's manual of the end product which integratesthis module.•The end user manual shall include all required regulatory information/warning as show in thismanual.•Operations in 2.412-2.472GHz band are for indoor use only.LongsysThe module is limited to mobile installationsThere is a requirement that the grantee provide guidance to the host manufacturer for compliance with Part 15B requirements.

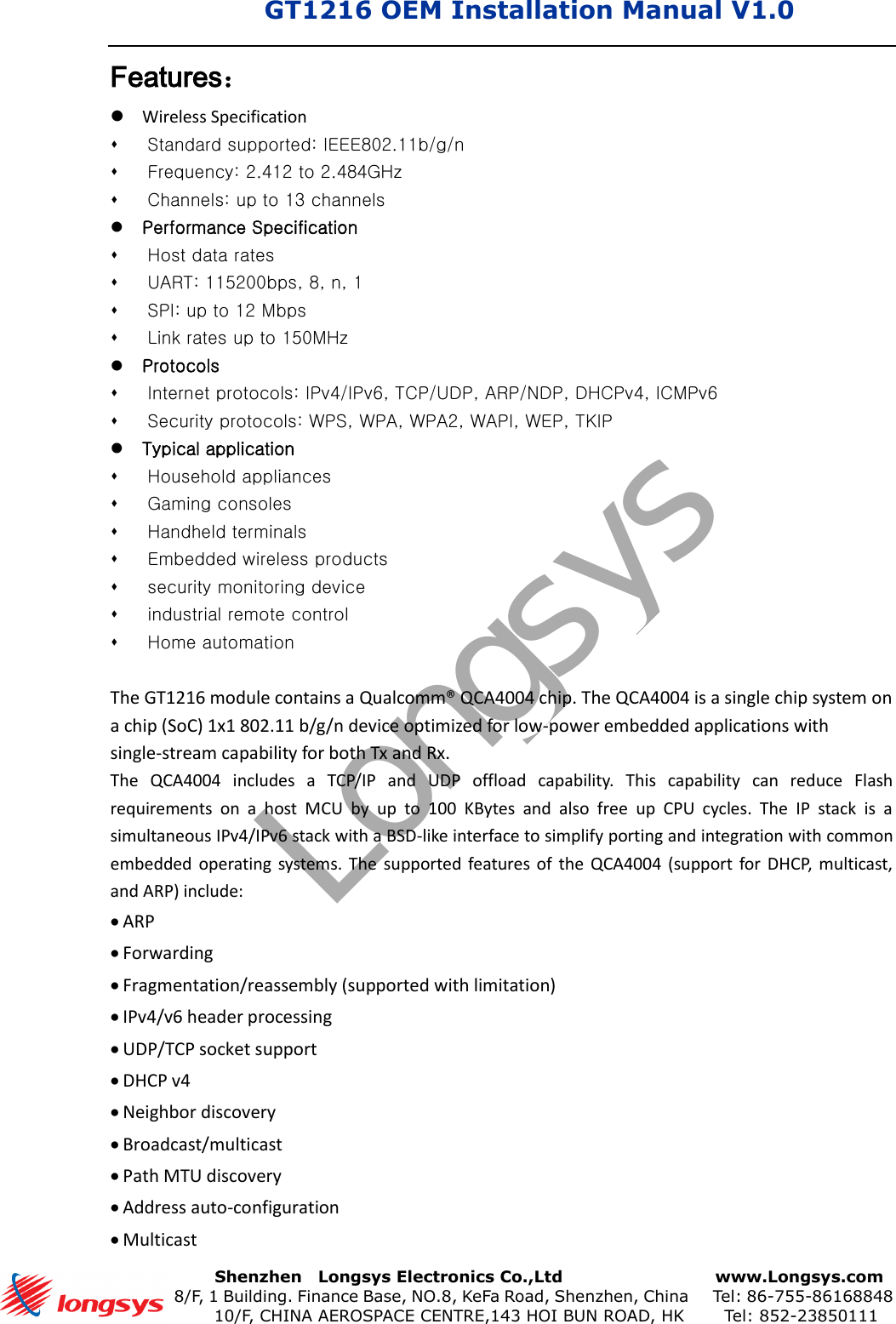

GT1216 OEM Installation Manual V1.0 Shenzhen Longsys Electronics Co.,Ltd www.Longsys.com 8/F, 1 Building. Finance Base, NO.8, KeFa Road, Shenzhen, China Tel: 86-755-86168848 10/F, CHINA AEROSPACE CENTRE,143 HOI BUN ROAD, HK Tel: 852-23850111Features： Wireless SpecificationStandard supported: IEEE802.11b/g/nFrequency: 2.412 to 2.484GHzChannels: up to 13 channelsPerformance SpecificationHost data ratesUART: 115200bps, 8, n, 1 SPI: up to 12 Mbps Link rates up to 150MHz ProtocolsInternet protocols: IPv4/IPv6, TCP/UDP, ARP/NDP, DHCPv4, ICMPv6Security protocols: WPS, WPA, WPA2, WAPI, WEP, TKIPTypical applicationHousehold appliancesGaming consolesHandheld terminalsEmbedded wireless productssecurity monitoring deviceindustrial remote controlHome automationThe GT1216 module contains a Qualcomm® QCA4004 chip. The QCA4004 is a single chip system on a chip (SoC) 1x1 802.11 b/g/n device optimized for low-power embedded applications with single-stream capability for both Tx and Rx. The QCA4004 includes a TCP/IP and UDP offload capability. This capability can reduce Flash requirements on a host MCU by up to 100 KBytes and also free up CPU cycles. The IP stack is a simultaneous IPv4/IPv6 stack with a BSD-like interface to simplify porting and integration with common embedded operating systems. The supported features of the QCA4004 (support for DHCP, multicast, and ARP) include: ARPForwardingFragmentation/reassembly (supported with limitation)IPv4/v6 header processingUDP/TCP socket supportDHCP v4Neighbor discoveryBroadcast/multicastPath MTU discoveryAddress auto-configurationMulticastLongsys

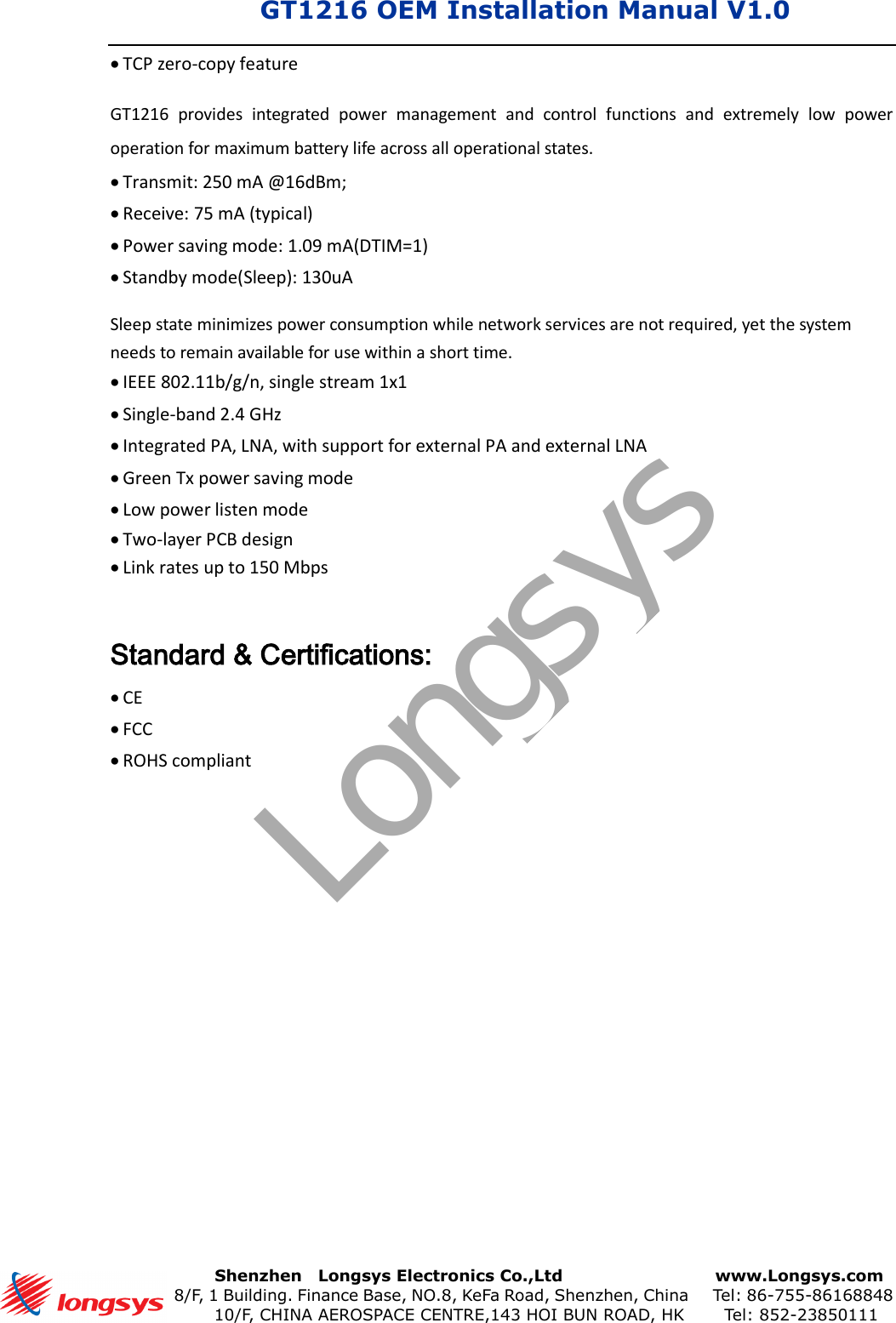

GT1216 OEM Installation Manual V1.0 Shenzhen Longsys Electronics Co.,Ltd www.Longsys.com 8/F, 1 Building. Finance Base, NO.8, KeFa Road, Shenzhen, China Tel: 86-755-86168848 10/F, CHINA AEROSPACE CENTRE,143 HOI BUN ROAD, HK Tel: 852-23850111TCP zero-copy featureGT1216 provides integrated power management and control functions and extremely low power operation for maximum battery life across all operational states. Transmit: 250 mA @16dBm;Receive: 75 mA (typical)Power saving mode: 1.09 mA(DTIM=1)Standby mode(Sleep): 130uASleep state minimizes power consumption while network services are not required, yet the system needs to remain available for use within a short time. IEEE 802.11b/g/n, single stream 1x1Single-band 2.4 GHzIntegrated PA, LNA, with support for external PA and external LNAGreen Tx power saving modeLow power listen modeTwo-layer PCB designLink rates up to 150 MbpsStandard & Certifications: CEFCCROHS compliantLongsys

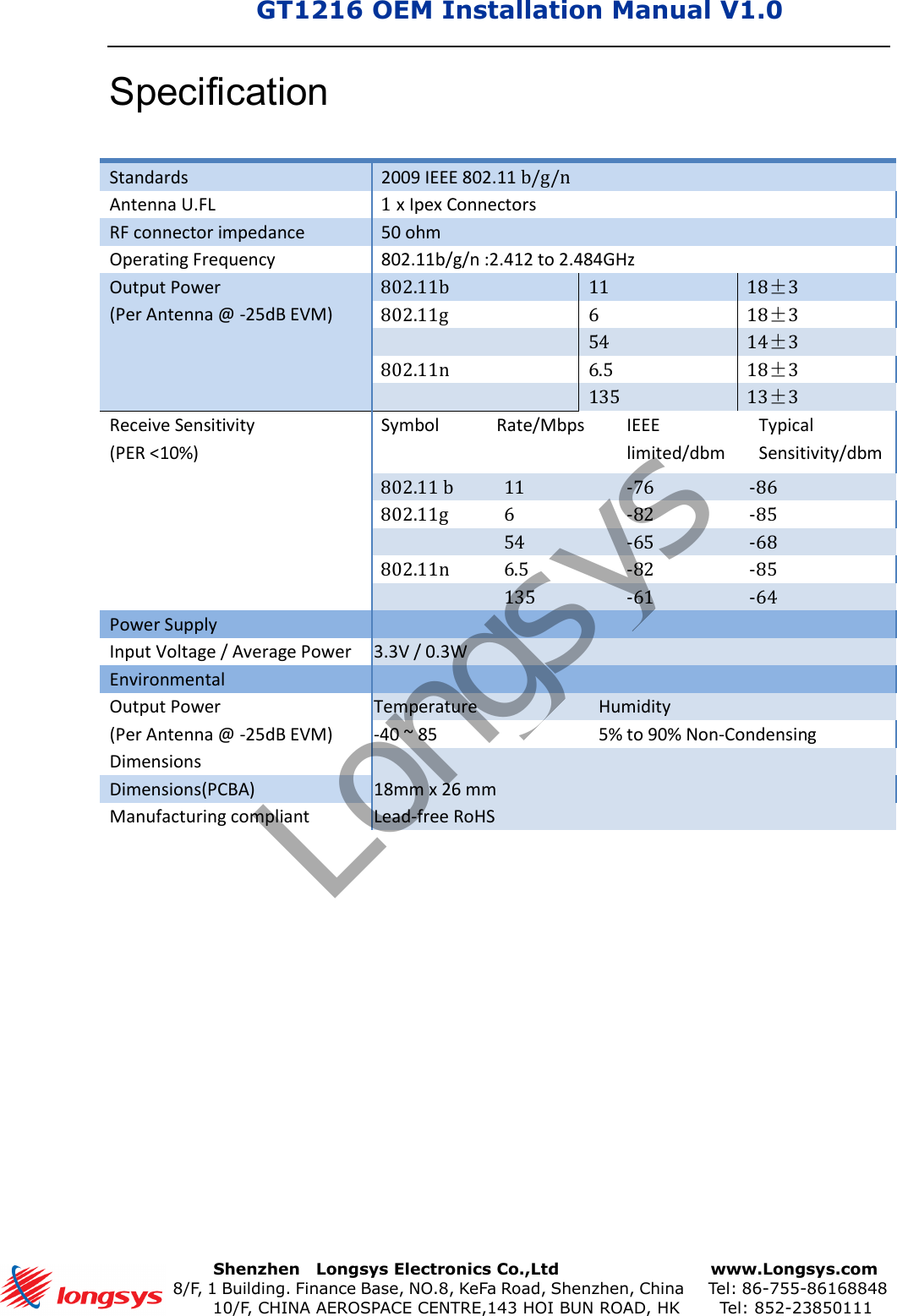

GT1216 OEM Installation Manual V1.0 Shenzhen Longsys Electronics Co.,Ltd www.Longsys.com 8/F, 1 Building. Finance Base, NO.8, KeFa Road, Shenzhen, China Tel: 86-755-86168848 10/F, CHINA AEROSPACE CENTRE,143 HOI BUN ROAD, HK Tel: 852-23850111Specification Standards 2009 IEEE 802.11 b/g/n Antenna U.FL 1 x Ipex Connectors RF connector impedance 50 ohm Operating Frequency 802.11b/g/n :2.412 to 2.484GHz Output Power (Per Antenna @ -25dB EVM) 802.11b 11 18±3 802.11g 6 18±3 54 14±3 802.11n 6.5 18±3 135 13±3 Receive Sensitivity (PER <10%) Symbol Rate/Mbps IEEE limited/dbm Typical Sensitivity/dbm 802.11 b 11 -76 -86 802.11g 6 -82 -85 54 -65 -68 802.11n 6.5 -82 -85 135 -61 -64 Power Supply Input Voltage / Average Power 3.3V / 0.3W Environmental Output Power (Per Antenna @ -25dB EVM) Temperature Humidity -40 ~ 85 5% to 90% Non-Condensing Dimensions Dimensions(PCBA) 18mm x 26 mm Manufacturing compliant Lead-free RoHS Longsys

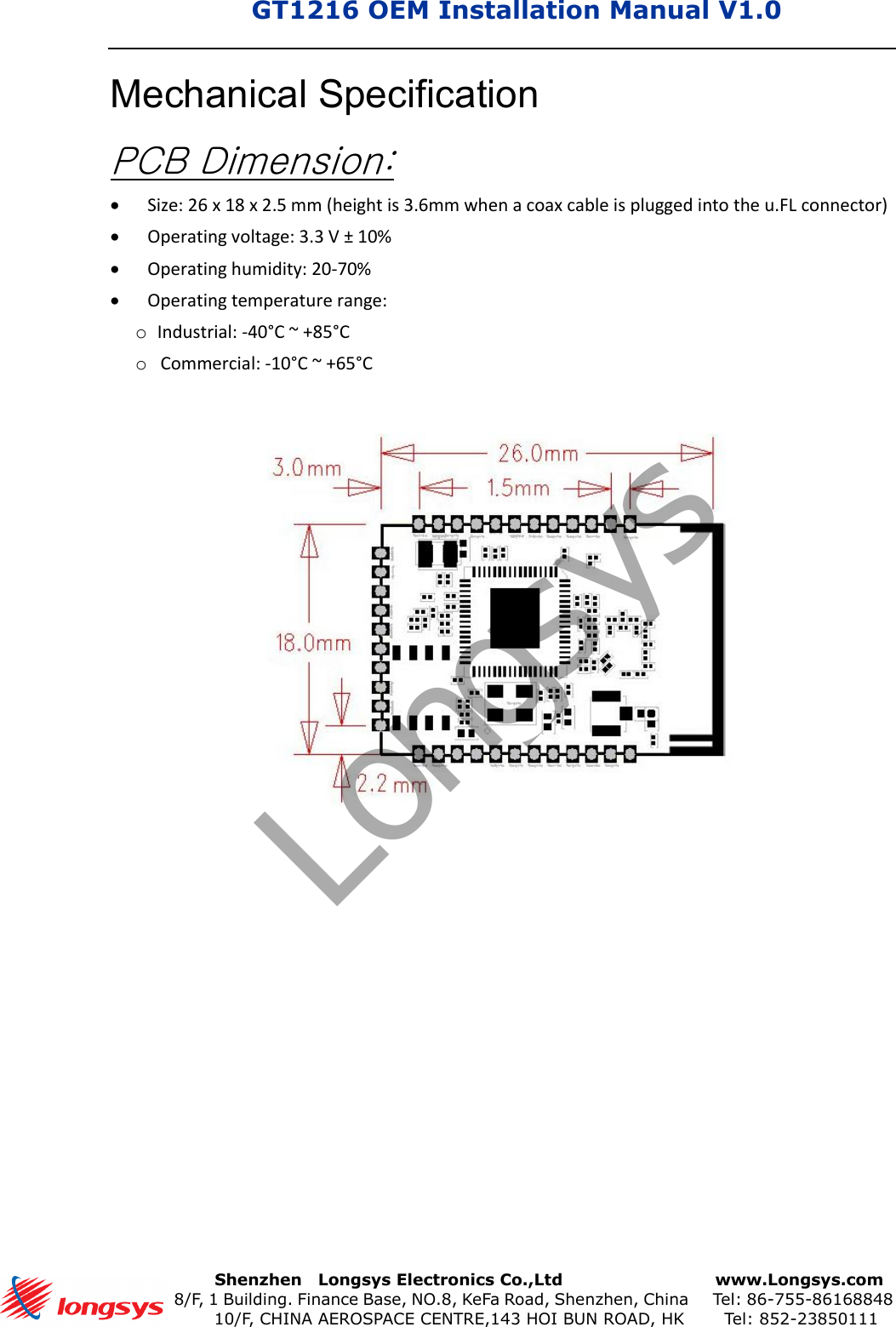

GT1216 OEM Installation Manual V1.0 Shenzhen Longsys Electronics Co.,Ltd www.Longsys.com 8/F, 1 Building. Finance Base, NO.8, KeFa Road, Shenzhen, China Tel: 86-755-86168848 10/F, CHINA AEROSPACE CENTRE,143 HOI BUN ROAD, HK Tel: 852-23850111Mechanical Specification PCB Dimension: Size: 26 x 18 x 2.5 mm (height is 3.6mm when a coax cable is plugged into the u.FL connector)Operating voltage: 3.3 V ± 10%Operating humidity: 20-70%Operating temperature range:oIndustrial: -40°C ~ +85°CoCommercial: -10°C ~ +65°CLongsys

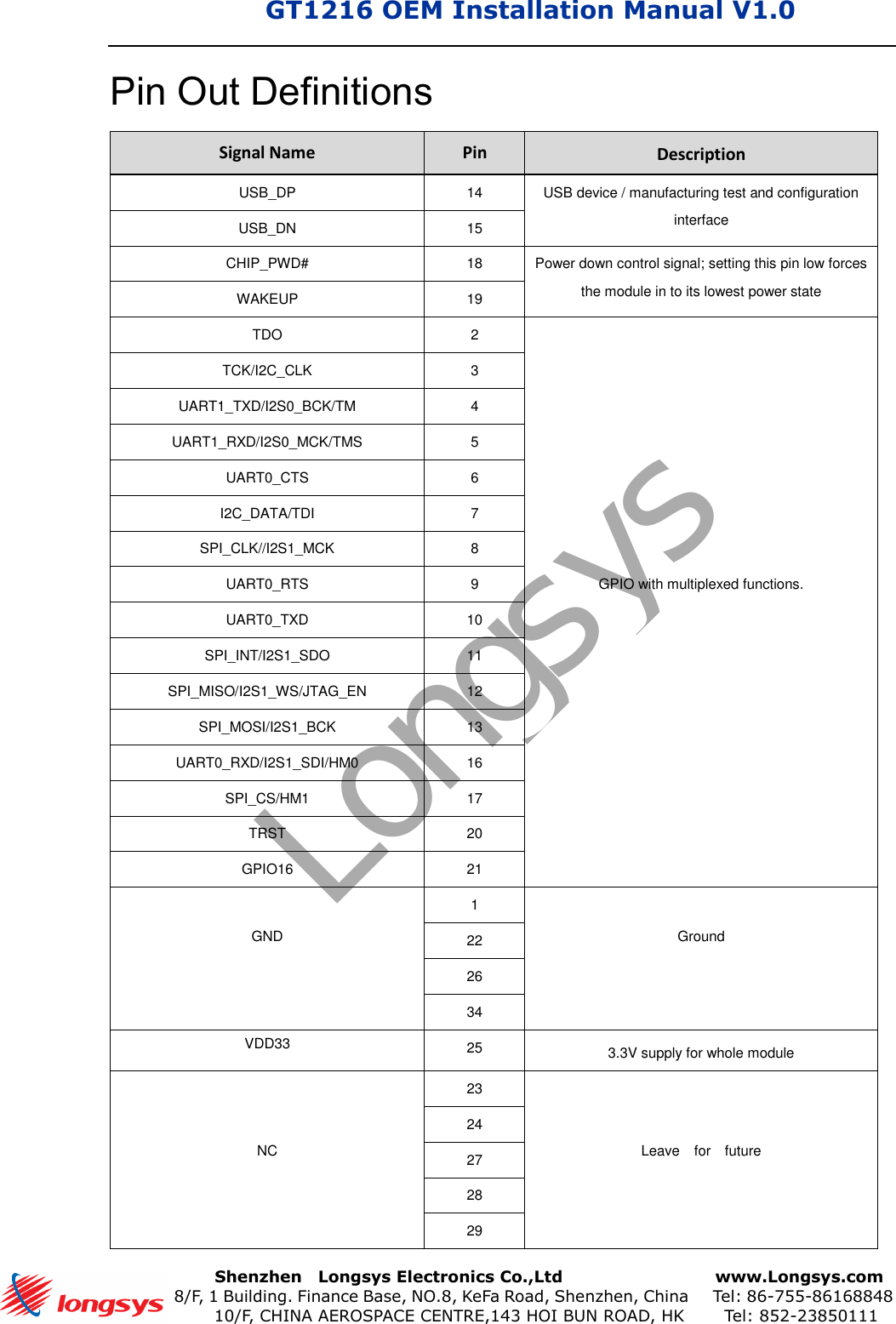

GT1216 OEM Installation Manual V1.0 Shenzhen Longsys Electronics Co.,Ltd www.Longsys.com 8/F, 1 Building. Finance Base, NO.8, KeFa Road, Shenzhen, China Tel: 86-755-86168848 10/F, CHINA AEROSPACE CENTRE,143 HOI BUN ROAD, HK Tel: 852-23850111Pin Out Definitions Signal Name Pin Description USB_DP 14 USB device / manufacturing test and configuration interface USB_DN 15 CHIP_PWD# 18 Power down control signal; setting this pin low forces the module in to its lowest power state WAKEUP 19 TDO 2 GPIO with multiplexed functions. TCK/I2C_CLK 3 UART1_TXD/I2S0_BCK/TM 4 UART1_RXD/I2S0_MCK/TMS 5 UART0_CTS 6 I2C_DATA/TDI 7 SPI_CLK//I2S1_MCK 8 UART0_RTS 9 UART0_TXD 10 SPI_INT/I2S1_SDO 11 SPI_MISO/I2S1_WS/JTAG_EN 12 SPI_MOSI/I2S1_BCK 13 UART0_RXD/I2S1_SDI/HM0 16 SPI_CS/HM1 17 TRST 20 GPIO16 21 GND 1 Ground 22 26 34 VDD33 25 3.3V supply for whole module NC 23 Leave for future 24 27 28 29 Longsys
GT1216 OEM Installation Manual V1.0 Shenzhen Longsys Electronics Co.,Ltd www.Longsys.com 8/F, 1 Building. Finance Base, NO.8, KeFa Road, Shenzhen, China Tel: 86-755-86168848 10/F, CHINA AEROSPACE CENTRE,143 HOI BUN ROAD, HK Tel: 852-23850111Signal Name Pin Description 30 31 32 33 Bootstrap Alt1 Alt2 Alt3 Alt4 Alt5 2EN_LINEAR GPIO13 GPIO13 GPIO13 GPIO13 TDO 3 - I2C_CLK I2C_CLK 12C_CLK 12C_CLK TCK 4 TEST_MODE UART1_TxD UART1_TxD I2S0_BCK I2S0_BCK GPIO11 5 - UART1_RxD UART1_RxD I2S0_MCK I2S0_MCK TMS 6 - UART0_CTS UART0_CTS GPIO9 GPIO9 GPIO9 7 - I2C_DATA I2C_DATA I2C_DATA I2C_DATA TDI 8 - SPI_CLK SD_CLK SPI_CLK I2S1_MCK SPI_CLK 9 UART0_RTS UART0_RTS GPIO8 GPIO8 GPIO8 10 UART0_TXD UART0_TXD GPIO7 GPIO7 GPIO7 11 - SPI_INT SD_DATA(1) SPI_INT I2S1_SDO SPI_INT 12 EJTAG_SEL SPI_MISO SD_DATA(0) SPI_MISO I2S1_WS SPI_MISO 13 - SPI_MOSI SD_DATA(3) SPI_MOSI I2S1_BCK SPI_MOSI 16 HM0 UART0_RXD SD_DATA(2) GPIO2 I2S1_SDI UART0_RXD 17 HM1 SPI_CS SD_CMD SPI_CS GPIO0 SPI_CS 20 - GPIO21 GPIO21 I2S0_WS I2S0_WS TRST 21 GPIO16 GPIO16 GPIO16 GPIO16 GPIO16 Longsys

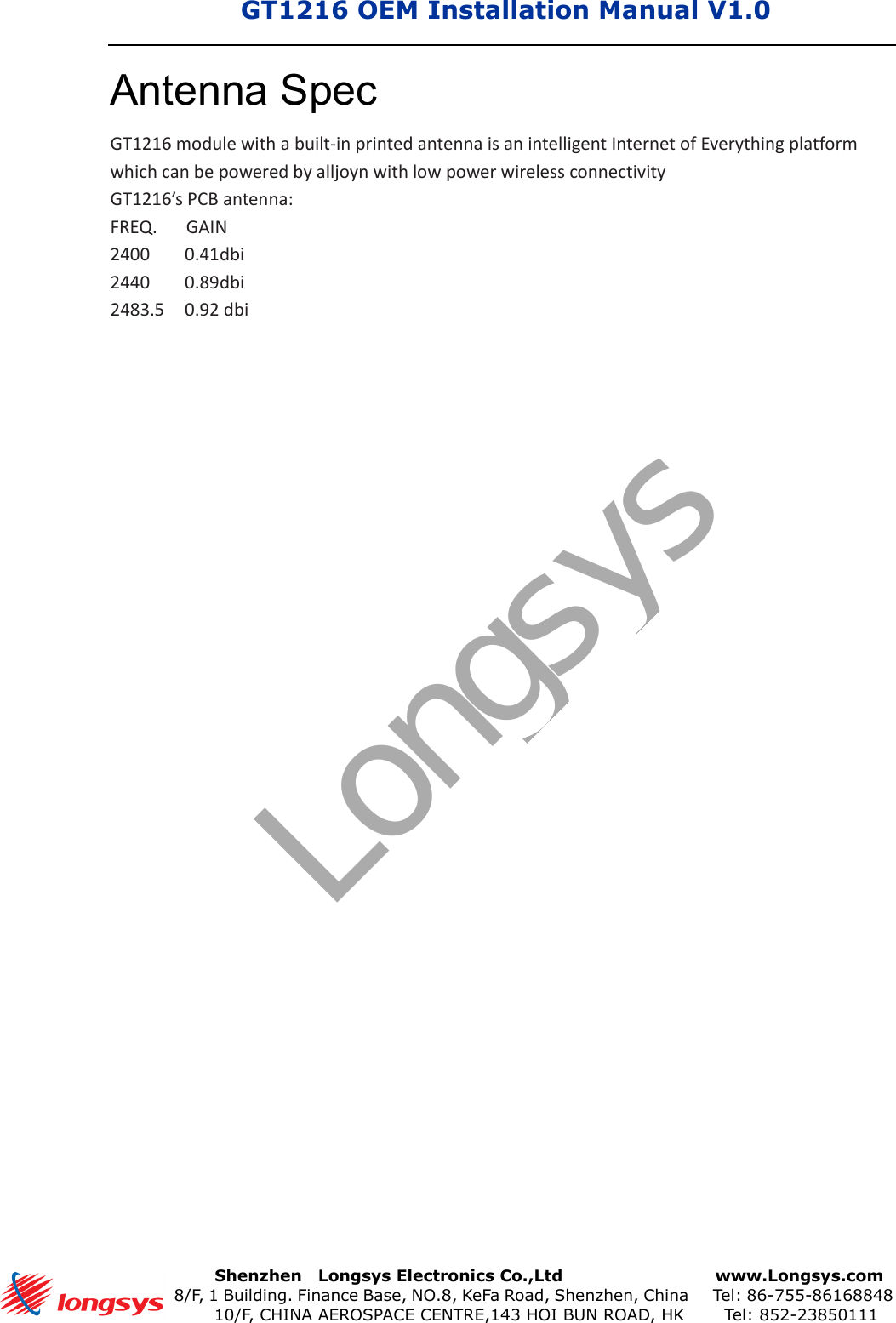

GT1216 OEM Installation Manual V1.0 Shenzhen Longsys Electronics Co.,Ltd www.Longsys.com 8/F, 1 Building. Finance Base, NO.8, KeFa Road, Shenzhen, China Tel: 86-755-86168848 10/F, CHINA AEROSPACE CENTRE,143 HOI BUN ROAD, HK Tel: 852-23850111Antenna Spec GT1216 module with a built-in printed antenna is an intelligent Internet of Everything platform which can be powered by alljoyn with low power wireless connectivity GT1216’s PCB antenna: FREQ. GAIN 2400 0.41dbi 2440 0.89dbi 2483.5 0.92 dbi Longsys
