LUXPAD TABLET NITROTAB7N Tablet User Manual

LUXPAD TABLET Tablet

User manual

Content

Content................................................................................................................................................ 1

1 Introduction...................................................................................................................................... 3

1.1 Acknowledgement..............................................................................................................3

1.2 Announcements.................................................................................................................. 3

1.3 Safety Instruction............................................................................................................... 3

1.4 Abbreviation/Terminology................................................................................................. 5

2 Nitro Phablet 7N Introduction................................................................................................6

2.1 7N Operation and Preparation........................................................... 6

2.2 7N Status and Reminder.................................................................... 6

3 Quick Start Guide.............................................................................................................................7

3.1 Keys Function.................................................................................................................... 7

3.2 Startup and Shutdown........................................................................................................ 7

3.3 Open and Close of the Screen............................................................................................7

3.4 Usage of Touch Screen.......................................................................................................8

3.5 Home Page......................................................................................................................... 9

3.6 Visit Application Procedures............................................................................................12

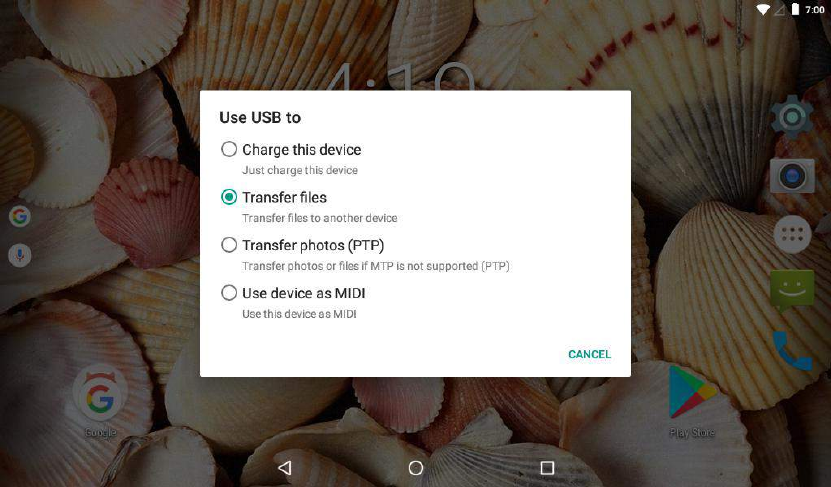

3.7 USB Connection...............................................................................................................12

3.8 Typing words....................................................................................................................13

3.9 Operation Technique........................................................................................................ 14

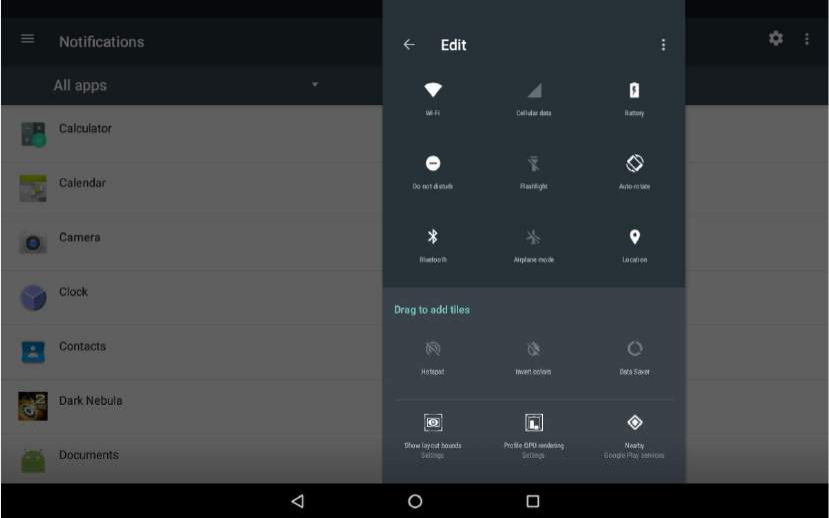

3.10 Quick Setting..................................................................................................................15

4 Basic Setting...................................................................................................................................15

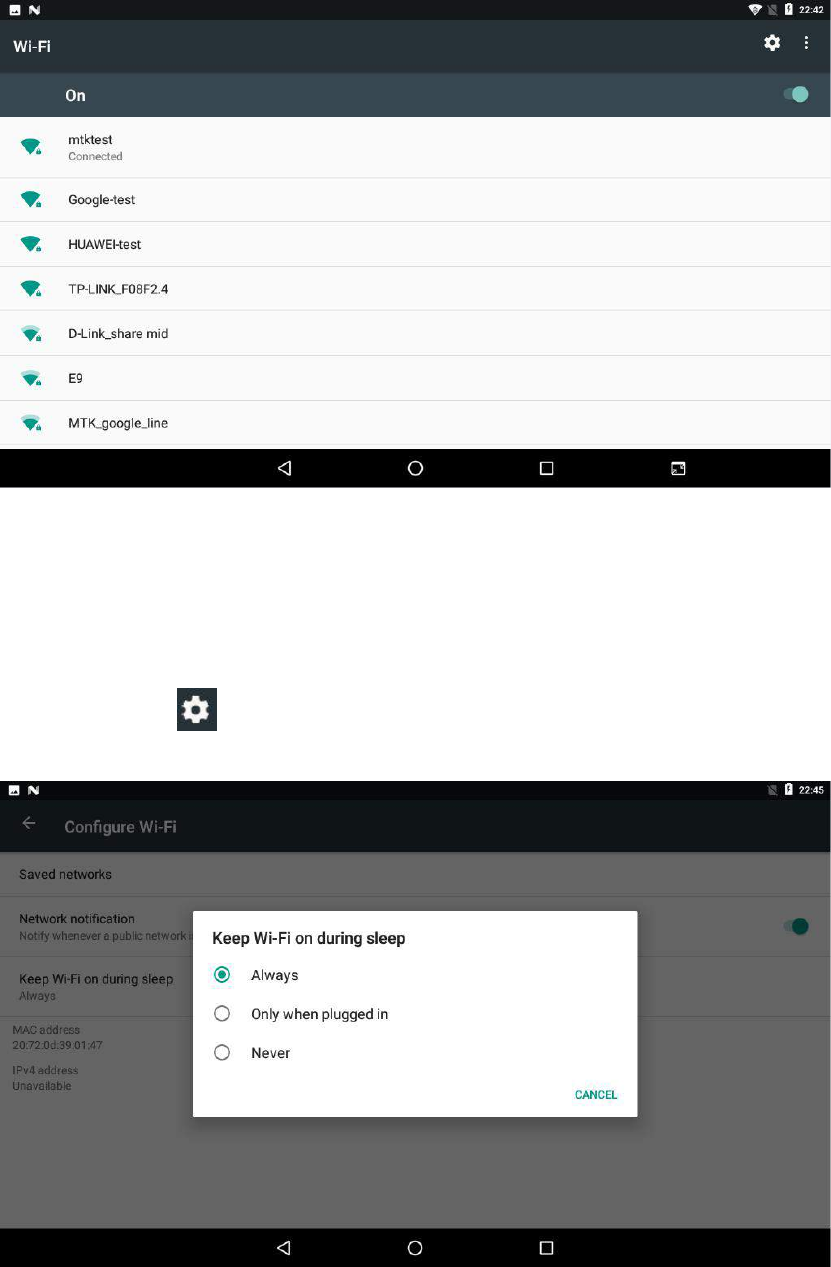

4.1 Wireless and Internet........................................................................................................15

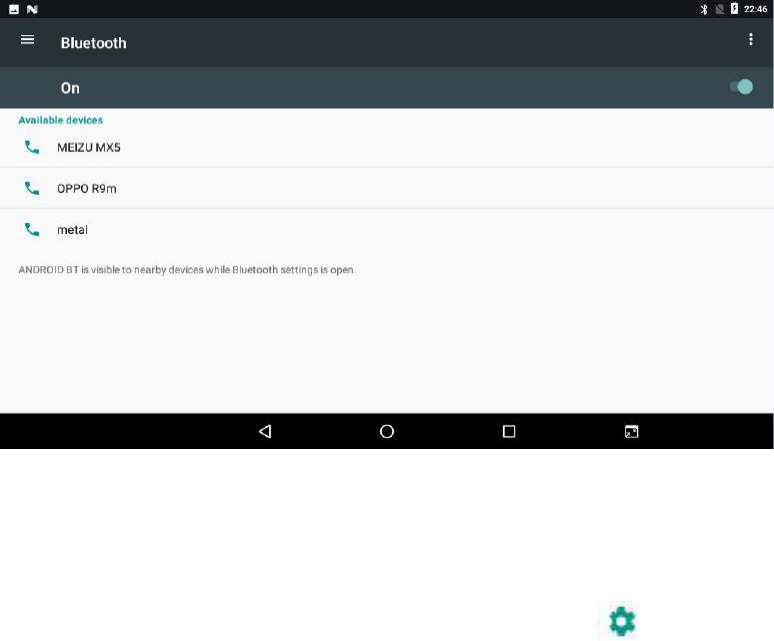

4.2 Bluetooth.......................................................................................................................... 18

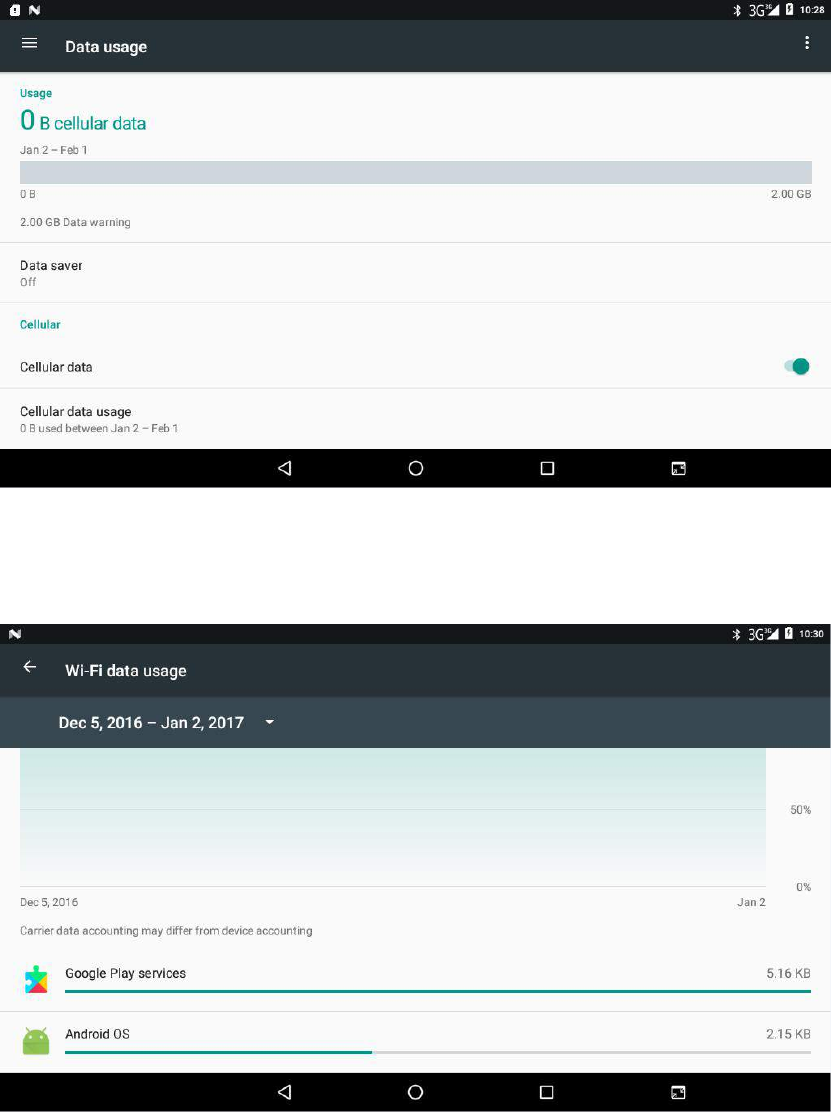

4.3 Data Usage....................................................................................................................... 20

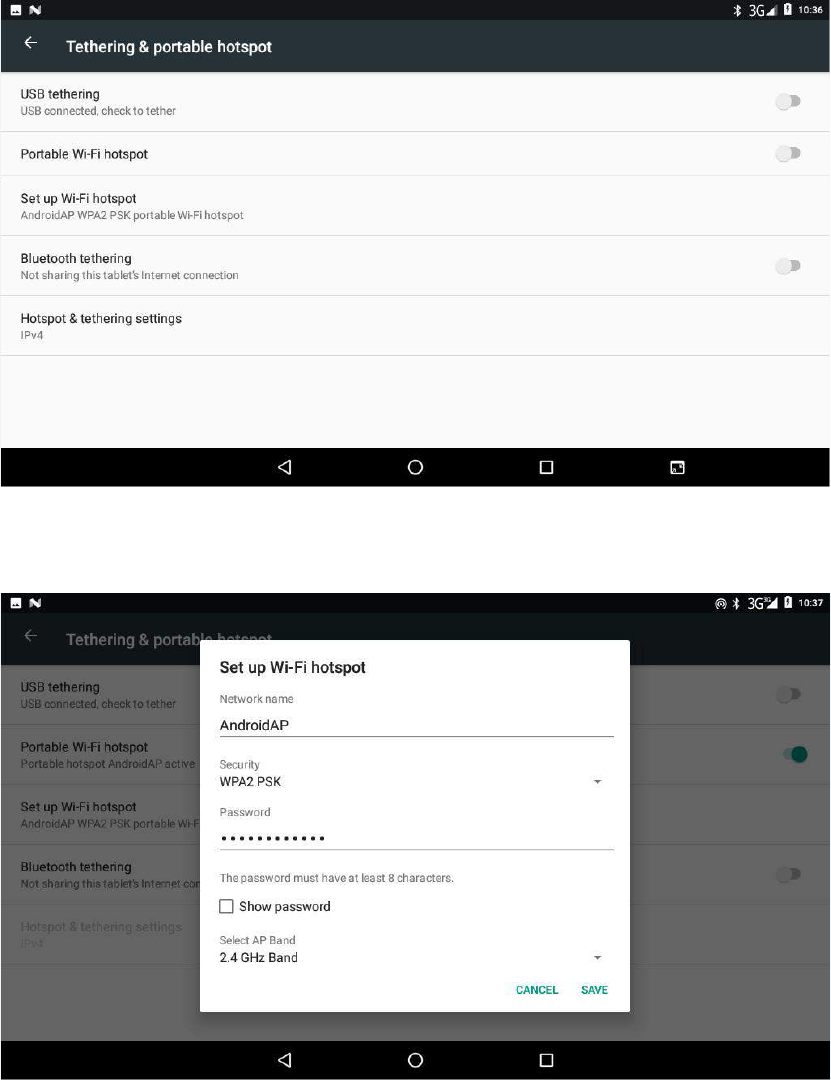

4.4 More................................................................................................................................. 21

4.5 Sound & notification........................................................................................................24

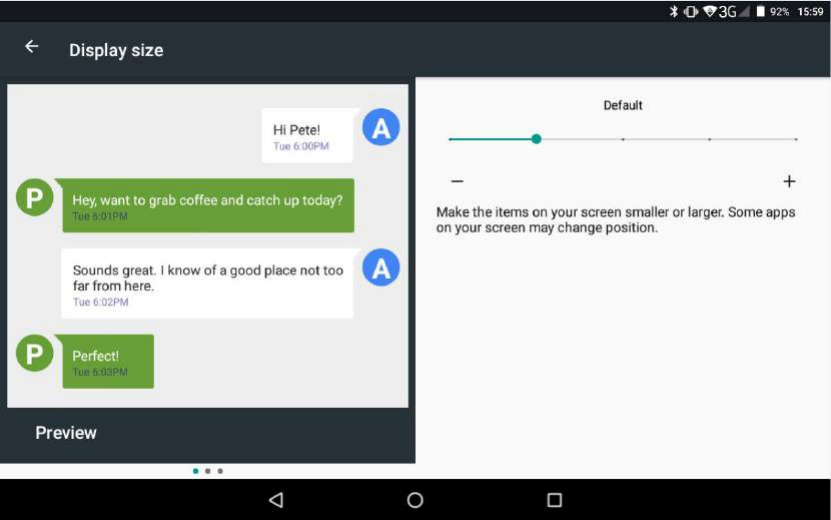

4.6 Display............................................................................................................................. 26

4.7 Storage..............................................................................................................................29

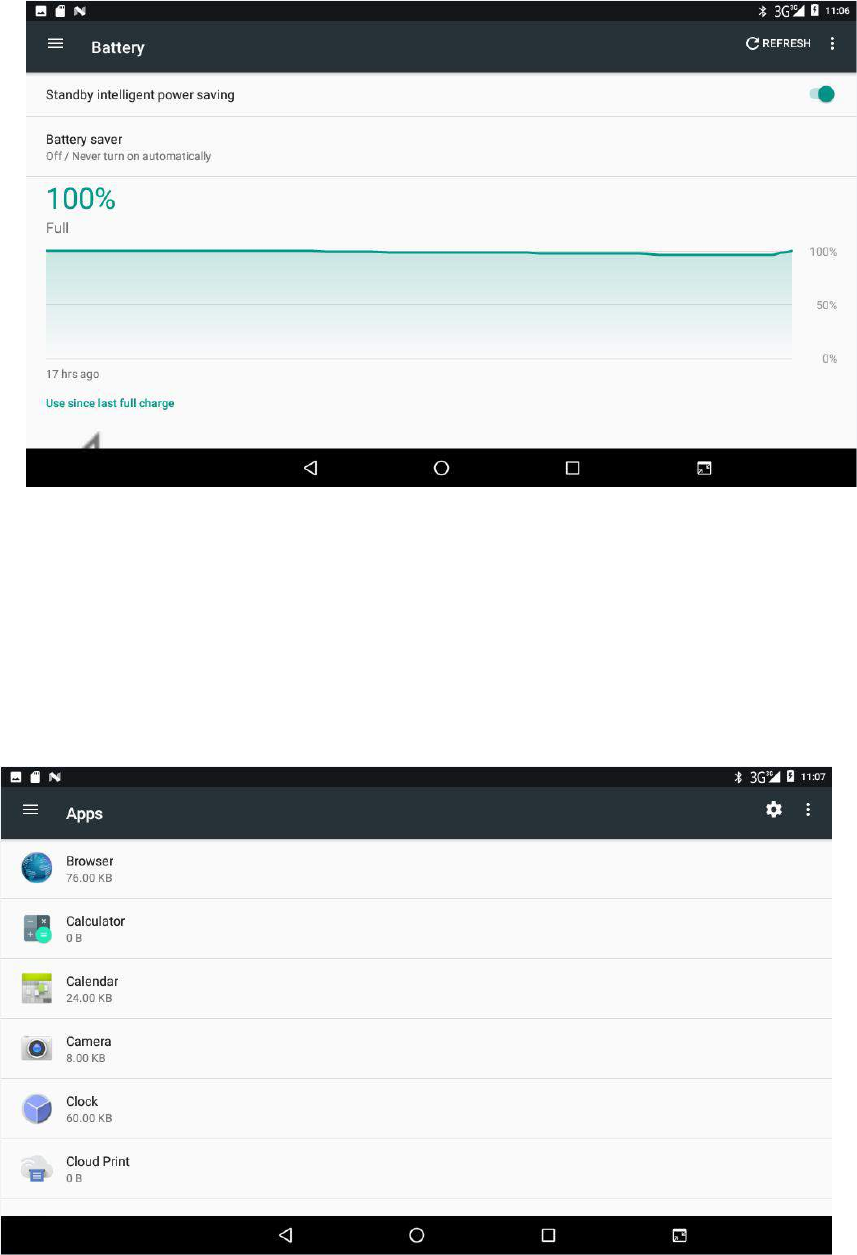

4.8 Battery.............................................................................................................................. 31

4.9 Application program.........................................................................................................32

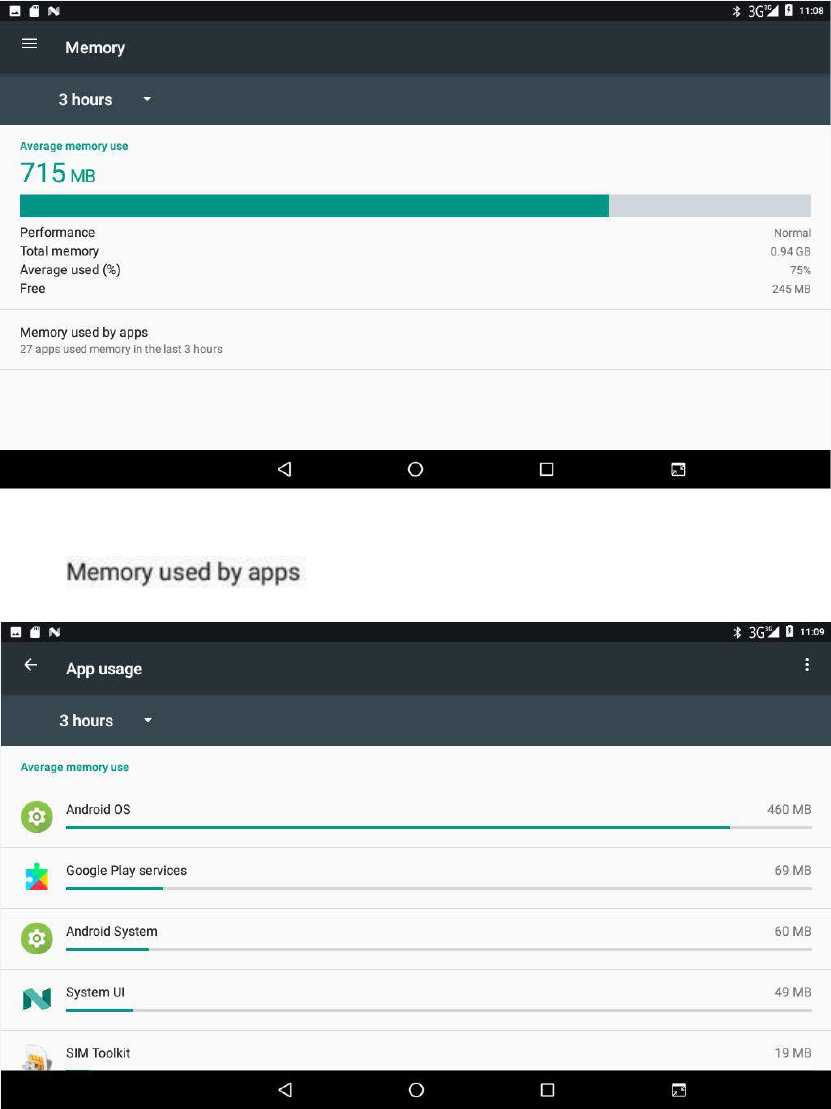

4.10 Memory.......................................................................................................................... 33

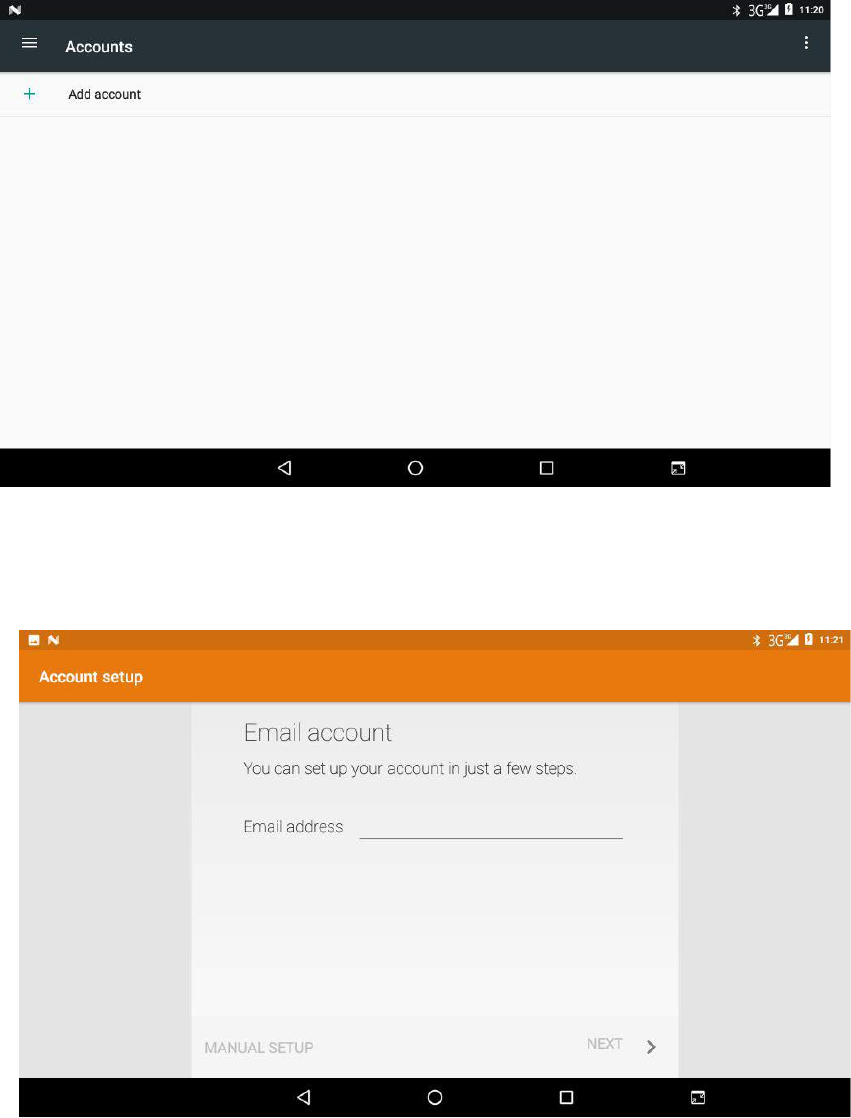

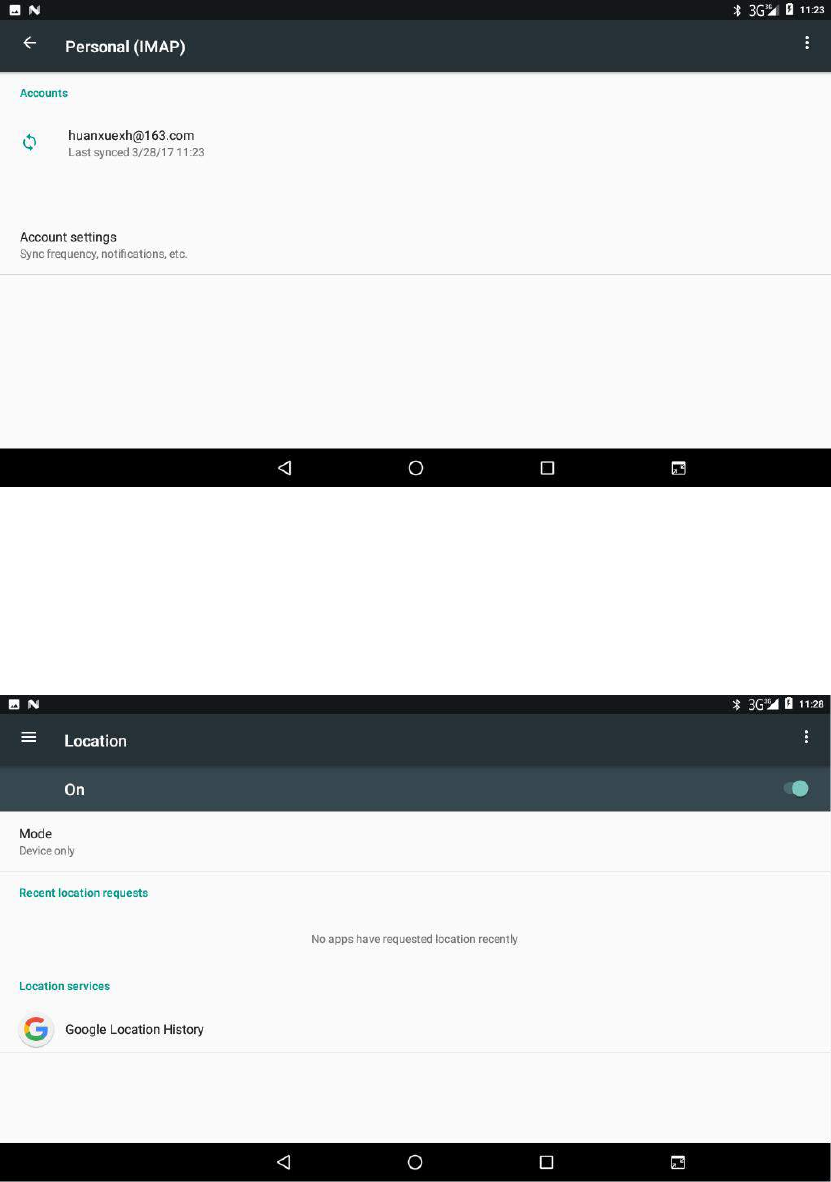

4.11 Account and Sync...........................................................................................................34

4.12 Location service............................................................................................................. 35

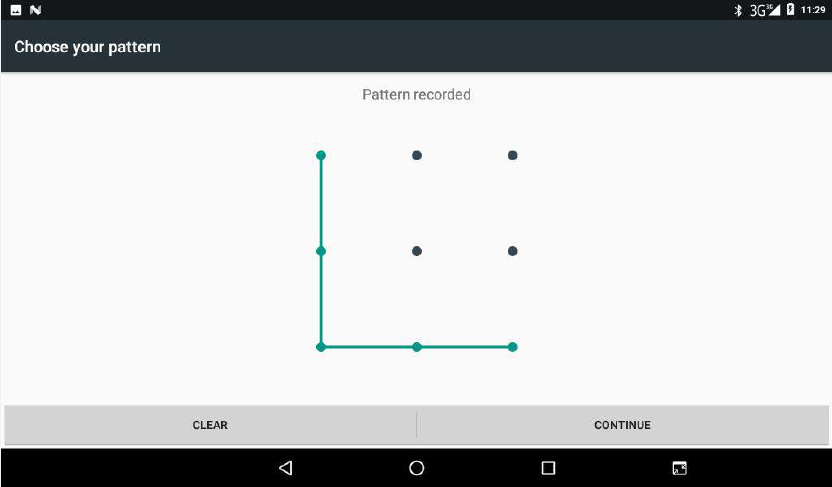

4.13 Safety setting..................................................................................................................36

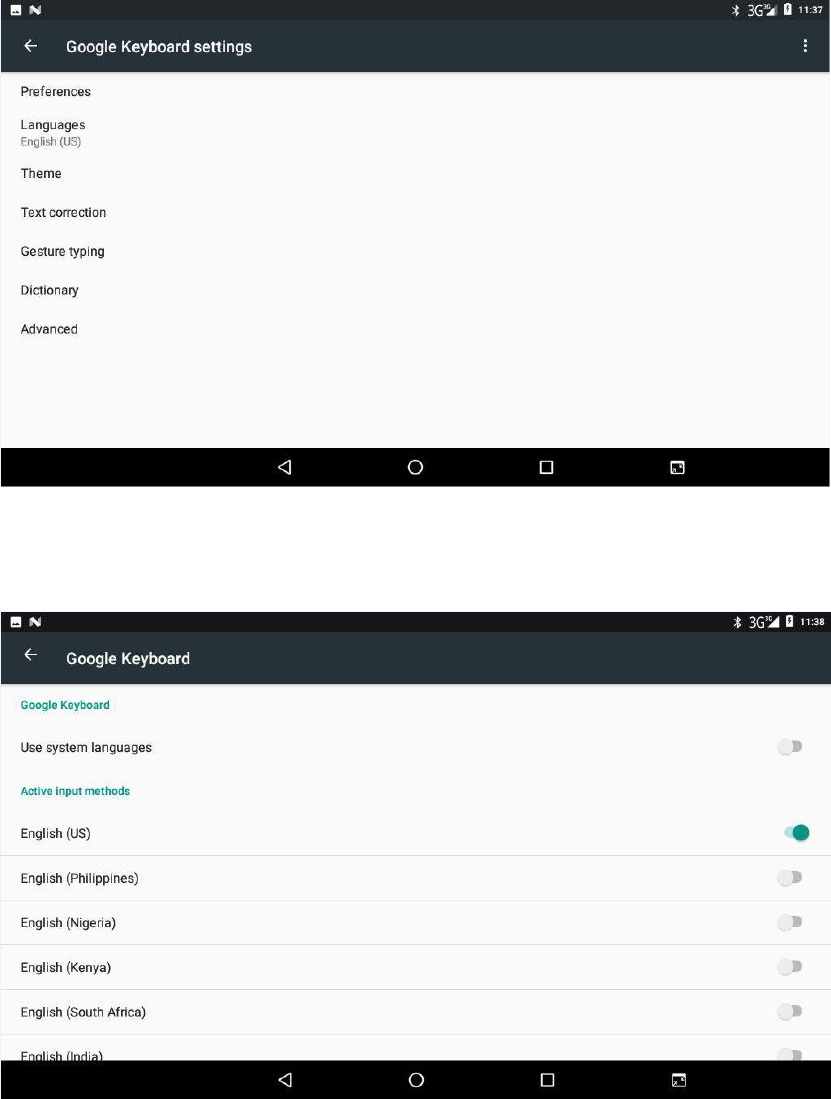

4.14 Language and Input Method.......................................................................................... 38

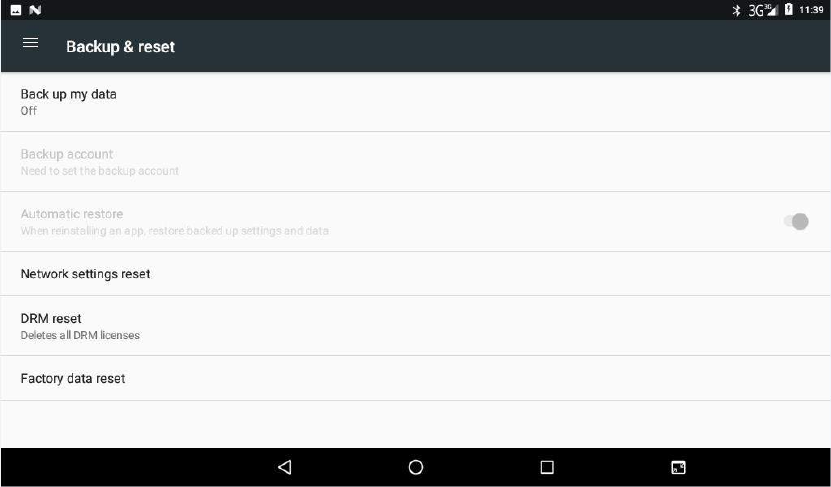

4.15 Backup and Reset...........................................................................................................39

4.16 Date and Time................................................................................................................ 40

Nitro Phablet

4.17 Fixed-time Startup and Shutdown................................................................................. 41

4.18 Assistance Function........................................................................................................42

4.19 Engineer Selection......................................................................................................... 42

4.20 About Tablet................................................................................................................... 43

5 Multi-Media....................................................................................................................................44

5.1 Music................................................................................................................................44

5.2 Photo Gallery....................................................................................................................45

5.3 Camera............................................................................................................................. 46

5.4 FM Radio..........................................................................................................................46

6 Communication Function...............................................................................................................48

6.1 Phone................................................................................................................................48

6.2 Text Message....................................................................................................................49

6.3 Contact List...................................................................................................................... 49

7 Internet............................................................................................................................................51

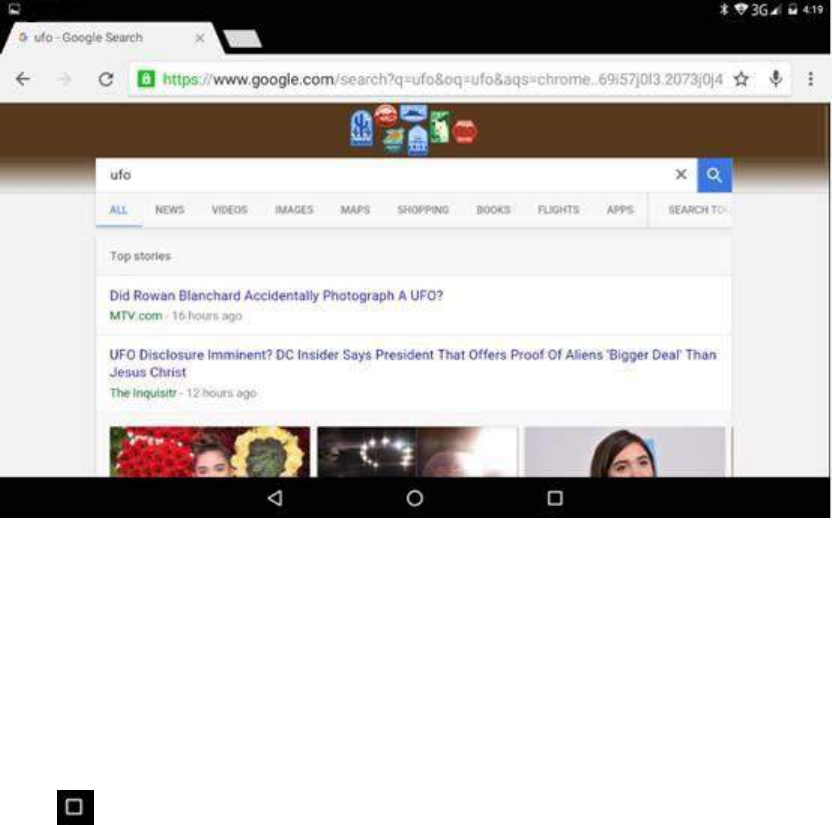

7.1 Browser............................................................................................................................ 51

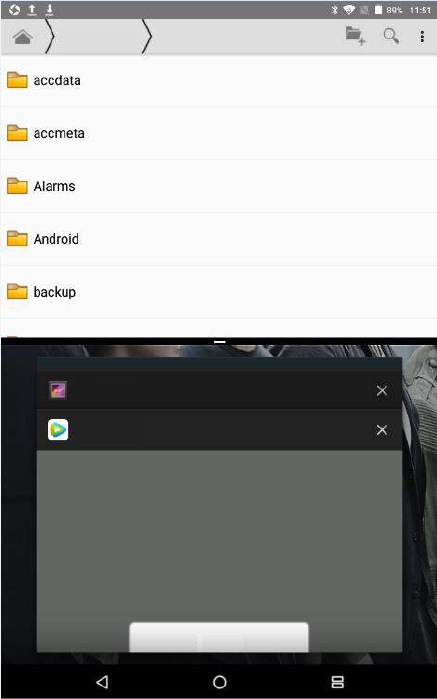

8 Split screen function.......................................................................................................................55

9 Other Application Procedures........................................................................................................ 55

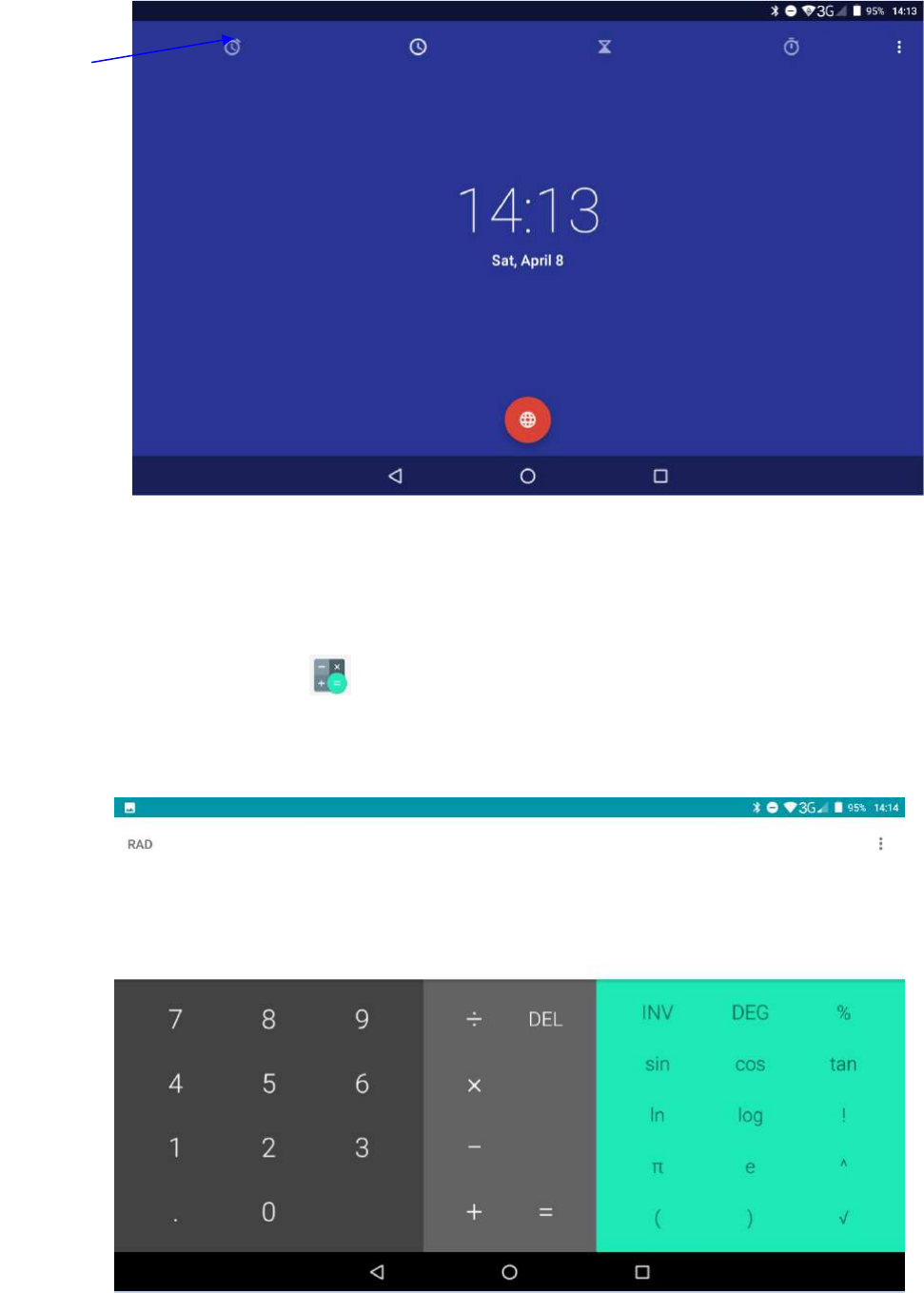

9.1 Clock................................................................................................................................ 55

9.2 Calculator......................................................................................................................... 56

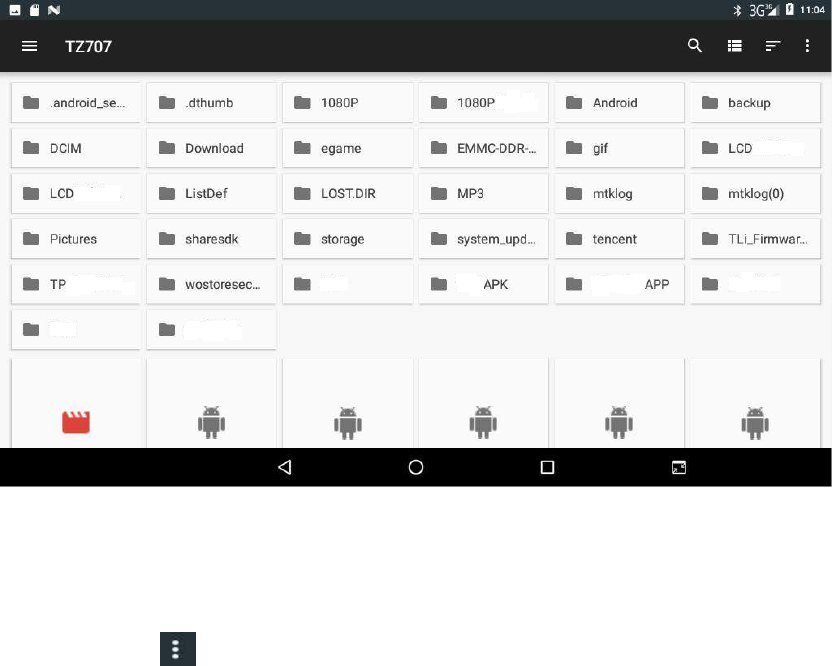

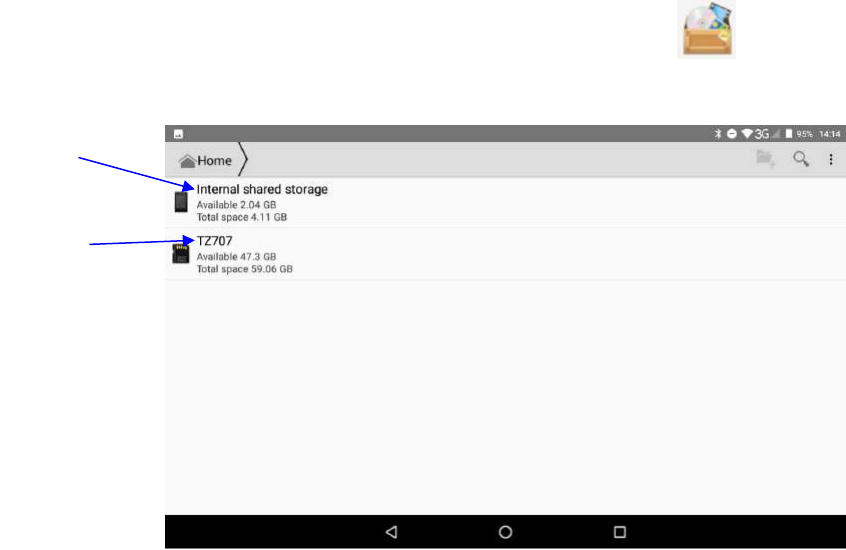

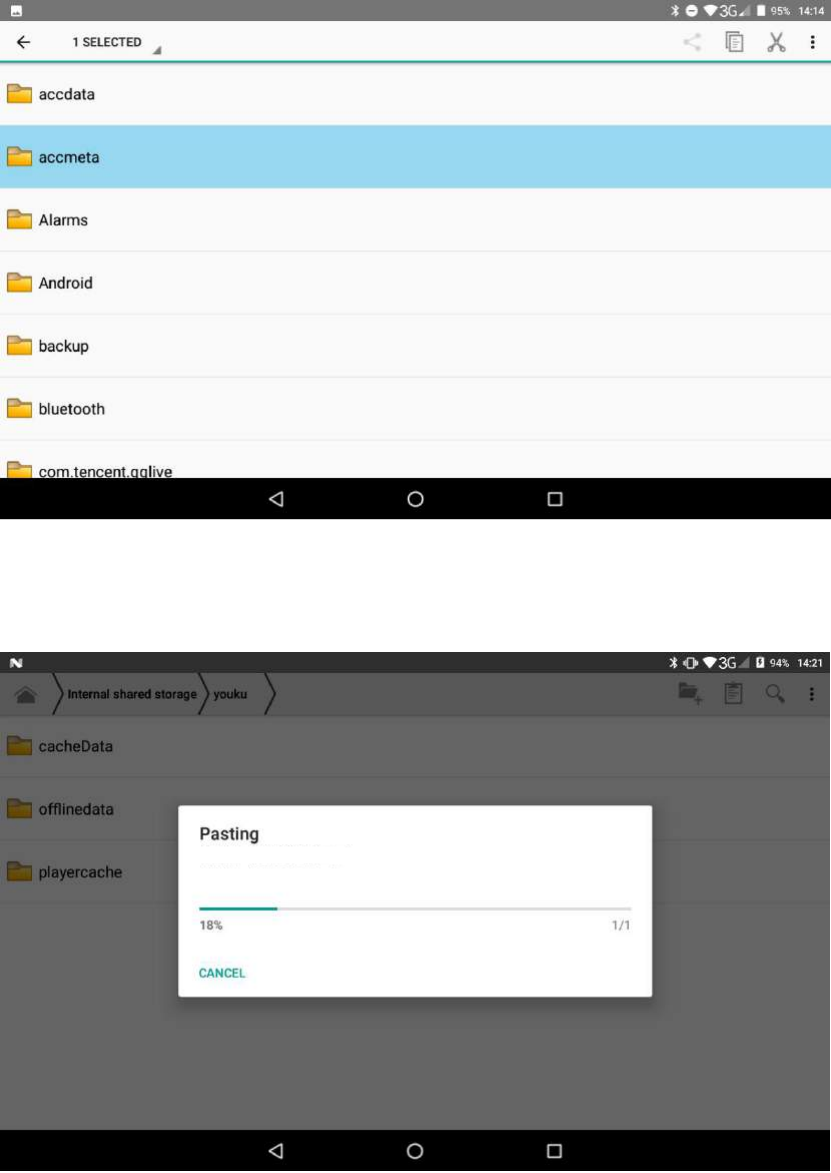

9.3 File Manager.................................................................................................................... 57

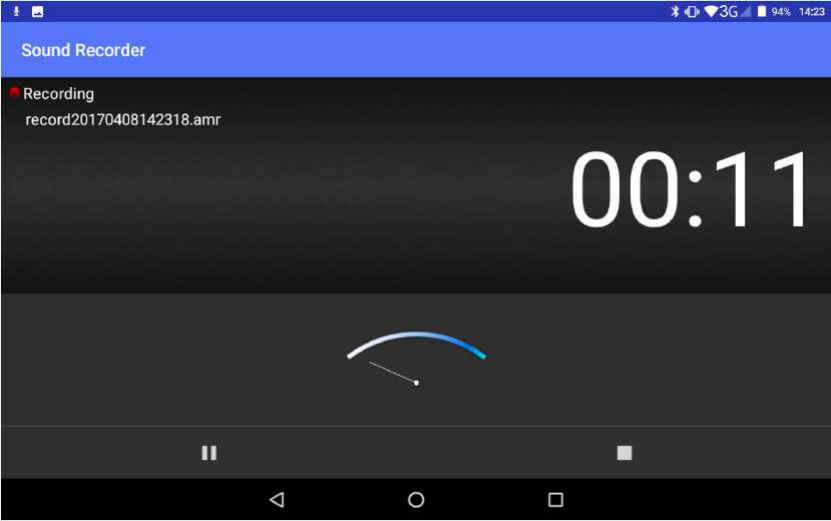

9.4 Recorder........................................................................................................................... 59

10 Installation of Procedures.............................................................................................................61

10.1 Installation......................................................................................................................61

10.2 Uninstall......................................................................................................................... 61

11 Troubles Shooting.........................................................................................................................62

1 Introduction

1.1 Acknowledgement

Thank you for purchasing the 7N. Its CPU is MT8321 Quad Core. It is

based on Android™ 7.0 Nougat, and it is easy to install 3rd party apps.

The 7N comes with many features including WCDMA Connectivity,

WIFI, BT, GPS, FM, Voice Call and so on. With its SIM Card feature it is easy to achieve wireless

communication and internet, allowing you to have access to surf the internet anytime and

anywhere. Along with its built-in high accuracy GPS module, you can use it for navigation

through installing Map software. There are many sensors which offer you brand-new operation

and entertainment; besides, it has camera shooting, which leads electronic consumption to enter a

fresh palm internet entertainment time.

The manual systemically introduces the functions, use techniques and announcements, please

read this manual carefully before your operation.

1.2 Announcements

Preventive maintenance

Please always keep the

7N dry. To avoid the device Short circuit,

corrosion fault or electric short, please prevent the device, battery and charger contact

from water and moisture, and don’t operate the device or charger by wet hand.

To avoid failure of device, battery and charger, please prevent the device, battery,

charger from violent shock or shake.

To avoid failure of device, battery and charger, please prevent the device, battery,

charger of all over heating or cold temperatures.

Never shock, throw, prod the

7N, or drop, extrude, bend the

7N.

Never disassemble the device and accessories arbitrarily, otherwise the device and

accessories are not in our company warranty scope.

Nitro Phablet

1.3 Safety Instruction

Before the operation of the 7N, please read this chapter and teach your kids

about this information. For further details, please refer to the safety instructions and

announcement.

Never use the

7N when driving car, to ensure safe driving.

In the medical area, please abide by related rules and regulations. Please shut

down the 7N when it is near to the medical area.

To avoid the wireless signal to interrupt the plane- controlled signal, please shut

down the 7N or use airplane mode when you are boarding a

flight,

To avoid electronic equipment failure, please shut down the

7N in the vicinage of high-accuracy electronic equipment’s.

Please don’t disassemble the

7N and accessories. Only

authorized agent has access to service the 7N.

Please keep the

7N far away from magnetic equipment’s

the

radiation of 7N may erase the data stored in the magnetic

equipment’s.

Never use the

7N in the vicinage of high temperature,

flammable gas (gas station).

Protect the

7N and accessories from kids reach scope, and

avoid the kids to use the 7N without parental supervision.

Please comply with related rules and regulations, and respect others’ privacy and

legal rights while using the 7N.

Please strictly adhere to related instructions in the manual when using USB cable

to ensure the safety of the 7N or PC.

Never use the

7N in bathroom or other environment, and

please protect the 7N from liquid wash or wet.

Nitro Phablet

1.4 Abbreviation/Terminology

Abbreviation/Terminology Full Name Description

MID Mobile Internet Device Mobile Internet Terminal

WIFI Wireless Fidelity Base on IEEE 802.11b\g\n

standard wireless LAN

T F Trans Flash Alternative name Micro SD, super

miniature memory card

2 Nitro Phablet 7N Introduction

2.1 7N Operation and Preparation

Battery Charging

If this navigator is first used, please use AV adaptor to fully charge it.

1. Apply the power adaptor to charge for 7N.

2.2

7N Status and Reminder

Reminder icons

When some remind message appears in your reminder window, please click column and slip

the screen to open the reminder list. Choose the menu you need, and confirm the information.

Then you can close the reminder window through clicking the column to slide up. Please refer to

below status icons:

New email Airplane Mode on

USB connected USB debugging connected

Return button Downloading

Display recently-used application Home button

Current electric volume. WIFI connected, internet is available

Reminder board

Reminder icons will work while receiving emails, WIFI is open, you can open the reminder

board to view the detailed information.

Open the reminder board

When the reminder column shows new reminder icon, please hold the column and slip down

your finger, then the reminder board is opened.

Nitro Phablet

3 Quick Start Guide

3.1 Keys Function

Keys Function Description：

Power button Short press to sleep/wake up, long press to startup and

shutdown.

Volume +（up）increase the volume

Volume -（down）decrease the volume

HOME button（home）

Click it in any interface will return to main interface.

Back button（back）click it in any interface will return to previous menu

Menu button This button will display in menu interface.

Setting button

display recently browsed history; double click this button,

you can switch between the last two applications

3.2 Startup and Shutdown

Startup

Long press POWER key for three seconds, you can enter startup picture. The system enters

screen lock status, please unlock it.

Shutdown

1． Long press POWER, it will popup shutdown window.

2． Shutdown window contains reboot mode, airplane mode and power off mode three

options.

3． Click power off is the last step.

3.3 Open and Close of the Screen

Screen will be closed on its own when no operation happens.

1. Screen will be closed on its own if no operation happens for some time to save battery

power

2. When screen is open, press POWER key, the screen will be closed immediately.

Open the screen when it is closed.

If the screen is closed, short press POWER to open the screen. The screen will be locked. To

open it, it will show the picture as below picture (picture 3.3-1), left slide to unlock and enter into

camera, right slide the unlock icon and enter into Voice Search, upward slide unlock the screen.

Picture 3.3-1

3.4 Usage of Touch Screen

7N operating methods

There are below methods to view the main screen, menu and application procedure in your

7N.

Click

When you want to use the screen, keyboard typing or choose application in the main interface, you

only need to touch it by your finger.

Press on

If you want to open some item (textbox or the link in the webpage), or shortcut and main

procedure move, you can press on this item.

Quickly slide or slide indicates

Quickly slide or slide indicates make quick vertical or horizon movement by finger.

Pull

Before you pull, you need to hold the it with strength until you pull it into the position you want.

Nitro Phablet

Rotate

For most pictures, you only need to rotate the 7N sidewise to change the

screen direction from horizon to vertical. For instance, when you are typing words, and watching

movies.

3.5 Home Page

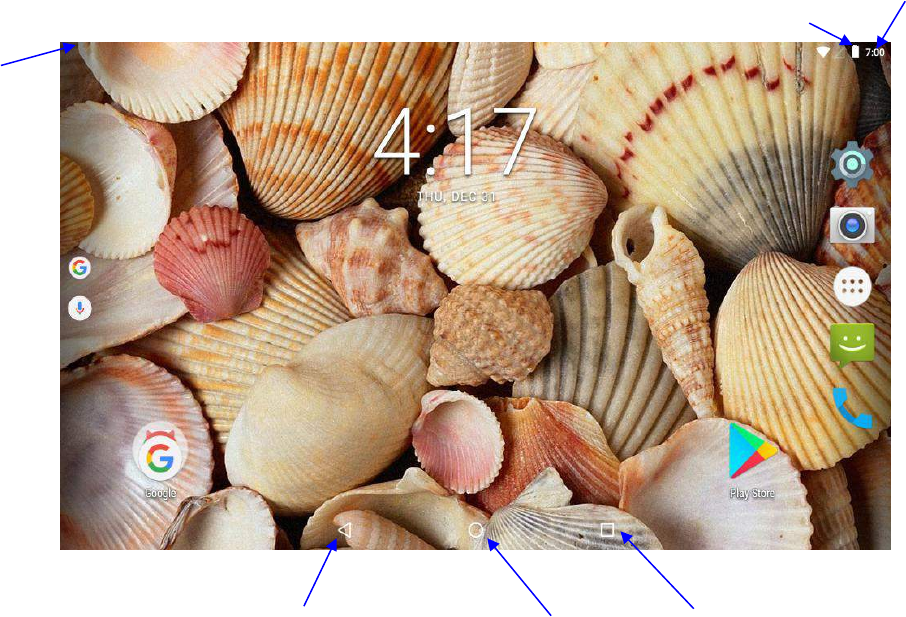

Main interface as below picture 3.5-1, long press the blank and it will popup windows to set

wallpaper, folder, widgets, and shortcut.

Picture 3.5-1

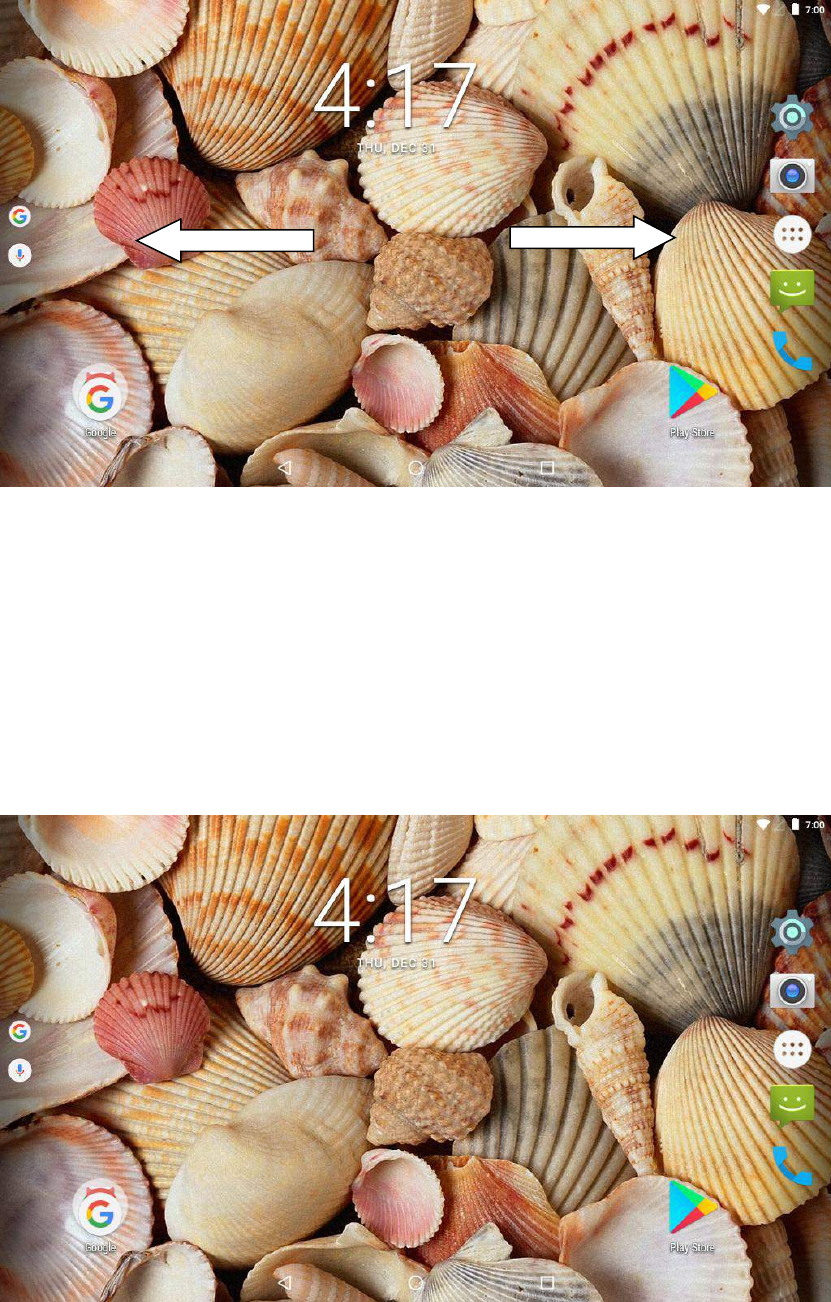

The extended home pages

The home page can be extended beyond the wideness of screen to provide more space,

which you can put new-added shortcuts and widgets. Click the blank space in home page

then slide right or left to extend to the right or left of the screen. In the home page, there are

two extended pictures, as Picture 3.5-2.

Recently Apps

Home

Return

Time

Battery Level

Notice

column

Nitro Phablet

Picture 3.5-2

The shortcut icons management in desktop application.

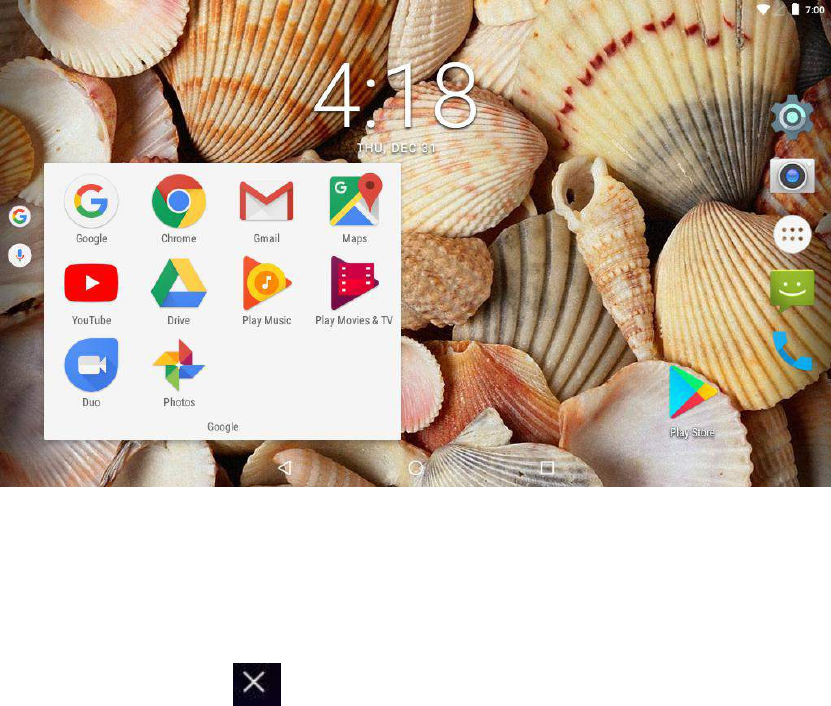

Create folder icon in desktop

1. Drag the icons need to be put together on one icon (can also overlay several

icons) as Picture 3.5-3.

2. Then click the overlaid icons, the applications can be folded, as Picture 3.5-4.

Click the unnamed folder in the black box, it will pop up the hidden keyboard, the folder name

can be renamed, the icons position can be changed through long press.

Picture 3.5-3

Picture 3.5-4

Remove the icons in desktop

1. Long press the icons need to be remove, then on the right above of the screen, it

will appear icons.

2. Drag the icon to the above of the remove icon, till the icon become red, then move

your finger to delete the icon.

Change the wallpaper of desktop

1． In home page, long press any blank space in main screen, it will pop up a

window to change the wallpaper.

2． Click the gallery or wallpaper gallery to select the wallpaper.

3.6 Visit Application Procedures

Click in right top of Picture 3.5-1, enter into main interface as Picture 3.6-1,

choose the application procedure you want to visit.

Picture 3.6-1

3.7 USB Connection

7N storage configuration

Before transmitting documents, you must conduct storage configuration for your

7N:

1. Connect the 7N to your computer by Micro USB cable, the reminder

column will show the remind information.

2. Open the reminder notification; please view the

7N status and

reminder to learn how to open the board.

3. In the reminder notification, click the “USB for file transfer”, it will appear as Picture

3.7-1, then click “File transfers”.

4. Now the USB is connected successfully.

Return to home page

Nitro Phablet

Picture 3.7-1

Copy the document into memory card

1. Connect the

7N to the computer with USB cable.

2. As

7N storage configuration, it relates to computer successfully.

3. Open the “My computer” in your computer, check the items in “MTP devices”.

4. Copy the documents you need into “MTP devices”.

5. After copying finishes, unplug the USB can.

3.8 Typing words

Use the screen keyboard

When you start the procedure, or choose the words or numbers edition, it will show the

screen keyboard. The keyboard contains below typing options:

1. Android keyboard

Choose the typing method you want

1. Click Setting procedure application.

2. Click Language and Keyboard.

3. In the text setting area will reveal all the installed words-typing methods in your

7N.

4. Select the typing method you want.

Nitro Phablet

Use and switch of input method

Picture 3.8-1

1Switch between capitol and lower-case Letters

2switch the mode of words input

3click to insert the space

4click input to execute

5delete the character in the left of cursor, click and hold to delete all the

characters in the left on the cursor.

3.9 Operation Technique

Enter widgets interface

In the application interface, click widgets on the above of screen, or slide the screen, it

will switch into widgets interface. Long press any widget to create its shortcut, then

you can enter the application through the shortcut icon.

Create application shortcut icons in the desktop

In the application interface or widgets interface, long press any icon to switch into

desktop automatically, drag and hold the icon, you can move to any position in the

desktop.

Remind: If the target position has no space, the widget won’t be add in the main

screen.

3.10 Quick Setting

Swipe-down gesture from the top of the screen, there are nine shortcuts icons, such as Wi-Fi,

Bluetooth, Auto-rotate, and so on. In the full Quick Settings list, you can also tap the edit button at

the bottom right to rearrange the tiles or replace them with others, as Picture 3.10-1. The optional

extras list is minimal: Just Hotspot, Data saver and Invert colors. But developers are now able to

create custom Quick Settings tiles for their apps, which will make things a lot more interesting in

the coming months.

Picture 3.10-1

4 Basic Setting

4.1 Wireless and Internet

1. Connect Wi-Fi

1) In the main menu or interface, choose setting application procedure.

2) Click Wi-Fi, select on, 7N will automatically search the

available WIFI wireless internet. As Picture 4.1-1

3) Choose the Wi-Fi internet you want to connect, if it has password, it will popup the

password window, enter password, click connect.

Picture 4.1-1

2. Add Network

1) Click icon in right top, as Picture 4.1-2

Picture 4.1-2

2) Input network SSID, the wireless network name, click save.

Nitro Phablet

3) Click user name already saved, click connect to use network, as Picture 4.1-3

Picture 4.1-3

3. Network Notice

If you open Network Notice, when WIFI signal appears, the right bottom will

remind you available Wi-Fi network, as Picture 4.1-1

4. Keep WI-FI on during sleep.

1. Click icon in right top of Picture 4.1-3, select advanced.

2. Click Keep WI-FI on during sleep, as Picture 4.1-4

Picture 4.1-4

4.2 Bluetooth

Bluetooth function operation

1. Click setting application in main menu interface

2. Click Bluetooth and open it.

3. If somebody open Bluetooth in your surroundings, click search device in right above,

then 7N will automatically search the Bluetooth device nearby. As

picture 4.2-1

Picture 4.2-1

4．Click the available Bluetooth device, it will popup request window, enter related

password, and match the device to connect.

5．After match successfully, choose the operation you want to, click to enter Picture

4.2-2.

Nitro Phablet

Picture 4.2-2

Bluetooth setting

1. Rename tablet

Click icon in right top of Picture 4.2.1. Select Remain this device, as Picture

4.2-3. You can rename it as you want.

Picture 4.2-3

2.Display the file you received

Choose to display the file you received in Picture 4.2-3, you can view

download and upload files.

4.3 Data Usage

Check SIM card data usage, as Picture 4.3-1

Picture 4.3-1

Check WIFI data usage

Slide on the data usage page to find “Wi-Fi data usage” and click it, as Picture 4.3-2

Picture 4.3-2

4.4 More

4.4-1 Airplane Mode

Airplane Mode turns off WIFI and GSM card functionality. When airplane mode is turned on,

WIFI and GSM can’t get any signal, When airplane mode is turned off, WIFI and GSM module

will recover to previous state.

4.4-2 VPN

Open VPN, click add VPN network, as Picture 4.4-1. Input name and server address, then save.

Picture 4.4-1

Click VPN, as Picture 4.4-2, input VPN user name and password, click connect.

Picture 4.4-2

4.4-3 Network sharing and portable hotspots

Portable WI-FI hotspots

1. Click setting application in main menu.

2. Click more

3. Select Tethering &portable hotspot

Picture 4.4-3

Picture 4.4-4

3. Click keep WI-FI hotspots on, choose open time.

4. Return to previous menu, open portable Wi-Fi hotspots, click Set up WI-FI hotspots.

Picture 4.4-5

5. Set passwords you want to, password should be more than 8 numbers.

4.4-4 Mobile Networks

1. Access Point Name(APN)

2. Choose access points name (APN), choose SIM card you need to connect, Choose connect type

Network Operator

Click network operator, choose SIM card you need to connect, system will search available GSM

and WCDMA network, as Picture 4.4-6

Picture 4.4-6

4.4-5 GPRS data prior mode

After Open GPRS data prior mode, systems will priority chooses your network.

4.5 Sound & notification

4.5-1 Sound

1. Open settings, click Sound, as Picture 4.5-1

Picture 4.5-1

1. Vibrate

In picture 4.16, click Also vibrate for calls, 7N will vibrate in incoming call.

2. Volume

In picture 4.16, click volume, you can set ringtone, media, and alarm volume, as Picture 4.5-2

Picture 4.5-2

3. Voice call Ringtone

In picture 4.16, click phone ringtone to choose voice call ringtone, as Picture 4.5-3

Picture 4.5-3

4.5-2 Notification

1. Open settings, click Notification, as Picture 4.5-4

Nitro Phablet

Picture 4.5-4

2. Click on any app icon in the list, then you can choose to show notifications silently, block all

notifications or don’t silence or block, as Picture 4.5-5

Picture 4.5-5

4.6 Display

4.6-1 Adjust the screen brightness

1. Click Setting application procedure.

2. Click display, choose brightness,

3. Drag the portico to adjust the brightness volume, as Picture 4.6-1

Picture 4.6-1

4.6-2 Wallpapers

1. Click setting application.

2. Click display, click wallpaper.

3. You can choose different wallpapers as you like gallery, live wallpapers, photos,

wallpapers (system default), as Picture 4.6-2

Picture 4.6-2

4.6-3 Auto rotation

System is defaulted as open auto rotation, when it is turned off, system won’t rotate

7N screen by G-sensor.

4.6-4 Sleep

4. Click setting application.

5. Click display.

6. Click sleep.

7. Set the sleep time as you want, as Picture 4.6-3

Picture 4.6-3

4.6-5 Font size

Click font size to adjust the size of the text, as Picture 4.6-4

Nitro Phablet

Picture 4.6-4

4.6-6 Display size

Click Display size to adjust the size of the icons, as Picture

4.6-5

Picture 4.6-5

4.6-7 Screen saver

Charging Case, the tablet will enter the screen saver state.

4.6-8 Mira Vision

Mira Vision is a set of engines to enhance display picture quality.

4.7 Storage

Open setting function, click Storage, as Picture 4.6-6

Picture 4.6-6

(1) Internal storage

Internal storage is 7N local NAND storage, as Picture 4.6-7, if you need to

check the storage content, you can check it in main menu.

Picture 4.6-7

(2) SD card

Click SD card to check the storage content, as Picture 4.6-8

Nitro Phablet

Picture 4.6-8

Safely remove or format SD card

1. Click in picture 4.26

2. Click Settings

3. After the above two steps you can choose what you want to do, remove or format SD

card

Note: Removing SD card safely can protect SD card and increase its lifetime.

4.8 Battery

Click setting function, select battery, you can view the battery situation, as Picture 4.8-1

Music frequency

picture Auto Reboot

Picture 4.8-1

4.9 Application program

1. Click setting application in Apps.

2. Select application, after entering, you can manage and delete installed application.

(As Picture 4.9-1)

Picture 4.9-1

4.10 Memory

View the used space and available space, as Picture 4.10-1

Picture 4.10-1

Click view the working device，as Picture 4.10-2

Picture 4.10-2

4.11 Account and Sync

1. Select setting application

2. Open account and sync, as Picture 4.11-1

Picture 4.11-1

3. Click add an account, as Picture 4.11-2

Picture 4.11-2

4. After successfully load, it will open the sync function, as Picture 4.11-3

Picture 4.11-3

4.12 Location service

Click setting, select Location, as Picture 4.12-1

Picture 4.12-1

4.13 Safety setting

Set locked screen

Lock the touch screen by unlock icon or password to protect your 7N.

Note: After setting screen locked, you should enter the passcode each time when you

startup or screen is locked

Set unlocked picture

1. Click setting application in main interface.

2. Click security.

3. Click screen lock.

4. Choose pattern in text setting area.

5. Click next following the remind message.

6. The unlocked pattern board pop up, there are nine touch spots, connect 4

points from vertical, horizontal or diagonal direction. As Picture 4.13-1,

move your finger from the screen when finish. The system will record yours

new unlock pattern.

7. Click continue.

8. When you see the reminder, enter the unlock pattern, then click confirm.

Picture 4.13-1

Nitro Phablet

Set unlock PIN code

1. Click setting application in main interface.

2. Click security.

3. Click screen lock.

4. Choose PIN in text setting area.

5. Enter new PIN code(numbers) and click continue.

6. Enter new PIN code again and click confirm.

Set unlock password

1.Click setting application in main interface.

2.Click safe.

3.Click screen locked.

4.Set password in text setting area.

5.Set new password (letters and numbers) and then click continue.

6.Enter the password again and the click confirm.

Unknown source

1.In main interface, click setting.

2.Click safety.

3.Click unknown source, as Picture 4.13-2

Picture 4.13-2

Note: Manual installing APK files needs to turn on unknown source.

4.14 Language and Input Method

Click setting > select language and input method > choose language, then click Add a

language, select the language you want to add from the language list, as Picture

4.14-2.Back to language preferences page , you can drag the language you want to set to the

first to switch language.

Picture 4.14-1

Picture 4.14-2

Click setting, choose language and input, choose Google keyboard setting, click input

Chinese(China)

language, as Picture 4.14-3

Picture 4.14-3

Choose the language you want to change in the language list, as Picture 4.14-4

Picture 4.14-4

4.15 Backup and Reset

Connect WIFI and login into your Google account, choose backup my data, system will

back up your data into GoogleTM server.

If you need to recovery factory reset, please click reset, as Picture 4.15-1, if you need to

formulate NAND, please click reset tablet.

Picture 4.15-1

4.16 Date and Time

According to the preset, system will voluntarily apply the date, zone, and time provided by

internet connection.

Manual set date, time and zone

1． Click Setting application.

2． Slide down the screen, then click date and time.

3． Turn off “auto setting of date and time”.

4． Turn off “auto setting zone’.

5． Click Zone Selecting, then choose the zone lists. Slide down the list to view more

zones.

6． Click Set date, then click upper or down button to adjust date, month, and year, click

setting when you finish selection.

7． Click Set Time, then click upper or down button to adjust hour and minute, click AM

or PM to change morning or afternoon (there is no such selection when you se 24-hour

format). Click Setting to finish.

8． Click 24-hour format, switch between 12-hour or 24-hour format, the time format you

choose will be used on the alarm clock.

9． Click date format setting, then choose the time format you want to show on

7N.

Nitro Phablet

Picture 4.16-1

Note: If you use the time internet provided, you will not able to set the date, time and time zone.

4.17 Fixed-time Startup and Shutdown

1. Click Setting application procedure

2. Click Schedule power on & off.

3. Operate as below Picture 4.17-1

Click it to change

time startup setting

Click it to change

shutdown setting

Turn on/off

fixed-time

tart

Turn on/off

fixed-time

shutdown

Picture 4.17-1

4.18 Assistance Function

4.18-1. Font size

Click it to make system font large size

4.18-2. Click power button to end calls

When Click call, press “power” button, call will end

4.18-3. Touch and hold delay

Click touch and hold delay increasing time, as Picture 4.18-1

Picture 4.18-1

4.18-4 Install webpage script

It will allow you install webpage scrip when you open system, but it will increase the risk

when you are browsing webpage.

4.19 Engineer Selection

4.19-1 USB debugging

After opening USB bugging, you can use some software to read 7N

software, but when USB debugging is turned on, USB storage needs to manual adjust.

4.19-2 Stay awake

If you open stay awake, it will never auto sleep when your 7N is charging.

Nitro Phablet

4.19-3 Pointer Location

If you open pointer location, it will display touch vertical and horizontal direction.

4.19-4 Show taps

If you open display touch screen operation, it will display touch operation on the screen. It is

suggested to use with same direction as pointer location.

4.19-5 Show surface updates

If you open screen refresh, it will display related area when the area is refreshing.

4.19-6 Show CPU usage

After open CUP usage, in the right top of 7N will show CPU usage

situation. as Picture 4.19-1

Picture 4.19-1

4.20 About Tablet

Check 7N state

1. Check Setting application.

2. Click About Tablet, check Model, Android Version, Version Number and

so on.

3. Click state message, check battery status, battery level, SIM status, IMEI

information, IP address and so on.

Nitro Phablet

5 Multi-Media

5.1 Music

Enter music player: in menu or desktop click music icon to enter into music player,

click the music you want to play, as Picture 5.1-1:

Picture 5.1-1

Picture 5.1-2

Drag the progress bar to adjust play progress.

Album

Pause/play

Next song

Previous song

Artist

Song name

Random play

Single/sequential

cycle

Operation of music player button as Picture 5.1-2

5.2 Photo Gallery

Photo gallery application can auto search photos and video files in SD card, and photo

gallery will classify these photos and videos in folder. You can apply photo gallery to

view and edit photos, set the photos as wallpaper and watch the video.

View pictures

1. Click gallery application in main interface.

2. Enter gallery, click the folder you want to view.

3. Click the picture you want to view; the system will play it in full screen mode

automatically.

4. The pictures can be zoom in and zoom out, put two fingers on the screen, the

separate the fingers (gather up the fingers, the picture will be zoom in) or

double click the screen.

Note: when you browse the pictures, slide left or right to view more pictures.

Edit and set pictures

When the picture is in full screen mode, click menu key to display menu selection,

you can choose the selection you need to edit and setting pictures.

Slide Show

1. Open a picture, use virtual key to click menu key, display menu selection.

2. Click slide show, it will auto loop play

Crop

1. Click menu key to display menu selection.

2. Then click crop, click and drag related area to adjust the cropper.

3. Click cropper and drag it inside and outside to adjust the image.

4. After adjusting the size you want, click crop.

5. If you wish to give up cropping, click cancel to return to picture browse.

Edit

1. Click menu key, display the menu selection.

2. Click edit.

3. Adjust the brightness, style, color, ant alias setting in selection.

4. Click save.

5. If you want to give up edit, click return key, click not to return to picture

5.3 Camera

In the main interface or desktop, click camera application procedure ,enter into camera

Operation of camera, Switch camera: choose Menu key, click switch front/back

camera, as Picture 5.3-1.

Picture 5.3-1

5.4 FM Radio

Click in the main interface or desktop to enter into FM radio interface:

Radio button operation instruction as Picture 5.4-1:

Next channel

Normal Camera

mode

Face beauty

mode

Panoramic

mode

Sub menu

camera shooting

mode

Flash on/off mode View the pictures

and videos

Click it to take

pictures

Gesture capture

Auto capture when

smile is detected

HDR capturing

Picture 5.4-1

Save channels: Click button in the main interface to save the channel,

and the channel will be saved in channels list.

Note: You need to insert earphone as antenna when using FM radio, if no

antenna, your ASTRO PHABLET 7S can’t search any frequency band.

Save button

channel

Current

frequency

Exit FM

Next channel

6 Communication Function

6.1 Phone

1. Click Phone application procedure

2.Operate as Picture 6.1-1

Picture 6.1-1

Display

phone

numbers

Dial phone

numbers

6.2 Text Message

1 Enter main menu, choose application procedure.

2 Click “Edit new message”

Picture 6.2-1

6.3 Contact List

Click Contact list in the main interface, enter the contact list as Picture 6.3-1

Directly input

phone number

Add receiver

Send

message

Menu (discard, insert text

and settings)

Picture 6.3-1

Search contact: click button, enter search function

Add contact: click button, enter add contact interface.

7 Internet

7.1 Browser

In case of Wi-Fi or mobile internet is connected well (Please refer to Chapter 4.1 for wireless and

internet setting), click IE browser in the main menu or desktop to enter the IE interface, as

Picture 7.1-1

Click address bar to input the website, click start, enter into related webpage, then you can browse

the website information, as Picture 7.1-2 and you can click the menu you can refresh, save to

bookmarks, share page, bookmarks, history and setting the webpage.

Address

column

Save bookmark

Picture7.1-2

8 Split screen functions

Click to enter the multi task management page, then hold down one of the cards, and drag

up to the top of the screen to open the task. That first app will then appear in the top window (or

on the left if you’re in landscape mode) and you’ll able to choose your second app from the app

picker which displays automatically.

Picture 8.1-1

9 Other Application Procedures

9.1 Clock

Click Clock procedure, enter below interface as Picture 9.1-1.

There are clock, picture, music and homepage buttons.

Picture 9.1-1

9.2 Calculator

1. Click.

2. Enter the basic board of calculator.

3. Soft touch the numbers or operator in calculator to calculate.

Set alarm

Pictuer9.2-1

9.3 File Manager

File manager will copy, cut, delete, rename the documents or the folder in the TF card, it also will

share the files, install apk etc.

In the main menu or desktop, click the document manager icon to enter documents

manager.

Picture9.3-1

a、Copy, cut, delete, rename the files and folder: choose the file or folder, long press the file or

folder to enter into the interface as Picture 9.3-2, you can operate the file or folder.

ROM

External

SD card

Picture9.3-2

b、Paste the copy or cut file: choose the file you want to paste, icon to enter into Picture 9.3-3,

Picture9.3-3

C. Share file: choose any file, long press it, it will popup “share”, choose the share way you want

in the list（Picture 9.3-4）

Picture 9.3-4

d、install apk file：Choose the file suffixed. apk in the file manager, you can install the third part

software as reminder.

e、build new folder: Choose the menu you want to build the file, click icon in right top,

choose new folder, you can build new folder as reminder.

9.4 Recorder

In the main interface or desktop, click recorder icon to enter into record interface, click

record key to start record. Click Stop key to stop recording. Click Play key

to play the recorded sound. The system will auto remind you to use or abandon this record, please

choose it manually.

Play the record: choose the video player to play the recorded sound, choose the recorded sound in

the source manager, and click it to play.

Picture9.4-1

10 Installation of Procedures

10.1 Installation

Installing Applications from Google Play Store

1. Open Play Store

2. Login / Create a GoogleTM account

3. Find apps you want and installing

Install the third-party application procedure

1. Click “file manager” application procedure; choose the application procedure

you need to install.

2. Hold the application procedure you need to install.

3. It popup install, click install apk.

4. Finish the installation as guide, it will operate.

Note: The third-party procedure searched from internet to use on the system are all suffixed

with. apk.

10.2 Uninstall

Uninstall application procedure

1. Click setting icon in main interface.

2. Click apps, list all the application procedures installed in the system.

3. Click the APK you want to uninstall, click uninstall.

4. Click confirm to finish uninstallation.

Note: The procedure manager installed by system has many convenient methods to uninstall

after opening procedure manager, click uninstall, it will list all the application procedures

installed by system.

11 Troubleshooting

1. The first startup of

7N is slow

After the 7N system upgraded, the first startup need to install

the pre-installed application software, the lead time is around 2-3 minutes, the

startup afterwards will be much quicker.

2. 7N can’t connect to the Wi-Fi

Make sure the wireless router of internet service is working

Ensure the

7N and wireless router are in ranger of

router,

Ensure the user name and password both correct.

3. 7N feels hot

When many applications are running at the same time or the brightness of screen

open to the lightest or under charging, 7N may feel

warm/hot. It is normal.

4. Registration of application procedure.

Ensure your internet is well connected.

Keep your system time and local time consistent.

5. The system is abnormal and can’t work.

When you install some third party application procedure, it may cause abnormal

work, you can press Reset key (next to power port) to reset the system.

6. The webpage can’t be opened

Please keep the distance between from route to

7N in

effective range.

Please restart WIFI and try again.

7. 7N works terribly slow sometimes

Please close some application you don’t need in advanced task

management, or uninstall some third-party application to release more system resource.

Nitro Phablet

LUXPAD TABLET NITROTAB7N Tablet User Manual

LUXPAD TABLET Tablet

User manual

Navigation menu

Namespaces

Views

Navigation
