LUXPAD TABLET TAB7G Tablet User Manual
LUXPAD TABLET Tablet
User Manual
6 Equipment basic setting…………………………………………………………10
1 1
Content
1 Attention…………………….………………………………………3
2 Main function…….…………………………………….……..…………….4
3 Appearance and button………………………………. …………………………..6
4 First use……………………………………..…………………………………7
4.1 Battery management and Charge……………………………....……………7
4.2 Connection with PC…………………………………………………………7
5 Equipment operation interfaces……………………………………….……….8
5.1 Main interface describe …………………………………………………….8
5.2 Status bar describe …………………………………………………….9
5.3 Use touch panel……………………………………..………………………9
6.1 Sound Volume………………………………………………..……….11
6.2 Application …………………………………………………………..12
6.3 Reset Option ………………………………………….…………………..13
6.4 Storage…………………………………………………………………..14
6.5 Language & Keyboard…………………………………..……………….15
6.6 Data & time setting……….…………………………………………………16
6.7 About Tablet…..…………………………………………………………17
2
6.7 About Tablet…..…………………………………………………………17
7 File Manager…………..……..………………………………….……………..18
8 Problem Solution……..…………………………………………………………19
8.1 Device can’t open ……………….…………………………………………19
8.2 Device shut down after starting up………………………….………………19
8.3 Headset can’t hear the voice ……………………..………………………19
8.4 Can’t copy file or play music and so on ……………………………………19
3
1. Attention:
Please don’t be in high temperature, moisture or very dust place
Avoid fall or Violent collision of the device, don’t make the TFT display screen were
violent tremor, this could cause TFT display screen abnormal or damage.
please charge in the following condition,
A、 The battery power icons show have no power
B、 The system automatically shut off, startup after power off soon
C、 Operation buttons no response
D、
The device on the top right corner show red icons
When the device in the format or ongoing upload and download file, please don't suddenly
disconnect, this could cause application error.
Don’t disassemble the product, don’t use alcohol、Thinner or benzene to scrubbing
products
4
2. Main function
Operation systems: AndroidTM 8.1 OreoTM (Go Edition)
Processor: Rockchip RK3126C
CPU processor speed: Quad core, ARM Cortex-A53 1.3GHz
Memory: 8GB FLASH
RAM: 1GB DDR3
WI-FI Function:802.11b/g/n
Micro SD card: up to 32GB
Display screen: 7inch Capacitive multi-touch
Resolution: 1024*600 TN
Dual camera: Front:0.3M Pixels； Rear: 2.0M Pixels
Battery and capacity: rechargeable Built-in type polymer battery, 3.7V/2000mAh
USB: 2.0
G-sensor 3D
Support Speaker
Record: built-in microphone
MIC phone：input
Video: AVI, MKV(XVID/px/H.263/H.264), MOV, TS, M2TS, RM/RMVB, FLV, 3GP,
MPEG1 UP TO MP, MPEG2 UP TO MP,MPEG4 UP TO ASP LEVEL 5.2,DAT, MP4
MVC
5
Music:MP3、WMA、APE、FLAC、OGG、WAV
Pictures: JPG, JPEG, BMP, and PNG
Recording function:Format supported: WAV Format
3G function: Support external 3G USB-DONGLE wireless network
E-book Function:Format Supported: TXT、LRC、PDF、Html、Htm、EPUB
Working temperature:-5 ~ 40 ℃
Languages:Chinese、English, Japanese、French、German、Spanish、Russian, etc.
The company reserves the right to improve product, products specification and design have
any change, and the information is subject to changes without prior notice.
6

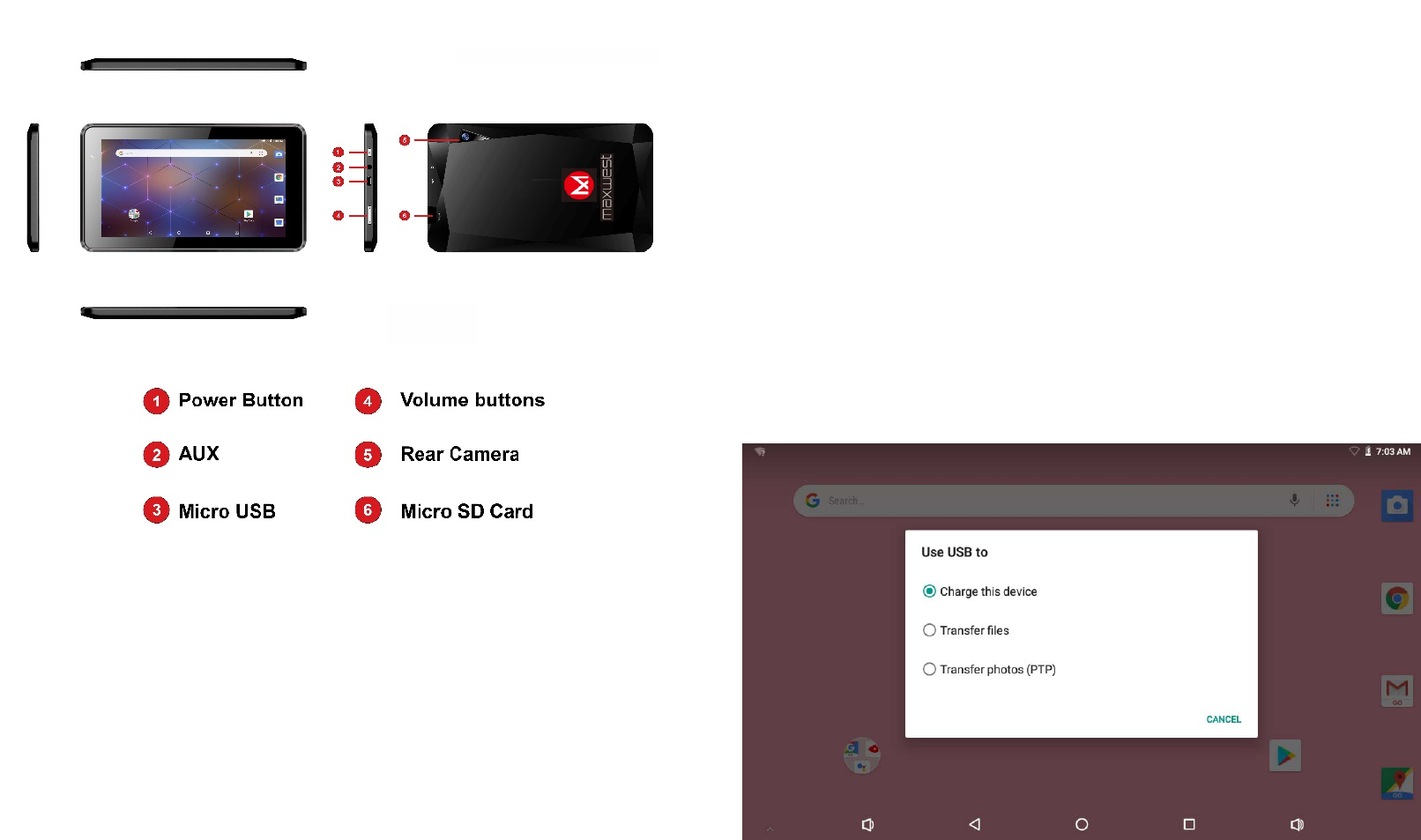

3. Appearance and button:
7
4. First use
4.1 Battery management and charge
Before first use, please charge the device's battery to 100%.
The first two times charging please keep it charging for about 6 hours,
after that you just need leave it charging 4 hours or until fully charged.
Attention: This tablet uses Built-in type polymer battery, Charge must be to choose standard
adaptor（Adaptor:power supply: DC 5V 1.5A, adaptor technical data: input AC100-240V,50/60Hz,
DC5V 1.5A)
4.2 Connection with PC
Use USB cable to connect the TAB 7G to the PC. First turn on the device; next, click USB
connection window on the notification bar; lastly, turn on Transfer Files to connect to PC
8
Into the load mode, you can copy; delete the file on the device and the file on the memory card.
5. Equipment operation interface
5.1 Main interface describe
After startup will enter the main interface, In the main interface, you can Management the main
interface software icons by:
a) long press the icons for 3 seconds; after the icon will get bigger, allowing you to drag it
anywhere in the interface.
b) Delete icons: long press the icon for 3 seconds; after, drag the icons to the Recycle Bin icon.
Once it becomes red, Let go of the icon and app will be deleted.

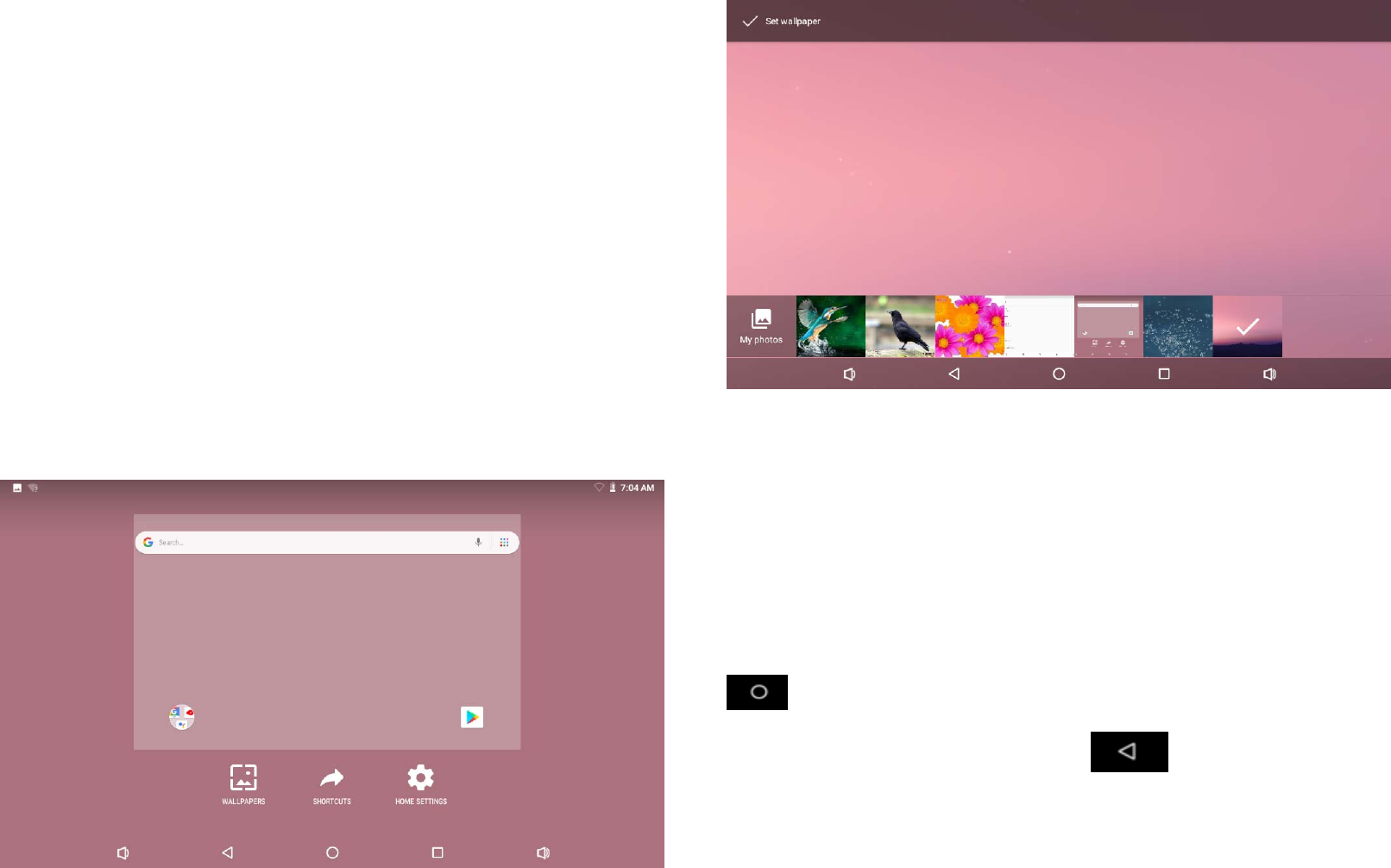

c) To change wallpaper, long press screen and the dialog box appears with ”Choose wallpaper from”
as shown below
9
5.2 status bar describe
Top right displays the battery, battery charge icons, current time, Settings Menu
5.3 Use touch panel
No matter which interface you are in, you can go back to main screen by pressing the soft key
on the bottom middle corner of the main screen.
In different applications, by tapping the back soft key on the bottom middle corner on
the touch screen, you can return to its previous interface
10

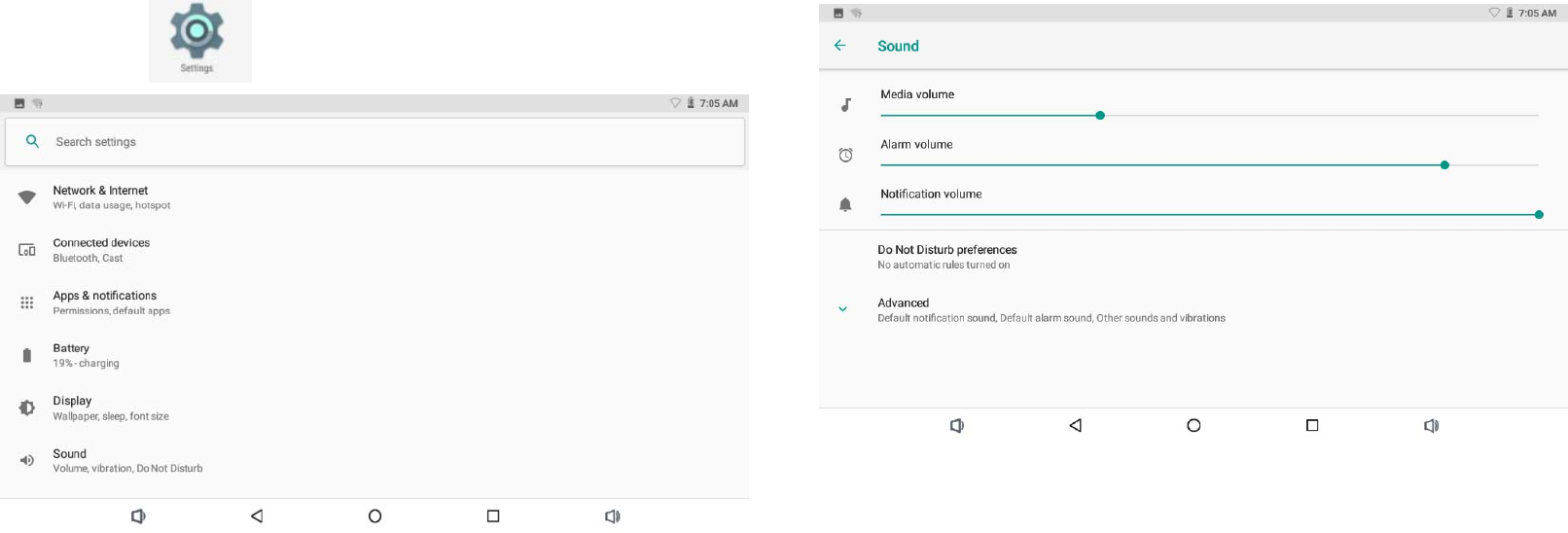

6. Equipment Basic Setting:
Click setting icons to enter the setting Interfaces.
11
6.1 Sound Volume
12

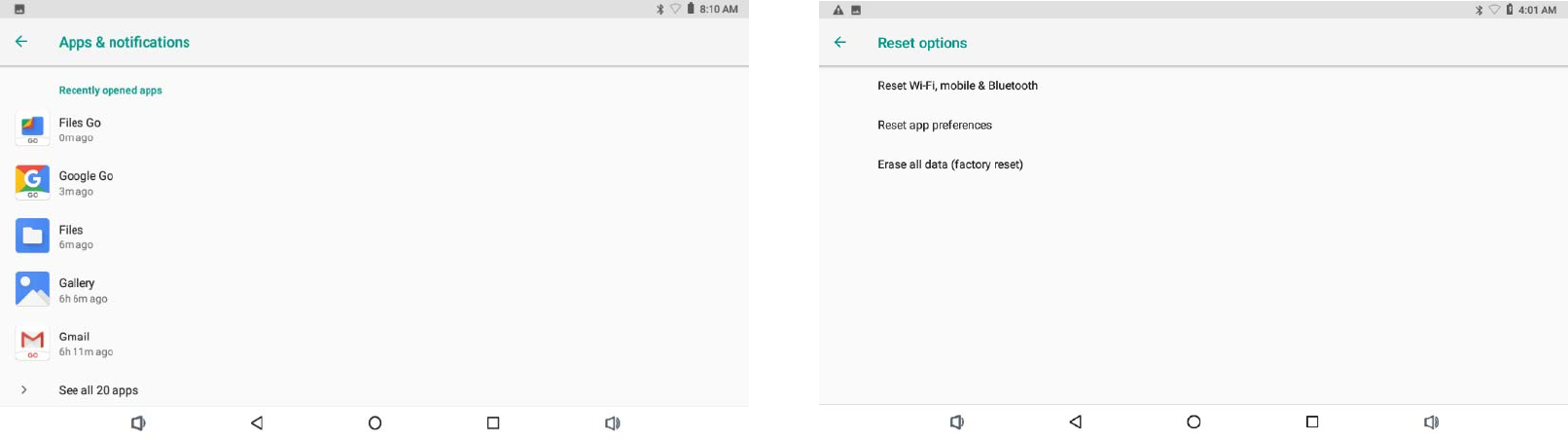

6.2 Application
Manage applications
1、Enter “Settings” >”Apps & Notifications” And then there will be App list
B、Select the one you want to uninstall, it will enter the following interface
C、Click Uninstall, then you can delete the application
13
6.3 Reset Options
Please enter “Settings” > “System” > “Reset Options”
14

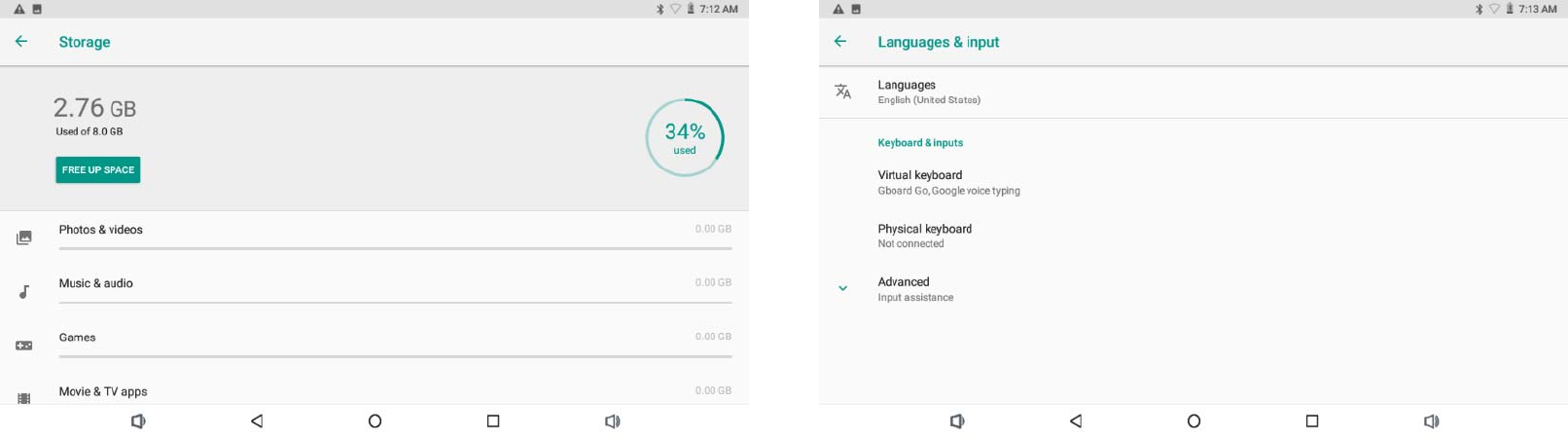

6.4 Storage
Remove SD card ，to view of the available storage space
【Remark】: please touch option” delete SD card”, so that can safety to remove SD card
15
6.5 Language & keyboard
Setting: (Language), text input and automatic error correction options;
Select Language: 54 kind of national languages are available
16

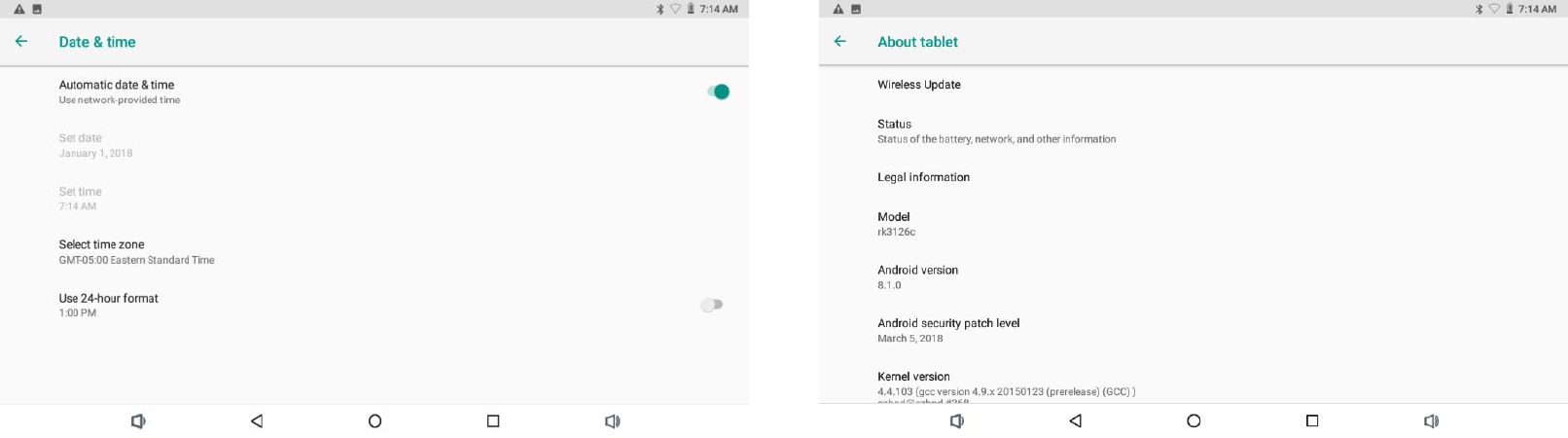

6.6 Date & time setting
Set date, set time, select time zone and select date format
17
6.7 About Tablet
7 Please enter “Setting” > “System”>“About Tablet”
18

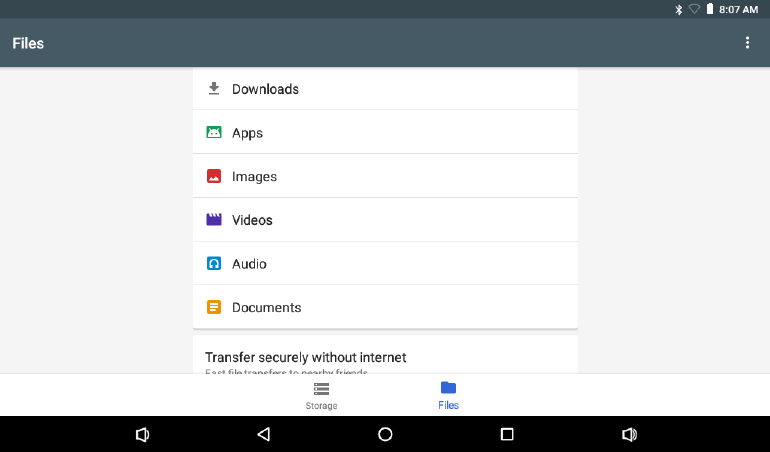

7. File Manager
This Tablet can support Android APP in market by third party, most Apps can install in the network,
can copy to NAND FLASH or SD card.
Click “Files Go” APP to open, then you can check Apps, Images, Videos, Audio and Documents.
19
8. Problem solution
8.1 Device can’t open
A、Check the battery power
B、Connect adaptor first, then check again
C、Press the “reset” key first, the press “power” key
D、After charging then can’t to open, please contact with the supplier
8.2 Device shut down after start up
After startup the screen or the Power On Image appears, the device appear shutdown: Power is not
enough, please charge
8.3 Headset can't hear the voice
A Please check the volume whether set to 0
B Check if the music file is damaged. Try playing another audio file.
C If the file has been damaged it may lead to serious noise or popping sounds.
8.4 Can’t copy file or play music, etc.…
A、Please check if the computer and device are correct connected
B、check if the memory storage space is full
C、check if the USB cable is good or not
D、USB connection is disconnected
20
