La Crosse Technology ERF100U Gateway User Manual 15 ERF100 UserMan
La Crosse Technology Ltd. Gateway 15 ERF100 UserMan
ERF100 UserMan
Version 1.1 - 11/13/2008
Page 1 of 25
WD-3106UR-B
4 DAY INTERNET POWERED
WEATHER STATION
Owner’s Manual
WEATHER DIRECT® LITE
Presented by La Crosse Technology®
La Crosse Technology, Ltd.
www.weatherdirect.com
2809 Losey Blvd. S.
La Crosse, WI 54601
Phone 608-785-7935
Version 1.1 - 11/13/2008
Page 2 of 25
Table of Contents
Table of Contents ............................................................................................................................ 2
Congratulations................................................................................................................................ 4
Quality Forecasts ............................................................................................................................. 4
Weather Direct® LITE is Green ....................................................................................................... 4
Included in the Box .......................................................................................................................... 5
915 MHz Wireless Sensor Technology ........................................................................................... 5
What You Need to Get Started: ....................................................................................................... 6
IMPORTANT MESSAGE: ................................................................................................................ 7
Set Up your WD-3106UR-B ............................................................................................................. 7
Hardware Installation ....................................................................................................................... 7
Optional TX-50U Wireless Outdoor Sensor Installation Options ................................................ 7
To Surface Mount the Outdoor Sensor: .................................................................................. 7
To Wall Mount the Outdoor Sensor: ....................................................................................... 8
Wireless USB Transceiver Installation ............................................................................................ 8
Online Resources ............................................................................................................................ 8
Features........................................................................................................................................... 9
Time Setting on Wireless Display .................................................................................................... 9
Optional TX-50U Wireless Outdoor Sensor .................................................................................. 10
Wireless Display Operation ........................................................................................................... 10
“MODE” Key .............................................................................................................................. 11
“ALARM” Key ............................................................................................................................ 12
Turn Alarm ON/OFF .............................................................................................................. 12
Set Alarm Time ..................................................................................................................... 12
“+” Key ....................................................................................................................................... 13
Toggle Between Time, Date & Temperature ........................................................................ 13
View Outdoor Temperature – Only With Optional TX-50U Wireless Outdoor Temperature
Sensor ................................................................................................................................... 13
Manually Request a Weather Direct® LITE Data Update .................................................... 13
“SET” Key .................................................................................................................................. 13
When ADD 4 LOCATIONS Expansion Option is Active ....................................................... 13
Changing Settings on Your Wireless Display ....................................................................... 14
Set Mode 1 – Set LCD Contrast (0-7) .............................................................................. 14
Set Mode 2 – Enable Acoustic Weather Warnings (ON/OFF) ......................................... 14
Set Mode 3 - Set Text Scrolling Speed (1-4) .................................................................... 14
Set Mode 4 - View Device ID ............................................................................................ 15
Factory Reset of Wireless Display ................................................................................................. 15
FREE Trial of Expansion Options for 14 Days .............................................................................. 16
Four Additional Forecast Locations ........................................................................................... 16
Version 1.1 - 11/13/2008
Page 3 of 25
Add Optional Secure Weather Gateway ....................................................................................... 17
Types of Severe Weather Alerts (Only available with Optional Secure Weather Gateway): 18
Forecast Icons Explained .............................................................................................................. 19
Care and Maintenance .................................................................................................................. 20
Battery Low Icons .......................................................................................................................... 20
Battery Replacement ..................................................................................................................... 21
Troubleshooting ............................................................................................................................. 21
Specifications................................................................................................................................. 21
Temperature Range .............................................................................................................. 21
Battery Life ............................................................................................................................ 21
Dimensions ........................................................................................................................... 21
Weather Direct® LITE Update Rate ..................................................................................... 21
Weather Direct® LITE Wireless Range ................................................................................ 21
Power Requirements ..................................................................................................................... 22
Liability Disclaimer ......................................................................................................................... 22
FCC Statements ............................................................................................................................ 23
Warranty Information ..................................................................................................................... 24
Version 1.1 - 11/13/2008
Page 4 of 25
Congratulations
You have just purchased the world’s first Internet-Powered Weather Station.
Weather Direct® LITE uses the power of the Internet to deliver weather data and
other important information tailored to you, because you are in control of the
information it delivers.
We understand that no one likes having to read a manual, so we’ve tried to make
this a fun and rewarding read. After all, Weather Direct® LITE is all about you.
It’s like having your own personal assistant to tell you the weather how, when
and where you want it. Knowing how Weather Direct® LITE works will allow you
to get the most out of this innovative new system.
Weather Direct® LITE - Not Just Another Weather Station. Weather Direct® LITE
is the complete weather experience.
Quality Forecasts
Weather Direct® LITE provides the most accurate forecast information available,
customized to your exact location! Our forecasts go beyond backyard
measurements by using Internet-enabled weather data provided by official
National Weather Service instrumentation and local weather reporting stations
widely distributed throughout North America.
The same quality weather information used by meteorologists to deliver the local
forecast plus additional weather data unique to the Weather Direct® network is
available to you 24 hours a day! We provide the most detailed, customized, up-
to-date weather forecasts available on any medium. Weather Direct® LITE
allows you to pinpoint your exact location to ensure that you receive precision
weather forecasts customized for you!
Weather Direct® LITE is Green
We are doing our part to keep our planet healthy by eliminating our paper
manuals, saving trees in the process. Not only are we reducing the amount of
paper, but we are also trying to help you save space in your desk drawer, file
cabinet or box in the basement where all these pesky manuals end up. Now you
can print only the pages from this manual that you need… or not print any at all if
you find what you are looking for online.
Version 1.1 - 11/13/2008
Page 5 of 25
Included in the Box
The WD-3106UR-B 4 Day Wireless Forecast Station is a complete Weather
Direct® LITE system that includes:
x WD-3106UR-B Wireless Display – Provides weather forecast
information, time, date and other custom data from the Internet. Also
receives and displays wireless outdoor temperature, from your
backyard using the included Wireless Outdoor Sensor.
x Wireless USB Transceiver – Provides your Weather Direct® LITE
System with weather data and other customizable feeds from the
Internet. Sends data to your Wireless Display with a wireless range of
up to 100 feet (open air).
x Weather Club Information Card
915 MHz Wireless Sensor Technology
This product offers: INSTANT TRANSMISSIO
N
is the state-o
f
-the-art new
wireless transmission technology, exclusively designed
and developed by LA CROSSE TECHNOLOGY®.
INSTANT TRANSMISSION offers you an immediate
update (every 4 seconds!) of all your outdoor data
measured from the sensors: follow your climatic
variations in real-time!
Version 1.1 - 11/13/2008
Page 6 of 25
What You Need to Get Started:
x Internet connection – dial-up, cable, DSL or other Internet service will
work.
x Valid e-mail address – required to make sure you can retrieve your
password and receive other information about your user profile.
x When Optional TX-50U Wireless Outdoor Temperature Sensor is
used: 2 “AA” Alkaline batteries for the Wireless Outdoor Sensor
NOTE: Rechargeable batteries are not recommended in the Wireless Outdoor
Sensor due to the wide variation in performance between brands and types.
Please use only fresh Alkaline batteries.
x 3 “AA” Alkaline or Rechargeable batteries for the Wireless Display
x Visit
www.weatherdirect.com and click “Register” to Start

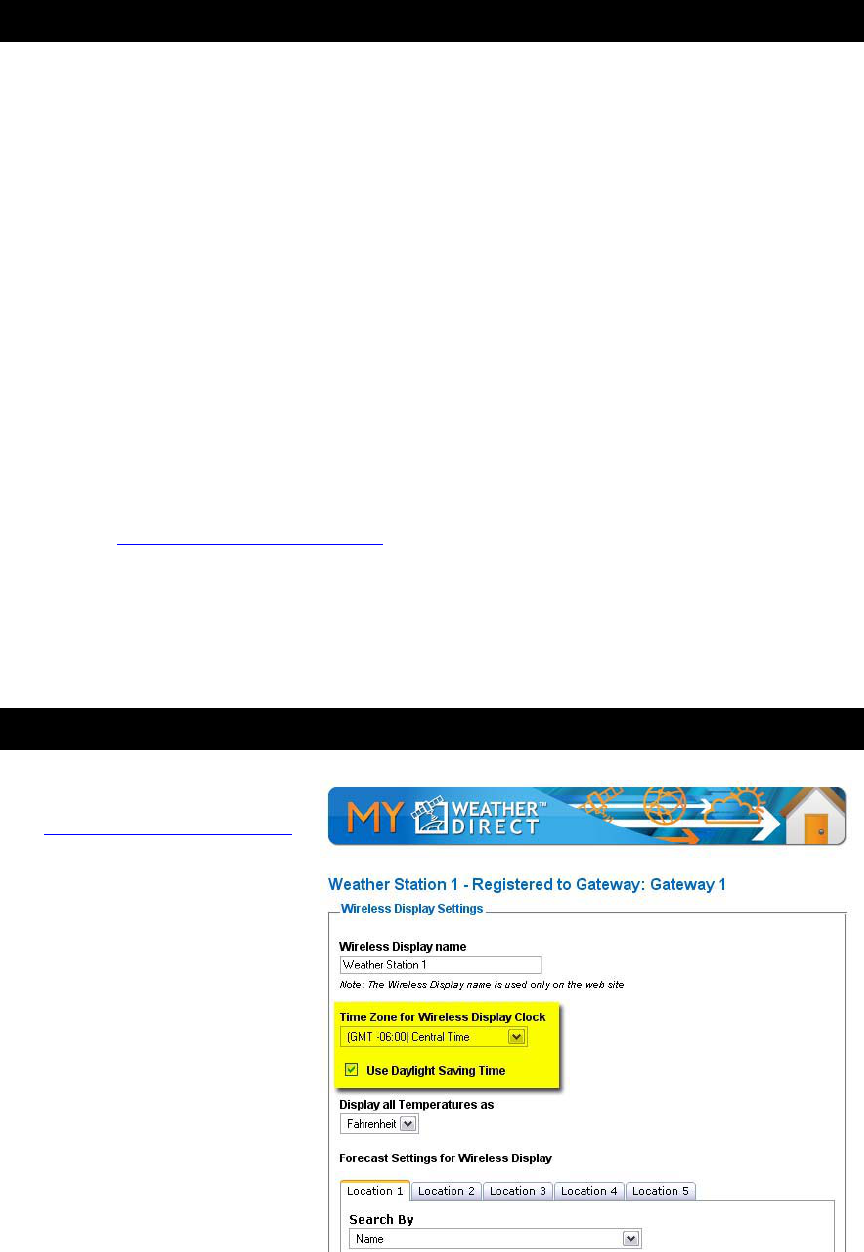

x After you have registered and selected a forecast location and Time
Zone for your Wireless Display, the forecast data will show up on the
display within 60 seconds.
x A reasonably current Windows, Macintosh, or Linux PC with internet
browser installed is required for initial set up and configuration changes
and weather updates.
x The browser must be configured with Java Script enabled. Most
browsers allow JavaScript as a standard feature. If you have turned
off support for JavaScript in your browser, please allow JavaScript to
run again to register or configure your Device.
Version 1.1 - 11/13/2008
Page 7 of 25
IMPORTANT MESSAGE:
Please DO NOT insert batteries into the Wireless Display or the Outdoor Sensor
until instructed to do so.
Set Up your WD-3106UR-B
Open www.weatherdirect.com in a web browser and click “REGISTER” at the top
of the page. Our Online Registration Wizard will guide you through the complete
registration process.
Hardware Installation
NOTE: Hardware installation is only intended to be performed after you have
registered your Wireless USB Transceiver and Wireless Display and have
confirmed successful reception of weather data.
Optional TX-50U Wireless Outdoor Sensor Installation Options
OPTIONAL: TX-50U Wireless Outdoor Temperature Sensor – Measures the
outdoor temperature where you are and sends temperature data to your Wireless
Display with a wireless range of up to 330 feet (open air). See
www.weatherdirect.com for details on how to add this sensor to your system.
NOTE: Move the Wireless Outdoor Sensor into its intended location and wait for
10 minutes to make sure the outdoor temperature is still being received by the
Wireless Display. Press the “+” Key on your Wireless Display to show the
outdoor temperature. If the display shows - -,-F for the outdoor temperature, the
signal cannot reach the Wireless Display. Find a closer location to mount the
Wireless Outdoor Sensor and wait 10 minutes to check the Wireless Display
again for reception.
DO NOT mount the Wireless Outdoor Sensor in a permanent fashion until
you are sure the signal is being received by the Wireless Display.
To Surface Mount the Outdoor Sensor:
We have provided a mounting plate that you can attach to a surface
with the supplied screws. The Sensor can be positioned on a flat
surface by securing the stand to the bottom by gently pushing the
Version 1.1 - 11/13/2008
Page 8 of 25
bottom of the Sensor onto the holding pegs of the stand until they click into place
in the grooves on the Sensor.
To Wall Mount the Outdoor Sensor:
The Outdoor Sensor is weather resistant, but not water proof. To
ensure maximum Sensor life, mount it in a covered place out of the
elements like under the eaves. Placement on the North side of your
home will provide the most accurate readings. Mount it about 18”
down from the eaves for optimum performance. This ensures that the
weather data collected by the Outdoor Sensor will not be affected by
the temperature of the air leaving the attic.
We have provided a mounting plate that you can attach to the wall with the
supplied screws. Gently snap the Sensor onto the holding pegs on the mounting
plate after the plate is screwed to the wall. When the holding pegs are securely
locked into the slots on the Sensor, you will hear a “Click”.
Wireless USB Transceiver Installation
The Wireless USB Transceiver sends weather forecasts to your Wireless Display
over a maximum 100 ft. range. Walls and other obstructions between the
Wireless USB Transceiver and Wireless Display will affect the range. The
Wireless Signal Icon will indicate the signal strength to let you know if your
Wireless USB Transceiver and Wireless Display are within range.
Online Resources
These links can help to enrich your Weather Direct® LITE experience:
x Help –
www.weatherdirect.com/help
x FREE Membership Included to the Weather Club, at
www.theweatherclub.com featuring:
Online weather forecasts by Meteorologist Paul Douglas
Radar maps
Video and photo uploads
And Much more!
x For a list of places to choose from as forecast locations -
www.weatherdirect.com/places
Version 1.1 - 11/13/2008
Page 9 of 25
Features
x Free Forecasts for Over 40,000 Locations in the United States and
Canada, Including Your Hometown, Golf Courses, Parks Sports
Venues and More.
x Automatically Updates Itself via the Wireless USB Transceiver
x 4 Day Forecast with Daily Sky Condition Icons
x Specific Forecast for Morning, Afternoon, Evening and Night and Full
Day
x Lower LCD Line Scrolls City Name, Forecast, Outdoor Temperature,
Sun Rise/Set
x Lower LCD Line Scrolling Speed Adjustment (1-4)
x LCD Contrast Setting (1-7)
x Daily HI / LOW Temperature Forecast
x Indoor Temperature (°F/°C)
x Wireless Outdoor Temperature with Optional TX-50U Sensor. Monitor
Your Outdoor Temperature From Anywhere in the World on a Free
Membership to the Online Weather Club. For more details, please visit
www.theweatherclub.com
x Time Alarm
x Time and Date Set Automatically
x Low Battery Indicator on the LCD and the web site for the Wireless
Display and Optional Outdoor Sensors
Time Setting on Wireless Display
The Time Zone you select
on www.weatherdirect.com
for your Wireless Display is
intended to set the time for
your physical location so
the clock on your Wireless
Display is accurate. This
time is independent of your
selected forecast locations.
The Wireless Display will
ONLY display the time from
the “Time Zone for Wireless
Display Clock” set on the
web site, NOT the time at
the forecast locations.
There is only one Time
Version 1.1 - 11/13/2008
Page 10 of 25
Zone available per Wireless Display.
The Daylight Saving Time (DST) checkbox on your Wireless Display settings at
www.weatherdirect.com is selected by default because most locations observe
DST. If you are in a location that does not observe DST, please make sure to
uncheck this box.
Optional TX-50U Wireless Outdoor Sensor
The Optional Wireless Outdoor Sensor sends temperature data to your Wireless
Display, accurate to within a tenth of one degree.
The Optional Outdoor Temperature Sensor uses 2
x “AA”, Alkaline batteries. To install and replace
the batteries, please follow the steps below:
1. Remove the battery compartment cover on
the back of the sensor.
2. Insert the batteries, observing the correct
polarity (see marking).
3. Replace the battery compartment cover on
the unit.
After the Optional Outdoor Temperature Sensor is powered up, press the “+” Key
on your Wireless Display to show the outdoor temperature at any time. The
outdoor temperature will scroll on the bottom of the LCD.
Because the “+” key is used to toggle between time, date and temperature, when
you press the “+” key to view the outdoor temperature, you also switch to the
next view mode on the top segment of the LCD. Simply press the “+” key until
you are also viewing the desired mode: time, date or temperature.

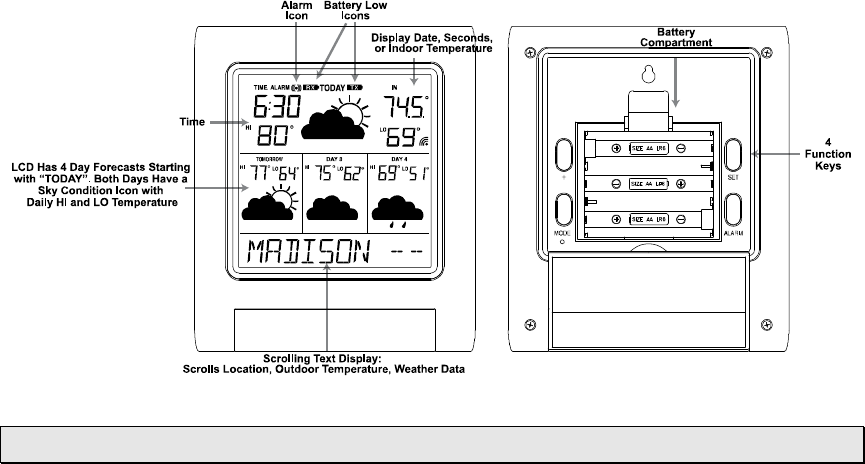

Wireless Display Operation
This section will teach you how to use your Wireless Display once you have
completed online registration. There are 4 control Keys located on the front of the
Wireless Display: “SET”, “+”, “ALARM” and “MODE”. The following information is
divided into sections based on the function of each Key.
Version 1.1 - 11/13/2008
Page 11 of 25
“MODE” Key
Specific Forecasts help you prepare for different weather conditions during the
day by providing weather information for Morning, Afternoon, Evening and Night.
You'll know if the weather during the morning commute will be different from the
weather during the rest of the day.
You'll know to bring your umbrella to work on a deceptively beautiful sunny
morning, because Micro Forecasts will inform you that it will rain in the afternoon
on your way home.
Going to the game today? The Afternoon and Evening forecasts are a lifesaver!
Micro Forecasts help to make sure that you pack a blanket or a rain coat if
needed.
Work 2nd or 3rd shift? Receive detailed forecast information tailored to specific
times of the day when you are the most active.
You can change the Micro Forecast reading on your Wireless Display by
pressing the “MODE” Key to toggle between the available options.
Press the “MODE” key to cycle through the Micro Forecast options:
1. MORNING
Forecast from 6:00 AM - 11:59 AM with Daily HI/LO Temperature
2. AFTERNOON
Forecast from 12:00 PM - 5:59 PM with Daily HI/LO Temperature
Version 1.1 - 11/13/2008
Page 12 of 25
3. EVENING
Forecast from 6:00 PM - 11:59 PM with Daily HI/LO Temperature
4. NIGHT
Forecast from 12:00 AM – 5:59 AM with Daily HI/LO Temperature
5. ROTATE
Rotates between the four Micro Forecasts and the Daily Forecast
6. NEXT SECTION
Shows the forecast for the next six hour period so you can be prepared for
the upcoming weather. If it was morning now, it would show the afternoon
forecast. If it was evening now, it would show the night forecast, etc.
7. ONLY DAY
Shows only the Daily forecast when you are only interested in the weather
for the day rather than forecasts for morning, afternoon, evening or night.
“ALARM” Key
Turn Alarm ON/OFF
x Press the “ALARM” Key to turn the alarm ON. The Alarm icon “((•))”
will appear on the LCD.
x Press the “ALARM” Key again to turn the alarm OFF. The Alarm icon
“((•))” will disappear from the LCD.
x Press the “ALARM” Key when the alarm is sounding to stop the alarm
for 24 Hours.
Set Alarm Time
x Press and Hold the “ALARM” Key until the hours digit flashes to set the
alarm time. Alarm will sound once every 24 hours while active.
x Press the “+” Key to change the hour. “PM” will indicate a PM time,
while no icon next to the time means AM time.
x Press the “ALARM” key again and the minutes digit will flash.
x Press the “+” key to change minutes.
x Press the “ALARM” key once more to return to normal display
Version 1.1 - 11/13/2008
Page 13 of 25
“+” Key
Toggle Between Time, Date & Temperature
x The “+” Key cycles through the date, seconds and indoor temperature
on the top segment of the LCD
View Outdoor Temperature – Only With Optional TX-50U Wireless
Outdoor Temperature Sensor
x Press the “+” key to view the current outdoor temperature from your
synchronized wireless outdoor sensor.
x Because the “+” key is used to toggle between time, date and
temperature, when you press the “+” key to view the outdoor
temperature, you also switch to the next view mode on the top
segment of the LCD. Simply press the “+” key until you are also
viewing the desired mode: time, date or temperature.
Manually Request a Weather Direct® LITE Data Update
x When you register your Wireless Display, the weather data is updated
within a few minutes. Every 6 hours after that, your Wireless USB
Transceiver will send weather data to update your Wireless Display.
x After changing the forecast location or other setting on the web site, it
can be up to six hours for your next scheduled automatic update.
x After adding an Expansion Option to your Wireless Display, it can be
up to six hours for your next scheduled automatic update.
x If you do not want to wait for your Wireless Display to update
automatically, Press and Hold the “+” Key for 3 seconds until your
Wireless Display beeps once. A second beep within a few seconds will
signify that the Wireless Display has received the data.
“SET” Key
When ADD 4 LOCATIONS Expansion Option is Active
Press the “SET” Key to toggle between the forecast locations on the Wireless
Display when the ADD 4 LOCATIONS Expansion Option is active. The name of
the location will appear briefly on the bottom of the LCD when it is selected.
Weather data for up to 5 locations can be viewed on your Wireless Display.
Version 1.1 - 11/13/2008
Page 14 of 25
Changing Settings on Your Wireless Display
Press and hold the “SET” Key until the Wireless Display beeps to enter the SET
mode. Press the “SET” Key to toggle through the four SET modes. If you wait for
5 seconds without pressing a key, the Wireless Display will exit the SET mode
and return to normal operation.
The Four SET modes are:
Set Mode 1 – Set LCD Contrast (0-7)
Press and Hold the “SET” Key until the Wireless Display
beeps to enter the SET mode
“LCD” and number (0-7) will flash near the top. “SET LCD
CONTRAST” will scroll across the bottom
Press the “+” Key to update the LCD Contrast settings.
Lightest Contrast = “0”, Darkest Contrast = “7”
Press the “SET” Key to save the current settings and
advance to the next option
Set Mode 2 – Enable Acoustic Weather Warnings (ON/OFF)
NOTE: This SET mode is only available when the Severe Weather Alerts
Expansion Option is active. In addition to the scrolling text of the Severe
Weather Alerts, an Acoustic Weather Warning provides a beep to notify you of a
weather condition. You can turn this beep off to silence this warning so only the
text of the warning is displayed. To change the setting, follow the instructions
below:
Press the “SET” Key until “AAL ON” or “AAL OFF” flashes
at the top and “ENABLE ACOUSTIC WEATHER
WARNINGS” scrolls across the bottom
Press the “+” Key to turn AAL “ON” or “OFF”
Press the “SET” Key to save the current settings and
advance to the next option
NOTE: You can silence an Acoustic Weather Warning by pressing any Key.
Set Mode 3 - Set Text Scrolling Speed (1-4)
Press the “SET” Key until “Scr” flashes at the top and “SET
SCROLL SPEED” scrolls across the bottom
The standard speed is set to “2”
Version 1.1 - 11/13/2008
Page 15 of 25
There are four speeds available – “1” is the slowest and “4”
is the fastest
Press the “+” Key to change the scroll speed.
Press the “SET” Key to save the current settings and
advance to the next option
Set Mode 4 - View Device ID
NOTE: Device ID is a reference item for customer service only. You may press
the “SET” Key again to exit SET mode if you are not asked to provide this
number by customer service.
Press the “SET” Key until “SEC 1” appears at the top
The first part of the Device ID will appear at the bottom
Press the ‘+” Key to view second part of the Device ID under
“SEC 2”
Press the “SET” Key to exit SET mode
Factory Reset of Wireless Display
NOTE: It is not possible to re-register a previously registered Wireless Display
under a new account until the Wireless Display has been deleted from the user
account on www.weatherdirect.com and a Factory Reset has been performed.
NOTE: Expansion Options that are Lifetime Upgrades are still active on your
Wireless Display even if you delete it from your user account on
www.weatherdirect.com or perform a Factory Reset. The selection of locations
and other custom settings will need to be performed again if the Wireless Display
is re-registered.
WARNING: The Factory Reset procedure will erase any registration and setup
information from your Wireless Display. You must register the Wireless Display
again with www.weatherdirect.com to use it after a Factory Reset.
WARNING: Deleting the Wireless Display from a user account on
www.weatherdirect.com will erase the weather and other setup information such
as forecast locations from the Wireless Display.
If you have trouble registering your Wireless Display after multiple attempts, you
can try a Factory Reset.
If you wish to give your Wireless Display to someone else or simply to register it
under a different user account, you must perform the Factory Reset to clear the
Version 1.1 - 11/13/2008
Page 16 of 25
registration information from the memory of the Wireless Display and delete the
device from the user account on www.weatherdirect.com
Additional diagnostic and reset information, including how to reset the Wireless
USB Transceiver (if necessary), is contained at www.weatherdirect.com/help
TO PERFORM THE FACTORY RESET:
Hold both the “SET” and “ALARM” Keys down together for about 6 seconds; you
will hear a double beep. This resets the Wireless Display to the original factory
state.
FREE Trial of Expansion Options for 14 Days
When you register your Wireless Display and have the included forecast location
selected, you will be given the opportunity to try our most popular Expansion
Options FREE for 14 Days!
14 Days of FREE Expansion Options, including:
1. 4 Additional Forecast Locations on your Wireless Display
Four Additional Forecast Locations
The standard Weather Direct® LITE Wireless Display includes weather
information for one location. - But what about the weather happening in other
places that are important to you?
In addition to your standard location, the Four Additional Locations Expansion
Option allows you to monitor four more forecast locations on your Wireless
Display, for a total of five.
Press the “SET” Key on your Wireless Display to display the weather data for
another forecast location. You can have up to five locations on your Wireless
Display. Every press of the “SET” Key rotates through the list of available
locations.
Now you can keep an eye on the weather where your daughter goes to school,
your favorite vacation spot, your parents’ house and more.
Version 1.1 - 11/13/2008
Page 17 of 25
Add Optional Secure Weather Gateway
x The Weather Gateway Delivers the Full Weather Direct Experience,
Eliminating the Need for the USB Transceiver. The Weather Gateway
Connects to Your Network Router with the Included LAN Cable to Send
Secure Wireless Forecasts Up to 330 Ft away to the Wireless Display
Around the Clock, Providing the Most Current Information Available
without Turning on a TV or Computer.
o Powered by Included AC Adapter
o LAN Cable Included to Connect to Network Router
o Wireless Display Will Now Show Specific Forecasts for Each
Morning, Afternoon, Evening and Night for Today and Tomorrow
The Secure Weather Gateway Increases the System’s Wireless Range
from 100 Ft to 330 Ft and Allows Your Current Wireless Display to Accept
Additional Expansion Options:
o Add Forecast Alerts:
Receive a Text Message or Email Alert When the Chance of
Rain/Snow, HI/LOW Humidity, or HI/LOW Outdoor Temperature is
Outside of Your Desired Range. The Wireless Display Will Also
Sound Audible Alarms.
o Add Severe Weather Alerts:
Keep your family safe with Severe Weather Alerts issued by the
National Weather Service. This valuable information will help you
prepare for upcoming weather events. Choose which types of
severe weather events you want to receive for up to three locations.
Even be alerted via e-mail or SMS text message when you are
away from your Wireless Display.
Weather Direct® is not liable for any incidents that may occur as a result of any
National Weather Service alert. This alert service is provided as a convenience
to make you aware of a potential situation, not as a replacement for local severe
weather warning system
Version 1.1 - 11/13/2008
Page 18 of 25
Types of Severe Weather Alerts (Only available with Optional Secure
Weather Gateway):
Warnings
Blizzard Heavy Rainfall Severe Thunderstorm
Coastal Flood Heavy Snow Severe Wind
Excessive Heat Heavy Snowfall Small Craft
Flash Flood High Wind Special Marine
Flood Hurricane Force Storm
Freeze Ice Storm Tornado
Frost Lake Effect Snow Weather
Gale Lake Snow Wind Chill
Heavy Rain River Flood Winter Storm
Watches
Coastal Flood Flood Lake Effect Snow
Excessive Heat Freeze Lake Snow
Flash Flood High Wind River Flood
Advisories and Statements
Blowing Dust Heat Tropical Storm
Statement
Blowing Snow Heavy Snow Urban And Small Stream
Flood
Dense Fog Hurricane Statement Urban Flood
Freezing Drizzle Lake Effect Snow Wind
Freezing Fog Small Stream Flood Wind Chill
Freezing Rain Snow Winter Weather
Frost Snow And Blowing Snow
Version 1.1 - 11/13/2008
Page 19 of 25
Forecast Icons Explained
There are two sets of icons presented on your Wireless Display, one for day and
one for night. A sun appears on many of the day icons while a moon appears on
many of the night icons.
NOTE: Trace precipitation will not display droplets on the icon and “MEDIUM”
conditions generally use the “HEAVY” icons to communicate weather events that
are likely to affect your plans for the day.
Version 1.1 - 11/13/2008
Page 20 of 25
Care and Maintenance
x Extreme temperatures, vibration and shock should be avoided as
these may cause damage to the unit and give inaccurate readings.
x Precautions shall be taken when handling the batteries. Injuries, burns,
or property damage may be resulted if the batteries are in contact with
conducting materials, heat, corrosive materials or explosives. The
batteries shall be taken out from the unit before the product is to be
stored for a long period of time.
x Immediately remove all low powered batteries to avoid leakage and
damage. Replace only with new batteries of the recommended type.
x When cleaning the display and casings, use a soft damp cloth only. Do
not use solvents or scouring agents as they may mark the LCD and
casings.
x Do not submerge the unit in water. Furthermore, fix all parts in place
where the units are adequately protected against moisture and rain.
x Special care shall be taken when handling a damaged LCD display.
The liquid crystals can be harmful to user's health.
x Do not make any repair attempts to the unit. Return them to their
original point of purchase for repair by a qualified engineer. Opening
and tampering with the unit may invalidate their guarantee.
x Never touch the exposed electronic circuit of the device as there is a
danger of electric shock should it become exposed.
x Do not expose the units to extreme and sudden temperature changes,
this may lead to reduce their accuracy.
x Batteries are the single largest cause of customer support cases.
Please use plain Alkaline batteries in the Wireless Outdoor Sensor
testing no less than 1.48 on a voltmeter or with and expiration date 7
years in the future.
x Rechargeable “AA” batteries may be used in the Wireless Display, but
NOT in the Wireless Outdoor Sensor.
Battery Low Icons
x When the batteries need to be replaced in the Wireless Outdoor
Sensor, the LCD will display the “TX” icon.
x When the batteries need to be replaced in the Wireless Display, the
LCD will display the “RX” icon.
Version 1.1 - 11/13/2008
Page 21 of 25
Battery Replacement
We recommend that you replace the batteries in all units regularly to
ensure optimum accuracy of these units. Please see the battery life in
the specifications below.
Help us to keep our environment clean. Return used batteries to an authorized
depot.
Troubleshooting
Visit www.weatherdirect.com/help for information on troubleshooting.
Specifications
Temperature Range
Indoor Range: 14.1°F to 100°F (-9.9°C to 37.7°C)
Outdoor Range: -39.8°F to +139.8°F (-39.8°C to 59.8°C)
Update Interval: Every 4.5 seconds
Battery Life
Wireless Display (without Severe Weather Alerts Activated): Up to 2 Years
Wireless Display (with Severe Weather Alerts Activated): Up to 15 Months
Wireless Outdoor Sensor: Up to 2 Years
Dimensions
Wireless Display: 4.76” L x 1.53” W x 5.15” H
Wireless USB Transceiver: 3.22" L x .36" W x .89" H
Wireless Outdoor Sensor: 1.5" L x .83" W x 5.05" H
Weather Direct® LITE Update Rate
Every 6 Hours
Weather Direct® LITE Wireless Range
Up to 100 Feet (open air)
Version 1.1 - 11/13/2008
Page 22 of 25
Power Requirements
NOTE: Rechargeable batteries are not recommended due to the wide variation in
performance between brands and types. Please use only fresh Alkaline
batteries.
Wireless Display: 3 “AA” Batteries Alkaline or Rechargeable (not included)
Wireless USB Transceiver: Powered by computer’s USB port
Wireless Temperature Sensor: 2 “AA” Alkaline Batteries (not included)
Liability Disclaimer
x The manufacturer and supplier cannot accept any responsibility for any
incorrect readings and any consequences that occur should an
inaccurate reading take place.
x This product is designed for use in the home only as indication of the
temperature and weather forecast for the selected location.
x This product is not to be used for medical purposes or for public
information.
x The specifications of this product may change without prior notice.
x This product is not a toy. Keep out of the reach of children.
Version 1.1 - 11/13/2008
Page 23 of 25
FCC Statements
Statement according to FCC part 15.21:
Modifications not expressly approved by this company could void the user's
authority to operate the equipment.
Statement according to FCC part 15.105:
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:
x Reorient or relocate the receiving antenna.
x Increase the separation between the equipment and receiver.
x Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
x Consult the dealer or an experienced radio/TV technician for help.
RF Exposure:
This device is a very low power transmitter. There are no restrictions regarding
RF Exposure requirement
This device and its antenna must not be co-located or operating in conjunction with any other
antenna or transmitter.
Version 1.1 - 11/13/2008
Page 24 of 25
Warranty Information
La Crosse Technology, Ltd provides a 1-year limited warranty on this product
against manufacturing defects in materials and workmanship.
This limited warranty begins on the original date of purchase, is valid only on
products purchased and used in North America and only to the original purchaser
of this product. To receive warranty service, the purchaser must contact La
Crosse Technology, Ltd for problem determination and service procedures.
Warranty service can only be performed by a La Crosse Technology, Ltd
authorized service center. The original dated bill of sale must be presented upon
request as proof of purchase to La Crosse Technology, Ltd or La Crosse
Technology, Ltd’s authorized service center.
La Crosse Technology, Ltd will repair or replace this product, at our option and at
no charge as stipulated herein, with new or reconditioned parts or products if
found to be defective during the limited warranty period specified above. All
replaced parts and products become the property of La Crosse Technology, Ltd
and must be returned to La Crosse Technology, Ltd
Replacement parts and products assume the remaining original warranty, or
ninety (90) days, whichever is longer. La Crosse Technology, Ltd will pay all
expenses for labor and materials for all repairs covered by this warranty. If
necessary repairs are not covered by this warranty, or if a product is examined
which is not in need of repair, you will be charged for the repairs or examination.
The owner must pay any shipping charges incurred in getting your La Crosse
Technology, Ltd product to a La Crosse Technology, Ltd authorized service
center.
Your La Crosse Technology, Ltd warranty covers all defects in material and
workmanship with the following specified exceptions: (1) damage caused by
accident, unreasonable use or neglect (including the lack of reasonable and
necessary maintenance); (2) damage occurring during shipment (claims must be
presented to the carrier); (3) damage to, or deterioration of, any accessory or
decorative surface; (4) damage resulting from failure to follow instructions
contained in your owner’s manual; (5) damage resulting from the performance of
repairs or alterations by someone other than an authorized La Crosse
Technology, Ltd authorized service center; (6) units used for other than home
use (7) applications and uses that this product was not intended or (8) the
products inability to receive a signal due to any source of interference.
This warranty covers only actual defects within the product itself, and does not
cover the cost of installation or removal from a fixed installation, normal set-up or
adjustments, claims based on misrepresentation by the seller or performance
variations resulting from installation-related circumstances.
LA CROSSE TECHNOLOGY, LTD WILL NOT ASSUME LIABILITY FOR
INCIDENTAL, CONSEQUENTIAL, PUNITIVE, OR OTHER SIMILAR DAMAGES
ASSOCIATED WITH THE OPERATION OR MALFUNCTION OF THIS
PRODUCT. THIS PRODUCT IS NOT TO BE USED FOR MEDICAL
Version 1.1 - 11/13/2008
Page 25 of 25
PURPOSES OR FOR PUBLIC INFORMATION. THIS PRODUCT IS NOT A
TOY. KEEP OUT OF CHILDREN’S REACH.
This warranty gives you specific legal rights. You may also have other rights
specific to your State. Some States do not allow the exclusion of consequential
or incidental damages; therefore the above exclusion of limitation may not apply
to you.
Support services are limited to the WD-3106UR-B system components supplied
and usage of the weather direct web site. Any other computer system
components or Internet communication configurations (e.g. the computer,
network, router, Internet browser, ISP service, etc.) are outside of the scope of
our services.
For warranty work, technical support, or information contact:
Hours: Mon-Fri. – 8:00 AM to 5:30 PM Central
e-mail: support@weatherdirect.com
La Crosse Technology, Ltd
2817 Losey Blvd. S.
La Crosse, WI 54601
Phone: 608.785.7935
Fax: 608.796.1020
For information on other La Crosse Technology® products,
e-mail: sales@lacrossetechnology.com
All rights reserved. This handbook must not be reproduced in any form, even in
excerpts, or duplicated or processed using electronic, mechanical or chemical
procedures without written permission of the publisher.
This handbook may contain mistakes and printing errors. The information in this
handbook is regularly checked and corrections made in the next issue. We
accept no liability for technical mistakes or printing errors, or their consequences.
All trademarks and patents are acknowledged.
