Users Manual
Temperature Transmitter
Quick setup manual
SET UP:
IMPORTANT: Do not mix old and new batteries.
NOTE: This temperature station can receive one
transmitter only.
• First, insert fresh alkaline batteries into the TX43U
transmitter, observing the correct polarity (see
marking inside battery compartment). Keep
transmitter 5-10 feet from the temperature station.
• Within 30 seconds of powering up the transmitter,
insert batteries into the Temperature Station,
observing the correct polarity (see marking inside
battery compartment). Once the batteries are in place,
all segments of the LCD will light up briefly. Following
the indoor temperature will be displayed. If the indoor
temperature is not shown in the LCD after 60
seconds, remove the batteries and wait for at least 60
seconds before reinserting them. Once the indoor
data is displayed you may proceed to the next step.
• After the batteries are inserted, the Temperature
Station will start receiving outdoor temp data from the
transmitter. The outdoor temperature should then be
displayed on the Temperature station. If this does not
happen after 2 minutes, remove the batteries from
both units and start again from the beginning.
• In order to ensure sufficient 433 MHz transmission,
the outdoor transmitter should be placed a distance of
no more than 100 feet (30 meters) from the
Temperature Station and the transmitter.
INSTALL AND REPLACE BATTERIES IN THE
TEMPERATURE TRANSMITTER

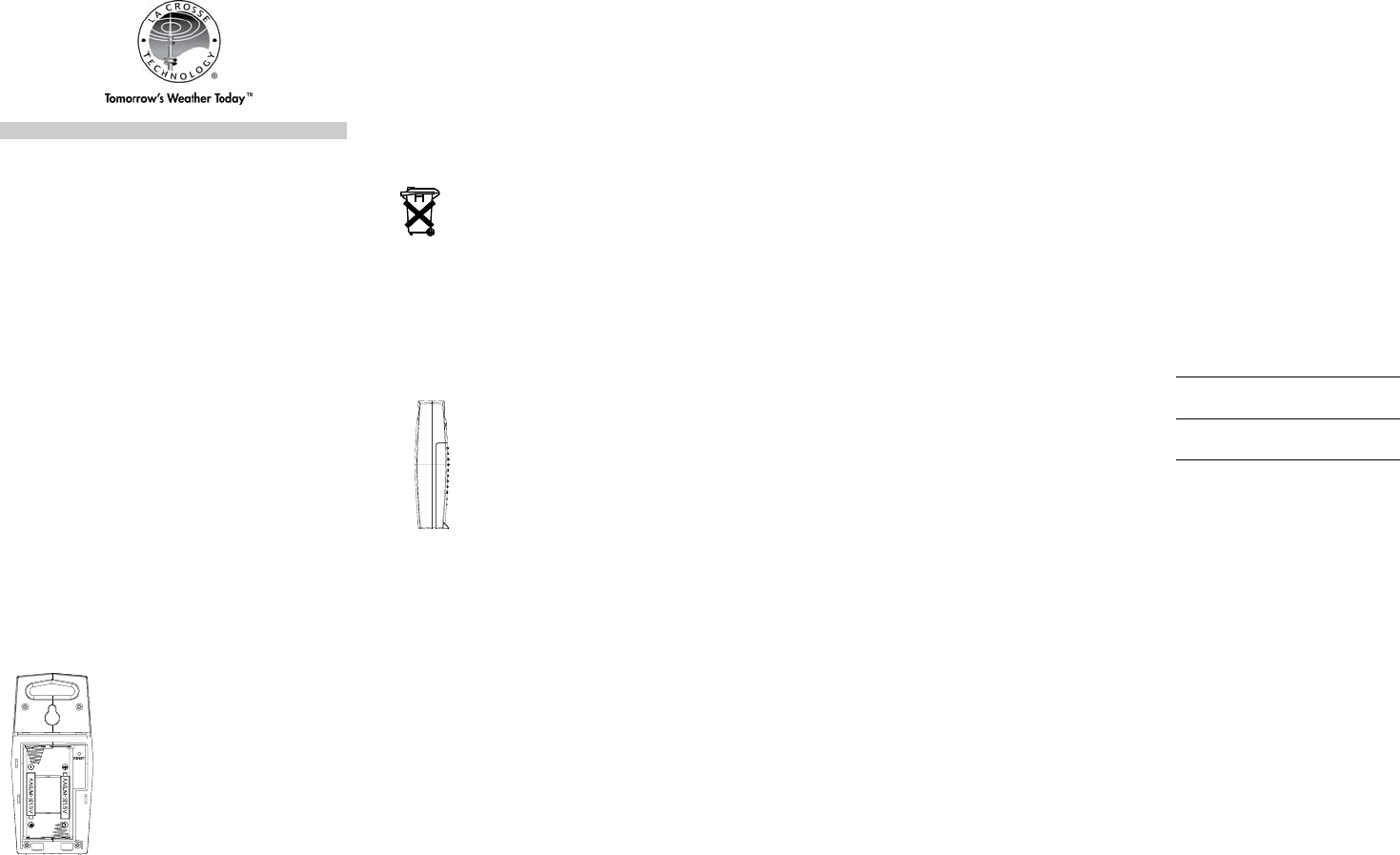

The Temperature transmitter uses 2 x
AA, IEC LR6, 1.5V batteries. When
batteries will need to be replaced, the
low battery icon will appear on the LCD
in front of the outdoor temperature. To
install and replace the batteries, please
follow the steps below:
1. Remove the battery compartment
cover. (Slide to the bottom, and
then lift straight off).
2. Insert the batteries, observing the
correct polarity (see marking).
3. Replace the battery cover to the
unit.
NOTE:
In the event of changing batteries in any of the units, all
units need to be reset by following the set up procedures.
This is because the transmitter at start-up assigns a
random security code and this code must be received and
stored by the Temperature Station in the first few minutes
of power supplying.
RESET BUTTON:
The Temperature Transmitter has a RESET button. Use a
small pointed object to gently press and release to send a
signal. Follow the instructions for in SET UP regarding the
display.
NOTE: Removing power from the transmitter and display
negates the need for the RESET button.
LOW BATTERY:
It is recommended to replace the batteries in all units every
12 months to ensure optimum accuracy of these units. A
low battery icon will display next to the outdoor
temperature when the transmitter batteries are low and
next to the indoor temperature then the batteries in the
temperature station are low.
Please participate in the preservation of the
environment. Return used batteries to an
authorised depot.
POSITIONING THE REMOTE TEMPERATURE
TRANSMITTER:
The remote temperature transmitter can be placed onto
any flat surface using the wide base or wall mounted using
the hole on the back of the sensor. Best location is under
the eave (12-18 inches) on the North side of the home.
WALL MOUNT:
1. Install a mounting screw (not included)
into a wall—leaving approximately 3/16
of an inch (5mm) extended from the
wall.
2. Place the temperature transmitter onto
the screw, using the hanging hole on
the backside. Gently pull the
transmitter down to lock into place
NOTE: Always ensure that the transmitter
locks onto the screw before releasing.
TABLE STAND: This is not recommended as the
transmitter may be blown over and damaged.
NOTE: The mounting surface can affect the transmission
range. If, for instance, the unit is attached to a piece of
metal, it may reduce the transmitting range. For this reason,
we recommend not to place the unit on any metal surfaces
or in any position where a large metal or highly polished
surface is in the immediate vicinity (garage doors, double
glazing, etc.). Before securing in place, please ensure that
the Temperature Station can receive the 433MHz signal
from the temperature Transmitter at the positions that you
wish to place them.
The remote temperature transmitter should be placed
outside in a dry, shaded area. The remote temperature
transmitter has a range of 100 feet (30 meters). Keep in
mind this distance is in open air with no obstructions and
that radio waves DO NOT curve to go around objects.
Real-world transmission range will vary depending on what
is in the path of the signal. Each obstruction (roof, walls,
floors, ceilings, thick trees, etc.) will effectively cut signal
range in half.
MAINTENANCE:
• Keep the temperature station in a dry place.
• Do not expose the display to extreme temperatures,
vibration or shock.
• Clean it with a soft damp cloth. Do not use solvents or
scouring agents.
• If the unit does not work properly, change the battery.
SPECIFICATIONS:
Outdoor Temperature:
Range: -22° F to 140° F (-30° C to -60° C)
Resolution: 1° F/C
Interval: 57 seconds
Power:
Transmitter: 2-AA, IEC, LR6 alkaline batteries.
Dimensions:
Transmitter: 1 ¾” W x 1” D x 4” H
WARRANTY INFORMATION
La Crosse Technology, Ltd provides a 1-year limited
warranty on this product against manufacturing defects in
materials and workmanship.
This limited warranty begins on the original date of
purchase, is valid only on products purchased and used in
North America and only to the original purchaser of this
product. To receive warranty service, the purchaser must
contact La Crosse Technology, Ltd for problem
determination and service procedures. Warranty service
can only be performed by a La Crosse Technology, Ltd
authorized service center. The original dated bill of sale
must be presented upon request as proof of purchase to
La Crosse Technology, Ltd or La Crosse Technology,
Ltd’s authorized service center.
La Crosse Technology, Ltd will repair or replace this
product, at our option and at no charge as stipulated herein,
with new or reconditioned parts or products if found to be
defective during the limited warranty period specified
above. All replaced parts and products become the
property of La Crosse Technology, Ltd and must be
returned to La Crosse Technology, Ltd.
Replacement parts and products assume the remaining
original warranty, or ninety (90) days, whichever is
longer. La Crosse Technology, Ltd will pay all expenses
for labor and materials for all repairs covered by this
warranty. If necessary repairs are not covered by this
warranty, or if a product is examined which is not in need
or repair, you will be charged for the repairs or
examination.
The owner must pay any shipping charges incurred in
getting your La Crosse Technology, Ltd product to a La
Crosse Technology, Ltd authorized service center.
Your La Crosse Technology, Ltd warranty covers all
defects in material and workmanship with the following
specified exceptions: (1) damage caused by accident,
unreasonable use or neglect (including the lack of
reasonable and necessary maintenance); (2) damage
occurring during shipment (claims must be presented to
the carrier); (3) damage to, or deterioration of, any
accessory or decorative surface; (4) damage resulting from
failure to follow instructions contained in your owner’s
manual; (5) damage resulting from the performance of
repairs or alterations by someone other than an authorized
La Crosse Technology, Ltd authorized service center; (6)
units used for other than home use (7) applications and
uses that this product was not intended or (8) the products
inability to receive a signal due to any source of
interference.
This warranty covers only actual defects within the product
itself, and does not cover the cost of installation or removal
from a fixed installation, normal set-up or adjustments,
claims based on misrepresentation by the seller or
performance variations resulting from installation-related
circumstances.
LA CROSSE TECHNOLOGY, LTD WILL NOT ASSUME
LIABILITY FOR INCIDENTAL, CONSEQUENTIAL,
PUNITIVE, OR OTHER SIMILAR DAMAGES
ASSOCIATED WITH THE OPERATION OR
MALFUNCTION OF THIS PRODUCT. THIS PRODUCT
IS NOT TO BE USED FOR MEDICAL PURPOSES OR
FOR PUBLIC INFORMATION. THIS PRODUCT IS NOT A
TOY. KEEP OUT OF CHILDREN’S REACH.
This warranty gives you specific legal rights. You may also
have other rights specific to your State. Some States do
no allow the exclusion of consequential or incidental
damages therefore the above exclusion of limitation may
not apply to you.
For warranty work, technical support, or information
contact:
La Crosse Technology
2817 Losey Blvd. S.
La Crosse, WI 54601
The complete instruction manual is available at:
www.lacrossetechnology.com/support
Le manuel d'instruction complet est disponible sur:
www.lacrossetechnology.com/support
El manual de instrucciones completo está disponible en:
www.lacrossetechnology.com/support
FCC ID: OMO-M-13 (transmitter)
FCC DISCLAIMER
RF Exposure mobile:
The internal / external antennas used for this mobile
transmitter must provide a separation distance of at least
20 cm (8 inches) from all persons and must not be co-
located or operating in conjunction with any other antenna
or transmitter."
Statement according to FCC part 15.19:
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
Statement according to FCC part 15.21:
Modifications not expressly approved by this company
could void the user's authority to operate the equipment.
Statement according to FCC part 15.105:
NOTE: This equipment has been tested and found to
comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference
in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV
technician for help.
All rights reserved. This handbook must not be reproduced in any
form, even in excerpts, or duplicated or processed using electronic,
mechanical or chemical procedures without written permission of the
publisher.
This handbook may contain mistakes and printing errors. The
information in this handbook is regularly checked and corrections
made in the next issue. We accept no liability for technical mistakes
or printing errors, or their consequences.
All trademarks and patents are acknowledged.
