Professional Weather Station
Instructional Manual
Model: S85807 DC:090616
Protected under U.S. Patents: 5,978,738 | 6,076,044 | RE43903
For online video support:
http://bit.ly/LaxTechTalk
LO
HI
LO HI
MPH
in
OUTDOOR
HUMIDITY
LEVEL
WIND
RAIN
INDOOR
FORECAST
1
0.5
0
FEELS LIKE
TOP SPEED
1
HR
SPEED
N
EW
S
LO
HI
![](/img.php?id=3131301&img=bg2.png)
Table of Contents
Page | 1 www.lacrossetechnology.com/S85807 S85807
Setup Preparation ....................
Setup .....................................
Display Icons ..........................
Wind Readings ........................
Wind History ...........................
Rain Readings | History ............
Temperature/ Humidity HI | LO .
Weather Alerts ........................
Set Weather Alerts ...................
Weather Forecast Icons ............
Seasonal Trees ........................
Sensor Search .........................
Mounting Instructions ...............
Replace Wind Cups ..................
Replace Directional Vane ...........
Factory Restart ........................
Follow Us on Social Media .........
WIFI Icon ...............................
Specications ..........................
Care and Maintenance ..............
Warranty and Support ..............
FCC Statement ........................
Canada Statement ...................
2
2
5
5
6
6
8
9
10
11
11
12
13
14
15
15
16
17
18
18
19
19
19
![](/img.php?id=3131301&img=bg3.png)
Setup Preparation
Here are some items needed to setup your station (not included):
1. Phillips head screwdriver for assembly.
2. Fresh Batteries: 5 (ve) AA alkaline or lithium batteries for
the sensors.
3 (three) AAA alkaline batteries for the
station (optional).
For best results:
• Remove weather station and sensors from the package and place
together on a table or bench, within easy reach.
• Place batteries and screwdriver within reach of setup location.
• Keep sensors and weather station 5-10 feet apart for the rst
15 minutes after installing batteries.
Software version will show for 2
seconds. Lower left corner.
Setup
Power up. Observe correct polarity.
• Thermo-hygro sensor- 2-AA batteries
• Multi-sensor- 3-AA batteries
• Weather Station- 5.0 Volt AC adapter and
3-AAA batteries (optional)
Place sensors outdoors at least 6 feet above objects below them
(ground, roof, etc.)
• Thermo-hygro sensor-Place in a shaded location to protect from
sun.
• Multi-sensor- Place in an open area. No obstructions for 50 feet
in all directions.
Enjoy your backyard weather!
S85807 www.lacrossetechnology.com/S85807 Page | 2
Note: Batteries are not included
TX °C/°F
1 2 3
Optional
Power
Cable
AAA
AAA
AAA
+
+
-
-
+
-
AA
AA
+
-
AA
+
-
+
-
AA
AA +
-
+
-
![](/img.php?id=3131301&img=bg4.png)
Congure basic settings. Hold the SET button to enter settings.
Press and release the +/-
buttons to make adjustments and the SET button to conrm.
Settings order:
• BEEP ON/OFF
• Time zone (-12 to +12)
• Auto DST ON/OFF (Daylight Saving Time)
• Hour
• Minutes
• 12h/24h hour format
• Year
• Month
• Date
• Temperature (C/F)
• Wind degree or direction (letters) select
• Wind speed select (mph/kmh)
• Rainfall unit select (in/mm)
1. BEEP ON | OFF
2. Time Zone (-12 to + 12)
3. Auto DST ON | OFF
4. Hours
5. Minutes
6. 12 | 24 Hour Format
Page | 3 www.lacrossetechnology.com/S85807 S85807
North America
Time Zones
Atlantic
Eastern
Central
Mountain
Pacic
Alaska
Hawaii
-4h
-5h
-6h
-7h
-8h
-9h
-10h
![](/img.php?id=3131301&img=bg5.png)

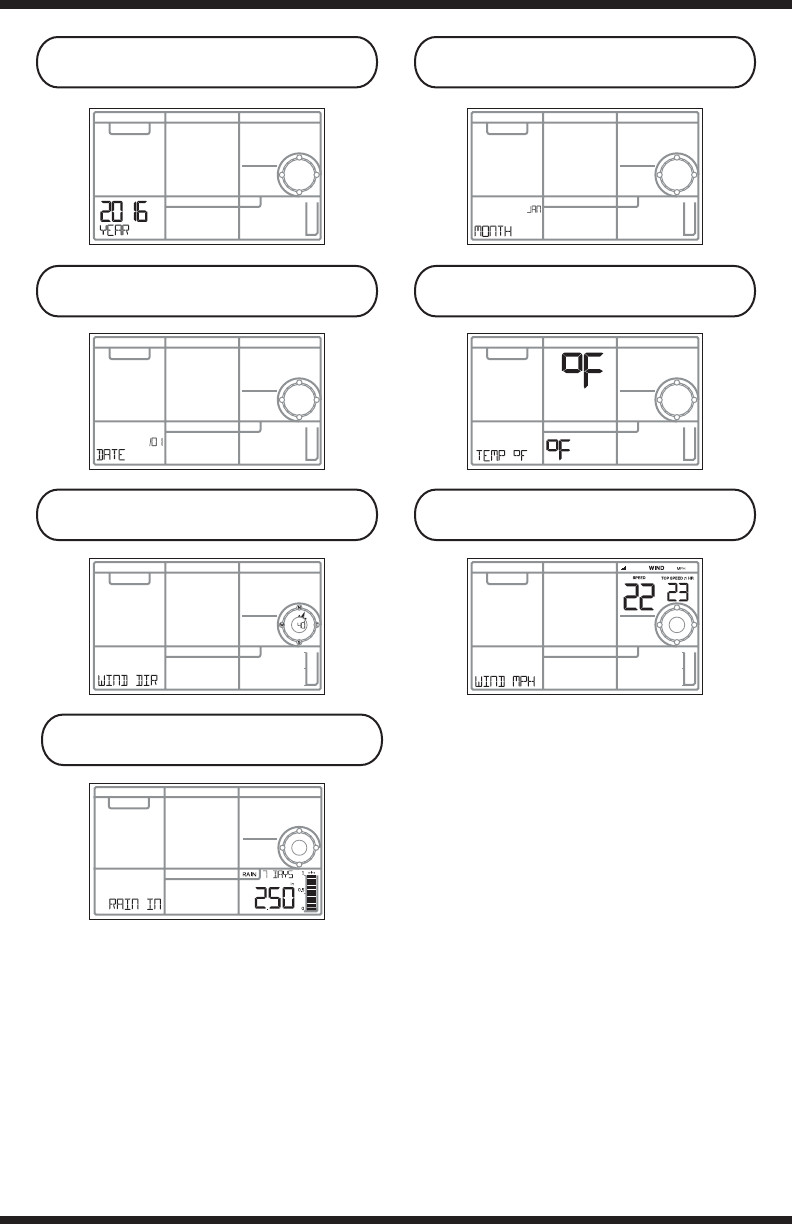

7. Year
8. Month
9. Date
10. Fahrenheit | Celsius
11. Wind Direction
(degrees | letters)
12. Wind Speed (MPH | KMH)
13. Rain (INCH | MM)
• Press the LIGHT button at any time to exit.
• After 30 seconds with no button press, the station will default back
to normal time display.
S85807 www.lacrossetechnology.com/S85807 Page | 4
![](/img.php?id=3131301&img=bg6.png)

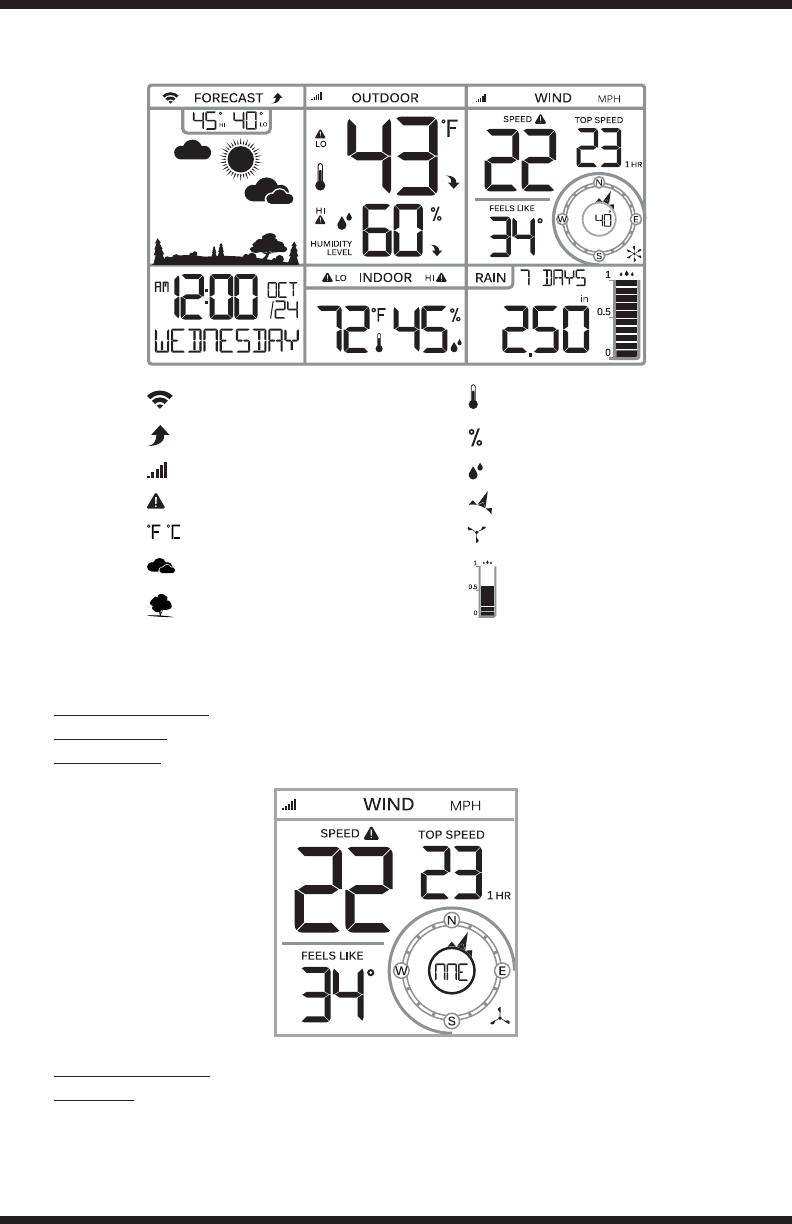

Display icons
WIFI Strength
Trend Arrows
Sensor Strength
HI | LO Alert
Fahrenheit | Celsius
Forecast Icon
Seasonal Trees
Temperature
Percent Humidity
Humidity
Wind Direction
Wind Speed
Rainfall Graph
Wind Readings
• Current Speed: Highest speed past 30 seconds
• Top Speed: Highest speed in the past hour
• Feels Like: Temperature | Humidity | Wind Speed
• Wind Direction: In letters or degrees
• History: Press and release the WIND button to view:
1 Hour (default) | 24 Hour | 7 Days | Month | Year
Page | 5 www.lacrossetechnology.com/S85807 S85807
![](/img.php?id=3131301&img=bg7.png)
Wind History
Press and release the WIND button to view the maximum wind history
values.
• One Hour: past 60 minute period (default Top Speed record, already
shown)
• 24-hour: Past 24 hour period, from last record
• 7 Days: Past 7-day period, from last record
• Month: Dened by Calendar Month i.e. January 1 - January 31
• Year: Dened by Calendar Year i.e. January 1 - December 31
Reset Wind Speed History:
• Press the WIND button to view individual wind speed readings.
• Hold the MINUS button for ve seconds to reset the individual value.
• Wind speed reading will reset to current wind speed.
24 Hours
7 Days
Month
Year

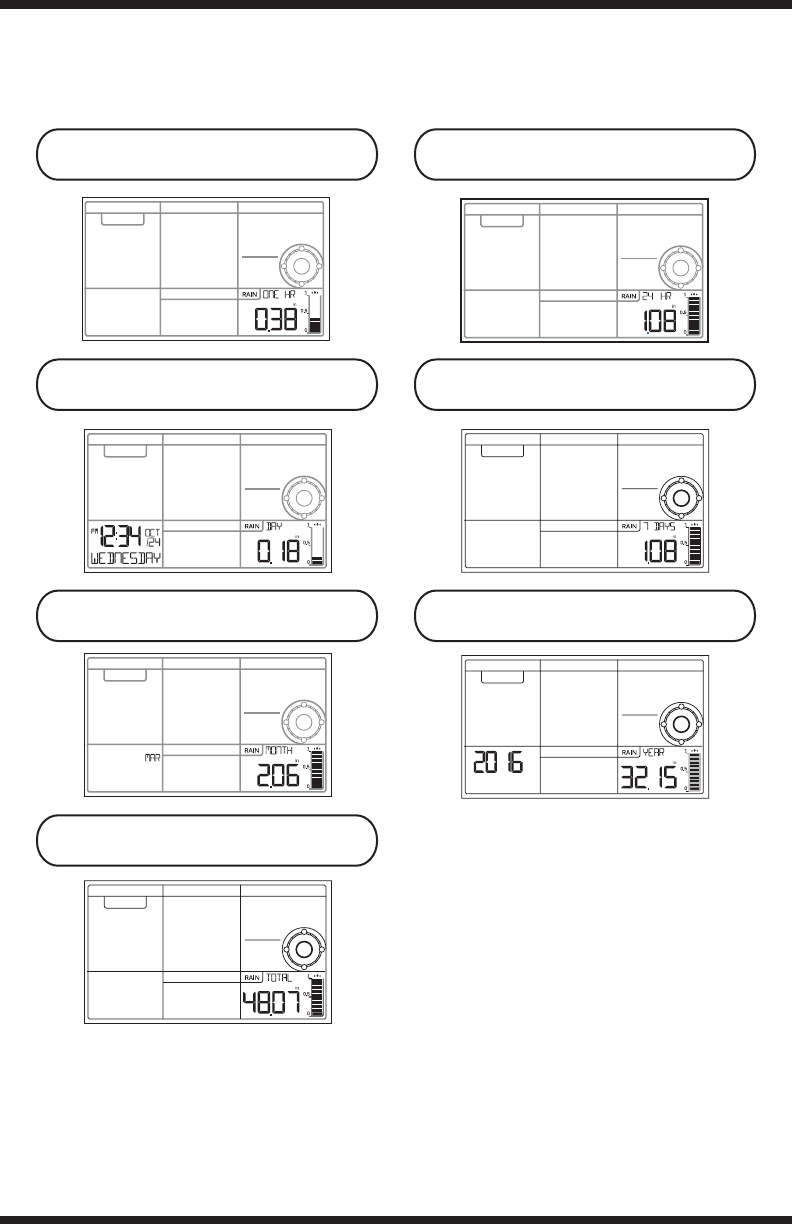

Rain Readings | History
Press and release the RAIN button to view:
• One Hour: past 60 minute periods, from last record
• Day: 24 hr period from 12:00am - 11:59pm. With current date
• 24-hour: Past 24 hour period, from last record.
• 7 Days: Past 7-day period, from last record
• Month: Dened by Calendar Month i.e. January 1 - January 31.
• Year: Dened by Calendar Year i.e. January 1 - December 31.
• Total: running total since station was powered up (no time stamp)
S85807 www.lacrossetechnology.com/S85807 Page | 6
![](/img.php?id=3131301&img=bg8.png)
• Select your rain history and the station will keep your selection.
• After viewing a history record for 5 seconds, the station will return to
the normal view.
One Hour
24 Hours
Day (12:00am - 11:59pm)
7 Day
Month
Year
Total
Reset Rainfall Readings (each resets individually):
• Press the RAIN button to view individual rain readings.
• Hold the MINUS button for ve seconds to reset the individual value.
• Rainfall reading will reset to 0.00
Page | 7 www.lacrossetechnology.com/S85807 S85807
![](/img.php?id=3131301&img=bg9.png)
Temperature/Humidity HI | LO Readings

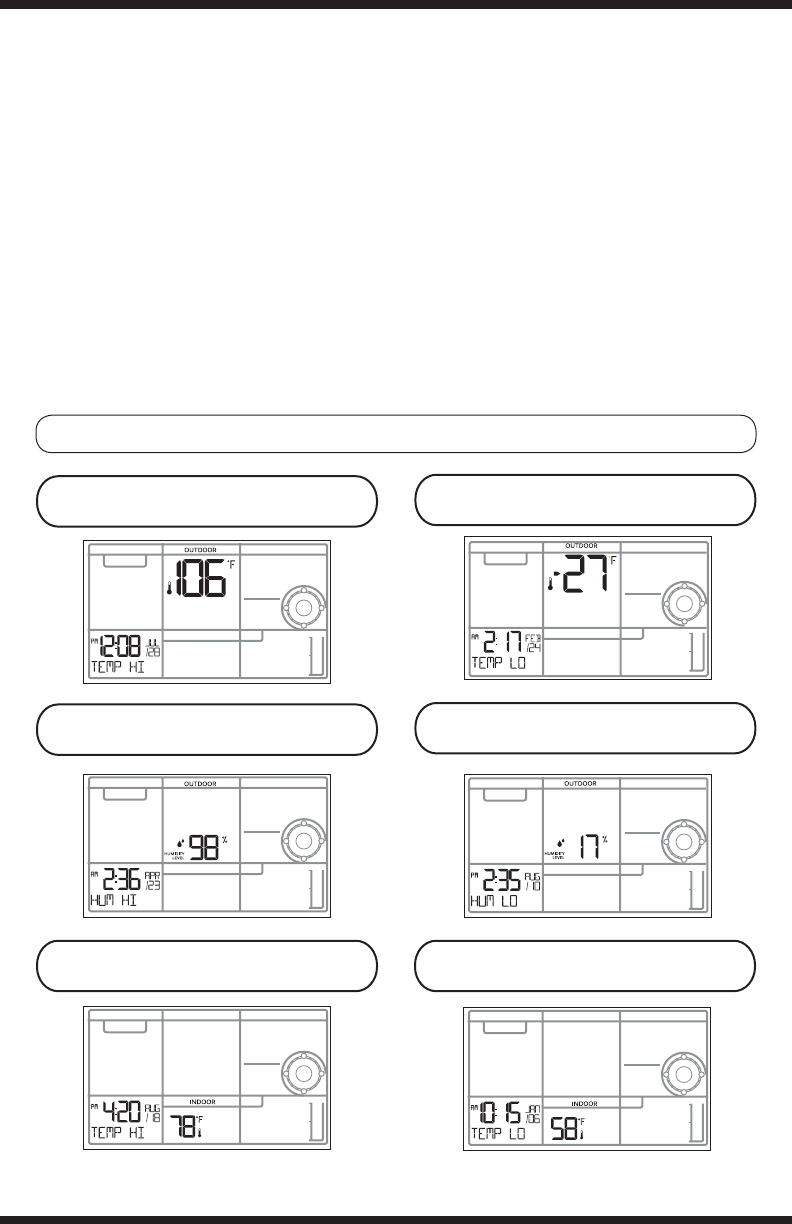

Press and release to view HI/LO temperature and humidity readings
with time/date stamp.
• Outdoor temperature HIGH
• Outdoor temperature LOW
• Outdoor humidity HIGH
• Outdoor humidity LOW
• Indoor temperature HIGH
• Indoor temperature LOW
• Indoor humidity HIGH
• Indoor humidity LOW
• Feels like HIGH
• Feels like LOW
• Outdoor dew point
Note: Feels Like and Dew Point is not time/date stamped.
Outdoor Temp HI
Outdoor Temp LO
Outdoor Humidity HI
Outdoor Humidity LO
Indoor Temp HI
Indoor Temp LO
S85807 www.lacrossetechnology.com/S85807 Page | 8
![](/img.php?id=3131301&img=bga.png)
Indoor Humidity HI
Indoor Humidity LO
Feels Like HI
Feels Like LO
Dew Point
Types of Weather Alerts
There are 20 weather alerts available on this weather station.
• Outdoor LOW Temperature ON/OFF
• Outdoor LOW Temperature Value -40°F-140°F (-40°C-60°C)
• Outdoor HIGH Temperature ON/OFF
• Outdoor HIGH Temperature Value -40°F-140°F (-40°C-60°C)
• Outdoor LOW Humidity ON/OFF
• Outdoor LOW Humidity Value 10%RH-99%RH
• Outdoor HIGH Humidity ON/OFF
• Outdoor HIGH Humidity Value 10%RH-99%RH
• Indoor LOW Temperature ON/OFF
• Indoor LOW Temperature Value 32°F-122°F (0°C-50°C)
• Indoor HIGH Temperature ON/OFF
• Indoor HIGH Temperature Value 32°F-122°F (0°C-50°C)
Page | 9 www.lacrossetechnology.com/S85807 S85807
![](/img.php?id=3131301&img=bgb.png)
• Indoor LOW Humidity ON/OFF
• Indoor LOW Humidity Value 10%RH-99%RH
• Indoor HIGH Humidity ON/OFF
• Indoor HIGH Humidity Value 10%RH-99%RH
• 24-hour Rainfall ON/OFF
• 24-hour Rainfall Value 0-393 inches (0-99.9mm)
• High Wind Speed ON/OFF (CURRENT wind)
• High Wind Speed Value 0-111.8 (0-180kph) (CURRENT wind)
Set Weather Alerts
Hold the ALERTS button 2 seconds to enter alert set mode. Outdoor
Low Temperature alert OFF will show.

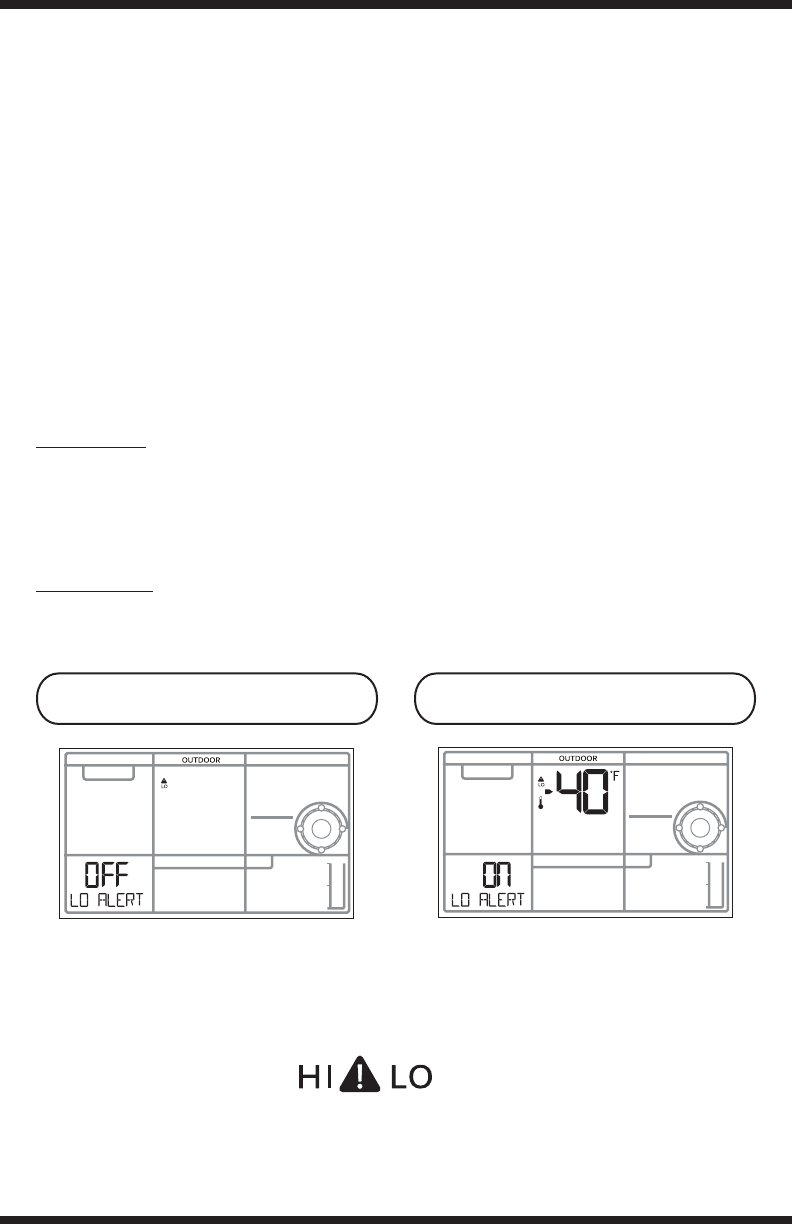

ALERT ON:
1. Press the +/- buttons to arm the alert.
2. Press the ALERTS button and the alert value will ash
3. Press the +/- buttons to set the alert value (Hold to set quickly).
4. Press ALERTS button to move to next alert.
ALERT OFF:
1. Alerts are OFF unless armed. If you do not wish to set an alert,
simply press the ALERTS button again to move to the next alert.
Alert OFF use +/- to arm
Alert ON use +/- to set value
Active Alert:
• When armed alert value is reached, station will beep 5 times each
minute, until out of alert range.
• The ashing alert icon will indicate if is a LOW or HI alert.
• Press any button to stop the alert sound.
• The alert icon will ash while value is in alert range.
S85807 www.lacrossetechnology.com/S85807 Page | 10
![](/img.php?id=3131301&img=bgc.png)
• The forecast icons are determine by the barometric pressure sensor.
• The tendency arrow show the changes on the barometric pressure is
rising or falling.
• When Outdoor temperature is below 32 F and the forecast is RAIN or
T-STORM, the LCD will display SNOW.

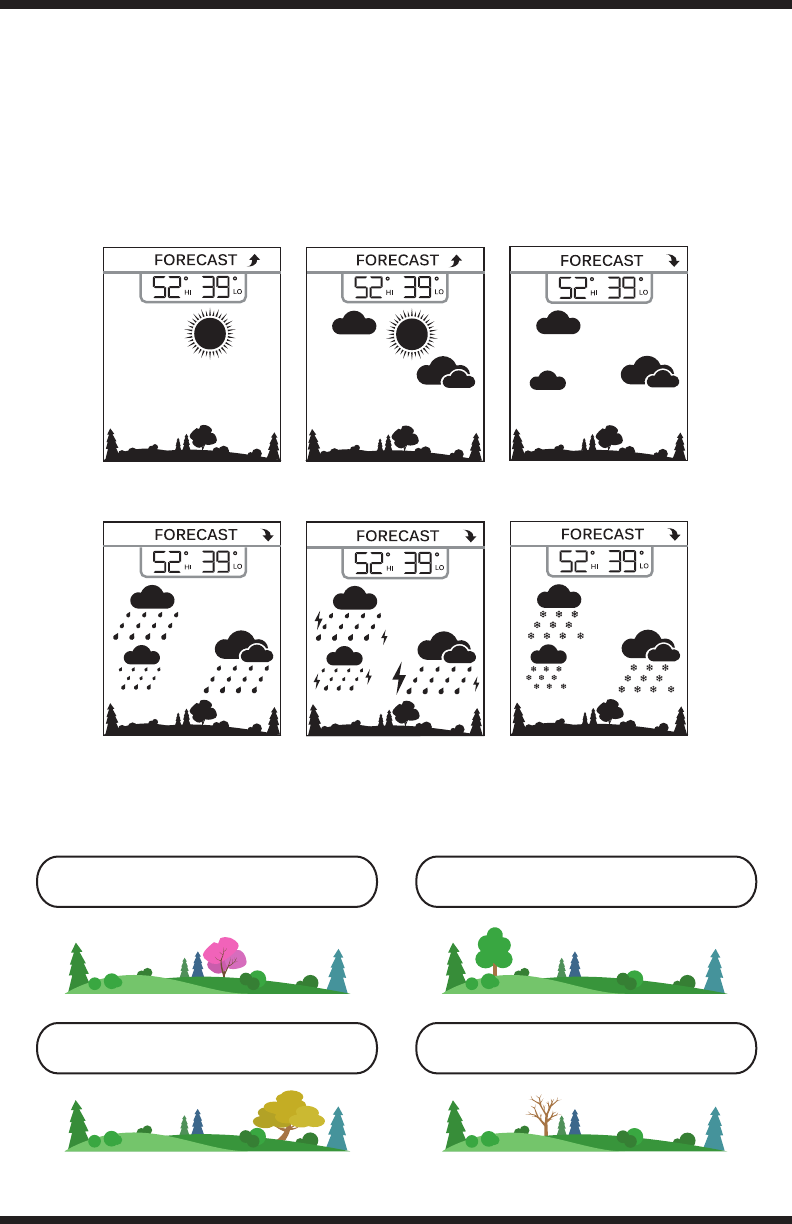

Weather Forecast Icons
SUNNY PARTLY CLOUDY CLOUDS
RAIN T-STORM SNOW
Seasonal Trees
• The trees and foliage color will change seasonally. The dates are programmed
into the weather station for the scene to change automatically.
Spring: March 20th – Jun 20th
Summer: Jun 21st – Sep 20th
Autumn: Sep 21st – Dec 20th
Winter: Dec 21st – Mar 19th
Page | 11 www.lacrossetechnology.com/S85807 S85807
![](/img.php?id=3131301&img=bgd.png)
Each sensor has a unique ID and will be “parked” to the correct sensor
location on the display until manually deleted.
• If sensor loses connection to the weather station for any reason, the
weather station will show dashes after 30 minutes.
• The weather station will search for 5 minutes every hour to
reconnect with sensor.

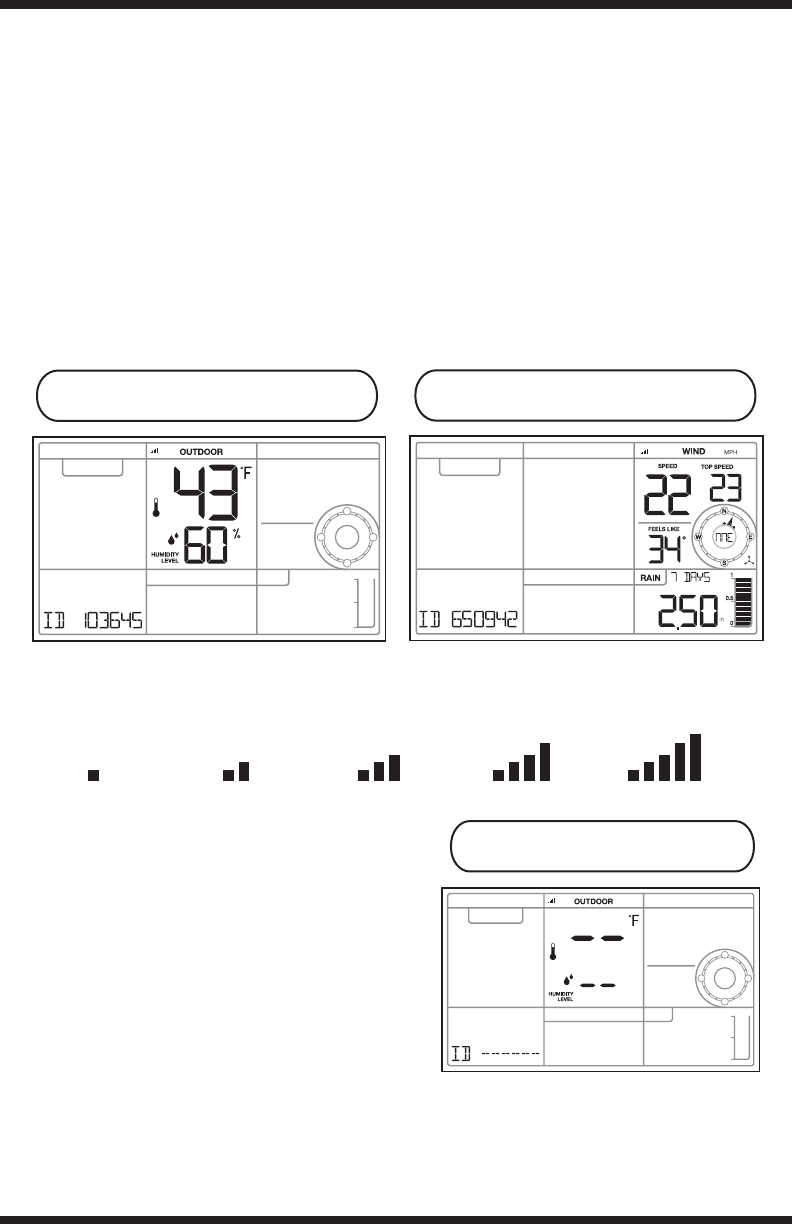

1. In normal mode press and release the SENSOR button to view
individual sensor ID’s for up to 15 seconds.
2. Press and release the + button to search for the sensor, who’s ID
is shown.
Sensor Search
TH Sensor ID
Multi-sensor ID
TH Sensor Deleted
3. The strength signal icon will animate until the sensor signal is
received, or for 3 minutes if no signal available.
Delete Sensor:
1. Press the SENSOR button to
view individual sensor ID.
2. Hold the - button for 5 seconds
to delete the sensor and ID.
Add Sensor:
1. Install batteries in sensor.
2. Press and release the SENSOR
button to view sensor area
(dashes).
3. Press the + button to search.
4. Press the TX button on sensor.
5. When sensor connects, ID and
readings show.
S85807 www.lacrossetechnology.com/S85807 Page | 12
![](/img.php?id=3131301&img=bge.png)
Page | 13 www.lacrossetechnology.com/S85807 S85807
Mounting Instructions

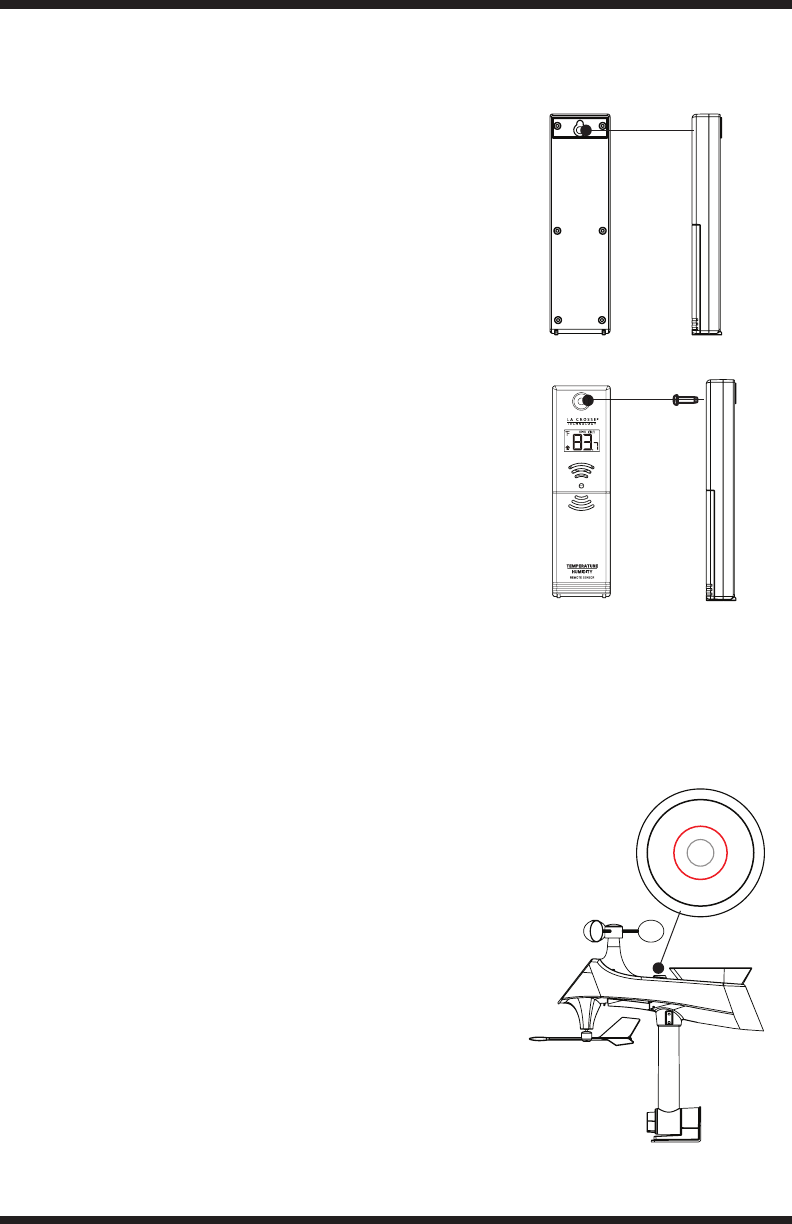

Option 1:
• Install one mounting screw into a
wall leaving some extended.
• Place the transmitter onto the screw,
gently pull the transmitter down to
lock the screw into place.
Option 2:
• Insert the mounting screw through
the front of the transmitter and into
the wall.
• Tighten the screw to snug (do not
over tighten).
• Mount the temperature/humidity sensor on
a north-facing wall or in any well shaded
location. Sun will make it read high.
• Under an eave or deck rail is preferred.
• Be sure the outdoor sensor is mounted
vertically to drain moisture.
• Avoid mounting under a metal roof and use
stainless steel screws for best WWVB
reception and RF transmission.
• The maximum wireless transmission
range to the weather station is over
330 feet (100 meters) in open air, not
including walls or oors.
TX232TH-LCD Temperature/Humidity Sensor
• For most accurate wind speed and rainfall
readings, mount the Multi-sensor in an
open area clear for 50 feet in all directions.
• Mount with the solar panel facing south so
the wind direction is correct. See N, S, E W,
embossed on the top of the sensor.
• Use the bubble level on the top of the
sensor to ensure it is level, for accurate
rainfall readings.
TX231RW Multi-sensor
Bubble
Level
![](/img.php?id=3131301&img=bgf.png)
• The maximum wireless transmission range to the station is over 330
feet (100 meters) in open air, not including walls or trees.

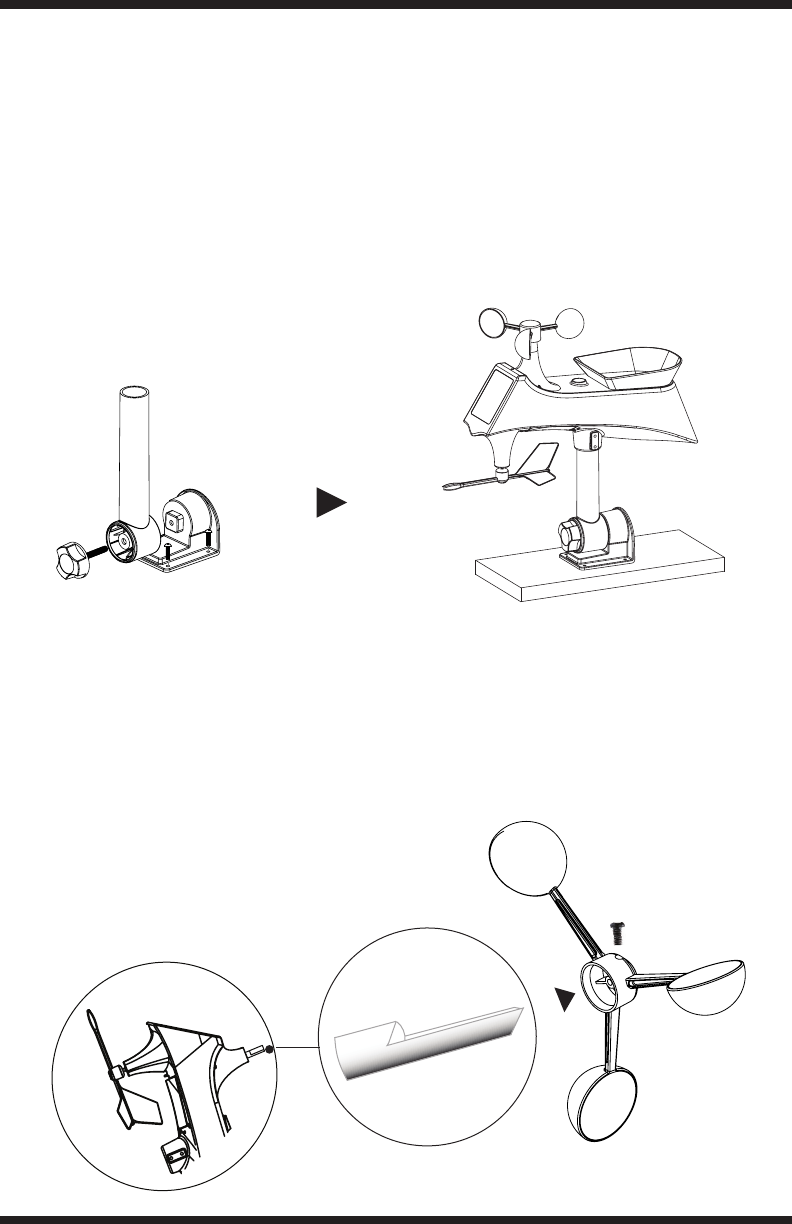

• Mount sensor vertically.
• Cups should be on the top of the sensor.
• Attach to mounting surface with screws through the mounting
bracket.
• The sensor can be mounted from the bottom or from the side.
Alternatively:
• Insert your own mounting pole sensor.
• Tighten screws
• Mounting bracket would not be used.
Replace Wind Cups
1. Loosen the screw on side of cups
2. Remove cups
3. Install new cups
4. Tighten screw
S85807 www.lacrossetechnology.com/S85807 Page | 14
![](/img.php?id=3131301&img=bg10.png)

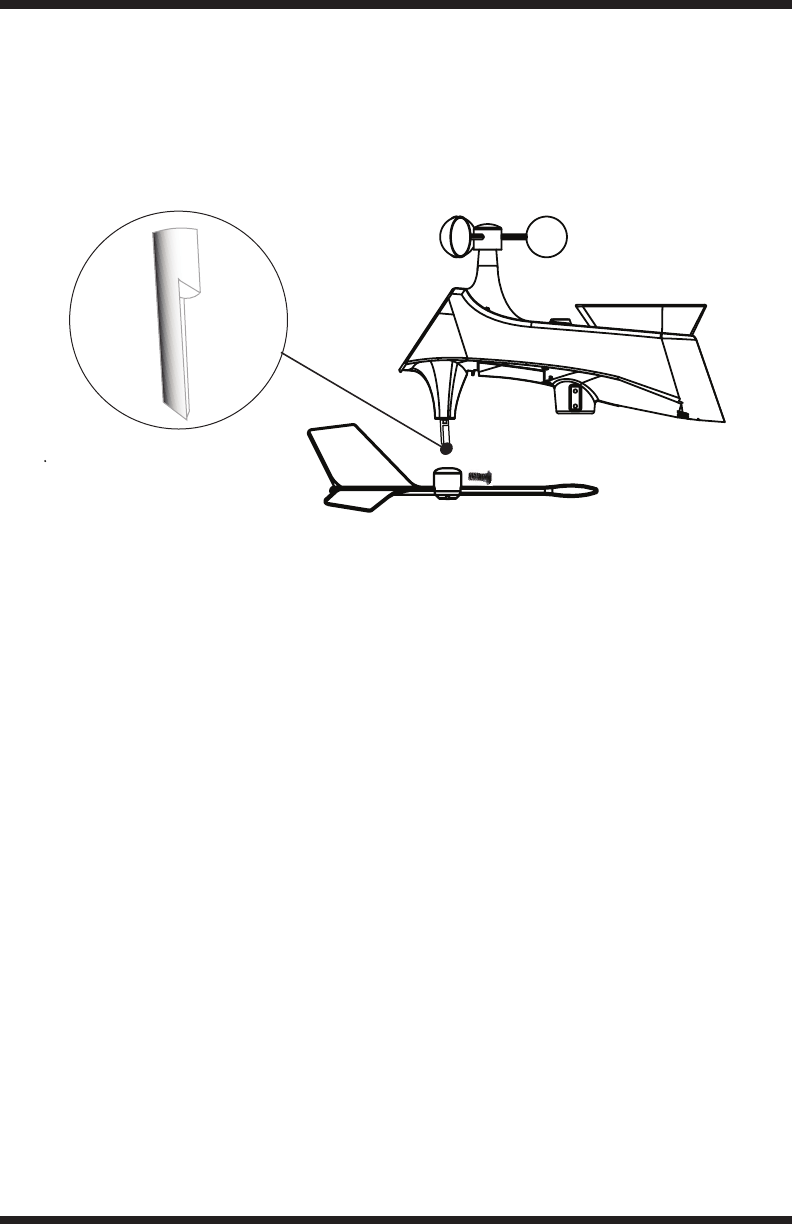

Replace Directional Vane
1. Loosen the screw on side of vane
2. Remove direction vane
3. Install new vane
4. Tighten screw
The factory reset will return the weather station to its default settings.
This will clear all previous recorded history, so you may want to write
down data before taking this step.
1. Hold the LIGHT and ALERTS buttons together for 5 seconds to
reset the weather station, clear all records, and return all settings to
default.
2. The weather station will fully populate, then return to a normal
display and search for outdoor sensors.
3. While searching for the outdoor sensors the Wind Speed, Outdoor
Temperature/Humidity and Rainfall totals will show dashes.
4. Once connected to the outdoor sensors (allow 3 minutes) the Wind
Speed, Outdoor Temperature/Humidity, and Rainfall will show
current readings.
Factory Restart
Page | 15 www.lacrossetechnology.com/S85807 S85807
![](/img.php?id=3131301&img=bg11.png)
Follow Us on Social Media
S85807 www.lacrossetechnology.com/S85807 Page | 16
![](/img.php?id=3131301&img=bg12.png)
WIFI Icon
• The connected icon will ash while station is searching for WIFI
connection. It will ash up to 1 hour.
• The station must operate on AC power for the WIFI to work.
Slow Flash - no WIFI network connection-check connection
Fast Flash - congure Weather Connect APP
Solid - Connected
Not displayed -No WIFI router-check router
Note: Hold the PLUS and MINUS buttons together for 3 seconds to
reconnect, if WIFI signal is lost.
Note: The Weather Connect
App is only for connecting
your weather station to
Weather Underground
Get Connected: Connect your new weather station to the Weather
Underground with our Weather connect APP.
When connected:
• Time and date will come from the Internet (set your own time zone)
• View you backyard weather on your phone.
• WI-FI icon will animate according to signal strength.
Page | 17 www.lacrossetechnology.com/S85807 S85807
Weather Connect
![](/img.php?id=3131301&img=bg13.png)
Specications
Indoor
TH Sensor
Multi-sensor
Power
Battery
Life
Dimensions
• Temperature Range: 32°F to 122°F (0°C to 50°C)
• Humidity Range: 10% to 99% RH
• Update interval: About every 60 seconds
• Temperature Range: -40°F to 140°F (-40°C to 60°C)
• Humidity Range: 10% to 99% RH
• Update interval: About every 58 seconds
• Transmission Range: 330 ft (100 m) RF 915MHz open air
• Wind Speed Range: 0-111.8 mph (0-180 kMh)
• Wind Direction: 0-359 degrees
• Rainfall: 0-393.7 inches (0-9999 mm)
• Update interval: About every 30 seconds
• Transmission Range: 330 ft (100 m) RF 915MHz open air
• Weather Station: 5.0 Volt 500mA adapter included (Primary)
• AC6: HX06-0500500-AU
• Optional Battery: 3-AAA, IEC, LR3 batteries (not included)
• TX233RW: 3-AA, IEC, LR6 batteries (not included)
• TX233TH: 2-AA, IEC, LR6 batteries (not included)
• Weather Station: 60 to 48 months when using adapter.
• Multi-sensor/TH sensor: over 24 month with reputable batteries
• Weather Station: 8.05” W x 5.70” H x 1.36” D in
(204.47 W x 144.78 H x 34.54 D mm)
• TX233RW Multi-sensor: 13.61” W x 8.55” H x 5.14” D
(345.69 W x 217.17 H x 130.55 D mm)
• TX233TH Sensor: 1.67” W x 6.14” H x 0.83” D
(42.42 W x 155.96 H x 21.08 D mm)
Care and Maintenance
• Do not mix old and new batteries
• Do not mix Alkaline, Standard, Lithium or Rechargeable Batteries
• Always purchase the correct size and grade of battery most suitable
for the intended use.
• Replace all batteries of a set at the same time.
• Clean the battery contacts and also those of the device prior to
battery installation.
• Ensure the batteries are installed correctly with regard to polarity
(+ and -).
• Remove batteries from equipment which is not to be used for an
extended period of time.
• Promptly remove expired batteries promptly.
S85807 www.lacrossetechnology.com/S85807 Page | 18
![](/img.php?id=3131301&img=bg14.png)
La Crosse Technology, Ltd. provides a 1-year limited time warranty (from date of purchase) on this product relating to
manufacturing defects in materials & workmanship.
Before returning a product, please visit the product web page for more information or contact our friendly customer
support:
Online product web page: www.lacrossetechnology.com/S85807
Phone:1-608-785-7921
View full warranty online at: http://www.lacrossetechnology.com/warranty_info_lt/
Warranty and Support
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equip-
ment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device must not be co-located or operating in conjunction with any other antenna or transmitter.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference
that may cause undesired operation.
Caution!
The manufacturer is not responsible for any radio or TV interference caused by unauthorized changes or modications to this
equipment. Such changes or modications could void the user authority to operate the equipment.
All rights reserved. This manual may not be reproduced in any form, even in part, or duplicated or processed using electronic,
mechanical or chemical process without the written permission of the publisher. This booklet may contain errors or misprints.
The information it contains is regularly checked and corrections are included in subsequent editions. We disclaim any
responsibility for any technical error or printing error, or their consequences.
All trademarks and patents are recognized.
Canada Statement
This device complies with Industry Canada’s licence-exempt RSSs
Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence.
L’exploitation est autorisée aux deux conditions suivantes :
(1) l’appareil ne doit pas produire de brouillage;
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible
d’en compromettre le fonctionnement.
The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and compliance with RSS-102 RF
exposure, users can obtain Canadian information on RF exposure and compliance.
Le dispositif rencontre l’exemption des limites courantes d’évaluation dans la section 2.5 de RSS 102 et la conformité à
l’exposition de RSS-102 rf, utilisateurs peut obtenir l’information canadienne sur l’exposition et la conformité de rf.
This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this
transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or
operating in conjunction with any other antenna or transmitter
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should
be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.
Cet émetteur ne doit pas être Co-placé ou ne fonctionnant en même temps qu’aucune autre antenne ou émetteur.
Cet équipement devrait être installé et actionné avec une distance minimum de 20 centimètres entre le radiateur et votre corps.
Page | 19 www.lacrossetechnology.com/S85807 S85807
