INTRODUCTION:
The Atomic Digital Wall Clock features radio-controlled time, date, forecast
icons, indoor and outdoor temperature on an easy to read display. Receives
signal from the Atomic Clock in Colorado, for accurate time!
ATOMIC DIGITAL WALL CLOCK:
Set up instructions step by step:
Step 1:
• Remove battery cover from the outdoor transmitter.
• Slide the battery cover down and lift off the back of the
transmitter
• Insert 2 NEW AA batteries (not included) into the transmitter.
Observe the correct polarity.
• Keep the LCD display and transmitter within 10 feet during setup.
• Note: Use Alkaline batteries
(or Lithium for temperatures below - 20°F / -28.8°C).
Step 2:
REMOTE TEMPERATURE SENSOR
TX MODEL: TX141
• Remove battery cover from Atomic Clock, slide
tab down and pull out to remove the cover.
• Insert 2 NEW AA batteries (not included) into the
back of the Atomic Clock. Observe the correct
polarity (see marking inside the battery
compartment).Do NOT mix old and new
batteries.
• The Atomic Clock will display, time (12:00) date
(1/1) and indoor temperature.
• Within 3 minutes the Outdoor temperature should be displayed.
Trouble shooting:
• If after 3 minutes of waiting, the Outdoor temperature does not show up in the
designated area on the display, remove batteries from both units and start the
setup process again.
• For optimal reception performance, of the 433 MHz signal, the outdoor transmitter
should be placed within 200 feet (60 meters) from the Indoor LCD display.
WWVB RADIO CONTROLLED TIME
The NIST radio station, WWVB, is located in Ft. Collins, Colorado and
transmits the exact time signal continuously throughout the United States at
60 kHz. The signal can be received up to 2,000 miles away through the
internal antenna in the Atomic Digital Wall Clock. However, due to the nature
of the Earth’s Ionosphere, reception is very limited during daylight hours. The
Atomic Digital Wall Clock will search for a signal every night when reception
is best. The WWVB radio station derives its signal from the NIST Atomic
Clock in Boulder, Colorado.
WWVB RECEPTION ICON with full signal strength will appear on screen
if the reception of atomic time is successful.
• The tower icon will show solid when the display has received the WWVB
signal.
• No tower icon displayed. The display was unable to receive a signal at this
time.
• Reposition the display for better signal reception or try again at bedtime.
• The display will start searching at UTC: 07:00 and if no reception on the first
attempt they will try again at 08:00, 09:00, 10:00, and 11:00. Each attempt
will be at least 2 minutes and the most will be 10 minutes.
• If there is no signal or too much interference the receiver will only be on for
2 minutes.
• If the signal is good it may catch a signal in ABOUT 2-3 minutes.
• If the signal is marginal it will try to catch a signal for up to 10 minutes.
• Manual Search: Hold the -/TIME button to start a manual signal search.
Note: In case the Atomic Digital Wall Clock is not able to detect the WWVB
signal (disturbances, transmitting distance, etc.); the time can be manually
set.
BUTTON FUNCTIONS:
Button Press and Release
Functions Hold 2 seconds
F/°C Move through program menu
(setup)
Select temperature in °C/°F
Enter program menu,
set time, date, etc.
(setup)
+ 1 step forward (setup) Search for outdoor
Transmitter
Fast advance (setup)
- 1 step backward (setup) Fast backward (setup)
WWVB Search
SNOOZE
Trigger snooze alarm (ringing)
ALARM Once: View Alarm
Twice: Activate or Deactivate
Alarm Alarm set
PROGRAM MENU:
The °F/°C button will move through the program menu. The + or - button will change
a value if needed..
• WWVB ON/OFF: Hold the °F/°C button for 5 seconds. WWVB and the word
ON will flash. Press and release the + or - button to turn this to OFF if you
do not wish WWVB reception. Confirm with the °F/°C button and move to
the next item.
• TIME ZONE: EST will flash. Press and release the + or - button to select a
different Time Zone: AST=Atlantic, EST= Eastern, CST= Central, MST=
Mountain, PST= Pacific, AKT= Alaska, HAT=Hawaiian time zone. Confirm
with the °F/°C button and move to the next item.
• DAYLIGHT SAVING TIME: DST will flash and the word ON. Press and
release the + or - button to turn this to OFF if you do not observe DST.
Confirm with the °F/°C button and move to the next item.
• 12/24 HOUR TIME: 12H will flash. Press and release the + or - button to
select 24H. Confirm with the °F/°C button and move to the next item.
• HOUR: The hour will flash. Press and release the + or - button to select the
correct hour. Confirm with the °F/°C button and move to the next item.
• MINUTES: The minutes will flash. Press and release + or - button to select
the correct minutes. Confirm with the °F/°C button and move to the next
item.
• YEAR: The year will flash. Press and release the + or - button to select the
correct year. Confirm with the °F/°C button and move to the next item.
• MONTH: The month will flash. Press and release the + or - button to select
the correct month. Confirm with the °F/°C button and move to the next item.
• DATE: The date will flash. Press and release the + or - button to select the
correct date. Confirm with the °F/°C button and exit the program menu.
Note: The weekday will set automatically after the year month and date are
set.
FAHRENHEIT/CELSIUS: Press and release the °F/°C button to select temperature
readings in Fahrenheit or Celsius.
ALARM SET:
• ALARM HOUR: Hold the ALARM button to enter alarm time setting mode. The
Alarm Hour will flash. Use the + or - button to set the Hour. Press and release the
ALARM button.
• ALARM MINUTE: The Alarm Minutes will flash. Use the + or - button to set the
Minutes. Press and release the ALARM button to exit.
ALARM ACTIVATION ICON
• Press and release the ALARM button once to show Alarm Time.
• With the Alarm time showing, press and release the ALARM button to activate the
alarm. The alarm icon appears when alarm is activated.
• With the Alarm time showing, press and release the ALARM button to deactivate
the alarm. The alarm icon will disappear when alarm is activated.
SNOOZE:
• When the alarm sounds, press the SNOOZE button to trigger snooze alarm for 10
minutes. The snooze icon Zz will flash when the snooze feature is active.
• To stop alarm for one day, press AL button, while in snooze mode. The alarm icon
will remain solid.
TEMPERATURE TREND ICONS:
The indoor and outdoor temperature trend indicators are updated every 30
minutes. Trends represent temperature changes over the past three hours.
Temperature rising more than 2°F (1°C) in the past three hours
Temperature did not change more than 2°F (1°C) in the past three hours
Temperature falling more than 2°F (1°C) in the past three hours
The temperature trend indicators are shown next to the indoor temperature and
outdoor temperature readings.
OUTDOOR TRANSMITTER RECEPTION ICON:
• When the signal is successfully received from the outdoor transmitter, this icon will
be solid.
• This icon will flash when searching for the outdoor transmitter signal.
• If reception is not successful, the icon will not be shown in LCD.
WEATHER FORECAST ICONS:
The unit predicts weather condition of the next 12-hours based on the change of
atmospheric pressure. The weather forecast is about 70-75% correct. As weather
conditions cannot be 100% correctly forecasted we cannot be responsible for any
loss caused by an incorrect forecast.

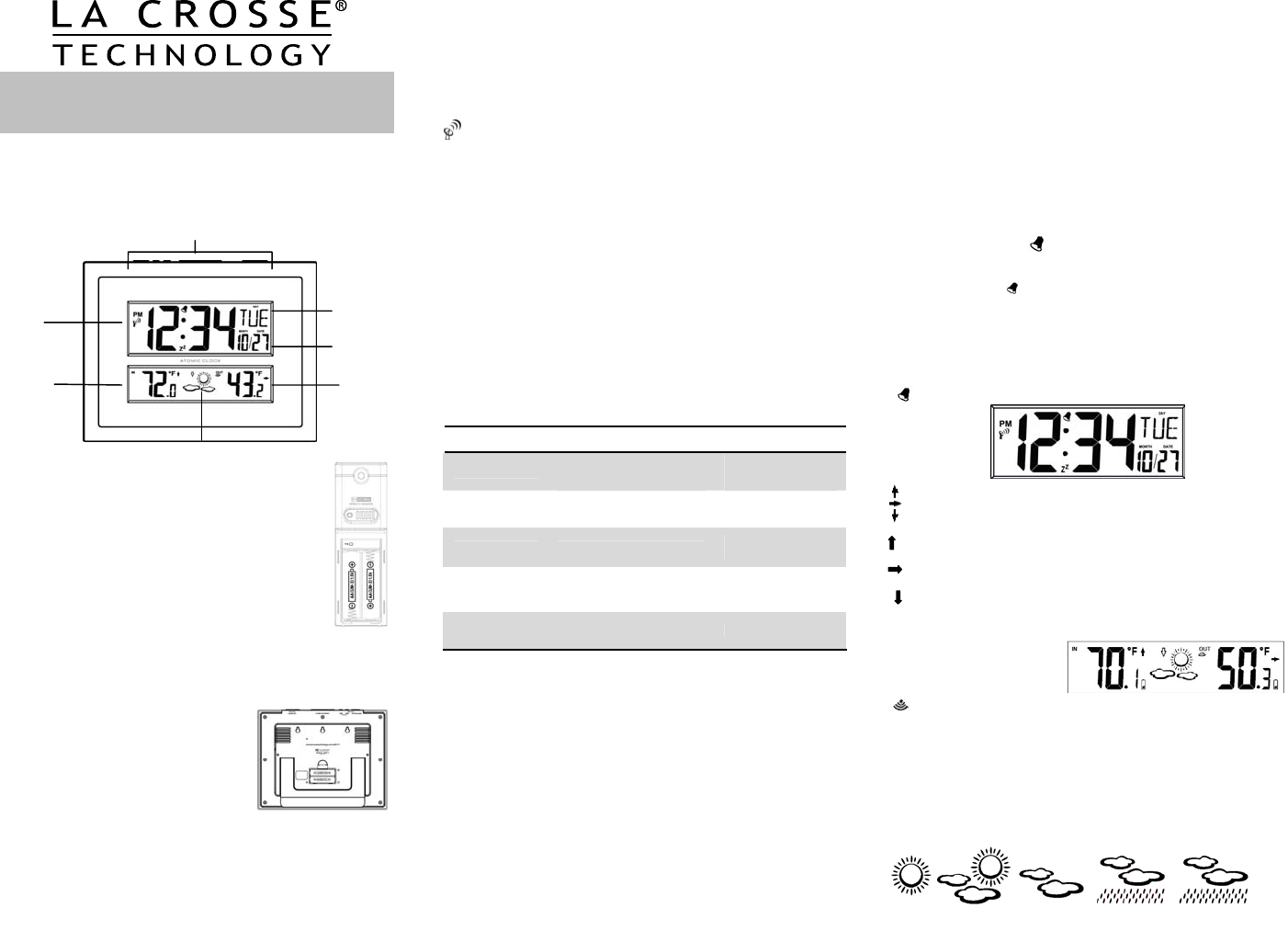

Digital Atomic Wall Clock
with Temperature and Forecast
RX Model: W86111
|
Quick Setu
p
Guide
Function Buttons
Time
WWVB
Tower
Indoor
Temp.
Weekday
Date
Outdoor
Temp
Forecast icons
SUNNY PARTLY SUNNY CLOUDY RAINY STORMY
(Raindrops will blink)
2
The Icons displayed Forecasts the Weather in terms of getting better or worse and
not necessarily sunny or rainy as each icon indicates.
Note: After initial set-up, readings for Weather Forecasts should be disregarded for
the next 48-60 hours. This will allow sufficient time for the weather station to collect
air pressure data at a constant altitude and therefore result in a more accurate
forecast.
WEATHER TENDENCY INDICATOR
Working together with the weather icons are the Weather Tendency
Indicators. When the indicator points upwards, it means that the Air-
pressure is increasing and the weather is expected to improve. When the
indicator points right the pressure is holding steady. When indicator points
downwards, the Air-pressure is falling and the weather is expected to become
worse. This is forecasting the next 12 hours in the future.
LOW BATTERY:
• When this icon appears in the indoor (IN) reading section, replace the
batteries in the Forecast Station.
• When this icon appears in the outdoor (OUT) readings section, replace
the batteries in the outdoor transmitter.
POSITIONING THE OUTDOOR TRANSMITTER
The remote temperature transmitter should be mounted vertically to avoid damage.
Place both units in the desired shaded locations, and wait approximately 1-hour
before permanently mounting the transmitter to ensure that there is proper reception.
The outdoor temperature transmitter is water resistant, not waterproof and should
not be placed anywhere it will become submerged in water or subject to standing
water or snow.
WALL MOUNT
Choose a location for the transmitter that is within range of the Atomic Digital Wall
Clock and under an overhang for accuracy.
Option 1:
• Install one mounting screw (included) into a wall leaving
approximately ½ of an inch (12.7mm) extended.
• Place the transmitter onto the screw, using the hanging hole on
the backside.
• Gently pull the transmitter down to lock the screw into place.
Option 2:
• Insert the mounting screw through the front of the sensor and into the wall.
• Tighten the screw to snug (do not over tighten).
To achieve a true temperature reading, mount where direct sunlight cannot reach
the outdoor transmitter. Mount the outdoor transmitter on a North-facing wall or in
any well shaded area. Under an eave or deck rail work well. The maximum
transmitting range in open air is 200-feet (60 meters). Obstacles such as walls,
windows, stucco, concrete, and large metal objects can reduce the range. Place the
transmitter at least 6 feet in the air to improve signal transmission.
POSITIONING THE CLOCK:
The Atomic Digital Wall Clock should be mounted near an exterior wall with the front
or back facing toward Ft. Collin Colorado for best WWVB reception. The display
should be six feet from other electronics or wireless devices in order to best receive
the outdoor temperature transmitter signal.
Foldout Table Stand:
A foldout table stand is located on the back of the clock.
Pull the stand out from the bottom center edge of the atomic clock, below
the battery compartment. Once the foldout table stand is extended, place
the atomic clock in an appropriate location.
Wall Mount Use a straightedge to horizontally space three screw positions on a
wall to match the hanging holes on the back of the clock. Install three
mounting screws (not included) into a wall within transmission range—
leaving approximately 3/16 of an inch (5mm) extended from the wall.
Place the atomic clock onto the screws, using the hanging holes on
the backside.
Gently pull the atomic clock down to lock the screws into place.
Note: Always ensure that the atomic clock locks onto the screws before releasing.
CARE AND MAINTENANCE:
• Do Not Mix Old and New Batteries
• Do Not Mix Alkaline, Standard, Lithium or Rechargeable Batteries
• Do not expose the display to extreme temperatures, vibration or shock.
• Keep display dry.
• Clean display with a soft damp cloth. Do not use solvents or scouring agents.
• The product is not a toy. Keep it out of reach of children.
• The product is not to be used for medical purpose or for public information, but is
determined for home use only.
• The specifications of this product may change without prior notice.
• Improper use or unauthorized opening of housing will void the warranty.
• If the unit does not work properly, change the batteries.
SPECIFICATIONS:
Indoor:
Temperature Range: +32°F to +122°F (0°C to 50°C)
Interval: About every 30 seconds
Outdoor:
Temperature Range: -40°F to 140°F (-40°C to 60°C)
Alkaline Batteries: -20°F to 140°F (-28.8°C to 60°C)
Lithium Batteries: -40°F to 140°F (-40°C to 60°C)
Temperatures below - 20°F (-28.8°C)
require Lithium batteries in the outdoor sensor.
Distance: 200 ft. (60 meters) RF 433MHz (open air)
Interval: About every 30 seconds
Power:
Receiver: 2-AA, IEC, LR6 batteries (not included)
Transmitter: 2-AA, IEC, LR6 batteries (not included)
Battery Life:
TX Battery Life: Battery life is over 24 months when using reputable
battery brands for both Alkaline and Lithium batteries
RX Battery Life: Over 12 months.
Dimensions:
Receiver: 11” W x 1.1” D x 8.54” H (279 x 28 x 217 mm)
TX141 Transmitter: 5.08” H x 1.58” W x 0.83” D (129 x 40.13 x 21mm)
WARRANTY INFORMATION
La Crosse Technology, Ltd provides a 1-year limited warranty on this product
against manufacturing defects in materials and workmanship.
This limited warranty begins on the original date of purchase, is valid only on
products purchased and used in North America and only to the original purchaser of
this product. To receive warranty service, the purchaser must contact La Crosse
Technology, Ltd for problem determination and service procedures. Warranty
service can only be performed by a La Crosse Technology, Ltd authorized service
center. The original dated bill of sale must be presented upon request as proof of
purchase to La Crosse Technology, Ltd or La Crosse Technology, Ltd’s authorized
service center.
La Crosse Technology, Ltd will repair or replace this product, at our option and at no
charge as stipulated herein, with new or reconditioned parts or products if found to
be defective during the limited warranty period specified above. All replaced parts
and products become the property of La Crosse Technology, Ltd and must be
returned to La Crosse Technology, Ltd. Replacement parts and products assume
the remaining original warranty, or ninety (90) days, whichever is longer. La Crosse
Technology, Ltd will pay all expenses for labor and materials for all repairs covered
by this warranty. If necessary repairs are not covered by this warranty, or if a
product is examined which is not in need or repair, you will be charged for the
repairs or examination. The owner must pay any shipping charges incurred in
getting the La Crosse Technology, Ltd product to a La Crosse Technology, Ltd
authorized service center. La Crosse Technology, Ltd will pay ground return
shipping charges to the owner of the product to a USA address only.
The La Crosse Technology, Ltd warranty covers all defects in material and
workmanship with the following specified exceptions: (1) damage caused by
accident, unreasonable use or neglect (including the lack of reasonable and
necessary maintenance); (2) damage occurring during shipment (claims must be
presented to the carrier); (3) damage to, or deterioration of, any accessory or
decorative surface; (4) damage resulting from failure to follow instructions contained
in the owner’s manual; (5) damage resulting from the performance of repairs or
alterations by someone other than an authorized La Crosse Technology, Ltd
authorized service center; (6) units used for other than home use (7) applications
and uses that this product was not intended or (8) the products inability to receive a
signal due to any source of interference.. This warranty covers only actual defects
within the product itself, and does not cover the cost of installation or removal from
a fixed installation, normal set-up or adjustments, claims based on
misrepresentation by the seller or performance variations resulting from installation-
related circumstances.
LA CROSSE TECHNOLOGY, LTD WILL NOT ASSUME LIABILITY FOR
INCIDENTAL, CONSEQUENTIAL, PUNITIVE, OR OTHER SIMILAR DAMAGES
ASSOCIATED WITH THE OPERATION OR MALFUNCTION OF THIS PRODUCT.
THIS PRODUCT IS NOT TO BE USED FOR MEDICAL PURPOSES OR FOR
PUBLIC INFORMATION. THIS PRODUCT IS NOT A TOY. KEEP OUT OF
CHILDREN’S REACH.
This warranty gives you specific legal rights. You may also have other rights
specific to the State. Some States do not allow the exclusion of consequential or
incidental damages therefore the above exclusion of limitation may not apply to you.
For warranty work, technical support, or information contact:
La Crosse Technology, Ltd
2817 Losey Blvd. S.
La Crosse, WI 54601
Contact Support: 1-608-782-1610
Product Registration:
www.lacrossetechnology.com/support/register
Protected under U.S. Patents:
5,978,738
6,076,044
6,597,990
The complete instruction manual is available at:
www.lacrossetechnology.com/w86111
FCC Disclaimer:
This Device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
the device must accept any interference received, including interference that may
cause undesired operation.
Canada Statement
This device complies with Industry Canada RSS-210. Operation is subject to the following two
conditions: (1) this device may not cause interference, and(2) this device must accept any
interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio RSS-
210. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de
brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si
le brouillage est susceptible d'en compromettre le fonctionnement
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE
CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS
COULD VOID THE USER AUTHORITY TO OPERATE THE EQUIPMENT
All rights reserved. This handbook must not be reproduced in any form, even in
excerpts, or duplicated or processed using electronic, mechanical or chemical
procedures without written permission of the publisher.
This handbook may contain mistakes and printing errors. The information in this
handbook is regularly checked and corrections made in the next issue. We accept
no liability for technical mistakes or printing errors, or their consequences.
All trademarks and patents are acknowledged. Printed in China
