WIRELESS WEATHER STATION
BUTTONS
Battery
Compartment
2 “AA”
REMOTESENSOR
TX141TH-ACH
BACK
VIEW
Battery
Compartment
2“AA”
Calendar +
Time Alarm
Remote
Temp/Humidity
with Trend, Heat
Index, Dew
Point, Mold
Risk,
Temperature
Alerts + up to 3
remote sensors.
Time and
Moon Phase
FRONTVIEW
Indoor
Temp/Humidity
with Trend,
Mold Risk, +
Temperature
Alerts.
LED
Battery
Compartment
2 “AA”
Model: T83646v2 www.lacrossetechnology.com/support Page | 2
Get Started
Step 1: Insert 2 new Alkaline AA batteries (not included) into the
TX141TH-ACH
remote sensor. Observe the correct polarity. The red LED will
flash during transmission.
Step 2: Insert 2 new AA Alkaline batteries (not included) into the weather
station. Observe the correct polarity.
Restart: If there is no remote temperature data after 3 minutes, remove batteries
from the weather station and the remote sensor, then press any button 20 times.
After 15 minutes, return to Step 1 above.
Set Time, Date, Temperature Unit
1. Hold the SETTINGS button to enter time set mode.
2. Press the -or +buttons to adjust the values.
3. Press the SETTINGS button to confirm adjustments and move to the
next item.
Time setting order:
1. Beep ON/OFF
2. 12/24 hour time format
3. Hour
4. Minutes
5. Year
6. Month
7. Date
Note: Weekday will set automatically with year, month& date.
8. Fahrenheit/Celsius
9. Month/Day or Day/Month format (M-D)
Press the SETTINGS button to exit, or wait 10 seconds without pressing
buttons to return to the normal time display.
Set Indoor and Remote Temperature/Humidity Alerts
Setting the alerts value and arming the alerts
are two separate steps.
1. Hold the ALERTS button for 3 seconds to
enter alert set mode. The temperature alert value will blink in set
mode.
2. Press the -or +buttons to adjust the values.
3. Press the ALERTS button to confirm
The alert setting order:
INDOOR HUMIDITY HIINDOOR HUMIDITY LOINDOOR TEMP
HIINDOOR TEMP LO OUTDOOR HUMIDITY HIOUTDOOR
HUMIDITY LOOUTDOOR TEMP HIOUTDOOR TEMP LO
Model: T83646v2 www.lacrossetechnology.com/support Page | 3
Press the ALERTS button to exit, or wait 10 seconds without pressing
buttons to return to normal time display.
Arm/Disarm Temperature/Humidity Alerts
Press the ALERTS button to enter Alert display mode. Press and
release the ALERTS button to toggle between the alerts: INDOOR
HUMIDITY
OUTDOOR HUMIDITYINDOOR TEMP
OUTDOOR TEMP
Press the -or +buttons to arm or disarm the alert.
ALERT ICON appears when armed.

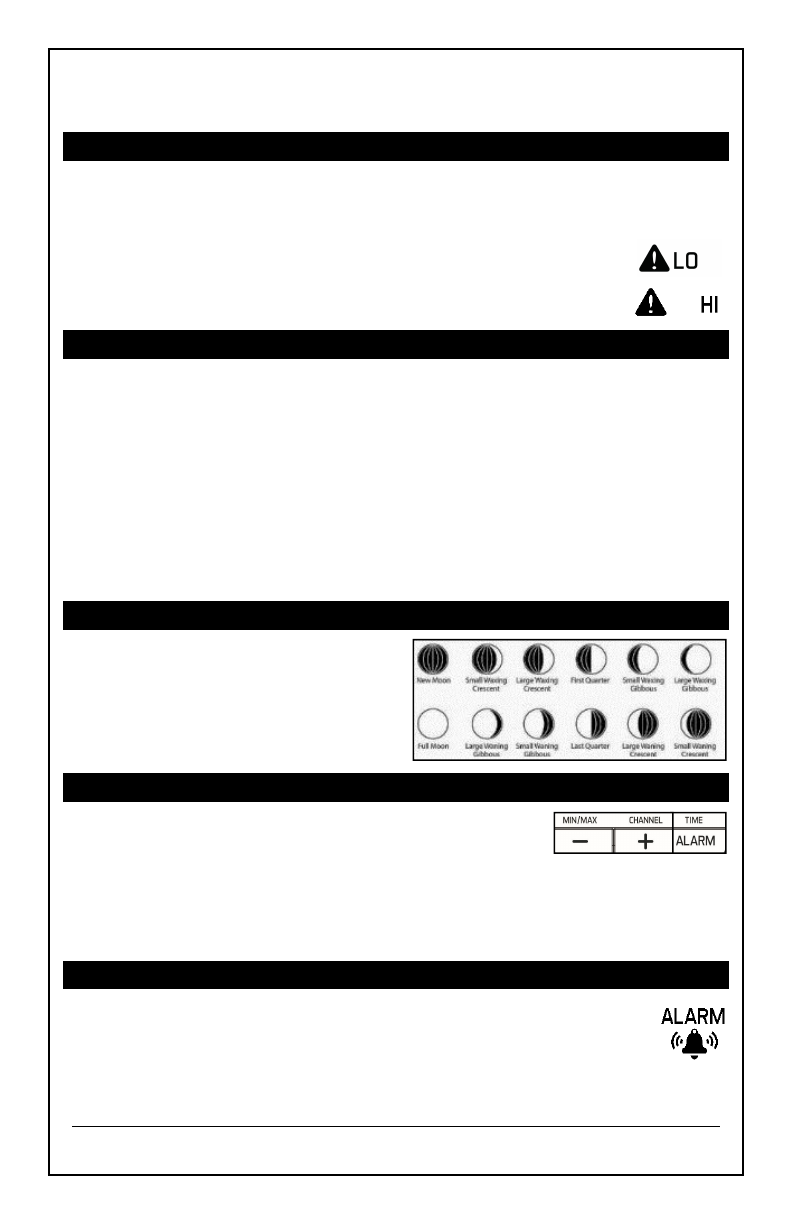

Active Temperature/Humidity Alert
When temperature/humidity alert is ringing, corresponding alert icon
will flash.
The alert will beep once per minute, until the temperature/humidity is
out of alert range.
Press any button to stop alert sound. The alert icon, HI/LO, will still
flash on corresponding channel.
Disarm Alert: In normal mode, press the ALERTS button to select
the alert to disarm. With a HI or LO alert selected, press the -or +
buttons to turn OFF the alert.
Moon Phase
Moon phase based on lunar
calendar, and the time and date set
on the weather station.
Set Time Alarm
1. Hold the ALARM button to enter alarm time set
mode.
2. Press the -or +buttons to adjust the values.
3. Press the ALARM button to confirm &move to the next item.
Alarm Time setting order: 1. Hours, 2. Minutes
Activate/Deactivate Time Alarm
Press the ALARM button once to view alarm time.
Press the ALARM button again to activate the alarm.
Once activated, the bell icon appears.
Press the ALARM button again to deactivate the alarm. The bell icon
will disappear.
Model: T83646v2 www.lacrossetechnology.com/support Page | 4
Snooze (Silences Alarm Temporarily)
When alarm sounds, press the ALARM button to silence the
alarm for 10 minutes.
The alarm bell iconwill flash.
In snooze mode, press any button except ALARM to stop alarm for
one day.
Note: The alarm is crescendo sound. The alarm sounds for two
minutes and then will shut off completely.

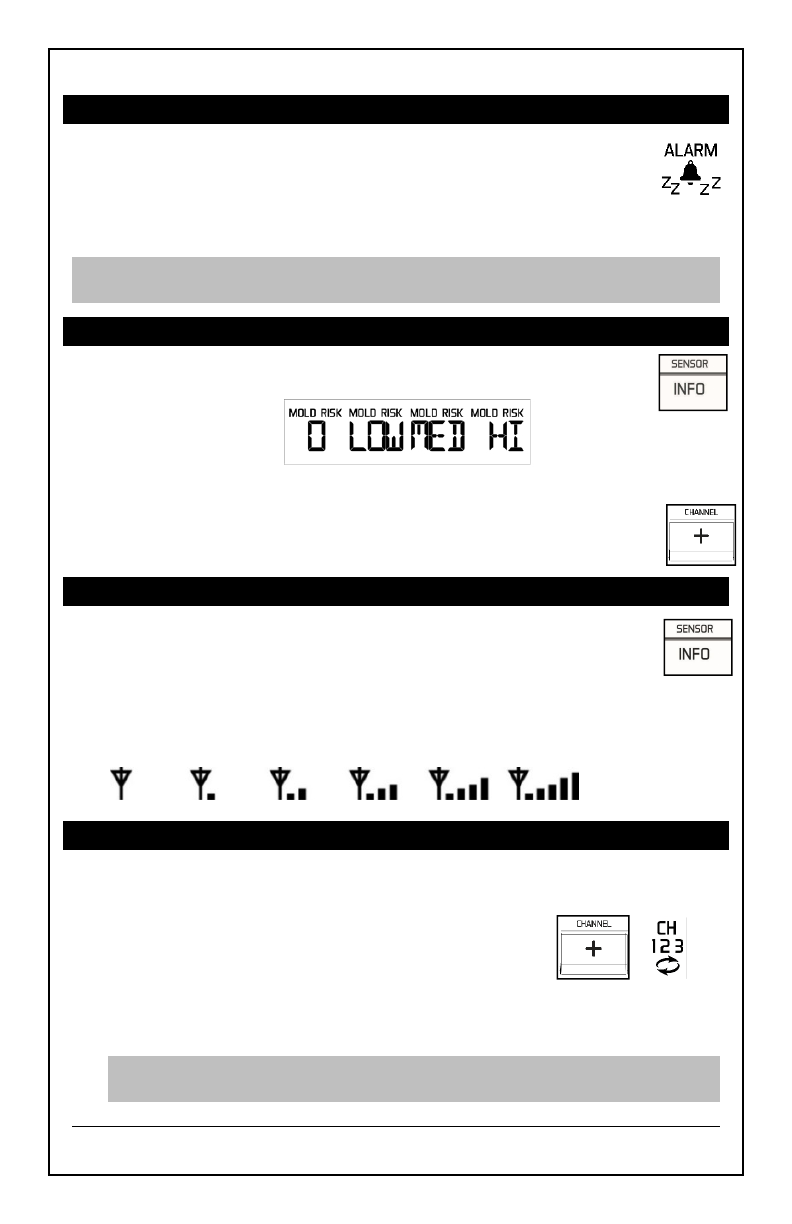

Heat Index/Dew Point/Mold Risk
Press the INFO button repeatedly to toggle between:
Heat Index.
Dew Point.
Mold Risk.
Heat Index, Dew Point and Mold Risk indicators are available for up to
three remote locations (when using multiple remote sensors).
When using multiple sensors press the +button to view readings
on a different channel.
Search for Remote Sensor
Hold the INFO button to search for the remote sensor.
The strength signal icon will animate until the sensor signal
is received or for 3 minutes if no signal available.
Remote Sensor Channels-Auto Scroll
Press the +button to view remote sensor channels for 30 seconds
when multiple sensors are used.
The weather station will automatically rotate
through the channels for all connected sensors
when the circling arrows show below the
channel number.
Press and release the +button to lock the weather station into one
channel. Then view channels individually with a press of the +button.
Note: When multiple remote sensors are used, Heat Index, Dew
Point and Mold Risk will be available for each remote sensor
Model: T83646v2 www.lacrossetechnology.com/support Page | 5
Setup with Multiple Remote Sensors.
The weather station will accommodate up to three remote sensors
(TX141TH-ACH).
Press the +button to easily see the temperature in various locations:
outdoors, baby’s room, greenhouse, basement, etc. Monitor remote
temperature in up to 3 locations within a 300 ft. wireless range of the
weather station.
To connect multiple remote sensors to the weather station:
1. Remove the battery cover from all the sensors
(Leave battery covers off until all sensors are
received by the weather station).
2. Set the first remote sensor to Channel 1 and insert 2AA batteries.
3. Set the second remote sensor to Channel 2 and insert 2AA batteries.
4. Set the third remote sensor to Channel 3 and insert 2AA batteries.
5. Hold the INFO button on the weather station for 5 seconds.
The weather station will search for all remote sensors.
6. Press the TX button on each remote sensor to transmit RF
signal.
7. When RF connection is established, the temperature & humidity for
each of the selected channels will appear on the main unit.
8. Allow the sensors and the weather station to stay 5-10 feet apart for
15 minutes to establish a solid connection.
9. Install the battery covers on each sensor.
10. After 15 minutes place the remote sensors in appropriate locations.
Press and release the +button to view channel 1, 2 or 3 on the weather
station when multiple sensors are used.
Note: If only one sensor is connected, the other channels will show
dashes for temperature and humidity.
Temperature/Humidity Trend Indicators
Temperature (2°F/1°C) and Humidity (5% RH) trend indicators update
about every 30 minutes.
Temperature has risen in the past 3 hours.
Humidity has risen in the past 3 hours.
Temperature has not changed in the past 3 hours.
Humidity has not changed in the past 3 hours.
Temperature has fallen in the past 3 hours.
Humidity has fallen in the past 3 hours.
Model: T83646v2 www.lacrossetechnology.com/support Page | 6
View/Reset MIN/MAX Values
The station automatically resets minimum and maximum
values daily at midnight (12:00 AM).
Press and release the -button to view minimum and
maximum values.
Hold the -button to manually reset minimum and maximum values.
Low Battery Icon
Low battery icon indicates low battery for station or sensor.
If the icon is displayed in the Remote Temperature section,
Replace batteries in the remote sensor.
If the icon is displayed in the Indoor Temperature section,
Replace batteries in the weather station.
Remote Sensor Positioning
Outdoor use: Mount the Remote Sensor on a north-facing wall or in any well
shaded area. Under an eave or deck rail is preferred.
Indoor use: Mount the Remote Sensor indoors to monitor high mold risk areas
like in a crawl space or a basement.
The maximum wireless transmission range to the weather station is over 300
feet (91 meters) in open air, not including walls or floors.
Be sure the remote sensor is mounted vertically.
Weather Station Care & Maintenance
Do not mix old and new batteries
Do not mix Alkaline, Standard, Lithium or Rechargeable Batteries
Always purchase the correct size and grade of battery most suitable for
intended use.
Replace all batteries of a set at the same time.
Clean the battery contacts and also those of the device prior to battery
installation.
Ensure the batteries are installed with correct polarity (+and -).
Remove batteries from equipment, which is not to be used for an extended
period.
Remove expired batteries promptly.
Do not expose to extreme temperature, vibration or shock.
Clean with a soft damp cloth. Do not use solvents or scouring agents.
The product is not a toy. Keep it out of reach of children.
The product is not to be used for medical purpose or for public information. It
is intended for home use only.
The specs of this product may change without prior notice.
Improper use or unauthorized opening of housing voids warranty.
If the product is not working properly, change the batteries.
Low
Battery
Icon
Model: T83646v2 www.lacrossetechnology.com/support Page | 7
Specifications
Indoor
Temperature Range: +32°F to +122°F (0°C to 50°C)
Humidity Range: 1%-99% (RH)
Remote
Temperature Range: -40°F to 140°F (-40°C to 60°C)
Humidity Range: 1%-99% (RH)
Distance: Over 300 ft. (91 meters)
RF 433MHz (open air)
Power
Weather Station 2-AA, IEC, LR6 batteries (not included)
TX141TH-ACH Remote Sensor: 2-AA, IEC, LR6 batteries (not included)
Battery Life
Weather Station
Battery Backup:
Battery life is over 12 months when using
reputable battery brands
TX141TH-ACH Remote Sensor: Battery life is over 24 months when using
reputable battery brands
Dimensions
Weather Station: 5.40” L x 1.68” W x 4.40” H
(137.2 mm L x 42.8 mm W x 111.8 mm H)
TX141TH-ACH Remote Sensor: 1.57"L x 0.79"W x 5.12"H (40 x 20 x 130mm)
Warranty and Support Information
La Crosse Technology, Ltd. provides a 1-year limited time warranty (from date of
purchase) on this product relating to manufacturing defects in materials &
workmanship.
Before returning a product, please contact our friendly customer support
with questions or visit our online help (manuals and FAQS):
Phone: 1-608-782-1610
Online Product Support: www.lacrossetechnology.com/support
Product Registration:
www.lacrossetechnology.com/support/register
View full warranty details online at:
www.lacrossetechnology.com/warranty_info.pdf
Warranty Address: Protected under U.S. Patents:
La Crosse Technology, Ltd 5,978,738 | 6,076,044 |RE43903
2830 S. 26th St.
La Crosse, WI 54601
Model: T83646v2 www.lacrossetechnology.com/support Page | 8
FCC Statement
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
Caution!
The manufacturer is not responsible for any radio or TV interference caused
by unauthorized modifications to this equipment.Such
modifications could void the user authority to operate the equipment.
All rights reserved. This manual may not be reproduced in any form, even in
part, or duplicated or processed using electronic, mechanical or chemical
process without the written permission of the publisher. This booklet may
contain errors or misprints. The information it contains is regularly checked
and corrections are included in subsequent editions. We disclaim any
responsibility for any technical error or printing error, or their consequences.
All trademarks and patents are recognized.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
changes or changes or
Canada Statement
This device complies with Industry Canada’s licence-exempt RSSs.
Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference
that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada
applicables aux appareils radio exempts de licence. L’exploitation est
autorisée aux deux conditions suivantes :
(1) l’appareil ne doit pas produire de brouillage;
(2) l’utilisateur de l’appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d’en
compromettre le fonctionnement.
Model:T83646v2 www. Lacrossetechnology.com/support Page9
