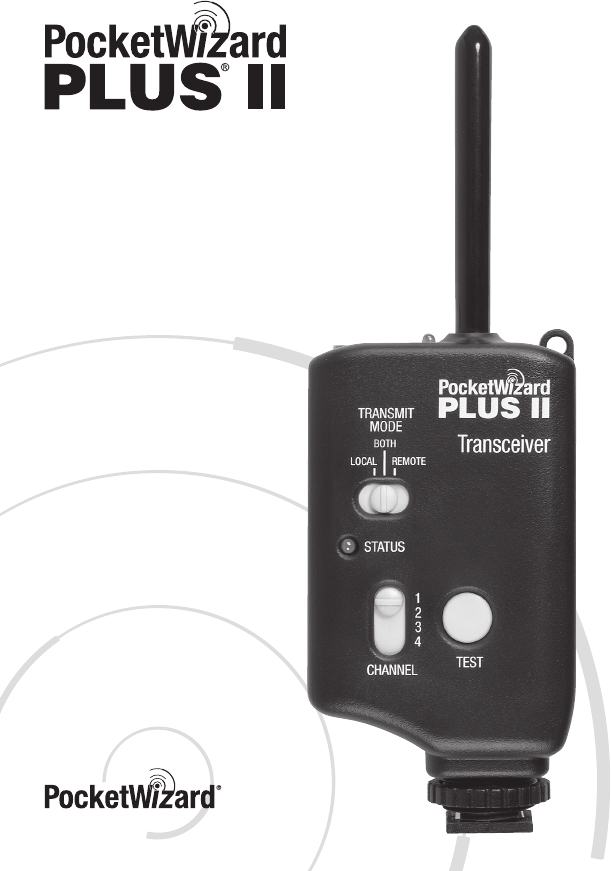

Owner’s Manual
www.PocketWizard.com
2
To find the correct PocketWizard brand cables for your
flash and cameras, and to experience other products like
the MultiMAX, please visit www.PocketWizard.com or
your local photography dealer.
Table of ConTenTs
Congratulations ..........................................3
Key Features.............................................3
Part Reference (Package Contents) . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Safety Warnings..........................................5
Batteries................................................5
Setup for Remote Flash Triggering . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Camera Setup .......................................6
Remote Flash Setup...................................6
Triggering...........................................6
Connecting a Flash to the
Camera’s Transceiver (Local Flash) . . . . . . . . . . . . . . . . . . . . . . .7
Local TTL Flash ......................................7
Triggering A Remote Camera ................................8
Basic Remote Camera Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Relay Mode..............................................8
Relay Mode Setup ....................................9
Turning Off Relay Mode................................9
Transmit Mode Only......................................10
Activating Transmit Only Mode . . . . . . . . . . . . . . . . . . . . . . . . .10

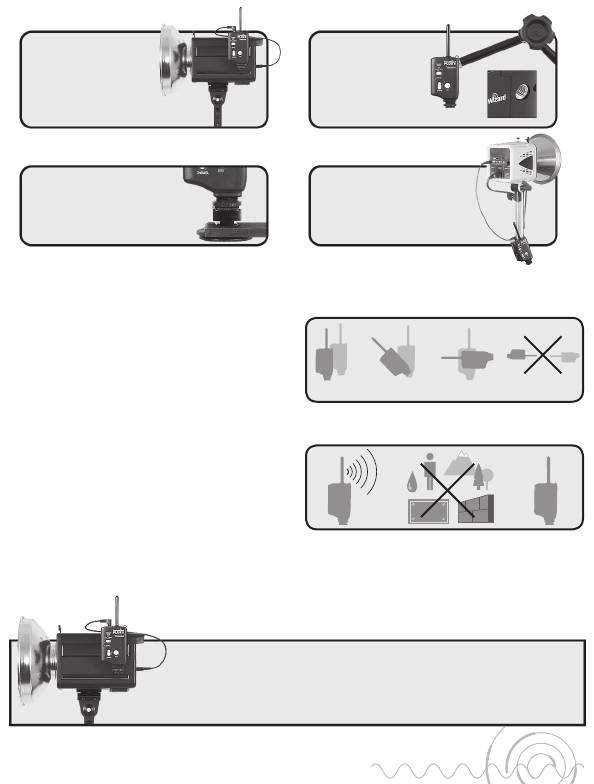

Mounting ..............................................11
Sustaining High Performance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Troubleshooting .........................................12
Notes .................................................13
Technical Information.....................................14
“The FCC Wants You To Know” . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
3
Congratulations on your purchase of the new PocketWizard
Plus® II Transceiver, a high performance Digital Wireless Radio Slave and
Remote Triggering System. The Plus II features advanced auto-sensing intelligence
to automatically send or receive PocketWizard radio signals based simply on
how it is connected. PocketWizards are the most technologically advanced
microprocessor-controlled radio triggers for flash and cameras. Using carefully
engineered filtering and digital signaling technology, PocketWizards reject
ambient radio noise and have a wide dynamic range enabling high performance,
consistency, and reliability for all types of remote photography.
This Plus II Transceiver is frequency compatible with all US PocketWizard systems.
PocketWizard Plus II Key Features
Auto-Sensing Transceiver – Automatically transmits or receives based on
connections. No Tx/Rx switches. No sorting out Transmitters and Receivers.
Simply make connections and start working sooner with near-zero configuration time.
Auto-Relay – Easily trigger a remote camera in sync with a distant remote flash.
Put a camera where you can’t be and have remote lighting at the same time.
Expand your coverage and increase your creativity.
Fast FPS – Trigger cameras or flash units up to 12 frames per second.
4 Sixteen-Bit Digitally Coded Channels – Create multiple setups or work
exclusively at events with other photographers without interference.
1600 Foot Range – Long PocketWizard range equals increased performance and
reliability even when working at average photographic distances. Our enhanced
range provides best-in-class remote performance for all types of photography.
Fast Sync Speeds – Compatible with most cameras’ fastest X-Sync speeds including:
— 1/250 Focal Plane Shutters
— 1/500 Leaf Shutters
Locking Hot Shoe Mount – Secure mounting. Several other mounting methods included.
This US frequency Plus II is compatible with all US frequency PocketWizard products. It is not frequency
compatible with CE or JAPAN PocketWizard products. Verify frequency compatibility before purchasing.
Some products are not manufactured on every frequency. Always operate within local radio regulations.
4

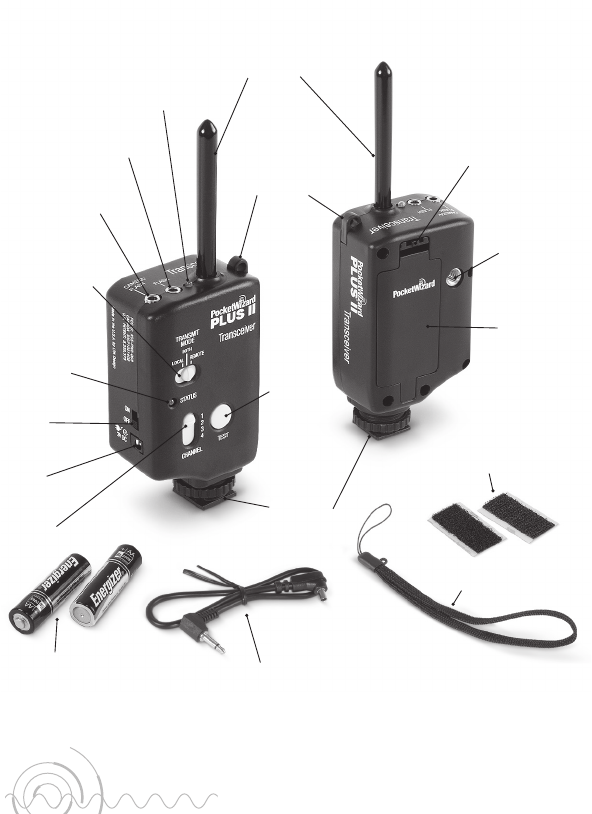

PoCkeTWizard Plus ii ParT referenCe
Lanyard Loop
Flash
Camera / Flash
Status LED
On/Off
Switch
Locking Hot
Shoe Mount
Battery
Door
1
/
4 - 20
Mount
Battery Door Latch
Flexible Antenna
Status LED
TRANSMIT MODE
Local/Both/Remote
AC
Power
Test
Button
Channel
Selection
PC1 Cable
For use with a
camera’s PC terminal
AA Batteries
(IEC-LR6)
Lanyard
VELCRO®
Adhesive Hook
and Loop Fasteners
5
Please pay attention to the following safety warnings:
• Operating temperature: above -15° C (5° F) and below 50° C (120° F)
• Storage temperature, without batteries: above -30° C (-22° F) and below 85° C (185° F)
• Remove batteries during storage.
• Battery Requirements: IEC:LR6 (AA) Size
• Do not remove instrument covers during operation.
• Do not operate the device in the presence of flammable gases or fumes.
Operation of any electrical instrument in such an environment constitutes
a definite safety hazard.
• There are no user serviceable parts inside the PocketWizard Plus II. Do
not install substitute parts or perform any unauthorized modification of the
instrument. Refer servicing only to qualified and authorized personnel.
• Red LED’s are used for dim light application and do not indicate a hazardous status.
• The PocketWizard Plus II is an accessory device for cameras and flashes.
Do not use this product in a manner not specified in documentation.
baTTeries
CAUTION: Turn OFF your equipment (PocketWizard units,
electronic flash units, cameras, etc.) before making connections
or changing batteries.
Install 2 fresh AA (IEC:LR6) batteries into the Plus II Transceiver.
Make sure to note proper polarity. Alkaline batteries are recommended.
Rechargeable batteries will also work, though operation time may be reduced.
When the STATUS LEDs stop blinking, it is time to change the batteries.
Battery life is approximately 60 hours under typical use.
See NOTE 1 for more battery information.
WARNING – To avoid battery leakage, follow these guidelines:
• Always remove the batteries when the unit is not in use for extended periods of time,
or during shipping or long distance travel.
• Never mix old and new batteries. Always use a fresh pair of matched batteries.
• Always change batteries promptly at the first indication of low battery operation.
• Do not use or leave the unit in extreme temperature or humidity situations.
See “Technical Information” for normal operating and storage temperatures.
6

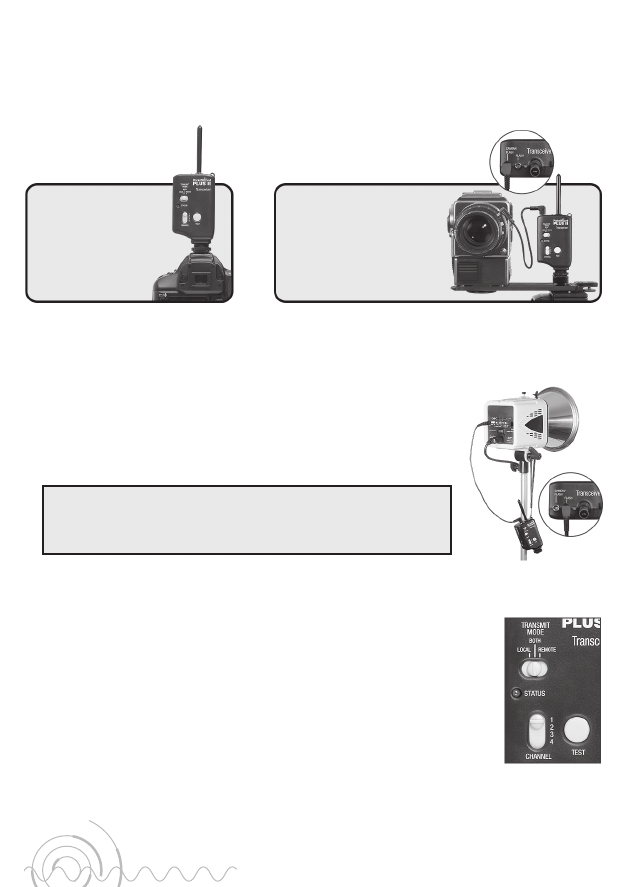

seTuP for remoTe flash Triggering

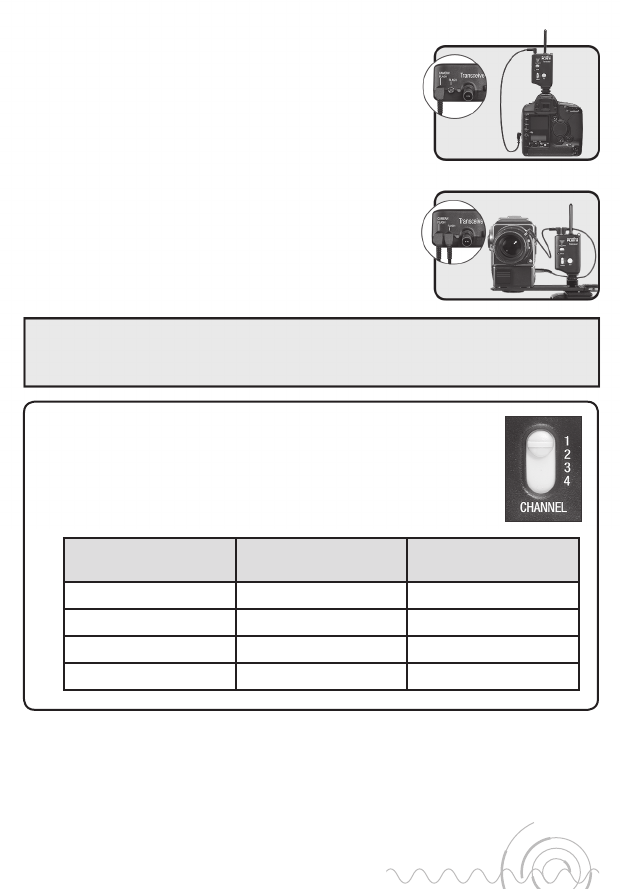

Camera Setup
Connect a Plus II Transceiver to the camera using one of the following methods:
Remote Flash Setup
Connect the Plus II Transceiver’s FLASH port to the flash unit’s sync terminal using:
a) the correct PocketWizard flash sync cable for best results.
- or -
b) your flash unit’s original sync cable and a PC female adapter
(PocketWizard part number MPCF (804-605)).
You may have as many remote Plus II Transceivers on the same
channel as you would like. Connecting 2 flashes to a single
Plus II Transceiver will not work. See NOTE 3.
Triggering
1. Turn on both Plus II Transceivers, and turn on the camera and flash.
2. On both Plus II Transceivers make sure that:
• The STATUS LEDs on each Plus II Transceiver blink every
few seconds.
• The same channel is selected using the CHANNEL slide switch.
• The TRANSMIT MODE switch is set to BOTH (middle position
which is default operation).

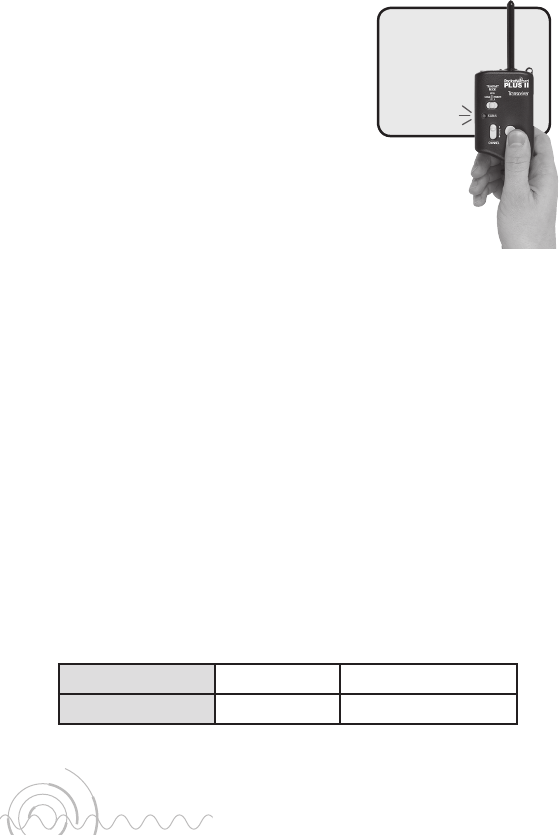

3. Press the TEST button on the camera’s Plus II Transceiver to
confirm that the remote flash triggers.
4. Begin triggering normally.
or
Slide the Plus II
Transceiver into
the camera’s hot
shoe and tighten
the hot shoe nut.
Option 1
Connect the PC1 sync
cable (included) from
the camera’s PC terminal
to the port labeled
CAMERA / FLASH.
Option 2
Shown with
default settings.
7

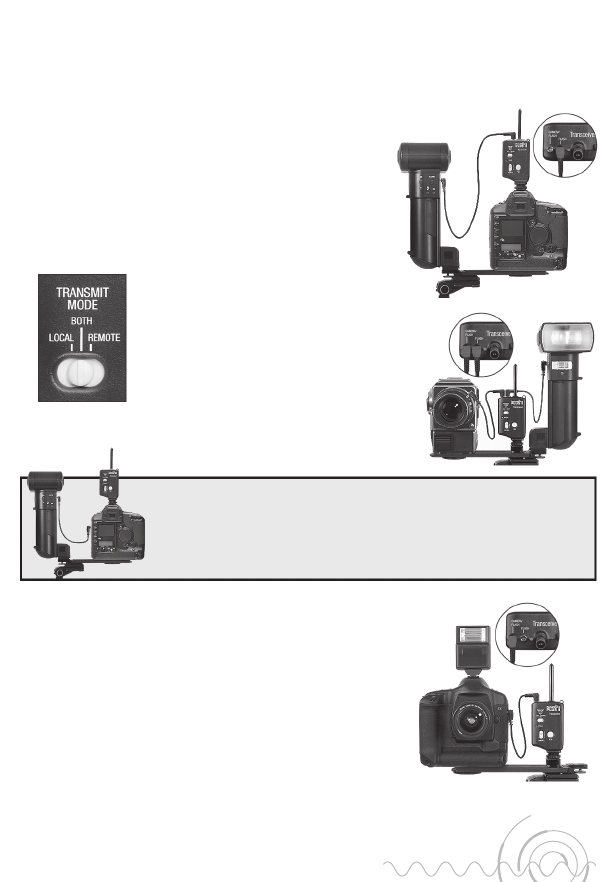

Connecting a Flash to the Camera’s Transceiver (Local Flash)
A LOCAL flash is usually a non-TTL flash that is mounted on or near the camera,
for example on the camera’s bracket. It can be triggered from the camera’s
Plus II Transceiver ensuring perfect synchronization with remote flashes.
See below for using a LOCAL TTL FLASH.
1. On the camera’s Plus II Transceiver, connect the
FLASH port to your local flash unit’s sync terminal.
Use a PocketWizard flash sync cable for best results.
2. Use the TRANSMIT MODE switch to creatively
select which flashes will trigger:
• LOCAL = Only the flash connected to
the camera’s Transceiver will trigger.
Remote PocketWizards will not trigger.
• BOTH (Default) = Both the local and remote
flashes will trigger in perfect synchronization.
• REMOTE = Only the flashes connected
to remote PocketWizards will trigger.
The flash connected to the camera’s
Plus II Transceiver will not trigger.
Local TTL Flash
Plus II Transceivers do not transmit TTL information.
You can use a TTL flash directly connected to your
camera and have remote flashes (not in TTL mode)
triggered by PocketWizards.
See NOTE 4 for important timing information.
To operate in this manner, simply connect the
Transceiver’s CAMERA / FLASH port to your camera’s
PC terminal and make all other camera to TTL flash connections normally.
Alternate Connection Method: You may connect a local flash directly
to your camera’s PC terminal. In this case, the local flash will always
trigger regardless of the position of the TRANSMIT MODE switch.
See NOTE 4 for important timing information.
8

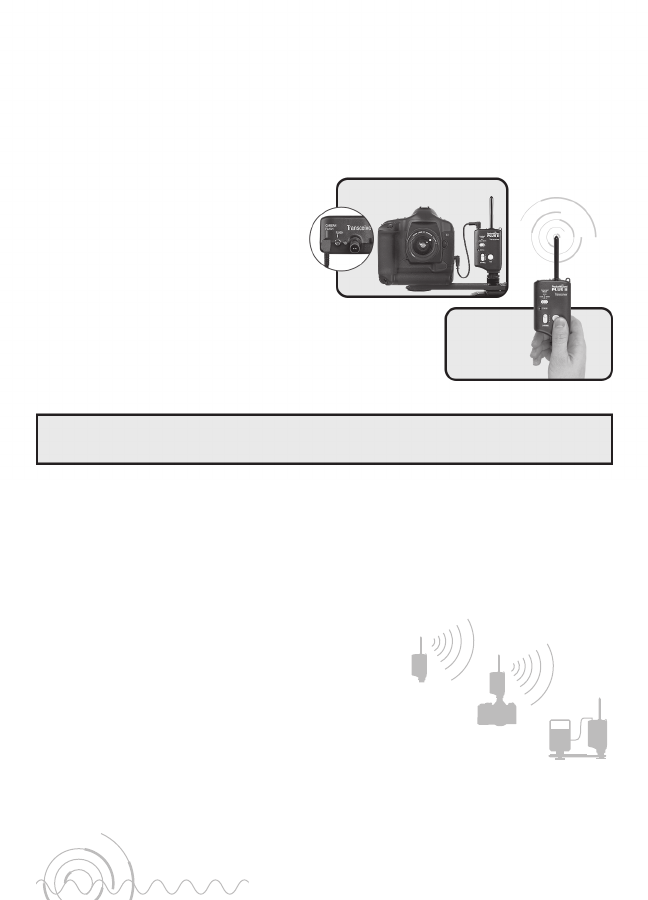

Triggering a remoTe Camera
A Plus II Transceiver, paired with any PocketWizard Transmitter, can be used to
trigger a remote camera. The camera needs to have an electronic shutter release
connection and have a compatible PocketWizard motor drive cable available.
Please visit www.PocketWizard.com to determine the correct motor drive cable.
Basic Remote Camera Setup
1. Connect a Plus II Transceiver’s
CAMERA / FLASH port to the motor
drive port of the camera using a
PocketWizard motor drive cable.
2. Make sure the Plus II Transceiver
and the hand-held PocketWizard are
set to the same channel and turned on.
3. Press the TEST button on the hand-held
PocketWizard to trigger the remote camera.
You can have a flash directly connected to the remote camera. Connecting a flash to the
FLASH port of the Plus II Transceiver will not work in this setup. See NOTE 3.
relay mode
You can trigger a remote flash in sync with your remote camera. This is called
relay mode and requires only 3 PocketWizards. Here is how it works:
• You press TEST on a PocketWizard that you are holding in your hands.
• The Plus II Transceiver connected to your remote
camera receives the signal and triggers your camera.
• The Plus II Transceiver switches to transmit mode,
one channel higher, and waits for the camera to
provide a sync pulse.
• The PocketWizard connected to your flash receives
the camera’s sync pulse and triggers your flash.
Hand Held
Trigger
Remote Camera
9
Relay Mode Setup
1. Set the master triggering PocketWizard
(the one in your hands) to Channel 1.
2. Set the Plus II Transceiver (the one for your remote
camera) to Channel 1 and set TRANSMIT MODE to BOTH.
3. Connect the Plus II Transceiver’s CAMERA / FLASH port to
the motor drive port of the camera.
4. Slide the Plus II Transceiver into your camera’s hot shoe.
5. Set the PocketWizard for your remote flash to Channel 2.
6. Connect your remote flash to its PocketWizard normally.
7. Turn everything on, then press and release TEST on the
PocketWizard in your hands to begin the sequence.
If you are using a camera with no hot shoe, or the hot shoe cannot be used, then connect
the Plus II in this manner: Connect the camera’s motor drive cable to the FLASH port.
Connect the camera’s PC sync terminal to the CAMERA / FLASH port.
You can use different channels to perform the relay function. The
master triggering PocketWizard (usually the one held in your hand)
and the Plus II Transceiver connected to your remote camera need
to be on the same channel. The PocketWizard connected to your
remote flash needs to be set one channel higher.
If master trigger
PocketWizard is set to:
Set the remote camera’s
Plus II Transceiver to:
Set the remote flash’s
PocketWizard to:
112
2 2 3
334
441
Channel
Turning Off Relay Mode
If you want to trigger a remote camera and have the Plus II mounted in the
camera’s hot shoe, but you do not want the relay sequence to happen, simply
set the TRANSMIT MODE switch to LOCAL on the unit in the camera’s shoe.
See NOTE 5 for more information on relay triggering.
Using Hot Shoe
Without Hot Shoe
10
TransmiT mode only
The Plus II can be set to operate only as a Transmitter
and perform no Receive or Relay function.
Transmit Only Mode is helpful when 2 or more
photographers are sharing remote flash units on
the same PocketWizard channel, and are using
one or more Plus II units as Transmitters from
their cameras.
In normal operation, when the first photographer triggers
their camera, the second photographer’s Plus II performs
Receive/Relay functions. This may occur when an
immediate Transmit function is desired, for example when
the photographers are triggering within moments of each
other and using a fast recycling flash. In addition, the second photographer’s
on-camera flash may be triggered unintentionally. Transmit Only Mode resolves
these potential situations.
Activating Transmit Only Mode
Step 1: Turn off the Plus II unit(s) being used for Transmit
Step 2: Press and hold the TEST button as you turn the unit back on
The Status LEDs will show a fast blinking pattern indicating Transmit Only Mode. You
can verify Transmit Only operation by triggering any other PocketWizard Transmitter
and noting that this unit does not respond.
Transmit Only Mode is not remembered when the unit is turned off. You will need to
activate Transmit Only Mode every time you need it.
To return the unit to Normal Mode, turn it off and back on again normally. Do not hold
down TEST when powering on. The Status LED’s will show the normal slow blinking
pattern indicating normal mode.
Transmit Only Mode Fast Blink ~1 blink every second
Normal Mode Slow Blink ~1 blink every 2 seconds
Fast Blink
indicates
Transmit
Only Mode
11
Mounting
suggestion.
Mount the remote PocketWizard so that the antenna is
completely above the top edge of the flash pack and away
from any metal (light modifiers, stands, etc.).
mounTing
Mount a remote Plus II Transceiver using any of the included methods.
See “Sustaining High Performance” for more mounting information.
For attaching to
flashes, brackets,
cameras, etc.
See NOTE 2.
VELCRO®
For tripods,
mounting arms,
isolation bars,
brackets, etc.
1/4-20 Mount
For mounting on
a bracket shoe, cold
or dead shoe, etc.
For hanging from a
light stand, flash handle,
tripod knob, belt, etc.
Lanyard
Shoe Mount
susTaining high PerformanCe
Long distance performance from
your PocketWizards depends on the
orientation and position of the units.
Whenever possible, try to maintain a line
of sight between the units and keep the
antennas parallel. Make sure they are not
near any large metal, concrete, or high
water-content objects. People and trees
are mostly water! Make sure they are not
blocked by these objects or by hills.
Maintain at least 12" distance between antennas. Avoid direct antenna contact with
anything metallic. “Dead spots” have a number of causes, but the solution is usually
the same: move the unit a few inches or feet away from the problem area.
Positioning
PoorAcceptable
Best Worst
Blocking Signal
12
TroubleshooTing
First follow the steps 1-5 then consult the table below.
1. Turn the units off, verify fresh batteries are in use, and turn the units back on.
2. Double check all connections.
3. Make sure the units are set to the same channel number.
4. Set the Transmit Mode switch to the BOTH position.
5. Press TEST on every unit and verify proper operation.
Problem Solution
When I press TEST or
trigger the camera, the
remotes do not trigger.
• See “Sustaining High Performance” earlier for radio information.
• Set the TRANSMIT MODE switch to BOTH.
When I press the TEST
button, the flash or camera
directly connected to the
unit does not trigger.
• Verify that the remote equipment is functional when not connected to the
PocketWizard. Try a different flash or camera.
• Double check all connections. Eliminate adapters if possible. Make sure
the cable is properly connected to the correct port on the flash or camera.
If triggering a flash with a household style sync terminal, try reversing the
household connection (correct the polarity).
• Try connecting to the other port on the PocketWizard unit. Either port
can trigger most cameras or flashes. Each port has slightly different triggering
characteristics that may be more or less compatible with your equipment.
• Verify that the flash being triggered has a sync voltage that is compatible with
your PocketWizard (see “Technical Information”).
• A remote camera cannot be triggered via its PC terminal or hot shoe. Get
a motor drive cable.
• Try replacing the cable. Use PocketWizard brand cables.
The STATUS LED does
not blink when the power
switch is on.
• Try new AA (IEC:LR6) alkaline batteries (see page 5).
• If the unit has been left on but not triggered for ~40 hours, then it has shut
down to prevent potential battery leakage. Turn the unit off and back on again or
change the batteries.
The STATUS LEDs are on
continuously (do not blink
or blink rapidly) and no
buttons are being pressed.
• Check for a stuck TEST button on all units. Turn each unit off and back on
again to isolate the source of the problem.
• Remove the unit from the camera’s hot shoe and/or unplug and reconnect
any connecting cables.
• Try switching all remote connections to the FLASH port rather than the
CAMERA / FLASH port.
Visit www.PocketWizard.com for more troubleshooting information.
13
noTes
Note 1 – The Plus II Transceiver shuts down after approximately 40 hours if it
receives no triggers, or if the combined battery voltage drops below 1.7 volts. This
protects against severe battery depletion which may lead to leakage. Power the unit
off and back on again, or replace the batteries, for normal use.
Note 2 – VELCRO® Brand Fasteners are included to provide a convenient means of
mounting the unit in a variety of places. Attach as desired being careful to not obscure
controls or function. Recommended mounting locations are the side of the unit or
the area below the 1/4-20 mount. The battery door is not a recommended mounting
location as damage to the battery door could occur when dismounting the unit.
Note 3 – If there is any cable connected to the FLASH Port on a Plus II, then the
CAMERA / FLASH Port is switched to input mode only. If you connect 1 flash to
each port of the Plus II, then only the flash connected to the FLASH port will trigger.
Attempting to connect 2 flashes to the FLASH port can be dangerous. Different
flashes can have very different sync voltages. Connecting them together could cause
damage to the flashes, and they may not trigger. 2 identical flashes with known
identical sync voltages may work when connected together, but operation is not
guaranteed to be risk free.
Note 4 – There is a 1/2000 second delay when triggering via PocketWizard radios.
This means your radio remote flashes will trigger 1/2000 second after your camera
connected flash triggers. For very fast moving objects this may result in image
streaking or 2 distinct flash moments on the same image (double exposures).
Note 5 – If you press and *hold* the TEST button on the unit in your hands, and you
are using a fast shutter speed like 1/200 or faster, then you may cause interference
for the remote flash unit. It may miss the flash sync pulse from the camera. Press and
immediately release the TEST button to help avoid this situation. If you are attempting
to perform a long exposure or a motor drive multi-frame burst, then you may need to
consider our MultiMAX product for enhanced relay functionality.
Note 6 – The hot shoe and the miniphone connectors of the PocketWizard Plus II are
ESD (electro-static discharge) sensitive. A static shock to one of those points may
cause the unit to unintentionally transmit a radio trigger.
14
TeChniCal informaTion
Frequency: 344.04 Megahertz
Transmit output power: Less than 0.001 watt (1/1000 of a watt or 1 milliwatt)
Minimum receive Contact Time: 80 milliseconds
Maximum Frames Per Second: 12
Top Ports: 3.5mm (1/8") mono miniphone
CAMERA / FLASH Port Voltage Handling: up to 100 Volts
FLASH Port Voltage Handling: up to 200 Volts
CAMERA / FLASH = center positive; FLASH = non-polarized
Both ports are current limited: 4 Amp peak, 250 millamp continuous
CAMERA / FLASH Port and hot shoe mount voltage present: 3.3 Volts DC.
A camera is protected from a flash connected to either port.
AC Adapter jack: 3V DC 200mA (unregulated), Center Positive
Male plug connector required: 1.3mm ID, 3.4mm OD, 1cm long
Body Dimensions: 1.4" deep x 2.1" wide x 4" tall
Antenna: 2.4" tall, 0.3" diameter
Weight: Less than 5 ounces with alkaline batteries
Operating temperature: above -15° C (5° F) and below 50° C (120° F)
Storage temperature, without batteries: above -30° C (-22° F) and
below 85° C (185° F)
15
The fCC WanTs you To knoW:
WARNING: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy, and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and the receiver.
3. Consult the dealer or an experienced radio or television technician for help.
This device complies with Part 15 of the FCC rules and also with RSS-210 of Industry
Canada. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) This device must accept any interference received, including
interference that may cause undesired operation.
Transceiver FCC ID Number: KDS-PW2-103
Transceiver CANADA IC: 2170A-PW103
Plus II, Manual Revision 1.5 (LPF058)
For more information about using
your PocketWizard product visit:
www.PocketWizard.com
