P-touch 7600

Contact:

Electronic labeller

PT-7600PT-7600

Brother P-touch 7600

Technical Information

P-touch 7600

Hardware

Housing Dimensions 134mm(W) x 235mm(D) x 78mm(H)

Housing Weight 610g (without batteries and tape cassette)

Housing Design Handheld Type

Housing Colour Orange / Black

Keyboard ABCD Layout

Number of Keys 56 keys

Cutter Manual

Power Rechargeable Batteries Pack (BA-7000),

6 x AA Alkaline (LR6) Batteries, 6 x AA Rechargeable Batteries

or AC adaptor

LCD 132 x 48 dots Graphic Display with Backlight

Included Items Carrying Case, User's Guide, Adjustable Neck Strap,

Rechargeable Batteries Pack (BA-7000), AC- Adapter,

CD-ROM, USB Cable,

12mm Black on White Flexi-ID cable 8m wrapping tape (TZ-FX231)

Tape Type TZ-tape

Tape Size 6 / 9 / 12 / 18 / 24 mm

Print Head 180 dpi

Print Speed 10mm / second

Firmware

Built in Fonts Helsinki

Characters 373

Symbols 164

Max. Print Height 18mm

Number of lines printable Max.7 lines

Text Buffer 500 characters

Memory Max. 2,000 characters

Character Sizes (pts) Auto, 6, 9, 12, 18, 24, 36, 48

Character Widths Normal / Narrow / Thin / Wide

Type Styles Normal / Bold / Outline / Italic / Italic Bold / Italic Outline

Framing 15 kinds

Barcodes CODE39, CODE128, EAN8, EAN13, EAN128, UPC-A,

UPC-E, I-2/5(ITF), CODABAR

Mirror Printing Yes

Block Printing Yes

Repeat Printing Yes (1-99)

Numbering Yes (1-99)

Database Printing Yes

Tape Margin Settings 2mm - 99mm

Transfer Function Download Templates and Image Characters (Max.10)

Download Database x 1

Battery Weak Indication Yes

Auto Power Off Yes

Print Image ( Preview ) Only Layout Preview

Software

Label Editing Software P-touch Editor ver. 5.0, P-touch Library 2.1

Operating System Windows® 2000 Profssional / XP / Windows Vista®

Interface USB Port (USB Spec. 1.1 or 2.0 protocol) for transfer only

18mm

6mm

9mm

12mm

24mm

<Always at your side

Abrasion Test: A 1kg sanding device was

passed over Brother P-touch laminated labels,

and non-laminated competitor labels. After 50

return passes the characters underneath the

P-touch laminated label were completely

unaffected and the lamination was only slightly

scratched. The characters on the competitor

labels were affected by this test

Strong Adhesive Test: Standard tape and

extra strength adhesive tape were affixed to a

variety of surfaces and left for 30 minutes.

Adhesive strength was tested by removing the

tape at an angle of 180 degrees. Our strong

adhesive tape maintained an average of 50%

more adhesive strength compared to standard

tapes.

Chemical Test: Tapes were immersed in various

liquids for 2 hours, and no change in the labels’

appearance or structure occurred. Although

some labels soaked in certain chemicals

showed minor changes, rubbing the labels with

the same chemicals had no effect at all. A 500g

weight with a chemical and solvent infused cloth

was passed over each label 20 times, and the

print quality of P-touch laminated labels were

unaffected, unlike the competitors’

non-laminated labels.

Fade Test: Several Brother P-touch laminated

labels were attached to coated metal plates and

placed inside a fade-inducing chamber at 83°C

and left for a period of 100 hours to simulate a

year in sunny surroundings. The text colour

remained unchanged and was still completely

legible. To the naked eye, the tapes’ background

colour showed no change, except for the yellow

tape which showed some slight fading.

Temperature Resistant Labels: P-touch

laminated labels, slightly roughened with

abrasive paper, were attached to stainless steel

then heated and cooled.

After 240 hours at -80°C no noticeable change in

the tapes’ adhesive or colour had occurred. After

240 hours at 150°C, despite slight discolouration,

the text on the labels remained completely

intact*. The black on matt silver tapes are most

resistant to high temperatures.

*When tape is subject to extremely high temperatures for long periods, the laminate film may be

separated or discoloured, or it may shrink.

For more detailed information on the tests performed, please contact your local Brother office.

Abrasion

Resistant

Strong

Adhesion

Chemical

Resistant

Fade

Resistant

Temperature

Resistant

TZ 125TZ 125

TZ 143TZ 143

TZ 761TZ 761

TZ M941TZ M941

Iron on Fabric - 3 metres

TZ FAE3TZ FAE3

TZ FA53TZ FA53

TZ FA63TZ FA63

Tamper Evident - 8 metres Laminated

Flexible ID tape - 8 metres Laminated

Tape Comparison Chart

Actual tape colours may differ slightly from the printed colours. Brother TZ tapes are supplied in standard 8m

lengths. Exceptions are fluorescent (5m) and iron-on fabric tape (3m).

* Only for use with the PT-9500PC

** Only for use with machines with 3.5mm tape capability

Please refer to the Options/Consumables page at www.brother.com.au specific to

your P-touch model to determine the tape width sizes compatible with your labeller.

TZ-S661TZ-S661

TZ-S161TZ-S161

TZ-S651TZ-S651

TZ-S151TZ-S151

TZ-S641TZ-S641

TZ-S141TZ-S141

TZ-S631TZ-S631

TZ-S131TZ-S131

TZ-S621TZ-S621

TZ-S611TZ-S611

Smooth Textured Textured TexturedSmooth Smooth

Choosing the correct TZ label tape for the job is crucial. This is why Brother

has a range of tapes specifically designed for different labelling applica-

tions. By using our unique lamination process and specially developed

adhesives, you can be sure that your labels will withstand

the harshest conditions, year after year.

TZ Laminated Tapes: Unlike ordinary labels, our unique laminated

tape technology ensures that your text is sandwiched between a layer

of super-clear polyethylene and the durable base layer.

This makes these virtually indestructible labels resistant to sunlight,

abrasion, moisture, chemicals, heat and cold.

Strong Adhesive Tape: Our strong adhesive tape demonstrates

50% more adhesive strength on average compared to our standard tape,

and is suitable for more demanding applications.

Flexible ID Tapes: Designed for wrapping around small diameter curved

surfaces such as power cables and conduit/pipes they are

also perfect where the label needs to be stuck onto itself (flagging).

Recommended Acceptable Not Recommended

FLAT

SURFACE

LARGE

CURVED

SURFACE

SMALL

CURVED

SURFACE

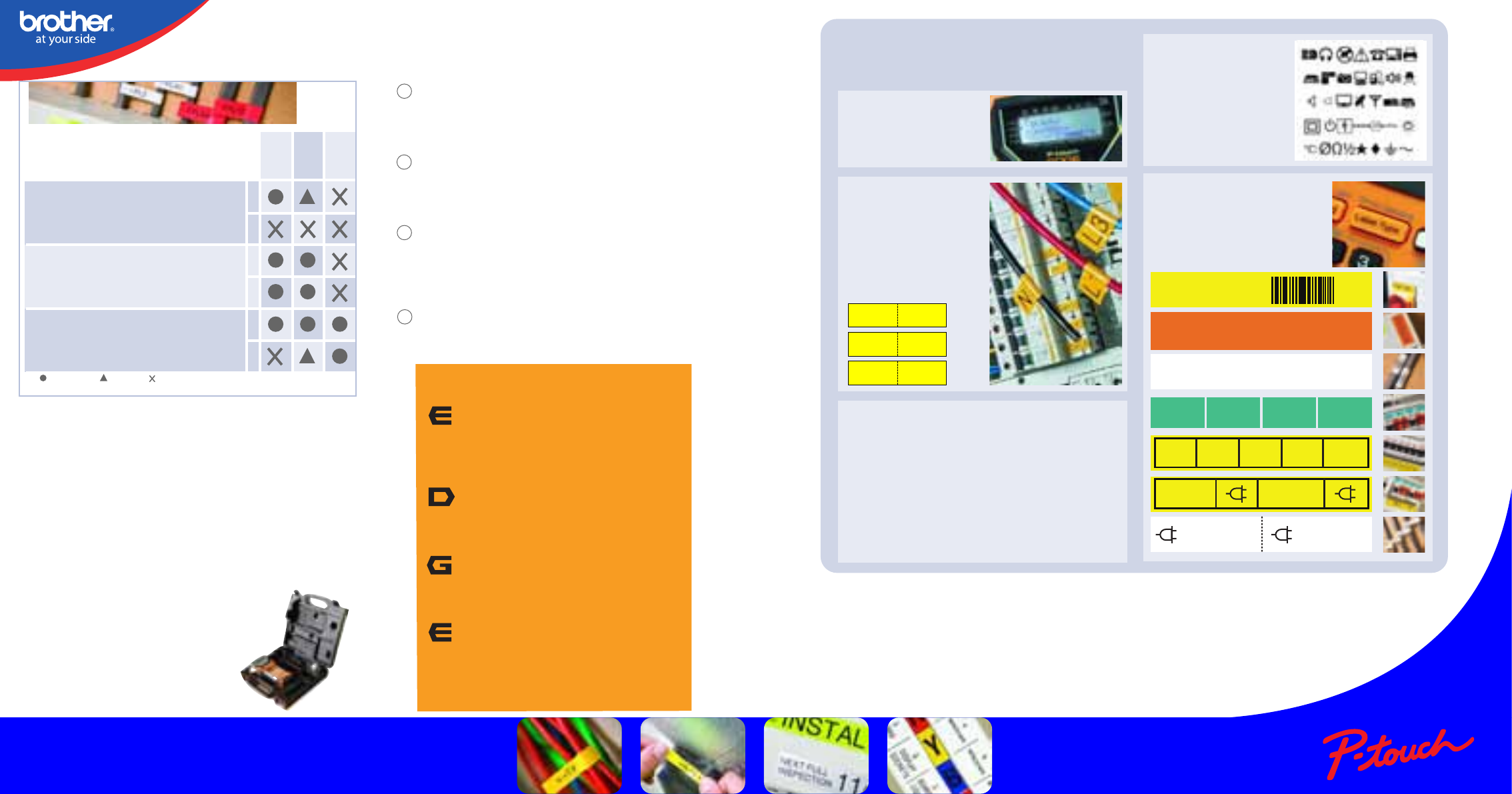

P-touch 7600

Built for professional use

The PT-7600 comes packed with features and functions that have

been developed as a result of listening to our customers needs.

With a rugged and durable design, the machine comes with a pro-

tective rubber grip that not only offers protection, but also helps

ensure the machine won’t slip from your grasp. To further protect the

unit, it is supplied in a robust carry case with storage space for

additional tapes, accessories and the AC Adaptor.

P-touch 7600 includes:

• PT-7600 Industrial labelling tool with rubber impact guards

• 12mm Black on White Flexi-ID cable wrapping 8m tape

• Handy Carry Case

• Built-in rechargeable battery pack

• AC Adaptor

• USB cable

• Label editing / design software

• Neck/Hand Strap

Easy-to-read backlit

LCD display panel

Automatic numbering

Quickly and easily print

labels that contain

incrementing numbers.

Perfect to identify a

mass of cables!

Advanced cutter system

To ensure that your label is printed at the correct

length, the PT-7600 has a special cutter system

that will pause the printing at the required cut

point. No scissors are required to cut the tape to

the correct length!

Symbols

148 symbols (including

typical Audio/Video

symbols) are included

as standard.

Easy label creation

A dedicated “Label Type” button

allows you to quickly create

labels for the most common

electrical labelling applications.

L1 L1

L2 L2

L3 L3

Benefits and features designed for

electricians and cable installers

319/4

117

256

191

876

001

217

117

095

1

A5 A4

IN 1IN 2

+220V+

+220V+

+220V+

+220V+

+220V+

+220V+

+220V+

+220V+

+220V+

+220V+

+220V+

+220V+

+220V+

+220V+

+220V+

+220V+

+220V+

+220V+

+220V+

+220V+

234

A3 A2 A1

FLR1 FLR1

Creating your own custom labels offers four key

benefits to electricians, cable installers, and

others in the professional trade:

1 Professional Installation

Impress your customers with a professional, quality installation by

creating detailed, easy-to-read labels that contain symbols, and

even your own company logo.

2 Ease of Maintenance

Reduce the time needed to diagnose faults by using Brother

P-touch machines to clearly label cables and electrical or

network components.

3 Ease of Operation

Make life easy for your customers. Use Brother P-touch labels to

clearly identify electrical components, network / telephone ports

and faceplates, ensuring ease of operation and reducing the

possibility of mistakes.

4 Safety

Create professional warning signs and information labels to

instruct your customers on key safety points.

Rechargeable Battery

Supplied with a rechargeable battery pack, the unit is easily charged overnight by simply plugging the AC Adaptor into the labelling

machine, which helps to reduce the environmental impact and also saves you money. No more buying expensive batteries!

Create custom content and upload to the memory of the PT-7600

The PT-7600 includes a USB port and cable to allow connection to a Microsoft Windows based PC. Create your own

label layouts and add your own AV and electrical symbols or your company logo using the supplied label design

software. There are ten special memory locations on the device for storing your own customised images

and label designs, so they are available whenever and wherever you want them.

Durable construction with rubber impact guards

protects from expected bumps and rough handling

• Portable handheld design, weighs only 610g

• Comes with protective carrying case to hold labeler,

AC adapter, batteries and extra tapes

Easy to use, just type and print a label!

• Intuitive interface makes it simple to design the perfect label

• Smart tape technology automatically selects the font size and

length of a label

• Simple label design tool helps you create the right label for

your specific application

Great performance at an affordable price

• Versatile font options – From 1 line up to 62 point size, to 7

lines with up to 26 rotated characters* per line

• Prints industry standard (ANSI X3.182) bar codes

• Multiple power choices – batteries or AC adapter

Extreme conditions requires tough

P-touch laminated labels

• Ideal for commercial and industrial applications

• Includes UL recognized (UL969) labels for

indoor/outdoor applications

• Resists extreme temperatures, chemical

exposure, moisture, fading and abrasion

P-touch PT-7600

*Requires global character width set to narrowest setting
