DS2200 Series Handheld Imagers

AFFORDABILITY AND SIMPLICITY DELIVERED

2D barcodes have made their way to your Point of Sale, appearing on everything from the items your customers are purchasing

to printed and electronic coupons and loyalty cards. Your 1D scanner can’t capture the new 2D codes, leading to exceptions that

slow down the check-out process and frustrate customers at that key last personal touchpoint in your store. But with the DS2200

Series, you can scan it all. You get an affordable 1D/2D imager that doesn’t compromise performance or features for price. Your

workers get best-in-class first-time, every-time scanning with point-and-shoot simplicity. You get an imager that couldn’t be easier

to deploy and manage. And you can choose the model that best fits your POS needs — the corded DS2208 or the cordless

DS2278.* The DS2200 Series — the affordability your budget demands, with the deployment, ease of use and management

simplicity your business requires.

EASY TO DEPLOY

Pre-configured and Ready to Use,

Right Out of the Box

Since the default settings are optimized

for the majority of scanning applications,

you can use the DS2200 Series imager

the moment you take it out of the box —

no configuration required.

Auto-host Detect Cables

Just plug the DS2200 Series into your

Point of Sale (POS) and the auto-host

detect cables will automatically identify

the interface and connect the imager,

simplifying and reducing setup time.

Easy Integration with

a Tablet-based POS

The DS2200 Series oers all the features

you need to add high-quality scanning

to your tablet-based POS. The Micro

USB cable provides a low-cost charging

alternative to a cradle. And with our

simplified app development tools, you

can easily configure and update the

DS2200 Series right from the tablet.

Deploy Anywhere in the World

With support for 97 international

keyboards, the DS2200 Series is easy

to deploy all around the world.

Easily Customize Settings with

123Scan

This complementary software tool is so

intuitive that even a first time user can

easily set up a DS2200 Series imager.

The wizard-driven interface makes it

easy to embed all settings into a single

programming barcode, enabling you to

configure your devices with a single scan.

Backwards Compatible with

Zebra LS2208 Series Cables

If you use Zebra’s 1D LS2208 scanners

today, you can use the same universal

cables with the DS2200 Series, allowing

you to leverage your existing accessory

investment to minimize the cost of

upgrading to a 1D/2D imager.

EASY TO USE

Instant Decoding with

PRZM Intelligent Imaging

Only from Zebra, PRZM’s software

decode algorithms for the DS2200

Series deliver superior performance

on poor quality barcodes. The result is

first-time, every-time scanning to help

your workers improve productivity at

the checkout counter.

Unsurpassed Scanning Range

Workers can scan barcodes across a wide

range (0.5 in./1.23 cm to 14.5 in./36.8 cm),

improving checkout speed and reducing

training time.

Point-and-shoot Scanning Simplicity

With omni-directional scanning, users

never need to line up the imager and the

barcode — unlike 1D scanners.

Patent Pending Technology

for the Most Intuitive Aiming

The aim line is similar to the 1D scanners

you have today, providing your associates

with a familiar experience. Additionally,

the aim line guides users to scan at the

ideal distance from the barcode

— especially helpful when capturing

wide barcodes.

THE DS2200 SERIES  THE AFFORDABILITY YOUR BUDGET DEMANDS, WITH THE SIMPLE DEPLOYMENT,

EASEOFUSE AND MANAGEABILITY YOUR BUSINESS REQUIRES.

For more information, visit www.zebra.com/ds2200 or access our global contact directory at www.zebra.com/contact

SPECIFICATION SHEET

DS2200 SERIES CORDED AND CORDLESS 1D/2D IMAGERS

Put the DS2200

Series to work in:

Retail

• Point-of-Sale (POS)

• Loyalty applications

• Electronic coupon

redemption

Hospitality

• Check-in

• Ticketing (concerts,

sporting events and

more)

• Loyalty cards

Transportation &

Logistics

• Back-of-store

shipping and

receiving

• Product tracking

• Ticketing (airports,

train and bus

terminals)

• Postal

Light/Clean

Manufacturing

• Product and

component tracking

• Work-in-Process

(WIP)

Government

• Lottery and gaming

• Administration

• Banking

EASY TO USE (continued)

Easiest Pairing on the Planet

With our industry-first Scan-to-Connect technology, your

workers can pair the cordless DS2278 with any Bluetooth-

enabled PC, tablet or smartphone in a single step.

Fast, Easy and Flexible Charging

Plug the imager directly into the host or any standard

wall socket via the Micro USB cable to charge the DS2278

in just an hour without the cradle. The Presentation Cradle,

which provides hands-free scanning, charges the DS2278

in just four hours. The Presentation cradle charges the

battery during use, so you can keep the scanner in service

during charging. And since the Presentation Cradle

doesn’t require a separate power supply, there are fewer

accessories to purchase and manage.

Unique Direct Decode Indicator

Improves Productivity

The illumination on the barcode flashes to indicate

a good decode, so workers know instantly if the

barcode was captured correctly — regardless of

how noisy the environment might be.

On-the-fly Switching Between Handheld

and Hands-free Scanning

Regardless of whether your workers are using the

corded DS2208 or the cordless DS2278, workers

can simply place the imager in its presentation

stand to automatically switch to hands-free mode –

no change of settings is required.

Guaranteed Full Shift Battery Power

With 14 hours of power, your cordless DS2278 imagers

are always available for use — no need to waste time

recharging during the business day.

EASY TO MANAGE

Control Your Scanners from a

Smartphone, Tablet or PC

You can easily control the beeper, LED and

Symbology settings; display scanned barcode data;

access model and serial number information and

more from Windows, Android and iOS hosts.

Eliminate Bluetooth Interference with

Zebra’s Proprietary Wi-Fi Friendly Mode

Ensure that your cordless DS2278 Bluetooth imagers

only operate on channels that are not shared with

your WLAN, protecting WLAN service levels for your

workers and your customers.

A Battery Designed to Last

The long-lasting 2400 mAh Lithium Ion battery in

the cordless DS2278 will likely never need to be

replaced, reducing total cost of ownership and

simplifying everyday management by eliminating

the need to purchase and manage a battery pool.

No-cost Tools to Meet Advanced Management

and Application Development Needs

If you have Imagers in dierent locations, you

can remotely manage them all with our Scanner

Management Service (SMS) application. Need a

custom scanning application? Our Scanner Software

Development Kits (SDKs) provides everything you

need, including documentation, drivers, test utilities

and sample source code for Windows, Android,

iOS and Linux.

SPECIFICATION SHEET

DS2200 SERIES CORDED AND CORDLESS 1D/2D IMAGERS

Continued on next page

DS2200 Series Specifications

PHYSICAL CHARACTERISTICS

Dimensions Corded DS2208:

6.5 in. H x 2.6 in. W x 3.9 in. D

16.5 cm. H x 6.6 cm. W x 9.9 cm. D

Cordless DS2278:

6.9 in. H x 2.6 in. W x 3.5 in. D

17.5 cm. H x 6.6 cm. W x 9.0 cm. D

Presentation Cradle:

2.8 in. H x 3.7 in. W x 4.8 in. D

7.2 cm. H x 9.4 cm. W x 12.2 cm. D

Weight Corded DS2208: 5.7 oz. / 161.6 g

Cordless DS2278: 7.5 oz. / 214 g

Presentation Cradle: 5.2 oz. / 151 g

Input Voltage

Range

DS2208/DS2278 and Cradle: 4.5 to 5.5 VDC Host

Powered; 4.5 to 5.5 VDC External Power Supply

Current Corded DS2208 Operating Current at Nominal

Voltage (5.0V): 250 mA (typical). (Note: Auto-Aim and

Illumination on Acquiring Image)

Corded DS2208 Standby Current (idle) at Nominal

Voltage (5.0V): 150 mA (typical). (Note: Auto-Aim On)

Presentation Cradle and Micro USB Cable: 500 mA

(typical) Standard USB; 1100 mA (typical) BC 1.2 USB

Color Nova White, Twilight Black

Supported Host

Interfaces

USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over

RS485

Keyboard Support Supports over 90 international keyboards

User Indicators Direct Decode Indicator; good decode LEDs; Rear view

LEDs; beeper (adjustable tone and volume)

PERFORMANCE CHARACTERISTICS

Motion Tolerance

(Handheld)

Up to 5 in./13 cm. per second for 13 mil UPC

Swipe Speed

(Hands-Free)

Up to 30.0 in./76.2 cm. per second for 13 mil UPC

Light Source Aiming Pattern: Linear 624nm Amber LED

Illumination (2) 645nm Super-Red LEDs

Imager Field of View 32.8° H x 24.8° V Nominal

Image Sensor 640 x 480 pixels

Minimum Print

Contrast 25% minimum reflective dierence

Skew/Pitch/Roll

Tolerance +/- 65°; +/- 65°; 0-360°

Minimum Element

Resolution

Code 39 - 4.0 mil; Code 128 - 4.0 mil;

Data Matrix - 6.0 mil; QR Code - 6.7 mil

USER ENVIRONMENT

Operating

Temperature

DS2208/DS2278 Imagers:

32.0° to 122.0° F/0.0° to 50.0° C

Presentation Cradle:

32.0° to 104.0° F/0.0° to 40.0° C

USER ENVIRONMENT (CONTINUED)

Storage

Temperature -40.0° to 158.0° F/-40.0° to 70.0° C

Humidity 5% to 95% RH, non-condensing

Drop Specification Designed to withstand multiple drops at

5.0 ft./1.5 m to concrete

Tumble

Specification

Designed to withstand 250 tumbles

in 1.5 ft./.5 m tumbler1

Environmental

Sealing IP42

Electrostatic

Discharge (ESD)

DS2208/DS2278 and CR2278 Cradle: ESD per

EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect

Ambient Light

Immunity 0 to 10,000 Foot Candles/0 to 107,600 Lux

RADIO SPECIFICATIONS

Bluetooth Radio Standard Bluetooth Version 4.0 with BLE: Class 2

33 ft. (10.0m), Serial Port and HID Profiles; output

power adjustable down from 2.0 dBm in 8 Steps

BATTERY

Battery Capacity/

Battery Type 2,400 mAh Li-Ion Battery

Scans Per

Battery Charge2

110,000 scans at 60 Scans per Minute or 50,000 scans at

10 Scans per Minute

Operating Time

Per Full Charge284.0 Hours

Charge Time (from Empty) 14 Hour Shift

Hours

Full Charge

Hours

Standard USB 417

BC1.2 USB 1 5

External 5V Source 1 5

Micro USB 1.5 7

BC1.2 Micro USB 1 4

REGULATORY

Electrical Safety EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1

2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-

1-07

Environmental RoHS EN 50581

LED Safety IEC 62471

IT Emissions EN 55032 (Class B)

IT Immunity EN 55024

Harmonic Current

Emissions EN 61000-3-2

Voltage Fluctuation

and Flicker EN 61000-3-3

Radio Frequency

Devices 47 CFR Part 15, Subpart B, Class B

Digital Apparatus ICES-003 Issue 6, Class B

SPECIFICATION SHEET

DS2200 SERIES CORDED AND CORDLESS 1D/2D IMAGERS

DS2200 Series Specifications (continued)

CORDLESS ACCESSORIES

CR2278 Presentation Cradle, Spare Battery, Micro USB Cable

DECODE CAPABILITIES3

1D Code 39, Code 128, Code 93, Codabar/NW7, Code 11,

MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1

DataBar, Base 32 (Italian Pharma)

2D PDF417, Composite Codes, TLC-39, Aztec, DataMatrix,

MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes

WARRANTY

Subject to the terms of Zebra’s hardware warranty statement, the DS2200

Series is warranted against defects in workmanship and materials for the

following period from the date of shipment:

DS2208 Corded Scanner: Sixty (60) months

DS2278 Cordless Scanner: Thirty-six (36) months

CR2278 Presentation Cradle: Thirty-six (36) months

Battery: Twelve (12) months

For the complete Zebra hardware product warranty statement,

go to: http://www.zebra.com/warranty

RECOMMENDED SERVICES

Zebra OneCare Select; Zebra OneCare Essential

UTILITIES AND MANAGEMENT

123Scan Programs scanner parameters, upgrades firmware,

provides scanned barcode data and prints reports.

www.zebra.com/123Scan

Symbol Scanner SDK Generates a fully-featured scanner application, including

documentation, drivers, test utilities and sample source

code. www.zebra.com/scannersdkforwindows

Scanner

Management

Service (SMS)

Remotely manages your Zebra scanner and queries its

asset information. www.zebra.com/sms

DECODE RANGES (TYPICAL)4

SYMBOLOGY RESOLUTION NEAR FAR

Code 39 5 mil .2 in./.5 cm. 6.0 in./15.2 cm.

Code 128 5 mil .6 in./1.5 cm. 4.0 in./10.1 cm.

PDF 417 6.7 mil .8 in./2.0 cm. 5.7 in./14.5 cm.

UPC 13 mil (100%) .5 in./1.3 cm. 14.5 in./36.8 cm.

Data Matrix 10 mil .3 in./.8 cm. 6.2 in./15.7 cm.

QR 20 mil .0 in./.0 cm. 11 in./27.9 cm.

1 Note: 1 tumble = 0.5 cycle.

2 Simulated Checkout profile of 10 scans in 10 seconds with a 50 second rest.

3 Refer to Product Reference Guide for complete list of symbologies.

4 Printing resolution, contrast, and ambient light dependent.

* The cordless DS2278 will be available in August 2017.

SPECIFICATION SHEET

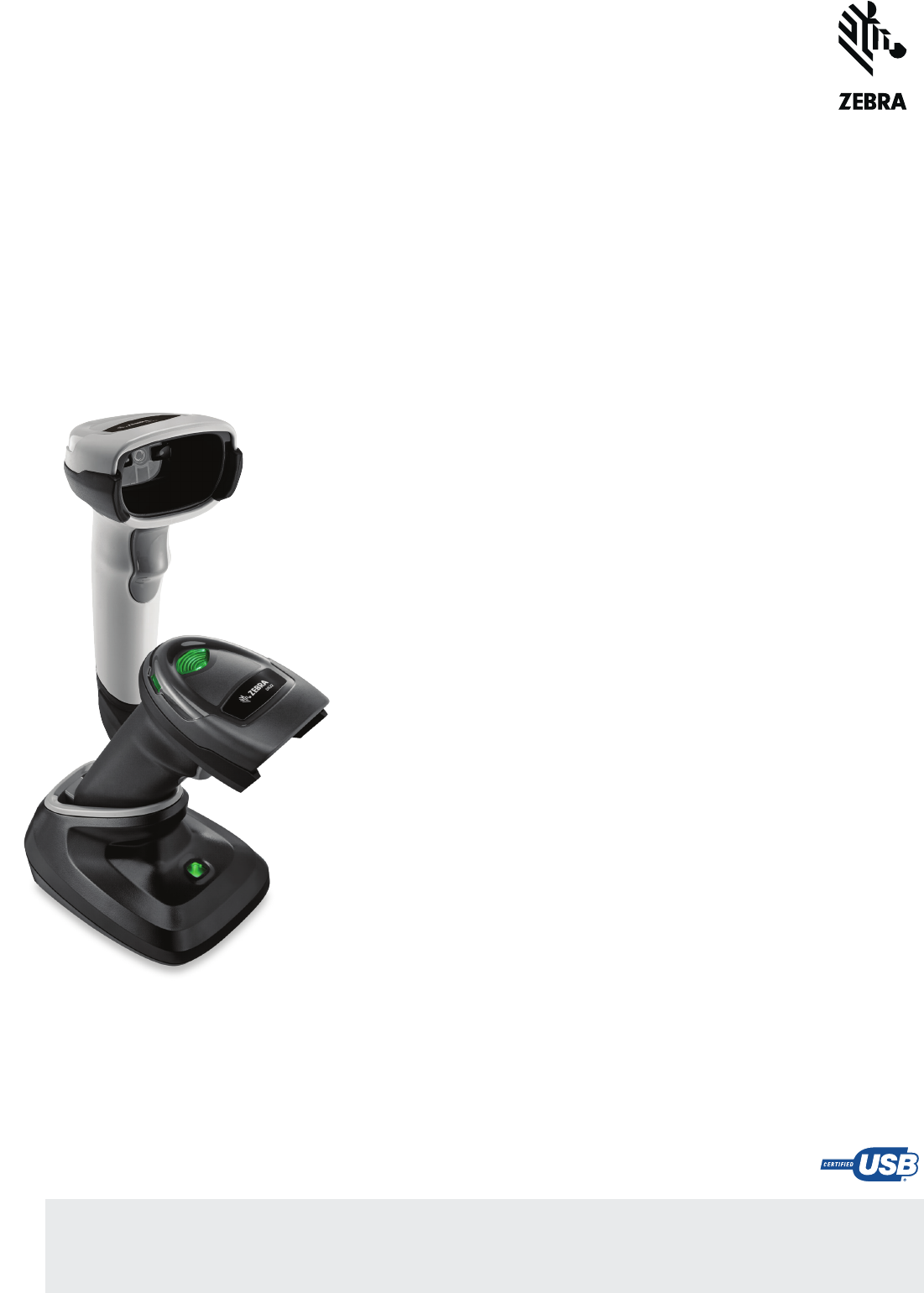

DS2200 SERIES CORDED AND CORDLESS 1D/2D IMAGERS

©2017 ZIH Corp and/or its aliates. All rights reserved. ZEBRA and the stylized Zebra head are trademarks of ZIH Corp registered in many

jurisdictions worldwide. All other trademarks are the property of their respective owners. Part number: SS-DS2200 05/30/2017

NA and Corporate Headquarters

+1 800 423 0442

inquiry4@zebra.com

Asia-Pacific Headquarters

+65 6858 0722

contact.apac@zebra.com

EMEA Headquarters

zebra.com/locations

mseurope@zebra.com

Latin America Headquarters

+1 847 955 2283

la.contactme@zebra.com
