Laipac Technology SFLITELOCATOR Starfinder Lite User Manual Starfinder Lite Manual V1 2
Laipac Technology Inc. Starfinder Lite Starfinder Lite Manual V1 2
user manual rev

StarFinder Lite
User’s Manual & Reference Guide
Revision 1.2 – 2012
©1999-2008 by Laipac Technology, Inc. All rights reserved – The Specifications and information regarding the products in this manual are subjected to change without
notice. All statements, information, and recommendations in this manual are believed to be accurate but are represented without warranty of any kind, express or implied,
users must take full responsibility for their applications of any Products - Reproduction of the contents of this manual, in whole or in part, without written permission of
Laipac Technology, Inc. is prohibited.

Laipac Technology Inc. StarFinder Lite User’s Manual & Reference Guide
© 2012-2021 by Laipac Technology Inc. All Rights Reserved. Page 2
Federal Communications Commission (FCC) Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Consult the dealer or an experienced installer for help.
You are cautioned that changes or modifications not expressly approved by the party
responsible for compliance could void your authority to operate the equipment.
FCC RF Radiation Exposure Statement:
FCC RF Radiation Exposure Statement:FCC RF Radiation Exposure Statement:
FCC RF Radiation Exposure Statement:
1. This Transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment.
3. This equipment should be installed and operated with a minimum distance of 20 centimetres
between the radiator and your body.
CE Marking
This device has been tested to and conforms to the regulatory requirements of the European Union
and has attained CE Marking. The CE Mark is a conformity marking consisting of the letters
“CE”. The CE Mark applies to products regulated by certain European health, safety and
environmental protection legislation. The CE Mark is obligatory for productions it applies to: the
manufacture affixes the marking in order to be allowed to sell his product in the European market.
This product conforms to the essential requirements of the R&TTE directive 1999/5/EC in order to
attain CE Marking. A notified body has determined that this device has properly demonstrated that
the requirements of the directive have been met and has issued a favorable certificate of expert
opinion. As such the device will bear the notified body number 0560 after the CE mark.
The CE Marking is not a quality mark. Foremost, it refers to the safety rather than to the quality of
a product. Secondly, CE Marking is mandatory for the product it applies to, whereas most quality
markings are voluntary.
Marking: The product shall bear the CE mark, the notified body number(s) as depicted to the right.
CE0560.

Laipac Technology Inc. StarFinder Lite User’s Manual & Reference Guide
© 2012-2021 by Laipac Technology Inc. All Rights Reserved. Page 3
Additional regulatory conformance
Specific details about compliance to the following standards and regulatory bodies may be
obtained from Laipac Technology Inc.
• PCS Type Certification Review Board (PTCRB)
• Based on Cellular Telecommunications and Internet Association (CTIA) Over the Air (OTA)
performance tests
• EN 301 511, EN 300 440, EN 62311, EN 301 489-1-3-7 and 60950-1 testing.

Laipac Technology Inc. StarFinder Lite User’s Manual & Reference Guide
© 2012-2021 by Laipac Technology Inc. All Rights Reserved. Page 4
Table of Contents
1 INTRODUCTION 5
2 FEATURES 6
3 INITIAL SETUP 7
3.1 What you will need 7
3.2 Setup Summary 8
3.3 Installing the StarFinder Lite Software 8
3.3.1 Introduction to utility software 8
3.3.2 Installation of utility software 8
3.3.3 Installation of USB driver 8
3.4 Configuration of StarFinder Lite 10
3.4.1 Start configuration of your device 10
3.4.2 Basic Configuration 10
3.4.3 Save setting into or read setting from the device 14

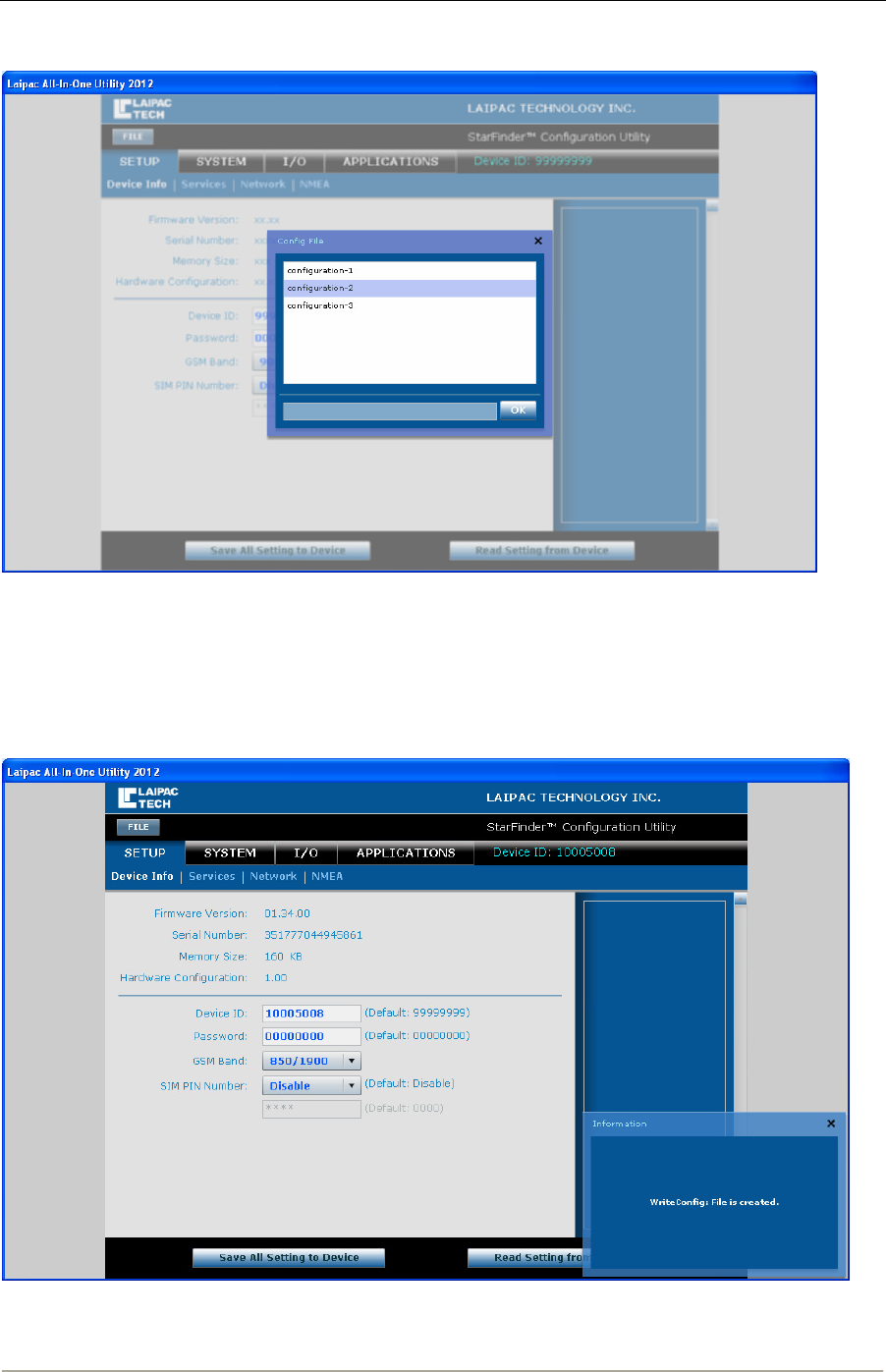

3.4.4 Acquire setting from or save setting into a configuration file 15
4 ADVANCED CONFIGURATION AND FEATURES 20
4.1 Setup Settings 19
4.2 System Settings 19
4.3 Input / Output Settings 24
4.4 Application Settings 29
5 HARDWARE DETAILS & LAYOUT 33
5.1 Specifications 34

Laipac Technology Inc. StarFinder Lite User’s Manual & Reference Guide
© 2012-2021 by Laipac Technology Inc. All Rights Reserved. Page 5
5.1.1 GPS Engine Specs 34
5.1.2 GSM Modem Specs 34
5.1.3 GPS Antenna Specs 35
5.1.4 GSM Antenna Specs 35
5.2 Installation 36
5.2.1 Required Hardware 36
5.2.2 Installing your Starfinder Lite 36
5.2.3 Considerations 36
5.2.4 Other Options 36

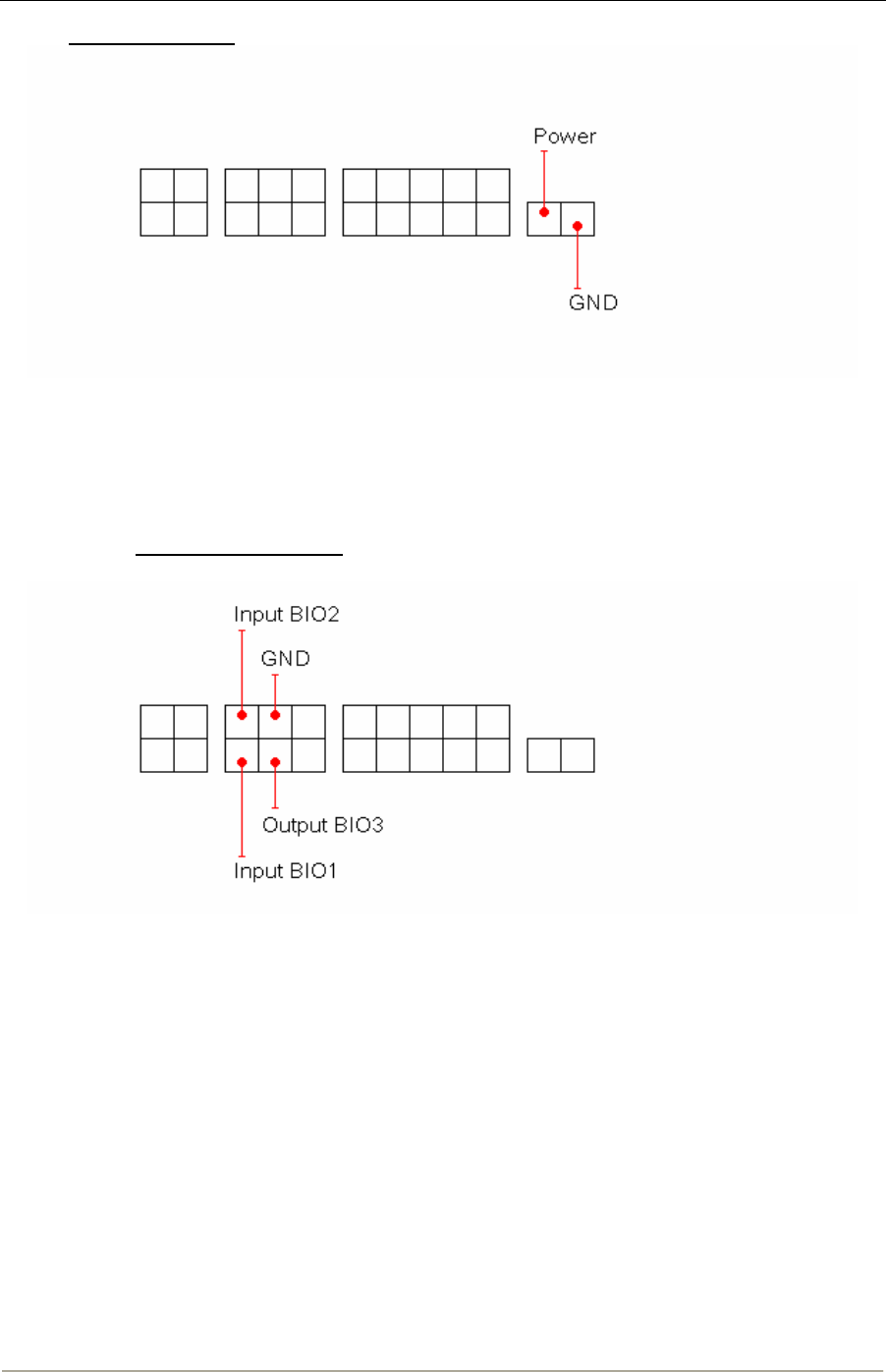

5.2.5 Power Connector 37
5.2.6 Buttons Input/Output 37

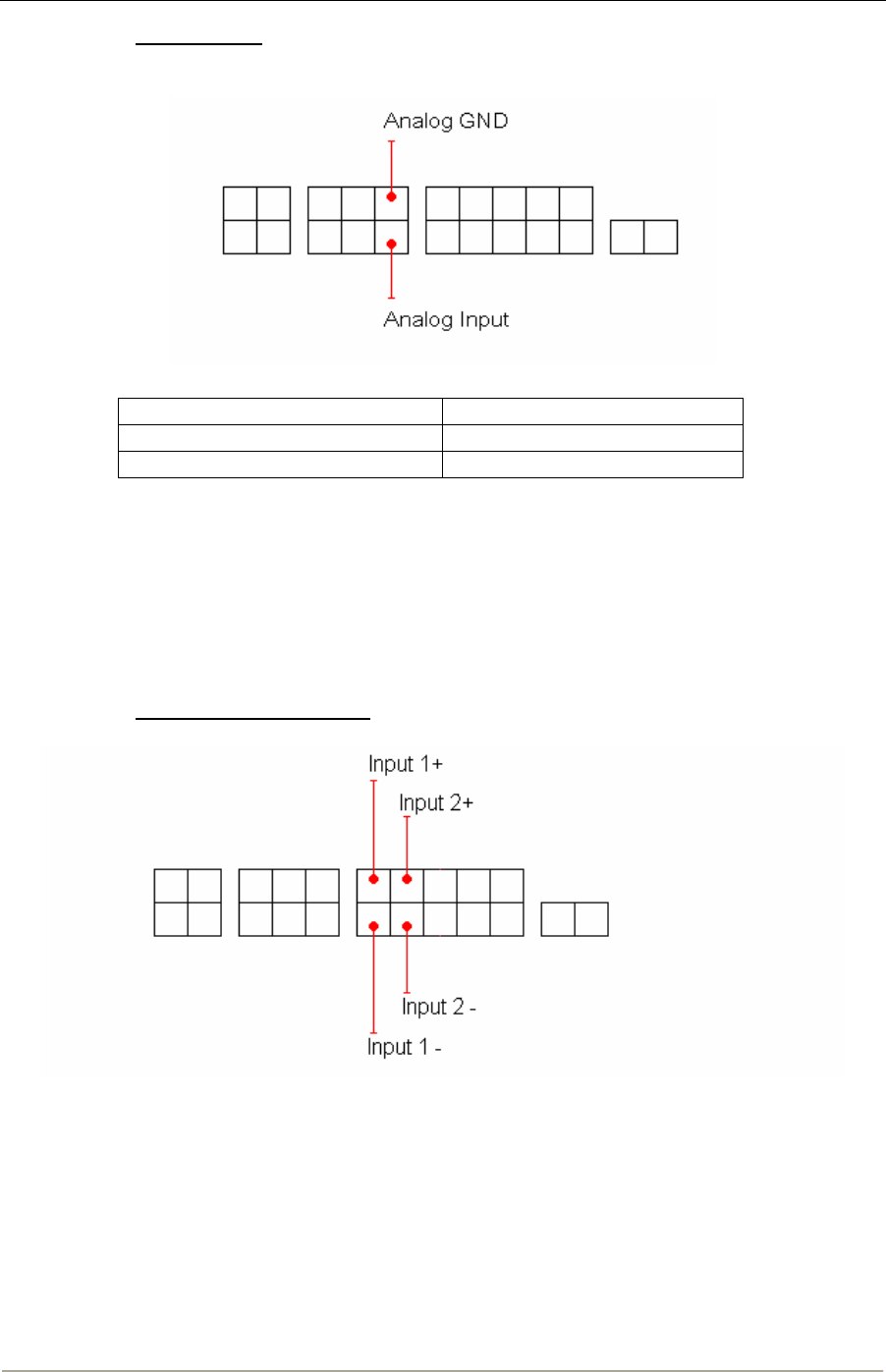

5.2.7 Analog Input 38
5.2.8 Optically Isolated Inouts 38

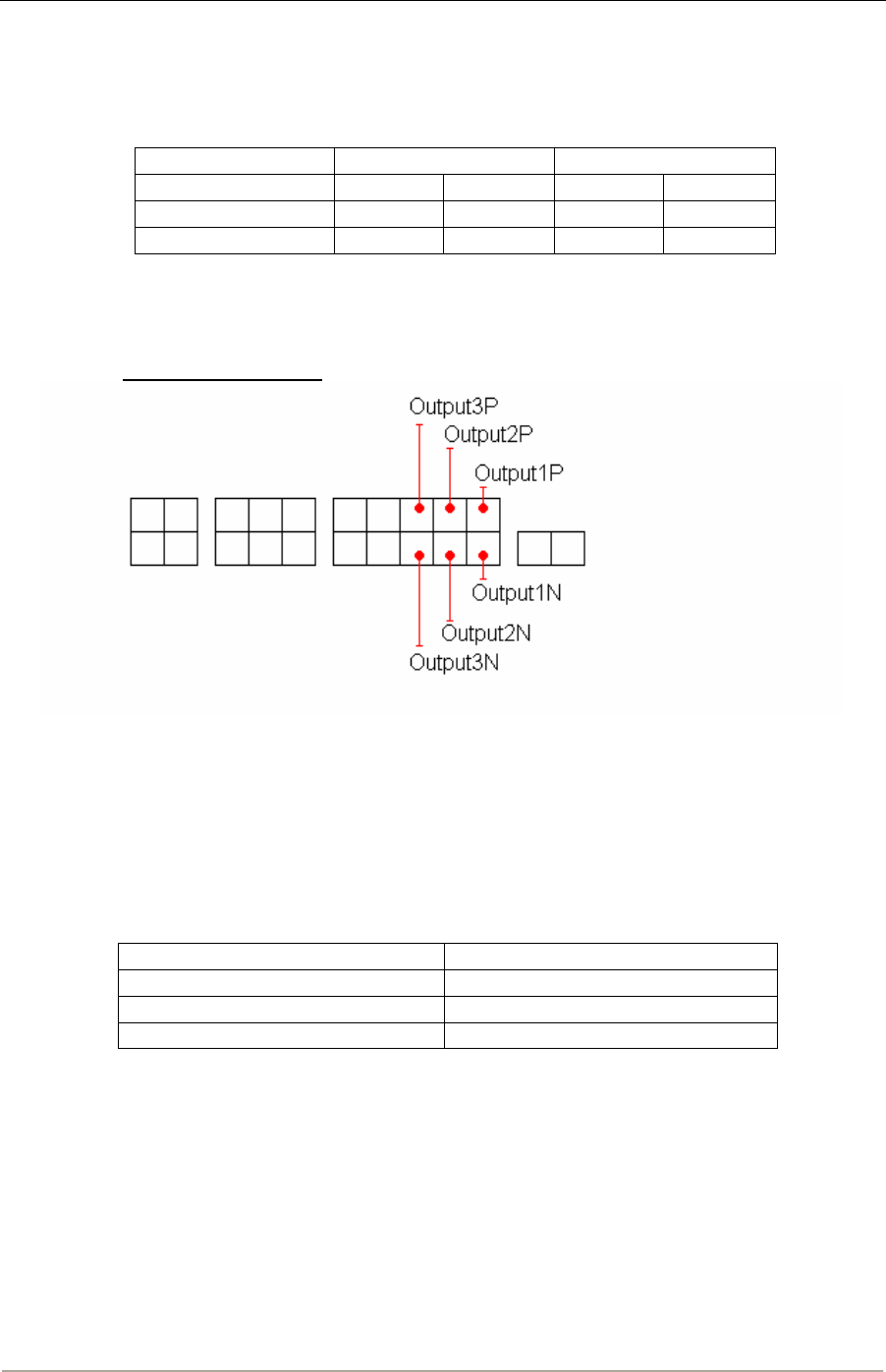

5.2.9 Three Relay Output 39
6 OPERATION 40
6.1 LED Operation 40
6.2 Position Reporting by Event 40
6.3 Position Reporting by Request 41
6.4 Serial Port 41
6.5 Function and its configuration method

Laipac Technology Inc. StarFinder Lite User’s Manual & Reference Guide
© 2012-2021 by Laipac Technology Inc. All Rights Reserved. Page 6
1 INTRODUCTION
The Starfinder Lite is a robust platform designed for remote vehicle tracking and security. The
Starfinder combines both GSM/SMS and GPRS (Global System for Mobile Communications/
Short Messaging Service and General Packet Radio Service) communications with ultra-sensitive
GPS technology to provide a rugged yet precise and reliable tracking platform. The Starfinder Lite
can be used to report positions or events in real-time, as well as log positions for local or remote
downloading. The Starfinder Lite comes standard with two optical inputs for connecting to alarm
systems or other sensors, one analog inputs, and three output relays for ignition disabling and
remote door unlocking. A backup battery is also included.
Each Starfinder Lite can be programmed with a unique device ID and can send data to any static
or dynamic IP address or SMS base station. Configuration of the unit can be done locally, via the
Starfinder Lite configuration utility in Windows™, or over the air via GPRS or SMS. We
currently offer our web-based tracking application www.LocationNow.com for tracking and fleet
management. For custom applications, we can provide our ADK kit with confidential protocol to
software developers for platform integration.

Laipac Technology Inc. StarFinder Lite User’s Manual & Reference Guide
© 2012-2021 by Laipac Technology Inc. All Rights Reserved. Page 7
2 FEATURES
• Worldwide GSM/GPRS Quad band 850/900/1800/1900MHz
• Multi-mode ready for SMS only, GPRS only or SMS + GPRS
• High Sensitivity GPS Receiver of 20 Ch.
• GPS Accuracy 3 – 5 m
• Dimension 9.7 x 5.9 x 2.6 cm
• Built in jacks for SPK and MIC
• Panic button and Dial button ready
• Supply voltage range: 9 to 36VDC
• Internal Li-Ion backup battery able to provide approximately 10h life from a full charge
• Low operating power consumption (less than 1W after battery is charged)
• Both configuration utility and unit are able to have accessing control (option)*
• Operation Temperature -30C to 65C°
• USB Port for configuration
• Compatible with Mobile Data Terminal
• 2 Optically Isolated digital inputs
• 3 Outputs with relays
• 1 Analog input available
• Multiple Geo-Fence capability with in/out fence alert
• Data logger capability built in with 2500 positions memory to record time stamp, speed,
location, and event state.

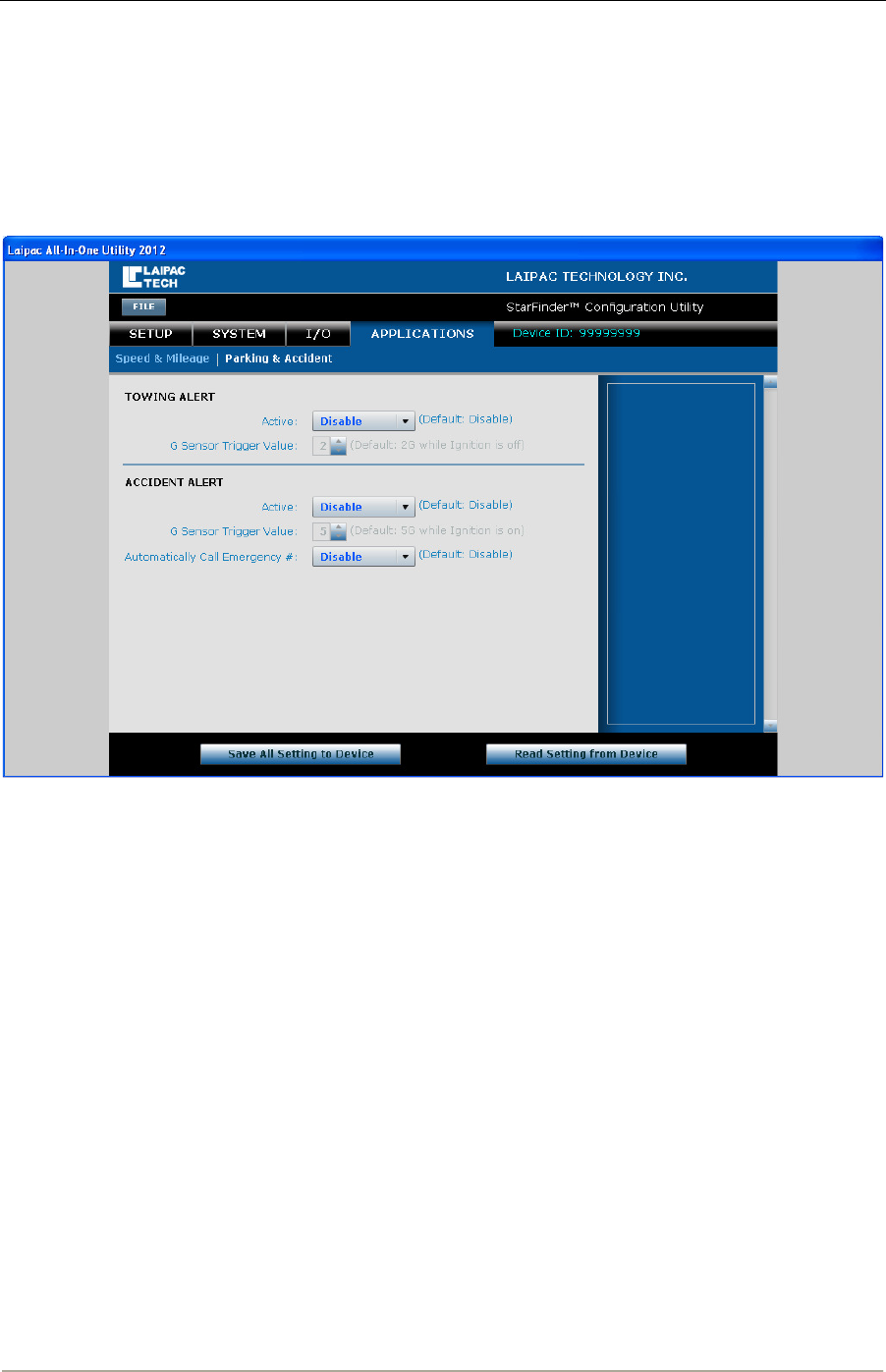

• 3 Axial motion G-Sensor to report impact, accident, crash or towing event.
• Real time dynamic position report based on time interval or distance traveled
• Mileage report and over-speed alert
• 3 Emergency call numbers with fail over capability
• Power-saving options available (option)*
• WAAS / EGNOS (optional)*
• 3.7V, 900mAh internal backup battery
• External panic button and call-in answer button
Note:
For features with (option), please check with Laipac Technology Inc to know about their
detail.

Laipac Technology Inc. StarFinder Lite User’s Manual & Reference Guide
© 2012-2021 by Laipac Technology Inc. All Rights Reserved. Page 8
3 INITIAL SETUP
This section will help you setup and configure your Starfinder Lite GPRS tracking device.
3.1 What you will need
To begin your evaluation, you will need the following:
• Starfinder Lite
• Power and I/O harness cables complete with Voice and Panic buttons
• GSM patch antenna (3 meters cable length)
• GPS magnet mount antenna (5 meters cable length)
• GPRS data enabled SIM card with known APN settings (2G and TDMA compliant)*
• Your Identity Leaflet provided in the Evaluation Kit*
• 9-36V DC power supply
• USB A to USB Mini B cable
• PC with Windows XP™ or later Microsoft Operating System
*GPRS operation assumed

Laipac Technology Inc. StarFinder Lite User’s Manual & Reference Guide
© 2012-2021 by Laipac Technology Inc. All Rights Reserved. Page 9
3.2 Setup Summary
The setup summary is an outline of what must be accomplished in order to operate the device.
Detailed descriptions of these steps will be listed in the next sections.
1. Install the latest version of utility software
2. Complete pre-installation of USB driver on computer
3. Insert the valid SIM card into the SIM Card Tray on the front of the unit
4. Power on Starfinder Lite with DC power supply (12V)
5. Connect the Starfinder Lite to the computer and reset the unit with reset button
6. Install USB driver on computer
7. Run utility and reset unit with reset button
8. If unit is not activated (locked), activate (unlock) it
9. If the existing firmware does not meet the request of utility, update firmware
10. Configure the unit and save the settings to unit
11. Disconnect Starfinder Lite with computer
12. Connect the GPS and GSM antennas
13. Press reset button to valid the configuration and make the device start working

Laipac Technology Inc. StarFinder Lite User’s Manual & Reference Guide
© 2012-2021 by Laipac Technology Inc. All Rights Reserved. Page 10
3.3 Installing the Starfinder Lite Software
3.3.1 Introduction to utility software
Utility “setupAIO” is coming as a stand-alone software package. Currently, this utility is able to
provide the two major functions below
● Configuration
● Firmware Update
User can use the web link below to download its latest version, such as “setupAIO20120518”.
http://www.laipac.com/sflite201update.htm
By using the same link, user can also download the following 3 documents, which will be great
helpful for user to know about how to set up and use SF-Lite quickly.
● Utility and Firmware Release Note, such as, “Release Note (BE) RN-V1.34”
● Quick Start manual, such as, “Quick Start Manual (BE) V2.0”
● Firmware Update Manual, such as, “Firmware Update Manual (BE) V2.0”
It is strongly recommended that user should go through “Utility and Firmware Release Note” first,
before he updates his device’s utility or firmware.
3.3.2 Installation of utility software
Refer to Quick Start Manual’s section 1 to 3.
3.3.3 Installation of USB driver
Depending on what kind of Microsoft Windows Operating System being used on user’s computer,
the installation of USB driver procedure is different. User could find all those detail in Quick
Start Manual’s section 4.

Laipac Technology Inc. StarFinder Lite User’s Manual & Reference Guide
© 2012-2021 by Laipac Technology Inc. All Rights Reserved. Page 11
3.4 Configuration of StarFinder Lite
3.4.1 Start configuration of your device
Refer to Quick Start Manual’s section 5.
3.4.2 Basic Configuration
To ensure user’s unit is able to access remote server, such as Laipac’s LocationNow service
platform, some basic setting items are requested and described in this section.
a. SETUP

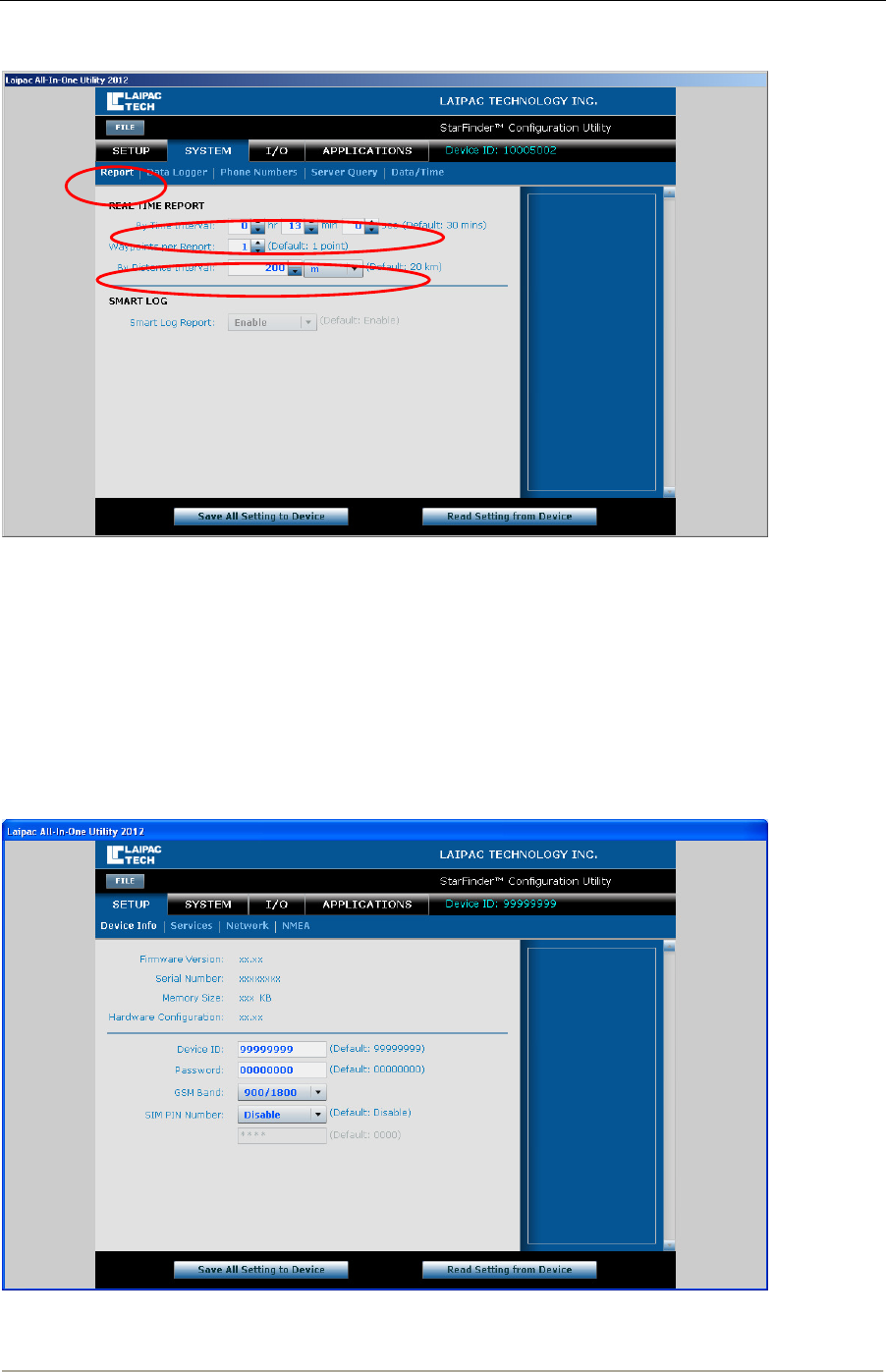

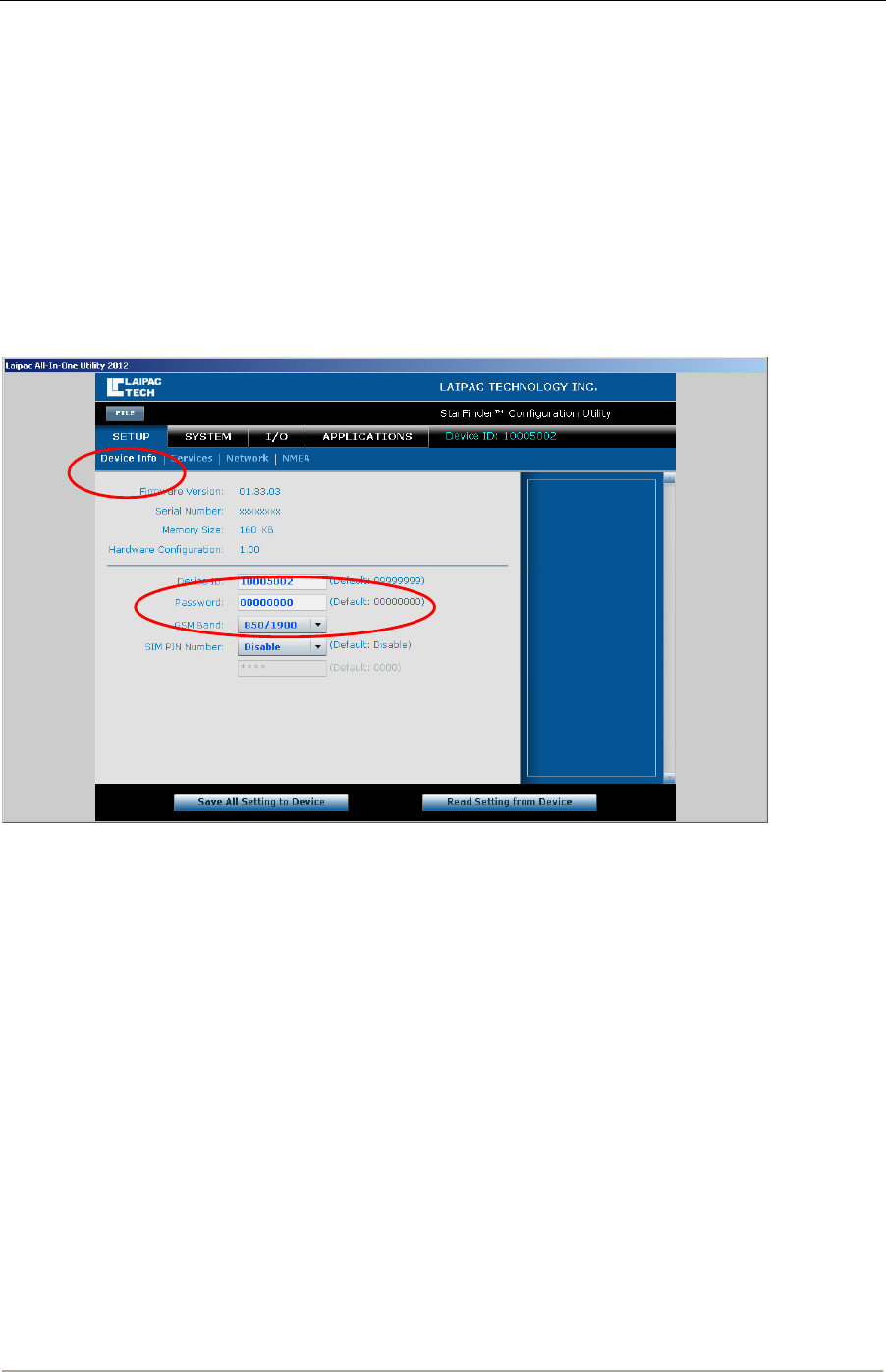

Device Info
Fig. 3.4.2.a
Device ID: Specific unit identifier that identifies your device for online tracking. You
can locate the Device ID on your Identity Leaflet or more accurately in your
user account on the website www.LocationNow.com.
Password: Used to protect the StarFinder Lite from other people affecting its operation
with SMS commands. You can locate the Password on your Identity
Leaflet.
GSM Band: This is for setting a frequency that your GSM provider network operates at.
The North American network bands are 850/1900 and the European network
bands are 900/1800. If user is not sure what frequency his carrier operates
at, please contact them for the correct setting.
SIM PIN Number: If your SIM card is password protected, enable this option and input the PIN
code. The PIN code tells the Starfinder Lite to use the user defined PIN
code when communicating with GSM

Laipac Technology Inc. StarFinder Lite User’s Manual & Reference Guide
© 2012-2021 by Laipac Technology Inc. All Rights Reserved. Page 12

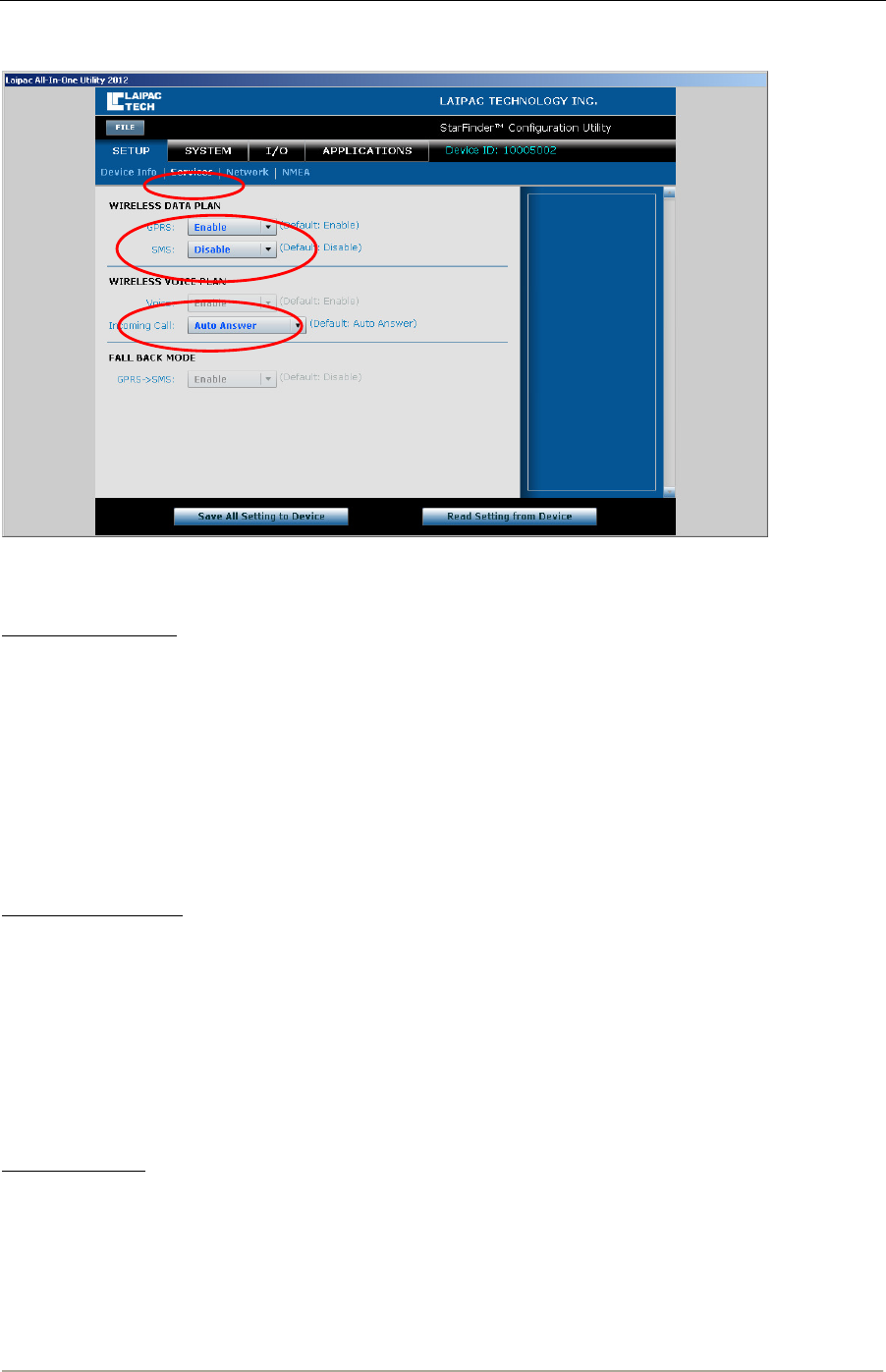

b. SETUP
Services
Fig. 3.4.2.b
Wireless Data Plan This section governs the default GSM connection settings or what the unit
will connect to first.
GPRS: If you are using LocationNow tracking services, this must be enabled.
GPRS mode tells the device it will be transmitting its information across the
internet.
SMS: If you are tracking service based on Short Message System rather than
LocationNow, SMS mode should be enabled. It tells the device to transmit
its information to another SMS device.
Wireless Voice Plan This section initializes the voice option in the StarFinder Lite
Voice: Originally, this setting is designed to tell unit if the existing SIM card is with
voice calling enabled. Currently, unit has enabled this setting actively. Of
course, if you are using SIM card without Voice Plan, no calling or voice
communication can be accomplished.
Incoming Call: This setting determines whether or not the unit will automatically answer
incoming calls. As prerequisite, Voice must be enabled first.
Fall Back Mode This section is used to decide how the unit will react in the event there is no
GSM coverage.
GPRS -> SMS: In the event GPRS communication is lost, the unit will automatically switch
to SMS mode. While GPRS becomes reacquired, the unit will automatically
switch back to GPRS mode of operation.

Laipac Technology Inc. StarFinder Lite User’s Manual & Reference Guide
© 2012-2021 by Laipac Technology Inc. All Rights Reserved. Page 13
Note:
1. If user is operating his device exclusively in SMS mode, he may skip this step.
2. In the event that GPRS fails and SMS ‘Fall Back Mode’ has been set, unit will immediately try
its SMS connectivity. If there is no SMS connectivity, the unit will keep switching between
SMS and GPRS until the unit synchronizes with one of these 2 modes. It is noted that GPRS
takes priority if both SMS and GPRS connection exist.

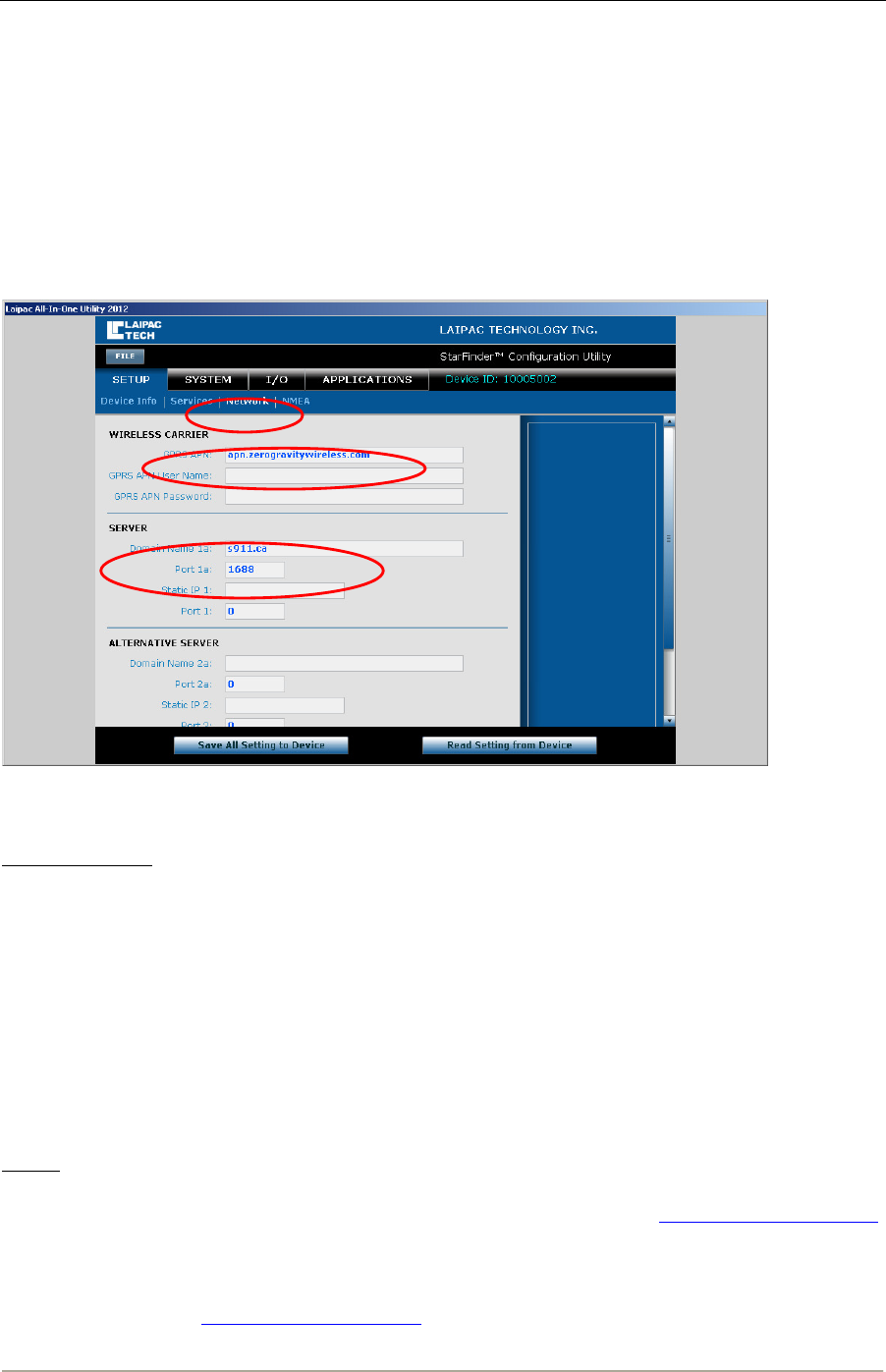

c. SETUP
Network

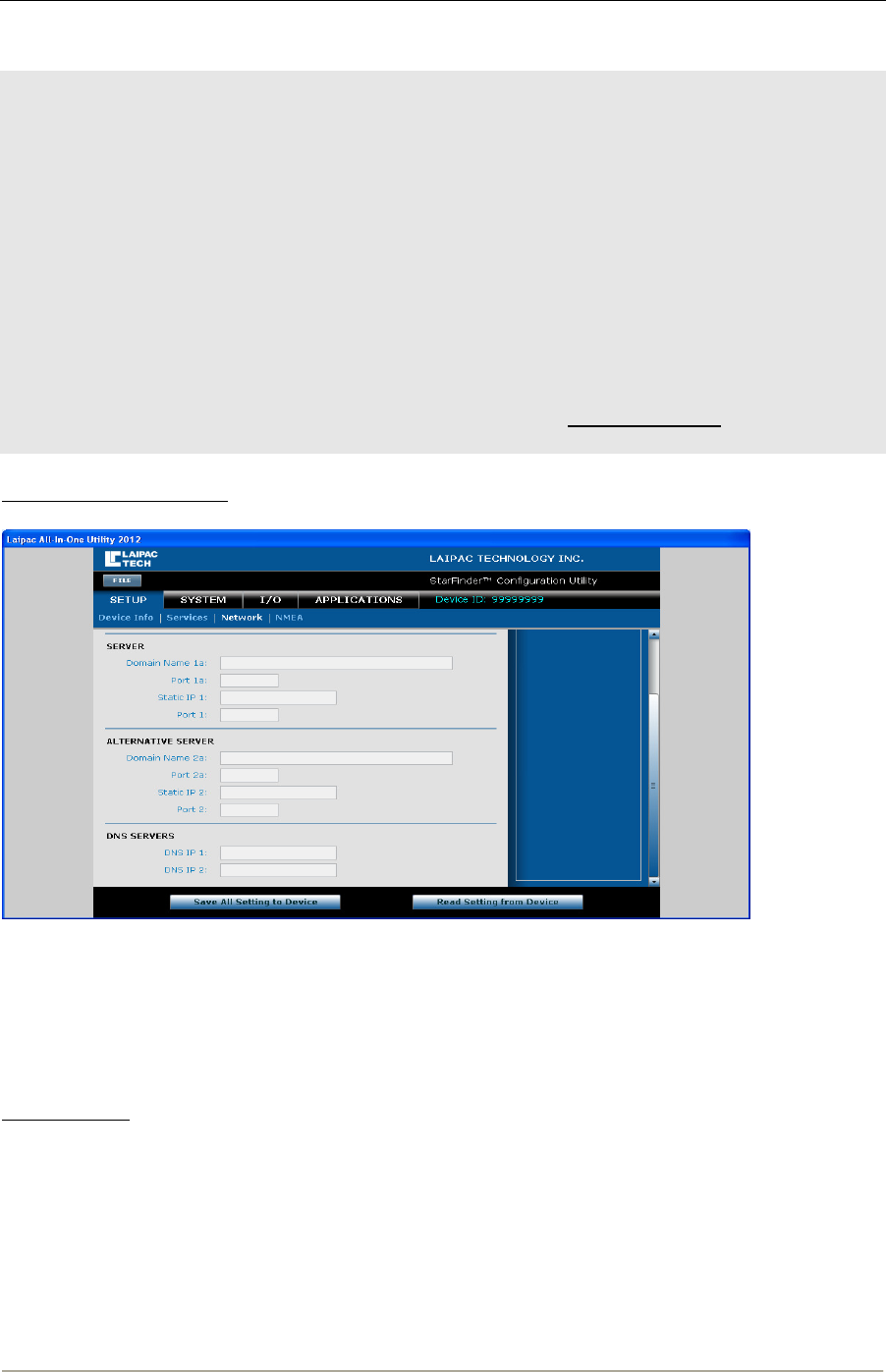

Fig. 3.4.2.c
Wireless Carrier This section covers the information required by the unit to access your
carrier’s Access Point.
GPRS APN: The Access Point Name is used by your SIM card to connect to the GPRS
network. The Access Point is the carrier’s server through which the traffic
becomes converted from GSM to GPRS Internet traffic. Check with your
SIM Card provider for this item.
User Name: The user name authorises your SIM card to access your carrier’s Access
Point. It could be blank in most of case.
Password: The password authenticates your SIM card to access your carrier’s Access
Point. It could be blank in most of case.
Server This section governs the destination end point for the GPRS traffic
Domain Name 1a: This is the domain name of the remote server. For www.LocationNow.com,
it will be ‘laipgw1.com’.
Port 1a: This is the Port used by the remote server with Domain Name 1a. For
www.LocationNow.com , it should be ‘1688’.

Laipac Technology Inc. StarFinder Lite User’s Manual & Reference Guide
© 2012-2021 by Laipac Technology Inc. All Rights Reserved. Page 14
Note:
As a rule, if both Domain Name 1a and Static IP 1a are set, unit will try to communicate with
remote server through the domain name first, IP address second. If both Domain Name 1a and
Static IP 1a are inaccessible for any reason, then, unit will turn to try its back-up server,
Alternative Server, if it exists. Unit will try domain name of Alternative Server first, IP address
second.
It is suggested that user does not fill in Domain Name 1a and Domain Name 2a with Static IP
address.
Warning:
If unit has a ‘Fall Back Mode’ setting, along with Primary Server and Alternative Server, when it
loses its GPRS connectivity with its remote servers, both Primary and Alternative Server, unit will
initiate its action of ‘Fall Back Mode’. Refer to introduction to Fall Back Mode.
ALTERNATIVE SERVER
Configuration of the Alternative Server is optional.
Alternative Server is a backup server and used when the primary server is not unavailable. For its
configuration parameters, Domain Name 2a and Port 2a, as well as Static IP 2 and Port 2,
please refer to introduction to Server.
DNS SERVER
DNS IP 1 and 2: Allows you to specify DNS servers by using the IP address. Since unit’s internal
GSM module does this already, these settings are optional.

Laipac Technology Inc. StarFinder Lite User’s Manual & Reference Guide
© 2012-2021 by Laipac Technology Inc. All Rights Reserved. Page 15
d. System
Report
Fig. 3.4.2.d
Report and its setting:
This option allows you to specify how frequent the unit will send a position update. You can
specify the report by time value in hours, minutes, and seconds. Also, user can specify the report
by distance value in kilometres, miles, or yards.
3.4.3 Save setting into or read setting from the device

Laipac Technology Inc. StarFinder Lite User’s Manual & Reference Guide
© 2012-2021 by Laipac Technology Inc. All Rights Reserved. Page 16
Save setting into unit and valid it
Once user complete the configuration, he should click “Save All Setting to Device” button to save
the edited setting into unit if this saving process is OK, Operator should see the pop up window
with prompt “Writing new setting … Success”.
To valid this configuration, user needs
● Disconnect computer with unit
● Insert a valid SIM card into unit and power up the unit with DC power supply (12V)
● Reset unit with reset button to start running application
Read the setting from units
By clicking “Read Setting from Device” button, user can read the reside configuration from the
unit, which being connected to the running utility.
If unit has never been configured and valid its configuration, this reading configuration operation
will be failure.
3.4.4 Acquire setting from or save setting into a configuration file
Acquire setting from a configuration file
User can acquire a set of configuration from a saved configuration file

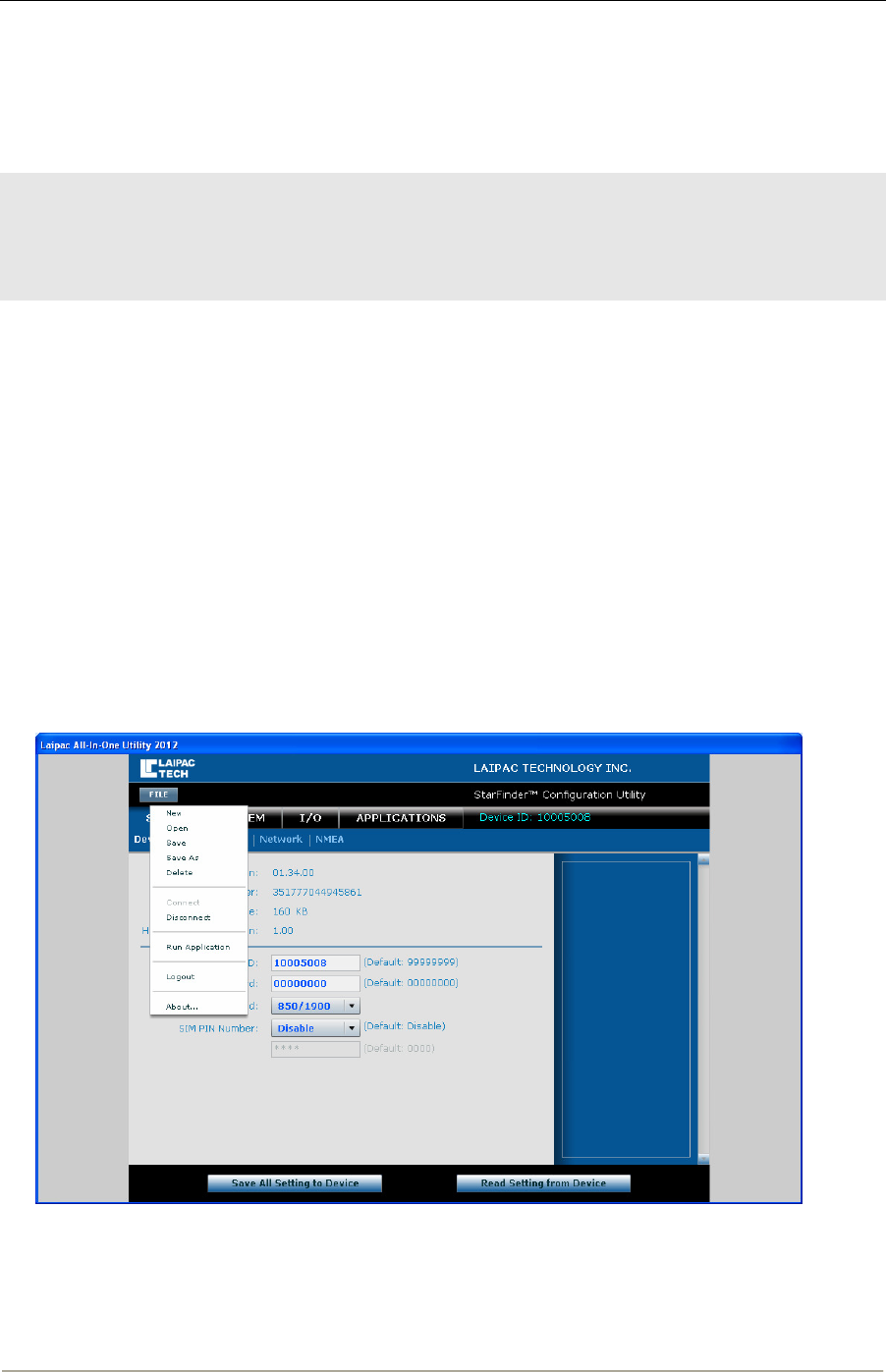

a. Click “FILE” “Open”, see Fig. 3.4.4a and 3.4.4b
Fig. 3.4.4a

Laipac Technology Inc. StarFinder Lite User’s Manual & Reference Guide
© 2012-2021 by Laipac Technology Inc. All Rights Reserved. Page 17

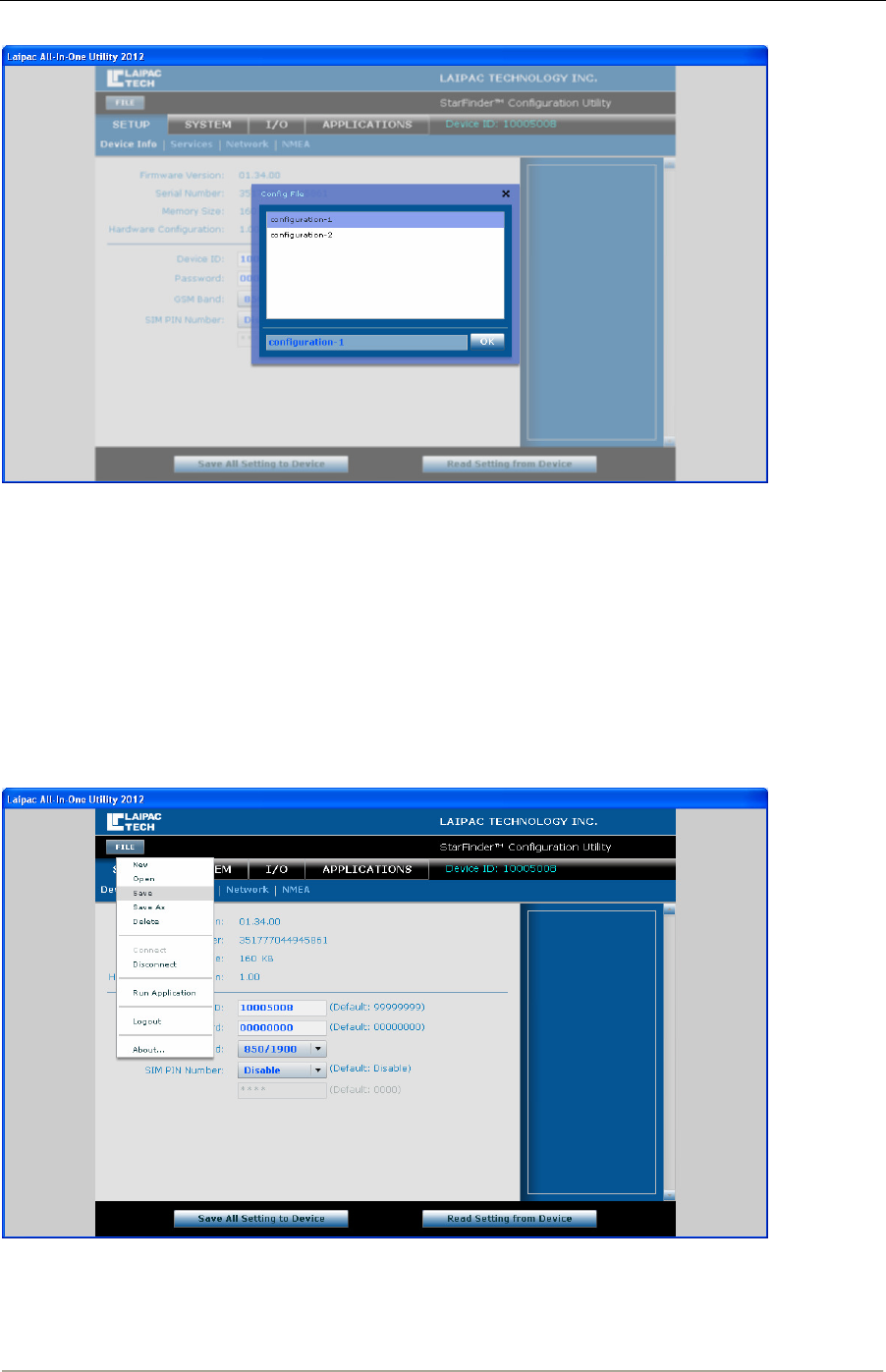

Fig. 3.4.4b
b. From the existing files to select a prefer one, such as, configuration-1, then click “OK”
If reading file is successful, user can see a pop-up window with prompt “Success”.
Save a set of configuration into a configuration file
User can save the current edited configuration into to a configuration file follow the steps below
c. Click “FILE” “Save”, see Fig. 3.4.4c and Fig. 3.4.4d
Fig. 3.4.4c

Laipac Technology Inc. StarFinder Lite User’s Manual & Reference Guide
© 2012-2021 by Laipac Technology Inc. All Rights Reserved. Page 18
Fig. 3.4.4d
User should type in the name of this new configuration file, such as, “configuration-3”, then, click
“OK”. If saving operation is successful, a pop-up window will appear with prompt “Write Config:
File is created”, see Fig. 3.4.4e
Fig. 3.4.4e

Laipac Technology Inc. StarFinder Lite User’s Manual & Reference Guide
© 2012-2021 by Laipac Technology Inc. All Rights Reserved. Page 19
4 Advanced Configuration and Features
This section introduces all other configuration settings not covered by section 3.4.2 Basic
Configuration. Those settings can be categorized into 4 major parts: SETUP, SYSTEM, I/O, and
APPLICATION. Among them, SYSTEM settings are concerned with reporting and voice setup.
I/O settings are used for customizable I/O functionality. The APPLICATION settings are used
for other types of event messages.

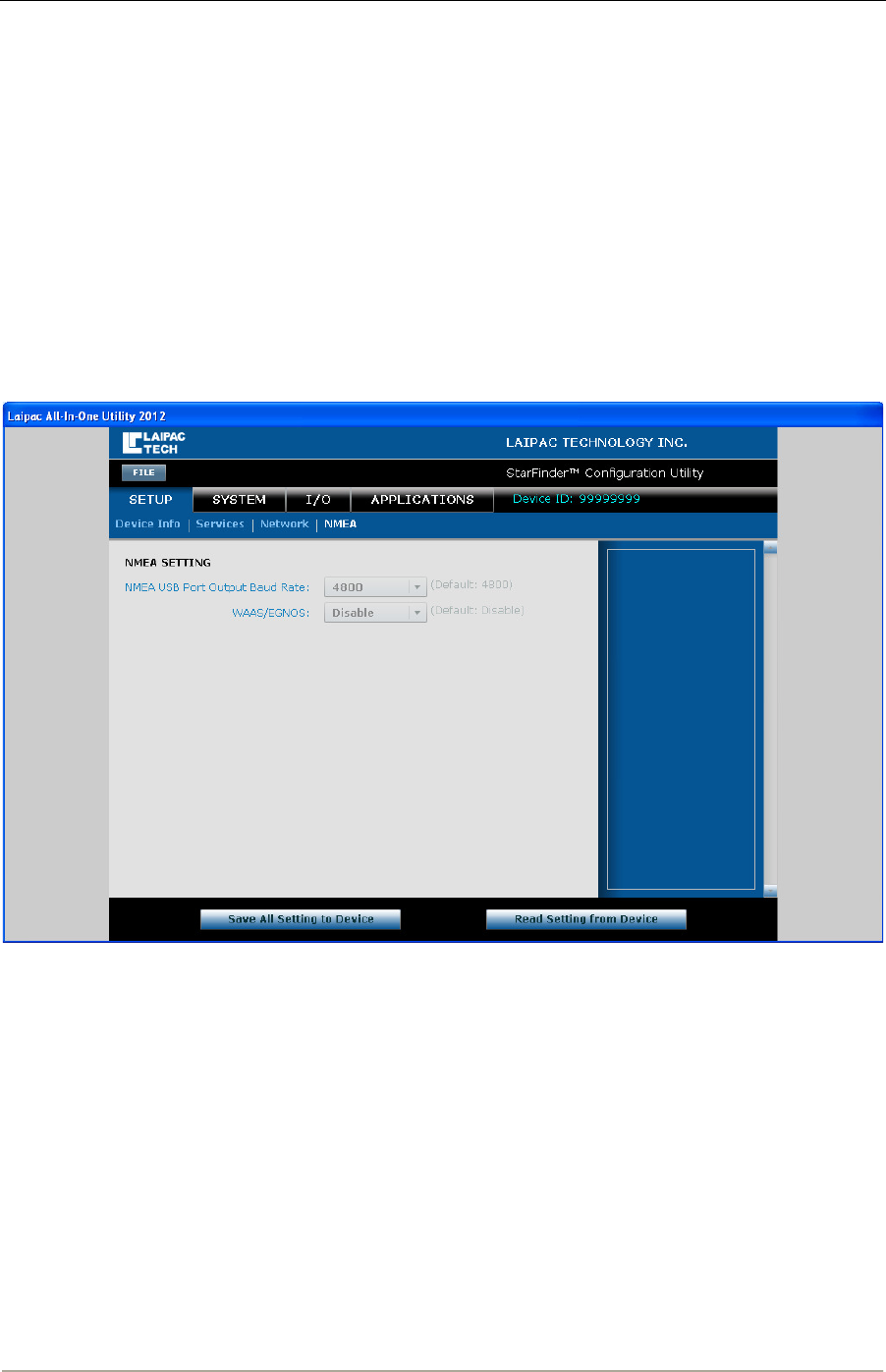

4.1 Setup Setting
SETUP
NEMA
NMEA Baud: NOT IMPLEMENTED
WAAS / EGNOS: This setting enables the compatibility for Wide Area Augmentation System
and European Geostationary Navigation Overlay Service for added GPS
accuracy. For unit with application firmware V1.34 and up,
automatically, this function has been always enabled by unit. User can
skip this setting.

Laipac Technology Inc. StarFinder Lite User’s Manual & Reference Guide
© 2012-2021 by Laipac Technology Inc. All Rights Reserved. Page 20

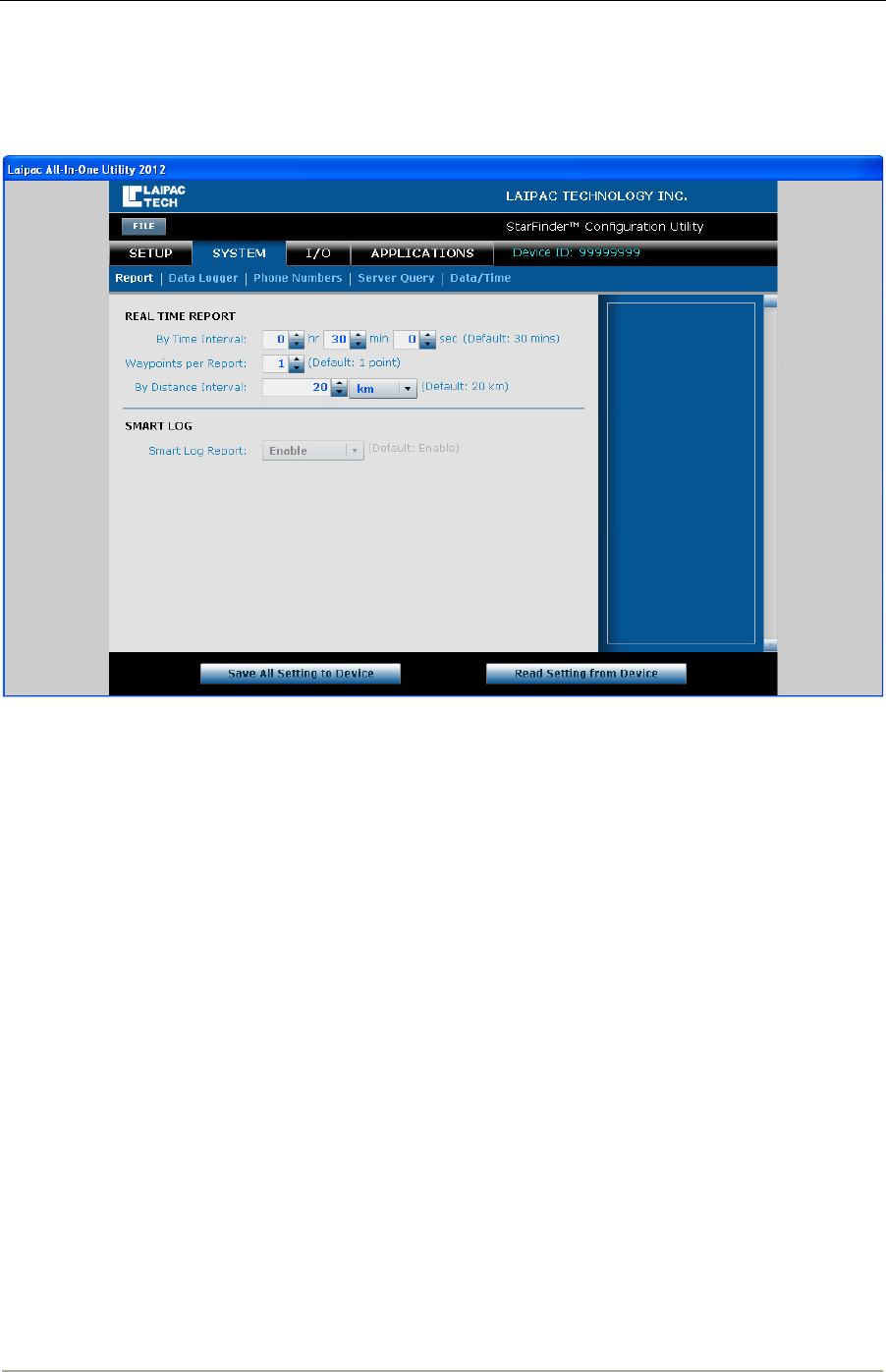

4.2 System Setting
SYSTEM
Report
Report and its setting: This option allows you to specify how frequent the unit will send a position
update. You can specify the report by time value in hours, minutes, and
seconds. You can specify the report by distance value in kilometers, miles,
or yards.
Waypoints per Report: This is a user defined value used for report bursting and is governed by
report by time. An example is if the number of waypoints per report is set to
5 and the report by time interval is set to 1 minute, in 5 minutes, the
receiving server will receive 5 waypoints.
Smart Log Report: The smart log report option allows the unit to automatically log its position
and alert information into internal memory in the event there is no GPRS
connectivity. When the Starfinder Lite reconnects to GPRS, the saved
messages will be sent to remote server actively. Automatically, this
function has been always enabled by unit. User can skip this setting

Laipac Technology Inc. StarFinder Lite User’s Manual & Reference Guide
© 2012-2021 by Laipac Technology Inc. All Rights Reserved. Page 21
SYSTEM
Data Logger
Waypoint Log: Waypoints & Events Log setting gives you the option to log or store
waypoint and alert messages in the unit’s internal memory.
By Time Interval: Logs messages into internal memory based on the specified time interval.
By Distance Interval: Logs messages into internal memory based on the specified distance
interval.
Memory Full Alert: Data Logger Memory Full alert will cause the unit to send an alert when the
internal memory of the unit is full. This means that once the unit runs out of
memory, an alert will be sent to the GPRS server

Laipac Technology Inc. StarFinder Lite User’s Manual & Reference Guide
© 2012-2021 by Laipac Technology Inc. All Rights Reserved. Page 22

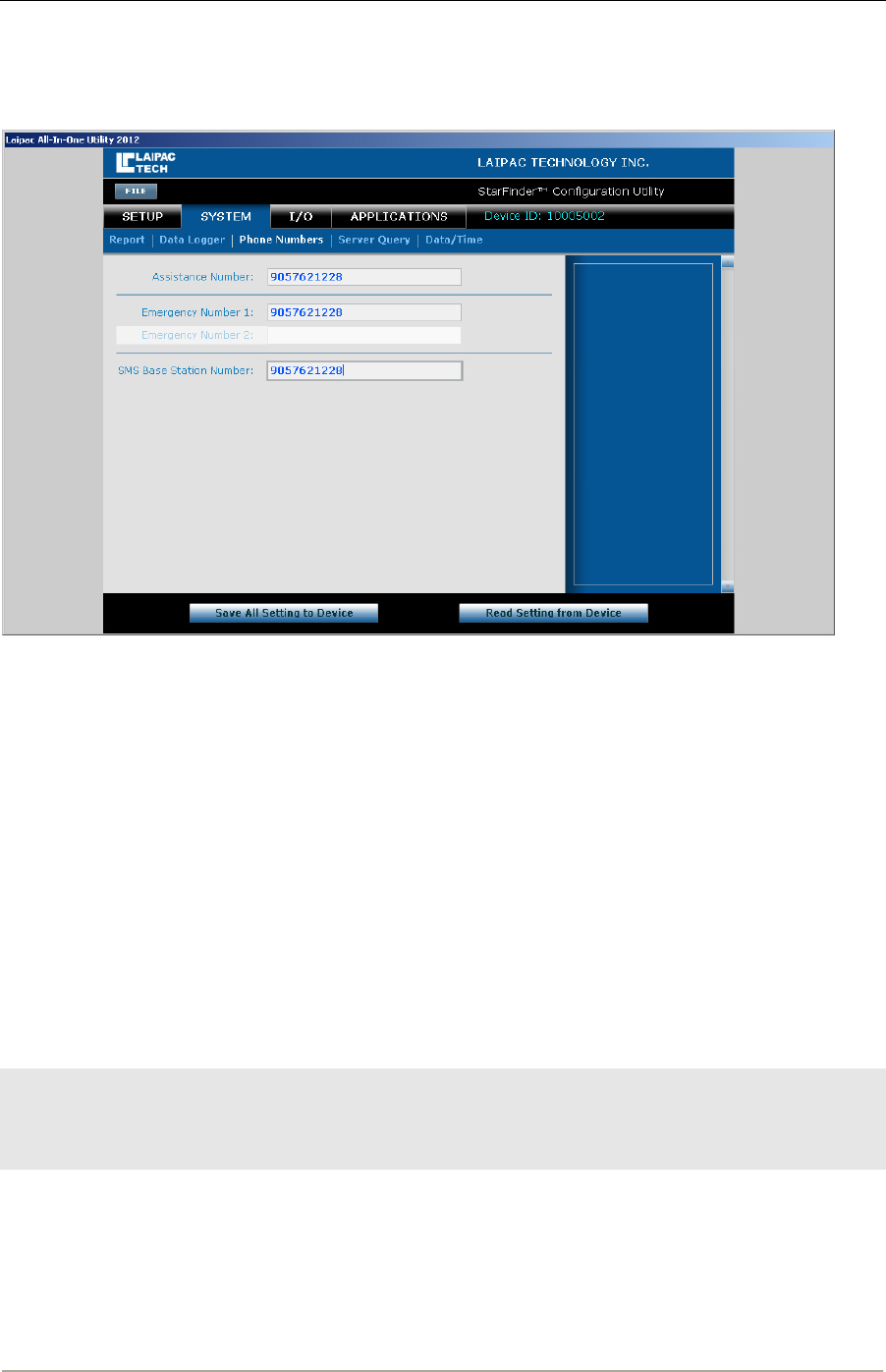

SYSTEM
Phone Number
Assistance Number: When user presses the Panic button on 10-pin I/O cable, the number
programmed into the “Assistance Number” field will be dialled.
Emergency No 1: If this number is set up and unit will send SMS message to the SMS device
with this No. under conditions below
a. User presses the Panic button on 10-pin I/O cable, or
b. Unit is triggered by Towing Alert or Accident Alert
c. Emergency No. 1 sending function related to these alerts are enabled.
SMS Base Station: The SMS Base Station Number is used when the Starfinder Lite is operating
under SMS mode. All of the waypoints and alert messages will be sent to
the SMS Base Station Number. This number also can belong to a cell
phone, an SMS modem, or any SMS device.
Note:
To use the Assistance Number for doing phone call, user’s SIM card must be with valid
Voice Plan

Laipac Technology Inc. StarFinder Lite User’s Manual & Reference Guide
© 2012-2021 by Laipac Technology Inc. All Rights Reserved. Page 23
SYSTEM
Server Query
Server Query: Used as a GSM keep alive and tests the connection status of the Starfinder
Lite. This setting must be enabled first.
Query Interval: The actual interval in which the Starfinder Lite tests the connection between
the GPRS server and itself. If there is no server response to the message the
Starfinder Lite sends out, the unit will reset and try to resynchronize.

Laipac Technology Inc. StarFinder Lite User’s Manual & Reference Guide
© 2012-2021 by Laipac Technology Inc. All Rights Reserved. Page 24

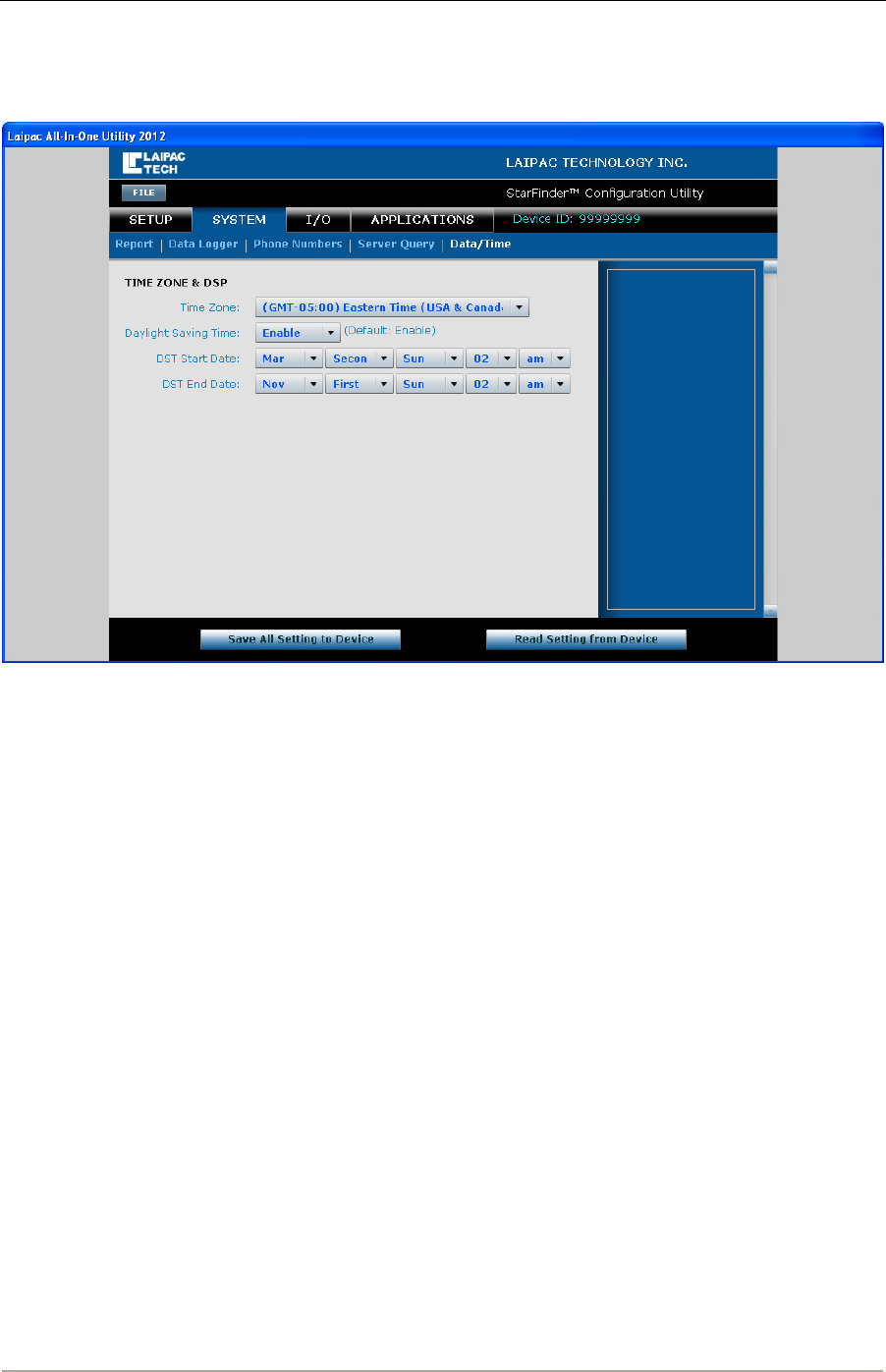

SYSTEM
Data/Time
Time Zone: Use this to select your time zone so that the device knows your local
time.
Daylight Savings Time: Use this to enable the daylight savings time start and end dates.
DST Start Date: This is a user defined value of when the user starts their daylight
savings time.
DST End Date: This is a user defined value of when the user ends their daylight
savings time.

Laipac Technology Inc. StarFinder Lite User’s Manual & Reference Guide
© 2012-2021 by Laipac Technology Inc. All Rights Reserved. Page 25
4.3 Input/Output Settings

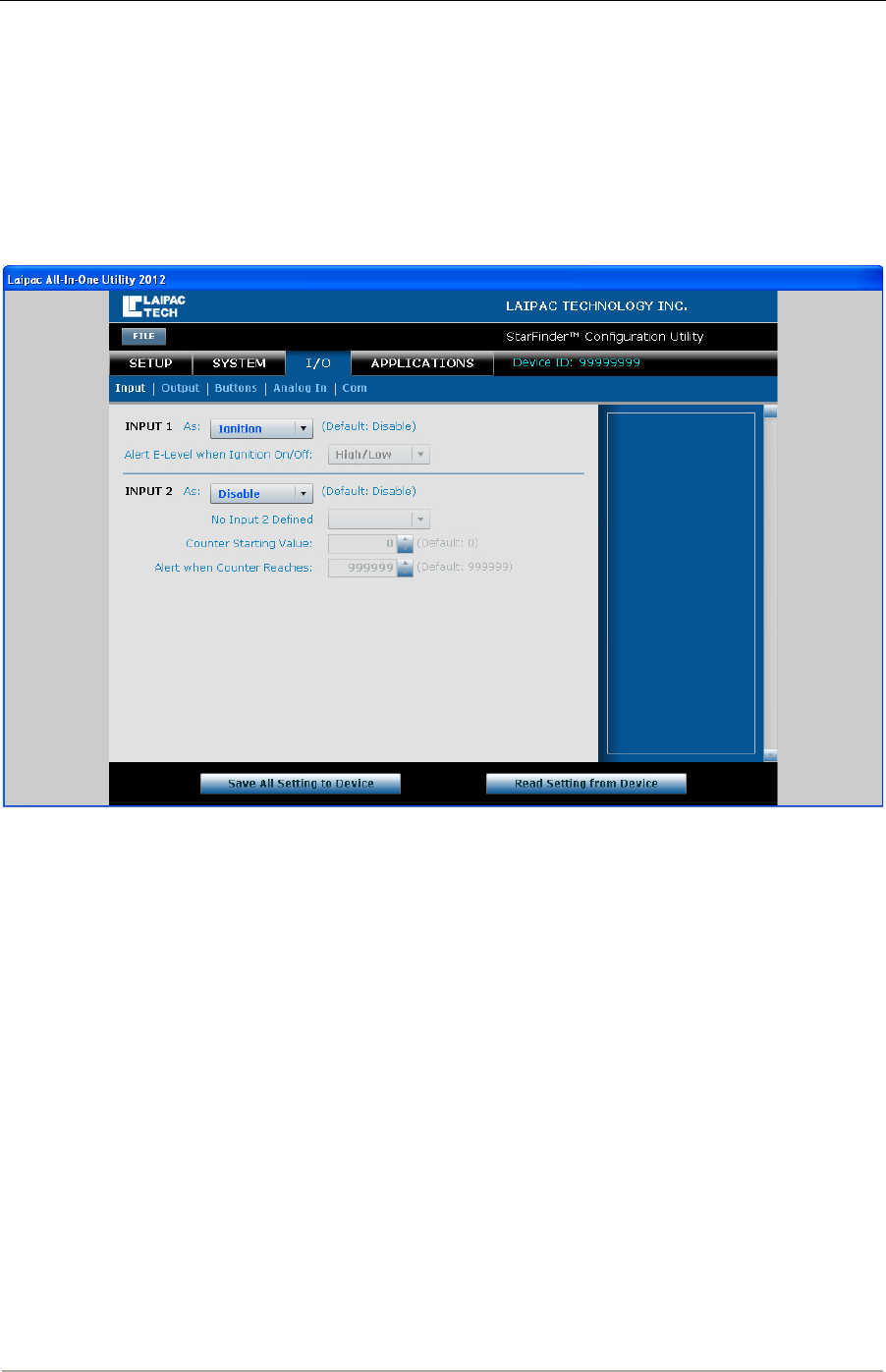

I/O Input
Input setting items allows you to activate and select the functionality related to input. Input 1 has
options “Disable” and “Ignition”. Input 2 has options “Disable”, “Trigger”, and “Counter”.
Trigger setting: This option allows you to send an alert when the alert signal condition is
met on an Input. An alert is generated when the voltage level goes from
either a High to a Low or from a Low to a High. This setting is user
defined.
Counter setting: This option allows the user to implement input 2 as a counter. The counting
signal can be specified as either a Low to High (Low High) or a High to
Low (HighLow) voltage level change. The maximum counting speed is
50 times per second, with minimum voltage change of last at least 10 ms.
Counter Start Value: This option allows the device to record how many times the alert gets
triggered and accumulates from the value you set it to.
Counter Alert Value: This option allows you to tell the Starfinder Lite to send an alert when the
counter value reaches a user defined value. If you set it to 90, it will send an
alert once the counter’s value reaches 90.

Laipac Technology Inc. StarFinder Lite User’s Manual & Reference Guide
© 2012-2021 by Laipac Technology Inc. All Rights Reserved. Page 26
Note:
Input 1 has been reserved for detecting the trigger signal corresponding to vehicle’s ignition on/off
status. Input 1 needs to be enabled if either “Accident alert” or “Towering alert” functions to be
available. The trigger signal exerted on Input 1 should meet the following requests
1. Before starting engine, its input voltage is Logic Low
2. After starting engine, it keeps input voltage is Logic High
3. When engine shuts down, its input voltage is back to Logic Low
For definition of Logic level as its correspondent electrical characteristics, refer to section 5.2.8

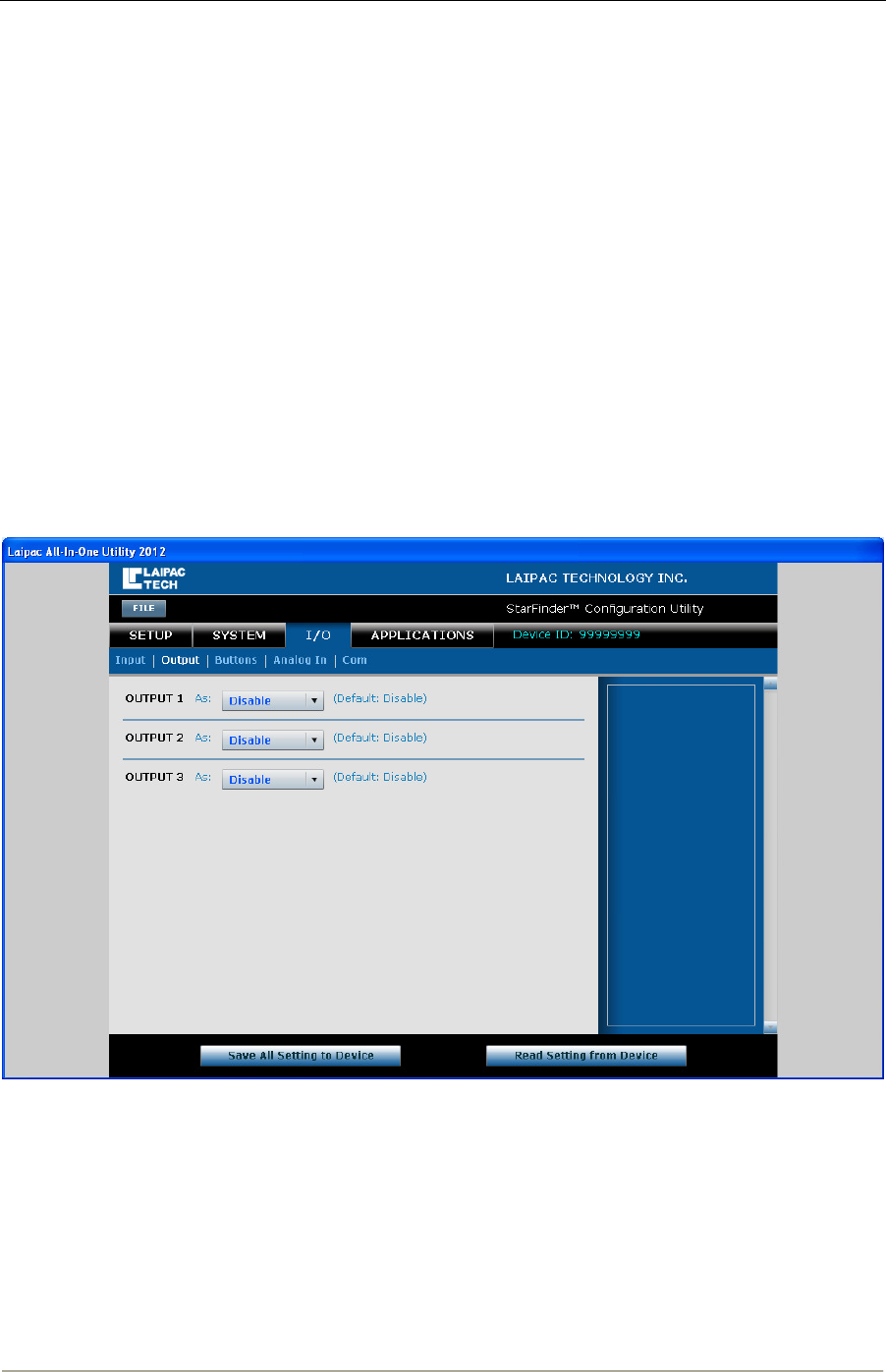

I/O Output
Output setting items allow user to activate and select the functionality related to output. All three
outputs are driven by individual internal relays and are wired as “Normally Open”. For the
“electrical characteristics” of the relays please locate the “electrical characteristics” chart located
on page 43.
Controller: The “Controller” option is used to enable the functionality of an output. Each of the
3 outputs is responsible for a different function. The table below outlines those functions, which
being with firmware V1.34.

Laipac Technology Inc. StarFinder Lite User’s Manual & Reference Guide
© 2012-2021 by Laipac Technology Inc. All Rights Reserved. Page 27
Note:
a. “on” or “off” command is sent by remote server to control the behavior of those internal relays.
For customer who wants to use his own server, he needs purchase the protocol from Laipac.
b. As typical vehicle application examples, with proper external relays, user may use Output1 to
control door-open, Output2 for ignition on/off control and Output3 for driving a horn.
c. Depending on actual application request, the output control may have different mode, user
should check SF-Lite Application Firmware Release Note to know about what kind of output
control mode is being used by the application firmware he selects.

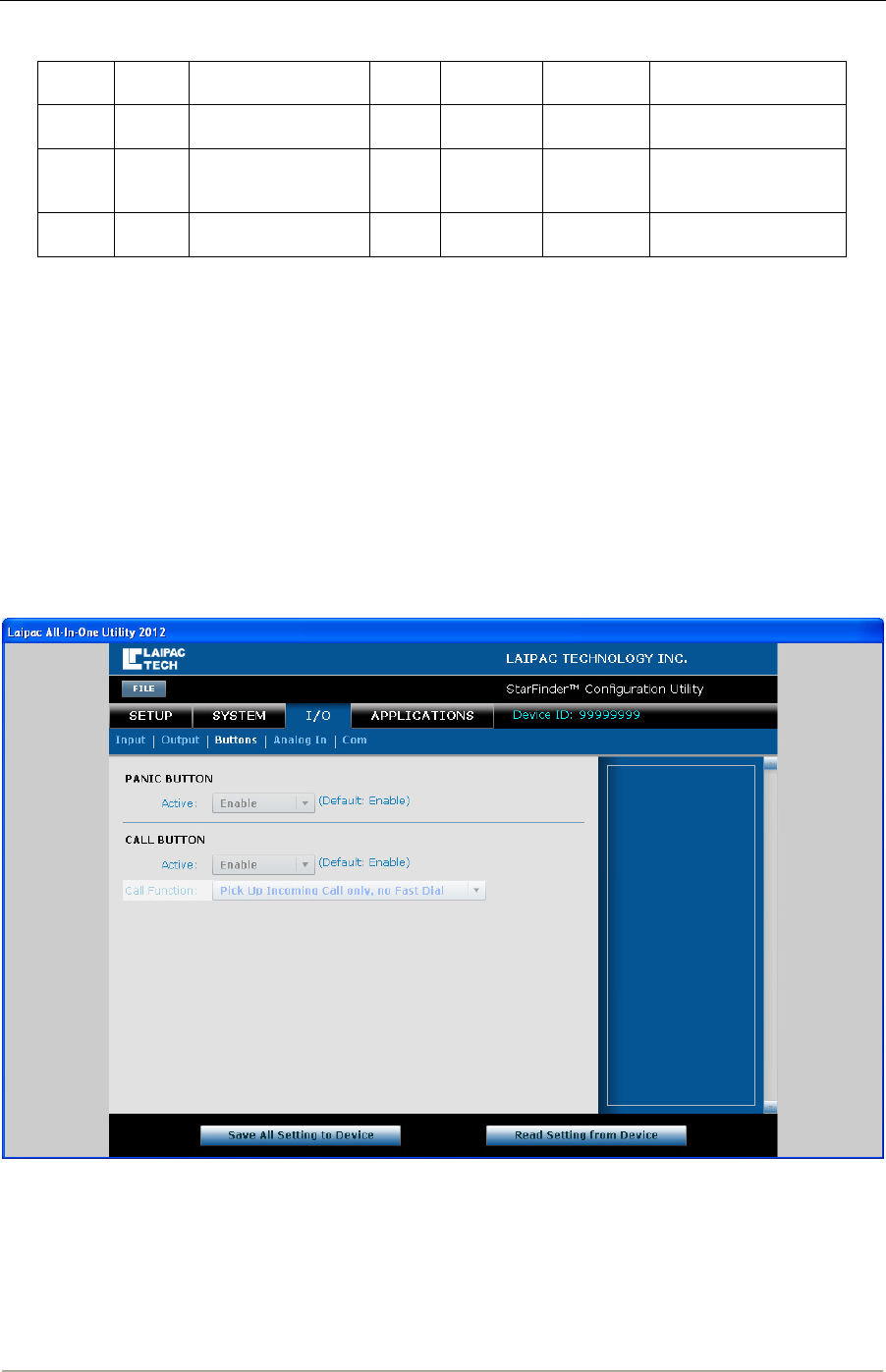

I/O
Buttons
Panic Button: Allows user to activate the functionality of the panic button by enabling it.
Once enabled, after pressing panic button, unit will initiate the actions below
sequentially
● Send a panic alert message through GPRS connection to the remote server
● Send a SMS message to the SMS device with Emergency No. 1
Output Switch
Type
Relay Action Action
times
“on”
time (s)
“off”
time (s)
Command Type
1 Timed offonoff 1 1 0 Send switch Relay
“off” Command.
2 Fixed off on or on off 1 1 1 Send switch Relay
“on” or “off”
commands.
3 Timed Offonoff ---
offonoff
12 1 1 Send switch Relay
“off” command.

Laipac Technology Inc. StarFinder Lite User’s Manual & Reference Guide
© 2012-2021 by Laipac Technology Inc. All Rights Reserved. Page 28
● Initiate a phone call by dialing Assistance Number
Call Button: Allows you to activate the functionality of the call button by enabling it.
Once enabled, it will allow the user to select
● Auto Answer the incoming call, or
● Press this button to pick up the phone call
Note:
For unit with application firmware V1.32-EC and V1.34, automatically, both of these 2
buttons have been enabled by unit. User can skip this setting
I/O

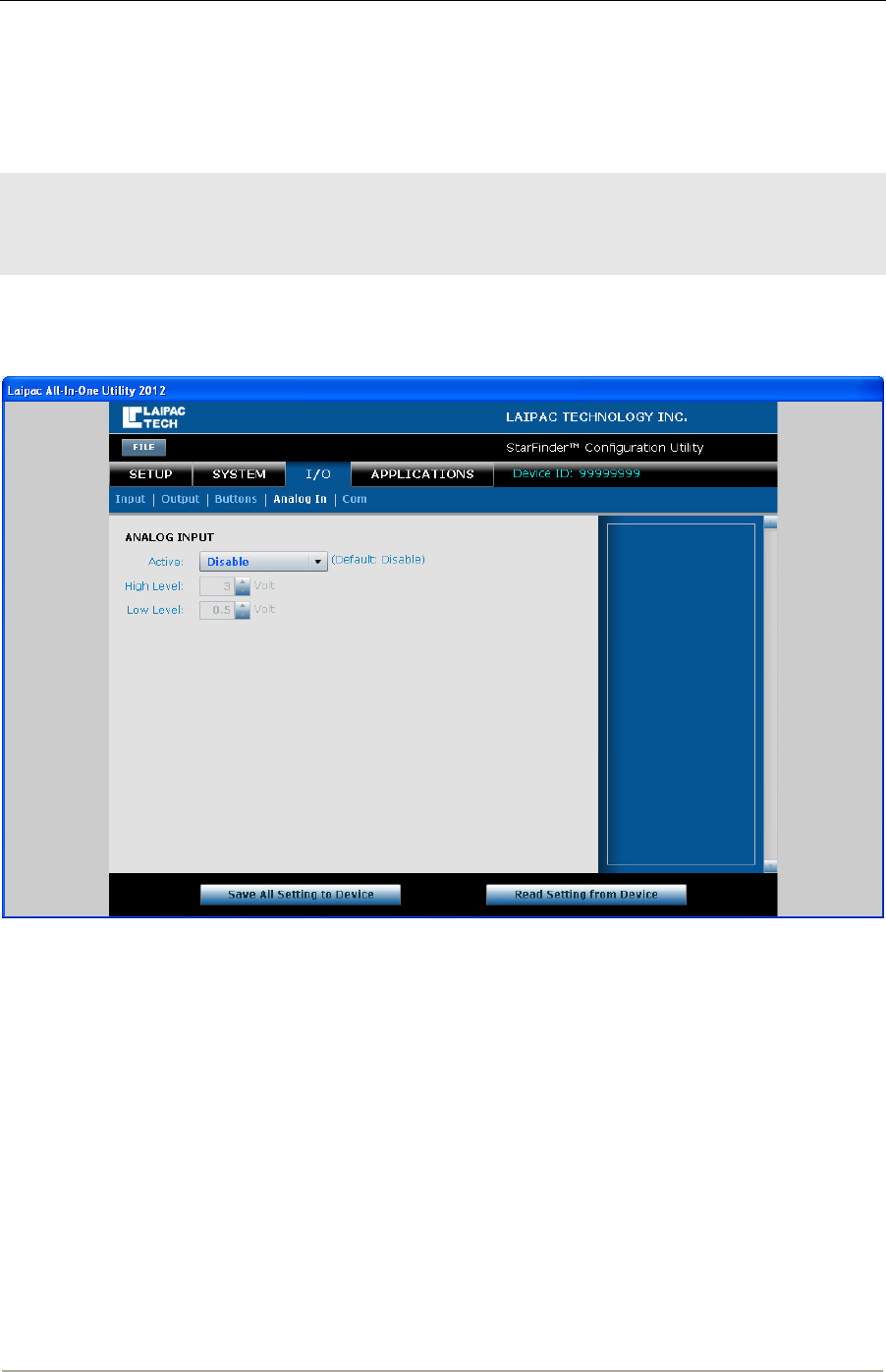

Analog In
Analog Input: The Analog Input functionality must be enabled before using. It is designed to
detect and record input voltage, range between 0.00 and 3.30 volts. This voltage
value will be sent to remote server in the term of the waypoint message. Once
enabled, unit is able to generate an alert message when the input voltage higher or
lower than a user specified value in “High Level” or “Low Level” fields.

Laipac Technology Inc. StarFinder Lite User’s Manual & Reference Guide
© 2012-2021 by Laipac Technology Inc. All Rights Reserved. Page 29
I/O
Com
RS232 COM PORT: TO BE DEFINED LATER

Laipac Technology Inc. StarFinder Lite User’s Manual & Reference Guide
© 2012-2021 by Laipac Technology Inc. All Rights Reserved. Page 30
4.4 Application Settings

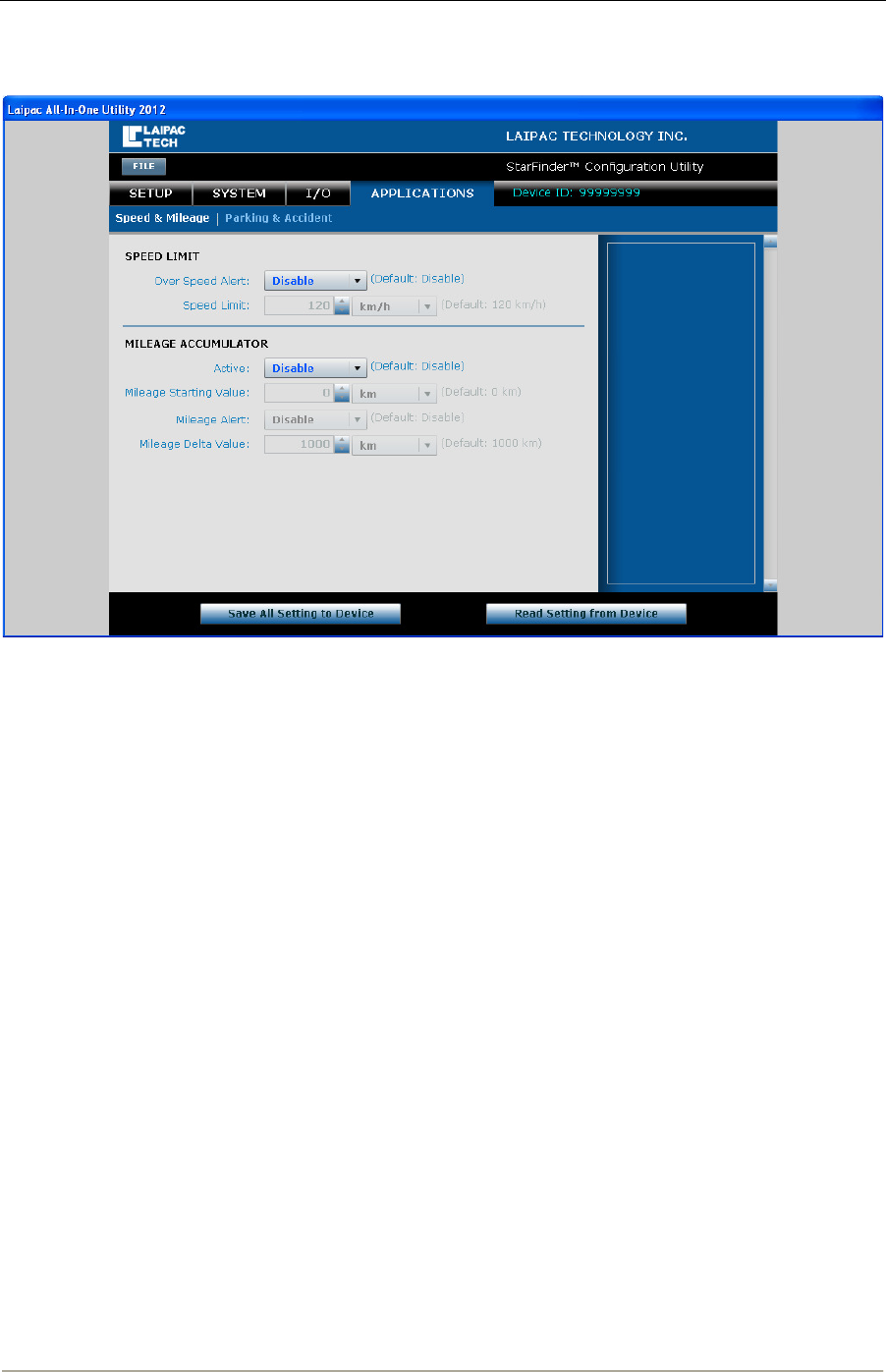

Application Speed & Mileage
Over Speed Alert: In order to use this function, it must be enabled first. The Over Speed Alert,
formerly known as over-speed, is designed to send an alert if the unit moves
faster then the specified speed limit value.
Speed Limit: The speed limit is user defined and can be set in kilometers or miles per
hour. If the unit travels faster than this value, an Over Speed Alert will be
sent to the GPRS server.
Mileage Accumulator: This function must be enabled before it can be used. Unit is able to
accumulate distance based on a user defined “Mileage Starting Value” and
the unit of distance during unit moves. Whenever moving distance is
increased by 1(km/mile), the incremented value will be added to the
Accumulator’s current mileage value.
Starting Value: The Mileage Start Value is user defined and is recommended to match the
odometer reading in the equipped vehicle. From there you can specify the
unit of distance being kilometers or miles and the mileage value will
accumulate from there.
Mileage Alert: This alert must be enabled before it can be used. This alert will be sent to
the remote server whenever another new Mileage Delta value is reached
during vehicle running. It is used to generate a warning for vehicle
maintenance warning or oil change, etc is coming due. For example, if
Mileage Start Value is 1000km and Mileage Delta Value is 5000km, unit will
generate Mileage Alerts when Mileage Accumulator has its reading at 6000 km,
11000 km, 16000km, etc

Laipac Technology Inc. StarFinder Lite User’s Manual & Reference Guide
© 2012-2021 by Laipac Technology Inc. All Rights Reserved. Page 31
Mileage Delta Value: This value is a user defined distance value. It is designed to provide a
warning related to the next vehicle maintenance or oil change job is due.
The unit of distance must be the same as the ‘Mileage Starting Value’. The
default setting for this value is 1000 km
Application Park & Accident
Towing Alert: The Towing Alert must be enabled before it can be used. This feature
requests ‘Input 1’to be enabled as “ignition”. When vehicle with the unit
shuts down its engine, if unit experiences a movement that generates 2G or
greater force, the unit will send an alert to the remote server. This may be in
a situation where someone tows a vehicle without consent.
Trigger Value: The G Sensor Trigger Value has a default value of 2Gs and should be kept
at a low recommended value to sense movement.
Accident Alert: The accident alert requires enabling before it is used. It is designed to sense
a high impact hit and send an alert upon receiving it similar to that of a
vehicle collision. In order to have this alert working properly, ‘Input 1’ must
be enabled as “ignition”, also, user should provide requested “ignition
on/off” signal on Input 1. See section 4.3 I/O – Note.
Trigger Value: The G Sensor Trigger Value has a default value of 5Gs and should be kept
as a recommended value to sense a vehicle collision as opposed to a pot hole

Laipac Technology Inc. StarFinder Lite User’s Manual & Reference Guide
© 2012-2021 by Laipac Technology Inc. All Rights Reserved. Page 32

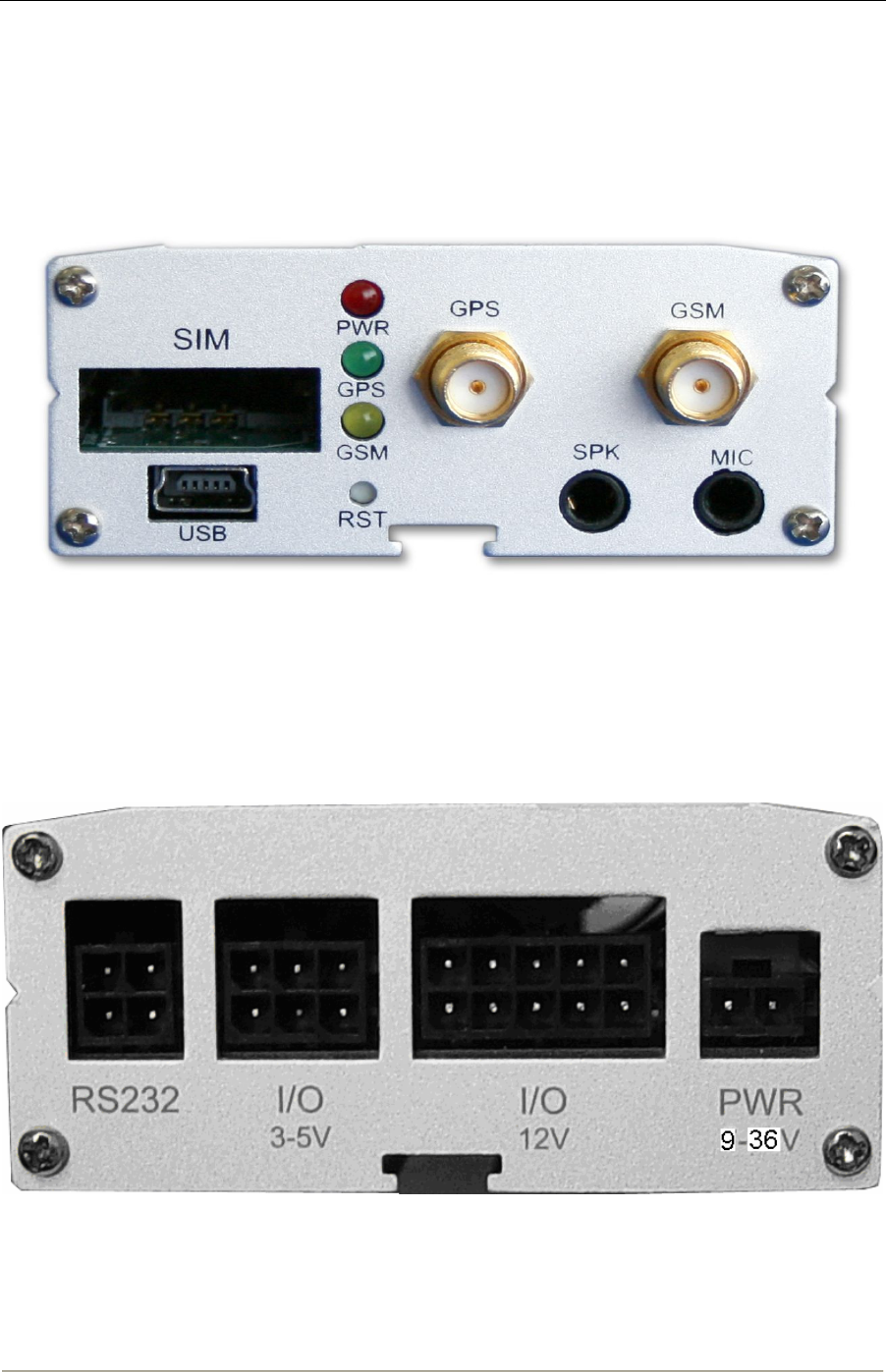

5 HARDWARE DETAILS & INSTALLATION
The Starfinder Lite is enclosed in a robust metal case and can withstand intensive shock and
temperature environments. The features on the front of the unit include a SIM card tray, a USB
port, the reset button, speaker and microphone jacks, 2 female SMA connectors for the GPS and
GSM antennas, and three LEDs to show the status of reporting and connectivity as shown in the
below image.
The connections available on the back of the unit include two optically isolated inputs and three
Relay outputs in the main I/O section labeled as 12V, one analog input and the TTL I/O ports used
for the call answer button labeled as 3-5V, a wide power supply input range of 9-36V, and RS232
interface as shown in the below image. Note: Please refer to sections 5.1.5 through 5.1.9 for
detailed electrical specifications.

Laipac Technology Inc. StarFinder Lite User’s Manual & Reference Guide
© 2012-2021 by Laipac Technology Inc. All Rights Reserved. Page 33
5.1 Hardware Details
5.1.1 GPS Engine Specifications
Value Units
Channels 20 Channels
RF Frequency 1575.42 MHz
Position update rate 1 Hz
Active antenna bias voltage 3 V
Position accuracy < 10 Meters
Velocity accuracy 0.1 m/s
Time accuracy 1 uS
Cold start acquisition time 42 Seconds
Warm start acquisition time 38 Seconds
Hot start acquisition time 1 Seconds
Maximum velocity tracked 515 m/s
Maximum altitude tracked 18,000 Meters
Jerk 20 m/s3
Tracking Sensitivity -159 dBm
Navigation Sensitivity -159 dBm
5.1.2 GSM Modem Specifications
• Quad-band GSM/GPRS component (850/900/1800/1900 MHz)
• Designed for M2M and automotive applications
• Class 4 (2W @ 850 / 900 MHz)
• Class 1 (1W @ 1800 / 1900 MHz)
• R&TTE, GCF, FCC, PTCRB, IC
• Embedded TCP/IP stack.
• GPRS Class 10

Laipac Technology Inc. StarFinder Lite User’s Manual & Reference Guide
© 2012-2021 by Laipac Technology Inc. All Rights Reserved. Page 34
5.1.3 GPS Antenna Specifications
Frequency 1575.42 +/- 3 MHz
VSWR 2.0 Max
Bandwidth 10 MHz Min
Axial Ratio 3dB Typical
Impedance 50 Ohm
Peak Gain 4 dBic Min
Gain Coverage ≥ -4dBic at 90° ≤ 0 ≤ 90° (over 75% volume)
Polarization RHCP
DC Voltage 3.3V
5.1.4 GSM Antenna Specifications
Bands 850/900/1800/1900 MHz
Frequency Range 824~960 MHz // 1710~1990 MHz
Impedance 50 Ohm
VSWR <2.0
Gain 2dBi
Radiation Omni
Polarization Vertical
Wave Half Wave Dipole

Laipac Technology Inc. StarFinder Lite User’s Manual & Reference Guide
© 2012-2021 by Laipac Technology Inc. All Rights Reserved. Page 35
5.2 Installation
The difficulty level of installing your Starfinder Lite depends on which features you would like to
use. Outlined here will be the basic installation requirements for real-time tracking. You can refer
to the Optically Isolated Inputs, Outputs with relays, and Analog Port sections for more advanced
hardware features which may require a more intricate installation.
5.2.1 Required Hardware
• Starfinder Lite
• Power, I/O harness, and call button cables
• GSM patch antenna (3 meters long )
• GPS magnet mount antenna ( 5 meters long )
• GPRS enabled SIM card with known APN settings*
5.2.2 Installing your Starfinder Lite
To begin the installation, insert your activated SIM card into the SIM card tray. Connect the GSM
patch antenna (long and skinny) and GPS magnet antenna (square) to the appropriate connectors.
To power the unit, connect the power wiring harness and connect the red and black wires to a 9-
36V DC supply. Make sure the supplied fuse is in place.
5.2.3 Considerations
There are a few considerations you should make when installing your Starfinder Lite. You should
make sure the unit is somewhat accessible so that you can connect the unit to a laptop via USB for
configuration and local NMEA-0183 output. The GSM antenna may be mounted almost anywhere,
as the GSM signal is generally very strong. The GPS antenna, however, should be mounted
somewhere with a clear line of sight to the sky under dash board, or at least in a position not
surrounded by metal. If you are having trouble receiving either signal, try relocating the antenna.
Another consideration is, if user wants to get high quality Audio performance, please keep distance
SF_Lite unit with electromagnetic noise source.
5.2.4 Other Options
The Starfinder Lite comes with many other options which may need installation. There are 2
optically isolated inputs, 3 Relay outputs, and 1 analog port which may need to be connected and
would rely on the specific application for installation details. A certified car audio/security
installer should be familiar with connecting the relays to door locks or starter triggers. The specs
and considerations for these other features can be found later in this section.

Laipac Technology Inc. StarFinder Lite User’s Manual & Reference Guide
© 2012-2021 by Laipac Technology Inc. All Rights Reserved. Page 36
5.2.5 Power Connector
The main Power supply voltage could work in the range of 9-36V. Typical power consumption of
the Starfinder Lite is 1W with peaks up to 5.5W. The current drawn is a result of power over
voltage, thus a low voltage power supply will need to provide more current.
5.2.6 Buttons Input/Output
These four connections are used by the StarFinder Lite Button/Analog cable set. If you are using
these without the standard cable set, the following summarizes the use of these connections.
Input BIO1 – Active LOW; will start, answer, or end a phone call (if enabled)
Input BIO2 – Active LOW; will send a Panic report to LocationNow (if enabled)
Output BIO3 – Normally LOW; indicates phone call status (used to drive LED)
GND – Common Ground
The inputs are standard 3.3V to signal a logical HIGH, and tolerant up to 5V; exceeding 5V can
damage your StarFinder Lite.

Laipac Technology Inc. StarFinder Lite User’s Manual & Reference Guide
© 2012-2021 by Laipac Technology Inc. All Rights Reserved. Page 37
5.2.7 Analog Input
Analog Input – When enabled, the analog port is used to measure input voltage from 0-3.3V and
will send an alert when the voltage exceeds the level specified in your configuration. The Analog
input is tolerant up to 5V; exceeding 5V can damage your StarFinder Lite.
Analog GND – This is the ground reference for the Analog Input signal.
5.2.8 Optically Isolated Inputs
The positive wires are the sensing wires or wires that detect the voltage changes and the negative
wires are for common ground. The positive wires are most commonly connected to solenoid wires
that drive ignition, horn, air conditioning, gas cap, door open/closed status, etc.
When the inputs are enabled, they will send an alert when the specified condition is met, and all
have the same electrical characteristics and behavioural options.
Input voltage 0-3.3V
Resolution 10 bit
Sample Time 100ms

Laipac Technology Inc. StarFinder Lite User’s Manual & Reference Guide
© 2012-2021 by Laipac Technology Inc. All Rights Reserved. Page 38
Electrical/Logic Levels Characteristics
Minimum Maximum
Voltage Amperage
Voltage Amperage
Logical HIGH 3.5V 1.3mA 18V 6.7mA
Logical LOW 0V 0mA 1.5V 1.1mA
Note: An input level exceeding 19V could damage the StarFinder Lite and should be avoided.
5.2.9 Three Relay Outputs
The Starfinder Lite has three relay outputs which can be remotely controlled by the control center.
All three outputs have the same electrical characteristics and behavioral options. The outputs
serve as a switch either to drive an external relay or to open/close an existing low amperage
circuit. Follow the electrical characteristics chart below or damage may be incurred to both unit
and vehicle. Also review page 30 for the output behavior.
Electrical Characteristics
Maximum Allowable Voltage Maximum Allowable Current
AC 125 V 0.5A
DC 60 V 0.3A
DC 30 V 1A
The switch status of internal Relay when its correspondent output is disabled
Relay 1 --- normally opened;
Relay 2 --- normally opened;
Relay 3 --- normally opened;

Laipac Technology Inc. StarFinder Lite User’s Manual & Reference Guide
© 2012-2021 by Laipac Technology Inc. All Rights Reserved. Page 39
6 OPERATION
The following outlines the various operating and reporting features of the Starfinder Lite.
6.1 LED Operation
Three LEDs are on the front of the unit. They are used to indicate the working status of power
supply , GPS, and GSM. The following is a description of their operation.
LED Off Fast Flashing Slow Flashing Keeping On
Power (Red) External power
not available
External power
available
GPS (Green) GPS Searching for Position GPS fixed
GSM (Yellow) Searching for GSM network GSM network connected
6.2 Position Reporting by Event
There are many events which can trigger the Starfinder-Lite to send a position report. Most of
them are outlined below. For other possible messages, contact sales@laipac.com to purchase the
development protocol. The descriptions in italics are options and not standard features.
• Input 1 (Opto 1) An electrical current signal exerted on Input 1 port will send a
position message to the control center with the corresponding event
code.
• Input 2 (Opto 2) An electrical current signal exerted on Input 2 will send a position
message to the control center with the corresponding event code.
• Geo-Fence Once the hardware Geo-Fence is set, the Starfinder will report back
to the control center when the unit has travelled in/out the boundary
with the corresponding event code.
• Over speed When the Starfinder travels above the set speed limit it will report
back to the control center with the appropriate event code.
• Timed Reporting When the time interval reporting is set the Starfinder will send a
position message to the control center after this amount of time.
• Distance Reporting When the distance interval is set the Starfinder will send a position
message to the control center after it has travelled this set distance.
• Accident Alert When detected that a high acceleration (configurable level) is
achieved the Starfinder Lite will send a report to the SMS base
station or control center.
• Towing Alert With the towing alert enabled and the vehicle ignition is off when
the unit senses movement, an alert message will be sent.

Laipac Technology Inc. StarFinder Lite User’s Manual & Reference Guide
© 2012-2021 by Laipac Technology Inc. All Rights Reserved. Page 40
• DL Memory Full Data Logger Memory Full alert will cause the unit to send an alert
when the internal memory of the unit is full or has reached max
capacity.
• Mileage Alert Mileage alert will cause the unit to send an alert when travel distance
reaches the value specified by user.
* When both time and distance intervals are set they work dynamically together like an ‘OR’
operation. This means that whenever either condition is met, it will report.
* For detail above refer to section 4.
6.3 Reporting by Request
In addition to automatically reporting the position you can manually request the current position or
settings. The following are some parameters which can be requested.
• System information such as firmware version and memory size
• Current position
• Current mileage or speed limit setting
• Current Report settings
• Current Geo-Fence settings
• Current log settings
• Current input status
• Current output status
6.4 Serial Port
Optional

Laipac Technology Inc. StarFinder Lite User’s Manual & Reference Guide
© 2012-2021 by Laipac Technology Inc. All Rights Reserved. Page 41
6.5 Function and its configuration method
This table lists the different functions that the Starfinder Lite offers and outlines where they can be
configured in reference to the configuration utility, remotely using our protocol, or with our LBS
www.locationnow.com platform.
Feature Location Now
Remote Config Utility
Device ID No Yes Yes
Device Password No Yes Yes
GSM Band No No Yes
SIM Pin Number No No Yes
Time Zone No No Yes
GPRS Mode No Yes Yes
SMS Mode No Yes Yes
Voice No No Yes
Incoming call No No Yes
GPRS to SMS fall back No No Yes
APN No Yes Yes
APN username No Yes Yes
APN Password No Yes Yes
Domain name 1a No Yes Yes
Port 1a No Yes Yes
Static IP 1 No No Yes
Port 1 No No Yes
Domain name 2a No No Yes
Port 2a No No Yes
Static IP 2 No No Yes
Port 2 No No Yes
DNS IP 1 No Yes Yes
DNS IP 2 No Yes Yes
NMEA USB Port output Baud Rate No No Yes
WAAS / EGNOS No No Yes
Report by time Yes Yes Yes
Report by distance Yes Yes Yes
Smart Log No No Yes
Air time green mode No No Yes
Waypoints & Events Log No No Yes
Log by Time Interval No Yes Yes
Log by Distance Interval No Yes Yes
Data Logger Memory Full Alert No No Yes
Assistance Number Yes Yes Yes

Laipac Technology Inc. StarFinder Lite User’s Manual & Reference Guide
© 2012-2021 by Laipac Technology Inc. All Rights Reserved. Page 42
Emergency Number 1 Yes Yes Yes
Emergency Number 2 Yes Yes Yes
SMS Base Station Number No Yes Yes
Server Query Selection No No Yes
Server Query Interval No Yes Yes
Input 1 as No No Yes
Alert when Ignition on-off No No Yes
Counter 1 Starting Value No No Yes
Alert when Counter 1 Reaches No No Yes
Input 2 as No No Yes
Alert when Door open-close No No Yes
Counter 2 Starting Value No No Yes
Alert when Counter 2 Reaches No No Yes
Output 1 as No No Yes
Starter Control on-off No No Yes
Timer Control 1 Value No No Yes
Output 2 as No No Yes
Horn Control on-off No No Yes
Timer Control 2 Value No No Yes
Output 3 as No No Yes
Siren Control on-off No No Yes
Timer Control 3 Value No No Yes
Panic Button No No Yes
Panic Alert with Following Action No No Yes
Call Button No No Yes
Call Function No No Yes
Analog Input No No Yes
Alert when Analog Input Reaches No No Yes
RS232 COM Port No No Yes
Interface With No No Yes
Speed Limit Alert No No Yes
Speed Limit Yes Yes Yes
Mileage Accumulator No No Yes
Mileage Starting Value Yes Yes Yes
Mileage Alert for Maintenance No No Yes
Mileage Delta Value No No Yes
Towing Alert No No Yes
Towing G-Sensor Trigger Value No No Yes
Accident Alert No No Yes
Accident G-Sensor Trigger Value Yes Yes Yes

Laipac Technology Inc. StarFinder Lite User’s Manual & Reference Guide
© 2012-2021 by Laipac Technology Inc. All Rights Reserved. Page 43
Geo-fence Setup Yes Yes No
Switch Relay 1 Yes Yes No
Switch Relay 2 Yes Yes No
Switch Relay 3 Yes Yes No
Request Real Time Position Yes Yes No
Request Device Data Yes Yes No
Request Current Status Yes Yes No
Disable G-sensor Yes Yes No
Disable Geo-fence Yes Yes No
