Read the Operator’s manual entirely. When
you see this symbol, the subsequent
instructions and warnings are serious - follow
without exception. Your life and the lives of
others depend on it!
Table of Contents
21416
12/17/07
312-849M
Operator’s Manual
RCR1860 and RCR1872 Series
Rotary Cutters
Land Pride
Table of Contents
RCR1860 and RCR1872 Series Rotary Cutters 312-849M 12/17/07
©Copyright 2007 All rights Reserved
Land Pride provides this publication “as is” without warranty of any kind, either expressed or implied. While every precaution has been taken in the preparation of this manual, Land
Pride assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Land Pride reserves
the right to revise and improve its products as it sees fit. This publication describes the state of this product at the time of its publication, and may not reflect the product in the future.
Land Pride is a registered trademark.
All other brands and product names are trademarks or registered trademarks of their respective holders.
Printed in the United States of America.
Important Safety Information . . . . . . . . . . .1
Safety at All Times . . . . . . . . . . . . . . . . . . . . . . . . . 1
Look For The Safety Alert Symbol . . . . . . . . . . . . . 1
Safety Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Introduction . . . . . . . . . . . . . . . . . . . . . . . .7
Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Using This Manual . . . . . . . . . . . . . . . . . . . . . . . . . 7
Terminology: . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Definitions: . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Owner Assistance . . . . . . . . . . . . . . . . . . . . . . . . . 7
Serial Number Plate . . . . . . . . . . . . . . . . . . . . . 7
Further Assistance . . . . . . . . . . . . . . . . . . . . . . 7
Section 1: Assembly and Set-Up . . . . . . . .8
Tractor Requirements . . . . . . . . . . . . . . . . . . . . . . 8
Dealer Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . 8
RCR1872 Tailwheel A-Frame . . . . . . . . . . . . . . 8
RCR1860 & RCR1872 . . . . . . . . . . . . . . . . . . . 8
Gearbox Vent Plug . . . . . . . . . . . . . . . . . . . . . . 9
Tractor Hook-Up . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Driveline Installation . . . . . . . . . . . . . . . . . . . . . . . 10
Driveline Minimum Length . . . . . . . . . . . . . . . . 10
Driveline Maximum Allowable Length . . . . . . . 11
Section 2: Optional Equipment Set-Up . .12
Front Guards . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Front Chain Guard Installation . . . . . . . . . . . . 12
Front Rubber Guard Installation . . . . . . . . . . . 12
Rear Guards . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Rear Metal Guard Removal . . . . . . . . . . . . . . . 12
Rear Chain Guard Installation . . . . . . . . . . . . . 13
Rear Rubber Guard installation . . . . . . . . . . . . 13
Section 3: Adjustments . . . . . . . . . . . . . .14
Deck Leveling & Height Adjustments . . . . . . . . . . 14
Deck Leveling From Left to Right . . . . . . . . . . . . . 14
Deck Cutting Height . . . . . . . . . . . . . . . . . . . . . . . 14
Center 3-Point Link Length . . . . . . . . . . . . . . . . . 15
Tailwheel Height Adjustment . . . . . . . . . . . . . . . . 15
Section 4: Operating Instructions . . . . . .16
Operating Check List . . . . . . . . . . . . . . . . . . . . . .16
Transporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Un-hooking the Rotary Cutter . . . . . . . . . . . . . . . .16
Cutting Instructions . . . . . . . . . . . . . . . . . . . . . . .17
General Operating Instructions . . . . . . . . . . . . . .17
Section 5: Maintenance and Lubrication 19
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Service Cutter Blades . . . . . . . . . . . . . . . . . . . . .19
Shearbolt Protected Drivelines . . . . . . . . . . . . . . .20
Slip-Clutch Protected Drivelines . . . . . . . . . . . . . .20
Clutch Run-In . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Clutch Assembly and Disassembly . . . . . . . . . . .21
Cutter Storage . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Gauge Wheel Spindle Tube . . . . . . . . . . . . . . .22
Gauge Wheel Hub . . . . . . . . . . . . . . . . . . . . . .22
Gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Driveline U-Joints . . . . . . . . . . . . . . . . . . . . . .23
Driveline Shield Bearings . . . . . . . . . . . . . . . .23
Driveline Profiles . . . . . . . . . . . . . . . . . . . . . . .23
Section 6: Specifications & Capacities . .24
Section 7: Features & Benefits . . . . . . . .25
Section 8: Troubleshooting . . . . . . . . . . .26
Section 9: Appendix . . . . . . . . . . . . . . . . .28
Torque Values Chart For Common Bolt Sizes . . .28
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Table of Contents
1
Important Safety Information
12/17/07 RCR1860 and RCR1872 Series Rotary Cutters 312-849M
Land Pride Table of Contents
Important Safety Information
▲
These are common practices that may or may not be applicable to the products described in
this manual.
Safety at All Times
Thoroughly read and understand
the instructions given in this
manual before operation. Refer to
the “Safety Label” section, read
all instructions noted on them.
Do not allow anyone to operate
this equipment who has not fully
read and comprehended this
manual and who has not been
properly trained in the safe
operation of the equipment.
▲Operator should be familiar with
all functions of the unit.
▲Operate implement from the
driver’s seat only.
▲Make sure all guards and shields
are in place and secured before
operating implement.
▲Do not leave tractor or implement
unattended with engine running.
▲Dismounting from a moving
tractor could cause serious injury
or death.
▲Do not stand between tractor and
implement during hitching.
▲Keep hands, feet, and clothing
away from power-driven parts.
▲Wear snug fitting clothing to avoid
entanglement with moving parts.
▲Watch out for wires, trees, etc.,
when raising implement. Make
sure all persons are clear of
working area.
▲Turning tractor too tight may
cause implement to ride up on
wheels. This could result in injury
or equipment damage.

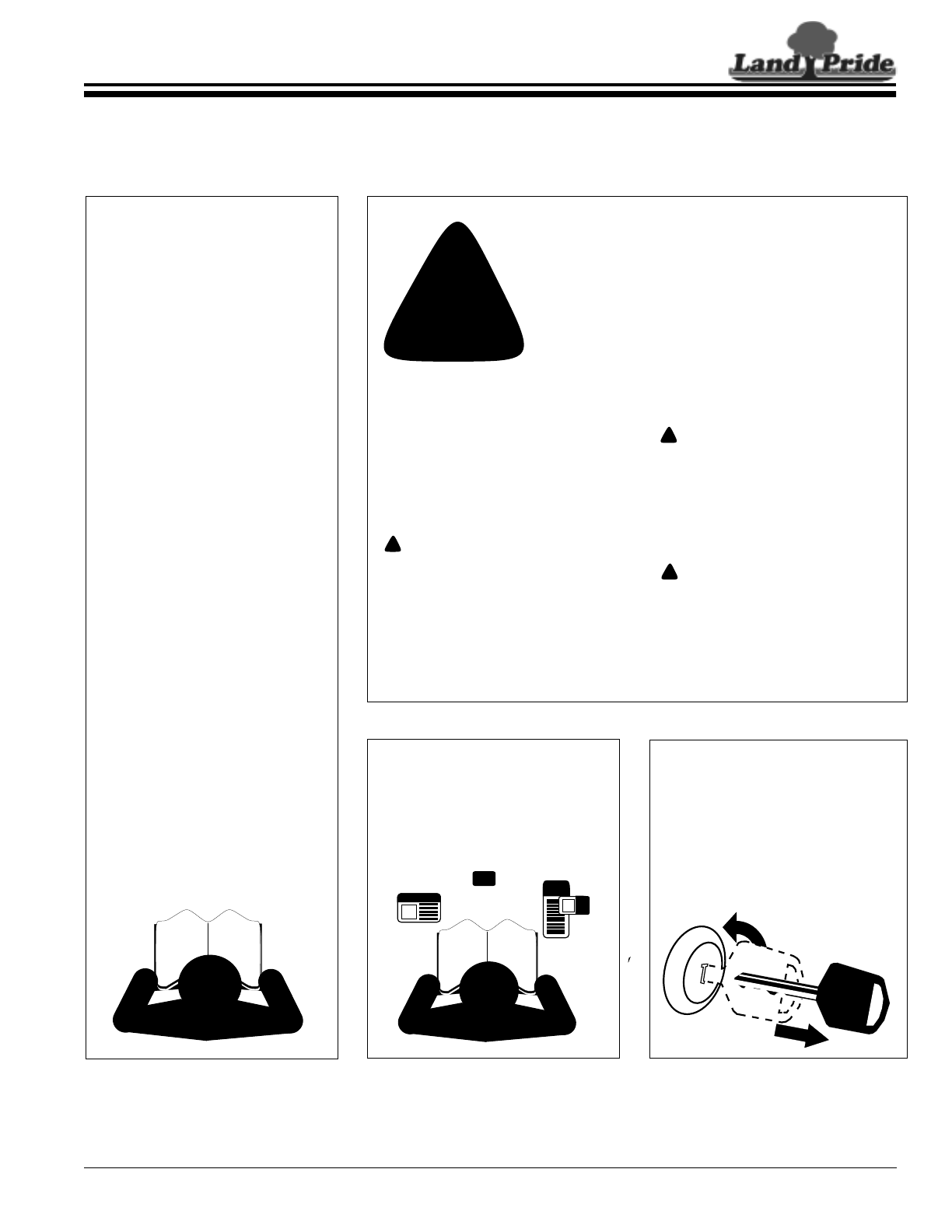

!Look For The Safety Alert Symbol
The SAFETY ALERT SYMBOL indicates there is a
potential hazard to personal safety involved and extra
safety precaution must be taken. When you see this
symbol, be alert and carefully read the message that
follows it. In addition to design and configuration of
equipment, hazard control and accident prevention
are dependent upon the awareness, concern,
prudence and proper training of personnel involved in
the operation, transport, maintenance and storage of
equipment.
Be Aware of
Signal Words
A Signal word designates a degree or
level of hazard seriousness. The
signal words are:
Indicates an imminently hazardous
situation which, if not avoided, will
result in death or serious injury. This
signal word is limited to the most
extreme situations, typically for
machine components that, for
functional purposes, cannot be
guarded.
!DANGER
Indicates a potentially hazardous
situation which, if not avoided, could
result in death or serious injury, and
includes hazards that are exposed
when guards are removed. It may also
be used to alert against unsafe
practices.
Indicates a potentially hazardous
situation which, if not avoided, may
result in minor or moderate injury. It
may also be used to alert against
unsafe practices.
!WARNING
!CAUTION
For Your Protection
▲Thoroughly read and understand
the “Safety Label” section, read all
instructions noted on them.
Shutdown and Storage
▲Lower machine to ground, put
tractor in park, turn off engine, and
remove the key.
▲Detach and store implements in a
area where children normally do
not play. Secure implement by
using blocks and supports.
OFF
REMOVE
2
Important Safety Information
RCR1860 and RCR1872 Series Rotary Cutters 312-849M 12/17/07
Land Pride
Table of Contents
Use Safety
Lights and Devices
▲Slow moving tractors, self-
propelled equipment, and towed
implements can create a hazard
when driven on public roads. They
are difficult to see, especially at
night.
▲Flashing warning lights and turn
signals are recommended
whenever driving on public roads.
Use lights and devices provided
with implement.
These are common practices that may or may not be applicable to the products described in
this manual.
Practice Safe Maintenance
▲Understand procedure before
doing work. Use proper tools and
equipment, refer to Operator’s
Manual for additional information.
▲Work in a clean dry area.
▲Lower the implement to the
ground, put tractor in park, turn off
engine, and remove key before
performing maintenance.
▲Allow implement to cool
completely.
▲Do not grease or oil implement
while it is in operation.
▲Inspect all parts. Make sure parts
are in good condition & installed
properly.
▲Remove buildup of grease, oil or
debris.
▲Remove all tools and unused
parts from implement before
operation.
Use A Safety Chain
▲A safety chain will help control
drawn machinery should it
separate from the tractor
drawbar.
▲Use a chain with the strength
rating equal to or greater than
the gross weight of the towed
machinery.
▲Attach the chain to the tractor
drawbar support or other
specified anchor location. Allow
only enough slack in the chain
to permit turning.
▲Do not use safety chain for
towing.
Transport
Machinery Safely
▲Comply with state and local laws.
▲Maximum transport speed for
implement is 20 mph. DO NOT
EXCEED. Never travel at a speed
which does not allow adequate
control of steering and stopping.
Some rough terrain require a
slower speed.
▲Sudden braking can cause a
towed load to swerve and upset.
Reduce speed if towed load is not
equipped with brakes.
▲Use the following maximum speed
- tow load weight ratios as a
guideline:
20 mph when weight is less
than or equal to the weight of
tractor.
10 mph when weight is double
the weight of tractor.
▲IMPORTANT: Do not tow a load
that is more than double the
weight of tractor.
3
Important Safety Information
12/17/07 RCR1860 and RCR1872 Series Rotary Cutters 312-849M
Land Pride Table of Contents
These are common practices that may or may not be applicable to the products described in
this manual.
Prepare for Emergencies
▲Be prepared if a fire starts.
▲Keep a first aid kit and fire
extinguisher handy.
▲Keep emergency numbers for
doctor, ambulance, hospital and
fire department near phone.
911
Wear
Protective Equipment
▲Protective clothing and equipment
should be worn.
▲Wear clothing and equipment
appropriate for the job. Avoid
loose fitting clothing.
▲Prolonged exposure to loud noise
can cause hearing impairment or
hearing loss. Wear suitable
hearing protection such as
earmuffs or earplugs.
▲Operating equipment safely
requires the full attention of the
operator. Avoid wearing radio
headphones while operating
machinery.
Avoid High
Pressure Fluids Hazard
▲Escaping fluid under pressure can
penetrate the skin causing
serious injury.
▲Avoid the hazard by relieving
pressure before disconnecting
hydraulic lines.
▲Use a piece of paper or
cardboard, NOT BODY PARTS, to
check for suspected leaks.
▲Wear protective gloves and safety
glasses or goggles when working
with hydraulic systems.
▲If an accident occurs, see a
doctor immediately. Any fluid
injected into the skin must be
treated within a few hours or
gangrene may result.
Keep Riders
Off Machinery
▲Riders obstruct the operator’s
view they could be struck by
foreign objects or thrown from the
machine.
▲Never allow children to operate
equipment.
4
Important Safety Information
RCR1860 and RCR1872 Series Rotary Cutters 312-849M 12/17/07
Land Pride
Table of Contents

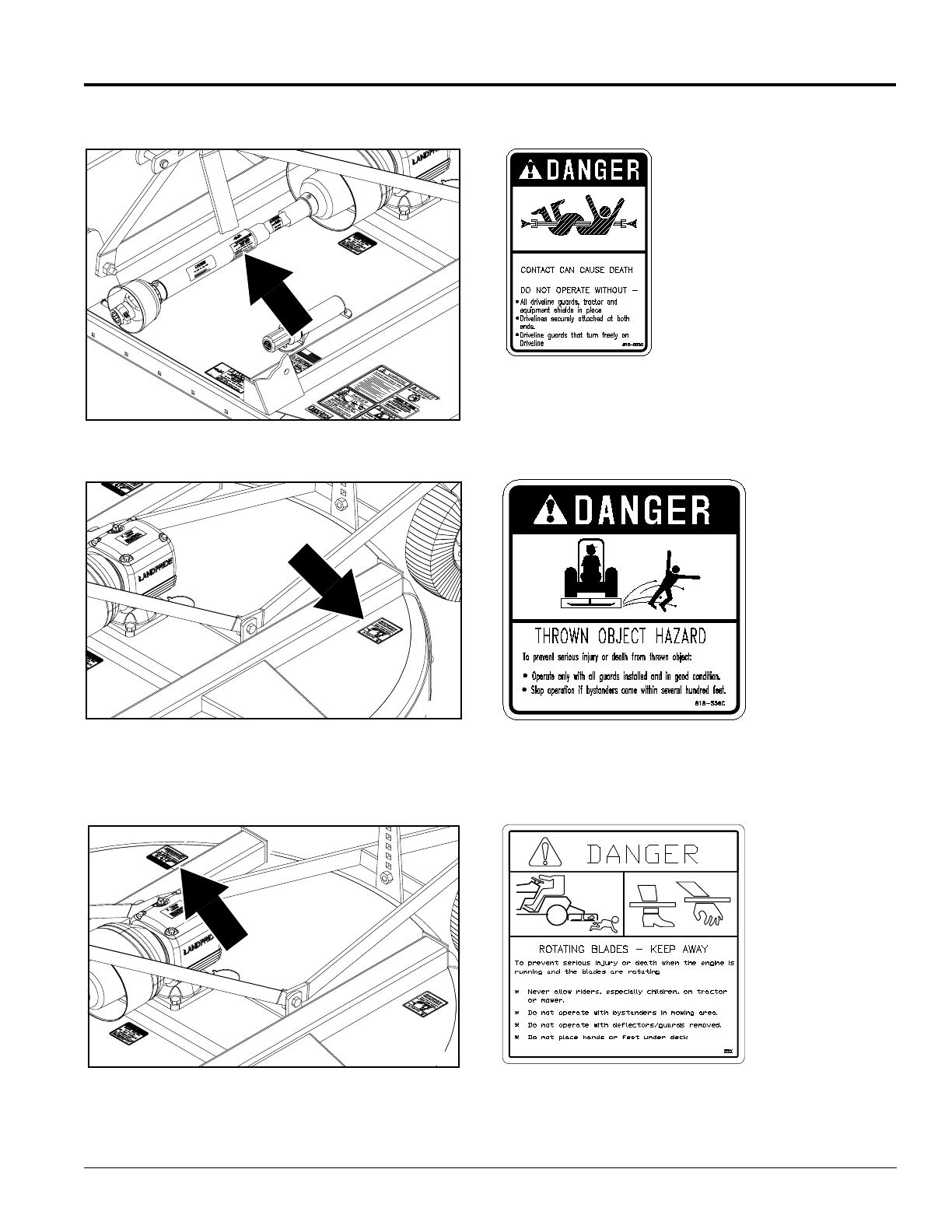

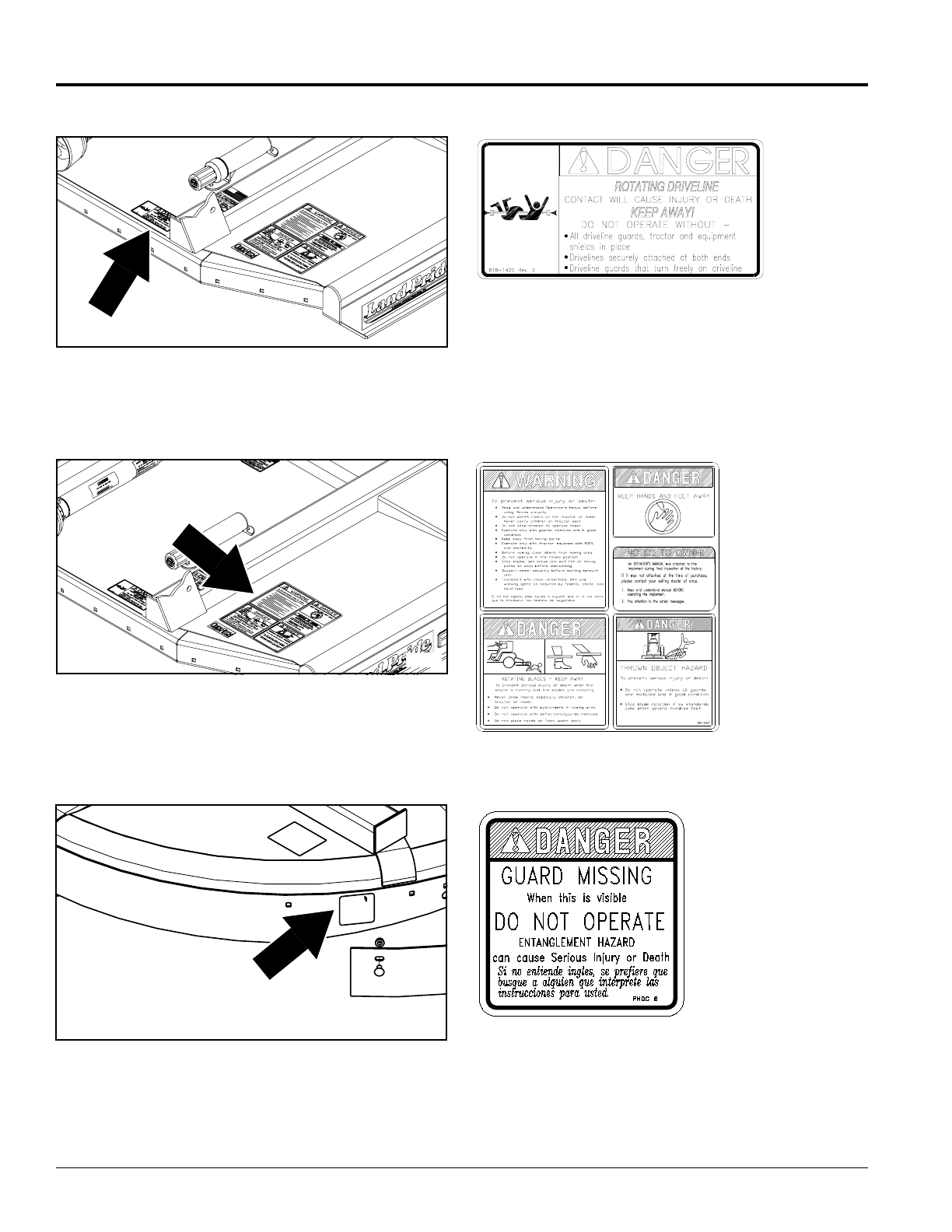

Safety Labels
Your Rotary Cutter comes equipped with all safety labels in
place. They were designed to help you safely operate your
implement.
1. Read and follow label directions.
2. Keep all safety labels clean and legible.
3. Replace all damaged or missing labels.
4. Some new equipment installed during repair require safety
labels to be affixed to the replaced component as specified
by Land Pride. When ordering new components make sure
the correct safety labels are included in the request. To
order new labels go to your Land Pride dealer.

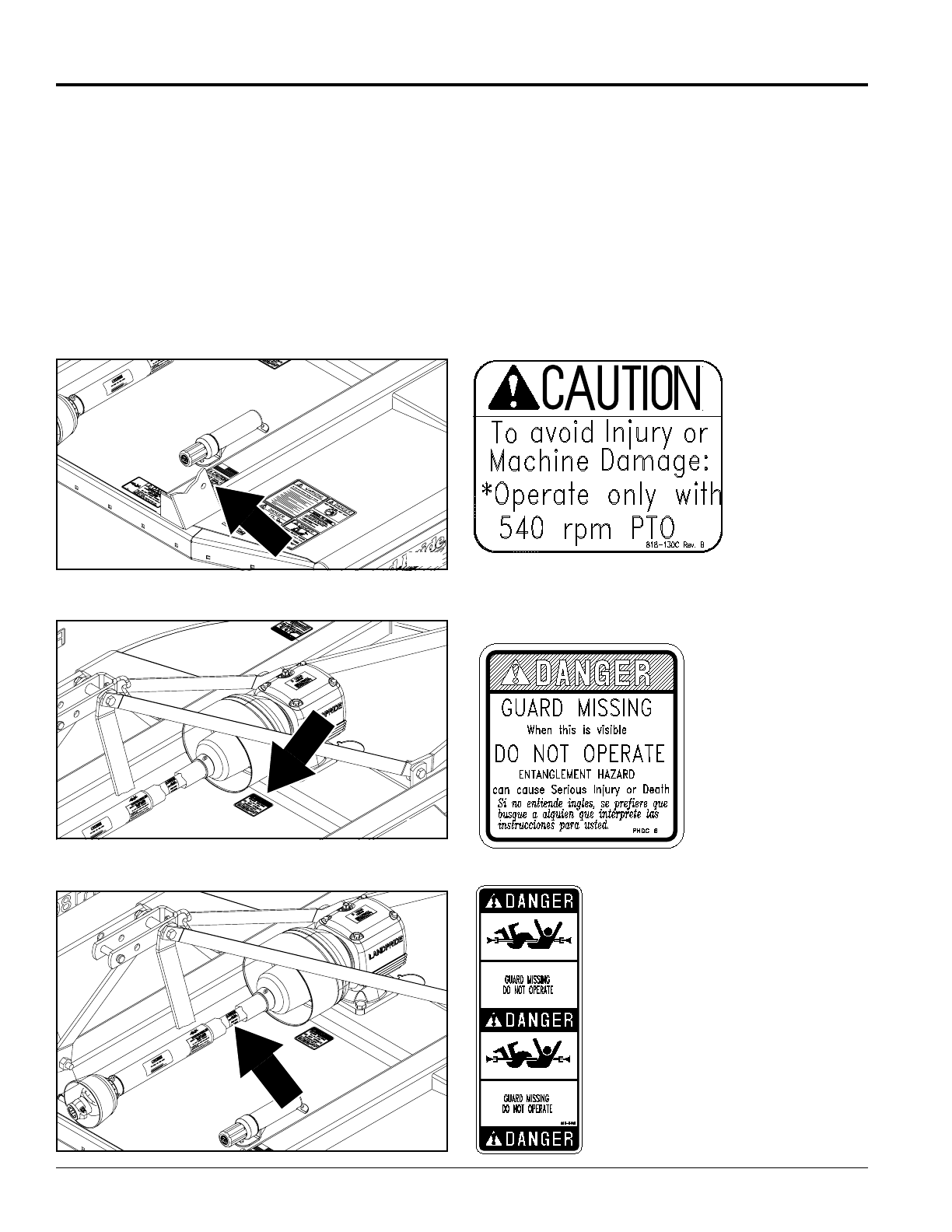

818-130C
Caution 540 RPM
818-543C
Danger PTO
21428
21428
21428
818-540C
Danger Guard Missing
5. Refer to this section for proper label placement.
To install new labels:
a. Clean the area the label is to be placed.
b. Spray soapy water on the surface where the label is to
be placed.
c. Peel backing from label. Press firmly on surface
d. Squeeze out air bubbles with the edge of a credit card
or with a similar type straight edge.
7
Introduction
12/17/07 RCR1860 and RCR1872 Series Rotary Cutters 312-849M
Land Pride Table of Contents
Introduction
Owner Assistance
The Warranty Registration card should be filled out by
the dealer at the time of purchase. This information is
necessary to provide you with quality customer service.
The RCR18 Series Rotary Cutter has been specially
designed with genuine Land Pride parts. Contact a Land
Pride dealer if any repair parts are required or when in
need of customer service. Our Land Pride dealers have
trained personnel, repair parts and equipment needed to
service the implement.

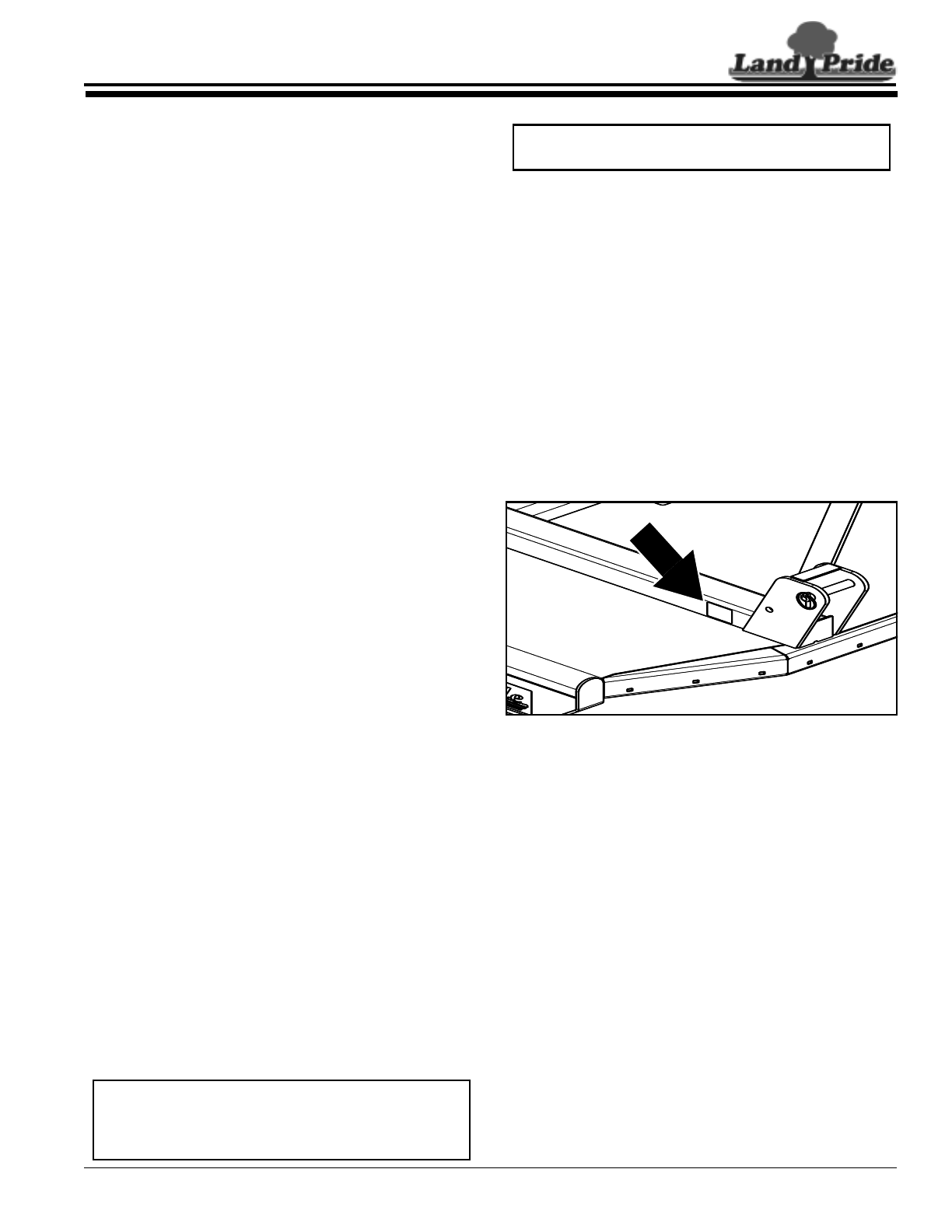

Serial Number Plate
For prompt service always use the serial number and
model number when ordering parts from your Land Pride
dealer. Be sure to include your serial and model numbers
in correspondence also. Refer to Figure 1 for the location
of your serial number plate.
Figure 1
Further Assistance
Your dealer wants you to be satisfied with your new
Rotary Cutter. If for any reason you do not understand
any part of this manual or are not satisfied with the
service received, the following actions are suggested:
1. Discuss the matter with your dealership service
manager making sure he is aware of any problems
you may have and that he has had the opportunity to
assist you.
2. If you are still not satisfied, seek out the owner or
general manager of the dealership, explain the
problem and request assistance.
3. For further assistance write to:
Land Pride Service Department
1525 East North Street
P.O. Box 5060
Salina, Ks. 67402-5060
E-mail address
lpservicedept@landpride.com
NOTE: A special point of information that the operator
must be aware of before continuing.
21417
Land Pride welcomes you to the growing family of new
product owners.
This Rotary Cutter has been designed with care and built
by skilled workers using quality materials. Proper
assembly, maintenance, and safe operating practices
will help you get years of satisfactory use from the Rotary
Cutter.
Application
Land Pride’s RCR18 Series Rotary Cutters are built and
designed by Land Pride for cutting on gentle slopes or
slightly contoured right-of-ways, pastures, around the
farm or around town. The cutting widths, 60” for
RCR1860 and 72” for RCR1872, are compatible with the
more maneuverable 20 to 50 horsepower tractors with
540 rpm PTO speed. The cutters have a category I three-
point hitch and are Quick Hitch adaptable. They are
offered with a standard ASAE Category 3 driveline with
either shear bolt or slip-clutch protection. Also, they are
offered with either a laminated or a solid rubber tailwheel.
RCR18 Series Cutters cut through grass, weeds, and
light brush up to1 in. diameter. The RCR 1860 has a
cutting height range of 1-1/ 2” to 13” and the RCR1872
has a cutting height range of 1-1/2” to 11-1/2”. Cutting
blade tip speed for the RCR1860 is 16,363 fpm and for
the RCR1872 is 14,955 fpm. These units come with 10
ga. (.135” thick) x 24” diameter standard-duty stump
jumpers and welded on full length skid shoes. A metal
band shield is standard equipment for the rear. Optional
shields for the front and rear are rubber deflectors and
chain guards. See “Section 7: Features & Benefits” for
additional information.
Using This Manual
•This Operator’s Manual is designed to help familiarize
you with safety, assembly, operation, adjustments,
troubleshooting, and maintenance. Read this manual
and follow the recommendations to help ensure safe
and efficient operation.
•The information contained within this manual was
current at the time of printing. Some parts may change
slightly to assure you of the best performance.
•To order a new Operator’s or Parts Manual contact
your authorized dealer. Manuals can also be
downloaded, free-of-charge from our website at
www.landpride.com or printed from the Land Pride
Service & Support Center by your dealer.
Terminology:
“Right” or “Left” as used in this manual is determined by
facing the direction the machine will operate while in use
unless otherwise stated.
Definitions:
IMPORTANT: A special point of information related
to its preceding topic. Land Pride’s intention is that
this information should be read and noted before
continuing.
8
Section 1: Assembly and Set-Up
RCR1860 and RCR1872 Series Rotary Cutters 312-849M 12/17/07
Land Pride
Table of Contents
Section 1: Assembly and Set-Up

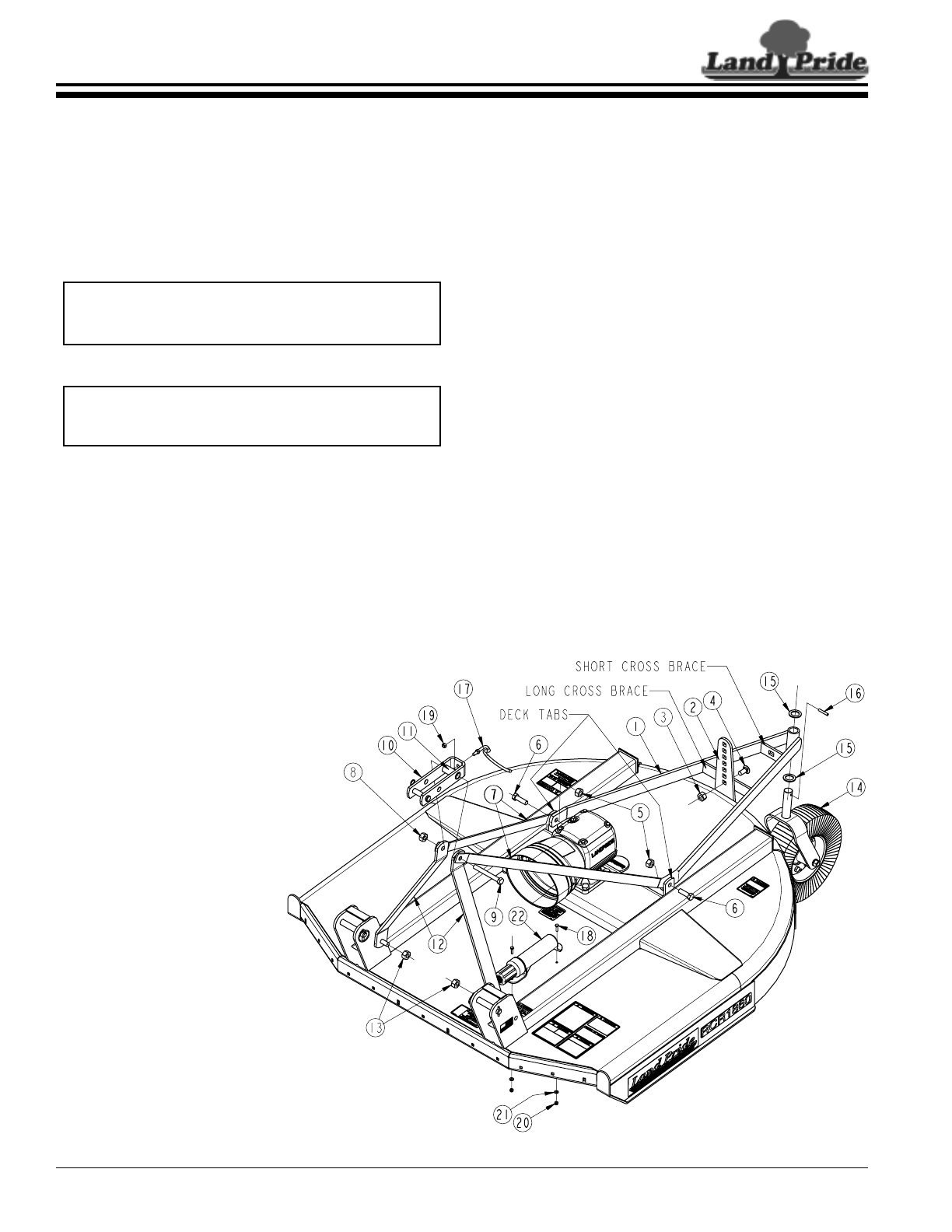

Figure 1-1
21407
RCR1860 & RCR1872
Refer to Figure 1-1:
1. Loosen 5/8” locknuts (#5 & #13).
2. Remove 5/8” x 5” bolt (#9) and lay aside pivoting
upper hitch (#10) and hitch spacer (#11).
3. Rotate A-frame braces (#12) and rear frame
braces (#7) up to align with each other as shown.
Rear braces (#7) should be located outside of front
A-frame braces (#12).
4. Attach pivoting upper hitch (#10) and spacer (#11) to
A-frame braces (#12) with 5/8” x 5” bolt (#9). Secure
in place with locknut (#8).
5. Draw lock nuts (#5) up snug. Do not tighten. Tighten
all other 5/8” locknuts (#3, #8 & #13) to 170 ft.-lbs.
6. Install machine washer (#15) on pivot shaft of
tailwheel (#14).
7. Insert tailwheel pivot shaft (#14) into tailwheel
A-frame (#1).
8. Install second machine washer (#15) on pivot shaft
of tailwheel and secure with roll pin (#16).
9. Attach driveline hook (#17) to pivoting upper hitch
(#10) with 3/8” hex nut (#19). Tighten nut to the
correct torque.
10. Attach manual storage tube (#22) to the cutter deck
with two 1/4”-20 x GR5 hex head cap screws (#18).
1/4” lock washers (#21) and hex head nuts (#20).
Tighten nuts to the correct torque.
Tractor Requirements
The RCR18 Series Rotary Cutters are designed for use
with tractors that are equipped with a (540 RPM 1 3/8”-6
spline) rear power take-off (PTO).
The tractor must also provide for 3-point hitch
attachment Category I. The tractors rated drawbar PTO
horsepower on a 3-point should be no less than 20 HP
and no more than 50 HP.
Dealer Assembly
RCR1872 Tailwheel A-Frame
Refer to Figure 1-1:
1. The RCR1872 tailwheel A-Frame (#1) is shipped
with its short cross brace attached to the adjusting
bracket (#2). Remove 5/8” locknut (#3) and
5/8” x 1 1/2” bolt (#4).
2. Remove 5/8” locknuts (#5) and 5/8” x 2” bolts (#6)
from tailwheel A-frame.
3. Reinsert 5/8” x 2” bolts (#6) through deck tab, rear
brace (#7) and tailwheel A-frame (#1). Secure with
5/8” locknuts (#5). Draw nuts up snug. Do not tighten.
4. Reinsert 5/8” x 1 1/2” bolt (#4) and secure with
5/8” locknut (#3). Do not tighten.
NOTE: Ballast weights may be required to maintain
steering control. Refer to your tractor’s operator’s
manual to determine proper ballast requirements.
NOTE: Do not tighten hardware until assembly
is complete. Refer to “Torque Values Chart For
Common Bolt Sizes” on page 28.
9
Section 1: Assembly and Set-Up
12/17/07 RCR1860 and RCR1872 Series Rotary Cutters 312-849M
Land Pride Table of Contents
Gearbox Vent Plug
Refer to Figure 1-2:
Remove gear box fill plug and replace with combination
vent/level plug shipped separate with Operator’s
Manual.
Figure 1-2

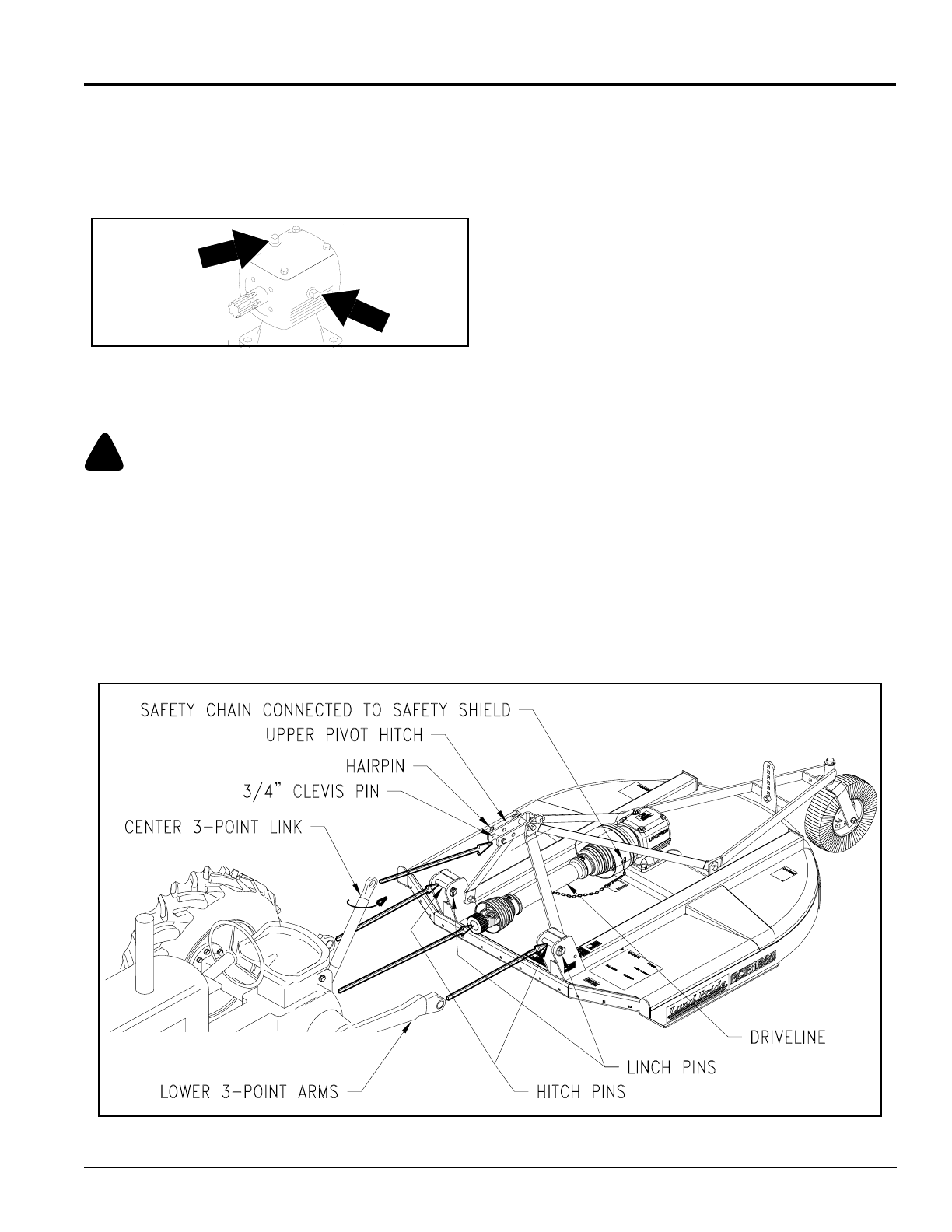

Tractor Hook-Up
Refer to Figure 1-3:
!DANGER
Tractor hook-up to equipment is dangerous and can result in
serious injury or death. Do not allow anyone to stand between
Rotary Cutter and tractor during hook-up operations. Do not
operate hydraulic 3-point lift controls while someone is
directly behind tractor or near the cutter.
A 3-Point Category I hitch is required. The lower 3-Point
arms of the 3-Point hitch must be stabilized to prevent
side-to-side movement. Most tractors have sway blocks
or adjustable chains for this purpose.
20822
Oil Plug
DO NOT
OVERFILL
Vent Plug
1. Locate cutter on a flat level surface.
2. Slowly back tractor up to the Rotary Cutter while
using the tractor’s 3-point hydraulic control to align
lower 3-point arm holes with clevis lug holes on the
cutter.
3. Engage tractor park brake, shut tractor engine off
and remove key before dismounting from tractor.
4. With tractor’s lower hitch arms aligned and
positioned in the clevises, attach lower arms to the
clevises with hitch pins and secure with linch pins.
5. Connect top center 3-point link to upper pivot hitch
using customer supplied clevis pin and linch pin.
6. Ensure that the lower hitch arms are blocked to
prevent excessive side movement.
7. Return to the tractor and slowly raise and lower
implement carefully to ensure that the drawbar, tires,
and other equipment on the tractor do not contact
cutter frame. Move or remove drawbar if it interferes
with the cutter.
8. Manually adjust one of the two lower lift arms up or
down to level the Rotary Cutter from left to right.
9. Manually adjust the length of the top-link to level the
Rotary Cutter from front to rear. Final deck leveling
adjustments will be made later.
10. The arm lift rods on your tractor’s 3- point hitch
should be adjusted to allow for lateral float. Please
consult you tractor’s manual for adjusting
instructions.
Tractor Hook-Up
Figure 1-3
21422
10
Section 1: Assembly and Set-Up
RCR1860 and RCR1872 Series Rotary Cutters 312-849M 12/17/07
Land Pride
Table of Contents
Driveline Installation
If the Rotary Cutter is to be used on more than one
tractor, an additional driveline may be required
especially if a quick hitch is used.
!CAUTION
Do not use a PTO adaptor. A PTO adapter will increase strain
on the tractor’s PTO shaft resulting in possible damage to the
shaft and driveline.
!CAUTION
Tractor PTO shield and all Rotary Cutter guards must be in
place at all times during operation!
!CAUTION
Always engage parking brake, shut off tractor and remove key
before dismounting from tractor.
!WARNING
Damaged drivelines can cause serious injury or death.
Maximum PTO Driveline Movement During Operation
Figure 1-4
Driveline Minimum Length
IMPORTANT: The driveline must be lubricated
before putting it into service. Refer to “Lubrication”
on page 22.
IMPORTANT: Some tractors are equipped with
multispeed PTO ranges. Be certain your tractor ‘s
PTO is set for 540 rpm.
IMPORTANT: Avoid premature driveline
breakdown. A driveline that is operating must not
exceed an angle of 25 degrees up or down while
operating the 3-point lift. See Figure 1-4 below.
24872
IMPORTANT: Always check driveline minimum
length during initial setup, when connecting to a
different tractor and when alternating between using
a quick hitch and a standard 3-point hitch. More than
one driveline may be required to fit all applications.
Refer to Figure 1-6 on page 11:
1. Obtain the shortest distance possible between
tractor PTO shaft and gearbox shaft by starting the
tractor and slowly engaging 3-point lift to move the
lower arms up or down until the gearbox shaft is
aligned and level with the tractor's PTO shaft.
Securely block cutter deck in this position.
2. Place tractor gear selector in park, shut tractor
engine off, set park brake and remove switch key.
Refer to Refer to Figure 1-5:

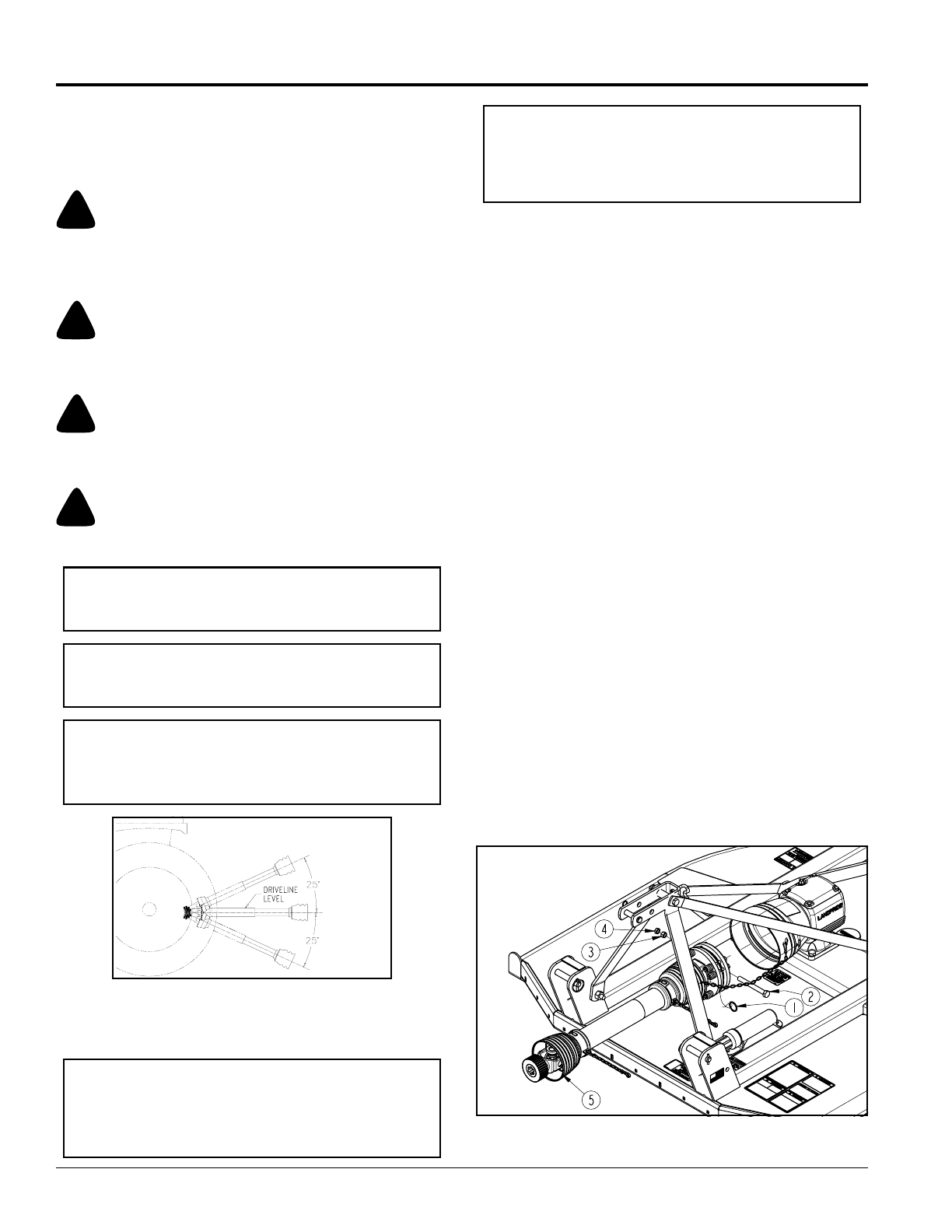

3. Remove snap ring (#1) from the 3rd link pin shipping
location. Remove rubber protective sleeve from
gearbox input shaft and install driveline as follows:
SLIP-CLUTCH DRIVELINE:
a. Discard snap ring (#1).
b. Slide slip-clutch driveline (#5) onto the gearbox
input shaft.
c. Align holes in driveline with hole in gearbox shaft
and insert 1/2” x 3 1/2” long GR8 bolt (#2). Secure
with 1/2” nut (#3) and 1/2” jam nut (#4).
d. Push and pull driveline to be sure it is securely
fastened to the gearbox shaft.
SHEAR-BOLT DRIVELINE:
a. Slide shear-bolt driveline onto gearbox shaft.
b. Install snap ring (#1) on gearbox shaft groove.
The snap ring is added security in the event the
shear-bolt should break.
c. Align holes in driveline with hole in gearbox input
shaft and insert 1/2” x 3 1/2” GR2 shearbolt (#2).
Secure with 1/2” nut (#3) and 1/2” jam nut (#4).
d. Push and pull the driveline to be sure it is securely
fastened to the gearbox shaft.
Driveline Installation with Slip-Clutch Driveline Shown
Figure 1-5
NOTE: A driveline that is too long can damage
tractor, gearbox and/or driveline. Check driveline
with gearbox shaft aligned and level with the tractor's
PTO shaft. This arrangement will provide the
shortest distance possible between the two shafts.
21408
11
Section 1: Assembly and Set-Up
RCR1860 and RCR1872 Series Rotary Cutters 312-849M 12/17/07
Land Pride
Table of Contents
4. Slide outer yoke of driveline over tractor's PTO shaft
and secure with locking collar.
5. If driveline fits, skip to "Driveline Maximum Allowable
Length". if driveline does not fit, continue with step 6
below.
6. The driveline will require shortening if it is too long to
fit between tractor and Rotary Cutter. Shorten
driveline as follows:
a. Check to make sure cutter and tractor PTO shafts
are level with each other and the deck is securely
supported at this height with support blocks.
b. Pull driveline profiles apart into two sections as
shown in Figure 1-6.
c. Attach outer driveline universal joint to tractor
PTO shaft and inner driveline universal joint to
gearbox shaft. Pull on each driveline section to be
sure universal joints are secured.
d. Hold driveline sections parallel to each other to
determine if they are too long. The inner and outer
shields on each section should end approximately
1" short of reaching the universal joint shield on
the adjacent section (see “B” dimension). If they
are too long, measure 1" (“B” dimension) back
from the universal joint shield and make a mark at
this location on the inner and outer shields.
e. Cut off inner shield at mark (“X” dimension). Cut
same amount off inner shaft (“X1” dimension).
Repeat cut off procedure (“Y”&“Y1” dimensions)
to cut outer driveline half.
f. Remove all burrs and cuttings.

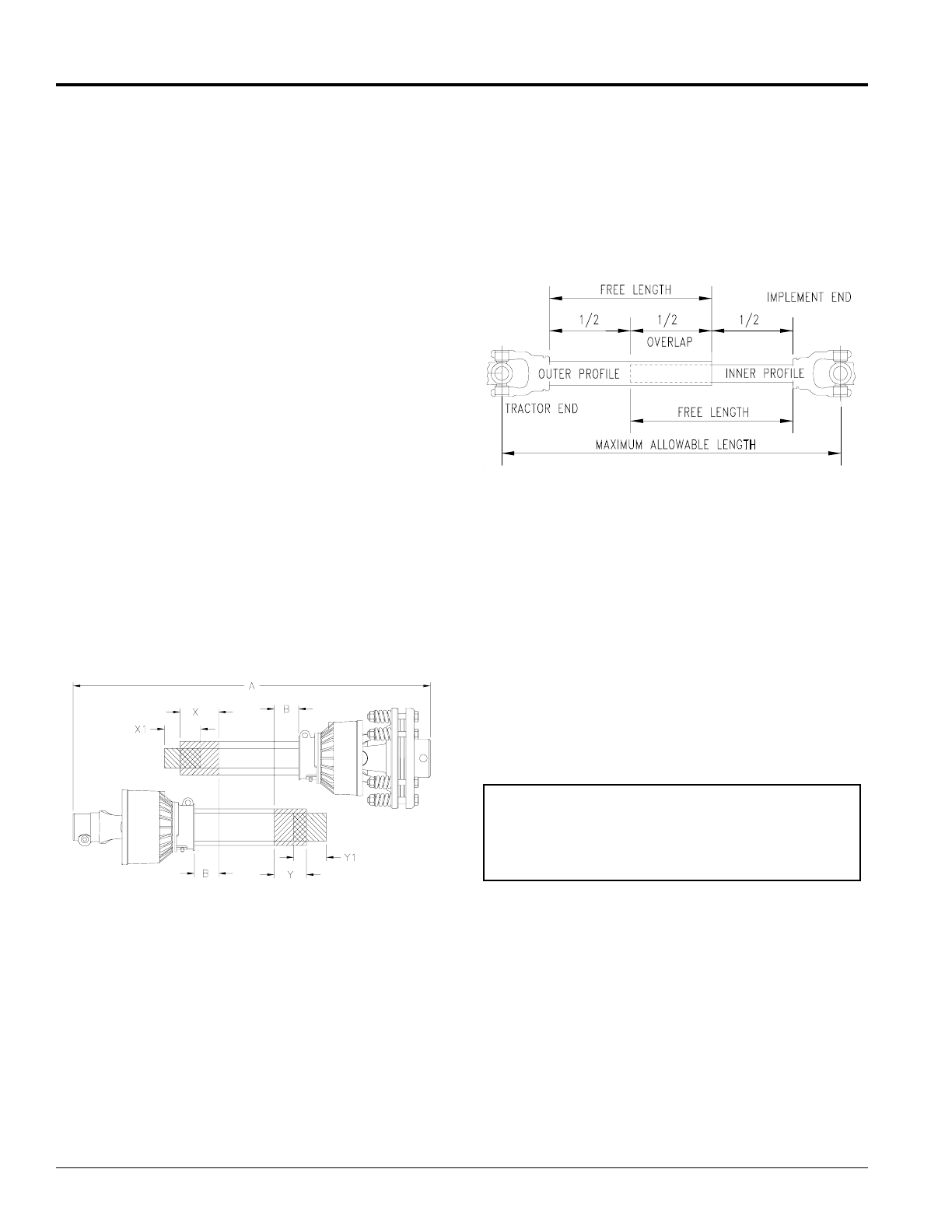

Driveline Shortening
Figure 1-6
18347
Driveline Maximum Allowable Length
Be sure to check driveline minimum length before
checking driveline maximum allowable length.
Refer to Figure 1-7:
Driveline maximum allowable length, when fully
extended, must have a minimum overlap of profile tubes
by not less than 1/2 the free length with both inner and
outer profile tubes being of equal length.
Driveline Maximum Length
Figure 1-7
1. Measure and record driveline free length.
2. With the driveline profiles pulled apart, apply multi-
purpose grease to the inside of the outer profile and
reassemble the two profiles.
3. Move driveline halves together until profile tubes
overlap by 1/2 the free length. Measure and record
maximum allowable length shown in Figure 1-7.
4. Attach inner driveline yoke to gearbox shaft and
outer driveline yoke to tractor's PTO shaft.
5. The driveline should now be moved back and forth to
insure that both ends are secured. Reattach any end
that is loose.
6. Hook a safety chain in the hole on the outer driveline
yoke shield and its opposite end to the tractor.
7. Hook the other safety chain in the hole on the inner
driveline yoke shield and its opposite end to the
cutter.
8. Start tractor and raise Rotary Cutter just enough to
remove support blocks from under the cutter deck.
9. Slowly engage tractor’s 3-point controls to lower
cutter. Check for sufficient drawbar clearance. Move
drawbar ahead, aside or remove if required.
10. Raise and lower implement to find the maximum
possible extended driveline length. Check to make
certain that the driveline has not extended beyond
the maximum allowable length recorded in step 3.
24804
Outer Shielding has been removed for clarity.
IMPORTANT: Two small chains are supplied with
the driveline. These chains must be attached to
outer and inner driveline yoke shields and to the
cutter and tractor to keep driveline shields from
rotating.
12
Section 2: Optional Equipment Set-Up
RCR1860 and RCR1872 Series Rotary Cutters 312-849M 12/17/07
Land Pride
Table of Contents

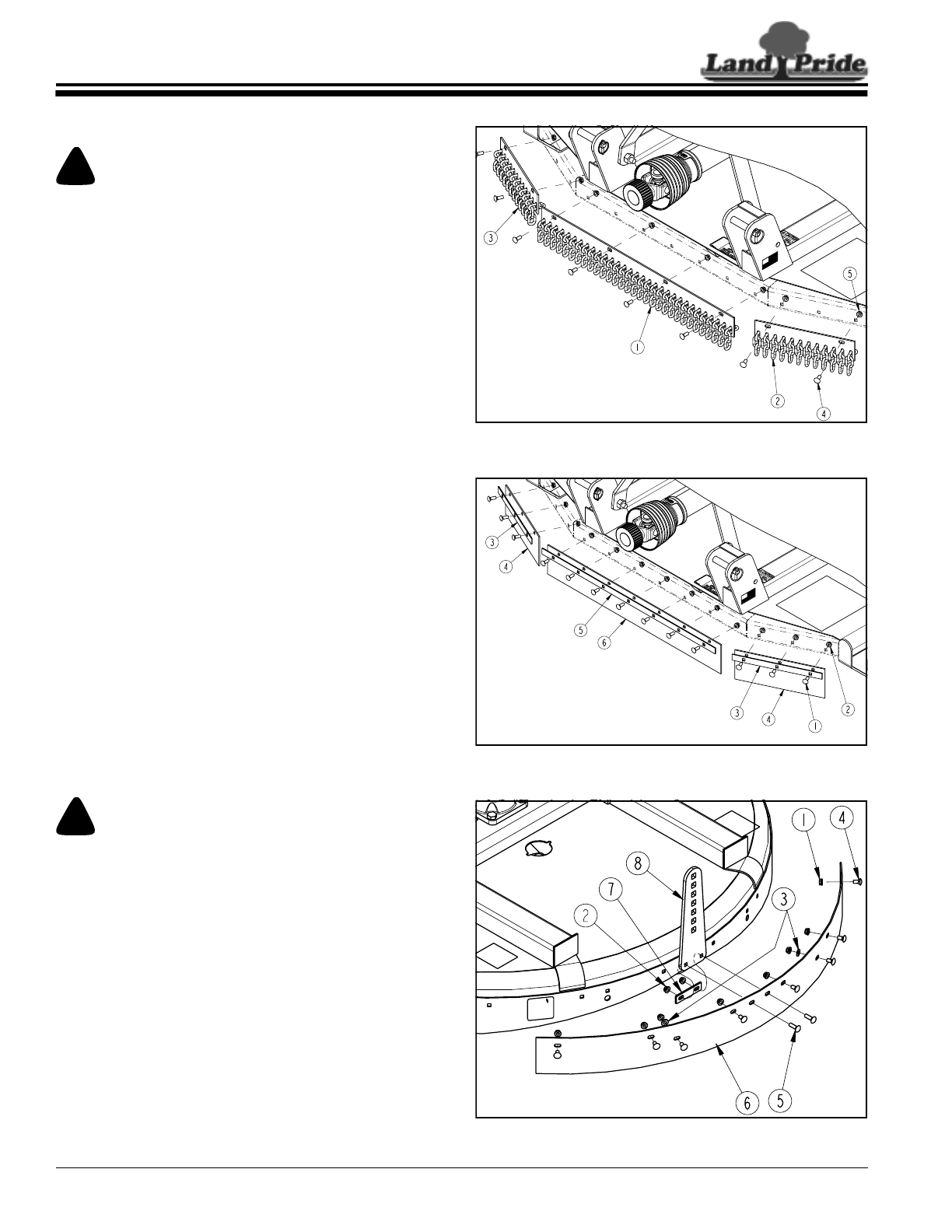

Front Guards
!DANGER
Rotary Cutters have the ability to discharge objects at high
speeds. Use front and rear safety guards when cutting along
highways or in an area where people may be present.
Front Chain Guard Installation
Refer to Figure 2-1:
1. Install chain guards (#1, #2 & #3) as shown in Figure
2-1, with 3/8” x 1” long carriage bolts (#4), and 3/8”
flange nuts (#5).
2. Tighten all nuts to 31 ft-lbs as indicated in the
“Torque Values Chart For Common Bolt Sizes” on
page 28.
Front Rubber Guard Installation
Refer to Figure 2-2:
1. Install center rubber guard as shown with 3/8” x 1”
long carriage bolts (#1), flat strip (#5), rubber
deflector (#6) and 3/8” flange nuts (#2).
2. Install side rubber guards as shown with 3/8” x 1”
long carriage bolts (#1), flat strips (#3), rubber
deflectors (#4) and 3/8” flange nuts (#2).
3. Tighten all 3/8” flange nuts (#2) to 31 ft-lbs as
indicated in the “Torque Values Chart For Common
Bolt Sizes” on page 28.
Rear Guards
Rear Metal Guard Removal
Refer to Figure 2-3:
!DANGER
Do not operator cutter without a rear guard. Do not remove
rear metal guard (#6) unless it is replaced by a Land Pride
chain guard or rubber guard. Serious body injury or loss of life
can result without a rear guard.
1. To remove rear metal guard, unscrew 3/8” flange
nuts (#1 & #2), remove flat washers (#3) and 3/8”
carriage bolts (#4 & #5).
2. Remove tailwheel adjusting bracket (#8) and rear
metal guard (#6). Reattach (#1, #3 & #4) hardware to
the metal guard for safe keeping. Store rear metal
guard for future use (i.e. when not using chain guard
or rubber guard).
3. Reattach tailwheel adjusting bracket (#8) with
3/8” x 1 1/2” carriage bolt (#5), flat bar (#7) and
3/8” flange nuts (#2).
4. Torque flange nuts (#2) to 31 ft-lbs.
Front Chain Guard
Figure 2-1
Front Rubber Guard
Figure 2-2
Standard Rear Metal Band
Figure 2-3
21400
21402
21418
Section 2: Optional Equipment Set-Up
13
Section 2: Optional Equipment Set-Up
12/17/07 RCR1860 and RCR1872 Series Rotary Cutters 312-849M
Land Pride Table of Contents
Rear Chain Guard Installation

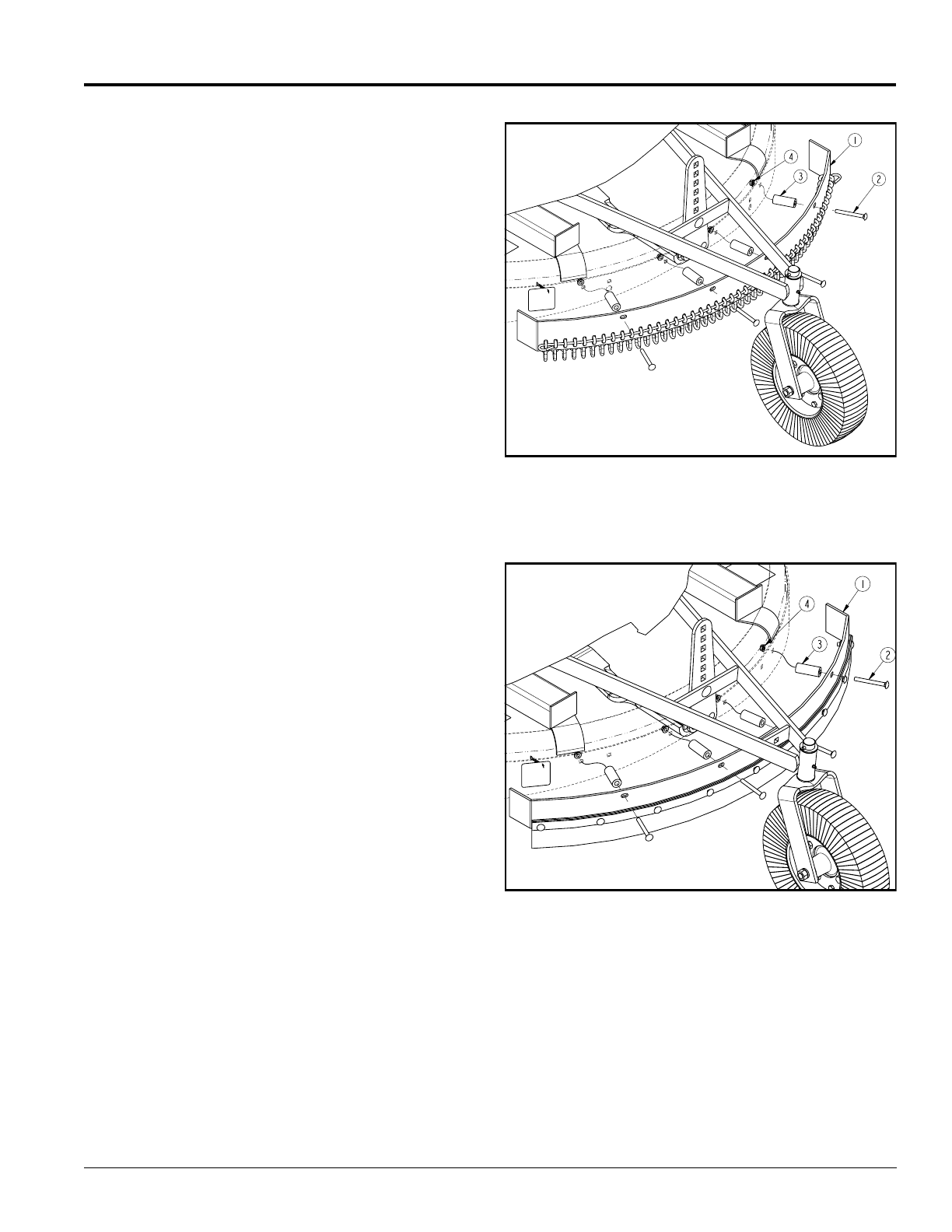

Refer to Figure 2-4:
1. Remove Rear Metal Guard. See “Rear Metal Guard
Removal” on page 12.
2. Install rear chain guard (#1) with 3/8” x 3 1/2” long
carriage bolts (#2), deflector spacer (#3) and
3/8” flange nuts (#4).
3. Tighten all nuts (#4) to 31 ft-lbs as indicated in the
“Torque Values Chart For Common Bolt Sizes” on
page 28.
Rear Rubber Guard installation
Refer to Refer to Figure 2-5:
1. Remove Rear Metal Guard. See “Rear Metal Guard
Removal” on page 12.
2. Install rear rubber guard (#1) with 3/8” x 3 1/2” long
carriage bolts (#2), deflector spacer (#3) and
3/8” flange nuts (#4).
3. Tighten all 3/8” flanged nuts (#4) to 31 ft-lbs as
indicated in the “Torque Values Chart For Common
Bolt Sizes” on page 28.
Rear Chain Guard
Figure 2-4
Rear Rubber Guard
Figure 2-5
21401
21403
14
Section 3: Adjustments
RCR1860 and RCR1872 Series Rotary Cutters 312-849M 12/17/07
Land Pride
Table of Contents

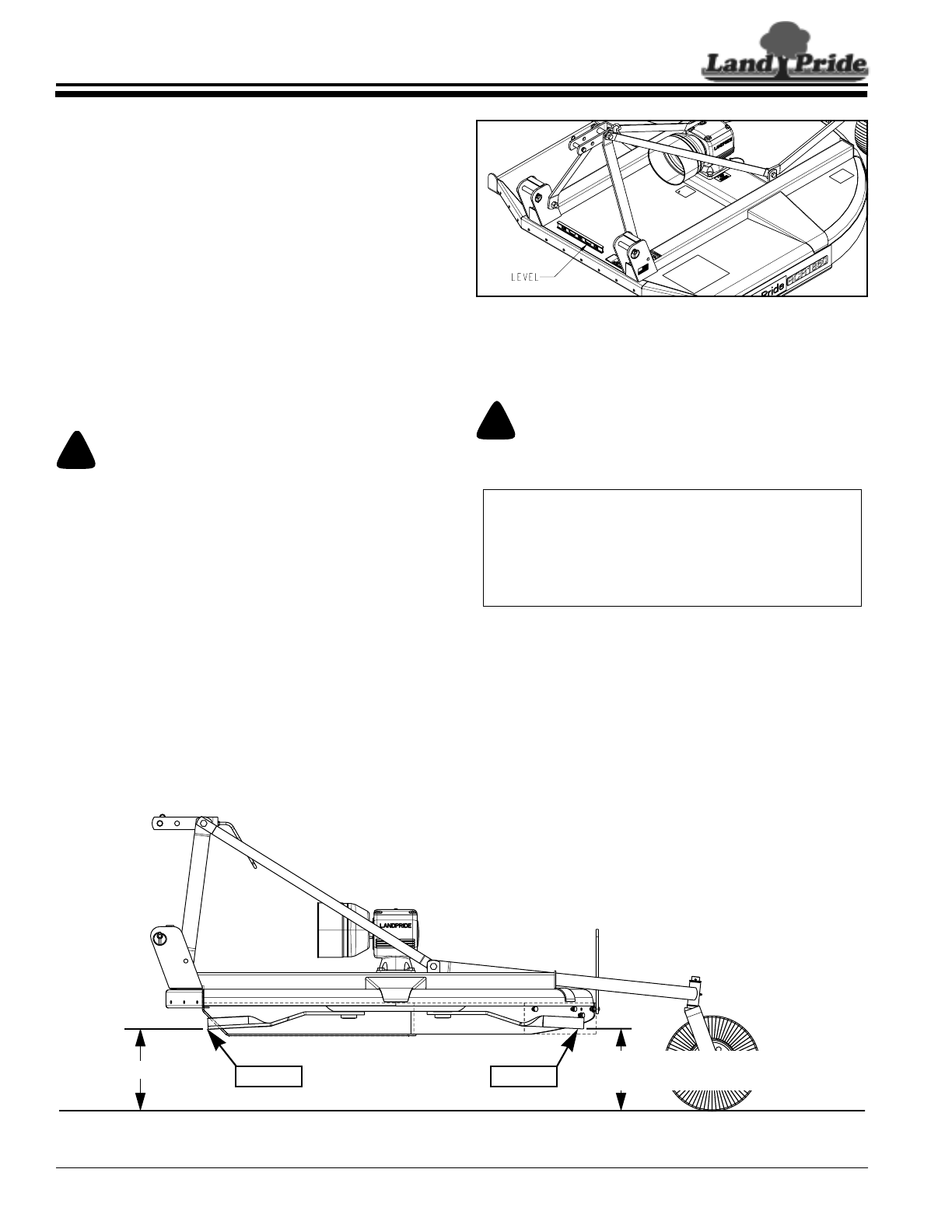

Section 3: Adjustments
Cutting Height
Figure 3-2
Cutting Height
21424
Blade Tip Blade Tip This End Should Be Slightly
Higher Than Cutting Height
Deck Leveling & Height Adjustments
There are 4 primary adjustments that should be made
prior to actual field operation:
1. Deck Leveling From Left to Right
2. Deck Cutting Height
3. Center 3-Point Link Length
4. Tailwheel Height Adjustment
Proper adjustment of each of these items will provide for
higher efficiency, improved cutting performance and
longer blade life. The following tools will be needed:
•Pliable tape measure
•Spirit or carpenters level
•Open end or hex end wrench or socket set
•Protective gloves
!DANGER
Engage parking brake, disengage PTO, shut off tractor and
remove key before proceeding. Ensure that all moving parts
have come to a complete stop before dismounting the tractor.
Deck Leveling From Left to Right
Refer to Figure 3-1:
1. Locate tractor with Rotary Cutter on a flat, level
surface.
2. Use tractor’s hydraulic 3-point control lever to lower
cutter until the tailwheel makes contact with the
ground surface.
3. Place a level or another suitable leveling device on
the front of the cutter deck as shown in Figure 3-1.
Manually adjust either one or both of the tractor’s
lower 3-point arm height adjustments to level the
deck from left to right. Some tractors have only a
single adjusting crank.
Deck Leveling
Figure 3-1
Deck Cutting Height
Refer to Figure 3-2:
!CAUTION
Wear a pair of gloves when checking cutting height. Avoid direct
contact with cutting edge of blade.
1. Using tractor’s 3-point hydraulic control, raise or
lower the 3-point arms until the front of the deck is
slightly lower than the rear of the deck.
2. The top center link should be loose when deck rear is
supported by the tailwheel. If not, lengthen center
link until loose. Final adjustment will be made later.
3. With gloves on, carefully rotate each blade tip to the
position shown in Figure 3-2.
4. Measure distance from cutting tip of blade to ground
surface. This distance is the cutting height.
5. If desired cutting height cannot be obtained by
adjusting the lower 3-point arms, then readjust
tailwheel height as instructed on page 15.
6. Repeat steps 1 to 5 until desired cutting height is
achieved.
7. Set tractor’s 3-point hydraulic control stop at this
height.
21425
IMPORTANT: The blades should be positioned to
cut material only at the front of the cutter. If deck is
level or back of cutter is lower than the front, then the
blades are subject to continuous material flow
resulting in additional blade wear, horsepower loss
and frequent blade sharpening.
15
Section 3: Adjustments
12/17/07 RCR1860 and RCR1872 Series Rotary Cutters 312-849M
Land Pride Table of Contents
Center 3-Point Link Length
Refer to Figure 1-3 on page 9:
1. Lower cutter deck to the nominal cutting height.
2. Adjust length of center 3-point link so that the upper
pivot hitch rest at a slight downhill position. This
arrangement allows for optimum ground contour
following performance.
3. Lock center link in this position once correct length is
achieved.
4. The second set of holes on the upper pivot hitch
should be used when tractor’s center 3-point link is
too short.
Tailwheel Height Adjustment
Refer to Figure 3-3:
If deck slope is slightly lower at the front than at the back
and cutting height is not at the desired height, then the
tailwheel must be adjusted up or down as follows:
1. Use tractor’s 3-point hydraulic control to lift cutter
until the tailwheel clears the ground.
2. Remove carriage bolt (#1) and 5/8” flange nut (#2).
3. Adjust tailwheel as follows:
•To lower cutting height, adjust tailwheel up.
•To increase cutting height, adjust tailwheel down.
4. With tailwheel adjusted to the correct height, replace
5/8” x 1 1/2” long carriage bolt (#1) and 5/8” flange
nut (#2). Tighten flange nut to the correct torque.
5. Readjust tractor’s lower 3-point arm height as
needed. See section titled “Deck Cutting Height” on
page 14.

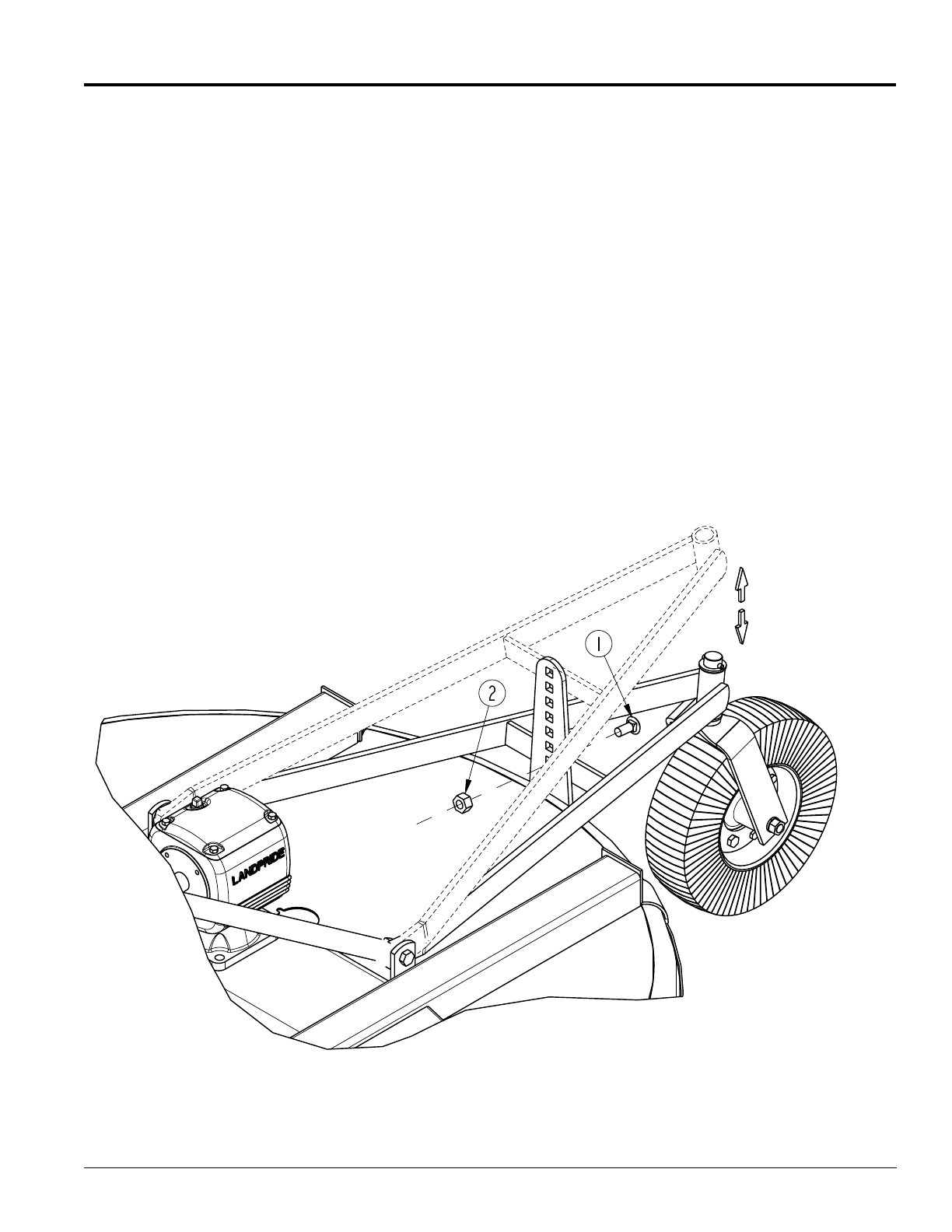

Tailwheel Height Adjustment
Figure 3-3
21421
16
Section 4: Operating Instructions
RCR1860 and RCR1872 Series Rotary Cutters 312-849M 12/17/07
Land Pride
Table of Contents
Section 4: Operating Instructions
Operating Check List
Hazard control and accident prevention are dependent
upon the awareness, concern, prudence and proper
training involved in the operation, transport,
maintenance and storage of the Rotary Cutter.
Therefore, it is absolutely essential that no one operates
the Rotary Cutter without first having read, fully
understood and become totally familiar with the
Operator’s Manual. Make sure the operator has paid
particular attention to:
•Important Safety Information, pages 1 to 6
•Section 1: Assembly and Set-Up, page 8
•Section 3: Adjustments, page 14
•Section 4: Operating Instructions, page 16
•Section 5: Maintenance and Lubrication, page 19
The following inspection should be performed before
using the cutter.
Make the following inspections with cutter attached to a
tractor and PTO disengaged and completely stopped:
1. Inspect tractor safety equipment to make sure it is in
good working condition.
2. Carefully raise and lower implement to ensure that
the drawbar, tires, and other equipment on the tractor
do not contact cutter frame or PTO driveline.
3. Check PTO guards to make certain they are in good
working condition and in place.
4. Disconnect main driveline from tractor PTO and
secure.
5. With cutter deck resting on solid supports, PTO
disengaged and completely stopped, check cutting
blades for sharpness.
6. Remove solid supports from under the deck and then
verify cutter deck is set to the correct height. See
“Deck Leveling & Height Adjustments” on page 14.
The remaining inspections are made by engaging the
PTO to check for vibrations.
Operating Checklist
Check Referen
Read “Important Safety Information” Page 1
Read “Assembly & Set-up” Instructions. Page 8
Read “Operating Instructions” Page 16
Check cutter initially and periodically for
loose bolts & pins, See "Torque Values
Chart For Common Bolt Sizes".
Page 28
Make sure all guards and shields are in
place. Page 1
Check oil level in gearbox. Page 22
Lubricate cutter and driveline as needed.
Refer to section on "Lubrication". Page 22
7. Start tractor, set throttle to idle or slightly above idle
and slowly engage PTO. Initial start-up vibration is
normal and should stop after a few revolutions. Stop
PTO rotation immediately if vibration continues.
8. Once the cutter is running smoothly, increase tractor
PTO speed to 540 RPM. Stop PTO rotation
immediately if vibration occurs.
Transporting
!CAUTION
When traveling on public roads, use accessory lights and
devices for adequate warning to operators of other vehicles.
Comply with all federal, state and local laws.
1. Make sure driveline does not contact tractor or cutter
when raising cutter to transport position.
2. Reduce tractor ground speed when turning and
leave enough clearance so cutter does not contact
obstacles such as buildings, trees or fences.
3. Limit transport speed to 20 mph. Transport only with
a farm tractor of sufficient size and horse power.
4. When traveling on roadways, transport in such a way
that faster moving vehicles may pass you safely.
5. Shift tractor to a lower gear when traveling over
rough or hilly terrain.
Un-hooking the Rotary Cutter
Un-hook Rotary Cutter from the tractor as follows:
1. Park on a level solid surface.
2. Lower deck to ground level or onto blocks supporting
the deck just above ground level.
3. Engage tractor park brake, shut tractor engine off
and remove key before dismounting from tractor.
4. Disconnect driveline from tractor PTO shaft.
5. Un-hook 3-point hitch from tractor. Reinstall hitch
pins, linch pins and hair pin cotters in cutter hitch.
6. Rotate driveline storage hook down and place
driveline in storage hook.
7. See “Cutter Storage” on page 21 if cutter is to be
stored for a long time.
IMPORTANT: Stop PTO immediately if vibration
continues after a few revolutions during start-up and
anytime it occurs thereafter. Wait for PTO to come to
a complete stop before dismounting from tractor to
check for probable causes. Make necessary repairs
and adjustments before continuing on.
IMPORTANT: Do not exceed rated cutter PTO
speed. Excessive engine speed will cause damage
to the power train components.
IMPORTANT: Always disengage the tractor’s PTO
before raising the cutter to transport position.
17
Section 4: Operating Instructions
12/17/07 RCR1860 and RCR1872 Series Rotary Cutters 312-849M
Land Pride Table of Contents
Cutting Instructions
!CAUTION
Do not over speed PTO or machine damage may result. This
cutter is designed to be used only with a tractor having a 540
RPM rear PTO.
!WARNING
The RCR18 series cutter is designed to cut grass and brush up
to 1” in diameter. Using this cutter for another type of work
can damage drive components, deck and support frame.
!DANGER
Gearbox and driveline shields must be secured in place when
operating to avoid injury or death from entanglement in
rotating drivelines.
!DANGER
Rotary Cutters have the ability to discharge objects at high
speeds. Therefore, the use of front & rear deck safety shields
is strongly recommended when cutting along highways or in
an area where people may be present!
!DANGER
Never operate the cutter in the raised position. The cutter can
discharge object at high speeds resulting in injury or death.
!DANGER
Do not cut on steep inclines. The tractor and cutter could flip
over causing damage to the equipment, bodily injury or death.
!DANGER
Do not use cutter to lift or carry objects. Lifting and/or
carrying objects can result in damage to the cutter, serious
bodily injury or death.
!DANGER
Never carry a person on the cutter. A person can fall and be
ran over by the cutter or tractor causing serious injury or
death.
!DANGER
Do not use deck as a working platform. The deck is not
properly designed or guarded for this use. Using deck as a
working platform can cause serious injury or death.
!DANGER
Do not use deck as a fan. Cutting blades are not properly
designed or guarded for this use. Using the deck as a fan can
result in injury or death.
This cutter was designed to cut grass and brush in right-
of-ways, pastures and for shredding row crop residues.
Cutting should not be done in dry conditions. Wet
material will build up on the deck underside creating
additional horsepower, high wear, and poor discharge.
1. Thoroughly inspect the area to be cut for debris and
unforeseen objects. Mark any potential hazards.
2. Start the machine slowly; do not use full throttle.
Allow 10 seconds for cutter blades to become
aligned properly before going to 540 RPM.
3. Travel only as fast as the tractor is capable of making
smooth even cuts without overloading the tractor.
Ground speed depends upon two things:
•The density of the material being cut.
•The size of tractor operating the cutter.
4. After the first 50 feet, stop and check to see that the
cutter is adjusted properly.
5. Do not engage PTO when cutter is in the fully raised
or lowered positions.
6. Periodically disengage PTO, turn off tractor, remove
ignition key and check for foreign objects wrapped
around the rotor shaft. Block cutter deck up before
removing objects.
7. Frequently inspect the cutter for loose bolts and nuts.
Tighten all loose bolts and nuts as indicated in the
“Torque Values Chart For Common Bolt Sizes” on
page 28.
General Operating Instructions
It is important that you familiarized yourself with the
Operator’s Manual, completed Operators Checklist,
properly attached cutter to your tractor, made leveling
adjustments, and preset your cutting height before
beginning a running operational safety check on your
Land Pride Rotary Cutter.
The running operational safety check may now be done.
It is important that at any time during this safety check
you detect a malfunction in either the cutter or tractor that
you immediately shut the tractor off, remove its’ key, and
make necessary repairs and/or adjustments before
continuing on.
Make sure before starting the tractor that the park brake
is engaged, the PTO is disengaged, and the cutter is
resting on the ground. Start the tractor and set the engine
throttle speed at a low idle. Raise the cutter with the
NOTE: Your Rotary Cutter is equipped with free
swinging cutting blades to reduce shock loads when
striking obstacles. However, it is best to avoid
striking obstacles to extend cutter life and life of
cutting blades.
IMPORTANT: It is important to maintain correct PTO
speed. Loss of PTO speed will allow blades to hinge
back and result in ragged, uneven cutting.
18
Section 4: Operating Instructions
12/17/07 RCR1860 and RCR1872 Series Rotary Cutters 312-849M
Land Pride Table of Contents
tractor’s rear hydraulic lift control lever to transport
position making sure that the PTO shaft does not bind
and does not contact the cutter frame. Lower the cutter to
the ground and at a low engine speed engage the PTO.
If everything is running smoothly at a low idle, slowly
raise the cutter to transport height checking for bind or
chatter in the driveline. Lower the cutter to the ground
and increase the tractor’s engine rpm until it reaches the
cutter full PTO operating speed of 540 rpm. If everything
is still running smoothly, once more raise the cutter to
transport height to check for driveline bind or chatter.
Lower the cutter to the ground, return the engine to a low
idle, and disengage the PTO. Position the adjustable
stops on the tractor’s hydraulic lift lever so the cutter can
be consistently returned to the same cutting and
transport height.
You should now be ready to transport to your cutting site
at a safe ground speed. On roadways transport in such a
manner that faster moving vehicles can easily see you
and pass you safely. Reduce your speed when travelling
over rough and hilly terrain. Avoid quick or sharp steering
corrections. Take extra care to insure that the mower
doesn’t come into contact with obstacles such as trees,
buildings or fences. Use accessory lights and
appropriate reflective devices to provide adequate
warning to pedestrians and other vehicle operators when
traveling on public roads and in the dark of night. Comply
with all local, state and federal laws.
It is important that you inspect the area where you will be
cutting and clear it of safety hazards and foreign objects
either before or after you arrive at the cutting site. Never
assume the area is clear. Cut only in areas you are
familiar with and are free of debris and unseen objects.
Extremely tall grass should be cut twice to detect
potential hazards. In the event you do strike an object
stop the cutter and tractor immediately to inspect and
make necessary repairs to the cutter before resuming
operation. It really pays to inspect a new area and to
develop a safe plan before cutting.
You will need to maintain 540 rpm PTO speed and 2 to 5
mph ground speed to produce a clean cut. Make a tractor
gear and range selection that will enable you to maintain
these speed combinations. Generally the quality of cut is
better at lower ground speeds. Dense ground cover will
create the need to slow down even more. In certain
conditions tractor tires will roll grass down resulting in an
uneven cut when the grass fails to rebound. Should this
happens you may try reversing the direction of cut and/or
double cut to achieve the desired finish. Avoid very low
cutting heights especially on extremely uneven terrain.
Always cut downward on slopes and avoid crossing the
face of steep slopes. Avoid sharp drops and cross
diagonally through dips to prevent hanging up the tractor
and cutter. Slow down in turns. Remember to look back
often.
Now that you’re prepared and well briefed you may begin
cutting. Begin mowing by doing the following:
•Reducing the tractor’s engine rpm
•Make sure the cutter is on the ground in cutting position
•Engage the PTO
•Raise the engine rpm to the appropriate PTO speed
•Begin mowing.
Make wide turns when possible. Three-point hitch and
optional Quick-Hitch models can be lifted into transport
position to make tight turns and to reverse direction. Try
increasing or decreasing ground speed to determine the
effect on quality of cut. With a little practice you will be
pleased with what you and your Land Pride Rotary Cutter
can do.
Whether you are done mowing, need to take a break, or
just need to make a few adjustments to the cutter,
remember to always do the following:
•Reduce the tractor’s engine rpm
•Disengage the PTO
•Stop on level ground
•Set the park brake
•Turn off the engine and remove the key
•Stay on the tractor until the cutter blades have come to
a complete dead stop.
19
Section 5: Maintenance and Lubrication
12/17/07 RCR1860 and RCR1872 Series Rotary Cutters 312-849M
Land Pride Table of Contents
Maintenance
Proper servicing and adjustment is the key to the long life
of any farm implement. Careful and systematic
inspection can avoid costly down time, maintenance and
repairs.
After using your cutter for several hours, check all bolts
to be sure they are tight.
Replace any worn, damaged or illegible safety labels by
obtaining new labels from your Land Pride Dealer.
Service Cutter Blades
!DANGER
Always disconnect main driveline from tractor PTO before
servicing underside of cutter deck. Cutter can be engaged if
tractor is started resulting in damage to the cutter, bodily injury
or death.
!WARNING
Always secure cutter deck in the up position with solid supports
before servicing underside of cutter. Never work under
equipment supported by hydraulics. Hydraulics can drop
equipment if controls are actuated or if hydraulic lines burst.
Either situation can drop the cutter instantly even when power
to hydraulics is shut off.
Always inspect cutting blades before each use. Make
certain they are properly installed and are in good working
condition. Replace any blade that is damaged, worn, bent,
or excessively nicked. Small nicks can be ground out
when sharpening.
1. Place tractor gear selector in park and/or set brakes,
shut engine off and remove ignition key.
2. Disconnect main driveline from tractor PTO and
secure cutter deck in the up position with solid
supports before servicing underside of cutter.
3. Inspect cutting blades. Make certain they are
properly installed and are in good working condition.
Replace any blade that is damaged, worn, bent, or
excessively nicked. Small nicks can be ground out
when sharpened.
4. To remove blades from the cutter, align blade bolts
with blade bolt access hole located 0n the deck See
Figure 5-1.
5. Both blades should be sharpened at the same angle
as the original cutting edge and must be replaced or
re-ground at the same time to maintain proper
IMPORTANT: Replace cutting blades with genuine
Land Pride blades only. Blades must be replaced in
mating pairs. Not replacing both blades will result in
an out-of-balance condition that will contribute to
premature bearing break down on the spindle hub
and create structural cracks in cutter housing.
balance. The following precautions should be taken
when sharpening blades:
a. Do not remove more material than necessary.
b. Do not heat and pound out a cutting edge.
c. Do not grind blades to a razor edge. Leave a blunt
cutting edge approximately 1/16” thick.
d. Always grind cutting edge so end of blade remains
square to cutting edge and not rounded.
e. Do not sharpen back side of blade.
f. Both blades should weigh the same after
sharpening with not more than 1 1/2 oz. difference.
Refer to Figure 5-1:
6. Carefully check cutting edges of blades in relation to
blade carrier rotation to ensure correct blade
placement. Blade rotation is counterclockwise with
cutting edge leading. Airfoil (lift) must be oriented
towards the top of the deck.

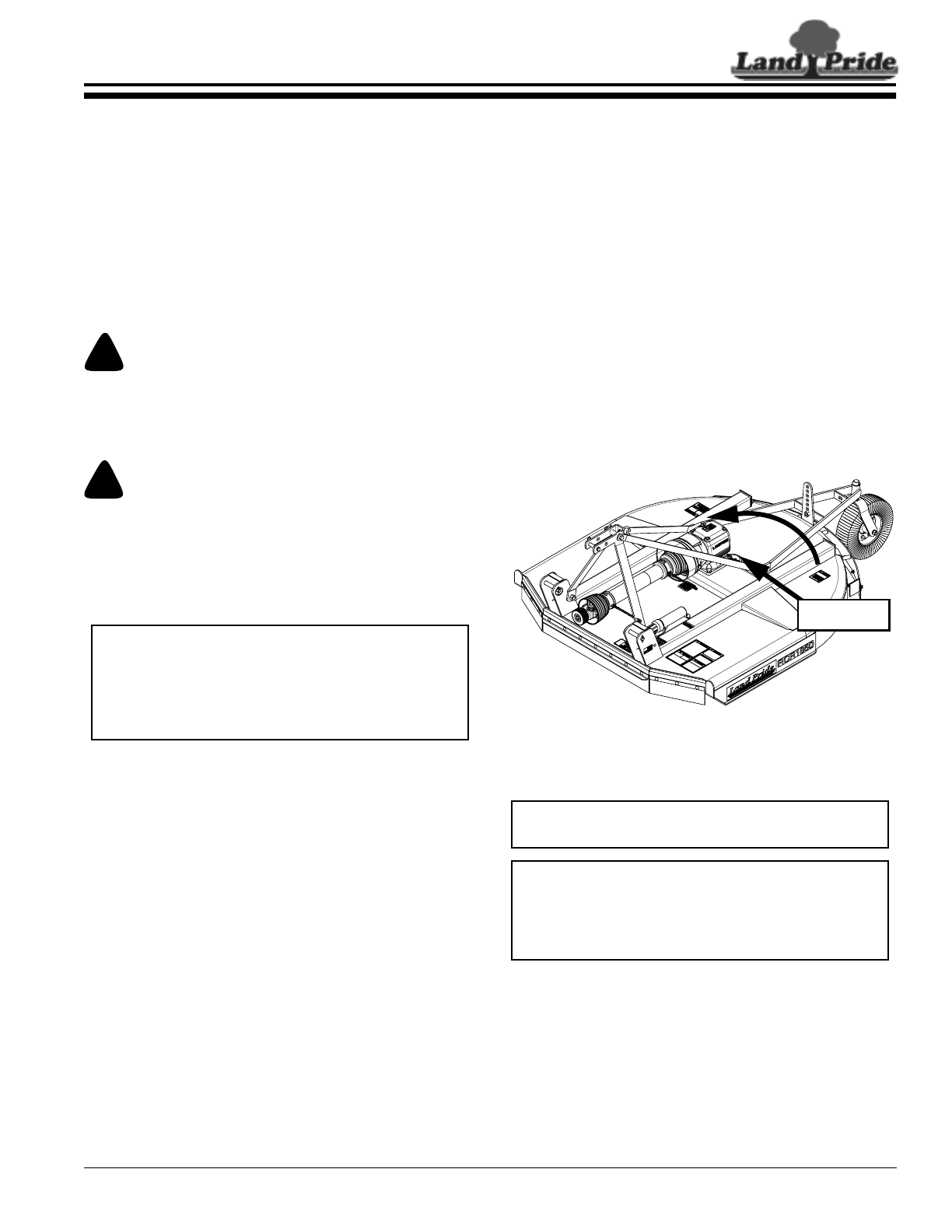

Counterclockwise Blade Rotation
Figure 5-1
Refer to Figure 5-2 on page 20:
7. Start by assembling blades without shim (#2). Insert
blade bolt (#1) through blade (#3), dish pan (#4) and
flat washer (#5). Temporary secure blade with a used
1 1/8"-12 nut. Draw nut up snug. Do not tighten.
8. Check blade deflection. If deflection is greater than
3/4", remove blade bolt and reassemble as before
except include shim (#2) in the assembly. Select
shim thickness based on deflection. The greater the
deflection, the thicker the shim.
21416
Blade Bolt
Access Hole
IMPORTANT: Examine blade bolts (#1) and
washers (#5) for excessive wear and replace if worn.
IMPORTANT: Locknuts can loose their ability to
lock properly once removed. Therefore, always use
a used blade nut or plain nut in steps 7 & 8 below
and then replace used nut with new locknut in
step Step 9.
Section 5: Maintenance and Lubrication
20
Section 5: Maintenance and Lubrication
RCR1860 and RCR1872 Series Rotary Cutters 312-849M 12/17/07
Land Pride
Table of Contents
9. Once blade deflection is correct, replace used nut
with new locknut (#6) and torque to 450 ft-lbs.
10. If replacing dishpan (#4), nut on gearbox output shaft
should be torqued to 450 ft-lbs. minimum and cotter
pin installed in nut with legs securely bent around
nut.

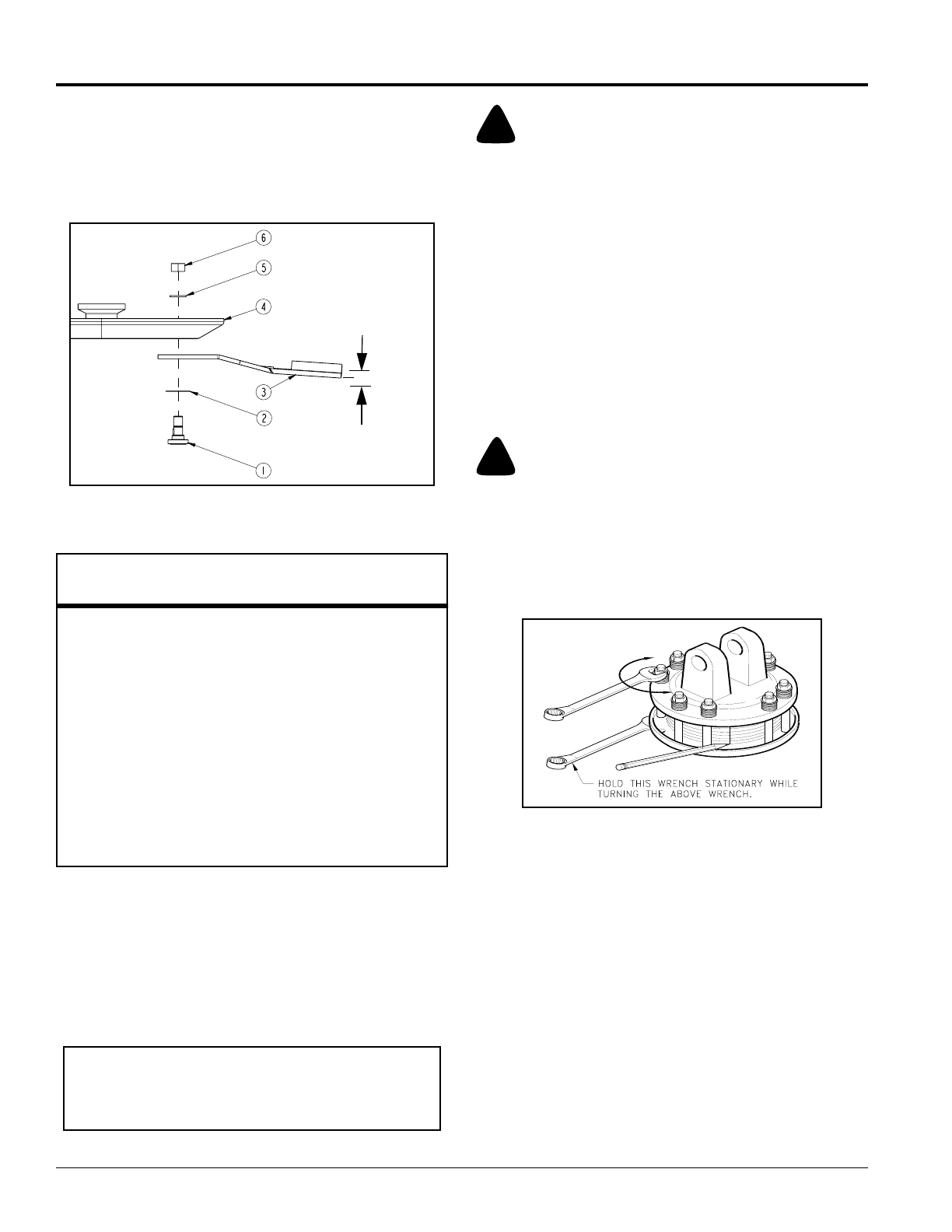

Cutter Blade Assembly
Figure 5-2
Shearbolt Protected Drivelines
The Standard Shear Bolt Driveline is secured to the
cutter with a shearbolt for protection of driveline and
gearbox. The shearbolt is designed to shear off when the
blade impacts objects that the cutter is not designed to
cut through. Replace shearbolt with Land Pride part
#802-264C. Refer to Figure 1-5 on page 10.
3/4" maximum
blade deflection
when blade
bolts are tight
24590
Land Pride Cutter Blade Parts
Item Part No. Part Description
318-586A BLADE BOLT KIT
(Includes items 1, 2, 5, & 6 below)
1 802-277C BLADE BOLT 1 1/8-12 x 3 7/16 WITH KEY
2 312-075D BLADE SPACER 16 GA. (.060")
2 312-082D BLADE SPACER 18 GA. (.048")
2 312-089D BLADE SPACER 20 GA. (.036")
2 312-808D BLADE SPACER 24 GA. (.024")
3 820-198C RCR1860 STANDARD BLADE 25”LG. CCW
3 820-199C RCR1872 STANDARD BLADE 31”LG. CCW
3 820-212C RCR1860 LOW LIFT BLADE 25”LG. CCW
3 820-213C RCR1872 LOW LIFT BLADE 31”LG. CCW
4 312-815H RCR1860 15” DISHPAN WELDMENT
4 312-841H RCR1872 15” DISHPAN WELDMENT
5 804-147C WASHER FLAT 1 HARD ASTMF436
6 803-170C NUT HEX TOP LOCK 1 1/8-12 PLATE
IMPORTANT: A snap ring is installed so that the
driveline does not come loose from the gearbox
should the shearbolt shear. (Replace damaged or
worn snap ring with Land Pride part #800-079C)
!CAUTION
Engage parking brake, disengage PTO, shut off tractor, and
remove key before making any of the following adjustments.
Slip-Clutch Protected Drivelines
Driveline components are protected from shock loads by
a two plate slip-clutch. The clutch must be capable of
slippage during operation to protect the gearbox,
driveline and other drivetrain parts. The slip-clutch
driveline is secured to the cutter with a grade 8 bolt.
The clutch should be “run-in” prior to initial operation and
after long periods of inactivity to remove any oxidation
that may have accumulated on the friction surfaces.
Repeat “run-in” instructions at the beginning of each
season and when moisture and/or condensation seizes
the inner friction plates.
!CAUTION
Engage parking brake, disengage PTO, shut off tractor, and
remove key before making any of the following adjustments.
Clutch Run-In
Refer to Refer to Figure 5-3:
1. Using a pencil or other marker, scribe a line across the
exposed edges of the clutch plates and friction discs.
Clutch
Figure 5-3
2. Carefully loosen each of the 8 spring retainer nuts by
exactly 2 revolutions. It will be necessary to hold hex
end of retainer bolt in order to count the exact
number of revolutions.
3. Start tractor and engage PTO drive for 2-3 seconds
to permit slippage of the clutch surfaces. Disengage
PTO, then re-engage a second time for 2-3 seconds.
Disengage PTO, shut off tractor and remove key.
Wait for all components to stop before dismounting
from tractor.
4. Inspect clutch and ensure that the scribed markings
made on the clutch plates have changed position.
Slippage has not occurred if any two marks on the
friction disc and plate are still aligned. A clutch that
has not slipped must be disassembled to separate
the friction disc plates. See “Clutch Assembly and
Disassembly” on page 21.
13693
21
Section 5: Maintenance and Lubrication
12/17/07 RCR1860 and RCR1872 Series Rotary Cutters 312-849M
Land Pride Table of Contents
5. Tighten each of the 8 spring retainer nuts on the
clutch housing exactly 2 revolutions to restore clutch
to original setting pressure.
6. The clutch should be checked during the first hour of
cutting and periodically each week. An additional set
of scribe marks can be added to check for slippage.
See Figure 5-5 to adjust spring length.
Clutch Assembly and Disassembly
Refer to Figure 5-4:
If the clutch run-in procedure, (see “Clutch Run-In” on
page 20), indicated that one or more of the friction discs did
not slip, the clutch must be disassembled to separate the
friction discs. Refer to the Parts Manual for a detailed parts
breakdown.

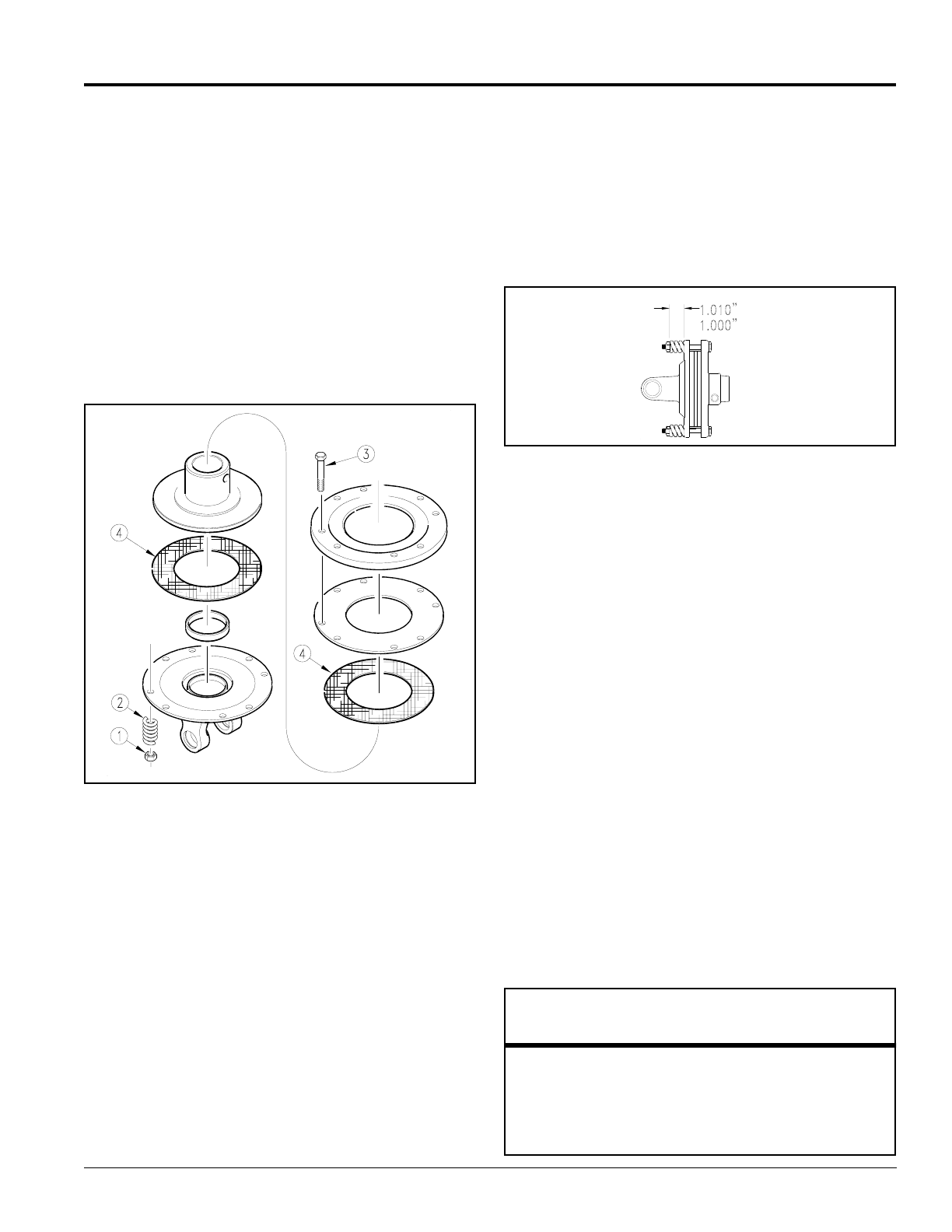

Clutch Disassembly
Figure 5-4
Disassembly
To disassemble the clutch, first remove spring retainer
nuts (#1), springs (#2) and bolts (#3) from the assembly.
Each friction disc (#4) must then be separated from the
metal surface adjacent to it.
Inspection
Inspect all parts for excessive wear and condition. Clean
all parts that do not require replacement.The original
friction disc thickness is 1/8" (3.2mm) and should be
replaced if thickness falls below 3/64" (1.1mm). If
clutches have been slipped to the point of “smoking”, the
friction discs may be damaged and should be replaced.
Heat build-up may also affect the yoke joints.
19783
Assembly
Refer to Figure 5-5:
Reassemble each friction disc (#4) next to the metal
plate it was separated from. Install bolts (#3) through the
end plates and intermediate plates as shown. Place
springs (#2) over the bolts and secure with nuts (#1).
Progressively tighten each spring retainer bolt until
correct spring height “A” is reached.
Clutch Adjustment
Figure 5-5
Cutter Storage
It is good practice to clean off any dirt or grease that may
have accumulated on the cutter and on any moving parts
if the cutter will not be used for several days and at end
of the working season.
1. Clean off any dirt or grease that may have
accumulated on the cutter and moving parts. Scrape
off compacted dirt from the bottom of deck and then
wash surface thoroughly with a garden hose. A
coating of oil may also be applied to the lower deck
area to minimize oxidation.
2. Check blades for wear and replace if necessary, see
“Service Cutter Blades” on page 19.
3. Inspect cutter for loose, damaged or worn parts and
adjust or replace as needed.
4. Lubricate as noted in “Lubrication” starting on
page 22.
5. Store cutter in a clean, dry place for longer cutter life.
The deck should be positioned on a flat stable
surface. Use auxiliary supports if necessary.
6. Repaint parts where paint is worn or scratched to
prevent rust. Ask your dealer for Aerosol Land Pride
touch-up paint. They are also available in touch-up
bottles with brush, quarts and gallon sizes by adding
TU, QT or GL to the end of the Aerosol part number.
19784
Land Pride Aerosol Touch-up Paint
Part No. Part Description
821-011C PAINT LP BEIGE AEROSOL SPRAY CAN
821-002C PAINT LP BLACK AEROSOL SPRAY CAN
821-054C PAINT MEDIUM RED AEROSOL SPRAY CAN
821-058C PAINT GREEN AEROSOL SPRAY CAN
821-066C PAINT ORANGE AEROSOL SPRAY CAN
821-067C PAINT BLUE AEROSOL SPRAY CAN
22
Section 5: Maintenance and Lubrication
RCR1860 and RCR1872 Series Rotary Cutters 312-849M 12/17/07
Land Pride
Table of Contents

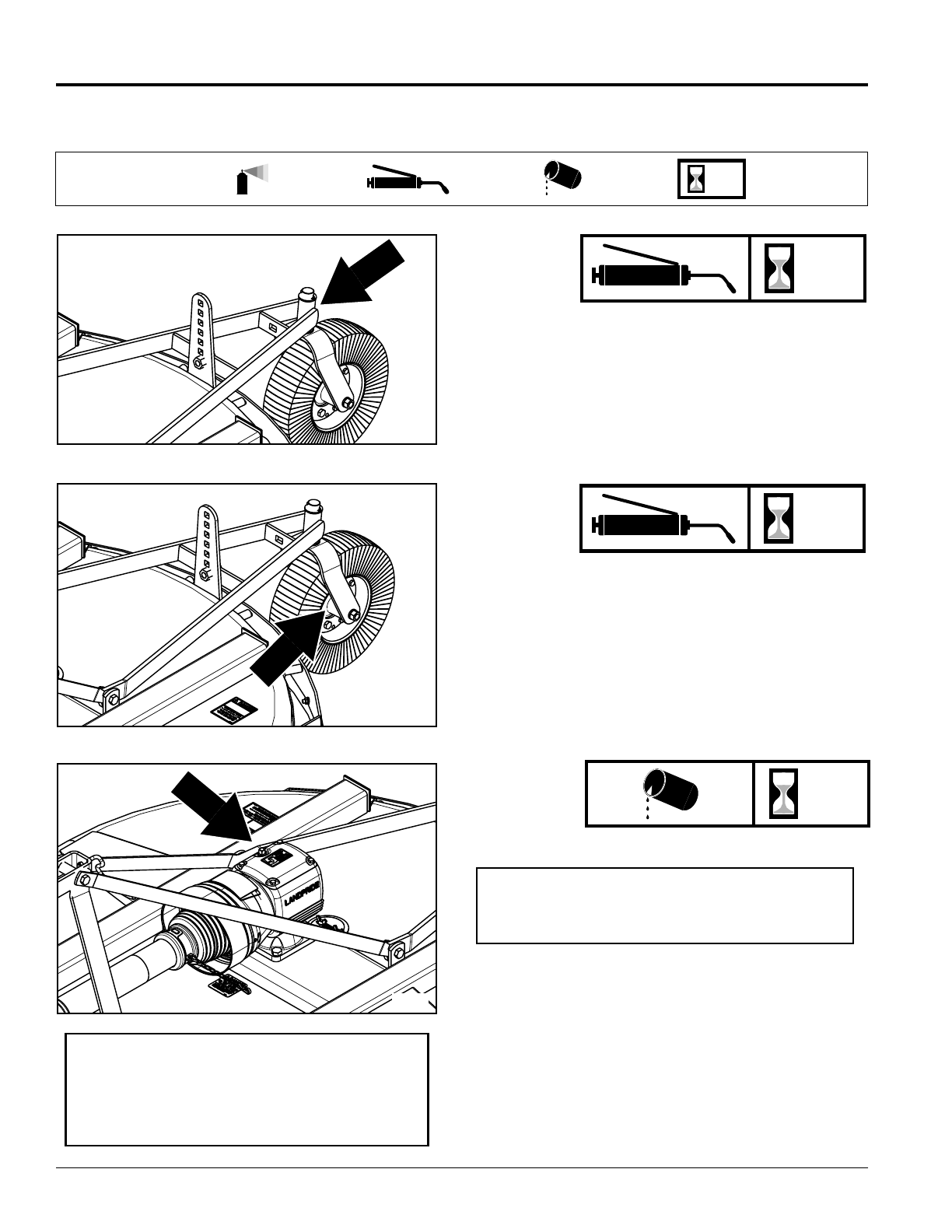

Lubrication
Gauge Wheel Spindle Tube
Type of Lubrication: Grease
Quantity = 6 pumps
Gauge Wheel Hub
The gauge wheel hub is equipped with a relief hole
located directly opposite the grease fitting. The relief
hole releases pressure from inside the hub casting
when it is greased. The hub should be greased until
grease purges from the relief hole.
Type of Lubrication: Multi-purpose Grease
Quantity = Until grease purges from the relief hole
8
Gearbox
Unscrew top vent plug in gearbox to remove dipstick. Wipe
oil from dipstick and screw it back in without tightening.
Unscrew dipstick and check oil level mark. If low, fill
through top plug hole in gearbox with EP 80-90W oil until oil
reaches full mark on the dipstick. Reinstall vent plug with
dipstick and tighten.
Take your gearbox to a Land Pride dealer if it requires
service.
Type of Lubrication: Gear Lube EP 80-90W
Quantity = Fill until oil reaches full mark on dipstick.
IMPORTANT: Do not overfill! Level cutter and wait
for gearbox oil to cool before checking. An unlevel
cutter or a gearbox with hot oil will not show correct
oil level on the dipstick.
8
21416
21416
21416
IMPORTANT: Your cutter is shipped with the
gearbox vent plug with dipstick packaged in the
Operator’s Manual bag and should have been
installed in the gearbox by your Land Pride dealer.
Please see your Land Pride dealer if the vent plug
with dipstick was not included.
24
50
Multi-purpose
spray lube Multi-purpose
grease lube Multi-purpose
oil lube Intervals at which
lubrication is required
Lubrication
Legend
23
Section 5: Maintenance and Lubrication
12/17/07 RCR1860 and RCR1872 Series Rotary Cutters 312-849M
Land Pride Table of Contents
20

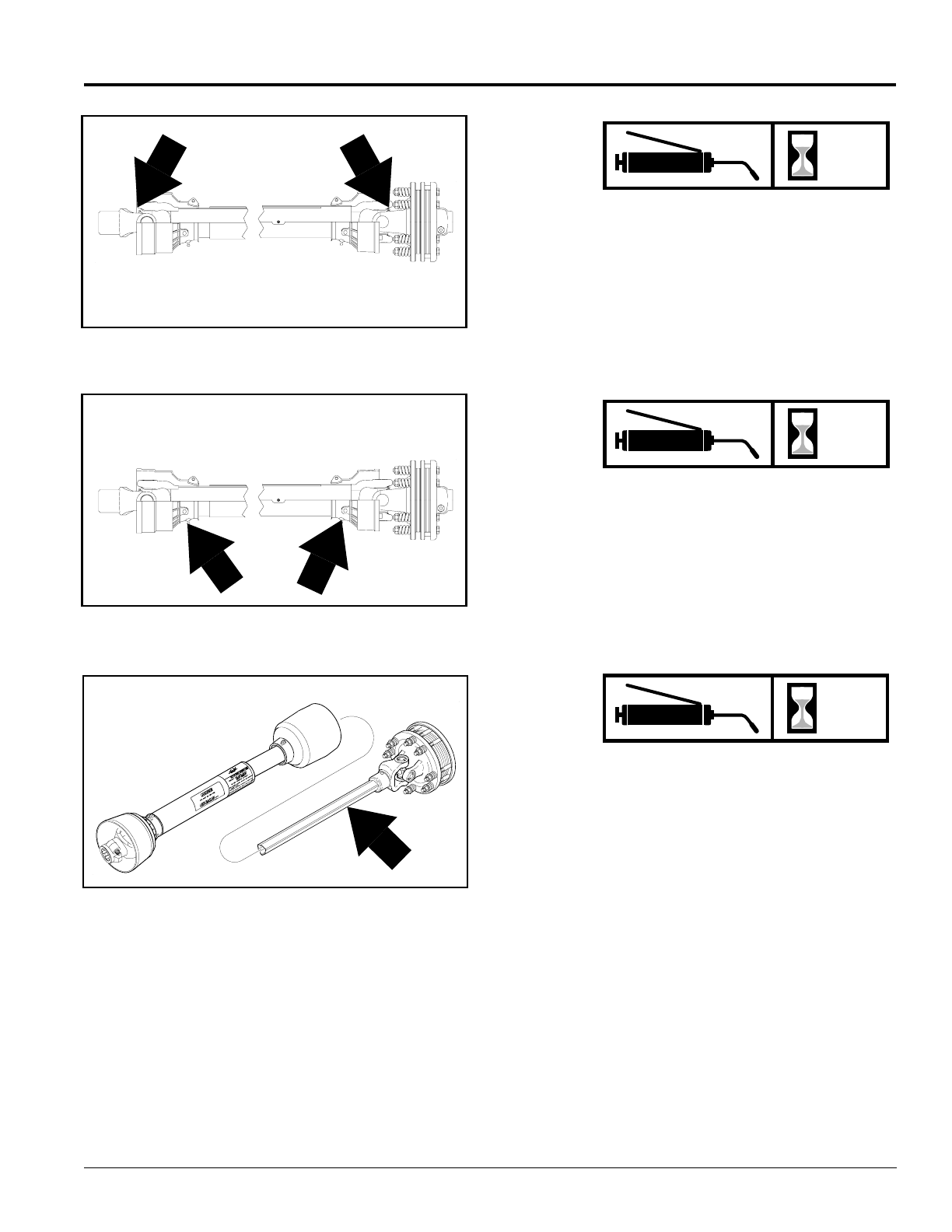

Driveline Profiles
Quantity = Clean & coat inner tube of driveline with a
light film of grease and then reassemble.
Driveline U-Joints
Type of Lubrication: Grease
Quantity = 6 pumps
13755
8
14618
Driveline Shield Bearings
Type of Lubrication: Grease
Quantity = 6 pumps
13755
8
24
Section 6: Specifications & Capacities
RCR1860 and RCR1872 Series Rotary Cutters 312-849M 12/17/07
Land Pride
Table of Contents
Section 6: Specifications & Capacities
RCR18 Series Rotary Cutters
RCR1860 RCR1872
Cutting Width 60” 72”
Overall Width 65" 77"
Overall Length 97” 110”
Blade Tip Speed 16,363 fpm 14,955 fpm
Machine Weight (with laminated tailwheel,
slip clutch driveline, Front Rubber
Guards and Rear Metal Band)
599 lbs. 737 lbs.
Driveline ASAE Category 3 Shear Bolt or 2-plate Slip Clutch
Recommended Tractor PTO HP 20-50 HP
PTO Speed 540 rpm
Gearbox 1:1.93 Speed-Up Beveled Gears
Cast Iron Housing 50 HP 1:1.46 Speed-Up Beveled Gears
Cast Iron Housing 50 HP
Gearbox Lubricant EP 80-90W oil
Cutting Height 1 1/2” - 13” 1 1/2” to 11 1/2”
Deck Construction All Welded Deck
Deck Material Thickness 11 Ga. (.120”) 10 Ga. (.134”)
Side Skirt Material Thickness 11 Ga. 10 Ga.
Deck Height
(Bottom of Deck to Bottom of Skid Shoe) 7 1/2” 9”
Skid Construction Full length welded on
Tailwheel Mount Assembly Welded A-arm and Caster Fork with 360 degree swivel
Tailwheel 4” x 8” x 15” Laminated Tire with cast iron hub or 4” x 16” Molded Rubber Tire
Hitch Category l with Floating Clevis Top Link, Quick Hitch Adaptable
Blade Holder Blade Holder Bar with Stump Jumper Round Pan 10 ga. x 24”
Blades 2 each, 1/2” x 3" Heat Treated Alloy Steel
Free-Swinging High Lift - Low Friction
Blade Bolts Keyed with harden flat washers & lock nuts.
Blade Cutting Capacity 1” Diameter
Optional Front Guard Rubber Belting or Chain Guard
Rear Guard Standard Metal Banding or Optional Rubber Belting or Optional Chain Guard
25
Section 7: Features & Benefits
12/17/07 RCR1860 and RCR1872 Series Rotary Cutters 312-849M
Land Pride Table of Contents
Section 7: Features & Benefits
RCR1860 & RCR1872 Rotary Cutters
Features Benefits
Surpassed rugged
industry standards All Land Pride Cutters have been designed and tested and meet rigorous voluntary testing
procedures specified by ANSI.
Available in 5 packs Order 5 packs and save money.
Tractor HP range 20 - 50 HP
2 Year gearbox warranty Shows our confidence in the gearbox integrity.
Cat. 3 driveline
with shear-bolt Shear-bolt offers maximum driveline protection.
Cat. 3 driveline with
2-plate slip-clutch Slip-clutch driveline offers convenience for continual work.
Dual position clevis type
3-point floating top link Permits deck to follow the terrain for an even cut. Additional set of holes for tractors with
shorter top links.
Lower clevis type
3-point hitch Allows for ease of hook-up to tractor. Also adds additional strength allowing for an even
pull from the tractor’s lower arms, vs. pulling on a single pin design.
Cutting widths 60” and 72”
Heavy gauge
deck construction 11 gauge on 60” and 10 gauge on 72”.
Box tubing deck supports Makes for a stronger rigid deck.
Fully welded deck Robotic welded. Adds additional strength.
Extended cutter front For increased material flow and added protection.
Round back design Helps discharge grass better than enclosed or partially enclosed cutters.
Deck Height 7 1/4” Deck height on 60” and 8 7/8” deck height on 72” model
Allows cutter to handle heavy cutting conditions.
Cutting height 1”-9” for a wide range of cutting conditions.
Rear metal band,
rubber or chain guards Aids against flying debris.
Full length skid shoes Provides sidewall reinforcement and full protection to bottom of sidewall.
Splined blade bar hub Allows for tight positive fit of stump jumper and blade bar to gearbox output shaft.
10 Gauge stump jumper Standard round stump jumper slides over stumps, rocks and debris.
High blade tip speed Ensures clean cut.
15”Laminated tailwheel Laminated material is long lasting in rough conditions.
4” x 16” Solid rubber tailwheel Can’t go flat.
Heavy-duty spindle
on tailwheel Tailwheels take a beating, 1 1/4” spindle gives the strength to protect tailwheel assembly.
26
Section 8: Troubleshooting
RCR1860 and RCR1872 Series Rotary Cutters 312-849M 12/17/07
Land Pride
Table of Contents
Section 8: Troubleshooting
Problem Cause Solution
Oil seal leaking Gearbox overfilled Drain to side plug hole
Seals damaged Replace seals
Grass or wire wrapped on
shaft in seal area Check seal areas daily
Driveline yoke or cross failing Shock load Avoid hitting solid objects
Needs lubrication Lubricate every 8 hours
Driveline
clutch slipping Scalping the ground Raise cutting height
Cutting too fast Reduce travel speed
PTO being engaged too
fast at high engine rpm Slowly engage PTO at low engine rpm
Cutting over solid objects Avoid solid objects
Bent Driveline (NOTE: driveline should
be repaired or replaced if bent) Contacting frame Reduce lift height in transport position
Contacting drawbar Reposition drawbar
Bottoming out Shorten driveline
Binding up Not lubricating enough
Driveline
telescoping tube failing Shock load Avoid hitting solid objects
Driveline
telescoping tube wearing Needs lubrication Lubricate every 20 hours
Blades wearing excessively Cutting on
sandy ground Raise cutting height
Contacting
ground frequently Raise cutting height
Blades breaking Hitting solid objects Avoid hitting solid objects
Blades coming loose Blades not
tightened properly Tighten blade hardware (refer to “Service Cutter
Blades” on page 19
Improper deck attitude Lower front of deck, see page 15
Blade carrier becomes loose Running loose in the past Replace gearbox output shaft and blade carrier
Blade carrier hardware not
tight enough Tighten to specified torque
Blade bolt holes worn Blade hardware running loose Replace blades and blade bolts if worn
Blade carrier bent Hitting solid objects Avoid hitting solid objects and replace blade carrier
Excessive side skid wear Cutting height not level Adjust cutter height
Soil abrasive Adjust cutter height
Cutting too low Adjust cutter height
Tailwheel support failing Lowering too fast Adjust rate of drop
Hitting objects when turning Reduce speed on turns
27
Section 8: Troubleshooting
12/17/07 RCR1860 and RCR1872 Series Rotary Cutters 312-849M
Land Pride Table of Contents
Excessive vibration Driveline bent Replace driveline
Blades loose Tighten blade bolts
Blade carrier bent Replace blade carrier
Blade broken Replace blade
Blade will not swing Remove and inspect blade
Blades have unequal weight Replace both blades
Problem Cause Solution
28
Section 9: Appendix
RCR1860 and RCR1872 Series Rotary Cutters 312-849M 12/17/07
Land Pride
Table of Contents
Section 9: Appendix
Torque Values Chart For Common Bolt Sizes
in-tpi 1 N·m ft-lb 3N · m ft-lb N · m ft-lb mm x pitch N · m ft-lb N · m ft-lb N · m ft-lb
1/4" - 20 7.4 5.6 11 8 16 12 M 5 X 0.8 436597
1/4" - 28 8.5 613 10 18 14 M 6 X 1 7511 815 11
5/16" - 18 15 11 24 17 33 25 M 8 X 1.25 17 12 26 19 36 27
5/16" - 24 17 13 26 19 37 27 M 8 X 1 18 13 28 21 39 29
3/8" - 16 27 20 42 31 59 44 M10 X 1.5 33 24 52 39 72 53
3/8" - 24 31 22 47 35 67 49 M10 X 0.75 39 29 61 45 85 62
7/16" - 14 43 32 67 49 95 70 M12 X 1.75 58 42 91 67 125 93
7/16" - 20 49 36 75 55 105 78 M12 X 1.5 60 44 95 70 130 97
1/2" - 13 66 49 105 76 145 105 M12 X 1 90 66 105 77 145 105
1/2" - 20 75 55 115 85 165 120 M14 X 2 92 68 145 105 200 150
9/16" - 12 95 70 150 110 210 155 M14 X 1.5 99 73 155 115 l215 160
9/16" - 18 105 79 165 120 235 170 M16 X 2 145 105 225 165 315 230
5/8" - 11 130 97 205 150 285 210 M16 X 1.5 155 115 240 180 335 245
5/8" - 18 150 110 230 170 325 240 M18 X 2.5 195 145 310 230 405 300
3/4" - 10 235 170 360 265 510 375 M18 X 1.5 220 165 350 260 485 355
3/4" - 16 260 190 405 295 570 420 M20 X 2.5 280 205 440 325 610 450
7/8" - 9 225 165 585 430 820 605 M20 X 1.5 310 230 650 480 900 665
7/8" - 14 250 185 640 475 905 670 M24 X 3 480 355 760 560 1050 780
1" - 8 340 250 875 645 1230 910 M24 X 2 525 390 830 610 1150 845
1" - 12 370 275 955 705 1350 995 M30 X 3.5 960 705 1510 1120 2100 1550
1-1/8" - 7 480 355 1080 795 1750 1290 M30 X 2 1060 785 1680 1240 2320 1710
1 1/8" - 12 540 395 1210 890 1960 1440 M36 X 3.5 1730 1270 2650 1950 3660 2700
1 1/4" - 7 680 500 1520 1120 2460 1820 M36 X 2 1880 1380 2960 2190 4100 3220
1 1/4" - 12 750 555 1680 1240 2730 2010 1 in-tpi = nominal thread diameter in inches-threads per inch
1 3/8" - 6 890 655 1990 1470 3230 2380 2N· m = newton-meters
1 3/8" - 12 1010 745 2270 1670 3680 2710 3 ft-lb= foot pounds
1 1/2" - 6 1180 870 2640 1950 4290 3160 4mm x pitch = nominal thread diameter in millimeters x thread
pitch
1 1/2" - 12 1330 980 2970 2190 4820 3560
Torque tolerance + 0%, -15% of torquing values. Unless otherwise specified use torque values listed above.
Additional Torque Values
Blade Carrier Hub Nut 450 ft-lbs Minimum
Grade 2 Grade 5 Grade 8
Bolt Head Identification
Bolt Size
(Inches) Class 5.8 Class 8.8 Class 10.9
Bolt Head Identification
Bolt Size
(Metric)
5.8 8.8 10.9
29
Section 9: Appendix
12/17/07 RCR1860 and RCR1872 Series Rotary Cutters 312-849M
Land Pride Table of Contents
Warranty
Land Pride warrants to the original purchaser that this Land Pride product will
be free from defects in material and workmanship beginning on the date of
purchase by the end user according to the following schedule when used as
intended and under normal service and conditions for personal use.
Overall Unit and Driveline: One year Parts and Labor
Gearbox: 5 years Parts and Labor
Blades, tires and driveline friction discs: Considered wear items
This Warranty is limited to the replacement of any defective part by Land
Pride and the installation by the dealer of any such replacement part, and does
not cover common wear items. Land Pride reserves the right to inspect any
equipment or parts which are claimed to have been defective in material or
workmanship.
This Warranty does not apply to any part or product which in Land Pride’s
judgment shall have been misused or damaged by accident or lack of normal
maintenance or care, or which has been repaired or altered in a way which
adversely affects its performance or reliability, or which has been used for a
purpose for which the product is not designed. Misuse also specifically includes
failure to properly maintain oil levels, grease points, and driveline shafts.
Claims under this Warranty should be made to the dealer which originally sold
the product and all warranty adjustments must be made through an authorized
Land Pride dealer. Land Pride reserves the right to make changes in materials
or design of the product at any time without notice.
This Warranty shall not be interpreted to render Land Pride liable for damages
of any kind, direct, consequential, or contingent to property. Furthermore, Land
Pride shall not be liable for damages resulting from any cause beyond its
reasonable control. This Warranty does not extend to loss of crops, any expense
or loss for labor, supplies, rental machinery or for any other reason.
No other warranty of any kind whatsoever, express or implied, is made
with respect to this sale; and all implied warranties of merchantability and
fitness for a particular purpose which exceed the obligations set forth in
this written warranty are hereby disclaimed and excluded from this sale.
This Warranty is not valid unless registered with Land Pride within 30 days
from the date of purchase by the end user.
Corporate Office: P.O. Box 5060
Salina, Kansas 67402-5060 USA
www.landpride.com
