5515/5518

5515/55185515/5518

5515/5518

your document management partner

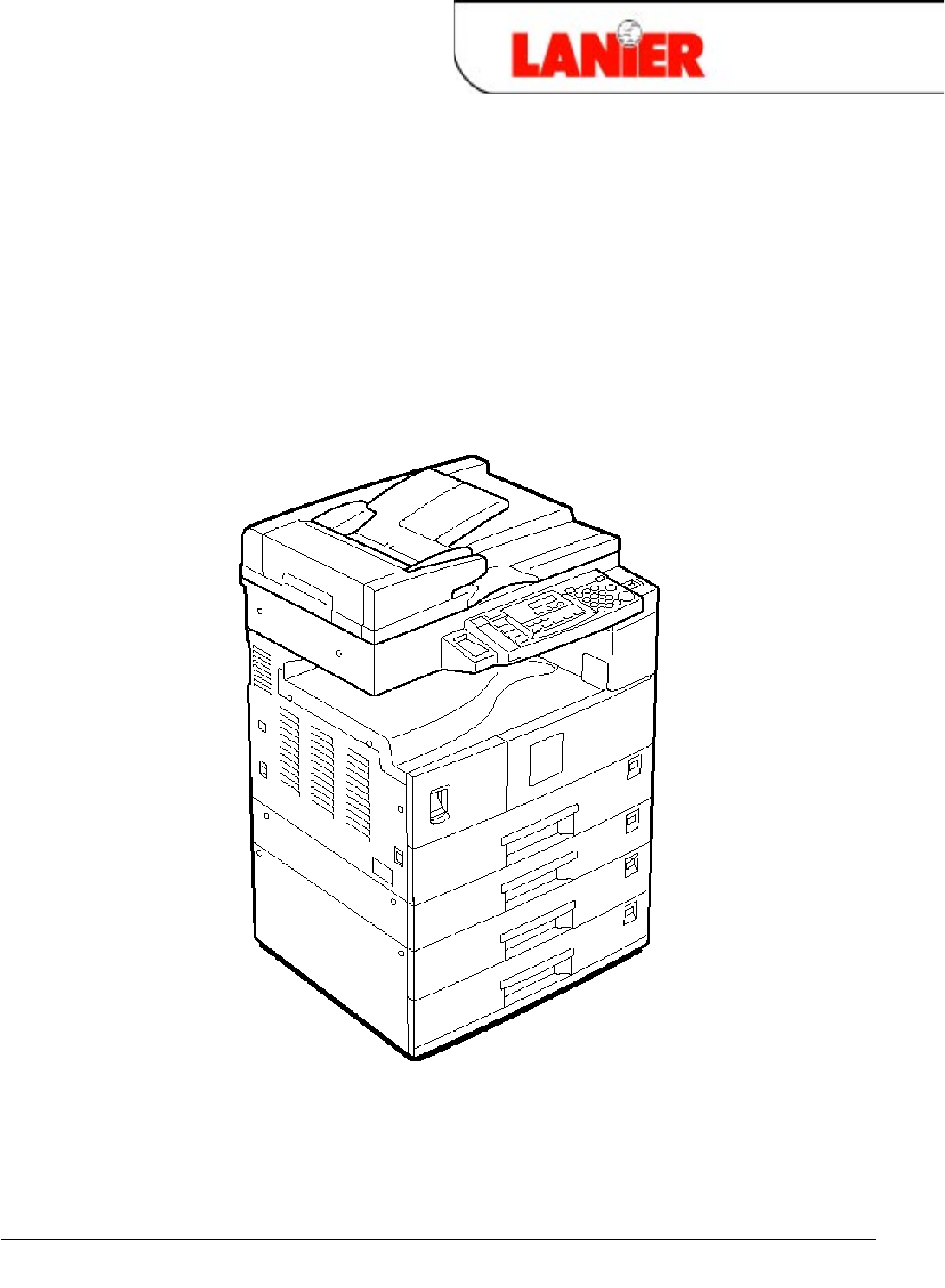

Digital Copier

Operator Guide

When ordering supplies or requesting service for your

copier, you will need to provide the model and serial

number of your machine.

Please take a moment to enter your model and serial

numbers here.

MODEL NUMBER: __________________________

SERIAL NUMBER: __________________________

To order supplies, call: ( )

To request service, call: ( )

Customer Vision® -

Our commitment to your

complete satisfaction

© 2001 Lanier Worldwide, Inc. March

Printed in the U.S.A.

As an Energy Star Partner, Lanier Worldwide, Inc. has

determined that this product meets the Energy Star

guidelines for energy efficiency.

Table of Contents

i

Table of Contents

11

2

3

4

5

6

7

I

III

9

III

G

I

Important Safeguards

Important Safeguards ...................................................................................1

Making Copies

Applying Power ........................................................................................ 1-1

Main Power Switch .......................................................................1-1

Operation Key ..............................................................................1-1

Selecting the Mode of Operation.................................................................1-2

Making Copies..........................................................................................1-3

Component Identification

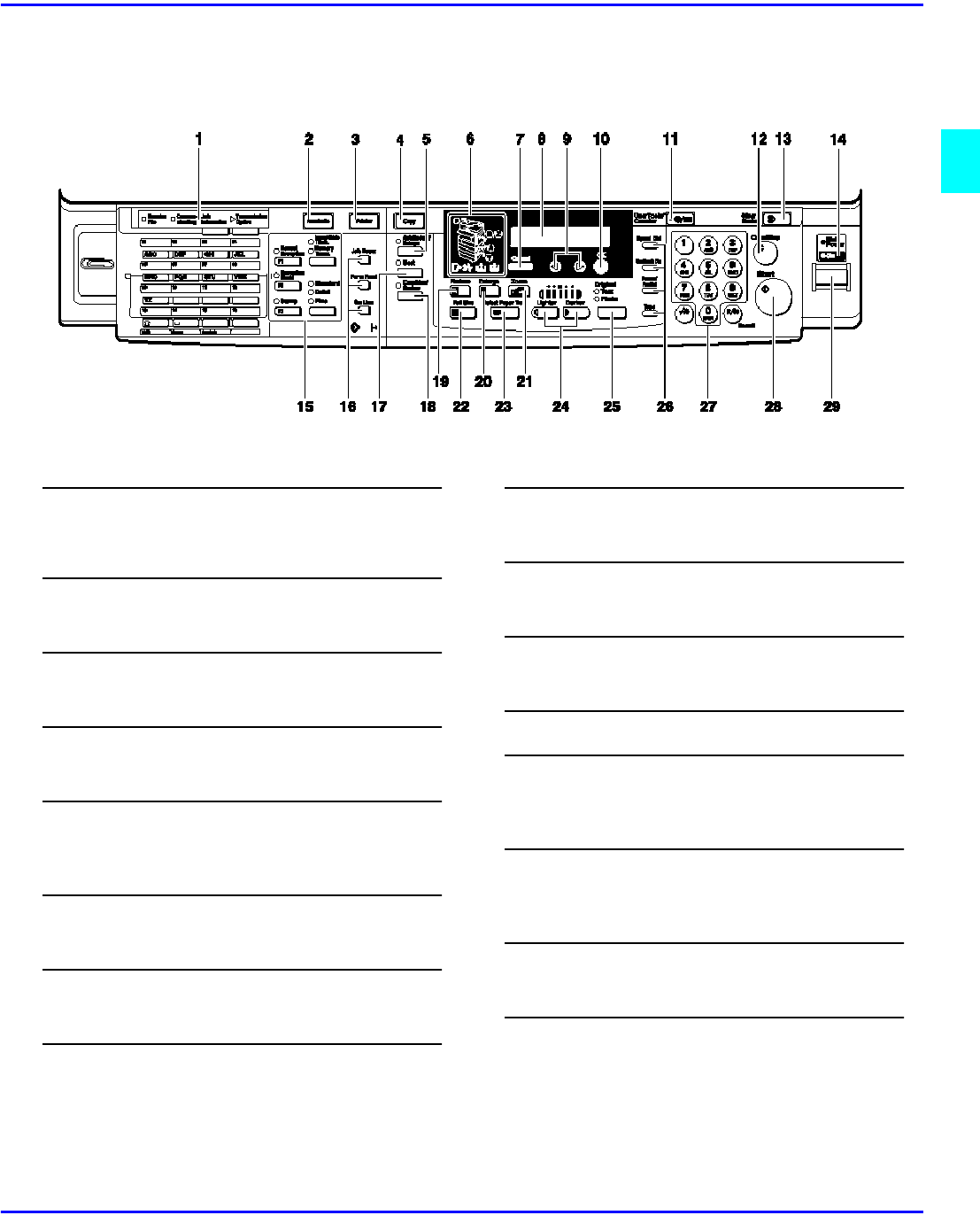

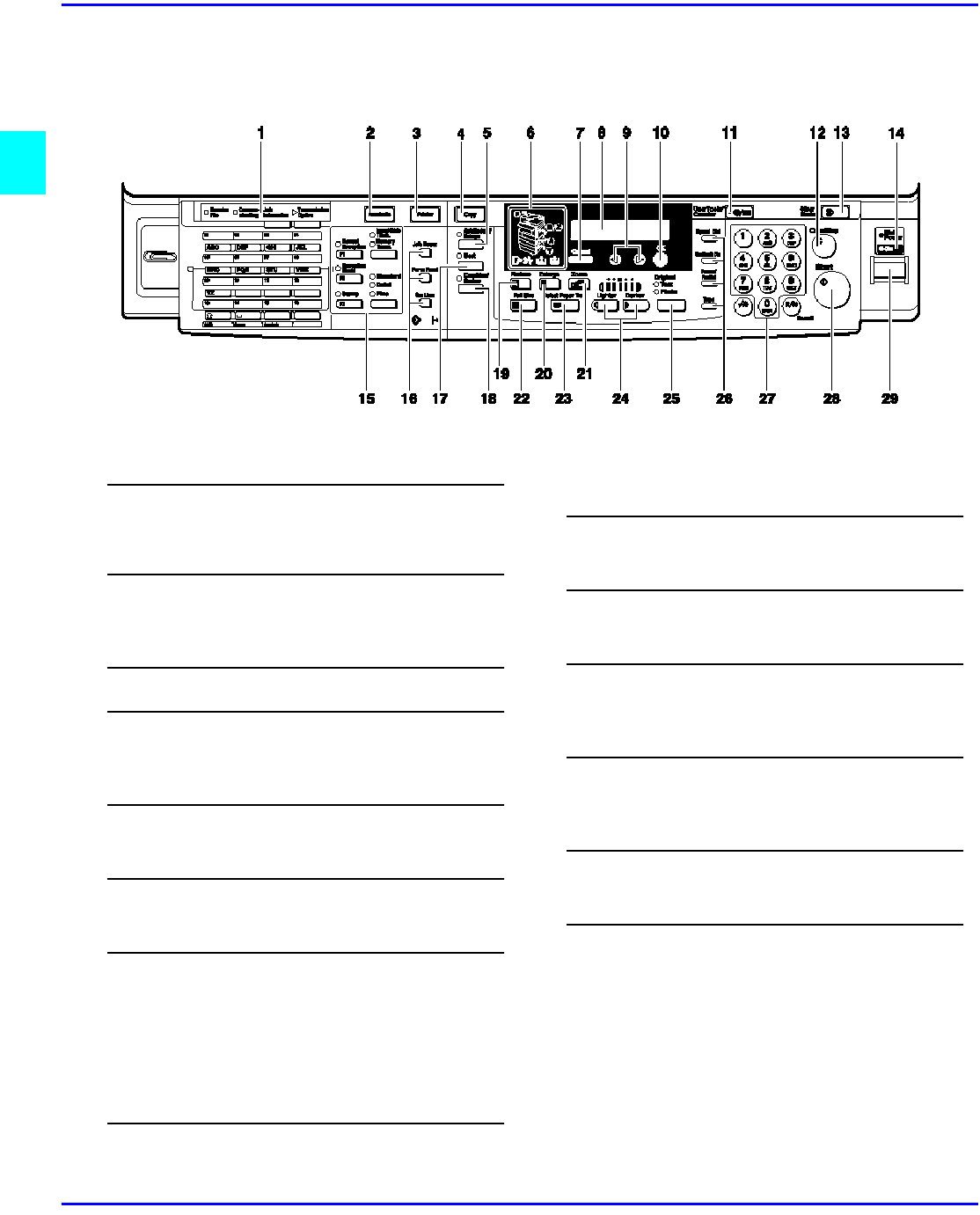

Control Panel ........................................................................................... 2-1

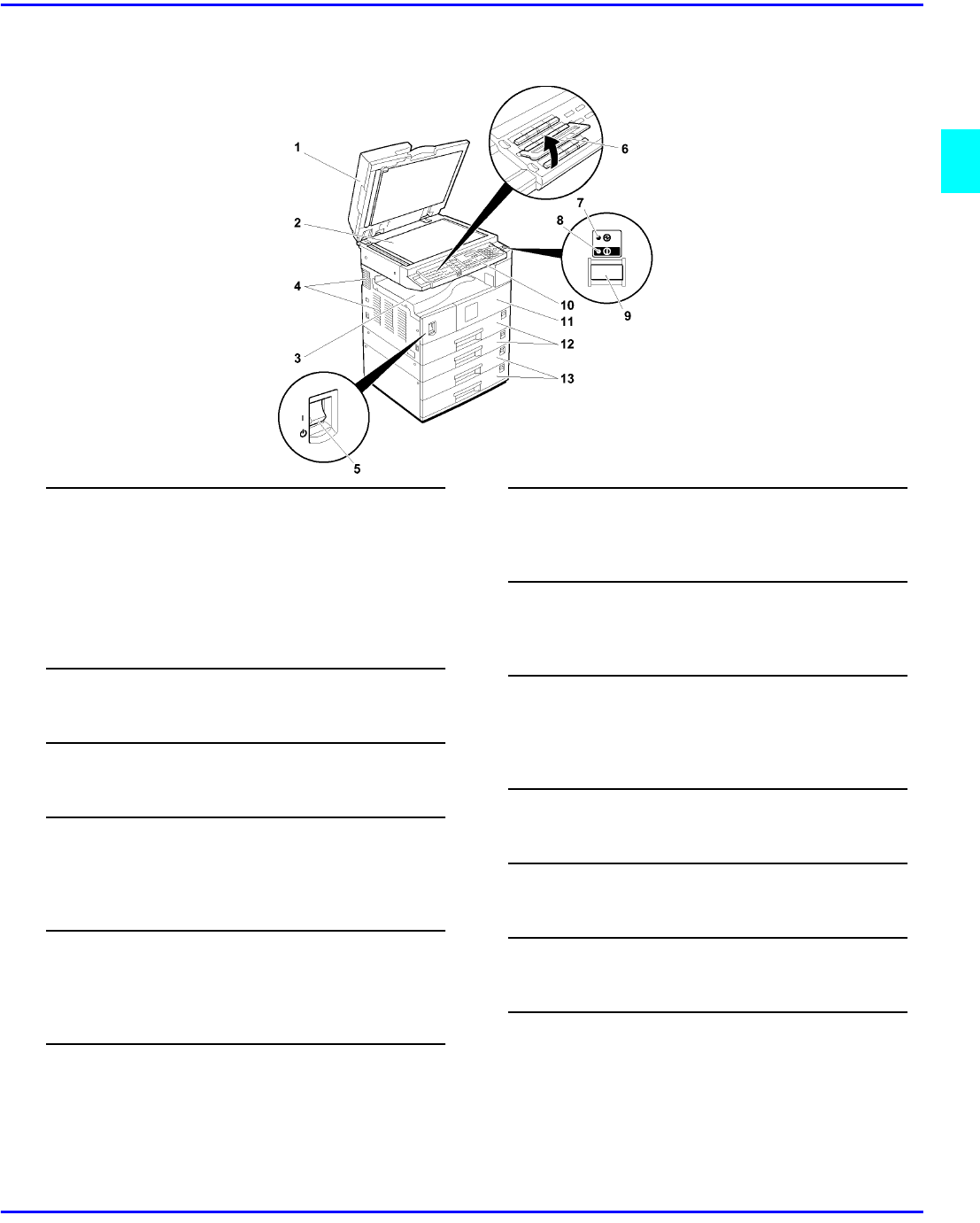

Component Locations - Front .....................................................................2-3

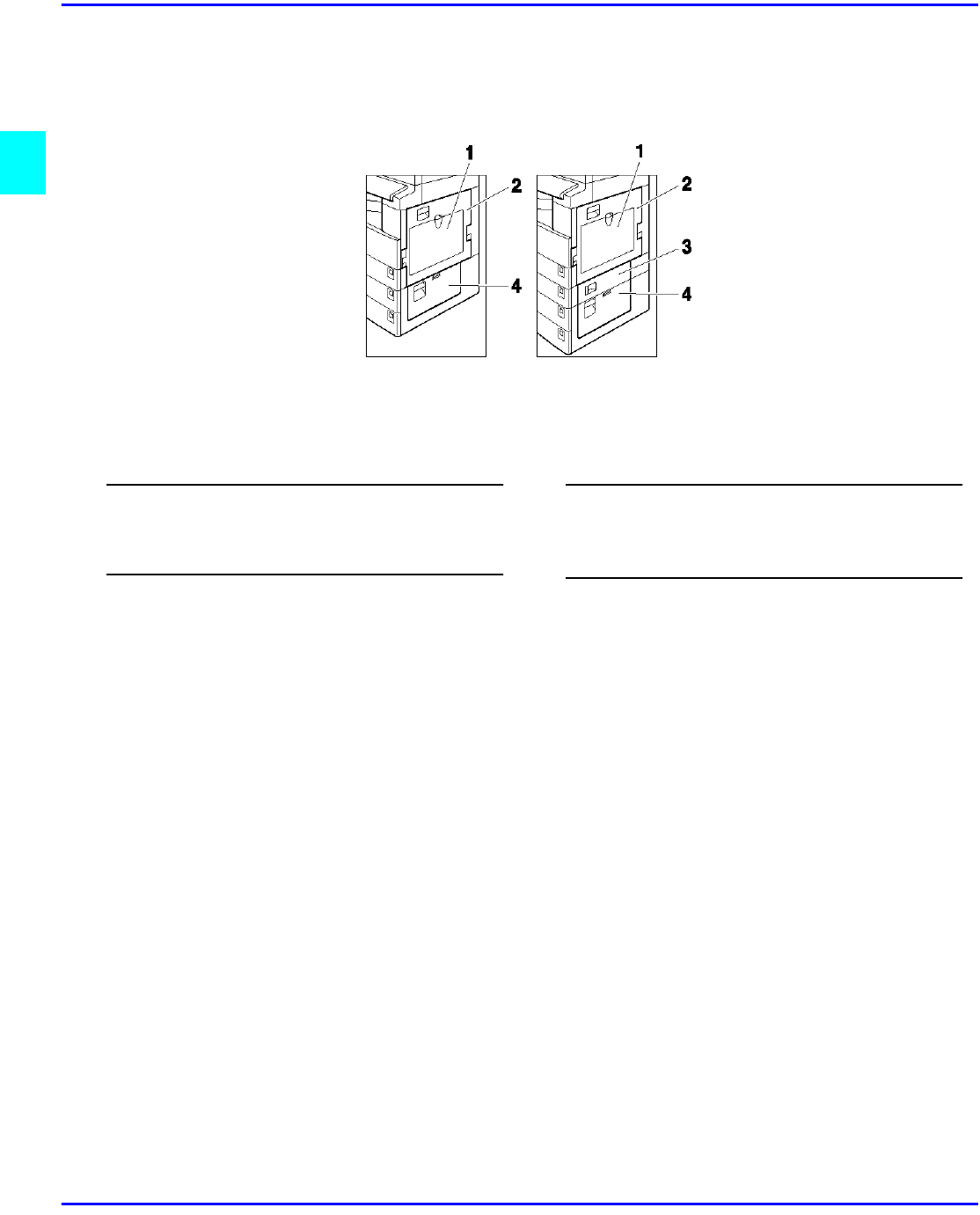

Component Locations - Rear ......................................................................2-4

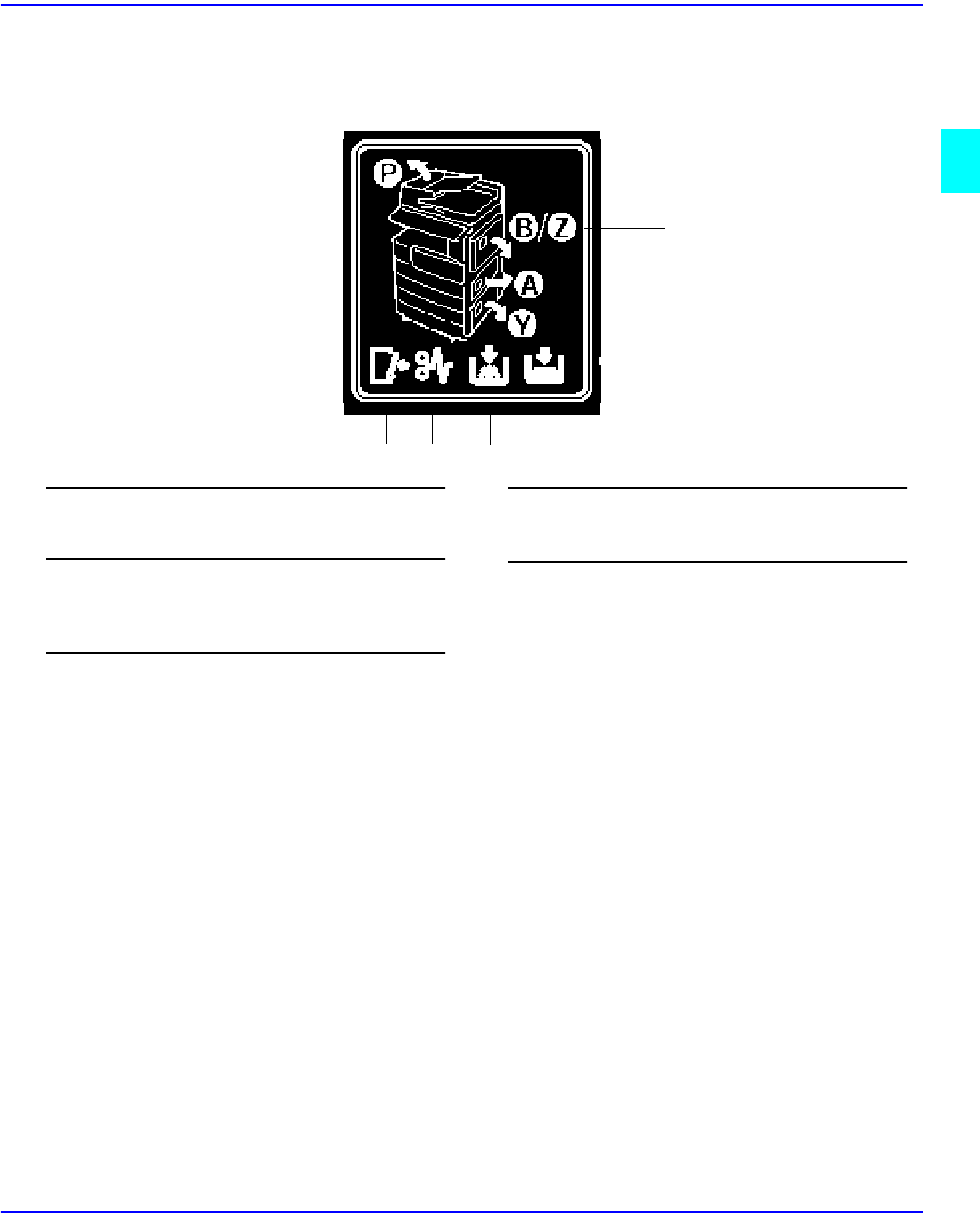

Status Display Indicators ........................................................................... 2-5

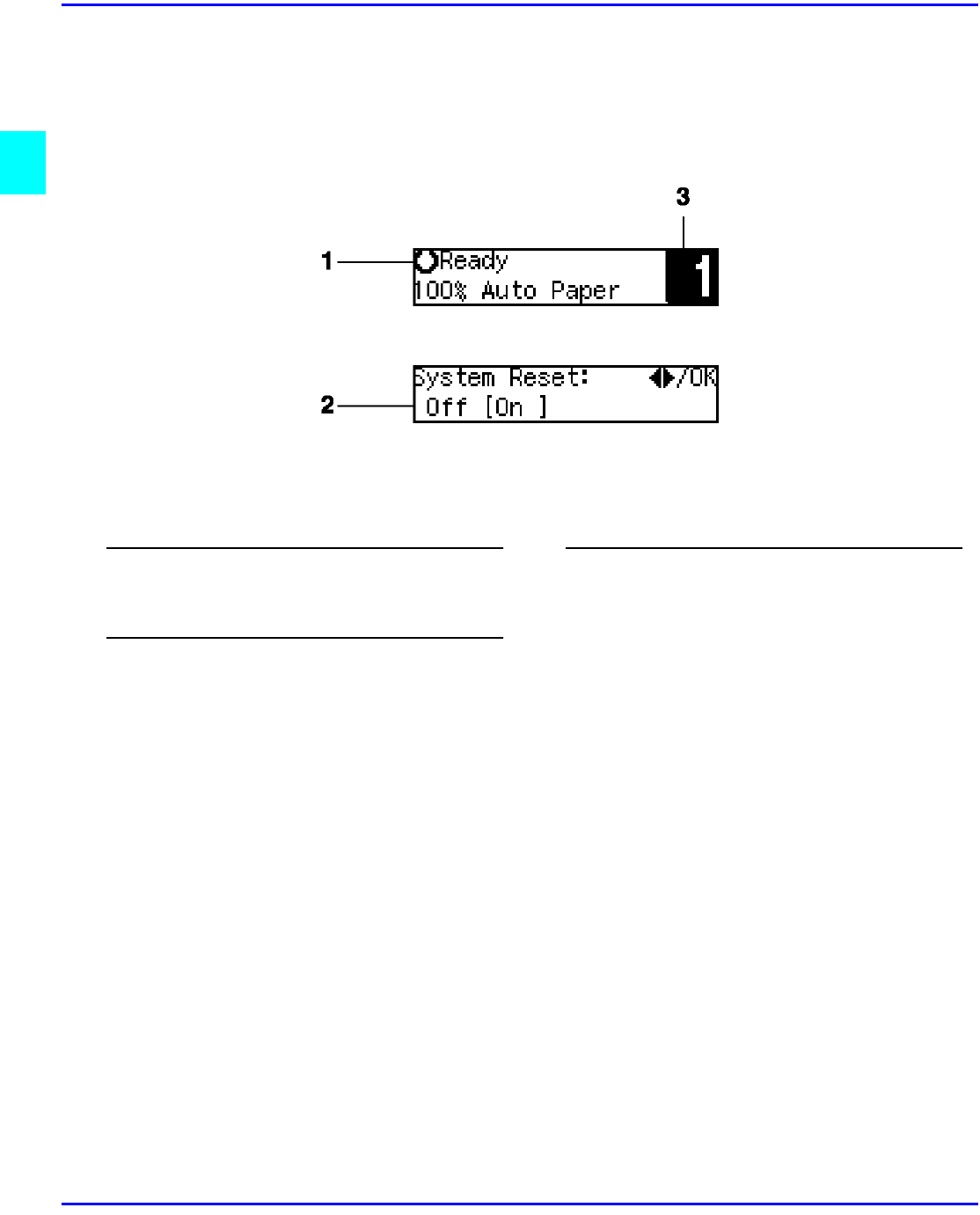

Graphics Display ....................................................................................... 2-6

Copier Functions

Entering User Codes..................................................................................3-1

Document Feeder......................................................................................3-2

Precautions when using Document Feeders ......................................3-2

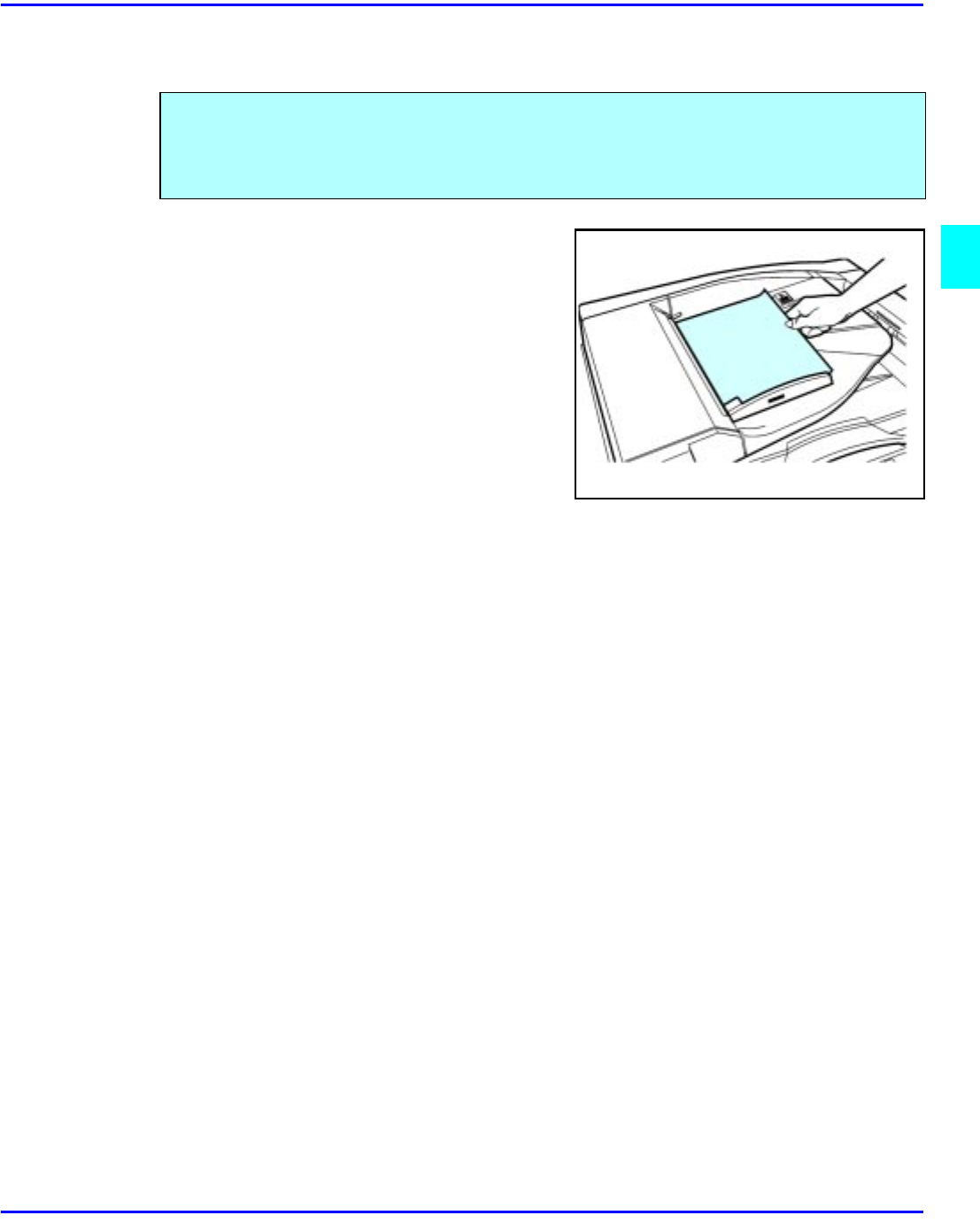

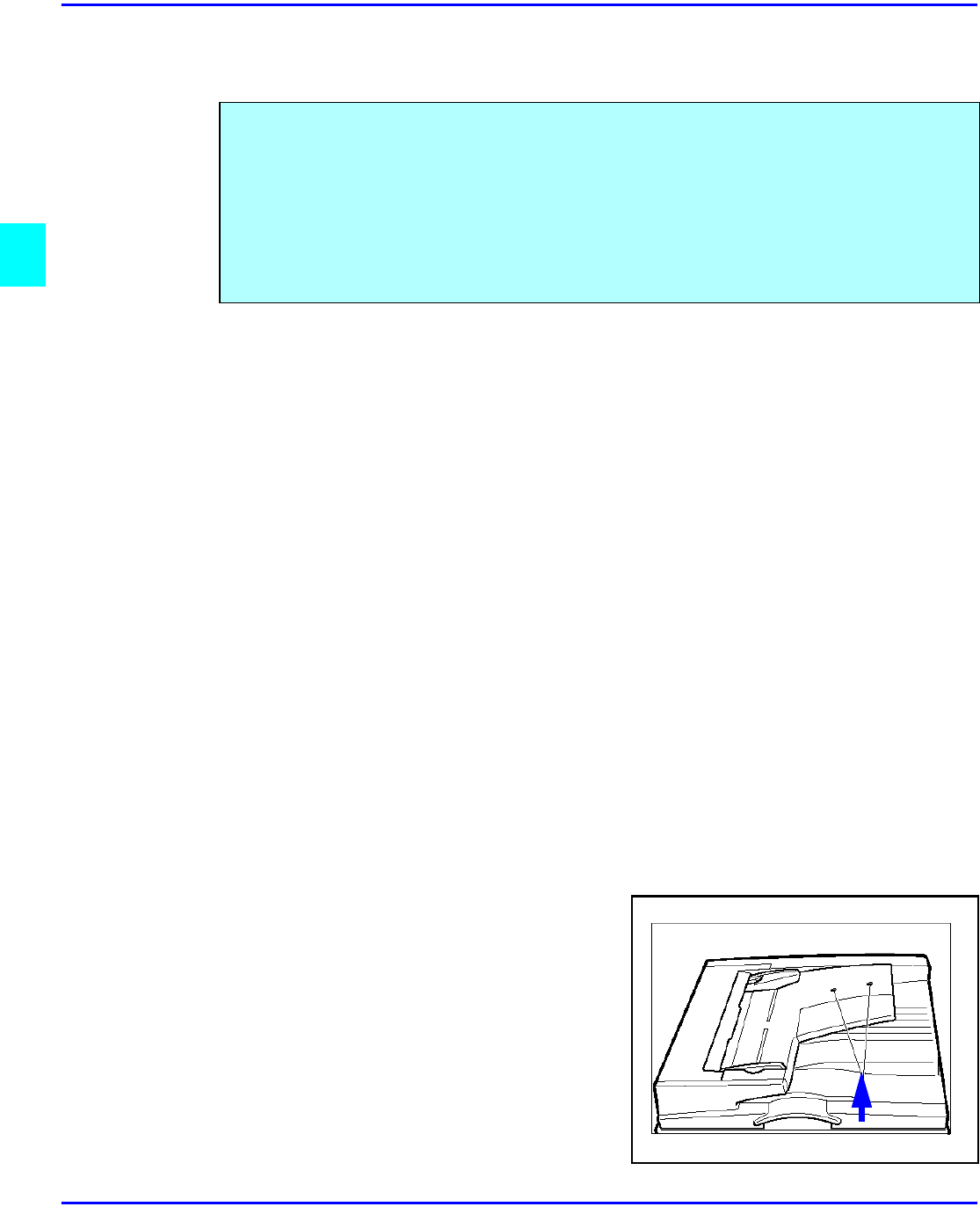

RADF - Feeding Stack of Originals...............................................................3-3

Using Auto Start....................................................................................... 3-4

Selecting Copy Quantities ..........................................................................3-5

Selecting Copy Darkness Modes .................................................................3-6

Using Auto Image Density Mode .................................................... 3-6

Using Manual Exposure Mode ......................................................... 3-6

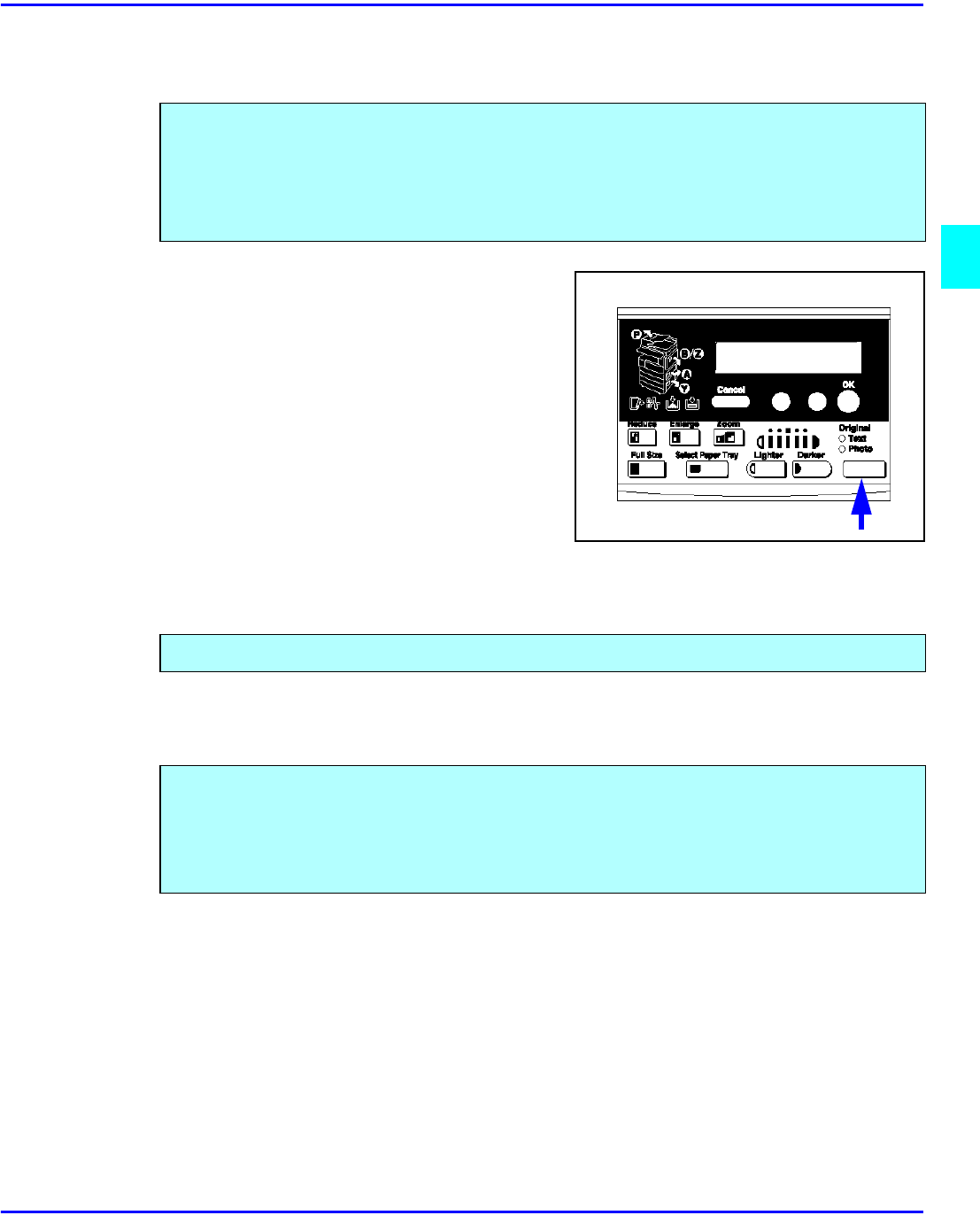

Selecting Original Modes ...........................................................................3-7

Text ............................................................................................ 3-7

Photo ..........................................................................................3-7

Selecting Copy Paper ................................................................................3-8

Using Auto Paper Select ................................................................3-8

Using Manual Paper Select .............................................................3-9

Enlargement and Reduction Ratios ............................................................ 3-10

Using Auto Reduce/Enlarge .......................................................... 3-10

Using Preset Copy Ratio Keys ....................................................... 3-11

Zoom Keys ............................................................................................ 3-12

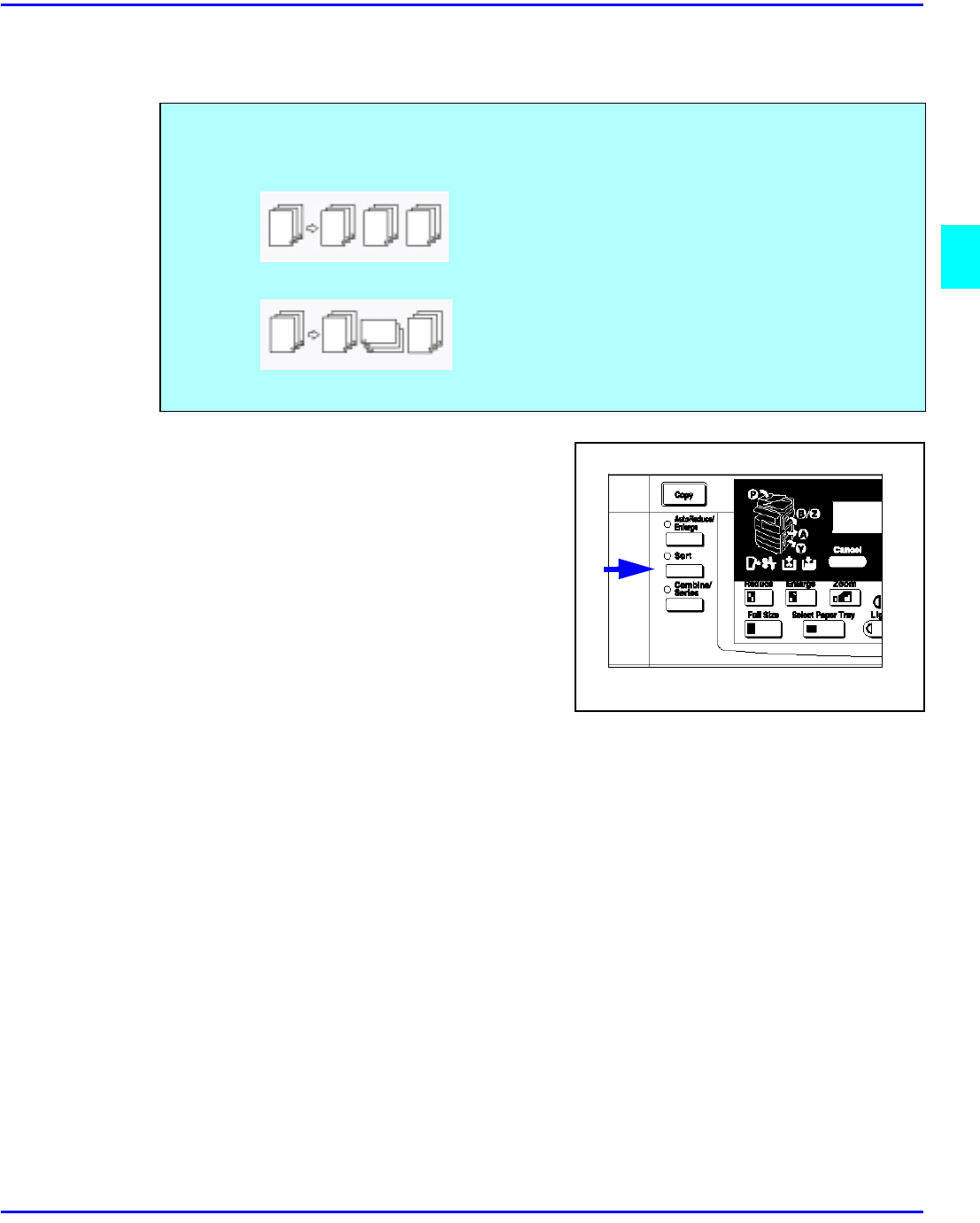

Sort ...................................................................................................... 3-13

Energy Saving Modes ..............................................................................3-14

Level 1 ...................................................................................... 3-14

Level 2 ...................................................................................... 3-14

Auto Off Timer ...........................................................................3-14

Display Contrast ..................................................................................... 3-14

Copying Methods

Bypass Copying ........................................................................................4-1

Table of Contents

ii

1

2

3

4

5

6

77I77

IIG

III

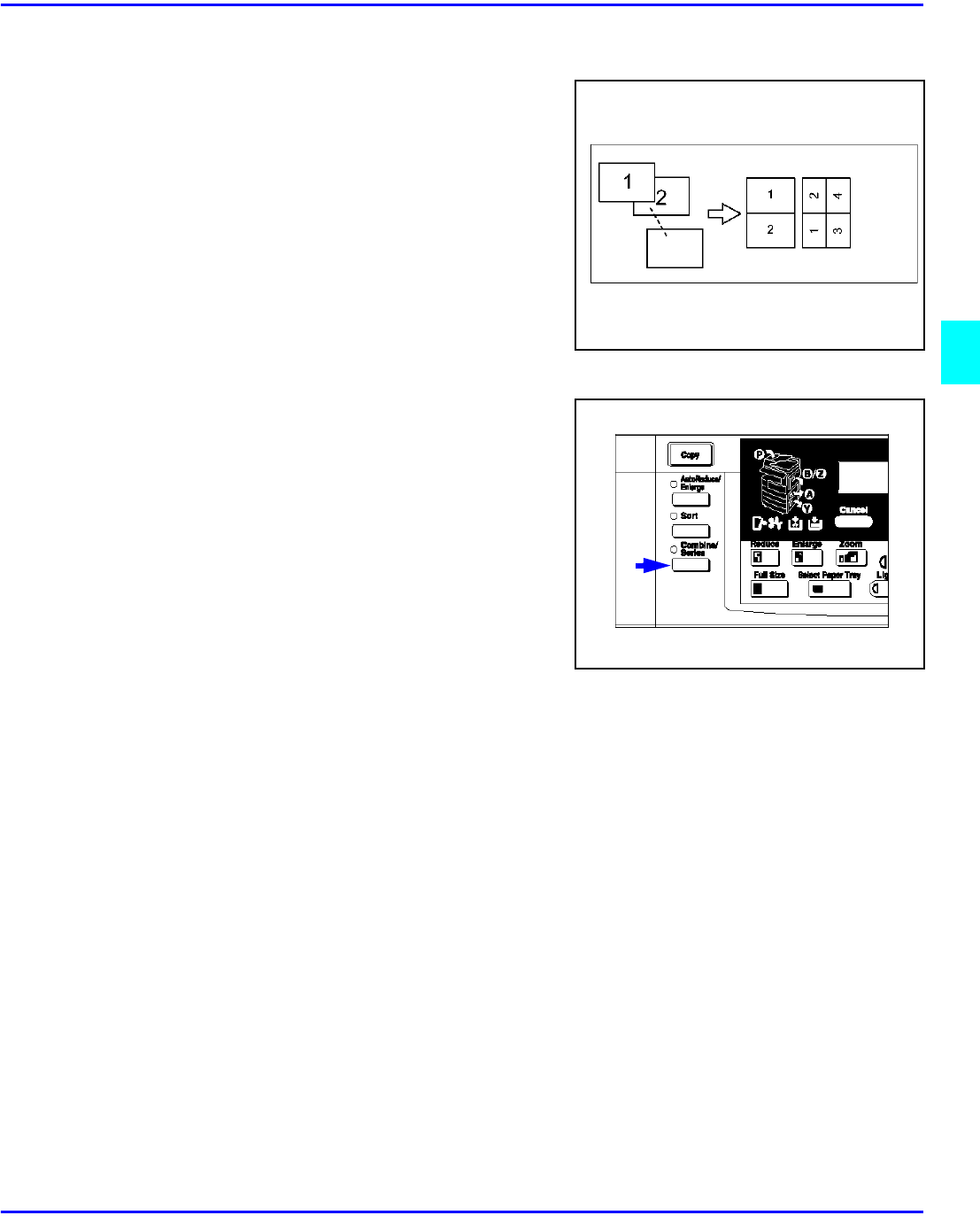

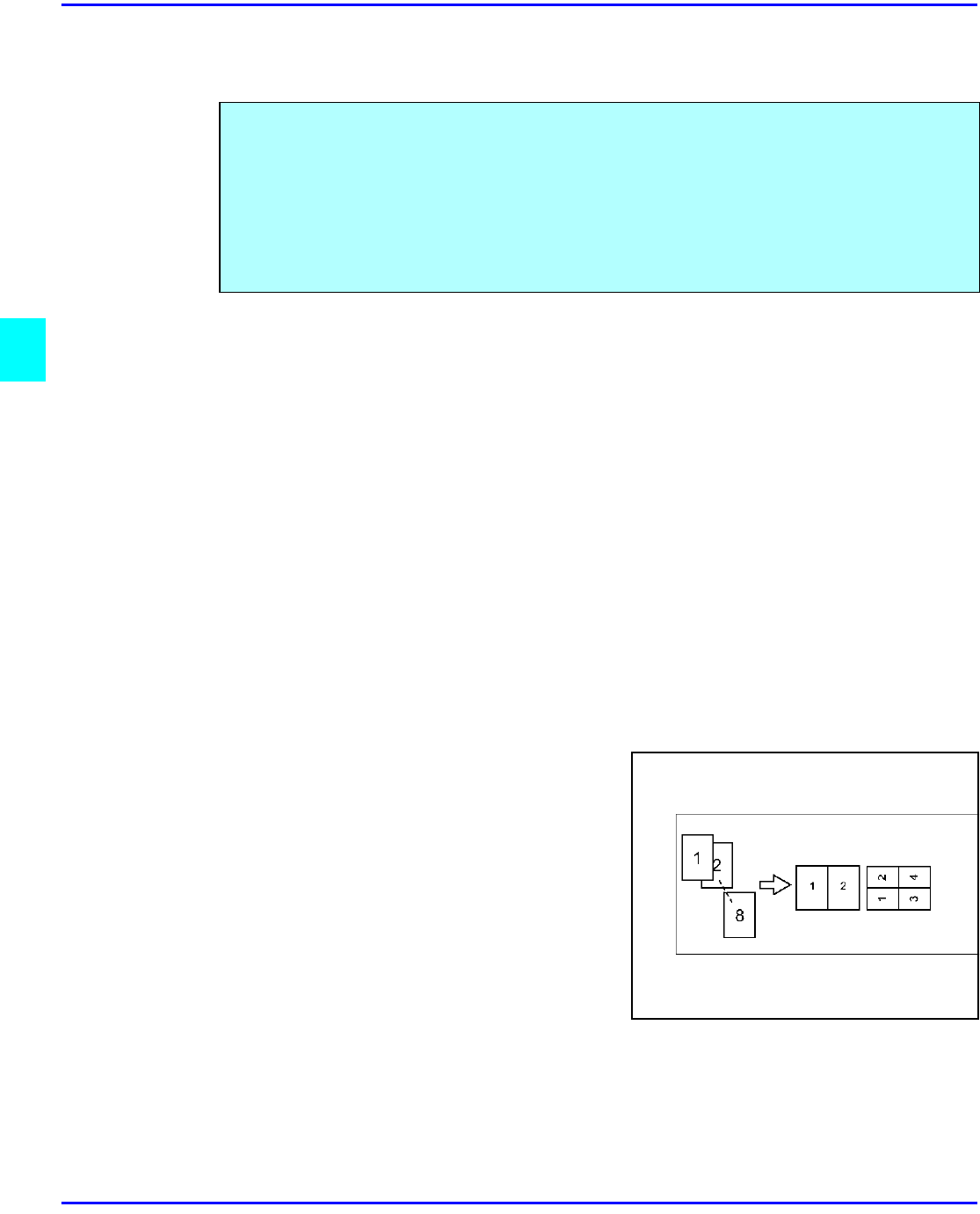

Combine Copying ..................................................................................... 4-4

Series Copying......................................................................................... 4-6

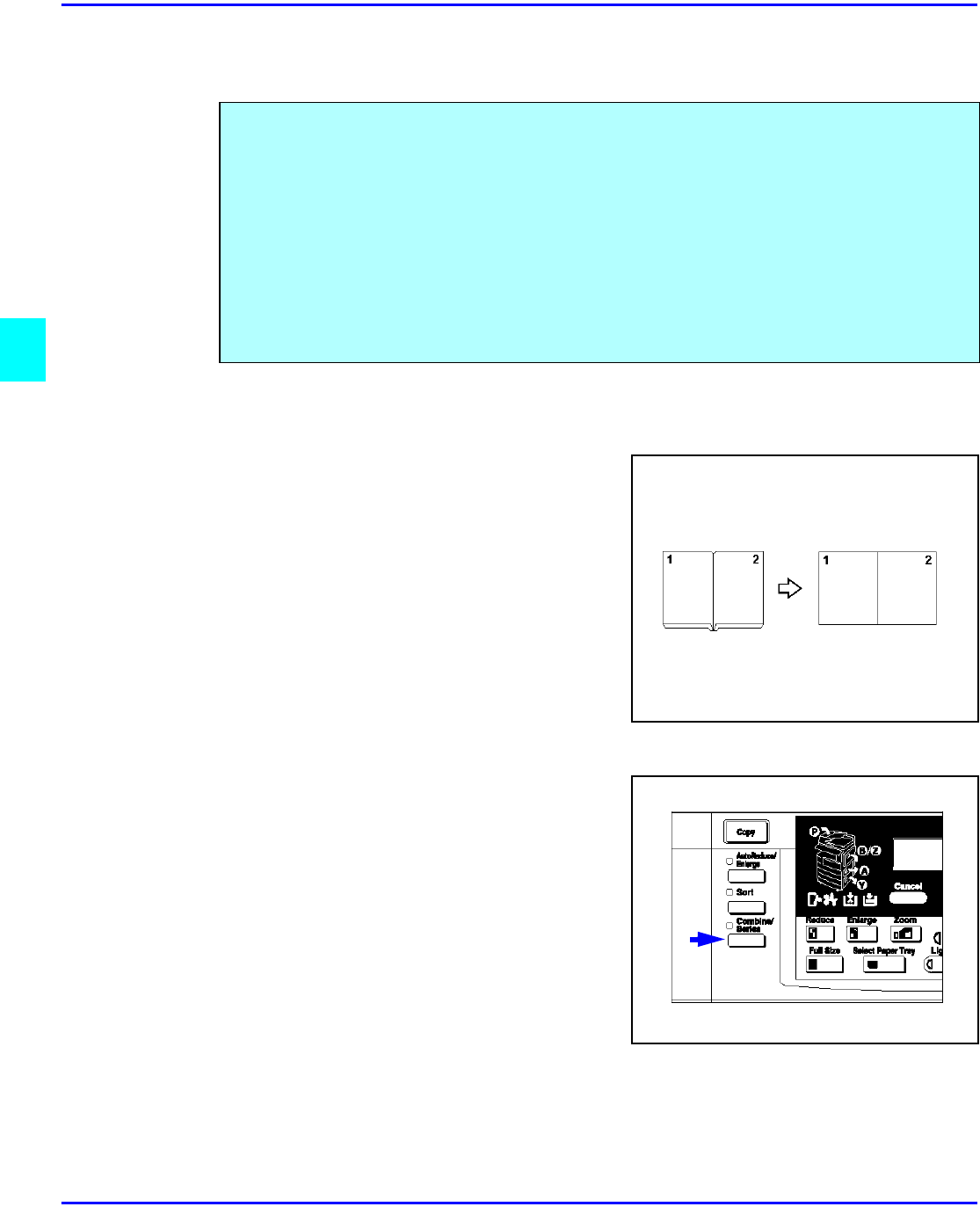

Book to 1 Sided ........................................................................... 4-6

2 Sided to 1 Sided ........................................................................ 4-7

User Tools Settings

System Settings....................................................................................... 5-1

Basic Steps to Accessing System Settings ...................................... 5-1

Exiting from User Tools ................................................................. 5-1

Printing the Counter Value......................................................................... 5-2

System Settings....................................................................................... 5-3

Copier Feature Settings............................................................................. 5-6

Basic Steps to Accessing Copier Feature Settings ............................. 5-6

Exiting from User Tools ................................................................. 5-6

Copier Features ....................................................................................... 5-7

Service and Supplies

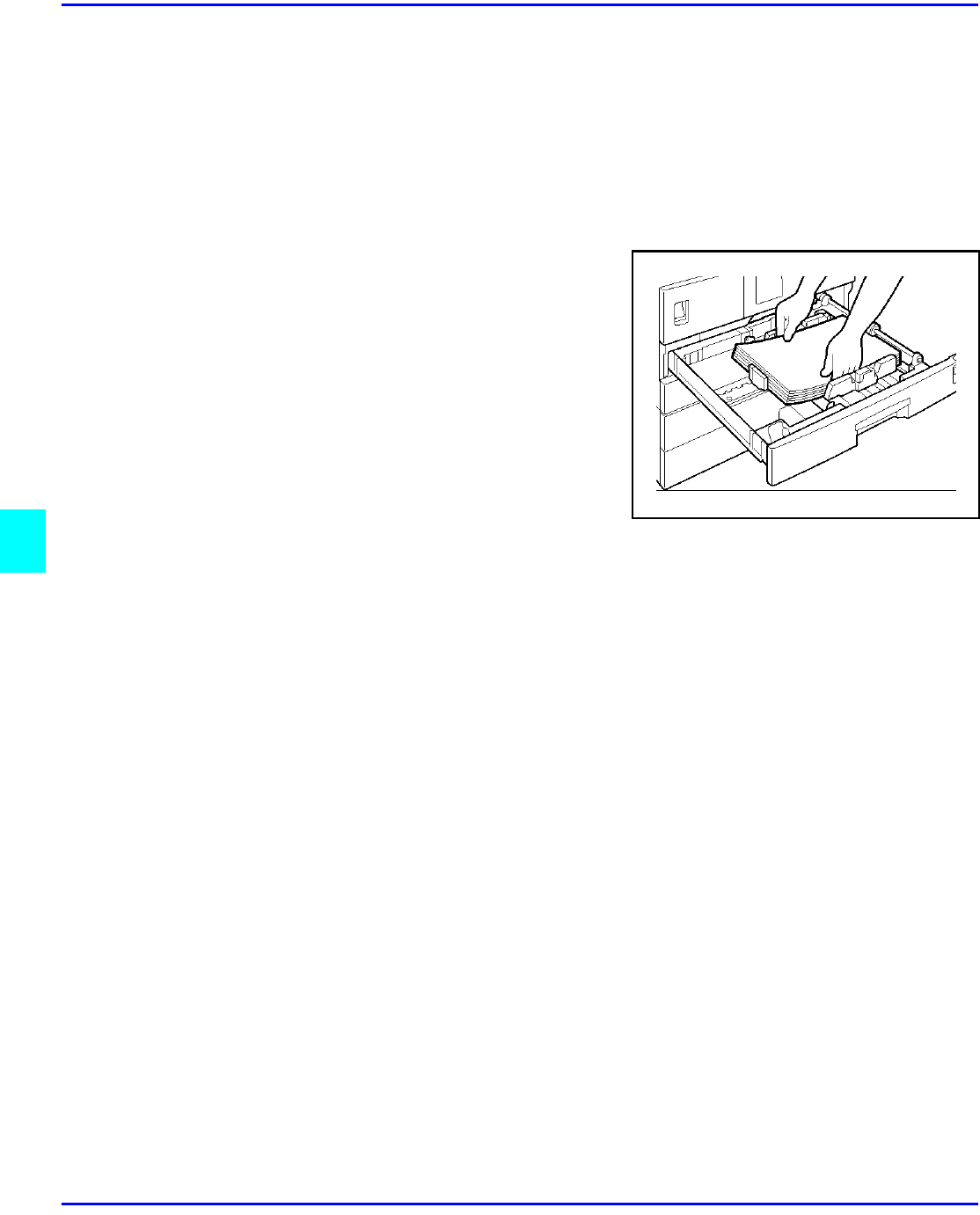

Loading Paper .......................................................................................... 6-1

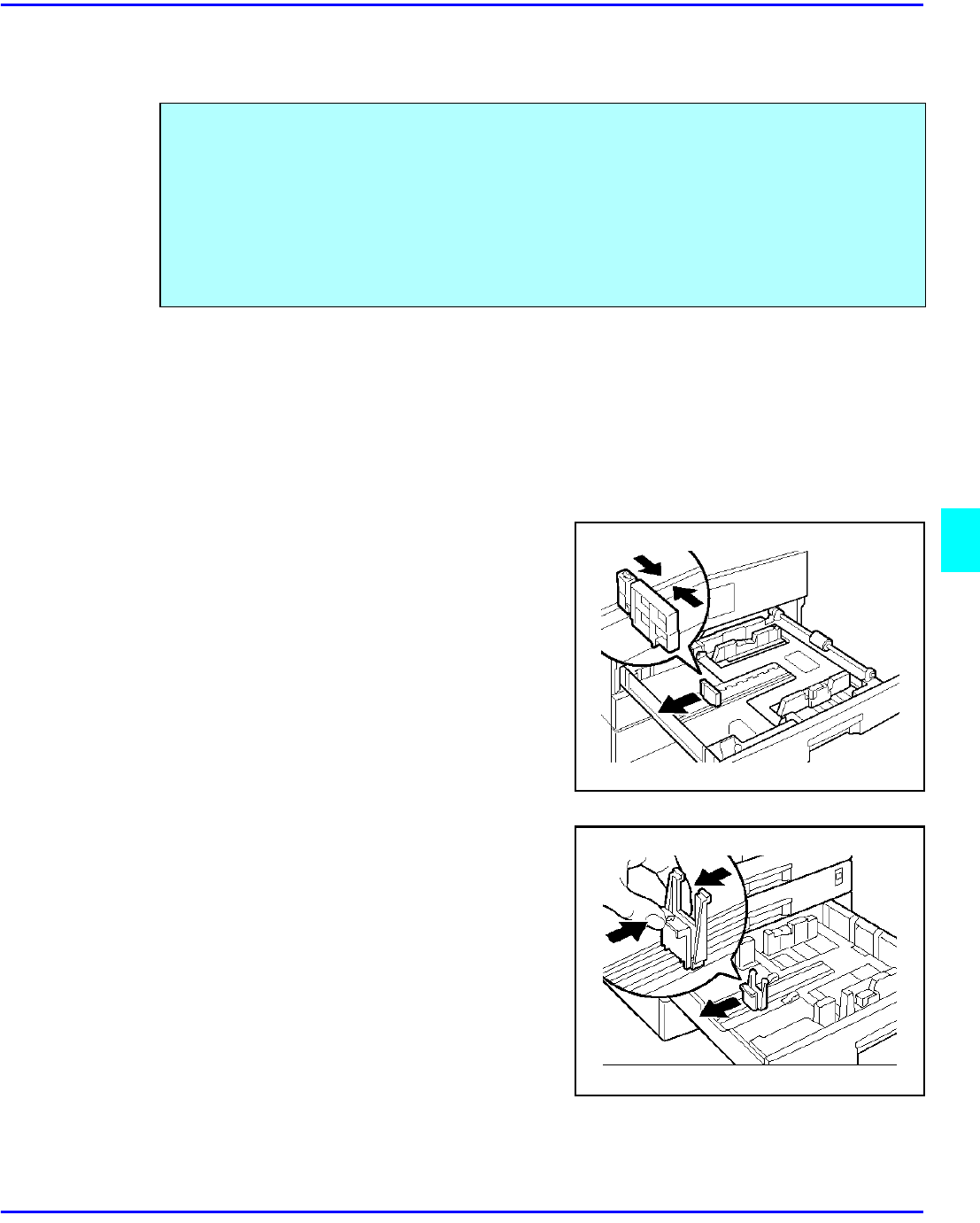

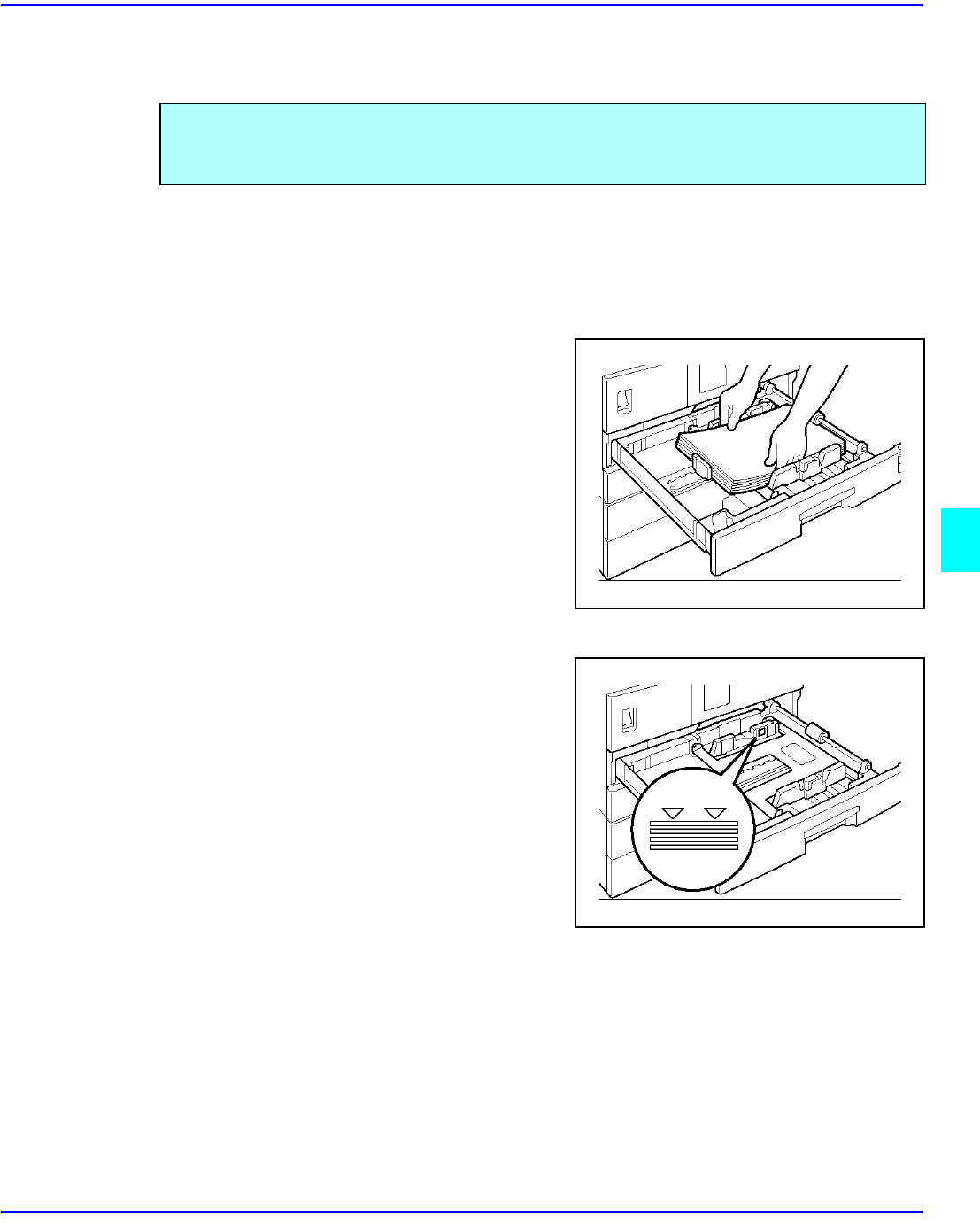

Loading Paper in Trays 1 and 2 ...................................................... 6-1

Loading Paper in the System Stand ............................................................ 6-2

Changing Paper Size ................................................................................. 6-3

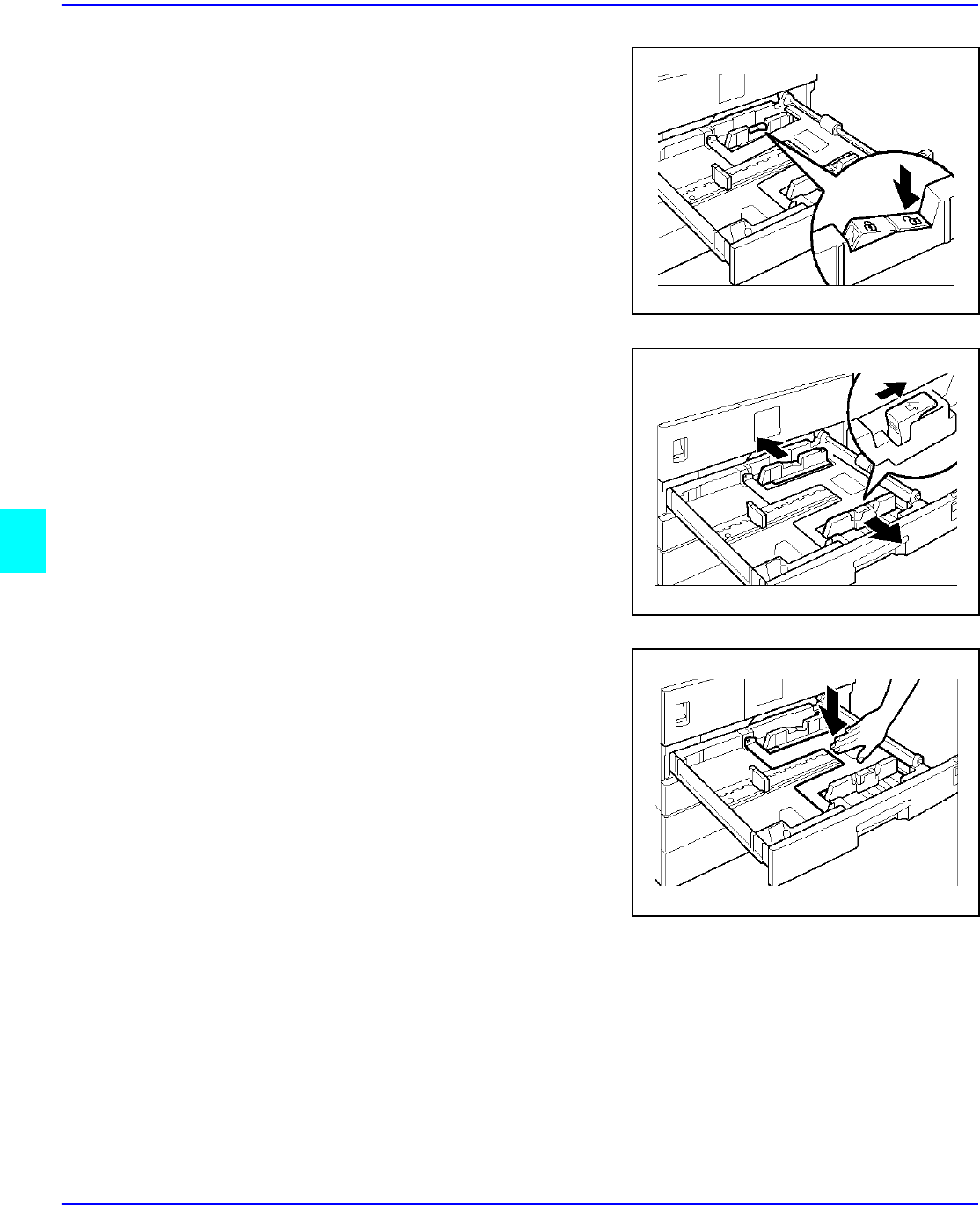

Changing the Paper Size in the Paper Tray or the System Stand ......... 6-3

Setting Non-Standard Size Paper ................................................................ 6-6

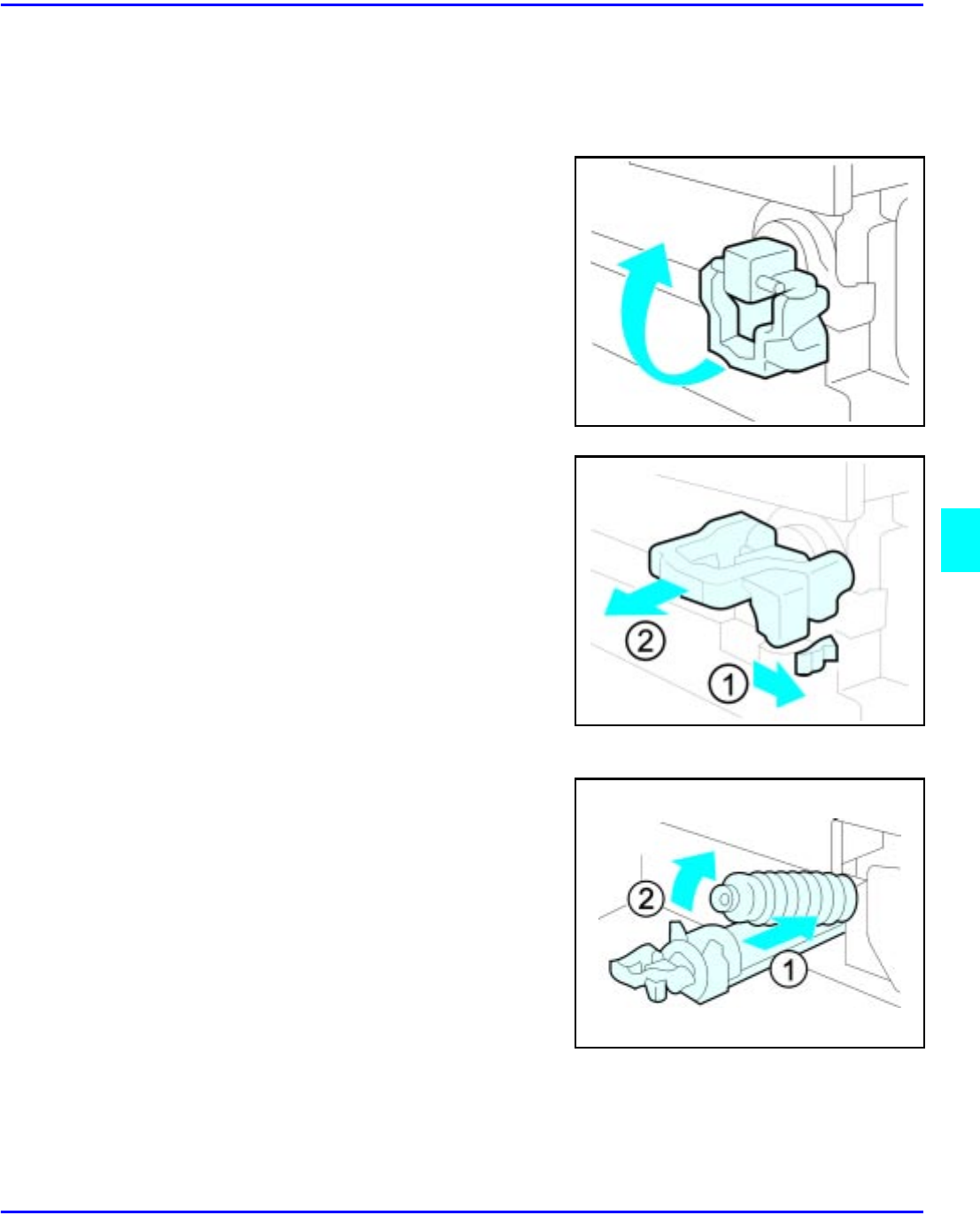

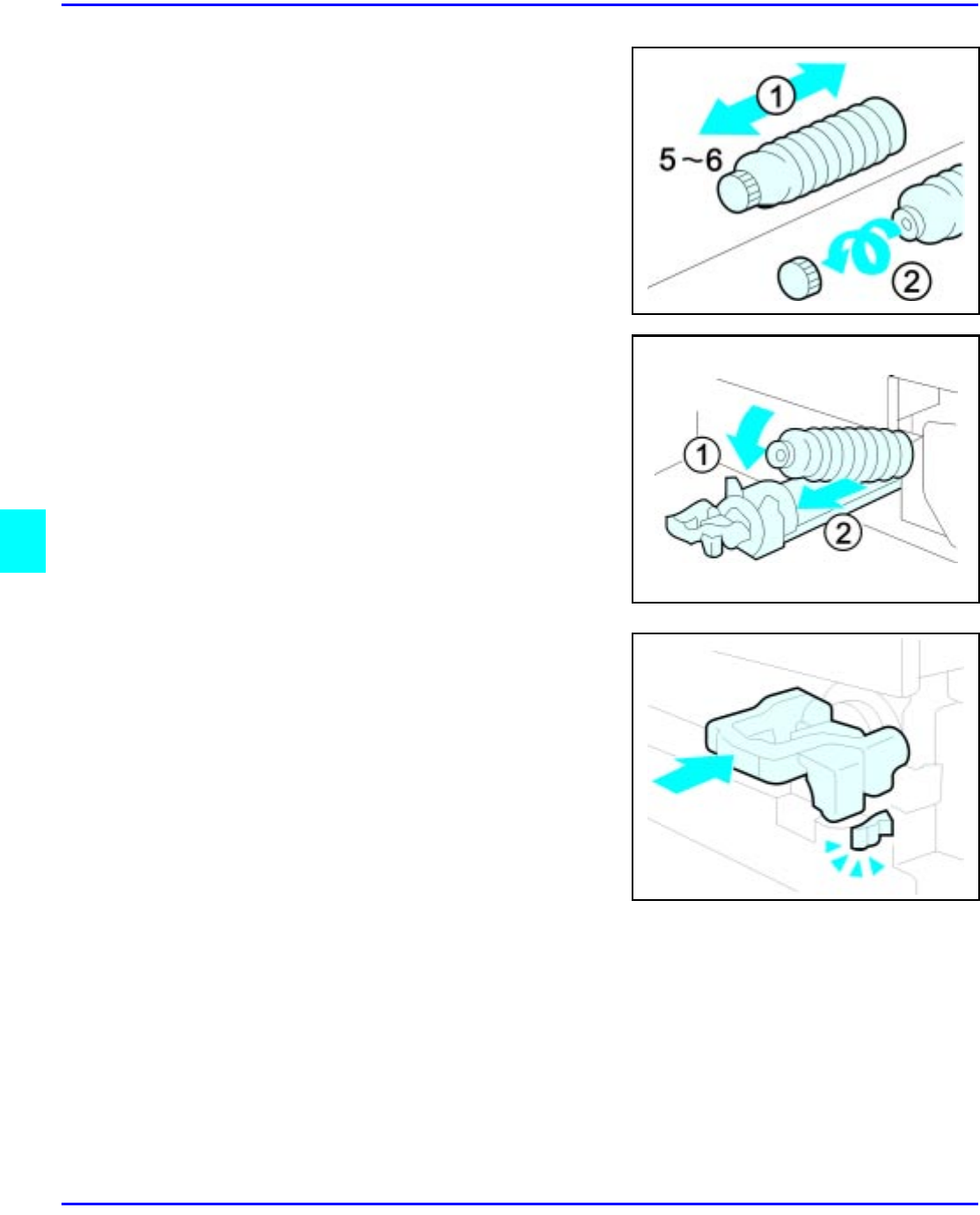

Changing the Toner Cartridge .................................................................... 6-7

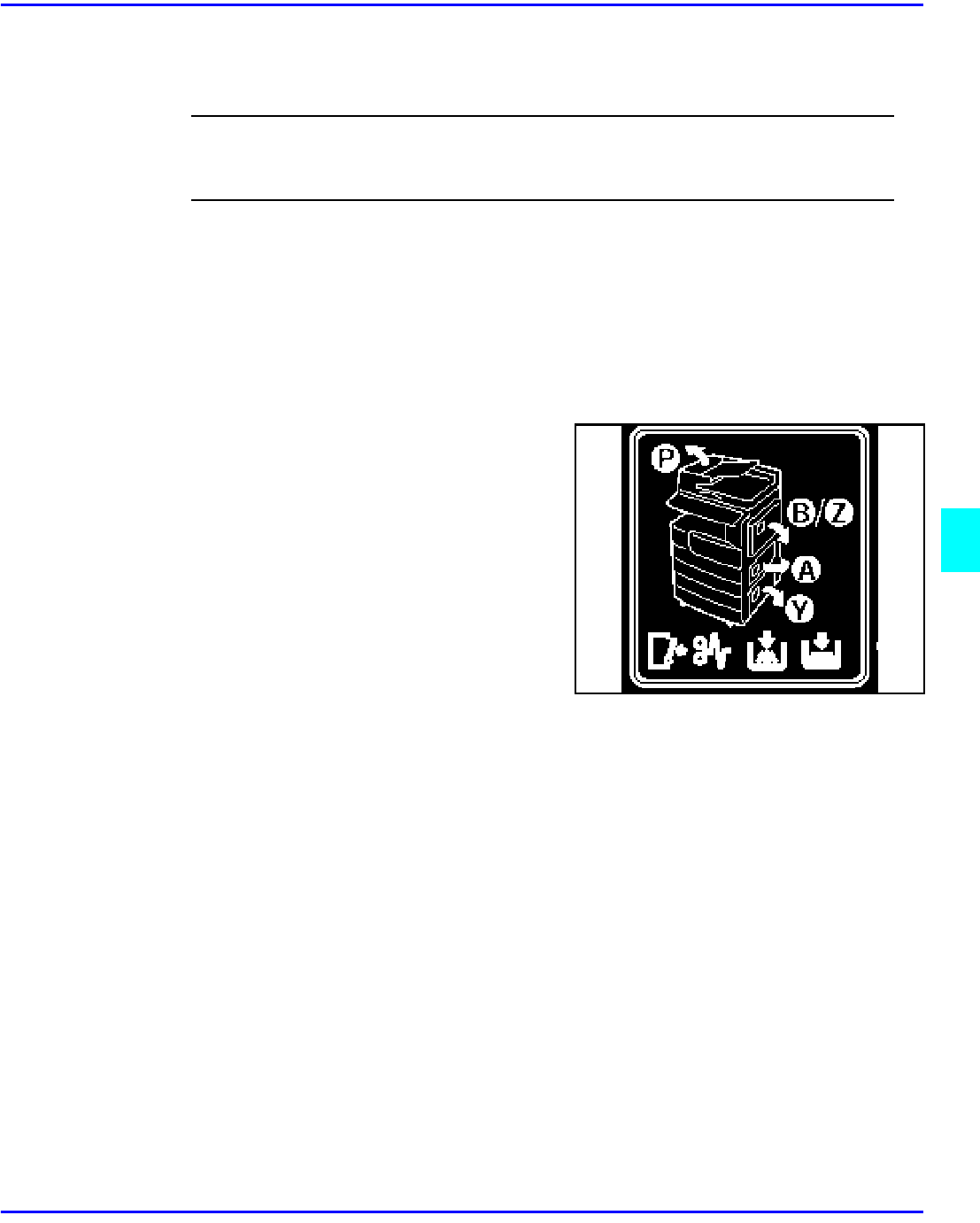

Clearing Paper Misfeeds ............................................................................ 6-9

When the Machine Does Not Operate Properly ............................................6-10

Message ....................................................................................6-10

Display ..................................................................................................6-10

When Copies are Not Clear.......................................................................6-11

Can Not Make Proper Copies ....................................................................6-12

Combine ....................................................................................6-12

Cleaning the Copier .................................................................................6-13

Cleaning the Machine ...................................................................6-13

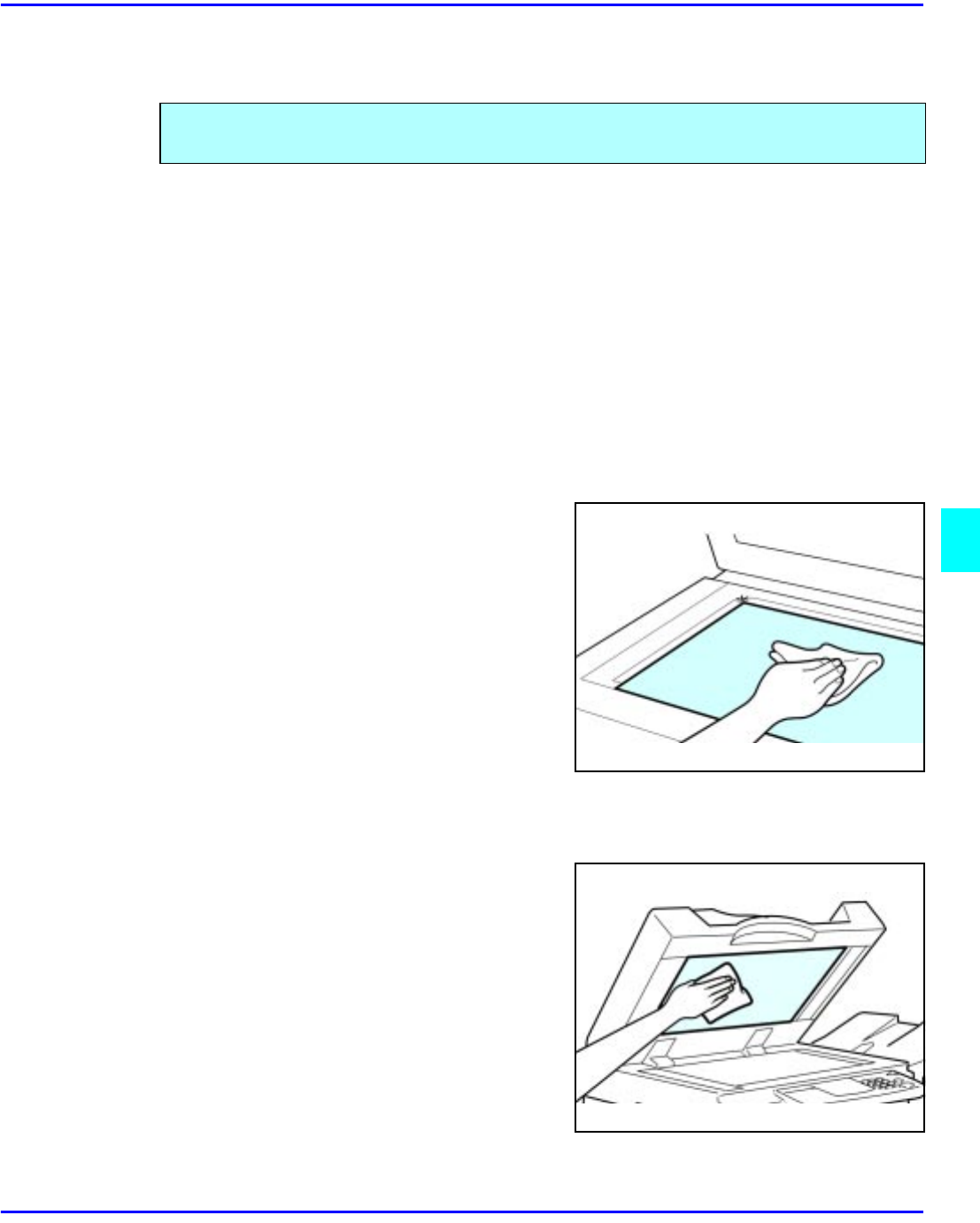

Cleaning the Exposure Glass .........................................................6-13

Cleaning the Document Feeder Belt ...............................................6-13

Specifications

Main Copier Unit ...................................................................................... 7-1

Document Feeder - option ......................................................................... 7-4

1 Tray System Stand - option .................................................................... 7-5

2 Tray System Stand - option .................................................................... 7-6

16MB Copier Memory Unit - option ............................................................ 7-6

Agency Certifications ............................................................................... 7-7

USA RFI ...................................................................................... 7-7

Canada RFI .................................................................................. 7-7

UL.......................................................................................................... 7-8

EPA Energy Star ........................................................................... 7-8

Paper Sizes ............................................................................................. 7-9

Enlargement and Reduction Percentages ....................................................7-10

Glossary

Copier Terms ........................................................................................... G-1

Warranty

New Machine Warranty and Limitation of Liability .......... inside back cover

Important Safeguards

1

Important Safeguards

Always follow these important safeguards:

1Read all of these instructions before using the unit.

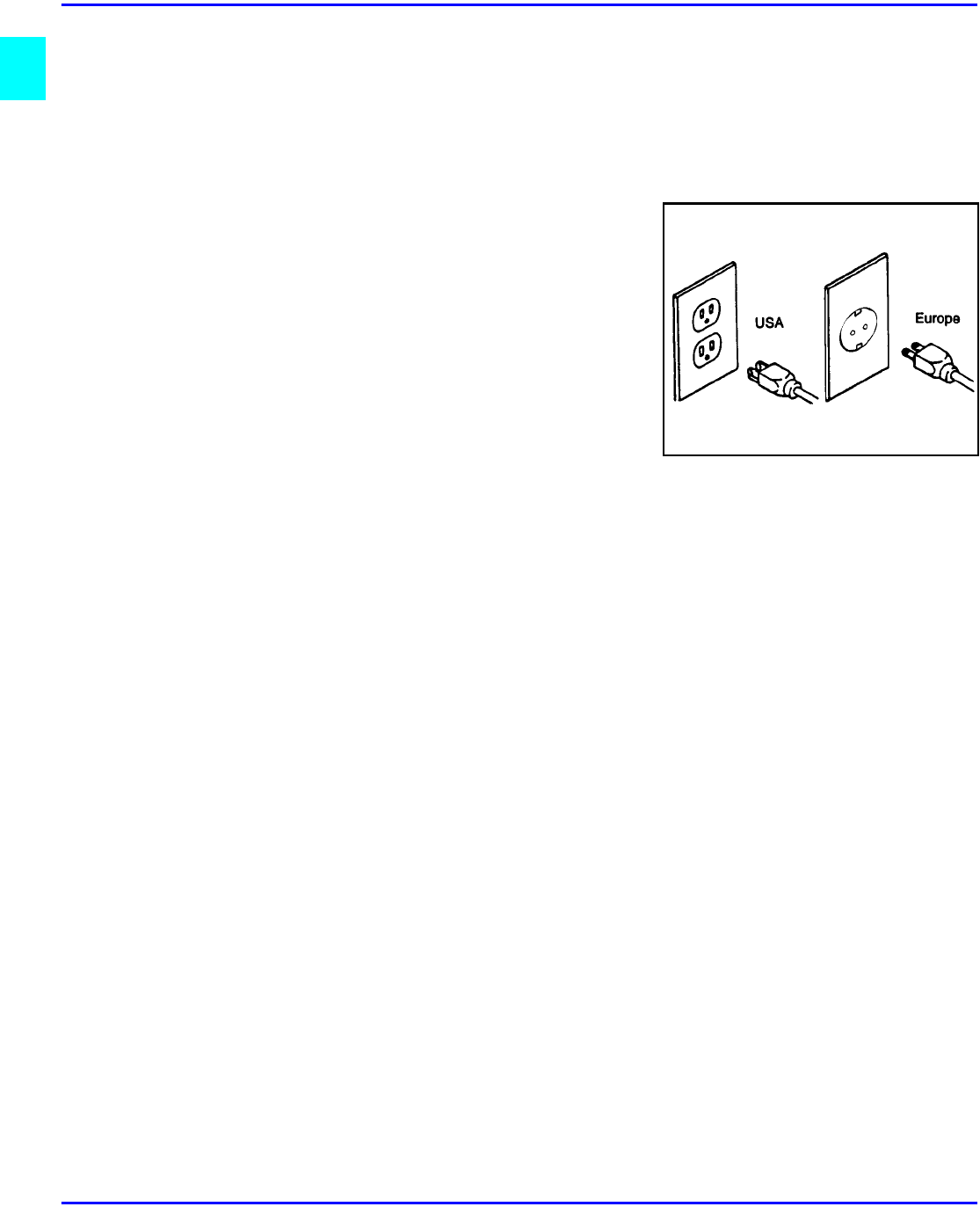

2Plug the power cord into a 3-conductor

(grounded) outlet. Check the Specifications

chapter to make sure the outlet meets the ampere

rating of this unit.

• Never ground the power cord to a gas pipe or

a water pipe.

•Keep the power cord away from hot surfaces.

•Avoid using an extension cord if possible.

•If you must use an extension cord, use only a

3-conductor cord rated for the ampere rating

of your unit. Refer to the Specifications

Chapter for this value. Power cords rated for less can overheat and become a fire hazard.

3Do not operate the unit if any part of it is damaged, or if any part has been dropped, until it

is checked by a authorized Lanier Service Technician.

4The fusing area is hot. Exercise care in this area.

5Do not install the unit in areas that are:

•Damp or humid

•Exposed to direct sunlight

•Extremely dusty

•Poorly ventilated

•Close to machines generating ammonia such as diazo copy machines.

•Subject to extreme temperature or humidity changes, for example, near an air

conditioner or heater

6Place the unit on a firm, level surface.

7For proper ventilation and cooling, keep the unit at least 0.4 inches back from the wall and

allow 0.4 inches of clearance on the left and right sides of the copier. Allow 29.6 inches of

clearance in the front.

8Agency Certifications

Your unit complies with FCC rules, DOC requirements, and other agency certification

requirements. Refer to the Specifications chapter of this Operator Guide for further details.

Chapter 1

Making Copies

Making Copies

Chapter Overview

Included in this chapter are:

• “Applying Power” on page 1-1

• “Selecting the Mode of Operation” on page 1-2

• “Making Copies” on page 1-3

Applying Power

Making Copies 1 - 1

Applying Power

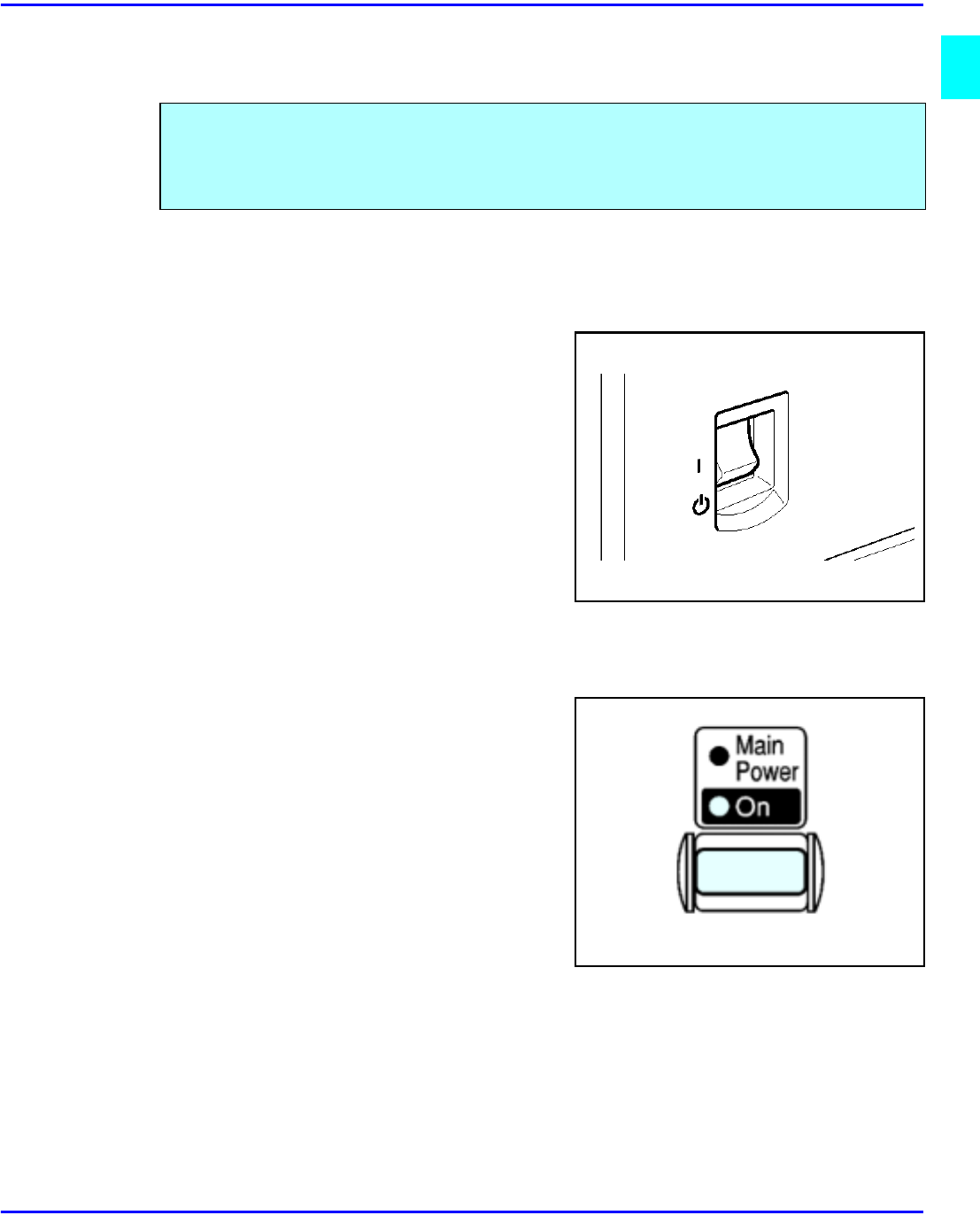

Main Power Switch

Turning On the Main Power

The Main Power switch supplies power to the

copier.

To supply power to the copier, press the Main

Power switch to On.

The Main Power switch is located on the left side of

the machine.

Turning Off the Main Power

Press the Main Power switch to the Off position.

The Main Power indicator turns off.

Operation Key

The Operation key is on the far right side of the

Control Panel.

It turns the copier operation on and off while

maintaining power to the copier.

If the On indicator light is off and the Main Power

indicator light is on, press the Operation key.

•The On indicator light turns on and the

Message Display lights up.

•To turn the copier off, press the

Operation key again. The On indicator

light turns off.

Two switches control the machines power. The Main Power switch controls the power to the

machine. The Operation key turns the machine on and off. It is recommended that the Main

Power switch always be left in the On position. Information in memory may be lost if the switch

is turned off.

Selecting the Mode of Operation

1 - 2 Making Copies

Selecting the Mode of Operation

Press one of the Function keys to select the desired

mode of operation.

Limitations

You cannot switch modes in any of the following cases:

•When scanning in a fax message for transmission.

•During immediate transmission.

•When accessing the user tools.

•During on hook dialing for fax transmission.

•During Energy Saver mode.

•While scanning in a document with the scan feature.

You can use this machine as a:

•Copy machine

•Facsimile machine (option)

•Printer (option)

Making Copies

Making Copies 1 - 3

Making Copies

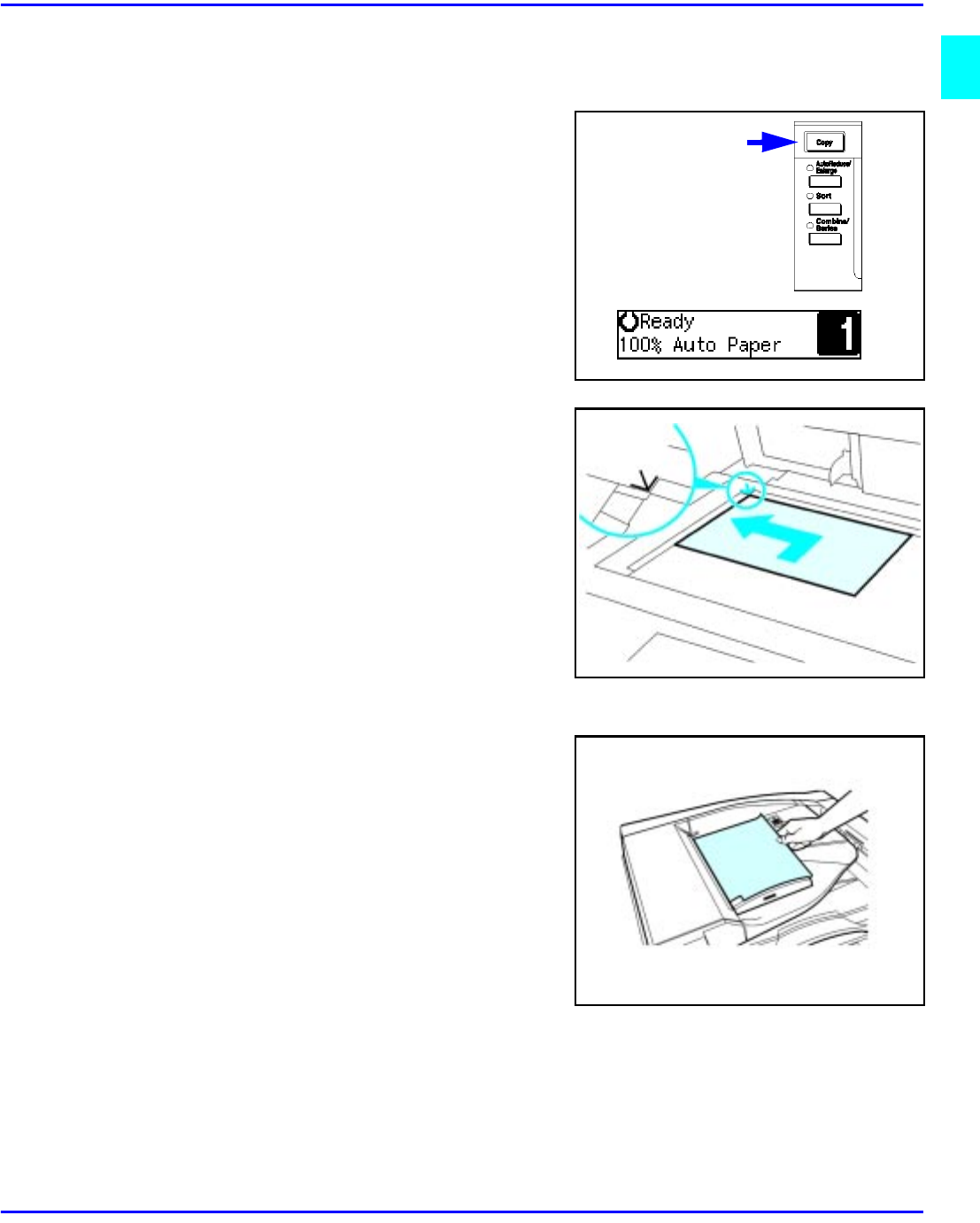

1Check the Function key to be sure the

machine is in the copy mode. If not, press the

Copy key.

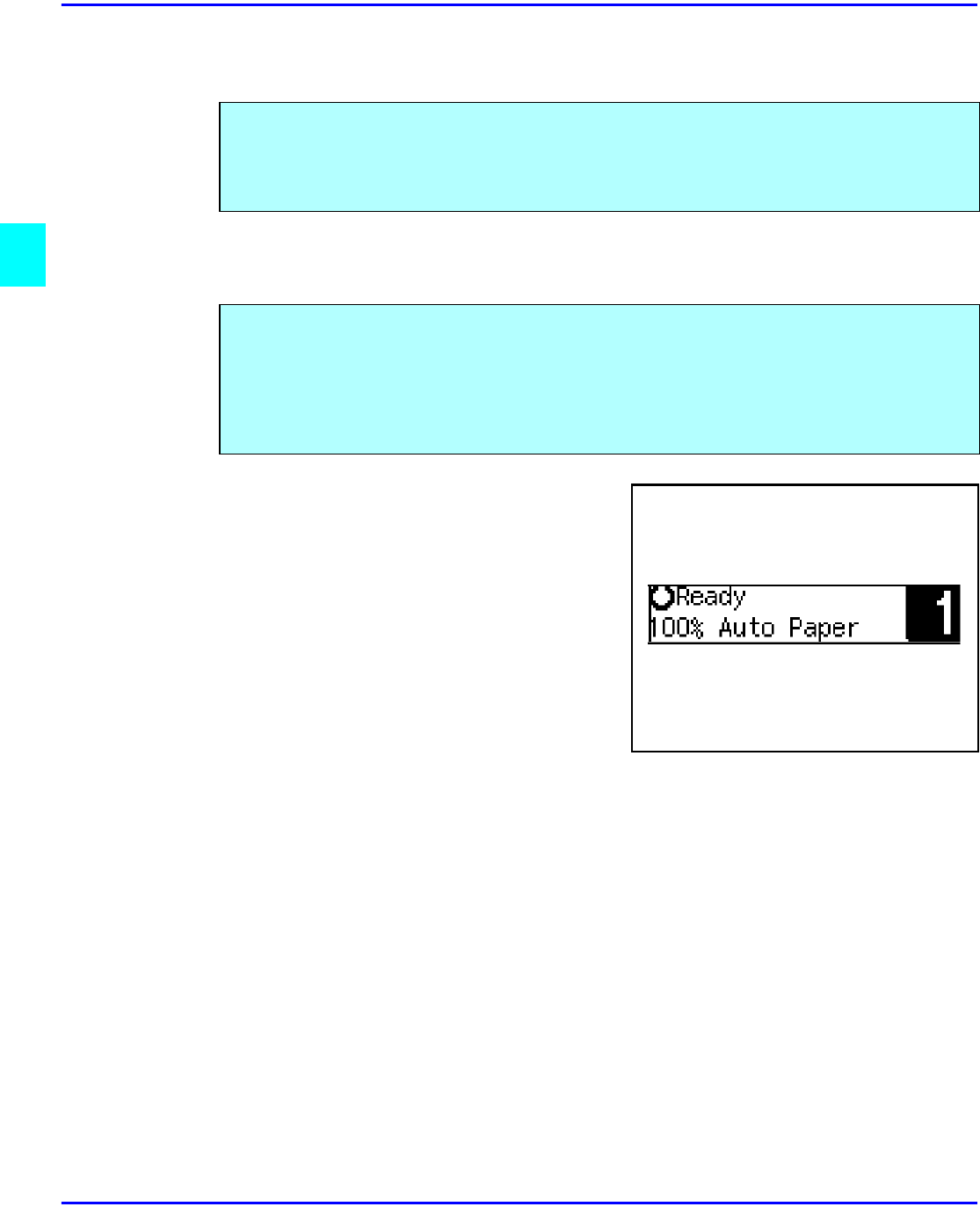

2If the User Code feature is activated, the

message “Input user code, then press #” is

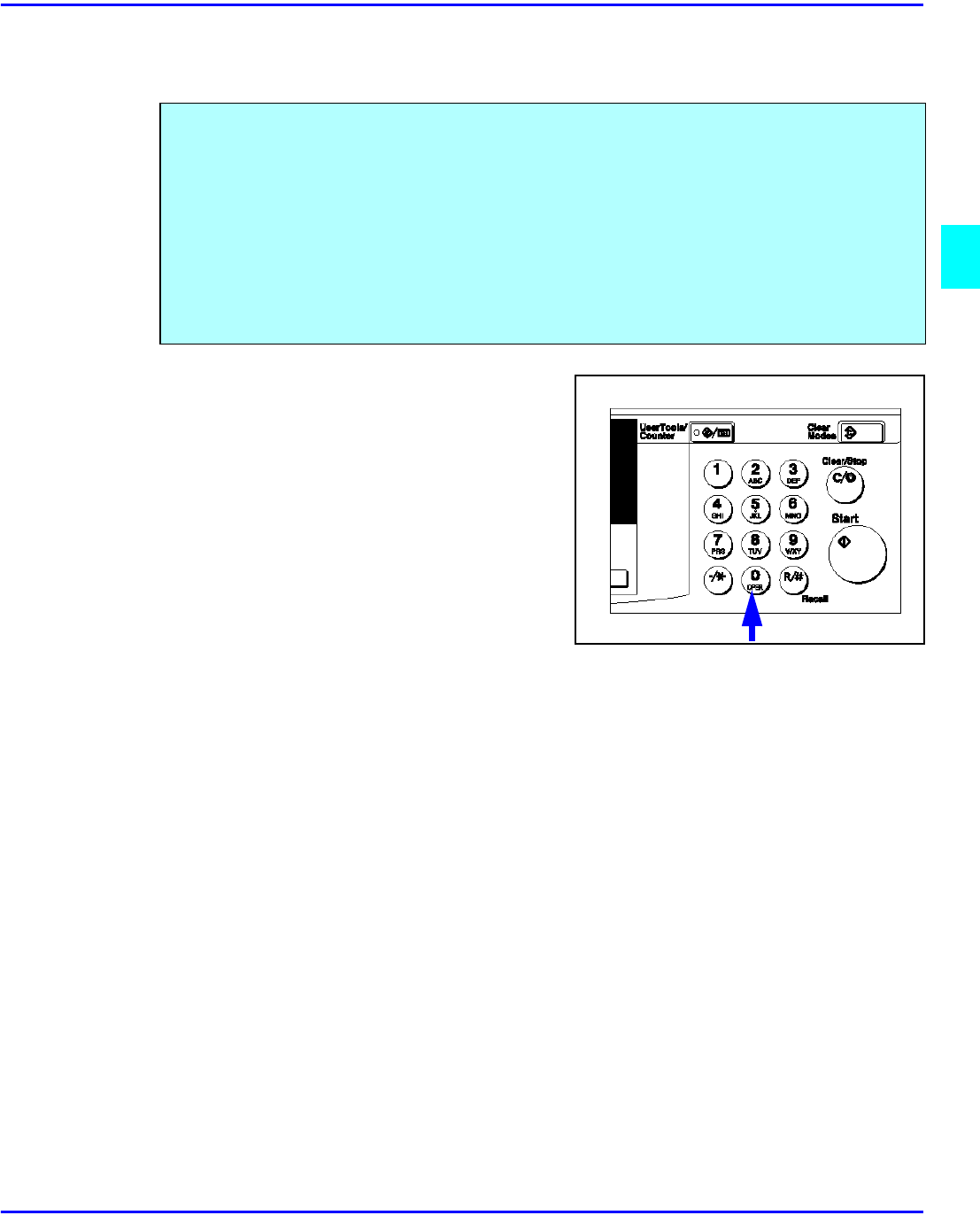

displayed. Enter your User Code using the

keypad.

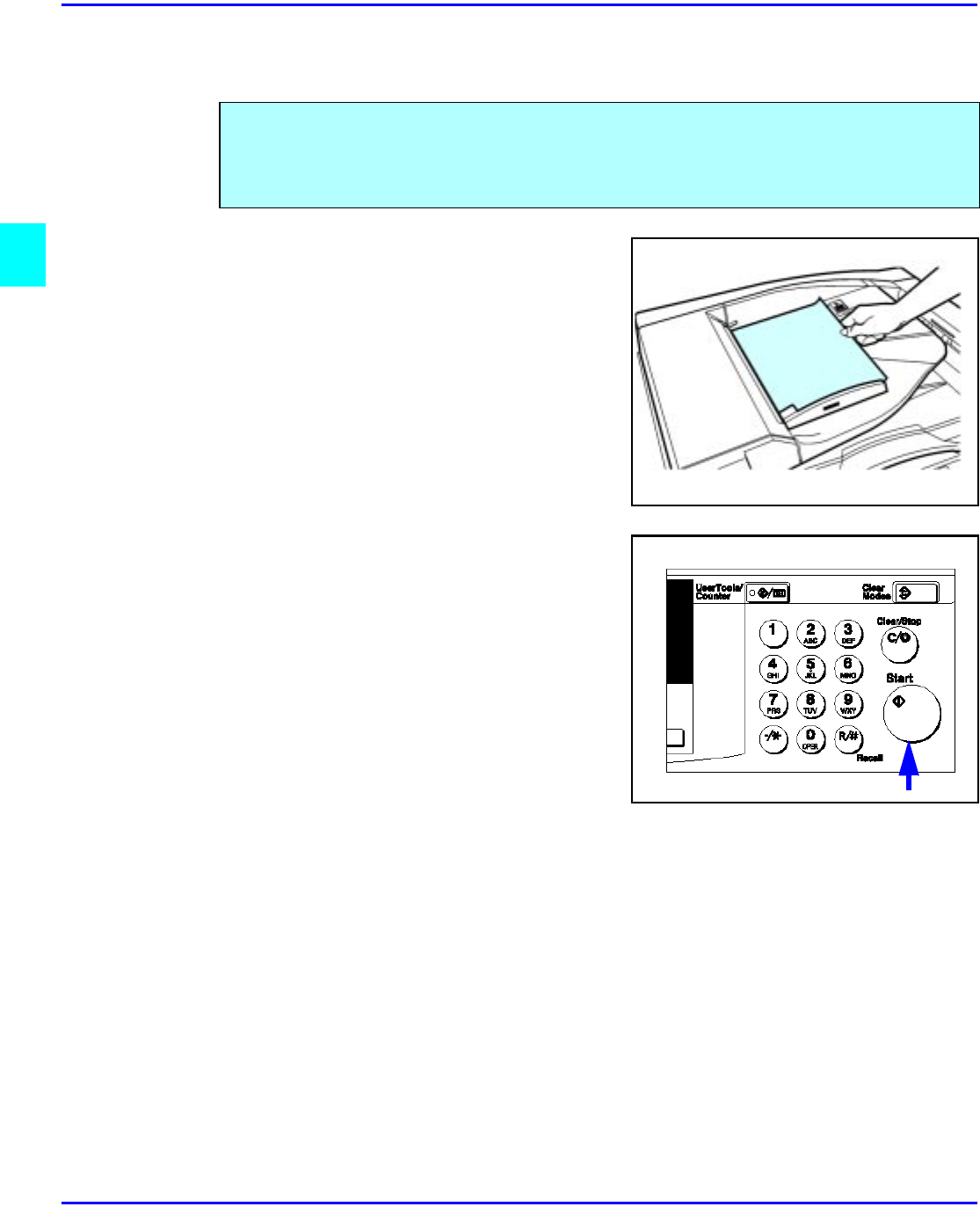

3Place original documents

•Face-down on the Exposure Glass. Align

originals to the indicator mark that

represent the size of originals you are

going to copy.

•Face-up on the Automatic Document

Feeder.

4Select copy options from the Copy Options Table on the next page.

Making Copies

1 - 4 Making Copies

Note: If you only want one copy with no options, proceed to Step 5.

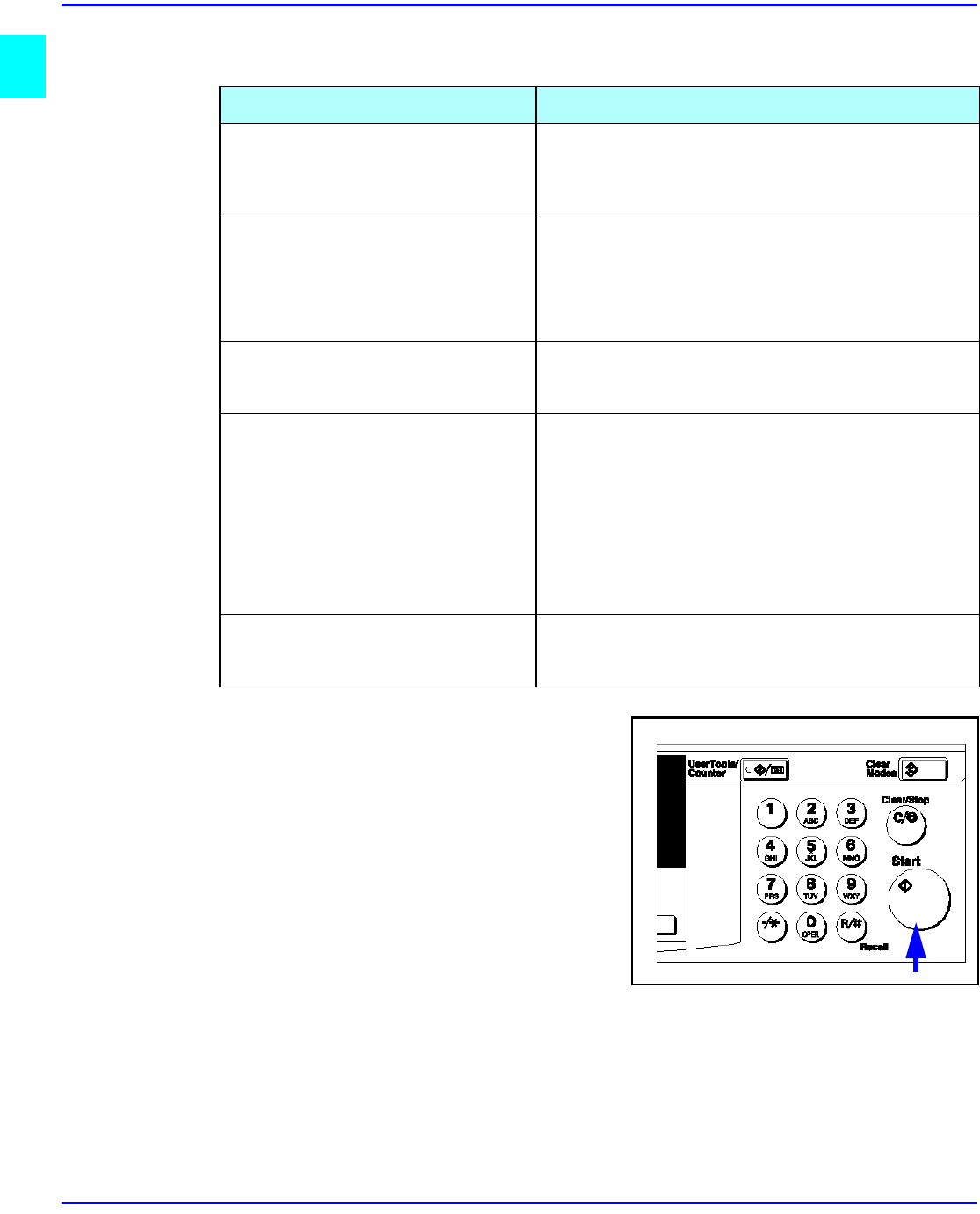

5Press the Start key to begin copying.

Copy Options You Can Select Methods To Use For Copy Options

Copy Quantity Using the keypad, enter the number of copies you

desire. The default quantity is 1 and the maximum

is 99. See “Selecting Copy Quantities” on page 3-

5.

Copy Darkness/Lightness Automatic: Auto Image Density is automatically

set. See “Selecting Copy Darkness Modes” on page

3-6.

Manual: Press either Lighter or Darker keys to

change contrast of copies. See “Selecting Copy

Darkness Modes” on page 3-6.

Original Mode Using the Original key, select either text mode or

photo mode. See “Selecting Original Modes” on

page 3-7.

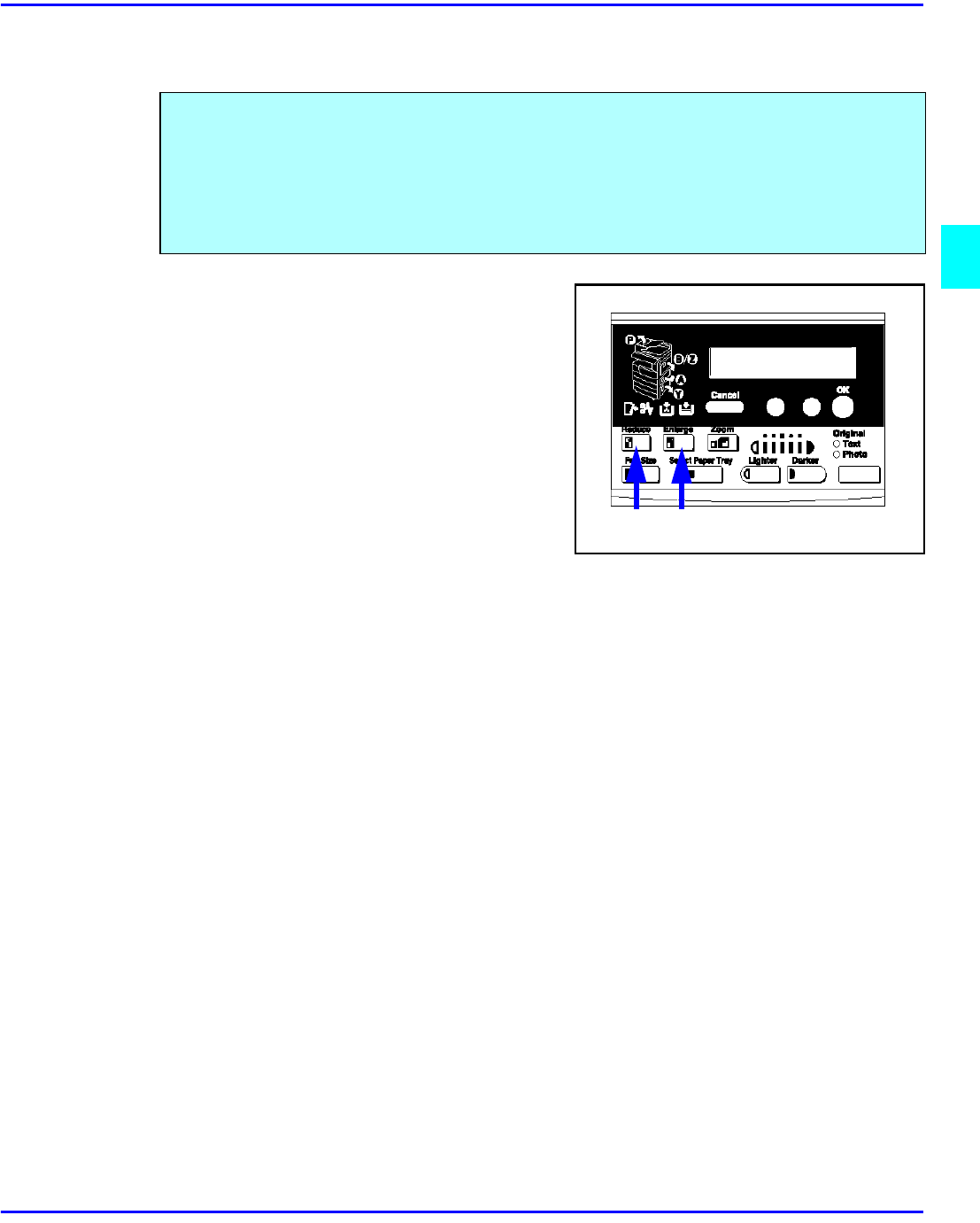

Copy Reduction or Enlargement Press the Enlarge or Reduce keys to gain access to

Preset Ratios and Zoom keys.

Preset Ratios: Press the Enlarge or Reduce key,

then the Cursor keys until the desired preset ratio is

set. See “Using Preset Copy Ratio Keys” on page

3-11.

Zoom Keys: Press the cursor keys to enlarge your

original up to 200%, or reduce your original down

to 50% of the original size. See “Zoom Keys” on

page 3-12.

Copying Methods Refer to the Table of Contents or Chapter 4,

Copying Methods, for detailed information on the

many copying methods available.

Chapter 2

Component Identification

Component Identification

Chapter Overview

Included in this chapter are:

• “Control Panel” on page 2-1

• “Component Locations - Front” on page 2-3

• “Component Locations - Rear” on page 2-4

• “Status Display Indicators” on page 2-5

• “Graphics Display” on page 2-6

Component Identification 2 - 1

Control Panel

Control Panel With Fax and Printer Options Installed

1Indicators for fax mode (for machines with the optional

fax function)

See the “Facsimile Reference”.

2Facsimile Mode key

Press to use facsimile functions.

3Printer Mode key

Press to use printer functions.

4Copy Mode key

Press to use copy functions.

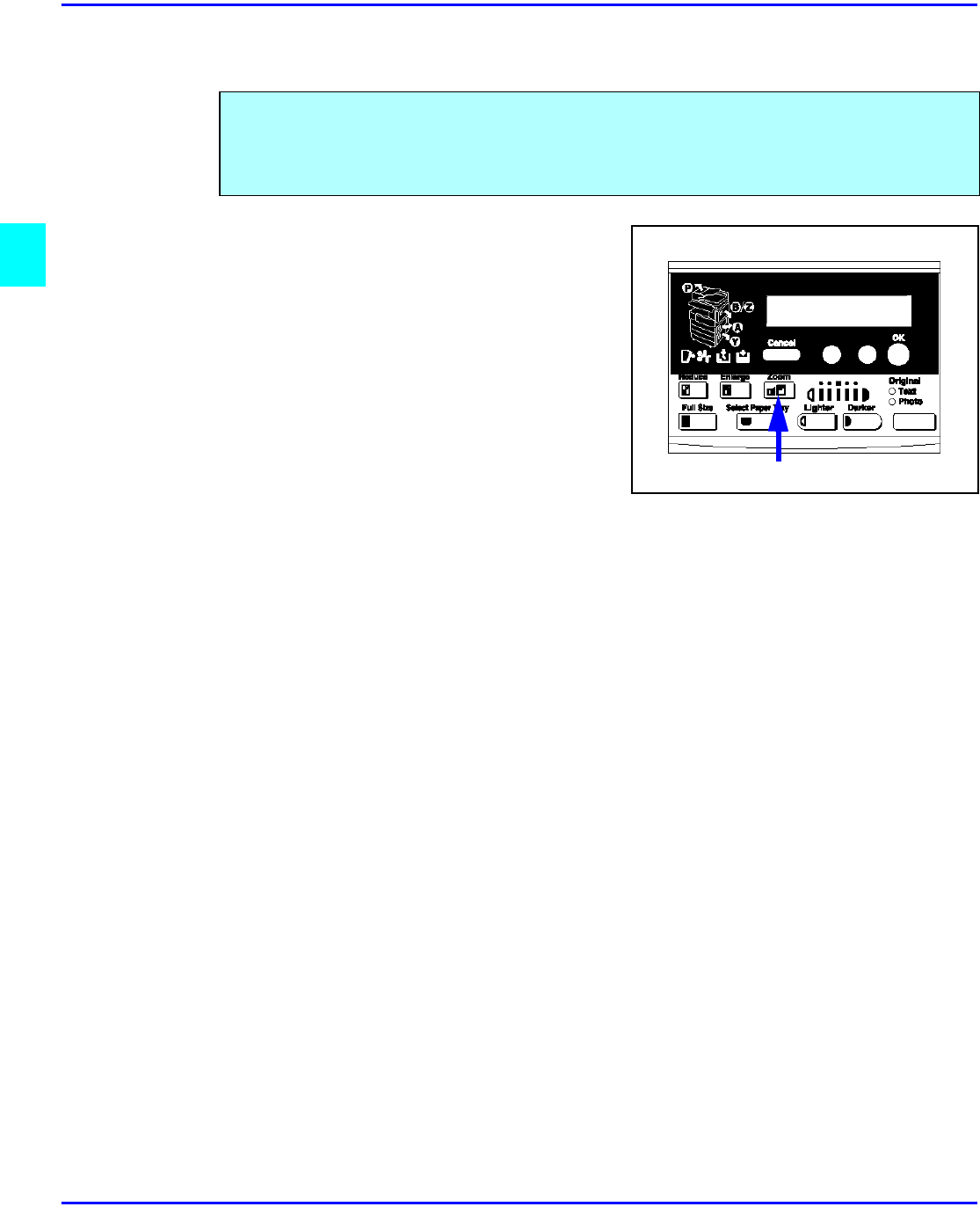

5Auto R/E key

Enlarges or reduces the image automatically according to the

specified paper size.

6Sort key

Automatically sorts copies.

7Indicators

These indicators show errors or the status of the machine.

8Enlarge key

Press to make enlarged copies.

9Cancel key

Press to cancel an operation or return to the previous display.

10 Panel display

Shows operation status, error messages, and function menu.

11 Cursor keys

Press to select an item on the panel display.

12 OK key

13 User Tools/Counter key

Press to change the default settings and conditions to meet

your requirements.

14 Clear/ Stop key

While entering numbers, press to cancel a number you have

entered. While copying, press to stop copying.

15 Clear Modes key

Press to clear the previously entered copy job settings.

16 On Indicator (Fax or printer installed machine only.)

This indicator lights up when the operation switch is turned

on, and goes off when the operation switch is turned off.

2 - 2 Component Identification

Control Panel - continued

17 Fax function keys (Fax installed machine only)

Press to change modes. To use copy functions, press the

Copy key.

18 Printer function keys (Printer installed machine only)

Press to change modes. To use copy functions, press the

Copy key.

19 Not used

20 Combine/ Series key

Combine Press to make combine copies.

Series: Press to make series copies.

21 Reduce

Press to make reduced copies.

22 Full Size key

For making full size copies.

23 Selected Paper Tray

Press to select the paper tray.

24 Zoom key

Changes the reproduction ratio in 1% steps.

25 Lighter key and Darker keys

Adjusts the copy image density.

26 Original Type key

Press to select the type of your originals.

27 Dial Function keys (for machines with the optional fax

function)

See the “Facsimile Reference”.

28 Number keys (Keypad)

Use to enter the desired number of copies and data for

selected modes.

29 Start key

Press to start copying. Also use to initiate Auto Start.

30 Operation switch

Press this switch to turn the power on (the On indicator

lights up). To turn the power off, press this switch again (the

On indicator goes off).

Component Identification 2 - 3

Component Locations - Front

1Platen cover or document feeder (option)

Lower the platen cover over originals placed on the exposure

glass for copying. If you have the document feeder, insert a

stack of originals here. They will be fed automatically. When

the document feeder (RADF) is installed, you can copy two-

sided originals.

The illustration shows the document feeder.

2Exposure Glass

Position originals here face down for copying.

3Internal Tray

Copied paper is delivered here face down.

4Ventilation Duct

Prevents overheating. Do not obstruct the ventilation hole by

placing or leaning an object near it. If the machine over-

heats, a fault might occur.

5Main Power Switch

If the machine does not operate after turning on the

operation switch, check if the main power switch is turned

on. If it is off, turn it on.

6Behind Cover

Flip up to you use the keys underneath.

7Main Power Indicator

This indicator lights up when the main power switch is

turned on, and goes off when the switch is turned off.

8On Indicator

This indicator lights up when the operation switch is turned

on, and goes off when the switch is turned off.

9Operation switch (Fax or printer installed machine only)

Press this switch to turn the power on (the On indicator

lights up). To turn the power off, press this switch again (the

On indicator goes off).

10 Operation Panel

Control all machine operations from the control Panel.

11 Front Cover

Open to access the inside of the machine.

12 Paper Tray

Set paper here.

13 System Stand (option)

There are two types of System Stands

• 1 Tray System Stand

• 2 Tray System Stand and hold 500 sheets of paper for each tray.

2 - 4 Component Identification

Component Locations - Rear

5515 5518

1Bypass tray

Use to copy onto OHP transparencies, adhesive labels,

translucent paper, post cards, and non-standard size paper.

2Paper Tray Cover

Open this cover to remove jammed paper fed from the

optional paper tray unit.

3Lower Right Cover (5518)

Open this cover to remove jammed paper from the optional

System Stand.

4Lower Right Cover

Open this cover to remove jammed paper from the optional

System Stand.

Component Identification 2 - 5

Status Display Indicators

1 2 3 4

5

1Door Open

When this symbol is on, the front door is open.

2Paper Misfeed

When this symbol is on, there has been a paper misfeed of an

original or a copy somewhere in the machine. See item 5.

3Add Toner

When this symbol is on, your copier is low on toner.

4Paper Tray Empty

When this symbol is on, the selected paper tray is empty.

5Paper Misfeed Locations

Paper misfeed areas are indicated by the letters

• P: RADF area

• B/Z: Bypass Tray area

• A: Paper Tray Access Door area

• Y: System Stand Paper Tray Access Door area

2 - 6 Component Identification

Graphics Display

1Upper line:

The machine status or currently selected functions appear

here.

2Bottom line

Items which can be selected or specified, or messages appear

here. Currently selected items are displayed with brackets.

3Number of copies

Copy quantity is displayed here.

Chapter 3

Copier Functions

Copier Functions

Chapter Overview

Included in this chapter are:

• “Entering User Codes” on page 3-1

• “Document Feeder” on page 3-2

• “Using Auto Start” on page 3-4

• “Selecting Copy Quantities” on page 3-5

• “Selecting Copy Darkness Modes” on page 3-6

• “Selecting Original Modes” on page 3-7

• “Selecting Copy Paper” on page 3-8

• “Enlargement and Reduction Ratios” on page 3-10

• “Energy Saving Modes” on page 3-14

Entering User Codes

Copier Functions 3 - 1

Entering User Codes

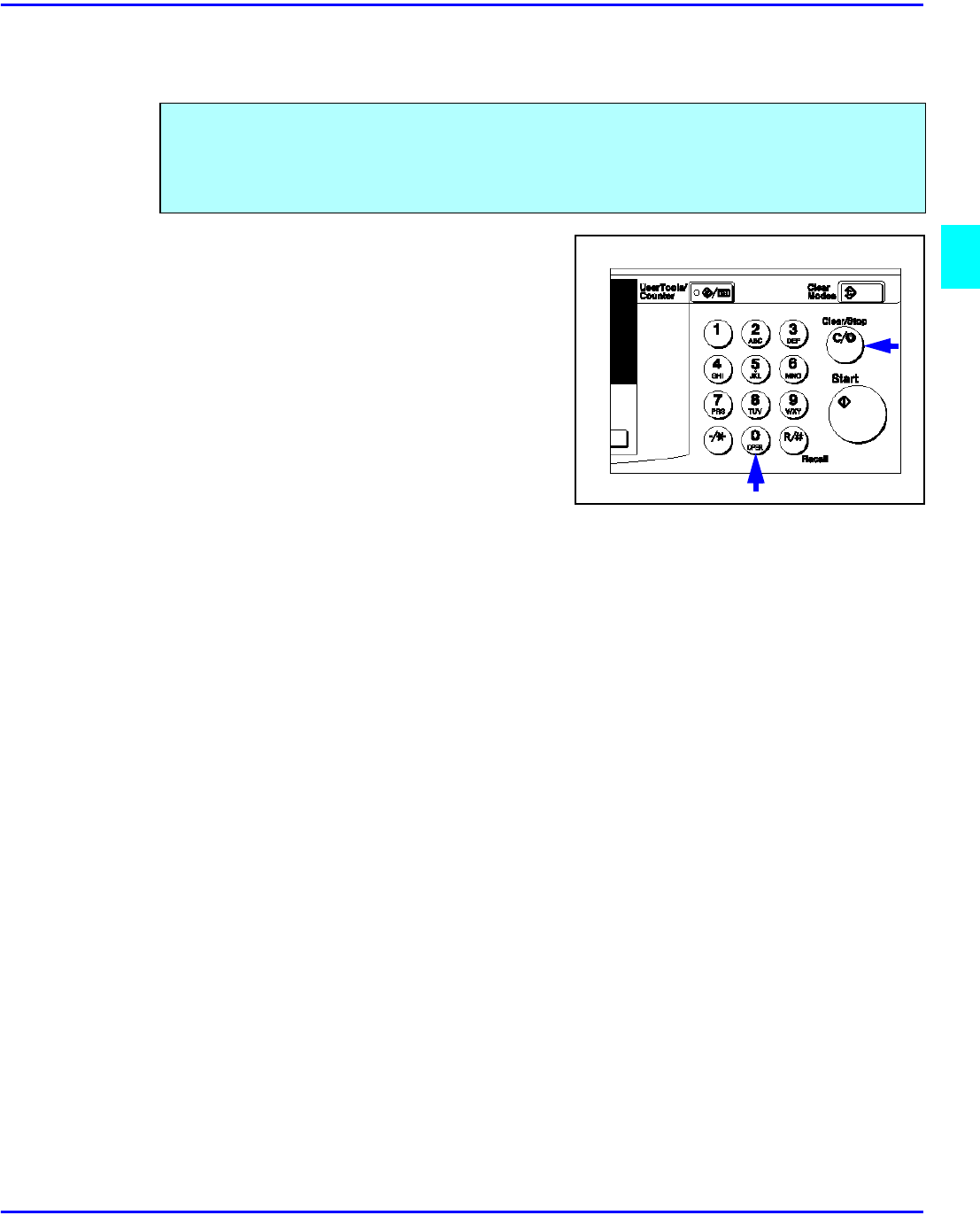

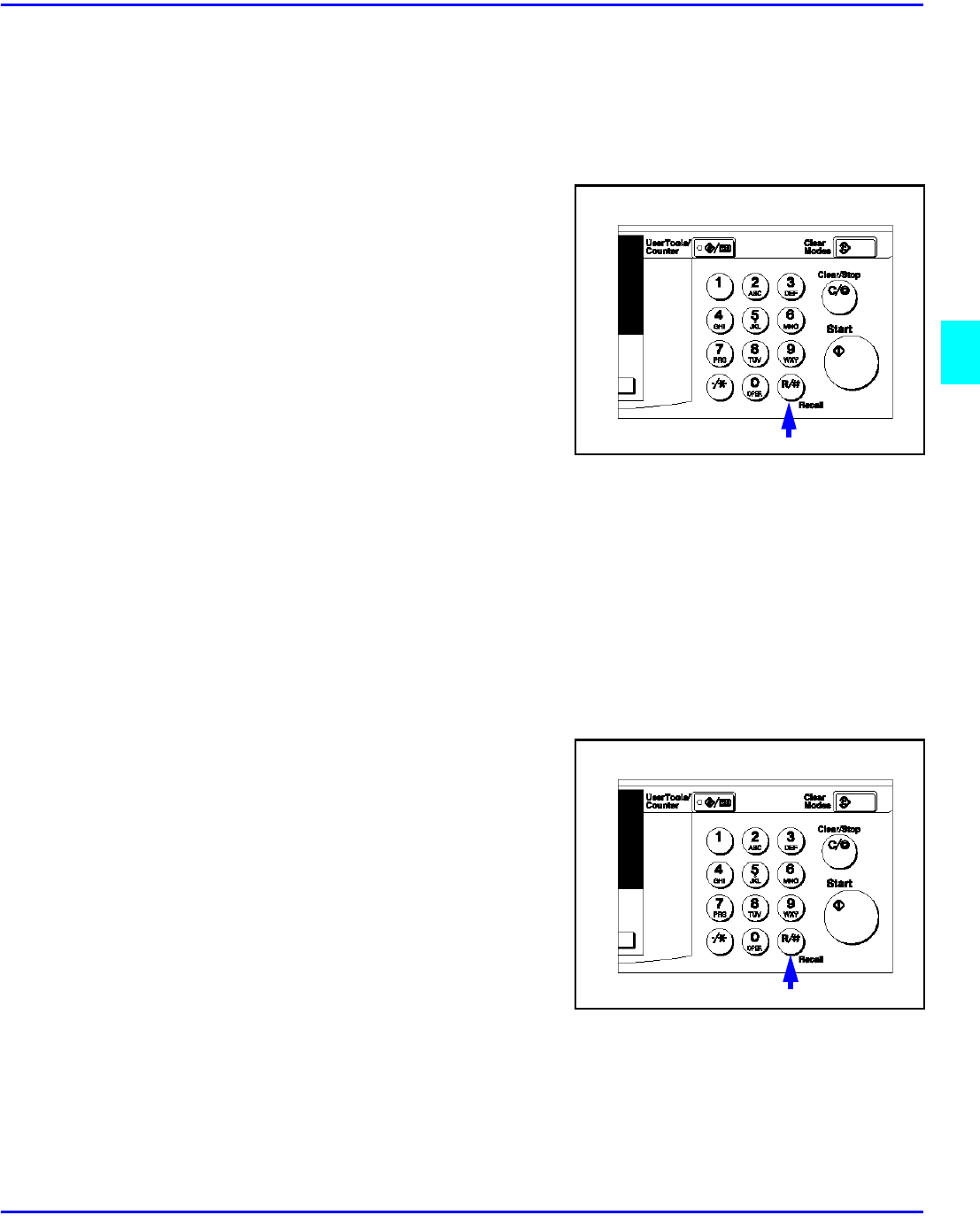

1Enter an assigned User Code using the key

pad.

•If you enter an invalid User Code, the

Message Display continues to show eight

dashes.

•If you do not know which User Code to

use, ask your Key Operator.

2Make the copy requirement selections.

3Press the Start key to begin copying.

4When copying is complete, clear your User Code by pressing the Clear Modes and Clear/

Stop keys at the same time.

This prevents unauthorized use of your User Code.

This feature prevents unauthorized use of the copier by limiting copier access to those persons

who know an assigned User Code. The User Code feature monitors copier usage by department,

project, or persons, and tracks the number of copies made with each User Code.

The Key Operator can activate the User Code feature. When this feature is active, the Key

Operator can program User Codes into the copier’s memory. Each code can be from one to

eight digits in length. When this feature is turned ON, the user must enter an assigned User

Code, and press the (# Enter) key before the copier can be used.

The following instructions apply only when the User Code feature is turned ON.

Document Feeder

3 - 2 Copier Functions

Document Feeder

Precautions when using Document Feeders

1. Avoid using:

•Badly wrinkled or folded originals.

•Clipped or stapled originals.

•Carbon paper.

•Torn originals.

•Taped originals.

•Damp originals.

1. Folded or curled originals should be smoothed out before inserting into

the Document Feeder.

2. Feeding a stack of different width originals through the Document

Feeder is not recommended.

•Feed them through one at a time.

•You can, however, feed a stack of different length originals through the

Document Feeder.

3. If the surface of any two originals are so rough that they cannot be

moved when pinched between two fingertips, the friction between the

originals may obstruct paper separation even when the paper weight is

within specifications.

2. Avoid covering the two sensors on the doc-

ument feeder tray. These sensors detect the

original size and could cause the orignal

size to not be properly detected.

The Reversing Automatic Document Feeder (RADF), feeds originals to the Exposure Glass for

copying and if Duplex Copying is selected, it turns the original over for copying the other side

of the original. Then, it exits the original onto the Document Tray.

•You can place up to 50 originals in the Document Feeder for automatic feeding of

originals to the Exposure Glass for copying.

•You may also select SADF which allows you to feed one original at a time into the

Document Feeder without having to press the Start key each time.

Document Feeder

Copier Functions 3 - 3

RADF - Feeding Stack of Originals

1When using the RADF, place your originals

face up in the Document Feeder.

2Adjust the Paper Side Guides to fit the edge

of your originals.

3Set any additional copier features desired.

4Press the Start key.

RADF allows you to stack feed up to 50 originals into the Document Feeder by pressing the

Start key one time. If you are feeding single sheets into the Document Feeder, switch the copy

mode to SADF and you will not have to press the Start key for each original. See SADF-

Feeding One Original at a Time, below.

Using Auto Start

3 - 4 Copier Functions

Using Auto Start

1Place the original document in the Document

Feeder or on the Exposure Glass.

2Make your copy requirement selections.

3Press the Start key. The indicator light in the

Start key turns red.

4The copier automatically begins copying

when the copier comes to its Ready

condition.

When the copier comes to its Ready

condition, the indicator light in the Start key

turns green.

Note: To cancel Auto Start, press the

Clear/Stop key.

When the copier is first turned ON, it takes only 25 seconds for it to warm-up and come to its

Ready condition. During this time, you can set up your copy job, press the Start key and walk

away. You can even do this while your copier is in the Energy Saver mode. When the copier

comes to its Ready condition, it automatically copies your job.

Selecting Copy Quantities

Copier Functions 3 - 5

Selecting Copy Quantities

If more than one copy of your original is required,

enter the number of copies you desire using the key

pad.

•Press the Clear/Stop key to clear an entry

if you entered an incorrect quantity.

•If no quantity is entered, one copy is

automatically selected by your copier.

The copier automatically selects a copy quantity of one copy.

•If desired more than one copy, enter the number from the 10-key pad.

•The maximum copy quantity that you can enter is 99.

Selecting Copy Darkness Modes

3 - 6 Copier Functions

Selecting Copy Darkness Modes

Using Auto Image Density Mode

Auto Image Density is automatically selected by default.

Copy darkness adjustment is not required for most originals in the Auto Image Density mode.

Using Manual Exposure Mode

Touch the Lighter or Darker key to select the

lightness or darkness of the copy.

There are five settings to choose from.

Select the copy darkness modes using:

•Auto Image Density

•Manual

Select the Copy Darkness setting before making your copy. If you do not, the copier uses Auto

Image Density mode, as the default setting.

Auto Image Density, automatically adjust the copier for the best quality copy.

•For example, the dark background on newspapers or recycled paper is not copied

when using Auto Image Density.

Manual Exposure mode allows you to manually adjust the image density darker or lighter.

Selecting Original Modes

Copier Functions 3 - 7

Selecting Original Modes

1Press the Original key to step through the

settings.

2Select your desired setting.

Text


Identify the type of original you are copying by selecting:

•Text

•Photo

Text is automatically selected as the default setting.

Select text when your original contains only text and no pictures.

Select Photo when copying photographs and colored originals. The copier automatically adjust

to provide the best copies.

When you are using Photo, you can also use the Manual adjustments to fine tune the darkness or

lightness of the copy.

Selecting Copy Paper

3 - 8 Copier Functions

Selecting Copy Paper

Using Auto Paper Select

1Make sure the display shows that Auto Paper

is selected.

2Set up your copy requirements.

3Press Start to copy.

Your copier provides two ways to select copy paper:

•Auto Paper Select

•Manual Paper Select

The copier automatically selects a suitable size copy paper based on the original size and

reproduction ratio.

When the original is set at a different direction from the copy paper in the paper tray, the ma-

chine automatically rotates the original image by 90 degrees so it matches the copy paper

direction. This applies to the letter and statement size paper.

Selecting Copy Paper

Copier Functions 3 - 9

Using Manual Paper Select

1Select the paper tray or Bypass Tray by

pressing the Select Paper Tray key.

The display shows the paper size in the tray

and the tray selected.

2Proceed with your copy set up selections.

3Press the Start key to begin copying.

You can manually select a paper tray.

Enlargement and Reduction Ratios

3 - 10 Copier Functions

Enlargement and Reduction Ratios

Using Auto Reduce/Enlarge

1Press the Auto R/E key.

2Select the paper tray by pressing the Select

Paper Tray key.

3Press the Start key.

Your copier allows you to enlarge or reduce your copies using:

•Auto Reduce/Enlarge

•Preset Copy Ratios

•Zoom Key: with 1% increments

The copier automatically chooses the appropriate reproduction ratio based on the paper and

original sizes you select.

Enlargement and Reduction Ratios

Copier Functions 3 - 11

Using Preset Copy Ratio Keys

1Press the Reduce or Enlarge key.

2Press the Cursor keys until the desired

reduce/enlarge size is displayed.

3Press the OK key.

4Set your originals and make your copy set up options.

5Press the Start key to begin copying.

The preset Copy Ratio keys allows you to select from thirteen preset reduction and enlargement

ratios.

•There are three preset Enlarge ratios to choose from: 121%, 129%, and 155%

•There are four preset Reduce ratios to choose from: 93%, 78%, 65%, and 50%.

•Full size preset ratio at 100%.

Enlargement and Reduction Ratios

3 - 12 Copier Functions

Zoom Keys

1Press the Zoom key.

2Enter the ratio using the cursor keys or

keypad.

•Cursor Keys: Press the cursor key until

the desired ratio is displayed.

•Holding down the cursor key allows

scrolling.

•Keypad: Enter the desired ratio using the

keypad. To change the value enter, press

the Clear/Stop key.

3After you selected your desired Copy Ratio, press the OK key.

4Set your originals in place and press the Start key.

The Zoom key allows you to select a precise copy ratio selection from 50% to 200% in one

percent increments.

You can use the cursor keys, or the keypad to change the copy ratio.

Sort

Copier Functions 3 - 13

Sort

1Press the Sort key.

2Enter the number of copy sets using the Key

pad.

The maximum number of sets is 99.

3Set your originals.

When setting a stack of originals in the document feeder

1. Set a stack of originals in the document feeder,

2. Press the Start key.

•After all the originals are scanned, the copies are delivered to the tray.

•If an original is misfed, reset your originals in the document feeder according to the

instruction on the display. The display will indicate the number of originals you should

return.

When setting an original on the exposure glass or in the document feeder

1. Set the original, then press the Start key.

2. Set the next original, then press the Start key.

Set the original in the same direction as the first one.

3. After all originals are scanned, press the # key.

The copies are delivered to the tray.

The machine can scan your originals into memory and automatically sort the copies in two

methods.

•Sort: Copies are be assembled as sets in sequential

order.

•Rotate Sort: Every other copy set is rotated by 90

degrees and delivered to the copy tray.

You cannot use the bypass tray with the Rotate Sort.

Energy Saving Modes

3 - 14 Copier Functions

Energy Saving Modes

Level 1

Power Consumption:

Reduces power by approximately 40% compared to standby mode.

Warm Up Time:

Approximately 15 seconds.

Level 2

Power Consumption:

Reduces power by approximately 60% compared to standby mode.

Warm Up Time:

Approximately 30 seconds.

Auto Off Timer

After the copy job is finished, the machine automatically turns itself off to conserve

energy. The time that the machine takes to shut off is selectable from 1 to 240 minutes.

Display Contrast

The display contrast is adjustable by using the User Tools. See “Copier Feature Settings”

on page 5-6.

The copier has three levels of Energy Saving modes.

•Level 1

•Level 2

•Auto Shut-Off Mode

These energy saving modes are selectable using the User Codes.

Chapter 4

Copying Methods

Copying Methods

Chapter Overview

Included in this chapter are:

• “Bypass Copying” on page 4-1

• “Combine Copying” on page 4-4

• “Series Copying” on page 4-6

Bypass Copying

Copying Methods 4 - 1

Bypass Copying

1Open the bypass tray.

2Push up the paper guide release lever.

(1) Paper guide release lever

Use the bypass tray to copy onto OHP transparencies, adhesive labels, translucent paper, post

cards, and copy paper that cannot be set in the paper tray.

The machine automatically detects the following paper sizes:

•Letter (8.5 x 11)

•Letter-R (11 x 8.5)

•Legal (8.5 x 14)

•Ledger (11 x 17)

•Statement (5.5 x 8.5)

•Foolscap (8.5 x 13)

Bypass Copying

4 - 2 Copying Methods

3Lightly insert the copy paper face down and

adjust the paper guide.

1 Horizontal size

2 Vertical size

3 Paper Extender

4 Paper Guide

•Do not stack paper over the limit mark;

otherwise a skew image or paper

misfeeds might occur.

•Set the direction of the copy paper to

landscape.

•Swing out the extender to support larger size copy paper (larger than 8 1 /2”× 11").

•Fan paper to get air between the sheets and avoid a multi-sheet feed.

When Copying onto OHP Transparencies

Lightly insert the OHP transparencies face up and

adjust the paper guide.

4Push down the paper guide release lever.

•If you set 8 /2” x 11" or larger copy paper,

hold the edge of the paper and push down

the paper guide release lever.

•If you do not push down the paper guide

release lever, a misfeed might occur.

Bypass Copying

Copying Methods 4 - 3

When Copying onto Non-Standard Size Paper

Note: You should specify the size of copy paper to avoid paper misfeeds

Note: The settings for non-standard size paper can be made only when the

optional document feeder is installed.

1. Press the (#) key.

2. Make sure that “1.Paper Size” is displayed,

then press the OK key.

3. Press the Cursor keys until “Custom size”

is displayed, then press the OK key.

4. Enter the horizontal size of the paper using

the keypad, then press the OK key.

To change the number entered, press the

Clear/ Stop key and enter the new number.

5. Enter the vertical size of the paper using the keypad, then press the OK key.

•To change the number entered, press the {Clear/ Stop} key and enter the new number.

•When you copy onto plain paper, go to step 6.

6. When copying onto thick paper, press the {#} key to return to the Bypass menu.

7. Press the right Cursor key to select “Thick/ OHP”, then press the OK key.

8. Press the OK key.

9. Set originals and press the Start key.

When Copying onto Non-detected Standard Size Paper

1. Press the (#) key.

2. Make sure that “1.Paper size” is displayed,

then press the OK key.

3. Press the Cursor keys until “Standard

Size” is displayed and press the OK key,

4. Press the Cursor keys until the desired size

is displayed. Then press the OK key. When

copying onto plain paper, go to step 5.

5. When copying onto thick paper, press the #

key to return to the Bypass setting menu.

6. Press the right Cursor key to select “2 Paper Type”, then press the OK key.

7. When “THICK/OHP” is displayed, press the OK key.

8. Press the OK key.

9. Set your originals, then press the Start key.

Combine Copying

4 - 4 Copying Methods

Combine Copying

•The number of originals copied (combined) can be 2 or 4.

•In this mode, the machine selects the reproduction ratio automatically. This reproduction

ratio depends on the copy paper sizes and the number of originals.

•You can change the reproduction ratio from 50–200%.

•When you set the originals in the document feeder and the machine is installed the

extension memory, you can change the reproduction ratio from 25–400%

•If the calculated ratio is under the minimum ratio, it is corrected within the range of the

ratio automatically. However, with some ratios, parts of the image might not be copied

or blank margins appear on copies.

•Even if the direction of originals is different from that of the copy paper, the machine

will automatically rotate the image by 90 to make copies properly. (When the Auto

Reduce/Enlarge function is selected.

• You can make copies even if the number of originals is less than the number

required in the selected mode.

• When the number of originals placed is less than the number specified for

combining, the last page(s) will be copied blank as shown in the illustration.

Direction of Originals and Layout of Combined Images

Portrait Originals

Combine copy, combines originals into one copy. You cannot use the Duplex or the Bypass

Tray with this feature. There are two types of copies that you can make in this mode:

1. 1 Sided 2 Pages to Combine 1 Side: Copies two 1-sided originals to one side of a

sheet.

2. 1 Sided 4 Pages to Combine 1 Side: Copies four 1-sided originals together to one

side of a sheet.

Combine Copying

Copying Methods 4 - 5

Landscape Originals

Selecting Combine Copying

1Press the Combine/ Series key.

2Make sure that “Combine” is selected, then

press the OK key.

3Press the Cursor keys until the desired

combine mode is displayed, then press the

OK key.

•In 4 pages mode, you can specify the

orientation of originals when you have

set “Orientation” to “On” in the Copier

Features (“Top to Top” or “Top to

Bottom”).

4Press the Paper Select key to select the copy paper.

5Set your originals.

When Setting Original on the Exposure Glass or in the Document Feeder

1. Set the original, then press the Start key.

2. Set the next original, then press the Start key.

3. To finish copying, press the # key to eject the copy.

When Setting a Stack of Originals in the Document Feeder

1. Set your originals.

2. Then press the Start key.

Series Copying

4 - 6 Copying Methods

Series Copying

Book to 1 Sided

You can make 1–sided copies from 2 facing page of

a bound original (Book).

1Press the Combine/ Series key.

2Press the right Cursor key to select

“Series”, then press the OK key.

3Make sure that “Book to 1 Sided” is selected

and press the OK key.

4Select the paper by pressing the Select Paper

Tray key until the paper you require is

displayed.

5Press the OK key.

6Set your book original on the Exposure Glass, then press the Start key.

You can make one-sided copies from two facing pages of bound (book) originals and from two-

sided originals.

Two methods are available:

Book to 1 Sided: You can make one-sided copies from two facing pages of a bound original

(book). Both pages are copied onto the same side of one page.

2 Sided to 1 Sided:

(The optional document feeder is required.) You can make one-sided copies from two-sided

originals.

Series Copying

Copying Methods 4 - 7

2 Sided to 1 Sided

You can make 1 sided copies from two-sided

originals.

1Press the Combine/ Series key.

2Press right Cursor key to select “Series”,

then press the OK key.

3Press right Cursor key to select 2P >,

4P > 1 symbol. Then, press the OK key.

4Press the Select Paper Tray key until the

paper you require is displayed.

5Select the paper orientation when the

“Orientation” is set to “On” in the Copier Features, then press the OK key.

Otherwise, go to step 6

6Set your originals, then press the Start key.

Series Copying

4 - 8 Copying Methods

Notes:

Chapter 5

User Tools Settings

User Tools Settings

Chapter Overview

Included in this chapter are:

• “System Settings” on page 5-1

• “Copier Feature Settings” on page 5-6

System Settings

User Tools Settings 5 - 1

System Settings

Basic Steps to Accessing System Settings

The tables on the following pages provide you with information necessary to access the System

Settings

Exiting from User Tools

After changing the User Tools settings, press the User Tool key.

Step Procedure to Perform

1Press the User Tools key.

2Press the Cursor keys until “2 Systems Settings” is displayed

3Press the Cursor keys until the desired menu is displayed.

• 1 Function Priority

• 2 Copy Count Display

•3 System Reset

•4 Energy Saver Timer

• 5 Energy Saver Level

• 6 Auto Off TImer

• 7AOF (Keep it on.)

• 8 Special Paper Size

• 9 Pap. Tray Priority

• 10 Auto Tray Switch

• 11 Print Priority

• 12 Display Contrast

• 13 Paper Status

• 14 Key Op. Tools

4Change settings by following the instructions on the panel display.

5Press the OK key.

System Settings

5 - 2 User Tools Settings

Printing the Counter Value

1Press the User Tools key.

2Make sure “1.Counter” is displayed, then press the OK key to view the total number of

prints.

3Press the Print key.

4Press the Start key.

System Settings

User Tools Settings 5 - 3

System Settings

Menu Description

1. Function Priority You can specify the mode to be displayed immediately

after the operation switch is turned on or System Reset

mode is turned on.

Default: Copier

2. Copy Count Display) The copy counter can be set to show the number of copies

made (count up) or the number of copies remaining to be

made (count down).

Default: Up (count up)

3. System Reset The machine returns to its prioritized mode automatically

after your job is finished, after the selected time. This

function is called “System Reset”. The time can be set

from 10 to 999 seconds, or no system reset.

You can specify the prioritized mode with the user tools.

Default: On (60 seconds)

4. Energy Saver Timer The machine enters Low Power mode automatically after

your job is finished, after the selected time. The time can

be set from 1 to 240 minutes.

In Low Power mode, power consumption is reduced by

30% compared with Standby mode. This value applies to

5515 Copier features only.

Default:15 minutes

5. Energy Saver Level You can select the Energy Saver level.

Level 1

• Power Consumption:

Reduced by about 40% compared standby mode.

•Warm-Up Time:

about 15 seconds

Level 2

• Power Consumption:

Reduced by about 60% compared standby mode.

•Warm-Up Time

less than 30 seconds

Default: Level 1

System Settings

5 - 4 User Tools Settings

6. Auto Off Timer The machine turns itself off automatically to conserve

energy after your job is finished, after the selected

time.This function is called “Auto Off”.The time can be set

from 1 to 240 minutes.

Auto Off might not be effective when the machine is in the

following conditions:

• An error message is displayed.

• The remaining memory space for fax mode is less than

100%.

• When originals set in the document feeder.

To return to the ready condition from Auto Off, the

machine requires the same warm-up time as the time for

becoming ready after power is turned on.

When the machine receives a fax or printer data in Auto

Off mode, it automatically prints the fax or the printer data.

Default: 30 minutes

7. AOF (Keep It On.) For details of this function, contact your service

representative.

8. Special Paper Size Select the size of the copy paper set in the paper tray.

If the specified paper size differs from the size of paper

actually set in the paper tray, a paper misfeed might occur

because the paper size is not detected correctly.

The size of paper you can load in the LCT (Large Capacity

Tray) is fixed depending on your locale. However, if you

wish to switch from A4 to 8 1 /2”× 11"or vice-versa,

please contact your service representative.

9. Pap.Tray Priority (for

Copy mode only)

You can select the paper tray which will be selected as a

default in the following conditions:

• When the operation switch is turned on.

•When the Clear Modes key is pressed.

• When Auto Paper Select mode is not selected.

1: Tray 1

2: Tray 2

3: Tray 3 (Paper Bank)

4: Tray 4 (Paper Bank)

Tray 3 and Tray 4 are options.

Default: Tray 1

Menu Description

System Settings

User Tools Settings 5 - 5

10. Auto Tray Switch (for

copy mode only)

If you load paper of the same size in two or more trays, the

machine automatically shifts another tray when the tray in

use runs out of paper. You can set or cancel this setting.

If you put special paper in paper trays using the Special

Paper Indicate menu, the Auto Tray Switch function is

available to these trays only when their settings are

identical.

Default: On

11. Print Priority (setting the

multi-accessing function)

Sets the print priority for each mode.

•“Display”

Print priority is given to the mode displayed on the

display.

•“Copier”

Print priority is given to the copy function.

•“Fax”

Print priority is given to the fax function.

• “Printer”

Print priority is given to the printer function.

• “Interleave”

Prints jobs in the order in which they are initiated

regardless of mode/function.

Output from each function might be mixed. If you want to

avoid such mixing, specify an independent tray for each

feature using “Output Tray Prio.”. When using different

functions, attaching internal tray 2 allows you to specify an

independent tray for each function. If you want to attach

one, contact your local dealer.

Default: Copier

12. Display Contrast You can adjust the brightness of the panel display.

13. Paper Status You can select the condition of the paper (Normal or Dry).

14. Key Op. Tools

1 Show Counter

2 Print Counter

3 Key Op. Access

4 Prog. Key Op. Code

Use to view or print counter and set up user codes.

Menu Description

Copier Feature Settings

5 - 6 User Tools Settings

Copier Feature Settings

Basic Steps to Accessing Copier Feature Settings

The tables on the following pages provide you with information necessary to access the System

Settings

Exiting from User Tools

•You can exit the User Tools mode by pressing the Cancel key.

•If you want to return to copy mode, press the User Tools key.

•The settings are not canceled even if the power switch is turned off or the Clear Modes

key is pressed.

Step Procedure to Perform

1Press the User Tools key.

2Press the Cursor keys until “3 Copier Features” is displayed

3Press the Cursor keys until the desired menu is displayed.

•APS, Auto R/E

•Max. Copy Q’ty

• Adjust Orig Mode

•Set Ratio

• Copy Reset Timer

• SADF Auto Reset

• R. Sort Auto Cont.

• Orig. Orientation

•Sort

• Key Op. Tools

4Search for the desired setting using the Cursor keys.

5Change settings by following the instructions on the panel display.

6Press the OK key.

Copier Feature Settings

User Tools Settings 5 - 7

Copier Features

Menu Description

1. APS.Auto R/E You can select Auto Paper Select or Auto R/E Priority.

When you cancel this setting, select “No”.

Default: Auto Paper Select

2. Max.Copy Q'ty The maximum copy quantity can be set between 1 and 99.

Default: 99

3. Adjust Orig. Mode You can adjust the quality level of copies for each of the

original types. As a default setting, Text is selected as

original type. You can change it to Photo.

Default: Text

4. Set Ratio Select which Reduce, Enlarge, or Input Ratio is shown on

the panel display with priority when the Reduce/ Enlarge

key is pressed.

Default: 50%

5. Copy Reset Timer The machine returns to its initial condition automatically

after your job is finished. The time can be set from 10 to

999 seconds, or Off.

Default: On / 60 sec.

6. SADF Auto Reset When you set one original at a time in the optional

document feeder, the message is displayed. It shows the

document feeder is ready for another original. You can

adjust this time from 3 seconds to 99 seconds in 1 second

steps.

Default: 4 seconds

7. R.Sort Aut.Cont If you select “Off” when the paper tray in use runs out of

paper, the machine stops allowing you to add paper to the

tray so you can have all the copies rotate-sorted.

Default: Off

8. Orientation You can select the paper orientation (“Top to Top” or “Top

to Bottom”).

Default: Off

9. Sort You can select a Sort function.

Default: Rotate Sort

12. Key Op.Tools

If the machine is set to use the User Code function, operators must input their user codes

before the machine can operate. The machine can keep count of the number of copies

made under each user code.

Copier Feature Settings

5 - 8 User Tools Settings

1. User Code Access Specify whether to employ user codes to restrict copier

users and manage the number of copies made.

Default: Off

2. Check Copy Counter You can check the number of copies made under each user

code.

3. Print Counter List You can print counter lists.

4. Reset Counter You can check the number of copies made under each user

code. You can also reset each user code's counter to 0.

5. Clear all User Codes You can clear all user codes.

• The number of copies made under the old code is added

to that made under the new user code.

• The number of copies made under the deleted code is

also deleted.

6. Reset All Counters You can reset each user code's counter to 0.

7. Program User Code You can register user codes.

Up to 50 user codes (8 digits or less) can be registered.

8. Change User Code You can change user codes.

The number of copies made under the old code is added to

that made under the new user code.

9. Delete User Code You can delete user codes.

The number of copies made under the deleted code is also

deleted.

Menu Description

Chapter 6

Service and Supplies

Service and Supplies

Chapter Overview

Included in this chapter are:

• “Loading Paper” on page 6-1

• “Changing Paper Size” on page 6-3

• “Changing the Toner Cartridge” on page 6-7

• “Clearing Paper Misfeeds” on page 6-9

• “When the Machine Does Not Operate Properly” on page 6-10

• “When Copies are Not Clear” on page 6-11

• “Can Not Make Proper Copies” on page 6-12

• “Cleaning the Copier” on page 6-13

Loading Paper

Service and Supplies 6 1

Loading Paper

Loading Paper in Trays 1 and 2

1Pull out the paper tray until it stops.

2Press the metal plate down, then, sSquare the

paper and set it in the tray.

•If there is paper in the tray, remove it and

and together with the new paper, place it

in the paper tray. This reduces a possible

paper misfeed.

•Do not stack paper over the limit mark.

3Push the paper tray in until it stops.

Paper Trays 1 and 2: maximum of 250 sheets of paper.

Optional System Stands: maximum of 500 sheets of paper in each paper tray.

Loading Paper

6 - 2 Service and Supplies

Loading Paper in the System Stand

1Make sure that the optional paper tray unit is not being used.

2Pull out the paper tray until it stops.

3While pinching the release lever, adjust the back fence.

4Square the paper and set it in the tray

Changing Paper Size

Service and Supplies 6 3

Changing Paper Size

Changing the Paper Size in the Paper Tray or the System Stand

1Pull out the paper tray until it stops.

Remove any remaining copy paper.

2While pressing the release lever, adjust the back paper guide.

•For Paper Trays 1 and 2

•For the System Stand

Two procedures for changing the paper size are given below.

•The first is for changing the paper size in Paper Tray 1 or the optional System Stand

• The second is for changing the paper size in Paper Tray 2.

Note: Please check you are following the appropriate procedure before you

start.

Important Be sure to select the paper size with the user tools. Otherwise, misfeeds might occur.

Changing Paper Size

6 - 4 Service and Supplies

3Press down the release button.

4While pressing the release lever, adjust the

side paper guides.

5Push the metal plate down. (This is for Trays

1 and 2)

Note: Do not stack paper over the limit

mark.

Changing Paper Size

Service and Supplies 6 5

6Square the paper and set it in the tray.

7While pressing the release lever, adjust the

side and back paper guides to the new paper

size.

Note: When setting small quantities of

copy paper, be careful not to squeeze in

the side paper guides too much or paper

will not be fed properly.

8Press down the lock button.

9Adjust the tray size with the paper size

selector to the new paper size.

Note: If you cannot find your desired

paper size, select “*”, then set the copy

paper size with the “11 Special Pap.Size”

setting in the System Settings.

10 Push the paper tray in until it stops.

Changing Paper Size

6 - 6 Service and Supplies

Setting Non-Standard Size Paper

1Press the Select Paper Tray key to select the second paper tray.

2Then press the # key.

3Press the Cursor keys until the paper size you want to use is displayed.

When the Paper Size Require is Displayed

Press the OK key.

When the Paper Size Required is not Displayed

You can also specify the tray size with the User Tools

1. Press the Cancel key, then press the right Cursor key to display “Custom Size”.

2. Enter the horizontal size then press the OK key.

3. Enter the vertical size then press the OK key.

4Press the OK key.

Changing the Toner Cartridge

Service and Supplies 6 7

Changing the Toner Cartridge

1Open the Front Cover.

2Pull out on the handle on the Toner Bottle

Holder until the Toner Bottle holder is fully

opened.

3Pull the green lever and gently pull the Toner

Bottle out.

4Hold a new Toner Bottle horizontally and

shake it five or six times to loosen the toner.

Note: Do Not remove the cap before

shaking the Toner Bottle.

Changing the Toner Cartridge

6 - 8 Service and Supplies

5Remove the outer cap.

Note: Do not remove the Inner Cap.

6Place the new Toner Bottle in position, turn it

clockwise, then return the green lever back to

its closed position.

7Return the Toner Bottle Holder to its original

position.

8Close the Front Cover of the copier.

Clearing Paper Misfeeds

Service and Supplies 6 9

Clearing Paper Misfeeds

CAUTION

When removing misfed paper, do not touch the fusing section because

it could be very hot

•Important:

When clearing misfeeds, do not turn off the power switch. If you do, your copy settings

are cleared.

•To prevent misfeeds, do not leave any torn scraps of paper within the machine.

•If paper misfeeds occur repeatedly, contact your service representative.

More than one misfed areas may be indicated. In

this case, check every applicable area. You can find

a label on the inside of the front cover explaining

how to remove misfed paper.

When the machine instructs you to reset originals, reset your originals to the feeding

position. The display will indicate the number of originals you should return. When

removing misfed paper, do not touch the fusing section because it could be very hot.

When the Machine Does Not Operate Properly

6 - 10 Service and Supplies

When the Machine Does Not Operate Properly

Message

Display

Machine Status Problem/Cause Action

Please wait The machine is warming up Wait for the machine to warm

up.

Cannot detect original size. Improper original is set Set non-standard size original

on the exposure glass

Input the horizontal and vertical

size of the custom original.

Select paper manually, not in

Auto Paper Select mode.

Do not use Auto Reduce/

Enlarge mode.

Original is not set. Set your originals.

Check original orientation. There is no copy paper that is in

the same direction as the

original.

Set the original in the same

direction as the copy paper.

Check paper size. Improper paper size is set. Select proper paper size.

You cannot enter the desired

copy set number.

The number of copies exceeds

the maximum copy quantity.

You can change the maximum

copy quantity that you can

make at a time.

The machine instructs you to

set the key counter.

---------------------- Set the key counter.

Problem Problem/Cause Action

The display panel is off. The machine is in Energy Saver

mode.

Turn on the operation switch.

The operation switch is turned

off.

The main power switch is

turned off

Nothing happens when the

operation switch is turned on.

The Main Power switch is

turned off.

Turn the Main Power switch on.

The power cord is unplugged. Plug the power cord in securely.

When Copies are Not Clear

Service and Supplies 6 11

When Copies are Not Clear

Problem Cause Action

Copies appear dirty. The image density is set too

dark

Adjust the image density.

The reverse side of an original

image is copied.

The image density is set too

dark.

Adjust the image density.

A shadow appears on copies if

you use pasted originals.

The image density is too dark. Adjust the image density.

Change the direction of the

originals.

Put tape on the pasted part.

The same copy area is dirty

whenever making copies.

The exposure glass or

document feeder is dirty.

Clean them.

Copies are too light. The image density is set too

high.

Adjust the image density.

Damp or rough grained paper is

used.

Use the recommended dry

paper.

Toner cartridge is almost

empty.

Add toner.

Parts of the image is not copied. The original is not set correctly. Set the original correctly.

An improper paper size is

selected.

Select proper paper size.

Copies are blank. The original is not set properly. When using the exposure glass,

set the originals face down.

When using the document

feeder, set the originals face

down.

A watery or wavy pattern is

produced on copies.

Your original has a dot pattern

image or many lines.

Place the original on the

exposure glass at a slight angle.

Can Not Make Proper Copies

6 - 12 Service and Supplies

Can Not Make Proper Copies

Combine

Problem Cause Action

Parts of the image are not

copied.

You specified an improper

reproduction ratio that does not

meet the sizes of your originals

and copy paper.

When you specify a

reproduction ratio using Manual

Paper Select mode, make sure

the ratio matches your originals

and the copy paper.

NOTE: Select the correct

reproduction ratio before using

Combine mode.

Order of copies is not correct. You set originals in the incorrect

order.

When setting a stack of

originals in the document

feeder, the last page should be

on the bottom.

If originals are set on the

exposure glass, start with the

first page to be copied.

Cleaning the Copier

Service and Supplies 6 13

Cleaning the Copier

Cleaning the Machine

Wipe the copier with a soft, damp cloth and then dry it.

Do not use chemical cleaner or organic solvent, such as thinner or benzene. If they get into the

copier of melt plastic parts, a failure might occur.

Do not clean parts other than those specified in this Operator Guide. Such parts should be cleaned

by your service representative.

Cleaning the Exposure Glass

Clean the Exposure Glass using a clean dry cloth.

Cleaning the Document Feeder Belt

Clean the Document Feeder Belt using a dry clean

cloth.

A dirty Exposure Glass or Document Feeder Belt may have an effect on the quality of your

copies. Inspect them and clean as necessary.

Cleaning the Copier

6 - 14 Service and Supplies

Notes:

Chapter 7

Specifications

Specifications

Chapter Overview

Included in this chapter are:

• “Main Copier Unit” on page 7-1

• “Document Feeder - option” on page 7-4

• “1 Tray System Stand - option” on page 7-5

• “2 Tray System Stand - option” on page 7-6

• “16MB Copier Memory Unit - option” on page 7-6

Main Copier Unit

Specifications 7 - 1

Main Copier Unit

Configuration:

• Desktop

Photosensitivity type:

• OPC drum (30)

Original scanning:

• One-dimensional solid scanning system through CCD

Copy process:

• Dry electrostatic transfer system

Development:

• Dry two-component magnetic brush development system

Fusing:

• Heating roll system

Resolution:

• 600 dpi

Exposure glass:

• Stationary original exposure type

Original reference position:

• Rear left corner

Warm-up time:

• Less than 20 seconds

Originals:

• Sheet/book/objects

Maximum original size:

• 11"× 17"

Main Copier Unit

7 - 2 Specifications

Copy paper size:

• Trays: 11"× 17" to 5 1 /2”× 8 1 /2”

• Bypass: 11"× 17" to 5 1 /2”× 8 1 /2”

• Bypass (non-standard size): Vertical: 3.6"–12.0” Horizontal: 6.0"–49.6”

• Duplex: 11"× 17" to 8 1 /2”× 11"

• Paper Bank: 11"× 17" to 5 1 /2”× 8 1 /2”

Copy paper weight:

• Paper tray 1, 2 (Standard size): 16 –24 lb.

• Bypass tray: 14 –43 lb.

• Paper Bank: 16 –28 lb.

Non-reproduction area:

• Leading edge: 2 ± 1.5mm

• Trailing edge: more than 0.5mm

• Left edge: 2 ± 1.5mm

• Right edge: more than 0.5mm

First copy time:

• 6.9 seconds or less (8 1 /2”× 11", 100%, feeding from 1st paper tray)

Copying speed

5515:

• 15 copies/minute (8 1 /2”× 11")

• 9 copies/minute (11” x 17”) with optional 16 MB memory installed

• 8 copies/minute (11” x 17”) without optional 16 MB memory installed

5518

• 18 copies/minute (8 1 /2”× 11")

• 10 copies/minute (11” x 17”)

Reproduction ratio:

Preset reproduction ratios:

• Enlargement: 155%, 129%, 121%

• Full Size: 100%

• Reduction: 93%, 78%, 65%, 50%

Zoom:

• From 50% to 200% in 1% steps.

Main Copier Unit

Specifications 7 - 3

Continuous copying count:

• 1 –99 copies

Copy paper capacity:

• 1st and 2nd paper trays: 250 sheets (20 lb.)

Power consumption:

Mainframe only

• Warm up: 880W

• Stand-by: approximately 125Wh

• Copying: 450Wh

• Maximum: 1100W

Full system

• Warm up: 890W

• Stand-by: approximately 125Wh

• Copying: 450Wh

• Maximum: 1200W

Dimensions (W x D x H up to exposure glass):

• 5515: 21.65"× 22.36"× 16.54"

• 5518: 21.65"× 22.36"× 20.39"

Noise Emission (ISO7779 Sound Power Level)

Based on actual measurement

Mainframe only:

• Copying: 60.1 dB(A)

• Stand-by: 39.1 dB(A)

Complete system:

• Copying: 62.9.5 dB(A)

• Stand-by: 39.61 DB(A)

Weight:

• 5515: 77.16 lb.

• 5518: 92.81 lb.

Note: Specifications are subject to change without notice.

Document Feeder - option

7 - 4 Specifications

Document Feeder - option

Mode:

• ADF/RADF mode, SADF mode

Original size:

• 11"× 17" to 5 1 /2”× 8 1 /2”

Original weight:

• 1-sided originals: 14 –28 lb.

Number of originals to be set:

• 30 sheets, 20 lb.

Maximum power consumption:

• Less than 25W (power is supplied from the main frame.)

Dimensions (W x D x H):

• 21.7"× 18.6"× 3.6"

Weight:

• Approximately15.4 lb.

Note Specifications are subject to change without notice.

1 Tray System Stand - option

Specifications 7 - 5

1 Tray System Stand - option

Copy paper weight:

• 16 –28 lb.

Available paper size:

• 5 1 /2”× 8 1 /2”, 8 1 /2”× 11", 8"× 13", 8 1 /2”× 13", 8 1 /2”× 14", 8 1 /4”× 13", 11"× 17",

7 1 /4”× 10 “

Maximum power consumption:

• 23W (power is supplied from the main frame.)

Paper capacity:

• 500 sheets, 20 lb.)

Dimensions (W x D x H):

• 21.7"× 20.5"× 5.36"

Weight:

• Approximately 26.4 lb.

Note: Specifications are subject to change without notice.

2 Tray System Stand - option

7 - 6 Specifications

2 Tray System Stand - option

Copy paper weight:

• 16 – 28 lb.

Available paper size:

• 5 1 /2”× 8 1 /2”, 8 1 /2”× 11", 8"× 13", 8 1 /2”× 13", 8 1 /2”× 14", 8 1 /4”× 13",

11"× 17", 7 1 /4”× 10”

Maximum power consumption:

• 28W (power is supplied from the main frame.)

Paper capacity:

• 500 sheets, 20 lb. (2 trays)

Dimensions (W x D x H):

• 21.7"× 20.5"× 10.7"

Weight:

• Approximately 55.2 lb.

Note: Specifications are subject to change without notice.

16MB Copier Memory Unit - option

Memory capacity:

•16MB

Additional functions:

• Increase copier features, allowing you to use theoptional document feeder, Sort, Combine

or Printing counter features.

Number of originals that can be stored:

• Approximately 30 pages (reference value based on ITU-T No.4 chart)

Agency Certifications

Specifications 7 - 7

Agency Certifications

USA RFI

This equipment generates and uses radio frequency energy. If not installed and used properly, i.e.,

in strict accordance with these operating instructions, it may cause harmful interference to radio

communications. It has been tested and found to comply with the limits for a Class A computing

device pursuant to Subpart J of Part 15 of FCC rules, which are designed to provide reasonable

protection against such interference when operated in a commercial environment.

Operation of this equipment in a residential area is likely to cause interference, in which case the

user will be required to take whatever measures may be required to correct the interference at their

own expense.

Canada RFI

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital

apparatus as set out in the Radio Interference Regulations of the Canadian Department of

Communications.

Cet appareil numerique ne depasse pas les limites de Categorie A pour les emissions de bruit radio

emanant d'appareils numereques, tel que prevu dans les Reglements sur I'Interference Radio du

Department Canadien de Communications.

This product complies with the requirements of the EMC Directive 89/336/EEC, Low

Voltage Directive 73/23/EEC, and the Harmonisation Directive 93/68/EEC.

Lanier Worldwide, Inc.

Im Taubental 6

41468 Neuss 1

Germany

Agency Certifications

7 - 8 Specifications

UL

The 5515 AG and 5518 AG digital copiers are intended for use in areas with 120V, 60 Hz, AC line

voltage. You should ensure you are connecting your equipment into the proper line voltage.

EPA Energy Star

The United States Environmental Protection Agency (EPA) has introduced a voluntary program,

the Energy Star Program, to encourage the widespread and voluntary use of energy-efficient

technologies that enhance the workplace, improve product performance, and prevent pollution. As

an Energy Star Partner, Lanier Worldwide, Inc. has determined Lanier’s 5515/5518 copiers meet

the Energy Star guidelines for energy efficiency. Energy Star guidelines require that all Energy

Star copiers have an ’OFF MODE’ feature that automatically turns the copier off after a period of

inactivity, ensuring night and weekend shut-off.

In addition to the above requirements, the 5515/5518 copiers have been successfully been tested

with the following recycled paper:

•Lanier Recycled Copy Paper: 50% of Fiber Weight recycled with minimum 20% post-

consumer waste.

Note: Specifications are subject to change without notice.

Paper Sizes

Specifications 7 - 9

Paper Sizes

Type Paper Size Size

USA STATEMENT

LETTER

LEGAL

COMPUTER

LEDGER

FOOLSCAP and

OFFICIO

5.5 x 8.5 inches

8.5 x 11 inches

8.5 x 14 inches

10.125 x 14 inches

11 x 17 inches

8.5 x 13 inches

140 x 216mm

216 x 279mm

216 x 356mm

257 x 356mm

279 x 432mm

216 x 330mm

UK FOOLSCAP 8 x 13 inches 203 x 330mm

EUROPE FOLIO 8.25 x 14 inches 210 x 356mm

DIN A0=841 x

1189mm

A1=594 x 841mm

A2=420 x 594mm

A3=297 x 420mm

A4=210 x 297mm

A5=148 x 210mm

A6=105 x 148mm

B0=1000 x

1414mm

B1=707 x 1000mm

B2=500 x 707mm

B3=353 x 500mm

B4=250 x 353mm

B5=176 x 250mm

B6=125 x 176mm

C0=917 x 1297mm

C1=647 x 917mm

C2=458 x 648mm

C3=324 x 458mm

C4=223 x 324mm

C5=162 x 223mm

C6=114 x 162mm

B-FORMAT ISO 216

JAPAN

ISO 216

JAPAN

ISO 216

JAPAN

B4=353 x 250mm

B4=364 x 257mm

B5=250 x 176mm

B5=257 x 182mm

B6=176 x 125mm

B6=182 x 129mm

Enlargement and Reduction Percentages

7 - 10 Specifications

Enlargement and Reduction Percentages

Type Inch Version Metric Version

Enlargement 400% 400%

200% 200%

155% 141%

129% 122%

121% 115%

Full Size 100% 100%

Reduction 93% 93%

85% 87%

78% 82%

73% 71%

65% 65%

50% 50%

32% 35%

25% 25%

Glossary

Chapter Overview

Definitions for the most often used terms are listed here.

G-1

Copier Terms

% (percentage) The ratio of the original image size to the copied image size. If the copy

image is larger than the original, the % number is larger. A copied image

that is twice the size of the original is said to be 200%. If the copy image

is smaller than the original, the % number is lower. A copied image that is

half the size of the original is said to be 50%.

10-key pad The portion of the Control Panel with numerical keys. These keys are

used primarily to input the desired number of copies and are also used to

input numerical data into the copier during programming.

Book Originals Any bound original that cannot be fed through the Feeder. Because the

pages cannot be separated, they must be copied manually from the

Exposure Glass. The Book Original features can be used to make the

book copying process more efficient.

Bypass Feed Tray A Tray used to feed single sheets of special or transparent stock into the

copier to be copied. Because sheets from this tray feed straight through

the copier paper path, the Tray is especially useful for feeding heavy

stock. See also: Stack Feed Bypass Tray.

Casual Operator An operator that uses the copier to make copies but does not have Key

Operator responsibilities such as adding Toner or calling for service.

Charge Corona A device located near the Drum that activates the light sensitivity of the

Drum and prepares it to be exposed and imaged.

Cleaning Unit An assembly that cleans any residual image toner from the Drum in

preparation for the next image.

CLEAR/STOP Key The Key used to stop a copy job while it is still running. It may also be

used to clear program functions from a previous job and return to the

default settings.

Control Panel The surface at the front of the copier containing Keys used to control the

operation of the copier. It usually also contains the display that shows the

status of the copier or the job in progress.

Copies The imaged paper output from a copier. It might be a direct reproduction

of the input document or it can contain any number of changes as

programmed into the copier such as Enlargement/Reduction, Trim/Mask,

etc.

Copies in Progress This display or part of a display shows how many copies of the total have

been made.

Copies Selected This display is the same as Copy Quantity, in that it shows the number of

copies requested.

G-2

Copy Paper See: paper

Copy Quantity This display or part of a Touch Screen shows the requested number of

copies.

Copy Size Keys Keys used to input the desired size of the copy.

Darker Copies This term refers to the amount of toner placed on the copy through the

imaging process. The amount of toner is controlled by the “darkness” of

the original and the amount of light used during the exposure process;

more light means less toner or image density.

Developer Material This is a supply used in the copier. It usually consists of two parts; a

carrier material and the toner. The developer material is only used by a

technician when installing a new unit or when cleaning a Developer Unit.

Developer Unit An assembly located near the drum inside the copier that delivers the

toner to the drum. It allow the correct amount of toner to be placed on the

drum for each image.

Document Feed Tray The Tray where an original document is placed to feed into an ADF for

automatic feeding and copying.

Document Guide These Guides are located in the Document Feed Tray. When correctly

positioned against the sides of an original document, they help to position

the pages of the document.

Document Receiving

Tray

A Tray used to accumulate the pages of an original document that have

completed the copying process.

Document Scale Two scales located to the front and left of the Exposure Glass intended to

help locate original documents placed on the Glass for manual copying

and to identify a part of an original during the Editing process.

Documents The set of pages either placed on the Exposure Glass or in the ADF to be

copied.

Drum Assembly The unit located inside the copier that receives the image during the

exposure and imaging process and transfers this image to the copy paper.

It is light sensitive and should be protected from bright lights.

Duplexed Copies Copies that have been imaged on both sides of the sheet.

Energy Saver Key A Key used to place the copier into, or bring it out of an Energy Saver

Mode. In the Energy Saver Mode, the amount of energy consumed by the

copier is reduced.

Energy Star A voluntary program introduced by the United States Environmental

Protection Agency (EPA) intended to encourage the use of energy-

G-3

efficient technologies in the workplace. Requirements to qualify for

certification vary based on the speed of a Copier. For specifics on your

Copier, check the Specifications section of this Guide.

Exit Tray A tray attached to the output end of the copier to collect copies. This tray

is usually removed when a Sorter or Finisher is installed. In this case, the

top tray of the Sorter or Finisher serves as the Exit Tray.

Exposure Glass The glass surface located under the Document Cover or Document

Feeder. The original is placed here to make a copy. If an RADF is present,

it transports the original to this location. Once here, the original is

exposed by the Exposure Lamp located directly below the glass.

Exposure Lamp The light source located directly below the Exposure Glass. It is the light

from this lamp that exposes the original, reflects off the original, travels

through the optics and exposes the Drum.

Exposure Pad A Pad located on the bottom side of a Document Cover used to hold an

original in place on the Exposure Glass during the exposure process.

Factory Default A setting in the copier that is set at the factory. You can change some of

these settings. Others can be changed by a Service Technician. See also

Initial Setting.

Front Cover The Cover located at the front of the copier designed to allow access to

the interior of the copier. This allows the operator to add supplies, remove

paper misfeeds, or perform other maintenance as prescribed by the

Operator Guide.

Fused Toner The image, usually black, that adheres to the surface of the copy paper.

This Toner is “Fused” to the surface of the paper using pressure and heat.

Fuser Assembly The unit located inside the exit area of the copier that provides heat and

pressure to attach the toner to the paper surface.

Fuser Cleaning Pad In certain copiers, it is necessary to clean toner residue and paper dust

from the Fuser Rollers. This provides extended life of the Rollers and

cleaner copies. At certain intervals, this pad must be replaced.

Graphic Display A Display that shows icons related to service or supply related error

condition. In some copiers, these icons may be incorporated into a graphic

representation of the copier to show the approximate position of an error.

Gray Scale A term referring to the shades of gray between the black and the white

areas on an original or copy. Normal copies reduce the shades of gray to

produce very dense blacks and clean whites. During the photo copy

modes, the copier is set to reproduce the shades of gray more faithfully,

but usually at the expense of the black density.

Initial Settings Those settings displayed by a copier when it comes to the READY

G-4

condition. These settings may be either the Factory Default settings, or

Factory Default settings that have been modified permanently by either

you or your Service Technician to better fit your application.

Interrupt Key The Key used to interrupt a long copy job in process in order to run a

single copy. Interrupt copies are limited to one, and the interrupt original

must be copied from the Exposure Glass.

Key Operator The main operator responsible for the copier. This individual performs all

operator prescribed maintenance and is the main contact in the event of a

service call.

Lighter Copies This term refers to the amount of toner placed on the copy through the

imaging process. The amount of toner is controlled by the “darkness” of

the original and the amount of light used during the exposure process;

more light means less toner or image.

Message Display This display or part of a Touch Screen shows messages related to the

status of the copier, Help messages and program information.

On/Stand by Switch A switch located on the exterior of the copier used to control the power to

the copier.

Original Cover On copiers not equipped with a Document Feeder, a Cover protects the

Exposure Glass and prevents stray light from entering the copier during

the copy process. Unless copying a 3-dimensional object, the cover

should be down.

Original Direction

Indicator

This icon instructs the operator which direction to place the document in

the Document Feeder or on the Exposure Glass. This is particularly

helpful when different paper sizes are available and when certain features

are used such as; when reducing a legal sheet to letter-size paper, the icon

would instruct you to feed the original lengthwise.

Paper Tray A paper carrier designed as part of the base of the copier. It is used to

store and feed a stack of paper of one size. Some are designed to be

adjusted but can only accommodate one size at a time.

paper weight Throughout the Operator Guide there are references to 20 lb. or 24 lb.

paper. This refers to a standard measuring technique. A certain number of

sheets cut to a particular size weighs 20 or 24 pounds. The weight

specification usually correlates with the thickness of the paper. It also

generally implies stiffness with the lighter papers being more limber and

the heavier papers being stiffer. Copiers are designed to feed certain

weight papers through the Drawers or Cassettes. Heavier stock, such as

cover stock, can be fed through the Bypass Feed Tray.

Power Cord The cord used to connect the copier to the power receptacle. The plug

design is specified depending on the amount of power the copier requires.

Make sure the receptacle is the correct one for your copier.

G-5

READY Indicator This is an indicator that shows when the copier has warmed up and is

ready to make copies. It appears in several forms; a light, an icon, and the

message itself.

Release Lever The lever located inside the Front Cover used to release the Upper Unit

for access to the paper path.

Separation Corona One of the Coronas inside the copier. It is usually located near the Drum

and separates the paper from the Drum. Because it attracts the toner, and

since it is located below the paper, it has a tendency to get dirty. This can

require the Key Operator to either clean the coronas or call for service.

Sheet Feed Bypass A tray that opens from the side of the machine, usually just above the

Primary Paper Tray or LCC. It is designed to feed a single sheet at a time.

This tray can be used to feed paper or transparency stock that would

normally not be placed in the Feed Drawers. Since it bypasses the normal

paper feeding mechanism and feeds straight through the paper path,

heavier stocks (like cover stock) feed better.

Sorter An accessory attached to the output of a copier designed to perform a

sorting function. The sort function allows you to make multiple copy sets

of an original in such a way that the pagination matches the original

document.

Stack Feed Bypass

Feed Tray

A tray that opens from the side of the machine, usually just above the

LCC or Primary Paper Tray, and is designed to feed a stack of paper. This

tray can be used to feed paper or transparency stock that would normally

not be placed in the Feed Drawers. Since it bypasses the normal paper

feeding mechanism and feeds straight through the paper path, heavier

stocks (like cover stock) feed better.

Stack Key This key is used to program the Stack functions. This is available only if a

Sorter or Finisher is present. In the stack mode, multiples of a single page

of a document are placed in separate Sorter Trays or are offset in the

Finisher Tray.

Start Key This Key is used to start the copying process once all selections have been

made. On a Lanier copier, it is always green in color.

Toner The black powder that is used to form the image on copy paper. In a color

copier, it would be colored. PLEASE NOTE: Toners are designed to

operate specifically in a copier and differ greatly on the copier

requirements. Toner from other copiers should never be mixed. At best,

the image would be too light or too dark. At worst, it can damage your

copier and require a service call to have the toner cleaned out and

replaced with the correct toner.

Toner Container A container designed to simplify the reloading of toner in your copier.

G-6

Make sure the toner you add is correct for your copier before loading. See

the NOTE above.

Transparencies A clear plastic stock used to make an overhead transparency. Because

they are clear, they don’t feed from paper Drawers or Cassettes. However,

many Bypass Feed Trays are designed to handle transparency stock. Place

your transparency stock in the Bypass Feed Tray and use a normal copy

procedure.

Transport Belt The rubber surface on the under side of an ADF. It grips an original and

moves it across the Exposure Glass and returns it to the Document Exit

Area of the Document Feeder. To keep it operating correctly and to

prevent the buildup of dirt which can cause dirty copies, it must be

cleaned periodically.

User Codes An option, usually built into a copier that, when activated by a

Technician, requires the operator to enter a User Code to make copies.

The copier can contain many accounts thereby allowing the Key Operator

to track copies made by individuals or departments.

Zoom Keys The Zoom Keys are actually several keys that control the Enlargement or

Reduction of the image on the copy. In most cases, there is a 100% (actual

size) key, a key representing the highest Enlargement ratio, and a key

representing the lowest Reduction ratio. Pressing these last two keys steps

the copier optics in 1% increments. Pressing the 100% key returns the

copier to the actual size mode.

Index

I - 2

A

Access codes 3-1

Agency certifications

Canada RFI 7-7

EPA energy star 7-8

USA RFI 7-7

Auto image density 3-6

Auto reduce/enlarge 3-10

Auto start 3-4

B

Bypass copying 4-1

C

Certifications

Canada rfi 7-7

EPA energy star 7-8

USA rfi 7-7

Combine copying 4-4

Copy

darkness/lightness 1-4

option table 1-4

quantity 1-4

reduction/enlargement 1-4

Copy darkness modes

auto image density 3-6

manual 3-6

Copy paper, selecting 3-8

Copy quantities 3-5

Copy ratio keys, preset 3-11

Copying

2 sided to 1 sided 4-7

book to 1 sided 4-6

bypass 4-1

combine 4-4

series 4-6

transparencies 4-1, 4-2

D

Display contrast 3-14

Document

placing original 1-2

Document feeder 3-2

precautions 3-2

E

Energy saver mode

entering 3-14

Energy saving mode 3-14

Energy star

explained 7-8

Enlargement / reduction percentages 7-

10

Enlargement ratio 3-10

Enlargement reduction ratios

preset copy ratio keys 3-10

Exposure modes 3-6

F

Feeding

stack of originals 3-3

G

Glossary G-1

I

Important safeguards 1

M

Main power switch 1-1, 1-2

turning copier power ON 1-2

Making copies 1-2

Manual exposure 3-6

Misfeeds 6-7, 6-9

N

Non detected standard size paper 4-3

Non standard size paper 4-3

O

Operation key 1-1, 1-2

Original type

generation 3-7

pale 3-7

photo 3-7

selecting 3-7

text 3-7

text-photo 3-7

P

Paper

international sizes 7-9

loading 6-1

misfeeds 6-7, 6-9

size comparisons 7-9

Paper select

auto 3-8

manual 3-9

Paper sizes

table 7-9

Paper,selecting 3-8

Power switch 1-2

Preset copy ratio keys 3-11

R

RADF

stack feeding 3-3

Ratios

enlargement and reduction table 7-

10

Reduction ratio 3-10

Rotate sort 3-13

S

Series copying 4-6

Sizes

standard paper sizes 7-9

Sort 3-13

Specifications

1 tray system stand 7-5

16mb copier memory 7-6

2 tray system stand 7-6

document feeder 7-4

main copier unit 7-1

System setting

window 1 of 6 5-7

window 2 of 6 5-7

I - 3

System settings

accessing 5-1

exiting 5-1

T

Toner cartridge, changing 6-7

Troubleshooting 6-10

Turning on copier 1-2

U

UL 7-7

User codes

entering 3-1

User codes, entreing 3-1

User tools

copier feature settings 5-6

copy 5-1

system 5-1

system settings 5-1

Z

Zoom keys 3-12

Warranty

New Machine Warranty and Limitation of Liability

Warranty — 90 days

Lanier warrants that its equipment and accessories will be free from

defective parts and workmanship for a period of ninety (90) days from the

date of first installation by Lanier’s Authorized Dealer. Customers must

notify a Lanier servicing dealer or Lanier of a warranty claim within the

warranty period. For a listing of authorized Lanier servicing dealers or to

notify Lanier of a warranty claim, write to Lanier Worldwide, Inc., 2300

Parklake Drive, N.E., Atlanta, Georgia 30345-2979.

Warranty Exclusions

THE FOREGOING EXPRESS WARRANTY IS MADE IN LIEU OF ALL

OTHER PRODUCT WARRANTIES, EXPRESS OR IMPLIED,

INCLUDING MERCHANTABILITY AND FITNESS AND THOSE

ARISING FROM A COURSE OF DEALING OF USAGE OF TRADE.

The Express Warranty will not apply to drums, cleaning blades, fuser

cleaning felts, toner, developer or paper or to defects of damage incurred in

transportation, or due to accident; neglect; misuse such as use of harmful or

unapproved supplies; alterations; operator error; power surges; failure to

properly install, clean, maintain, or repair; improper operating environment;

or failure to provide proper utilities. The Express Warranty also will not

apply to used or refurbished Lanier equipment unless Lanier expressly

authorizes resale with its original equipment warranty.

Limitation of Liability

Fulfillment of Lanier’s warranty obligation shall be the Customer’s

exclusive remedy and Lanier’s and the Lanier Dealer’s limit of liability for

any breach of warranty or otherwise. In no event will Lanier or Lanier’s

Dealers be responsible or liable for special, incidental or consequential

losses or damages.

Customer Vision® _

our commitment to your

complete satisfaction

Lanier Worldwide, Inc. | 2300 Parklake Drive, N.E. | Atlanta, GA USA 30345

www.lanier.com

your document management partner

B0397901 T1202-5383
